Open AccessArticle
Energies 2018, 11(1), 100; doi:10.3390/en11010100

Circuit Breaker Rate-of-Rise Recovery Voltage in Ultra-High Voltage Lines with Hybrid Reactive Power Compensation

1
School of Electrical Engineering, Shandong University, Jinan 250061, China
2
Rizhao Power Supply Company of State Grid Shandong Electric Power Company, Rizhao 276826, China
*
Author to whom correspondence should be addressed.
Received: 18 November 2017 / Revised: 15 December 2017 / Accepted: 27 December 2017 / Published: 2 January 2018
(This article belongs to the Section Electrical Power and Energy System)
View Full-Text   |   Download PDF [3112 KB, uploaded 3 January 2018]   |

Abstract

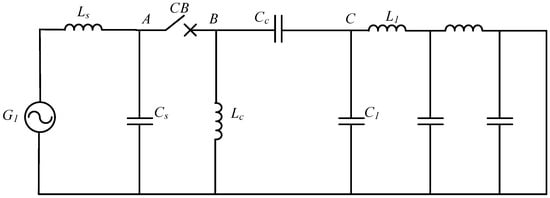

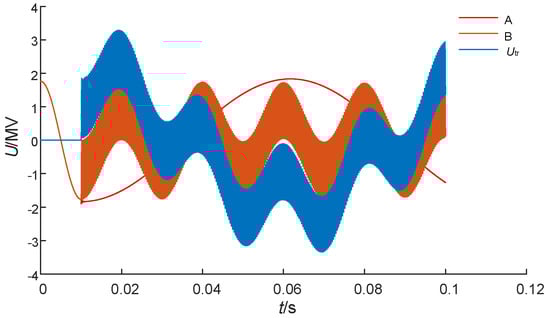

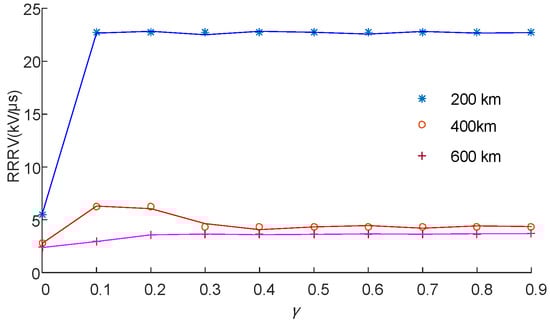

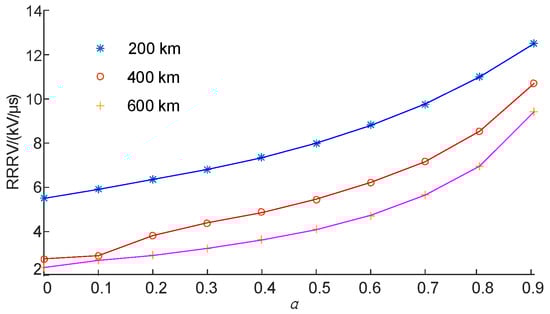

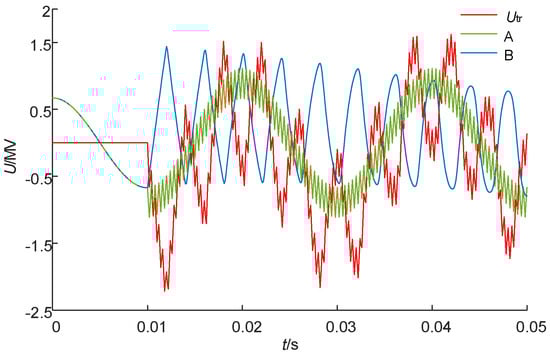

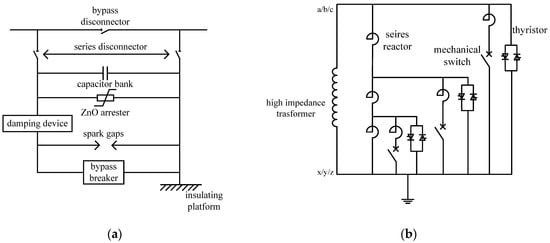

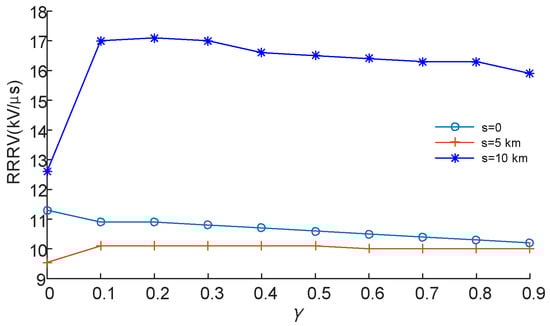

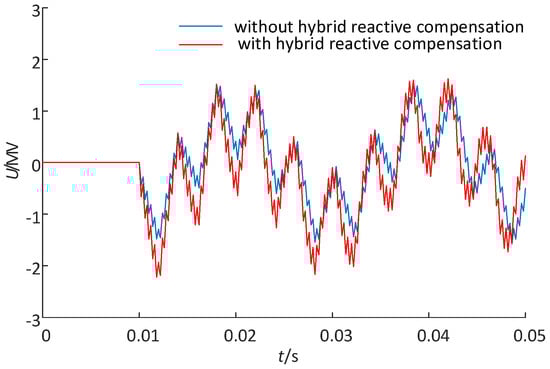

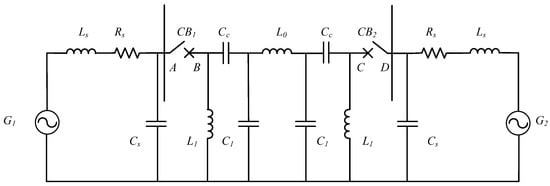

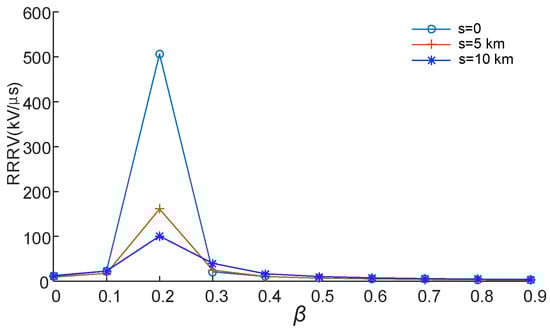

With the development of ultra-high voltage (UHV) technology, hybrid reactive power compensation (HRPC) will be widely applied in the future. To study the mechanism by which HRPC influences the characteristics of circuit breakers in UHV transmission lines, this paper establishes an improved electromagnetic coupling transmission line model for out-of-phase and short-line faults. Based on the HRPC equivalent model, a simulation analysis was performed on the characteristics of the circuit breaker when a fault occurs. Using an equivalent lumped parameter circuit, the rate-of-rise of recovery voltage (RRRV) computational formula was deduced and computed. The RRRV variation in the circuit breakers in the system, with and without HRPC, was obtained. Given the circuit breaker interruption characteristics, the research results provide an analysis foundation and a theoretical basis for optimizing the HRPC parameters and selecting the arrangements of circuit breakers in an UHV transmission line. View Full-Text
Keywords: hybrid reactive power compensation; circuit breaker; rate-of-rise of recovery voltage (RRRV) hybrid reactive power compensation; circuit breaker; rate-of-rise of recovery voltage (RRRV)
Figures

Figure 1
