Energies 2017, 10(7), 928; doi:10.3390/en10070928

Power Balancing Control for Grid Energy Storage System in Photovoltaic Applications—Real Time Digital Simulation Implementation

1
Department of Energy and Power Electronics, School of Electrical Engineering, VIT University, Vellore 632014, India
2
Department of Electrical and Electronics Engineering, University of Johannesburg, Auckland, Johannesburg 2006, South Africa
3
Faculty of Engineering, Østfold University College, Kobberslagerstredet 5, 1671 Kråkeroy, Fredrikstad, Norway
*
Author to whom correspondence should be addressed.
Academic Editor: Sergio Saponara
Received: 19 May 2017 / Revised: 29 June 2017 / Accepted: 30 June 2017 / Published: 5 July 2017
View Full-Text   |   Download PDF [3333 KB, uploaded 6 July 2017]   |

Abstract

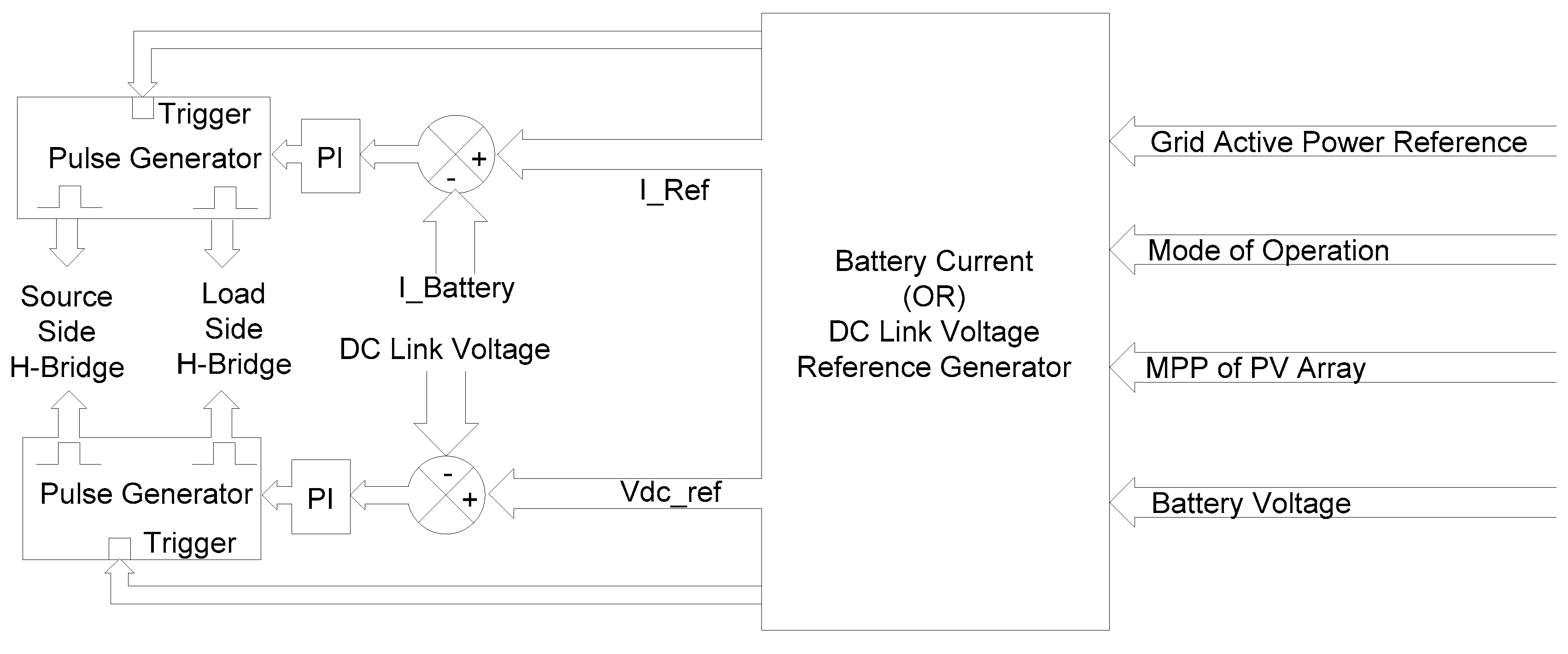

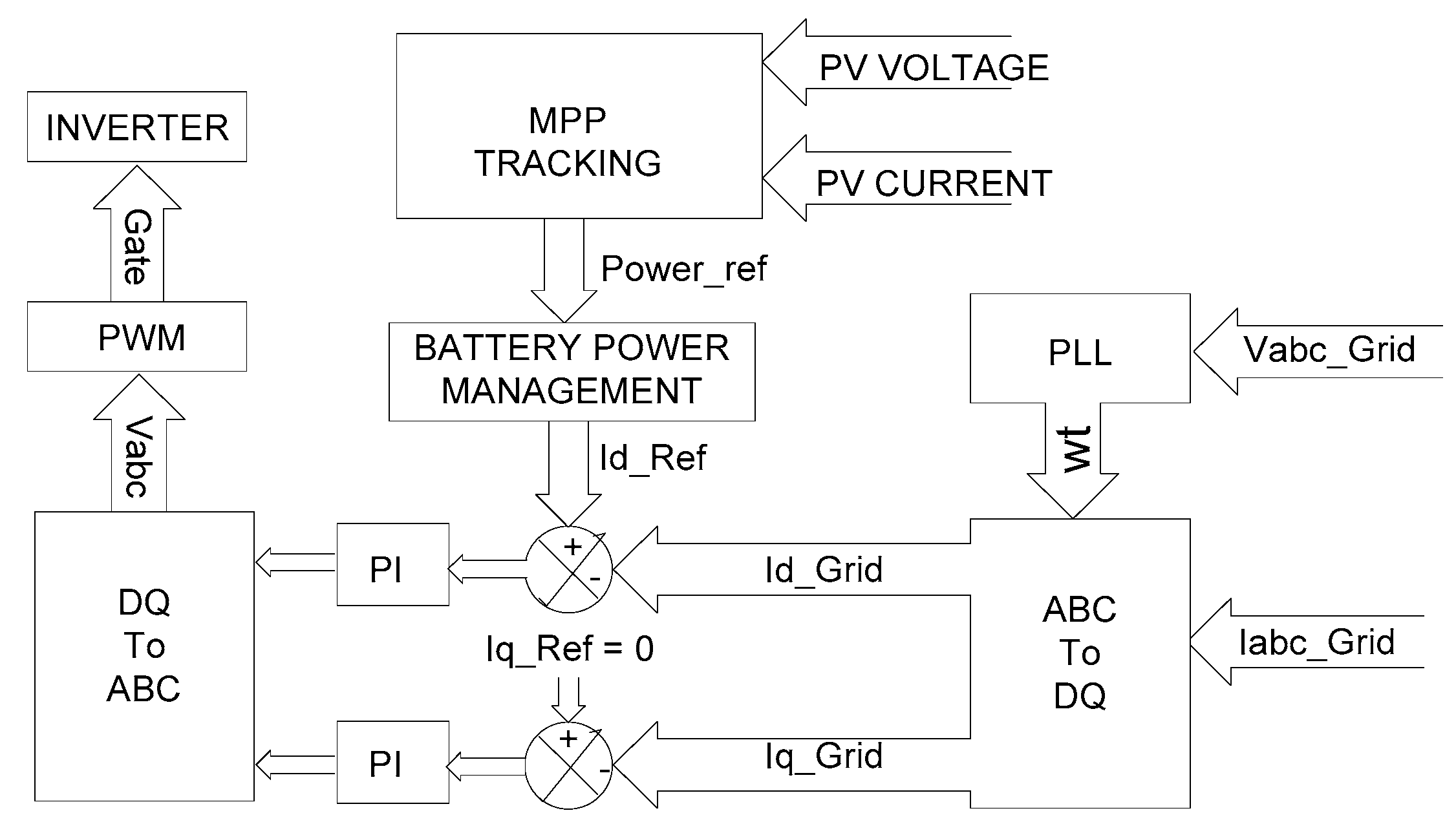

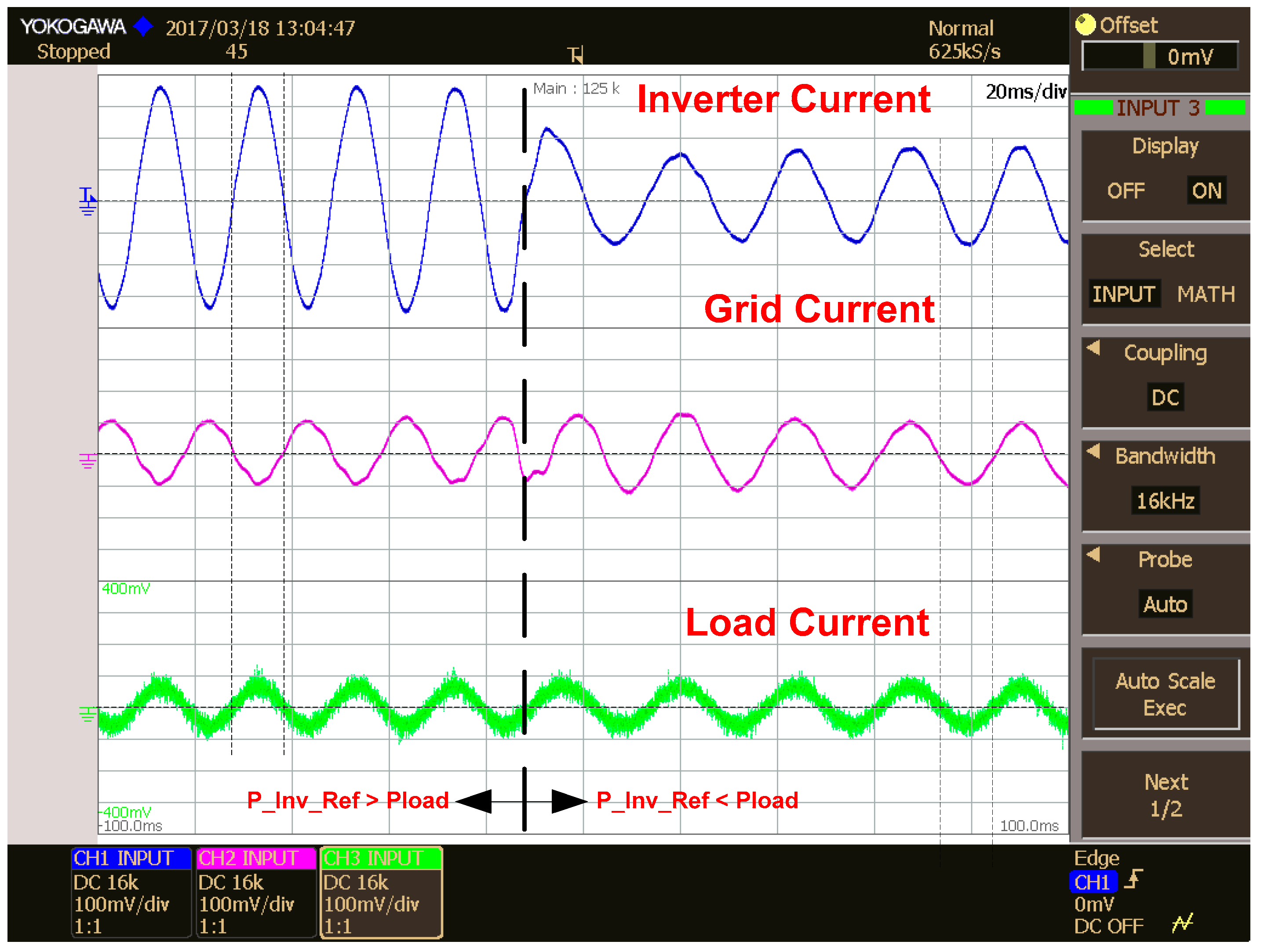

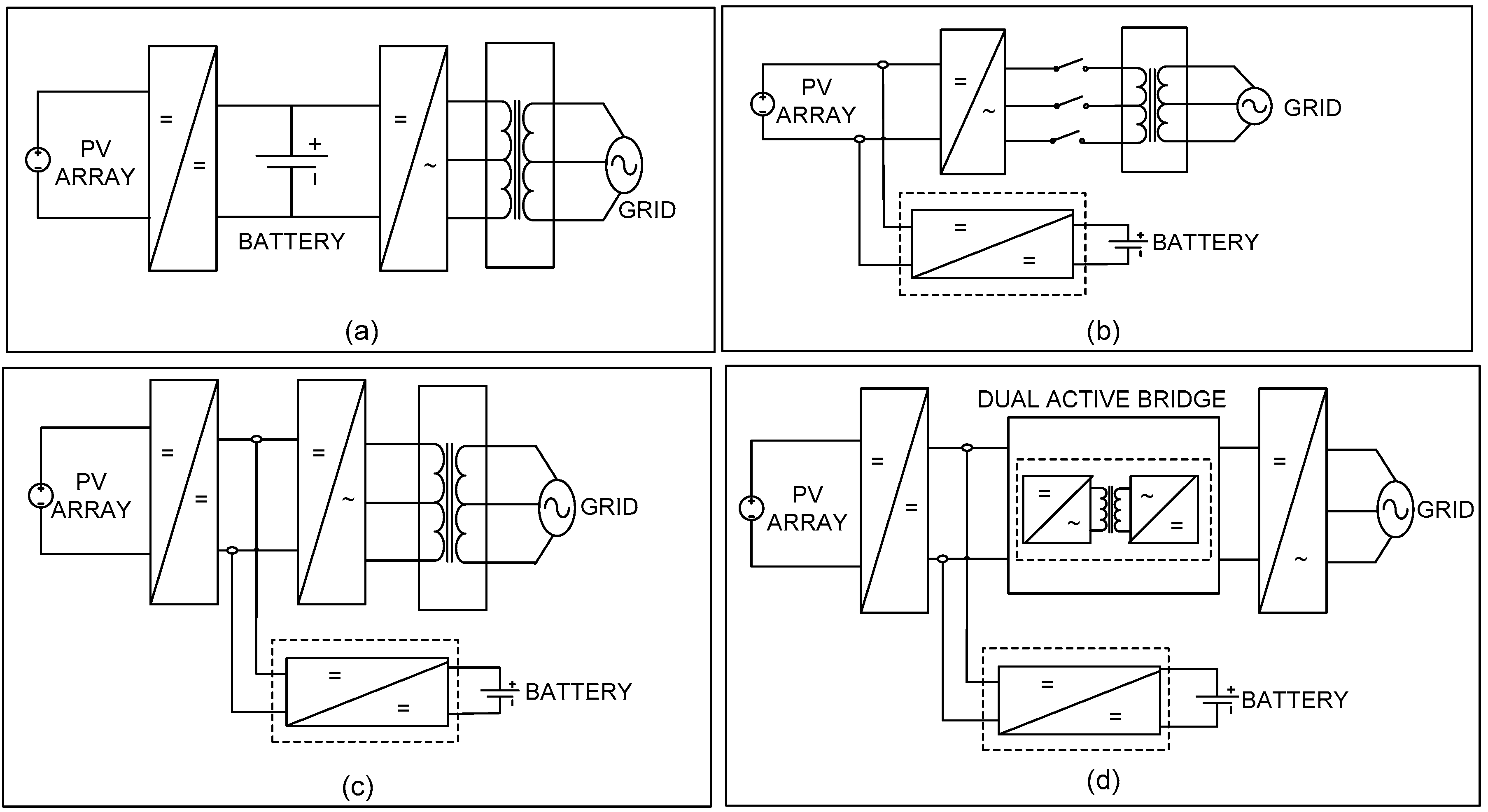

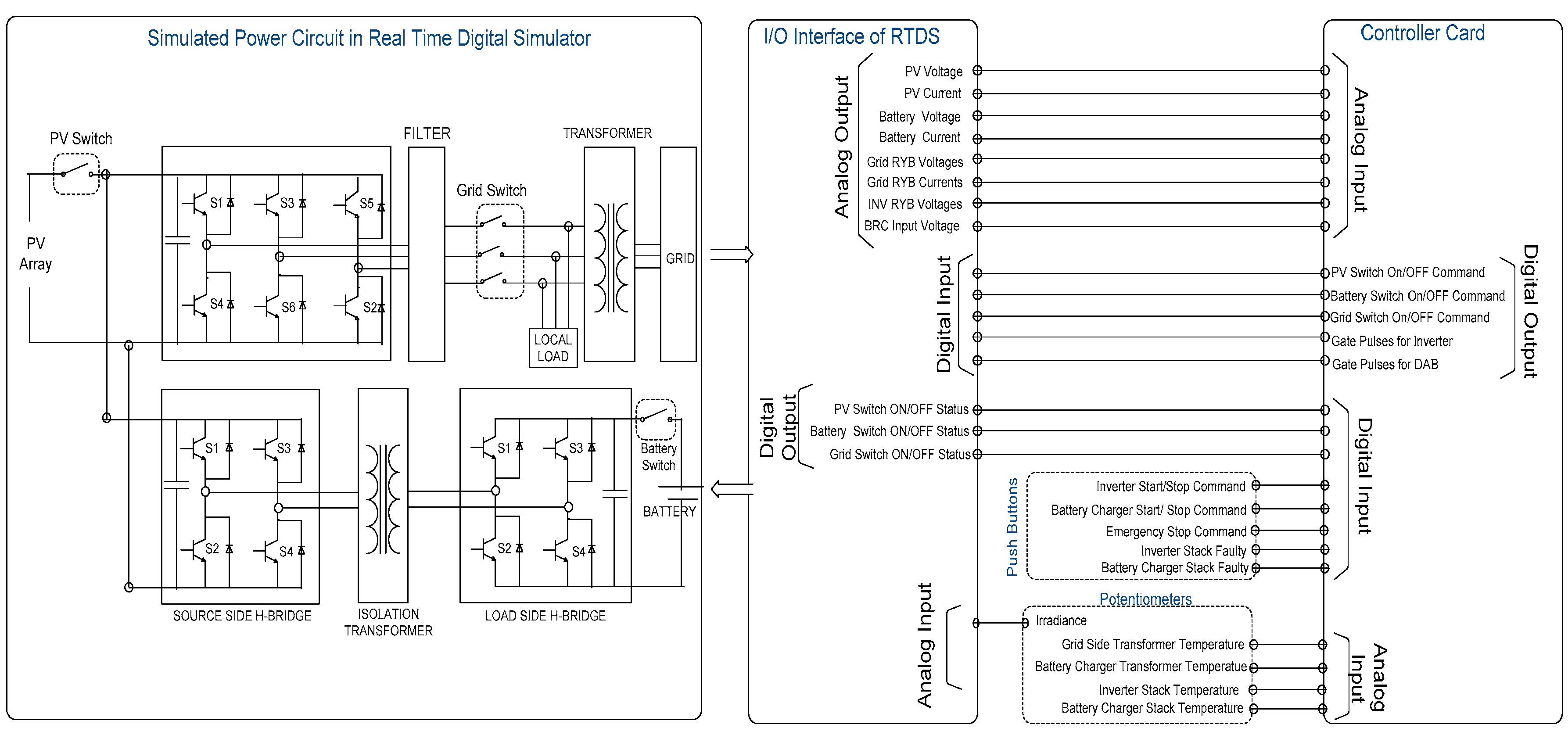

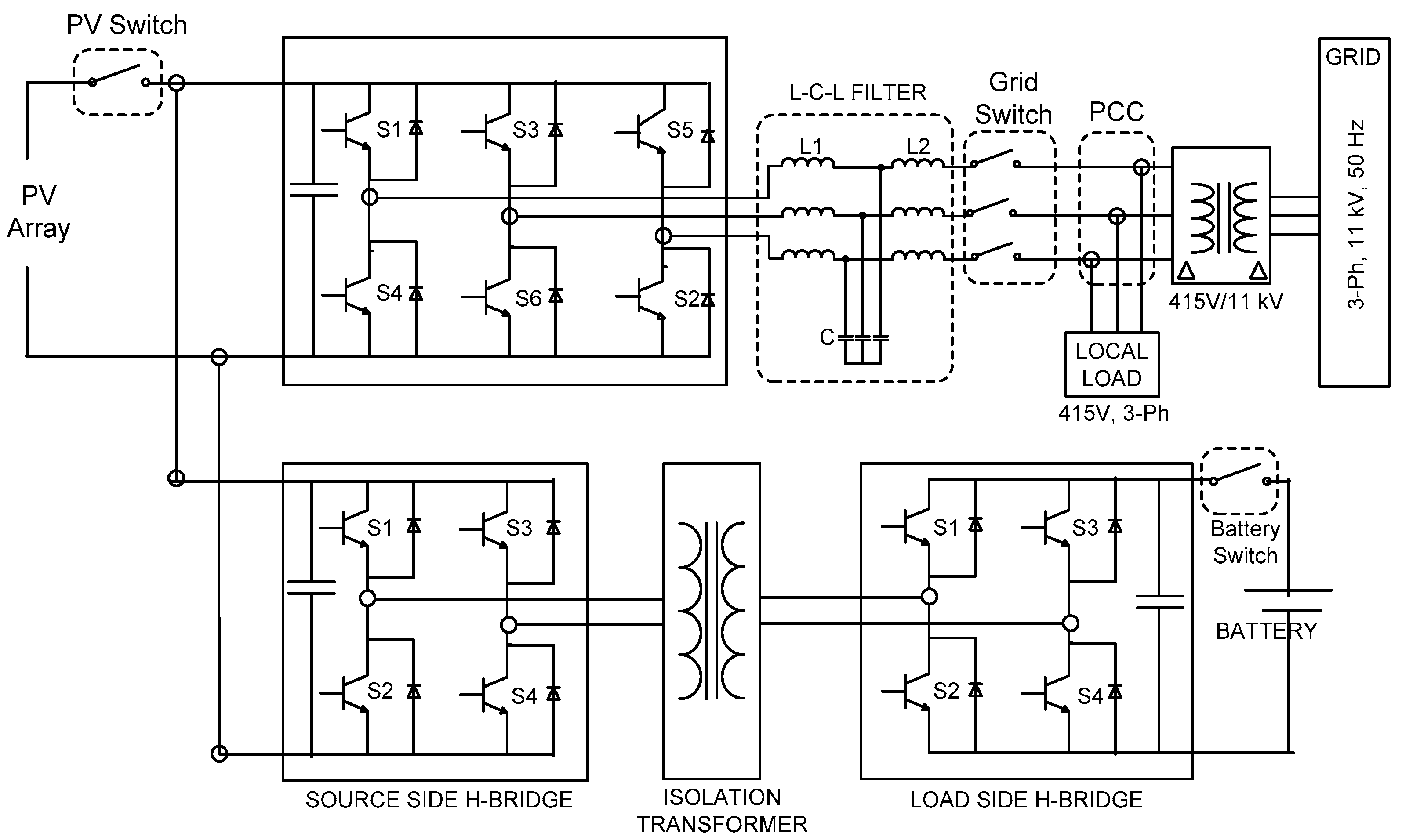

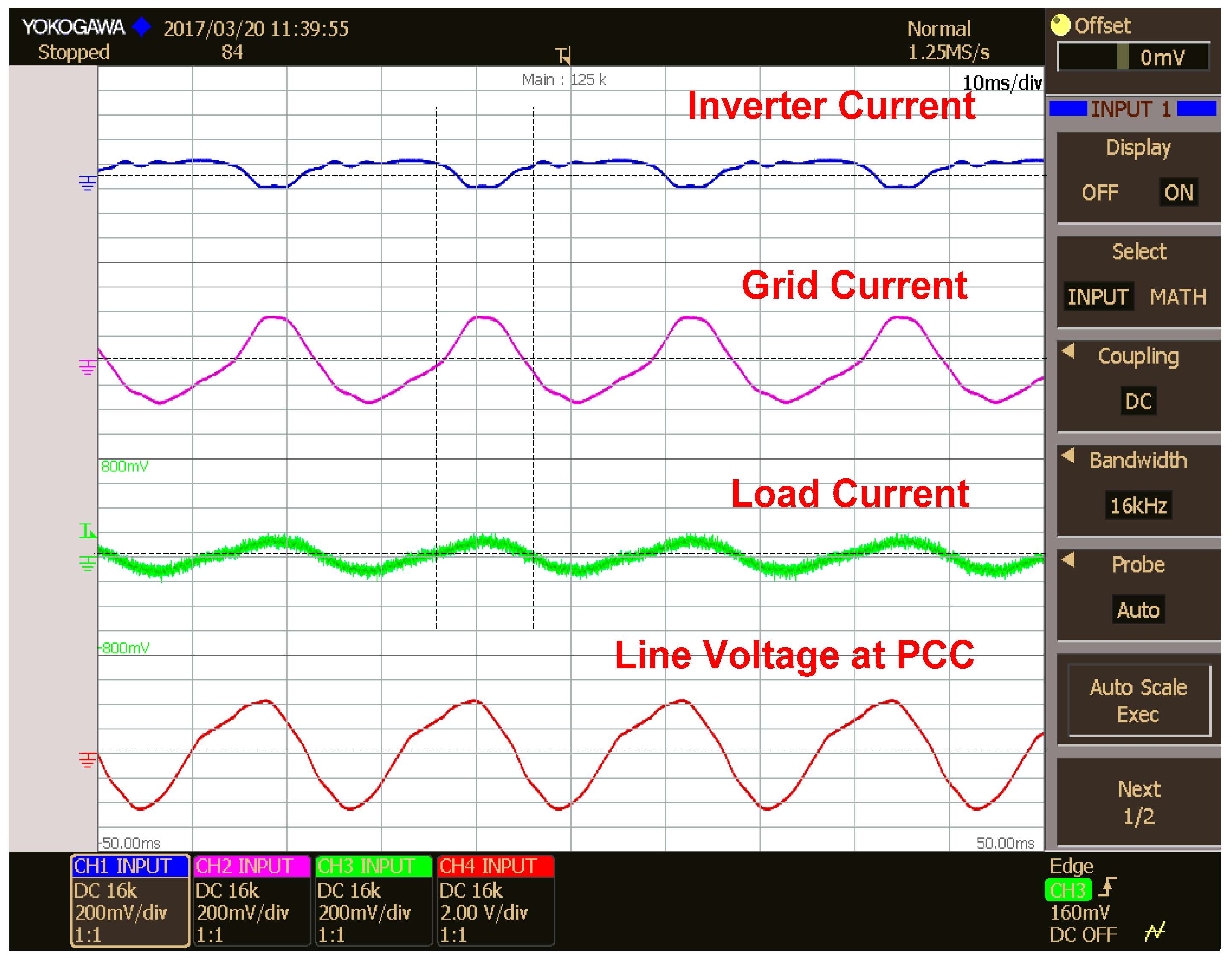

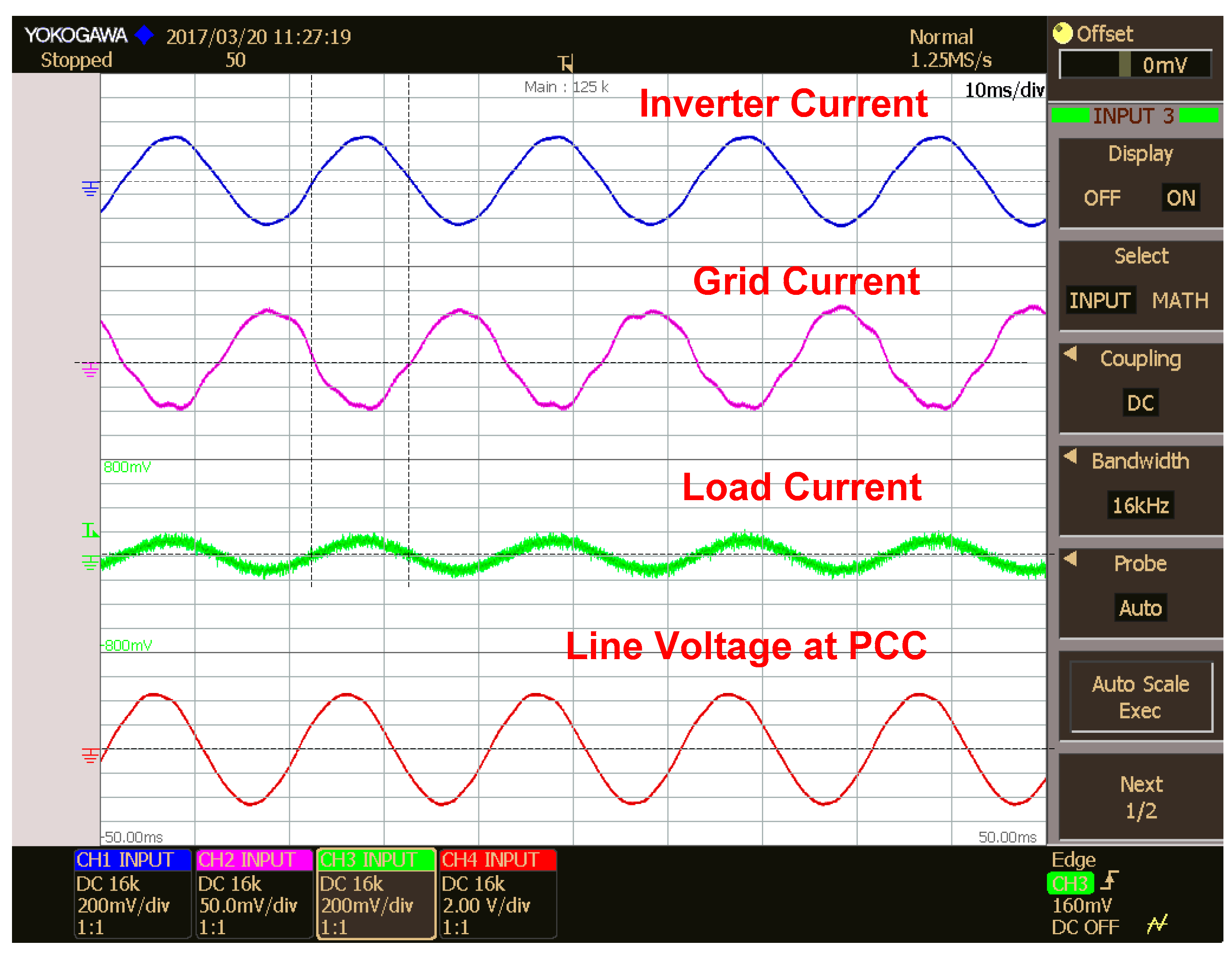

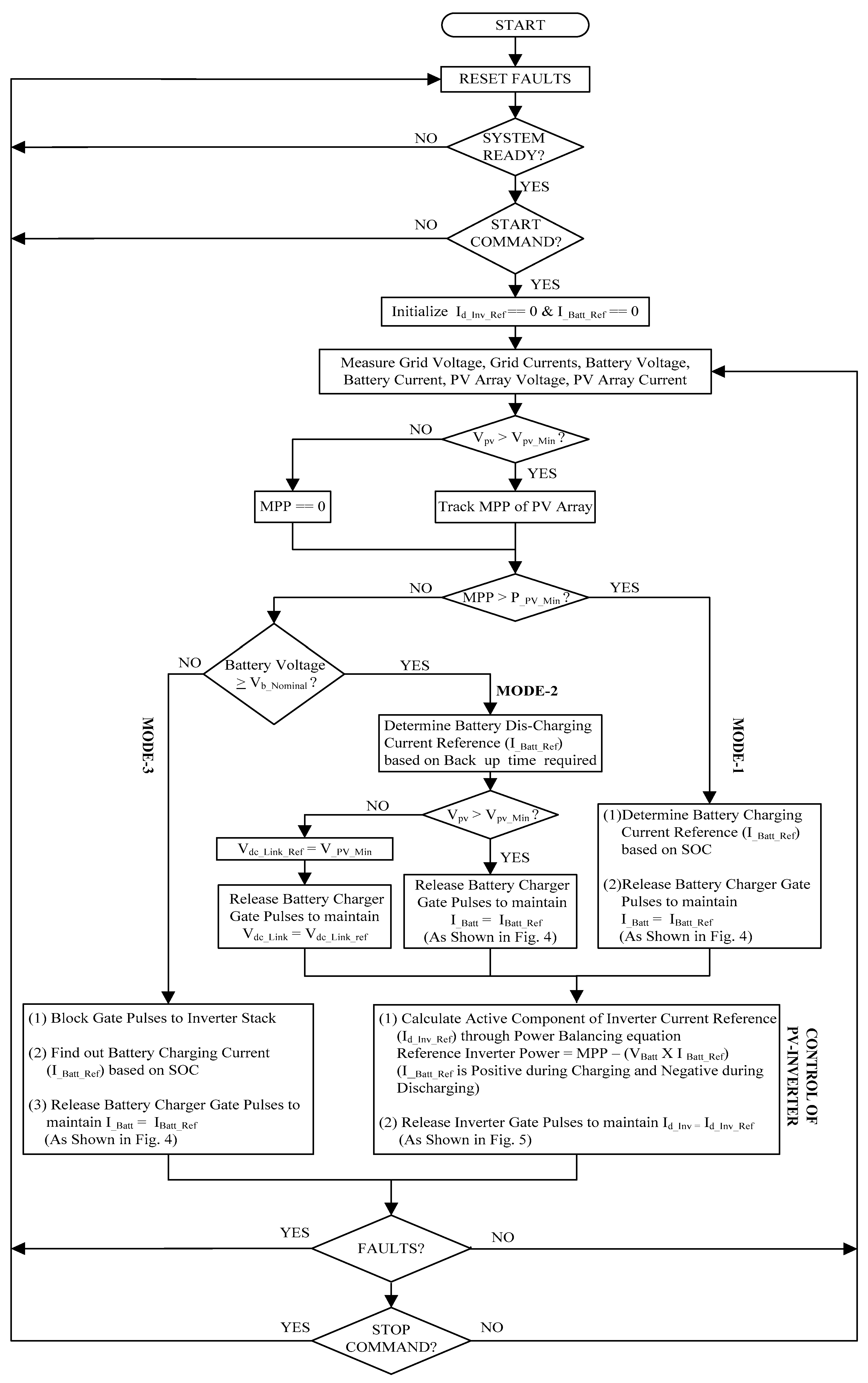

A grid energy storage system for photo voltaic (PV) applications contains three different power sources i.e., PV array, battery storage system and the grid. It is advisable to isolate these three different sources to ensure the equipment safety. The configuration proposed in this paper provides complete isolation between the three sources. A Power Balancing Control (PBC) method for this configuration is proposed to operate the system in three different modes of operation. Control of a dual active bridge (DAB)-based battery charger which provides a galvanic isolation between batteries and other sources is explained briefly. Various modes of operation of a grid energy storage system are also presented in this paper. Hardware-In-the-Loop (HIL) simulation is carried out to check the performance of the system and the PBC algorithm. A power circuit (comprised of the inverter, dual active bridge based battery charger, grid, PV cell, batteries, contactors, and switches) is simulated and the controller hardware and user interface panel are connected as HIL with the simulated power circuit through Real Time Digital Simulator (RTDS). HIL simulation results are presented to explain the control operation, steady-state performance in different modes of operation and the dynamic response of the system. View Full-Text
Keywords: active power control; battery charging; dual active bridge; energy storage system; hardware-in-the-loop; LCL filter active power control; battery charging; dual active bridge; energy storage system; hardware-in-the-loop; LCL filter
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Vavilapalli, S.; Padmanaban, S.; Subramaniam, U.; Mihet-Popa, L. Power Balancing Control for Grid Energy Storage System in Photovoltaic Applications—Real Time Digital Simulation Implementation. Energies 2017, 10, 928.
