Open AccessArticle
Energies 2017, 10(7), 869; doi:10.3390/en10070869

Investigating a Small Oil-Flooded Twin-Screw Expander for Waste-Heat Utilisation in Organic Rankine Cycle Systems

Chair of Fluidics, Faculty of Mechanical Engineering, TU Dortmund University, 44227 Dortmund, Germany
*
Author to whom correspondence should be addressed.
Received: 7 April 2017 / Revised: 25 May 2017 / Accepted: 6 June 2017 / Published: 28 June 2017
View Full-Text   |   Download PDF [3855 KB, uploaded 29 June 2017]   |

Abstract

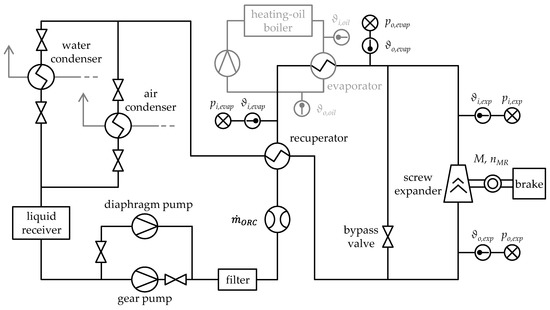

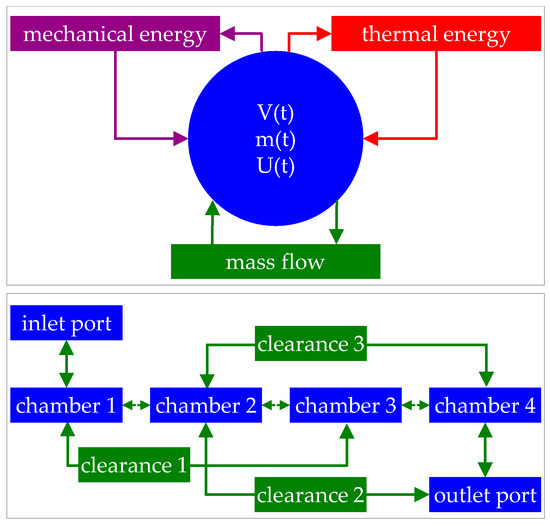

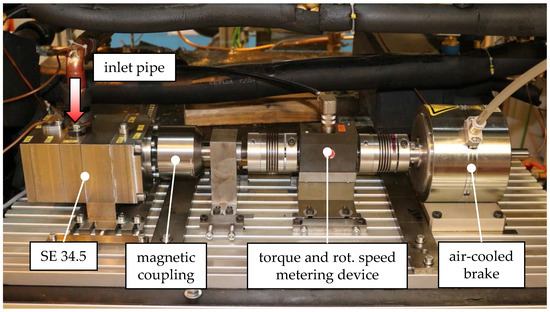

Screw-type expanders offer excellent prospects for energy conversion in lower and medium power ranges, for instance as expansion engines in Rankine cycles with regard to either waste or geothermal heat recovery. With the aim of identifying the potential in organic Rankine cycle (ORC) power systems, an oil-flooded twin-screw expander without timing gears was designed and experimentally investigated in an ORC with R245fa as working fluid. Here, the scope for the experimental determination of the expander characteristic map was limited by the test rig specifications. Based on the experimental results, a multi-chamber model of the test twin-screw expander was calibrated and theoretical approaches according to mechanical and hydraulic loss calculation were applied. Consequently, the expander’s complete characteristic map could be calculated. Furthermore, relevant mechanisms influencing the operational behaviour of oil-flooded twin-screw expanders were identified and analysed in-depth. View Full-Text
Keywords: small oil-flooded twin-screw expander; low-grade waste-heat recovery; organic Rankine cycle power system; R245fa small oil-flooded twin-screw expander; low-grade waste-heat recovery; organic Rankine cycle power system; R245fa
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
