Energies 2017, 10(6), 760; doi:10.3390/en10060760

Robust Frequency and Voltage Stability Control Strategy for Standalone AC/DC Hybrid Microgrid

1
School of Electronics and Information Engineering, Kunsan National University, Kunsan 573-540, Korea
2
Department of Control and Robotics Engineering, Kunsan National University, Kunsan 573-540, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Wenxin Liu
Received: 21 March 2017 / Revised: 18 May 2017 / Accepted: 25 May 2017 / Published: 30 May 2017
(This article belongs to the Special Issue Advanced Operation and Control of Smart Microgrids)

Abstract

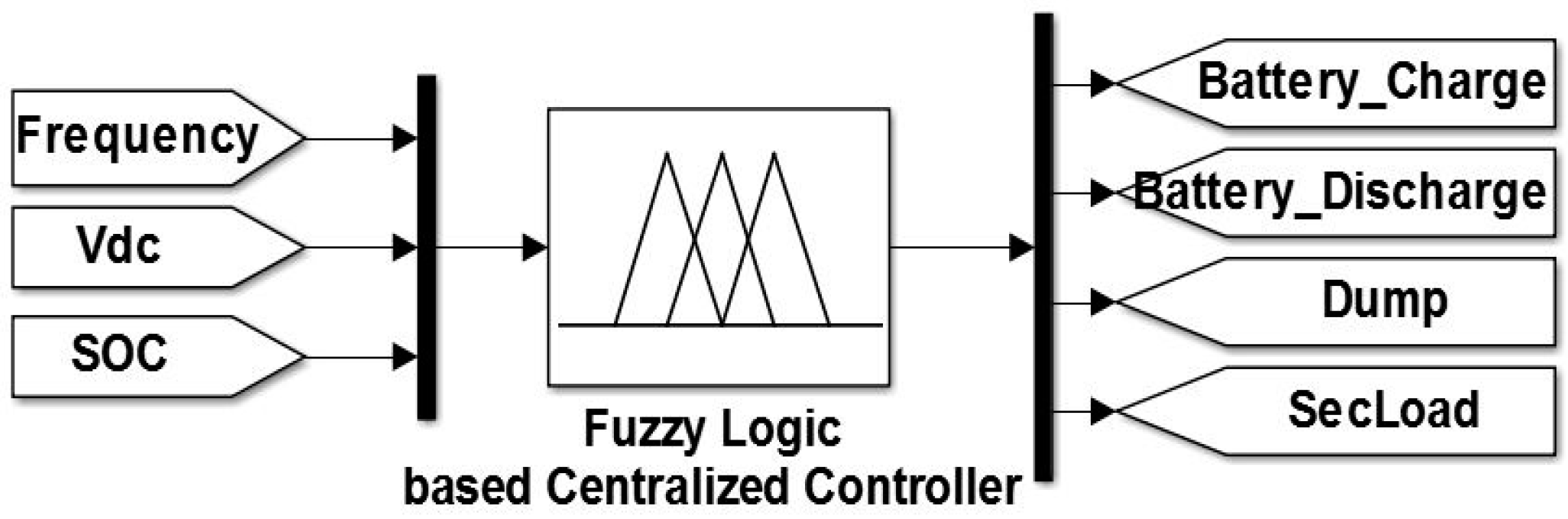

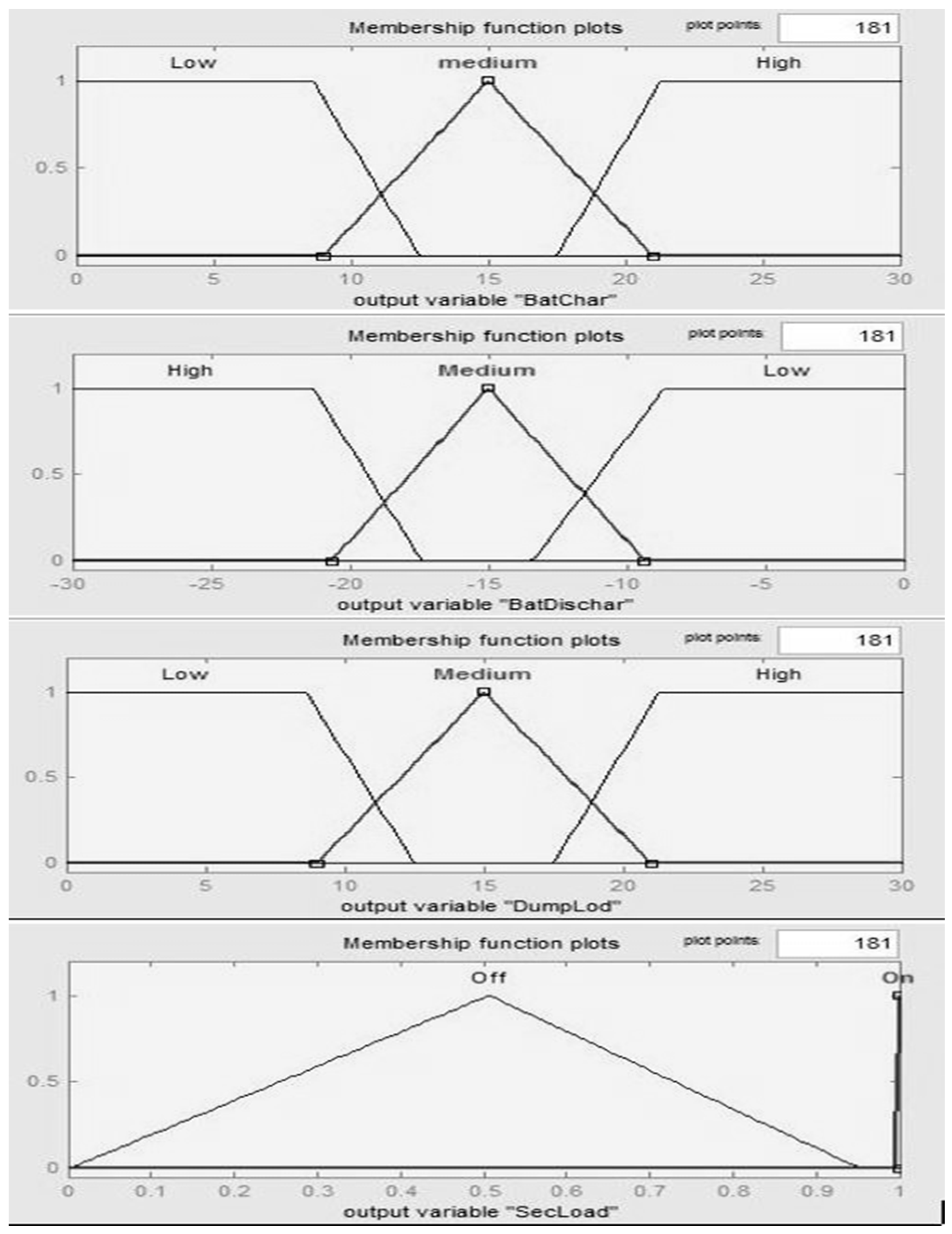

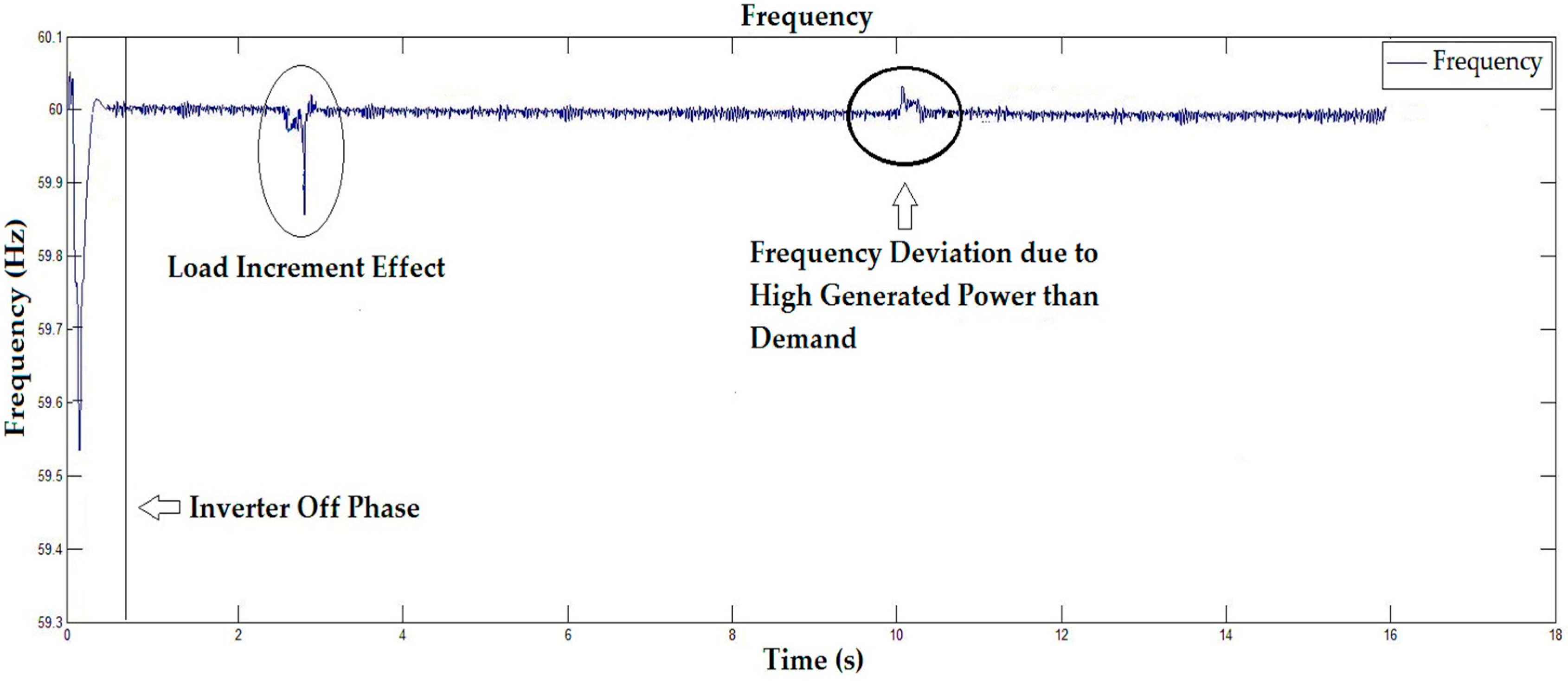

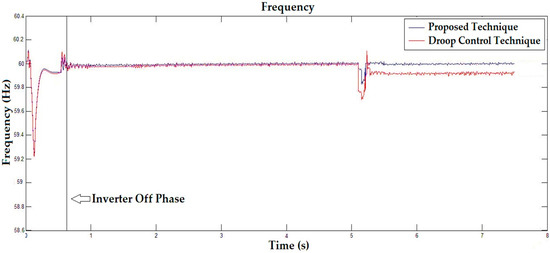

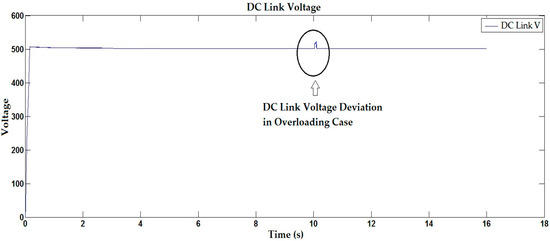

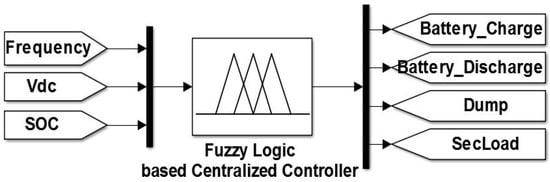

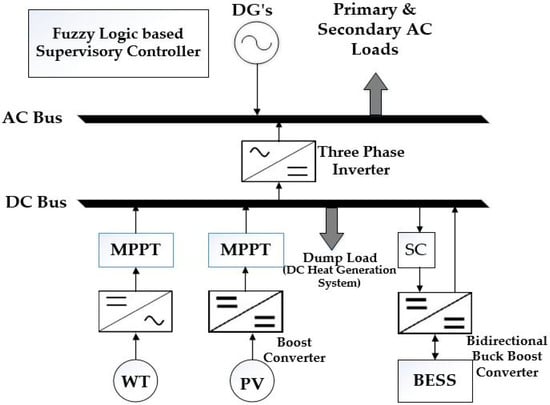

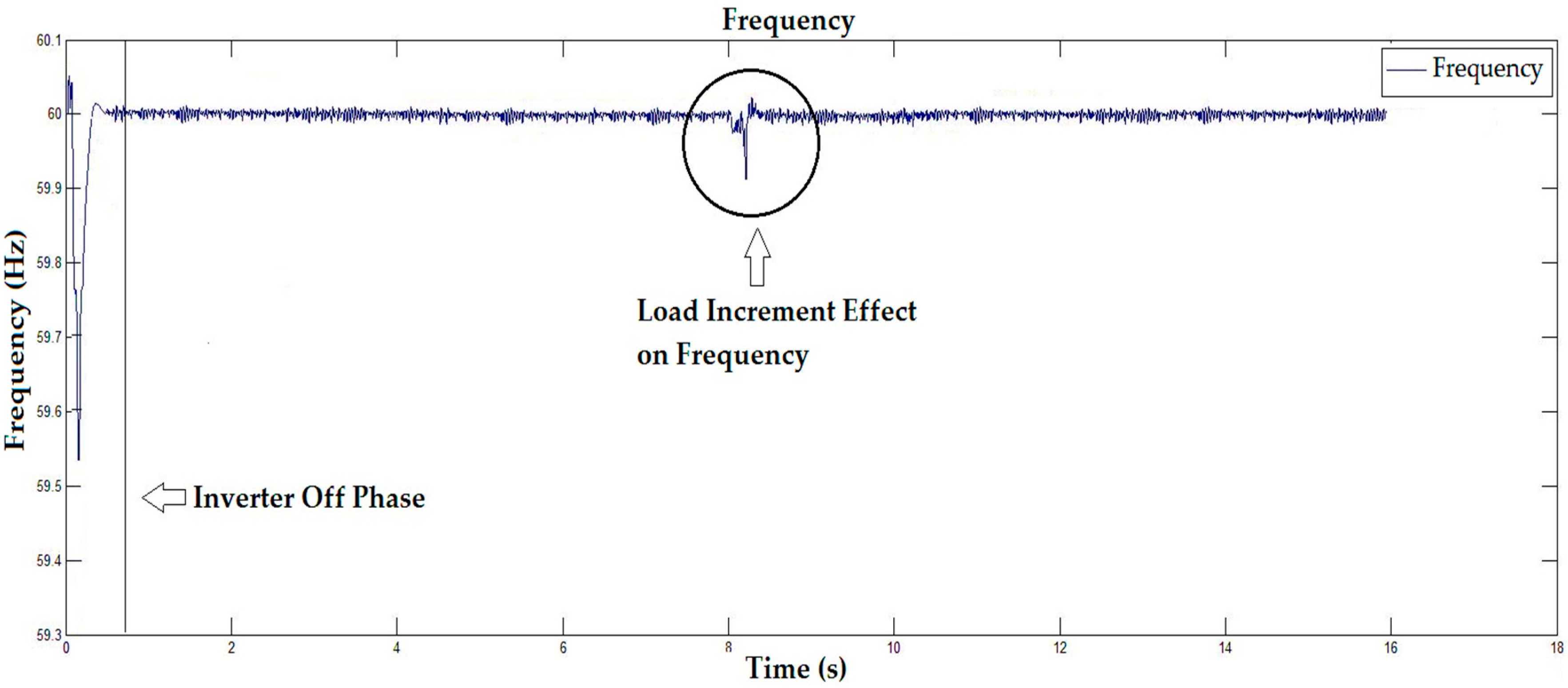

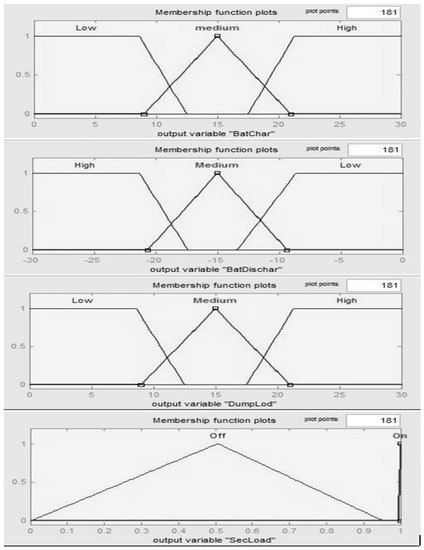

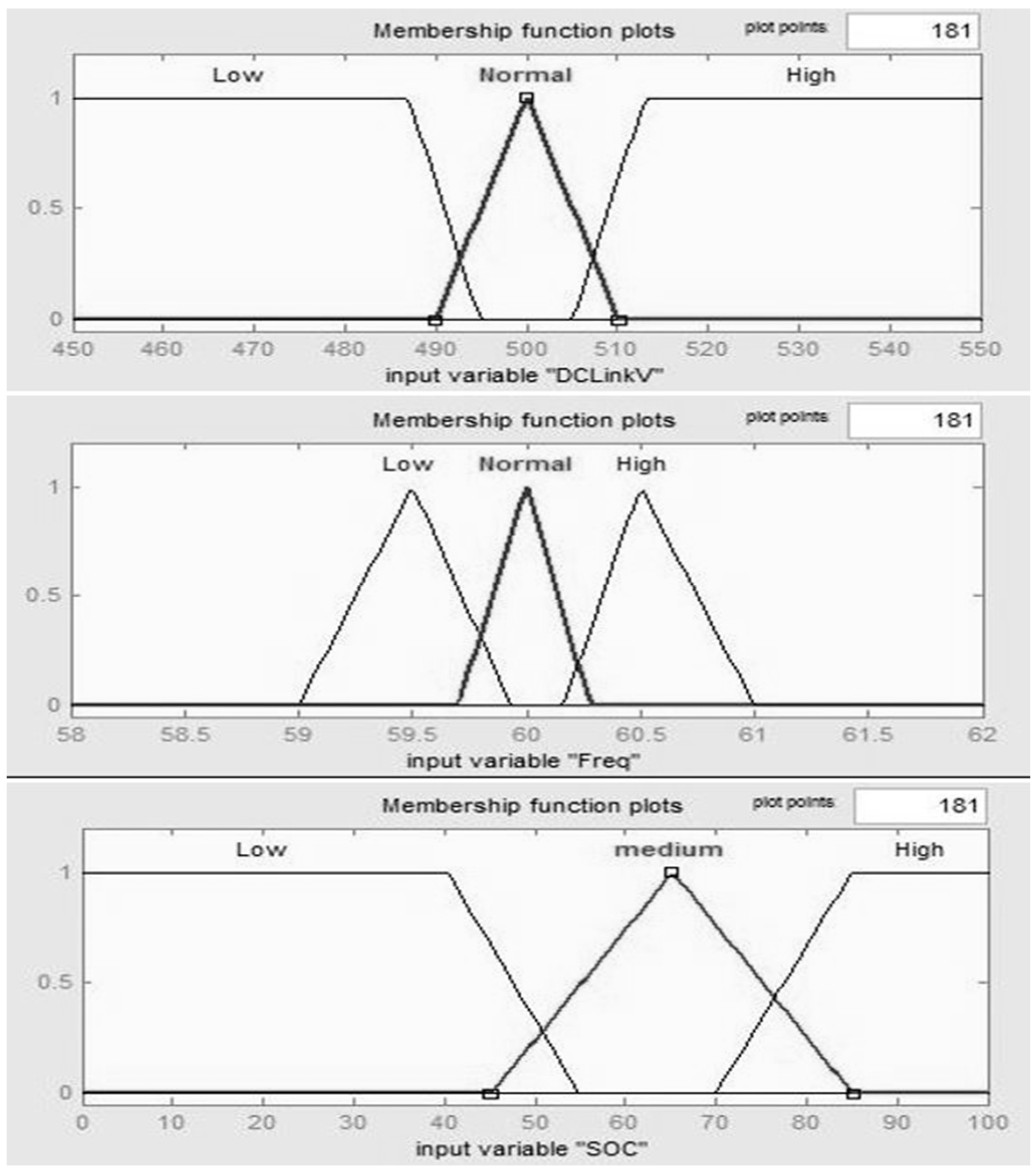

The microgrid (MG) concept is attracting considerable attention as a solution to energy deficiencies, especially in remote areas, but the intermittent nature of renewable sources and varying loads cause many control problems and thereby affect the quality of power within a microgrid operating in standalone mode. This might cause large frequency and voltage deviations in the system due to unpredictable output power fluctuations. Furthermore, without any main grid support, it is more complex to control and manage the system. In past, droop control and various other coordination control strategies have been presented to stabilize the microgrid frequency and voltages, but in order to utilize the available resources up to their maximum capacity in a positive way, new and robust control mechanisms are required. In this paper, a standalone microgrid is presented, which integrates renewable energy-based distributed generations and local loads. A fuzzy logic-based intelligent control technique is proposed to maintain the frequency and DC (direct current)-link voltage stability for sudden changes in load or generation power. Also from a frequency control perspective, a battery energy storage system (BESS) is suggested as a replacement for a synchronous generator to stabilize the nominal system frequency as a synchronous generator is unable to operate at its maximum efficiency while being controlled for stabilization purposes. Likewise, a super capacitor (SC) and BESS is used to stabilize DC bus voltages even though maximum possible energy is being extracted from renewable generated sources using maximum power point tracking. This newly proposed control method proves to be effective by reducing transient time, minimizing the frequency deviations, maintaining voltages even though maximum power point tracking is working and preventing generators from exceeding their power ratings during disturbances. However, due to the BESS limited capacity, load switching (load shedding scheme) as last option is also introduced in this paper. Simulation results prove the effectiveness of the proposed control strategy from both frequency and voltage perspectives. View Full-Text
Keywords: microgrid; renewable generation; fuzzy logic technique; battery energy storage system; super capacitor; frequency stabilization microgrid; renewable generation; fuzzy logic technique; battery energy storage system; super capacitor; frequency stabilization
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Asghar, F.; Talha, M.; Kim, S.H. Robust Frequency and Voltage Stability Control Strategy for Standalone AC/DC Hybrid Microgrid. Energies 2017, 10, 760.
