Energies 2017, 10(5), 634; doi:10.3390/en10050634

Numerical Study of Pressure Fluctuation in a Gas- Liquid Two-Phase Mixed-Flow Pump

1
School of Mechanical Engineering, Beijing Institute of Technology, Beijing 100081, China
2
State Key Laboratory of Hydroscience and Engineering, Department of Thermal Engineering, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Academic Editor: Leonardo P. Chamorro
Received: 29 March 2017 / Revised: 27 April 2017 / Accepted: 2 May 2017 / Published: 5 May 2017
View Full-Text   |   Download PDF [4162 KB, uploaded 5 May 2017]   |

Abstract

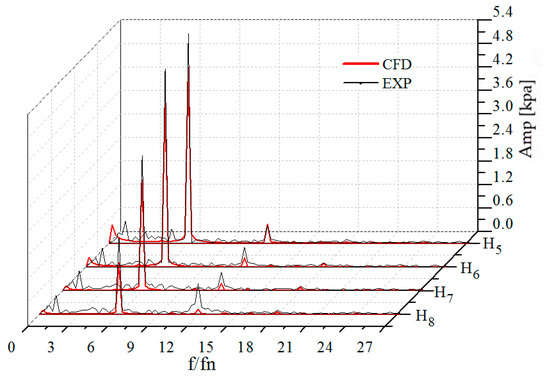

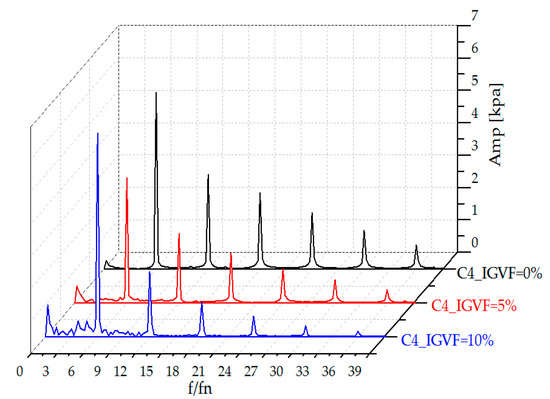

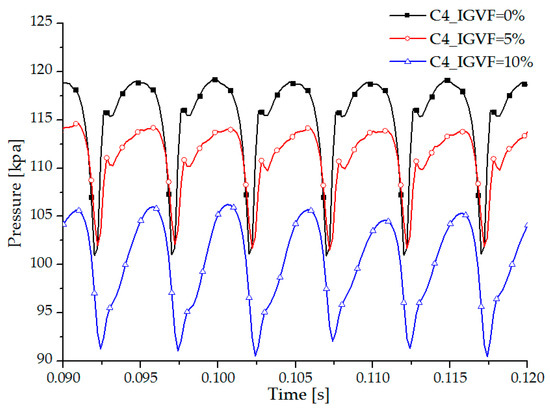

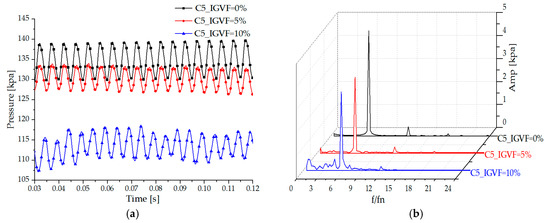

To explore the pressure fluctuation characteristics in a mixed-flow pump handling a gas-liquid two-phase flow, an unsteady simulation was carried out with ANSYS CFX for the whole flow passage when the inlet gas void fraction (IGVF) was 0%, 5%, and 10%, respectively. Under pure water conditions (IGVF = 0%), the reliability of the simulation was verified by comparing with the experiment in both aspects of external characteristics and fluctuation. Through the implementation of the fast Fourier transform (FFT) algorithm, the characteristics of the pressure fluctuation in the impeller and the guide vane were obtained at different IGVF conditions. The results demonstrate that pressure fluctuations exist under different IGVF conditions due to the rotor-stator interaction and the gas-liquid phase interaction, and the intensity of the fluctuation is firstly enhanced, and then weakened, along the streamwise direction with the maximum located near the impeller outlet. The relationship between the gas content and the pressure fluctuation was analyzed, and it is shown that the regional pressure fluctuation will be intensified only if the gas content therein reaches a certain level and the local phase interaction is strong. In addition, the pressure fluctuation in both the rotor-stator interaction region and the guide vane may be effectively inhibited under small IGVF conditions. View Full-Text
Keywords: gas-liquid two-phase flow; mixed-flow pump; pressure fluctuation; rotor-stator interaction; phase interaction gas-liquid two-phase flow; mixed-flow pump; pressure fluctuation; rotor-stator interaction; phase interaction
Figures

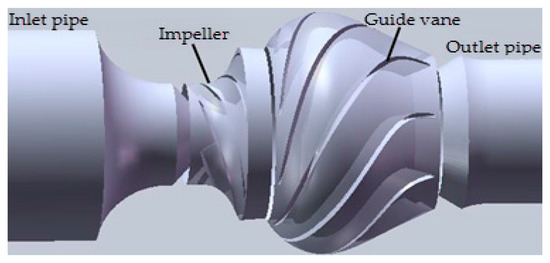

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
