Open AccessArticle
Energies 2017, 10(4), 552; doi:10.3390/en10040552

A Fast-Acting Diagnostic Algorithm of Insulated Gate Bipolar Transistor Open Circuit Faults for Power Inverters in Electric Vehicles

1
Laboratory of Low Emission Vehicle, Beijing Institute of Technology, Beijing 100081, China
2
United Automotive Electronic System Co., Ltd., Shanghai 201206, China
*
Author to whom correspondence should be addressed.
Academic Editor: K. T. Chau
Received: 20 January 2017 / Revised: 6 April 2017 / Accepted: 10 April 2017 / Published: 18 April 2017
(This article belongs to the Collection Electric and Hybrid Vehicles Collection)
View Full-Text   |   Download PDF [15677 KB, uploaded 18 April 2017]   |

Abstract

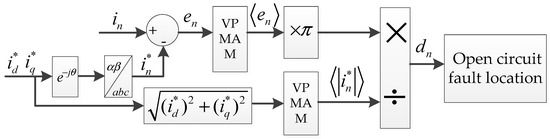

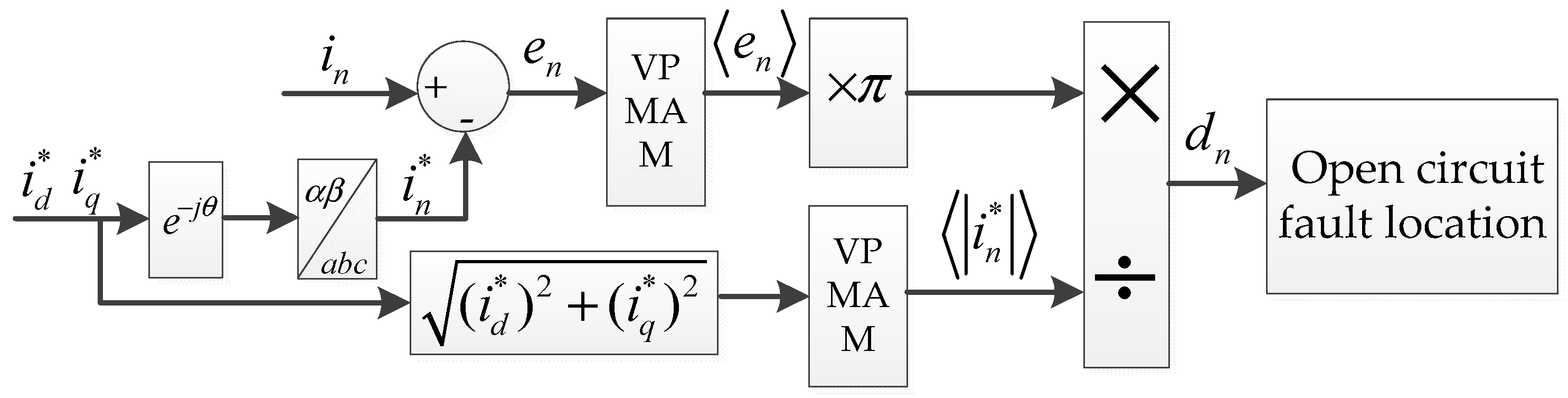

To improve the diagnostic detection speed in electric vehicles, a novel diagnostic algorithm of insulated gate bipolar transistor (IGBT) open circuit faults for power inverters is proposed in this paper. The average of the difference between the actual three-phase current and referential three-phase current values over one electrical period is used as the diagnostic variable. The normalization method based on the amplitude of the d-q axis referential current is applied to the diagnostic variables to improve the response speed of diagnosis, and to avoid the noise and the delay caused by signal acquisition. In the parameter discretization process, the variable parameter moving average method (VPMAM) is adopted to solve the variation of the average value over a period with the speed of the motor; hence, the diagnostic reliability of the system is improved. This algorithm is robust, independent of load variations, and has a high resistivity against false alarms. Since only the three-phase current of the motor is utilized for calculations in the time domain, a fast diagnostic detection speed can be achieved, which is significantly essential for real-time control in electric vehicles. The effectiveness of the proposed algorithm is verified by both simulation and experimental results. View Full-Text
Keywords: open circuit fault; insulated gate bipolar transistor (IGBT); inverter; electric vehicle open circuit fault; insulated gate bipolar transistor (IGBT); inverter; electric vehicle
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
