Open AccessArticle
Energies 2017, 10(4), 444; doi:10.3390/en10040444

A Dual Half-Bridge Converter with Adaptive Energy Storage to Achieve ZVS over Full Range of Operation Conditions

School of Electrical Engineering and Automation, Harbin Institute of Technology, Harbin 150-001, China
*
Author to whom correspondence should be addressed.
Academic Editor: Gabriele Grandi
Received: 1 December 2016 / Revised: 7 March 2017 / Accepted: 22 March 2017 / Published: 28 March 2017
(This article belongs to the Collection Smart Grid)
View Full-Text   |   Download PDF [3494 KB, uploaded 28 March 2017]   |

Abstract

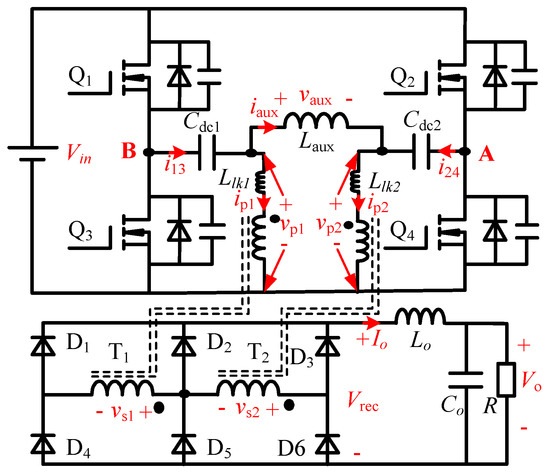

The phase-shifted full-bridge (PSFB) converter is widely employed in high-power applications. However, circulating current, duty-cycle loss, secondary voltage oscillation, and narrow zero-voltage-switching (ZVS) range are the main drawbacks of the conventional PSFB converter. This paper proposes a novel full-bridge converter to improve the performance of the conventional PSFB converter. The proposed converter contains two paralleled half-bridge inverters and an auxiliary inductor on the primary side. The rectifier stage is composed of six diodes connected with the form of full-bridge rectification. This structure allows the stored energy for ZVS operation to change adaptively with duty-cycle. The power can be transferred from the primary side to the secondary side during the whole period. Therefore, the requirement of output filter inductance is reduced and the circulating current is removed. The proposed converter is a good candidate for high power, high voltage and variable input voltage applications. The operation principle and performance are verified on a laboratory prototype. View Full-Text
Keywords: phase-shifted full-bridge (PSFB); adaptive energy storage; circulating current; duty-cycle loss; zero-voltage-switching (ZVS) phase-shifted full-bridge (PSFB); adaptive energy storage; circulating current; duty-cycle loss; zero-voltage-switching (ZVS)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhao, L.; Xu, C.; Zheng, X.; Li, H. A Dual Half-Bridge Converter with Adaptive Energy Storage to Achieve ZVS over Full Range of Operation Conditions. Energies 2017, 10, 444.
