Reduction of Furfural to Furfuryl Alcohol in Liquid Phase over a Biochar-Supported Platinum Catalyst

Abstract

In this work, the liquid phase hydrogenation of furfural has been studied using a biochar-supported platinum catalyst in a batch reactor. Reactions were performed between 170 °C and 320 °C, using 3 wt % and 5 wt % of Pt supported on a maple-based biochar under hydrogen pressure varying from 500 psi to 1500 psi for reaction times between 1 h and 6 h in various solvents. Under all reactive conditions, furfural conversion was significant, whilst under specific conditions furfuryl alcohol (FA) was obtained in most cases as the main product showing a selectivity around 80%. Other products as methylfuran (MF), furan, and trace of tetrahydrofuran (THF) were detected. Results showed that the most efficient reaction conditions involved a 3% Pt load on biochar and operations for 2 h at 210 °C and 1500 psi using toluene as solvent. When used repetitively, the catalyst showed deactivation although only a slight variation in selectivity toward FA at the optimal experimental conditions was observed.

1. Introduction

Production of second-generation biofuels as cellulosic ethanol should involve the valorization of every macromolecular fraction of the biomass in order to be economical [1]. Contrarily to the C6 carbohydrates, which are ideal candidates for classical fermentation, valorization of C5 sugars remains a challenge, either through biological or chemical pathways. Many biological alternatives have been investigated including fermentation to ethanol using, as an example, E. coli [2], Z. mobilis [3], and P. stipitis [4]. However, most of these approaches are limited by the kinetics of the fermentation, which usually involves longer fermentation periods as compared to their classical C6 counterparts.

As an alternative to the biological conversion of C5 sugars, another approach leading to their conversion could imply chemical processes. In a recent review, Fuente-Hernández et al. investigated the possible option of the conversion of xylose including reduction, oxidation, acid and base treatments [5]. Amongst the latter, acid treatments, leading to furfural have been thoroughly investigated and reported in literature [6,7]. Furfural with an annual global demand ranging between 20 kton/year and 30 kton/year can be used as chemical but could as well be used as a platform chemical for other compounds including but not limited to levulinic acid [8]. However, conversion of furfural to levulinic acid is not possible and must go through a reduction of the aldehyde function of furfural into an alcohol, thus producing furfuryl alcohol (FA).

Previous work from open literature reported that catalytic hydrogenation of furfural could be carried out either in the liquid [9] or vapor phase [10,11]. As for the industrial processes, they are generally conducted at high temperatures and pressures at which operations both in liquid and gas phase were reported. In terms of catalyst, the most popular for the reduction of furfural at industrial levels are Ni and Cu/Cr-based catalysts, although these catalysts exhibit a moderate activity towards FA [12,13]. At bench level, numerous reports have been made on the hydrogenation of furfural in liquid-phase using noble metal-based catalysts, such as palladium [14], platinum [9,13,15,16], iridium and ruthenium [17], rhodium [18], and zirconium oxide [19]. Reactions were performed either with or without a solvent (using different solvent types) sometimes even using a second metal (or a promoter) to improve the activity and/or the selectivity [13,20,21]. Amongst the non-noble metals that have been reported to selectively hydrogenate α,β-unsaturated aldehydes, iron [22] and nickel [13] were the most commonly cited. The best example of the duality of two metals was reported when a combination of nickel and copper showed interesting characteristics of chemo-regio-, and, stereoselectivity for hydrogenation reactions [13,20,21].

The choice of the support is also a key aspect that may lead to significant changes in catalytic activity. The most conventional supports are either acidic or basic oxides such as silica [22], alumina [14,23], and porous metal (Raney type) [24]. However, other types of supports (such as carbon) were also used for the production of reducing catalyst for chemoselective hydrogenations. Although the most common carbon support would certainly be activated carbon [25], biochar could as well be a cheap, stable, carbon-rich compound that could be considered to this purpose. The latter can be produced by “thermo” processes for biomass conversion such as torrefaction, pyrolysis, or gasification. It is made from renewable material and the already available inorganics that could be found in trace amounts in the biochar could influence the output of a catalytic reaction when used as support. Although activated carbon has been used as a catalytic support for hydrogenation reactions most probably as a mean to standardize catalyst synthesis, there is, to the best of our knowledge no report on the utilization of biochar as a support for hydrogenation reactions.

In this work, we report on the liquid phase hydrogenation of furfural to FA, which was used as a model compound of biomass-derived feedstock, by using a biochar-supported platinum catalyst. In addition, various reaction parameters such as metal loading in the catalyst, operating pressure of hydrogen, reaction time, solvent choice, and reaction temperature were studied to optimize furfural conversion, FA selectivity, and to determine kinetic parameters for catalysis reaction. Specific attention was given to the regeneration of the catalyst in order to link with further downstream industrial applications.

2. Results and Discussion

2.1. Support Synthesis and Functionalization

Biochar (BC) produced from torrefaction (slow pyrolysis) may contain bio-oils and traces of metal both from the pyrolysis process as well as from the original biomass. Bio-oils were removed using an acid treatment (Section 3.1) prior to catalytic metal impregnation [26].

2.2. Catalyst Characterization

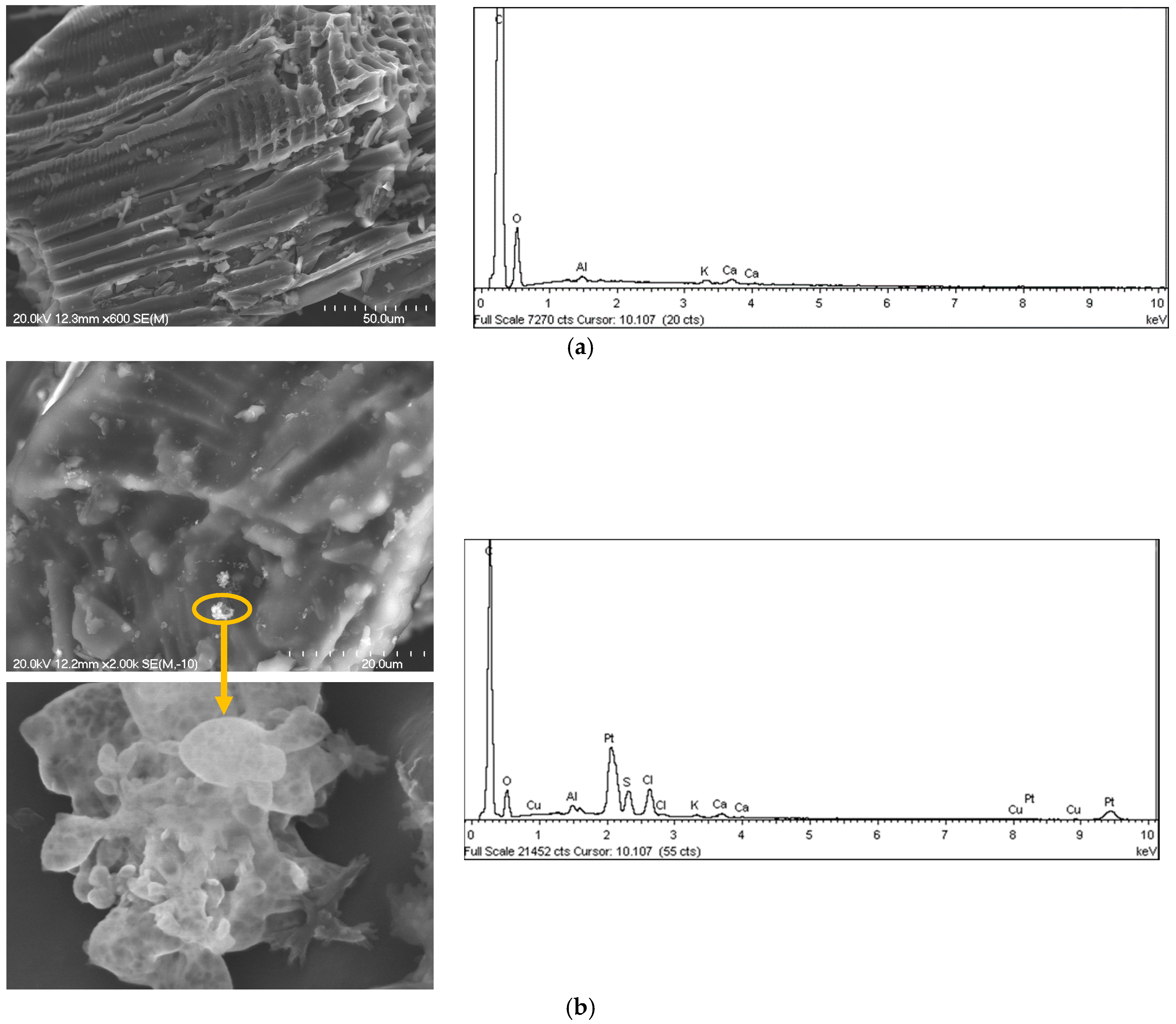

The scanning electron microscopy (SEM) morphology of both biochar support and platinum catalyst Pt/BC revealed that the metal particles were not homogeneously distributed in the support, as shown in Figure 1. This lack of homogeneity in the distribution of the Pt can be seen from its tendency to agglomerate (Figure 1b).

Energy-dispersive X-ray (EDX) spectroscopy microanalysis was performed in order to determine the elemental analysis of the surface samples. The biochar (support without impregnation) spectrum revealed the presence of C, O, Al, K and Ca elements in trace amounts (Figure 1a). As for comparison, the metal loading deposited during the impregnation is shown in Figure 1b. The EDX results indicate the presence of platinum as well as sulfur coming from the biochar treatment with the sulfuric acid solution. Copper most likely coming from the original biomass is not present in Figure 1a, which can be explained by the low amounts contained in the support, the heterogeneity of the sample, and by the size of the scan frame. The chlorine present in the impregnated catalyst probably comes from the platinum precursor.

2.3. Catalyst Test with Pt/BC

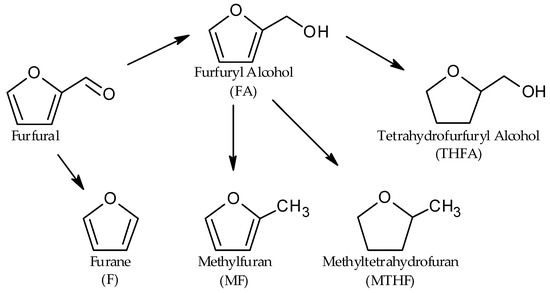

The pathway leading to the products observed during furfural hydrogenation can be simplified as suggested in Figure 2. The main products were FA, tetrahydrofurfuryl alcohol (THFA), furan (F), methyltetrahydrofuran (MTHF), and methylfuran (MF).

Table 1. Experimental conditions, conversion, and selectivity for liquid phase furfural hydrogenation in toluene using the Pt/BC 3 wt % catalyst. FA: furfuryl alcohol; TOF: turn-over frequency; THFA: tetrahydrofurfuryl alcohol; MF: methylfuran; and F: furan.

Entry	Catalyst (mmol)	P (psi)	T (°C)	t (h)	Conversion (%)	FA Yield (%)	TOF (s−1)	Selectivity (%)
								FA	THFA	MF	F
1	0.025	500	210	2	20.1	6.9	4.0×10−2	34.2	-	6.4	40.1
2	0.025	500	250	2	18.4	3.9	3.7×10−2	21.2	-	12.6	63.4
3	0.025	1000	210	2	35.6	25.7	7.1×10−2	72.2	-	6.6	20.1
4	0.025	1000	250	2	36.4	17.0	7.3×10−2	46.7	0.4	14.7	33.8
5	0.058	1000	250	2	52.0	13.8	4.5×10−2	26.6	0.1	13.0	58.8
6	0.058	1000	250	1	30.1	11.4	5.2×10−2	38.0	-	14.5	46.2
7	0.025	1000	250	3	40.8	20.2	5.4×10−2	49.6	0.2	19.1	29.8
8	0.025	1500	170	2	19.4	16.1	3.9×10−2	83.2	0.5	5.1	9.0
9	0.025	1500	210	2	60.8	48.2	1.2×10−2	79.2	0.4	8.5	11.0
10	0.025	1500	210	4	66.9	55.4	6.7×10−2	82.8	1.1	0.9	13.4
11	0.025	1500	210	6	69.4	49.3	4.6×10−2	71.1	0.7	12.8	14.7
12	0.025	1500	250	2	33.4	27.1	6.7×10−2	81.1	1.0	8.8	7.7
13	0.025	1500	320	2	70.0	11.8	1.4×10−2	16.8	0.6	35.2	43.2
14	0.025	1500	300	3	59.9	10.1	8.0×10−2	16.9	1.2	41.6	37.3

summarizes the obtained results from the reaction of furfural over Pt/BC 3 wt % catalyst in correlation to the operation parameters.

Hydrogenation rates have been previously reported to increase proportionally with temperatures [24] however, no clear tendency of this nature was observed for the actual experiments. For the experiments involving the catalyst with a 3 wt % platinum loading, the optimal temperature was reached at 210 °C, showing a maximum conversion of 60.8% with 79.2% selectivity to FA after 2 h (Entry 9, Table 1). The yield of FA drops from 48.2% to 16.1% (Entry 8) when temperature decreases from 210 °C to 170 °C. Even if a higher conversion value is observed at 320 °C (Entry 13), the selectivity toward FA is 16.8% and the then FA yield decreases from 48.2% to 11.8%. Moreover, results from Entries 10 and 11 also showed that increasing the reaction time only leaded to a slight modification of the conversion rate and an increased portion of furan, resulting in a decrease in selectivity to FA. This behavior was observed as well after addition of a higher amount of catalyst (Entry 5, Table 1).

Variation of the temperature in either direction from 210 °C impacts conversion and selectivity to FA (Entries 8, 9 and 12–14, Table 1) thus increasing the formation of byproducts as MF, furan, as well as other unknown compounds. One hypothesis explaining this phenomenon is probably related to catalyst selectivity that can be affected by adsorption of furfural and/or FA and by products on the surface of the catalyst’s active sites.

Increasing H₂ pressure from 500 psi to 1500 psi was shown to increase the conversion of furfural from 20.1% to 60.8% (Entries 1, 3 and 9, Table 1). The formation of byproducts at higher pressures of hydrogen does not appear to significantly affect the selectivity to FA, the latter increasing to 79.2% at 1500 psi conditions that were considered optimal for this catalyst and support. Results also showed that almost no THFA was formed for most of the tests performed with the Pt/BC catalyst, indicating that the latter was not intrinsically selective to C–C double bonds thus prioritizing reduction of C=O or C–OH bonds. The tests using different amounts of catalyst (Pt/BC 1 and 5 wt %) were performed in the conditions that were shown optimal for a 3 wt % loading of catalyst (toluene as solvent, 210 °C, 1500 psi, for 2 h and 4 h), as presented in

Table 2. Furfural hydrogenation results using Pt/BC 3 and 5 wt % as catalyst.

Entry	Catalyst (mmol)	t (h)	Conversion (%)	FA Yield (%)	TOF (s−1)	Selectivity (%)
						FA	THFA	MF	F
9	0.025 (3%)	2	60.8	48.2	1.2 × 10−2	79.2	0.4	8.5	11.0
10		4	66.9	55.4	6.7 × 10−2	82.8	1.1	0.9	13.4
15	0.044 (5%)	2	40.5	31.3	4.6 × 10−2	77.3	0.5	4.3	12.0
16		4	45.3	32.4	2.5 × 10−2	71.6	0.4	6.2	16.6

.

Using a higher percentage of Pt in the catalyst but overall using the same amount of platinum based catalyst did not favor an increased conversion of furfural to FA compared with 3 wt % catalyst (Entries 9 and 10, Table 2). Furthermore, the use of higher quantity of impregnated metal (5 wt %) was shown to reduce conversion of approximately 20% in both cases (Entries 15 and 16, Table 2). The reduced homogeneity of Pt distribution, being a consequence of the greater impregnation concentration, results in non-favorable conditions for furfural hydrogenation. Selectivity to FA was also shown to be significantly reduced and chromatograms showed the presence of new unknown byproducts, which did not occur at lower (3 wt %) Pt content.

It should be noted that biochar per se was not inert in furfural hydrogenation, which was elucidated by testing only support at the same experimental conditions as above. Hydrogenation of furfural with the support alone results in conversion of 3.3% and selectivity to FA of 21.3%, using the optimal conditions (identified by the tests on a 3 wt % loading of platinum). The biochar carbon surfaces and pores possess complex structures containing metals and oxygen groups, as well, the biochar has a tendency for fixation of metallic ion thus leading to a concentration of the plant inorganic content. As well, this functionality also allows the biochar to be a very efficient support for other types of metals, either for catalytic purposes or for soil remediation [27]. Overall, both the textural properties and the trace metal content in the biochar could be generating some activity. Furthermore, it is important to note that the support is stable under the reaction conditions and it does not interact with the solvent. Duplicate experiments were performed showing the rates and selectivity to the various products to be within an error margin of around 5%, thus confirming reproducibility of the results.

The most important solvent effects in the hydrogenation of α,β-unsaturated aldehydes are usually related to solvent polarity, solubility of hydrogen, and interactions between the catalyst and the solvent as well as solvation of reactants in the bulk liquid phase [28]. Further and as noted previously, both the support and the type of solvent can affect selectivity. As for this work, the solvent effect on the furfural hydrogenation was investigated with the Pt/BC 3 wt % at 210 °C and 250 °C with a H₂ pressure of 1500 psi for 2 h using toluene, isopropanol, isobutanol, and hexane. Results obtained for the hydrogenation of furfural using other solvents are shown in

Table 3. Selectivity and conversion for furfural hydrogenation with Pt/B 3 wt % in toluene, isopropanol, isobutanol, and hexane at 1500 psi H₂ pressure for 2 h.

Entry	Solvent	T (°C)	Conversion (%)	FA Yield (%)	TOF (s−1)	Selectivity (%)
						FA	MF
12	Toluene	250	33.4	27.1	6.7 × 10−2	81.1	8.8
9		210	60.8	48.1	1.2 × 10−1	79.2	8.5
17	Isopropanol	250	37.5	21.1	7.5 × 10−2	56.4	23.4
18		210	42.9	34.9	8.6 × 10−2	81.3	9.0
19	Isobutanol	250	57.1	50.6	1.1 × 10−1	88.6	-
20		210	82.8	49.6	1.7 × 10−1	59.9	-
21	Hexane	250	66.4	16.1	1.3 × 10−1	24.2	-
22		210	52.3	41.9	1.0 × 10−1	80.2	-

.

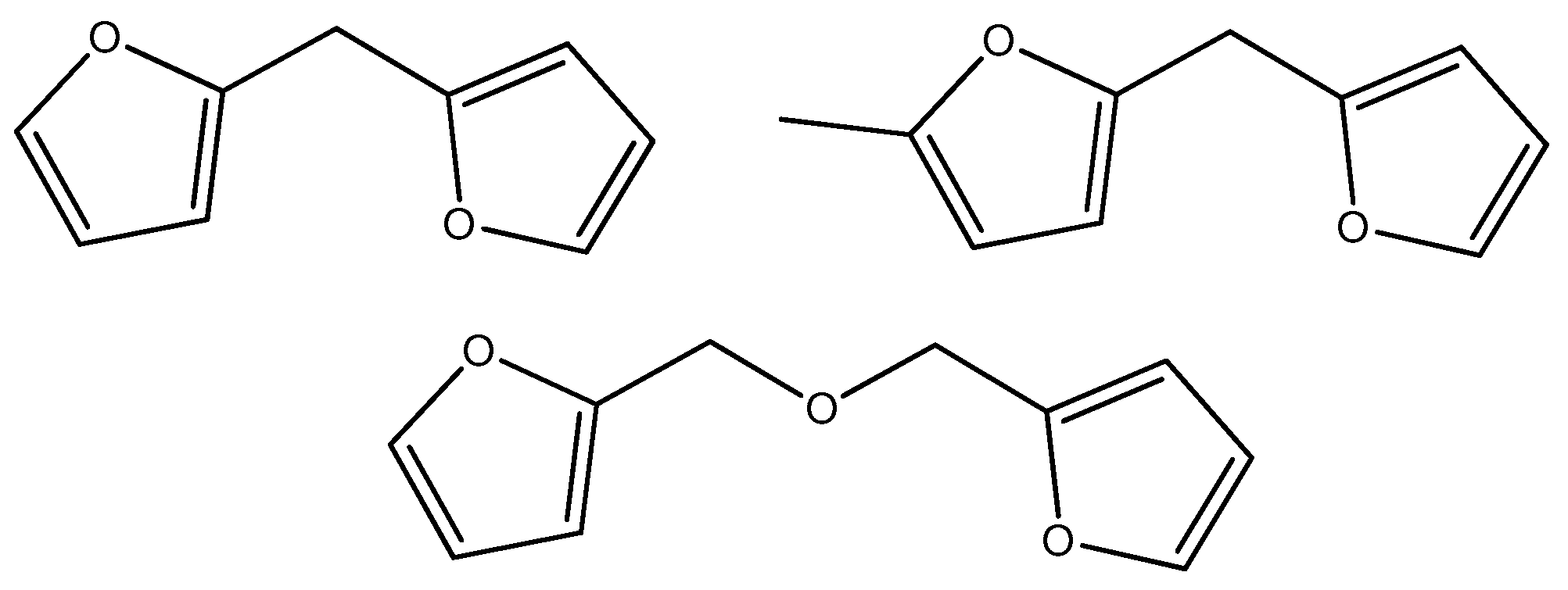

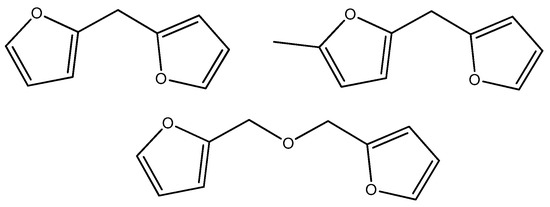

Utilization of isopropanol has led to the formation of dimerization products (Figure 3) that did not occur in toluene. The selectivity toward these products was close to 18% and 10% at 250 °C and 210 °C, respectively. However, in both cases, the main product remained FA. Although conversion did increase, the difference was not significantly higher than what was noted for toluene at 250 °C (Entry 17 Table 3, and Entry 12 Table 3), and the selectivity to FA was shown to decrease, as a result of significant quantities of MF as well as dimerization products formed. At 210 °C (Entries 9 and 18 Table 3), conversion decreased to 23% in isopropanol although selectivity remained close to 80% in both cases. Isopropanol has a significant effect on the product’s selectivity and formation of by-products is more pronounced. A hypothesis that could explain such observation would be that the greater availability of hydrogen in the media could lead to furfural and/or FA dimerization via a higher availability of radicals that could generate the end products depicted in Figure 3 below (identified by gas chromatograph coupled to mass spectrometer (GC-MS)).

Utilization of bulky alcohols (as isobutanol) are supposed to lead to greater hydrogen solubility although it was not reported to correlate with an increased hydrogenation rate. The % conversion in isobutanol seems to corroborate such assumptions. At 250 °C, an increase in both conversion and selectivity toward alcohol was observed (Entry 19 Table 3). However, at 210 °C, the selectivity was reduced by about 20%.

Hexane (Entry 22, Table 3) gave results that were comparable to toluene at 210 °C (Entry 9, Table 3) however, two liquid phases were obtained following the reaction and the possibility of finding products in both phases thus hinders quantification. The increased conversion noted at 250 °C (Entry 21, Table 3) over 210 °C in hexane as compared to the other solvents is probably a result of the increased solubility of furfural in hexane as well as the formation of other unidentified condensation products.

All of the solvents that were used in this research lead to the production of MF and furan. However, dimerization and/or condensation products formation was affected by the solvent type and occurred essentially with a polar solvent.

2.4. Catalyst Reactivation Test

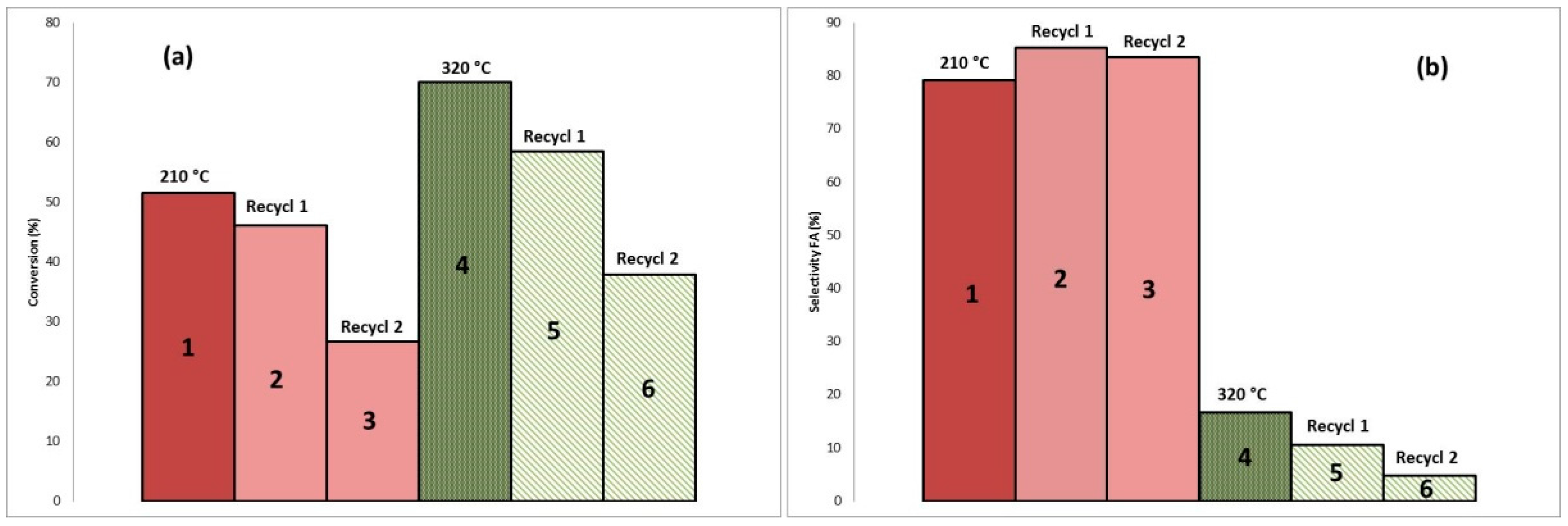

From Figure 4a it can be seen that the activity of reactivated Pt/BC catalyst is retained in the first recycling (column 2) with regard to furfural hydrogenation in toluene at 210 °C for 2 h (column 1), indicating no significant deactivation of the catalyst. On recycling a second time (catalyst undergoes three consecutive reactions with intermediary reactivation step, column 3, Figure 4a), there is a decrease in the conversion of furfural by almost 20%. However, the selectivity to FA is not affected by the recycling of the catalyst (columns 1–3, Figure 4b).

At increased temperature (320 °C), conversion increased (column 4) compared to 210 °C (column 1), but the reactivation of the catalyst is not as effective as with the lower temperatures (there is a greater loss in the conversion of almost 12%) and selectivity to FA is also seen to be reduced (less than 20%). That indicates that temperature plays an important role in both catalyst activity and selectivity, further that deactivation of the catalyst occurs more readily at higher temperatures. Deactivation is assumed to be the result from a poisoning caused by strong chemisorption of compounds at the metal surface that cannot be solved during the reactivation step. The experiments shown in Figure 4 indicate that this catalyst has potential for recycling in furfural hydrogenation following process optimization.

3. Experimental

3.1. Support Preparation

The biochar support was produced by torrefaction (slow pyrolysis) of sugar maple (Acer saccharum) sawdust in a continuous pilot scale Auger-type reactor under CO₂ stream at atmospheric pressure. Biomass was obtained from Scierie Joseph Audet Inc. (Sainte-Rose-de-Watford, QC, Canada). Heating was performed countercurrent with a temperature gradient ranging inside the reactor from 230 °C to 400 °C with a residency time of about 5 min. Prior to impregnation, biochar was treated twice by sonication in a 50% aqueous sulfuric acid solution. Finally, samples were washed with water and toluene, and then dried in an oven at 120 °C overnight.

3.2. Catalyst Preparation

The platinum metal loading of the catalyst was achieved by wet impregnation using an aqueous solution of tetraammineplatinum (II) chloride hydrate (98%, Sigma Aldrich, Saint Louis, MO, USA) in appropriate concentration so as to obtain 3 wt % and 5 wt % Pt on the resulting catalyst. The impregnated sample was dried at 120 °C overnight to remove water. Prior to reaction, catalysts were activated in situ in flowing H₂ (50 mL/min) at 250 °C, for 1 h.

3.3. Catalyst Characterization

The morphology and the elemental analysis of the catalyst were analyzed using a SEM model Hitachi S-4700 (Hitachi, Toyo, Japan) microscope equipped with an EDX (X-max 500 mm², Oxford Instruments, Buckinghamshire, UK) system and operating with a voltage of 20 kV. The EDX used in this experiment was an Oxford model X-Max 50 mm².

3.4. Catalytic Test

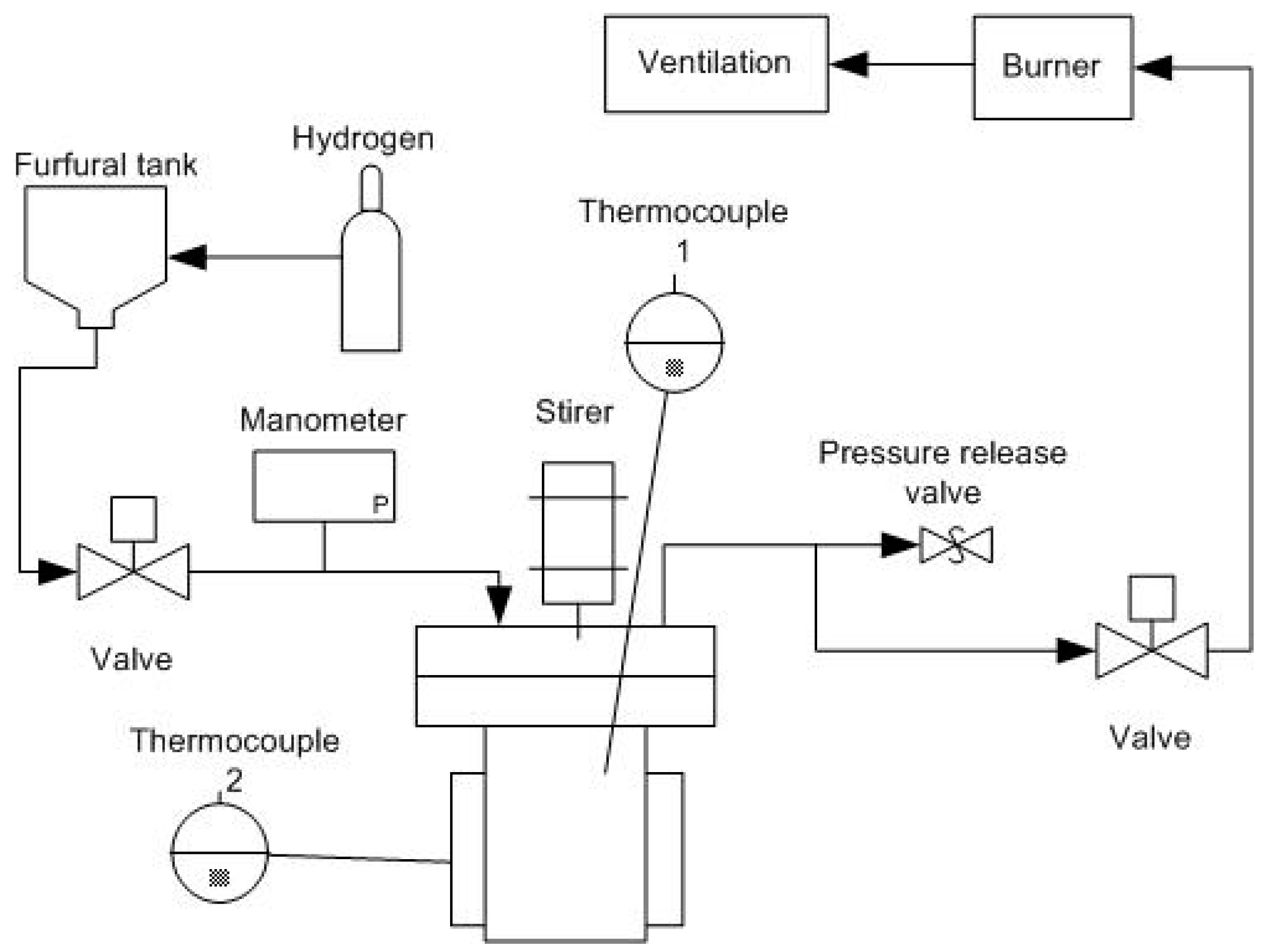

Liquid-phase hydrogenation of furfural was conducted in a 100 mL continuous stirred-tank reactor (CSTR) equipped with a reagent injection port, a gas inlet, and a vent (Figure 5). Hydrogenations were performed between 200 °C and 300 °C under a 500–1500 psi atmosphere of H₂ (Praxair, purity 4.5), stirring at 600 rpm, for 1–6 h using toluene (99.99%, bought from Anachemia, Lachine, QC, Canada), isobutanol (99%, bought from Alfa Aesar, Ward Hill, MA, USA), n-hexane (95%, bought from Anachemia, Lachine, QC, Canada), or 2-propanol (99.99%, bought from Anachemia) as solvents. The reactor was loaded with 30 mL of solvent and 3 mL of furfural and the latter was reacted with different amounts of catalyst (0.025–0.058 mmol of Pt equivalent). The reactor was preheated to the desired temperature for the catalyst activation with a low flow of hydrogen, sample addition to the hot reactor and hydrogen pressurization was performed simultaneously.

The evolution of the reaction was followed using a GC-2014 gas chromatograph equipped (Shimadzu, Guelph, ON, Canada) with a flame ionization detector (FID), temperature programmer, and a capillary column Zebron ZB-5MS (L = 30 m × I.D. = 0.25 mm × df = 0.25 μm) (Phenomenex, Torrance, CA, USA) with helium as carrier gas. The reaction products were FA, THFA, furan, MTHF, and MF.

Identification of the compounds present in the reaction mixture was performed using a Bruker Scion SQ GC-MS (Bruker Daltonics Inc., Milton, ON, Canada) equipped with Bruker CombiPAL autosampler, zebron capillary column (ZB-5MS, 60 m length, 0.25 mm I.D., 0.25 µm film thickness), and a mass spectrum detector (Bruker SQ) using helium as carrier gas (Praxair, purity 5.0).

To compare the activity exhibited by the catalysts, the turn-over frequency (TOF) was calculated based on furfural conversion (Equation (1)):

$$\mathrm{TOF}=\frac{\mathrm{mmolfurfural}\mathrm{converted}}{\mathrm{time}*\mathrm{mmol}\mathrm{catalyst}\mathrm{initial}}$$

(1)

3.5. Catalyst Regeneration Tests

To investigate whether the catalyst could be reactivated, three consecutive experiments were performed at 210 °C and 320 °C. Between the runs, the catalyst was washed repeatedly with toluene and dried. Reactivation of the catalyst was done each time as described in Section 3.2.

4. Conclusions

Results from this work show that biochar can be efficiently used as catalyst support in addition to being an economically and environmentally sound approach for furfural hydrogenation. The platinum-based catalyst produced from wet impregnation of a platinum salt on maple biochar proved to work well during liquid phase hydrogenation of furfural to FA and can be improved to favor the FA selectivity. Variation of temperature had an impact, both on conversion and selectivity to FA. Longer reaction times decrease selectivity to FA, with little or no effect on conversion showing that FA is an intermediate toward other reduction products as MF. Results also showed that solvent polarity tends to increase the hydrogenation rates but also the formation of dimerization and/or condensation products. Reaction conditions of 210 °C for 2 h and 1500 psi, with toluene as the solvent and 3 wt % Pt content, were found to be optimal for Pt/BC catalyst to favor furfural conversion at high selectivity to FA. Finally, the Pt/BC catalyst showed potential to be reactivated for further furfural hydrogenation reaction with a high selectivity to FA.
