Energies 2017, 10(11), 1736; doi:10.3390/en10111736

A Transient Stability Numerical Integration Algorithm for Variable Step Sizes Based on Virtual Input

College of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
*
Author to whom correspondence should be addressed.
Received: 26 September 2017 / Revised: 21 October 2017 / Accepted: 26 October 2017 / Published: 30 October 2017
View Full-Text   |   Download PDF [10562 KB, uploaded 30 October 2017]   |

Abstract

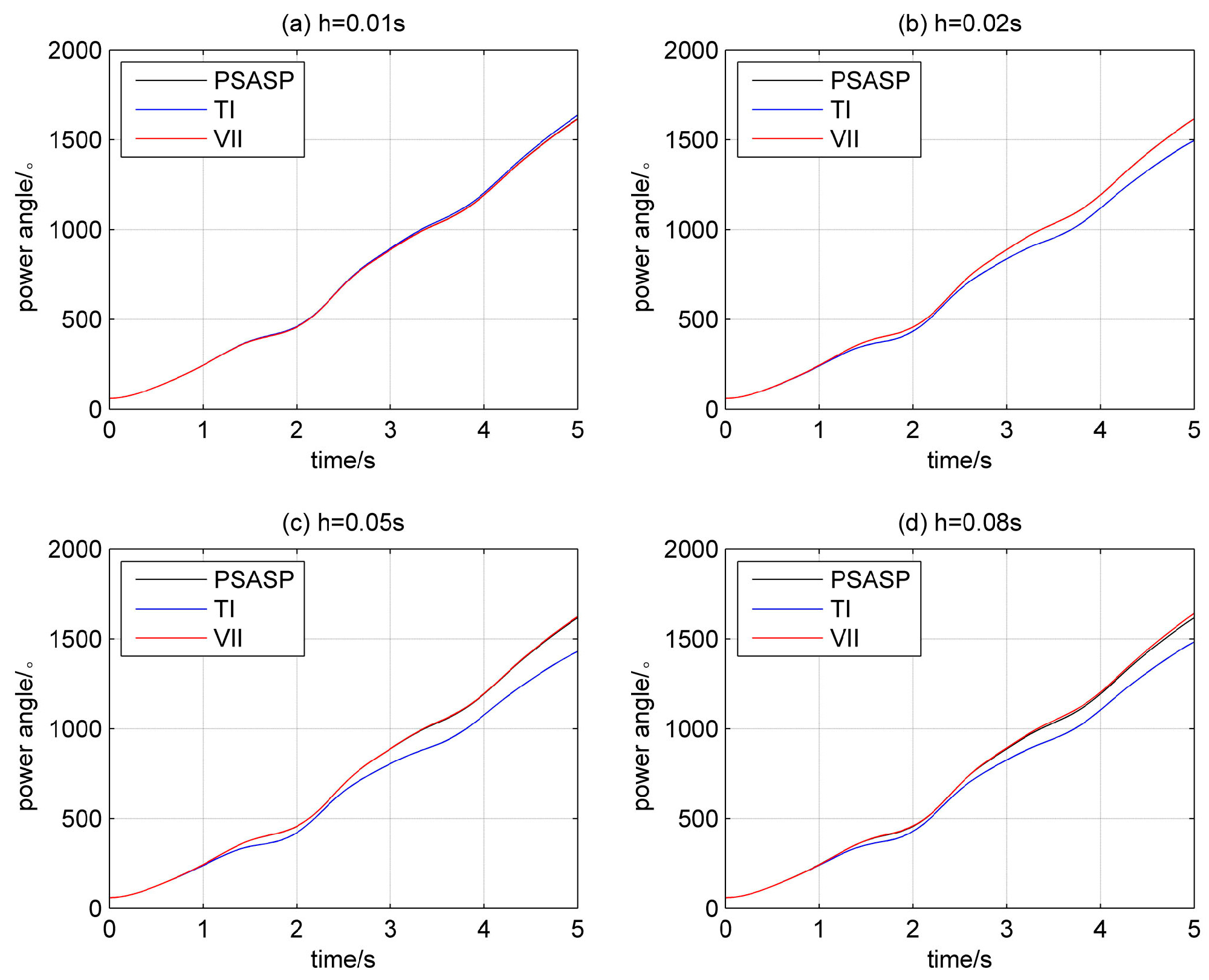

In order to reduce the online calculations for power system simulations of transient stability, and dramatically improve numerical integration efficiency, a transient stability numerical integration algorithm for variable step sizes based on virtual input is proposed. The method for fully constructing the nonhomogeneous virtual input for a certain integration scheme is given, and the calculation method for the local truncation error of the power angle for the corresponding integration scheme is derived. A step size control strategy based on the predictor corrector variable step size method is proposed, which performs an adaptive control of the step size in the numerical integration process. The proposed algorithm was applied to both the IEEE39 system and a regional power system (5075 nodes, 496 generators) in China, and demonstrated a high level of accuracy and efficiency in practical simulations compared to the conventional numerical integration algorithm. View Full-Text
Keywords: transient stability; numerical integration; variable step size; virtual input transient stability; numerical integration; variable step size; virtual input
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
