Impact of Different Driving Cycles and Operating Conditions on CO2 Emissions and Energy Management Strategies of a Euro-6 Hybrid Electric Vehicle
Abstract
:1. Introduction
2. Methodology
2.1. Tested Vehicle

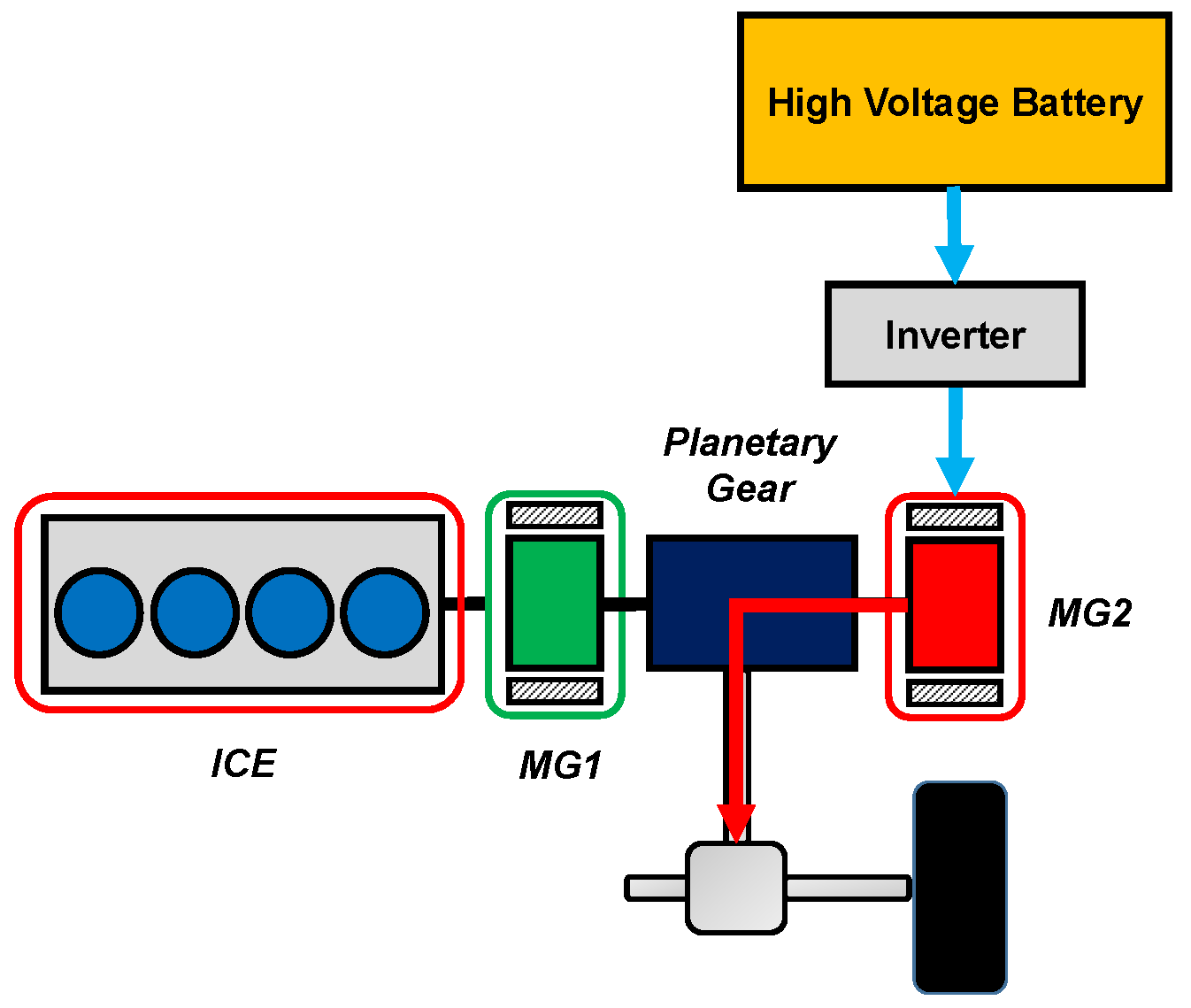

- Electric Vehicle (EV): whenever the ICE would operate in an inefficient range, such as at very low load levels, the ICE is turned off and the traction power is demanded to the MG2, as illustrated in Figure 1;
- Parallel Hybrid (PH): at higher load levels the ICE is enabled and it supports the vehicle driving, allowing the powertrain to operate in two different ways depending on battery SOC and on the accelerator pedal position:

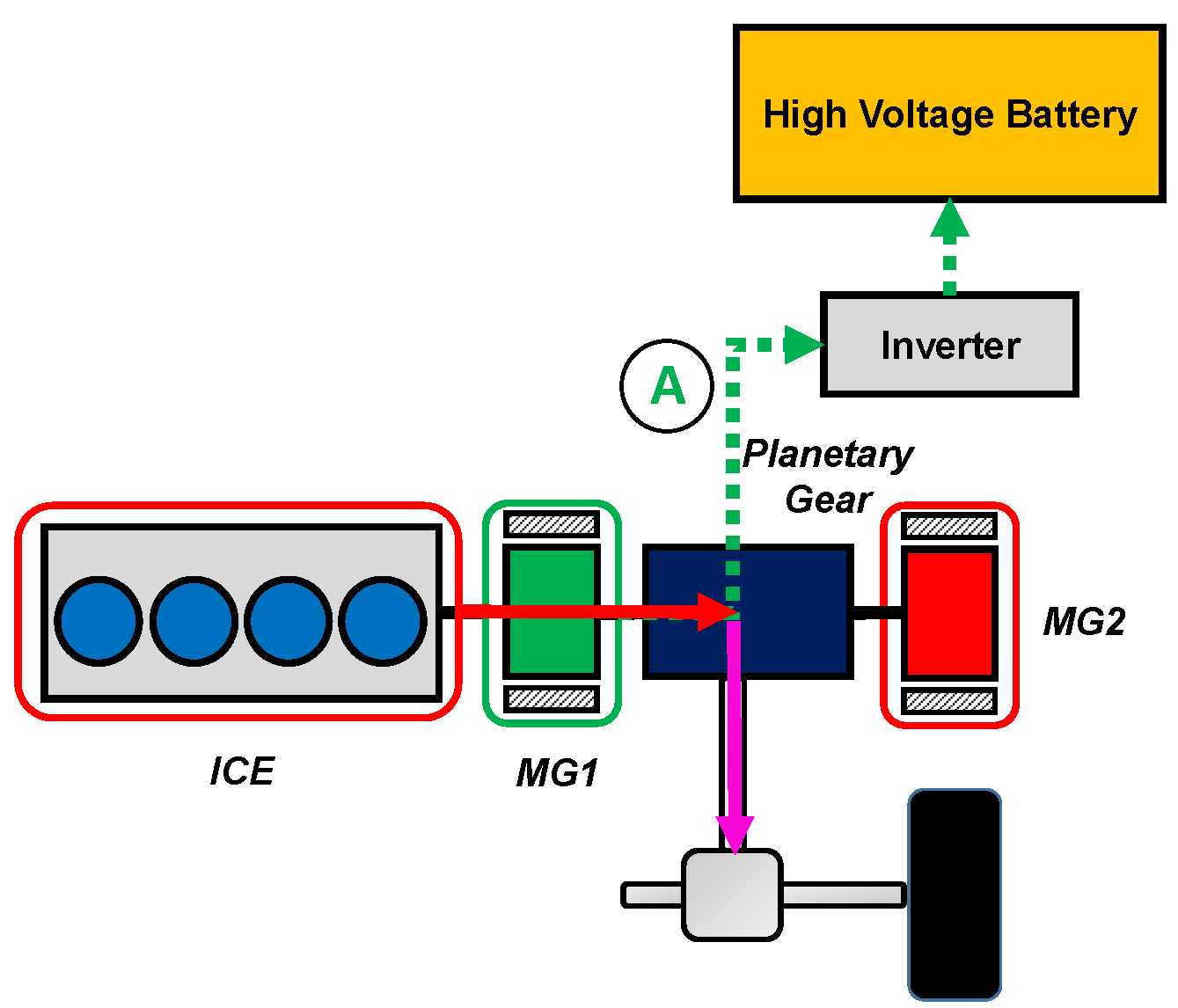

- Smart Charge (SC): the ICE operating points are shifted at higher load levels than those required for the vehicle propulsion, closer to the optimal efficiency area, and the power exceeding the vehicle propulsion needs is used to recharge the battery through the generator MG1, as depicted in Figure 2 by the path “A”;

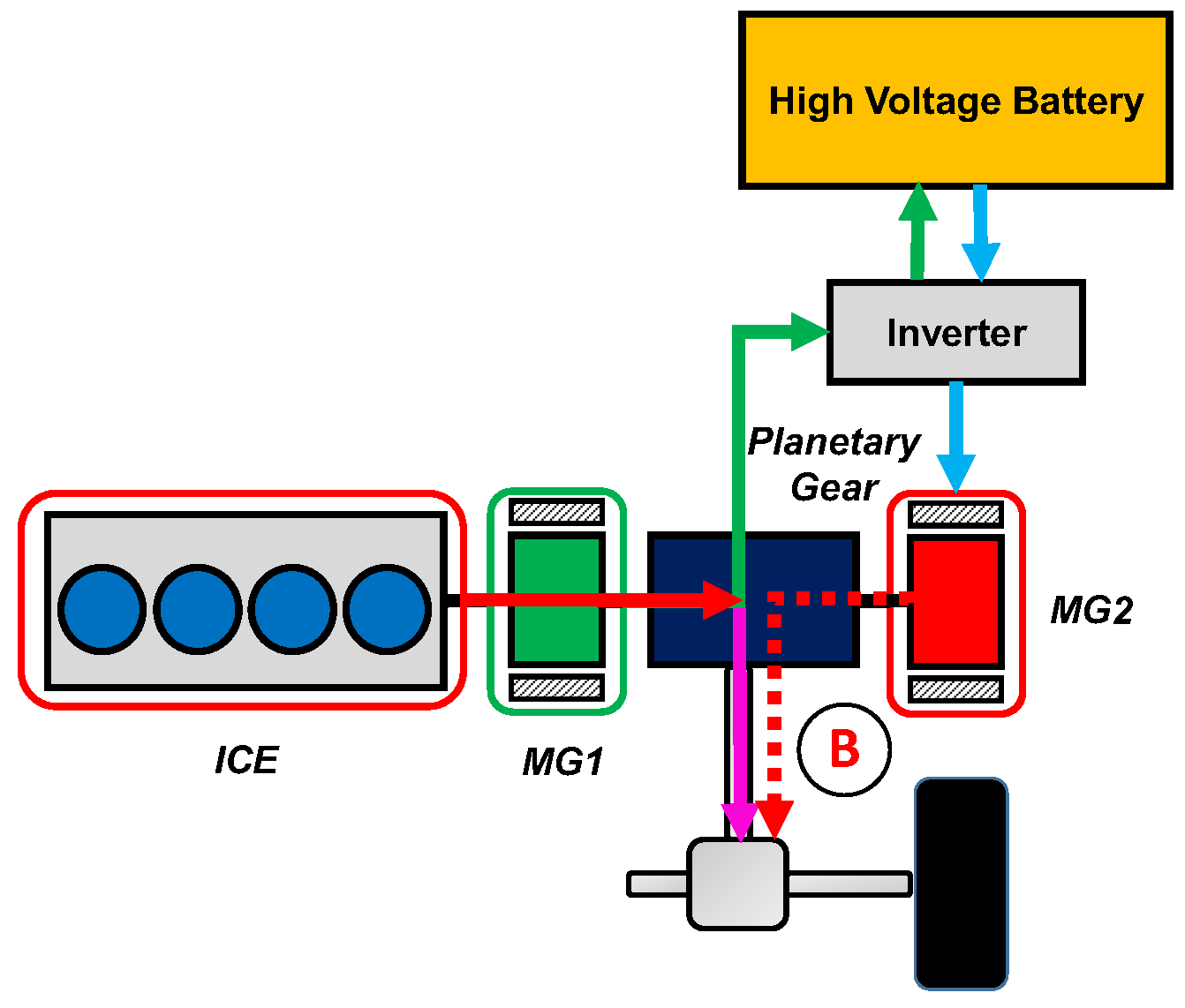

- Electric Boost (E-Boost): in order to support the engine during sudden load demands, the high voltage battery provides an extra power contribution to the MG2, represented by the path “B”, as illustrated in Figure 3.
2.2. Test Conditions
2.3. Test Protocol
3. Results

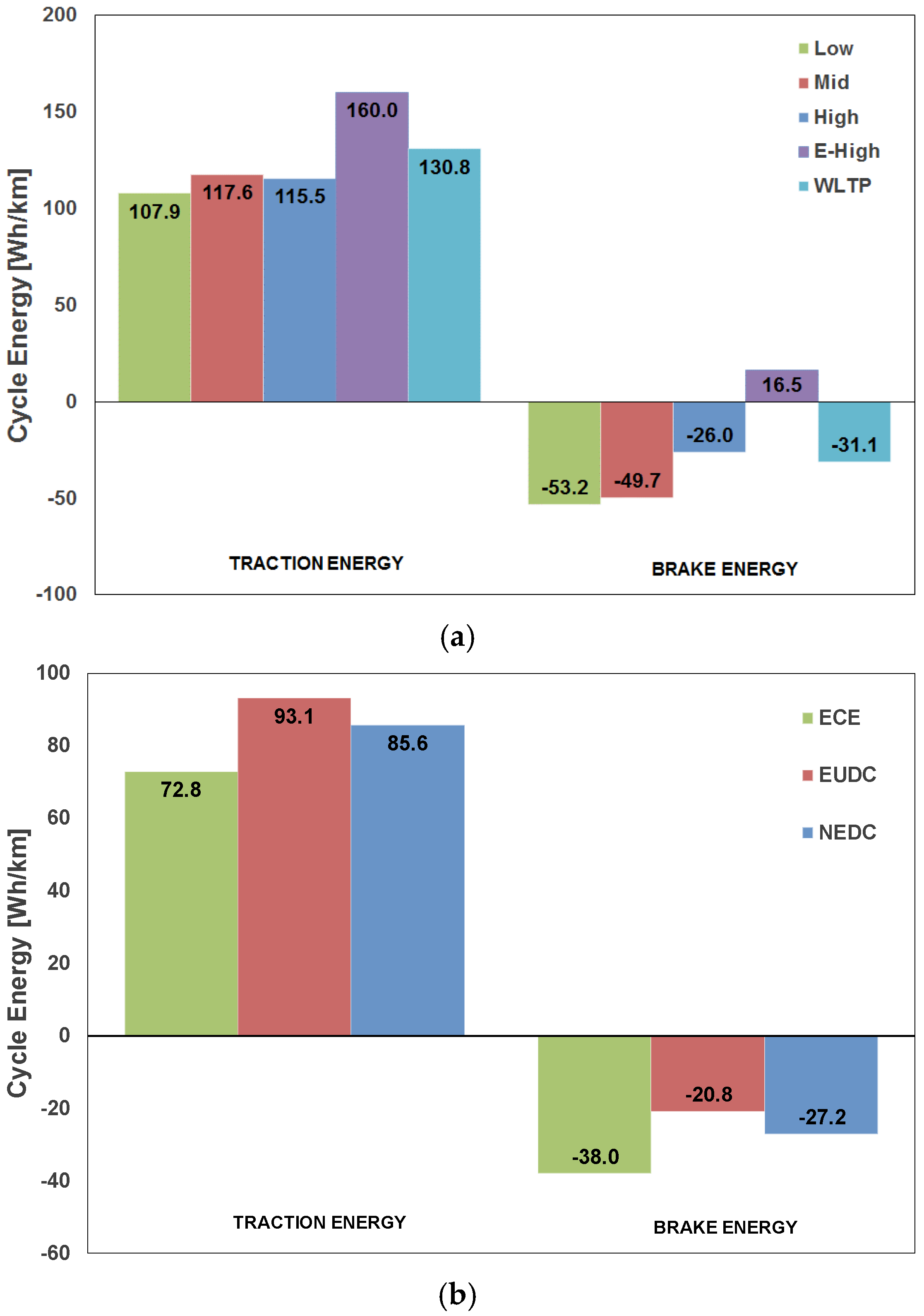

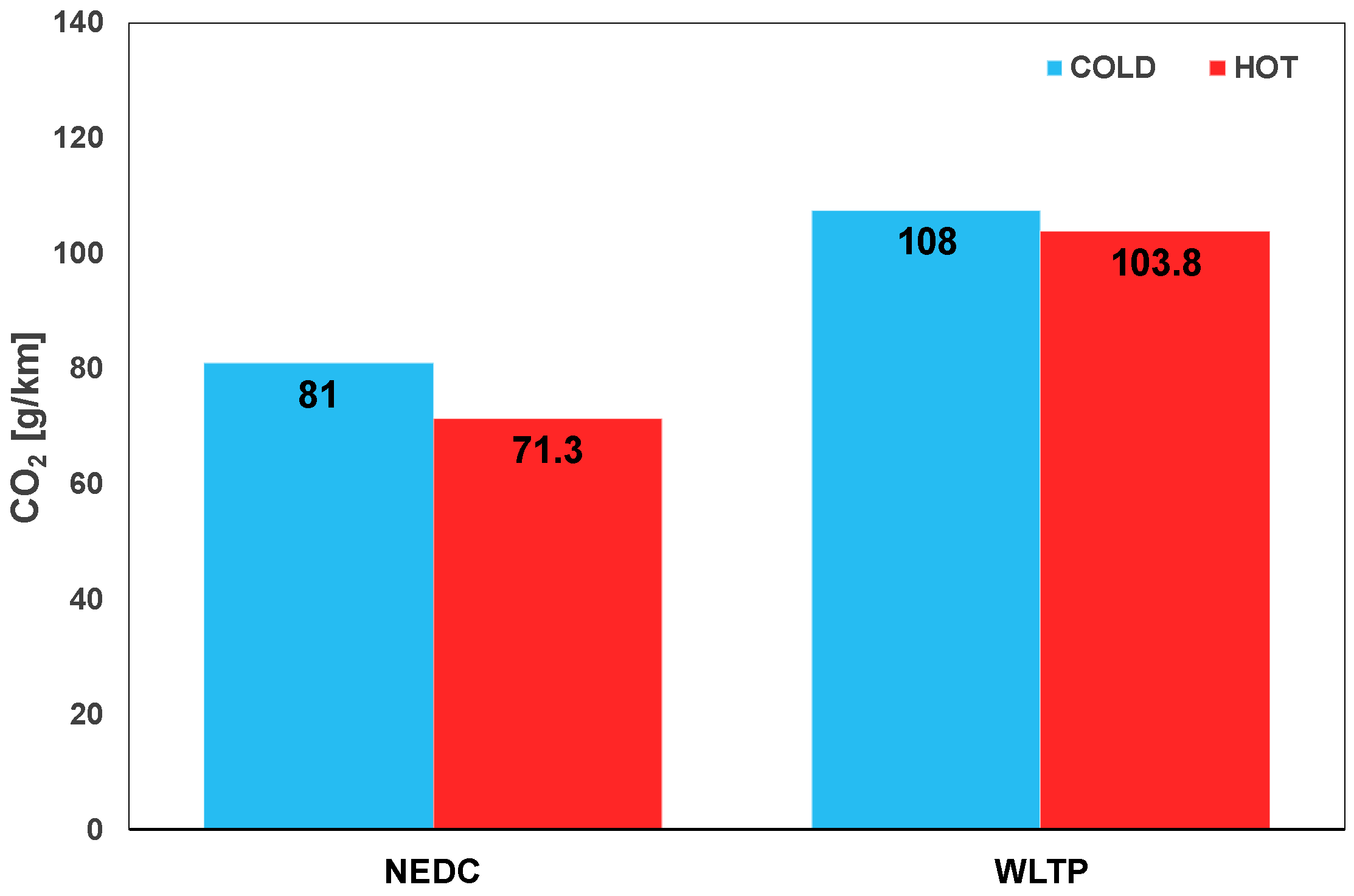

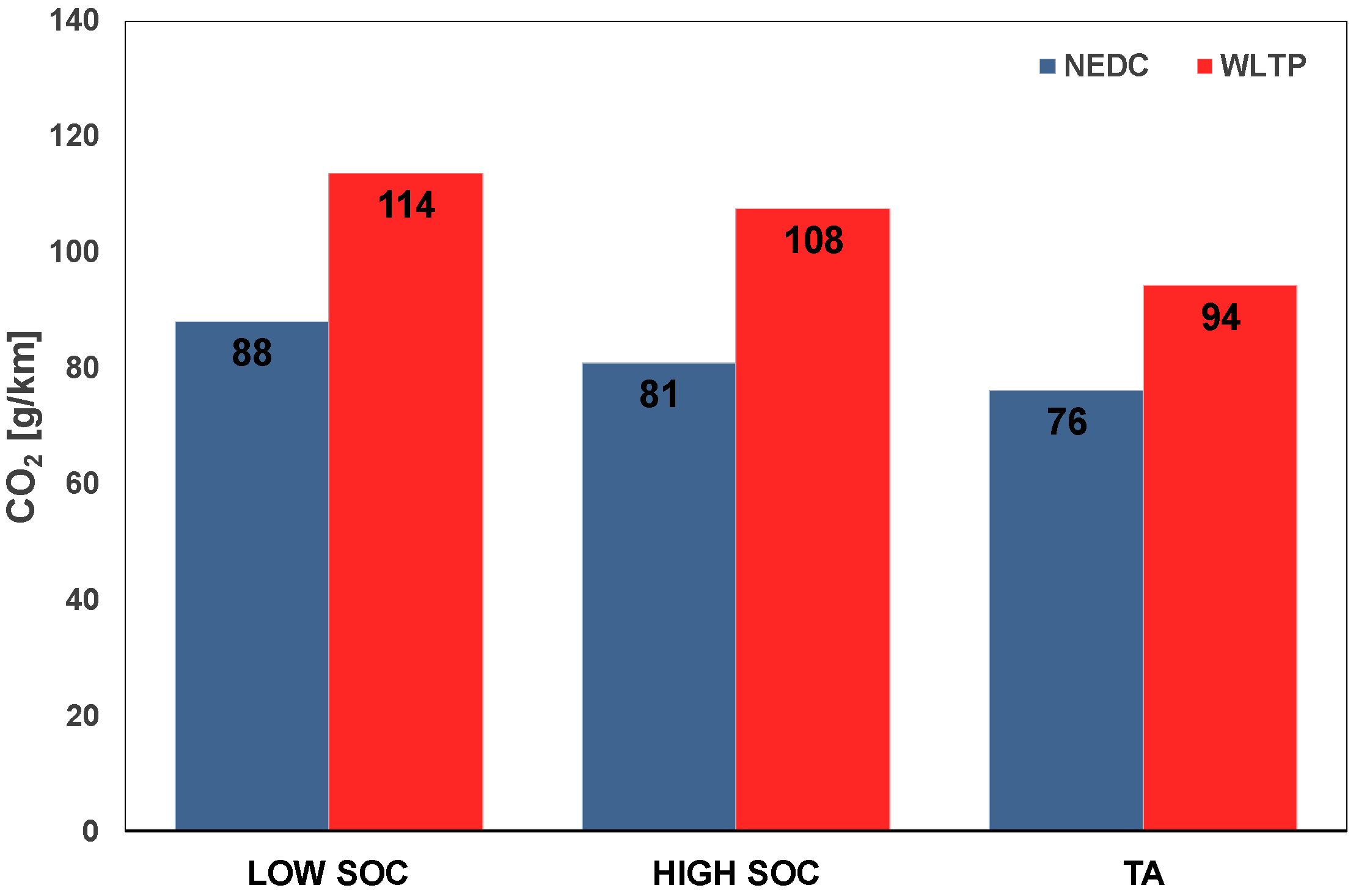

3.1. CO2 Emissions

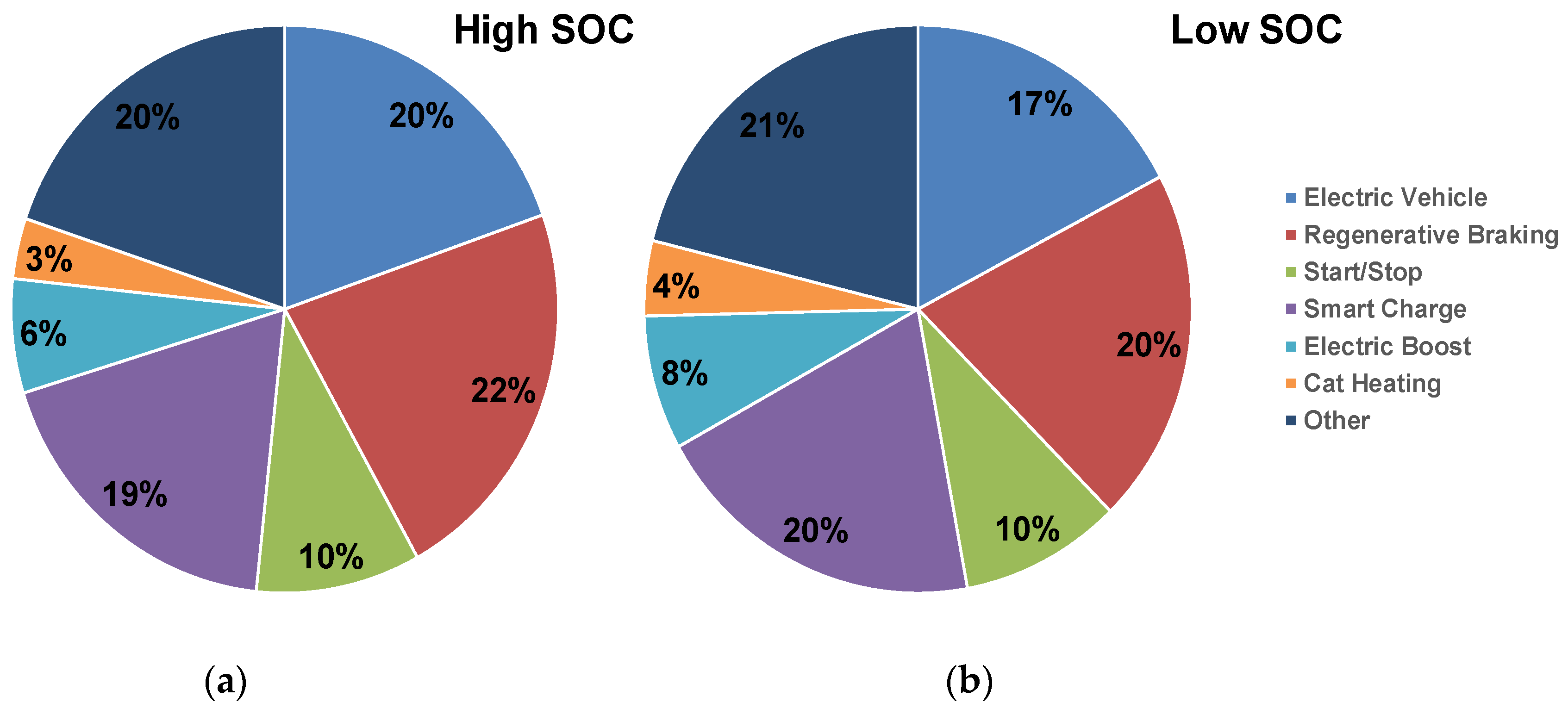

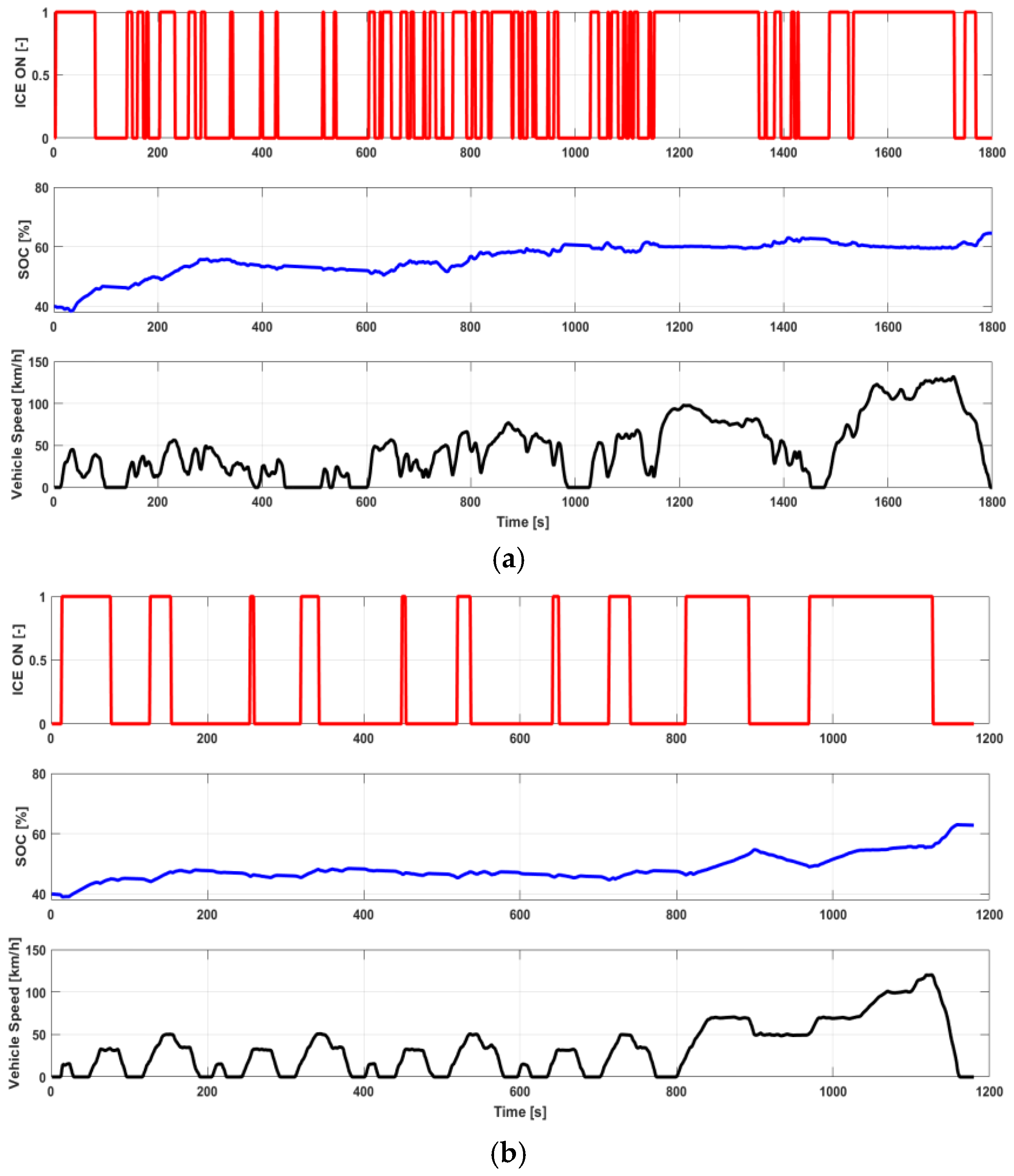

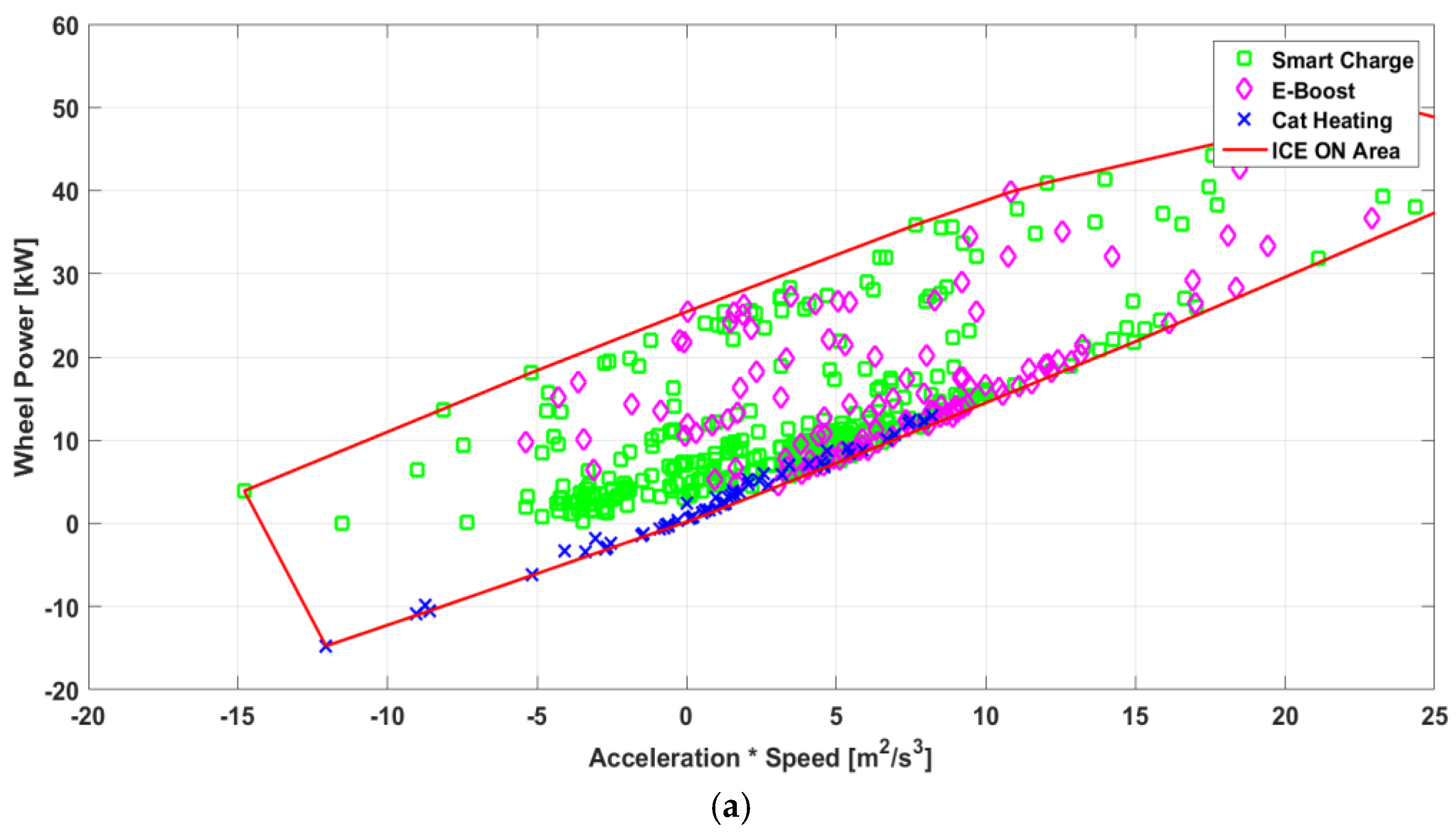

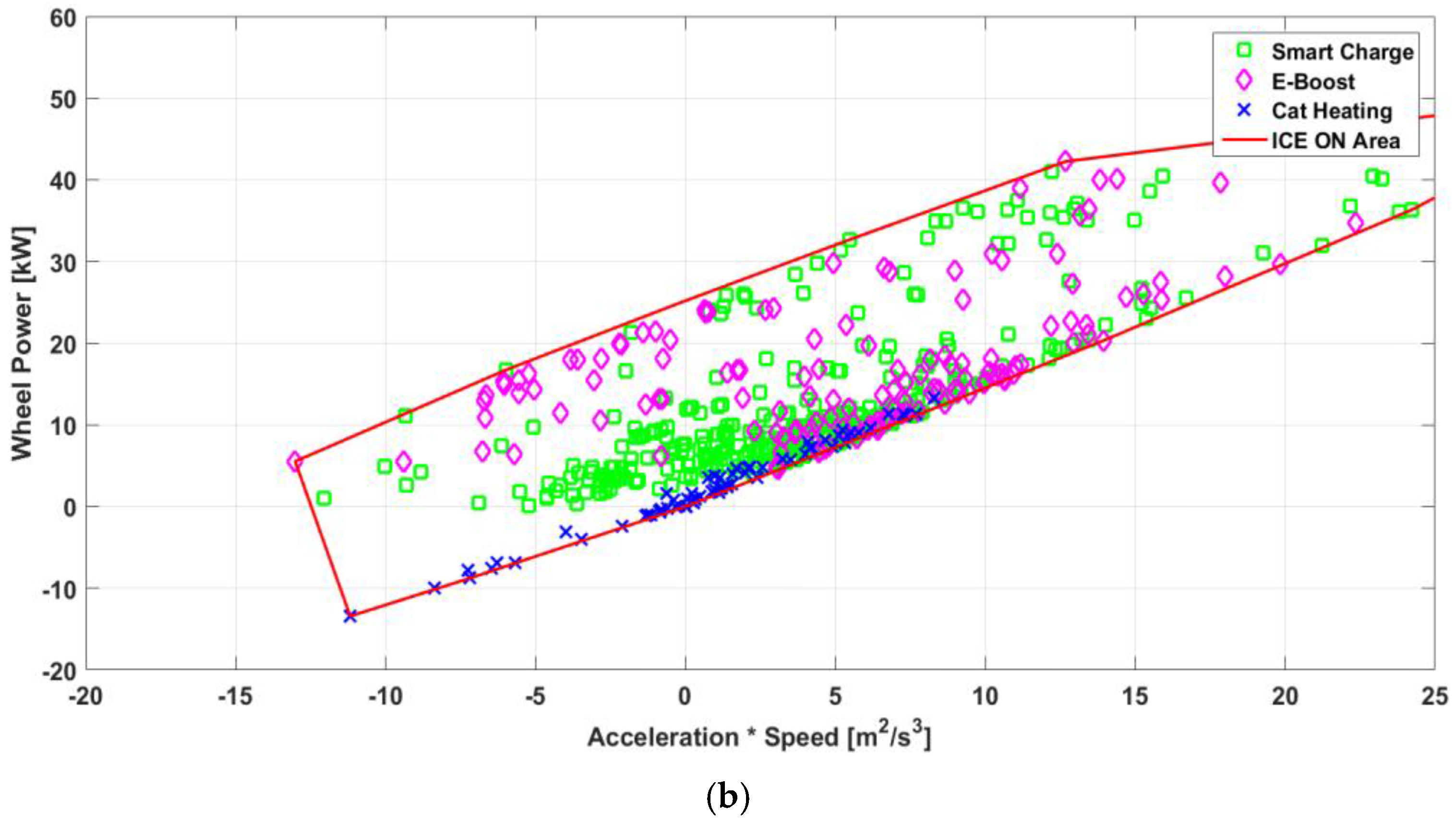

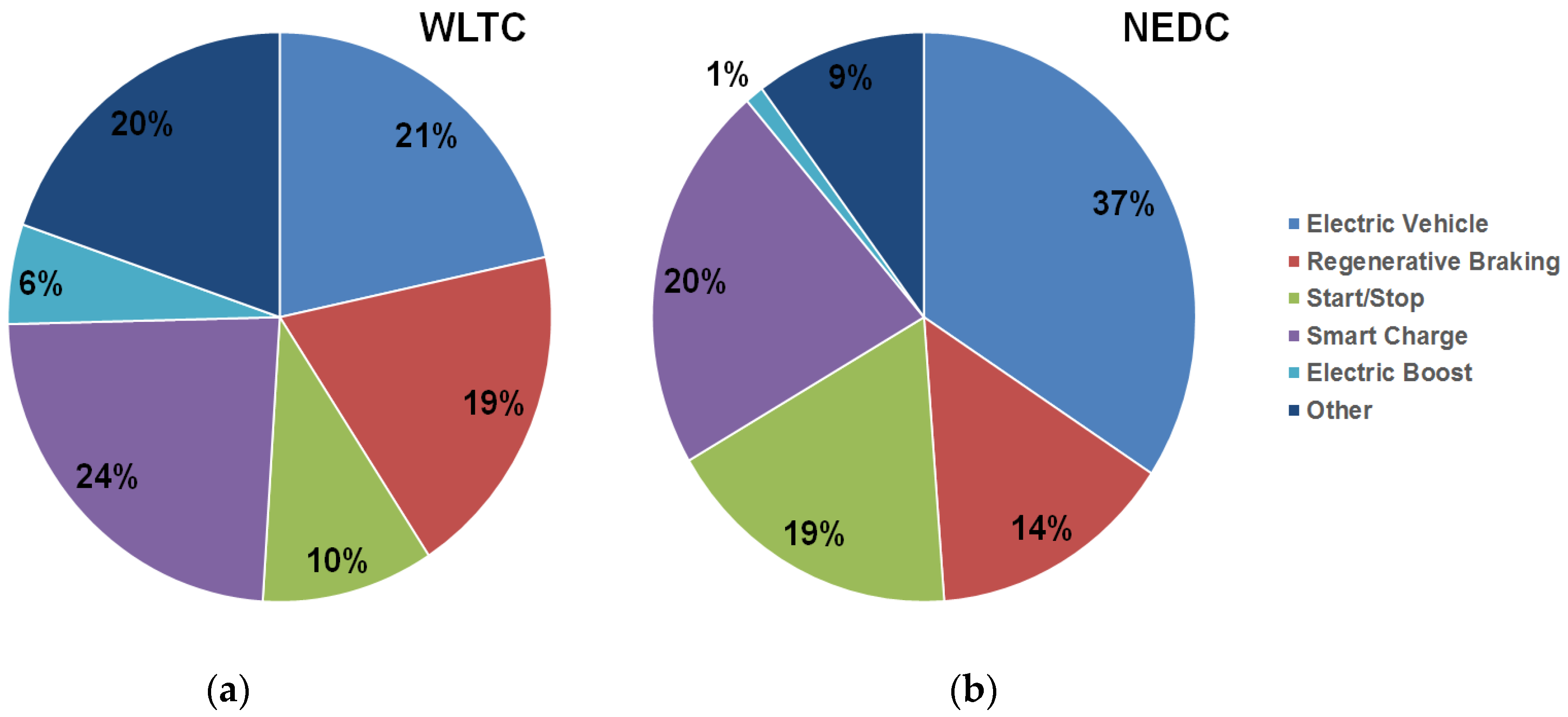

3.2. Analysis of the EMS Logic
- Vehicle speeds are in the medium range (below 60 km/h) and the accelerations are very low (below 0.5 m/s2);
- Accelerations are moderate (below 1 m/s2) and speeds are low (below 20 km/h) [27].

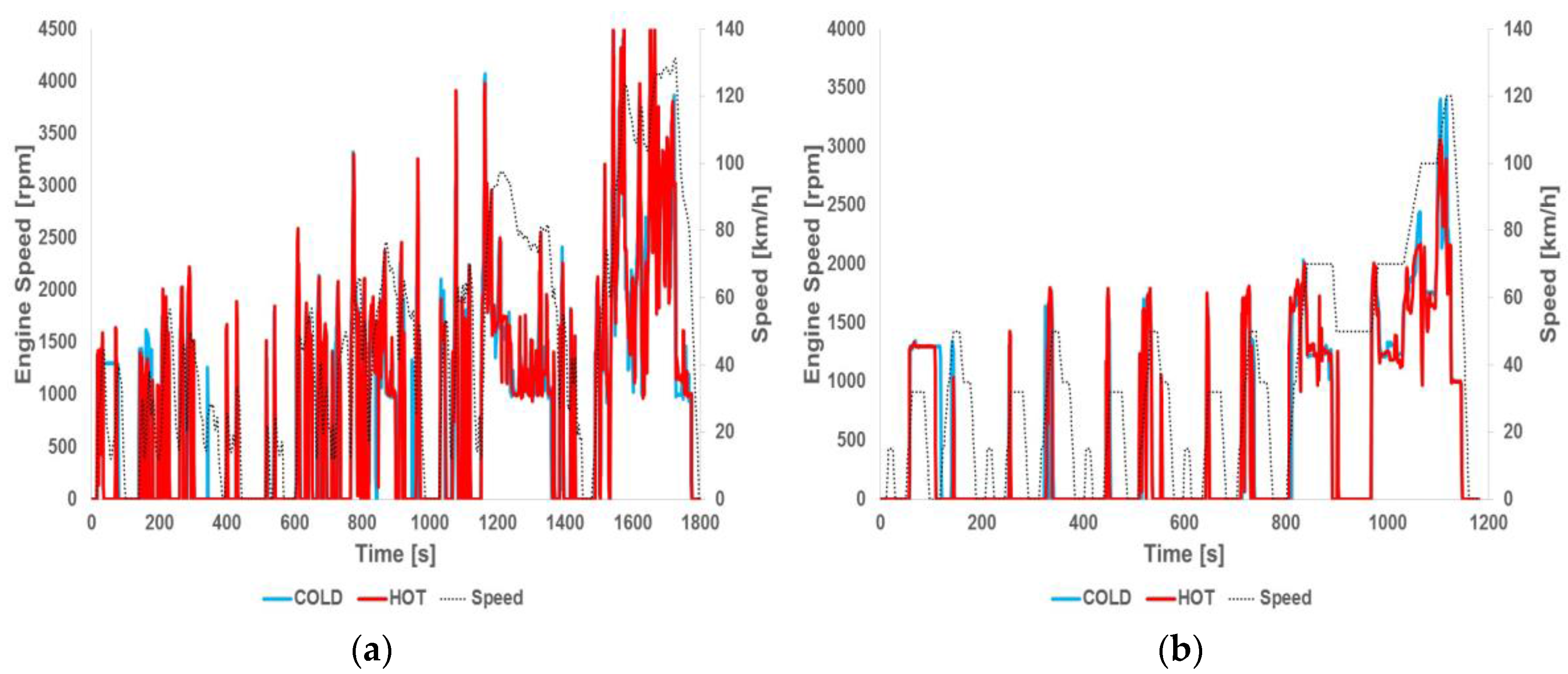

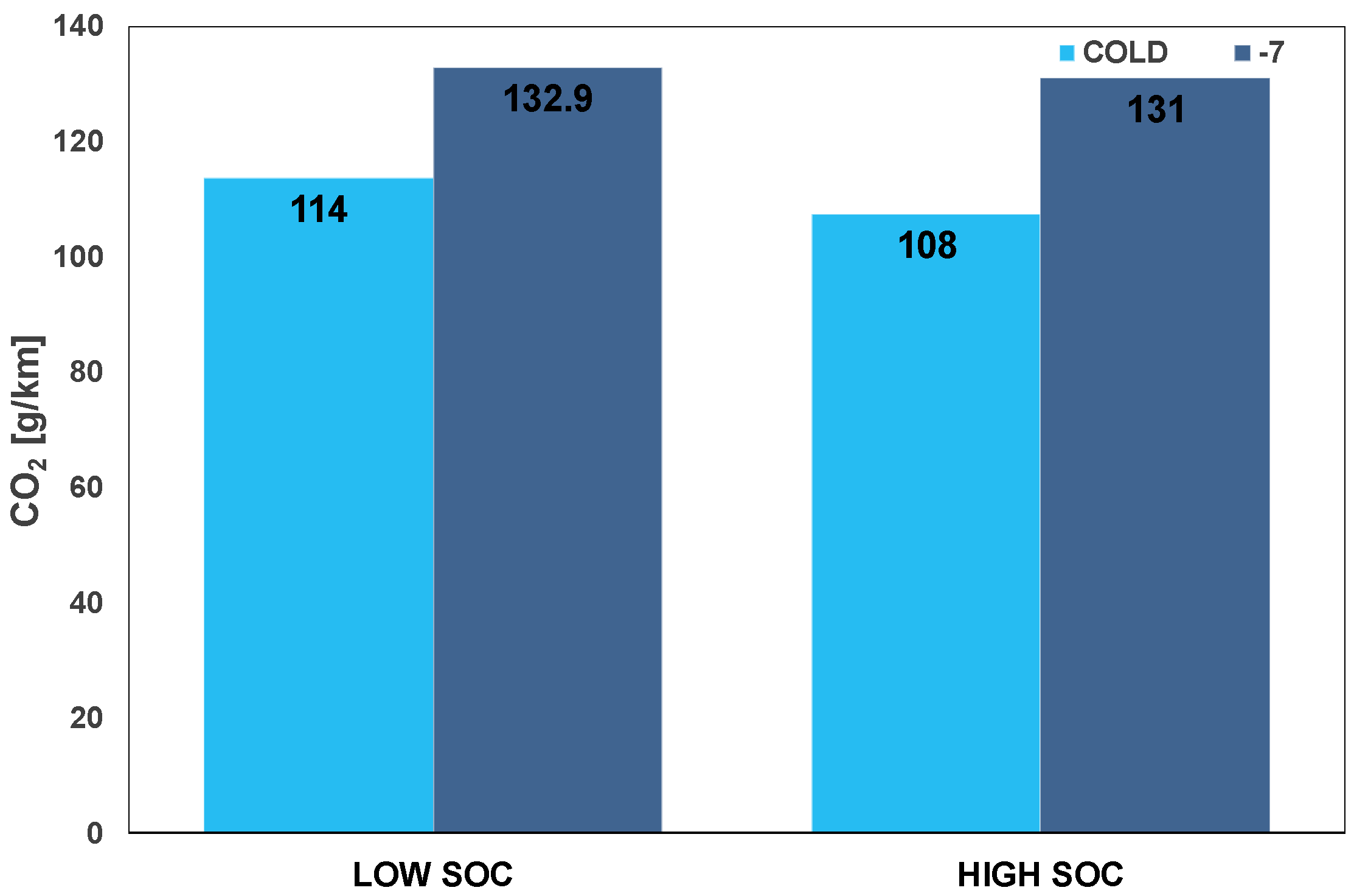

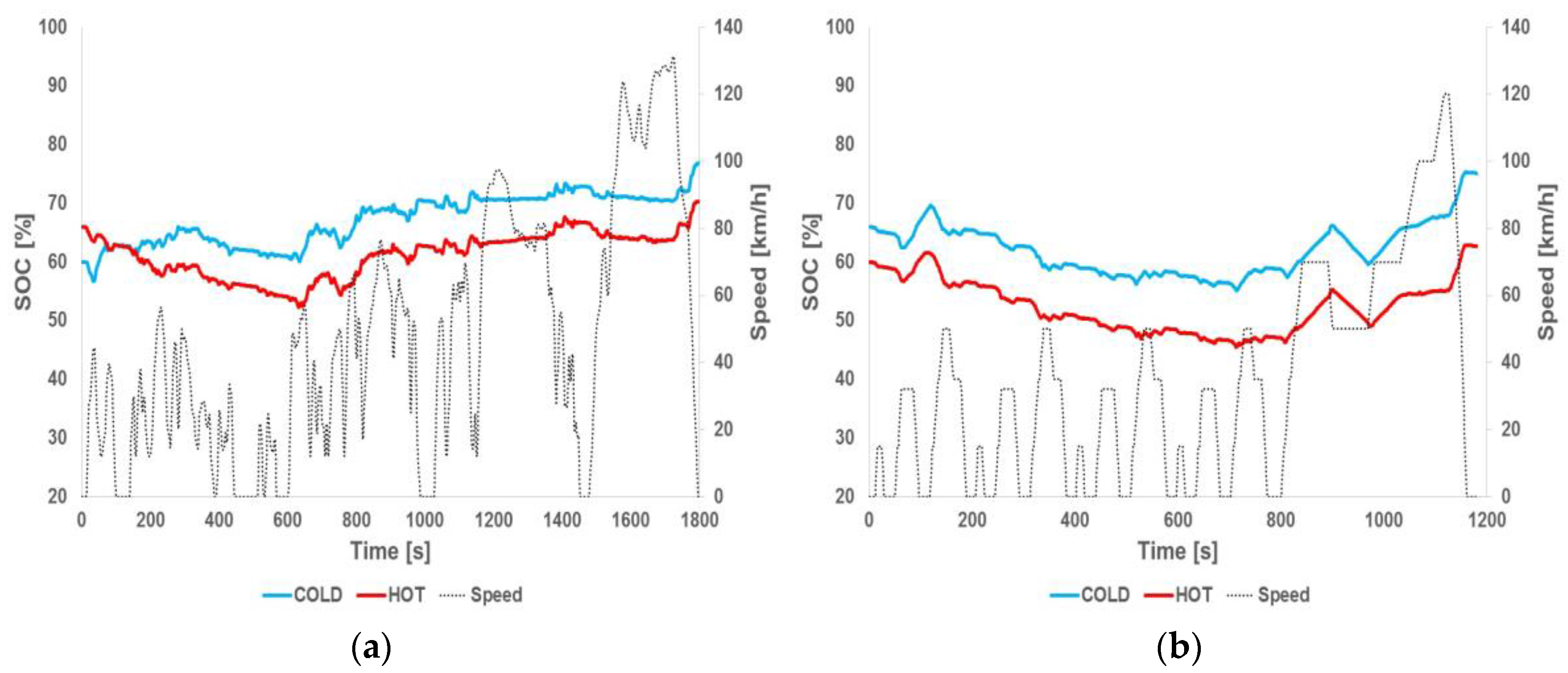

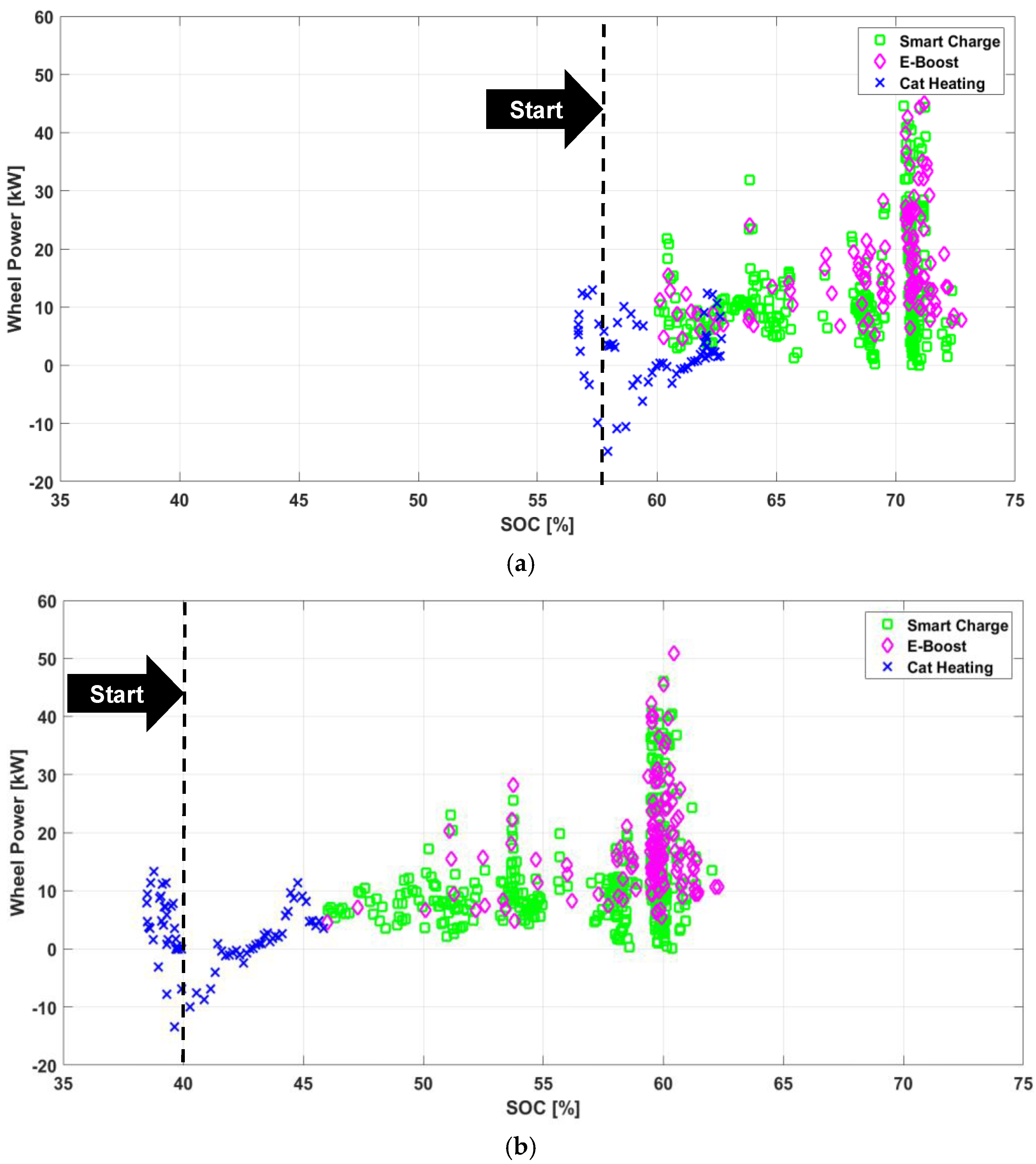

3.3. Analysis of the Impact of the Cold Start on the EMS Logics
4. Conclusions
- The specific energy demand increases of about 50%;
- The electric drive reduces of about 13%, leading to a 30% increase of CO2 emissions;
- The effect of the Cold start on CO2 emissions is reduced for WLTP to a percentage growth slightly lower than 4%, from about 12% for the NEDC.
