Influence of Various Irradiance Models and Their Combination on Simulation Results of Photovoltaic Systems
Abstract
:1. Introduction
2. Methodology
2.1. Input Data

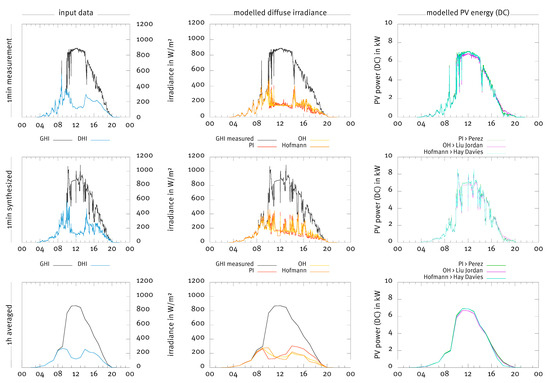

2.2. Data Preparations
2.3. Matrix Simulations
2.4. Clipping Losses Analysis
3. Results
3.1. Influence of Sun Position Models

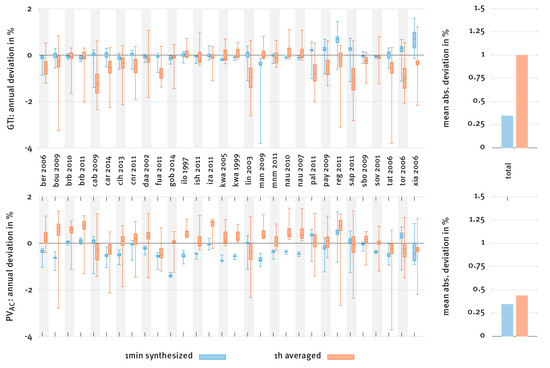

3.2. Influence of Input Data

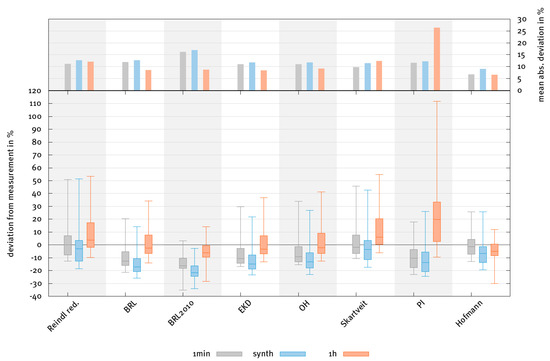

3.3. Diffuse Irradiance

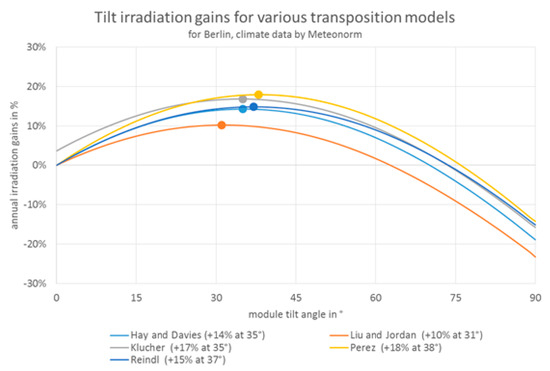

3.4. Transposition Models

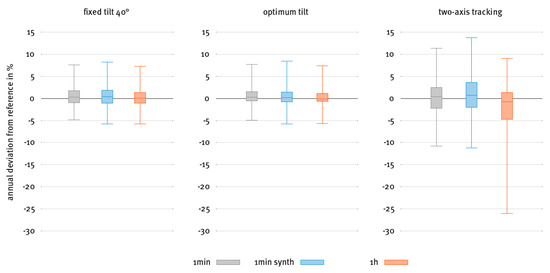

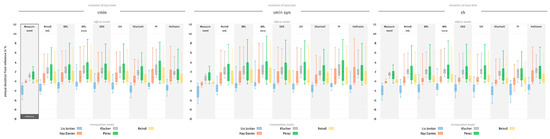

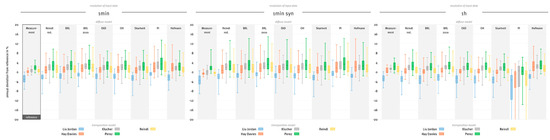

3.5. Variance of Calculated PV Energy
- Positive: For most of the combinations of models for different locations, the simulated PV energy differs only by a few percent from the reference.
- Negative: For some combinations, however, the deviation can be as high as −5% to 8% for fixed tilt systems and up to ±12% for two-axis tracking systems.
- Negative: There is a very high uncertainty of the model quality when using one-hour averages on two-axis tracking systems.

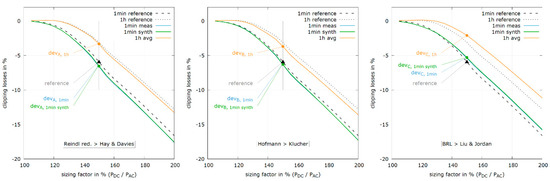

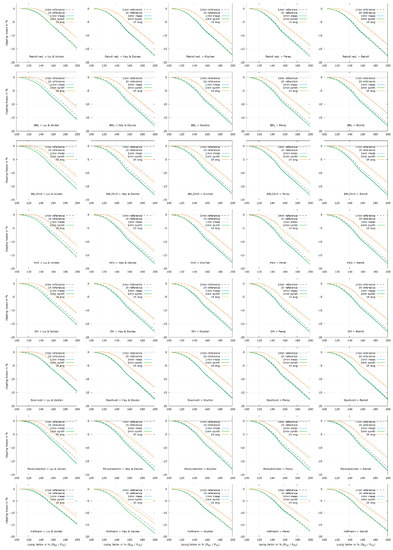

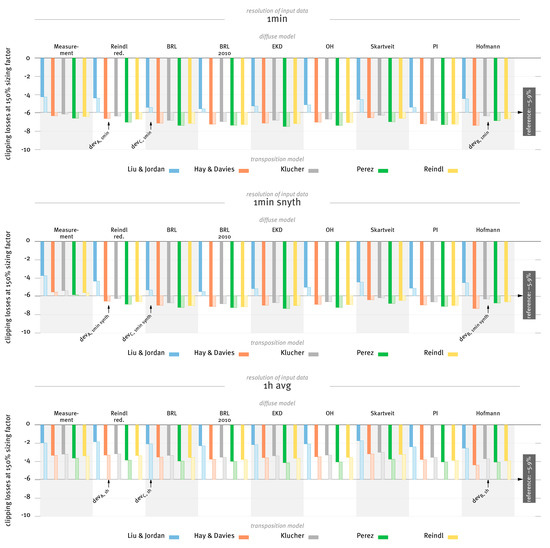

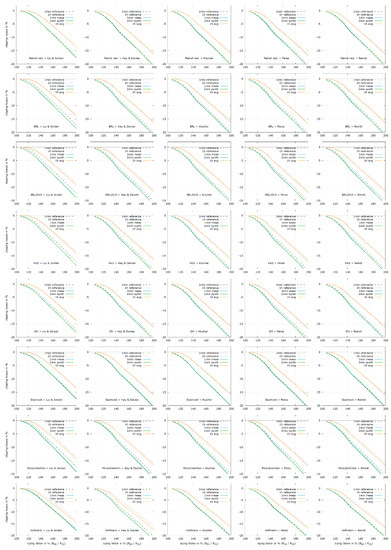

3.6. Inverter Clipping Losses
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
Appendix A
References
- König-Langlo, G.; Sieger, R. Report of the working group BSRN—Baseline Surface Radiation Network. AIP Conf. Proc. 2013, 1531, 668–671. [Google Scholar]
- Köppen, W. Klassifikation der Klimate nach Temperatur, Niederschlag und Jahresablauf (Classification of climates according to temperature, precipitation and seasonal cycle). Petermanns Geogr. Mitt. 1918, 64, 193–203. [Google Scholar]
- Bourges, B. Improvement in solar declination computation. Sol. Energy 1985, 35, 367–369. [Google Scholar] [CrossRef] [Green Version]
- Hofmann, M.; Riechelmann, S.; Crisosto, C.; Mubarak, R.; Seckmeyer, G. Improved synthesis of global irradiance with one-minute resolution for PV system simulations. Int. J. Photoenergy 2014, 2014. [Google Scholar] [CrossRef]
- Remund, J. Neue Modelle für die Realistische Generierung von Minutenwerten. Available online: https://www.researchgate.net/publication/315767163_Neue_Modelle_fur_die_realistische_Generierung_von_Minutenwerten (accessed on 25 September 2017).
- HAY, J.E.; Davies, J.A. Calculation of the Solar Radiation Incident on an Inclined Surface. In Proceedings of the First Canadian Solar Radiation Data Workshop, Toronto, ON, Canada, 17–19 April 1978. [Google Scholar]
- Hofmann, M.; Hunfeld, R. PV*SOL Simulation Core; Valentin Software: Berlin, Germany, 2017. [Google Scholar]
- German Institute for Standardisation. Daylight in Interiors; Principles; DIN: Berlin, Germany, 1985.
- Reda, I.; Nrel, A.A. Solar Position Algorithm for Solar Radiation Applications (Revised). Sol. Energy 2004, 76, 577–589. [Google Scholar] [CrossRef]
- Gueymard, C.A.; Ruiz-Arias, J.A. Extensive worldwide validation and climate sensitivity analysis of direct irradiance predictions from 1-min global irradiance. Sol. Energy 2016, 128, 1–30. [Google Scholar] [CrossRef]
- Hofmann, M.; Seckmeyer, G. A New Model for Estimating the Diffuse Fraction of Solar Irradiance for Photovoltaic System Simulations. Energies 2017, 10, 248. [Google Scholar] [CrossRef]
- Quaschning, V. Vergleich und Bewertung Verschiedener Verfahren zur Solarstrahlungsbestimmung. Available online: https://volker-quaschning.de/downloads/Sofo2002_1.pdf (accessed on 25 September 2017).
- Kambezidis, H.D.; Psiloglou, B.E.; Gueymard, C. Measurements and Models for Total Solar Irradiance on Inclined Surface in Athens, Greece. Sol. Energy 1994, 53, 177–185. [Google Scholar] [CrossRef]
- Wong, L.T.; Chow, W.K. Solar radiation model. Appl. Energy 2001, 69, 191–224. [Google Scholar] [CrossRef]
- Dervishi, S.; Mahdavi, A. Computing diffuse fraction of global horizontal solar radiation: A model comparison. Sol. Energy 2012, 86, 1796–1802. [Google Scholar] [CrossRef] [PubMed]
- Reindl, D.T.; Beckman, W.A.; Duffie, J.A. Diffuse fraction corrections. Sol. Energy 1990, 45, 1–7. [Google Scholar] [CrossRef]
- Erbs, D.G.; Klein, S.A.; Duffie, J.A. Estimation of the diffuse radiation fraction for hourly, daily and monthly-average global radiation. Sol. Energy 1982, 28, 293–302. [Google Scholar] [CrossRef]
- Orgill, J.F.; Hollands, K.G.T. Correlation equation for hourly diffuse radiation on a horizontal surface. Sol. Energy 1977, 19, 357–359. [Google Scholar] [CrossRef]
- Boland, J.; Ridley, B. Models of diffuse solar fraction. In Modeling Solar Radiation at the Earth’s Surface; Springer: Berlin/Heidelberg, Germany, 2008; pp. 193–219. [Google Scholar]
- Ridley, B.; Boland, J.; Lauret, P. Modelling of diffuse solar fraction with multiple predictors. Renew. Energy 2010, 35, 478–483. [Google Scholar] [CrossRef]
- Skartveit, A.; Olseth, J.A. A model for the diffuse fraction of hourly global radiation. Sol. Energy 1987, 38, 271–274. [Google Scholar] [CrossRef]
- Perez, R.; Ineichen, P.; Seals, R.; Michalsky, J.; Stewart, R. Modeling daylight availability and irradiance components from direct and global irradiance. Sol. Energy 1990, 44, 271–289. [Google Scholar] [CrossRef]
- Liu, B.Y.H.; Jordan, R.C. The interrelationship and characteristic distribution of direct, diffuse and total solar radiation. Sol. Energy 1960, 4, 1–19. [Google Scholar] [CrossRef]
- Klucher, T.M. Evaluation of models to predict insolation on tilted surfaces. Sol. Energy 1979, 23, 111–114. [Google Scholar] [CrossRef]
- Perez, R.; Seals, R.; Ineichen, P.; Stewart, R.; Menicucci, D. A new simplified version of the perez diffuse irradiance model for tilted surfaces. Sol. Energy 1987, 39, 221–231. [Google Scholar] [CrossRef]
- Reindl, D.T.; Beckman, W.A.; Duffie, J.A. Evaluation of hourly tilted surface radiation models. Sol. Energy 1990, 45, 9–17. [Google Scholar] [CrossRef]
- Temps, R.C.; Coulson, K.L. Solar radiation incident upon slopes of different orientations. Sol. Energy 1977, 19, 179–184. [Google Scholar] [CrossRef]
- Muneer, T. Solar radiation model for Europe. Build. Serv. Eng. Res. Technol. 1990, 11, 153–163. [Google Scholar] [CrossRef]
- Olmo, F.; Vida, J.; Foyo, I.; Castro-Diez, Y.; Alados-Arboledas, L. Prediction of global irradiance on inclined surfaces from horizontal global irradiance. Energy 1999, 24, 689–704. [Google Scholar] [CrossRef]
- Gueymard, C. An anisotropic solar irradiance model for tilted surfaces and its comparison with selected engineering algorithms. Sol. Energy 1987, 38, 367–386. [Google Scholar] [CrossRef]
- Badescu, V. 3D isotropic approximation for solar diffuse irradiance on tilted surfaces. Renew. Energy 2002, 26, 221–233. [Google Scholar] [CrossRef]
- Yang, D. Solar radiation on inclined surfaces: Corrections and benchmarks. Sol. Energy 2016, 136, 288–302. [Google Scholar] [CrossRef]
- Ineichen, P. Global Irradiance on Tilted and Oriented Planes: Model Validations; Technical Report; University Geneva: Geneva, Switzerland, October 2011. [Google Scholar]
- Loutzenhiser, P.G.; Manz, H.; Felsmann, C.; Strachan, P.A.; Frank, T.; Maxwell, G.M. Empirical validation of models to compute solar irradiance on inclined surfaces for building energy simulation. Sol. Energy 2007, 81, 254–267. [Google Scholar] [CrossRef] [Green Version]
- Gueymard, C.A. From Global Horizontal to Global Tilted Irradiance: How Accurate Are Solar Energy Engineering Predictions in Practice? Available online: http://www.solarconsultingservices.com/Gueymard-Tilted%20radiation%20models%20performance-ASES08.pdf (accessed on 25 September 2017).
- Demain, C.; Journée, M.; Bertrand, C. Evaluation of different models to estimate the global solar radiation on inclined surfaces. Renew. Energy 2013, 50, 710–721. [Google Scholar] [CrossRef]
- Gulin, M.; Vašak, M.; Baotic, M. Estimation of the Global Solar Irradiance on tilted Surfaces. Available online: http://www.apr.fer.hr/old/papers/EDPE2013_solar.pdf (accessed on 25 September 2017).
- Souka, A.F.; Safwat, H.H. Determination of the optimum orientations for the double-exposure, flat-plate collector and its reflectors. Sol. Energy 1966, 10, 170–174. [Google Scholar] [CrossRef]
- Laboratories, S.N. ASHRAE Model—PV Performance Modeling Colaborative. Available online: http://pvpmc.org/modeling-steps/shading-soiling-and-reflection-losses/incident-angle-reflection-losses/ashre-model/ (accessed on 25 September 2017).
- Meteonorm: Irradiation Data for Every Place on Earth. Available online: http://www.meteonorm.com/images/uploads/downloads/broschuere-mn-7.1.pdf (accessed on 25 September 2017).
- Yadav, A.K.; Chandel, S.S. Tilt angle optimization to maximize incident solar radiation: A review. Renew. Sustain. Energy Rev. 2013, 23, 503–513. [Google Scholar] [CrossRef]
- Hafez, A.Z.; Soliman, A.; El-Metwally, K.A.; Ismail, I.M. Tilt and azimuth angles in solar energy applications—A review. Renew. Sustain. Energy Rev. 2017, 77, 147–168. [Google Scholar] [CrossRef]
- Beringer, S.; Schilke, H.; Lohse, I.; Seckmeyer, G. Case study showing that the tilt angle of photovoltaic plants is nearly irrelevant. Sol. Energy 2011, 85, 470–476. [Google Scholar] [CrossRef]
- 2017 German Renewable Energy Law (EEG 2017). Available online: https://www.gesetze-im-internet.de/eeg_2014/BJNR106610014.html (accessed on 10 August 2017).
- Burger, B.; Rüther, R. Inverter sizing of grid-connected photovoltaic systems in the light of local solar resource distribution characteristics and temperature. Sol. Energy 2006, 80, 32–45. [Google Scholar] [CrossRef]
- Ransome, S.; Funtan, P. Why Hourly Averaged Measurement Data Is Insufficient to Model PV Performance Accurately. Available online: http://www.steveransome.com/PUBS/2005Barcelona_6DV_4_32.pdf (accessed on 25 September 2017).
ID (Location and Year) | City, Country | Latitude in ° N | Longitude in ° E | Height in m | Time Zone | Surface | Climate | Yearly Clearness Index KT | Yearly Diffuse Fraction DF | Optimal Tilt Angle in ° |
---|---|---|---|---|---|---|---|---|---|---|
ber 2006 | Bermuda | 32.267 | −64.667 | 8 | −4 | water, ocean | Cfa | 0.53 | 0.44 | 25 |
bou 2009 | Boulder, US | 40.05 | 105.007 | 1577 | −7 | grass | BSk | 0.578 | 0.367 | 36 |
brb 2010 | Brasilia, BR | −15.601 | −47.713 | 1023 | −3 | concrete | Aw | 0.574 | 0.341 | 22 |
brb 2011 | Brasilia, BR | −15.601 | −47.713 | 1023 | −3 | concrete | Aw | 0.548 | 0.345 | 23 |
cab 2009 | Cabauw, NL | 51.971 | 4.927 | 0 | 1 | grass | Cfb | 0.462 | 0.542 | 35 |
car 2014 | Carpentras, FR | 44.083 | 5.059 | 100 | 1 | cultivated | Csa | 0.565 | 0.336 | 36 |
clh 2013 | Chesapeake Light, US | 36.905 | −75.713 | 37 | −5 | water, ocean | Cfa | 0.551 | 0.383 | 31 |
cnr 2011 | Cener, ES | 42.816 | −1.601 | 471 | 1 | asphalt | Cfb | 0.542 | 0.381 | 34 |
daa 2002 | De Aar, ZA | −30.667 | 23.993 | 1287 | 2 | sand | BSk | 0.671 | 0.195 | 29 |
fua 2011 | Fukuoka, JP | 33.582 | 130.375 | 3 | 9 | asphalt | Cfa | 0.428 | 0.532 | 27 |
gob 2014 | Gobabeb, NA | −23.561 | 15.042 | 407 | 1 | n.a. | BWh | 0.721 | 0.188 | 23 |
ilo 1997 | Ilorin, NG | 8.533 | 4.567 | 350 | 1 | shrub | Aw | 0.498 | 0.557 | 9 |
ish 2011 | Ishigakijima, JP | 24.337 | 124.163 | 5.7 | 9 | asphalt | Cfa | 0.439 | 0.531 | 12 |
iza 2011 | Izaña, ES | 28.309 | −16.499 | 2372.9 | 0 | rock | Csb | 0.753 | 0.201 | 26 |
kwa 1999 | Kwajalein, MH | 8.72 | 167.731 | 10 | 12 | water, ocean | Af | 0.548 | 0.387 | 7 |
kwa 2005 | Kwajalein, MH | 8.72 | 167.731 | 10 | 12 | water, ocean | Af | 0.573 | 0.399 | 9 |
lin 2003 | Lindenberg, DE | 52.21 | 14.122 | 125 | 1 | cultivated | Cfb | 0.495 | 0.471 | 39 |
man 2009 | Momote, PG | −2.058 | 147.425 | 6 | 10 | grass | Af | 0.461 | 0.502 | 2 |
mnm 2011 | Minamitorishima, JP | 24.288 | 153.983 | 7.1 | 9 | water, ocean | Af | 0.569 | 0.369 | 19 |
nau 2007 | Nauru Island, NR | −0.521 | 166.917 | 7 | 12 | rock | Af | 0.579 | 0.377 | 3 |
nau 2010 | Nauru Island, NR | −0.521 | 166.917 | 7 | 12 | rock | Af | 0.589 | 0.369 | 3 |
pal 2011 | Palaiseau, FR | 48.713 | 2.208 | 156 | 1 | concrete | Cfb | 0.481 | 0.486 | 35 |
pay 2009 | Payerne, CH | 46.815 | 6.944 | 491 | 1 | cultivated | Cfb | 0.501 | 0.473 | 32 |
reg 2011 | Regina, CA | 50.205 | −104.713 | 578 | −6 | cultivated | BSk | 0.593 | 0.401 | 41 |
sap 2011 | Sapporo, JP | 43.06 | 141.328 | 17.2 | 9 | asphalt | Dfb | 0.442 | 0.549 | 35 |
sbo 2009 | Sede Boqer, IL | 30.905 | 34.782 | 500 | 2 | desert rock | Cwb | 0.665 | 0.261 | 27 |
sov 2001 | Solar Village, SA | 24.91 | 46.41 | 650 | 3 | desert, sand | BWh | 0.705 | 0.278 | 23 |
tat 2006 | Tateno, JP | 36.05 | 140.133 | 25 | 9 | grass | Cfa | 0.413 | 0.558 | 35 |
tor 2006 (*) | Toravere, EE | 58.254 | 26.462 | 70 | 2 | grass | Dfb | 0.481 | 0.446 | 41 |
xia 2006 (*) | Xianghe, CN | 39.754 | 116.962 | 32 | 8 | desert, rock | Dwa | 0.468 | 0.576 | 34 |

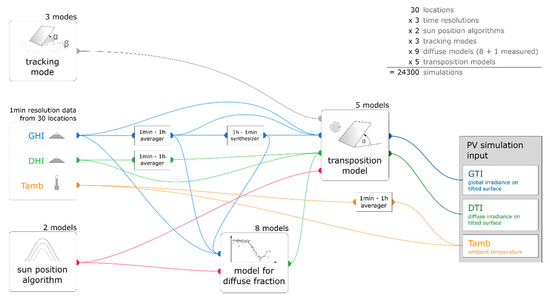

Dimension | Models/Modes | Amount |
---|---|---|
Locations | See Table 1 | 30 |
Input data/time resolution |
| 3 |
Sun position | 2 | |
Tracking mode |
| 3 |
Diffuse fraction |
| 9 |
Transposition models (irradiance on module plane) | 5 | |
Total | 24,300 |
Parameter/Model | Value |
---|---|
Albedo | 0.2 |
Reflection model | ASHRAE [38,39] |
Incidence Angle Modifier (IAM) | 0.95 |
Spectral losses | 0.01 |
PV modules | 8 kWp nominal power, 40 × 200 Wp polycrystalline standard module, modeled with the two-diodes model |
Inverter | 7 kVA standard inverter, max. efficiency 94.6% at 50% load |
Sizing factor | 114% |
Electrical modeling | Based on IV characteristics superposition, PV-MPPT-Inverter feedback loop |
Grid voltage | 230 V |
Cable resistance | 0 Ω |
Location | Deviation | Min | Q2 | Median | Q3 | Max |
---|---|---|---|---|---|---|
BRB (2010 and 2011) | devGTI | −0.0109 | −0.0070 | −0.0062 | −0.0055 | −0.0042 |
devPV | −0.0081 | −0.0055 | −0.0047 | −0.0041 | −0.0020 | |
KWA (1999 and 2005) | devGTI | −0.0260 | −0.0235 | −0.0222 | −0.0207 | −0.0162 |
devPV | −0.0189 | −0.0164 | −0.0157 | −0.0148 | −0.0103 | |
NAU (2007 and 2010) | devGTI | 0.0150 | 0.0166 | 0.0172 | 0.0176 | 0.0189 |
devPV | 0.0153 | 0.0169 | 0.0175 | 0.0184 | 0.0199 |
No. | Result | Recommendation for PV System Modeling |
---|---|---|
1. | Results of PV system simulations vary strongly from one location to another. | No model should be validated using only one location. Results from models developed for a specific location should be used with great care only |
2. | The simulated PV energy varies between −5% and +8% from the reference for fixed tilt (40° or optimum) and between −10% and +15% for two-axis tracking systems. | Diffuse fraction and transposition models have to be carefully selected and should be improved. |
Further validation for transposition models to the full extent is urgently needed. | ||
3. | The sun position algorithm is of minor importance | Usage of faster DIN5034-2 algorithm over NREL Spa is reasonable. |
4. | Synthesized one-minute values lead to results of comparable quality as measured values. | Either measured or synthesized one-minute values should be used for PV system simulations. |
One-hour averages are only utilizable for PV systems with sizing factors of less than 110%. | ||
5. | The superior performance of the previously presented diffuse fraction model could be confirmed in this study. | The Hofmann diffuse fraction model may be used as a state-of-the-art model. |
6. | Diffuse models lead to wider spread of simulation results. | Where available, diffuse irradiance measurement should be used. Influence of diffuse fraction models is highly location-dependent. |
Further analysis of the performance of the diffuse fraction models as function of climatic parameters is required. | ||
7. | Transposition models have a high impact on simulation results. | Further validation studies for different locations and tilt angles are required. |
