Bioactive Alkaloids from the Mangrove-Derived Fungus Nigrospora oryzae SYSU-MS0024

1
Guangdong Provincial Key Laboratory of Aquatic Product Processing and Safety, Guangdong Province Engineering Laboratory for Marine Biological Products, Guangdong Provincial Engineering Technology Research Center of Seafood, Key Laboratory of Advanced Processing of Aquatic Product of Guangdong Higher Education Institution, Zhanjiang Municipal Key Laboratory of Marine Drugs and Nutrition for Brain Health, Research Institute for Marine Drugs and Nutrition, College of Food Science and Technology, Guangdong Ocean University, Zhanjiang 524088, China
2
School of Marine Sciences, Sun Yat-sen University, Zhuhai 519000, China
3
Southern Laboratory of Ocean Science and Engineering (Guangdong, Zhuhai), Zhuhai 519000, China
4
Collaborative Innovation Center of Seafood Deep Processing, Dalian Polytechnic University, Dalian 116034, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2024, 22(5), 214; https://doi.org/10.3390/md22050214
Submission received: 23 March 2024 / Revised: 25 April 2024 / Accepted: 4 May 2024 / Published: 9 May 2024
(This article belongs to the Section Structural Studies on Marine Natural Products)

Abstract

:
Chemical investigation of marine fungus Nigrospora oryzae SYSU-MS0024 cultured on solid-rice medium led to the isolation of three new alkaloids, including a pair of epimers, nigrosporines A (1) and B (2), and a pair of enantiomers, (+)-nigrosporine C (+)-3, and (−)-nigrosporine C (−)-3, together with eight known compounds (411). Their structures were elucidated based on extensive mass spectrometry (MS) and 1D/2D nuclear magnetic resonance (NMR) spectroscopic analyses and compared with data in the literature. The absolute configurations of compounds 13 were determined by a combination of electronic circular dichroism (ECD) calculations, Mosher’s method, and X-ray single-crystal diffraction technique using Cu Kα radiation. In bioassays, compound 2 exhibited moderate inhibition on NO accumulation induced by lipopolysaccharide (LPS) on BV-2 cells in a dose-dependent manner at 20, 50, and 100 μmol/L and without cytotoxicity in a concentration of 100.0 μmol/L. Moreover, compound 2 also showed moderate acetylcholinesterase (AChE) inhibitory activities with IC50 values of 103.7 μmol/L. Compound 5 exhibited moderate antioxidant activity with EC50 values of 167.0 μmol/L.

1. Introduction

Mangrove fungi have shown promising potential as sources of structurally novel and bioactive natural products because of the chemical diversity of their secondary metabolites [1,2]. To date, more than 1500 new metabolites have been found from Mangrove-derived fungi [1,3,4,5,6]. Among them, alkaloids are a kind of important metabolites with chemical structural diversity and pharmacological activity [1,7,8], such as cytotoxic [9], antibacterial [10], antiviral [11], anti-inflammatory [12], and enzyme inhibitor activities [13]. For example, epipolythiodioxopiperazine (ETP) alkaloid, penicisulfuranol A, was isolated from the mangrove endophytic fungus Penicillium janthinellum HDN13-309, which was a C-terminal inhibitor of Hsp90 showing cytotoxicity [14], and pyrazinopyrimidine-type alkaloid, deg-pyrasplorine B, showed anti-influenza A virus H1N1 activity with the IC50 of 50 μmol/L [15].
The mangrove-derived fungus Nigrospora oryzae SYSU-MS0024 was isolated from sediment, which was collected from the Zhuhai Mangrove Special Protected Area, Guangdong Province, China. Chemical investigation of its EtOAc extract led to the discovery of three new alkaloids, including a pair of epimers, nigrosporines A (1) and B (2), and a pair of enantiomers, (+)-nigrosporine C and (−)-nigrosporine C (3), together with eight known compounds (411) (Figure 1). Herein, the details of the isolation, structural elucidation, and bioactivities of compounds 111 are reported.

2. Results and Discussion

The EtOAc extract of mangrove sediment-derived fungus Nigrospora oryzae SYSU-MS0024 was performed on repeated silica gel and Sephadex LH-20 column chromatography, followed by semi-preparative HPLC to afford three new alkaloids, nigrosporines A–C (13), and eight known compounds 411.
Nigrosporine A (1) was obtained as a brown crystal. The molecular formula was determined as C13H15NO3 on the basis of the positive HR-ESIMS ions at m/z 256.0945 [M + Na]+ (calculated for 256.0950, C13H15NO3Na), implying seven degrees of unsaturation. The IR spectrum of 1 revealed the presence of a hydroxy (3365 cm−1) group. The 1H NMR spectrum (Table 1) of 1 exhibited the signals for four aromatic protons owing to a 1,2-disubstituted aromatic ring [δH 7.30 (1H, t, J = 6.6 Hz); 7.14 (1H, td, J = 7.5, 1.2 Hz); 7.05 (1H, d, J = 7.8 Hz); 8.14 (1H, d, J = 8.4 Hz)], a methyl (δH 1.13, J = 6.4 Hz), three methylenes (δH 2.62, m; 2.62, m, 1.98, m; 5.04, d, J = 15.6 Hz, 4.92, d, J = 15.6 Hz), and a methine (4.22, qd, J = 6.4, 1.1 Hz). The 13C NMR and HSQC data (Table 1) of 1 revealed the presence of 13 carbons belonging to one carbonyl group (δC 172.8), six aromatic carbons (δC 132.7, 127.8, 124.5, 124.2, 124.0, 121.2), one quaternary carbon (δC 93.6), one oxygen-bearing methine (δC 65.4), three methylenes (δC 63.0, 30.6, 25.6), and one methyl (δC 16.3).
The planar structure was assigned by 2D NMR spectra (1H-1H COSY, HSQC, HMBC) (Figure 2). Analysis of the COSY spectrum suggested the presence of three isolated proton spin systems, including a 1,2-disubstituted aromatic system (–CH–CH–CH–CH–) and two ethyl fragments (–CH2–CH– and –CH2–CH2–). The key HMBC correlations from H-7 to C-8, C-9, C-13, from H-12 to C-13, and the chemical shift (δC 93.6, C-5; 63.2 C-7; 124.0 C-13) indicated the presence of dihydro-2H-benzo[d][1,3]oxazine structure. At the same time, HMBC correlations from H-3 to C-2 and C-5, from H-4 to C-2 and C-5 constructed a pyrrolidin-2-one moiety. The remaining ethan-1-hydroxytehyl group was connected to C-5 based on the HMBC correlation of H-2′ with C-1′ and C-5. The absolute configuration of 1 was assigned as (5R,1′R) by a single-crystal X-ray diffraction experiment using Cu-Kα radiation [16] (Figure 3) (Flack parameter = 0.01(4)).
Nigrosporine B (2) was obtained as a colorless oil, and its molecular formula was identified as the same as 1 with C13H15NO3 on the basis of the positive HR-ESIMS ions at m/z 256.0947 [M + Na]+ (calculated for 256.0950, C13H15NO3Na). Compound 2 shared the same planar structure as 1 and was further identified by 2D NMR spectra, including 1H-1H COSY, HSQC, and HMBC (Figure 2). The minor chemical shift variation in C-4 (δC 25.6, δH 2.62, 1.98 for 1; δC 25.5, δH 2.68, 1.93 for 2), C-5 (δC 93.6 for 1; δC 94.0 for 2), C-1′ (δC 65.4, δH 4.22 for 1; δC 65.8, δH 4.19 for 2), and C-2′ (δC 16.3, δH 1.13 for 1; δC 16.3, δH 1.31 for 2) were observed in the same CDCl3 solvent, which suggested that 2 could be a 5-epimer of 1 (Table 1). The absolute configuration of the secondary hydroxylated carbon (C-1′) was determined using a modified Mosher’s method [17,18,19,20]. The chemical shifts for H-2′, H-4, and H-7 of 1a and 1b were measured as δH 1.49, 4.94, 2.38 for 1a, and δH 1.44, 4.96, 2.49 for 1b, respectively. The observed differences in chemical shifts (Δδ = δSδR) (Figure 4) suggested that the C-1′ absolute configuration is R the same as that of 1. The ECD spectra of each conformer were calculated by a quantum chemical method at the [PBE1PBE/TZVP] level, and the Boltzmann-weighted ECD spectrum of (5S,1′R)-2 was in good agreement with the experimental one (Figure 5). Thus, the absolute configuration of 2 was assigned as 5S,1′R.
Nigrosporine C (3) was obtained as a brown crystal. The molecular formula was determined as C13H13NO3 on the basis of the positive HR-ESIMS ions at m/z 254.0791 [M + Na]+ (calculated for 254.0730, C13H13NO3Na), implying eight degrees of unsaturation. Detailed analysis of its NMR spectroscopic data (Table 1) suggested that 3 was similar to the chemical structure of 1, except for the presence of an additional signal attributed to a ketone group (δC 204.3) and the absence of oxygen-bearing methine (δC 65.4) in 3. The key HMBC correlations from H-2′ and H-4 to C-1′ were allowed to assign the location of the ketone group in 3. Compound 3 was crystallized from methanol by a slow evaporation method, yielding crystals in the monoclinic P21/c space group. This structure was definitively confirmed through X-ray crystallography, as shown in Figure 6. The P21/c space group of the X-ray structure indicated that compound 3 likely existed as enantiomers within the solid-state structure, which was consistent with the result of no signal in the CD spectrum and no optical activity sign in methanol. Subsequently, compound (±)-3 was purified using chiral HPLC, leading to the isolation of the two enantiomers, (+)-3 (tR = 15.98 min) and (−)-3 (tR = 17.46 min), respectively. These enantiomers exhibited opposite Cotton effects in their CD spectra and opposite optical rotations (Figure 7). The calculated ECD data of (R)-3 were in agreement with the experimental one of (+)-3, suggesting that the absolute configuration of (+)-3 was R, and (−)-3 was S. Therefore, (+)-3 and (–)-3 were named (+)-nigrosporine C and (−)-nigrosporine C, respectively.
The known isolates were identified as 2-(4-hydroxyphenyl) -2-aminoethanol (4) [21], N-(2-hydroxyphenyl)-acetamide (5) [22], N-phenethylacetamide (6) [23], 3-phenylpropane-2,3-diol (7) [24], 3-phenylpropane-1,2-diol (8) [25], ethyl 4-(2,3-dihydroxy -3- methylbutoxy) benzoate (9) [26], (1S,3R,4S,7S)-3,4-dihydroxy-α-bisabolol (10) [27], and schizostatin(11) [28] by comparison of their spectroscopic data with those reported in the literature.
Compounds 111 were evaluated for their anti-neuroinflammatory and AChE inhibitory activities. Compound 2 exhibited moderate inhibition on NO accumulation induced by LPS on BV-2 cells in a dose-dependent manner at 20 (47.2 ± 0.2 ng/mL), 50 (41.7 ± 0.4 ng/mL), and 100 (21.8 ± 0.1 ng/mL) μmol/L and without cytotoxicity in a concentration of 100.0 μmol/L (Figure 8). Simultaneously, compound 2 also showed moderate AChE inhibitory activities with IC50 values of 103.7 μmol/L(positive control, Donepezil, IC50 = 0.48 μmol/L). Additionally, all compounds were also evaluated for their antioxidant activities, and compound 5 displayed moderate antioxidant activity with EC50 values of 167.0 μmol/L(positive control, Vitamin C, EC50 = 146.0 μmol/L). Other compounds showed weak antioxidant (EC50 > 200.0 μmol/L) and AChE inhibitory activities (IC50 > 200.0 μmol/L).

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were carried out on an MCP-200 polarimeter (Anton Paar, Graz, Austria) with MeOH as solvent at 25 °C. UV spectra were acquired on a Blue Star A spectrophotometer. IR data were performed on a Fourier transformation infrared spectrometer coupled with an EQUINOX 55 infrared microscope (Bruker, Fällanden, Switzerland). Here, 1D and 2D NMR spectra were tested on a Bruker Avance 400 MHz spectrometer (Bruker, Fällanden, Switzerland) using TMS as an internal standard. HR-ESIMS and ESIMS data were recorded on an LTQ-Orbitrap LC-MS spectrometer (Thermo Corporation, Waltham, MA, USA) and an ACQUITY QDA (Waters Corporation, Milford, MA, USA), respectively. HPLC preparative separations were performed on a Shimadzu Essentia LC-16. The Welch-Ultimate XB-C18 column (250 × 21.2 mm, 5 μm, 12 nm, Welch Materials, Inc., Shanghai, China) was used for preparative HPLC. Semi-preparative HPLC separations were performed on ACE-5-C18-AR and ACE-5-CN-ES columns (250 × 10 mm, 5 μm, 12 nm, Advanced Chromatography Technologies Ltd., Guangzhou, China). The silica gel (200–300 mesh, Qingdao Marine Chemical Inc., Qingdao, China) and Sephadex LH-20 (Amersham Biosciences, Uppsala, Sweden) were subjected to column chromatography (CC).

3.2. Fungal Material

The fungal strain Nigrospora oryzae SYSU-MS0024 was isolated from sediment, which was collected from the Zhuhai Mangrove Special Protected Area, Guangdong Province, China, in December 2021. This strain was identified by the sequence analysis of the rDNA ITS (internal transcribed spacer) region [29]. The sequence data of the fungal strain have been deposited at GenBank with accession no. PP422138. A BLAST search result suggested that the sequence was most similar (99.81%) to the sequence of Nigrospora oryzae SYSU-MS0024 (compared to MZ151376.1). The strain was preserved at the School of Marine Sciences, Sun Yat-Sen University.

3.3. Extraction and Isolation

The strain Nigrospora oryzae SYSU-MS0024 was grown on a solid-rice medium in a 1000 mL culture flask containing 50 g of rice and 50 mL of 3% artificial seawater after sterilization. A total of 120 flasks of fungal incubation were cultivated at room temperature for 30 days. The solid fermented substrate was extracted with MeOH four times to obtain a crude extract, then dissolved in H2O, and continuously extracted four times with EtOAc solvent. The EtOAc extract (30 g) was subjected to a silica gel column eluting with linear gradient petroleum ether/EtOAc (from 8:2 to 0:1) to obtain six fractions (A–F). Fr.B was chromatographed on a Sephadex LH-20 column with MeOH/CH2Cl2 (50:50) to afford four fractions (Fr.B.1 to Fr.B.4) and 11. Fr.B.2 was separated by a silica gel column eluting with CH2Cl2/MeOH (97:3) to afford five fractions (Fr.B.2.1 to Fr.B.2.5). Fr.B.2.3 was further subjected to RP-HPLC (MeCN/H2O, 32:68 flow rate 2 mL/min, Aglient-XB-C18 column 10 × 250 mm, 5 μm) to afford 2 (3.7 mg, tR = 13.4 min) and 9 (2.8 mg, tR = 17.6 min). Fr.C was chromatographed on a Sephadex LH-20 column with MeOH/CH2Cl2 (50:50) to afford three fractions (Fr.C.1 to Fr.C.3). Fr.C.2 was separated by a silica gel column eluting with CH2Cl2/MeOH (88:12) to afford four fractions (Fr.C.2.1 to Fr.C.2.4). Fr.C.2.2 was further subjected to RP-HPLC (MeCN/H2O, 35:65 flow rate 2 mL/min, Aglient-XB-C18 column 10 × 250 mm, 5 μm) to afford 6 (3.6 mg, tR = 18.4 min) and 7 (3.4 mg, tR = 21.5 min). Fr.C.2.3 was further subjected to RP-HPLC (MeCN/H2O, 33:67 flow rate 2 mL/min, Aglient-XB-C18 column 10 × 250 mm, 5 μm) to afford 1 (4.2 mg, tR = 15.4 min) and 3 (2.8 mg, tR = 15.9 min) and 8 (3.6 mg, tR = 13.4). Fr.D was further purified by silica gel column to three fractions (Fr.D.1 to Fr.D.3), and Fr.D.2 was chromatographed on a Sephadex LH-20 column with MeOH/CH2Cl2 (50:50) to afford four fractions (Fr.D.2.1 to Fr.D.2.4). Fr.D.2.3 was further subjected to RP-HPLC (MeCN/H2O, 30:70 flow rate 2 mL/min, XB-C18 column 10 × 250 mm, 5 μm) to afford 4 (3.8 mg, tR = 17.2 min) and 5 (2.8 mg, tR = 21.4 min). Compound 10 (6.5 mg, tR = 12.7 min) was obtained from Fr.D.2.3 by silica gel CC (CH2Cl2/MeOH, 100:1, 80:1, 60:1, 40:1, 20:1, 10:1 v/v) with a final purification on an ACE-C18-PFP column (Welch column, MeCN/H2O, 24:76 flow rate 2 mL/min). The enantiomeric mixture of 3 (2.8 mg) was applied on a chiral HPLC (70% n-hexane/isopropyl alcohol, flow rate 3 mL/min, NanoChrom UniChiral® OD (5 μm, 10 × 250 mm) to yield (+)-3 (tR = 15.98 min, 1.0 mg) and (−)-3 (tR = 17.46 min, 1.1 mg) using the method described previously [30].
Nigrosporine A (1): colorless crystal; mp 136–137 °C; [ α ] D 20 +13.0 (c 1.00, MeOH); UV (MeOH) λmax (log ε) 208 (3.81), 242 (3.52) nm; CD Δε (MeOH) λmaxε) 216 (−13), 246 (13) nm; IR (neat) νmax 3365, 2937, 2370, 1673, 1494, 1457, 1394, 1285, 1200 cm−1; 1H and 13C NMR data, see Table 1; HR-ESIMS m/z 256.0945 [M + Na]+ (calculated for C13H15NO3Na, 256.0950).
Nigrosporine B (2): brown oil; [ α ] D 20 −13.7 (c 1.00, MeOH); UV (MeOH) λmax (log ε) 208 (3.82), 243 (3.52)nm; CD Δε (MeOH) λmaxε) 216 (13), 246 (−13) nm; IR (neat) νmax 3377, 2926, 2855, 1602, 1491, 1390, 1196, 1073 cm−1; 1H and 13C NMR data, see Table 1; HR-ESIMS m/z 256.0947 [M + Na]+ (calculated for C13H15NO3Na, 256.0950).
Nigrosporine C (3): colorless crystal; mp 122–123 °C; [ α ] D 20 −2.1 (c 1.00, MeOH); UV (MeOH) λmax (log ε) 206 (3.85), 241 (3.53)nm; IR (neat) νmax 3369, 2922, 1703, 1606, 1491, 1454, 1368, 1193 cm−1; 1H and 13C NMR data, see Table 1; HR-ESIMS m/z 254.0791 [M + Na]+ (calculated for C13H13NO3Na, 254.0730).
(+)-(3): [ α ] D 20 +25.2 (c 0.12, MeOH); ECD (MeOH) λmax (∆ε): 223 (-2.1), 248 (+8.5) nm.
(−)-(3): [ α ] D 20 −21.6 (c 0.12, MeOH); ECD (MeOH) λmax (∆ε): 223 (+1.9), 249 (−8.0) nm.

3.4. Preparation of (S)-MTPA Ester and (R)-MTPA Ester

Compound 2 (1.0 mg) was dissolved in pyridine-d5 (0.5 mL) in an NMR tube, and then (R)-MPTACl (5.0 μL) was added to react at room temperature for 24 h. Then, the 1H NMR spectrum of the (S)-MTPA ester derivative (2a) was measured directly on the reaction mixture [17] Similarly, another reaction of 2 (1.0 mg), (S)-MPTACl(5.0 μL), and pyridine-d5 (0.5 mL) was performed, as described above for 1a to afford 2b.
(S)-MTPA Ester of (2a): 1H NMR (Figure S17) (selected signals, pyridine-d5, 400 MHz) δH: 4.94 (2H, m, H-7), 2.38 (1H, m, H-4a), 1.955 (1H, m, H-4b), 1.49 (3H, d, H-2′).
(R)-MTPA Ester of (2b): 1H NMR (Figure S19) (selected signals, pyridine-d5, 400 MHz) δH: 4.96 (2H, m, H-7), 2.49 (1H, m, H-4a), 1.959 (1H, m, H-4b), 1.44 (3H, d, H-2′).

3.5. X-ray Crystallographic Analysis

Compounds 1 and 3 were obtained as colorless crystals using the vapor diffusion method. The single crystal X-ray diffraction data were recorded on a Rigaku Oxford Diffraction with Cu-Kα radiation (λ = 1.54178A). The structures were solved by direct methods (SHELXS-97 and Olex2-1.2) and refined using full-matrix least-square difference Fourier techniques [31]. Crystallographic data for 1 and 3 have been deposited with the Cambridge Crystallographic Data Centre. Copies of the data can be obtained, free of charge, on application to the Director, CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (fax: 44-(0)1223-336033, or e-mail: [email protected]).
Compound 1: C13H15NO3 (Mr = 233.26 g/mol), monoclinic, space group P21, a = 8.75680(10) Å, b = 6.60250(10) Å, c = 10.50300(10) Å, α = 90°, β = 103.9630(10)°, γ = 90°, V = 589.306(13) Å3, Z = 2, T = 306.14(10) K, µ(Cu Kα) = 1.168 mm−1, Dcalc = 1.430 g/cm3; 2289 reflections measured (Rint = 0.0183, Rsigma = 0.0124), which were used in all calculations. The final R1 was 0.0440 (I ≥ 2u(I)), and wR2 was 0.1018. The Flack parameter was 0.01(4). The goodness of fit on F2 was 1.198. CCDC 2324841.
Compound 3: C13H13NO3 (Mr = 231.24 g/mol), monoclinic, space group P21/c, a = 8.9565(4) Å, b = 8.7773(3) Å, c = 14.4823(5) Å, α = 90°, β = 100.771(4)°, γ = 90°, V = 1118.45(7) Å3, Z = 4, T = 306.14(10) K, µ(Cu Kα) = 0.809 mm−1, Dcalc = 1.373 g/cm3; 2297 reflections were measured (Rint = 0.0427, Rsigma = 0.0271), which were used in all calculations. The final R1 was 0.0674 (I ≥ 2u(I)), and wR2 was 0.1860. The Flack parameter was 0.01(4). The goodness of fit on F2 was 1.136. CCDC 2336893.

3.6. Calculation of the ECD Spectra

The Merck molecular force field (MMFF) and density functional theory (DFT) calculations were performed using Spartan’14 software from Wavefunction Inc. (Irvine, CA, USA) and the Gaussian 09 program, respectively [32]. Conformers were subjected to DFT geometry optimizations at the B3LYP/def2-SVP level with the solvation model PCM for methanol. Frequency calculations were carried out at the same level. The optimized low-energy conformers were subjected to single-point energy calculations using the DFT method at the M06-2X/def2-TZVP/SDM(MeOH) level of theory. Fifty excited-state rotatory strengths were computed. The population of each conformer was determined using a Boltzmann distribution with Gibbs free energy calculated by Shermo [33]. To simulate ECD spectra, the optimized low-energy conformers were subjected to the TDDFT calculations at the PBE1PBE/CAM-B3YLP/TZVP level in methanol. The ECD spectrum was generated by the program SpecDis [34]. All calculations were performed by Tianhe-2 in the National Super Computer Center in Guangzhou.

3.7. Anti-Inflammatory Activity

NO determination: all compounds were examined for the effect on the release of NO by BV-2 cell lines using the method described previously [35]. All experiments were carried out in five replicates. Microglia Viability Assay: The effects of compounds 111 on the viability of BV2 microglia were carried out by MTT assay. BV2 microglia were first seeded at a density of 4000 cells per well for 12 or 24 h using a 96-well plate and then treated with compounds at the concentrations of 1– 100 μmol/L for another 36 h. After that, cells were incubated with MTT (0.5 mg/mL) in a 5% CO2 incubator at 37 °C. Three hours later, the medium was removed, and DMSO (150 μL) was added into each well to dissolve formazan crystals. The fluorescent absorbances were measured at 570 nm using an ELISA microplate reader (Biotek, Winooski, VT, USA).

3.8. AChE Inhibitory Activity Assay

All compounds were examined for inhibitory activity against AChE using an optimized colorimetric method described previously [36]. All tests were carried out in three replicates. Donepezil hydrochloride was taken as the positive control.

3.9. DPPH Free Radical Scavenging Assay

An optimized colorimetric method described previously was used to evaluate the DPPH free radical scavenging activities of compounds 111 [37]. All tests were measured in three replicates. Vitamin C was taken as a positive control.

4. Conclusions

In summary, three new alkaloids (13), together with eight known compounds (411), were separated from the mangrove fungus Nigrospora oryzae SYSU-MS0024. The stereo structures of compounds 13 were deduced by a combination of electronic circular dichroism (ECD) calculations, Mosher’s method, and X-ray single crystal diffraction technique using Cu Kα radiation. In bioassays, compound 2 showed moderate inhibition of LPS-induced NO production on BV-2 cells in a dose-dependent manner at 20, 50, and 100 μmol/L and without cytotoxicity in a concentration of 100 μmol/L. Simultaneously, compound 2 also showed moderate AChE inhibitory activities with IC50 values of 103.7 μmol/L. Additionally, compound 5 displayed moderate antioxidant activity with EC50 values of 167.0 μmol/L.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md22050214/s1, Figure S1: The HR-ESIMS spectrum of compound 1, Figures S2–S6: The 1 and 2D NMR (400 MHz) spectra of compound 1 in CDCl3, Figure S7: The UV spectrum of compound 1, Figure S8: The IR spectrum of compound 1, Figure S9: The HR-ESIMS spectrum of compound 2, Figures S10–S14: The 1 and 2D NMR (400 MHz) spectra of compound 2 in CDCl3, Figure S15: The UV spectrum of compound 2, Figure S16: The IR spectrum of compound 2, Figures S17–S20: The 1 and 2D NMR (400 MHz) spectra of (S)-MTPA esters 2 and (R)-MTPA esters 2 in pyridine-d5. Figure S21: The HR-ESIMS spectrum of compound 3, Figures S22–S26: The 1 and 2D NMR (400 MHz) spectra of compound 3 in CDCl3, Figure S27: The UV spectrum of compound 3, Figure S28: The IR spectrum of compound 3, Figure S29: The chiral resolution liquid chromatogram of compound 3, Table S1. Energy of all conformers of (5R, 1′R)-1, (5S, 1′R)-2 and (1′R)-3. Tables S2–S4. Cartesian coordinates of the low-energy reoptimized conformers of (5R, 1′R)-1, (5S, 1′R)-2 and (1′R)-3.

Author Contributions

Large-scale fermentation and separation, X.C.; structure elucidation, S.C., Y.Z. and Y.L.; AChE and DPPH biological assays, X.C. and X.L.; anti-inflammatory activity, L.W. and Y.Z.; ECD calculations, H.G. and X.L.; measurement of CD and UV, H.S.; chiral resolution, H.G. and B.C.; writing—original draft preparation, S.C.; writing—review and editing, S.C. and Y.L.; funding acquisition, S.C., Y.L. and L.L.; S.C., L.L. and Y.L. supervised the whole research. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Grant No. U20A2001, 42376098), Guangdong Marine Economy Development Special Project (No. GDNRC [2022]35). The Science and Technology Development Special Fund Competitive Allocation Project of Zhanjiang City (2020A01030), The Program for Scientific Research Start-up Funds of Guangdong Ocean University (R18008).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are provided in full in the results section and Supplementary Materials of this paper.

Acknowledgments

We acknowledge the staff of the Instrumental Analysis and Research Center (Ling Fang, Xinhai Zhu, et al.) at Sun Yat-Sen University and the analytical facilities (Hongjie Shen, Bin Chen, et al.) at Southern Laboratory of Ocean Science and Engineering (Guangdong, Zhuhai) for helping us to finish the spectra test.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, S.; Cai, R.; Liu, Z.; Cui, H.; She, Z. Secondary metabolites from mangrove-associated fungi: Source, chemistry and bioactivities. Nat. Prod. Rep. 2022, 39, 560–595. [Google Scholar] [CrossRef] [PubMed]
  2. Li, K.; Chen, S.; Pang, X.; Cai, J.; Zhang, X.; Liu, Y.; Zhu, Y.; Zhou, X. Natural products from mangrove sediments-derived microbes: Structural diversity, bioactivities, biosynthesis, and total synthesis. Eur. J. Med. Chem. 2022, 230, 114117. [Google Scholar] [CrossRef] [PubMed]
  3. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2021, 38, 362–413. [Google Scholar] [CrossRef] [PubMed]
  4. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2022, 39, 1122–1171. [Google Scholar] [CrossRef] [PubMed]
  5. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2023, 40, 275–325. [Google Scholar] [CrossRef]
  6. Carroll, A.R.; Copp, B.R.; Grkovic, T.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2024, 41, 162–207. [Google Scholar] [CrossRef] [PubMed]
  7. Hai, Y.; Wei, M.-Y.; Wang, C.-Y.; Gu, Y.-C.; Shao, C.-L. The intriguing chemistry and biology of sulfur-containing natural products from marine microorganisms (1987–2020). Mar. Life Sci. Technol. 2021, 3, 488–518. [Google Scholar] [CrossRef] [PubMed]
  8. Meng, Z.-H.; Sun, T.-T.; Zhao, G.-Z.; Yue, Y.-F.; Chang, Q.-H.; Zhu, H.-J.; Cao, F. Marine-derived fungi as a source of bioactive indole alkaloids with diversified structures. Mar. Life Sci. Technol. 2021, 3, 44–61. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, Y.; Yang, W.C.; Zhu, G.; Wang, G.S.; Chen, T.; Li, H.; Yuan, J.; She, Z.G. Didymorenloids A and B, two polycyclic cyclopenta [b] fluorene-type alkaloids with anti-hepatoma activity from the mangrove endophytic fungus Didymella sp. CYSK-4. Org. Chem. Front. 2024, 11, 1706–1712. [Google Scholar] [CrossRef]
  10. Meng, L.-H.; Li, X.-M.; Liu, Y.; Xu, G.-M.; Wang, B.-G. Antimicrobial alkaloids produced by the mangrove endophyte Penicillium brocae MA-231 using the OSMAC approach. RSC Adv. 2017, 7, 55026–55033. [Google Scholar] [CrossRef]
  11. Peng, J.; Lin, T.; Wang, W.; Xin, Z.; Zhu, T.; Gu, Q.; Li, D. Antiviral Alkaloids Produced by the Mangrove-Derived Fungus Cladosporium sp. PJX-41. J. Nat. Prod. 2013, 76, 1133–1140. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, Y.; Zhang, L.; Zou, G.; Li, C.; Yang, W.; Liu, H.; She, Z. Anti-inflammatory activities of alkaloids from the mangrove endophytic fungus Phomopsis sp. SYSUQYP-23. Bioorganic Chem. 2020, 97, 103712. [Google Scholar] [CrossRef]
  13. Ye, G.; Huang, C.; Li, J.; Chen, T.; Tang, J.; Liu, W.; Long, Y. Isolation, structural characterization and antidiabetic activity of new diketopiperazine Alkaloids from mangrove endophytic fungus Aspergillus sp. 16-5c. Mar. Drugs 2021, 19, 402. [Google Scholar] [CrossRef] [PubMed]
  14. Dai, J.; Chen, A.; Zhu, M.; Qi, X.; Tang, W.; Liu, M.; Li, D.; Gu, Q.; Li, J. Penicisulfuranol A, a novel C-terminal inhibitor disrupting molecular chaperone function of Hsp90 independent of ATP binding domain. Biochem. Pharmacol. 2019, 163, 404–415. [Google Scholar] [CrossRef]
  15. Li, F.; Sun, C.; Che, Q.; Zhu, T.; Gu, Q.; Guan, H.; Zhang, G.; Li, D. Pyrazinopyrimidine alkaloids from a mangrove-derived fungus Aspergillus versicolor HDN11-84. Phytochemistry 2021, 188, 112817. [Google Scholar] [CrossRef] [PubMed]
  16. Flack, H.; Bernardinelli, G. The use of X-ray crystallography to determine absolute configuration. Chirality 2008, 20, 681–690. [Google Scholar] [CrossRef] [PubMed]
  17. Hoye, T.R.; Jeffrey, C.S.; Shao, F. Mosher ester analysis for the determination of absolute configuration of stereogenic (chiral) carbinol carbons. Nat. Protoc. 2007, 2, 2451–2458. [Google Scholar] [CrossRef] [PubMed]
  18. Su, B.-N.; Park, E.J.; Mbwambo, Z.H.; Santarsiero, B.D.; Mesecar, A.D.; Fong, H.H.S.; Pezzuto, J.M.; Kinghorn, A.D. New chemical constituents of euphorbia quinquecostata and absolute configuration assignment by a convenient mosher ester procedure carried out in NMR tubes. J. Nat. Prod. 2002, 65, 1278–1282. [Google Scholar] [CrossRef] [PubMed]
  19. Sparaco, R.; Cinque, P.; Scognamiglio, A.; Corvino, A.; Caliendo, G.; Fiorino, F.; Magli, E.; Perissutti, E.; Santagada, V.; Severino, B. 3-Nitroatenolol: First synthesis, chiral resolution and enantiomers’ absolute configuration. Molecules 2024, 29, 1598. [Google Scholar] [CrossRef] [PubMed]
  20. Sparaco, R.; Scognamiglio, A.; Corvino, A.; Caliendo, G.; Fiorino, F.; Magli, E.; Perissutti, E.; Santagada, V.; Severino, B.; Luciano, P. Synthesis, chiral resolution and enantiomers absolute configuration of 4-Nitropropranolol and 7-Nitropropranolol. Molecules 2023, 28, 57. [Google Scholar] [CrossRef] [PubMed]
  21. Kang, X.; Xu, Y.; Chen, G.; Wen, L. Study on screening of endophytic fungi from Cyclosorus parasiticus for antibacterial activity and secondary metabolites from the active fungus Pestalotiopsis sp. CYC38. J. Guangdong Pharm. Univ. 2017, 33, 1–5. [Google Scholar]
  22. Ying, Y.M.; Zhan, Z.J.; Ding, Z.S.; Shan, W.G. Bioactive metabolites from Penicillium sp. P-1, a fungal endophyte in Huperzia serrata. Chem. Nat. Compd. 2011, 47, 541–544. [Google Scholar] [CrossRef]
  23. Lee, M.J.; Kim, G.J.; Shin, M.-S.; Moon, J.; Kim, S.; Nam, J.-W.; Kang, K.S.; Choi, H. Chemical investigation of diketopiperazines and N-phenethylacetamide isolated from Aquimarina sp. MC085 and their effect on TGF-β-induced epithelial–mesenchymal transition. Appl. Sci. 2021, 11, 8866. [Google Scholar] [CrossRef]
  24. Ayer, W.A.; Trifonov, L.S. Metabolites of Peniophora polygonia, part 2. Some aromatic compounds. J. Nat. Prod. 1993, 56, 85–89. [Google Scholar] [CrossRef]
  25. Huang, Z.; Guan, R.; Bennett, E.L.; Xiao, J. Non-heme manganese (ii) complex-catalysed oxidative cleavage of 1,2-diols via alcohol-assisted O2 activation. Green Chem. 2022, 24, 3814–3823. [Google Scholar] [CrossRef]
  26. Chen, G.G.; Zhu, Q.F.; Long, X.M.; Lu, Q.; Li, K.Y.; Chen, Q.; Zhou, M.; Liao, S.G.; Xu, G.B. Antibacterial activities of the chemical constituents of Schizophyllum commune MST7-3 collected from coal area. Nat. Prod. Res. 2021, 36, 4645–4654. [Google Scholar] [CrossRef] [PubMed]
  27. Firat, Z.; Demirci, F.; Demirci, B.; Kirmizibekmez, H.; Baser, K. Microbial Transformation of (−)-alpha-Bisabolol Towards Bioactive Metabolites. Rec. Nat. Prod. 2021, 15, 593–601. [Google Scholar] [CrossRef]
  28. Tanimoto, T.; Onodera, K.; Hosoya, T.; Takamatsu, Y.; Kinoshita, T.; Tago, K.; Kogen, H.; Fujioka, T.; Hamano, K.; Tsujita, Y. Schizostatin, a novel squalene synthase inhibitor produced by the mushroom, Schizophyllum commune I. Taxonomy, fermentation, isolation, physico-chemical properties and biological activities. J. Antibiot. 1996, 49, 617–623. [Google Scholar] [CrossRef] [PubMed]
  29. Raja, H.A.; Miller, A.N.; Pearce, C.J.; Oberlies, N.H. Fungal identification using molecular tools: A primer for the natural products research community. J. Nat. Prod. 2017, 80, 756–770. [Google Scholar] [CrossRef] [PubMed]
  30. Chen, S.; Jiang, M.; Chen, B.; Salaenoi, J.; Niaz, S.-I.; He, J.; Liu, L. Penicamide A, A Unique N,N′-Ketal Quinazolinone Alkaloid from Ascidian-Derived Fungus Penicillium sp. 4829. Mar. Drugs 2019, 17, 522. [Google Scholar] [CrossRef] [PubMed]
  31. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  32. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Petersson, G.; Nakatsuji, H. Gaussian Development Version Revision, J. 06+; Gaussian Inc.: Wallingford, CT, USA, 2020. [Google Scholar]
  33. Lu, T.; Chen, Q. Shermo: A general code for calculating molecular thermochemistry properties. Comput. Theor. Chem. Acc. 2021, 1200, 113249. [Google Scholar] [CrossRef]
  34. Bruhn, T.; Schaumlöffel, A.; Hemberger, Y.; Bringmann, G. SpecDis: Quantifying the comparison of calculated and experimental electronic circular dichroism spectra. Chirality 2013, 25, 243–249. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, Y.; Yang, W.; Liao, Q.; She, Z.G. Pyrone derivatives from a mangrove endophytic fungus Phomopsis asparagi LSLYZ-87. Chem. Biodivers. 2022, 19, e202200491. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, Y.; Yang, W.; Xie, B.; Chen, T.; Chen, S.; Liu, Z.; Sun, B.; She, Z. First discovery of sulfonamides derivatives with acetylcholinesterase inhibitory activity in fungus Pestalotiopsis sp. HNY36-1D. Tetrahedron 2023, 142, 133524. [Google Scholar] [CrossRef]
  37. Mishra, K.; Ojha, H.; Chaudhury, N.K. Estimation of antiradical properties of antioxidants using DPPH assay: A critical review and results. Food Chem. 2012, 130, 1036–1043. [Google Scholar] [CrossRef]

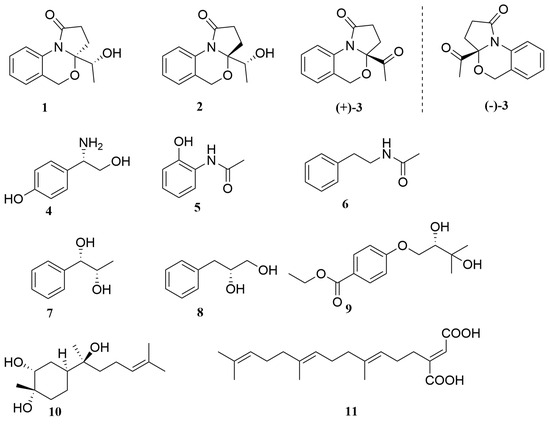

Figure 1. Chemical structures of compounds 111.
Figure 1. Chemical structures of compounds 111.
Marinedrugs 22 00214 g001

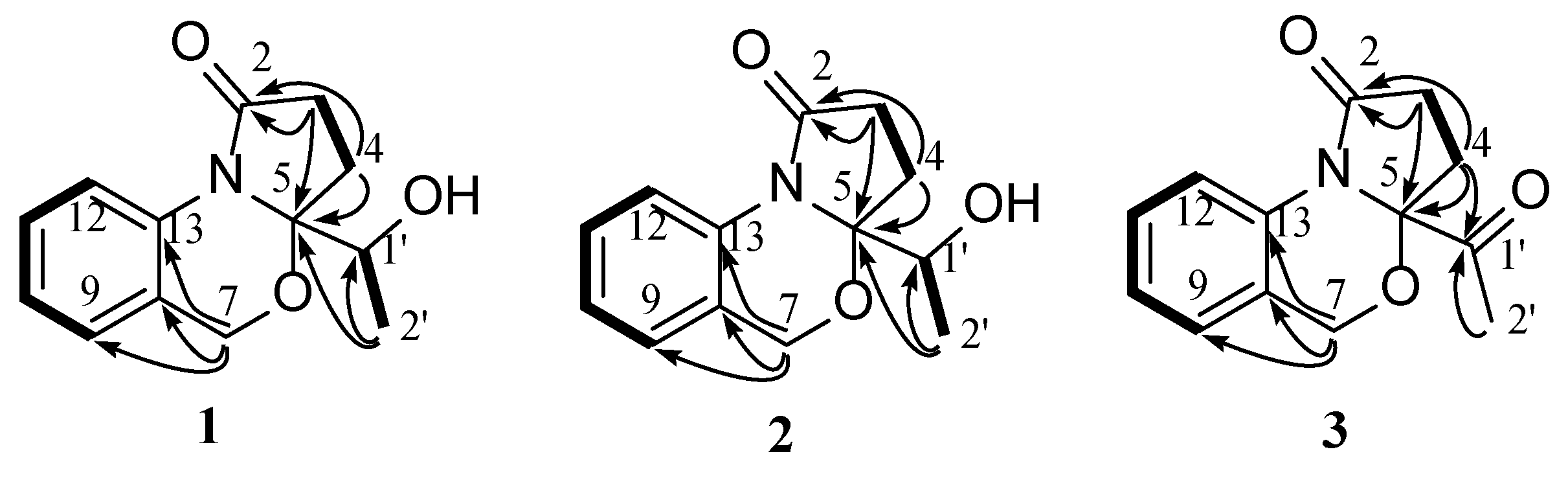

Figure 2. Key 1H-1H COSY (black line) and HMBC (black arrow) correlations of compounds 13.
Figure 2. Key 1H-1H COSY (black line) and HMBC (black arrow) correlations of compounds 13.
Marinedrugs 22 00214 g002

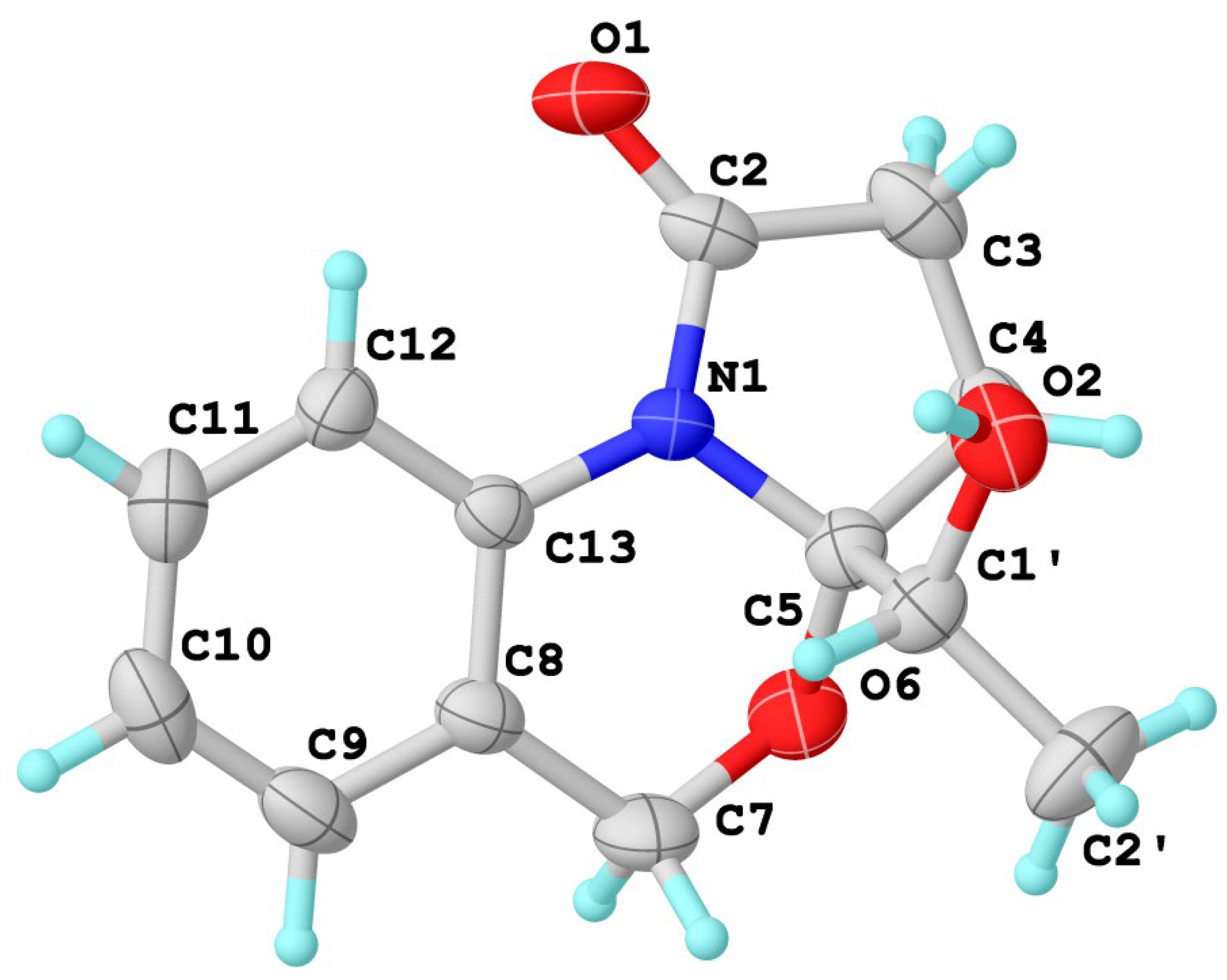

Figure 3. X-ray crystallographic analysis of 1.
Figure 3. X-ray crystallographic analysis of 1.
Marinedrugs 22 00214 g003

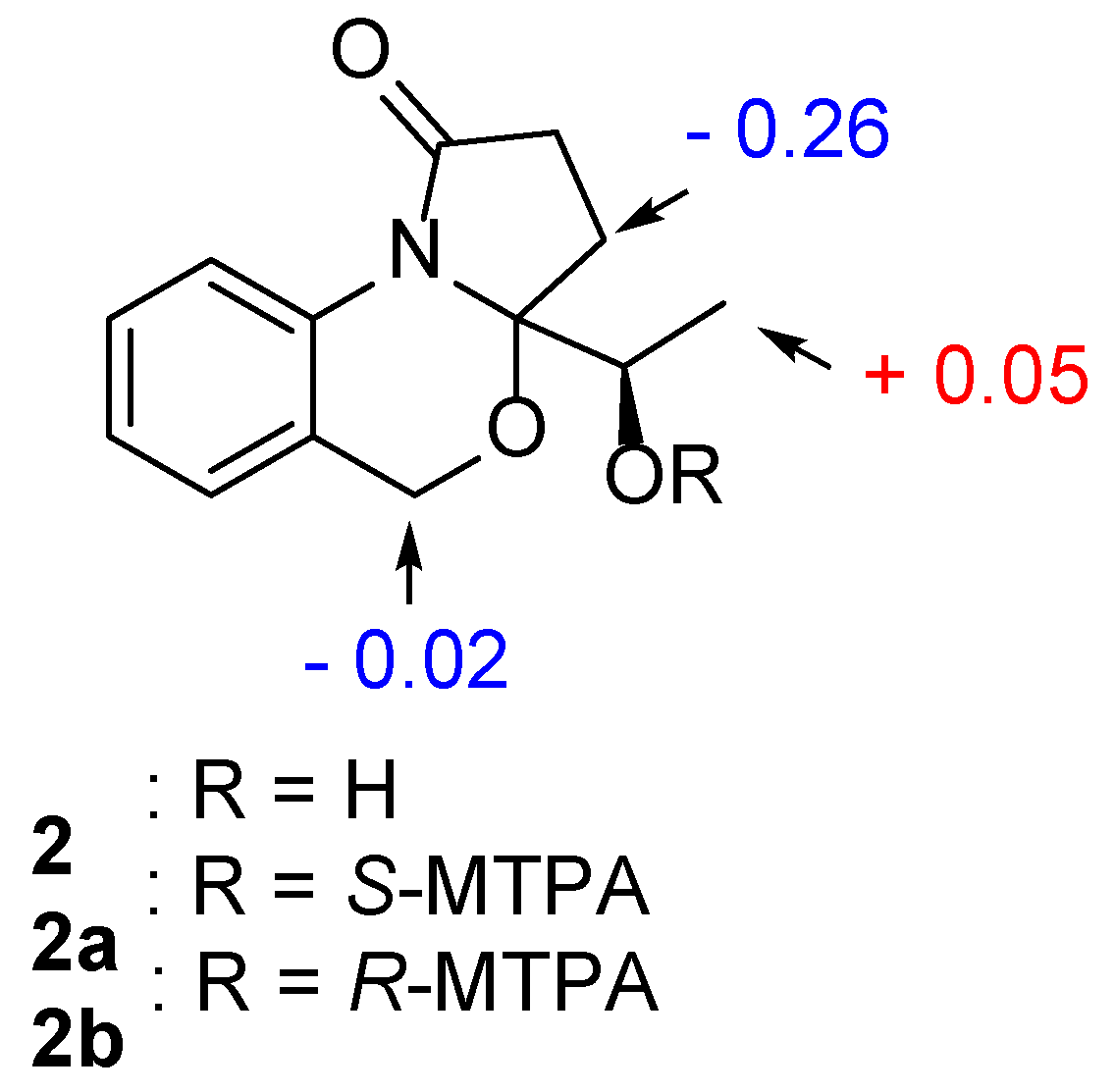

Figure 4.δ = δSδR values in ppm obtained from the MTPA esters of 2.
Figure 4.δ = δSδR values in ppm obtained from the MTPA esters of 2.
Marinedrugs 22 00214 g004

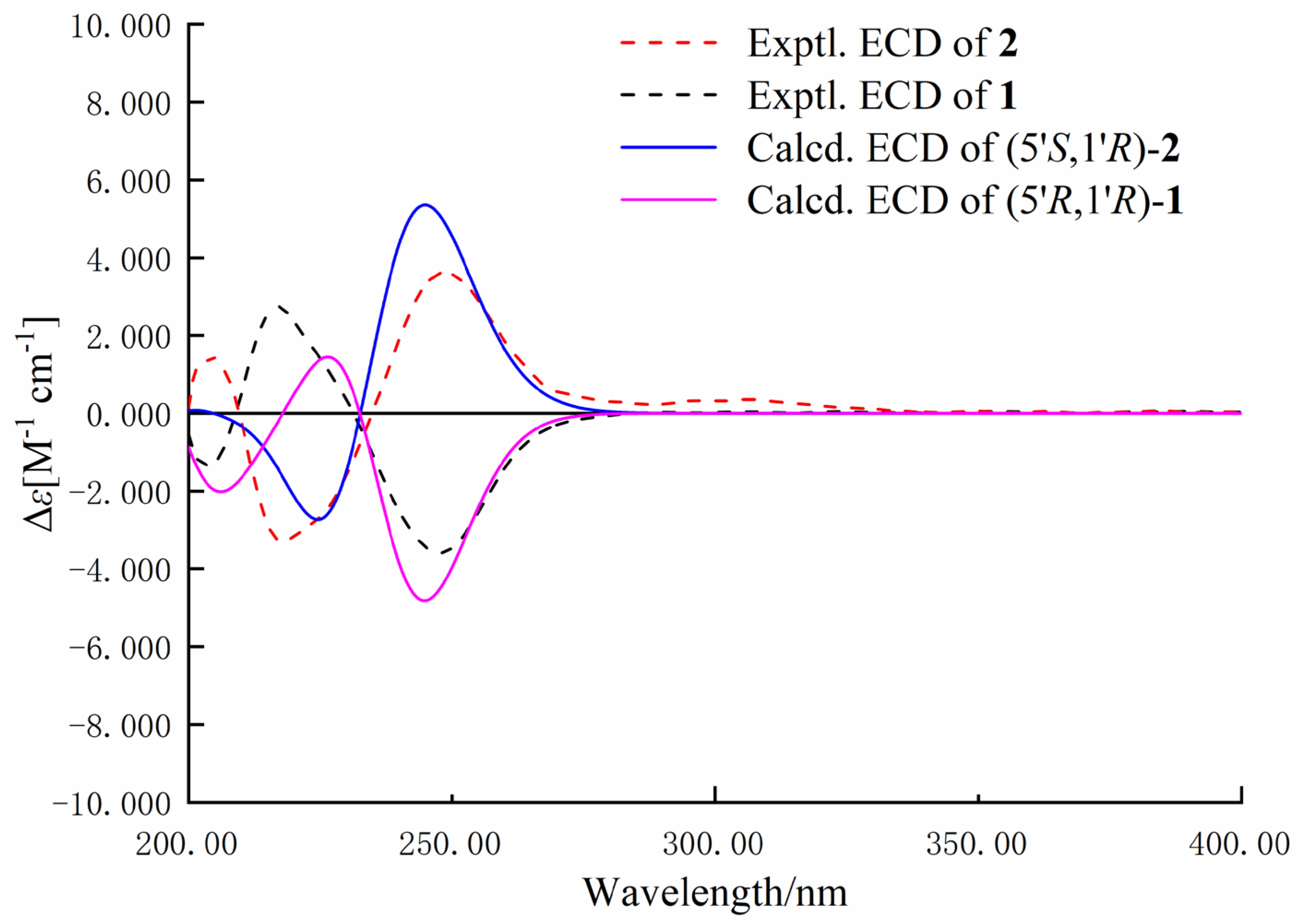

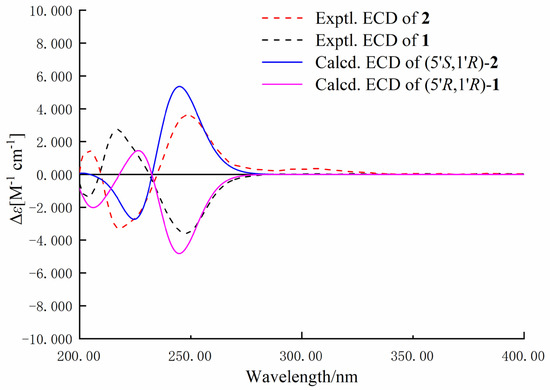

Figure 5. Experimental and calculated ECD spectra of compounds 1 and 2 (in MeOH).
Figure 5. Experimental and calculated ECD spectra of compounds 1 and 2 (in MeOH).
Marinedrugs 22 00214 g005

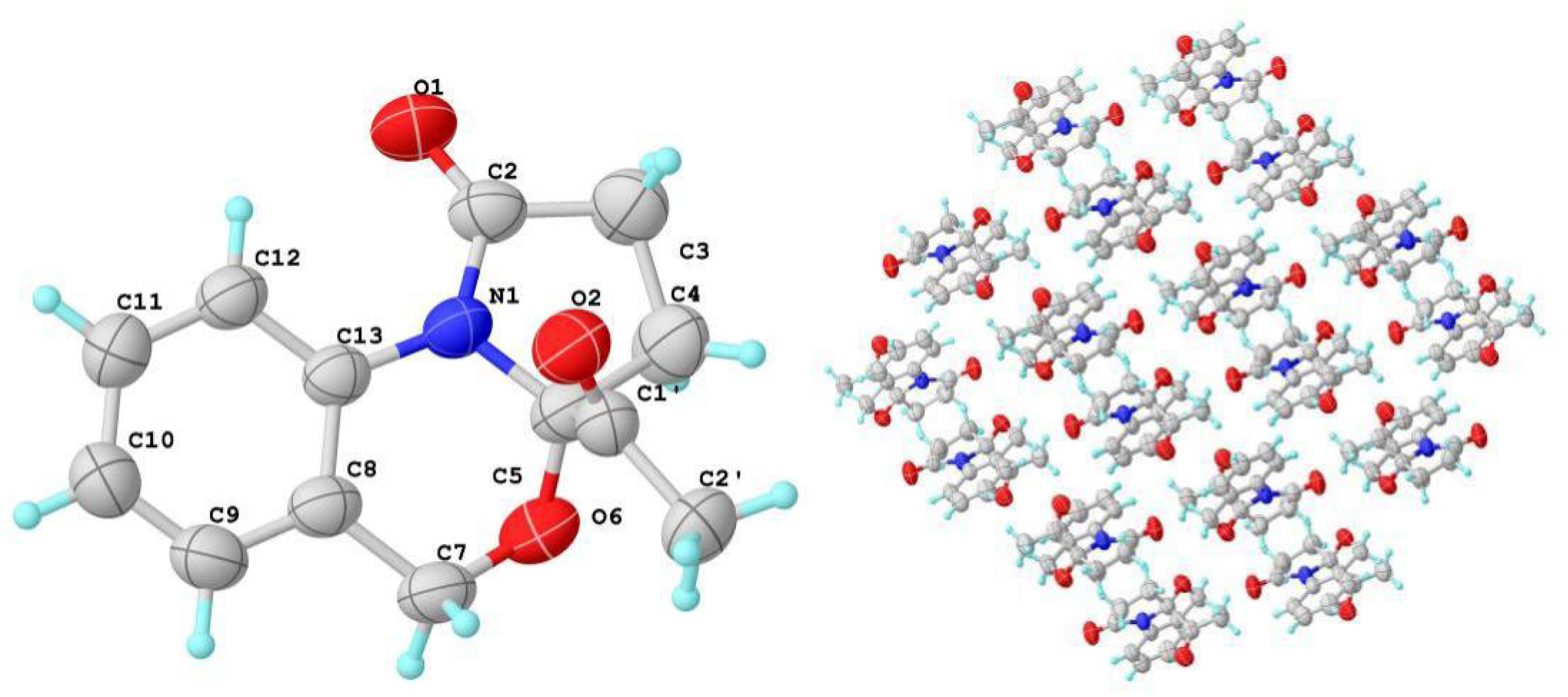

Figure 6. X-ray crystallographic analysis and molecular packing properties of 3.
Figure 6. X-ray crystallographic analysis and molecular packing properties of 3.
Marinedrugs 22 00214 g006

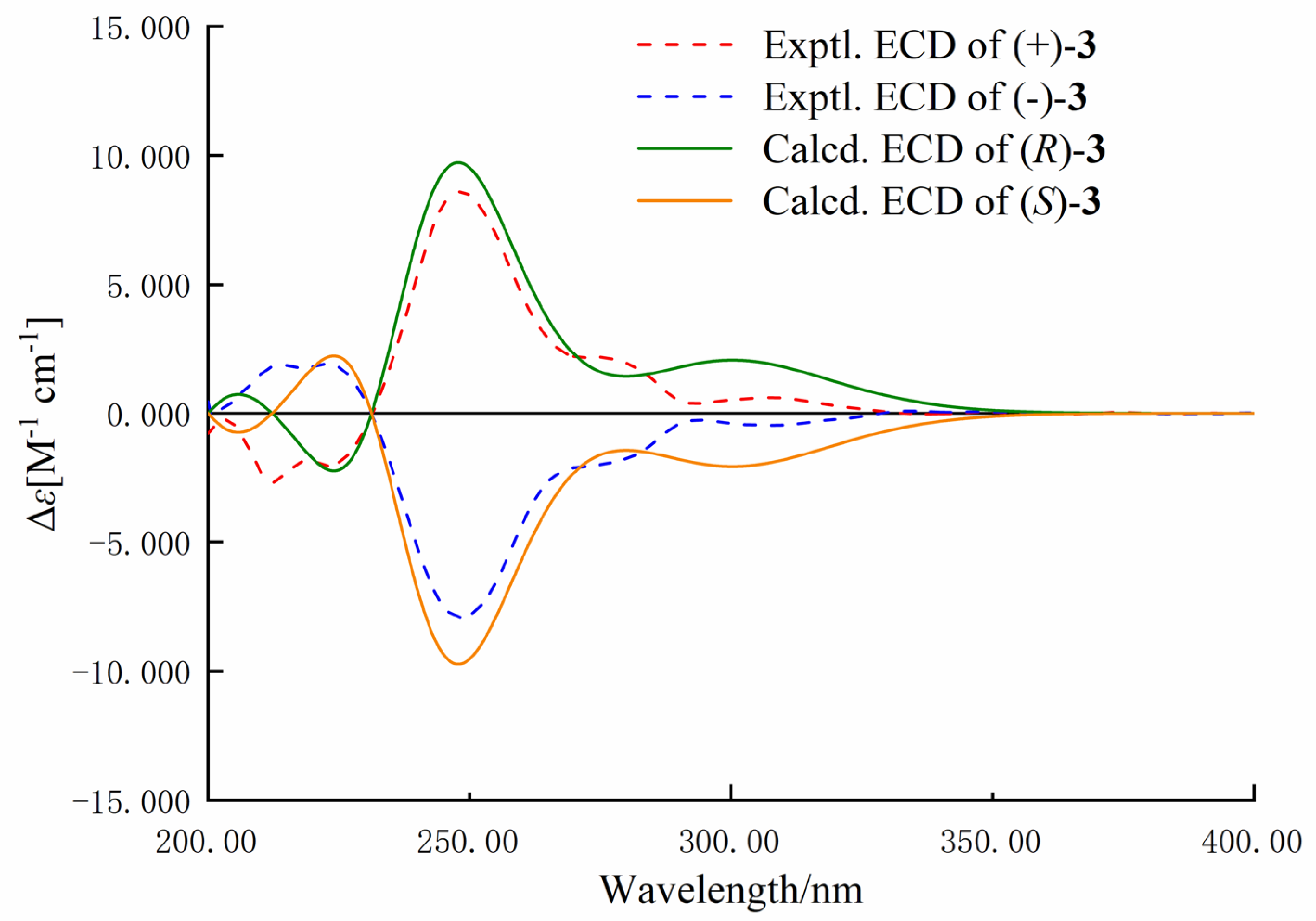

Figure 7. Experimental and calculated ECD spectra of compound 3 (in MeOH).
Figure 7. Experimental and calculated ECD spectra of compound 3 (in MeOH).
Marinedrugs 22 00214 g007

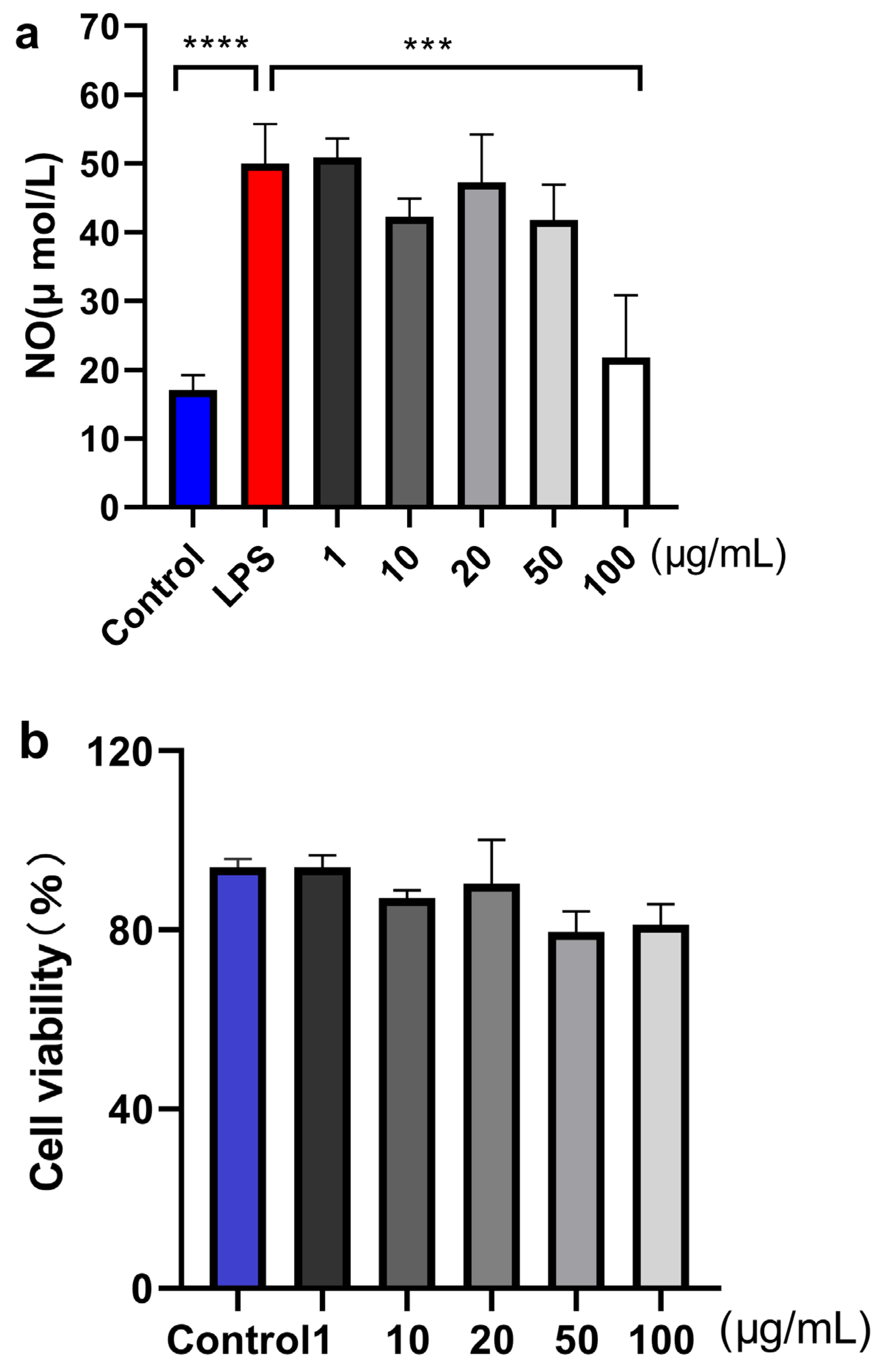

Figure 8. Effects of compound 2 on LPS-induced NO production in BV2 microglia (a), Effects of different concentrations of compound 2 on BV-2 cells viability (b). Mean ± SD of five replicates is shown. **** p < 0.0001, LPS group versus control group; *** p < 0.001, sample group versus LPS group.
Figure 8. Effects of compound 2 on LPS-induced NO production in BV2 microglia (a), Effects of different concentrations of compound 2 on BV-2 cells viability (b). Mean ± SD of five replicates is shown. **** p < 0.0001, LPS group versus control group; *** p < 0.001, sample group versus LPS group.
Marinedrugs 22 00214 g008
Table 1. 1H and 13C NMR spectroscopic data of 13 (CDCl3).
Table 1. 1H and 13C NMR spectroscopic data of 13 (CDCl3).
No.123
δC, TypeδH, Mult (J in Hz)δC, TypeδH, Mult (J in Hz)δC, TypeδH, Mult (J in Hz)
2172.8, C 174.0, C 172.2, C
330.6, CH22.62, m30.9, CH22.60, m28.6, CH22.62, m
425.6, CH22.62, m; 1.98,m25.5, CH22.68, m; 1.93,m29.4, CH22.62, m; 2.30, m
593.6, C 94.0, C 94.8, C
763.0, CH25.04, d, (15.6); 4.92, d, (15.6)63.3, CH24.89, d, (15.6); 4.84, d, (15.6)65.1, CH24.95, s
8132.7, C 132.5, C
9127.8, CH7.30, t, (6.6)127.9, CH7.30, t, (6.6)128.0, CH7.30, t, (6.6)
10124.5, CH7.14, td, (7.5, 1.2)124.7, CH7.1, td, (7.5, 1.2)124.9, CH7.11, td, (7.5, 1.2)
11124.2, CH7.05, d, (7.8)124.3, CH7.04, d, (7.8)124.3, CH6.98, d, (7.6)
12121.2, CH8.14, d, (8.4)121.7, CH8.18, d, (7.1)120.5, CH8.27, d, (8.2)
13124.0, C 124.1, C 122.9, C
1′65.4, CH4.22, qd, (6.4, 1.1)65.8, CH4.19, q, (6.4)204.3, C
2′16.3, CH31.13, d, (6.4)16.3, CH31.31, d, (6.4)23.9, CH32.23, s
