Bromoperoxidase Producing Bacillus spp. Isolated from the Hypobranchial Glands of A Muricid Mollusc Are Capable of Tyrian Purple Precursor Biogenesis

by
Ajit Kumar Ngangbam
1,†,
Peter Mouatt
2,
Joshua Smith
2,
Daniel L. E. Waters
2,3 and
Kirsten Benkendorff
1,*,†
1
Marine Ecology Research Centre, School of Environment, Science and Engineering, Southern Cross University, Lismore, NSW 2480, Australia
2
Southern Cross Plant Science, Southern Cross University, Lismore, NSW 2480, Australia
3
ARC Industrial Transformation Training Centre for Functional Grains, Charles Sturt University, Wagga Wagga, NSW 2650, Australia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to the manuscript.
Mar. Drugs 2019, 17(5), 264; https://doi.org/10.3390/md17050264
Submission received: 11 April 2019 / Revised: 26 April 2019 / Accepted: 30 April 2019 / Published: 3 May 2019
(This article belongs to the Special Issue Marine Bacteria as Sources of Bioactive Compounds)
Browse Figures
Review Reports Versions Notes

Abstract

:
The secondary metabolite Tyrian purple, also known as shellfish purple and royal purple, is a dye with historical importance for humans. The biosynthetic origin of Tyrian purple in Muricidae molluscs is not currently known. A possible role for symbiotic bacteria in the production of tyrindoxyl sulphate, the precursor to Tyrian purple stored in the Australian species, Dicathais orbita, has been proposed. This study aimed to culture bacterial symbionts from the purple producing hypobranchial gland, and screen the isolates for bromoperoxidase genes using molecular methods. The ability of bromoperoxidase positive isolates to produce the brominated indole precursor to Tyrian purple was then established by extraction of the culture, and analysis by liquid chromatography–mass spectrometry (LC–MS). In total, 32 bacterial isolates were cultured from D. orbita hypobranchial glands, using marine agar, marine agar with hypobranchial gland aqueous extracts, blood agar, thiosulphate citrate bile salts sucrose agar, and cetrimide agar at pH 7.2. These included 26 Vibrio spp., two Bacillus spp., one Phaeobacter sp., one Shewanella sp., one Halobacillus sp. and one Pseudoalteromonas sp. The two Bacillus species were the only isolates found to have coding sequences for bromoperoxidase enzymes. LC–MS analysis of the supernatant and cell pellets from the bromoperoxidase producing Bacillus spp. cultured in tryptone broth, supplemented with KBr, confirmed their ability to produce the brominated precursor to Tyrian purple, tyrindoxyl sulphate. This study supports a potential role for symbiotic Bacillus spp. in the biosynthesis of Tyrian purple.

1. Introduction

Many marine invertebrates produce secondary metabolites that contribute to a suite of ecological roles, including paralysing their prey and preventing predation [1], pathogens [2], surface fouling [3] and competitors [4]. Beyond the ecological roles of the secondary metabolites, these chemicals also provide opportunities that aid human society in the form of novel bio-products. A large number of marine natural products have been isolated and characterized from marine invertebrates [5], including antimicrobial, antifungal, antiviral, antiprotozoal, anthelminthic and anticancer compounds [6,7,8], as well as dyes and pigments [9,10,11,12].
The Muricidae are predatory gastropods of importance for their use in medicine and perfumery [13,14], as well as for the production of historically and culturally important purple and blue dyes [15,16,17]. The blue dye has been identified as indigo, a natural product well-known to be produced by plants [18,19] and bacteria [20,21,22], in addition to muricid molluscs. Tyrian purple is the dibrominated derivative of indigo (6,6′dibromoindigo), and along with the red structural isomer, 6,6′dibromoindirubin, it is only conclusively known to be produced by Muricidae molluscs [23]. Tyrian purple is currently regarded as a “rare” natural dye, with 6,6′dibromoindigo from shellfish currently valued at $4280 per gram [24]. The oxidised precursor 6-bromoisatin and a derivative of 6-dibromoindirubin are also of interest for their anticancer and anti-inflammatory properties [25,26,27,28,29,30,31].
Different species of Muricidae produce and store a range of brominated and nonbrominated indoxyl sulphate precursors, which form the purple and blue dyes respectively [32,33]. However, the Australian species Dicathais orbita produces a single brominated precursor tyrindoxyl sulphate (Figure 1a) and, therefore, has been identified as a useful model species for Tyrian purple production [23]. A transcriptomic study on D. orbita has identified a tryptophanase enzyme that can convert tryptophan to indoxyl sulphate [34]. However, the biosynthesis of tyrindoxyl sulphate in the hypobranchial gland of muricids, also requires bromoperoxidase to brominate the indole precursors [35,36,37]. The brominated indoxyl sulphate precursors are hydrolysed by an aryl sulfatase enzyme, which is produced by the mollusc [34], and then spontaneously reacts with oxygen, dimerises and is photolytically cleaved to form the final dye pigment [17,23].
There is a growing research interest in the involvement of bacteria–host invertebrate associations in the biosynthesis of marine secondary metabolites [38]. Structural homology between marine invertebrate natural products and microbial metabolites can provide an indication that these natural products originate from the microbes, rather than being synthesized by the host [39]. The structural similarity between Tyrian purple and indigo, coupled with the culture-independent identification of bacteria capable of producing indole and brominating secondary metabolites, in the D. orbita hypobranchial gland [40,41], suggests a potential role for bacterial symbionts in the biosynthesis of the precursor of Tyrian purple. Bacterial species, such as Bacillus sp., Synechococcus sp., and Pseudomonas putida, which were identified in D. orbita tissue [40], have been previously found to produce bromoperoxidase enzymes. Several other bacterial species are also known to produce bromoperoxidase [42,43,44,45,46] and indoles [47,48,49]
A major issue for the commercial development of marine secondary metabolites is sustainable supply [5,38,50]. Identification of bacteria involved in the biosynthesis of marine secondary metabolites can provide options for supplying sufficient quantities for clinical testing and commercialization [50,51,52,53]. Many marine bacteria cannot be easily cultured [54,55,56], however when possible, the ability to culture bacteria using traditional techniques provides an advantage for the large-scale production of natural products. Marine microbial symbionts associated with the host invertebrate might provide an alternative for producing compounds of biomedical importance, on a larger scale, for drug development [57,58,59,60] or dye production and could possibly solve the sustainable supply issue.
Many approaches have been used to “culture the unculturable” bacteria from marine invertebrates. As an example, the optimization of growth media, incubating temperature and pH increases the recovery of microbes that are unculturable under standard conditions [61,62,63]. Sterile marine water can be used to mimic the natural environment for culturing previously uncultured bacteria [61], while marine invertebrate extracts can also mimic the chemical environment within hosts [64,65]. For example, Li and Liu [66] used sponge extracts in artificial seawater to “simulate” the sponge natural environment, resulting in the isolation of bacteria belonging to Actinobacterium and Bacteroidetes.
The muricid, Dicathais orbita, is an ideal model species for studying the biosynthesis of Tyrian purple and bioactive brominated indole derivatives [13,23]. Some indole producing bacteria have been previously isolated from the hypobranchial gland of D. orbita [41], but their ability to produce brominated metabolites has not been determined. Recent culture-independent metagenomic and transcriptomic studies on the hypobranchial gland, have reported a large number of microbial symbionts and genes, some of which have the capacity of producing both indoles and brominated compounds [34,40]. This study aimed to culture bacteria potentially involved in Tyrian purple precursor synthesis, and then screen the isolates for bromoperoxidase genes, using molecular methods. Representative bacteria were then screened for their ability to produce tyrindoxyl sulphate in a potassium bromide supplemented media, using liquid chromatography–mass spectrometry (LC-MS).

2. Results

2.1. Bacterial Isolation

Thirty-two distinct bacteria were isolated in total (Table 1). Six, ten and sixteen bacterial morphotypes were cultured from the hypobranchial gland homogenates, hypobranchial gland dorsal swabs, and hypobranchial gland ventral swabs, respectively (Table 1). All of the distinct types of bacteria were recovered on marine agar at 7.2 pH, and no additional bacteria were cultured by incorporating the hypobranchial gland aqueous extract into the media. Despite the fact that the pH of the hypobranchial gland has been found to be highly acidic [41], no bacterial colonies were observed at pH 4.5 on marine agar, with or without a 10% aqueous gland extract, when incubated at 25 °C. A subset of the bacteria were recorded on the other growth media—25% of isolates grew on cetrimide agar (CA), 72% on blood agar (BA), 78% on marine agar with hypobranchial gland extracts (MAH) and 81% on thiosulphate citrate bile salts sucrose agar (TCBS) (Table 1).
All 32 bacterial isolates were motile, with 29 identified as Gram negative and three as Gram positive (Bacillus sp., Bacillus thuringiensis and Halobacillus sp.) (Table 1).

2.2. Molecular Identification of Cultivated Bacteria

Analysis of 16S rRNA gene sequences of the 32 cultured bacteria revealed 26 Vibrio spp., two Bacillus spp., one Phaeobacter sp., one Shewanella sp., one Halobacillus sp., and one Pseudoalteromonas sp. (Table 1).
Four Vibrio spp. (KR338857, KR338858, KR338859, KR338870) and two Bacillus spp. (KR338869, KR855712) were identified from the hypobranchial gland homogenates (Table 1); seven Vibrio spp. (KR338845, KR338846, KR338851, KR338853, KR338854, KR338856, KR338871), one Phaeobacter sp. (KR338852), one Shewanella sp. (KR338855) and one Pseudoalteromonas sp. (KR338872) were identified from hypobranchial gland dorsal swabs (Table 1); 15 Vibrio spp. (KR338844, KR338847-KR338850, KR338860-KR338863, KR338865-KR338868, KR338873, KR338874) and one Halobacillus sp. (KR338864) were identified from the hypobranchial gland ventral swabs sample (Table 1).
The sequence similarity to partial 16S rRNA gene sequences, available in the NCBI GenBank for isolates, ranged from 97% to 100% (Table 1).

2.3. Putative Bromoperoxidase Gene Screening by PCR

PCR of DNA derived from the 32 distinct bacterial isolates, using primer pairs BBFp (CCCATG TGG ACC ACC CTT TAT) and BBRp (TAA GTG GTC GAT CTT GGGAAT), amplified putative bromoperoxidase coding gene sequences from two Bacillus spp., but failed to amplify any DNA from the remaining 30 bacterial isolates. BLASTN comparison of the gene sequences amplified from the two Bacillus spp., against the NCBI database, revealed a 97% sequence similarity with Bacillus thuringiensis MC28- bromoperoxidase (CP003687.1) (Table 2).

2.4. Bacterial Extract Analysis for Brominated Compounds by Liquid Chromatography–Mass Spectrometry

Pure cultures of the bromoperoxidase containing Bacillus sp. and Bacillus thuringiensis and a subset of bromoperoxidase negative bacterial species (Vibrio chagasii, Pseudoalteromonas sp. and Phaeobacter sp.) were analysed for the possible production of brominated compounds using LC–MS. Evidence for the presence of tyrindoxyl sulphate was found in extracts from the two Bacillus spp., but not in the other three bacteria. An HPLC peak with a retention time of around 14 min was found in cell pellet extracts from Bacillus sp. (KR338869) and Bacillus thuringiensis (KR855712) cultures (Figure 1B,C). This peak corresponded to a peak detected using selected ion monitoring (SIM) at m/z 224, 226, [M–H]− for 6 bromoisatin (C8H2BrNO2), which is a stable rearrangement ion commonly detected in Tyrian purple precursors produced by D. orbita [67]. The peak detected using SIM at m/z 224, 226 was not detected in the broth control (Figure 1D), but corresponded to the peak in a purified tyrindoxyl sulphate standard (Figure 1A) isolated from the hypobranchial gland, and confirmed by proton nuclear magnetic resonance 1H NMR (600 MHz, CDsCN, 25oC aromatic protons δ 7.65 (1H, d), 7.55 (1H, d), 7.20, 1H, dd), methyl protons δ 2.5 (3H, s)) [67]. Tyrindoxyl sulphate did not produce a strong signal in the total ion current–mass spectrum (TIC-MS) in the negative or positive ion modes (Figure 1 and Figure 2, respectively). Nevertheless, consistent with previous characterisations of tyrindoxyl sulphate from D. orbita hypobranchial gland extracts [67], major ions in the negative ion mode obtained at the apex of this peak, were m/z 336, 338 (Figure 1 A, B, C), which corresponds to the molecular ion [M–H]− of tyrindoxyl sulphate (C9H7Br79NO4S2-, C9H7Br81NO4S2-). The diode array revealed UV absorption maxima at 228 and 302 nm from the tyrindoxyl sulphate standard and Bacillus spp. extracts (Figure 1A–C).
Using dianion resin extracts from the culture supernatant, we were again able to identify a peak corresponding to tyrindoxyl sulphate, at around 14 min, in a hypobranchial gland extract from D. orbita (Figure 2A), Bacillus sp. (Figure 2B) and Bacillus thuringiensis (Figure 2B). In the positive ion mode, the [M2H]+ ion (m/z 338, 340) was detected, along with a number of other paired ions, characteristic of brominated compounds Br79, Br81 (Supplementary Figure S1). No peaks corresponding to tyrindoxyl sulphate, or any other brominated compounds were detected in extracts from the supernatant of Pseudoalteromonas sp. (KR338872), Phaeobacter sp. (KR338852), or Vibrio chagasii (KR338845) cultures (Figure 2 D–F), or the broth control (Figure 2G).
We further analysed additional supernatant dianion extracts from the two Bacillus against the tyrindoxyl sulphate standard in the negative ion mode with SIM 224, 226. Despite eluting slightly later, at 15 min (Supplementary Figure S2), the relevant peaks were detected with molecular ion, confirmed at m/z 336, 338, although in the Bacillus thuringiensis supernatant, the peak was below the limit of detection for UV–Vis and, therefore, below the limit for accurate quantification. Quantification of tyrindoxyl sulphate in the broth extracts of Bacillus sp. was undertaken, using the procedure outlined by Valles-Regino et al. [67], and was estimated to be 1 mg/10 mL.

3. Discussion

This study provides the first evidence of bromoperoxidase producing bacteria that are capable of biosynthesizing the brominated precursor of Tyrian purple in the hypobranchial gland of a muricid mollusc. Tyrian purple is a dye of historical importance that traditionally could only be obtained by extraction from the Muricidae. Only 1g of dye is obtained from approximately 1,200 snails [31], highlighting the need for sustainable production methods, if the natural Tyrian purple dye is to be supplied on an industrial scale. Using small-scale culture without optimised conditions, we were able to obtain an estimated 1 mg of the precursor tyrindoxyl sulphate from 10 mL of Bacillus culture. Although 6,6′-dibromoindigo can be chemically synthesized [68,69,70] there is still a demand for the natural product. Targeting natural shellfish populations to supply the dye can place populations at risk—as demonstrated by the decline of the central American Muricidae Plicopurpura pansa populations—due to overharvesting [71]. Presently, P. pansa is considered a threatened species and is under special protection from the Mexican government [71]. However, there has been a renewed interest in natural shellfish dyes, from the Jewish community [16]. Bacteria that are capable of brominating indoxyl sulphate to generate Tyrian purple precursors, provide a potential alternative for sustainable production of this natural dye, if the culture and production can be scaled up in the future.
The low microbial diversity observed in the hypobranchial gland homogenates and the identification of 25 Vibrio spp. is consistent with previous studies [40,41]. However, this study also identified two Bacillus species which have coding sequences for bromoperoxidase enzymes. Bacterial species belonging to the Bacillaceae family are known to produce bromoperoxidase [72], along with several other bacteria [45,46,73,74]. Bromoperoxidases produced by marine bacteria are often involved in the biosynthesis of halogenated natural products of pharmacological importance [75], and this enzyme has the capability of reacting with indole, specifically in the 6′ position, for the production of 6-brominated indoles [75,76]. Bromoperoxidase activity has been previously reported in the hypobranchial glands of D. orbita [37] and other muricids [35]. Bacillus sp. have also been previously detected in the hypobranchial glands of D. orbita, using culture-independent bacterial profiling [40]. This study confirms that a bromoperoxidase associated with Bacillus in the hypobranchial gland of a Muricidae, is capable of brominating an indole precursor in the 6′ position, on the aromatic ring, to form tyrindoxyl sulphate. Bacterial biosynthesis of tyrindoxyl sulphate provides opportunities for sustainable production of the anti-cancer and anti-inflammatory indole derivatives from Muricidae molluscs [13,25].
Other types of bacteria isolated from the hypobranchial gland, did not contain a bromoperoxidase gene, including Pseudoalteromonas sp., Phaeobacter sp. and Vibrio chagasii, and as expected, these failed to produce brominated indoxyl sulphate precursors in culture. Marine Pseudoaltermonas have previously been found to contain halogenase enzymes and produce small polyaromatic brominated secondary metabolites [77,78]. Given that no brominated compounds were detected from the Pseudoaltermonas cultures in this study, this bacterium is less likely to play a role in Tyrian purple precursor synthesis. On the other hand, Bacillus sp. have been isolated from the egg masses of Concholepas concholepas [79], another Muricidae species that produces Tyrian purple in its hypobranchial glands and egg masses [11]. The fact that these bacteria are associated with the egg masses indicates possible maternal transmission of the bacterial symbionts. Overall, this study identifies the potential association between Muricidae and Bacillus, for bioactive-brominated indole and Tyrian purple precursor production. This could be further tested by screening other Muricidae species for bromoperoxidase containing Bacillus species.
The majority of other bacteria cultured from the hypobranchial glands were identified as Vibrionaceae. The finding that Vibrio spp. are the dominant bacterial species in the hypobranchial glands of D. orbita is consistent with our previous metagenomic study on D. orbita hypobranchial glands [40]. Our previous culture study showed that the Vibrios isolated from D. orbita are capable of producing indole [41]. Indeed a range of Vibrio spp. isolated from marine invertebrates and fish, are known to produce indoles [47,48,80,81,82], but to date, there are no reports of bromoperoxidase genes being isolated from marine Vibrio spp. Consistent with this, none of the Vibrio spp. isolated in our study contained coding sequences for putative bromoperoxidases and tyrindoxyl sulphate was not detected in culture extracts from a representative Vibrio sp. (V. chagasii). Nevertheless, it is possible that the high abundance of Vibrio spp. in the hypobranchial gland of D. orbita contribute indoxyl sulphate precursors, which are then brominated by Bacillus sp. for Tyrian purple precursor synthesis. This would involve a novel interaction between distinct endosymbiotic bacteria in the hypobranchial glands of Muricidae, which requires further investigation. Furthermore, a recent transcriptome study on D. orbita identified a tryptophanase gene, which can convert tryptophan to indole, as well as a number of genes involved in sulphur metabolism, indicating that the mollusc itself might have the capacity to produce indoxyl sulphate. Therefore, it is possible that at least part of the biogenic pathway for Tyrian purple precursors exists in the molluscs and other symbiotic bacteria, thus, potentially contributing to a mixed biosynthetic origin.
Overall, this study provides evidence that Bacillus spp. containing bromoperoxidase enzymes occur in the hypobranchial gland of D. orbita, and are capable of producing brominated precursors for Tyrian purple biosynthesis. However, there remains a possible role for marine Vibrio spp. in contributing non-brominated indoles, which provide the scaffold for bromination and generation of the ultimate precursor tyrindoxyl sulphate. Hence, the role of symbiotic bacteria in the biosynthesis of Tyrian purple precursors is highlighted and provides a scope for future studies on potential sustainable production of this natural dye and other bioactive 6-bromoindole derivatives, through the application of bacterial culture or genetic engineering.

4. Materials and Methods

4.1. Sample Collection, Preparation and Culturing

D. orbita (n = 15 snails) were collected from subtidal and intertidal rocky reefs near Ballina (28°84′ S and 153°60′ E), Northern NSW, Australia. Samples were collected during low tide on 11 December 2014 under permit number F89/1171-6.0 issued by Primary Industries, NSW Government, Australia. Snails were transferred live to the Southern Cross University and processed immediately. The hard shells were removed and the snails dissected, according to Westley and Benkendorff [10]. Hypobranchial glands (Figure 3) were removed aseptically, under laminar flow, and rinsed three times with sterile seawater to remove any external bacteria loosely associated with the gland. An aqueous extract of the hypobranchial gland was prepared separately for incorporation into bacterial culture media, by homogenising 2 g hypobranchial gland (15 snails) with 35 mL of phosphate buffer saline (PBS) solution in a blender. The extract solution was filter sterilized through a 0.25 μm syringe filter (Minisart, Sartorius, Sigma-Aldrich, Castle Hill, NSW Australia), before adding to the autoclaved marine agar. The pH of the hypobranchial gland was measured, using a pH microprobe (Orion, pH Micro Electrode, Thermo Scientific, Brisbane, Qld, Australia) and was found to have a mean of 4.5 (± 0.08 st. dev, n = 3).
The culture of potential D. orbita hypobranchial gland microbial symbionts was undertaken using five different growth media—marine agar (pH 7.2), marine agar (pH 4.5), marine agar and hypobranchial gland extract (pH 7.2), marine agar and hypobranchial gland extract (pH 4.5), blood agar, TCBS (thiosulphate citrate bile salts sucrose) agar and cetrimide agar. These media were chosen on the basis of their potential to provide favourable conditions, which might not be provided by the standard growth media. Marine agar with hypobranchial gland extract was used to mimic the natural environment of the D. orbita hypobranchial gland. TCBS and cetrimide agar was used as a selective media for isolating Vibrio sp. and Pseudomonas sp., respectively [83,84,85]. Blood agar was used as an enriched media to isolate fastidious bacterial symbionts [86]. Marine agar and marine agar supplemented with 10% aqueous gland extract plates were used at pH 7.2 and adjusted to pH 4.5, using small amounts of HCl, in order to match the pH of the hypobranchial gland lumen.
Three approaches were used to isolate and culture bacteria from the hypobranchial glands. The sampling approaches included: (1) sampling homogenates of whole hypobranchial glands; (2) taking dorsal swabs of glands and (3) taking ventral swabs of glands. In all cases, three hypobranchial glands, with an approximate total weight of 0.25 g, were used. Homogenates were prepared using a sterile mortar and pestle, whereas, swab samples were taken using sterile cotton swabs. Each of the samples was diluted in 9 mL of sterile sea water, mixed thoroughly by vortexing, and three-fold dilutions were prepared with sterile seawater. Additional concentrated homogenates were also prepared from six individual hypobranchial glands. Following Marinho et al. [87], these were homogenised, separately, in marine broth at a concentration of 1 g/mL, then directly plated onto marine agar and cetrimide agar, for maximum recovery of the bacterial symbionts, including Pseudomonas sp.
A 100 μL aliquot from each homogenate and swab sample was spread onto the duplicate agar plates. The agar plates were incubated for 14 days at 25 °C. Agar plates were observed daily for bacterial colonies and the colony size and morphology were recorded. Morphologically distinct colonies were selected for Gram-staining, using standard procedures [41], and molecular identification of the isolates. All genetically distinct isolates were screened for bromoperoxidase genes and a subset of these were analysed for brominated indole production.

4.2. 16S rRNA Sequencing of Bacterial Isolates

Morphologically distinct colonies were subjected to 16S rRNA sequence analysis. DNA was extracted using Qiagen DNA extraction kits (QIAmp DNA mini kit, Qiagen, Chadstone, Vic, Australia). PCR reactions comprised 2.5 µL of 10× PCR buffer; 2.5 µL of dNTPs (2mM), 1.25 µL of 50 mM MgCl2; 1 µL genomic DNA (35–80 ng); 0.4 µL Taq polymerase and 1 μL forward primer (27F) (10 μM), 1 μL reverse primer (1492R) (10 μM), 15.35 μL Milli-Q water in a final volume of 25 µL. PCR cycle conditions consisted of an initial denaturation at 94 °C, for 5 min, followed by 30 cycles of 45 s at 95 °C, 1 min at 58 °C and 1 min at 72 °C. PCR amplicons were separated by agarose gel electrophoresis and visualised by GelRed staining under UV irradiation. Positive PCR products were purified using the QIAquick PCR Purification Kit (Qiagen), in accordance with the manufacturer’s instructions, and sequenced by Macrogen Inc, (Seoul, Korea). DNA sequences were analysed using the sequence scanner software v1.0 and compared with sequences in the NCBI GenBank database, by BLASTN. All 16S rRNA gene sequences from the 32 bacterial isolates were lodged with GenBank, under the accession number KR855712, KR338844-KR338874. The isolates were preserved by diluting 1:1 in sterile marine broth containing 30% glycerol and then stored in −80 °C for further analysis. Gram staining (100× magnification, Olympus, Macquarie Park, NSW Australia) was performed on the pure cultures.

4.3. Bromoperoxidase Gene Screening

The genomic DNA of the 32 bacterial isolates were screened for the bromoperoxidase genes, using primer pair BBFp (CCCATG TGG ACC CTT TAT) and BBRp (TAA GTG GTC GAT CTT GGGAAT). These primers were designed on the basis of bromoperoxidase consensus sequence, derived from five Bacillus strains [88]. The PCR reaction was composed of 2.5 µL of 10× PCR buffer; 4 µL of dNTPs (2mM), 1 µL of 50 mM MgCl2, 2 µL genomic DNA, 0.5 µL Taq polymerase, 1.5 μL forward primer (FP) (10 μM), 1.5 μL reverse primer (RP) (10 μM), 12 μL Milli-Q water in a final volume of 25 µL. PCR cycle conditions comprised an initial denaturation at 94 °C, for 5 min, followed by 30 cycles of 1 min at 94 °C, 1.30 min at 58 °C and 1 min at 72 °C. PCR amplicons were separated and visualised by agarose gel electrophoresis and GelRed staining, under UV irradiation. Positive bromoperoxidase fragments, approximately 700 bp in size, were purified and sequenced by Applied Biosystems 3730 and 3730xl capillary sequencers (Australian Genome Research Facility, Brisbane, Australia), were further analysed using the sequence scanner software v1.0 (ThermoFisher, Brisbane, Australia) and the sequences were compared with the NCBI GenBank database by BLASTN. Nucleotide sequences for putative bromoperoxidase genes were submitted to the NCBI GenBank under accession number KT180165 and KT180166.

4.4. Liquid Chromatography–Mass Spectrometry (LC–MS) Analysis of Bacterial Extracts

Extracts from the pure subcultures of Bacillus sp., Bacillus thuringiensis, Vibrio chagasii, Pseudoalteromonas sp. and Phaeobacter sp. were analysed for the possible production of any brominated compounds. Bacteria were grown in sterilized Schott bottles containing 60 mL marine broth and tryptone broth, since these contain tryptophan which is suspected to be the ultimate precursor for Tyrian purple [23], and were supplemented with 0.2 g potassium bromide (KBr). The bacterial growth was maintained for 24 h at 25 °C. A control of tryptone broth without bacterial inoculation was also maintained with KBr, for comparison. Exponentially growing cultures were centrifuged at 6000 rpm (Heraeus Instruments Biofuge pico, ThermoFisher, Brisbane, Australia) for 10 min, to separate the cells and the supernatant. Extraction of the supernatant was performed by ion exchange chromatography, by passing the supernatant through a dianion resin (Dianion HP 20, Supelco, Bellefonte, PA, USA), then washing the column with methanol, before drying the methanol extract using a stream of high purity nitrogen gas. The cell pellet was also extracted in chloroform—methanol (1:1) and dried under nitrogen gas. These extracts were analysed using LC–MS.
LC–MS analysis was undertaken using an Agilent 1260 infinity (Santa Clara, CA, USA) High Performance Liquid Chromatography (HPLC) system, coupled with a 6120 Quad mass spectrometer (MS), according to the procedure described by Valles-Regino et al. [67]. Tyrindoxyl sulphate in the bacterial extracts was quantified against a standard calibration curve, using HPLC, by integrating the area under the curve for absorbance at 210 nm [67]. The HPLC utilized a Phenomenex luna C18 reversed phase column (100 × 4.6 mm), with a solvent gradient from 10% to 95% acetonitrile (ACN) with 0.005% trifluoroacetic acid (TFA) over 18 min, at a flow rate of 0.75 mL/min. Peak absorption was monitored using parallel UV–Vis diode-array detection (DAD). Electrospray ionisation (ESI) mass spectrometry was used in the positive and negative ion modes. Selected ion monitoring at m/z 224, 226 was also used in negative mode to detect these common fragment ions that are typically generated in the mass spectrum, from the Tyrian purple precursors in the extracts from D. orbita [67]. Agilent ChemStation (Agilent Technologies Australia, Mulgrave, Vic) was used to analyze the LC–MS data. Characteristic ion cluster patterns from Br79 and Br81 in the mass spectrum were used for identifying the presence of any brominated compounds [10]. To confirm the identity of the purified tyrindoxyl sulphate standard H1 MNR was undertaken, and was recorded on a Bruker Advance III HD 500 MHz spectrometer (Bruker Biospin, Alexandria, NSW, Australia) in CD3CN and D2O (Novachem, Cambridge Isotopes Laboratories, Tewksbury, MA, USA). 1H chemical shifts were referenced to either CD3CN (1.96 ppm) or D2O (4.80 ppm).

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/5/264/s1, Figure S1: Liquid chromatography-mass spectrometry analysis of dianion resin extracts of Dicathais orbita hyprobranchial glands and culture supernatant from two Bacillus spp. cultured from the hypobranchial gland. Left panels show the HPLC chromatograms from the diode array detector at 280 nm (blue lines) and total ion current (red lines) in positive ion mode. The UV-Vis spectra is inset for the major peak at 14mins and the right panels show the positive ion mass spectra for the major peaks; Figure S2. Tyrindoxyl sulfate control (A) and dianion resin extracts from the supernatant of two Bacillus species (B, C) cultured from the hypobranchial glands of Dicthais orbita and a corresponding tryptone -KBr supplmentaed broth control (D). Left panels show the HPLC scan at 280nm in the diode array (blue), total ion current (TIC) in negative ion mode (red) and selected ion monitoring for major fragment ions at 224, 226 (green). Right panels show the UV Vis spectra and mass spectrum obtained from the apex of the major peak obtained at 15.16 min.

Author Contributions

K.B. initiated the study and all authors contributed to the experimental design. A.K.N. did the sampling, dissections, culturing, DNA extraction and quality check, PCR and submission of samples for genetic sequencing. J.S. assisted in designing the bacterial culture conditions. P.M. assisted in LC–MS analyses on the extracts from the bacterial cultures. A.K.N. and K.B. wrote the paper, with editorial input from D.W. K.B. revised the paper in response to reviews.

Funding

This research received no external funding.

Acknowledgments

This work was supported by an Australian Postgraduate Award and Southern Cross University International Postgraduate Research Scholarship to A.K.N., and a philanthropic grant to K.B. Access to the Australian Research Council Linkage Infrastructure, Equipment and Facilities supported the NMR facilities (LE140100119). We are also grateful for the postgraduate funding support from the School of Environment, Science and Engineering and access to the Southern Cross Plant Science Analytical Research Laboratory facilities. Dr. Wendy Loa-Kum-Cheung (Eskitis Institute Griffith University) kindly ran the 1H-NMR.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pawlik, J.R. Marine invertebrate chemical defenses. Chem. Rev. 1993, 93, 1911–1922. [Google Scholar] [CrossRef]
  2. Engel, S.; Jensen, P.R.; Fenical, W. Chemical ecology of marine microbial defense. J. Chem. Ecol. 2002, 28, 1971–1985. [Google Scholar] [CrossRef]
  3. Boltovskoy, D.; Cataldo, D.H. Population dynamics of Limnoperna fortunei, an invasive fouling mollusc, in the lower Parana river (Argentina). Biofouling 1999, 14, 255–263. [Google Scholar] [CrossRef]
  4. Haefner, B. Drugs from the deep: Marine natural products as drug candidates. Drug Discov. Today 2003, 8, 536–544. [Google Scholar] [CrossRef]
  5. Molinski, T.F.; Dalisay, D.S.; Lievens, S.L.; Saludes, J.P. Drug development from marine natural products. Nat. Rev. Drug. Discov. 2009, 8, 69–85. [Google Scholar] [CrossRef]
  6. Donia, M.; Hamann, M.T. Marine natural products and their potential applications as anti-infective agents. Lancet. Infect. Dis. 2003, 3, 338–348. [Google Scholar] [CrossRef]
  7. Nagle, D.G.; Zhou, Y.D. Marine natural products as inhibitors of hypoxic signaling in tumors. Phytochem. Rev. 2009, 8, 415–429. [Google Scholar] [CrossRef]
  8. Malaker, A.; Ahmad, S.A.I. Therapeutic potency of anticancer peptides derived from marine organism. Int. J. Eng. Appl. Sci. 2013, 2, 82–94. [Google Scholar]
  9. Prota, G. Nitrogenous pigments in marine invertebrates. Nat. Prod. Rep. 2012, 3, 141–174. [Google Scholar]
  10. Westley, C.; Benkendorff, K. Sex-specific tyrian purple genesis: Precursor and pigment distribution in the reproductive system of the marine mollusc, Dicathais orbita. J. Chem. Ecol. 2008, 34, 44–56. [Google Scholar] [CrossRef] [PubMed]
  11. Benkendorff, K.; Westley, C.B.; Gallardo, C.S. Observations on the production of purple pigments in the egg capsules, hypobranchial and reproductive glands from seven species of Muricidae (Gastropoda: Mollusca). Invertebr. Reprod. Dev. 2004, 46, 93–102. [Google Scholar] [CrossRef]
  12. Pereira, D.M.; Valentao, P.; Andrade, P.B. Marine natural pigments: Chemistry, distribution and analysis. Dyes Pigment 2014, 111, 124–134. [Google Scholar] [CrossRef]
  13. Benkendorff, K.; Rudd, D.; Nongmaithem, B.D.; Liu, L.; Young, F.; Edwards, V.; Avila, C.; Abbott, C.A. Are the traditional medical uses of Muricidae molluscs substantiated by their pharmacological properties and bioactive compounds? Mar. Drugs 2015, 13, 5237–5275. [Google Scholar] [CrossRef] [PubMed]
  14. Nongmaithem, B.D.; Mouatt, P.; Smith, J.; Rudd, D.; Russell, M.; Sullivan, C.; Benkendorff, K. Volatile and bioactive compounds in opercula from Muricidae molluscs supports their use in ceremonial incense and traditional medicines. Sci. Rep. 2017, 7, 17404. [Google Scholar] [CrossRef] [PubMed]
  15. Kalaitzaki, A.; Vafiadou, A.; Frony, A.; Reese, D.; Drivaliari, A.; Liritzis, I. Po-pu-re: Workshops, use and archaeometric analysis in pre-roman central eastern mediterranean. MAA 2017, 17. [Google Scholar] [CrossRef]
  16. Sterman, B.; Taubes-Sterman, J. The Rarest Blue; Lyons Press: Guilford, CO, USA, 2012. [Google Scholar]
  17. Cooksey, C. Tyrian purple: The first four thousand years. Sci. Prog 2013, 96, 171–186. [Google Scholar] [CrossRef]
  18. Dutta, S.; Roychoudhary, S.; Sarangi, B.K. Effect of different physico-chemical parameters for natural indigo production during fermentation of indigofera plant biomass. Biotech. 2017, 7, 322. [Google Scholar] [CrossRef]
  19. Comlekcioglu, N.; Efe, L.; Karaman, S. Extraction of indigo from some Isatis species and dyeing standardization using low-technology methods. Braz. Arch. Biol. Technol. 2015, 58, 96–102. [Google Scholar] [CrossRef]
  20. Lim, H.K.; Chung, E.J.; Kim, J.C.; Choi, G.J.; Jang, K.S.; Chung, Y.R.; Cho, K.Y.; Lee, S.W. Characterization of a forest soil metagenome clone that confers indirubin and indigo production on Escherichia coli. Appl. Environ. Microbiol. 2005, 71, 7768–7777. [Google Scholar] [CrossRef]
  21. Qu, Y.; Pi, W.; Ma, F.; Zhou, J.; Zhang, X. Influence and optimization of growth substrates on indigo formation by a novel isolate Acinetobacter sp. Pp-2. Bioresour. Technol. 2010, 101, 4527–4532. [Google Scholar] [CrossRef] [PubMed]
  22. Qu, Y.; Zhang, X.; Ma, Q.; Ma, F.; Zhang, Q.; Li, X.; Zhou, H.; Zhou, J. Indigo biosynthesis by Comamonas sp. Mq. Biotechnol. Lett. 2012, 34, 353–357. [Google Scholar] [CrossRef]
  23. Benkendorff, K. Natural product research in the Australian marine invertebrate Dicathais orbita. Mar. Drugs 2013, 11, 1370–1398. [Google Scholar] [CrossRef]
  24. KremnerPigments. Tyrian Purple, Genuine. Available online: https://shop.kremerpigments.com/en/pigments/kremer-made-and-historic-pigments/4915/tyrian-purple-genuine (accessed on 2 November 2018).
  25. Ahmad, T.; Rudd, D.; Smith, J.; Kotiw, M.; Mouatt, P.; Seymour, L.; Liu, L.; Benkendorff, K. Anti-inflammatory activity and structure-activity relationships of brominated indoles from a marine mollusc. Mar. Drugs 2017, 15, 133. [Google Scholar] [CrossRef]
  26. Ahmad, T.B.; Rudd, D.; Benkendorff, K.; Mahdi, L.K.; Pratt, K.-A.; Dooley, L.; Wei, C.; Kotiw, M. Brominated indoles from a marine mollusc inhibit inflammation in a murine model of acute lung injury. PLoS ONE 2017, 12, e0186904. [Google Scholar] [CrossRef]
  27. Esmaeelian, B.; Abbott, C.A.; Le Leu, R.K.; Benkendorff, K. 6-bromoisatin found in muricid mollusc extracts inhibits colon cancer cell proliferation and induces apoptosis, preventing early stage tumor formation in a colorectal cancer rodent model. Mar. Drugs 2014, 12, 17–35. [Google Scholar] [CrossRef]
  28. Gaboriaud-Kolar, N.; Myrianthopoulos, V.; Vougogiannopoulou, K.; Gerolymatos, P.; Horne, D.A.; Jove, R.; Mikros, E.; Nam, S.; Skaltsounis, A.-L. Natural-based indirubins display potent cytotoxicity toward wild-type and t315i-resistant leukemia cell lines. J. Nat. Prod 2016, 79, 2464–2471. [Google Scholar] [CrossRef]
  29. Gaboriaud-Kolar, N.; Vougogiannopoulou, K.; Skaltsounis, A.-L. Indirubin derivatives: A patent review (2010–present). Expert Opin. Ther. Pat. 2015, 25, 583–593. [Google Scholar] [CrossRef]
  30. Esmaeelian, B.; Benkendorff, K.; Le Leu, R.K.; Abbott, C.A. Simultaneous assessment of the efficacy and toxicity of marine mollusc–derived brominated indoles in an in vivo model for early stage colon cancer. Integr. Cancer Ther. 2017, 1–15. [Google Scholar] [CrossRef]
  31. Esmaeelian, B.; Benkendorff, K.; Johnston, M.R.; Abbott, C.A. Purified brominated indole derivatives from Dicathais orbita induce apoptosis and cell cycle arrest in colorectal cancer cell lines. Mar.Drugs 2013, 11, 3802–3822. [Google Scholar] [CrossRef]
  32. Cooksey, C.J. Tyrian purple: 6,6′-dibromoindigo and related compounds. Molecules (Basel, Switzerland) 2001, 6, 736–769. [Google Scholar] [CrossRef]
  33. Cooksey, C.J.; Sinclair, R.S. Colour variations in Tyrian purple dyeing. Dyes in History and Archaeology 2005, 20, 127–135. [Google Scholar]
  34. Baten, A.; Ngangbam, A.; Waters, D.; Benkendorff, K. Transcriptome of the Australian mollusc Dicathais orbita provides insights into the biosynthesis of indoles and choline esters. Mar. Drugs 2016, 14, 135. [Google Scholar] [CrossRef]
  35. Jannun, R.; Coe, E.L. Bromoperoxidase from the marine snail, Murex-trunculus. Comp. Biochem. Physiol. B 1987, 88, 917–922. [Google Scholar] [CrossRef]
  36. Westley, C.B.; Lewis, M.C.; Benkendorff, K. Histomorphology of the hypobranchial gland in Dicathais orbita (Gmelin, 1791) (Neogastropoda: Muricidae). J. Molluscan Stud. 2010, 76, 186–195. [Google Scholar] [CrossRef]
  37. Westley, C.; Benkendorff, K. The distribution of precursors and biosynthetic enzymes required for Tyrian purple genesis in the hypobranchial gland, gonoduct, an egg masses of Dicathais orbita (Gmelin, 1791) (Neogastropoda: Muricidae). Nautilus 2009, 123, 148–153. [Google Scholar]
  38. Berrue, F.; Withers, S.T.; Haltli, B.; Withers, J.; Kerr, R.G. Chemical screening method for the rapid identification of microbial sources of marine invertebrate-associated metabolites. Mar. Drugs 2011, 9, 369–381. [Google Scholar] [CrossRef]
  39. Lane, A.L.; Moore, B.S. A sea of biosynthesis: Marine natural products meet the molecular age. Nat. Prod. Rep. 2011, 28, 411–428. [Google Scholar] [CrossRef]
  40. Ngangbam, A.K.; Baten, A.; Waters, D.L.E.; Whalan, S.; Benkendorff, K. Characterization of bacterial communities associated with the Tyrian purple producing gland in a marine gastropod. PLoS ONE 2015, 10(10), e0140725. [Google Scholar] [CrossRef]
  41. Ngangbam, A.K.; Waters, D.L.E.; Whalan, S.; Baten, A.; Benkendorff, K. Indole producing bacteria from the biosynthetic organs of muricid mollusc could contribute to Tyrian purple production. J. Shellfish Res. 2015, 34, 443–454. [Google Scholar] [CrossRef]
  42. Lingens, F. Purification and molecular and catalytic properties of bromoperoxidase from Streptomyces phaeochromogenes. J. Gen. Microbiol. 1985, 131, 1911–1916. [Google Scholar]
  43. Van Pee, K.H.; Sury, G.; Lingens, F. Purification and properties of a nonheme bromoperoxidase from Streptomyces aureofaciens. Biol. Chem. Hoppe. Seyler 1987, 368, 1225–1232. [Google Scholar] [CrossRef]
  44. Zeiner, R.; van Pee, K.H.; Lingens, F. Purification and partial characterization of multiple bromoperoxidases from Streptomyces griseus. J. Gen. Microbiol. 1988, 134, 3141–3149. [Google Scholar] [CrossRef]
  45. Knoch, M.; Van Pee, K.H.; Vining, L.C.; Lingens, F. Purification, properties and immunological detection of a bromoperoxidase-catalase from Streptomyces venezuelae and from a chloramphenicol-nonproducing mutant. J. Gen. Microbiol. 1989, 135, 2493–2502. [Google Scholar] [CrossRef]
  46. Wiesner, W.; van Pee, K.-H.; Lingens, F. Purification and properties of bromoperoxidase from Pseudomonas pyrrocinia. Biol. Chem. Hoppe. Seyler 1985, 366, 1085–1092. [Google Scholar] [CrossRef]
  47. Beleneva, I.; Kukhlevskii, A. Characterization of Vibrio gigantis and Vibrio pomeroyi isolated from invertebrates of Peter the Great Bay, Sea of Japan. Microbiology 2010, 79, 402–407. [Google Scholar] [CrossRef]
  48. Alcaide, E.; Amaro, C.; Todoli, R.; Oltra, R. Isolation and characterization of Vibrio parahaemolyticus causing infection in Iberian toothcarp Aphanius iberus. Dis. Aquat. Organ. 1999, 35, 77–80. [Google Scholar] [CrossRef] [PubMed]
  49. Patten, C.L.; Glick, B.R. Role of Pseudomonas putida indoleacetic acid in development of the host plant root system. Appl. Environ. Microbiol. 2002, 68, 3795–3801. [Google Scholar] [CrossRef] [PubMed]
  50. Benkendorff, K. Aquaculture and the production of pharmaceuticals and nutraceuticals. In New Technologies in Aquaculture: Improving Production Efficiency, Quality and Environmental Management; Burnell, G., Allan, G., Eds.; Woodhead Publishing: Cambridge, UK, 2009; pp. 866–891. [Google Scholar]
  51. Sipkema, D.; Osinga, R.; Schatton, W.; Mendola, D.; Tramper, J.; Wijffels, R.H. Large-scale production of pharmaceuticals by marine sponges: Sea, cell, or synthesis? Biotechnol. Bioeng. 2005, 90, 201–222. [Google Scholar] [CrossRef]
  52. Romano, G.; Costantini, M.; Sansone, C.; Lauritano, C.; Ruocco, N.; Ianora, A. Marine microorganisms as a promising and sustainable source of bioactive molecules. Mar. Environ. Res 2017, 128, 58–69. [Google Scholar] [CrossRef]
  53. Perez, L.B.; Fenical, W. Chapter 8 - Accessing marine microbial diversity for drug discovery. In Microbial Resources; Kurtboke, I., Ed.; Academic Press, 2017; pp. 169–187. [Google Scholar]
  54. Joint, I.; Muhling, M.; Querellou, J. Culturing marine bacteria - an essential prerequisite for biodiscovery. Microb. Biotechnol. 2010, 3, 564–575. [Google Scholar] [CrossRef]
  55. Amann, R.I.; Ludwig, W.; Schleifer, K.H. Phylogenetic identification and in situ detection of individual microbial cells without cultivation. Microbiol Rev. 1995, 59, 143–169. [Google Scholar] [PubMed]
  56. Overmann, J.; Abt, B.; Sikorski, J. Present and future of culturing bacteria. Annu. Rev. Microbiol 2017, 71, 711–730. [Google Scholar] [CrossRef] [PubMed]
  57. Gulder, T.A.; Moore, B.S. Chasing the treasures of the sea - bacterial marine natural products. Curr. Opin. Microbiol. 2009, 12, 252–260. [Google Scholar] [CrossRef]
  58. Adnani, N.; Chevrette, M.G.; Adibhatla, S.N.; Zhang, F.; Yu, Q.; Braun, D.R.; Nelson, J.; Simpkins, S.W.; McDonald, B.R.; Myers, C.L. Coculture of marine invertebrate-associated bacteria and interdisciplinary technologies enable biosynthesis and discovery of a new antibiotic, keyicin. ACS Chem. Biol 2017, 12, 3093–3102. [Google Scholar] [CrossRef]
  59. Brinkmann, C.; Marker, A.; Kurtboke, D. An overview on marine sponge-symbiotic bacteria as unexhausted sources for natural product discovery. Diversity 2017, 9, 40. [Google Scholar] [CrossRef]
  60. Rizzo, C.; Lo Giudice, A. Marine invertebrates: Underexplored sources of bacteria producing biologically active molecules. Diversity 2018, 10, 52. [Google Scholar] [CrossRef]
  61. Vartoukian, S.R.; Palmer, R.M.; Wade, W.G. Strategies for culture of ‘unculturable’ bacteria. FEMS Microbiol Lett. 2010, 309, 1–7. [Google Scholar] [CrossRef]
  62. Pham, V.H.; Kim, J. Cultivation of unculturable soil bacteria. Trends Biotechnol. 2012, 30, 475–484. [Google Scholar] [CrossRef] [PubMed]
  63. Davis, K.E.; Joseph, S.J.; Janssen, P.H. Effects of growth medium, inoculum size, and incubation time on culturability and isolation of soil bacteria. Appl. Environ. Microbiol. 2005, 71, 826–834. [Google Scholar] [CrossRef]
  64. Montalvo, N.F.; Davis, J.; Vicente, J.; Pittiglio, R.; Ravel, J.; Hill, R.T. Integration of culture-based and molecular analysis of a complex sponge-associated bacterial community. PLoS ONE 2014, 9, e90517. [Google Scholar] [CrossRef] [PubMed]
  65. Xing, M.; Hou, Z.; Qu, Y.; Liu, B. Enhancing the culturability of bacteria from the gastrointestinal tract of farmed adult turbot Scophthalmus maximus. Chin. J. Oceanol. Limnol. 2014, 32, 316–325. [Google Scholar] [CrossRef]
  66. Li, Z.Y.; Liu, Y. Marine sponge Craniella austrialiensis-associated bacterial diversity revelation based on 16s rdna library and biologically active actinomycetes screening, phylogenetic analysis. Lett. Appl. Microbiol. 2006, 43, 410–416. [Google Scholar] [CrossRef] [PubMed]
  67. Valles-Regino, R.; Mouatt, P.; Rudd, D.; Yee, L.H.; Benkendorff, K. Extraction and quantification of bioactive Tyrian purple precursors: A comparative and validation study from the hypobranchial gland of a muricid Dicathais orbita. Molecules 2016, 21, 1672. [Google Scholar] [CrossRef] [PubMed]
  68. Imming, P.; Imhof, I.; Zentgraf, M. An improved synthetic procedure for 6, 6′-dibromoindigo (Tyrian purple). Synth. Commun. 2001, 31, 3721–3727. [Google Scholar] [CrossRef]
  69. Schatz, P.F. Indigo and Tyrian purple-in nature and in the lab. J. Chem. Educ. 2001, 78, 1442. [Google Scholar] [CrossRef]
  70. Wolk, J.L.; Frimer, A.A. A simple, safe and efficient synthesis of Tyrian purple (6, 6′-dibromoindigo). Molecules 2010, 5561–5580. [Google Scholar] [CrossRef]
  71. Flores-Garza, R.; Gonzalez, A.V.; Flores-Rodriguez, P.; Cruz-Ramirez, N.L. Density, sex ratio, size, weight, and recruitment of Plicopurpura pansa (Gastropoda: Muricidae) in Costa Rica, Guerrero, Mexico. OJMS 2012, 2, 157. [Google Scholar] [CrossRef]
  72. Read, T.D.; Peterson, S.N.; Tourasse, N.; Baillie, L.W.; Paulsen, I.T.; Nelson, K.E.; Tettelin, H.; Fouts, D.E.; Eisen, J.A.; Gill, S.R. The genome sequence of Bacillus anthracis Ames and comparison to closely related bacteria. Nature 2003, 423, 81–86. [Google Scholar] [CrossRef]
  73. Itoh, N.; Morinaga, N.; Kouzai, T. Purification and characterization of a novel metal-containing nonheme bromoperoxidase from Pseudomonas putida. Biochim. Biophys. Acta. 1994, 1207, 208–216. [Google Scholar] [CrossRef]
  74. Van Pee, K.H.; Lingens, F. Purification of bromoperoxidase from Pseudomonas aureofaciens. J. Bacteriol. 1985, 161, 1171–1175. [Google Scholar]
  75. Butler, A.; Carter-Franklin, J.N. The role of vanadium bromoperoxidase in the biosynthesis of halogenated marine natural products. Nat. Prod. Rep. 2004, 21, 180–188. [Google Scholar] [CrossRef]
  76. Martinez, J.S.; Carroll, G.L.; Tschirret-Guth, R.A.; Altenhoff, G.; Little, R.D.; Butler, A. On the regiospecificity of vanadium bromoperoxidase. J. Am. Chem. Soc. 2001, 123, 3289–3294. [Google Scholar] [CrossRef]
  77. Jiang, Z.; Boyd, K.G.; Mearns-Spragg, A.; Adams, D.R.; Wright, P.C.; Burgess, J.G. Two diketopiperazines and one halogenated phenol from cultures of the marine bacterium, Pseudoalteromonas luteoviolacea. Nat. Prod. Lett. 2000, 14, 435–440. [Google Scholar] [CrossRef]
  78. Feher, D.; Barlow, R.; McAtee, J.; Hemscheidt, T.K. Highly brominated antimicrobial metabolites from a marine Pseudoalteromonas sp. J. Nat. Prod. 2010, 73, 1963–1966. [Google Scholar] [CrossRef]
  79. Leyton, Y.; Riquelme, C. Marine Bacillus spp. Associated with the egg capsule of Concholepas concholepas (common name “loco”) have an inhibitory activity toward the pathogen Vibrio parahaemolyticus. Microb. Ecol. 2010, 60, 599–605. [Google Scholar] [CrossRef]
  80. Pandey, A.; Naik, M.M.; Dubey, S.K. Organic metabolites produced by Vibrio parahaemolyticus strain an3 isolated from goan mullet inhibit bacterial fish pathogens. Afr. J. Biotechnol. 2010, 9, 7134–7140. [Google Scholar]
  81. Thompson, F.; Thompson, C.; Hoste, B.; Vandemeulebroecke, K.; Gullian, M.; Swings, J. Vibrio fortis sp. nov. and Vibrio hepatarius sp. nov., isolated from aquatic animals and the marine environment. Int. J. Syst. Evol. Microbiol. 2003, 53, 1495–1501. [Google Scholar] [CrossRef]
  82. Pujalte, M.-J.; Garay, E. Proposal of Vibrio mediterranei sp. nov.: A new marine member of the genus Vibrio. Int. J. Syst. Bacteriol. 1986, 36, 278–281. [Google Scholar] [CrossRef]
  83. Jaksic, S.; Uhitil, S.; Petrak, T.; Bazulic, D.; Gumhalter Karolyi, L. Occurrence of Vibrio spp. In sea fish, shrimps and bivalve molluscs harvested from Adriatic Sea. Food Control 2002, 13, 491–493. [Google Scholar] [CrossRef]
  84. Gomez-Gil, B.; Tron-Mayen, L.; Roque, A.; Turnbull, J.F.; Inglis, V.; Guerra-Flores, A.L. Species of Vibrio isolated from hepatopancreas, haemolymph and digestive tract of a population of healthy juvenile Penaeus vannamei. Aquaculture 1998, 163, 1–9. [Google Scholar] [CrossRef]
  85. Phatarpekar, P.V.; Kenkre, V.D.; Sreepada, R.A.; Desai, U.M.; Achuthankutty, C.T. Bacterial flora associated with larval rearing of the giant freshwater prawn, Macrobrachium rosenbergii. Aquaculture 2002, 203, 279–291. [Google Scholar] [CrossRef]
  86. Parija, S.C. Culture media. In Textbook of Microbiology & Immunology; Elsevier Health Sciences, 2014. [Google Scholar]
  87. Marinho, P.R.; Moreira, A.P.; Pellegrino, F.L.; Muricy, G.; Bastos Mdo, C.; Santos, K.R.; Giambiagi-deMarval, M.; Laport, M.S. Marine Pseudomonas putida: A potential source of antimicrobial substances against antibiotic-resistant bacteria. Mem. Inst. Oswaldo Cruz 2009, 104, 678–682. [Google Scholar] [CrossRef] [PubMed]
  88. Lilles, M.M. Halogenation Enzymes in Bacteria Associated with the Red-banded Acorn Worm, Ptychodera jamaicensis. Master’s Thesis, San Jose State University, San Jose, CA, USA, Fall. 2011. [Google Scholar]
Marinedrugs 17 00264 g001 550

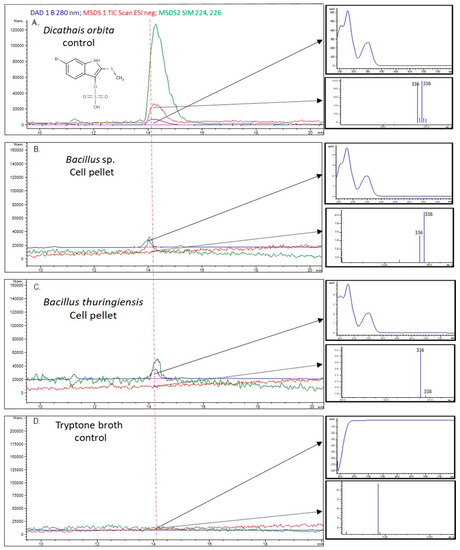

Figure 1. Tyrindoxyl sulphate control (A) and chloroform extracts from the cell pellets of two Bacillus species (B,C) cultured from the hypobranchial glands of Dicathais orbita and a corresponding tryptone broth control supplemented with KBr (D). Left panels show the HPLC scan at 280 nm in the diode array (blue), total ion current (TIC) in the negative ion mode (red) and selected ion monitoring for major fragment ions at m/z 224, 226 (green). Right panels show the UV–Vis spectra and mass spectrum obtained from the apex of the major peak obtained at 14.1–14.26 min.
Figure 1. Tyrindoxyl sulphate control (A) and chloroform extracts from the cell pellets of two Bacillus species (B,C) cultured from the hypobranchial glands of Dicathais orbita and a corresponding tryptone broth control supplemented with KBr (D). Left panels show the HPLC scan at 280 nm in the diode array (blue), total ion current (TIC) in the negative ion mode (red) and selected ion monitoring for major fragment ions at m/z 224, 226 (green). Right panels show the UV–Vis spectra and mass spectrum obtained from the apex of the major peak obtained at 14.1–14.26 min.
Marinedrugs 17 00264 g001
Marinedrugs 17 00264 g002 550

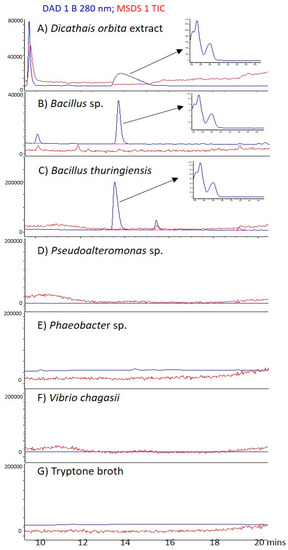

Figure 2. Liquid chromatography–mass spectrometry analysis of diaion resin chromatography extracts of (A) Dicathais orbita hyprobranchial glands; (B) Bacillus sp. (KR338869); (C) Bacillus thuringiensis (KR855712); (D) Pseudoalteromonas sp. (KR338872); (E) Phaeobacter sp. (KR338852); (F) Vibrio chagasii (KR338845) culture supernatant and (G) Tryptone broth control (supplemented with KBr). The red lines are from the total ion current in the mass spectrum in the positive ion mode. The blue lines represent the HPLC scan at 280 nm and the inset panels show the UV–Vis scan from the diode array for the major peak, eluting at 14 min.
Figure 2. Liquid chromatography–mass spectrometry analysis of diaion resin chromatography extracts of (A) Dicathais orbita hyprobranchial glands; (B) Bacillus sp. (KR338869); (C) Bacillus thuringiensis (KR855712); (D) Pseudoalteromonas sp. (KR338872); (E) Phaeobacter sp. (KR338852); (F) Vibrio chagasii (KR338845) culture supernatant and (G) Tryptone broth control (supplemented with KBr). The red lines are from the total ion current in the mass spectrum in the positive ion mode. The blue lines represent the HPLC scan at 280 nm and the inset panels show the UV–Vis scan from the diode array for the major peak, eluting at 14 min.
Marinedrugs 17 00264 g002
Marinedrugs 17 00264 g003 550
Figure 3. Dicathais orbita hypobranchial gland used for isolating and culturing bromoperoxidase and indole producing bacteria. (A) Dicathais orbita; (B) Hypobranchial and rectal gland.
Figure 3. Dicathais orbita hypobranchial gland used for isolating and culturing bromoperoxidase and indole producing bacteria. (A) Dicathais orbita; (B) Hypobranchial and rectal gland.
Marinedrugs 17 00264 g003
Table
Table 1. Nucleotide Basic Local Alignment Search Tool (BLASTN) analysis of partial 16S rRNA gene sequence derived from bacteria isolated from D. orbita hypobranchial glands cultured on different agar media. Species identification is based on the closest match to NCBI GenBank data.
Table 1. Nucleotide Basic Local Alignment Search Tool (BLASTN) analysis of partial 16S rRNA gene sequence derived from bacteria isolated from D. orbita hypobranchial glands cultured on different agar media. Species identification is based on the closest match to NCBI GenBank data.
Closest Match and Accession NumberAgar Media 1GenBank Accession NumberLength (Base Pair)Identity (%)Gram
Stain		Hypobranchial Gland Preparation 2
MA *TCBSCAMAHBA
Vibrio sp. (KM369853.1)++--+KR3388441149100Gram-HGVS
Vibrio chagasii (NR117891.1)+++++KR338845108399Gram-HGDS
Vibrio alginolyticus (KF886646.1)+++++KR338846111599Gram-HGDS
Vibrio sp. (KP126921.1)++--+KR338847510100Gram-HGVS
Aliivibrio sp. (FR744854.1)++--+KR338848108799Gram-HGVS
Vibrio azureus (JF412237.1)++--+KR338849111999Gram-HGVS
Vibrio pomeroyi (KM014017.1)++--+KR338850109099Gram-HGVS
Vibrio sp. (KM369851.1)++++-KR3388511004100Gram-HGDS
Phaeobacter sp. (GQ906799.1)++-+-KR3388521044100Gram-HGDS
Vibrio sp. (GQ406789.1)++++-KR338853104699Gram-HGDS
Vibrio sp. NB0059, (KP770076.1)+++++KR3388541096100Gram-HGDS
Shewanella sp. (JF825445.1)+++++KR338855105898Gram-HGDS
Vibrio mediterranei, (HF541948.1)++-++KR338856111699Gram-HGDS
Vibrio sp. (KF188532.1)+--+-KR3388571096100Gram-HGH
Vibrio sp. (KF188531.1)+--+-KR338858106699Gram-HGH
Vibrio sp. (HG942391.1)+--+-KR33885962699Gram-HGH
Vibrio sp. (KP126921.1)++-++KR33886095197Gram-HGVS
Vibrio sp. (KM369860.1)++-++KR33886179699Gram-HGVS
Vibrio sp. (KM369853.1)++-++KR3388621091100Gram-HGVS
Vibrio sp. (GQ406789.1)++-++KR3388631079100Gram-HGVS
Halobacillus sp. (FM992846.1)++-++KR3388641109100Gram +HGVS
Vibrio sp. (FJ457587.1)++-++KR3388651004100Gram-HGVS
Vibrio sp. (KM369853.1)++-++KR338866103899Gram-HGVS
Vibrio splendidus (AB038030.1)++-++KR3388671083100Gram-HGVS
Vibrio harveyi (KR003734.1)++-++KR338868973100Gram-HGVS
Bacillus sp. (KJ756140.1)+--+-KR3388691034100Gram +HGH
Bacillus thuringiensis (KC355253.1)+--+-KR855712118099Gram +HGH
Vibrio sp. (HF937138.1)+--+-KR33887086699Gram-HGH
Vibrio sp. (EU340847.1)+++++KR338871111099Gram-HGDS
Pseudoalteromonas sp. (KP301110.1)+++++KR33887297399Gram-HGDS
Vibrio sp. (FJ457361.1)++--+KR338873105699Gram-HGVS
Vibrio jasicida (AB562594.1)++--+KR33887490799Gram-HGVS
* indicates that the bacterial isolates cultured on MA were subcultured for screening the bromoperoxidase enzyme; 1 MA—marine agar; TCBS—thiosulphate citrate bile salts sucrose; CA—cetrimide agar; MAH—marine agar with hypobranchial gland extracts; BA—blood agar; + indicates isolated; - indicates not isolated on the relevant growth media; 2 HGVS, Hypobranchial gland ventral swabs; HGDS—Hypobranchial gland dorsal swabs and; HGH—Hypobranchial gland homogenates.
Table
Table 2. BLASTN analysis showing the closest match in the NCBI GenBank for the putative bromoperoxidase gene in two Bacillus spp.
Table 2. BLASTN analysis showing the closest match in the NCBI GenBank for the putative bromoperoxidase gene in two Bacillus spp.
Bacterial IsolatesGenBank Accession NumberLength (Base Pair)Identity (%)Closest Match, Accession Number, Position and Protein ID
Bacillus sp.KR33886962897Bacillus thuringiensis MC28- bromoperoxidase (CP003687.1); 2239980-2240816 and AFU13721.1
Bacillus thuringiensisKR85571263497Bacillus thuringiensis MC28- bromoperoxidase (CP003687.1); 2239980-2240816 and AFU13721.1

Share and Cite

MDPI and ACS Style

Ngangbam, A.K.; Mouatt, P.; Smith, J.; Waters, D.L.E.; Benkendorff, K. Bromoperoxidase Producing Bacillus spp. Isolated from the Hypobranchial Glands of A Muricid Mollusc Are Capable of Tyrian Purple Precursor Biogenesis. Mar. Drugs 2019, 17, 264. https://doi.org/10.3390/md17050264

AMA Style

Ngangbam AK, Mouatt P, Smith J, Waters DLE, Benkendorff K. Bromoperoxidase Producing Bacillus spp. Isolated from the Hypobranchial Glands of A Muricid Mollusc Are Capable of Tyrian Purple Precursor Biogenesis. Marine Drugs. 2019; 17(5):264. https://doi.org/10.3390/md17050264

Chicago/Turabian Style

Ngangbam, Ajit Kumar, Peter Mouatt, Joshua Smith, Daniel L. E. Waters, and Kirsten Benkendorff. 2019. "Bromoperoxidase Producing Bacillus spp. Isolated from the Hypobranchial Glands of A Muricid Mollusc Are Capable of Tyrian Purple Precursor Biogenesis" Marine Drugs 17, no. 5: 264. https://doi.org/10.3390/md17050264

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
