Marine Drugs 2017, 15(9), 263; doi:10.3390/md15090263

Review
Antifouling Compounds from Marine Invertebrates
Shu-Hua Qi * and Xuan Ma
Key Laboratory of Tropical Marine Bio-resources and Ecology, Guangdong Key Laboratory of Marine Materia Medica, RNAM Center for Marine Microbiology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, 164 West Xingang Road, Guangzhou 510301, China
*
Correspondence: Tel.: +86-20-8902-2112; Fax: +86-20-8445-8964
Received: 30 April 2017 / Accepted: 10 July 2017 / Published: 28 August 2017

Abstract

:
In this review, a comprehensive overview about the antifouling compounds from marine invertebrates is described. In total, more than 198 antifouling compounds have been obtained from marine invertebrates, specifically, sponges, gorgonian and soft corals.
Keywords:
marine invertebrate; sponge; coral; antifouling compound

1. Introduction

Biofouling includes microfouling (mainly by bacteria and diatoms) and macrofouling (by macro-algae and invertebrates) in the marine environment [1]. Biofouling is a thorny issue that brings tremendous losses in both marine technical and economic fields around the world. In past years, paints containing toxic materials like copper, lead, mercury, arsenic, and organotins such as tributyltin (TBT) were commonly used to control biofouling [2,3]. However, with the increasing global appeal for marine ecological protection, most of these toxic antifouling (AF) coatings were banned [4,5]. It is urgent to have environmentally benign, no or low-toxic AF agents. Marine natural small molecules were secondary metabolites of marine organisms, having the characteristics of high efficiency, low/non-toxicity, being easily degradable, and having less influence on the marine ecological environment, which are thought to be important channels for no or low-toxic AF agents.
Marine invertebrates have developed prominent chemical defense systems against biofouling in the course of evolution. Lots of AF compounds have been isolated from marine invertebrates. Several books [6,7] and reviews [2,8,9,10,11,12,13,14] on AF marine natural products, including compounds from marine invertebrates, have been published in the last 30 years. However, these reviews were partially about some representative AF compounds isolated from marine invertebrates over several years. The review contained in this paper covers almost all of the AF compounds from marine invertebrates from the last 30 years. Its aim is to give the readers a brief, yet comprehensive, overview of AF compounds from marine invertebrates and provide models for synthesis of more efficacious no or low-toxic antifoulants.

2. Results

Marine invertebrates, specifically, sponges, gorgonian and soft corals, are rich sources of novel and bioactive secondary metabolites. Studies of the natural chemistry of these interesting groups of marine invertebrates began in the late 1950s. They are recognized to mainly produce novel diterpenoids, sesquiterpenoids, prostanoids, alkaloids, and highly functionalized steroids that are largely unknown from terrestrial sources. Most of these compounds showed AF activity.

2.1. Terpenoids

2.1.1. Terpenoids from Sponges

Terpenoids, especially isocyanoterpenoids, were the typical AF metabolites of marine sponges.
AF isocyanoterpenoids and analogues (Figure 1): Kalihinenes X-Z (l3) [15] and kalihipyrans A-B (45) [16] were isolated from the marine sponge Acanthella cavernosa, showing strong AF activity towards Balanus amphitrite (=Amphibalanus amphitrite) larvae with EC50 values of 0.45–1.3 μg/mL. Isocyanoterpenoids 15-formamidokalihinene (6) [16] and 10β-formamidokalihinol A (7) [17] also obtained from A. cavernosa, inhibited the B. amphitrite larval settlement with EC50 < 0.5 μg/mL and low toxicity (LD50s > 100 μg/mL). A similar AF activity was found for 10-isocyano-4-cadinene (8) and isocyanotheonellin (9) that were isolated from nudibranchs of the family Phyllidiidae [18]. Kalihinols M-Q (1015) and six analogues (1621) were isolated from the Chinese marine sponge A. cavernosa, showing significant AF activity against B. amphitrite larvae with EC50 values of 0.27–1.85 μM [19]. The diterpene isonitrile 22 isolated from Cymbastela hooperi, and the sesquiterpene axisonitrile-3 (23) isolated from Acanthella kletra, were effective in deterring the settlement of the diatom Nitzschia closterium [20]. Sesquiterpenes axinyssimides A–C (2426) containing a rare dichloromethyleneamino functionality were isolated from a marine sponge Axinyssa sp. Among them, 24 inhibited the B. amphitrite larval settlement with EC50 value of 1.2 μg/mL, and 25 and 26 were more active (EC50s < 0.5 μg/mL) [21].
Non-isocyanoterpenoids with AF activity from sponges (Figure 2 and Figure 3) included sesquiterpenes, diterpenoids, sesterterpenes, and triterpenes. For examples:
Sesquiterpenes hydroquinone avarol (27) and avarone (28) obtained from the sponge Dysidea avara, and their synthetic analogs 3′-(p-chlorophenyl)avarone (29) and 4′-propylthioavarone (30) showed strong inhibition against B. amphitrite larvae with EC50 values of 0.45–3.41 μg/mL [22]. Sesquiterpenes, phenol derivatives (+)-curcuphenol (31) and (+)-curcudiol (32) from the sponge Myrmekioderma dendyi showed antilarval activity against B. amphitrite larvae at non-toxic concentrations with EC50 values of 2.5 and 2.8 μg/mL, respectively [23].
Diterpenoid alkaloids (−)-agelasine D (33) and (−)-ageloxime D (34) from an Indonesian sponge Agelas sp. showed significant toxicity towards B. amphitrite larvae rather than just inhibiting settlement, and the toxicity of 34 was about 10 times than its congener 33, which indicated the importance of the oxime group for the activity of the diterpene alkaloids. Compound 33 also showed antibacterial activity against the planktonic form of Staphylococcus epidermidis (MIC < 0.0877 μM) but did not inhibit its biofilm formation [24].
Sesterterpenes cavernosolide (35), lintenolide A (36) and 7E,12E,20Z-variabilin (37) isolated from the sponge Semitaspongia bactriana, showed strong toxicity against the diatom Nitzschia closterium and against Bugula neritina larvae with EC50 values from 1.22 to 7.41 μM [25]. Two analogues of 37, dihydrofurospongin II (38) and hydroquinone-A acetate (39) obtained from multiple mediterranean sponge extracts showed significant AF activity against B. amphitrite larvae at nontoxic concentrations with EC50 values of about 2.5 and 1.0 μg/mL, respectively [26].
Nortriterpenoids manoalide (40), seco-manoalide (41), manoalide 25-acetate (42) and (4E,6E)-dehydromanoalide (43) from a sponge Smenospongia sp., strongly inhibited the B. amphitrite larval settlement at nontoxic concentrations with EC50 values of 0.24–2.7 μg/mL [24]. Compound 40 could also inhibit bacterial quorum sensing (QS) at low concentrations [27]. Formoside (44), a triterpene glycoside from the sponge Erylus formosus, could strongly deter the biofouling of invertebrates and algae [28].

2.1.2. Terpenoids from Corals

The principal terpenoids elaborated by gorgonian and soft corals are sesquiterpenes and diterpenes. The representative structures of diterpenoids by carbon skeleton class from corals included briarane type, cembrane type, eunicellan type, xenicane type, pseudopterosin type, dilophol type, etc. Many of these diterpenoids were reported to have AF activity against marine invertebrate larvae.
AF sesquiterpenoids (Figure 4): Guaiazulene-based terpenoids anthogorgiene G (45) and analogus 4648 were isolated from a gorgonian Anthogorgia sp., showing inhibition against the larval settlement of B. amphitrite larvae with EC50 < 7.0 μg/mL [29]. (+)-(7R,10S)-2-methoxy,5-acetoxy calamenene (49) obtained from the octocorals of Indian waters exhibited AF activity against B. amphitrite with EC50 value of 0.0335 μg/mL [30]. Subergorgic acid (50) obtained from the gorgonian Subergorgia suberosa showed inhibition against the larval settlement of both B. amphitrite and B. neritina larvae with EC50 values of 1.2 and 3.2 μg/mL, respectively [31]. Sinularones A–B (5152) from a soft coral Sinularia sp. showed medium AF activity against B. amphitrite larvae [32].
AF briarane-type diterpenoids (Figure 5): Junceellolide (53) and praelolide (54) isolated from the gorgonian Dichotella gemmacea, showed medium AF activity against the settlement of B. amphitrite larvae [33]. Dichotellides H, I, K-P, U (5563) and junceellolide C (64) were also isolated from D. gemmacea, showing potent AF activity at nontoxic concentrations with EC50 values of 0.2–7.6 μg/mL [34]. Juncins R-ZI (6574), juncin ZII (75), gemmacolide B (76), gemmacolide A (77) and junceellolide D (78) were isolated from the gorgonian Junceella juncea, showing potent AF activity against B. amphitrite larvae at nontoxic concentrations with EC50 values from 0.004 to 21.06 μg/mL [35,36]. Briaranes (+)-junceellolide A (79), fragilisinins E (80), F (81) and J (82) from J. fragilis showed AF activity against B. amphitrite larvae with EC50 values of 5.6–14.0 µM and low toxicity [37]. Reticulolide (83) obtained from the gorgonian S. mollis showed strong inhibition against the larval settlement of B. amphitrite larvae with EC50 value of 0.35 μg/mL [38].
AF eunicellin-based diterpenoids (Figure 6): 14-Deacetoxycalicophirin B (84), astrogorgins B-D (8587), and analogues 8889 isolated from a gorgonian Astrogorgia sp., exhibited AF activity against B. amphitrite larvae with EC50 values of 0.59–17.8 μg/mL [39]. (−)-6α-Hydroxypolyanthelline A (90) from the soft coral Cladiella krempfi showed toxicity and AF activity against B. amphitrite larvae [40].
AF cembrane-type diterpenoids (Figure 7): Pukalide (91) from the gorgonian Leptogorgia virgulata showed strong inhibition against the larval settlement of B. amphitrite larvae with EC50 value of 19 ng/mL [41]. Cembranoid epimers 9295 isolated from the Colombian Caribbean gorgonian Pseudoplexaura flagellosa, could inhibit the biofilm maturation of Pseudomonas aeruginosa, Vibrio harveyi, and Staphylococcus aureus without interfering the bacterial growths [42]. Knightine (96), 11(R)-hydroxy-12(20)-en-knightal (97), and 11(R)-hydroxy-12(20)-en-knightol acetate (98) from the gorgonian Eunicea knighti, disrupted QS systems and showed anti-film activity against the bacterial biofilm of P. aeruginosa, V. harveyi, and S. aureus at lower concentrations than kojic acid [43]. Sinulariols J (99), P (100), Y (101) and its analogue 102 from the soft coral Sinularia rigida showed potent AF activity against the larval settlement of B. amphitrite and B. neritina larvae with EC50 < 14.03 μg/mL [44,45]. Pavidolides C-D (103104) from the soft coral S. pavida exhibited inhibition against the larval settlement of B. amphitrite larvae with ED50 values of 4.32 and 2.12 μg/mL and low cytotoxicity (LD50 > 50 μg/mL) [46]. Four cembrene diterpenoids 105108 from the soft coral Sarcophyton infundibuliforme showed significant inhibition against the settlement of B. amphitrite larvae at nontoxic concentrations [47].

2.1.3. Terpenoids from Other Marine Invertebrates

Briarane-type diterpenoids renillafoulins A (109) (Figure 8), B, and C from the sea pen Renilla reniformis showed strong inhibition against the barnacle settlement with EC50 values ranging 0.02–0.2 μg/mL [48,49]. A labdane diterpene 110 from the pulmonate limpet Trimusculus reticulatus could inhibit the settlement of Phragmatopoma californica larvae at 10 μg/mL, and its lethal concentration to the larvae was 100 μg/mL [50].

2.2. Steroids and Saponins

2.2.1. Steroids from Sponges

Two steroids tri-2-aminoimidazolium halistanol sulfate (111) and halistanol sulfate (112) (Figure 9) from a marine sponge Topsentia sp, showed AF activity but no toxicity against B. amphitrite larvae with EC50 values of 4.0 and 2.9 μg/mL, respectively [23]. Three new A-nor steroids, the ethyl esters of 2β-hydroxy-4,7-diketo-A-norcholest-5-en-2-oic acid (113), 24S-ethyl-2β-hydroxy-4,7-diketo-A-norcholest-5-en-2-oic acid (114), and 2β-hydroxy-4,7-diketo-24R-methyl-A-norcholest-5,22(E)-dien-2-oic acid (115) from the Chinese marine sponge Acanthella cavernosa showed medium AF activity against B. albicostatus larvae [51]. Cyclopropanated sterols aragusterol I (116) and 21-O-octadecanoyl-xestokerol A (117) isolated from the sponge Xestospongia testudinaria, inhibited the growth of Pseudoalteromonas and Polaribacter bacterial species at similar levels of activity to the positive control tributyltin oxide [52].

2.2.2. Steroids from Coals

Steroids 118 and 119 (Figure 10) from the gorgonian S. suberosa inhibited the settlement of B. neritina larvae with EC50 values of 6.25 and 7.8 μg/mL, respectively, and LD50 > 250 μg/mL [53]. Compound 120 was a 5a-hydroxylated analog of 115, having similar AF activity against B. neritina larvae and B. amphitrite larvae [51]. 1α,3β,7α,11α,12β)-Gorgost-5-ene-1,3,7,11,12-pentol 12-acetate (121) from the gorgonian Isis minorgrachyblasta inhibited the settlement of B. neritina larvae with EC50 value of 4.8 μg/mL and LC50 >100 μg/mL [54]. Four 24-ketal steroids (122125) from the gorgonian S. mollis showed AF activity against B. amphitrite larvae at nontoxic concentrations with EC50 values of 0.81–7.91 μg/mL [39]. Pregn-4-ene-3,20-dione (126) showed medium AF activity against the larval settlement of both B. amphitrite and B. neritina larvae [31]. A pentacyclic hemiacetal sterol nephthoacetal (127) from a soft coral Nephthea sp. showed significant AF activity against B. amphitrite larvae with EC50 value of 2.5 μg/mL and LC50 > 25.0 μg/mL [55]. Two cholestane derivatives, pentacyclic steroid 16,22-epoxy-20β,23S-dihydroxycholest-1-ene-3-one (128) and 20β, 23S-dihydroxycholest-1-ene-3,22-dione (129) from the gorgonian S. suberosa showed potent inhibition activity towards the settlement of B. amphitrite larvae [56]. Unprecedented D-secosteroids, isogosterones A (130) and C (131) isolated from a soft coral Dendronephthya sp. exhibited AF activity against B. amphitrite larvae with EC50 value of 2.2 μg/ mL. 9,10-Secosteroids (132133) from the gorgonian Muricella sibogae showed medium inhibition against the settlement of B. amphitrite larvae [57].

2.3. Alkaloids

Many types of AF alkaloids, especially brominated alkaloids, have been isolated from marine sponges.
AF bromotyrosine-derived compounds (Figure 11): Bromotyrosine-derived compounds were specially found in marine sponges of the families Aplysinidae and Pseudoceratinidae, particularly Pseudoceratina (=Psammaplysilla) purpurea. Ceratinamine (134) [58], moloka’iamine (135) [59], ceratinamides A-B (136137) [58], and psammaplysins A (138) and E (139) [58] were isolated from the sponge P. purpurea, showing AF activity against B. amphitrite cyprids with EC50 values ranging from 0.10 to 8.0 μg/ mL [58]. The AF activities of aplysamine-2 (140) from P. purpurea, a synthetized analog hemibastadin-1 (141), psammaplins A (142) from Aplysinella rhaxand, and three bastadins-9, -16, -3 (143–145) derivatives from Ianthella basta were also evaluated. Among them, 140 and 143–145 could significantly inhibit the settlement of B. amphitrite larvae at concentrations of 1 or 10 μM without increasing larval mortality, while 141, 142 and 144 showed inhibition against larval settlement at 10 μM with significant mortality of the cyprids [60].
AF pyrrole-derived compounds (Figure 12): Bromopyrrole-derived compounds 4,5-dibromopyrrole-2-carbamide (146), oroidin (147) and mauritiamine (148) were isolated from the sponge Agelas mauritiana. Compounds 147 and 148 showed medium inhibition against the larval metamorphosis of B. amphitrite larvae, while 146 could promote the larval metamorphosis of the ascidian Ciona savignyi at 2.5 µg/mL [61]. A spermidine derivative pseudoceratidine (149) from P. purpurea showed AF activity against B. amphitrite larvae [62]. Hymenialdisine (150) and debromohymenialdisine (151) isolated from a sponge Axinella sp. were found to exhibit significant AF activity against the green mussel Perna viridis, the bryozoan B. neritina, and the green alga Ulva. prolifera [63]. A pyrroloimidazole alkaloid 152 isolated from sponge, showed significant inhibition against the bacterial attachment of Pseudomonas with IC50 value of 0.73 μM [64].
AF pyridine-derived compounds (Figure 13): Two synthetic compounds haminol-A (153) and haminol-B (154), and three natural compounds haminol-2 (155), haminol-4 (156) and saraine-1 (157) from Haliclona fusari were evaluated for their AF activity, which showed that 153157 significantly inhibited the larval settlement of B. amphitrite larvae with EC50 values ranging from 0.28 to 3.6 μg/mL [65].
AF indole alkaloids (Figure 14): Alkaloids 2-bromo-N-methyltryptamine 158159 from the gorgonian Paramuricea clavata showed significant anti-adhesion activity against one marine bacterial strain with nontoxicity [66]. Barettin (160) and 8,9-dihydrobarettin (161) from the sponge Geodia barretti showed inhibition against the settlement of B. improvises larvae with EC50 values of 0.9 and 7.9 µM, respectively [67]. In 2006, 14 analogs of 161 were synthesized. Among them, benzo[g]dipodazine (162) and other four dipodazine analogs (163166) with a dipodazine group significantly inhibited the settlement of B. improvisus larvae with EC50 values of 0.034, 5.8, 1.5, 2.4 and 6.7 μM [68], respectively. Bromobenzisoxazolone barettin (167) from the sponge G. barrette inhibited the settlement of B. improvisus larvae with EC50 value of 15 nM [69].
Other AF alkaloids (Figure 15): Aaptamine (168), isoaaptamine (169), and demethylated aaptamine (170) isolated from the sponge Aaptos aaptos showed AF activity against zebra mussel attachment [70]. A fraction of the acetone extract of the sponge Haliclona exigua was rich in bis-1-oxaquinolizidine alkaloid (171), exhibiting significant AF activity against the growths of seven fouling bacterial strains and against the settlement of B. amphitrite larvae [71].

2.4. Other Kinds of Compounds

Besides the above characteristic terpenoids, alkaloids and steroids, there were many other kinds of AF compounds isolated from marine invertebrates, such as polyacetylenes, butenolides, phenol derivatives, and peptides.
AF polyacetylene derivatives (Figure 16): Callytetrayne (172), callypentayne (173), callytriols A-E (174178) and callyspongins A-B (179180) from the sponge Callyspongia truncate showed potent metamorphosis-inducing activity towards the ascidian Halocynthia roretzi larvae with ED100 values of 0.13–1.3 µg/mL, and 174180 also showed AF activity against B. amphitrite larvae with ED50 values of 0.24–4.5 µg/mL [72].
AF butenolides (Figure 17): Sinularones G-I (181183) from a soft coral Sinularia sp. showed moderate AF activity against the barnacle B. amphitrite [32]. Butenolide (5R)-5-(1-ethoxypropyl)-5-hydroxy-3,4-dimethylfuran-2(5H)-one (184) as a pair of inseparable epimers, along with (S)-5-hydroxy-3,4-dimethyl-5-propylfuran-2(5H)-one (185) and (S)-5-hydroxy-3,4-dimethyl-5-pentylfuran-2(5H)-one (186) were obtained from the gorgonian S. suberosa. Compounds 184186 exhibited moderate AF activity against the settlement of B. amphitrite larvae [73]. The structure–activity relationship indicated that α,β-unsaturated 2,3-dimethyl-γ-lactone was a functional unit for the antilarval activity.

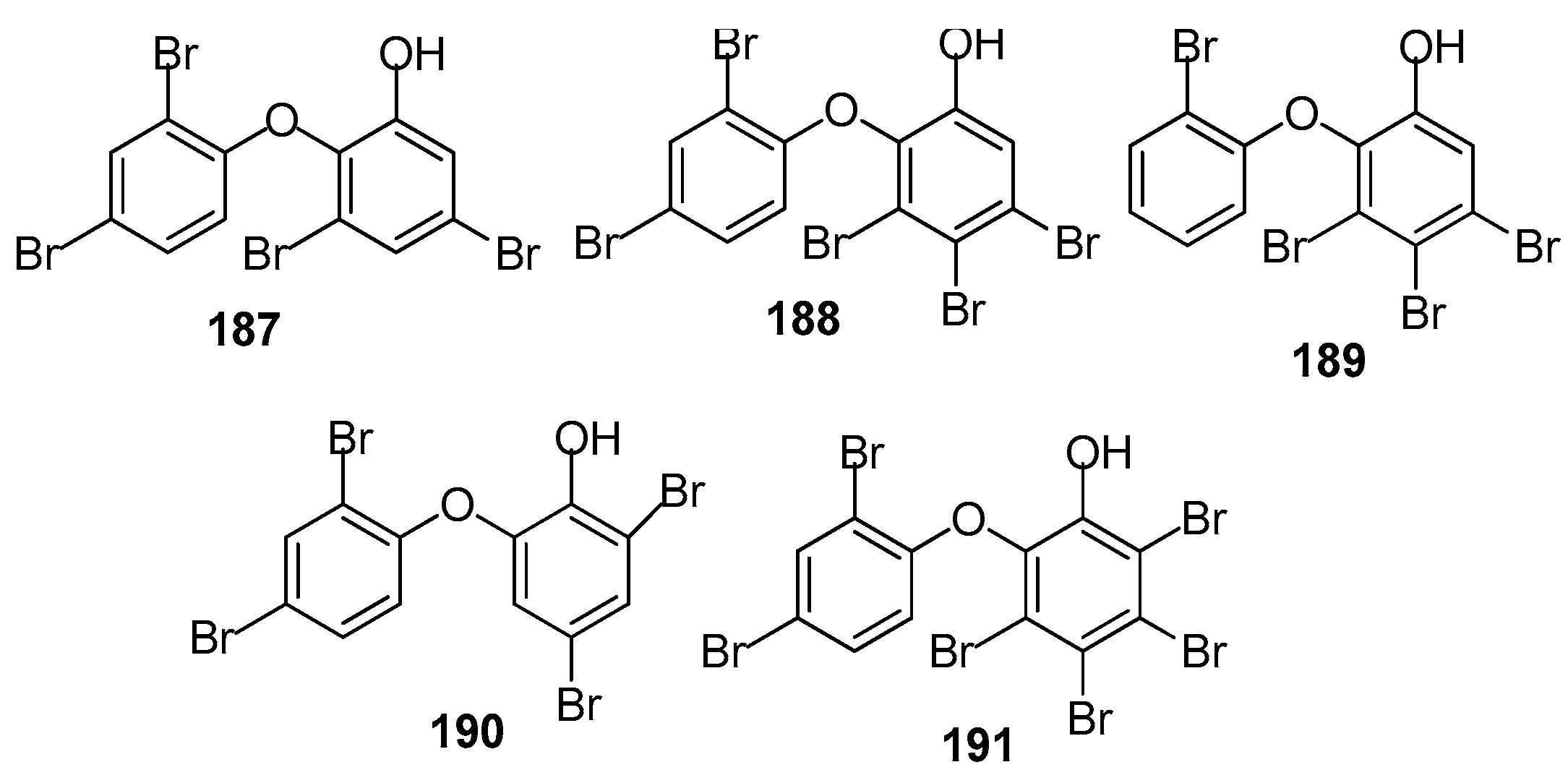

AF brominated phenol derivatives (Figure 18): Brominated diphenyl ethers are the characteristic secondary metabolites of the genus Dyside. It was believed that this type of compound was biosynthesised by the symbiotic cyanobacteria of the sponge. Five polybrominated diphenyl ethers including 187 from a sponge Callyspongia sp., 188 from Dysidea granulosa, and 189191 from D. herbacea were investigated against several taxa of prominent fouling organisms including marine bacteria, the diatom A. coffeaeformis, the barnacle B. amphitrite and the mussel Mytilus edulis. All of these compounds exhibited significant antibacterial and AF activity. Compound 187 was the strongest in all the bioassays with non-toxicity. It inhibited the growth of all of the tested bacterial strains with MIC ¼ 0.02–1.52 µM, and inhibited the larval settlement of A. coffeaeformis, B. amphitrite and M. edulis larvae with EC50 values of 0.24, 0.66 and 1.26 µM, respectively [74].

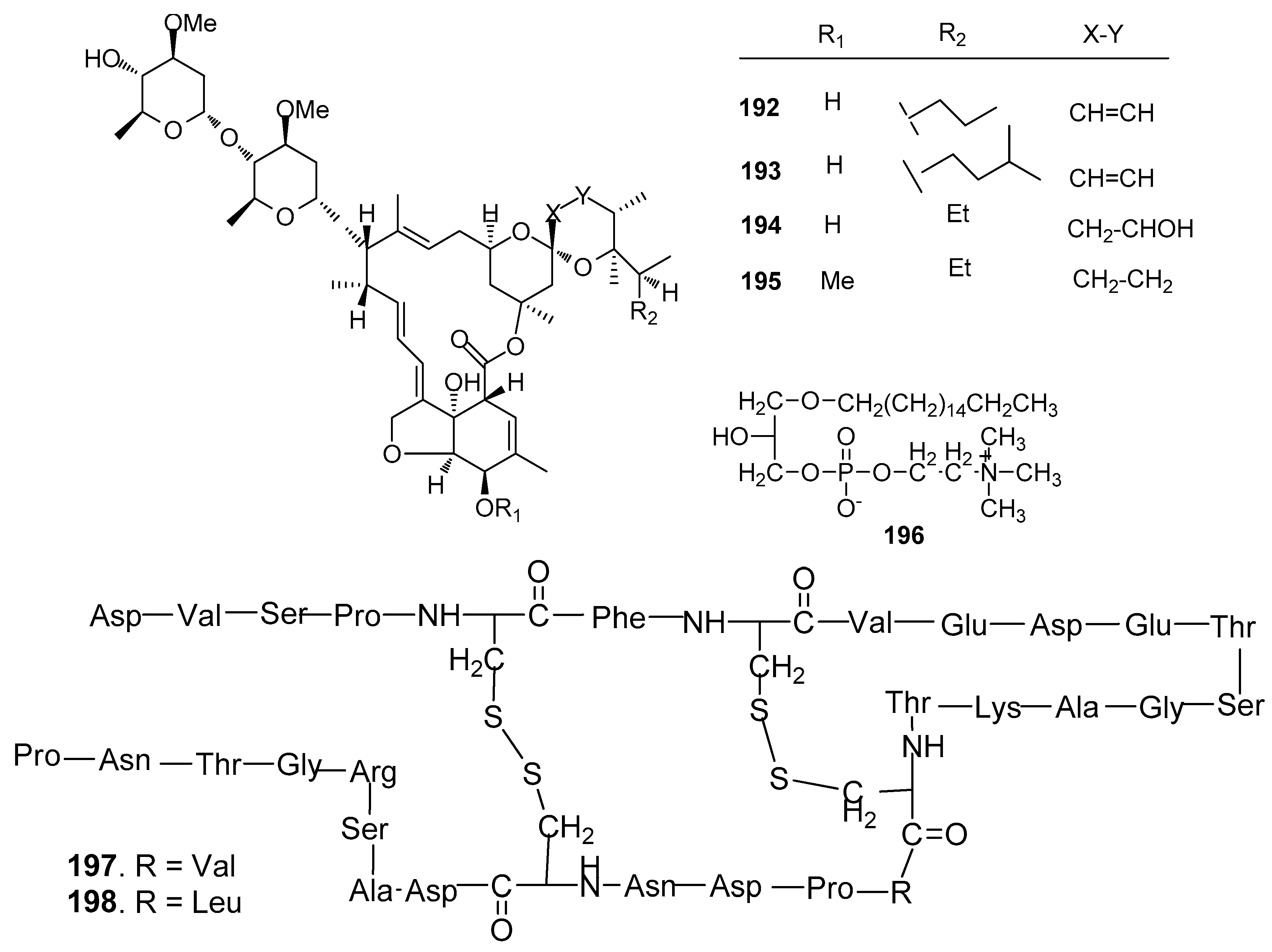

Other AF compounds (Figure 19): Four avermectin derivatives, avermectins B1c and B1e (192 and 193), avermectin B2a (194) and ivermectin A1a (195) from the gorgonian Anthogorgia caerulea exhibited potent antilarval activity towards B. amphitrite larvae with low-toxicity [75]. 1-O-palmityl-sn-glycero-3-phosphocholine (196) from the sponge Crella incrustans showed strong inhibition against the settlement of B. amphitrite larvae [76]. Two novel disulfide-containing peptides, barrettides A (197) and B (198) from the sponge Geodia barrette showed significant antilarval activity against the settlement of B. improvises larvae at concentrations of 0.6 and 6 μM, respectively [77].

3. Conclusions

Totally, over 198 AF compounds have been obtained from marine invertebrates, especially, sponges, gorgonian and soft corals. These compounds covered isocyanoterpenoids, sesquiterpenes, diterpenes, sesterterpenes, triterpenoids, alkaloids (including bromotyrosine-derived, pyrrole-derived, pyridine-derived and indole-derived compounds), steroids, polyacetylenes, butenolides, peptides, and phenol derivatives, which played important chemical defense roles in the marine invertebrates. In here, the AF activities of 198 compounds towards microfouling and macrofouling were summarized in Table 1. It is thought that AF compounds have medium to high bioactivity with a threshold of EC50 < 15 μg/mL, and AF compounds having high LC50/EC50 ratios (>15) are potentially good candidate antifoulants [14]. From Table 1, we can see that some of these compounds are potent antifoulants with low/non-toxicity, such as some of the isocyanoterpenoids, briarane-type diterpenoids, cembrane-type diterpenoids, and indole alkaloids. However, little was known about their mode of actions and AF activities in fields, because of the serious problems of the supplies from these marine invertebrates, which restricted the development of these potent AF compounds in antifouling paints. Although some studies about the total synthesis of several isocyanoterpenoids, briarane-type diterpenoids, and cembrane-type diterpenoids have been done, too many steps of these synthetic routes with low yields limited their applications. To overcome the problems, more studies about the organic syntheses of these potent AF compounds as models are needed. In addition, scientists have paid more attention to AF compounds from marine microorganisms, especially sponge-derived and gorgonian-derived microorganisms in recent years.

Acknowledgments

We are grateful for the financial support provided by the Natural Science Foundation of China (41376160 and 81673326), Regional Innovation Demonstration Project of Guangdong Province Marine Economic Development (GD2012-D01-002), and the Strategic Leading Special Science and Technology Program of Chinese Academy of Sciences (XDA100304002).

Author Contributions

Shu-Hua Qi designed and writed the paper; Xuan Ma looked up part of the references and drew part of the chemical structures.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yebra, D.M.; Kiil, S.; Dam-Johansen, K. Antifouling technology-past, present and future steps towards efficient and environmentally friendly antifouling coatings. Prog. Org. Coat. 2004, 50, 75–104. [Google Scholar] [CrossRef]
  2. Qian, P.Y.; Xu, Y.; Fusetani, N. Natural products as antifouling compounds: Recent progress and future perspectives. Biofouling 2010, 26, 223–234. [Google Scholar] [CrossRef] [PubMed]
  3. Omae, I. Organotin antifouling paints and their alternatives. Appl. Organomet. Chem. 2003, 17, 81–105. [Google Scholar] [CrossRef]
  4. Rittschof, D. Natural product antifoulants and coatings development. In Marine Chemical Ecology; Clintock, J.B., Baker, B.J., Eds.; Taylor & Francis: Abingdon, UK, 2001; pp. 543–566. [Google Scholar]
  5. Faӱ, F.; Linossier, I.; Peron, J.J.; Langlois, V.; Vallée-Rehel, K. Antifouling activity of marine paints: Study of erosion. Prog. Org. Coat. 2007, 60, 194–206. [Google Scholar] [CrossRef]
  6. Fusetani, N.; Clare, A.S. (Eds.) Antifouling Compounds; Springer: Berlin, Germany, 2006.
  7. Hellio, C.; Yebra, D. (Eds.) Advances in Marine Antifouling Coatings and Technologies; Woodhead Publishing: Cambridge, UK, 2010.
  8. Pawilk, J.R. Marine invertebrate chemical defences. Chem. Rev. 1993, 93, 1911–1922. [Google Scholar] [CrossRef]
  9. Omae, I. General Aspects of Natural Products Antifoulants in the Environment. Handb. Environ. Chem. 2006, 5, 227–262. [Google Scholar]
  10. Raveendran, T.V.; Mol, V.P.L. Natural product antifoulants. Curr. Sci. 2009, 97, 508–520. [Google Scholar]
  11. Marechal, J.P.; Hellio, C. Challenges for the development of new non-toxic antifouling solutions. Int. J. Mol. Sci. 2009, 10, 4623–4637. [Google Scholar] [CrossRef] [PubMed]
  12. Fusetani, N. Biofouling and antifouling. Nat. Prod. Rep. 2004, 21, 94–104. [Google Scholar] [CrossRef] [PubMed]
  13. Fusetani, N. Antifouling marine natural products. Nat. Prod. Rep. 2011, 28, 400–410. [Google Scholar] [CrossRef] [PubMed]
  14. Qian, P.Y.; Li, Z.; Xu, Y.; Li, Y.; Fusetani, N. Mini-review: Marine natural products and their synthetic analogs as antifouling compounds: 2009–2014. Biofouling 2015, 31, 101–122. [Google Scholar] [CrossRef] [PubMed]
  15. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. Antifouling kalihinenes from the marine sponge Acanthella cavernosa. Tetrahedron Lett. 1996, 36, 8637–8640. [Google Scholar] [CrossRef]
  16. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. New antifouling kalihipyrans from the marine sponge Acanthella cavernosa. J. Nat. Prod. 1996, 59, 1081–1083. [Google Scholar] [CrossRef]
  17. Hirota, H.; Tomono, Y.; Fusetani, N. Terpenoids with antifouling activity against barnacle larvae from the marine sponge Acanthella cavernosa. Tetrahedron 1996, 52, 2359–2368. [Google Scholar] [CrossRef]
  18. Okino, T.; Yoshimura, E.; Hirota, H.; Fusetani, N. New antifouling sesquiterpenes from four nudibranchs of the family Phyllidiidae. Tetrahedron 1996, 52, 9447–9454. [Google Scholar] [CrossRef]
  19. Xu, Y.; Li, N.; Jiao, W.H.; Qi, S.H.; Lin, H.W. Antifouling and cytotoxic constituents from the South China Sea sponge Acanthella cavernosa. Tetrahedron 2012, 68, 2876–2883. [Google Scholar] [CrossRef]
  20. Wright, A.M.A.D.; Robertson, M.J.; MacGregor, K.A.; Gordonb, C.P.; Guentherc, J. Anti-malarial, anti-algal, anti-tubercular, anti-bacterial, anti-photosynthetic, and anti-fouling activity of diterpene and diterpene isonitriles from the tropical marine sponge Cymbastela hooperi. Org. Biomol. Chem. 2011, 9, 400–407. [Google Scholar] [CrossRef] [PubMed]
  21. Hirota, H.; Okino, T.; Yoshimura, E.; Fusetani, N. Five new antifouling sesquiterpenes from two marine sponges of the genus Axinyssa and the nudibranch Phyllidia pustulosa. Tetrahedron 1998, 54, 13971–13980. [Google Scholar] [CrossRef]
  22. Tsoukatou, M.; Maréchal, J.P.; Hellio, C.; Novaković, I.; Tufegdzic, S.; Sladić, D.; Gašić, M.J.; Clare, A.S.; Vagias, C.; Roussis, V. Evaluation of the activity of the sponge metabolites avarol and avarone and their synthetic derivatives against fouling micro- and macroorganisms. Molecules 2007, 12, 1022–1034. [Google Scholar] [CrossRef] [PubMed]
  23. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Antifouling terpenes and steroids against barnacle larvae from marine sponges. Biofouling 1997, 11, 283–291. [Google Scholar] [CrossRef]
  24. Hertiani, T.; Edrada-Ebel, R.; Ortlepp, S.; Van Soest, R.W.; De Voogd, N.J.; Wray, V.; Hentschel, U.; Kozytska, S.; Müller, W.E.; Proksch, P. From anti-fouling to biofilm inhibition: New cytotoxic secondary metabolites from two Indonesian Agelas sponges. Bioorg. Med. Chem. 2010, 18, 1297–1311. [Google Scholar] [CrossRef] [PubMed]
  25. Stewart, M.; Depree, C.; Thompson, K.J. Antifouling sesterterpenes from the New Zealand marine sponge Semitaspongia bactriana. Nat. Prod. Commun. 2009, 4, 331–336. [Google Scholar] [PubMed]
  26. Hellio, C.; Tsoukatou, M.; Maréchal, J.P.; Aldred, N.; Beaupoil, C.; Clare, A.S.; Vagias, C.; Roussis, V. Inhibitory effects of mediterranean sponge extracts and metabolites on larval settlement of the barnacle Balanus amphitrite. Mar. Biotechnol. 2005, 7, 297–305. [Google Scholar] [CrossRef] [PubMed]
  27. Skindersoe, M.E.; Ettinger-Epstein, P.; Rasmussen, T.B.; Bjarnsholt, T.; de Nys, R.; Givskov, M. Quorum sensing antagonism from marine organisms. Mar. Biotechnol. 2008, 10, 56–63. [Google Scholar] [CrossRef] [PubMed]
  28. Jaspars, M.; Crews, P. A triterpene tetrasaccharide, formoside, from the Caribbean Choristida sponge Erylus formosus. Tetrahedron Lett. 1994, 35, 7501–7504. [Google Scholar] [CrossRef]
  29. Chen, D.; Yu, S.; Van Ofwegen, L.; Proksch, P.; Lin, W. Anthogorgienes A-O, new guaiazulene-derived terpenoids from a Chinese gorgonian Anthogorgia species, and their antifouling and antibiotic activities. J. Agric. Food Chem. 2012, 60, 112–123. [Google Scholar] [CrossRef] [PubMed]
  30. Raveendran, T.V.; Limna, M.V.P.; Parameswaran, P.S. Natural product antifoulants from the octocorals of Indian waters. Int. Biodeter. Biodegrad. 2011, 65, 265–268. [Google Scholar] [CrossRef]
  31. Qi, S.H.; Zhang, S.; Yang, L.H.; Qian, P.Y. Antifouling and antibacterial compounds from the gorgonians Subergorgia suberosa and Scripearia gracillis. Nat. Prod. Res. 2008, 22, 154–166. [Google Scholar] [CrossRef] [PubMed]
  32. Shi, H.; Yu, S.; Liu, D.; van Ofwegen, L.; Proksch, P.; Lin, W. Sinularones A-I, new cyclopentenone and butenolide derivatives from a marine soft coral Sinularia sp. and their antifouling activity. Mar. Drugs 2012, 10, 1331–1344. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, J.; Zhang, S.; Qi, S.H.; Pan, J.; Qiu, Y.; Tao, S.; Yin, H.; Li, Q. Briarane-type diterpenoids from the China gorgonian coral Subergorgia reticulata. Biochem. Syst. Ecol. 2007, 35, 770–773. [Google Scholar] [CrossRef]
  34. Sun, J.F.; Han, Z.; Zhou, X.F.; Yang, B.; Lin, X.; Liu, J.; Peng, Y.; Yang, X.W.; Liu, Y.H. Antifouling briarane type diterpenoids from South China Sea gorgonians Dichotella gemmacea. Tetrahedron 2013, 69, 871–880. [Google Scholar] [CrossRef]
  35. Qi, S.H.; Zhang, S.; Qian, P.Y.; Xiao, Z.H.; Li, M.Y. Ten new antifouling briarane diterpenoids from the South China Sea gorgonian Junceella juncea. Tetrahedron 2006, 62, 9123–9130. [Google Scholar] [CrossRef]
  36. Qi, S.H.; Zhang, S.; Qian, P.Y.; Xu, H.H. Antifeedant and abtifouling briaranes from the South China Sea gorgonian Junceella juncea. Chem. Nat. Comp. 2009, 45, 49–54. [Google Scholar] [CrossRef]
  37. Lei, H.; Sun, J.; Han, Z.; Zhou, X.F.; Yang, B.; Liu, Y. Fragilisinins A–L, new briarane-type diterpenoids from gorgonian Junceella fragilis. RSC Adv. 2014, 4, 5261–5271. [Google Scholar] [CrossRef]
  38. Kong, W.W.; Shao, C.L.; Wang, C.Y. Diterpenoids and steroids from gorgonian Subergorgia mollis. Chem. Nat. Comp. 2012, 48, 512–515. [Google Scholar] [CrossRef]
  39. Lai, D.; Liu, D.; Deng, Z.; Van Ofwegen, L.; Proksch, P.; Lin, W. Antifouling eunicellin-type diterpenoids from the gorgonian Astrogorgia sp. J. Nat.Prod. 2012, 75, 1595–1602. [Google Scholar] [CrossRef] [PubMed]
  40. Mol, V.P.L.; Raveendran, T.V.; Parameswaran, P.S.; Kunnath, R.J.; Rajamohanan, P.R. (−)-6 α-Hydroxy polyanthellin A—A novel antifouling diterpenoid from the Indian soft coral Cladiella krempfi (Hickson). Can. J. Chem. 2011, 89, 57–60. [Google Scholar] [CrossRef]
  41. Gerhart, D.J.; Coll, J.C. Pukalide, a widely distributed octocoral diterpenoid, induces vomiting in fish. J. Chem. Ecol. 1993, 19, 2697–2704. [Google Scholar] [CrossRef] [PubMed]
  42. Tello, E.; Castellanos, L.; Arevalo-Ferro, C.; Rodríguez, J.; Jiménez, C.; Duque, C. Absolute stereochemistry of antifouling cembranoid epimers at C-8 from the Caribbean octocoral Pseudoplexaura flagellosa. Revised structures of plexaurolones. Tetrahedron 2011, 67, 9112–9121. [Google Scholar] [CrossRef]
  43. Tello, E.; Castellanos, L.; Arevalo-Ferro, C.; Duque, C. Disruption in quorum-sensing systems and bacterial biofilm inhibition by cembranoid diterpenes isolated from the octocoral Eunicea knighti. J. Nat. Prod. 2012, 75, 1637–1642. [Google Scholar] [CrossRef] [PubMed]
  44. Lai, D.; Li, Y.; Xu, M.; Deng, Z.; Ofwegend, L.; Qian, P.; Proksche, P.; Lin, W. Sinulariols A–S, 19-oxygenated cembranoids from the Chinese soft coral Sinularia rigida. Tetrahedron 2011, 7, 6018–6029. [Google Scholar] [CrossRef]
  45. Lai, D.; Geng, Z.; Deng, Z.; Van Ofwegen, L.; Proksch, P.; Lin, W. Cembranoids from the soft coral Sinularia rigida with antifouling activities. J. Agric. Food Chem. 2013, 61, 4585–4592. [Google Scholar] [CrossRef] [PubMed]
  46. Shen, S.; Zhu, H.; Chen, D.; Liu, D.; Ofwegenc, L.; Prokschd, P.; Lin, W. Pavidolides A–E, new cembranoids from the soft coral Sinularia pavida. Tetrahedron Lett. 2012, 53, 5759–5762. [Google Scholar] [CrossRef]
  47. Wang, C.Y.; Chen, A.N.; Shao, C.L.; Li, L.; Xu, Y.; Qian, P.Y. Chemical constituents of soft coral Sarcophyton infundibuliforme from the South China Sea. Biochem. System. Ecol. 2011, 39, 853–856. [Google Scholar] [CrossRef]
  48. Keifer, P.A.; Rinehart, J.K.L.; Hooper, I.R. Renillafoulins, antifouling diterpenes from the sea pansy Renilla reniformis (Octocorallia). J. Org. Chem. 1986, 51, 4450–4454. [Google Scholar] [CrossRef]
  49. Rittschof, D.; Hooper, I.R.; Costlow, J.D. Barnacle settlement inhibitors from sea pansies, Renilla reniformis. Bull. Mar. Sci. 1986, 39, 376–382. [Google Scholar]
  50. Manker, D.C.; John, F.D. Investigation of the role of diterpenes produced by marine pulmonates Trimusculus reticulatus and T. conica. J. Chem. Ecol. 1996, 22, 23–35. [Google Scholar] [CrossRef] [PubMed]
  51. Qiu, Y.; Deng, Z.W.; Xu, M.; Li, Q.; Lin, W.H. New A-nor steroids and their antifouling activity from the Chinese marine sponge Acanthella cavernosa. Steroids 2008, 73, 1500–1504. [Google Scholar] [CrossRef] [PubMed]
  52. Nguyen, X.C.; Longeon, A.; Pham, V.C.; Bourguet-Kondracki, M. Antifouling 26,27-cyclosterols from the Vietnamese marine sponge Xestospongia testudinaria. J. Nat. Prod. 2013, 76, 1313–1318. [Google Scholar] [CrossRef] [PubMed]
  53. Qi, S.H.; Gao, C.H.; Qian, P.Y.; Zhang, S. Steroids from the South China Sea gorgonian Subergorgia suberosa. Nat. Prod. Commun. 2010, 5, 201–204. [Google Scholar] [PubMed]
  54. Qi, S.H.; Miao, L.; Gao, C.H.; Xu, Y.; Zhang, S.; Qian, P.Y. New steroids and a new alkaloid from the gorgonian Isis minorbrachyblasta: Structures, cytotoxicity, and antilarval activity. Helv. Chim. Acta 2010, 93, 511–516. [Google Scholar] [CrossRef]
  55. Zhang, J.; Li, L.C.; Wang, K.L.; Liao, X.J.; Deng, Z.; Xu, S.H. Pentacyclic hemiacetal sterol with antifouling and cytotoxic activities from the soft coral Nephthea sp. Bioorg. Med. Chem. Lett. 2013, 23, 1079–1082. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, J.; Liang, Y.; Wang, K.L.; Liao, X.J.; Deng, Z.; Xu, S.H. Antifouling steroids from the South China Sea gorgonian coral Subergorgia suberosa. Steroids 2014, 79, 1–6. [Google Scholar] [CrossRef] [PubMed]
  57. Zhou, Y.M.; Chen, M.; Fu, X.M.; Fang, Y.C.; Wang, C.Y. Two new eunicellin-based diterpenoids from the South China Sea gorgonian Muricella sibogae Nutting. Nat. Prod. Res. 2014, 28, 1176–1181. [Google Scholar] [CrossRef] [PubMed]
  58. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Ceratinamides A and B: New antifouling dibromotyrosine derivatives from the marine sponge Pseudoceratina purpurea. Terrahedron 1996, 52, 8181–8186. [Google Scholar] [CrossRef]
  59. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Ceratinamine: An unprecedented antifouling cyanoformamide from the marine sponge Pseudoceratina purpurea. J. Org. Chem. 1996, 61, 2936–2937. [Google Scholar] [CrossRef] [PubMed]
  60. Ortlepp, S.; Sjogren, M.; Dahlstrom, M.; Weber, H.; Ebel, R.; Edrada, R.; Thoms, C.; Schupp, P.; Bohlin, L.; Proksch, P. Antifouling activity of bromotyrosine-derived sponge metabolites and synthetic analogues. Mar. Biotechnol. 2007, 9, 776–785. [Google Scholar] [CrossRef] [PubMed]
  61. Tsukamoto, H.K.S.; Hirota, H.; Fusetani, N. Mauritiamine, a new antifouling oroidin dimer from the marine sponge Agelas mauritiana. J. Nat. Prod. 1996, 59, 501–503. [Google Scholar] [CrossRef]
  62. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Pseudoceratidine: A new antifouling spermidine derivative from the marine sponge Pseudoceratina purpurea. Terrahedron Lett. 1996, 37, 1439–1440. [Google Scholar] [CrossRef]
  63. Feng, D.; Qiu, Y.; Wang, W.; Wang, X.; Ouyang, P.; Ke, C. Antifouling activities of hymenialdisine and debromohymenialdisine from the sponge Axinella sp. Int. Biodeter. Biodegrad. 2013, 85, 359–364. [Google Scholar] [CrossRef]
  64. Richards, J.J.; Melander, C. Controlling bacterial biofilms. Chembiochem 2009, 10, 2287–2294. [Google Scholar] [CrossRef] [PubMed]
  65. Blihoghe, D.; Manzo, E.; Villela, A.; Cutignano, A.; Picariello, G.; Faimali, M.; Fontana, A. Evaluation of the antifouling properties of 3-alyklpyridine compounds. Biofouling 2011, 27, 99–109. [Google Scholar] [CrossRef] [PubMed]
  66. Penez, N.; Culioli, G.; Perez, T.; Briand, J.F.; Thomas, O.P.; Blache, Y. Antifouling properties of simple indole and purine alkaloids from the Mediterranean gorgonian Paramuricea clavata. J. Nat. Prod. 2011, 74, 2304–2308. [Google Scholar] [CrossRef] [PubMed]
  67. Sjögren, M.; Göransson, U.; Johnson, A.; Dahlström, M.; Andersson, R.; Bergman, J.; Jonsson, P.R.; Bohlin, L. Antifouling activity of brominated cyclopeptides from the marine sponge Geodia barretti. J. Nat. Prod. 2004, 67, 368–372. [Google Scholar] [CrossRef] [PubMed]
  68. Sjogren, M.; Johnson, A.L.; Hedner, E.; Dahlström, M.; Göransson, U.; Shirani, H.; Bergman, J.; Jonsson, P.R.; Bohlin, L. Antifouling activity of synthesized peptide analogs of the sponge metabolite barettin. Peptides 2006, 27, 2058–2064. [Google Scholar] [CrossRef] [PubMed]
  69. Hedner, E.; Sjögren, M.; Hodzic, S.; Andersson, R.; Göransson, U.; Jonsson, P.R.; Bohlin, L. Antifouling activity of a dibrominated cyclopeptide from the marine sponge Geodia barretti. J. Nat. Prod. 2008, 71, 330–333. [Google Scholar] [CrossRef] [PubMed]
  70. Diers, J.A.; Bowling, J.J.; Duke, S.O.; Wahyuono, S.; Kelly, M.; Hamann, M.T. Zebra mussel antifouling activity of the marine natural product aaptamine and analogs. Mar. Biotechnol. 2006, 8, 366–372. [Google Scholar] [CrossRef] [PubMed]
  71. Limna, M.V.P.; Raveendran, T.V.; Parameswaran, P.S. Antifouling activity exhibited by secondary metabolites of the marine sponge, Haliclona exigua (Kirkpatrick). Int. Biodeter. Biodegrad. 2009, 63, 67–72. [Google Scholar] [CrossRef]
  72. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Seven new polyacetylene derivatives, showing both potent metamorphosis-inducing activity in ascidian larvae and antifouling activity against barnacle larvae, from the marine sponge Callyspongia truncata. J. Nat. Prod. 1997, 60, 128–130. [Google Scholar] [CrossRef]
  73. Zhang, J.; Liang, Y.; Liao, X.J.; Deng, Z.; Xu, S.H. Isolation of a new butenolide from the South China Sea gorgonian coral Subergorgia suberosa. Nat. Prod. Res. 2014, 28, 150–155. [Google Scholar] [CrossRef] [PubMed]
  74. Ortlepp, S.; Pedpradap, S.; Dobretsov, S.; Proksch, P. Antifouling activity of sponge-derived polybrominated diphenyl ethers and synthetic analogues. Biofouling 2008, 24, 201–208. [Google Scholar] [CrossRef] [PubMed]
  75. Gao, C.; Wang, Y.; Chen, Y.; He, B.; Zhang, R.; Xu, M.; Huang, R. Two new avermectin derivatives from the Beibu Gulf gorgonian Anthogorgia caerulea. Chem. Biodiver. 2014, 11, 812–818. [Google Scholar] [CrossRef] [PubMed]
  76. Alan, J.; Butler, I.; Dunne, S.J. Antifouling activity of lyso-platelet-activating factor extracted from Australian sponge Crella incrustans. J. Chem. Ecol. 1996, 22, 2041–2060. [Google Scholar]
  77. Carstens, B.B.; Rosengren, K.J.; Gunasekera, S.; Schempp, S.; Bohlin, L.; Dahlström, M.; Clark, R.J.; Göransson, U. Isolation, characterization, and synthesis of the barrettides: disulfide-containing peptides from the marine sponge Geodia barretti. J. Nat. Prod. 2015, 78, 1886–1893. [Google Scholar] [CrossRef] [PubMed]

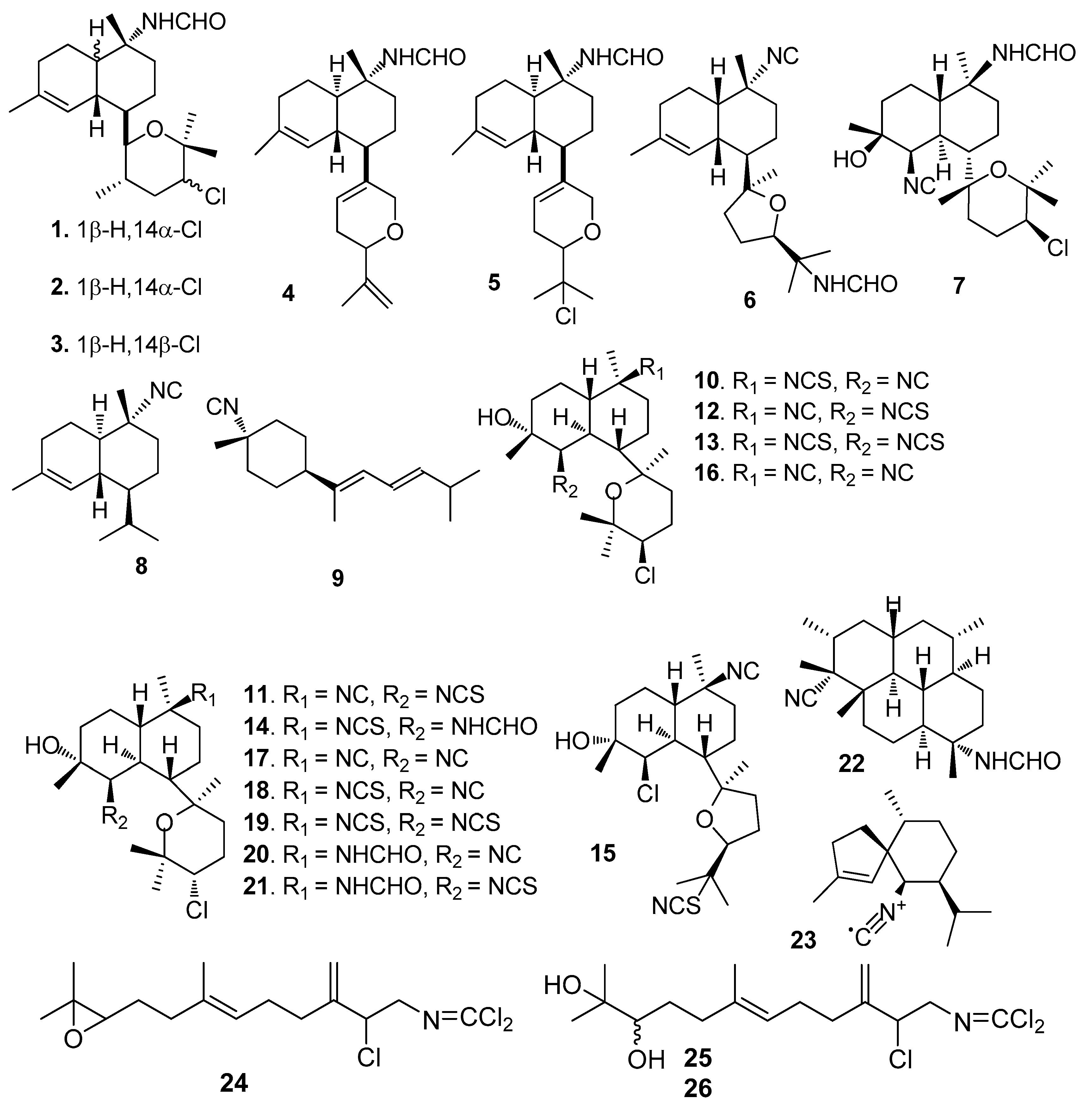

Figure 1. Structures of antifouling (AF) isocyanoterpenoids and analogues from sponges.
Figure 1. Structures of antifouling (AF) isocyanoterpenoids and analogues from sponges.
Marinedrugs 15 00263 g001

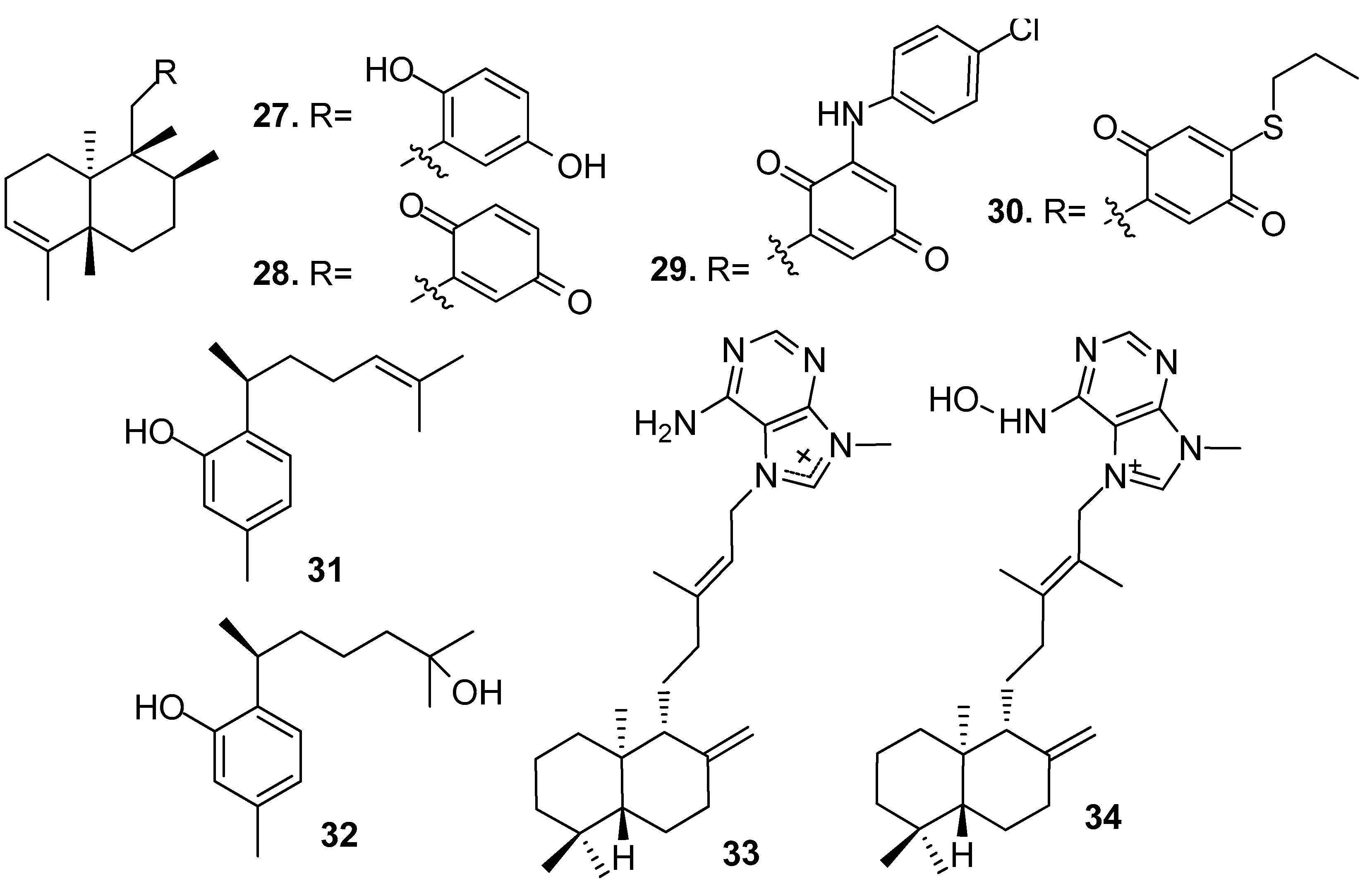

Figure 2. Structures of AF sesquiterpenes and diterpenoids from sponges.
Figure 2. Structures of AF sesquiterpenes and diterpenoids from sponges.
Marinedrugs 15 00263 g002

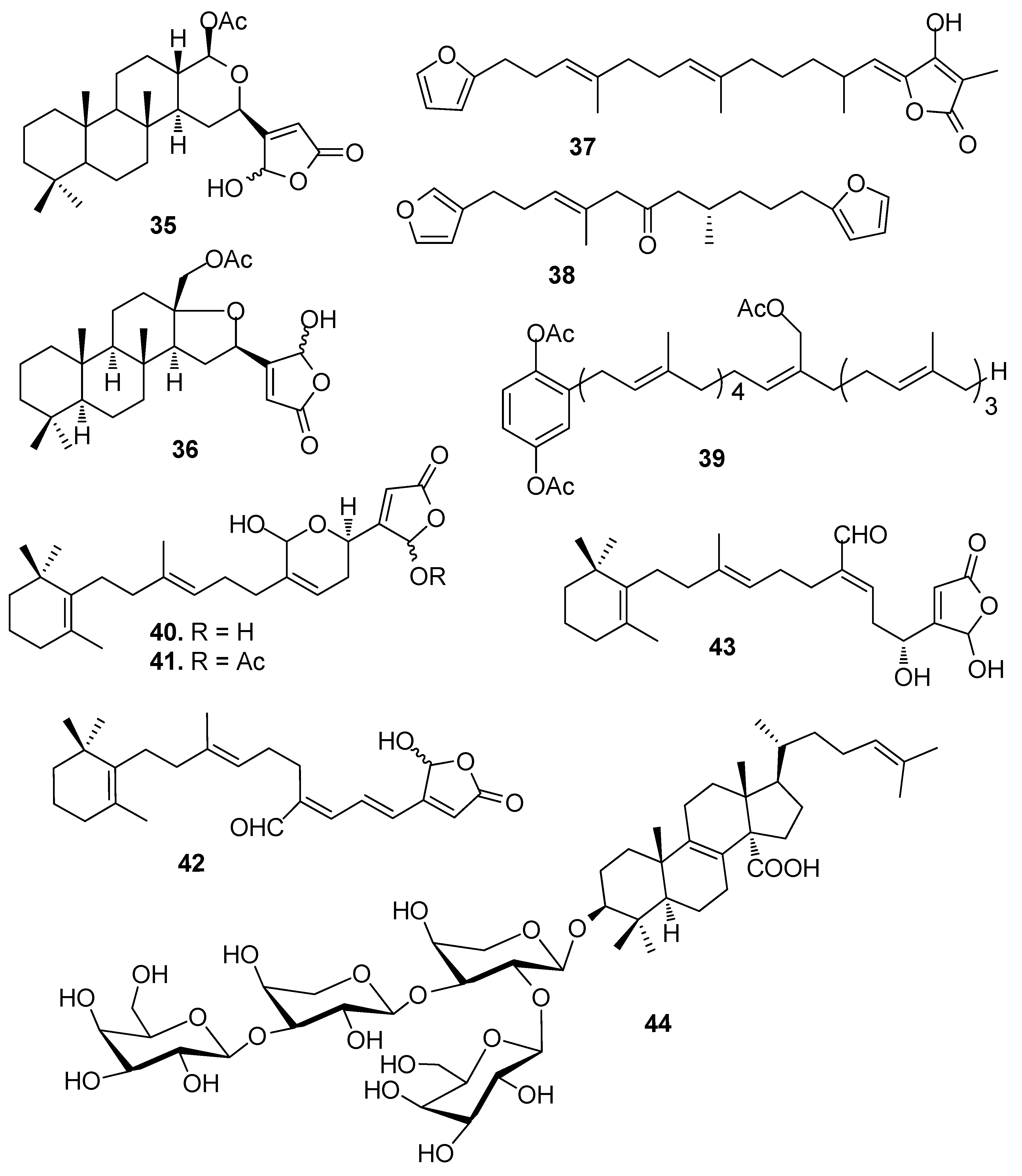

Figure 3. Structures of sesterterpenes and triterpenes from sponges.
Figure 3. Structures of sesterterpenes and triterpenes from sponges.
Marinedrugs 15 00263 g003
Figure 4. Structures of AF sesquiterpenoids from corals.
Figure 4. Structures of AF sesquiterpenoids from corals.
Marinedrugs 15 00263 g004

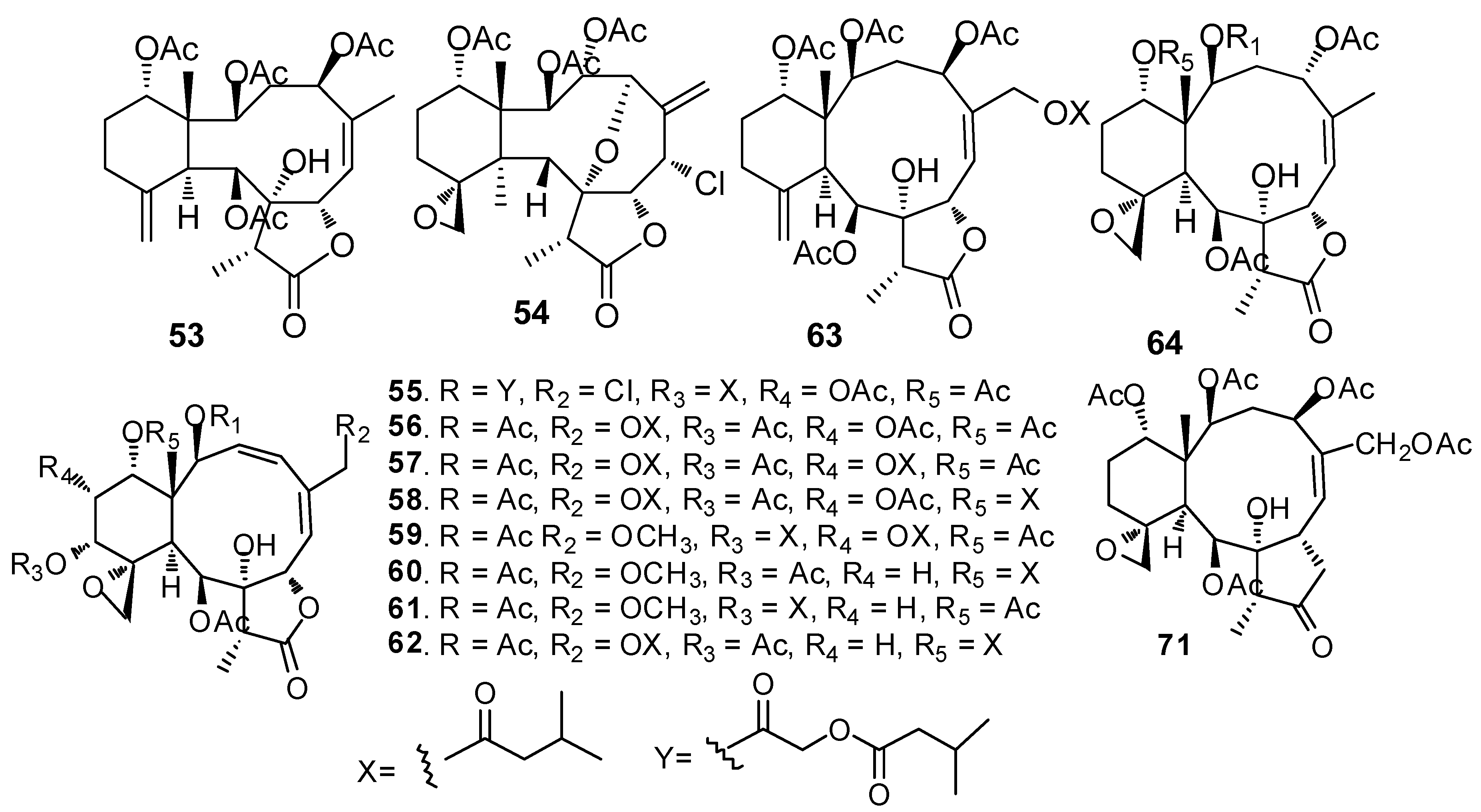

Figure 5. Structures of AF briarane-type diterpenoids from corals.
Figure 5. Structures of AF briarane-type diterpenoids from corals.
Marinedrugs 15 00263 g005aMarinedrugs 15 00263 g005b
Figure 6. Structures of AF eunicellin-based diterpenoids from corals.
Figure 6. Structures of AF eunicellin-based diterpenoids from corals.
Marinedrugs 15 00263 g006

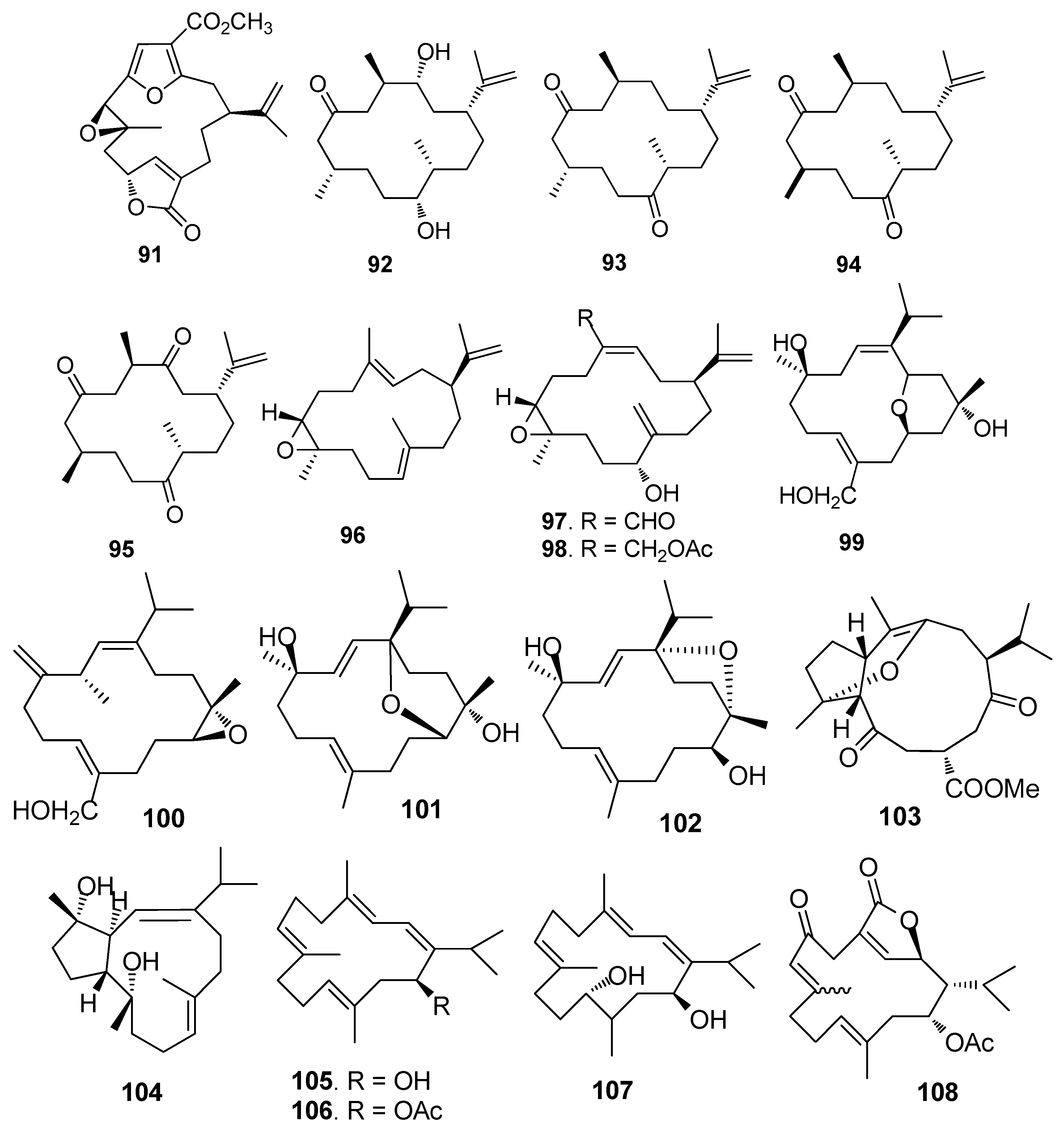

Figure 7. Structures of AF cembrane-type diterpenoids from corals.
Figure 7. Structures of AF cembrane-type diterpenoids from corals.
Marinedrugs 15 00263 g007

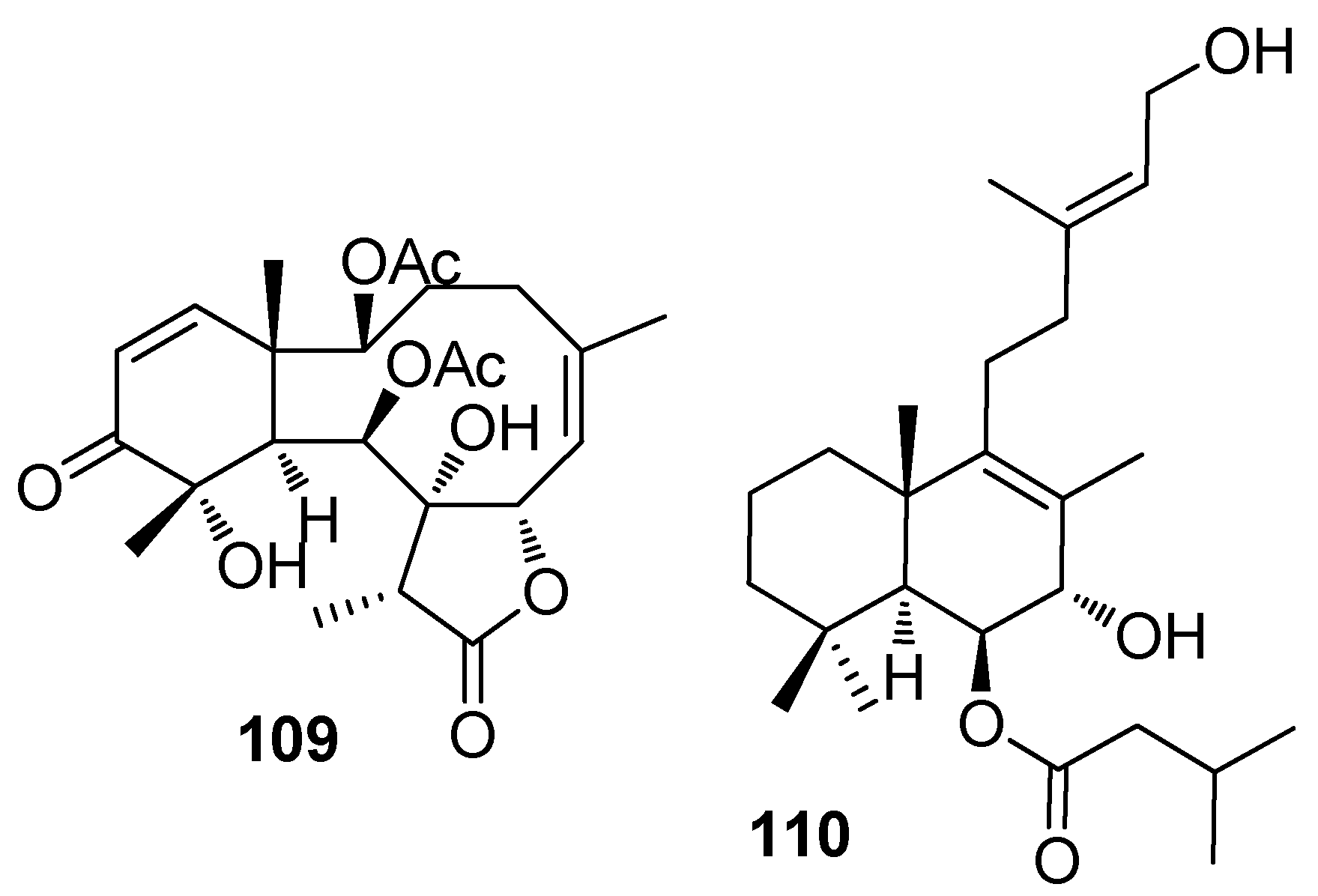

Figure 8. Structures of AF terpenoids from other marine invertebrates.
Figure 8. Structures of AF terpenoids from other marine invertebrates.
Marinedrugs 15 00263 g008

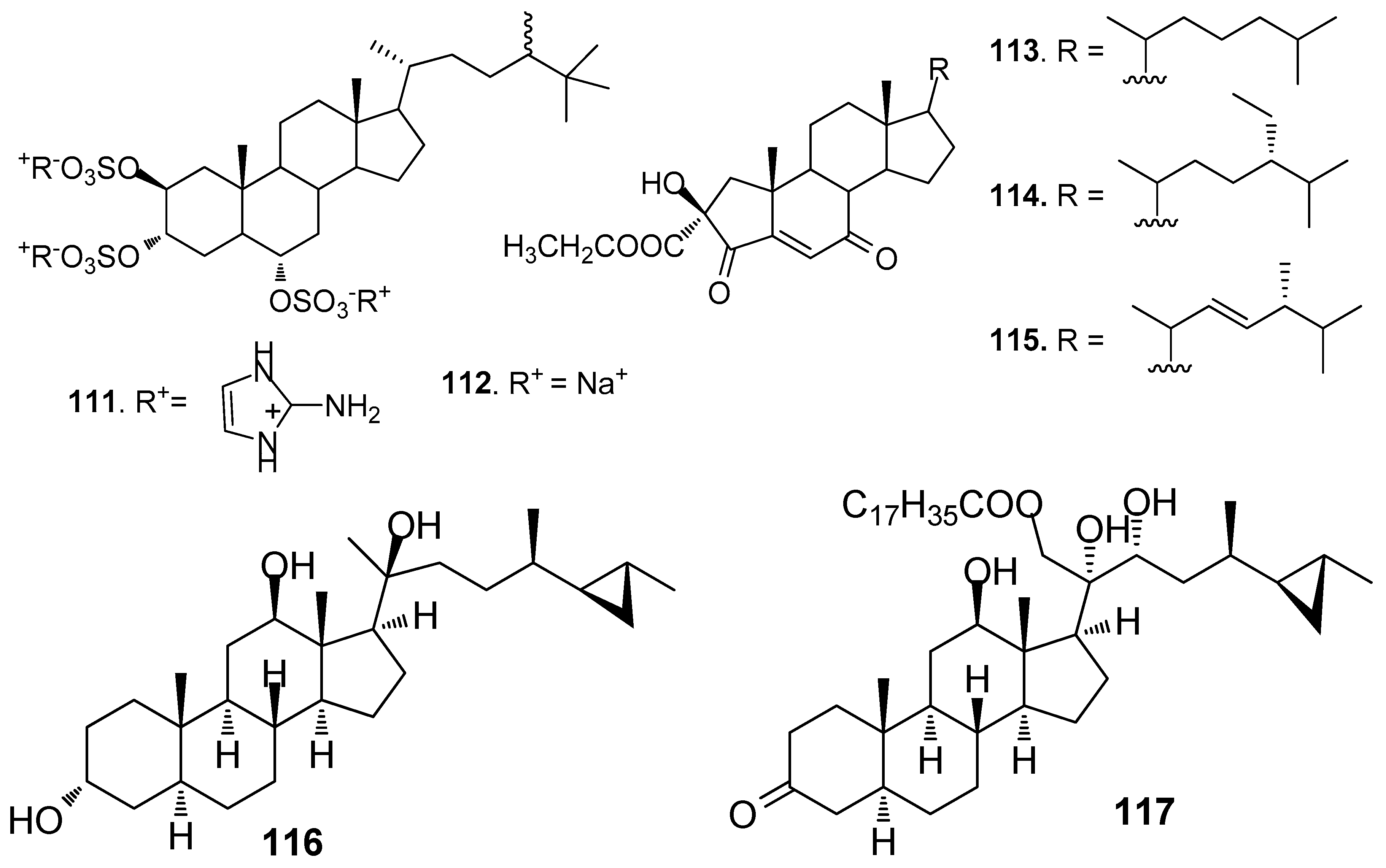

Figure 9. Structures of AF steroids from sponges.
Figure 9. Structures of AF steroids from sponges.
Marinedrugs 15 00263 g009

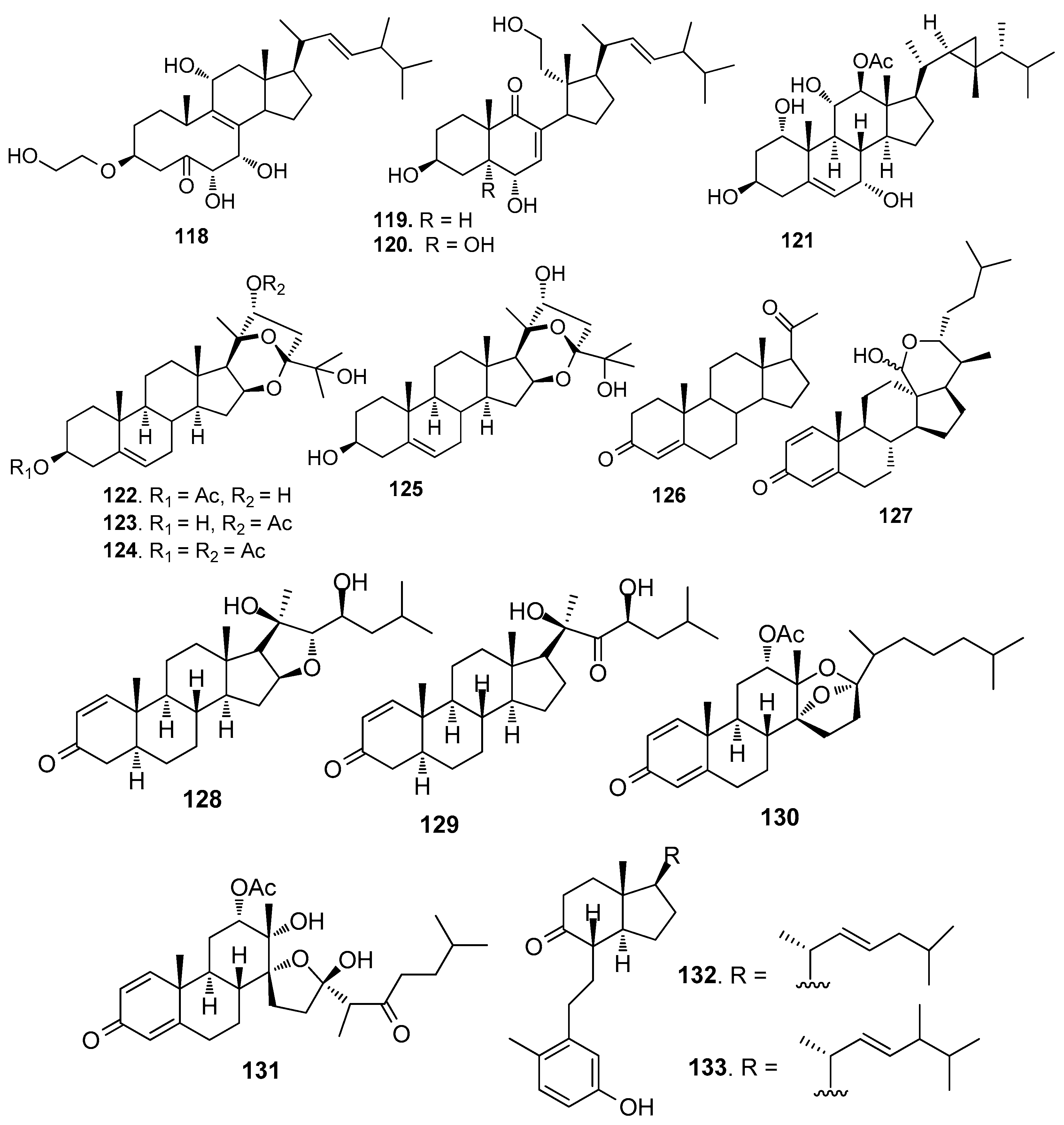

Figure 10. Structures of AF steroids from corals.
Figure 10. Structures of AF steroids from corals.
Marinedrugs 15 00263 g010

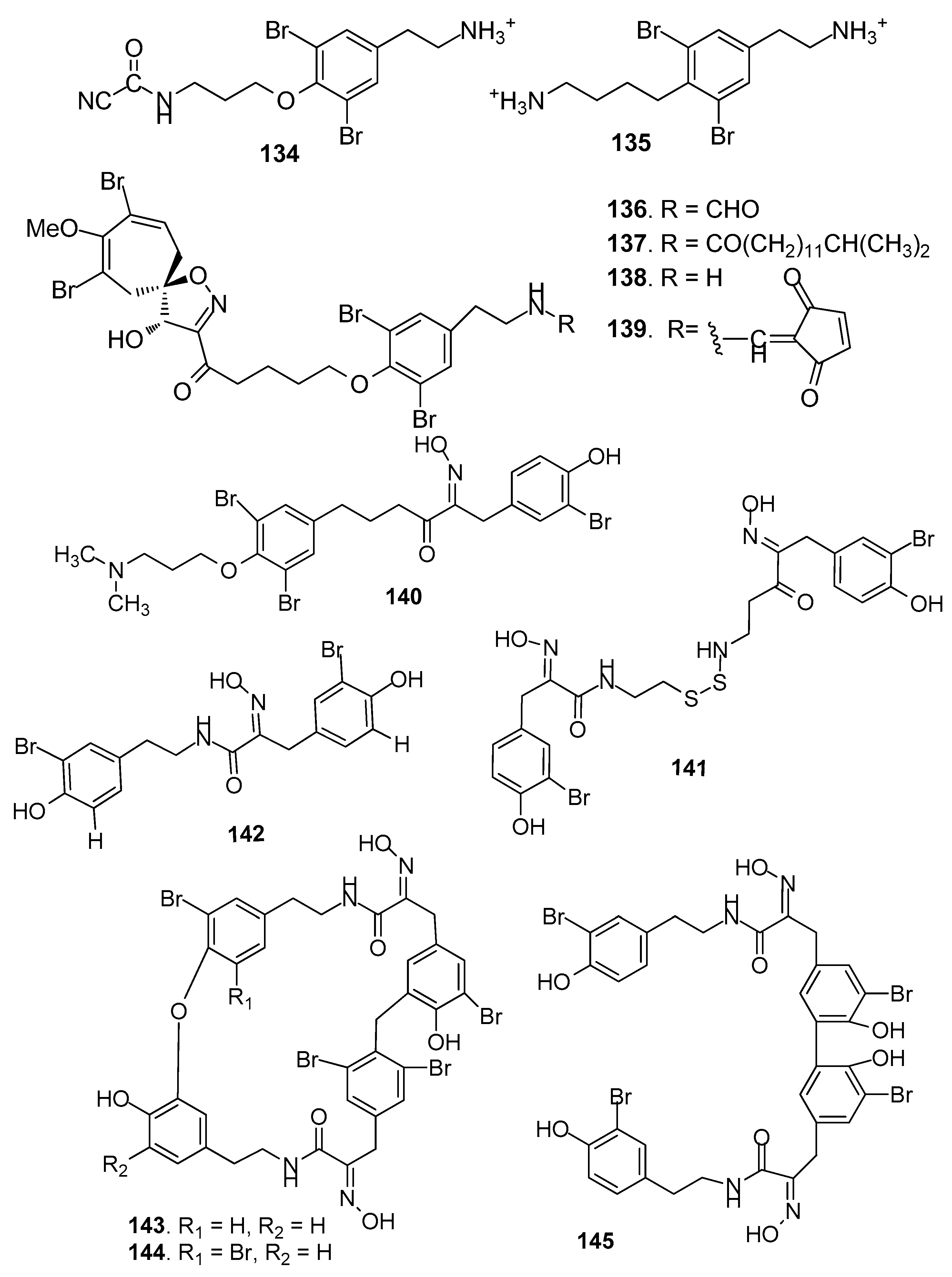

Figure 11. Structures of AF bromotyrosine-derived compounds from sponges.
Figure 11. Structures of AF bromotyrosine-derived compounds from sponges.
Marinedrugs 15 00263 g011

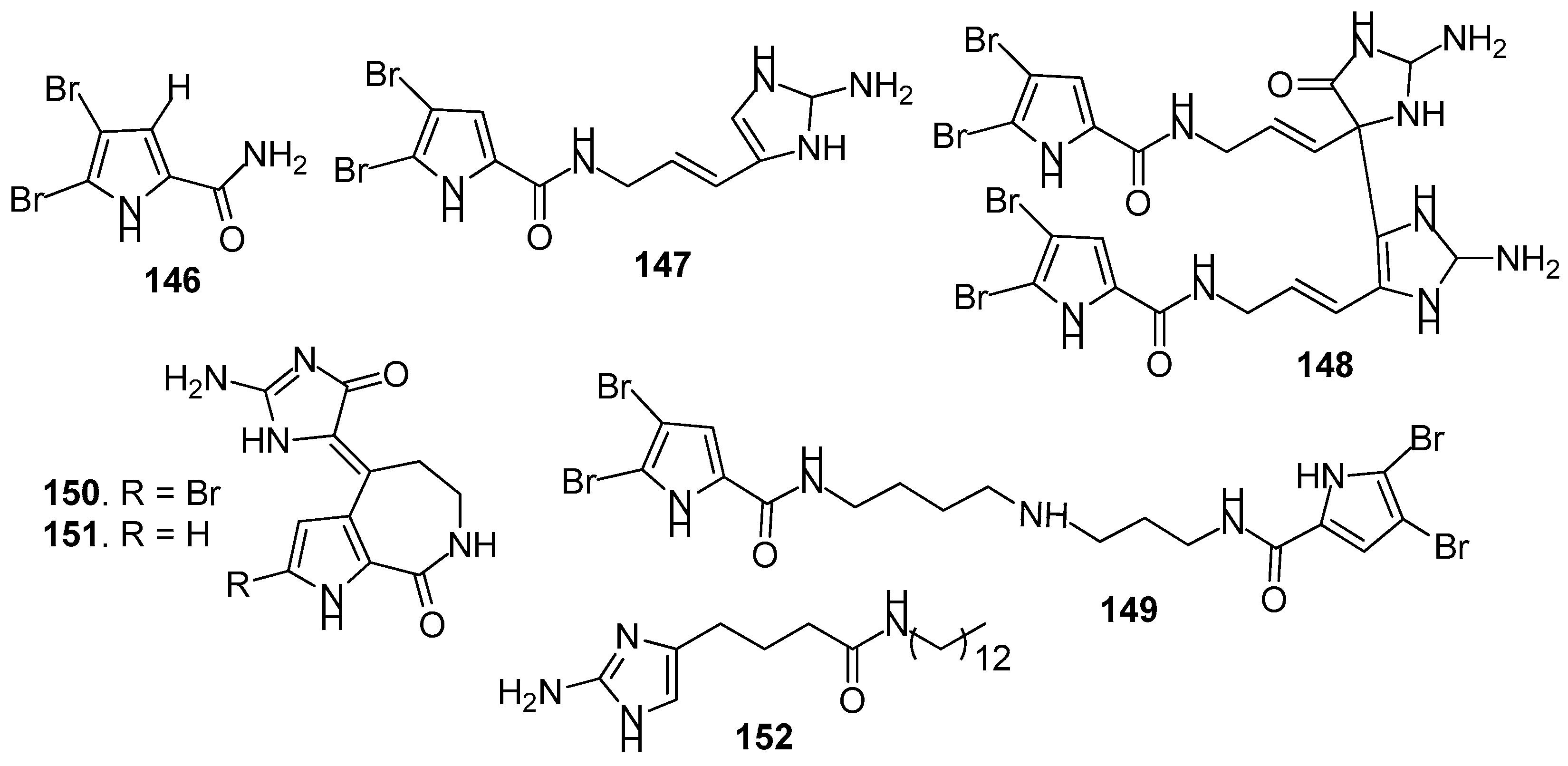

Figure 12. Structures of AF pyrrole-derived compounds from sponges.
Figure 12. Structures of AF pyrrole-derived compounds from sponges.
Marinedrugs 15 00263 g012
Figure 13. Structures of AF pyridine-derived compounds from sponges.
Figure 13. Structures of AF pyridine-derived compounds from sponges.
Marinedrugs 15 00263 g013

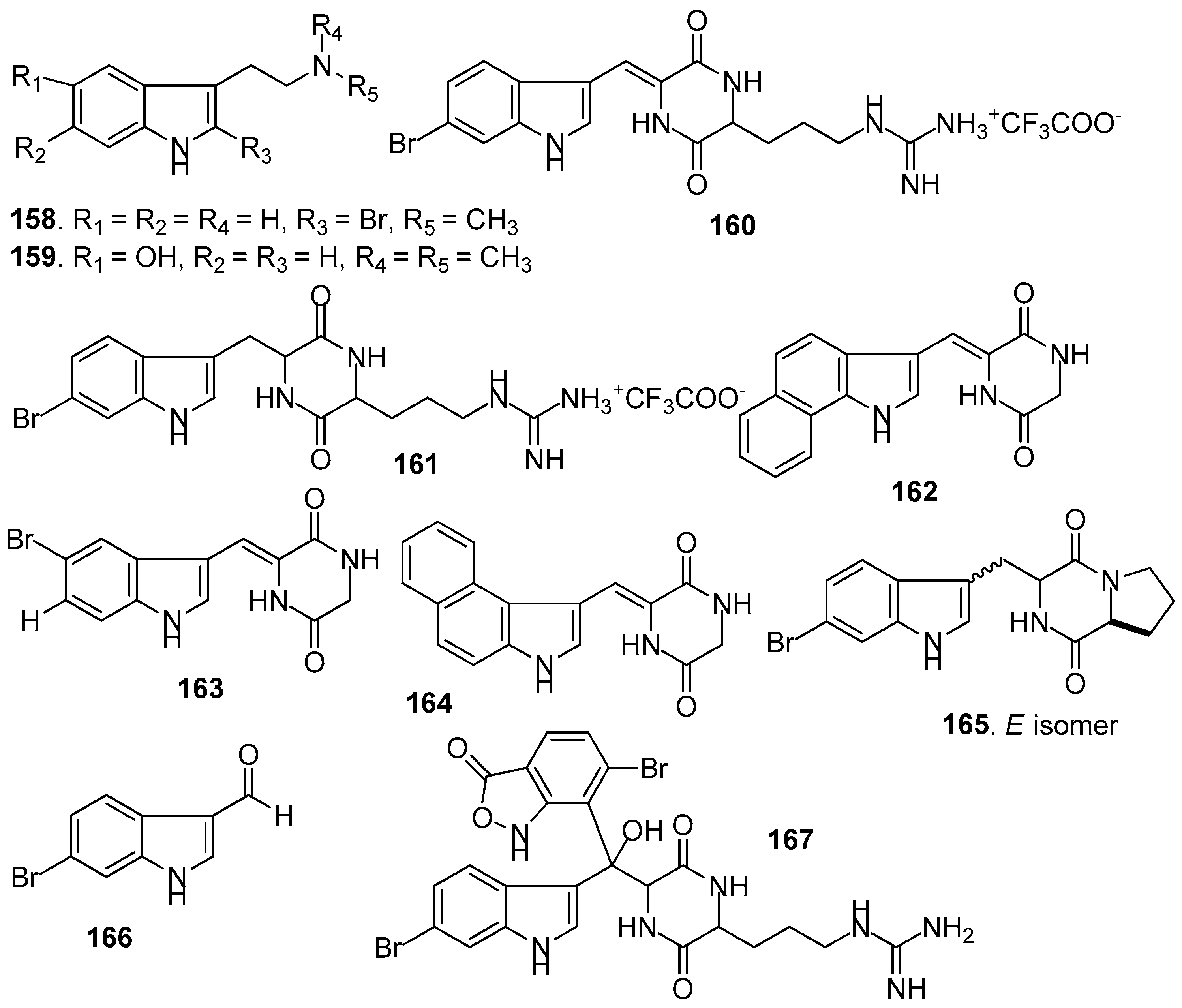

Figure 14. Structures of AF indole alkaloids from sponges.
Figure 14. Structures of AF indole alkaloids from sponges.
Marinedrugs 15 00263 g014

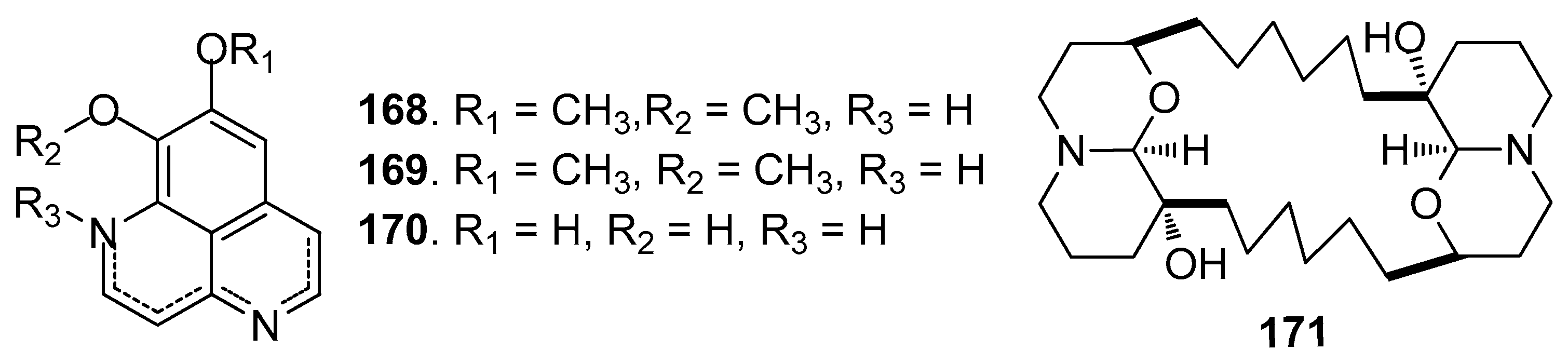

Figure 15. Structures of other kinds of AF alkaloids from sponges.
Figure 15. Structures of other kinds of AF alkaloids from sponges.
Marinedrugs 15 00263 g015
Figure 16. Structures of AF polyacetylene derivatives from sponges.
Figure 16. Structures of AF polyacetylene derivatives from sponges.
Marinedrugs 15 00263 g016
Figure 17. Structures of AF polyacetylene derivatives from sponges.
Figure 17. Structures of AF polyacetylene derivatives from sponges.
Marinedrugs 15 00263 g017
Figure 18. Structures of AF brominated phenol derivatives from sponges.
Figure 18. Structures of AF brominated phenol derivatives from sponges.
Marinedrugs 15 00263 g018
Figure 19. Structures of other kinds of AF compounds from sponges and corals.
Figure 19. Structures of other kinds of AF compounds from sponges and corals.
Marinedrugs 15 00263 g019
Table 1. AF activities of 1198 towards microfouling (mainly by bacteria and diatoms) and macrofouling (mainly by B. amphitrite, B. albicostatus, B. improvises, B. neritina, M. edulis, P. viridis or H. roretzi).
Table 1. AF activities of 1198 towards microfouling (mainly by bacteria and diatoms) and macrofouling (mainly by B. amphitrite, B. albicostatus, B. improvises, B. neritina, M. edulis, P. viridis or H. roretzi).
CompoundsAF Activity
15against B. amphitrite larvae, EC50 = 0.49, 0.45, 1.1, 1.3, 0.85 μg/mL
69against B. amphitrite larvae, EC50 < 0.5 μg/mL
1021against B. amphitrite larvae, EC50 = 1.43, 0.72, 1.48, 1.16, 0.53, 0.74, 1.85, 0.92, 0.69, 0.27, 1.37, 0.41 μM
2223effective in deterring the settlement of the diatom N. closterium
2426against B. amphitrite larvae, EC50 = 1.2, <0.5, <0.5 μg/mL
2730against B. amphitrite larvae, EC50 = 0.65, 3.41, 0.65, 0.45 μg/mL
3132against B. amphitrite larvae, EC50 = 2.5, 2.8 μg/mL
3334significant antilarval activity and toxicity towards B. amphitrite larvae
3537toxicity against the diatom N. closterium with EC50 = 5.24, 6.72, 3.52 μM, and against B. neritina larvae with EC50 = 1.59, 7.41, 1.22 μM
3839against B. amphitrite larvae, EC50 = 2.5, 1.0 μg/mL
4043against B. amphitrite larvae, EC50 = 0.24, 0.80, 0.53, 2.7 μg/mL
44strongly deter fouling by invertebrates and algae
4548against B. amphitrite larvae, EC50 < 7.0 μg/mL
49against B. amphitrite larvae, EC50 = 0.0335 μg/mL
50against B. amphitrite larvae, EC50 = 1.2 μg/mL; against B. neritina larvae, EC50 = 3.2 μg/mL
5152against B. amphitrite larvae, EC50 = 13.86, 23.50 μg/mL
5354against B. amphitrite larvae, EC50 =14.5, 16.7 µM
5564against B. amphitrite larvae, EC50 = 4.1, 1.82, 6.3, 7.6, 4.6, 1.2, 5.6, 0.79, 2.0, 0.2 μg/mL
6578against B. amphitrite larvae, EC50 = 0.004, 0.34, 2.65, 1.61, 3.77, 21.06, 0.004, 0.14, 1.47, 0.51, 0.004, 0.005, 2.82, 0.447 μg/mL
7982against B. amphitrite larvae, EC50 = 5.6, 14.0, 12.6, 11.9 µM, LC50/EC50 > 33.3, > 13, > 14.5, > 11.5, respectively
83against B. amphitrite larvae, EC50 = 0.35 μg/mL
8489against B. amphitrite larvae, EC50 = 0.59, 5.77, 5.14, 8.23, 10.7, 17.8 μg/mL
90against B. amphitrite larvae, EC50 = 9.02 μg/mL, LC50 = 36 μg/mL
91against B. amphitrite larvae, EC50 = 19 ng/mL
9295exhibited inhibition of biofilm maturation of P. aeruginosa, V. harveyi, and S. aureus
9698showed bacterial biofilm inhibition at lower concentrations
99100against B. amphitrite larvae, EC50 = 5.65, 14.03 μg/mL
101102against B. amphitrite larvae, EC50 = 4.86, 4.57 μg/mL; against B. neritina larvae, EC50 = 12.34, 13.48 μg/mL
103104against B. amphitrite larvae, ED50 = 4.32, 2.12 μg/mL, LD50 > 50 μg/mL
105108against B. amphitrite larvae, EC50 = 2.25, 1.75, 8.13, 7.50 μg/mL
109against B. amphitrite larvae, EC50 values ranging 0.02–0.2 μg/mL for 109 and renillafoulins B–C
110inhibited the settlement of the tube worm P. californica at 10 μg/mL
111112against B. amphitrite larvae, EC50 = 4.0, 2.9 μg/mL
113115against B. albicostatus larvae, EC50 = 8.2, 23.5, 31.6 μg/mL
116117inhibited the growth of Pseudoalteromonas and Polaribacter bacterial species
118120against B. neritina with EC50 = 6.25, 7.8 μg/mL, LD50 > 250 μg/mL
121against B. neritina larvae, EC50 = 4.8 μg/mL, LC50 > 100 μg/mL
122125against B. amphitrite larvae, EC50 = 2.5, 7.91, 7.31, 0.81 μg/mL
126against B. amphitrite larvae, EC50 = 16.7 μg/mL; against B. neritina larvae, EC50 = 13.0 μg/mL
127against B. amphitrite larvae, EC50 = 2.5 μg/mL, LC50 > 25.0 μg/mL
128129against B. amphitrite larvae, EC50 = 5.3, 14.5 μg/mL
130131against B. amphitrite larvae, EC50 = 2.2 μg/mL
132133against B. amphitrite larvae, EC50 = from 10.0 to 50.0 μg/mL
134135against B. amphitrite larvae, EC50 = 5.0, 4.3 µg/mL
136139against B. amphitrite larvae, ED50 = from 0.10 to 8.0 μg/ mL
140145inhibited B. amphitrite larval settlement at 1 or 10 μM
146promoted larval metamorphosis of the ascidian C. savignyi at a concentration of 2.5 µg/mL
147148inhibited the larval metamorphosis of B. amphitrite larvae, ED50 = 19, 15 µg/mL
149against B. amphitrite larvae, EC50 = 8.0 µg/mL
150151against the green mussel P. viridis (EC50 = 31.77, 138.18 μg/mL), the bryozoan B. neritina (EC50 = 3.43, 8.17 μg/mL) and the green alga U. prolifera (EC50 = 8.31, 0.67 μg/mL)
152inhibited bacterial attachment towards Pseudomonas with an IC50 = 0.73 μM
153157against B. amphitrite larvae, EC50 = 2.22, 3.6, 0.28, 2.81, 0.53, μg/mL
158159anti-adhesion activity against one marine bacterial strain
160161against B. improvises cyprids, EC50 = 0.9, 7.9 µM
162166against B. improvises cyprids, EC50 = 0.034, 5.8, 1.5, 2.4, 6.7 μM
167against B. improvises cyprids, EC50 =15 nM
168170against zebra mussel attachment with EC50 = 24.2, 11.6, 18.6 μM
171against cyprids of B. amphitrite (EC50 = 6.6 μg/mL, LC50 = 18 μg/mL) and seven strains of fouling bacteria
172180against B. amphitrite larvae with ED50 = 0.24–4.5 µg/mL for 174180; and metamorphosis-inducing activity in the ascidian H. roretzi larvae with ED100 = 0.13–1.3 µg/mL for 172180.
181183EC50 = 18.65, 21.39, 12.58 μg/mL
184186against B. amphitrite larvae, EC50 = 13.5, 16.3, 12.8 μg/mL
187191significant antibacterial and antifouling activity towards marine bacteria, A. coffeaeformis, B. amphitrite and M. edulis
192195against B. amphitrite larvae, ED50 = 15.81, 6.25, 4.81, 7.78 μg/mL, LD50 > 200 µg/mL
196strong inhibition against the settlement of B. amphitrite larvae
197198197 inhibited the settlement of B. improvises larvae at both 0.6 and 6 μM, whereas 198 only at 6 μM
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
