Mar. Drugs 2013, 11(9), 3109-3123; doi:10.3390/md11093109

Article
Pachydictyols B and C: New Diterpenes from Dictyota dichotoma Hudson
Ghada S. E. Abou-El-Wafa 1,, Mohamed Shaaban 2,3,,*, Khaled A. Shaaban 2,, Mohamed E. E. El-Naggar 1,, Armin Maier 4, Heinz H. Fiebig 4 and Hartmut Laatsch 2
1
Department of Botany, Faculty of Science, Mansoura University, Algomhuria St. 60, El-Mansoura 35516, Egypt; E-Mail: dodymarine99@yahoo.com
2
Institute of Organic and Biomolecular Chemistry, University of Göttingen, Tammannstrasse 2, D-37077 Göttingen, Germany; E-Mails: kelbarbary100@yahoo.com (K.A.S.); hlaatsc@gwdg.de (H.L.)
3
Chemistry of Natural Compounds Department, Division of Pharmaceutical Industries, National Research Centre, El-Behoos St. 33, Dokki-Cairo 12622, Egypt
4
Oncotest GmbH, Am Flughafen 12-14, D-79108 Freiburg, Germany; E-Mails: armin.maier@oncotest.de (A.M.); heiner.fiebig@oncotest.de (H.H.F.)
These authors contributed equally to this work.
Deceased on 9 December 2011.
*
Author to whom correspondence should be addressed; E-Mail: mshaaba_99@yahoo.com; Tel.: +202-270-1728 (ext. 2609); Fax: +202-3337-0931.
Received: 19 June 2013; in revised form: 12 August 2013 / Accepted: 12 August 2013 /
Published: 22 August 2013

Abstract

: Two new diterpenoids, pachydictyol B (1a/1b) and C (2), were isolated from the dichloromethane extract of the marine brown alga, Dictyota dichotoma, collected from the Red Sea coast of Egypt, along with the known metabolites, pachydictyol A (3a), dictyol E (4), cis-africanan-1α-ol (5a), fucosterol (6), tetrahydrothiophen-1,1-dioxide and poly-β-hydroxybutyric acid. GC-MS analysis of the nonpolar fractions also indicated the presence of β-bourbonene and nonanal, along with three hydrocarbons and five fatty acids or their simple derivatives, respectively. GC-MS analysis of the unsaponifiable algal petroleum ether extract revealed the presence of a further eight compounds, among them 2,2,6,7-tetramethyl-10-oxatricyclo[4.3.0.1(1,7)]decan-5-one (7), N-(4-bromo-n-butyl)-piperidin-2-one (8) and tert-hexadecanethiol. Structures 16 were assigned by 1D and 2D NMR, mass spectra (EI, CI, HREI and HRESI) and by comparison with data from related structures. The crude algal extract was potently active against the breast carcinoma tumor cell line, MCF7 (IC50 = 0.6 µg mL−1); pachydictyol B (1a) and dictyol E (4) showed weak antimicrobial properties, and the other compounds were inactive. Pachydictyols B (1a) and C (2) demonstrated a weak and unselective cytotoxicity against twelve human tumor cell lines with a mean IC50 of >30.0 µM.
Keywords:
marine brown alga; Dictyota dichotoma; pachydictyols; diterpenes; bioactivity

1. Introduction

Brown algae belonging to the family, Dictyotaceae, are a rich source of biologically active isoprenoids [1,2]. About 200 diterpenoids, belonging to 15 chemical classes, have been isolated from Dictyota spp. [3,4,5]. Some of these compounds are reported to display significant cytotoxic, antiviral, feeding-deterrent and antifouling activities [3,6-10] or were useful for chemotaxonomic and biogenic studies of the genus, Dictyota [11,12]. The production of secondary metabolites in other genera of benthic marine brown algae has also been reported and is often associated with protection against herbivores [13].

During our search for bioactive diterpenoids from marine sources, the brown alga, Dictyota dichotoma (Hudson) Lamouroux, from the Red Sea, was selected for further investigation on the basis of notable in vitro cytotoxicity of a crude extract against the breast carcinoma tumor cell line, MCF7 (IC50 = 0.6 µg mL−1) and on the basis of chemical screening by TLC. Several UV-inactive bands ranging from low to high polarity were detected that turned pink or gave a blue-violet color after spraying with anisaldehyde/sulfuric acid, suggesting the presence of isoprenoids. Soxhlet extraction of the algae using dichloromethane, followed by a series of chromatographic steps, afforded three new diterpenes, cis- and trans-pachydictyol B (1a/1b) and pachydictyol C (2), see Figure 1. Additionally, the known metabolites, pachydictyol A (3a) [3], dictyol E (4) [14,15], cis-africanan-1α-ol (5a) [16], fucosterol (6), poly-β-hydroxybutyric acid and tetrahydrothiophene-1,1-dioxide, were isolated. GC-MS analyses of the nonpolar fraction and of the unsaponifiable residue of the algal extract revealed 18 further components, among them 79 (Supplementary Material, Tables S1 and S2).

Marinedrugs 11 03109 g001 1024

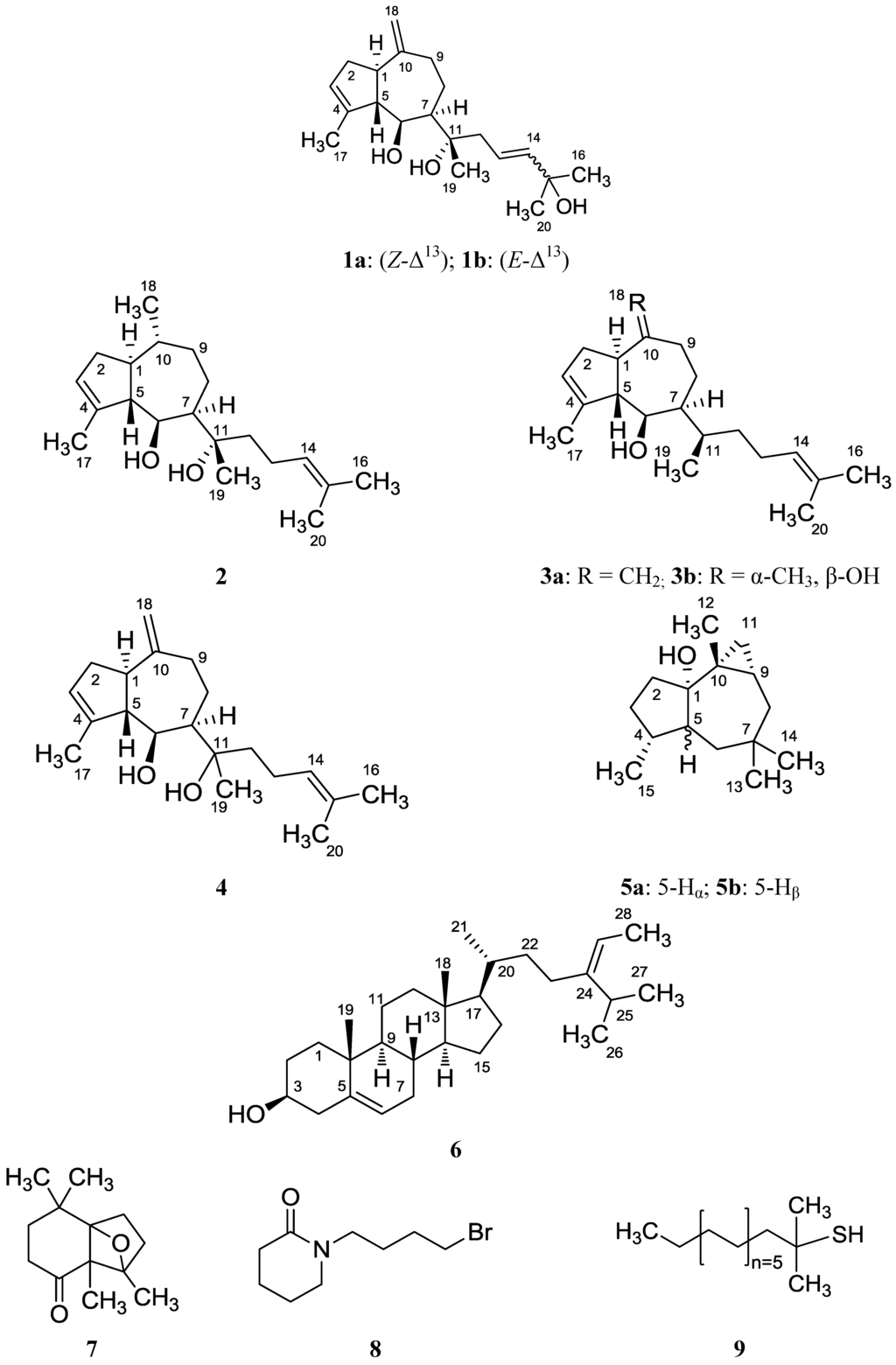

Figure 1. Structures of compounds 19.

Click here to enlarge figure

Figure 1. Structures of compounds 19.
Marinedrugs 11 03109 g001 1024

2. Results and Discussion

2.1. Structure Analysis and Characterization of Isolated Compounds

Separation of D. dichotoma extracts on silica gel delivered eight compounds with a wide range of polarities. Under TLC monitoring, four compounds of moderate to high polarity were especially conspicuous. They were not UV absorbing, but stained intensely violet when sprayed with anisaldehyde/sulfuric acid. The least polar compound and a moderately polar component were identified as pachydictyol A (3a) [3] and dictyol E (4) [14,15], respectively, by means of NMR and MS data. The other two compounds showed a close similarity to 3a and 4 and appeared to be new derivatives thereof.

Compound 1a was obtained as polar colorless oil, with a molecular weight of m/z 320 Dalton by DCI MS. EI MS showed two characteristic fragment ions resulting from the successive loss of two molecules of water. (+)-HRESI MS confirmed the molecular formula as C20H32O3, with the same number of double bond equivalents as in 3a, but with two more oxygen atoms.

The 13C NMR/HMQC spectra of 1a confirmed the expected twenty carbon signals and pointed to a close structural similarity with 3a and 4. The olefinic carbons of 1a had nearly the same shifts as for 3a/4; however, they were assigned by HSQC to three olefinic methines, two sp2 Cq atoms and one exocyclic methylene group (3/2/1) instead of 2/3/1, as in 3a/4. Between δC 70~76, there were three signals from oxygenated carbons visible in the spectrum of 1a, but only one for 3a and two for 4, respectively. This indicated a new dihydroxypachydictyol A, that we named pachydictyol B (1a).

An intensive spectroscopic study of compound 1a revealed the same octahydroazulen-4-ol parent structure substituted at the 7-position as found in pachydictyol A (3a) and dictyol E (4) (Table 1, Table 2). The sp2 methylene protons H2-18 displayed HMBC correlations with the quaternary carbon C-10 (δC 151.6, 2J) and its neighboring methine CH-1 (δC 46.0, 3J) and methylene CH2-9 (δC 40.3) carbons. The angular methine proton at C-1 (δH 2.50) showed three HMBC correlations, with the methine carbon CH-5 (δC 59.8, 2J), the oxy-methine CH-6 (δC 73.9, 3J) and the CH2-9 signal (δC 40.3, 3J), respectively.

Table Table 1. 13C and 1H NMR data of pachydictyols A (3a) and B (1a/1b) in CDCl3 (J in [Hz]).

Click here to display table

Table 1. 13C and 1H NMR data of pachydictyols A (3a) and B (1a/1b) in CDCl3 (J in [Hz]).
positioncis-Pachydictyol B (1a)trans-Pachydictyol B (1b)Pachydictyol A (3a)
δC (a)δH (b)δC (a)δH (c)δC (a)δH (b)
146.02.50 (m) 46.12.52 (m)46.12.67 (m)
233.62.43 (m), 2.13 (m)33.72.46 (m), 2.16 (m)33.92.50 (m), 2.22 (m)
3123.95.28 (m)124.25.30 (m)123.95.33 (m)
4140.8-140.7-141.3-
559.82.33 (m)59.92.36 (m)60.42.30 (m)
673.94.18 (dm, 7.6)74.14.18 (m)75.13.92 (d, 7.8)
748.61.56 (m)49.01.58 (m)47.81.55 (m)
821.61.69 (m)21.61.73 (m), 1.65 (m)23.61.50 (m)
940.32.60 (m), 2.04 (m)40.32.62 (dm, 15.7 Hz), 2.06 (m)40.62.62 (m), 2.10 (m)
10151.6-151.5-152.4-
1175.9-76.0-34.81.21 (m)
1243.82.42 (m), 2.33 (m)44.02.47 (m), 2.37 (m)35.12.25 (m), 1.53 (m)
13122.15.63 (br m)126.45.68 (dt, 15.6, 8.0)25.72.04 (m), 1.95 (m)
14141.65.64 (br m)137.45.60 (d, 15.6)124.65.13 (tq, 8.6, 1.3)
1570.4-81.6-131.4-
1629.41.24 (s)24.71.25 (s)25.81.68 (s)
1715.81.77 (s)15.81.77 (s)15.91.81 (d, 1.3)
18107.34.72 (br s), 4.69 (br s)107.44.74 (s), 4.70 (s)107.04.74 (br s)
1925.41.15 (s)25.51.17 (s)17.60.99 (d, 6.0)
2029.81.25 (s)24.01.28 (s) 17.71.61 (s)

(a) 125 MHz; (b) 300 MHz; (c) 600 MHz.

Table Table 2. 13C and 1H NMR data of pachydictyol C (2), dictyol C (3b) and dictyol E (4) in CDCl3 (J in [Hz]).

Click here to display table

Table 2. 13C and 1H NMR data of pachydictyol C (2), dictyol C (3b) and dictyol E (4) in CDCl3 (J in [Hz]).
positionPachydictyol C (2)Dictyol C (3b) [14]Dictyol E (4)
δC (a)δH δC (a)δH (b)δC (a)δH
149.11.25 (m)49.12.2146.12.53 (q, 9.8)
233.02.21 (m)32.9n.r.33.72.44 (m), 2.16 (m)
3123.25.26 (br m)123.45.26 (br s)123.95.28 (br m)
4142.4-142.5-140.8-
552.72.75 (m)52.7 2.74 (dd,7.8, 6.0)60.02.34 (m)
674.53.86 (dd, 8.2, 3.4)74.43.87 (dd,7.8, 3.6)74.14.14 (dd, 7.9, 2.7)
750.02.15 (m)49.9n.r.48.31.60 (m)
819.81.27 (m), 1.22 (m)19.7n.r.21.51.71, 1.61 (2 m)
934.51.51 (m)46.6n.r.40.42.63 (dm, 14.5), 2.06 (m)
1034.91.19 (m)72.4-151.7-
1172.6-34.4n.r.76.1-
1246.61.40 (m), 1.88 (m)34.7n.r.40.91.67 (m)
1325.62.02 (m), 1.94 (m)25.5n.r.23.21.99 (m)
14124.75.14 (m)124.75.14 (br t, 7.1)124.25.10 (t, 7.1)
15131.3-131.6-131.3-
1625.81.68 (s)25.71.62 (d, 0.9)25.61.64 (s)
1716.31.82 (s)16.31.85 (dd, 2.0, 1.2)15.71.77 (s)
1817.50.97 (d, 6.4)30.01.22 (s)107.34.73 (s), 4.70 (br d, 1.3)
1930.01.19 (s)17.51.00 (d, 6.6)25.11.18 (s)
2017.71.60 (s)17.71.70 (s)17.61.57 (s)

(a) 125 MHz; (b) 300 MHz; n.r., signals not reported.

COSY and HMBC correlations were seen from CH2-2 (δH 2.43, 2.13) to the olefinic methine CH-3 (δH 5.28) and to CH-1 (δC 46.0). A 3JCH coupling from the olefinic methyl CH3-17 (δH 1.77) to CH-3 (δC 123.9), to Cq-4 (δC 140.8) and CH-5 (δC 59.8) completed the methyl-cyclopentene partial structure. The remaining two carbons of the octahydroazulene, CH-7 (δC 48.6, δH 1.56) and CH2-8 (δC 21.6, δH 1.69), were assigned through contiguous H,H COSY correlations between CH2-9 (δH 2.60, 2.04), CH2-8 (δH 1.69), CH-7 (δH 1.56) and CH-6 (δH 4.18) and confirmed by H→C (HMBC) correlations (see Figure 2, left).

Marinedrugs 11 03109 g002 1024

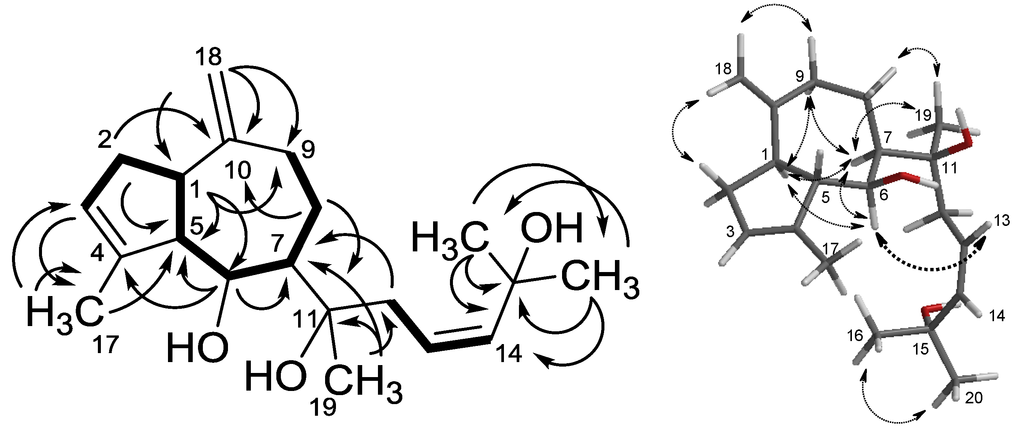

Figure 2. Left: H,H COSY (▬) and selected HMBC (↔) correlations in cis-pachydictyol B (1a); right: selected NOESY couplings in a preferred conformation of 1a.

Click here to enlarge figure

Figure 2. Left: H,H COSY (▬) and selected HMBC (↔) correlations in cis-pachydictyol B (1a); right: selected NOESY couplings in a preferred conformation of 1a.
Marinedrugs 11 03109 g002 1024

A 1,2-disubstituted ethanediyl (–CH=CH–), gem-dimethyls bound to a quaternary oxycarbon [(CH3)2Cq(OH)–] and a –Cq(OH,CH3)–CH2– fragment were identified as sub-structures of the side chain C8H15O2 and connected by HMBC correlations (see Figure 2), resulting in the planar structure, 1a/1b. The high similarity of 1H and 13C NMR shifts of the chiral centers in 1a and 4 (Table 1), as well as NOESY correlations (Figure 2, right), indicated the same relative configuration as found in pachydictyol A (3a) and dictyol E (4): proton H-1 gave NOE signals with H-6 and H-7 and H-7 coupled with H-6 and H-9α (δ 2.04), and H-1 gave a cross signal with H-2α (δ 2.13), indicating a syn-facial orientation of all these hydrogens. This assignment was supported by strong NOE signals between δ 2.43 (H-2β) and δ 4.69 (Z-H-18) or δ 2.60 (H-9β) and δ 4.72 (E-H18), respectively. This agrees very well with semi-empirical calculations [17]. These indicated that in the energy minimum, the exocyclic double bond and the C2β and C9β hydrogens are nearly in the same plane and much closer to CH2-18 than the respective α-protons. The relative configuration in the ring system of 1a/1b, 3a and 4 is, therefore, certainly the same, and for biosynthetic reasons, the same absolute configuration can also be assumed.

The configuration at C-11 was estimated tentatively on the basis of the expected dominating conformation. By AM1 [17], about 5500 conformers were calculated using the Monte Carlo method, of which 99.3% in the Boltzmann distribution (19 of 22 molecules in a range of ~15 kJ/mol above the global minimum) all showed a hydrogen bridge between the hydroxy groups, 6-OH and 11-OH. Due to the restricted rotation around the C-7/C-11 bond resulting thereby, the (11S) configuration with the 11-methyl in β-orientation and an 11α chain (C12-C16) or the corresponding (11R) diastereomer might be differentiated by NOESY data. On this basis, the strong NOE between the double bond protons H-13/14 and both H-6 and H-7 was taken as a clear indication of the (11S) configuration.

In deuteriochloroform at 300 MHz, a 3J coupling between H-13/14 was not visible, due to nearly identical shifts. Inspection of further 1a fractions revealed, however, a second isomer with slightly different 1H and 13C shifts in the region of C-13–C-16/20. In this compound, the olefinic proton, H-14, appeared as a doublet (J = 15.9 Hz), while H-13 gave a doublet of a triplet (J = 15.9, 6.4 Hz), clearly indicating an (E)-configuration of the side chain (Supplementary Material, Figure S7). As all 2D correlations of both isomers, along with the shifts of the chiral centers, were identical (Figure 2 and Figure S11, Supplementary Material), 1a and 1b were determined to be cis- and trans-pachydictyol B, respectively.

A further diterpene 2 was also obtained as a colorless oil. It had similar chromatographic properties as 1a/1b, but a slightly lower polarity. (+)-HRESI MS established the molecular formula as C20H34O2, and EI MS delivered fragment ions at m/z 288 and 270, again due to the successive elimination of two water molecules. In the 1H NMR spectrum, compound 2 displayed the same pattern as dictyol E (4), except that the two exocyclic sp2-methylene signals of CH2-18 in 4 were replaced in 2 by a methyl doublet at δH 0.97 (J = 6.4 Hz), with the coupling partner, H-10, giving a multiplet at δH 1.19. All other shifts and coupling patterns were similar to those of dictyol E (4) (Table 2). The 13C NMR data were identical, within the limits of error, to those of dictyol C (3b) [14], with the exception of the shifts for C-11/12 and C-18/19 in 2 that were pairwise exchanged against C-10/9 and C-19/18 in 3b (see Table 2 and Figure 3). Accordingly, 2 was confirmed as 5-(1-hydroxy-1,5-dimethylhex-4-enyl)-3,8-dimethyl-1,3a,4,5,6,7,8,8a-octahydro-azulen-4-ol and named pachydictyol C.

Marinedrugs 11 03109 g003 1024

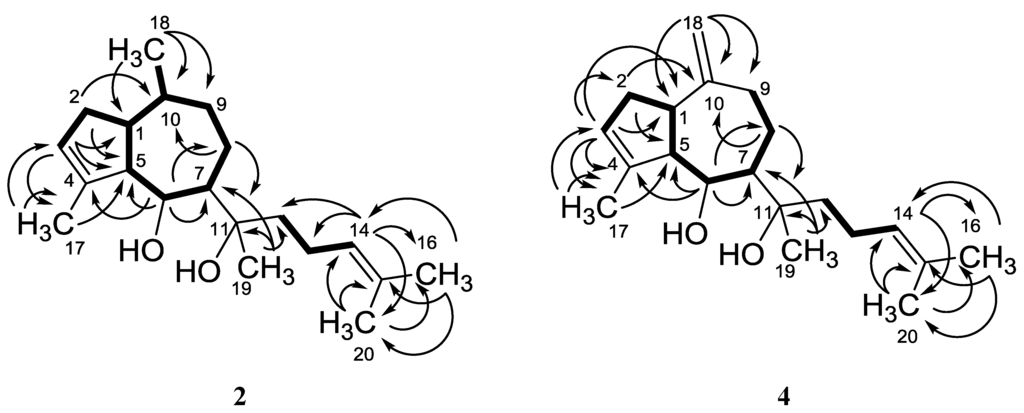

Figure 3. H,H COSY (▬) and selected HMBC (→) couplings in pachydictyol C (2) and dictyol E (4).

Click here to enlarge figure

Figure 3. H,H COSY (▬) and selected HMBC (→) couplings in pachydictyol C (2) and dictyol E (4).
Marinedrugs 11 03109 g003 1024

In contrast to 1a, 3a and 4, compound 2 showed a negative optical rotation ([α]20D = −15°), similar to that of the related 10-methyl derivative dictyol C (3b) ([α]20D = −16.6°) [14]. The configuration of 2 was assumed to be the same as in 1, 3a and 4, with regard to the common biosynthetic origin of all dictyols isolated here, because of the closely related shifts of the respective atoms in 3b and 4 and on the basis of similar NOESY correlations (Figure 4). As H-6 showed a strong NOESY correlation with H-1 and a weaker one with CH3-18, an α-orientation with an equatorial position of this methyl must be assumed. This is confirmed by a clear correlation of H-10 with CH2-13 and CH-14, which both must be placed on the β-face, resulting in a (10R) configuration. Consequently, this compound was assigned as (1S,5S,6S,7R,10R,11S)-2.

Compound 5a did not absorb UV light as well as the other compounds isolated and gave a pink color with anisaldehyde/sulfuric acid. It was obtained as a nonpolar colorless oil with the molecular formula, C15H26O, and identified as cis-africanan-1α-ol, whose structure 5a had been reported previously [16], but was not completely characterized. We report herein the first full NMR assignment of 5a, based on 2D experiments (Table 3, Figure 5).

Marinedrugs 11 03109 g004 1024

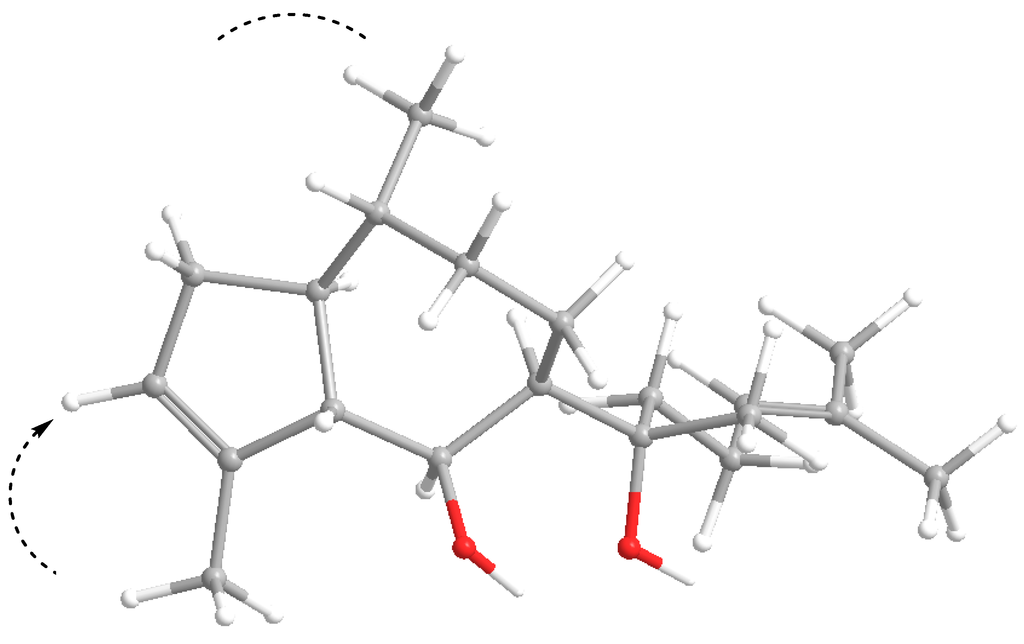

Figure 4. Selected NOESY couplings of pachydictyol C (2).

Click here to enlarge figure

Figure 4. Selected NOESY couplings of pachydictyol C (2).
Marinedrugs 11 03109 g004 1024
Table Table 3. 13C and 1H NMR data of cis-africanan-1α-ol (5a) in CDCl3 (J in [Hz]).

Click here to display table

Table 3. 13C and 1H NMR data of cis-africanan-1α-ol (5a) in CDCl3 (J in [Hz]).
Positioncis-african-1α-ol (5a) Isolatedcis-africanan-1α-ol (5a) [16]trans-africanan-1α-ol (5b) [18]
δC (a)δH (b)δCδHδCδH
183.2-85.3-85.9-
241.31.97 (m), 1.52 (m)38.9*1.47 (m), 1.97 (m)38.11.88 (m), 1.92 (m)
332.71.67 (m), 1.38 (m)32.71.68 (m), 1.35 (m)30.11.96 (m), 1.17 (m)
443.31.32 (m)43.21.31 (m)38.11.74 (m)
555.01.20 (m)54.91.09 (m)49.51.05 (ddd, 11.7, 10.5, 2.7)
641.81.06 (m), 1.00 (m)41.70.99 (m), 1.38 (m)39.81.19 (ddd, 14.4, 2.7, 2.1), 1.28 (dd, 14.4, 11.7)
733.3-33.3-33.0-
838.91.04 (m), 1.49 (m)41.2 *1.05, 1.4739.71.89 (dd, 15.0, 11.8), 1.73 (ddd, 15.0, 5.5, 2.1)
922.30.81 (m)22.20.79 (m) 25.70.74 (m)
1023.6-23.5-26.9-
1115.30.66 (dd, 6.4, 5.2), 0.28 (dd, 8.6, 4.1)15.20.66 (m), 0.27 (m)16.30.74 (m), 0.31 (m)
1226.8 *1.03 * (s)18.91.03 (s)23.51.12 (s)
1328.3 *0.84 * (s)29.10.98 (s)35.10.96 (s)
1429.2 *0.98 * (s)28.20.84 (s)28.00.94 (s)
1518.9 *1.02 * (d, 6.5)26.71.02 (d)19.70.93 (d, 6.5)

(a) 125 MHz; (b) 300 MHz; * differently assigned in the literature.

Marinedrugs 11 03109 g005 1024

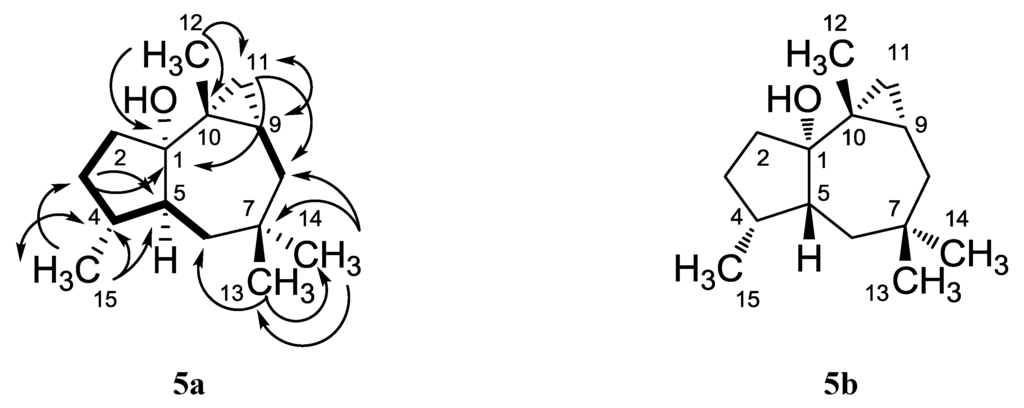

Figure 5. H,H COSY (▬, ↔) and selected HMBC (→) couplings of cis-africanan-1α-ol (5a), along with the structure of trans-africanan-1α-ol (5b).

Click here to enlarge figure

Figure 5. H,H COSY (▬, ↔) and selected HMBC (→) couplings of cis-africanan-1α-ol (5a), along with the structure of trans-africanan-1α-ol (5b).
Marinedrugs 11 03109 g005 1024

In addition, tetrahydrothiophene-1,1-dioxide (sulfolan) was isolated from the nonpolar fraction I [19], while fucosterol (6) and poly-β-hydroxybutyric acid [20,21] were isolated from fraction II. Their structures were confirmed by comparison of their spectroscopic data with that in the literature. Subsequent GC-MS analysis of fraction I and of the unsaponifiable part of a petroleum ether extract of D. dichotoma revealed a further ten (Supplementary Material, Tables S1) and eight compounds (Supplementary Material, Tables S2), respectively, among them 2,2,6,7-tetramethyl-10-oxatricyclo­ [4.3.0.1(1,7)]decan-5-one (7), N-(4-bromo-n-butyl)-piperidin-2-one (8) and tert-hexadecanethiol (9).

2.2. Biological Activities

The crude algal extract showed notable in vitro cytotoxicity against the breast carcinoma tumor cell line, MCF7 (IC50 = 0.6 µg mL−1), but showed only marginal cytotoxicity against brine shrimp (3.1% at 100 µg mL−1) [22,23]. In the agar diffusion test, extracts of D. dichotoma were not active against bacteria (Bacillus subtilis, Staphylococcus aureus, Streptomyces viridochromogenes (Tü 57), Escherichia coli), fungi (Candida albicans, Mucor miehei, Rhizoctonia solani and Pythium ultimum) [24] or the microalgae, Chlorella vulgaris, C. sorokiniana and Scenedesmus subspicatus, as a test for phytotoxicity, at concentrations of 100 µg/disc [25].

(Z)-Pachydictyol B (1a) displayed high antimicrobial activity in the agar diffusion test at 10 µg/paper disc against Mucor miehei (20 mm) and was weakly active against Candida albicans (11 mm) and Pythium ultimum (12 mm). Pachydictyol C (2) showed no antimicrobial activity, and both 1a and 2 were not toxic towards brine shrimp at 10 µg mL−1. At the time of isolation of pure compounds, the MCF7 test was no longer available and has been substituted by other cell lines (Table 4); the in vitro examination demonstrated weak and unselective cytotoxicity against twelve human tumor cell lines, with a mean IC50 of >30.0 µg mL−1; the high activity of the crude extract could not be reproduced.

Table Table 4. Cytotoxic activities of pachydictyols A–C (3a, 1a, 2), Dictyol E (4), cis-africanan-1α-ol (5a) and fucosterol (6).

Click here to display table

Table 4. Cytotoxic activities of pachydictyols A–C (3a, 1a, 2), Dictyol E (4), cis-africanan-1α-ol (5a) and fucosterol (6).
CompoundAntitumor Potency aTumor Selectivity b
Mean IC50 (µM)Mean IC70 (µM)n/total%
cis-pachydictyol B (1a)>30.0>30.00/120
pachydictyol C (2)>30.0>30.00/120
pachydictyol A (3a)23.6>30.00/120
dictyol E (4)>30.0>30.00/120
cis-africanan-1α-ol (5a)>10.0>10.00/120
fucosterol (6)19.5>30.00/120

a Mean IC50/70 values, determined as the average of 12 human tumor cell lines tested. Individual IC50 < ½ mean IC50; e.g., if the mean IC50 = 2.0 µM, the threshold for the above average sensitivity was IC50 < 1.0 µM; b the tumor cell lines are: BXF, bladder; CEXF, cervix; CX,F colorectal; GXF, gastric; LXF, lung; MAXF, breast; MEXF, melanoma xenograft; OVXF, ovarian cancer xenograft; PRXF, prostate; PXF, pleuramesotheliom; RXF, renal; and UXF, uterus body, with XF = Xenograft Freiburg-derived cell line; A, adeno; L, large cell; E, epidermoid cell; S, small cell.

3. Experimental Section

3.1. General Experimental Procedures

NMR shifts were referenced on the solvent signal of CDCl3H = 7.27, δC = 77.0; 300 or 600 MHz for 1H and 125 Hz for 13C). GC-MS spectra were measured on a Trace GC-MS Thermo Finnigan chromatograph, using EI ionization mode (70 eV) and a CP-Sil 8 CB capillary column for amines (length: 30 m; inside diameter: 0.25 mm; outside diameter: 0.35 mm; film thickness: 0.25 µm). The analysis was carried out using a temperature program. The initial temperature was 40 °C (maintained for 1 min), and the temperature was then ramped up at a rate of 10 °C/min to a final temperature of 280 °C (kept for 10 min). The injector and detector temperature were 250 °C, and He was used as the carrier gas at a flow rate of 1 mL min−1. The total run time was 27 min, and the injection volume was 0.2 µL. For details see reference [26].

3.2. Collection and Taxonomy of the Marine Alga

The brown alga, Dictyota dichotoma (Huds) Lamour, was collected in the summer of 2007 at Ras Abu-Bakr, 65 km north of Ras Gharib on Suez-Gulf, Red Sea, Egypt. The identification was carried out by Abou-ElWafa according to Nasr’s method [27,28]. A reference specimen of the alga is kept at the Department of Botany, Faculty of Science, Mansoura University, Egypt.

Samples of Dictyota dichotoma (Huds) Lamour were separated from epiphytes and the dead matrix in running water and rinsed several times in distilled water. The sample was then spread on string nets, allowed to dry in air, ground and stored in closed bottles at room temperature.

3.3. Extraction and Isolation of the Bioactive Constituents

The air-dried algal material (~360 g) was extracted in a Soxhlet apparatus for ~12 h using dichloromethane (DCM). The DCM extract was filtered and the solvent evaporated in vacuo at 40 °C, affording 14.3 g of a greenish brown crude extract. This extract was fractionated on a silica gel column, eluting with petroleum ether (boiling range 40–60 °C)-DCM and DCM-MeOH gradients, delivering five fractions: I (0.11 g), II (3.2 g), III (2.3 g), IV (2.6 g) and V (5.1 g). TLC monitoring was used, with anisaldehyde/sulfuric acid as the spraying reagent. The first nonpolar fraction I was submitted to GC-MS analysis, detecting the existence of tetrahydrothiophen-1,1-dioxide, β-bourbonene and nine further compounds (Supplementary Material, Tables S1). A preparative separation of fraction I on silica gel (eluting with a cyclohexane-DCM gradient) afforded a pale yellow oil, which was further purified on Sephadex LH-20 (DCM/40% MeOH) to give the colorless, oily, tetrahydrothiophene-1,1-dioxide (9 mg, 0.06%). Fraction II was applied to a Sephadex LH-20 (DCM/40% MeOH) to afford two sub-fractions, IIa (0.7 g) and IIb (2.4 g). Sub-fraction IIa was not further investigated. Sub-fraction IIb (2.4 g) was washed with methanol to give the insoluble, colorless solid, poly-β-hydroxybutyric acid (1.47 g, 10.3%). The soluble part of the methanolic extract (0.88 g) was applied to a silica gel column and eluted with a cyclohexane/DCM gradient to deliver pachydictyol A (3a) (18.2 mg, 0.12%) and cis-africanan-1α-ol (5a) (13.1 mg, 0.09%) as colorless oils. Further purification of sub-fraction IIb afforded fucosterol (6, 30.2 mg, 0.21%) as a colorless solid. The eluates from fractions III and IV were combined (4.9 g) and purified on a Sephadex LH-20 column (MeOH) to give sub-fraction IIIa (2.5 g). The latter was further purified by silica gel column chromatography, eluting with DCM-MeOH gradients, to afford the colorless oily compound, dictyol E (4, 55.0 mg, 0.38%). The last polar fraction V was separated by column chromatography on silica gel, again eluting with DCM-MeOH gradients, to give sub-fractions Va (1.2 g) and Vb (50.2 mg). Sub-fraction Va was purified by PTLC (DCM) and a subsequent silica gel column (cyclohexane-DCM) to yield pachydictyol C (2, 8.0 mg, 0.06%) as a colorless oil. Finally, purification of sub-fraction Vb on silica gel (DCM-MeOH) afforded (Z)-pachydictyol B (1a, 30.0 mg, 0.21%) and (E)-pachydictyol B (1b, 13 mg, 0.09%) as colorless oils.

Tetrahydrothiophene-1,1-dioxide: Colorless oil, UV non-absorbing, turned brown on spraying with anisaldehyde/sulfuric acid or by PdCl2 (0.5% in water) and heating; Rf = 0.68 (CH2Cl2/5% MeOH); 1H NMR data (300 MHz, in CDCl3): δ = 3.05 (m, 4H), 2.22 (m, 4H); 13C NMR data (75 MHz, in CDCl3): δ = 50.9 (2 CH2), 22.5 (2 CH2); EI-MS (70 eV): m/z (%) = 122 (34S[M]+•, 2), 120 (32S[M]+•, 44), 56 ([M − SO2]+•, 96), 55 ([M − HSO2]+, 72), 48 (6), 41 (100); HREI-MS: m/z = 120.0245 (calcd. 120.0245 for C4H8O2S).

cis-Pachydictyol B (1a): Colorless oil, UV non-absorbing, turned dark violet on spraying with anisaldehyde/sulfuric acid and heating; Rf = 0.40 (CH2Cl2/3% MeOH), 0.35 (cyclohexane/50% CH2Cl); [α]20D +7 (c = 0.1, MeOH); 1H NMR (300 MHz, in CDCl3) and 13C NMR (150 MHz, in CDCl3), see Table 1; EI-MS (70 eV): m/z (%) = 302 ([M − H2O]+•, 6), 284 ([M − 2H2O]+•, 12), 241 (4), 221 (22), 203 (14), 175 (10), 159 (48), 145 (35), 133 (24), 107 (20), 105 (22), 82 (62), 71 (18), 55 (14), 43 (100), 41 (25); (+)-DCI-MS: m/z (%) = 338 ([M + NH4]+, 100), 320 ([M + NH4 − H2O]+, 76); (+)-HRESI-MS: m/z = 343.22437 [M + Na]+ (calcd. 343.22436 for C20H32O3Na).

trans-Pachydictyol B (1b): The trans isomer was obtained as a colorless oil with similar chromatographic properties and mass spectra as found for 1a, but with a slightly lower polarity (Rf = 0.45 (CH2Cl2/3% MeOH); NMR data, see Table 1.

Pachydictyol C (2): Colorless oil, UV non-absorbing, turned dark violet on spraying with anisaldehyde/sulfuric acid and heating; Rf = 0.55 (cyclohexane/50% CH2Cl2); [α]20D −15 (c = 0.1, MeOH); 1H NMR (300 MHz, in CDCl3), 13C NMR (150 MHz, in CDCl3) see Table 2; EI-MS (70 eV): m/z (%) = 306 ([M]+, 8), 288 ([M − H2O]+•, 84), 270 ([M − 2H2O]+•, 10), 245 (6), 213 (8), 203 (18), 185 (24), 177 (52), 159 (64), 133 (26), 121 (39), 119 (56), 93 (30), 81 (49), 69 (78), 55 (67), 43 (100); (+)-HRESI-MS: m/z = 329.24510 [M + Na]+ (calcd. 329.24510 for C20H34O2Na).

cis-Africanan-1-α-ol (5a): Colorless oil, UV non-absorbing, turned pink on spraying with anisaldehyde/sulfuric acid and heating; Rf = 0.88 (cyclohexane/50% CH2Cl2); [α]20D +7 (c = 0.2, MeOH); 1H NMR (300 MHz, in CDCl3), 13C NMR (150 MHz, in CDCl3) see Table 3; EI-MS (70 eV): m/z (%) = 222 ([M]+, 8), 207 ([M − CH3]+, 16), 175 (12), 159 (34), 125 (58), 95 (38), 81 (46), 69 (88), 41 (100); DCI-MS: m/z (%) = 222 ([M + NH4 − H2O]+, 25), 205 ([M − H2O]+, 100); (+)-HRESI-MS: m/z = 245.18773 [M + Na]+ (calcd. 245.18766 for C15H26ONa).

3.4. Estimation of Phytosterols and Hydrocarbons

A powdered sample (10 g) of Dictyota dichotoma was extracted with petroleum ether (60–80 °C) at room temperature and concentrated in vacuo to give an oily residue (70 mg). This extract was then treated with 50 mL of 10% alcoholic KOH and refluxed in a water bath for 2 h. After cooling, 50 mL of water was added, and the solution was extracted with chloroform. The organic phase was washed with water until it became alkali free and was then dried over anhydrous Na2SO4. The solvent was evaporated to give the unsaponified fraction as oil, which was subsequently subjected to GC-MS analysis [29] (Supplementary Material, Table S2).

3.5. Biological Activity Study

Antimicrobial activity was determined according to Burkholder et al. [24]. The Brine Shrimp Microwell Cytotoxic Assay was performed according to Takahashi et al. and Sajid et al. [22,23]. The in vitro cytotoxicity test was carried out using the sulforhodamine B SRB assay according to Skehan et al. [30].

The antitumor activity testing was performed as follows: A modified propidium iodide assay was used to examine the antiproliferative activity of the compounds against human tumor cell lines. The test procedure has been described elsewhere [31]. Cell lines tested were derived from patient tumors engrafted as a subcutaneously growing tumor in NMRI nu/nu mice or obtained from American Type Culture Collection, Rockville, MD, National Cancer Institute, Bethesda, MD, or Deutsche Sammlung von Mikroorganismen und Zellkulturen, Braunschweig, Germany.

4. Conclusions

Three new pachydictyols, namely (Z)- and (E)-pachydictyols B (1a/1b) and C (2), along with the known pachydictyol A (3a), dictyol E (4), cis-africanan-1α-ol (5a), fucosterol (6), tetrahydrothiophene-1,1-dioxide and poly-β-hydroxybutyric acid, were isolated from the marine brown alga, Dictyota dichotoma. GC-MS analysis of the nonpolar fractions of the algal extract revealed the presence of ten further compounds, whilst the same analysis of the unsaponified petroleum ether extract of the algae detected a further eight compounds (Supplementary Material, Tables S1 and S2). The chemical structures of compounds 16 were assigned by 1D and 2D NMR spectroscopy, mass spectrometry (EI, CI, HREI, HRESI) and by comparison of the data with that of related structures. The algal extract exhibited no antimicrobial activity against a diverse range of microorganisms and no cytotoxicity against brine shrimp. In contrast to the high anticancer activity of the crude extract against the breast carcinoma tumor cell line, MCF7 (IC50 = 0.6 µg mL−1), the purified components were only weakly active (Table 4).

Abbreviations

AM1Austin Model 1 (a model used in quantum physics)
CI MSChemical Ionization Mass Spectra/Mass Spectrometry
COSYCorrelation Spectroscopy
DCI MSDesorption Chemical Ionization
EI MSElectron Impact Mass Spectra/Mass Spectrometry
GC-MS analysisGas Chromatographic-Mass Spectrometric analysis
HMBCHeteronuclear Multiple-Bond Correlation
HMQCHeteronuclear Multiple-Quantum Correlation
HREI MSHigh Resolution Electron Impact Mass Spectra/Mass Spectrometry
HRESI MSHigh Resolution Electrospray Mass Spectra/Mass Spectrometry
HSQCHeteronuclear Single Quantum Correlation
NMRNuclear Magnetic Resonance
NOENuclear Overhauser Effect
NOESYNuclear Overhauser Effect Spectroscopy
PTLCPreparative Thin-layer Chromatography
TLCThin Layer Chromatography

Acknowledgments

The authors are thankful to H. Frauendorf and R. Machinek for MS and NMR measurements. We also thank F. Lissy for biological activity tests, A. Kohl for technical assistance and Sarah Hickford for careful language polishing. M. S. thanks the German Academic Exchange Service (DAAD) for a short-term grant.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vashishta, B.R. Botany for Degree Students, Part 1, Algae, 7th ed.; S. Chand & Company Ltd.: New Delhi, India, 1984; p. 5. [Google Scholar]
  2. Duran, R.; Zubia, E.; Ortega, M.J.; Salva, J. New diterpenoids from the alga Dictyota dichotoma. Tetrahedron 1997, 53, 8675–8688. [Google Scholar] [CrossRef]
  3. Gedaraa, S.R.; Abdel-Halim, O.B.; El-Sharkawya, S.H.; Salama, O.M.; Shier, T.W.; Halim, A.F. Cytotoxic hydroazulene diterpenes from the brown alga Dictyota dichotoma. Z. Naturforsch. 2003, 58b, 17–22. [Google Scholar]
  4. Freitas, O.S.P.; Santos de Oliveira, A.; de-Paula, J.C.; Pereira, R.C.; Cavalcanti, D.N.; Teixeira, V.L. Chemical variation in the diterpenes from the Brazilian brown alga Dictyota mertensii (Dictyotaceae, Phaeophyta). Nat. Prod. Commun. 2007, 2, 13–15. [Google Scholar]
  5. Teixeira, V.L.; Almeida, S.A.; Kelecom, A. Chemsystematic and biogeographic studies of the diterpenes. Biochem. Syst. Ecol. 1990, 18, 87–92. [Google Scholar] [CrossRef]
  6. De-Paula, J.C.; Bueno, L.B.; Cavalcanti, D.N.; Yoneshigue-Valentin, Y.; Teixeira, V.L. Diterpenes from the brown alga Dictyota crenulata. Molecules 2008, 13, 1253–1262. [Google Scholar] [CrossRef]
  7. Suzuki, M.; Yamada, H.; Kurata, K. Dictyterpenoids A and B, two novel diterpenoids with feeding-deterrent activity from the brown alga Dilophus okamurai. J. Nat. Prod. 2002, 65, 121–125. [Google Scholar] [CrossRef]
  8. Schmitt, T.M.; Lindquist, N.; Hay, M.E. Seaweed secondary metabolites as antifoulants. Effects of Dictyota spp. diterpenes on survivorship, settlement, and development of marine invertebrate larvae. Chemoecology 1998, 8, 125–131. [Google Scholar] [CrossRef]
  9. Soto, R.H.; Rovirosa, R.J.; San Martin, A.; Argandona, V. Secondary metabolites of Dictyota crenulata. Bol. Soc. Chil. Quim. 1994, 39, 173–178. [Google Scholar]
  10. Patil, A.D.; Berry, D.; Brooks, D.P.; Hemling, M.E.; Kumar, N.V.; Mitchell, M.P.; Ohlstein, E.H.; Westley, J.W. A diterpene epoxide from the marine brown alga Dictyota sp.: Possible vasopressin V1 receptor antagonist. Phytochemistry 1993, 33, 1061–1064. [Google Scholar] [CrossRef]
  11. Cavalcanti, D.N.; Rezende, C.M.; Pinto, A.C.; Teixeira, V.L. Diterpenoid constituents from the brown alga Dictyota menstrualis (Dictyotaceae, Phaeophyta). Nat. Prod. Commun. 2006, 1, 609–611. [Google Scholar]
  12. Teixeira, V.L.; Cavalcanti, D.N.; Pereira, R.C. Chemotaxonomic study of the diterpenes from the brown alga Dictyota menstrualis. Biochem. Syst. Ecol. 2001, 29, 313–316. [Google Scholar] [CrossRef]
  13. Pereira, R.C.; Teixeira, V.L.; Kelecom, A. Chemical defenses against herbivores in marine algae. 1. The brown alga Dictyota dichotoma (Hudson) Lamouroux from Brazil. An. Acad. Bras. Cienc. 1994, 66, 229–235. [Google Scholar]
  14. Danise, B.; Minale, L.; Riccio, R.; Amico, V.; Oriente, G.; Piattelli, M.; Tringali, C.; Fattorusso, E.; Magno, S.; Mayol, L. Further perhydroazulene diterpenes from marine organisms. Experientia 1977, 33, 413–415. [Google Scholar] [CrossRef]
  15. Ovenden, S.P.B.; Nielson, J.L.; Liptrot, C.H.; Willis, R.H.; Tapiolas, D.M.; Wright, A.D.; Motti, C.A. Update of spectroscopic data for 4-hydroxydictyolactone and dictyol E isolated from a Halimeda stuposa-Dictyota sp. Assemblage. Molecules 2012, 17, 2929–2938. [Google Scholar] [CrossRef]
  16. Fricke, C. Terpenoide Inhaltsstoffe von Lebermosen und Heilpflanzen. Ph.D. Thesis, University Hamburg, Germany, 1999. [Google Scholar]
  17. SPARTAN'08; Wavefunction, Inc.: Irvine, CA, USA, 2009.
  18. Del Coronel, A.; Cerda-García-Rojas, C.M.; Joseph-Nathan, P.; Catalán, C.A.N. Chemical composition, seasonal variation and a new sesquiterpene alcohol from the essential oil of Lippia integrifolia. Flavour Fragr. J. 2006, 21, 839–847. [Google Scholar]
  19. Abou-ElWafa, G.S.E.; Shaaban, M.; Shaaban, K.A.; El-Naggar, M.E.E.; Laatsch, H. Three new unsaturated fatty acids from the marine green alga Ulva fasciata Delile. Z. Naturforsch. 2009, 64b, 1199–1207. [Google Scholar]
  20. Maskey, R.P.; Kock, I.; Shaaban, M.; Grün-Wollny, I.; Helmke, E.; Mayer, F.; Wagner-Döbler, I.; Laatsch, H. Low molecular weight oligo-β-hydroxybutyric acids and 3-hydroxy-N-phenethyl-butyramide new products from microorganisms. Polym. Bull. 2002, 49, 87–93. [Google Scholar]
  21. Anderson, A.J.; Dawes, E.A. Occurrence, metabolism, metabolic role, and industrial uses of bacterial polyhydroxyalkanoates. Microbiol. Rev. 1990, 54, 450–472. [Google Scholar]
  22. Takahashi, A.; Kurasawa, S.; Ikeda, D.; Okami, Y.; Takeuchi, T. Altemicidin, a new acaricidal and antitumor substance. I. Taxonomy, fermentation, isolation and physico-chemical and biological properties. J. Antibiot. 1989, 32, 1556–1561. [Google Scholar]
  23. Sajid, I.; Fondja Yao, C.B.; Shaaban, K.A.; Hasnain, S.; Laatsch, H. Antifungal and antibacterial activities of indigenous Streptomyces isolates from saline farmlands: Prescreening, ribotyping and metabolic diversity. World J. Microbiol. Biotechnol. 2009, 25, 601–610. [Google Scholar] [CrossRef]
  24. Burkholder, P.R.; Burkholder, L.M.; Almodovar, L.R. Antibiotic activity of some marine algae of Puerto Rico. Bot. Mar. 1960, 2, 149–156. [Google Scholar]
  25. Biabani, M.A.F.; Baake, M.; Lovisetto, B.; Laatsch, H.; Helmke, E.; Weyland, H. Anthranilamides: New antimicroalgal active substance from a marine Streptomyces sp. J. Antibiot. 1998, 51, 333–340. [Google Scholar] [CrossRef]
  26. Zinad, D.S.; Shaaban, K.A.; Abdalla, M.A.; Islam, T.; Schüffler, A.; Laatsch, H. Bioactive isocoumarins from a terrestrial Streptomyces sp. ANK302. Nat. Prod. Commun. 2011, 6, 45–48. [Google Scholar]
  27. Nasr, A.H. The Marine Algae of Alexandria. 1—A Report on Some Marine Algae Collected from the Vicinity of Alexandria; Notes and Memoirs No. 36. Government Press: Cairo, Egypt, 1940; p. 33. [Google Scholar]
  28. Abou-El Wafa, G.S.E.; El-Naggar, M.E.E. Studies on the biological activities of some species of Egyptian marine algae. Personal communication, 2005. [Google Scholar]
  29. Abou-El Wafa, G.S.E. Comparative Studies on Biogenic Compounds in Some Species of Egyptian Marine Algae. Ph.D. Thesis, El-Mansoura University, Egypt, 2011. [Google Scholar]
  30. Skehan, P.; Storeng, R.; Scudiero, D.; Monks, A.; McMahon, J.; Vistica, D.; Warren, J.T.; Bokesch, H.; Kenney, S.; Boyd, M.R. New colorimetric cytotoxicity assay for anticancer-drug screening. J. Natl. Cancer Inst. 1990, 82, 1107–1112. [Google Scholar] [CrossRef]
  31. Dengler, W.A.; Schulte, J.; Berger, D.P.; Mertelsmann, R.; Fiebig, H.H. Development of a propidium iodide fluorescence assay for proliferation and cytotoxicity assays. Anticancer Drugs 1995, 6, 522–532. [Google Scholar] [CrossRef]

Supplementary Files

  • Supplementary File 1:

    Supplementary Information (PDF, 4646 KB)

  • Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
