The Extracted Ion Chromatogram (EIC) of protonated molecular ions ([M + H]⁺) from the most common phlorotannins found in literature (dioxinodehydroeckol (371), eckol (373), fucophloroethol (375), 7-phloroeckol (497), fucodiphloroethol (499), phlorofucofuroeckol (603), fucotriphloroethol (623), dieckol (743), and fucophloroethols with six (747), seven (871) and eight units of phloroglucinol (995)) was used for the study of phlorotannins by HPLC-DAD-ESI-MSⁿ. Furthermore, the MS fragmentations of other peaks observed in the UV chromatogram were studied.

Phlorotannins analysis was carried out in F. spiralis, C. usneoides, C. tamariscifolia and C. nodicaulis purified extracts (Figure 1).

In the EIC of F. spiralis and of C. usneoides, the presence of well-defined and abundant ions, 1–8 and 9–12, respectively, could be noticed, which can correspond tentatively to phlorotannins. On the other hand, in the EIC of C. tamariscifolia and C. nodicaulis, the ions are found in trace amounts and appear co-eluting with other compounds (Figure 1). Figure 2 shows the UV chromatograms recorded at 280 nm of the extracts of the four studied species, exhibiting some abundant peaks that do not correspond to any of the studied ions. Ions corresponding to the compounds tentatively identified as phlorotannins are not abundant in the chromatograms of C. tamariscifolia and C. nodicaulis.

The MS study of the ions allowed the detection of two isomers, 9 and 11, in C. usneoides, with protonated molecular ions ([M + H]⁺) at m/z 375 (Figure 3). These compounds showed similar fragmentation patterns in which some ions are characteristic of phlorotannins fragmentation, with losses of one and two molecules of water (−18 and −36, respectively), phloroglucinol (−126), as well as the protonated molecular ion of phloroglucinol (m/z 127), the base peak being the ion resulting from the loss of phloroglucinol and methyl (m/z 235, −126 − 14) (Figure 4A, Table 1). Based on the MS data, compounds 9 and 11 were considered to be phlorotannins composed by three phloroglucinol units and were tentatively identified as fucophloroethol isomers. In fact, isomers of fucophloroethols with the same molecular ion can occur, depending on the position of the aryl linkage [25].

Isomers with [M + H]⁺ at m/z 499, phlorotannins tetramers, compounds 1 in F. spiralis and 10 in C. usneoides, were also observed, which can correspond tentatively to tetrafucol and/or fucodiphloroethol (Figure 3). Their MS² shows losses similar to those listed above (−18, −126/−127, among others), and the base peak in both is the ion at m/z 355 (−126 − 18). These losses were also detected in the other compounds, whose protonated molecular ions indicated them as polymers with several phloroglucinol units. Thus, in C. usneoides, compound 12 (with protonated molecular ion at m/z 623) is suggested to be a polyphenolic compound composed by five phloroglucinol units, possibly a fucotriphloroethol (Figure 3). In F. spiralis, compound 2 ([M + H]⁺ at m/z 747) can be a polyphenolic compound composed of six units of phloroglucinol.

Compounds 3–5, with m/z 871, were tentatively identified as three isomers of phlorotannins. Although the peak corresponding to 871 mass units is routinely correlated with chlorophyll, the preparation of the extracts involved a purification step in order to remove pigments, namely chlorophylls, as referred above. Furthermore, the fragmentation pattern of the compounds, with specific mass losses consistent with phloroglucinol and water units (and no mass loss consistent with nitrogen, which exists in chlorophyll), led us to assume that the compounds are phlorotannins containing seven phloroglucinol units, which is in agreement with the literature [26]. The other three (compounds 6–8) with m/z 995 (eight units of phloroglucinol) were also detected in this species (Figure 4B, Table 1).

Species belonging to the order Fucales [26,27] and Laminariales [12,28] have been the subject of many studies, allowing the identification of several phlorotannins structures, such as eckol, dieckol, 8,8′ dieckol, 6,6′ bieckol, 8,8′ bieckol, phlorofucofuroeckol-A and B, fucofuroeckol-A, dioxinodehydroeckol, 2-phloroeckol, 7-phloroeckol, fucodiphloroethol-G and triphloroethol.

Phlorotannins elucidation is a rather complex task, even more so as no reference compounds are commercially available. Recently, Steevensz and his research group characterized the phlorotannins of five brown algae species by ultrahigh-pressure liquid chromatography operating in hydrophilic interaction liquid chromatography mode and combined with high resolution mass spectrometry [25]. The methodology proposed by this research group proved to be accurate for profiling phlorotannins based on their degree of polymerization, but did not allow the identification of the phlorotannins’ chemical groups.

Thus, in the present work, 22 different phlorotannins belonging to eckol and fucophloroethol main groups were characterized in the studied seaweeds: eight in C. nodicaulis, two in C. tamariscifolia, four in C. usneoides and eight in F. spiralis (Figure 1 and Figure 2, Table 1). To our knowledge, with the exception of fucols and fucophloroethols groups identified in F. spiralis [20], and bifuhalol and diphloroethol identified in C. tamariscifolia [21], none of the compounds described herein were previously reported in these species.

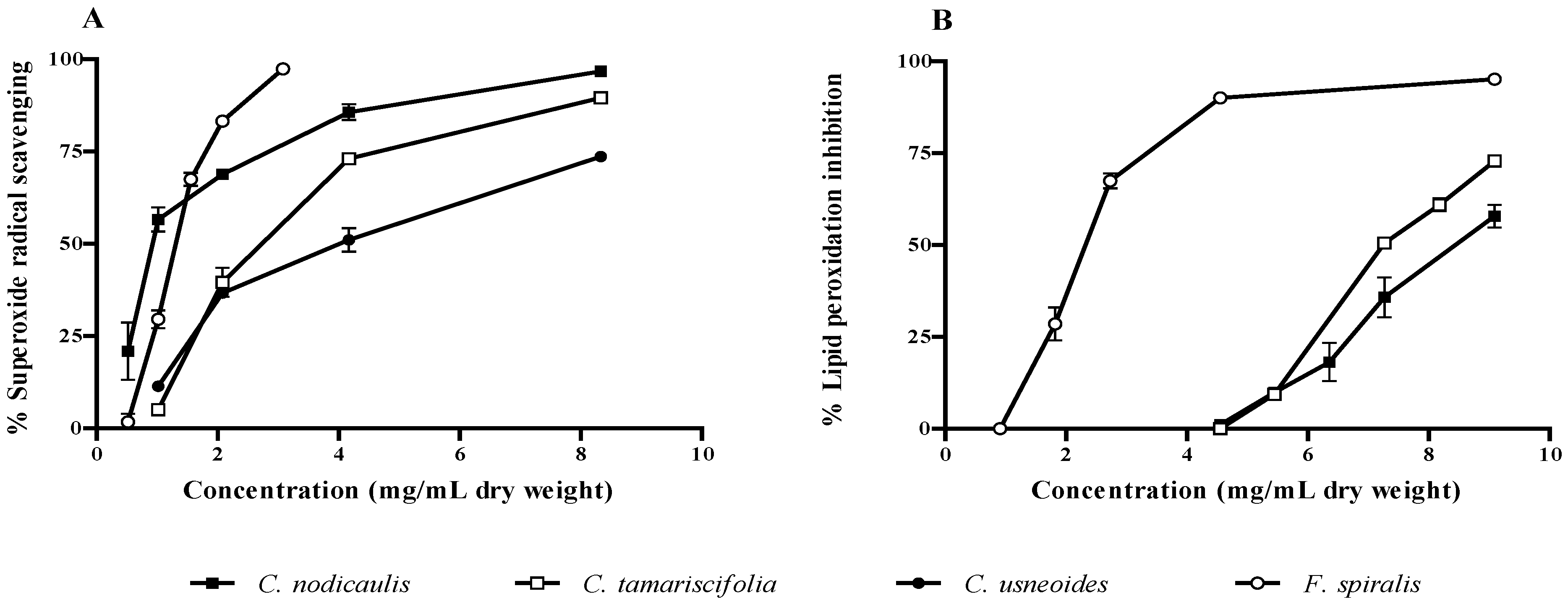

The antioxidant potential of purified phlorotannin extracts was checked against superoxide radicals and lipid peroxidation. A concentration-dependent pattern was observed in both assays. C. nodicaulis and F. spiralis were the species with the highest radical scavenging capacity, presenting IC₅₀ values of 0.93 and 1.30 mg/mL (dry weight), respectively (Figure 5A, Table 2). The IC₅₀ found for these two species was significantly lower than those obtained for C. tamariscifolia and C. usneoides (P < 0.0001). Concerning lipid peroxidation inhibition, F. spiralis was the most effective, displaying an IC₅₀ value (2.32 mg/mL, dry weight) significantly lower than those found for both C. nodicaulis and C. tamariscifolia (P < 0.0001) (Figure 5B, Table 2). The protective activity of C. usneoides against lipid peroxidation was not higher than 15% for the highest concentration tested (100 mg/mL dry weight, Table 2).

Anti-radical activity is highly important when there is an uncontrolled production of reactive species in the body and the endogenous antioxidants are not able to overcome their deleterious effects. Oxidative stress occurs in the cells because an imbalance between the pro-oxidant/antioxidant systems takes place, causing injury to biomolecules, such as nucleic acids, proteins, structural carbohydrates and lipids. Among these targets, the peroxidation of lipids is basically damaging, because the derived products lead to the spread of free radical reactions [13,14].

Skin aging has been associated with the increased peroxidation of skin lipids, namely of squalene, which constitutes the main component of skin surface polyunsaturated lipids and is easily peroxided. Peroxidation of fatty acyl groups of membrane phospholipids is one of the major outcomes of free radical mediated injury to tissue, leading to cell damage by continuous chain reactions. In addition, lipid peroxidation may be responsible for the activation of phospholipase A2, production of many mediators by arachidonate, deactivation of adenylate cyclase and activation of guanilate cyclase, leading to the decrease of the cAMP/cGMP ratio, responsible for epidermal proliferation. Thus, the physicochemical properties of the membrane lipid bilayers can be greatly altered, resulting in severe cellular dysfunction [14].

Several works have concerned the antioxidant activity of crude phlorotannin extracts and isolated compounds. Zubia and co-workers assessed the antioxidant capacity of 10 brown seaweeds from the Brittany coast [29]. Species belonging to the order Fucales, mainly the ones of the genus Fucus and Cystoseira, displayed the strongest activity, which was positively correlated with their phenolics content. Audibert et al. studied the radical scavenging activity of purified extracts of phlorotannins against DPPH and ABTS radicals and concluded that the antioxidant activity of the extracts was related to the content of phlorotannins and to their molecular weight [5]. Similar results were obtained by Shibata and colleagues with phlorotannins isolated from Laminariaceous [12]. These authors found that the increase of molecular weight of the isolated phlorotannins leads to a decrease of the antioxidant activity. On the other hand, Wang et al. assessed the antioxidant activity of phlorotannins fractions from Fucus vesiculosus Linnaeus against DPPH radical, but no clear relationship was found between the antioxidant capacity and the degree of polymerization/molecular weight of phlorotannins [4]. Liu and Gu studied the ability of the same species to scavenge carbonyls by the formation of adducts, concluding that phlorotannins were effective in inhibiting the formation of advanced glycation end products, which are a class of compounds associated with skin aging [6].

According to these previous reports, it is possible to establish a correlation between phlorotannins composition and biological activity. Thus, F. spiralis is the species displaying the lowest IC₅₀ regarding lipid peroxidation inhibition and C. nodicaulis the one showing the best superoxide scavenging capacity, but almost no activity against lipid peroxidation (Figure 4, Table 2). It seems that extracts with lower molecular weight phlorotannins are more effective as superoxide radical scavengers, and those with higher molecular weight are better in inhibiting lipid peroxidation (Table 1 and Table 2).

Recently, we have reported the antioxidant activity of purified phlorotannin extracts, addressed by the nitric oxide (^•NO) scavenging ability, in cell free systems. F. spiralis and C. nodicaulis exhibited the highest capacity for ^•NO scavenging [2]. It is well known that ^•NO reacts rapidly with superoxide radical to form peroxynitrite (ONOO⁻) [30]. As the studied species showed capacity for scavenging both ^•NO and superoxide radicals, they can prevent the generation of ONOO⁻, a strong oxidant with a lethal effect on many cells.

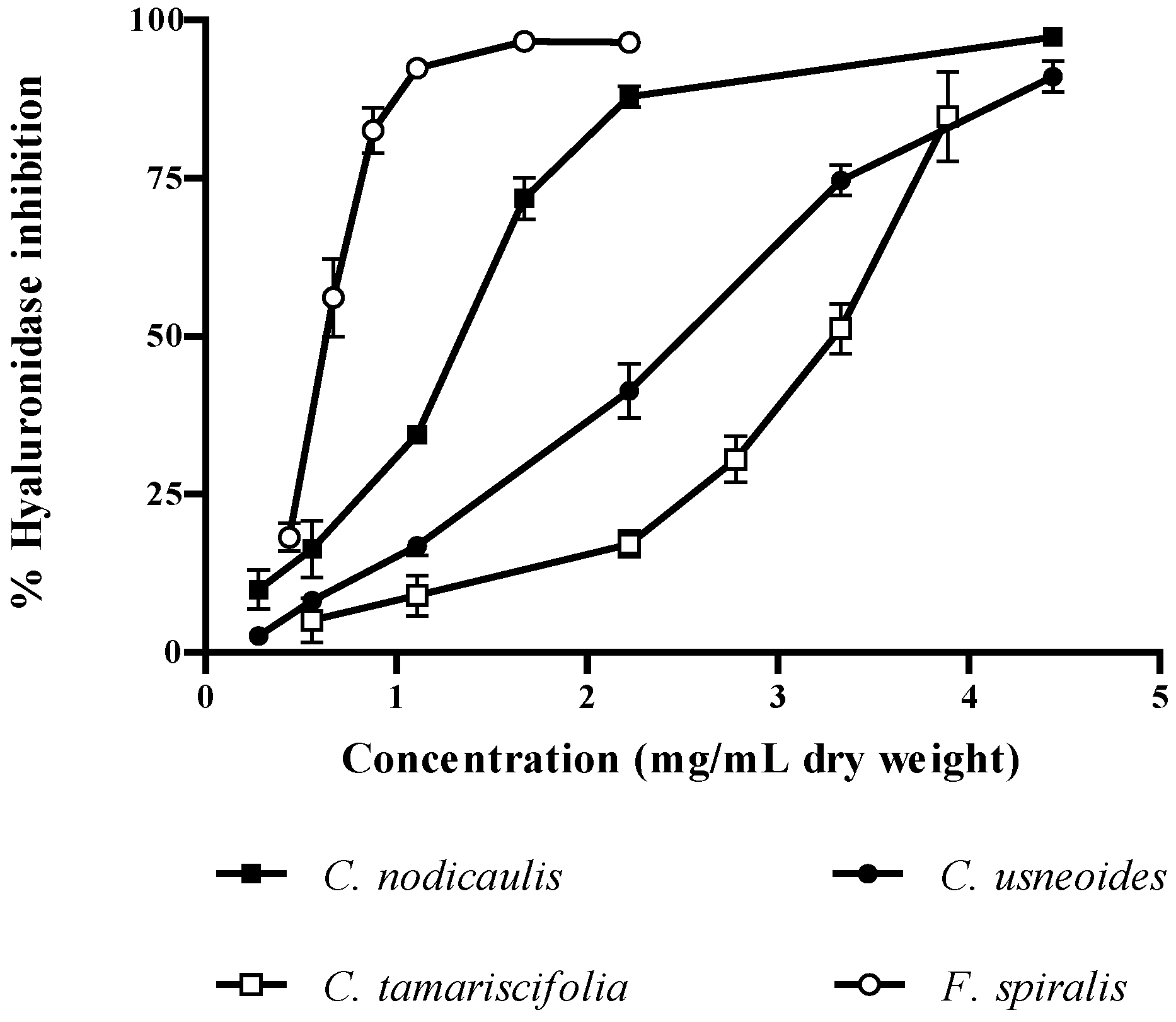

As referred to above, HAase is an enzyme responsible for the depolymerization of HA, a polysaccharide present in the extracellular matrix of the connective tissue and in body fluids. This enzyme is known to be involved in allergic effects, migration of cancer and inflammation, increasing the permeability of the vascular system. As so, potent HAase inhibitors might have anti-allergic, anticancer and anti-aging activities, becoming leading compounds in the development of new drugs [7,15]. Of the species studied herein, F. spiralis demonstrated the highest capacity for HAase inhibition (IC₅₀ = 0.73 mg/mL dry weight), C. tamariscifolia being the less effective (Figure 6, Table 2). All of the IC₅₀ values found were significantly different (P < 0.0001).

Phlorotannins are reported as anti-allergic and potential anti-aging agents, owing to their strong inhibitory effect on the activation of HAase. Sugiura and co-workers performed a bioguided fractionation of a methanol:chloroform extract of the brown seaweed Eisenia arborea Areschoug and identified six phlorotannins, phlorofucofuroeckol-B showing the strongest activity [31]. HAase inhibition assay was also performed with crude phlorotannins extracted from five brown seaweeds from Pakistan and China [10]. A positive correlation between the extracts activity and the total phlorotannins content was observed. Sargassum tennerimum J. Agardh was the most active species, exhibiting an IC₅₀ value lower than that of disodium cromoglycate, a natural inhibitor of hyaluronidase. In addition, Shibata and colleagues observed that phlorotannins, like eckol, phlorofucofuroeckol A, dieckol and 8,8′-bieckol, exert a stronger inhibition of hyaluronidase than well-known inhibitors, such as catechin and sodium cromoglycate, and that phlorotannins with higher molecular weight are more effective [11].

Our findings seem to be in good agreement with previous reports. In fact, the better results obtained with F. spiralis extract are not surprising, as this species possesses the highest total phlorotannins content [2]. Furthermore, it also contains the ones with higher molecular weight, as demonstrated herein (Figure 2, Table 1). However, the structure of phlorotannins appears to be more important than its amount. The genus Cystoseira is a good example: despite having a much lower phlorotannins content than C. tamariscifolia [2], C. nodicaulis and C. usneoides present significantly lower IC₅₀ values for HAase inhibition (Figure 6, Table 2).

Formic acid, sodium chloride (NaCl), HAase from bovine testes (type IV-S), β-nicotinamide adenine dinucleotide reduced form (NADH), nitrotetrazolium blue chloride (NBT), phenazine methosulphate (PMS), L-ascorbic acid, sodium formate, trizma hydrochloride (Tris-HCl) and bovine serum albumin (BSA) were from Sigma-Aldrich (Steinheim, Germany). HA sodium salt from Streptococus equi was from Sigma-Aldrich (Prague, Czech Republic). Linoleic acid was from Calbiochem (San Diego, USA). Ethanol, hydrochloric acid (HCl), diethyl ether and potassium hydroxide (KOH) were from Panreac (Barcelona, Spain). HPLC-grade methanol, acetonitrile, potassium di-hydrogen phosphate buffer, di-sodium tetraborate, iron (II) sulfate (FeSO₄·7H₂O) and 4-dimethylaminobenzaldehyde (DMAB) were obtained from Merck (Darmstadt, Germany). Glacial acetic acid was purchased from Fisher Scientific (Loughborough, UK).

Water was deionized using a Milli-Q water purification system (Millipore, Bedford, MA, USA).

Brown seaweeds used in this work are indigenous from the coast of Peniche (West Portugal). Several individuals in the same stage of development were randomly collected and identified by Teresa Mouga, PhD (GIRM). C. usneoides and C. nodicaulis were collected in 2009 and C. tamariscifolia and F. spiralis were collected in 2008.

After collection, samples were immediately transported to the laboratory in ice boxes, washed with sea water, frozen and lyophilized in a Labconco 4.5 Freezone apparatus (Kansas City, MO, USA). Thereafter, the dried samples were ground (particle size ≤910 µm) and stored into a desiccator, in the dark, until phlorotannins extraction.

Dried purified phlorotannin extracts were obtained as reported before [2]. Briefly, the powdered material was defatted with hexane and extracted with acetone:water (7:3). The extract was purified with cellulose, which was further washed with toluene. Afterwards, cellulose was rinsed with acetone:water (7:3) to recover the adhered phlorotannins, the filtrate was evaporated and the dried extract was dissolved in the appropriate solvent prior to analysis.

Chromatographic analyses were carried out on a Luna C18 column (250 × 4.6 mm, 5 µm particle size; Phenomenex, Macclesfield, UK). The mobile phase consisted of two solvents: 1% formic acid in water (A) and acetonitrile (B). Elution was performed as follows: 0–10 min, 0% B; 30 min, 30% B; 35 min, 80% B; 40 min, 80% B; 42 min, 0% B; 52 min, 0% B. The flow rate was 1 mL/min and the injection volume was 20 µL. Spectral data from all peaks were accumulated in the range 240–400 nm, and chromatograms were recorded at 280 nm. The HPLC-DAD-ESI-MSⁿ (n = 1–2) analyses were carried out in an Agilent HPLC 1100 series equipped with a diode array detector and mass detector in series (Agilent Technologies, Waldbronn, Germany). The HPLC consisted of a binary pump (model G1312A), an auto-sampler (model G1313A), a degasser (model G1322A) and a photodiode array detector (model G1315B). The HPLC system was controlled by the ChemStation software (Agilent, v. 08.03). The mass detector was an ion trap spectrometer (model G2445A) equipped with an electrospray ionization interface and was controlled by LCMSD software (Agilent, v. 4.1). The ionization conditions were adjusted at 350 °C and 4 kV for capillary temperature and voltage, respectively. The nebulizer pressure and flow rate of nitrogen were 65.0 psi and 11 L/min, respectively. The full scan mass covered the range from m/z 100 up to m/z 1500. Collision-induced fragmentation experiments were performed in the ion trap using helium as the collision gas, with voltage ramping cycles from 0.3 up to 2 V. Mass spectrometry data were acquired in the positive ionization mode.

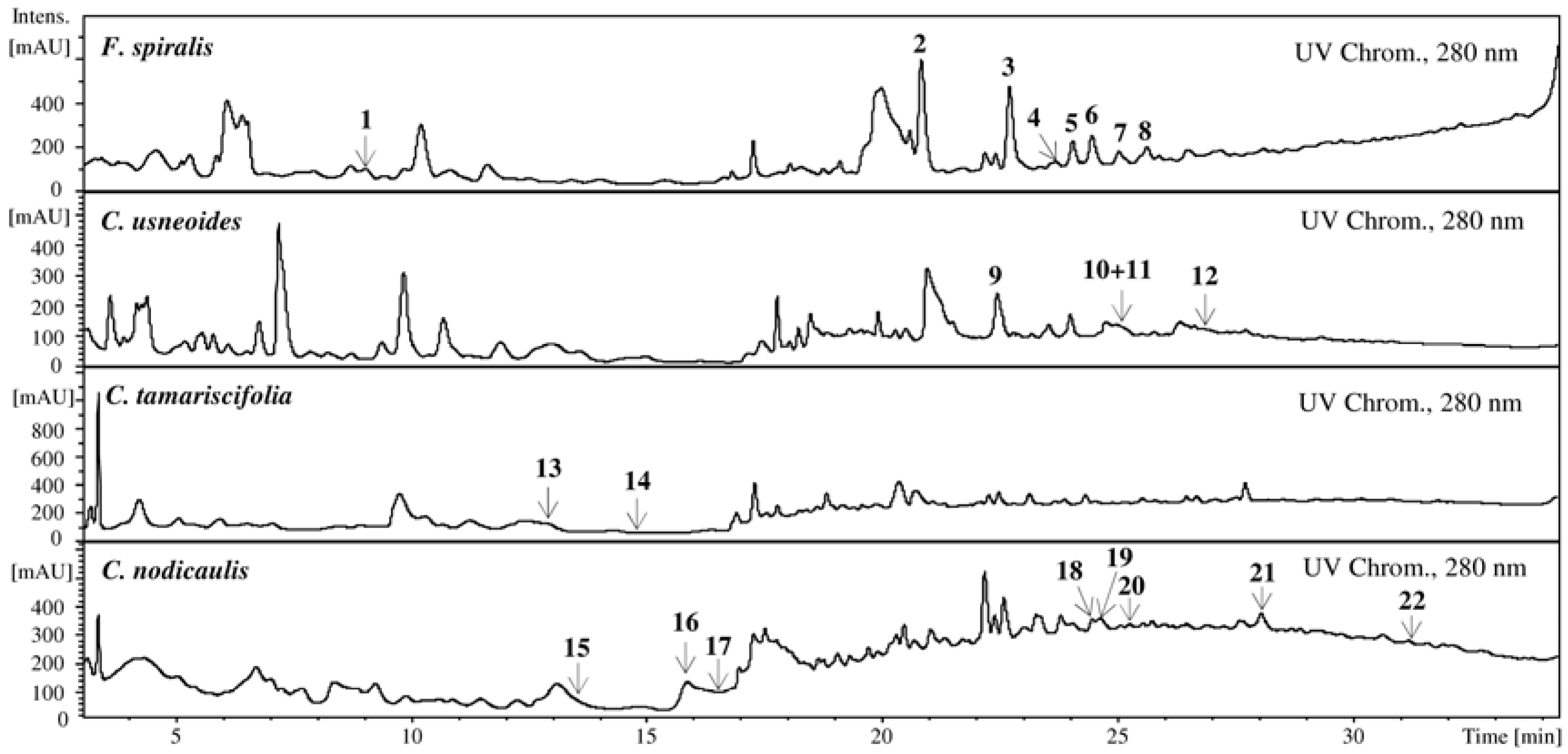

In Figure 2 and Table 1, the compounds were numbered following elution order. As so, numbering started by F. spiralis (1–8) and followed to C. usneoides (9–12), C. tamariscifolia (13, 14) and C. nodicaulis (15–22).

HAase inhibition assay was modified from that proposed by Muckenschnabela and co-workers [35]. A stock solution of 5 mg/mL HA was prepared in water and stored at 4 °C. HA stock solution (50 µL) and 100 µL of buffer (0.2 M sodium formate, 0.1 M NaCl and 0.2 mg/mL BSA, pH adjusted to 3.68 with formic acid) were added to 200 µL of water. Sample serial dilutions were prepared in water and 50 µL of each dilution were added to each reaction tube. The reaction was started by the addition of 50 µL of HAase (600 U/mL) prepared in NaCl 0.9%.

The enzymatic reaction was stopped by adding 25 µL of an alkaline solution consisting of di-sodium tetraborate (0.8 M in water) and subsequent heating for 3 min in a boiling water bath. The test tubes were cooled at room temperature and 750 µL of DMAB solution was added (2 g of DMAB dissolved in a mixture of 2.5 mL of 10 N HCl and 17.5 mL of glacial acetic acid and further diluted 1:2 with glacial acetic acid immediately before use).

The tubes were incubated at 37 °C for 20 min. The absorbance of the colored product was measured at 560 nm in a Multiskan Ascent plate reader. Three independent assays were performed in triplicate.

Data were analyzed by using GraphPad PRISM software (GraphPad software, San Diego, CA, USA) (version 5.02 for Windows). One-way analysis of variance (ANOVA), using the Turkey’s multiple comparison test, was carried out on data obtained from triplicate determinations of each sample. A level of statistical significance at P < 0.05 was used.
