Polyurethane Microstructures for 2′-Deoxycytidinic Acid Delivery: Preparation and Preliminary Characterization

by
Roxana Maria Jeleriu
1,†,
Bogdana Cavaloiu
1,2,†,
Lidia Manuela Onofrei
1,
Florin Borcan
3,*,
Ramona Carmen Albulescu
4 and
Maria Puiu
5,6
1
PhD School, Faculty of Medicine, Department of Microscopic Morphology, Genetics Discipline, Center of Genomic Medicine, “Victor Babes” University of Medicine and Pharmacy Timisoara, 2 E. Murgu, Sq., 300041 Timisoara, Romania
2
Department of Radiology, “Victor Gomoiu” Children’s Clinical Hospital, 21 Basarabia Blvd., 022102 Bucharest, Romania
3
Department I, Advanced Instrumental Screening Center, Faculty of Pharmacy, “Victor Babes” University of Medicine and Pharmacy, 2 E. Murgu Sq., 300041 Timisoara, Romania
4
Department XI (Pediatrics II), Faculty of Medicine, “Victor Babes” University of Medicine and Pharmacy Timisoara, 2 E. Murgu, Sq., 300041 Timisoara, Romania
5
Department II (Microscopic Morphology), Genetics Discipline, Center of Genomic Medicine, Faculty of Medicine, “Victor Babes” University of Medicine and Pharmacy Timisoara, 2 E. Murgu, Sq., 300041 Timisoara, Romania
6
Clinical Emergency Hospital for Children “Louis Turcanu”, Regional Center of Medical Genetics, 2 Dr. I. Nemoianu, 300011 Timisoara, Romania
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Medicina 2024, 60(3), 491; https://doi.org/10.3390/medicina60030491
Submission received: 1 February 2024 / Revised: 14 March 2024 / Accepted: 15 March 2024 / Published: 16 March 2024
(This article belongs to the Section Pharmacology)
Browse Figures
Versions Notes

Abstract

:
Background and Objectives: Nucleotide delivery has emerged as a noteworthy research trend in recent years because of its potential utility in addressing a range of genetic defects resulting in the presence of incorrect nucleotides. The primary goals of this research were to create and to characterize polyurethane microstructures, with the aim of utilizing them for nucleotide transport. Materials and Methods: Two samples were prepared using an aliphatic diisocyanate in reaction with a mixture of polyethylene glycol and polycaprolactone diol, where 2′-deoxycytidinic acid was used as the active agent and glycerol 1,2-diacetate was used as an enhancer of the aqueous solubility. The solubility, pH, size distribution, and surface charge of the samples were measured, and encapsulation efficacy and release, cell proliferation, and irritation tests on mouse skin were conducted. Results: The results showed almost neutral acidic–basic structures with a high heterogeneity, and a medium tendency to form clusters with non-cytotoxic and non-irritative potentials. Conclusions: Future research could explore the efficacy of this carrier in delivering other nucleotides, as well as investigating the long-term effects and safety of these microstructures in vivo.

1. Introduction

The metabolism of nucleotides supports RNA synthesis and DNA replication to enable cell growth and division; however, there are multiple studies providing evidence that neurological diseases and DNA metabolism defects generate deficiencies in nucleotide salvage and synthesis [1]. Dietary nucleotide supplementation has important advantages in metabolism, immune function, healthy aging, advanced recovery under stress, and decreased risk of infection during surgery [2]. The investigations in this domain are very recent [3,4,5] and reflect the important role of this theme.
The nucleotide 2′-Deoxycytidinic acid, also known as 2’-Deoxycytidine-5’-monophosphate (Figure 1), is composed of cytidine, deoxyribose sugar, and phosphoric acid. It is formed by the reduction of cytidine monophosphate, which appears in the degradation of cytidine triphosphate and cytidine diphosphate via hydrolysis [6].
The possibility of transferring biologically active compounds through body membranes depends on the good permeation rates of the pure compound, its conjugation in various complexes, or being encapsulated inside different delivery systems. Nucleotide-based conjugates have recently been developed by Palluk et al. [7], Balintova et al. [8], and Welter and Marx [9], whereas their encapsulation has been reported by Nakayama et al. [10], Hillaireau et al. [11], Kholmurodov et al. [12], and many other research teams.
Polyurethanes (PU)—as biocompatible, pH-responsive, and biodegradable smart drug delivery carriers based on cheap raw materials—were described by Shoaib et al. [13], who presented an enhanced release rate of imatinib due to the fast degradation of polycaprolactone used as the main component of the hydroxylic phase followed by strong in vitro and in vivo antitumor effects, as suggested by MTT assay data and histopathological evaluations on BALB/c mice, respectively. The versatility of PU materials is based on the fact that they can be used in all types of administration routes; for example, PU dendrimers have been developed as drug carriers for the stable nitroxide free radical 2,2,6,6-tetramethylpiperidinyl-1-oxy [14]. The literature presents PU as a safe, compatible, and biodegradable blood-contacting material [15,16,17,18].
In our previous studies, polyurethane nano- and microstructures were developed as transmembrane delivery systems for different active agents [19,20,21,22], but all these investigations have revealed their aqueous solubility as an important disadvantage. Therefore, the main aim of this research was the design and assessment of a PU carrier that can ensure the prolonged and sustained release of a nucleotide and, more than that, the synthesized PU microstructures must have an enhanced solubility.

2. Materials and Methods

2.1. Reagents, Cells, and Animals

All the reagents used for the synthesis and degradation medium were of analytical purity and employed without previous purification: the surfactant, Tween® 20 (C18H34O6 MW = 346.46 g/mol), was purchased from Sigma Aldrich (La Chapelle-sur-Erdre, France); isophorone diisocyanate, IPDI (C12H18N2O2 MW = 222.28 g/mol), polyethylene glycol, PEG (C2nH4n+2On+1, n = 8.2–9.1 MW = 380–420 g/mol), polycaprolactone diol, PCL (C16H30O7 MW ~530 g/mol), 1,6-hexanediol, HD (C6H14O2 MW = 118.17 g/mol), tris(hydroxymethyl)amino-methane, THAM (C4H11NO3 MW = 121.14 g/mol), glycerol-1,2-diacetate, GDA (C7H12O MW = 176.17 g/mol), sodium chloride (NaCl MW = 58.44 g/mol), potassium chloride (KCl MW = 74.55 g/mol), magnesium chloride (MgCl2 MW = 95.21 g/mol), disodium hydrogen phosphate (Na2HPO4 MW = 141.96 g/mol), dipotassium hydrogen phosphate (K2HPO4 MW = 174.18 g/mol), potassium dihydrogen phosphate (KH2PO4 MW = 136.09 g/mol), sodium bicarbonate (NaHCO3 MW = 84.01 g/mol), 2′-Deoxycytidinic acid as sodium salt, DCSS (C9H12N3O7PNa2 MW = 351.16 g/mol) were acquired from Sigma Aldrich (St Louis, MO, USA), and the acetone from Honeywell Riedel-de Haen (Seelze, Germany). Double-distilled water was produced using Dest-4 distiller from J.P. Selecta (Barcelona, Spain).
A HDFa (Human Dermal Fibroblast) cell line, purchased from Invitrogen (Waltham, MA, USA), was involved to assess the cell proliferation; culture media, antibiotics, fetal bovine serum, phosphate buffer saline, MTT solution, dimethyl sulfoxide, microplates, culture flasks, and Pasteur pipettes were acquired from Thermo Fischer Scientific (Waltham, MA, USA).
Female, 6–8-week-old Nu-Nu, Balb-c mice were purchased from Charles River (Sulzfeld, Germany). They were kept under standard conditions: temperature (25 ± 1 °C), humidity (55 ± 5%), 12 h light/dark cycle.

2.2. Synthesis of the Samples

A new variant of a polyurethane carrier was synthesized through spontaneous emulsification combined with the formation of macromolecular chains based on a procedure described in our previous studies [23,24]; the polyaddition process between an aqueous phase (PCL, BD, and PEG in double-distilled water, were sonicated using a homogenizer for 15 min) and an organic phase (IPDI in acetone dissolved under the same conditions) was based on the recipe described in Table 1. Tween® 20 was used as an emulsifying agent, and DCSS as an active biological compound, whereas GDA was added only to the second sample. The mixtures of each sample were stirred at 350 rpm at room temperature for 3 h to complete the synthesis of polymer chains. No catalyst or initiator for chain formation was used.
After the synthesis process, the resulting suspensions were thoroughly washed and dried using a mixture of acetone and water (1.3:1, v/v) in order to eliminate any remaining unreacted raw materials and unentrapped drug. The two samples were placed in sterile Petri dishes and allowed to evaporate slowly at room temperature and normal pressure until they reached a constant mass. The process involved the gradual evaporation of the acetone and water.

2.3. Stability over Time

In the pharmaceutical industry, stability over time is a key parameter of newly obtained formulations; thus, different conditions such as temperature, pressure, and UV exposure are monitored to establish the quality of the products over a specified time period. In the current research, the changes in stability were assessed at three different temperatures (8, 25, and 40 °C) by comparing measured values of electrical conductivity and the position of absorption bands for the two synthesized samples; the electrical conductivity was measured with a Jenway Bench 4010 Conductivity meter (Staffordshire, UK), and a UVi Line 9400 Spectrophotometer SI Analytics (Mainz, Germany) was used to determine the wavelength of the maximum absorption. All determinations were performed in triplicate under the same conditions.

2.4. Evaluation of Solubility and pH

The main parameter assessed in this study was the solubility of the sample in water. Solubility was measured based on a procedure described in the literature in the OECD Guidelines for the Testing of Chemicals [25]. Briefly, at 20 ± 0.5 °C, a simple preliminary determination was used to found the appropriate amount of sample to be used in the final determination, as well as the time necessary to achieve saturation.
A Mettler Toledo FiveGo F2 portable pH meter (Schwerzenbach, Switzerland), equipped with an InLab® Expert Go Sensor, was initially calibrated using three standard buffer solutions, and this was then used to assess the pH of the synthesized samples as aqueous solutions with the same concentration (0.88 mg mL−1) at 25 °C.

2.5. Encapsulation Efficacy

The percentage of DCSS successfully entrapped inside the PU microstructures was calculated using the below formula:
Encapsulation efficiency (EE%) = [(Wt − Wf)/Wt] × 100%,
where Wf is the amount of free DCSS found in the mixture used to wash the samples, and Wt is the total quantity of drug added initially during preparation.
The quantity of DCSS found in the water–acetone mixture (Wf) was calculated using the Beer–Lambert law at 271 nm; a calibration curve was constructed by plotting the absorption values as a function of drug concentration, as described by Equation (2):
y = 0.0447x, R2 = 0.9995,
where: y = absorption value, x = drug concentration (µg mL−1), and R2 = the coefficient of determination.

2.6. The Release Rate

The cumulative drug release (CDR) was assessed by maintaining the PU microstructures in a simulated body fluid (SBF), which was prepared according to the T. Kokubo recipe [26] for 60 h. The procedure has been described in one of our previous articles [23]: a 1.5 mL aqueous solution of each sample (0.88 mg/mL) was added to a 30 mL SBF. Three 0.5 mL aliquots were withdrawn every 12 h and analyzed for drug content using spectrophotometry at 271 nm. After each withdrawal, 1.5 mL of fresh medium was added.

2.7. The Penetrability Assessment

The capacity to penetrate through different membranes influences the pharmacokinetics of the tested samples; this parameter was tested using a PVDF artificial membrane Spectra/Por® from Fisher Scientific (Göteborg, Sweden). A Franz cell with a diameter of 15 mm, a diffusion area of 1.77 cm2, and a receptor volume of 12.0 mL was used; phosphate-buffered saline was used in the receptor chamber. The experiment was performed at 37 ± 1 °C, and every 12 h, 1.0 mL liquid from the receptor chamber was replaced with fresh buffer, and the maximum absorption at 358 nm was used to determine the concentration.

2.8. Matrix-Assisted Laser Desorption Ionization Time-of-Flight Mass Spectrometry (MALDI-TOF MS) Analysis

This technique represents a modern pathway for determining the size and size distribution of the polymer samples. A Bruker HCCA matrix based on a mixture of acetonitrile, water, and trifluoroacetic acid was used to suspend the PU microstructures; 1 µL of the suspension was added onto the target plate (MTP 384 ground steel, Bruker Daltonics) and the spots were allowed to dry at room temperature.
Mass spectra were obtained using UltrafleXtreme MALDI TOF/TOF instrument (Bruker Daltonics, Bremen, Germany). The analysis was performed in the positive ion reflectron mode in the mass range of 300–3000 m/z. Flex Control® software (version 3.4) was used to acquire the data, and the following settings were used: laser frequency, 1000 Hz; sample rate and digitizer settings, 2.50 GS/s; accelerator voltage, 20 kW; extraction voltage, 18 kW; lens voltage, 7 kW; delayed extraction, 120 ns; and reflector voltage, 20 kW. A total of 1000 laser shots were used for each spectrum. The mass spectra were processed using the Flex Analysis® software (version 3.4) (Bruker Daltonics).

2.9. Zetasizer Characterization

The size and surface charge of the PU microstructures were evaluated using a Zetasizer module, Cordouan Technol. (Pessac, France) with the following input parameters: temperature, 25 ± 1 °C; time intervals, 10 ± 3 μs; number of channels, 460 ± 30; laser power, 75 ± 5%; medium resolution; 3 measures/sequence; and Henry function, Smoluchowski.

2.10. Scanning Electron Microscopy (SEM)

Macroscopic aspects of samples were analyzed using a JSM-IT200 scanning electron microscope (Peabody, MA, USA). The samples were washed twice with acetone and then dried using compressed air; the analysis was performed at 10.0 kV with a magnification of 1500×.

2.11. Cells Proliferation

The biocompatibility of the synthesized PU microstructures was evaluated by measuring the cytotoxic effect on Human Dermal Fibroblasts, adult (HDFa cells); this is a skin cell line often used in research on skin diseases, drug delivery, and wound healing. The cells were seeded in a culture medium supplemented with fetal bovine serum and penicillin-streptomycin; the medium was changed at 2–3 days and proliferation was determined by the MTT technique. 1 × 105 cells/mL were seeded into 96-well plates. Cells were allowed to adhere for 24 h in the incubator, and then the growth medium was changed with the test compounds (90 µL medium + 10 µL sample). The tests were performed in triplicate at 24 and 72 h after the treatment.

2.12. In Vivo Evaluation

Nu-Nu, Balb-c mice are the hairless representants of an inbred strain often used in biomedical research, and is particularly utilized in skin diseases and immunology. A total of 12 female mice were divided into three equal groups, labeled with the sample code (sample_1 and sample_2) and a reference (SLS—mice treated with a 2.0% sodium lauryl sulfate solution, used as a well-known skin irritant). The tested samples and SLS (approximately 50 µL once) were applied on the back skin every second day for 10 days, and the measurements were performed 30 min later. Changes in skin erythema and hydration were monitored using a Multiprobe Adapter System (MPA5) from Courage+Khazaka (Koln, Germany) equipped with Mexameter® MX 18 and Corneometer® CM 825 probes. The Ethical Committee for the Protection of Animals in Scientific Research at the “Victor Babes” University of Medicine and Pharmacy Timisoara granted approval for the application of the procedures and protocols (Approval number: 42/29.10.2021). Prior to the initiation of any intervention, the animals were subjected to an examination. Mice with any form of injury or dermatological condition in the dorsal region were not included in the study. To minimize potential suffering and ensure good animal welfare, measures were taken to address pain, hunger, thirst, malnutrition, abnormal cold or heat, fear, stress, injury, illness, and restrictions on the ability to behave normally/naturally. Non-invasive techniques were implemented to assess changes in skin parameters, reflecting the sentience of animals and the importance of considering their interests. Following the initial assessment, the animals were returned to their cages and were subsequently re-examined 48 h later.

2.13. Statistics

Statistical analysis was performed using the IBM SPSS v.27 (Armonk, NY, USA), and the Shapiro–Wilk test was used to verify the normality, while t-tests were used as parametric methods, and the Mann–Whitney U test as a nonparametric test was used to find significant differences. Statistical significance was set at p < 0.05. The charts were modeled using OriginPro 2024 software (OriginLab Corporation, Northampton, MA, USA).

3. Results

3.1. The Stability over Time

The degradation of PU biomaterials is a process that develops at various rates depending on their hydrolytic and thermal stability [27,28]; however, similar to other polymer materials, PU presents good stability over time, and the disposal of waste polymers is often a serious, long-term environmental issue.
Modification of the absorption bands of the PU structures (abs.), and electrical conductivity (cond.) were monitored for 30 d at three different temperatures, and the percentage changes are displayed in Table 2.

3.2. Solubility and pH of Samples

An important difference was found in the solubility of the synthesized products in water: sample_1 was 0.88 mg mL−1, while the second sample based on the addition of glycerol-1,2-diacetate presented a value equal to 6.59 mg mL−1. The pH values of the samples were quite similar: 6.71 ± 0.12 (sample_1), and 6.74 ± 0.15 (sample_2).

3.3. The Yield of Encapsulation

The encapsulation efficacy was calculated based on the amount of DCSS used in the synthesis and the amount of free DCSS found in the washed mixture used to purify each sample. Based on these results, a loading efficacy of 64.5% was found for sample_1 and 67.8% for sample_2.

3.4. Drug Release Profile

The samples presented a biphasic release profile (Figure 2) with a fast phase up to 20 h, followed by a sustained phase. After 24 h, the release of DCSS from the synthesized PU microstructures was 47% (sample_1) and 51% (sample_2), while after 48 h, the CDR reached 58% (sample_1) and 61% (sample_2).

3.5. The Penetration of Membranes

A similar permeation profile of the PU microstructures from the donor compartment through the artificial membrane into the receptor chamber of Franz cell was observed for the synthesized samples (Figure 3). It can be noted that almost 50% of the structures penetrated the artificial membrane in the first 12 h and approximately 75% passed through the membrane in the first 36 h.

3.6. MALDI-TOF MS Analysis

MALDI-TOF MS spectra revealed that the molecular weight of the polymer samples always presented a distribution with varied dispersity (Figure 4). The sample without GDA presented three main peaks at m/z values of 641, 925, and 1207; while the second sample was more heterogeneous and contained more populations of microstructures, with main peaks at m/z equal to 558, 640, 733, 865, 1561, 1806, 1988, and 2280. The adjacent peaks in both samples, but especially in the sample with GDA, differ in mass by one raw material unit (118.2 and 121.1 m/z for both samples due to HD and THAM, respectively 176.2 m/z due of the presence of GDA in sample_2).

3.7. Zetasizer Tests

The size distribution of the PU microstructures was confirmed by Zetasizer measurements. Table 3 presents data specific to multi-population samples with a medium tendency to agglomerate.

3.8. SEM Investigation

The aspects of the samples (Figure 5) were studied using scanning electron microscopy at 1500× magnification. Higher homogeneity was observed in the sample without GDA.

3.9. Cells Culture

Figure 6 presents the HDFa cell proliferation after 24 and 72 h exposure to the tested samples.
Different increases in cell viability were observed in both samples; the control was set to 100%. After 24 h, the highest value was observed for the sample containing GDA (117.3%). At 48 h post-exposure, a similar trend was observed in terms of cell viability. Thus, sample_2 exhibited the highest value compared with that of the control (129.1%).

3.10. Skin Irritation Evaluations

Figure 7 shows the evolution of two important skin parameters that can be used as indicators of irritation effects: erythema and level of skin hydration.

4. Discussion

Currently, various microstructures are used as drug delivery systems owing to their notable properties, which frequently include targeted delivery, adjustable release, and high surface-to-volume ratio. Among various types of microstructures, those based on polymers have been more thoroughly investigated due to their higher encapsulation efficacy, biocompatibility, and biodegradability. The current samples are based on PU microstructures that began to be synthesized two decades ago as carriers for alpha-tocopherol by the K. Bouchemal group [29]. Despite their stability, the investigation of polymer carrier degradation is necessary to predict their half-life and release profiles. The degradation of PU biomaterials is influenced by exposure to aqueous media [30], UV [31], heat [32], and bacterial attacks [33]. As presented in Table 2, our results indicate a modification in the absorption bands between 4.0% (sample_1 at 40 °C) and 6.4% (the other sample at the same temperature). The minor changes observed can be attributed to the lack of aromatic rings and noncovalent π-interactions (orbital overlap). On the other hand, the electrical conductivity—a specific indicator of the salinity in various solutions—offers details about the incorporation of conductive segments in polymers. The electrical conductivity of PU biomaterials is approximately 2 × 10−6 S cm−1 [34], and the change in this value depends on structural modifications. The observed changes (Table 2) were between 7.3% (sample_1 at 25 °C) and 11.1% (the other sample at 8 °C).
The difference between the solubility of the two synthesized samples in water is significant; the sample without GDA presents a solubility equal to 0.88 mg mL−1, while in the case of the other sample was approx. 7.5x higher. The first investigation over the increase of PU particles’ solubility in water was developed by our research team four years ago and it was patented by our national authority [35]: the use of compounds with polarizable functional groups such as 1,2-propanediol, 2-acetate, or glycerol-1,2-diacetate as raw materials causes an increase of solubility. The current study revealed that this increase was proportional to the amount of auxiliary agent (GDA) added. The pH of the samples was comparable to that reported for PU carriers [19,21]. The almost neutral acidic–basic character of these microstructures is very important because it does not affect the choice of the administration route.
Physical entrapment of different active biological compounds inside polymer delivery systems is a common approach because of its high efficiency [36]. In the current study, the highest value was registered for the second sample, with GDA (67.8%); a value that is comparable to those reported in the literature [21,23]. The DCSS release profile from PU microstructures that were maintained in SBF medium exhibited a fast phase in the first 20 h and then the cumulative percentage increased slowly from 47 to 58% (sample_1) and from 51 to 61% (sample_2) in the next 24 h. It must be noted that the degradation of PU microstructures and their release profile can be easily modified by using various polyether/polyester ratios in their synthesis [23].
The permeation rate of human membranes represents a key parameter of drug delivery systems; it has a significant impact on the pharmacokinetics of the tested formulation and depends on the molecular weight, surface charge, and transfer mechanism [37]. A low flux was found according to the classification of Ng et al. [38] on the diffusion through synthetic membranes used in a Franz cell. However, it must be mentioned that more than 75% of the PU microstructures have passed through the membranes in the first 48 h.
MALDI-TOF MS, a rapid, efficient, and accurate procedure to describe the size distribution, revealed that the synthesized samples contained multiple populations of microstructures; the first sample, without GDA, seemed to be more homogeneous, while the other sample contained more than eight populations of structures. These data were confirmed by the Zetasizer characterization: PDI above 1.0 for each sample and 3 to 6 signals in the investigation based on dynamic light scattering. Usually, PDI values are between 0 and 1, and they are equal to the ratio between the weight average molar mass (Mw) and the number average molar mass (Mn) [39]. However, this parameter, which indicates the dispersity or heterogeneity of a sample, is higher when the macromolecular chains have significant differences in their lengths. On the other hand, the literature [40] indicates that the use of PCL in the synthesis of polymer biomaterials often generates PDI > 1.
The SEM images also present data confirming the dispersity of these two samples. In Figure 5, various structures with irregular shapes can be observed; the most important difference appears in the case of the second sample based on GDA.
The proliferation and adhesion of various cells to polymer biomaterials such as polyethyleneimine, polypropyleneimine, polypyrrole, and poly(p-phenylenediamine) were reported two decades ago [41]. Zanetta et al. [42] have found that PU foams can be used as a support material for the proliferation of mesenchymal stem cells, while our previous study has revealed the same behavior [23]. In the current research, the cell viability data demonstrate the compatibility of the carrier with the cellular environment and highlight the fact that PU microstructures at the tested concentration are suitable as a delivery system for DCSS.
The evaluation of newly synthesized products on animal skin is often used because of their high sensitivity in detecting irritation potential. Currently, reproducible non-invasive techniques are used to monitor skin parameters (transepidermal water loss, erythema, hydration, pH, sebum, melanin, etc.) [43]. Kose et al. [44] reported that changes in skin parameters after the application of an irritating agent are very rapid and directly proportional to the irritation potential of the monitored agent. In this 15-day experiment, erythema evolution was characterized by an increase of approximately 113 units in the PU samples. Normally, an increase in erythema values is associated with an inflammation process, but it must be correlated with the values recorded for a known irritant; in the case of SLS application, the tested parameter has exactly doubled (226 units in the same period). An almost constant evolution of skin hydration can be observed in Figure 7 for the tested samples, whereas the application of SLS generated an important decrease in this parameter (50% lower after 15 days). Therefore, it can be concluded that the erythema and hydration values recorded for the PU microstructures indicated their low irritative potential. PU materials are also described as safe, biocompatible, and non-irritant in the literature [45].
It appears that the delivery of active molecules is a promising technology due to the unique characteristics of various drugs. However, no research can be considered completely flawless or able to account for all possible scenarios. Therefore, it is noteworthy that the sink conditions were maintained only during the initial 24 h in the evaluation of cumulative drug release. Another significant limitation of this study is the absence of a relationship between the rate of DCSS delivery and the biological effects on both cells and animals. Furthermore, it is crucial to conduct a more comprehensive investigation that incorporates histological data in order to gain a deeper understanding of the cellular and tissue-level changes that occur.

5. Conclusions

A significant number of drug delivery systems were developed in the last decade in order to increase the bioavailability of biologically active compounds. Since the last years of the 20th century, polyurethane carriers have been synthesized and optimized to increase the encapsulation efficacy and the solubility, and to decrease the particle size. The main objectives of this study were to grow polyurethane microstructures with enhanced solubility intended to be used as a carrier for nucleotides.
A polyaddition process between a mixture of polyethylene glycol and polycaprolactone diol on one hand and an aliphatic diisocyanate on the other, combined with an emulsification was involved in the synthesis. The results indicate that multi-population structures with an approximately neutral pH were obtained, with an enhanced solubility in water when glycerol-1,2-diacetate was used in the synthesis. Thus, this study demonstrates the potential of PU microstructures as a promising carrier for drug delivery applications, with minor changes in electrical conductivity and absorption bands over time.
Further research is needed to optimize the release profile of the drug and to investigate the long-term effects of PU microstructures on cell viability and evolution of skin parameters. Additionally, exploring the potential of PU microstructures for other drug delivery applications and evaluating their effectiveness in vivo would be a valuable future direction.

Author Contributions

Conceptualization, F.B. and M.P.; methodology, B.C.; software, L.M.O.; validation, F.B. and R.C.A.; formal analysis, R.M.J.; investigation, R.M.J.; resources, F.B.; data curation, R.C.A.; writing—original draft preparation, R.C.A.; writing—review and editing, F.B.; visualization, L.M.O.; supervision, M.P.; project administration, M.P.; funding acquisition, F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Medicine and Pharmacy Timisoara, Romania, grant number 5EXP/1244/30.01.2020.

Institutional Review Board Statement

This study was conducted in accordance with the principles of the Declaration of Helsinki. The authors adhered to ethical principles to minimize harm and risks and maximize benefits; the research was evaluated and approved by the Ethical Committee of the University of Medicine and Pharmacy Timisoara, Romania (approval no. 42/29.10.2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fasullo, M.; Endres, L. Nucleotide salvage deficiencies, DNA damage and neurodegeneration. Int. J. Mol. Sci. 2015, 16, 9431–9449. [Google Scholar] [CrossRef] [PubMed]
  2. Dancey, C.P.; Attree, E.A.; Brown, K.F. Nucleotide supplementation: A randomised double-blind placebo controlled trial of IntestAidIB in people with Irritable Bowel Syndrome. Nutr. J. 2006, 5, 16. [Google Scholar] [CrossRef] [PubMed]
  3. Medagoda, N.; Chotikachinda, R.; Hasanthi, M.; Lee, K.-J. Dietary Supplementation of a Mixture of Nucleotides, β-Glucan and Vitamins C and E Improved the Growth and Health Performance of Olive Flounder, Paralichthys olivaceus. Fishes 2023, 8, 302. [Google Scholar] [CrossRef]
  4. El-Nokrashy, A.M.; El-Banna, R.A.; Edrise, B.M.; Abdel-Rahim, M.M.; Jover-Cerdá, M.; Tomás-Vidal, A.; Prince, A.; Davies, S.J.; El-Haroun, E.R.; Goda, A.M.A.-S. Impact of nucleotide enriched diets on the production of gilthead seabream, Sparus aurata fingerlings by modulation of liver mitochondrial enzyme activitity, antioxidant status, immune gene expression, and gut microbial ecology. Aquaculture 2021, 535, 736398. [Google Scholar] [CrossRef]
  5. Ding, T.; Xu, M.; Li, Y. An Overlooked Prebiotic: Beneficial Effect of Dietary Nucleotide Supplementation on Gut Microbiota and Metabolites in Senescence-Accelerated Mouse Prone-8 Mice. Front. Nutr. 2022, 9, 820799. [Google Scholar] [CrossRef]
  6. Charma, K.; Somani, D. Pyrimidine Biosynthesis. Available online: https://www.slideshare.net (accessed on 27 December 2023).
  7. Palluk, S.; Arlow, D.; de Rond, T.; Barthel, S.; Kang, J.S.; Bector, R.; Baghdassarian, H.M.; Truong, A.N.; Kim, P.W.; Singh, A.K.; et al. De novo DNA synthesis using polymerase-nucleotide conjugates. Nat. Biotechnol. 2018, 36, 645–650. [Google Scholar] [CrossRef]
  8. Balintová, J.; Welter, M.; Marx, A. Antibody-nucleotide conjugate as a substrate for DNA polymerases. Chem. Sci. 2018, 9, 7122–7125. [Google Scholar] [CrossRef]
  9. Welter, M.; Marx, A. Preparation and Application of Enzyme-Nucleotide Conjugates. Curr. Protoc. Chem. Biol. 2018, 10, 49–71. [Google Scholar] [CrossRef]
  10. Nakayama, H.; Hatakeyama, A.; Tsuhako, M. Encapsulation of nucleotides and DNA into Mg-Al layered double hydroxide. Int. J. Pharm. 2010, 393, 104–111. [Google Scholar] [CrossRef]
  11. Hillaireau, H.; Le Doan, T.; Besnard, M.; Chacun, H.; Janin, J.; Couvreur, P. Encapsulation of antiviral nucleotide analogues azidothymidine-triphosphate and cidofovir in poly(iso-butylcyanoacrylate) nanocapsules. Int. J. Pharm. 2006, 324, 37–42. [Google Scholar] [CrossRef] [PubMed]
  12. Kholmurodov, K.; Dushanov, E.; Khusenov, M.; Rahmonov, K.; Zelenyak, T.; Doroshkevich, A.; Majumder, S. Molecular dynamics studies on the interaction and encapsulation processes of the nucleotide and peptide chains inside of a carbon nanotube matrix with inclusion of gold nanoparticles. J. Phys. Conf. Ser. 2017, 848, 01201. [Google Scholar] [CrossRef]
  13. Shoaib, M.; Bahadur, A.; Saeed, A.; Ur Rahman, M.S.; Naseer, M.M. Biocompatible, pH-responsive, and biodegradable poly-urethanes as smart anti-cancer drug delivery carriers. React. Funct. Polym. 2018, 127, 153–160. [Google Scholar] [CrossRef]
  14. Ali, B.M.; Velavan, B.; Sudhandiran, G.; Sridevi, J.; Nasar, A.S. Radical dendrimers: Synthesis, anti-tumor activity and enhanced cytoprotective performance of TEMPO free radical functionalized polyurethane dendrimers. Eur. Polym. J. 2019, 122, 109354. [Google Scholar] [CrossRef]
  15. Kütting, M.; Roggenkamp, J.; Urban, U.; Schmitz-Rode, T.; Steinseifer, U. Polyurethane heart valves: Past, present and future. Expert Rev. Med. Devices 2011, 8, 227–233. [Google Scholar] [CrossRef] [PubMed]
  16. Ward, R.S.; White, K.A.; Wolcott, C.A.; Wang, A.Y.; Kuhn, R.W.; Taylor, J.E.; John, J.K. Development of a hybrid artificial pancreas with a dense polyurethane membrane. ASAIO J. 1993, 39, M261–M267. [Google Scholar]
  17. Brockman, K.S.; Lai, B.F.L.; Kizhakkedathu, J.N.; Santerre, J.P. Hemocompatibility of Degrading Polymeric Biomaterials: Degradable Polar Hydrophobic Ionic Polyurethane versus Poly(lactic-co-glycolic) Acid. Biomacromolecules 2017, 18, 2296–2305. [Google Scholar] [CrossRef] [PubMed]
  18. van Minnen, B.; van Leeuwen, M.B.; Kors, G.; Zuidema, J.; van Kooten, T.G.; Bos, R.R. In vivo resorption of a biodegradable polyurethane foam, based on 1,4-butanediisocyanate: A three-year subcutaneous implantation study. J. Biomed. Mater. Res. A 2008, 85, 972–982. [Google Scholar] [CrossRef] [PubMed]
  19. Munteanu, M.F.; Ardelean, A.; Borcan, F.; Trifunschi, S.I.; Gligor, R.; Ardelean, S.A.; Coricovac, D.; Pinzaru, I.; Andrica, F.; Borcan, L.-C. Mistletoe and Garlic Extracts as Polyurethane Carriers—A Possible Remedy for Choroidal Melanoma. Curr. Drug Deliv. 2017, 14, 1178–1188. [Google Scholar] [CrossRef]
  20. Cîtu, I.M.; Borcan, F.; Zambori, C.; Tița, B.; Păunescu, V.; Ardelean, S. Influence of crosslinking agent-chain extender ratio on the properties of hyperbranched polyurethane structures used as dendritic drug carrier. Rev. Chim. Buchar. 2015, 66, 119–123. [Google Scholar]
  21. Tuta-Sas, I.; Borcan, F.; Sas, I. Synthesis and preliminary characterization of polyurethane matrices used as a drug carrier for bromelain. Mater. Plast. 2023, 60, 1–12. [Google Scholar] [CrossRef]
  22. Borcan, F.; Albulescu, R.C.; Andreescu, N.I. Modelling Study on Parameters Influencing Binding Affinity in Drug-Polyurethane Nanoparticle Assembly. Mater. Plast. 2022, 59, 135–143. [Google Scholar] [CrossRef]
  23. Borcan, F.; Vlase, T.; Vlase, G.; Popescu, R.; Soica, C.M. The Influence of an Isocyanate Structure on a Polyurethane Delivery System for 2′-Deoxycytidine-5′-monophosphate. J. Funct. Biomater. 2023, 14, 526. [Google Scholar] [CrossRef]
  24. Borcan, F.; Preda, M.; Borcan, L.C.; Pinzaru, I.; Florescu, S.; Sisu, E.; Poenaru, M. Comparative Characterization of Birch Bark Extracts Encapsulated Inside Polyurethane Microstructures. Mater. Plast. 2018, 55, 385–388. [Google Scholar] [CrossRef]
  25. OECD. Test No. 105: Water Solubility, OECD Guidelines for the Testing of Chemicals, Section 1, OECD Publishing. 1995. Available online: https://www.oecd-ilibrary.org/environment/test-no-105-water-solubility_9789264069589-en (accessed on 5 January 2024).
  26. Quan, H.; Park, Y.K.; Kim, S.K.; Heo, S.J.; Koak, J.Y.; Han, J.S.; Lee, J.H. Surface Characterization and Human Stem Cell Behaviors of Zirconia Implant Disks Biomimetic-Treated in Simulated Body Fluid. Int. J. Oral. Maxillofac. Implant. 2016, 31, 928–938. [Google Scholar] [CrossRef] [PubMed]
  27. Wright, P.; Wright, P. Improvements in the Hydrolytic Stability of Polyurethanes. Aircraft Eng. Aerosp. Technol. 1967, 39, 20–23. [Google Scholar] [CrossRef]
  28. Amado, J.C.Q. Thermal Resistance Properties of Polyurethanes and Its Composites. In Thermosoftening Plastics; Evingür, G.A., Pekcan, O., Achilias, D.S., Eds.; IntechOpen: Rijeka, Croatia, 2020. [Google Scholar] [CrossRef]
  29. Bouchemal, K.; Briançon, S.; Perrier, E.; Fessi, H.; Bonnet, I.; Zydowicz, N. Synthesis and characterization of polyurethane and poly(ether urethane) nanocapsules using a new technique of interfacial polycondensation combined to spontaneous emulsification. Int. J. Pharm. 2004, 269, 89–100. [Google Scholar] [CrossRef]
  30. Brzeska, J.; Tercjak, A.; Sikorska, W.; Mendrek, B.; Kowalczuk, M.; Rutkowska, M. Degradability of Polyurethanes and Their Blends with Polylactide, Chitosan and Starch. Polymers 2021, 13, 1202. [Google Scholar] [CrossRef] [PubMed]
  31. Patti, A.; Acierno, D. The Puncture and Water Resistance of Polyurethane- Impregnated Fabrics after UV Weathering. Polymers 2019, 12, 15. [Google Scholar] [CrossRef] [PubMed]
  32. Chen, X.; Li, J.; Gao, M. Thermal Degradation and Flame Retardant Mechanism of the Rigid Polyurethane Foam Including Functionalized Graphene Oxide. Polymers 2019, 11, 78. [Google Scholar] [CrossRef] [PubMed]
  33. Joy, Y.J.; Retna, A.M. A new insight of degradation and stability performance of polyurethane and its composites. Mater. Today Proc. 2018, 5, 6082–6089. [Google Scholar]
  34. Broda, C.R.; Lee, J.Y.; Sirivisoot, S.; Schmidt, C.E.; Harrison, B.S. A chemically polymerized electrically conducting composite of polypyrrole nanoparticles and polyurethane for tissue engineering. J. Biomed. Mater. Res. A 2011, 98, 509–516. [Google Scholar] [CrossRef] [PubMed]
  35. UMFT; Borcan, F.; Dehelean, C.A.; Soica, C.M. Procedure for Obtaining a Transdermal Transporter of Aciclovir. Patent RO134816, 30 June 2023. [Google Scholar]
  36. Pereira, A.D.S.; Souza, C.P.L.; Moraes, L.; Fontes-Sant’Ana, G.C.; Amaral, P.F.F. Polymers as Encapsulating Agents and Delivery Vehicles of Enzymes. Polymers 2021, 13, 4061. [Google Scholar] [CrossRef] [PubMed]
  37. Glassman, P.M.; Muzykantov, V.R. Pharmacokinetic and Pharmacodynamic Properties of Drug Delivery Systems. J. Pharmacol. Exp. Ther. 2019, 370, 570–580. [Google Scholar] [CrossRef] [PubMed]
  38. Ng, S.F.; Rouse, J.; Sanderson, D.; Eccleston, G. A Comparative Study of Transmembrane Diffusion and Permeation of Ibuprofen across Synthetic Membranes Using Franz Diffusion Cells. Pharmaceutics 2010, 2, 209–223. [Google Scholar] [CrossRef]
  39. Poly Dispersity Index (PDI). Available online: https://www.simply.science/popups/popupsmacromoelcues_mi.html (accessed on 7 January 2024).
  40. Lee, S.Y.; Wu, S.C.; Chen, H.; Tsai, L.L.; Tzeng, J.J.; Lin, C.H.; Lin, Y.M. Synthesis and Characterization of Polycaprolactone-Based Polyurethanes for the Fabrication of Elastic Guided Bone Regeneration Membrane. Biomed. Res. Int. 2018, 2018, 3240571. [Google Scholar] [CrossRef] [PubMed]
  41. Lakard, S.; Herlem, G.; Propper, A.; Kastner, A.; Michel, G.; Vallès-Villarreal, N.; Gharbi, T.; Fahys, B. Adhesion and proliferation of cells on new polymers modified biomaterials. Bioelectrochemistry 2004, 62, 19–27. [Google Scholar] [CrossRef] [PubMed]
  42. Zanetta, M.; Quirici, N.; Demarosi, F.; Tanzi, M.C.; Rimondini, L.; Farè, S. Ability of polyurethane foams to support cell proliferation and the differentiation of MSCs into osteoblasts. Acta Biomater. 2009, 5, 1126–1136. [Google Scholar] [CrossRef]
  43. Mohd Ariffin, N.H.; Hasham, R. Assessment of non-invasive techniques and herbal-based products on dermatological physiology and intercellular lipid properties. Heliyon 2020, 6, e03955. [Google Scholar] [CrossRef]
  44. Kose, O.; Erkekoglu, P.; Sabuncuoglu, S.; Kocer-Gumusel, B. Evaluation of skin irritation potentials of different cosmetic products in Turkish market by reconstructed human epidermis model. Regul. Toxicol. Pharmacol. 2018, 98, 268–273. [Google Scholar] [CrossRef]
  45. Coleman, K.P.; Grailer, T.P.; McNamara, L.R.; Rollins, B.L.; Christiano, N.J.; Kandárová, H.; De Jonge, W.H. Preparation of irritant polymer samples for an in vitro round robin study. Toxicol. Vitr. 2018, 50, 401–406. [Google Scholar] [CrossRef]
Medicina 60 00491 g001

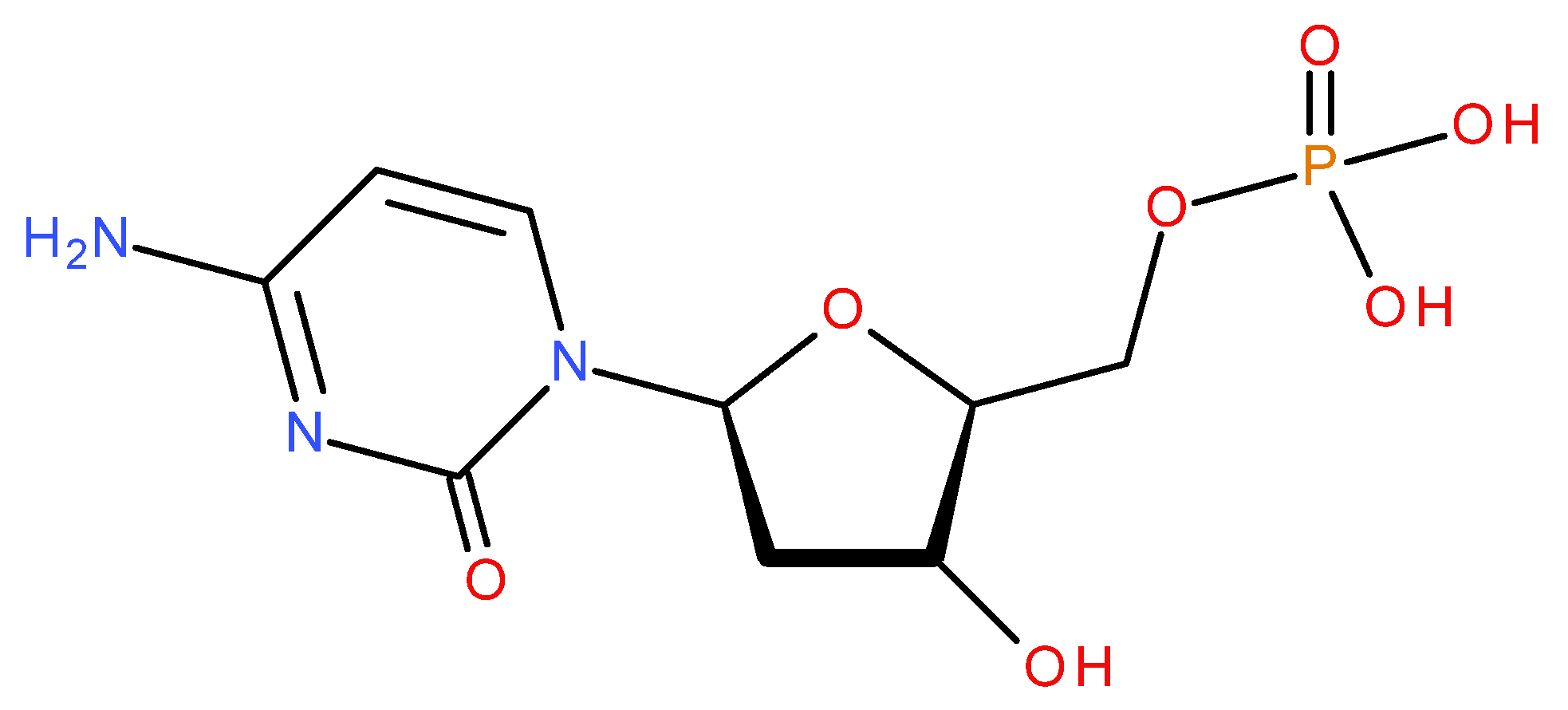

Figure 1. Chemical structure of 2′-Deoxycytidinic acid.
Figure 1. Chemical structure of 2′-Deoxycytidinic acid.
Medicina 60 00491 g001
Medicina 60 00491 g002

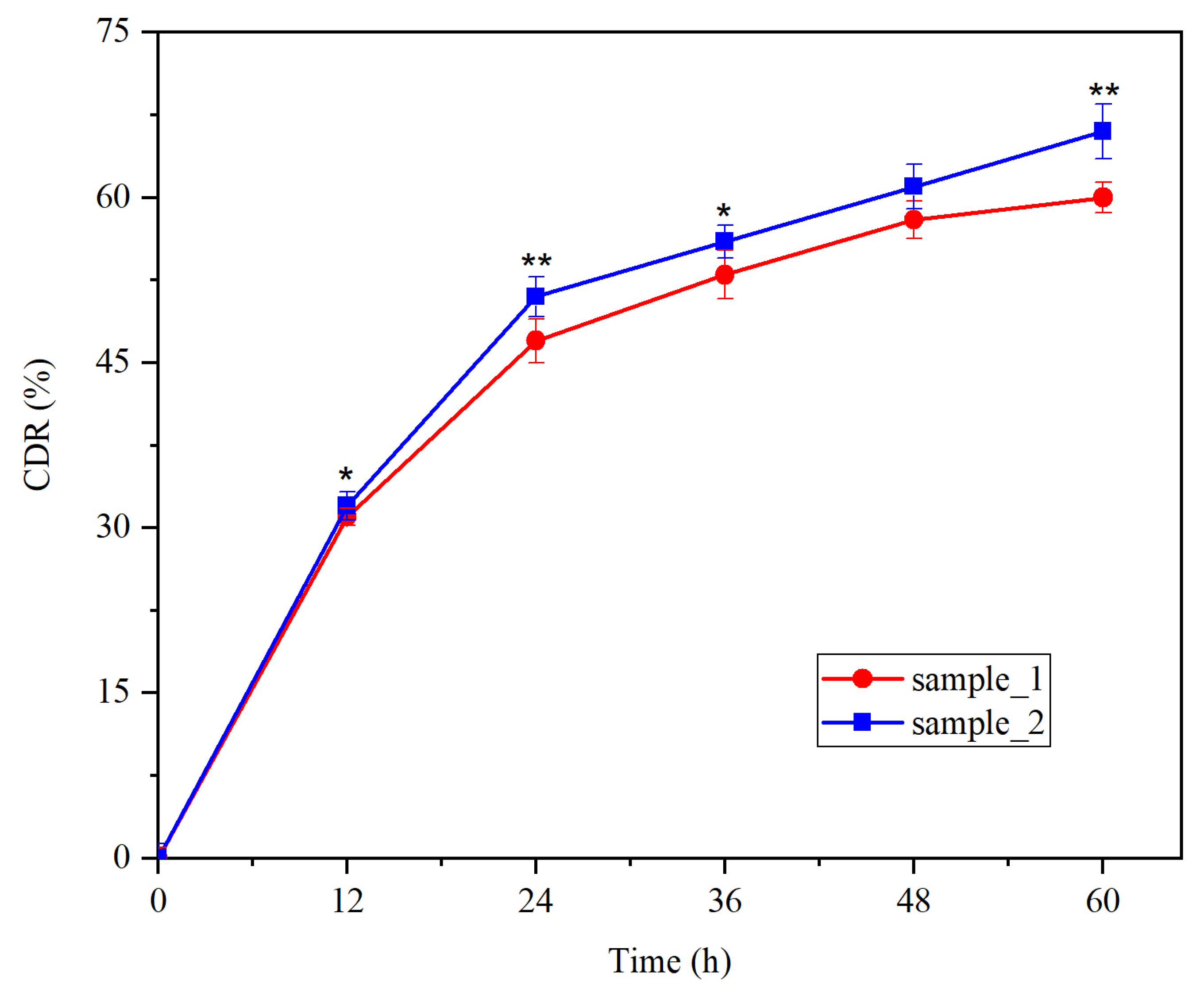

Figure 2. Cumulative drug release (CDR) of DCSS; * for p < 0.05 and ** for p < 0.01 sample_2 vs. sample_1.
Figure 2. Cumulative drug release (CDR) of DCSS; * for p < 0.05 and ** for p < 0.01 sample_2 vs. sample_1.
Medicina 60 00491 g002
Medicina 60 00491 g003

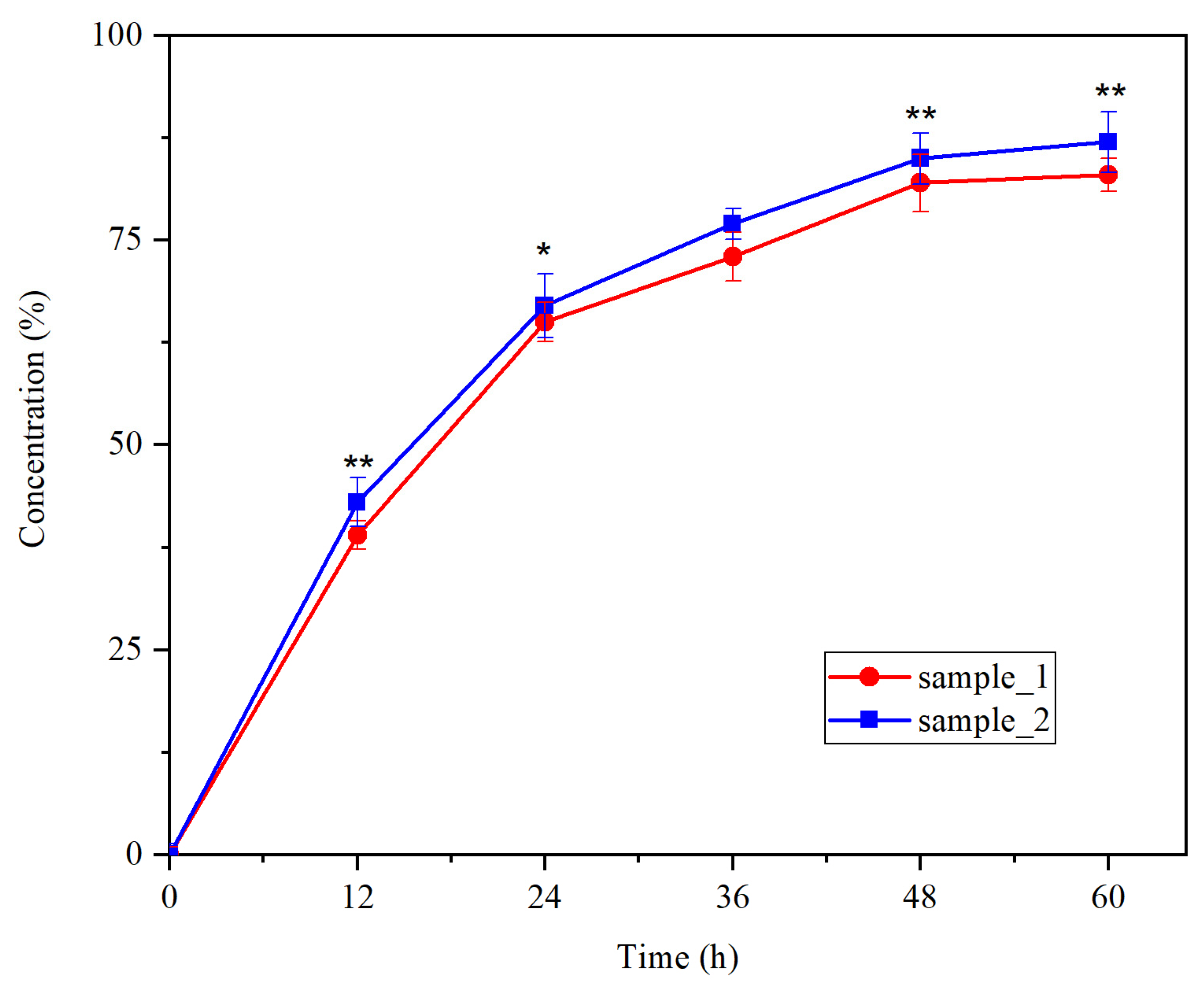

Figure 3. Membrane penetration rate; * for p < 0.05 and ** for p < 0.01 sample_2 vs. sample_1.
Figure 3. Membrane penetration rate; * for p < 0.05 and ** for p < 0.01 sample_2 vs. sample_1.
Medicina 60 00491 g003
Medicina 60 00491 g004aMedicina 60 00491 g004b

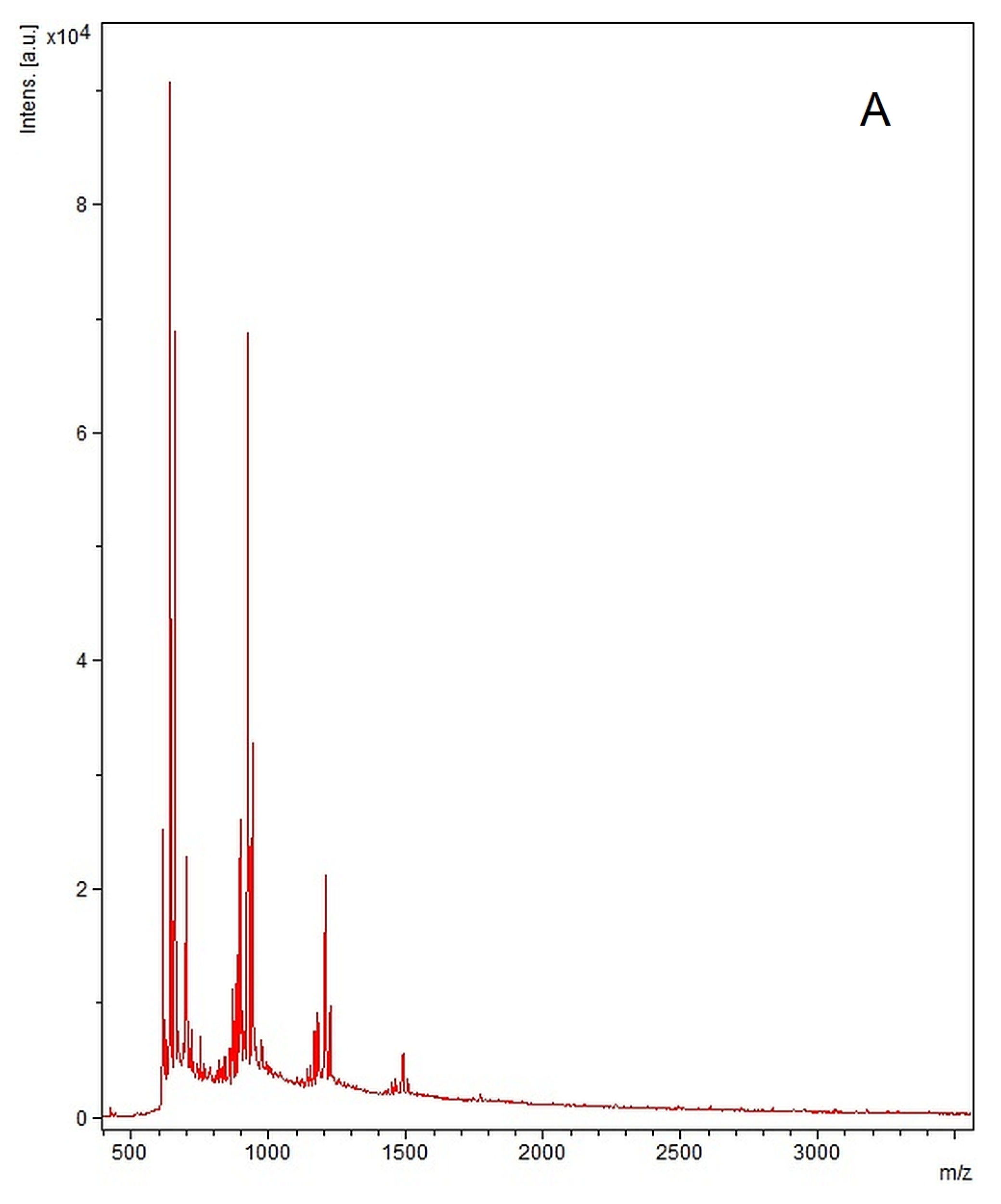

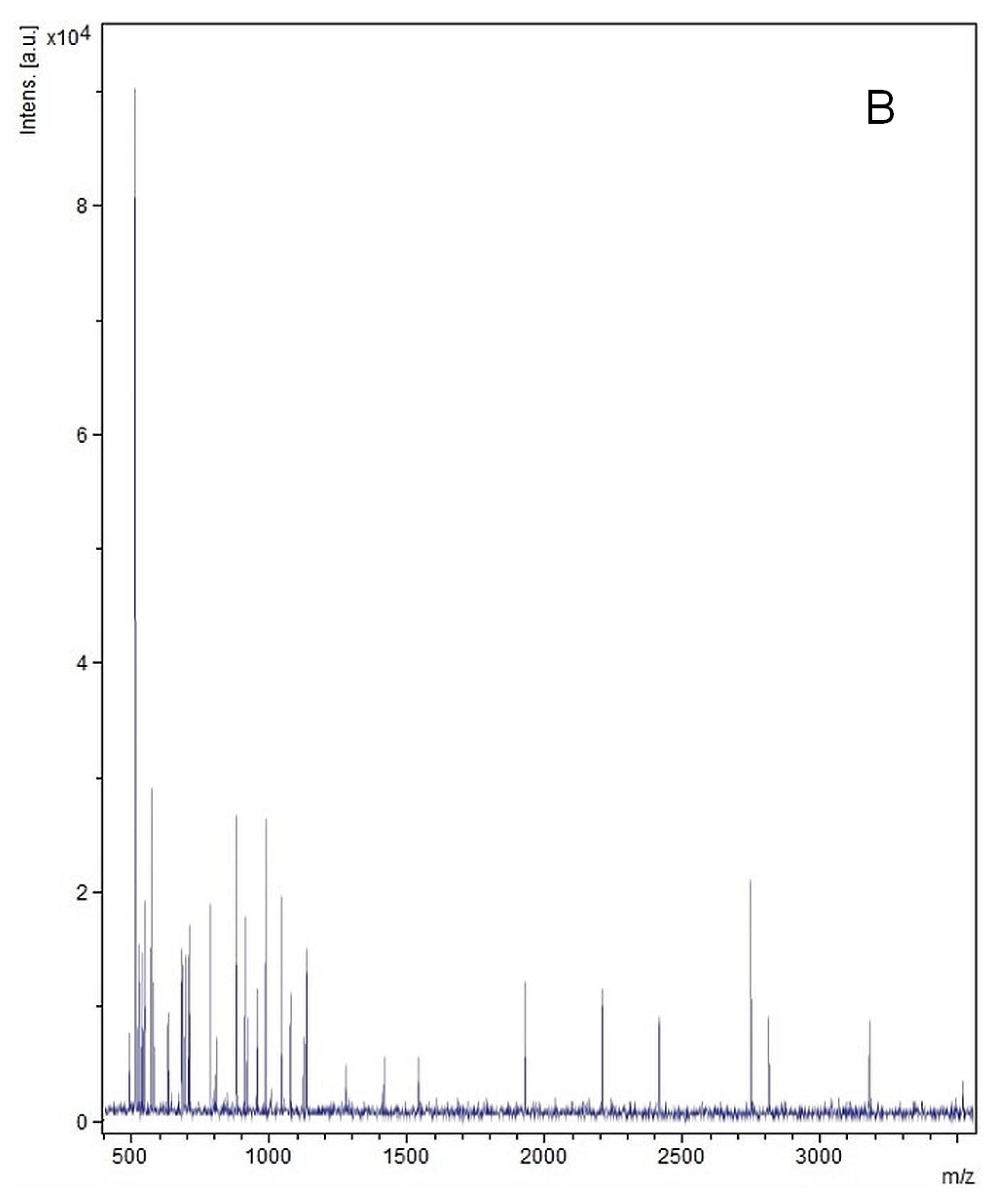

Figure 4. Comparative mass spectra of (A) sample_1 and (B) sample_2.
Figure 4. Comparative mass spectra of (A) sample_1 and (B) sample_2.
Medicina 60 00491 g004aMedicina 60 00491 g004b
Medicina 60 00491 g005
Figure 5. SEM images of (A) sample_1 and (B) sample_2.
Figure 5. SEM images of (A) sample_1 and (B) sample_2.
Medicina 60 00491 g005
Medicina 60 00491 g006aMedicina 60 00491 g006b

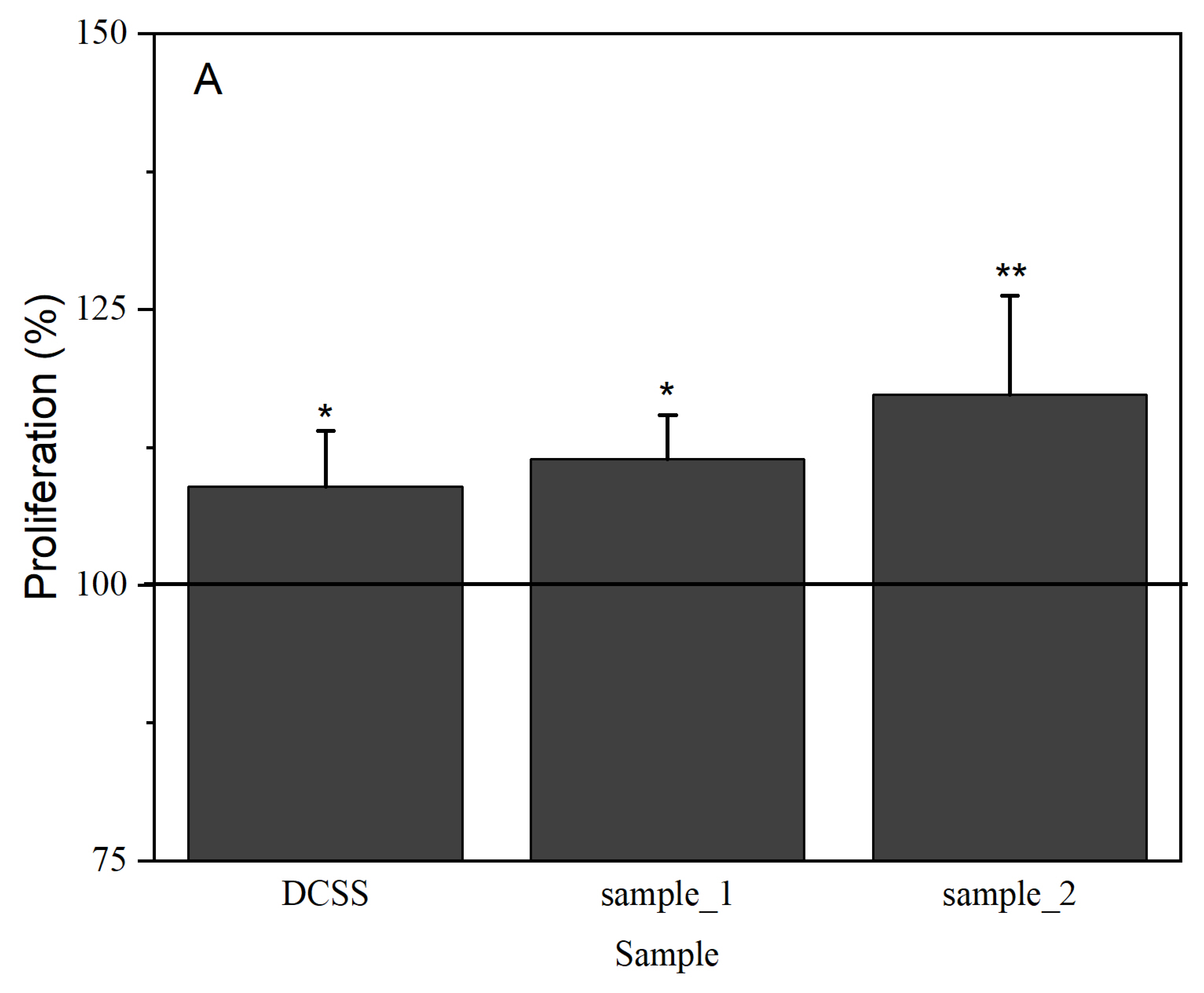

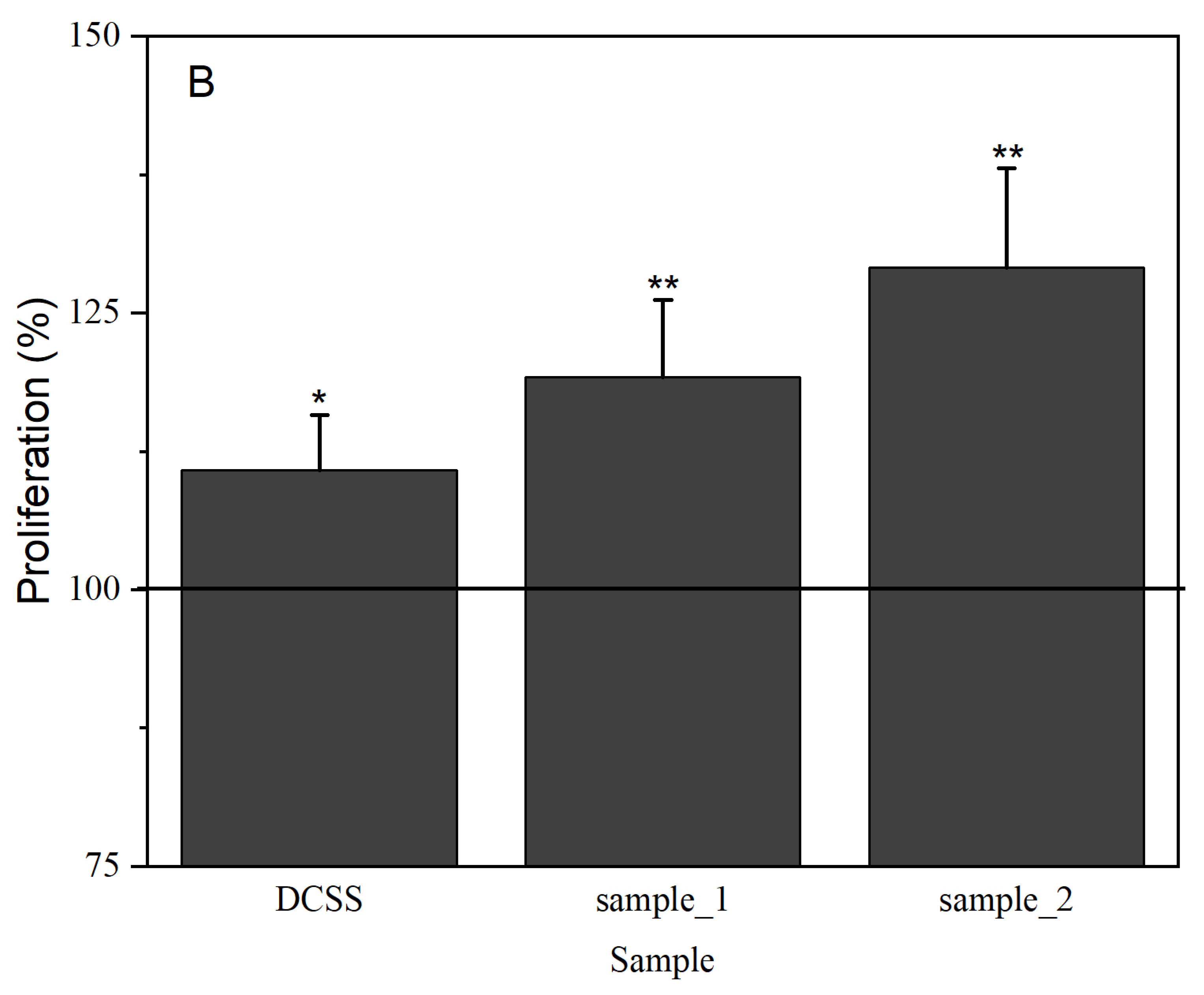

Figure 6. HDFa proliferation after (A) 24 h and (B) 72 h of exposure; * for p < 0.05 and ** for p < 0.01 samples vs. control.
Figure 6. HDFa proliferation after (A) 24 h and (B) 72 h of exposure; * for p < 0.05 and ** for p < 0.01 samples vs. control.
Medicina 60 00491 g006aMedicina 60 00491 g006b
Medicina 60 00491 g007
Figure 7. Changes in (A) erythema and (B) skin hydration during the experiment; * for p < 0.05, ** for p < 0.01, and *** for p < 0.001 samples vs. SLS.
Figure 7. Changes in (A) erythema and (B) skin hydration during the experiment; * for p < 0.05, ** for p < 0.01, and *** for p < 0.001 samples vs. SLS.
Medicina 60 00491 g007
Table 1. The amounts of raw materials used in the synthesis.
Table 1. The amounts of raw materials used in the synthesis.
SamplePCL (g)/THAM (g)BD (mL)/PEG (g)Tween® 20 (mL)/IPDI (mL)DCSS (g)GDA (mL)
sample_13.0/1.21.8/3.51.5/6.00.50.0
sample_23.0/1.21.8/3.51.5/6.00.53.7
Table 2. The changes of absorption bands and electrical conductivity levels in 30 days.
Table 2. The changes of absorption bands and electrical conductivity levels in 30 days.
SamplePercentual Changes at Different Temperatures, %
8 ± 0.5 °C25 ± 0.5 °C40 ± 0.5 °C
abs.cond.abs.cond.abs.cond.
sample_14.47.84.17.34.07.5
sample_26.311.16.29.76.410.8
Table 3. Zetasizer characterization of synthesized samples.
Table 3. Zetasizer characterization of synthesized samples.
SampleSize, nm (Signal Intensity)PDI 1Zeta Potential, mV
sample_1637 ± 14 (68%)
926 ± 11 (19%)
1211 ± 17 (13%)		1.2+28.4 ± 1.2
sample_2556 ± 9 (62%)
640 ± 11 (8%)
735 ± 11 (9%)
866 ± 16 (6%)
1545 ± 21 (7%)
2278 ± 8 (8%)		1.4+24.9 ± 2.3
1 polydispersity index.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jeleriu, R.M.; Cavaloiu, B.; Onofrei, L.M.; Borcan, F.; Albulescu, R.C.; Puiu, M. Polyurethane Microstructures for 2′-Deoxycytidinic Acid Delivery: Preparation and Preliminary Characterization. Medicina 2024, 60, 491. https://doi.org/10.3390/medicina60030491

AMA Style

Jeleriu RM, Cavaloiu B, Onofrei LM, Borcan F, Albulescu RC, Puiu M. Polyurethane Microstructures for 2′-Deoxycytidinic Acid Delivery: Preparation and Preliminary Characterization. Medicina. 2024; 60(3):491. https://doi.org/10.3390/medicina60030491

Chicago/Turabian Style

Jeleriu, Roxana Maria, Bogdana Cavaloiu, Lidia Manuela Onofrei, Florin Borcan, Ramona Carmen Albulescu, and Maria Puiu. 2024. "Polyurethane Microstructures for 2′-Deoxycytidinic Acid Delivery: Preparation and Preliminary Characterization" Medicina 60, no. 3: 491. https://doi.org/10.3390/medicina60030491

Article Metrics

Back to TopTop
