Short Note

5,5'-(1,4-Phenylenedimethylylidene)bis(1,3-diethyl-2-thioxodihydropyrimidine-4,6(1H,5H)-dione)

1
Chemistry Department, Faculty of Science, King Abdul Aziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
2
The Center of Excellence for Advanced Materials, King Abdul Aziz University, Jeddah 21589, P.O. Box 80203, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molbank 2010, 2010(1), M667; https://doi.org/10.3390/M667
Submission received: 1 March 2010 / Accepted: 16 March 2010 / Published: 17 March 2010

Abstract

:
A novel compound, 5,5'-(1,4-phenylenedimethylylidene)bis(1,3-diethyl-2-thioxodihydropyrimidine-4,6(1H,5H)-dione) (3) has been synthesized by condensation of 1,3-diethyl-2-thiobarbituric acid and terephthalaldehyde in anhydrous ethanol in the presence of pyridine. The structure of this compound was established by elemental analysis, IR, 1H-NMR, 13C-NMR and EI-MS spectral analysis.

Graphical Abstract

Barbituric acid derivatives such as phenobarbital [1] and mephobarbital [2] are used for clinical treatment of epilepsy. Thiobarbituric acid dramatically increases the diversity of biological activity. Substitution reactions at the C-5 position with different aldehydes in the presence of base or Lewis acid catalysts such as ZnCl2 [3], CdI2 [4], by Knoevenagel condensation give donor acceptor chromophores. These donor acceptor chromophores are applicable in optical limiting [5], electrochemical sensing [6], Langmuir film and photoinitiated polymerization [7]. As evident from the literature, it was noted that a lot of research has been carried out on donor acceptor chromophores but no work has been done on this type of bis-donor acceptor chromophore [8]. In this paper, we report the synthesis of a novel bis donor acceptor chromophore from thiobarbituric acid and terephthalaldehyde.

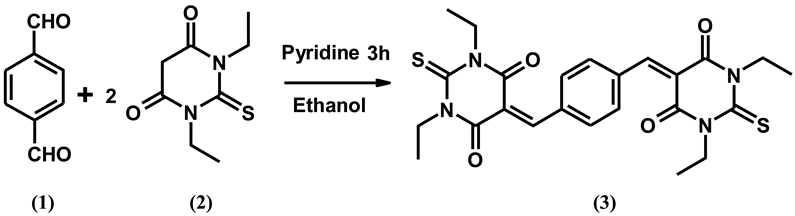

Molbank 2010 m667 i001
A mixture of 1,3-diethyl-2-thiobarbituric acid (1.49 g, 0.00746 mol) (1), terephthalaldehyde (0.5 g, 0.00373 mol) (2) and a few drops of pyridine in anhydrous ethanol (15 mL) was refluxed at 80 °C for 3 h with continuous stirring. Progress of the reaction was monitored by TLC. After completion of the reaction, the solution was cooled. The heavy precipitate thus obtained was collected by filtration and purified by recrystallization from methanol/chloroform to give the title compound (3).
Yield: 72%; m.p. 245 °C.
EI-MS m/z (rel. int.%): 499 (60) [M+1]+
IR (KBr) vmax cm-1: 2975 (C-H), 1606 (C=C), 1182 (C=S).
1H-NMR (CDCl3) δ: 6.82 (s, 4H, Ar-H), 6.23 (s, 2H, C=CH), 2.65 (q, J = 7.2 Hz, 8H, CH3-CH2-N), 1.32 (t, J = 7.2 Hz, 12H, CH3-CH2-N).
13C-NMR (CDCl3) δ: 173.98, 161.51, 145.35, 142.77, 126.89, 125.78, 96.31, 43.02, 42.77, 12.55, 12.08.
Anal. calc. for C24H26O4N4S2: C, 57.83, H, 5.22, N, 11.24 Found: C, 57.78, H, 5.18, N, 11.22.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgements

The authors would like to thank the Chemistry Department, King Abdul Aziz University, Jeddah Saudi Arabia for providing the research facilities.

References and Notes

  1. Laurence, L.B. Goodman & Gilman’s the Pharmacological Basis of Therapeutics; McGraw-Hill Co.: New York, NY, USA, 1996; Volume 9, p. 471. [Google Scholar]
  2. Laurence, L.B. Goodman & Gilman’s the Pharmacological Basis of Therapeutics; McGraw-Hill Co.: New York, NY, USA, 1996; Volume 9, p. 472. [Google Scholar]
  3. Rao, P.S.; Venkataratnam, R.V. Zinc chloride as a new catalyst for Knoevenagel condensation. Tetrahedran Lett. 1991, 32, 5821–5822. [Google Scholar]
  4. Prajapati, D.; Sandhu, J.S. Cadmium iodide as a new catalyst for Knoevenagel condensations. J. Chem. Soc. Perkin Trans. 1993, 1, 739–740. [Google Scholar] [CrossRef]
  5. Patil, L.S.; Pandey, R.K.; Bange, J.P.; Gaikwd, S.A.; Gautam, D.K. Effect of deposition temperature on the chemical properties of thermally deposited silicon nitride films. Opt. Mater. 2005, 27, 663–670. [Google Scholar] [CrossRef]
  6. Tonle, I.K.; Ngameni, E.; Tcheumi, H.L.; Tchieda, V.; Carteret, C.; Walcarius, A. Sorption of methylene blue on an organoclay bearing thiol groups and application to electrochemical sensing of the dye. Talanta 2008, 74, 489–497. [Google Scholar] [CrossRef] [PubMed]
  7. Prieto, I.; Fernandez, A.J.; Munoz, E.; Martin, M.T.; Camacho, L. Langmuir-Blodgett films containing water-soluble molecules: the methylene blue-dimyristoyl phosphatidic acid system. Thin Solid Films 1996, 284, 162–165. [Google Scholar] [CrossRef]
  8. Asiri, A.M.; Khan, S.A. 2,6-Bis(9-ethyl-9H-carbazolylmethylene)cyclohexanone. Molbank 2009, 2009, M635. [Google Scholar] [CrossRef]
