Int. J. Mol. Sci. 2007, 8(8), 830-841; doi:10.3390/i8080830
Published: 22 August 2007

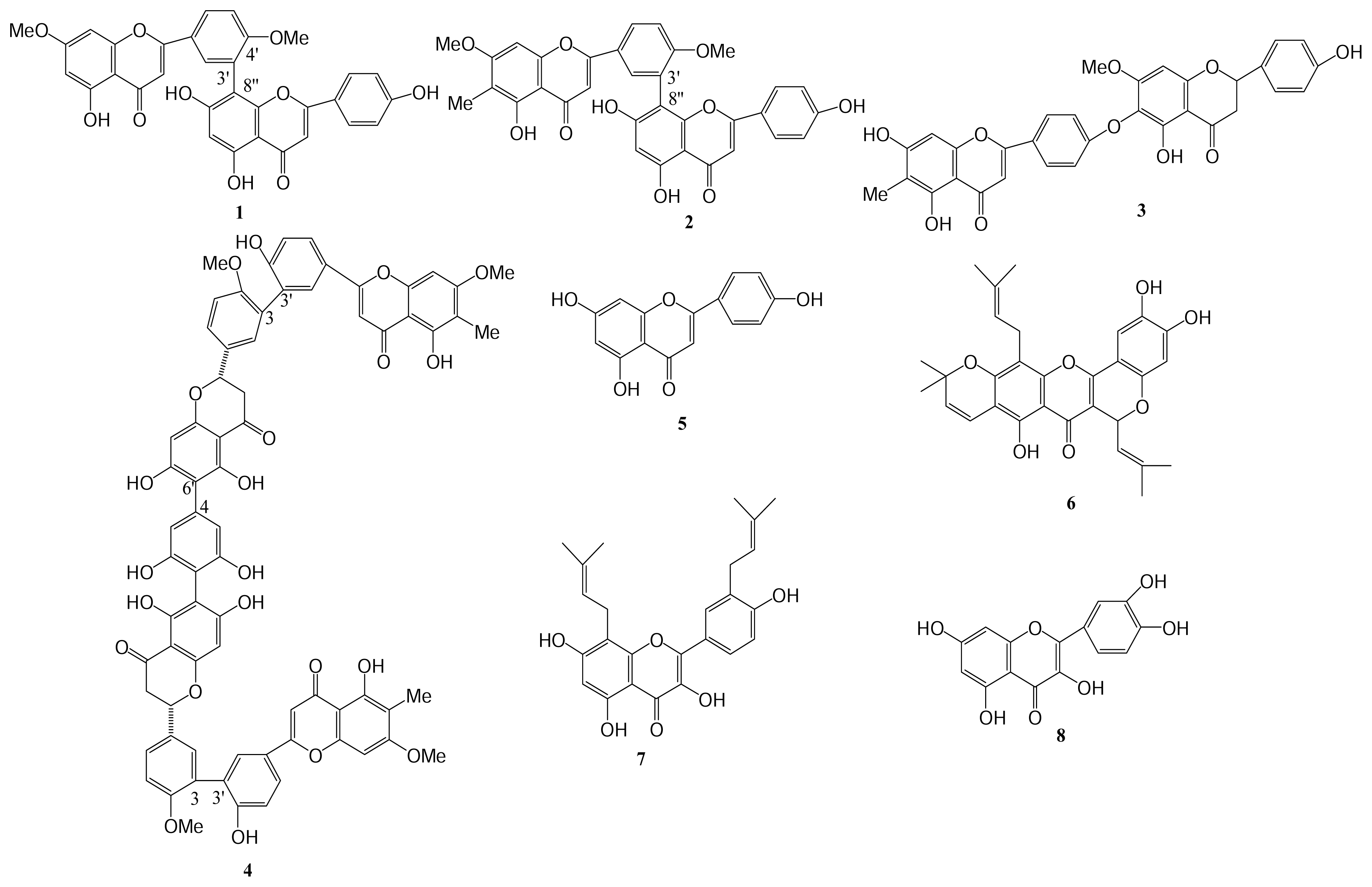

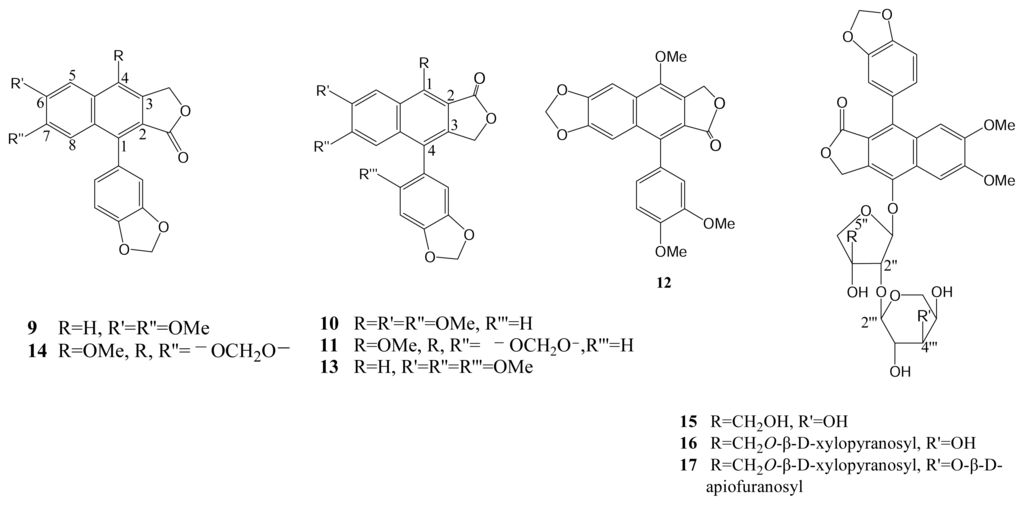

Abstract: The known flavonoids ginkgetin (1), taiwanhomoflavone A (2), taiwanhomoflavone B (3), and taiwanhomoflavone C (4) and eight known lignans: justicidin B (9), justicidin C (10), justicidin D (11), chinensinaphthol methyl ether (12), procumphthalide A (13), procumbenoside A (15), and ciliatosides A (16) and B (17) were isolated from Cephalotaxus wilsoniana and Justicia species, respectively. The antiplatelet effects of the above constituents on human platelet-rich plasma (PRP) were evaluated. Of the compounds tested on human PRP, compounds 1, 4, 9, and 11 showed inhibition of secondary aggregation induced by adrenaline. Compound 1 had an inhibitory effect on cyclooxygenase-1 (COX-1). Molecular docking studies revealed that 1 and the related compounds apigenin (5), cycloheterophyllin (6), broussoflavone F (7), and quercetin (8) were docked near the gate of active site of COX-1. It indicated that the antiplatelet effect of 1, 4, 9, and 11 is partially owed to suppression of COX-1 activity and reduced thromboxane formation. Flavonoids, 1, 5, 6, 7, and 8 may block the gate of the active site of COX-1 and interfere the conversion of arachidonic acid to prostaglandin (PG) H2 in the COX-1 active site.
In previous papers, we have reported isolation of flavonoids from Cephalotaxus wilsoniana (Cephalotaxaceae), lignans from Justicia species (Acanthaceae), and their antiplatelet, cytotoxic, and anti-inflammatory effects [1–5]. To continue screening work on antiplatelet effects of natural products, ten known lignans: diphyllin, justicidin A, justicidin B (9), justicidin C (10), justicidin D (11), justicidin E, chinensinaphthol methyl ether (12), procumphthalide A (13), taiwan E methyl ether (14), and ciliatoside A (16) were isolated from J. procumbens var. Hayatai.
Justicidin A, 10, 11, 12 and 14 were shown to have antiplatelet activity on rabbit platelets against arachidonic acid (AA) induced aggregation, while justicidin A and 14 were also shown to have antiplatelet effects on platelet aggregation induced by adrenaline in human platelet-rich plasma (PRP) [5,6]. In the present paper, the antipletelet effects of flavonoids, ginkgetin (1), taiwanhomoflavone A (2), taiwanhomoflavone B (3), and taiwanhomoflavone C (4)  from C. wilsoniana and lignins, 9–13, prcumbenoside A (15) , and ciliatosides A (16) and B (17)  from Justicia species are reported (Figures 1 and 2). Antiplatelet compounds with inhibitory effect on AA-induced platelet aggregation in washed rabbit platelets and secondary aggregation induced by adrenaline in human PRP are mainly owing to suppression of cyclooxygenase (COX) activity and reduced thromboxane formation or owing to inhibition of thromboxane synthase, leading to reduced thromboxane formation [7–9]. A more detailed understanding of COX isoform differences may aid in the design of more selective and potent inhibitors of both COX isoforms. Thus, the possible binding models of 1 and related flavonoids, apigenin (5), cycloheterophyllin (6), broussoflavonol F (7) and quercetin (8) within the COX-1 active site have been analyzed and are also reported in the present paper.
2. Results and Discussion
Platelet aggregation is an important pathogenic factor in the development of atherosclerosis and associated thrombosis in human . A rational approach for the discovery of antithrombotic drugs is to search for inhibitors of platelet aggregation. In previous papers, several prenylflavonoids exhibited strong inhibition of platelet aggregation induced by AA and their antiplatelet effects are partially due to an inhibitory effect on COX-1 [10,11]. To study the structure-antiplatelet activity relationships of various flavonoids and lignans, the antiplatelet effects of 1–4, 9–13, and 15–17 on platelet aggregation induced by adrenaline (5 μM) in human PRP were studied. Lignans, 12 and 15–16 (data not shown) showed no antiplatelet effects in the test. While 1, 4, and 13 (each at 300 μM) and 9–11 (each at 100 μM) had significant antiplatelet effects on the platelet aggregation of human PRP induced by adrenaline (Table 1 and Figures 3 and 4).

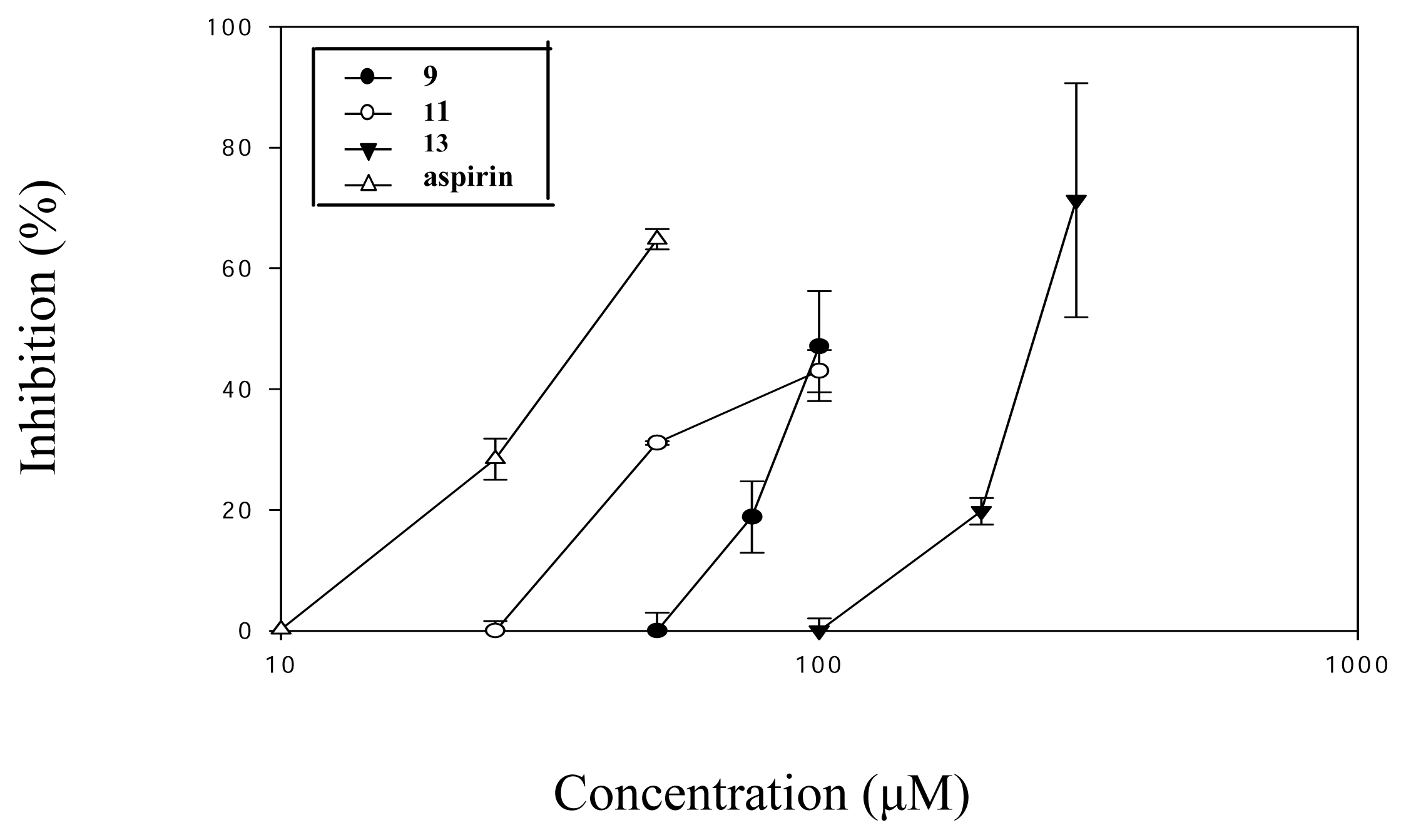

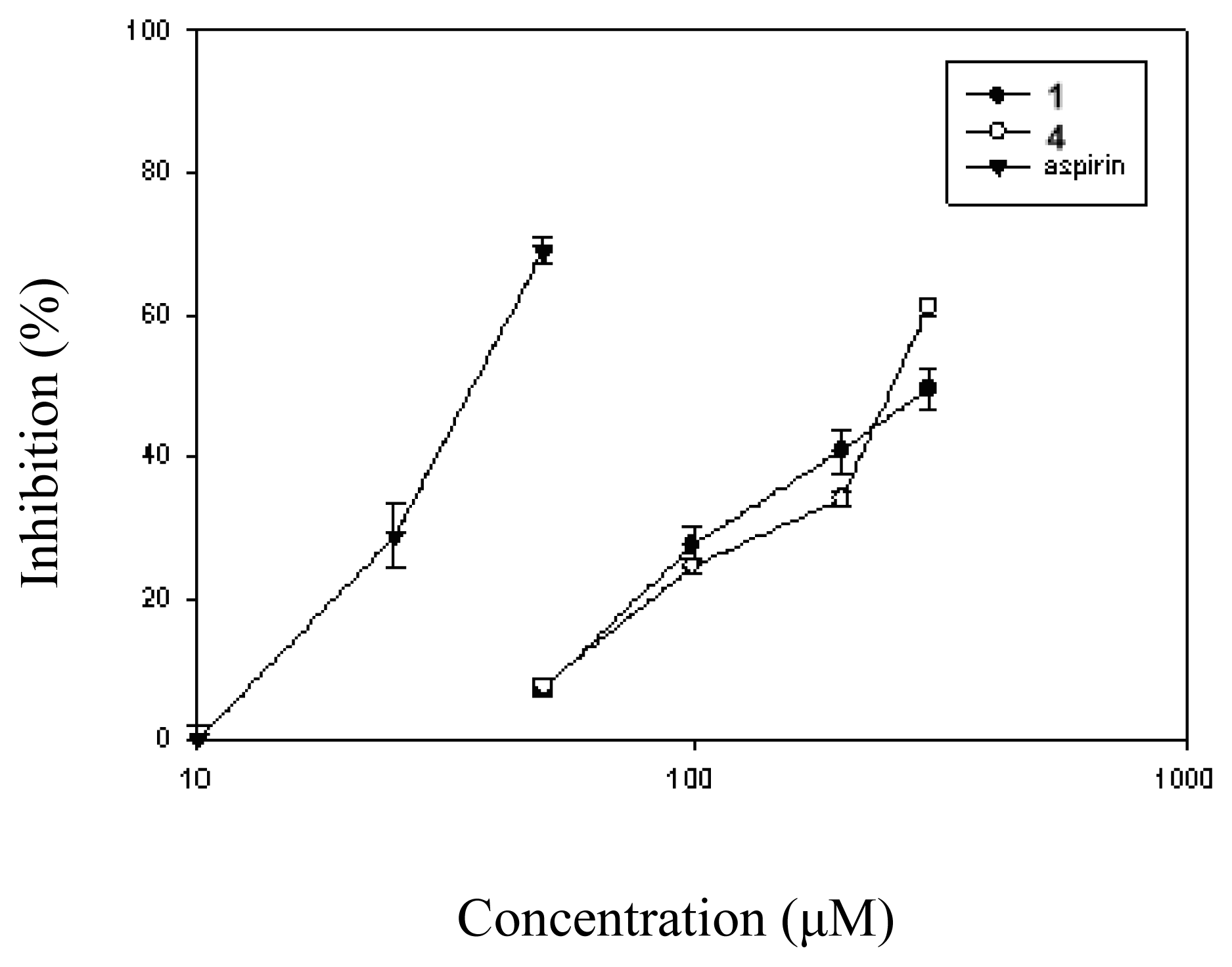

The antiplatelet effects of 1, 4, 9, 11, and 13 appeared to be concentration dependent, with IC50 values of 293.6 ± 18.4, 259.0 ± 22.3, 104.8 ± 25.3, 106.5 ± 39.4, and 255.1 ± 86.2 μM, respectively. Compound 12 significantly inhibited rabbit platelet aggregation induced by AA , but did not significantly prevent secondary aggregation induced by adrenaline on human PRP. This could be due to the higher binding capacity of plasma for this compound. The positive control, aspirin (50 μM), strongly inhibited platelet aggregation induced by adrenaline on human PRP. In adrenaline induced platelet aggregation all compounds tested in Table 1 prevented secondary aggregation (i. e. 1 and 11 in Figures 5 and 6, respectively).

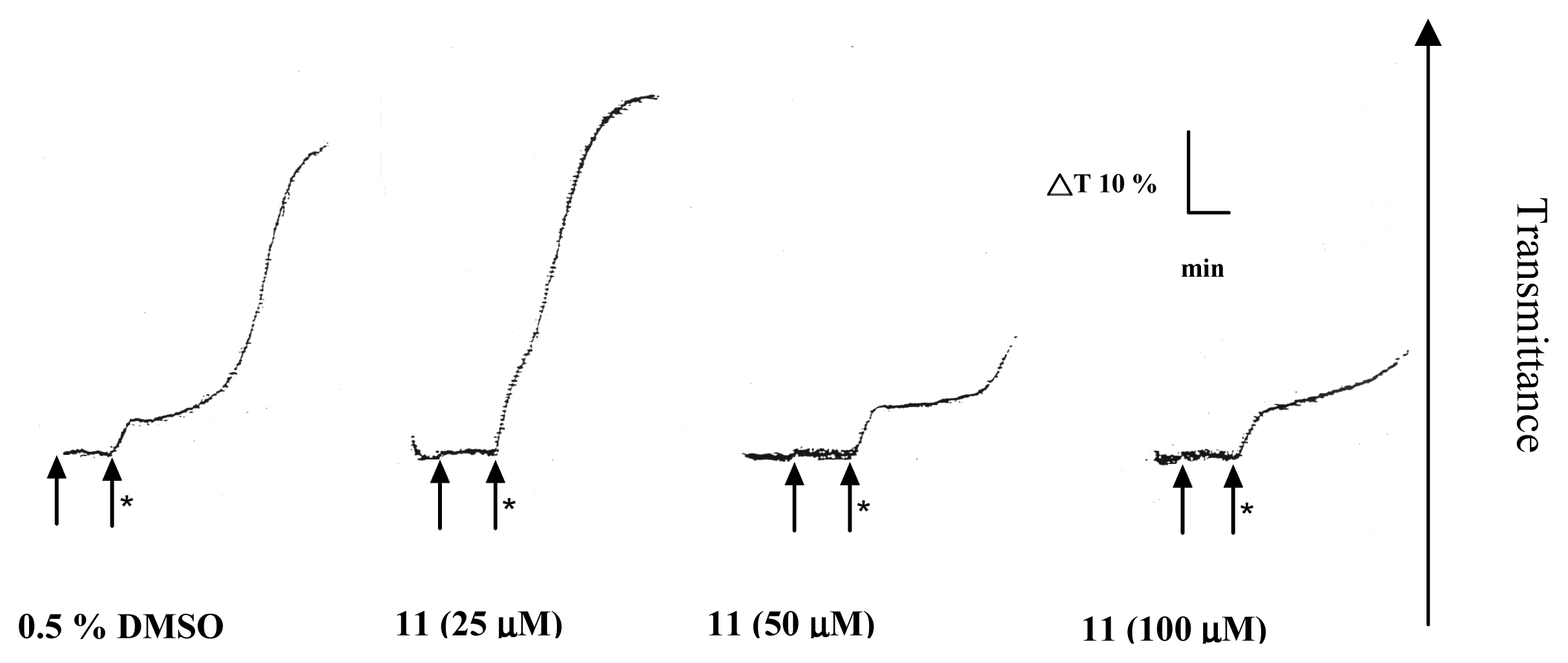

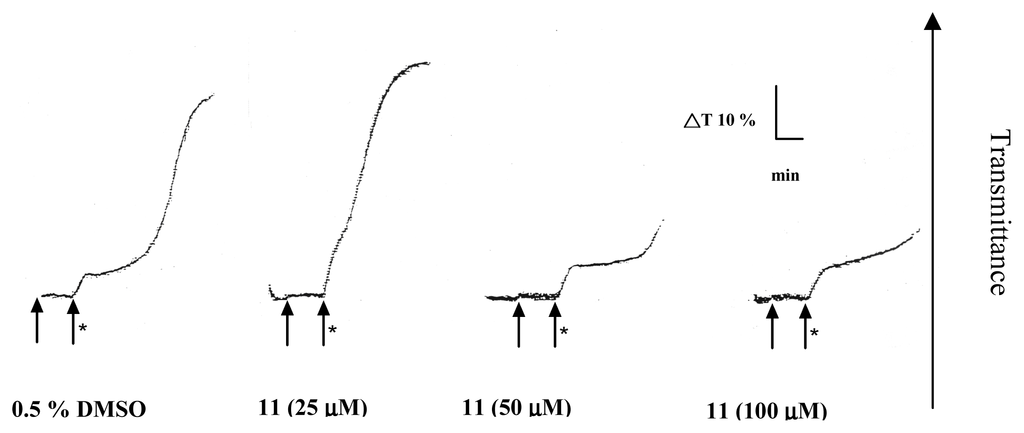

Compounds 9 and 11 revealed significant antiplatelet activities on rabbit platelet aggregation induced by AA, with IC50 values of 8.0 ± 1.2 and 1.7 ± 0.3 μM , but not on adrenaline induced aggregation in human PRP with IC50 values of 104.8 ± 25.3 and 106 ± 39.4 μM, respectively. This could be also due to higher binding capacity of plasma for these compounds.
It is indicated that the antiplatelet effects were probably mediated through the suppression of cyclooxygenase-1 (COX-1) activity and reduced thromboxane formation or owing to the inhibition of thromboxane synthase, leading to reduced thromboxane formation [8, 9].

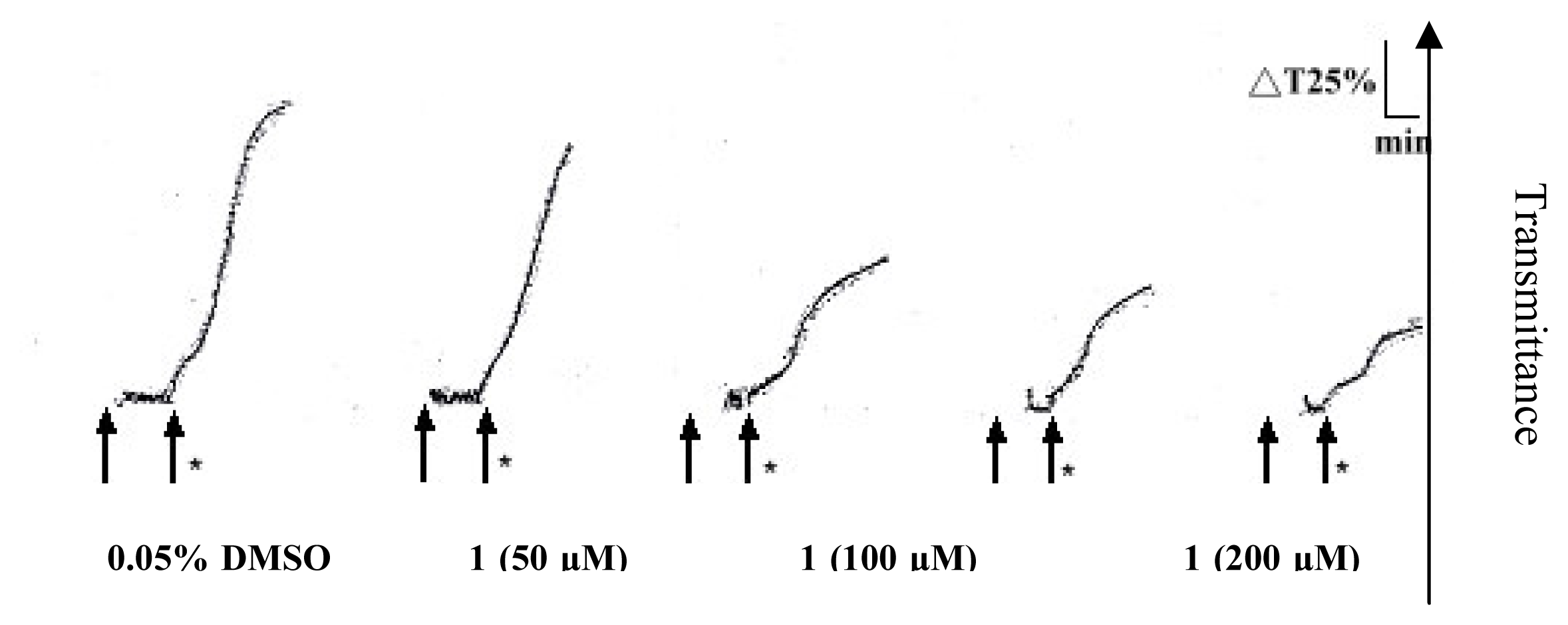

Compounds 1 and 4 showed antiplatelet effect on platelet aggregation of human PRP induced by adrenaline. It indicated 3′, 8″ linked biflavonoids such as 1 showed stronger antiplatelet effect on platelet aggregation of human PRP induced by adrenaline while a methyl group substituted at C-6 such as 2 decreased antiplatelet effect on platelet aggregation of human PRP induced by adrenaline. Previously we had reported that cilinaphthalide B, justicidin A, and taiwanin E methyl ether (14) were shown to have an antiplatelet effects on human PRP . Among them 14 showed a strong inhibitory effect on platelet aggregation induced by adrenaline in a concentration dependent manner with an IC50 value of 27.6 μM . From Figure 4, it is clearly indicated that 1-aryl-2,3-naphthalide lignan type compounds such 14 had a stronger antiplatelet effect than that of 4-aryl-2,3-naphthalide lignan type ones such as 11 on human PRP.
When the activity of fatty acid COX-1 from ram vesicular glands was measured in the presence of the selected compounds. Compounds 1 and 14 weakly inhibited the enzyme (Table 2).
The antiplatelet activity of 1 and 14 is partially due to suppression of COX-1 activity and reduced thromboxane formation. In crystallization experiments, it was reported that all COX-1 inhibitors interacted with the putative catalytic amino acid residue Tyr 385 and formed hydrogen bonds with Arg 120 and Tyr 355 .

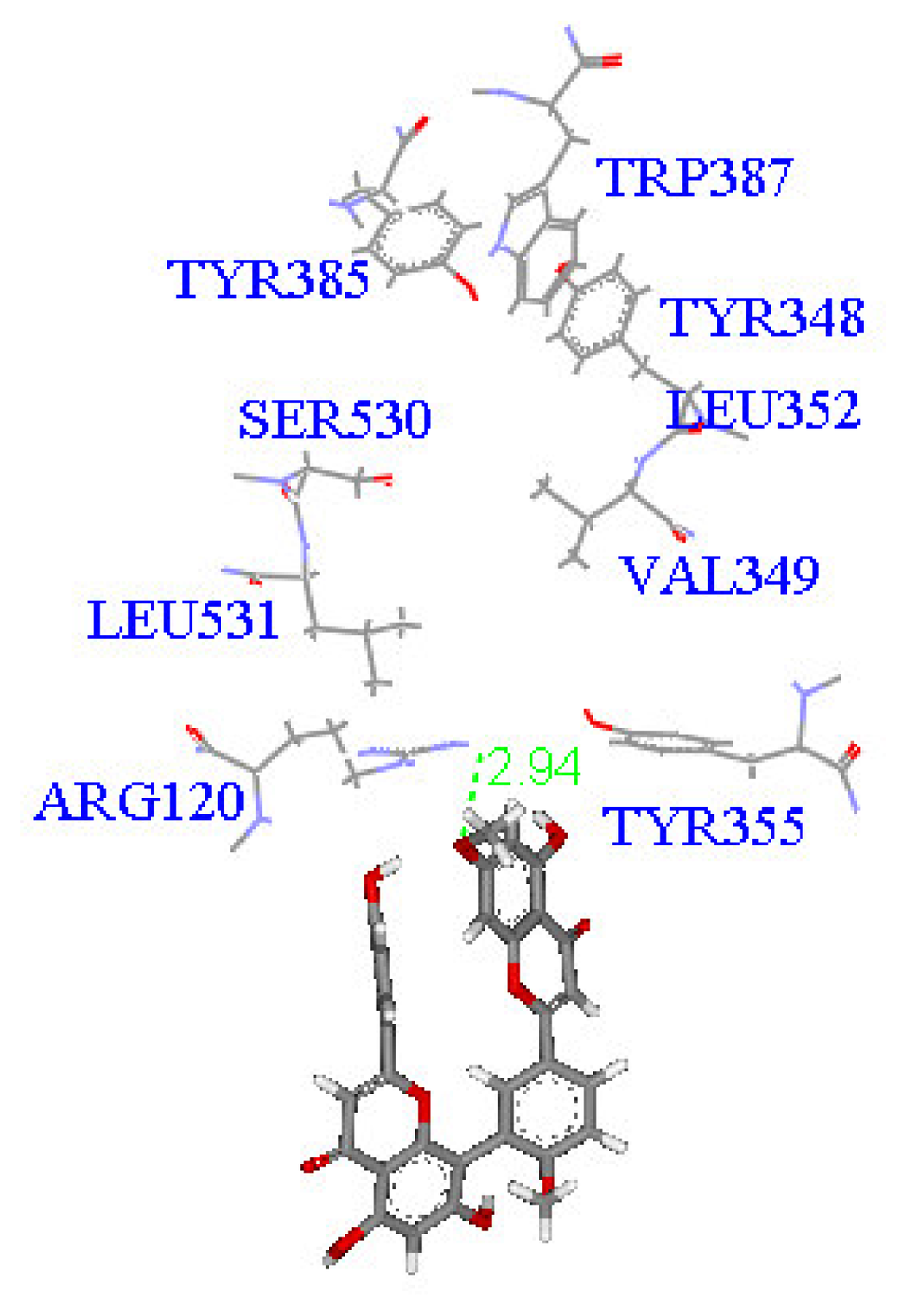

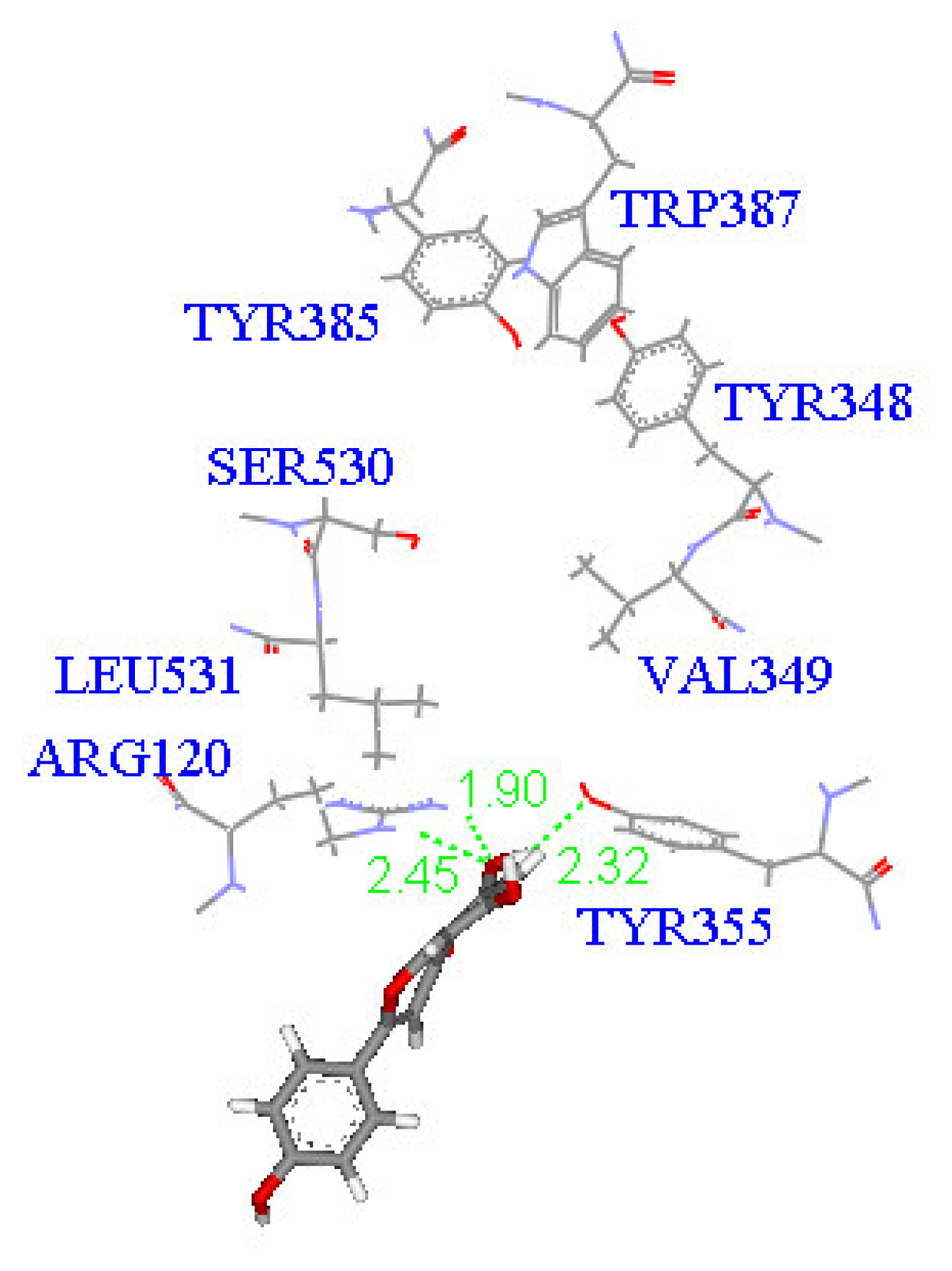

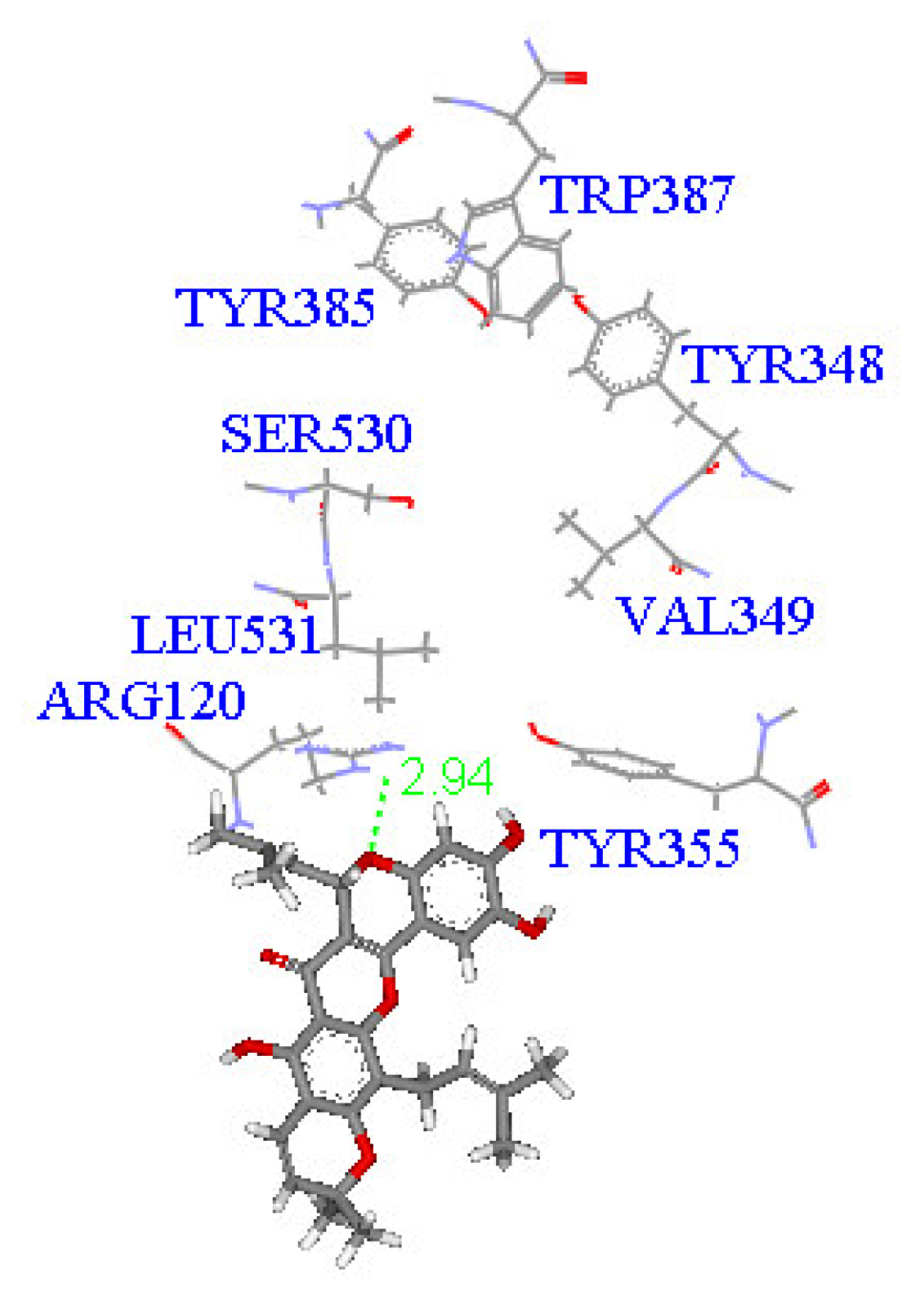

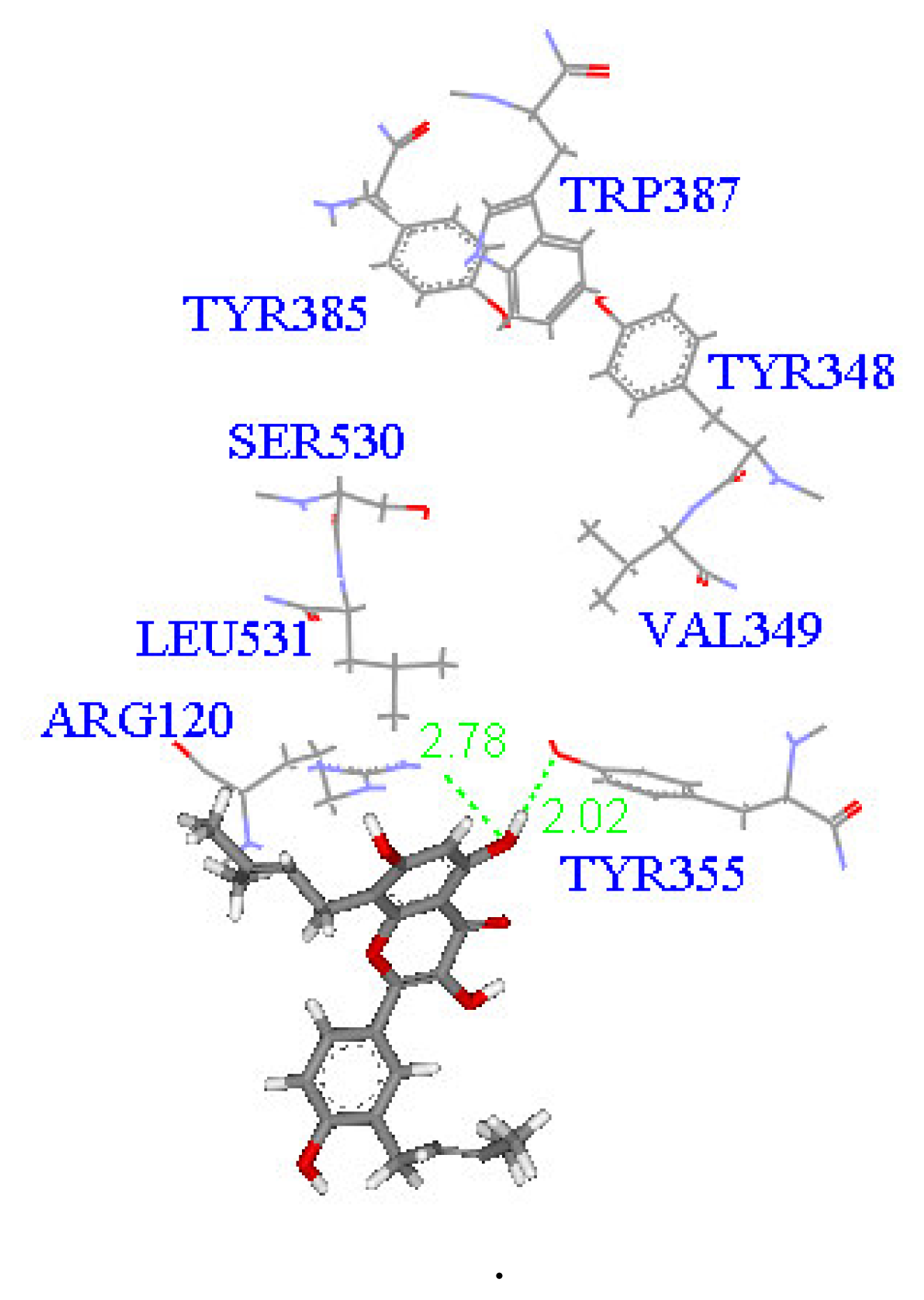

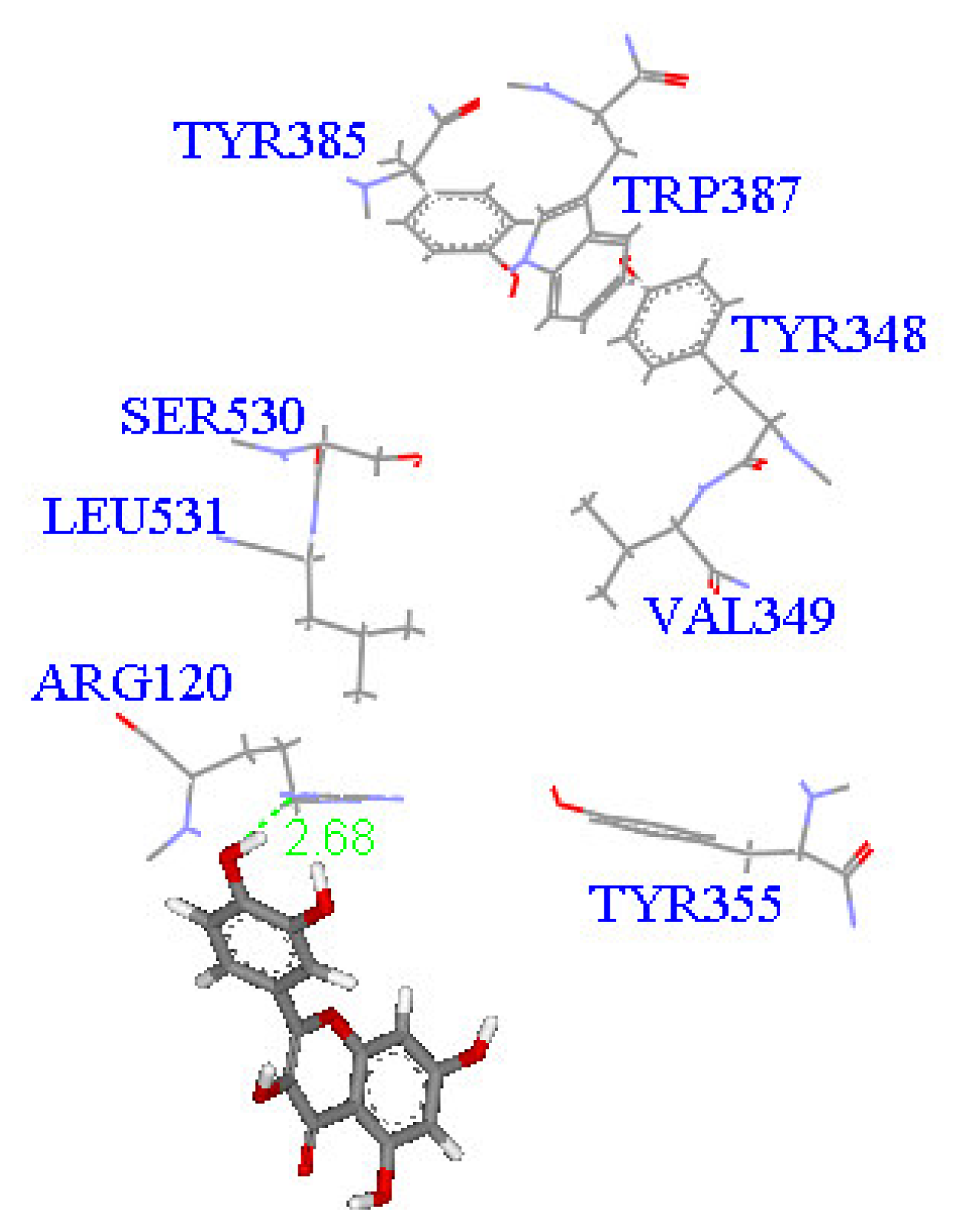

When mapping 1 and related flavonoids 5–8 into a COX-1 model (Figures 7–11), all these compounds docked near the gate of COX-1. It could be observed that the oxygen or phenolic oxygen atom of flavonoids accept hydrogen bond from Arg 120 or Tyr 355. The scoring values given by DockScore  are given in Table 3. Compounds 7 and 8 indicated good qualitative agreement between experimental (Table 2) and predicted (Table 3) results. Flavonoids 1 and 5–8 may block the gate of active site of COX-1 and interfere with the conversion of arachidonic acid to prostaglandin (PG) H2 in the active site of COX-1.
In the present study, we had further found biflavonoid, 1, tetraflavonoid, 4, and lignans, 9 and 11 showed inhibition of secondary aggregation induced by adrenaline in human PRP. It indicates that the antiplatelet effects of these compounds are partially due to an inhibitory effect on thromboxane formation [7–9]. Additionally, compounds 1, 5, 6, 7, and 8 showed inhibitory effect on COX-1 activity (Table 3) [10,13]. It indicated a mode of action including the interference in arachidonic acid binding channel might be possible.
3. Experimental Section
Optical rotation: JASCO model DIP-370 digital polarimeter. UV Spectra: JASCO UV-vis spectrophotometer. IR Spectra: Perkin-Elmer 2000 FT-IR spectrophotometer. 1H and 13C-NMR Spectra: Varian Unity-400 spectrophotometers, at 400 (1H) and 100 (13C) MHz, with Me4Si as internal standard; δ in ppm, J in Hz. Mass Spectra: JMX-HX100MS spectrometer.
Extraction and Isolation
Compounds 1–4, 15, and 17 have been previously identified and reported [1,3,4]. Whole plants of Justicia procumbens var. Hayatai (6.5 kg) were chipped and extracted with MeOH at room temperature. The MeOH extract was applied to a Si gel column and eluted with CHCl3 to yield justicidin E (5 mg). Elution with n-hexane-EtOAc (8:1) yielded diphyllin (13 mg) and 11 (11 mg). Elution with n-hexane-EtOAc (4:1) yielded justicidin A (105 mg), 10 (15 mg), 14 (35 mg), 12 (10 mg). Elution with n-hexane-EtOAc (3:1) yielded 9 (12 mg). Elution with n-hexane-EtOAc (2:1) yielded 16 (15 mg). Elution with EtOAc-acetone (5:1) yielded 13 (15 mg). The isolated compounds were identified by spectroscopic methods and comparison with the spectroscopic data reported in literature [3,5,6,15,16].
Platelet aggregation in human PRP assays were performed by the method described previously .
The reaction mixture (0.1 M Tris-HCl, PH 8.0, 5 mM tryptophan, 8 mM hematin, test drugs, and 10 μg/mL of ram seminal vesicles COX was incubated for 3 min at 30 °C. The reaction was initiated by adding 100 μM AA. The velocity of oxygen consumption in the reaction mixture was monitored continuously with a Clark-type oxygen electrode using a YSI biological oxygen monitor (Model 5300) .
Molecular docking study
Docking experiments were performed using DS modeling 1.2 (Accelrys Inc.). The coordinates for the x-ray crystal structure of the enzyme COX-1 was obtained from the RCSB Protein Data Bank and hydrogens were added. The ligand molecules were constructed using DS Modeling 1.1 and energy-minimized. The docking experiment on COX-1 was carried out by superimposing the energy-minimized ligand on FLP in the PDB file 1CQE after which FLP was detected. The chemistry at HARvard Molecular Mechanics force field (CHARMm) was employed for all docking purposes. The optical binding orientation of the ligand-enzyme site obtained after docking was further minimized for 1000 iterations using the conjugate gradient method until a convergence of 0.001 Kcal/mol-Å.
Data are presented as means ± s. e. m. One-way analysis was used for multiple comparison, and if there are significant variation between the treatment groups and the inhibitor-treated groups, they were then compared with control group by student’s t-test. Values of P < 0.05 were considered statistically significant.
|Table 1. Antiplatelet effects of flavonoids, 1–4, lignans, 9–11 and 13, and aspirin on adrenaline-induced aggregation in human PRP.|
|Compound (μM)||Aggregation (%)|
|Control||98.7 ± 0.3|
|1 (300)||49.9 ± 3.0*|
|2 (300)||97.4 ± 0.8|
|3 (300)||98.8 ± 1.6|
|4 (300)||38.5 ± 1.2*|
|9 (100)||50.9 ± 5.3***|
|10 (100)||74.7 ± 2.2**|
|11 (100)||54.9 ± 2.0***|
|13 (300)||27.7 ± 11.0**|
|Aspirin (50)||29.5 ± 1.0*|
Human PRP was pre-incubated with DMSO (0.5%, control) at 37 °C for 3 min, and then adrenaline (5 μM) was added. Data are presented as mean ± s. e. m. (n = 3).*P < 0.05;**P < 0.01;***P < 0.001: compared with the control value.
|Table 2. Inhibitory activity (O2 consumption) of selective compounds, 1, 5–8 and 14 on COX-1.|
|Compounds (μM)||COX-1 activity nmol/min (% inhibition)||IC50 (μM)|
|Control||10.9 ± 1.1|
|1 (10)||8.5 ± 1.4 (25.1 ± 6.9)|
|(30)||7.6 ± 1.7 (33.5 ± 7.5)*||> 100|
|(100)||6.6 ± 1.3 (42.0 ± 6.4)*|
|14 (10)||9.9 ± 1.6 (12.9 ± 8.1)||> 100|
|(100)||10.2 ± 1.0 (9.9 ± 5.3)|
|Indomethacin (0.3)||9.1 ± 1.1 (20.6 ± 6.2)|
|(1)||5.6 ± 1.0 (49.1 ± 6.4)**||14 ± 0.2|
|(3)||3.8 ± 0.7 (61.9 ± 5.2)**|
|Table 3. Docking results on COX-1 enzyme for 1 and 5–8.|
|Compound||DockScore||Van der Waals force (kcal/mol)||Interaction with following amino acids near the gate of active site of COX-1|
aCompound 5 forms two hydrogen bonds with Arg120.
This work was partially supported by a grant from the National Science Council of Republic of China (NSC94-2320-B-037-33).
References and Notes
- Wang, L. W.; Su, H. J.; Yang, S. Z.; Won, S. J.; Lin, C. N. New alkaloids and a tetraflavonoid from Cephalotaxus wilsoniana. J. Nat. Prod 2004, 67, 1182–1185. [Google Scholar]
- Day, S. H.; Chiu, N. Y.; Won, S. J.; Lin, C. N. Cytotoxic lignans of Justicia ciliata. J. Nat. Prod 1999, 62, 1033–1035. [Google Scholar]
- Day, S. H.; Chiu, N. Y.; Tsao, L. T.; Wang, J. P.; Lin, C. N. New lignan glycosides with potent anti-inflammatory effect, isolated from Justicia ciliata. J. Nat. Prod 2000, 63, 1560–1562. [Google Scholar]
- Day, S. H.; Lin, Y. C.; Tsao, M. L.; Tsao, L. T.; Ko, H. H.; Chung, M. I.; Lee, J. C.; Wang, J. P.; Won, S. J.; Lin, C. N. Potent cytotoxic lignans from Justicia procumbens and their effects on nitric oxide and tumor necrosis factor-α production in mouse macrophages. J. Nat. Prod 2002, 65, 379–381. [Google Scholar]
- Weng, J. R.; Ko, H. H.; Yeh, T. L.; Lin, C. H.; Lin, C. N. Two new arylnaphthalide lignans and antiplatelet constituents from Justicia procumbens. Arch. Pharm. Pharm. Med. Chem 2004, 337, 207–212. [Google Scholar]
- Chen, C. C.; Hsin, W. C.; Ko, F. N.; Huang, Y. L.; Ou, J. C.; Teng, C. M. Antiplatelet arylnaphthalide lignans from Justicia procumbens. J. Nat. Prod 1996, 59, 1149–1150. [Google Scholar]
- Ko, H. H.; Hsieh, H. K.; Liu, C. T.; Lin, C. H.; Teng, C. M.; Lin, C. N. Structure-activity relationship studies on chalcone derivatives: The potent inhibition of platelet aggregation. J. Pharm. Pharmacol 2004, 56, 1333–1337. [Google Scholar]
- Mitchell, J. R. A.; Sharp, A. A. Platelet clumping in vitro. Br. J. Haematol 1964, 10, 78–93. [Google Scholar]
- Mustard, J. F.; Perry, D. W.; Kinlough-Rathbone, R. L.; Pockham, M. A. Factors responsible for ADP-induced release reaction of human platelets. Am. J. Physiol 1975, 228, 1757–1765. [Google Scholar]
- Lin, C. N.; Lu, C. M.; Lin, H. C.; Fang, S. C.; Shieh, B. J.; Hsu, M. F.; Wang, J. P.; Ko, F. N.; Teng, C. M. Novel antiplatelet constituents from Formosan Moraceous plants. J. Nat. Prod 1996, 59, 834–838. [Google Scholar]
- Lin, C. N.; Shieh, W. L.; Ko, F. N.; Teng, C. M. Antiplatelet effect of prenylflavonoids. Biochem. Pharmacol 1993, 45, 509–512. [Google Scholar]
- Kalgutkar, A. S.; Crews, B. C.; Rowlison, C. G.; Seibest, K.; Marnett, L. J. Aspirin-like molecules that covalently inactive cyclooxygenase-2. Science 1998, 280, 1268–1270. [Google Scholar]
- Chi, Y. S.; Jong, H. G.; Son, K. H.; Chang, H. W.; Kang, S. S.; Kim, H. P. Effect of naturally occurring prenylated flavonoids on enzymes metabolizing arachidonic acid : cyclooxygenases and lipoxygenases. Biochem. Pharmacol 2001, 62, 1185–1191. [Google Scholar]
- DS Modeling 1.2-SBD; Accelrys Inc: 9685 Scranton Rd. San Diego, CA.
- Ohta, K.; Munaka, K. Justicidin C and D, the 1-methoxy-2,3-naphthalide lignans, isolated from Justicia procumbens L. Tetrahedron Lett 1970, 12, 923–925. [Google Scholar]
- Okigawa, M.; Maeda, T.; Kawano, N. The isolation and structure of three new lignans from Justicia procumbens Linn. var. leucantha Honda. Tetrahedron 1970, 26, 4301–4305. [Google Scholar]
- Hsu, M. F.; Lu, C. M.; Tsao, L. T.; Kuan, Y. H.; Chen, C. C.; Wang, J. P. Mechanisms of the influence of magnolol on eicosanoid metabolism in neutrophils. Biochem. Pharmacol 2004, 67, 831–840. [Google Scholar]
- Wiglenda, T.; Ott, I.; Kircher, B.; Schumacher, P.; Schuster, D.; Langer, T.; Gust, R. Synthesis and pharmacological evaluation of 1H-imidazoles as ligands for the estrogen receptor and cytotoxic inhibitors of cyclooxygenase. J. Med. Chem 2005, 48, 6516–6521. [Google Scholar]
