Genome-Wide Identification, Characterization, and Expression Analysis of Four Subgroup Members of the GH13 Family in Wheat (Triticum aestivum L.)

by
Yue Yin
1,2,
Dongjie Cui
2,3,
Hao Sun
2,3,
Panfeng Guan
2,3,
Hanfeng Zhang
2,
Qing Chi
2,3,* and
Zhen Jiao
1,2,3,*
1
Henan Key Laboratory of Ion-Beam Green Agriculture Bioengineering, School of Physics and Microelectronics, Zhengzhou University, Zhengzhou 450052, China
2
State Key Laboratory of Cotton Biology, School of Agricultural Sciences, Zhengzhou University, Zhengzhou 450052, China
3
Sanya Institute, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(6), 3399; https://doi.org/10.3390/ijms25063399
Submission received: 28 January 2024 / Revised: 7 March 2024 / Accepted: 14 March 2024 / Published: 17 March 2024
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
The glycoside hydrolase 13 (GH13) family is crucial for catalyzing α-glucoside linkages, and plays a key role in plant growth, development, and stress responses. Despite its significance, its role in plants remains understudied. This study targeted four GH13 subgroups in wheat, identifying 66 GH13 members from the latest wheat database (IWGSC RefSeq v2.1), including 36 α-amylase (AMY) members, 18 1,4-α-glucan-branching enzyme (SBE) members, 9 isoamylase (ISA) members, and 3 pullulanase (PU) members. Chromosomal distribution reveals a concentration of wheat group 7 chromosomes. Phylogenetic analysis underscores significant evolutionary distance variations among the subgroups, with distinct molecular structures. Replication events shaped subgroup evolution, particularly in regard to AMY members. Subcellular localization indicates AMY member predominance in extracellular and chloroplast regions, while others localize solely in chloroplasts, confirmed by the heterologous expression of TaSEB16 and TaAMY1 in tobacco. Moreover, 3D structural analysis shows the consistency of GH13 across species. Promoter cis-acting elements are suggested to be involved in growth, stress tolerance, and starch metabolism signaling. The RNA-seq data revealed TaGH13 expression changes under drought and submergence stress, and significant expression variation was observed between strong and weak gluten varieties during seed germination using quantitative real-time PCR (qRT-PCR), correlating with seed starch content. These findings demonstrate the pivotal role of GH13 family gene expression in wheat germination, concerning variety preference and environmental stress. Overall, this study advances the understanding of wheat GH13 subgroups, laying the groundwork for further functional studies.

1. Introduction

Starch is an important energy-storing carbohydrate, widely found in the seeds, tubers, and roots of various plants and other organs, and has served as a staple crop for humans for over 10,000 years. The cultivation of starchy crops, such as Triticum aestivum (wheat), Zea mays (corn), Oryza sativa (rice), and Solanum tuberosum (potato), provided the basis for the development of human civilization. Among them, wheat, which is abundant in starch, was domesticated by humans in the Fertile Crescent, about 12,000 years ago, and became one of the most important staple foods for humans [1]. Starch is composed of straight-chain starch and branched-chain starch; their structures are somewhat different. Amylose is a linear structure consisting of glucose residues linked by α-1,4-glycosidic bonds with a few α-1,6 branches, while the main structure of amylopectin is the same as that of straight-chain starch, except that the chain is shorter and contains a large number of α-1,6 branches [2].
With the continuous deepening of research on starch metabolism in plants, the pathways of starch synthesis and degradation have become clearer, and the key enzymes involved have also been categorized by researchers. Glycoside hydrolases (GHs, EC 3.2.1.x and EC 2.4.1.x) are key enzymes in carbohydrate metabolism that are found in three major kingdoms of life (archaebacteria, eubacteria, and eukaryotes) [3]. Glycosidases and transglycosidases are two major classes of enzymes involved in the synthesis and breakdown of starch and most of these enzymes belong to the GH13 family. It has been noted that GH13 family members mainly hydrolyze α-1,4 glucosidic and α-1,6 glucosidic bonds in starch, with some other members functionally involved in glycosyl transfer [4,5,6]. The GH13 family represents the largest family of GHs and belongs to the clan GH-H, which is believed to share a common ancestor and catalytic machinery with the GH70 and GH77 families [7].
Early studies suggested that the GH13 family was included in the α-amylase family and, as research progressed [8,9,10], more enzymes with other catalytic activities were incorporated into the GH13 family. However, studies of the GH13 family in plants have focused on three classes of α-amylase (AMY) members, starch branching enzymes and de-branching enzymes, with the branching enzymes mainly comprising the 1,4-α-glucan -branching enzyme (SBE), and the de-branching enzymes mainly comprising isoamylase (ISA) and pullulanase (PU) enzymes. Structurally, GH13 enzymes are characterized by a conserved structural core, composed of three domains, often designated as domains A, B, and C. Domain A folds as a (β/α) 8-barrel, domain B is a loop of variable length inserted between strand β3 and helix α3 of the (β/α) 8-barrel. Domain C is a C-terminal extension, characterized by a Greek key structure. Between domains A and B is a catalytically active center, containing three active residues [11,12,13,14,15]. The hydrolase and transferase enzymes that make up the GH13 family both have multiple structural domain proteins, but they all share the same core structural domains. In some studies, researchers have noted that the GH13 family has the most basic catalytic triad plus an arginine residue that is totally conserved [16], which explains why the GH13 family is large and contains numerous functions.
In grains, the energy for seed germination is mainly provided by starch stored in the endosperm, whose breakdown produces the monosaccharides that provide energy for seed germination and seedling growth. Starch synthesis involves numerous transglycosidases that contribute to starch side-chain formation. The expression of GH13 family members during seed germination significantly affects seedling development. In germinating grain seeds, isoforms of AMY are secreted from the living aleurone cells and play a key role in the degradation of storage starch in the non-living starchy endosperm, this process fuels early seedling establishment [17]. Moreover, previous studies showed that seedlings of rice varieties (cvs: Dongdao-4 and Jigeng-88) with higher AMY activity developed more rapidly at low temperatures [18]. In Arabidopsis thaliana, the functional limitation of AMY promotes the accumulation of starch granules [19]. For SBE, the loss of the SBE1 function in Arabidopsis thaliana results in abnormal seed embryos and the failure of cotyledons to develop normally [20]. Maize (Zea mays) SBEI loss of function alters the seed starch structure, leading to reduced starch digestibility and slow coleoptile growth during seed germination [21]. A piece of previous research examined the expression levels of PU during the developmental and germination stages of rice (cvs: 9311 and Wuxiangjing 9) seeds and found that PU expression was at a high level during both time periods [22].
In addition to germination, GH13 is instrumental in the degradation of starch in plants throughout the growth cycle, participating in diverse physiological processes. It has been shown that maize isoamylase SU1 (an isozyme of ISA) knockout mutations lead to an abnormal increase in starch side chains in the kernel [23,24]; whereas, SBE1 and SBE2 knockout mutations affect the synthesis of starch side chains [25]. SBE2 mutants in barley (Hordeum vulgare), wheat, and rice (cvs: IR64 and Nipponbare) cause changes in the starch structure in the seed grain [26]. It has been suggested that heat stress in rice (cvs: Nikomaru, Kumasannochikara, Genkitsukushi, and Sagabiyori) leads to elevated AMY expression, which responds to the damage caused by high temperatures to the embryo by increasing the content of soluble sugars in the seed [27,28]. Indeed, soluble sugars are widely involved in the plant’s response to abiotic stresses, and starch degradation is an important source of soluble sugars, which explains the decrease in the activity of most starch synthases and the increase in catabolic enzyme activity during abiotic stresses [29].
In the current study, 66 GH13 family members in the whole genome of wheat were identified and divided into four subgroup members, namely TaISA, TaSBE, TaAMY, and TaPU. In addition, GH13 family members’ gene structure, conserved structural domains, and cis-acting elements were predicted; we also analyzed the gene expression pattern in different tissues, at different developmental stages, and under two abiotic stresses, and experimentally explored the differences in the expression levels among strong and weak gluten varieties. This study organizes the expression patterns of GH13 family members in wheat, expands the research base on the GH13 family in plants, and promotes the understanding of genes related to starch metabolism in wheat.

2. Results

2.1. Identification and Phylogenetic Analysis of GH13 Family Members in Wheat Genome

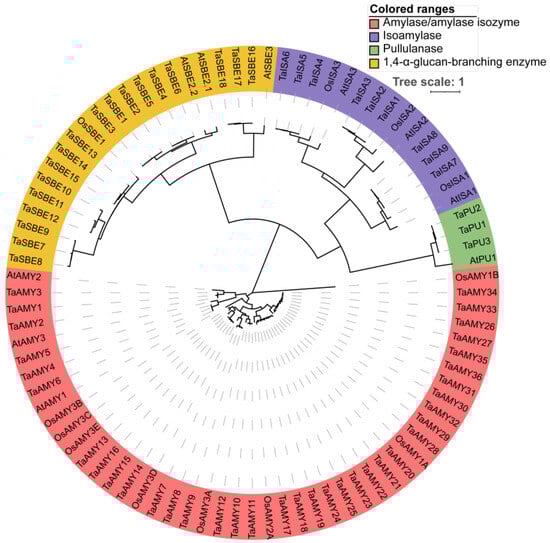

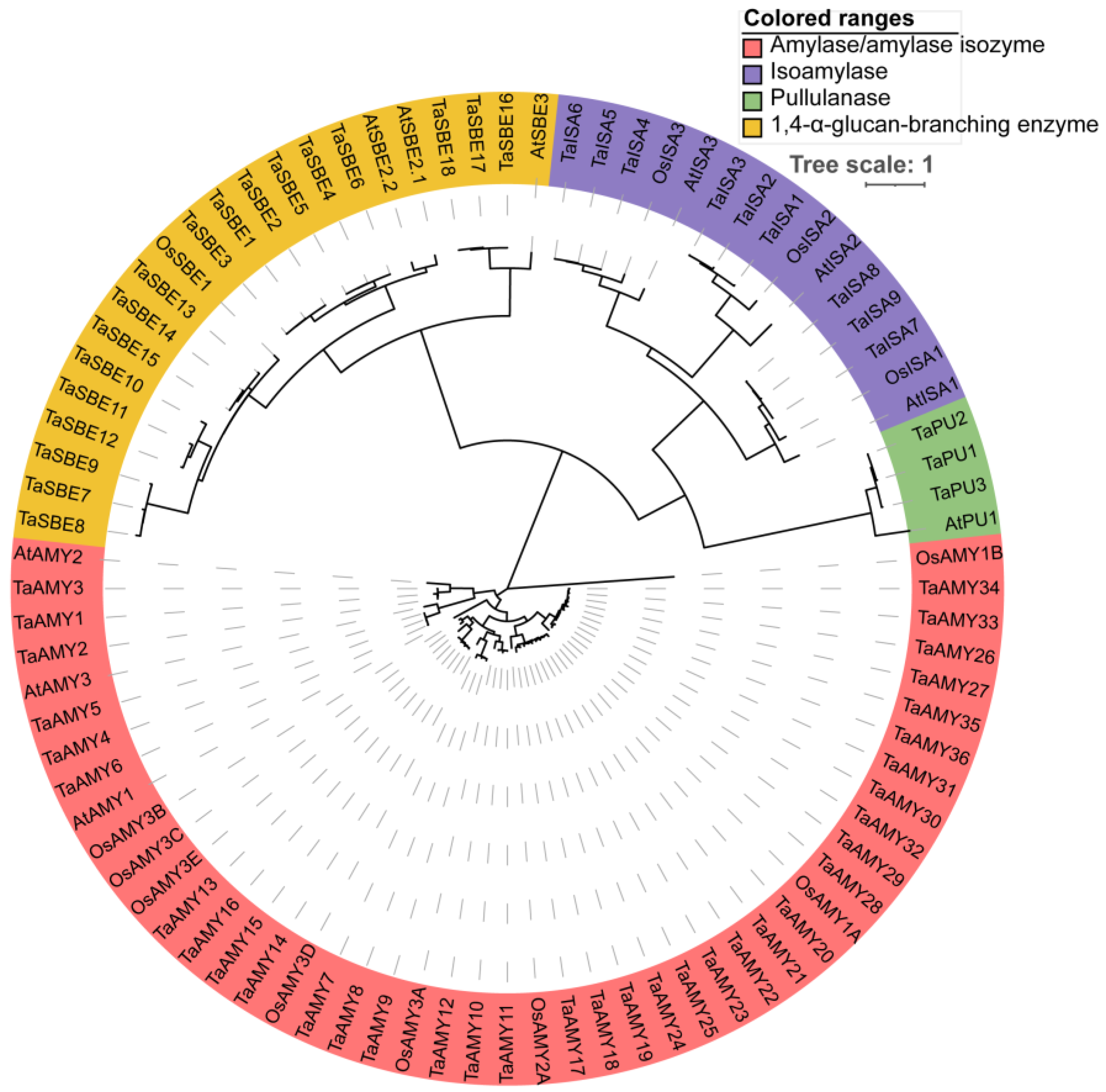

A total of 67 TaGH13 candidate genes were identified, using known GH13 members from the Arabidopsis thaliana and rice genomes as retrieval targets. After NCBI Conserved Domain Database (CDD) detection, sequences containing structural domains ‘AmyAc_plant_IsoA (CDD Accession: cd11346), E_set_GDE_Isoamylase_N (CDD Accession: cd02856), AmyAc_Glg_debranch (CDD Accession: cd11326), PLN02447, PLN02960, PLN02361, PLN02784, PLN00196 and PLN02887′ were eventually identified (Table 1). Based on the phylogenetic analysis of known members of rice and Arabidopsis thaliana gene families and their domain composition, the GH13 family was classified into four subgroups, AMY, SBE, ISA and PU (Figure 1). More specifically, 36 members belonged to the AMY subgroup, 18 members belonged to the SBE subgroup, 9 members belonged to the ISA subgroup, and 3 members belonged to the PU subgroup. Then, we named them TaISA1-9, TaSBE1-18, TaAMY1-36, and TaPU1-3, according to their respective chromosomal location and arrangement (Table 1 and Figure 1). The details of the TaGH13 gene family, including gene ID, amino acid length, molecular weight (MW), isoelectric point (pI), instability index, aliphatic index, and grand average hydropathicity (GRAVY), are provided in Table 1. The number of amino acids of TaGH13 members ranged from 361 (TaSBE7) to 963 (TaAMY19, 36), and the MW ranged from 40,278.79 Da (TaSBE7) to 106,019.4 Da (TaAMY19). The pI value went from 5.31 (TaAMY36) to 8.63 (TaSBE14), most of which were less than 8, suggesting that most TaGH13s were acidic proteins. TaISA8, TaSBE2, TaISA6, TaISA2, TaISA1, TaISA3, TaAMY28, and TaAMY17 have an instability index greater than 40, which proves that these proteins are unstable (instability index > 40 is considered an unstable protein). The aliphatic index and GRAVY value indicated that all of the TaGH13s were hydrophilic proteins, with an aliphatic index < 100 and a GRAVY < 0.

2.2. Chromosomal Locations, Synteny Analysis, and Duplication Events of TaGH13 Family

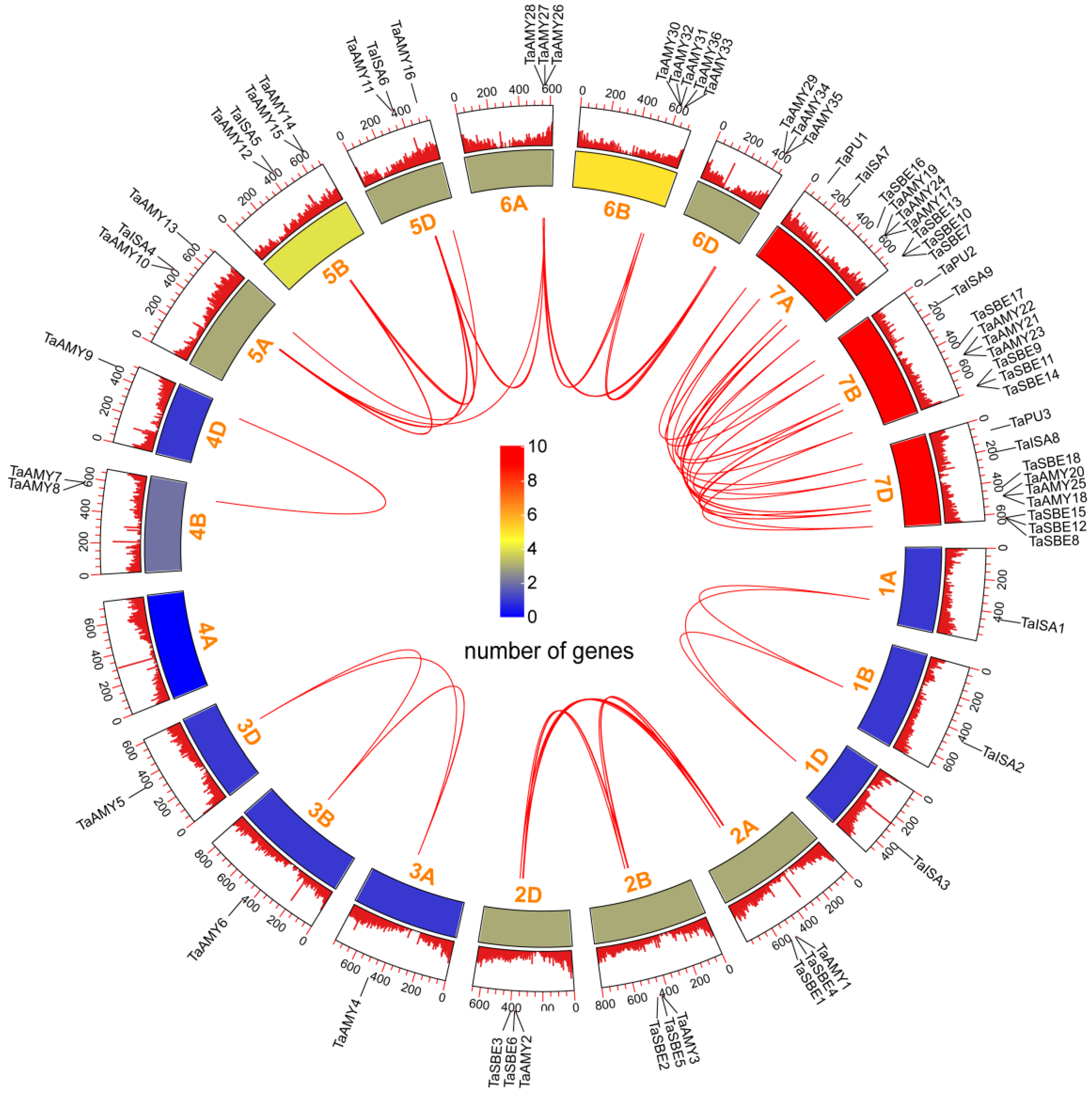

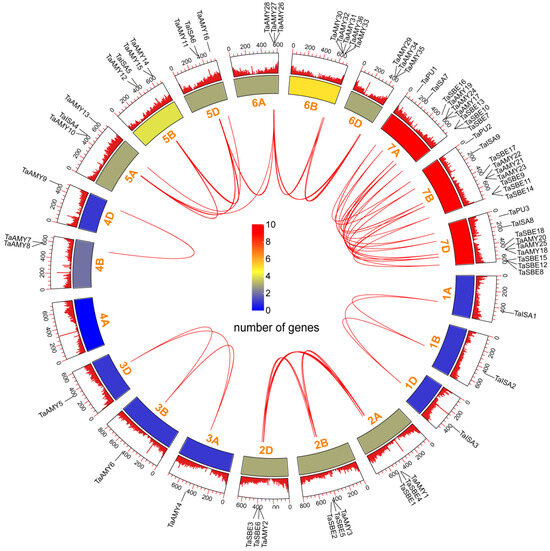

Since wheat is a hexaploid plant containing three subgenomes (A, B, and D), each wheat gene can have orthologues on three homologous chromosomes. Based on the IWGSC database (https://www.wheatgenome.org/, accessed on 18 February 2023), the physical locations of the TaGH13 genes on the corresponding chromosomes are depicted in Figure 2. Evidently, localization analysis of TaGH13 chromosomes showed that the TaGH13 genes were unevenly distributed on 21 chromosomes, including 20 TaGH13 genes in A subgenome, 25 in B subgenome, and 21 in D subgenome. In particular, homoeologous group 7 chromosomes with 27 TaGH13 members had the highest density, two of them were closely arranged at the lower part of the chromosomes, but chromosome groups 1, 3, and 4 only contained three TaGH13 genes, and no TaGH13 genes were identified on chromosome 4A.
In order to explore the possible mechanism of TaGH13 expansion, we studied the gene replication events of wheat itself; the red lines can be seen to demonstrate the collinearity of TaGH13 within the wheat genome (Figure 2). A total of 62 segment repeats and four single copy sequences were identified, indicating that segment repeats played a key role in the expansion of GH13 in the wheat genome. In addition, we found that most TaGH13 genes had corresponding homologous copies on the A, B, and D chromosomes, implying that the replication events of most genes occur between subgenomes, but there are still a few instances of gene replication within subgenomes (TaAMY30, TaAMY31, TaAMY32, etc.). In addition, non-synonymous (Ka) and synonymous (Ks) substitution of each duplicated TaGH13 gene was calculated using PAMLX (version 1.3.142). Surprisingly, the calculated Ka/Ks of all duplicated TaGH13 gene pairs were far less than one (Table S1), suggesting that the TaGH13 family have probably suffered from strong purification selection in the course of evolution. On the other hand, the distribution of the average time of differentiation of TaGH13 members is wide, occurring from 0.99 to 45 million years ago (MYA), suggesting that the duplication events occurred before the hybridization events of the A, B, and D subgenomes.

2.3. Gene Structure, Motif, and Domain Composition of the TaGH13 Family

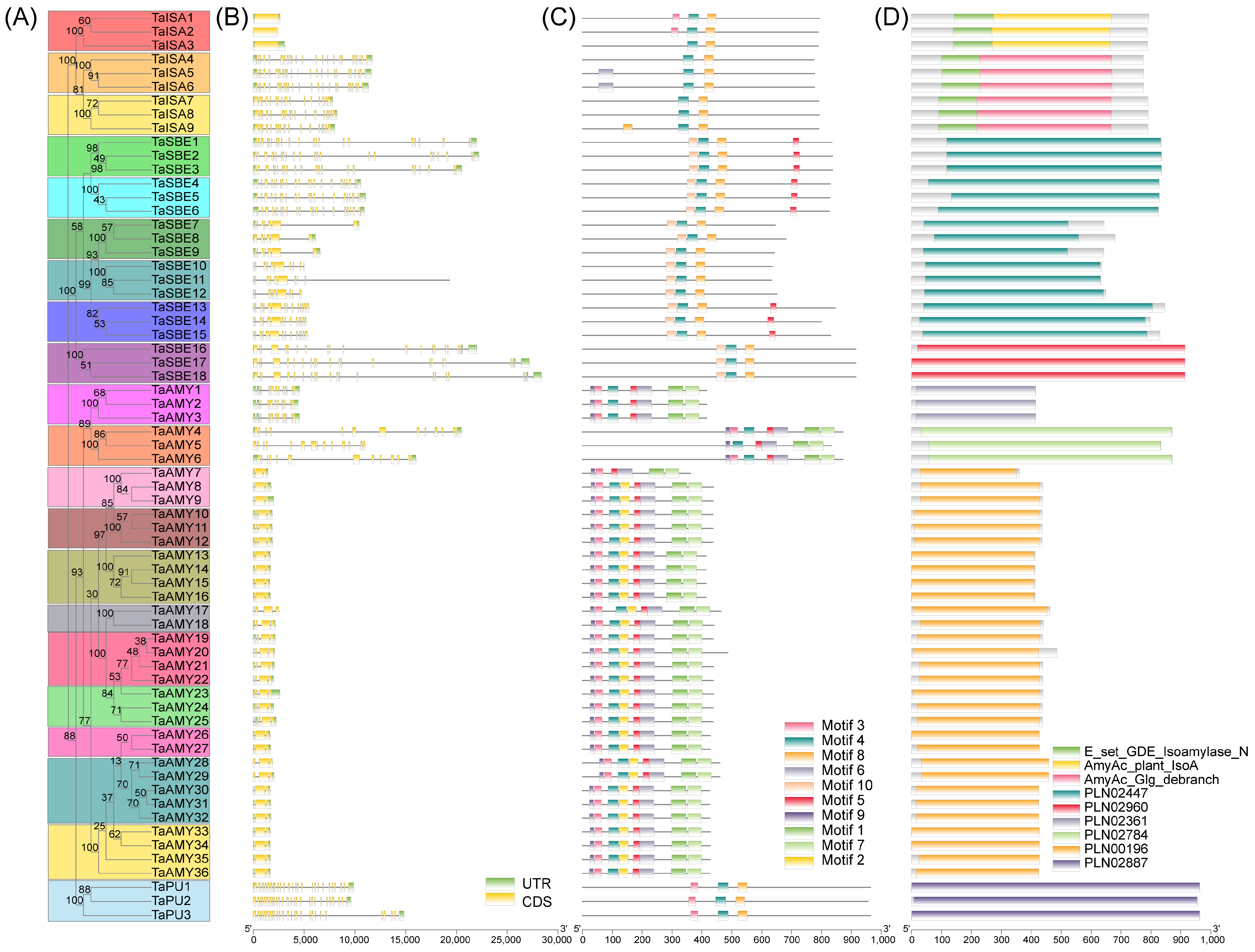

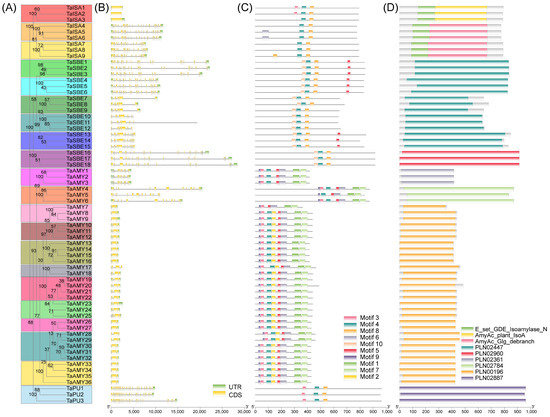

To gain insight into the function of the TaGH13 family in wheat, we analyzed the phylogenetic relationship, gene structure, and conserved motifs (Figure 3). From the phylogenetic tree, based on multiple alignments of full-length protein sequences, we found that all the homologous genes, assigned the same color, were generally more easily clustered into one group than the others (Figure 3A).
Based on the high-quality wheat genome assembly results, we obtained more accurate information about the gene structure. As can be seen in Figure 3B, the gene structures are quite diverse among the GH13 members with different intron numbers, except for the homologous genes from different subgenomes. The gene constructions became more and more complicated for increasing exons and introns. TaISA1 to TaISA3 are very tight, with almost no intron sequences; TaISA4 to TaISA9 show an abundance (more than ten) of exons. For TaSBE, all members are structurally complex, with half of the introns and exons interspersed with each other, more than 15 times, and a long intron region and, the other half, having up to 10 exons only and a large, segmented exon region. TaAMY demonstrates a remarkable level of conservatism, distinctively. All the members, except TaAMY1-6, share a striking structural similarity, characterized by an overall compact structure, with minimal intron regions and a significant exon region. TaPU is more loosely structured and consists of a large number of exons and introns (more than 25).
To characterize the conserved motifs in the TaGH13 family, the amino acid sequences of the 66 TaGH13 proteins were submitted to the MEME website and the results plotted using TBtools [30,31]. Ten conserved motifs were identified in the proteins, and the distribution of these motifs in TaGH13 is shown in Figure 3C. The motif logos are shown in Figure S1, and it can be seen that the motif distribution patterns and gene structure of TaGH13 members in the same subgroups were similar, but their functions may be diverse. All members of the TaGH13 family contained motif 4, except TaAMY7, and some motifs exist only in specific subgroups, such as motif 8 in the SBE subgroup, and motif 1, 6, and 7, in the AMY subgroup.
The NCBI CDD database (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi, accessed on 25 July 2023) and the InterPro database (https://www.ebi.ac.uk/interpro/, accessed on 25 July 2023) were used to detect the conserved domains of TaGH13 members. Through the results provided by the NCBI Batch CD-Search tools in the CDD database, it can be seen that nine domains, namely ‘AmyAc_plant_IsoA (CDD accession: cd11346), E_set_GDE_Isoamylase_N (CDD accession: cd02856), AmyAc_ Glg_debranch (CDD accession: cd11326), PLN02447, PLN02960, PLN02361, PLN02784, PLN00196, and PLN02887 (CDD accession: cd11341)’ were detected (Figure 3D). These domains can clearly separate the functional regions of TaGH13 members, for e.g., cd11346 is the characteristic region of ISA, and PLN02447 is the characteristic region of SBE; moreover, through the analysis using the InterPro database, we found that all TaGH13 members contain a ‘Glycosyl hydrolase, family 13, catalytic domain (IPR004193)’, proving that all the members were correctly identified as GH13 family members.

2.4. Prediction of Cis-Acting Elements and Transcription Factor (TF) Binding Sites in TaGH13 Promoters

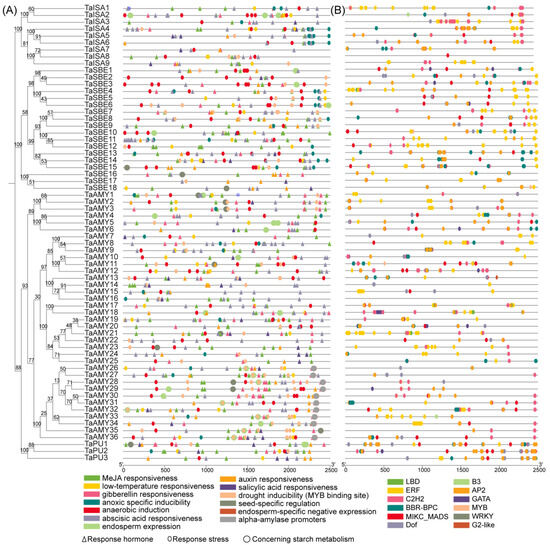

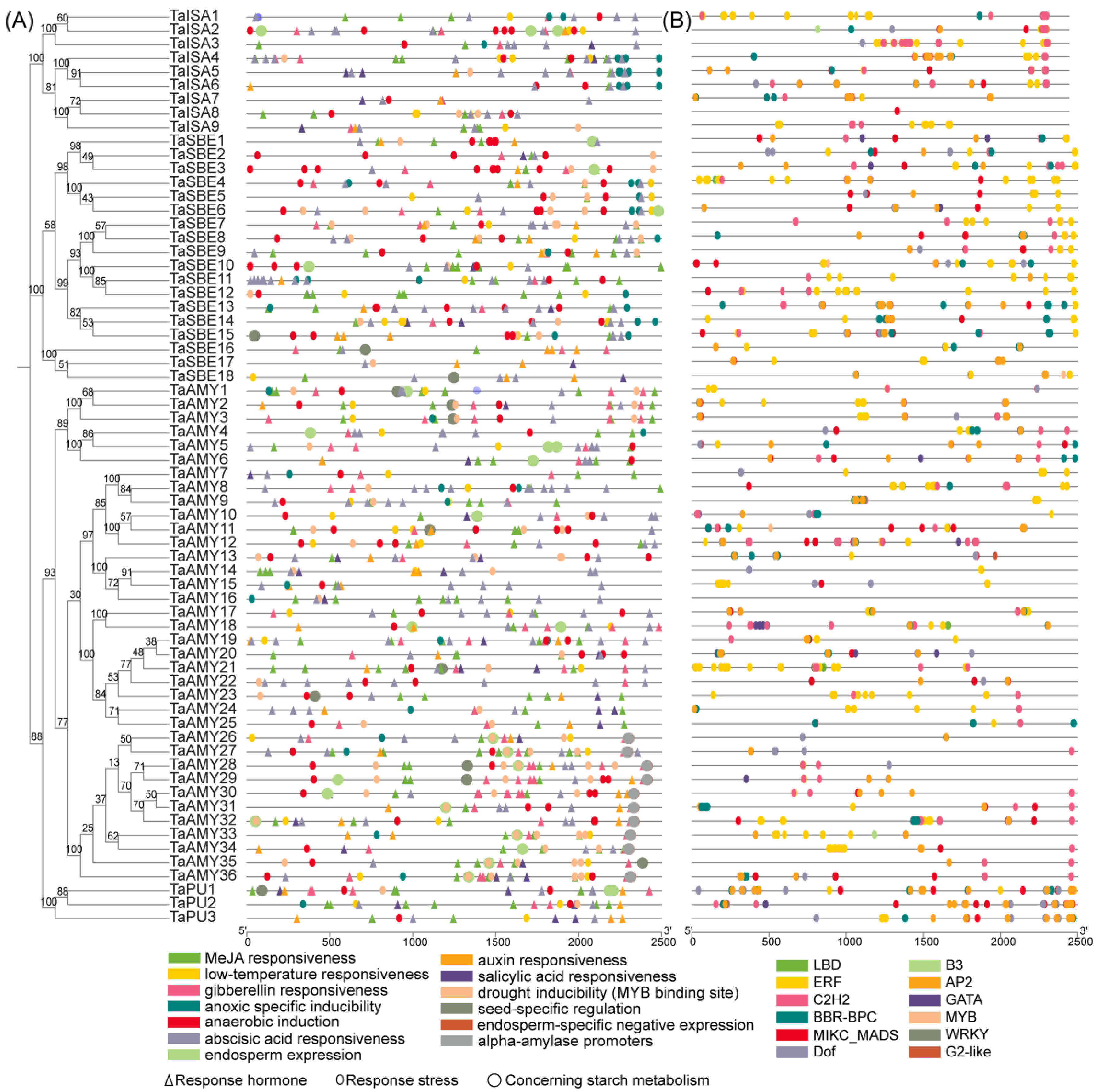

In order to understand the potential function of the TaGH13 gene family, we analyzed the cis-acting elements of their promoters and found 25 cis-acting elements with annotated functions, which were classified into two major categories, inducible cis-acting elements and transcription factor binding site elements (Figure 4). A total of 13 major inducible cis-acting elements were predicted and these cis-acting elements were related to environmental stress, hormone response, and starch metabolism (Figure 4A). More than 300 elements responded to environmental stresses, including 59 low-temperature, 96 drought-inducible, and 177 anoxic-inducible elements, and more than 900 elements responded to the phytohormone, mainly involving 65 auxin (IAA), 418 jasmonic acid methyl ester (MeJA), 44 salicylic acid (SA), 277 abscisic acid (ABA), and 114 gibberellin (GA) hormones, indicating that the TaGH13 family play an important role in wheat’s resistance to abiotic stress. Some promoters involve seed or endosperm-specific elements, suggesting that these genes may be associated with wheat grain development. Moreover, the α-amylase promoter element is apparently an AMY-specific element.
Cis-acting elements regulate the precise initiation and efficiency of gene transcription by binding to TFs. As can be seen from Figure 4B, ERF and G2-like binding sites are the most abundant, accounting for almost 60% of the transcription factor binding sites.
The cis-acting elements mapped to the promoter sequences of the TaGH13 genes were found to be highly divergent, which further suggested their involvement in different biological processes, hormonal responses, and environmental stresses. It showed that there are always differences in the cis-acting elements between duplicates. All these findings indicated that sub- or neo-functionalization could occur during the duplication process of GH13 genes in wheat [32]. Interestingly, TaAMY26-36 all contain an α-amylase signature recognition region near the promoter 3′ region, whereas the other TaAMY members do not contain this signature region, indicating that TaAMY can also be further differentiated into different subfamilies within TaAMY.

2.5. Subcellular Localization of TaGH13 Family Proteins

Subcellular localization prediction using the online tool ProtComp 9.0 (https://www.softberry.com/berry.phtml?topic=protcomppl&group=programs&sub-594group=proloc, accessed on 25 July 2023), demonstrated that TaGH13 may be localized in chloroplasts in all three subgroups, except the AMY subgroup, and the probability of the AMY subgroup being localized in chloroplasts is also close to 40% (Table S2). To analyze the subcellular localization of these gene products, we cloned and fused the coding sequences of two TaGH13 genes with the mCherry fluorescent protein, and transiently expressed them in Nicotiana benthamiana with the CaMV35S promoter. We randomly selected two genes (TaSBE16, TaAMY1) and performed transient overexpression in tobacco. In order to prevent the low expression of the genes affecting the observation, we designed a recombinant plasmid ‘pC1300::35s::Gene:: mCherry’ based on the pCAMBIA1300 plasmid to enhance the fluorescence signal. As shown in Figure 5, the positions of the chloroplast autofluorescence and mCherry fluorescence overlap, indicating that the two genes were localized in the chloroplasts, which confirms the prediction results.

2.6. Three-Dimensional (3D) Structure Analysis of TaGH13 Proteins

The high-level structure of a protein plays a crucial role in determining its properties and catalytic activity. To obtain the 3D structures of TaGH13 members, we used the homology modeling approach in AlphaFold to generate 3D protein models. We randomly selected a TaGH13 member from each subfamily as a representative, to analyze its predicted structure and illustrate the results, as shown in Figure 6 (TaISA5, TaSBE1, TaAMY8, and TaPU1). The results showed that all the proteins contained a distinct (β/α) 8-barrel structure, which is essential for the TaGH13 family (Figure 6). Meanwhile, the structure of each subgroup varied dramatically, which may have contributed to their different catalytic activities. We also compared the 3D structure of TaISA5, TaSBE1, TaAMY8, and TaPU1, with AtISA1, AtSBE2.1, AtAMY1, and AtPU1 of Arabidopsis thaliana, respectively. The results showed that the high-level structure of the GH13 family members in wheat and Arabidopsis thaliana are very similar despite their taxonomic differences, which reveals conservation in the process of their biological evolution, which may contribute to the investigation on the function of TaGH13 genes.

2.7. Analysis of GH13 Expression Patterns Using Online Data

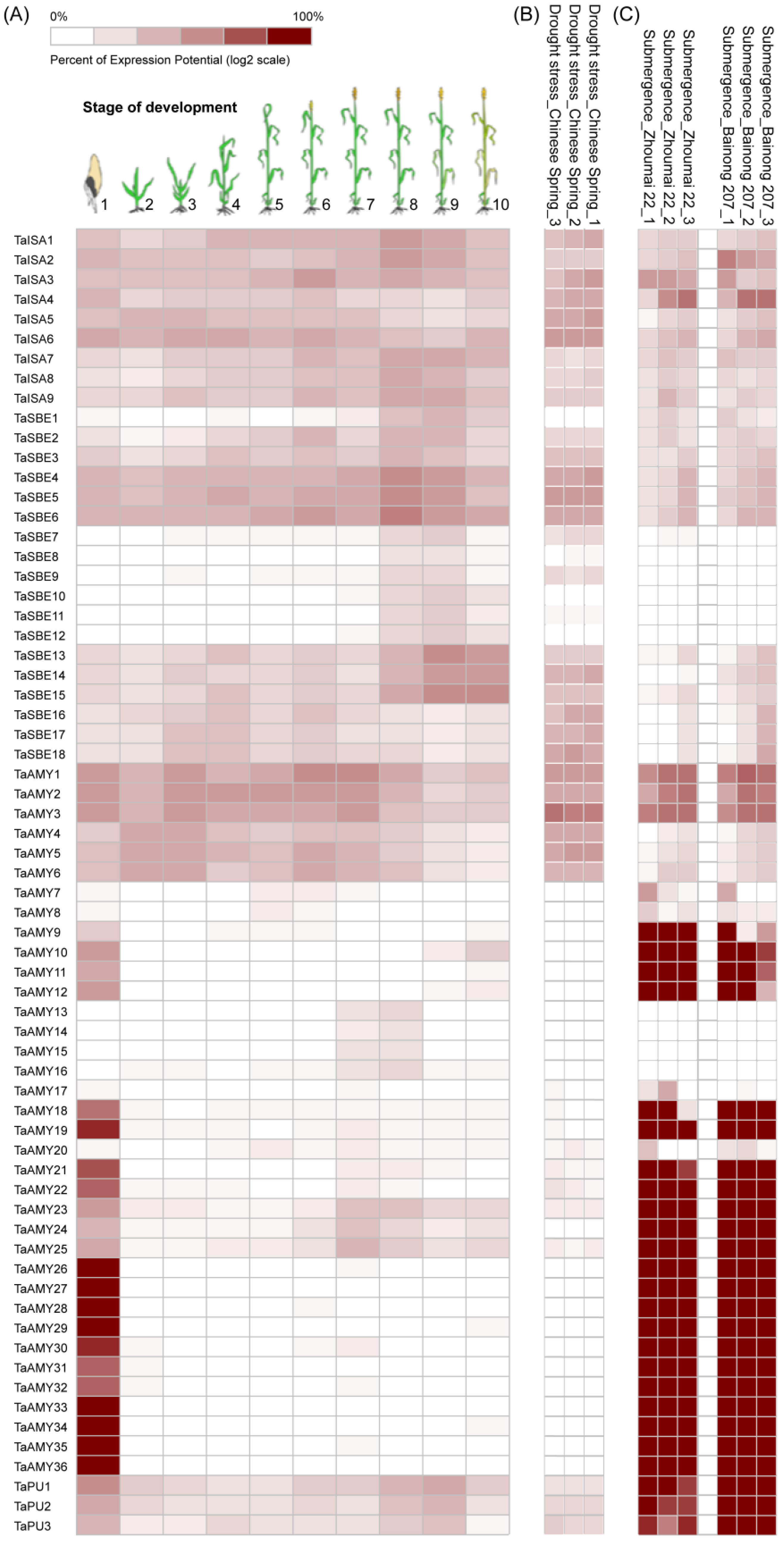

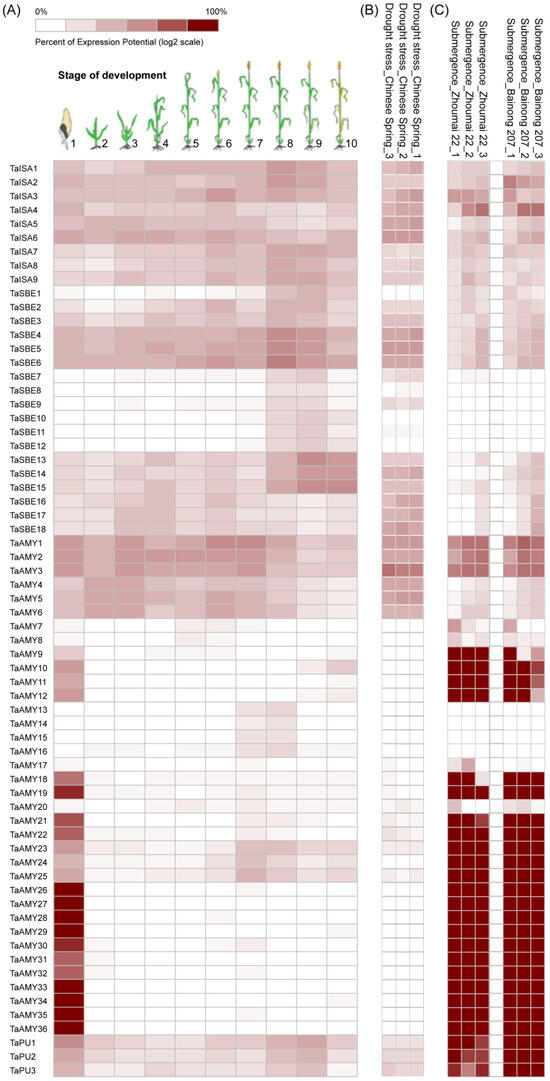

Analysis of RNA-seq data from different organs at different developmental stages revealed that TaGH13 genes showed different expression patterns in different organs and developmental stages (Figure S2 and Figure 7). In general, 66 TaGH13 genes could be divided into four subgroups. All members were expressed in seeds, especially at the germination stage, and although some of the genes were expressed at low levels, their expression levels were already significant relative to other tissues. Most of the members of TaISA, TaSBE, and TaPU were expressed in varying degrees in the whole plant, whereas most of the members of TaAMY, were only expressed at a low level in germinated seeds (Figure S2). In addition, TaAMY was mainly expressed in the embryo of seeds, with very little expression in the endosperm, suggesting that amylase at the seed germination stage mainly originates from embryo synthesis, and the endosperm only serves as a storage site for starch (Figure S2). From TaSBE7 to TaSBE12, it is evident that these members exhibit high expression exclusively in the endosperm. This suggests a crucial role of SBE proteins in endosperm function, particularly in starch synthesis and storage. As can be seen from Figure S2, TaPU is significantly more expressed in other tissues than in floral organs (spike cell, floret cell, anther cell, et al.). The floral organ develops only during the reproductive growth of the plant, and the floral organ constitutes only a very small part of the plant, so the expression of TaPU members in the floral organ is significantly lower than other organs or tissues.
The Genevestigator software (version 9.10.0) was used to demonstrate the expression of GH13 members in the whole development stages of wheat. In Figure 7A, PRJNA529321, PRJNA532455, and PRJNA744310 from the NCBI SRA database were used in our study. In Figure 7B,C, PRJNA604012 from the NCBI SRA database was used in our study. The findings indicate that a significant proportion of GH13 members were actively expressed in seed germination, with certain genes showing notably high expression levels. This underscores the essential function of these genes during the germination stage. As can be seen in Figure 7A, from TaAMY13 to 17, these members exhibit low or negligible expression levels during germination. Since these genes evolved from the same ancestral gene, perhaps they only perform functions at stages outside of germination. Other TaAMY subgroup members were completely different, showing extremely high expression during the germination stage, suggesting that TaAMY plays an important role in starch degradation during the wheat germination stage. Since PU is a class of starch-debranching enzymes, TaPU expression was also slightly higher at germination than at other developmental stages, which correlates with its function. TaSBE, TaISA, and TaPU expression were slightly elevated at the ‘milk development’ and ‘dough development’ stages, indicating that they are all involved in the process of starch accumulation in seeds.
Plants adjust gene expression in response to abiotic stresses. Through the analysis of transcriptome sequencing data, it was found that all ISA and PU members were expressed in wheat under drought stress, and significant detection of TaSBE2-7, 9, 13-18 expression was also observed (Figure 7B). Only TaAMY1-6 from the AMY subgroup was expressed, while the other genes had no or minimal expression. Submergence stress demonstrated partly the same results as drought stress (Figure 7C). TaISA, TaPU, and TaSBE1-6,13-18 also manifested higher expression in submergence stress, except that TaPU was much more highly expressed in flooded environments than in drought. In addition, the TaAMY subgroup showed a very different expression reaction from drought stress. Almost all genes, except TaAMY13-17, had extremely high expression in submergence stress.

2.8. Expression of GH13 Members during Germination in Different Varieties of Wheat

Weak and strong gluten varieties are narrowly defined as wheat varieties, with protein content below 11% and above 35%, respectively, and there are no current reports confirming a correlation between the expression of GH13 family members and different protein contents during seed germination. Four weak and four strong gluten varieties of wheat were selected for germination experiments; Zhengmai 004, Yangmai 13, Zhengnong 4108, and Chinese Spring are weak gluten varieties; Guohong 6, Womai 9, Zhenmai 168, and Zhengmai 366 are strong gluten varieties. TaISA2, TaISA7, TaSBE2, TaSBE13, TaSBE18, TaAMY13, TaAMY26, and TaAMY19 genes were selected for qRT-PCR analysis. The wheat germination stage is divided into two stages, the first stage in which the seed absorbs water and oxygen (germination stage 1, GS1), and the second stage in which the seed grows a radicle and a germ sheath (germination stage 2, GS2) [33]. We performed qRT-PCR on the seedlings at these two stages, separately (Figure 8).

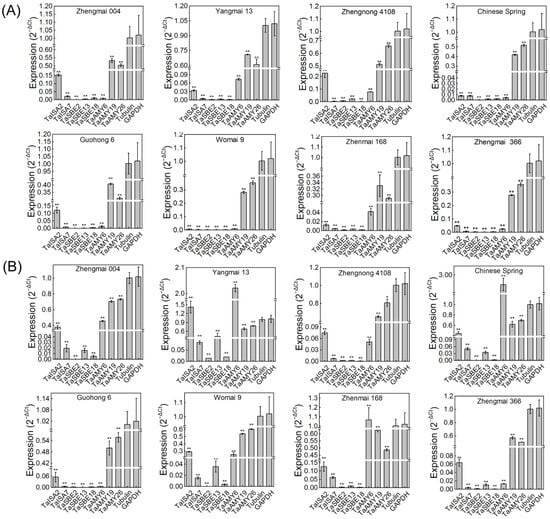

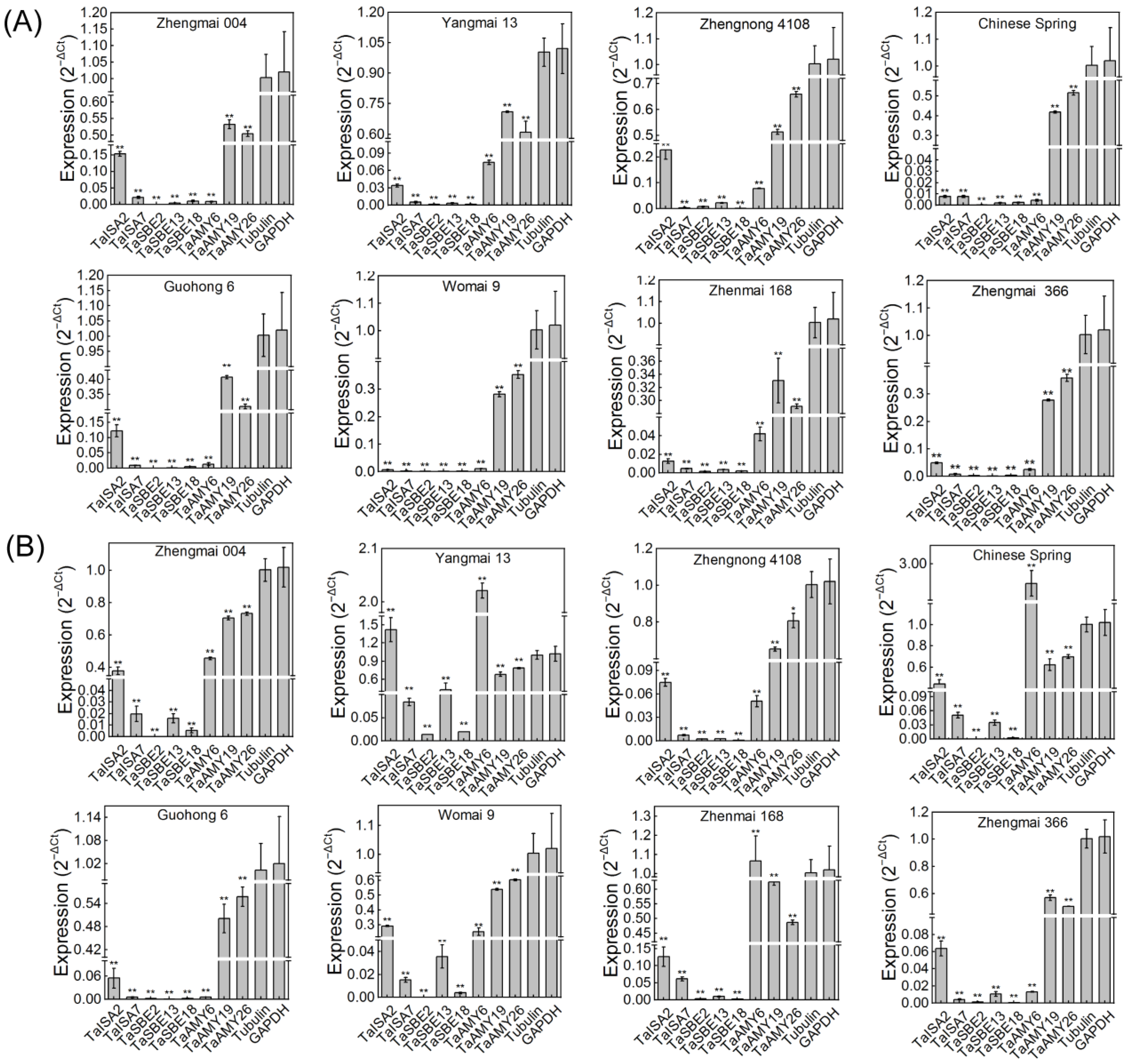

As can be seen from Figure 8, the expression levels of almost all TaGH13 genes during the whole germination stage were significantly lower than those of the internal control, and the expression levels of some genes, such as TaSBE2 and TaSBE18, hardly changed in GS1 and GS2. However, the gene expression levels at the two germination stages were significantly different, and the expression levels of the same gene in different varieties were also significantly different. The results for the GS1 stage showed that the expression of TaAMY19 and TaAMY26 were lower than the internal control, but significantly higher than all the other genes. TaISA2 had a significantly higher expression trend in weak gluten varieties than in strong gluten varieties. Except for the above three genes, the expression of the other genes was almost zero, indicating that these genes had not been activated at this stage (Figure 8A). The situation was different at the GS2 stage, where the expression trend of all genes showed up-regulation, which was more pronounced in the weak gluten varieties. Compared with the GS1 stage, the expression of all the genes increased in most of the weak gluten varieties, but the change in expression was not significant in Zhengnong 4018. Meanwhile, the expression of all the genes, except the TaAMY gene, remained low in the strong gluten varieties. In addition, it can be seen that the expression of the TaAMY gene increased dramatically in the GS2 stage, and the gene expression even exceeded the internal control in Yangmai 13, Chinese Spring, and Zhenmai 168 (Figure 8B).
Overall, these results showed that GH13 family expression is more active in the germination stage of weak gluten varieties, and also confirms that the TaAMY gene is strongly expressed during germination. Some TaISA members are also involved in vital activities during the germination stage, and TaSBE is hardly activated during the germination stage.

3. Discussion

The glycoside hydrolase family 13, one of the largest families of glycoside hydrolases, is widely found in a variety of prokaryotic and eukaryotic organisms [34]. However, as a class of enzymes that are extremely important in industrial applications, no member of the GH13 family has been systematically studied in wheat. The identification of the TaGH13 family at the genomic level, using bioinformatic tools, helps improve our understanding of the regulatory function of GH13 in plant growth and development. For this reason, we utilized existing model species (Arabidopsis thaliana and rice) for the identification of GH13 family members in wheat. Since there is no previous classification of GH13 family genes to subfamilies in plants, we refer to the clustering of TaGH13 with existing members of rice and Arabidopsis thaliana for classification, mainly focusing on AMY, SBE, ISA, and PU [35,36,37,38]. Furthermore, we performed basic genome-wide analysis of the TaGH13 family, including chromosomal location, subcellular localization, synteny analysis, structure analysis, and promoter cis-acting element analysis. In addition, developmental and tissue-specific expression patterns of wheat GH13 family members and their differential expression during germination in different wheat cultivars were also explored. These results will lay the foundation for further functional analysis of TaGH13 families.
Usually, the pI of all proteins in vivo is around six, which is a weakly acidic, neutral protein. Calculation of the pI, in this study, showed that all 66 TaGH13 members had pIs in the range of 5.31–8.63, with 60 members below 7, proving that most of them are weakly acidic, neutral proteins. It has been shown that subcellular localization correlates with protein pI, with proteins having a pI of 6–8 preferentially being localized extracellularly [39,40], whereas proteins within chloroplasts generally have a pI between 4.4–7 [41]. Our predictions show that most members with a pI between 5.31–7 are ISA, SBE, and PU, which is consistent with the conclusion that they are localized in chloroplasts. In addition, most of the AMY members have a pI between 5.31–6.5, but there are still a few TaAMY members with pIs in the range of 6.5–8.47, confirming their ability to participate in extracellular functions.
In addition, subcellular localization predictions indicate that members other than TaAMY are localized in chloroplasts, with TaAMY demonstrating a very high probability of extracellular localization, along with a small probability of localization in chloroplasts. We randomly selected two genes (TaSBE16, TaAMY1) and performed transient overexpression in tobacco, and the results showed that these two genes are clearly localized in chloroplasts. Wang et al. [20] found that SBE1 is localized in chloroplasts in Arabidopsis thaliana, which has important an role in embryonic development and starch metabolism, and that SBE1 is highly conserved in higher plants. Kitajima et al. [42] found that rice (cv: Nipponbare) AMY1 is involved in starch degradation in rice organelles and is localized in plastids, which is consistent with our verified localization in chloroplasts. In addition, Seung et al. [43] stated that AtAMY3 is an α-amylase localized in chloroplasts. These studies show that our findings agree with previous reports. In addition, it is necessary to point out that although our experimental results confirmed the location of AMY in chloroplasts, there are studies showing that AMY also functions extracellularly. Doyle [44] found that AtAMY1 is involved in the degradation of starch after cell death and confirmed that the AMY1 protein is secreted.
We identified 66 TaGH13s in wheat that were classified into four subgroups, TaISA, TaSBE, TaAMY, and TaPU, by analyzing their structural motif and referring to the classification of the GH13 family in Arabidopsis thaliana and rice. It is known that there are ten GH13 members in Arabidopsis thaliana and 12 in rice, whereas we identified that the number of GH13 members in wheat is six times higher than that, which may be related to the complex genome of wheat. Studies have shown that gene duplication events have occurred in 70–80% of angiosperms [45,46,47,48,49]. Wheat, an allohexaploid containing three subgenomes, has more than 85% duplicated sequences [50]. Our study found that all GH13 members were subject to duplication events and multiple members contain over three homologous genes (Figure 3A). The chromosomal localization of the genes suggests that polyploidization, tandem, and segmental duplications may be jointly involved in the formation of the TaGH13 family (Figure 1).
Previous studies have shown that the allohexaploid wheat subgenomes, A, B, and D, were originally derived from three diploid species (AA: Triticum Urartu, BB: Aegilops speltoides, and DD: Aegilops tauschii) and underwent three hybridization events [51]. The A and B subgenomes diverged from a common ancestor about 7 MYA and the first hybridization occurred around 5.5 MYA between the A and B subgenomes, leading to the D subgenome through homoploid hybrid speciation [52]. The second hybridization between the A and B subgenomes gave rise to the AABB genome about 0.8 MYA via polyploidization. Wheat originated about 0.4 MYA through allopolyploidization from a third hybridization. By estimating the approximate dates of the segmental duplication pairs of the TaGH13 genes, we infer that ten paralogous gene pairs in TaGH13 originated before the first hybridization of the A and B subgenomes (>7.5 MYA). Other paralogous gene pairs occurred after the hybridization event, approximately 0.99–7.36 MYA. Thus, the segmental duplication event was the main driver of TaGH13 gene evolution during the speciation of allohexaploid wheat, with polyploidization being a complementary means.
The gene structures of TaISA and TaSBE are more complex and vary considerably among different members. The structure of TaAMY is relatively stable and, except for TaAMY4-6, all other members are very similar. Things are different in other plants. In rice, the structure of α-amylase varies considerably, with some members containing extraordinarily long intron regions, others with significantly fewer exons than average, and even some with 5′ untranslated region (5′ UTR) lengths exceeding that of the promoter [53]. Yang et al. [54], on the other hand, presented very interesting results in which they categorized the cassava α-amylase family genes into three clusters, each of which is internally structurally conserved. This may indicate that α-amylase conservation in wheat is rare.
The conserved motifs assay showed that TaISA, TaSBE, and TaPU all have the same motif 4 and motif 8, despite their different functions. They differ in that TaISA varies considerably before motif 4, which may or may not be accompanied by other motifs, while TaSBE has a different structure, not only is motif 10 before motif 4, but motif 5 may be after motif 8; TaPU is relatively simple in structure and has motif 3 before motif 4. The similarity in motif structure implies that the three subgroups are functionally related. SBE is a glucanotransferase that generates branch points by cutting an existing α-1,4-linked chain and transferring the cut segment to another linear chain to create a new α-1,6 linkage [55]. Both classes of ISA and PU can hydrolyze α-1,6 branch points, but show different substrate specificities, which probably reflects their different roles in starch metabolism [38]. The motifs 1–7 of all the members of TaAMY are sequentially arranged, showing a very conserved motif structure, which is a reminder that despite the large number of members in the AMY subgroup, it is very conservative in function and structure [38,56].
We found that different subgroups of TaGH13 have different tissue-specific expressions. In TaISA, most members exhibited stable expression levels throughout the plant. This indicates that TaISA genes have an important function throughout the reproductive period. It has been noted that Arabidopsis thaliana requires only ISA1 expression to bring endosperm starch to near normal levels [57], which seems to corroborate the reason for the high expression of the homologous genes, TaISA4 to TaISA6, in the endosperm in our results. SBE is different, with a majority of members stably expressed throughout the plant, which may be related to its involvement in the starch synthesis function in chloroplasts [58]. A number of members (TaSBE7 to TaSBE12) are centrally expressed in the endosperm and exhibit high expression levels, indicating that the members are involved in starch synthesis in the endosperm, which may correspond to the relevant studies in rice and maize [26]. AMY, as an amylase, usually acts as a secreted protein to degrade starch in the endosperm during seed germination and is usually transported to the endosperm to participate in the reaction after being produced by endosperm epithelial cells [59], but it has also been shown that rice (cv: Nipponbare) AMYI-1 is mainly involved in the degradation of starch in chloroplasts [60]. PU is widespread and stably expressed throughout the plant due to its involvement in the biosynthesis of straight-chain starch, and its synthesis of straight-chain starch is much smaller than that of ISA [61].
The distribution of TaGH13 expression during development is also well characterized. TaSBE7-12 are expressed only at later stages of milk development (Figure 7), suggesting that they may be involved only in starch accumulation in the endosperm, which corresponds with their expression only in the endosperm (Figure S2). TaISA, TaPU, and all TaSBE, except TaSBE7-12, were stably expressed almost throughout the reproductive period (Figure 7), suggesting that they are allosterically involved in the starch pathway of chloroplast synthesis during wheat growth. TaAMY shows an irreplaceable function during seed germination, degrading a large amount of starch in the endosperm to provide energy for seed germination and, at this time, almost all members of TaAMY have high expression levels. The exceptions were four genes, TaAMY13-16, which were expressed at slightly higher levels at the anthesis and milk development stage, but not expressed at other stages. Considering that these four genes evolved from the same ancestor, it is implied that their functions are not related to starch degradation during seed germination [42,62]. As mentioned earlier, it has been suggested that rice (cv: Nipponbare) AMYI-1 mainly acts on starch in chloroplasts [60], and perhaps these four genes function in the same way with rice AMYI-1.
Several abundant, predicted cis-acting elements are known to mediate plant stress tolerance. For example, WRKY, B3, and MYB [63,64,65] are widely involved in various stress tolerance pathways in plants; C2H2 is involved in plant tolerance to low temperatures [66] and AP2/ERF is mainly involved in multiple abiotic stress resistance pathways [67]. The promoter regions of TaGH13 members contain multiple transcription factor binding sites, so members of the GH13 family are also extensively involved in regulatory pathways in response to abiotic stresses. Cis-acting element analysis showed that the TaGH13 promoter region has many elements responsive to drought, hypoxic stresses, suggesting that the expression pattern of TaGH13 genes may be altered when stimulated by stress. It has been shown that rice (cv: Kranti) α-amylase expression decreases when subjected to osmotic stress [68]. Xiao et al. [69] showed that the inhibition of wheat α-amylase activity improves salt and drought tolerance in wheat. Gilding et al. [70] demonstrated that a low-frequency allele type of the pullulanase locus increases digestibility without tradeoffs in the form of negative pleiotropic effects, thus adding value to a crop pre-adapted to drought and heat stress. In addition, soybeans undergoing flooding stress leads to a dramatic increase in AMY and ISA expression [71], whereas rice (cv: Nampyeonbyeo) expression of SBE and PU is markedly increased when subjected to flooding stress to generate more soluble sugars to improve plant tolerance [72].

4. Materials and Methods

4.1. Identification and Characteristics of GH13 Genes in Wheat

To identify the wheat GH13 genes, 12 Oryza sativa (rice) and 10 Arabidopsis thaliana experimentally validated members of the GH13 family were obtained from Uniprot (https://www.uniprot.org/, accessed on 20 March 2023) (Table 2). The genomes and gene annotations of wheat, International Wheat Genome Sequencing Consortium (IWGSC) RefSeq v2.1, were download from Ensembl Plants (http://plants.ensembl.org, accessed on 20 March 2023) [73]. The TaGH13 members were identified using BLASTP. Firstly, the obtained GH13 protein sequences of rice and Arabidopsis thaliana were used for the BLASTP operation (E-value ≤ 1 × 10−5) [74,75] to retrieve possible TaGH13 members in wheat from the IWGSC RefSeq v2.1 using TBtools [31]. Then, the NCBI Batch CD-Search (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi, accessed 20 on March 2023) was used to confirm whether candidate TaGH13 members contained certain domains, namely AmyAc_plant_IsoA (CDD accession: cd11346), E_set_GDE_Isoamylase_N (CDD accession: cd02856), AmyAc_Glg_debranch (CDD accession: cd11326), PLN02447, PLN02960, PLN02361, PLN02784, PLN00196, and PLN02887 [76]. Finally, all the obtained sequences were entered into the InterPro database (https://www.ebi.ac.uk/interpro/, accessed on 20 March 2023) to be used to detect the inclusion of the ‘Glycosyl hydrolase, family 13, catalytic domain’(IPR006047) conserved structural domain [77]. The molecular weight (kDa), theoretical pI of the putative peptides, instability index, aliphatic index, and grand average hydropathicity were calculated using ExPASy (http://www.expasy.ch/tools/pi_tool.html, accessed on 20 March 2023) [78].

4.2. Chromosomal Location, Synteny Analysis, Phylogenetic Relationships, and Gene Duplication Analysis of TaGH13 Genes

All candidate genes were localized to different chromosomes, according to the chromosomal information and gene IDs reported in IWGSC RefSeq v2.1. The collinear block was identified by TaGH13 duplication events in MCScanX [79] and the visualization was carried out using TBtools.
Multiple sequence alignments and the phylogenetic relationship analysis of GH13 gene families, including intra species and inter species, were performed using MEGA X using the maximum likelihood (ML) method, and 1000 bootstrap replicates. Meanwhile, the non-synonymous (Ka) and synonymous (Ks) substitution in paralogous and/or orthologous gene pairs from 3 species were also estimated using the bioinformatics software PAMLX (version 1.3.142) [80]; the approximate divergence time between duplicated gene pairs was calculated by using the formula T = Ks/2r × 10−6, assuming a substitution rate (r) of 6.5 × 10−9 substitutions/synonymous site/year [51,81].

4.3. Sequence Analysis, Motif Analysis, Cis-Acting Elements Analysis, and 3D Structure Analysis of TaGH13 Members

By extracting the information from the annotation file of IWGSC RefSeq v2.1 with the genome file, we obtained information about the position of introns and exons of TaGH13 within the gene and visualized them using TBtools. The Multiple Expectation Maximization for Motif Elicitation (MEME) online program (http://meme.sdsc.edu/meme/itro.html, accessed in 20 March 2023) was performed to identify conserved motifs of TaGH13 proteins [30]. Due to the excessively long UTR of some genes, we selected 2500 bp genomic DNA sequences upstream of the start codon of TaGH13 members as the promoter sequences to analyze the cis-acting elements using the database PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html, accessed in 21 March 2023) [82].
We used Alphafold2 (https://www.alphafold.ebi.ac.uk/, accessed 25 in March 2023) to predict the 3D structure of TaGH13 [83]. AlphaFold takes multiple sequence alignments and the target sequence as input, predicts the distances between residue pairs in the protein, and then generates the 3D structure of the protein.

4.4. Subcellular Localization Analysis

The subcellular localization was first predicted using the ‘ProtComp 9.0’ online tool (https://www.softberry.com/berry.phtml?topic=protcomppl&group=programs&subgroup=proloc, accessed 20 in March 2023), by entering the resulting TaGH13 family member protein sequences. Then, based on the sequences above, we cloned the CDS sequences of TaSBE16 and TaAMY1 and constructed them into a transient expression vector with a red fluorescent label as the structure ‘PC1300::TaSBE16/TaAMY1::mCherry’. Then, two pairs of genes we selected were transformed into Agrobacterium tumefaciens (strain: GV3101). The transient expression of subcellular localization of wheat GH13 members in tobacco plants (Nicotiana benthamiana) was assessed using the method from Wu et al. [84], and the mCherry protein was observed under a Zeiss LSM880 laser confocal microscope. All primers are listed in Table S3.

4.5. Expression Analysis of TaGH13 Genes Using In Silico Methods and qRT-PCR

The expression of TaGH13 members in different tissues, developmental stages, drought, as well as submergence stresses, was obtained from the Genevestigator library (https://genevestigator.com, accessed in 20 March 2023), plotted as a heat map and presented in this study. Eight different varieties of wheat, including four weak gluten and four strong gluten varieties, were selected for expression validation using qRT-PCR. The weak gluten varieties were Zhengmai 004, Yangmai 13, Zhengnong 4108, and Chinese Spring; the strong gluten varieties were Guohong 6, Womai 9, Zhenmai 168, and Zhengmai 366. The seeds were sterilized using a hot-water treatment (55 °C water bath 10–15 min) and then spread on 9 cm Petri dishes lined with filter paper at the bottom for germination [85]. The total RNA was extracted from different samples using Trizol (Takara, Kusatsu, Japan). The qRT-PCR was performed using Tubulin (XM_044534775) and GAPDH (XM_044557128) as the internal controls. The whole wheat seedlings were harvested from different germination stages for expression profile analysis. The results were presented as heat maps and histogram. All the expression levels represent the mean ± SD of the data collected from three independent experiments with three replicates; * for p < 0.05 and ** for p < 0.01. The subsequent qRT-PCR analysis was used with the 2−ΔCt method [86]. The primers are listed in Table S3. These experiments were performed in Henan Key Laboratory of Ion-beam Green Agriculture Bioengineering at Zhengzhou University on 15 November 2023.

5. Conclusions

In this study, we identified 66 members of the GH13 family in wheat and demonstrated that they can be categorised into four subgroups. Based on the gene structure and conserved domains, members of the same subgroup may have similar functions. We performed phylogenetic, cis-acting element, conserved motif, and intron–exon analysis, as well as chromosomal location, synteny, and promoter region analysis on the TaGH13 members. Wheat polyploidization is the main reason for the expansion of TaGH13 gene family members. The expression pattern of TaGH13 genes in wheat has tissue specificity and diversity in different development stages. We also verified that high starch content varieties of wheat had higher overall GH13 gene expression during germination. Overall, this study provides a basis for the study of functional differences in the role played by wheat GH13 family members during seed germination and in response to different stresses.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25063399/s1.

Author Contributions

Writing—original draft preparation, Y.Y.; Writing—review and editing, D.C., H.S., P.G., H.Z., Q.C. and Z.J.; Investigation, Y.Y., D.C., H.S. and P.G.; Data curation, D.C.; visualization, Y.Y.; funding acquisition, Z.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (11605159, 82200758, 32301741 and 32101661); the Foundation of Key Technology Research Project of Henan Province (222102110075 and 222102110031); the Open Project of the State Key Laboratory of Cotton Biology (CB2022A12 and CB2022A15); the Key Discipline Construction Project of Zhengzhou University (32410257); the Youth Innovation Project In the Key Discipline of Zhengzhou University (XKZDQN202002); the Natural Science Foundation of Henan Province (202300410013, 212300410276, 222300420282); the Science and Technology Major Project of Xinxiang City (21ZD022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

A big thank you to my wife who has been a huge help in keeping me fully engaged in my life, Dongjie Cui. I would also like to thank Bing Li from the School of Agricultural Sciences, Zhengzhou University, for providing me with some of the wheat varieties needed for my research.

Conflicts of Interest

The authors declare no conflicts of interest.
