Obtaining Polyvinylpyrrolidone Fibers Using the Electroforming Method with the Inclusion of Microcrystalline High-Temperature Phosphates

by
Marina Vladimirovna Papezhuk
1,
Sergei Nikolaevich Ivanin
1,2,
Roman Pavlovich Yakupov
1,2,
Vladimir Yurievich Buz’ko
1,2,
Igor Vladimirovich Sukhno
2,
Anna Nikolaevna Gneush
2 and
Iliya Sergeevich Petriev
1,3,*
1
Faculty of Chemistry and High Technologies, Kuban State University, 350040 Krasnodar, Russia
2
Laboratory of Advanced Nanobiotechnologies, Kuban State Agricultural University, 350044 Krasnodar, Russia
3
Laboratory of Problems of Stable Isotope Spreading in Living Systems, Southern Scientific Centre of the Russian Academy of Sciences, 344006 Rostov-on-Don, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(4), 2298; https://doi.org/10.3390/ijms25042298
Submission received: 19 January 2024 / Revised: 10 February 2024 / Accepted: 13 February 2024 / Published: 15 February 2024
(This article belongs to the Collection Feature Papers in Materials Science)
Browse Figures
Review Reports Versions Notes

Abstract

:
The results of the synthesis of microcrystalline calcium phosphates such as hydroxoapatite, pyrophosphate, and tricalcium phosphate are presented herein. The influence of the addition of polyvinylpyrrolidone (PVP) on the phase characteristics of the resulting high-temperature ceramic sample is considered. The X-ray results show that hydroxyapatite (HAp) consists of a Ca5(PO4)3(OH) phase, while the sample with the addition of polyvinylpyrrolidone contains β-Ca3(PO4)2 (65.5%) and β-Ca2P2O7 (34.5%) phases calcium phosphates (CPs). IR spectroscopy was used to characterize the compositions of the samples. An important characteristic of the obtained samples is the elemental Ca/P ratio, which was determined via energy-dispersive analysis. The data obtained are consistent with the composition of dental enamel apatites, namely, in the CPs (1.27) and HAp (1.40). SEM was used to study the morphology of the surfaces of hydroxyapatite particles. Polyvinylpyrrolidone polymer fibers were obtained using the electroforming method with the inclusion of CPs in the composition. The fibers were oriented randomly, and nanoscale hydroxyapatite particles were incorporated into the fiber structure. Solubility data of the HAp, CPs, and Fibers in a physiological solution at room temperature and human body temperature were obtained. The solubility of the resulting HAp turned out to be higher than the solubility of the CPs. In turn, the concentration of Ca2+ in a physiological solution of PVP composite fibers with the inclusion of CPs was lower than that in powdered CPs.

1. Introduction

Many companies use various calcium phosphates as the main components of implants in medicine. Issues related to methods of preparation, modification, changes in the phase composition of such compounds, and the physicochemical characteristics of materials based on calcium phosphates remain relevant. Calcium phosphate cements are typical self-hardening ceramic materials used in implant dentistry. Under the influence of environmental conditions, tricalcium phosphate is hydrolyzed to non-stoichiometric hydroxyapatite [1]. Hydroxyapatite (HAp) Ca10(PO4)6(OH)2 is the most commonly employed ceramic material in orthopedic and dental therapies. This is due to its preeminent presence within the mineral composition of tooth enamel and human bone tissue (60–70%) [1,2,3,4,5,6,7]. Hydroxyapatite exhibits high biocompatibility, a complete lack of immunogenicity, carcinogenicity, and slow degradation [8,9,10,11]. Obtained by annealing the bones of large-horned cattle, hydroxyapatite is currently used in various biomedical applications. However, this natural (biological) form of hydroxyapatite has drawbacks, including the risk of infection transmission, material rejection, and the possible accumulation of heavy metals in animal bones during their lifetimes [12]. To address these issues, chemically pure synthesized hydroxyapatite can be used. This form offers several advantages, including the satisfaction of ethical and medical considerations. Much attention is paid to synthesis methods, pH control, the use of various additives, and the temperature–time characteristics of annealing during the synthesis of HAp, as these factors impact the end product’s phase composition, structural characteristics, Ca/P ratio, and specific surface area.
Alongside hydroxyapatite, various calcium orthophosphates are used in regenerative medicine. High-temperature calcium orthophosphates and composites, such as α-, β-Ca3(PO4)2, Ca(H2PO4)2, Ca5(PO4)3(OH), Ca4P2O9, Ca10(PO4)6O, Ca10(PO4)6F2, and β-Ca3(PO4)2-hydroxyapatite, are traditionally used. The most important property of such compounds is their better solubility in water compared to hydroxyapatite; therefore, pure hydroxyapatite has limited use in the field of hard-tissue regeneration and drug delivery [13]. The solubility of a material allows one to predict its behavior in the environment of the body [14]. If the solubility of a material is less than the solubility of the mineral portion of the bone tissue, then it degrades slowly. If the solubility of a material is higher than the solubility of the corresponding type of bone, then complete resorption occurs. The solubility of calcium phosphate materials increases in the following order: fluorapatite → fluorohydroxyapatite → hydroxyapatite → carbonate hydroxyapatite → tricalcium phosphate → pyrophosphate [15]. Increasing solubility will positively affect the resorbability of calcium phosphate materials [16,17,18]. But in turn, excessively high solubility can lead to voids in the implanted material, which cannot be filled quickly enough with the body’s natural HAp. Therefore, hydroxyapatite is typically incorporated into composites with calcium orthophosphates or polymers [19,20,21,22]. In addition, such a material will be most similar to natural bone tissue [23], which is a hydroxyapatite–collagen composite.
A wide range of polymers can be utilizeed for the production of such fibers. In particular, biocompatible polymers are of great interest as they meet several criteria, including a lack of a propensity to induce local inflammatory reactions, allergies, or toxic effects. Additionally, these polymer materials can biodegrade in the presence of living tissues and biological fluids. In tissue regeneration, these polymers are especially useful, as they reduce the risk of implant rejection by the body’s immune system. Examples of such polymers include polycaprolactone (PCL), polyvinyl alcohol (PVA), polyvinylpyrrolidone (PVP), and chitosan (CHS) [23,24,25,26,27,28]. These polymers can be used as implantable scaffolds for ceramic. The removal of the scaffold from the body does not require surgery, as the polymer is absorbed and degraded by the body [29]. The inclusion of ceramic materials in the polymer matrix makes it possible to control the rates of degradation and resorption [30].
Recently, composite materials in the form of non-woven fibers with ceramic additives included in them have been of particular interest. The electrospinning method makes it possible to obtain non-woven materials with fibers ranging in size from micrometers to nanometers [31,32]. This range of fiber sizes allows for greater specific surface area and flexibility in performing surface functions than any other known form of material [33]. Due to these outstanding properties, polymer nanofibers are optimal candidates for many important applications in biomedical fields: polymer nonwoven fibers are used in drug delivery systems [16], and nonwoven fibers have a large surface area suitable for cell attachment [33]. Polyvinylpyrrolidone-based fibers are of particular interest. The main advantage of PVP is its biodegradability in physiological environments. Non-toxic and biocompatible PVP does not have a negative effect on animal organisms and has an optimal absorption rate and non-toxic decomposition products [34].
The aim of this work was to study the bioresorbability of synthesized HAp and CPs as well as the composite fibers for their further use in regenerative medicine.

2. Results

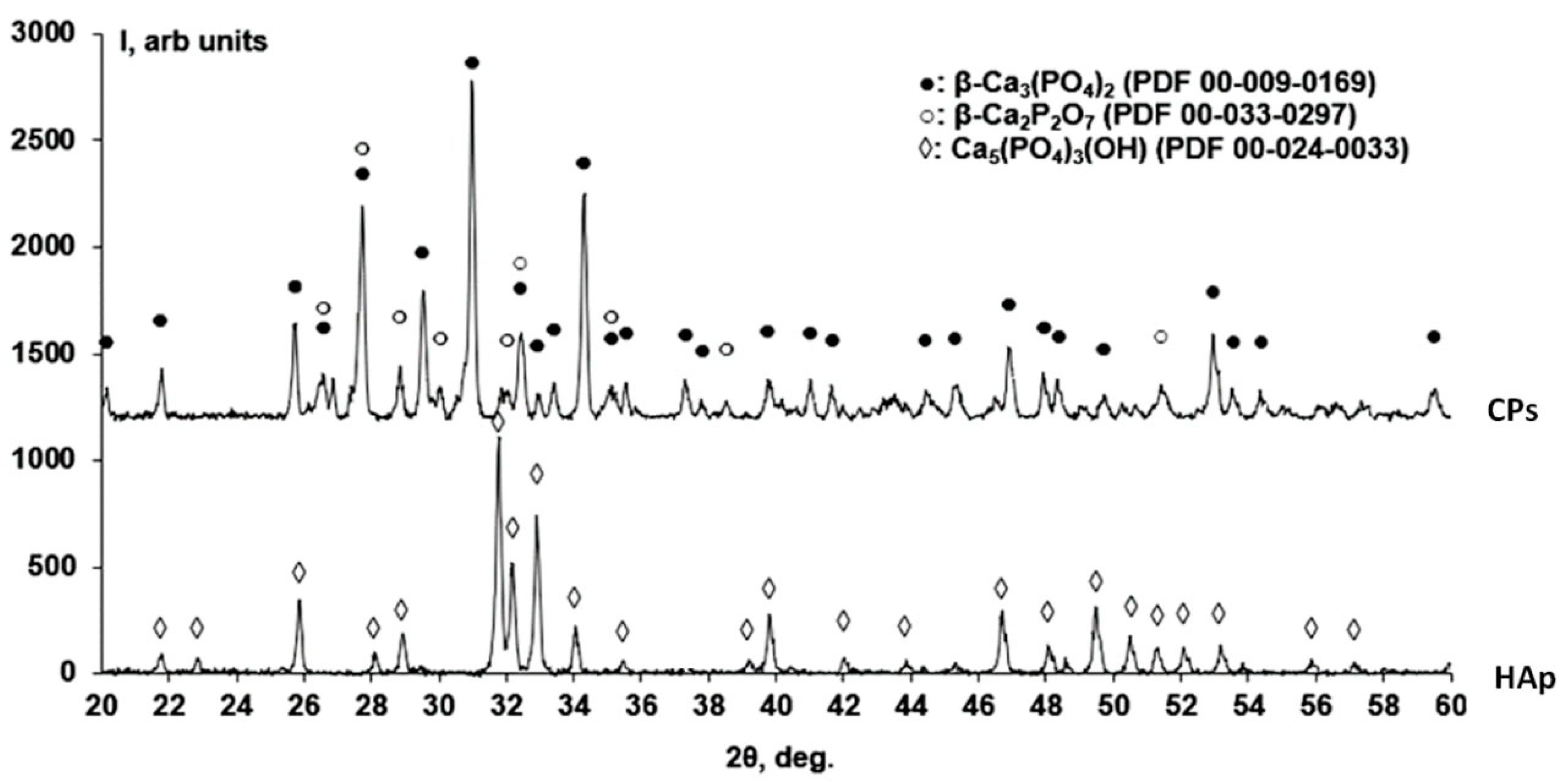

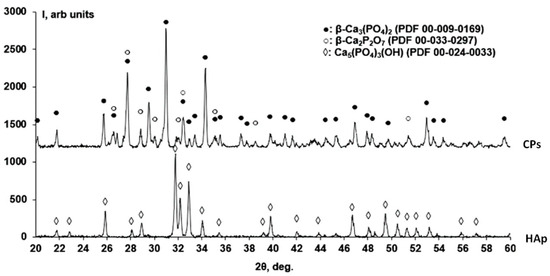

Figure 1 shows the results of X-ray phase analysis for samples calcined at 900 °C for 2 h.
The X-ray results show that the sample of hydroxyapatite consists of a Ca5(PO4)3(OH) phase (PDF 00-024-0033), while the CPs sample with the addition of polyvinylpyrrolidone contains β-Ca3(PO4)2 (PDF 00-009-0169) and β-Ca2P2O7 (PDF 00-033-0297) phases.
The crystal lattice parameters for Ca5(PO4)3(OH), β-Ca3(PO4)2 and β-Ca2P2O7 are given in Table 1.

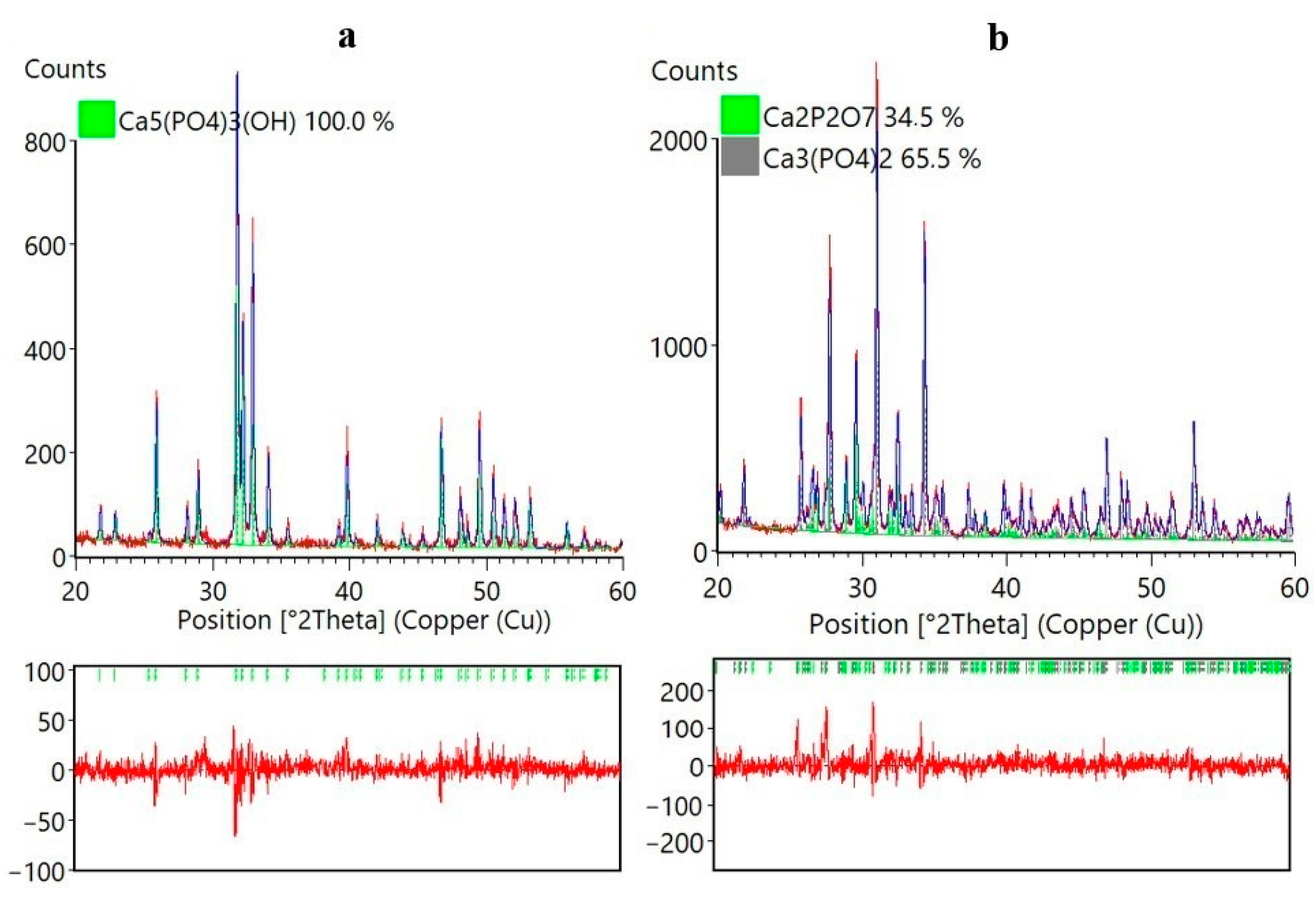

Figure 2 shows the Rietveld refinement data for the X-ray diffraction data obtained for HAp (Figure 2a) in the space group P63/m (a) for CPs refined in space groups R-3c and P41, respectively (Figure 2b).
From Figure 2b, it can be gleaned that the CPs consist of 34.5% β-Ca2P2O7 phase and 65.5% β-Ca3(PO4)2 phase. The Goodness-of-Fit (GOF) parameter for the HAp sample has a value of 1.67, while that for the CP sample it is 1.79.

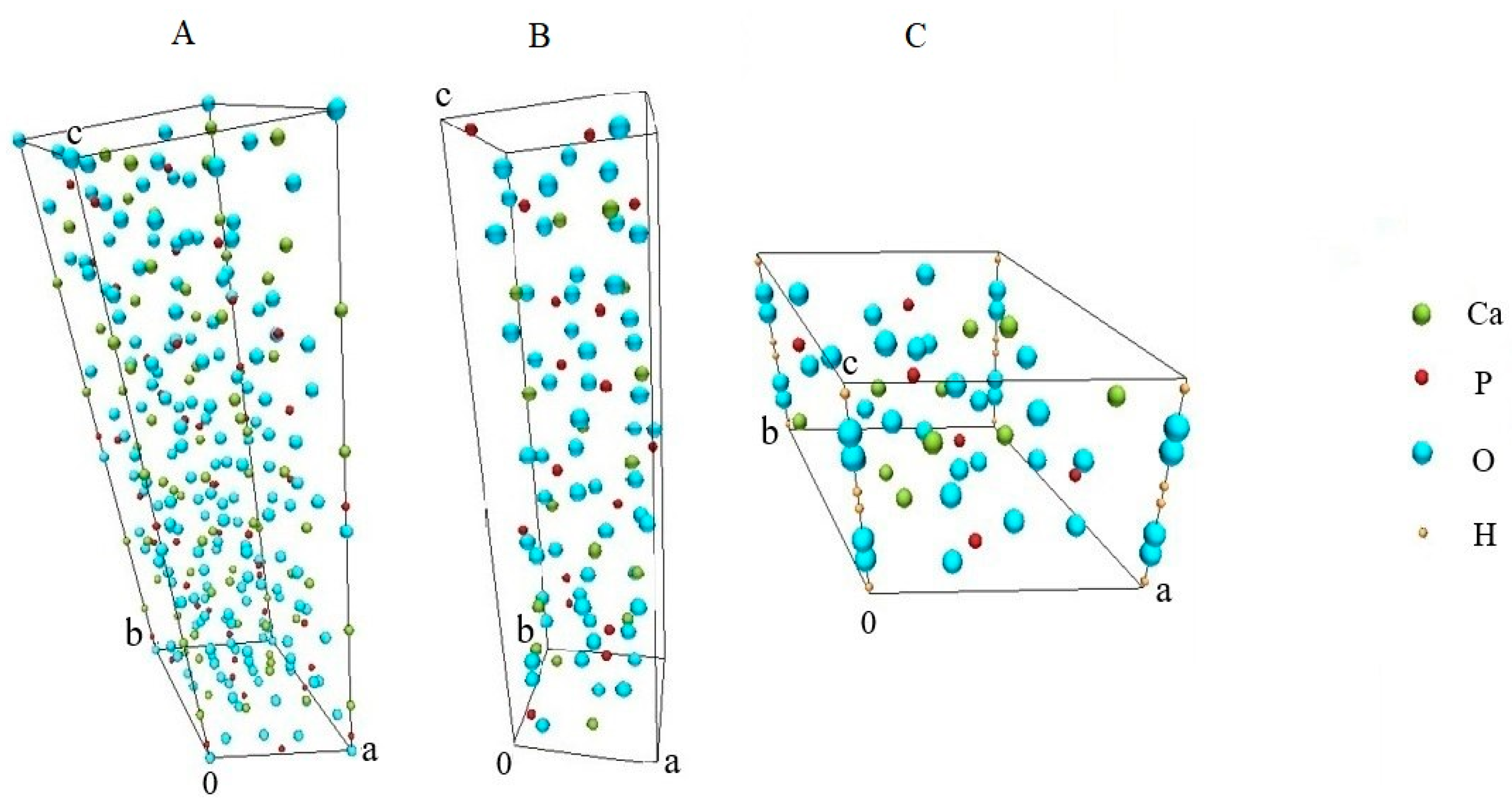

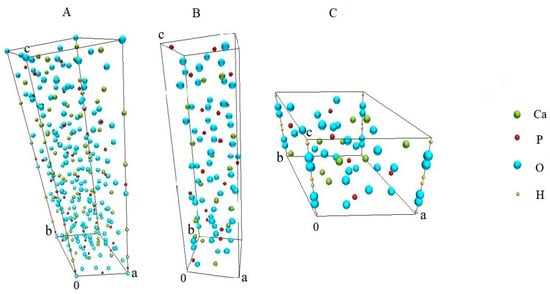

Figure 3 shows images of the structures of the researched compounds, i.e., Ca5(PO4)3(OH) (a), β-Ca3(PO4)2 (b), and β-Ca2P2O7 (c).
Hydroxyapatite (Figure 3A) crystallizes with hexagonal symmetry, corresponding to space group P63/m. In the HAp crystal lattice, PO43− tetrahedra are connected by Ca2+ bridges. The OH− ions are aligned along the sixfold lattice axis bounded by the Ca2+ and PO43− columns, forming the so-called “apathetic channel”. Phosphate β-Ca3(PO4)2 (Figure 3B) crystallizes in the polar trigonal space group R-3c. Dicalcium diphosphate (Figure 3C) consists of P2O7 2− groups connected by Ca2+ cations. It crystallizes in the tetragonal symmetry group P41.

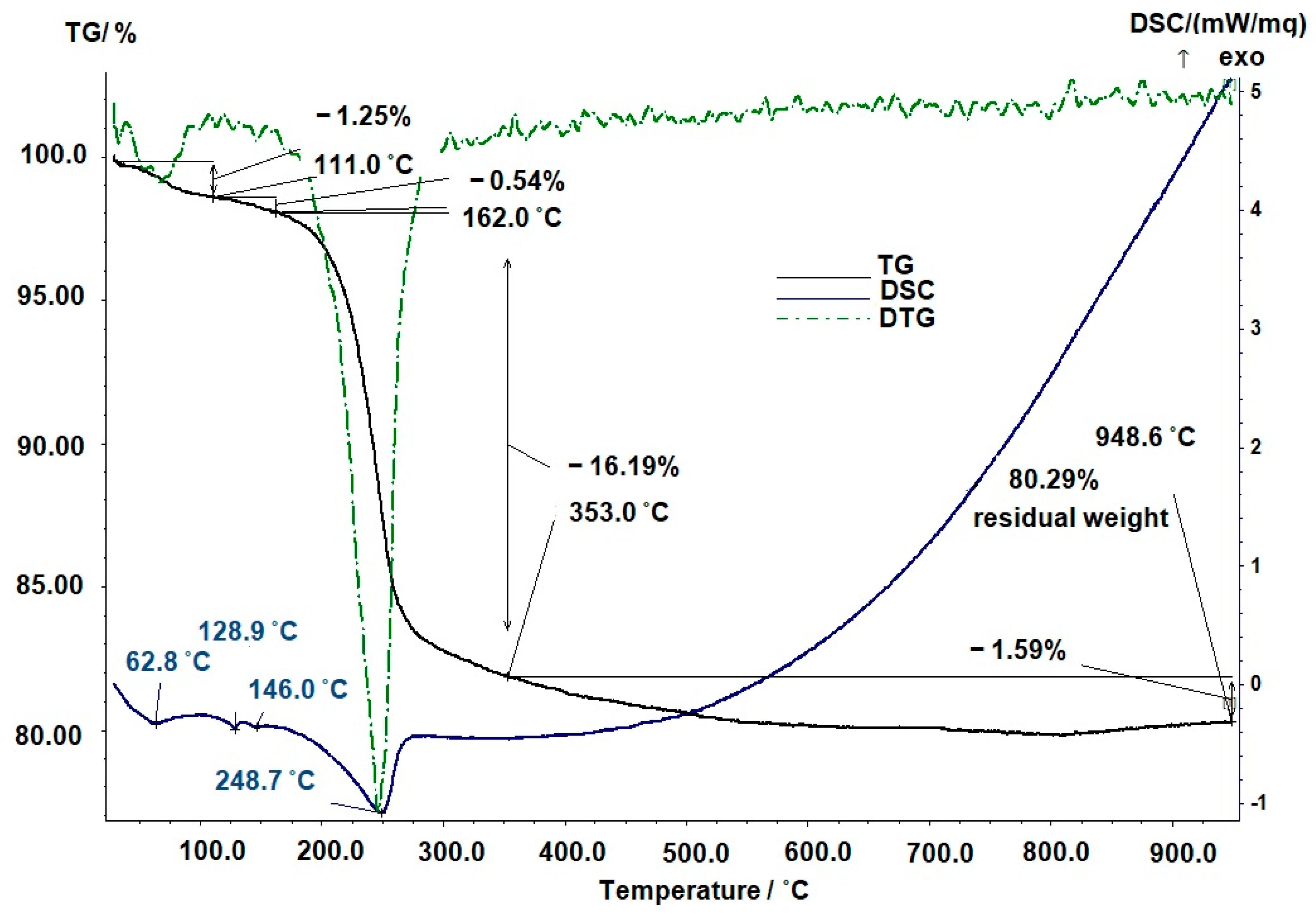

Figure 4 shows the TG, DTG, and DSC curves of hydroxyapatite dried at 100 °C. The HA powder was heated from room temperature to 1000 °C. In the figure, when the temperature reaches 111 °C, weight loss is visible on the TG curve. In the range of 200–350 °C, HAp powder quickly loses weight. Further heating did not lead to changes in weight. The total mass loss was 19.71%.

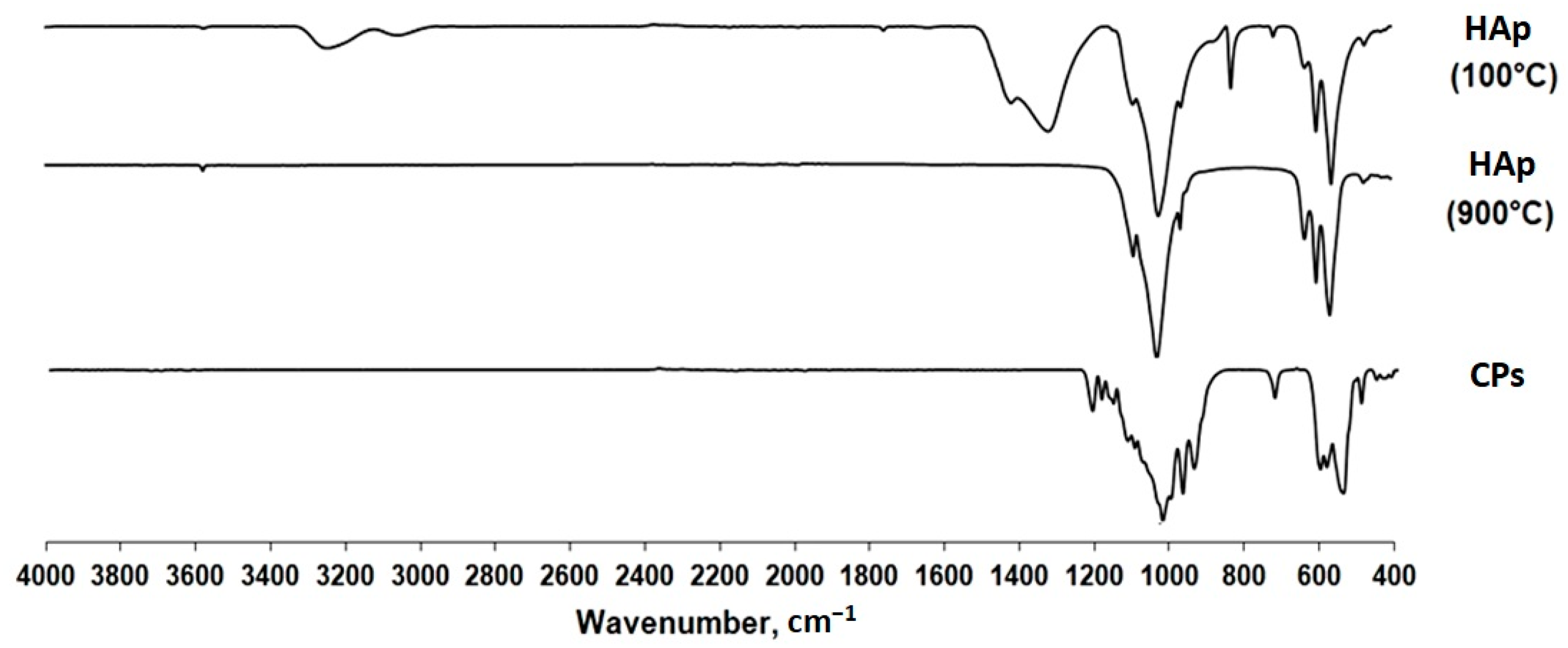

The analysis of the functional groups in the samples was conducted using infrared spectroscopy (Figure 5). Based on literature data [2,35,36], the main characteristic vibration frequencies of PO43− and OH− groups were determined for the synthesized samples.
In the IR spectrum of HAp (100 °C) (Figure 5) dried at 100 °C, nitrate group (NO3−; 1315 cm−1) and carbonate group (CO32−; 1416 cm−1 and 827 cm−1) bands are present.
The vibrations of the OH- group in HAp (900 °C) (Figure 5) are located at 3570 cm−1 and 631 cm−1 [37,38]. The band around 962 cm−1 is explained by the non-degenerate symmetric vibration of the P-O bond in the phosphate group [39]. The weak peak at approximately 474 cm−1 indicates the doubly degenerate bending vibration of the P-O bond in the phosphate group, ν2. The most intense peak of phosphate vibrations at 1094 cm−1 can be explained by the triply degenerate asymmetric stretching vibrations of the P-O bond, ν3. The band at 1020 cm−1 is also explained by stretching vibrations of the phosphate ion. The sharp peaks at 559 cm−1 and 600 cm−1 are associated with the ν4 mode of the O-P-O bond. The band at 962 cm−1 is associated with the symmetric stretching ν1 mode of the P-O bond, while the two strong bands at 1033 cm−1 and 1094 cm−1 are associated with the ν3 mode.
The IR spectrum of the CPs (Figure 5) corresponds to the spectrum of the HAp sample without additives, calcined at 900 °C, except for additional signals at 943 cm−1 and 727 cm−1. These vibrations represent vas and vs. modes of P-O-P in the P2O72− ion, respectively [40]. Functional groups are present in the pyrophosphate phase [33]. The bands at 1213 cm−1 and 1157 cm−1 can be attributed to the stretching vibrations of the P=O ion in PO43− [41]. Signals from the OH group are absent in the spectrum.
The results of IR spectroscopy are consistent with the data from thermal and X-ray phase analysis.
Scanning electron microscopy (SEM) was used to study the microstructures, particle sizes, and surface morphology of samples annealed at different temperatures. Microstructure was studied in the detection-of-secondary-electrons mode. The advantage of using the secondary electron detection mode is that it grants one the ability to study surface morphology with the dependence of contrast on relief [42,43].

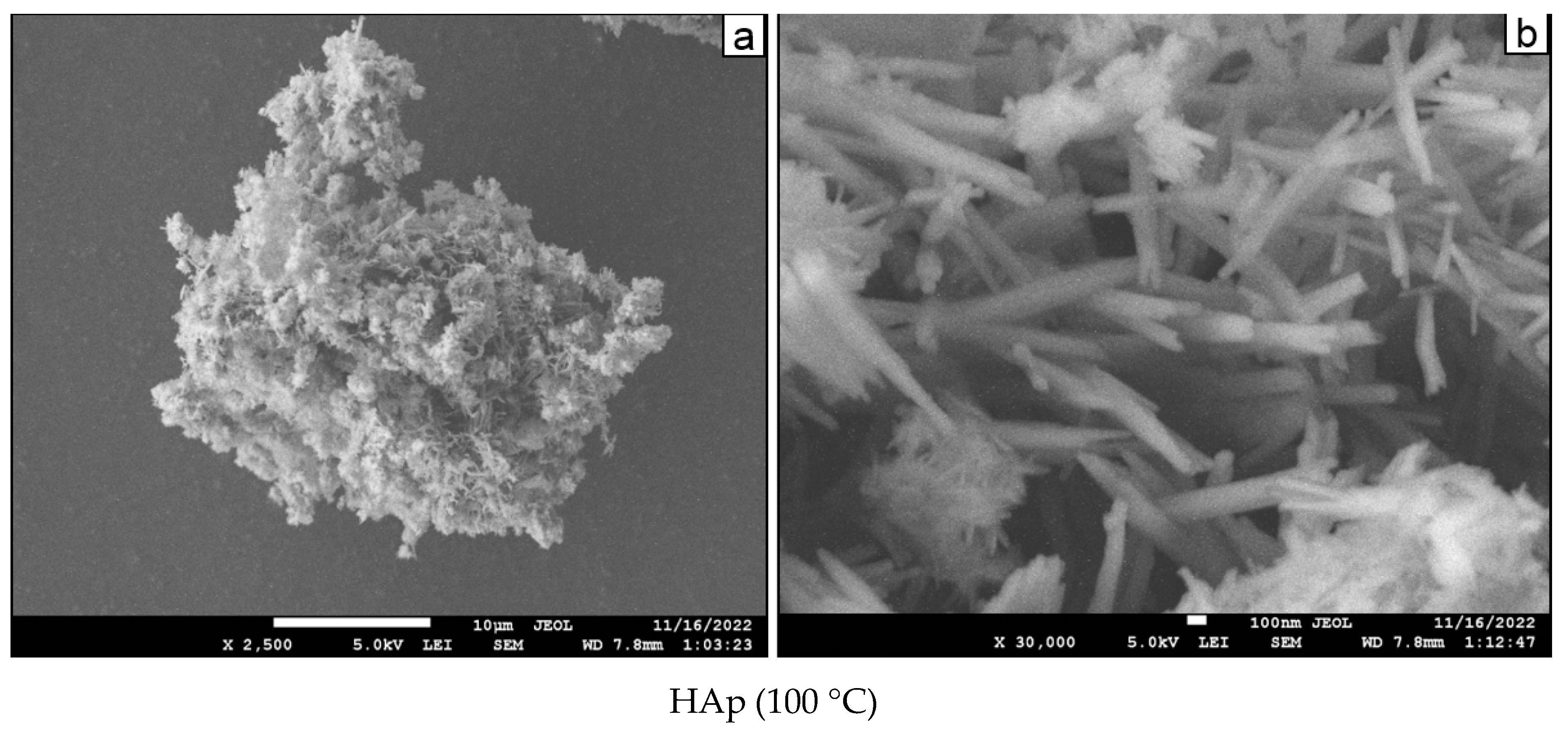

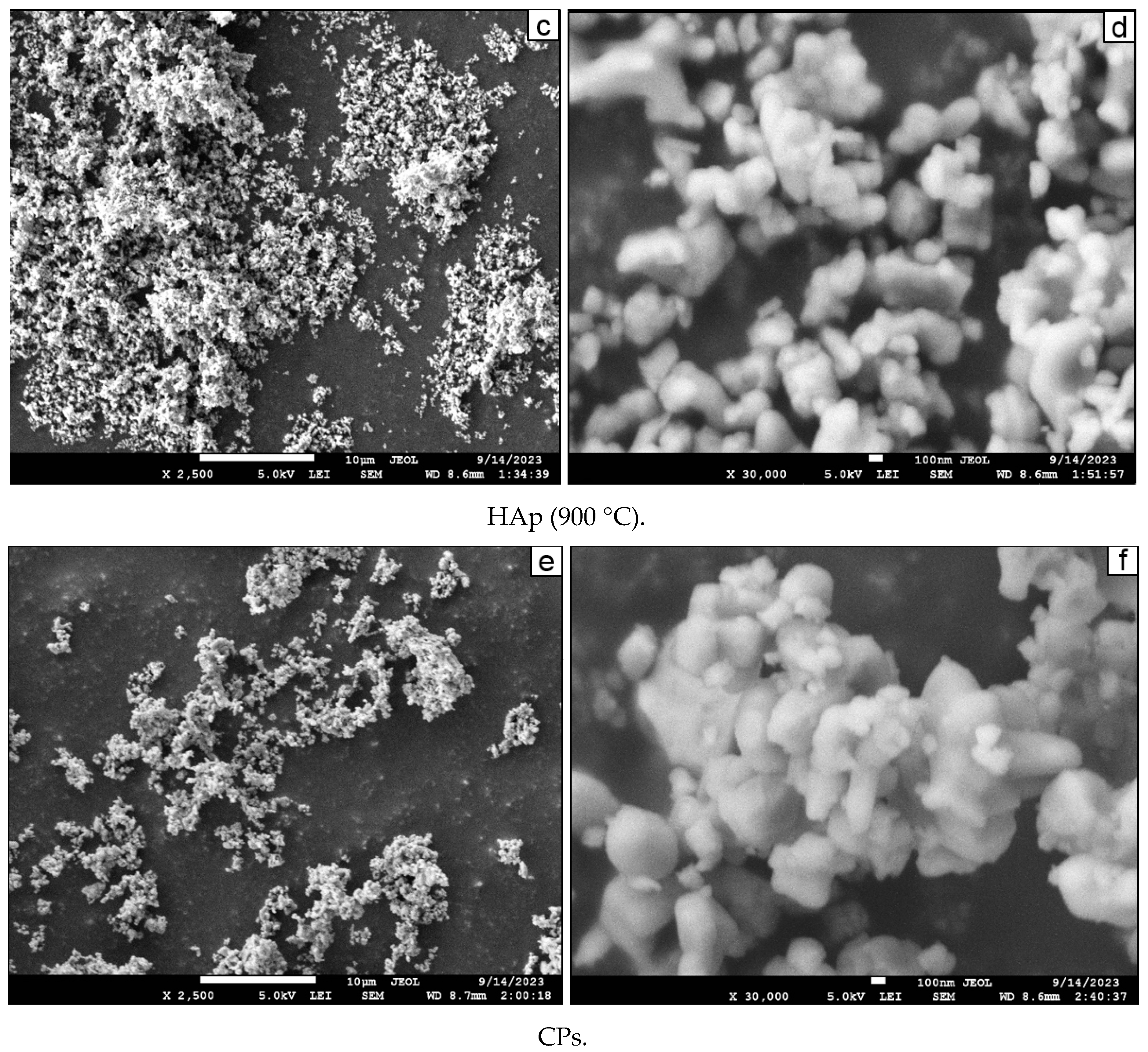

Figure 6 shows SEM photographs of the synthesized samples.

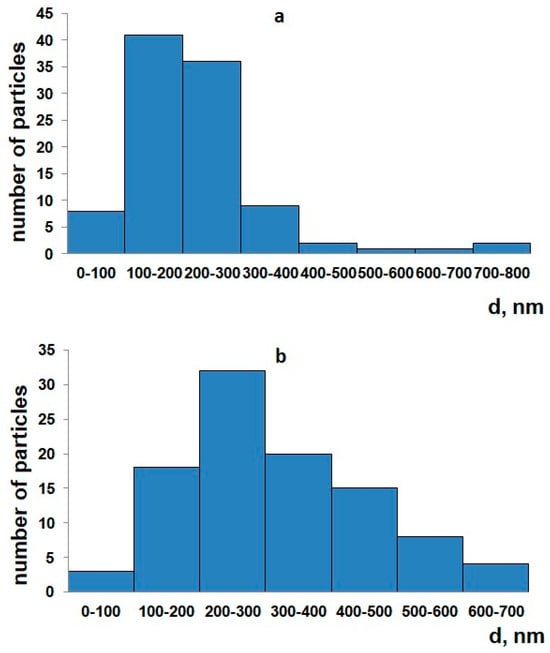

Based on the obtained photographs of the microstructure of the studied HAp and CPs, histograms of particle size distribution were constructed (Figure 7).

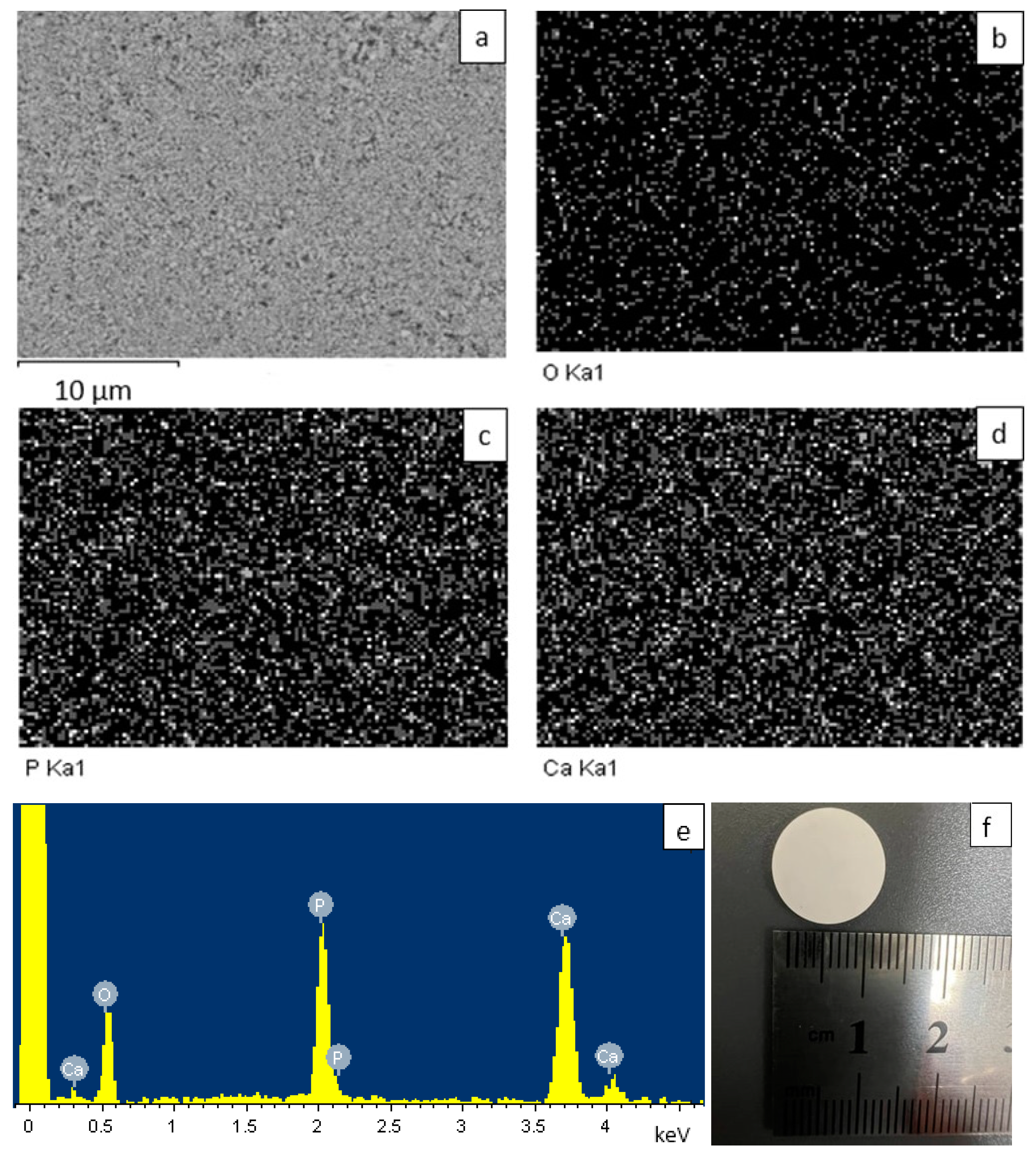

To determine the qualitative composition of the synthesized samples and confirm the absence of impurities, energy-dispersive X-ray microanalysis (EDX) was carried out using an IncaX-sight energy-dispersive detector (Oxford Instruments, Abingdon, England) installed on a JEOL JSM-7500F scanning electron microscope (JEOL, Tokyo, Japan). The X-ray spectral analysis method allows for both the qualitative and quantitative analysis of samples without destroying their integrity [44,45]. To carry out energy-dispersive analysis, the synthesized samples were pressed into tablets (Figure 8f) using a pressure of 5 tons/cm2. Figure 8 shows the scanning area of the sample, 30 × 30 μm (a); a map of the distribution of elements in the tablet of the HAp sample, namely, O (b), P (c), and Ca (d); and the EDA spectrum of the HAp sample (e). It is shown that the distribution of elements was uniform over the entire area of the tablet. The study of the samples’ CPs was carried out similarly. The results of elemental analysis are summarized in Table 2.
It is worth noting that the CP sample does not contain carbon atoms, which indicates that the entire polymer additive burned out during the annealing of the sample.

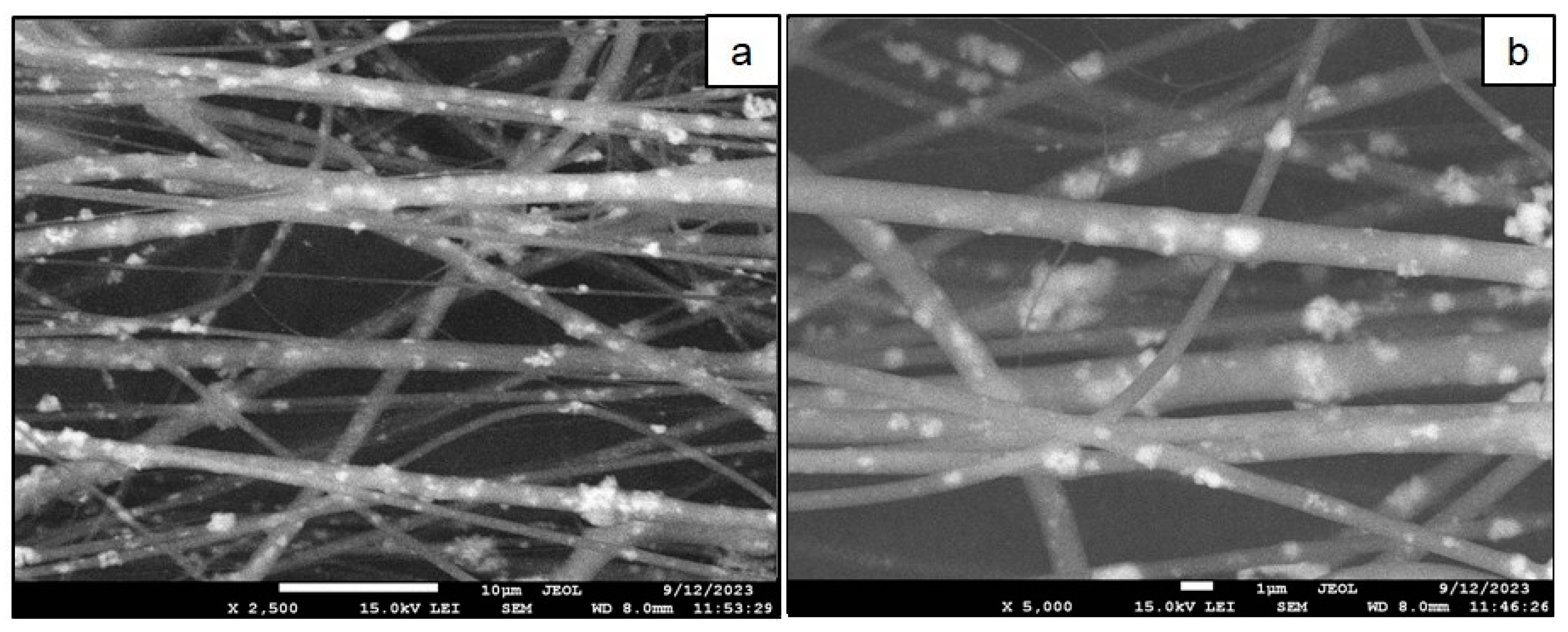

Figure 9 shows photographs of the CPs included in the PVP fibers. At magnifications of 2500× and 5000×, it can be seen that the fibers have a diameter of up to 2 μm. The powder of the CPs is evenly distributed throughout the volume of the fibers.

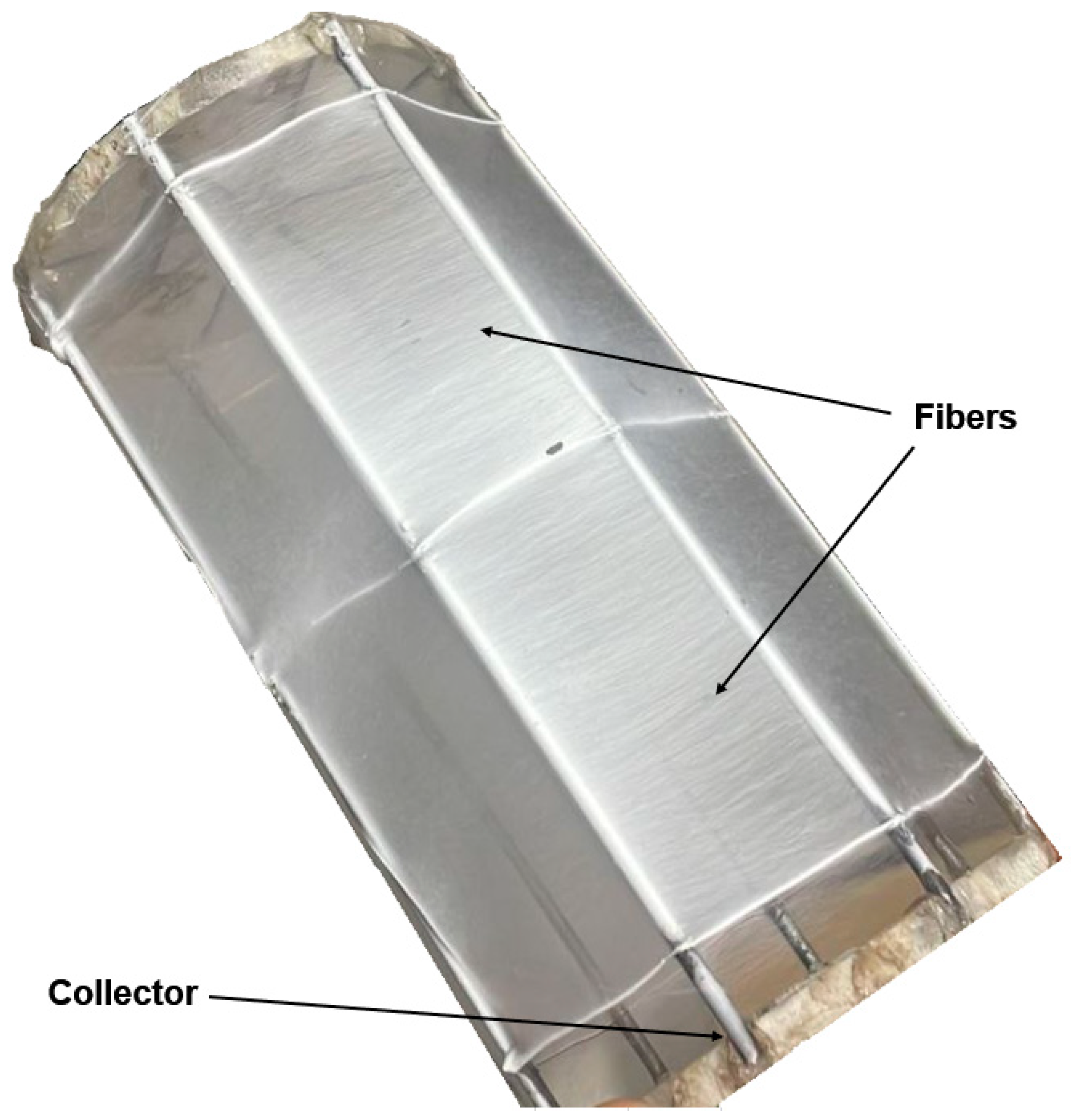

Figure 10 shows an image of a collector with composite fibers sprayed onto it.
The fibers formed a homogeneous mat (Figure 10). The absence of defects on the surfaces of the resulting polymer fibers indicates the optimal selection of parameters for producing micron fibers via electrospinning. As can be seen in Figure 9, the fibers are randomly oriented and have a smooth surface.
The resorption capacity of a material is determined using solubility values. Table 3 shows the solubility values of the samples, namely, HAp, CPs, and Fibers (CPs), in a physiological solution at room temperature (20 ± 1 °C) and human body temperature (37 ± 1 °C). The content of Ca2+ ions in the solution was determined using trilonometric titration in the presence of eriochrome black T with an ammonia buffer (pH 9–10) [46].

3. Discussion

The powders of the studied samples were synthesized in the laboratory via chemical deposition from a solution. When performing this synthesis method in an alkaline environment, it is critical to understand that, depending on the synthesis conditions, carbonate-containing hydroxyapatite is often obtained. Substitution groups can cause characteristic changes in lattice parameters, crystallinity, crystal symmetry, thermal stability, morphology and solubility, and physical, chemical, and biological characteristics. Accordingly, it should be taken into account that CO2 is released from the sample at a temperature of 450–950 °C, and to obtain Ca10(PO4)6(OH)2, it is necessary to carry out subsequent high-temperature annealing of the sample. We studied samples of HAp dried at 100 °C, HAp annealed at 900 °C, and CPs obtained using a similar synthesis method. The difference was the use of a polymer additive (PVP) during the synthesis.
In the X-ray diffraction pattern (Figure 1) of HAp, reflections belonging to the Ca5(PO4)3(OH) phase (PDF 00-024-0033) can be observed. In the X-ray diffraction pattern of the CPs, two phases can be identified, namely, calcium phosphate Ca3(PO4)2 (PDF 00-009-0169) and calcium pyrophosphate β-Ca2P2O7 (PDF 00-033-0297), which is consistent with the data [47]. To quantify the phases in the CPs, the Rietveld method [48] was used (Figure 2). We used HighScore Plus version 3.0e (3.0.5) and CIF files (Figure 3) from the following works: for Ca5(PO4)3(OH), [49]; for β-Ca3(PO4)2, [50]; and for the β-Ca2P2O7 phase, [51]. CPs is a two-phase powder with a phase ratio of 34.5%:65.5% for β-Ca2P2O7 and β-Ca3(PO4)2, respectively (Figure 2). Apparently, the polymer additive of PVP affects the thermal stability of hydroxyapatite. As a result of thermal treatment, calcium hydrogen phosphate (СаНРО4) is formed from brushite (СаНРО4·2H2O). In turn, at about 700 °C, calcium hydrogen phosphate (СаНРО4) converts to calcium pyrophosphate (Ca2P2O7). According to X-ray diffraction studies of Ca2P2O7, it exists in three different forms depending on the temperature, according to Equation (1) [52,53,54].
γ - Ca P 2 O 7   → 750 ° C   β - Ca P 2 O 7   → 1171 ° C   α - Ca P 2 O 7
During high-temperature sintering at around 900 °C, the formation of whitlockite occurs, according to Equation (2) [55].
Ca10(PO4)6(OH)2 + Ca2P2O7 = 4Ca3(PO4)2 + H2O
Thus, under these synthesis conditions, high-temperature calcium orthophosphates are formed. It should be noted that for the method of synthesis used and the corresponding calcination temperature, the Ca3(PO4)2 phase may form as an impurity phase in both samples, which was also confirmed in [2,35].
According to the results of thermogravimetric (TG) analysis (Figure 4), the mass of hydroxyapatite (HAp (100 °C)) powder without additives decreased by 19.71% when HAp (100 °C) was heated to 948.6 °C. With further heating, the substance remained thermally stable [47,56]. The process of the thermal decomposition of hydroxyapatite samples obtained without additives and preliminarily dried at 100 °C can be divided into stages. The first is the removal of sorbed water [57,58] and carbon dioxide (1.25% 111 °C; 0.54% 162 °C), and the second is the decomposition of ammonium nitrate and hydroxyapatite carbonate with the elimination of CO2 (16.19% at 353 °C). The peak on the DTG (Figure 4) curve at 248 °C is associated with the decomposition of ammonium nitrate.
As expected, when considering the IR spectrum (Figure 5) of HAp dried at 100 °C, this spectrum contained peaks at 1416 cm−1 and 827 cm−1, correlated with the CO32− group [39]. Their presence is due to the high activity of Ca(OH)2 and the presence of carbon dioxide in the air. In addition, the NO3− group is also present in the IR spectrum of HAp (100 °C). Absorption bands of the NO3− group are also present in the IR spectrum in the regions of 1315 cm−1 and 827 cm−1. When the samples were calcined at a temperature of 250–300 °C, ammonium nitrate, which was sorbed on the surface of the sample, decomposed; accordingly, the NO3− signal disappeared in the IR spectrum of HA annealed at 900 °C. The appearance of additional signals in the IR spectrum of an HA sample obtained with the addition of PVP may indicate the appearance of another phase. The signals at 943 and 727 cm−1 belong to νas P-O-P and νa P-O-P in the P2O72− ion, respectively [33,40].
Analysis of the obtained microstructure photographs (Figure 6) led us to the conclusion that the synthesized sample HAp (100 °C) consisted of agglomerates with a size of 20–30 μm (Figure 6a), consisting of smaller particles. At a magnification of 30,000×, it can be seen that the agglomerates of the hydroxyapatite sample consist of two fractions of thread-like particles: one with a diameter of about 100 nm and a length of several microns and one with a diameter of more than 10–20 nm (Figure 6b). Figure 6c,d show microstructure photographs of HAp (900 °C) obtained at magnifications of 2500× and 30,000×, respectively. It should be noted that upon calcination of the hydroxyapatite sample at 900 °C, the sintering of thread-like particles occurs, followed by the formation of a microcrystalline homogeneous powder. Figure 6e,f show photographs of the CPs. At a magnification of 30,000×, the CPs consists of agglomerates of sintered submicron-sized particles with a non-uniform shape.
The molar ratio of Ca/P in the mineral phase of bone tissue ranges from 1.37 to 1.67. [18,59,60]. In our case, the molar ratio of CPs is 1.27, and that for HAp is 1.4 (Figure 8e, Table 2). Such a ratio corresponds to the bone composition of tooth enamel (1.33–2.00) [61].
Synthetic hydroxyapatite has low solubility, and it is limitedly used as an implant material in its pure form [13,62]. Therefore, additional manipulations are required to increase the overall solubility (bioresorbability) of hydroxyapatite-based materials. The rate of dissolution of a material depends on the magnitude of its physical and chemical characteristics, such as its composition, specific surface area, and the presence of defects in the crystal lattice [63]. In practice, the bioactivity of a material is characterized by the rapidity of fusion with the bone tissue of the body through the formation of HAp on the surface of the material as a result of the hydrolysis of calcium phosphates or due to the deposition of HAp onto the surface of the material from a supersaturated intercellular fluid [64,65,66]. Data on the solubility of the samples are given in Table 3. The solubility of CPs turned out to be lower than the solubility of HAp by an order of magnitude. Coarse-crystalline ceramics based on β-Ca3(PO4)2 and β-Ca2P2O7 are resorbed more slowly, which can be attributed to the difference in the particle size of HAp and CPs. A histogram of the particle size distribution is shown in Figure 7. From the data, it can be gleaned that HAp consists mainly of particles with a size of 100–300 nm, and CPs consists of particles with a size of 200–400 nm. The Ca2+ concentration value (mol/L) in the physiological solution of PVP composite fibers with the inclusion of CPs was lower than that of powder CPs, which is associated with the formation of hydrogel when PVP fibers swell in a physiological solution. Thus, PVP makes it difficult for free calcium ions to escape from the surfaces of the fibers into the solution.

4. Materials and Methods

4.1. Materials

Ca(NO3)2·4H2O (purum), (NH4)2HPO4 (pro analysi), 25% aqueous ammonia solution NH4OH (purissimum speciale), and polyvinylpyrrolidone (PVP, Mw 40,000) were purchased from Vecton Company (Krasnodar, Russia). Standard titer EDTA-Na2 (0.1 N) and Eriochrome black T (pro analysi) were purchased from LenReaktiv (St. Petersburg, Russia).

4.2. Calcium Phosphate Synthesis

Synthesis of hydroxyapatite without additives was carried out via precipitation from solution according to the procedure described in [67,68]. The scheme of the synthesis of hydroxyapatite and hydroxyapatite with additives is shown in Figure 11.
To obtain the hydroxyapatite (hereafter referred to as HAp), a stoichiometrically required amount of calcium (II) nitrate was dissolved in a specific volume of calcium nitrate solution according to out calculations. The stoichiometric Ca/P elemental ratio should be 1.67, which corresponds to the element ratio in biogenic hydroxyapatite [69]. Next, under intensive stirring, an ammonium hydrogen phosphate solution was added, and the pH of the reagents was then adjusted to 10 using a concentrated ammonia solution (ρ = 0.903 g/mL). The solution was stirred using a magnetic stirrer for 2 h while monitoring the pH and temperature; then, the solution was left to stand for 44 h. The equation of the reaction is shown in (3):
10Ca(NO3)2 + 6(NH4)2HPO4 + 8NH4OH → Ca10(PO4)6(OH)2↓ + 20NH4NO3 + 20H2O
Then, the precipitate was filtered using a Buchner funnel, washed with hot distilled water on the filter, and dried at 100 °C for 2 h and at 250 °C for 1 h. HAp was selected for analysis during the drying stage at 100 °C. After drying, the obtained sample was annealed in a muffle furnace at 900 °C for 2 h. A modified synthesis method was also used to obtain CPs. PVP polymer was added to vary the phase composition of the material.

4.3. Electrospinning of Fibers

A 10% polymeric viscous solution of polyvinylpyrrolidone in ethanol was prepared. A total of 0.02 g of CPs was dissolved in 0.3 g of the polyvinylpyrrolidone solution. A schematic of the needleless electrospinning installation is shown in Figure 12.
A sample of hydroxyapatite was ground in an agate mortar. Double-distilled water was used as a solvent. The prepared solutions were used for electrospinning. In this study, we used a needleless electrospinning design that allows the formation of fibers from a solution flowing under the influence of gravity along a vertically oriented spinning electrode—a metal wire in which a 0.2 mm wire is wound on a 1 mm wire. The resulting fibers were collected on a grounded rotating cylindrical collector located 10 cm from the spinning electrode. The applied voltage was 18 kV, and the forming electrode and the collector were created by connecting to a high-voltage source. The fibers produced were collected on a rotating collector electrode consisting of eight metal rods that, when in motion, acted as a cylindrical surface. After the electrospinning process, the composite fibers were air-dried for 24 h.

4.4. Experimental Method

To determine the phase composition of hydroxyapatite samples, powder X-ray phase analysis was carried out on an X-ray diffractometer XRD-7000 (Shimadzu, Japan). The samples were studied in the range of 2θ angles from 20° to 60°, using Cu Kα radiation (λ = 1.5406 Å). XRD measurements were taken at room temperature.
The thermal degradation of the samples was studied using a Netzsch STA 409 PC/PG instrument in the range of 25–1000 °C in an open platinum–rhodium crucible in air using Al2O3 as an inert standard. The heating rate was 10 °C per minute.
The functional groups in the synthesized hydroxyapatite samples were determined using Fourier transform infrared spectroscopy (FTIR). FTIR spectra were obtained using a Fourier transform spectrophotometer, VERTEX 70 (BRUKER, Ettlingen, Germany), in the middle-infrared range in the frequency range of 400–4000 cm−1.
Measurement of the fiber size as well as analysis of the surface morphology of hydroxyapatite samples were carried out using a JEOL JSM-7500F ultra-high-resolution scanning electron microscope (JEOL, Tokyo, Japan).
A histogram of particle size distribution was constructed using the ImageJ 1.52u software product.
Elemental analysis of hydroxyapatite samples was carried out using an IncaX-sight energy-dispersive detector installed on an electron microscope.
The solubility of the samples was determined in physiological solution according to the total content of Ca2+ ions. The sample was kept in solution for 7 days at 20 °C and 37 °C. The solution volume and weight of the samples were determined according to the recommendations of ISO 10993-5-2023 [70]. The Ca2+ content in the solution was determined using complexometric titration.

5. Conclusions

In this work, samples based on calcium phosphates were synthesized. The calcination of the synthesized samples at a temperature of 900 °C led to the formation of hydroxyapatite and, in the case of using the PVP additive, to the formation of a two-phase powder: pyrophosphate and calcium phosphate. The presence of these two phases in the CPs sample can help improve the osteoinductive properties of the hydroxpapatite-based material by increasing the pH in the area where the material makes contact with bone apatite and promote the bioresorption of bone apatite [71,72]. The molar calcium–phosphate ratio, Ca/P, in the samples turned out to be close to the composition of tooth enamel. This indicates the promise of using these synthesized materials, HAP and CPs, in regenerative medicine and dentistry. It should be noted that PVP composite fibers with incorporated CPs particles are of independent interest for various applications since they have improved physical properties (strength, elasticity, etc.) compared to traditional composites [73]. Fiber diameter, specific surface area, pore size, and total pore volume significantly influence the diffusion of the liquid in which the nanofibers are immersed and influence the release of the bioactive substance according to the obtained solubility data in a physiological solution. The advantage of nanofiber materials is that their structure, namely, the fiber diameter, density, and thickness of the nanofiber layer, can be controlled by changing the process parameters of electrospinning [74].

Author Contributions

Conceptualization, M.V.P. and S.N.I.; methodology, M.V.P., S.N.I., R.P.Y., I.S.P. and I.V.S.; software, S.N.I., I.S.P. and I.V.S.; validation, M.V.P., S.N.I., I.S.P., A.N.G. and I.V.S.; formal analysis, M.V.P., S.N.I., R.P.Y., V.Y.B., I.V.S. and A.N.G.; data curation, M.V.P. and S.N.I.; writing—original draft preparation, M.V.P., S.N.I., R.P.Y., V.Y.B. and I.V.S.; writing—review and editing, M.V.P., S.N.I., R.P.Y., V.Y.B. and I.V.S.; visualization, M.V.P., S.N.I. and R.P.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation (No. FZEN-2023-0006).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data and information related to this study are available upon request.

Acknowledgments

This work was carried out using equipment available at the Laboratory of Advanced Nanobiotechnologies of Federal State Budgetary Educational Institution of Higher Education “Kuban State Agrarian University named after I.T. Trubilin” and Research and Educational Center of the Central Collective Use Center “Diagnostics of the Structure and Properties of Nanomaterials” of the Federal State Budgetary Educational Institution of Higher Education “Kuban State University”.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pańtak, P.; Czechowska, J.P.; Cichoń, E.; Zima, A. Novel double hybrid-type bone cements based on calcium phosphates, chitosan and citrus pectin. Int. J. Mol. Sci. 2023, 24, 13455. [Google Scholar] [CrossRef]
  2. Bakan, F.; Laçin, O.; Sarac, H. A novel low temperature sol–gel synthesis process for thermally stable nano crystalline hydroxyapatite. Powder Technol. 2013, 233, 295–302. [Google Scholar] [CrossRef]
  3. Chatakun, P.; Núñez-Toldrà, R.; López, E.J.D.; Gil-Recio, C.; Martínez-Sarrà, E.; Hernández-Alfaro, F.; Ferrés-Padró, E.; Giner-Tarrida, L.; Atari, M. The effect of five proteins on stem cells used for osteoblast differentiation and proliferation: A current review of the literature. Cell Mol. Life Sci. 2014, 71, 113–142. [Google Scholar] [CrossRef] [PubMed]
  4. Leontiev, V.K. Biologically active synthetic calcium-phosphate-containing materials for dentistry. Stomatology 1996, 5, 4–6. [Google Scholar]
  5. Kovylin, R.S.; Aleinik, D.A.; Fedyushkin, I.L. Modern porous polymeric implants: Preparation, properties, and application. High-molecular compounds. Polym. Sci. Ser. C 2021, 63, 33–53. [Google Scholar] [CrossRef]
  6. Kołodziejska, B.; Figat, R.; Kolmas, J. Biomimetic apatite/natural polymer composite granules as multifunctional dental tissue regenerative material. Int. J. Mol. Sci. 2023, 24, 16751. [Google Scholar] [CrossRef] [PubMed]
  7. Zalewska, J.; Vivcharenko, V.; Belcarz, A. Gypsum-related Iipact on antibiotic-laded composite based on highly porous hydroxyapatite—Advantages and disadvantages. Int. J. Mol. Sci. 2023, 24, 17178. [Google Scholar] [CrossRef]
  8. Pisareva, E.V.; Vlasov, M.Y.; Volova, L.T. Indicators of bone tissue turnover in rabbits with the introduction of «allogeneic hydroxyapatite». News Samara Sci. Cent. Russ. Acad. Sci. 2015, 17, 908–912. [Google Scholar]
  9. Pisareva, E.V.; Volova, L.T.; Tikhonova, T.V.; Vlasov, M.Y.; Sokolovskaya, A.B.; Golub, Y.V. Application of nanostructured allogeneic hydroxyapatite for the correction of osteoresorption. In High Technologies, Fundamental and Applied Research in Physiology and Medicine; Polytechnic University: St. Petersburg, Russia, 2012; pp. 20–22. [Google Scholar]
  10. Sevastyanov, V.I.; Kirpichnikov, M.P. Biocompatible Materials; MIA: Moscow, Russia, 2011. [Google Scholar]
  11. Papezhuk, M.V.; Pilunova, E.; Ivanin, S.N.; Yakupov, R.P. Synthesis of microcrystalline hydroxyapatite and production of fibers using the electrospinning method based on it. Proc. Kola Sci. Cent. Russ. Acad. Sci. Ser. Tech. Sci. 2023, 14, 192–196. [Google Scholar]
  12. Radulescu, D.-E.; Vasile, O.R.; Andronescu, E.; Ficai, A. Latest research of doped hydroxyapatite for bone tissue engineering. Int. J. Mol. Sci. 2023, 24, 13157. [Google Scholar] [CrossRef]
  13. Ducheyne, P.; Radin, S.; King, L. The effect of calcium phosphate ceramic composition and structure on in vitro behavior. I. Dissolution. J. Biomed. Mater. Res. 1993, 27, 25–34. [Google Scholar] [CrossRef]
  14. Moreno, E.; Gregory, T.; Brown, W. Preparation and Solubility of Hydroxyapatite. J. Res. Natl. Bur. Stand. Sect. A Phys. Chem. 1968, 72, 773–782. [Google Scholar] [CrossRef]
  15. Putlyaev, V.I.; Safronova, T.V. New generation of calcium phosphate materials: The role of phase and chemical composition. Glass Ceram. 2005, 3, 30–33. [Google Scholar]
  16. Gregory, T.M.; Moreno, E.C.; Patel, J.M.; Brown, W.E. Solubility of β-Ca3(PO4)2 in the system Ca(OH)2-H3PO4-H2O at 5, 15, 25, and 37 °C. J. Res. Natl. Bur. Stand. Sect. A Phys. Chem. 1974, 78, 667–674. [Google Scholar] [CrossRef] [PubMed]
  17. Vereecke, G.; Lemaitre, S. Calculation of the solubility diagrams in the system Ca(OH)2- H3PO4-KOH-HNO3-CO2-H2O. J. Cryst. Growth 1990, 104, 820–832. [Google Scholar] [CrossRef]
  18. Fulmer, M.T.; Ison, I.C.; Hankermayer, C.R.; Constantz, B.R.; Ross, J. Measurements of the solubilities and dissolution rates of several hydroxyapatites. Biomaterials 2002, 23, 751–755. [Google Scholar] [CrossRef] [PubMed]
  19. Vamze, J.; Pilmane, M.; Skagers, A. Biocompatibility of pure and mixed hydroxyapatite and α-tricalcium phosphate implanted in rabbit bone. J. Mater. Sci. Mater. Med. 2015, 26, 73. [Google Scholar] [CrossRef]
  20. Cheng, Y.; Zhao, G.; Liu, H. Histological evaluation of collagen-hydroxyapatite composite as osseous implants in the repair of mandibular defect. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi 1998, 12, 74–76. [Google Scholar] [PubMed]
  21. Dhand, V.; Rhee, K.Y.; Park, S.J. The facile and low temperature synthesis of nanophase hydroxyapatite crystals using wet chemistry. Mater. Sci. Eng. C 2014, 36, 152–159. [Google Scholar] [CrossRef]
  22. McKay, W.F. Ceramic Fusion Implants and Compositions. U.S. Patent US6037519A, 14 March 2000. [Google Scholar]
  23. Kumar, S.S.D.; Abrahamse, H. Advancement of nanobiomaterials to deliver natural compounds for tissue engineering applications. Int. J. Mol. Sci. 2020, 21, 6752. [Google Scholar] [CrossRef]
  24. Torres-Martínez, E.J.; Bravo, J.M.C.; Medina, A.S.; González, G.L.P.; Gómez, L.J.V.A. Summary of electrospun nanofibers as drug delivery system: Drugs loaded and biopolymers used as matrices. Curr. Drug Deliv. 2018, 15, 1360–1374. [Google Scholar] [CrossRef]
  25. Xue, J.; Wu, T.; Dai, Y.; Xia, Y. Electrospinning and electrospun nanofibers: Methods, materials, and applications. Chem. Rev. 2019, 119, 5298–5415. [Google Scholar] [CrossRef]
  26. Nair, L.S.; Laurencin, C.T. Polymers as biomaterials for tissue engineering and controlled drug delivery. In Tissue Engineering I; Springer: Berlin/Heidelberg, Germany, 2006; Volume 102, pp. 47–90. [Google Scholar] [CrossRef]
  27. Maitz, M.F. Applications of synthetic polymers in clinical medicine. Biosurf. Biotribol. 2015, 1, 161–176. [Google Scholar] [CrossRef]
  28. Buzko, V.; Ivanin, S.; Goryachko, A.; Shutkin, I.; Pushankina, P.; Petriev, I. Magnesium spinel ferrites development for FDM 3D-printing material for microwave absorption. Processes 2023, 11, 60. [Google Scholar] [CrossRef]
  29. Velasco Barraza, R.; Alvarez Suarez, A.S.; Villarreal Gomez, L.J.; Paz González, J.A.; Iglesias, A.L.; Vera Graziano, R. Designing a low-cost electrospinning device for practical learning in a bioengineering biomaterials course. Rev. Mex. Ing. Bioméd. 2016, 37, 7–16. [Google Scholar] [CrossRef]
  30. Stafin, K.; Śliwa, P.; Piątkowski, M. Towards polycaprolactone-based scaffolds for alveolar bone tissue engineering: A biomimetic approach in a 3D printing technique. Int. J. Mol. Sci. 2023, 24, 16180. [Google Scholar] [CrossRef]
  31. Prokopchuk, N.R.; Shashok, J.S.; Prishchepenko, D.V.; Melamed, V.D. (Review). Electrospinning of nanofibers from chitosan solution. Polym. Mater. Technol. 2015, 1, 36–56. [Google Scholar]
  32. Shin, Y.M.; Hohman, M.M.; Brenner, M.P.; Rutledge, G.C. Electrospinning: A whipping fluid jet generates submicron polymer fibers. Appl. Phys. Lett. 2001, 78, 1149–1151. [Google Scholar] [CrossRef]
  33. Prahasti, G.; Zulfiand, A.; Munir, M.M. Needleless electrospinning system with wire spinneret: Analternative way to control morphology, size, and productivity ofnanofibers. Nano Express 2020, 1, 010046. [Google Scholar] [CrossRef]
  34. Brydson, J.A. Plastics Materials; Elsevier: Amsterdam, The Netherlands, 1999. [Google Scholar]
  35. Anunziata, O.A.; Maria, L.; Beltramone, M.R. Hydroxyapatite/MCM-41 and SBA-15 nano-composites: Preparation, characterization and applications. J. Mater. 2009, 2, 1508–1519. [Google Scholar] [CrossRef]
  36. Kaimonov, M.R.; Safronova, T.V.; Filippov, Y.Y.; Shatalova, T.B.; Preobrazhenskii, I.I. Calcium phosphate powder for obtaining of composite bioceramics. Inorg. Mater. Appl. Res. 2021, 12, 34–39. [Google Scholar] [CrossRef]
  37. Ivanin, S.N.; Buz’ko, V.Y.; Sokolov, M.E.; Magomadova, M.A.; Panyushkin, V.T. Structure and properties of the mixed-ligand complex compound of gadolinium stearate with benzoyltrifluoroacetone. J. Struct. Chem. 2021, 62, 563–570. [Google Scholar] [CrossRef]
  38. Ivanin, S.N.; Panyushkin, V.T.; Buzko, V.Y.; Selivantev, Y.M.; Kostyrina, T.V. Synthesis, investigation, and molecular simulation of possible structures of a heteroligand complex of gadolinium stearate with acetylacetone. J. Struct. Chem. 2021, 62, 19–28. [Google Scholar] [CrossRef]
  39. Berzina-Cimdina, L.; Borodajenko, N. Research of calcium phosphates using fourier transform infrared spectroscopy. In Infrared Spectroscopy—Materials Science, Engineering and Technology; InTech: Rijeka, Croatia, 2012; Volume 6, pp. 124–148. [Google Scholar]
  40. Binitha, M.P.; Pradyumnan, P.P. Dielectric property studies of biologically compatible brushite single crystals used as bone graft substitute. J. Biomater. Nanobiotechnol. 2013, 4, 119–122. [Google Scholar] [CrossRef]
  41. Boanini, E.; Gazzano, M.; Bigi, A. Ionic substitutions in calcium phosphates synthesized at low temperature. Acta Biomater. 2010, 6, 1882–1894. [Google Scholar] [CrossRef]
  42. Buzko, V.; Babushkin, M.; Ivanin, S.; Goryachko, A.; Petriev, I. Study of electromagnetic shielding properties of composites based on glass fiber metallized with metal films. Coatings 2022, 12, 1173. [Google Scholar] [CrossRef]
  43. Petriev, I.; Baryshev, M.G.; Voronin, K.A.; Lutsenko, I.S.; Pushankina, P.D.; Kopytov, G.F. Gas Transmission properties of Pd–Ag membranes coated with modifying layer. Russ. Phys. J. 2020, 63, 457–461. [Google Scholar] [CrossRef]
  44. Buz’ko, V.Y.; Ivanin, S.N.; Shutkin, I.Y.; Goryachko, A.I.; Udodov, S.A.; Ozolin, A.V. Atomic composition, microstructure, and electromagnetic properties of schungite micropowder. Condens. Matter Interphases 2023, 25, 3–13. [Google Scholar] [CrossRef]
  45. Petriev, I.; Pushankina, P.; Andreev, G.; Ivanin, S.; Dzhimak, S. High-performance hydrogen-selective Pd-Ag membranes modified with Pd-Pt nanoparticles for use in steam reforming membrane reactors. Int. J. Mol. Sci. 2023, 24, 17403. [Google Scholar] [CrossRef]
  46. Schwarzenbach, G.; Flashka, G. Complexometric Titration; M.: Chemistry; U.S. Department of Energy: London, UK, 1970; p. 360. [Google Scholar]
  47. Carrodeguas, R.G.; Alonso, L.M.; García-Menocal, J.A.D.; Alonso, L.M.; Molins, M.P.G.; Manent, S.M.; Gil Mur, J.; Pérez, J.T.; Estany, J.A.P. Hydrothermal method for preparing calcium phosphate monoliths. Mater. Res. 2003, 6, 395–401. [Google Scholar] [CrossRef]
  48. Kannan, S.; Goetz-Neunhoeffer, F.; Neubauer, J.; Ferreira, J.M.F. Ionic substitutions in biphasic hydroxyapatite and b-tricalcium phosphate mixtures: Structural analysis by rietveld refinement. J. Am. Ceram. Soc. 2008, 91, 1–12. [Google Scholar] [CrossRef]
  49. Hughes, J.M.; Cameron, M.; Crowley, K.D. Structural variations in natural F, OH, and Cl apatites. Am. Mineral. 1989, 74, 870–876. [Google Scholar]
  50. Kamiyama, T.; Hoshikawa, A.; Yashima, M.; Sakai, A. Crystal structure analysis of beta-tricalcium phosphate Ca3(PO4)2 by neutron powder diffraction. J. Solid State Chem. 2003, 175, 272–277. [Google Scholar] [CrossRef]
  51. Boudin, S.; Grandin, A.; Borel, M.M.; Leclaire, A.; Raveau, B. Redetermination of the β-Ca2P2O7 structure. Acta Crystallogr. Sect. C 1993, 49, 2062–2064. [Google Scholar] [CrossRef]
  52. Bian, J.; Kim, D.W.; Hong, K.S. Microwave dielectric properties of Ca2P2O7. J. Eur. Ceram. Soc. 2003, 23, 2589–2592. [Google Scholar] [CrossRef]
  53. Parodi, J.A.; Hickok, R.L.; Segelken, W.G.; Cooper, J.R. Electronic paramagnetic resonance study of the thermal decomposition of dibasic calcium orthophosphate. J. Electrochem. Soc. 1965, 112, 688–692. [Google Scholar] [CrossRef]
  54. Griesiute, D.; Garskaite, E.; Antuzevics, A.; Klimavicius, V.; Balevicius, V.; Zarkov, A.; Katelnikovas, A.; Sandberg, D.; Kareiva, A. Synthesis, structural and luminescent properties of Mn doped calcium pyrophosphate (Ca2P2O7) polymorphs. Sci. Rep. 2022, 12, 7116. [Google Scholar] [CrossRef]
  55. Tazibt, N.; Kaci, M.; Dehouche, N.; Ragoubi, M.; Atanase, L.I. Effect of filler content on the morphology and physical properties of poly(lactic acid)-hydroxyapatite. Compos. Mater. 2023, 16, 809. [Google Scholar] [CrossRef]
  56. Klee, W.E.; Engel, G. Infrared spectra of the phosphate ions in various apatite. J. Inorg. Nucl. Chem. 1970, 32, 1837–1843. [Google Scholar] [CrossRef]
  57. Ivanin, S.N.; Buzko, V.Y.; Goryachko, A.I.; Panyushkin, V.T. Optical and magnetic properties of a heteroligand complexof gadolinium stearate with acetylacetone. Russ. J. Phys. Chem. A 2021, 95, 326–331. [Google Scholar] [CrossRef]
  58. Papezhuk, M.V.; Volynkin, V.A.; Stroganova, T.A.; Usacheva, T.R.; Thi, L.P. Theoretical and experimental study of inclusion complex formation of β-cyclodextrin with some 1,4-diazepine derivatives. Macroheterocycles 2020, 13, 64–73. [Google Scholar] [CrossRef]
  59. Pavlova, T.V.; Bavykina, T.Y. Comparative evaluation of the mineral composition and ultramicrostructure of dental tissues in norm and with caries. Mod. Sci.-Intensive Technol. 2009, 12, 15–18. [Google Scholar]
  60. Teotia, A.K.; Raina, D.B.; Singh, C.; Sinha, N.; Isaksson, H.; Tägil, M.; Lidgren, L.; Kumar, A. Nano-hydroxyapatite bone substitute functionalized with bone active molecules for enhanced cranial bone regeneration. ACS Appl. Mater. Interfaces 2017, 9, 6816–6828. [Google Scholar] [CrossRef]
  61. Safronova, T.V.; Putlyaev, V.I.; Shekhirev, M.A.; Kuztsov, A.V. Composite ceramics containing a bioresorbable phase. Glass Ceram. 2007, 3, 31–35. [Google Scholar] [CrossRef]
  62. Kuczumow, A.; Chałas, R.; Nowak, J.; Smułek, W.; Jarzębski, M. Novel approach to tooth chemistry: Quantification of human enamel apatite in context for new biomaterials and nanomaterials development. Int. J. Mol. Sci. 2021, 22, 279. [Google Scholar] [CrossRef]
  63. Veresov, A.G.; Putlyaev, V.I.; Tretyakov, Y.D. Chemistry of inorganic biomaterials based on calcium phosphates. Russian Chem. J. 2004, 48, 52–64. [Google Scholar]
  64. Kokubo, T.; Kim, H.M.; Kawashita, M. Novel bioactive materials with different mechanical properties. Biomaterials 2003, 24, 2161–2175. [Google Scholar] [CrossRef]
  65. Puleo, D.A.; Nanci, A. Understanding and controlling the bone–implant interface. Biomaterials 1999, 20, 2311–2321. [Google Scholar] [CrossRef]
  66. Collins, A.M. Physical Techniques. In Nanotechnology Cookbook; Elsevier: Oxford, UK, 2012; pp. 205–253. [Google Scholar] [CrossRef]
  67. Leonova, L.A.; Guzeeva, T.I.; Guzeev, V.V. Study of the synthesis process of hydroxyapatite. Chem. Sustain. Dev. 2010, 18, 107–110. [Google Scholar]
  68. Liu, D.M.; Troczynski, T.; Tseng, W.J. Water-based sol-gel synthesis of hydroxyapatite: Process development. Biomaterials 2001, 13, 1721–1730. [Google Scholar] [CrossRef]
  69. Goloshchapov, D.L.; Kashkarov, V.M.; Rumyantseva, N.A.; Seredin, P.V.; Len’shin, A.S.; Agapov, B.L.; Domashevskaya, E.P. Obtaining nanocrystalline hydroxyapatite by chemical precipitation using a biogenic source of calcium. Condens. Media Interphase 2011, 13, 427–441. [Google Scholar]
  70. ISO 10993-5-2023; Medical Devices. Assessment of the Biological Effects of Medical Devices. Part 5. Cytotoxicity Studies Using In Vitro Methods. ISO: Geneva, Switzerland, 2023.
  71. Safronova, T.V.; Putlyaev, V.I. Medical inorganic materials science in Russia: Calcium phosphate materials. Nanosyst. Phys. Chem. Math. 2013, 4, 24–47. [Google Scholar]
  72. Gurin, A.N.; Komlev, V.S.; Fadeeva, I.V.; Barinov, S.M. Octacalcium phosphate—A precursor of biological mineralization, a promising osteoplastic material. Dentistry. 2010, 4, 65–72. [Google Scholar]
  73. Tiwari, G.; Rai, A.K.; Tiwari, R. Cyclodextrins in delivery systems: Applications. J. Pharm. Bioallied Sci. 2010, 2, 72–79. [Google Scholar] [CrossRef]
  74. Hrib, J.; Sirc, J.; Hobzova, R.; Hampejsova, Z.; Bosakova, Z.; Munzarova, M.; Michalek, J. Nanofibers for drug delivery—Incorporation and release of model molecules, influence of molecular weight and polymer structure. Beilstein J. Nanotechnol. 2015, 6, 1939–1945. [Google Scholar] [CrossRef]
Ijms 25 02298 g001
Figure 1. X-ray phase analysis of HAp and CPs.
Figure 1. X-ray phase analysis of HAp and CPs.
Ijms 25 02298 g001
Ijms 25 02298 g002
Figure 2. Refinement via the Rietveld method of X-ray diffraction data obtained for Ca5(PO4)3(OH) in the space group P63/m (a) and for β-Ca3(PO4)2 and β-Ca2P2O7 refined in space groups R-3c and P41, respectively (b). The red solid line and blue solid line represent the experimental and calculated intensities, respectively, and the red line below represents the difference between them. Green marks indicate the positions of the Bragg peaks.
Figure 2. Refinement via the Rietveld method of X-ray diffraction data obtained for Ca5(PO4)3(OH) in the space group P63/m (a) and for β-Ca3(PO4)2 and β-Ca2P2O7 refined in space groups R-3c and P41, respectively (b). The red solid line and blue solid line represent the experimental and calculated intensities, respectively, and the red line below represents the difference between them. Green marks indicate the positions of the Bragg peaks.
Ijms 25 02298 g002
Ijms 25 02298 g003
Figure 3. Structures of the researched compounds, according to CIF files: Ca5(PO4)3(OH) (A), β-Ca3(PO4)2 (B), and β-Ca2P2O7 (C).
Figure 3. Structures of the researched compounds, according to CIF files: Ca5(PO4)3(OH) (A), β-Ca3(PO4)2 (B), and β-Ca2P2O7 (C).
Ijms 25 02298 g003
Ijms 25 02298 g004
Figure 4. Thermogram of a hydroxyapatite sample dried at 100 °C indicating the curves: the black solid line is mass loss versus temperature (TG); the green dashed line is differential curve corresponding to the maximum rate of change in sample mass (DTG); the blue solid line is first derivative of temperature for phase transitions (DSC).
Figure 4. Thermogram of a hydroxyapatite sample dried at 100 °C indicating the curves: the black solid line is mass loss versus temperature (TG); the green dashed line is differential curve corresponding to the maximum rate of change in sample mass (DTG); the blue solid line is first derivative of temperature for phase transitions (DSC).
Ijms 25 02298 g004
Ijms 25 02298 g005
Figure 5. IR spectra of HAp (100 °C), HAp (900 °C), and CPs.
Figure 5. IR spectra of HAp (100 °C), HAp (900 °C), and CPs.
Ijms 25 02298 g005
Ijms 25 02298 g006aIjms 25 02298 g006b
Figure 6. SEM photographs (2500×, 30,000×) of the microstructures of the synthesized HAp (100 °C)—(a,b); HAp (900 °C)—(c,d); CPs—(e,f).
Figure 6. SEM photographs (2500×, 30,000×) of the microstructures of the synthesized HAp (100 °C)—(a,b); HAp (900 °C)—(c,d); CPs—(e,f).
Ijms 25 02298 g006aIjms 25 02298 g006b
Ijms 25 02298 g007

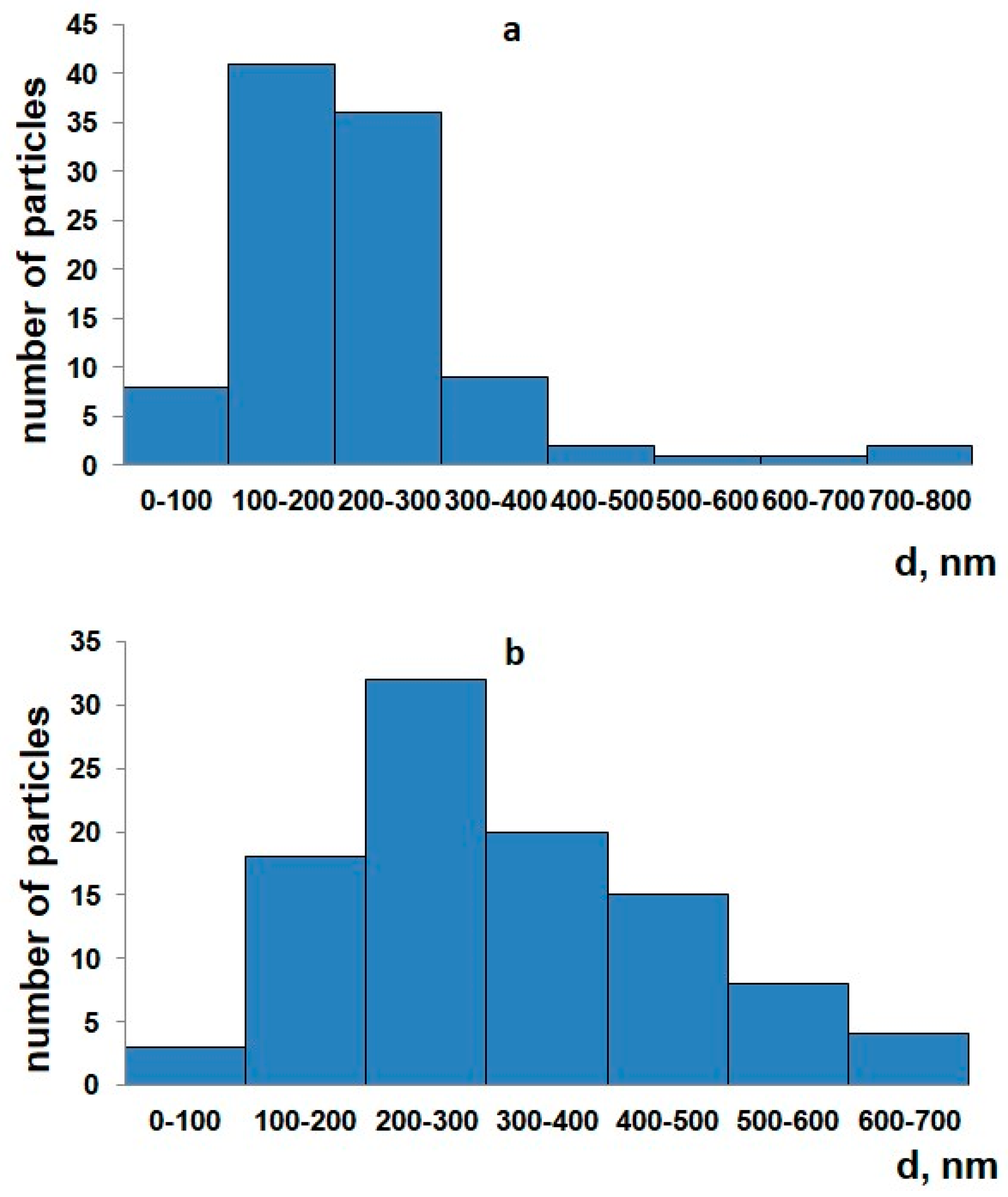

Figure 7. Histogram of particle size distribution for HAp (a) and CPs (b).
Figure 7. Histogram of particle size distribution for HAp (a) and CPs (b).
Ijms 25 02298 g007
Ijms 25 02298 g008
Figure 8. EDA analysis results: sample-scanning area (a); distribution of elements in the sample—O (b), P (c), and Ca (d); EDA spectrum (e); appearance of a compressed tablet (f).
Figure 8. EDA analysis results: sample-scanning area (a); distribution of elements in the sample—O (b), P (c), and Ca (d); EDA spectrum (e); appearance of a compressed tablet (f).
Ijms 25 02298 g008
Ijms 25 02298 g009
Figure 9. Photographs magnified 2500× (a) and 5000× (b) of the microstructures of the CPs fibers.
Figure 9. Photographs magnified 2500× (a) and 5000× (b) of the microstructures of the CPs fibers.
Ijms 25 02298 g009
Ijms 25 02298 g010
Figure 10. Photo of fibers transferred onto a collector.
Figure 10. Photo of fibers transferred onto a collector.
Ijms 25 02298 g010
Ijms 25 02298 g011

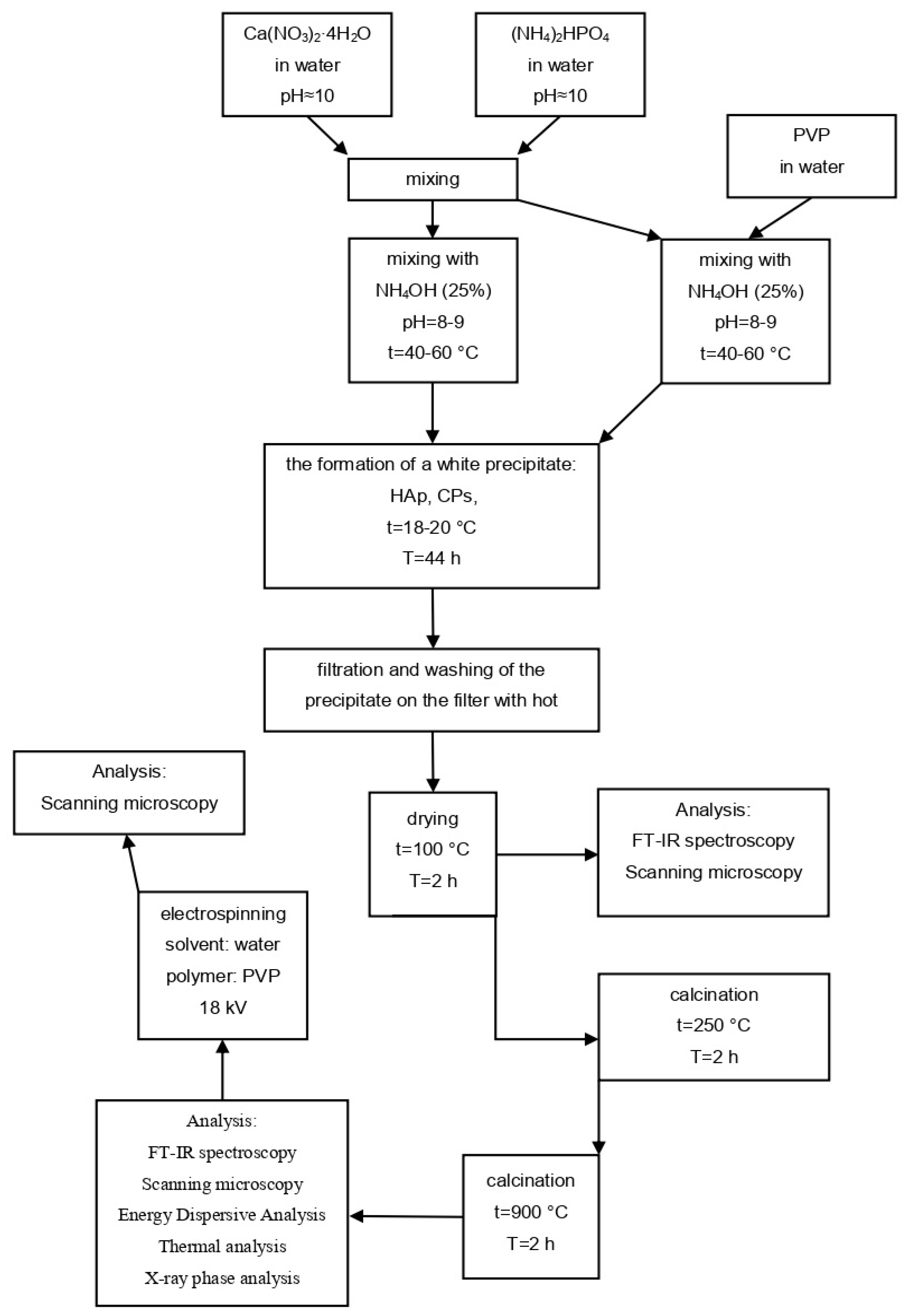

Figure 11. Flow chart depicting the steps of the study.
Figure 11. Flow chart depicting the steps of the study.
Ijms 25 02298 g011
Ijms 25 02298 g012

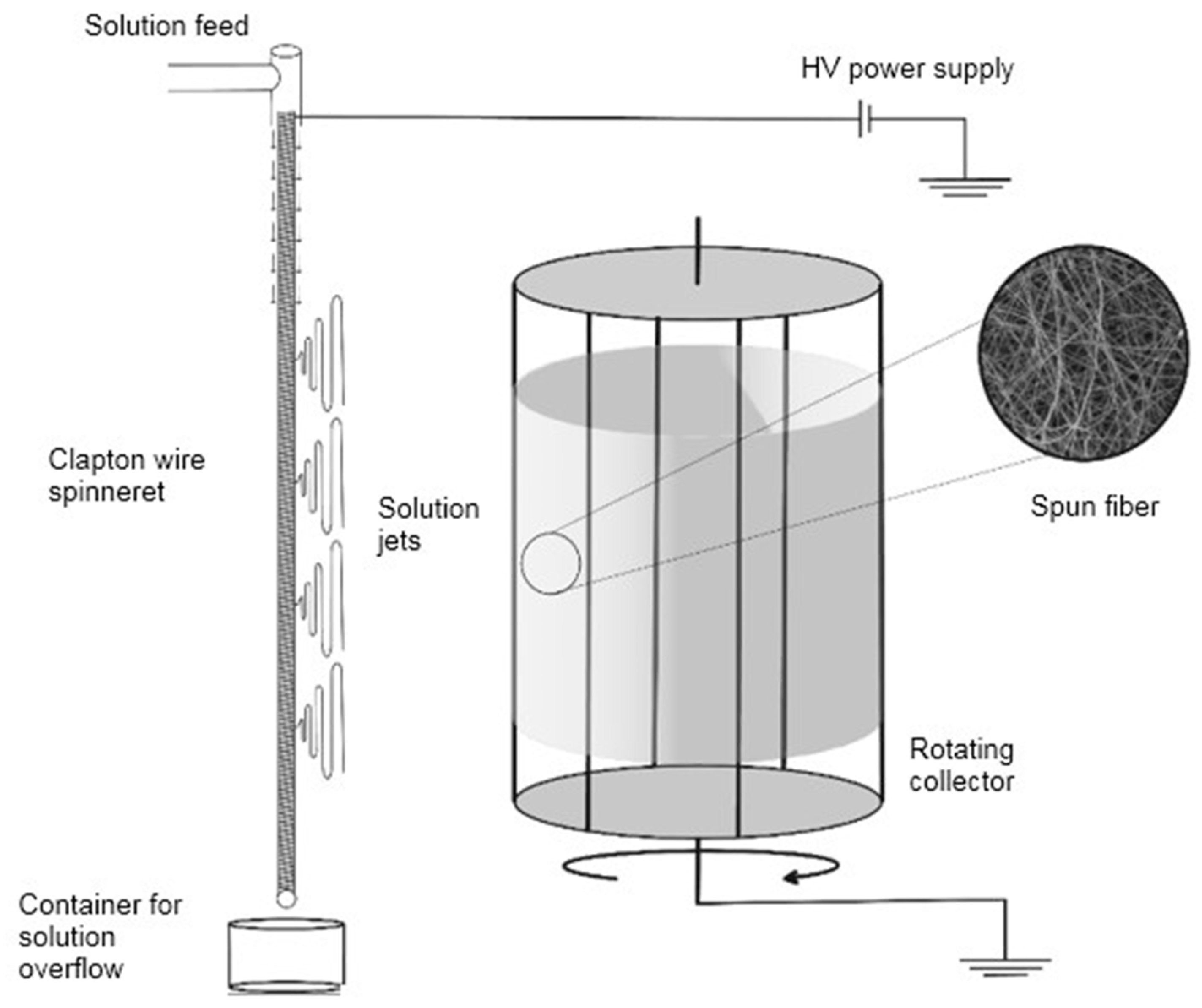

Figure 12. Scheme of needleless electrospinning setup.
Figure 12. Scheme of needleless electrospinning setup.
Ijms 25 02298 g012
Table 1. Lattice parameters of Ca5(PO4)3(OH), β-Ca3(PO4)2, and β-Ca2P2O7.
Table 1. Lattice parameters of Ca5(PO4)3(OH), β-Ca3(PO4)2, and β-Ca2P2O7.
Chemical FormulaCrystal SystemSpace Groupa, Åb, Åc, ÅAlpha, °Beta, °Gamma, °
Ca3(PO4)2RhombohedralR-3c10.429010.429037.38009090120
Ca2P2O7TetragonalP416.68406.684024.1450909090
Ca5(PO4)3(OH)HexagonalP63/m9.43209.43206.88109090120
Table 2. Elemental composition (at%) of the synthesized samples.
Table 2. Elemental composition (at%) of the synthesized samples.
Samples
CPsHAp
Ca19.2223.04
P15.1716.45
O65.6260.51
Ca/P1.271.4
Table 3. The solubility of sample powders in physiological solution at pH 7, ω (NaCl) = 0.9%.
Table 3. The solubility of sample powders in physiological solution at pH 7, ω (NaCl) = 0.9%.
SamplesConcentration of Ca2+, mol/L
20 °C37 °C
HAp1·10−31.5·10−3
CPs2.5·10−43.1·10−4
Fibers (CPs)1·10−41.2·10−4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Papezhuk, M.V.; Ivanin, S.N.; Yakupov, R.P.; Buz’ko, V.Y.; Sukhno, I.V.; Gneush, A.N.; Petriev, I.S. Obtaining Polyvinylpyrrolidone Fibers Using the Electroforming Method with the Inclusion of Microcrystalline High-Temperature Phosphates. Int. J. Mol. Sci. 2024, 25, 2298. https://doi.org/10.3390/ijms25042298

AMA Style

Papezhuk MV, Ivanin SN, Yakupov RP, Buz’ko VY, Sukhno IV, Gneush AN, Petriev IS. Obtaining Polyvinylpyrrolidone Fibers Using the Electroforming Method with the Inclusion of Microcrystalline High-Temperature Phosphates. International Journal of Molecular Sciences. 2024; 25(4):2298. https://doi.org/10.3390/ijms25042298

Chicago/Turabian Style

Papezhuk, Marina Vladimirovna, Sergei Nikolaevich Ivanin, Roman Pavlovich Yakupov, Vladimir Yurievich Buz’ko, Igor Vladimirovich Sukhno, Anna Nikolaevna Gneush, and Iliya Sergeevich Petriev. 2024. "Obtaining Polyvinylpyrrolidone Fibers Using the Electroforming Method with the Inclusion of Microcrystalline High-Temperature Phosphates" International Journal of Molecular Sciences 25, no. 4: 2298. https://doi.org/10.3390/ijms25042298

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
