Physicochemical Properties and Antioxidant Activity of CRISPR/Cas9-Edited Tomato SGR1 Knockout (KO) Line

by
Jin Young Kim
1,
Dong Hyun Kim
1,
Me-Sun Kim
2,
Yu Jin Jung
1,3,* and
Kwon Kyoo Kang
1,3,*
1
Division of Horticultural Biotechnology, Hankyong National University, Anseong 17579, Republic of Korea
2
Department of Crop Science, College of Agriculture and Life & Environment Sciences, Chungbuk National University, Cheongju 28644, Republic of Korea
3
Institute of Genetic Engineering, Hankyong National University, Anseong 17579, Republic of Korea
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(10), 5111; https://doi.org/10.3390/ijms25105111
Submission received: 27 March 2024 / Revised: 30 April 2024 / Accepted: 1 May 2024 / Published: 8 May 2024
(This article belongs to the Special Issue Molecular Breeding of Plants: From CRISPR/Cas9 to Transcriptomics and MABc)
Browse Figures
Review Reports Versions Notes

Abstract

:
Tomatoes contain many secondary metabolites such as β-carotene, lycopene, phenols, flavonoids, and vitamin C, which are responsible for antioxidant activity. SlSGR1 encodes a STAY-GREEN protein that plays a critical role in the regulation of chlorophyll degradation in tomato leaves and fruits. Therefore, the present study was conducted to evaluate the sgr1 null lines based on their physicochemical characteristics, the content of secondary metabolites, and the γ-Aminobutyric acid (GABA) content. The total soluble solids (TSS), titrated acidity (TA), and brix acid ratio (BAR) of the sgr1 null lines were higher than those of the wild type(WT). Additionally, the sgr1 null lines accumulated higher levels of flavor-inducing ascorbic acid and total carotenoids compared to WT. Also, the total phenolic content, total flavonoids, GABA content, and 2,2-diphenyl-1-picrylhydrazyl (DPPH) radical content of the sgr1 null lines were higher than those of the WT. Therefore, these studies suggest that the knockout of the SGR1 gene by the CRISPR/Cas9 system can improve various functional compounds in tomato fruit, thereby satisfying the antioxidant properties required by consumers.

1. Introduction

Tomatoes (Solanum lycopersicum L.) are the most widely consumed major fruit vegetables in the world and are highly available and valuable [1]. Tomatoes contain substances such as sugars, acids, vitamins, minerals, lycopene, and other carotenoids, which contribute significantly to human health maintenance and nutrition [2,3]. Red tomato fruits are used as antioxidants or ROS scavengers because they contain large amounts of vitamins C and E, lycopene, phenol, flavonoids, β-carotene, and GABA [4,5]. Tomatoes, with their excellent nutritional value, are consumed in many processed products worldwide. With the daily consumption of tomatoes, the risk of cancer and cardiovascular disease is significantly reduced because the activity of the antioxidants present in them increase in vivo [6]. Carotenoids are molecules of the isoprenoid family that are common to all photosynthetic organs. They are involved in light reception in the photosynthetic membrane of the chloroplast and protect the photosynthetic mechanism from excessive light energy by removing triplet chlorophyll and superoxide anion radicals [6]. Colored carotenoids existing in red, yellow, or orange colors in plants are expressed in flowers, fruits, and roots, and their roles oversee attracting agents for pollination and dispersing seeds. Among them, lycopene, a red pigment, accounts for more than 80% of the total carotenoids in ripe red tomatoes [7]. Lycopene, a fat-soluble compound, has absorption properties like those of dietary fat and is absorbed in the body from the stomach and duodenum. In addition, lycopene absorbed into the body is a powerful antioxidant that removes active oxygen in the body to prevent aging and protect cells to reduce the risk of chronic diseases. Lycopene is synthesized through the carotenoid metabolic pathway and accumulates in the flesh of tomatoes as they ripen, giving them a red color [7,8]. As the tomato fruit ripens, chloroplasts develop into colored bodies, so chlorophyll is lost, and carotenoids accumulate. Previous studies have reported that point mutations in the gene encoding the tomato STAY-GREEN (SGR) protein inhibit chlorophyll degradation during fruit ripening, resulting in an increased chlorophyll and carotenoid content, resulting in brown fruits [9]. In addition, a transformant in which the SGR1 gene was silenced by RNA interference in tomato had a similar phenotype to that of the green flesh mutant [10]. Therefore, SGR1 plays a crucial role in chlorophyll degradation [11]. In addition, it has been reported that the SlSGR1 gene, which encodes the tomato STAY-GREEN protein, regulates lycopene accumulation through interaction with the SlPSY1 gene, a major carotenoid biosynthetic pathway enzyme [12]. Recently, the knockout of SlSGR1 through the CRISPR/Cas9 system has been found to affect the process of chlorophyll degradation and carotenoid biosynthesis, resulting in color changes in tomato fruits and greatly altering the expression levels of many genes related to photosynthesis and chloroplast function [10,13]. In addition, studies on lycopene accumulation have been performed in model plants such as Arabidopsis, rice, red pepper, and soybean [14,15,16,17].
We previously generated slsgr1 knockout transformants using the CRISPR/Cas9 system to understand the expression of the SlSGR1 gene during tomato fruit development stages. Then, null plants from which T-DNA was removed were selected and named the sgr1 #1-6 and sgr1 #2-4 lines. Unlike the WT, which is a pink tomato, these null lines showed a reddish-brown color in the flesh located under the tomato skin. Compared to the WT, the levels of lycopene and β-carotene in the selected lines showed differences depending on the fruit development stage but showed a large difference at the ripening stage. In this study, the antioxidant and physicochemical characteristics of these null lines were investigated to increase consumer acceptance of tomato fruits. To this end, physical characteristics such as firmness, color, TSS, TA, and BAR were investigated together.

2. Results

2.1. Expression Pattern of the SGR1 Gene

To investigate the expression pattern of the SGR1 gene, qRT-PCR was performed by isolating mRNA from the tissues of the tomatoes at each development stage. The expression of the SGR1 gene in the roots, stems, and young leaves showed low levels. However, the expression of the SGR1 gene according to the development stage of the mature leaves and fruits was high, and it was highest in the Br+7 stage (Figure 1).

2.2. Molecular Characteristics of sgr1 Null Lines

To investigate the potential roles of SGR1 in tomato fruit, an sgr1 null line was produced using CRISPR/Cas9 technology by targeting the third exon and the fourth exon (Supplementary Figure S1A). A frameshift mutation with a 19 bp (CATGTCATTGCCACATTA) and 5 bp (TGTTA) deletion in the sgr1 null lines was obtained by Sanger sequencing (Supplementary Figure S1B). The comparison of the predicted amino acid sequences demonstrated that the 19 bp and 5 bp deletions in the sgr1 gene resulted in the production of truncated protein due to a frameshift and the occurrence of a premature stop codon (Figure 2A). Western blotting analyses also demonstrated that the SGR1 protein completely vanished in the tomato tissues (Figure 2B). In addition, a PCR analysis was performed using four primer sets present between LB and RB, respectively, to investigate whether T-DNA was free (Figure 3, Supplementary Figure S1C). As a result, no amplification product was observed in the selected null line.

2.3. Physiochemical Properties of sgr1 Null Lines

The sgr1 null lines were subjected to two self-fertilization processes to harvest T4 seeds. The average fruit weight of the sgr1 null lines ranged from 220 to 230 g. In the red aging phase (fully red reaching, Br+10), the hardness of the sgr1 #1-6 and sgr1 #2-4 lines was 2.03 to 2.13 N (Table 1), which was slightly lower than that of the WT (2.80 N). The TSS values of the sgr1 #1-6 and sgr1 #2-4 lines at the red ripe stage were in the range of 5.71-5.79 °Brix, which was higher compared to those of the WT, with values ranging around 4.70 °Brix. The mean total acid content of the skinned pulp of the sgr1 #1-6 and sgr1 #2-4 lines ranged from 0.41 to 0.42 mg CAE (citric acid equivalent)/10 g dry weight, which was like that of the WT. The average BAR of the sgr1 #1-6 and sgr1 #2-4 lines ranged from 13.60 to 14.10, higher than that of the WT.

2.4. Colorimetric Evaluation

The Hunter values and antioxidant components in the tomato pulp of the sgr1 null lines and their antioxidant activities were investigated (Figure 4). In the sgr1 #1-6 and sgr1 #2-4 lines, L*, representing lightness, did not show much difference in the breaker (Br) stage with the dark light green fruits, but it was observed that it decreased compared to the WT in the red Br+7 and Br+10 stages. In the sgr1 null lines, a*, measured according to the degree of redness of the tomato, had a negative value in the Br stage. Afterwards, in the Br+7 stage, in which the red color appears, the values of the sgr1 #1-6 and sgr1 #2-4 lines showed values of 13.3 to 14.2, respectively, and the WT with the pink fruit showed values of 2.5. In the Br+10 stage, in which the fruits are dark red, the sgr1 #1-6 and sgr1 #2-4 lines showed values of 22.3 to 23.8, respectively, and the WT, a mature pink tomato, showed values of 32.0. The values of b* appeared similar among the sgr1 null lines and WT.

2.5. Antioxidant Constituents

The content of secondary metabolites produced in the carotenoid biosynthesis pathway tended to gradually decrease as the fruit aged, except for lutein. However, the carotenoid content including lycopene and β-carotene increased in the sgr1 null lines and WT. The content of β-carotene in the sgr1 null lines decreased slightly compared to the WT in the Br stage, but more than doubled after the Br+7 stage. The lycopene contents of the sgr1 null lines appeared to be twice as high as those of the WT in the Br stage, and the highest value was about 5.7 times in the Br+10 stage (Supplementary Figure S2). The α-tocopherol content of the sgr1 #1-6 and sgr1 #2-4 lines was 61.5 and 59.7 μg/g, respectively, which was 4 times higher than that of the WT. However, the γ- and δ-tocopherol contents of the sgr1 #1-6 and sgr1 #2-4 lines showed similar results to the WT (Figure 5). The content of chlorophyll, a green photosynthetic pigment in plants derived from lipophilic extracts, was measured under the same LC conditions as the carotenoid analysis. The sgr1 null lines showed significantly higher chlorophyll a (55.6 and 65.7 µg/g, respectively), compared to the wildtype (Supplementary Figure S2). The free amino acid content including GABA was measured using 70% ethanol extract. The sgr1 null lines showed significantly higher contents of L-glutamate, glutamine, aspartic acid, and asparagine than the wildtype. The average values of GABA were 11.8 mg/g and 12.3 mg/g in the sgr1 #1-6 and sgr1 #2-4 lines, respectively, which were relatively higher than the 9.7 mg/g in the wildtype. Vitamin C was measured as ascorbic acid equivalent (AAE) using 3% methyl acid extract. As a result, the vitamin C content of the sgr1 #1-6 and sgr1 #2-4 lines was 1.70 and 1.97 mg AAE/g, respectively, which was higher than that of the WT (Figure 6).

2.6. Antioxidant Activity of Lipophilic and Hydrophilic Extracts

The total phenol contents of the lipophilic extract did not show a significant difference between the sgr1 null lines and WT. However, the total phenol contents of the hydrophilic extracts of the sgr1 #1-6 and sgr1 #2-4 lines were 27.2 ± 1.3 and 20.3 ± 0.2 µmol GAE/g, respectively, which were higher than those of the wildtype. In addition, the total flavonoid content of the hydrophilic extracts of the sgr1 null lines were 10.8 µmol QE/g, which was higher than that of the wildtype. The antioxidant activity was measured by a DPPH radical scavenging analysis using lipophilic and hydrophilic extracts. In the sgr1 #1-6 and sgr1 #2-4 null lines, the DPPH radical scavenging activity of the hydrophilic extract was 1.2-3.2 times higher than that of the WT. Also, the antioxidant activity of the lipophilic and hydrophilic extracts of the sgr1 #1-6 and sgr1 #2-4 lines, with values of 27.3 ± 3.5 and 27.4 ± 1.8 (mol trio lox equivalents (TE)/g, respectively, was higher than that of the wildtype (Figure 7, Supplementary Table S2).

3. Discussion

Tomatoes are known to be native to South America and contain antioxidants such as lycopene, β-carotene, GABA, vitamins C and E, phenol, and flavonoids [2,18,19]. Carotenoids, natural lipophilic pigments, are essential pigments in photosynthetic organisms and are expressed as colors in flowers and fruits [20]. Many researchers have investigated the mechanism of carotenoid accumulation in tomato fruits by examining the expression level of biosynthetic genes present in the carotenoid biosynthetic circuit during the ripening process of the fruit [21,22,23]. Lycopene is a carotenoid hydrocarbon known in red tomatoes and has the effect of lowering the risk of chronic diseases and cardiovascular diseases [3]. Previously, various studies have been attempted to increase the lycopene content in tomato fruits. In our previous study, the levels of lycopene and β-carotene in mutant lines in which the SISGR1 gene was knocked out using the CRISPR/Cas9 system were significantly higher than those in WT plants. Therefore, in this study, we investigated the growth characteristics, antioxidant content, and antioxidant activity of tomato skins of sgr1 null lines ripened on vines. The results showed that the growth characteristics were almost similar in the sgr1 null lines compared to WT, but the antioxidant activity was statistically significantly different (Supplementary Table S3). Typically, when tomatoes ripen from green to red, the brix, β-carotene, lycopene, and vitamin C contents are known to increase, while the GABA content decreases [18,24]. At the Br+10 stage, the sgr1 #1-6 and sgr1 #2-4 lines showed higher lycopene and β-carotene contents compared to the WT. Typically, lycopene accumulation in tomato fruit occurs during the ripening of the fruit as chlorophyll decomposes due to the programming of genes related to carotenoid biosynthesis, resulting in the loss of green color [25,26]. Additionally, compared with high-carotenoid-containing tomatoes from conventional breeding programs, the sgr1 #1-6 and sgr1 #2-4 lines resembled the hyperpigmentation (hp-1) mutant with increased lycopene and β-carotene contents [27]. The TSS and acidity of fruit are greatly influenced by the overall quality of sweetness, sourness, and flavor [28]. At the Br+10 stage, the total soluble solids and total yield of the sgr1 null lines were higher than those of the WT (Table 1). Our current results are consistent with those of previously reported hyperpigmented variants [27,29] and suggest that robustness is negatively correlated with the TSS content and BAR. Meanwhile, the flesh color indicates the quality and freshness of tomato production. Especially when processing tomatoes, their value is graded according to their color [30]. In tomatoes, the red color is caused by the accumulation of lycopene [8,31], and we previously reported a high correlation between the lycopene content and the total carotenoid content [32]. The lycopene content of the sgr1 null lines was 2-fold higher at the Br stage and approximately 5.7-fold higher at the Br+10 stage than in the WT (Supplementary Figure S2A). Normally, GABA accumulation in tomatoes takes place before the breaker stage and is rapidly catabolized thereafter [33]. Therefore, we measured the GABA content immediately after harvest in the pink stage of the sgr1 #1-6 and sgr1 #2-4 lines and the WT (Figure 6). Meanwhile, tomatoes are rich in ascorbic acid (vitamin C), which the body absorbs easily [22]. It has many health benefits, including defending against scurvy, preventing low-density lipoprotein oxidation, maintaining collagen, and improving neurodegenerative diseases [34,35]. The AAE content of the sgr1 null lines was shown to be slightly higher than that of the WT (Figure 6). Phenols are a group of large molecules that act as natural antioxidants in plants [36]. They may prevent chronic diseases associated with excess free radicals by reducing oxidative stress [22,36]. The total phenols and flavonoid contents of the hydrophilic extracts of the sgr1 #1-6 and sgr1 #2-4 lines were higher than those of the WT. Flavonoids are the main components of total phenols [37]. Flavonoids have high antioxidant power, which contributes significantly to their health benefits [21]. Additionally, the antioxidant activity was investigated by a DPPH radical scavenging assay from lipophilic and hydrophilic extracts. In the sgr1 null lines, the DPPH radical scavenging activity of the hydrophilic and lipophilic extracts was higher than that of the WT. Therefore, as the SGR1 gene was knocked out, carotenoids such as lycopene, GABA, vitamin C, phenol, flavonoids, and the antioxidant capacity increased. In conclusion, the sgr1 null lines have a higher total phenolic content, total flavonoid content, and DPPH radical scavenging activity of hydrophilic extracts compared to the WT, indicating that it exhibits high antioxidant activity.

4. Materials and Methods

4.1. Plant Materials

The sgr1 null lines “sgr1 #1-6 and sgr1 #2-4”, previously reported by [9], were selected and grown in the GMO greenhouse in the Horticulture Department of Horticultural Biotechnology in Hankyoung National University (Korea) in spring 2023. The fertilizer solution was used after adjustment to pH 5.5–5.8 and EC 2.0–2.2 dS m-1 at each growth stage. Harvest maturation was achieved 72 days after transplantation; fruits were harvested from the third cluster of each plant, and fruits at the edge of the cluster were not used in the experiment. In addition, a total of five stages were divided into MG, Br, Br+4, Br+7, and Br+10 for each stage of development of tomato fruit. The non-physical defects and uniform size of the fruit were measured in the pink phase using the USDA Tomato Aged Color Classification Chart [38]. Classification of the pink phase was carried out again in the laboratory using color tables reported by USDA. After selection, physicochemical data were immediately collected and samples for β-carotene, lycopene, ascorbic acid, flavonoids, polyphenols, and antioxidant activity assays were frozen by liquid nitrogen and stored in a freezer (−80 °C) for approximately 3 weeks until the assay was performed. Samples for GABA assays were freeze-dried, ground into fine powders, filtered through a 40 μm mesh, and then stored at −20 °C until extraction.

4.2. Expression Analysis of SISGR1 Gene

RNA was extracted from roots, stems, leaves, and fruits from Br stage, and then analyzed for expression of the SISGR1 gene using qRT-PCR. Primers used in this assay are listed in Supplemental Table S1.

4.3. Analysis of SGR1 Protein in sgr1 Null Lines

Western blot analysis was conducted according to the method reported by Jiang et al. [39]. Total soluble proteins extracted from ripened fruit tissues of the sgr1 null lines (sgr1 #1-6 and sgr1 #2-4) were separated by 15% SDS-PAGE in 100 V of Tris–glycine buffer (25 mM Tris (pH8.5), 200 mM glycine). The separated protein bands were transferred from gel to Hybond membranes (Roche, Basel, Switzerland) using Minitrans Blot Electrophoresis Transfer Cells (BioRad, Hercules, CA, USA) in transfer buffer including 40 mM glycine, 50 mM Tris (pH 8.3), 0.04% SDS, and 20% methanol for 2 h. The non-specific antibody reaction was blocked by incubating the membrane in 25 mL of 5% fat-free formula (TBS with 0.05% Tween-20) in TBST buffer with gentle stirring at room temperature for 12 h. The membranes were incubated in TBST buffer at a 1:3000 dilution with rabbit anti-SGR1 IgG, stirred gently for 2 h, and washed three times with TBST buffer. The membranes were then incubated in a 1:5000 dilution of horseradish peroxidase-conjugated anti-rabbit IgG (TakaRa, Kusatsu, Japan) in TBST buffer for 2 h with gentle shaking and washing three times in TBST buffer and once in TMN buffer. They were then banded using TMB substrates (Roche) in TMN buffer including 5 mM MgCl2, 100 mM Tris (pH 9.5), and 100 mM NaCl.

4.4. Total Soluble Solids, Total Acids of Pulp, and Brix Acid Ratio

The total solute solids (TSS) content was measured according to the protocol of [18], previously reported using fresh fruit samples at room temperature. The TA content was measured as citric acid equivalent (μg CAE/g) by diluting each sample extracted in juice form with distilled water and filtering it with a 0.45 μm filter. The pH value was adjusted to 8.1 and calculated as the citric acid equivalent (μg CAE/g). BAR was calculated by dividing the TSS value by the TA value.

4.5. Analysis of Carotenoids and Tocopherols

Analysis of carotenoids and tocopherol was performed after separation of lipophilic extracts from tomato pulp using acetone (0.01% butylated hydroxytoluene (BHT)) according to a previously reported method [40,41]. HPLC analysis was conducted using an Agilent 1260 HPLC system (Hewlett-Packard, Waldbronn, Germany), and the gradient system of the eluent was slightly modified from the previously reported one. HPLC-grade water, methanol, and methyl-tert-butyl ether (MTBE) were used as solvents. The solvent mixtures were prepared in a ratio of methanol–MTBE–water (81:15:4; A) and methanol–MTBE–water (6:90:4; B). The chromatogram was accommodated by gradient elution under the following conditions: 0 to 15 min, 0% B; 15 to 50 min, 100 min B; 50 to 60 min, and 100 percent B. The flow rate was maintained at 0.7 mL/min and the temperature was 30 °C. Carotenoid standards, such as all-trans-β-carotene, lutein, and all-trans-lycopene from Carotenature (Münsingen, Switzerland) were analyzed for peaks at 450 nm absorbance. The same LC conditions were used to quantify chlorophyll a and b (Sigma-Aldrich). Under these conditions, each standard peak was eluted from the following tR (min): violaxanthin 11.1, chlorophyll b 18.8, lutein 20.9, zeaxanthin 25.8, chlorophyll a 26.8, 13 Z-β-carotene 35.7, α-carotene 36.5, all-trans-β-carotene 38.4, 9 Z-β-carotene 39.6, all-trans-lycopene 52.6, and 5 Z-lycopene 53.3. Tocopherol analysis was performed with slight modifications to the method previously reported [34]. The same HPLC system as used in the carotenoid analysis was used with the same eluent. The chromatogram was performed by gradient elution under the following conditions: 0 to 16 min, 0% B; 16 to 20 min, 100% B; 20 to 30 min, and 100% B. The flow rate was maintained at 0.7 mL/min and at 30 °C. Peak detection was analyzed by fluorescence (Ex. 298 nm and Em. 325 nm). Under these conditions, the standard tocopherol peaks (Sigma-Aldrich, St. Louis, MO, USA) were eluted at the following tR (min): δ-tocopherol 10.1, γ-tocopherol 11.5, β-tocopherol 12.2, and α-tocopherol 13.3.

4.6. Analysis of GABA and Free Amino Acids

The content of free amino acids including GABA was measured according to a previously reported method [3]. A total of 250 mg of lyophilized tomato was extracted by ultrasonic treatment with 10 mL of 70% ethanol three times, each for 10 min. The extract was centrifuged at 5700× g for 10 min at room temperature, and the upper layer was filtered through a 0.22 μm filter. The obtained filtrate was measured with a Bio-chrom 30+ amino acid analyzer system (Biochrom Ltd., Cambridge, UK) using a Lithium Accelerated Resin H-1649 column (Biochrom Ltd., Cambridge, UK) and absorbance was measured at 570 nm.

4.7. Vitamin C Content

The vitamin C content was measured according to the previously reported method [31]. The 250 mg of lyophilized tomato was sonicated three times, each for 10 min, and extracted with 3% methic acid. The extract was centrifuged at 5700× g and 4 °C for 10 min, and the obtained supernatant was filtered through a 0.45 μm filter. HPLC analysis was conducted using 0.2 M KH2PO4 (pH 2.2, solvent A) and methanol (solvent B) on an Agilent 1260 HPLC system and a YMC ODS C18 column (4.6 × 250 mm, 4 μm). Gradient elution conditions were as follows: 0 to 5 min, 0% B; 15 to 23 min, 100% B; 23 to 24 min, 0% B; 24 to 25 min, and 0% B. A volume of 20 μL was injected at a flow rate of 0.7 mL/min. The column temperature was 30 °C and the absorbance was measured at 254 nm.

4.8. Total Phenolic and Total Flavonoid Contents

In order to measure the total phenol content and flavonoid content, a lipophilic extract and a hydrophilic extract were used. The hydrophilic extract was prepared by ultrasonicating 250 mg of freeze-dried tomatoes and 10 mL of methanol three times, respectively, for 10 min. The extract was centrifuged at 5700× g at 4 °C for 10 min, and the obtained supernatant was filtered through a 0.45 μm filter. The total phenolic content was measured by Folin–Ciocalteu analysis [42]. After adding 500 μL of 10% Folin–Ciocalteu phenol reagent to 100 μL of each extract, 400 μL of sodium carbonate was added, allowed to react at room temperature for 10 min, and then centrifuged at 3000× g for 5 min. After transferring 200 μL of the supernatant to 96 wells, the absorbance was measured at 765 nm. A calibration curve was obtained with gallic acid, and the phenol content was expressed as gallic acid equivalent (μmol GAE/g) per gram. Total flavonoid content was measured by diethylene glycol analysis [42]. To 20 μL of each extract, 10 μL of 4 M NaOH and 170 μL of 90% diethylene glycol were added and allowed to react at room temperature. After 10 min, absorbance was measured at 420 nm. Calibration curves were obtained with quercetin, and flavonoid content was expressed as quercetin equivalents (μmol QE/g) per gram.

4.9. Antioxidant Activity Test

DPPH radical scavenging activity was analyzed by a previously reported method [43]. A volume of 20 μL of each sample was added to 180 μL of a 0.2 mM 1,1-diphenyl-2-picrylhydroxyl (DPPH) solution in each tube. After 10 min, absorbance was measured at 520 nm. Antioxidant activity was expressed in terms of Trolox (Sigma-Aldrich, St. Louis, MO, USA) gram-equivalent (μmol TE/g).

4.10. Statistical Analysis

Statistical analysis was conducted using RStudio 4.3.1 software (RStudio, Boston, MA, USA). Repeated measures analysis of variance compared the mean scores across the quantitative categories. Post hoc pairwise comparisons were conducted using paired t-tests with the Bonferroni correction.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms25105111/s1.

Author Contributions

Methodology, J.Y.K., D.H.K., M.-S.K. and Y.J.J.; formal analysis, J.Y.K., D.H.K. and M.-S.K.; writing—original draft preparation, J.Y.K. and K.K.K.; writing—review and editing, Y.J.J. and K.K.K.; supervision, Y.J.J. and K.K.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education [grant number 2021R1I1A4A01057295], Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors have no conflicts of interest relevant to this study to disclose.

References

  1. FAOSTAT Food & Agriculture Organization of the United Nations Statistics Division. Available online: http://faostat3.fao.org/home/index.html (accessed on 21 March 2024).
  2. Toor, R.K.; Savage, G.P. Antioxidant activity in different fractions of tomatoes. Food Res. Int. 2005, 38, 487–494. [Google Scholar] [CrossRef]
  3. Hamid, A.A.; Aiyelaagbe, O.O.; Usman, L.A.; Ameen, O.M.; Lawal, A. Antioxidants: Its medicinal and pharmacological applica-tions. Afr. J. Pure Appl. Chem. 2010, 4, 142–151. [Google Scholar] [CrossRef]
  4. Nasir, M.U.; Hussain, S.; Jabbar, S. Tomato processing, lycopene and health benefits: A review. Sci. Lett. 2015, 3, 1–5. [Google Scholar]
  5. Borguini, R.G.; Helena, D.; Bastos, M.; Moita-Neto, J.M.; Capasso, F.S.; Aparecida, E.; Da, F.; Torres, S. Antioxidant Potential of Tomatoes Cultivated in Organic and Conventional Systems. Braz. Arch. Biol. Technol. 2013, 56, 521–529. [Google Scholar] [CrossRef]
  6. Takeoka, G.R.; Dao, L.; Flessa, S.; Gillespie, D.M.; Jewell, W.T.; Huebner, B.; Bertow, D.; Ebeler, S.E. Processing Effects on Lycopene Content and Antioxidant Activity of Tomatoes. J. Agric. Food Chem. 2001, 49, 3713–3717. [Google Scholar] [CrossRef] [PubMed]
  7. Brandt, S.; Pék, Z.; Barna, É.; Lugasi, A.; Helyes, L. Lycopene content and colour of ripening tomatoes as affected by environmental conditions. J. Sci. Food Agric. 2005, 86, 568–572. [Google Scholar] [CrossRef]
  8. Shi, J.; Maguer, M.L. Lycopene in tomatoes: Chemical and Physical Properties Affected by Food Processing. Crit. Rev. Food Sci. Nutr. 2000, 40, 1–42. [Google Scholar] [CrossRef] [PubMed]
  9. Kim, J.Y.; Kim, J.H.; Jang, Y.H.; Yu, J.; Bae, S.; Kim, M.-S.; Cho, Y.-G.; Jung, Y.J.; Kang, K.K. Transcriptome and Metabolite Profiling of Tomato SGR-Knockout Null Lines Using the CRISPR/Cas9 System. Int. J. Mol. Sci. 2022, 24, 109. [Google Scholar] [CrossRef] [PubMed]
  10. Hu, Z.L.; Deng, L.; Yan, B.; Pan, Y.; Luo, M.; Chen, X.-Q.; Hu, T.-Z.; Chen, G.-P. Silencing of the LeSGR1 gene in tomato inhibits chlorophyll degradation and exhibits a stay-green phenotype. Biol. Plant. 2011, 55, 27–34. [Google Scholar] [CrossRef]
  11. Hörtensteiner, S. Stay-green regulates chlorophyll and chlorophyll-binding protein degradation during senescence. Trends Plant Sci. 2009, 14, 155–162. [Google Scholar] [CrossRef]
  12. Luo, Z.; Zhang, J.; Li, J.; Yang, C.; Wang, T.; Ouyang, B.; Li, H.; Giovannoni, J.; Ye, Z. A STAY-GREEN protein SlSGR1 regulates lycopene and β-carotene accumulation by interacting directly with SlPSY1 during ripening processes in tomato. New Phytol. 2013, 198, 442–452. [Google Scholar] [CrossRef] [PubMed]
  13. Ma, L.; Zeng, N.; Cheng, K.; Li, J.; Wang, K.; Zhang, C.; Zhu, H. Changes in fruit pigment accumulation, chloroplast development, and transcriptome analysis in the CRISPR/Cas9-mediated knockout of Stay-green 1 (slsgr1) mutant. Food Qual. Saf. 2021, 6. [Google Scholar] [CrossRef]
  14. Yin, L.; Liu, J.-X.; Tao, J.-P.; Xing, G.-M.; Tan, G.-F.; Li, S.; Duan, A.-Q.; Ding, X.; Xu, Z.-S.; Xiong, A.-S. The gene encoding lycopene epsilon cyclase of celery enhanced lutein and β-carotene contents and confers increased salt tolerance in Arabidopsis. Plant Physiol. Biochem. 2020, 157, 339–347. [Google Scholar] [CrossRef] [PubMed]
  15. Ko, M.R.; Song, M.-H.; Kim, J.K.; Baek, S.-A.; You, M.K.; Lim, S.-H.; Ha, S.-H. RNAi-mediated suppression of three carotenoid-cleavage dioxygenase genes, OsCCD1, 4a, and 4b, increases carotenoid content in rice. J. Exp. Bot. 2018, 69, 5105–5116. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, Q.; Cao, T.-J.; Zheng, H.; Zhou, C.-F.; Wang, Z.; Wang, R.; Lu, S. Manipulation of Carotenoid Metabolic Flux by Lycopene Cyclization in Ripening Red Pepper (Capsicum annuum var. conoides) Fruits. J. Agric. Food Chem. 2019, 67, 4300–4310. [Google Scholar] [CrossRef] [PubMed]
  17. Lu, Q.S.M.; Tian, L. An efficient and specific CRISPR-Cas9 genome editing system targeting soybean phytoene desaturase genes. BMC Biotechnol. 2022, 22, 1–16. [Google Scholar] [CrossRef] [PubMed]
  18. Tilahun, S.; Choi, H.-R.; Baek, M.-W.; Cheol, L.-H.; Kwak, K.-W.; Park, D.-S.; Solomon, T.; Jeong, C.-S. Antioxidant Properties, γ-Aminobutyric Acid (GABA) Content, and Physicochemical Characteristics of Tomato Cultivars. Agronomy 2021, 11, 1204. [Google Scholar] [CrossRef]
  19. Rivero, A.G.; Keutgen, A.J.; Pawelzik, E. Antioxidant Properties of Tomato Fruit (Lycopersicon esculentum Mill.) as Affected by Cultivar and Processing Method. Horticulturae 2022, 8, 547. [Google Scholar] [CrossRef]
  20. Silva-Beltrán, N.P.; Ruiz-Cruz, S.; Cira-Chávez, L.A.; Estrada-Alvarado, M.I.; Ornelas-Paz, J.d.J.; López-Mata, M.A.; Del-Toro-Sánchez, C.L.; Ayala-Zavala, J.F.; Márquez-Ríos, E. Total Phenolic, Flavonoid, Tomatine, and Tomatidine Contents and Antioxidant and Antimicrobial Activities of Extracts of Tomato Plant. Int. J. Anal. Chem. 2015, 2015, 1–10. [Google Scholar] [CrossRef]
  21. Frusciante, L.; Carli, P.; Ercolano, M.R.; Pernice, R.; Di Matteo, A.; Fogliano, V.; Pellegrini, N. Antioxidant nutritional quality of tomato. Mol. Nutr. Food Res. 2007, 51, 609–617. [Google Scholar] [CrossRef]
  22. Chaudhary, P.; Sharma, A.; Singh, B.; Nagpal, A.K. Bioactivities of phytochemicals present in tomato. J. Food Sci. Technol. 2018, 55, 2833–2849. [Google Scholar] [CrossRef] [PubMed]
  23. Lenucci, M.S.; Cadinu, D.; Taurino, M.; Piro, G.; Dalessandro, G. Antioxidant Composition in Cherry and High-Pigment Tomato Cultivars. J. Agric. Food Chem. 2006, 54, 2606–2613. [Google Scholar] [CrossRef] [PubMed]
  24. Tilahun, S.; Park, D.S.; Taye, A.M.; Jeong, C.S. Effect of ripening conditions on the physicochemical and antioxidant properties of tomato (Lycopersicon esculentum Mill.). Food Sci. Biotechnol. 2017, 26, 473–479. [Google Scholar] [CrossRef] [PubMed]
  25. Rosati, C.; Aquilani, R.; Dharmapuri, S.; Pallara, P.; Marusic, C.; Tavazza, R.; Bouvier, F.; Camara, B.; Giuliano, G. Metabolic engineering of beta-carotene and lycopene content in tomato fruit. Plant J. 2000, 24, 413–420. [Google Scholar] [CrossRef] [PubMed]
  26. Carrillo-López, A.; Yahia, E.M. Changes in color-related compounds in tomato fruit exocarp and mesocarp during ripening using HPLC-APcI+-mass Spectrometry. J. Food Sci. Technol. 2012, 51, 2720–2726. [Google Scholar] [CrossRef] [PubMed]
  27. Chialva, M.; Zouari, I.; Salvioli, A.; Novero, M.; Vrebalov, J.; Giovannoni, J.J.; Bonfante, P. Gr and hp-1 tomato mutants unveil unprecedented interactions between arbuscular mycorrhizal symbiosis and fruit ripening. Planta 2016, 244, 155–165. [Google Scholar] [CrossRef] [PubMed]
  28. Stevens, M.A. Citrate and Malate Concentrations in Tomato Fruits: Genetic Control and Maturational Effects. J. Am. Soc. Hortic. Sci. 1972, 97, 655–658. [Google Scholar] [CrossRef]
  29. Cookson, P.J.; Kiano, J.W.; Shipton, C.A.; Fraser, P.D.; Romer, S.; Schuch, W.; Bramley, P.M.; Pyke, K.A. Increases in cell elongation, plastid compartment size and phytoene synthase activity underlie the phenotype of the high pigment-1 mutant of tomato. Planta 2003, 217, 896–903. [Google Scholar] [CrossRef] [PubMed]
  30. Ayuso-Yuste, M.C.; González-Cebrino, F.; Lozano-Ruiz, M.; Fernández-León, A.M.; Bernalte-García, M.J. Influence of Ripening Stage on Quality Parameters of Five Traditional Tomato Varieties Grown under Organic Conditions. Horticulturae 2022, 8, 313. [Google Scholar] [CrossRef]
  31. Tadesse, T.N.; Ibrahim, A.M.; Gebreselas, W. Degradation and Formation of Fruit Color in Tomato (Solanum lycopersicum L.) in Response to Storage Temperature. Am. J. Food Technol. 2015, 10, 147–157. [Google Scholar] [CrossRef]
  32. Kang, D.-M.; Kwon, J.-M.; Jeong, W.-J.; Jung, Y.J.; Kang, K.K.; Ahn, M.-J. Antioxidant Constituents and Activities of the Pulp with Skin of Korean Tomato Cultivars. Molecules 2022, 27, 8741. [Google Scholar] [CrossRef]
  33. Akihiro, T.; Koike, S.; Tani, R.; Tominaga, T.; Watanabe, S.; Iijima, Y.; Aoki, K.; Shibata, D.; Ashihara, H.; Matsukura, C.; et al. Biochemical Mechanism on GABA Accumulation during Fruit Development in Tomato. Plant Cell Physiol. 2008, 49, 1378–1389. [Google Scholar] [CrossRef]
  34. Domínguez, R.; Gullón, P.; Pateiro, M.; Munekata, P.E.S.; Zhang, W.; Lorenzo, J.M. Tomato as Potential Source of Natural Additives for Meat Industry. A Review. Antioxidants 2020, 9, 73. [Google Scholar] [CrossRef]
  35. Yahia, E.M.; Contreras-Padilla, M.; Gonzalez-Aguilar, G. Ascorbic Acid Content in Relation to Ascorbic Acid Oxidase Activity and Polyamine Content in Tomato and Bell Pepper Fruits during Development, Maturation and Senescence. Lwt Food Sci. Technol. 2001, 34, 452–457. [Google Scholar] [CrossRef]
  36. Di Matteo, A.; Ruggieri, V.; Sacco, A.; Rigano, M.M.; Carriero, F.; Bolger, A.; Fernie, A.R.; Frusciante, L.; Barone, A. Identification of candidate genes for phenolics accumulation in tomato fruit. Plant Sci. 2013, 205-206, 87–96. [Google Scholar] [CrossRef]
  37. Slimestad, R.; Verheul, M. Review of flavonoids and other phenolics from fruits of different tomato (Lycopersicon esculentum Mill.) cultivars. J. Sci. Food Agric. 2009, 89, 1255–1270. [Google Scholar] [CrossRef]
  38. United States Standards for Grades of Fresh Tomatoes (USDA). 1997. Available online: https://hort.purdue.edu/prod_quality/quality/tomatfrh.pdf (accessed on 3 November 2023).
  39. Jiang, X.-L.; He, Z.-M.; Peng, Z.-Q.; Qi, Y.; Chen, Q.; Yu, S.-Y. Cholera toxin B protein in transgenic tomato fruit induces systemic immune response in mice. Transgenic Res. 2007, 16, 169–175. [Google Scholar] [CrossRef] [PubMed]
  40. Tilahun, S.; Park, D.S.; Taye, A.M.; Jeong, C.S. Effects of Storage Duration on Physicochemical and Antioxidant Properties of Tomato (Lycopersicon esculentum Mill.). Korean J. Hortic. Sci. Technol. 2017, 35, 89–97. [Google Scholar] [CrossRef]
  41. Alda, L.M.; Gogoa, I.; Bordean, D.; Gergen, I.; Alda, S.; Moldovan, C.; Ni, L. Lycopene content of tomatoes and tomato products. J. Agroaliment. Process Technol. 2009, 15, 540–542. [Google Scholar]
  42. Dobrin, A.; Nedelus, A.; Bujor, O.; Mot, A.; Zugravu, M.; Badulescu, L. Nutritional Quality Parameters of the Fresh Red Tomato Varieties Cultivated in Organic System. Sci. Papers Ser. B Hortic. 2019, LXIII, 439–443. [Google Scholar]
  43. Thompson, K.; Marshall, M.; Sims, C.; Wei, C.; Sargent, S.; Scott, J. Cultivar, Maturity, and Heat Treatment on Lycopene Content in Tomatoes. J. Food Sci. 2000, 65, 791–795. [Google Scholar] [CrossRef]
Ijms 25 05111 g001

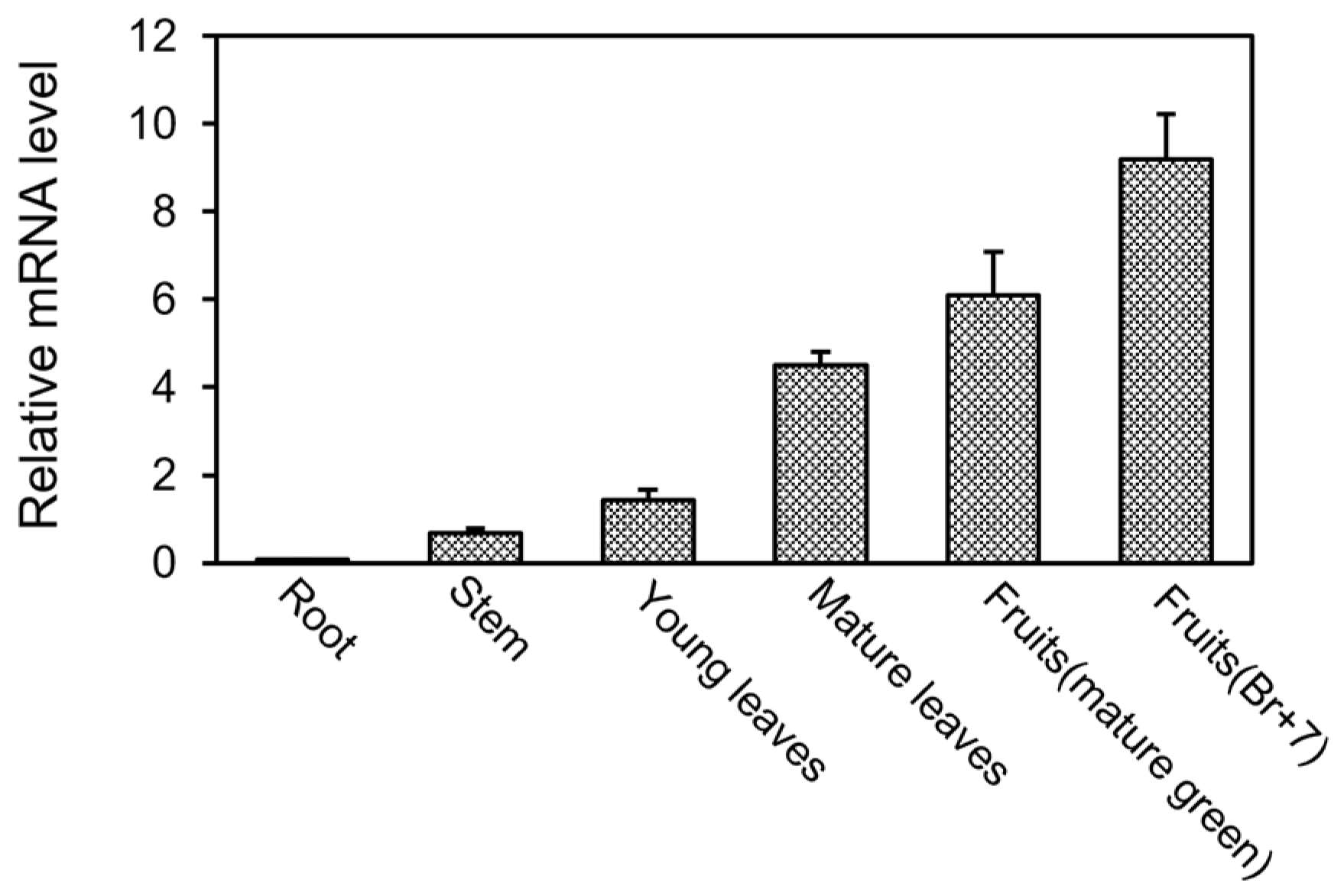

Figure 1. Expression pattern of SGR1 gene in each organ of tomato. The relative mRNA level of the SGR1 gene was measured in plant organs such as roots, stems, leaves, and fruits.
Figure 1. Expression pattern of SGR1 gene in each organ of tomato. The relative mRNA level of the SGR1 gene was measured in plant organs such as roots, stems, leaves, and fruits.
Ijms 25 05111 g001
Ijms 25 05111 g002
Figure 2. Protein structure and expression analysis of sgr1 null lines. (A) Protein structure analysis of sgr1 null lines. Green letters indicate protein sequences translated by frameshifting and premature termination. Asterisks indicate stop codon. (B) Western blotting analysis for expression levels of SGR1. (C) Phenotype of fruit (Br+7) obtained from the sgr1 null lines.
Figure 2. Protein structure and expression analysis of sgr1 null lines. (A) Protein structure analysis of sgr1 null lines. Green letters indicate protein sequences translated by frameshifting and premature termination. Asterisks indicate stop codon. (B) Western blotting analysis for expression levels of SGR1. (C) Phenotype of fruit (Br+7) obtained from the sgr1 null lines.
Ijms 25 05111 g002
Ijms 25 05111 g003
Figure 3. Electrophoretic patterns after PCR analysis of sgr1 null lines. Three plants per mutant line were used for analysis. M; 500 bp marker, C; PCR product amplified from pKAtC vector.
Figure 3. Electrophoretic patterns after PCR analysis of sgr1 null lines. Three plants per mutant line were used for analysis. M; 500 bp marker, C; PCR product amplified from pKAtC vector.
Ijms 25 05111 g003
Ijms 25 05111 g004

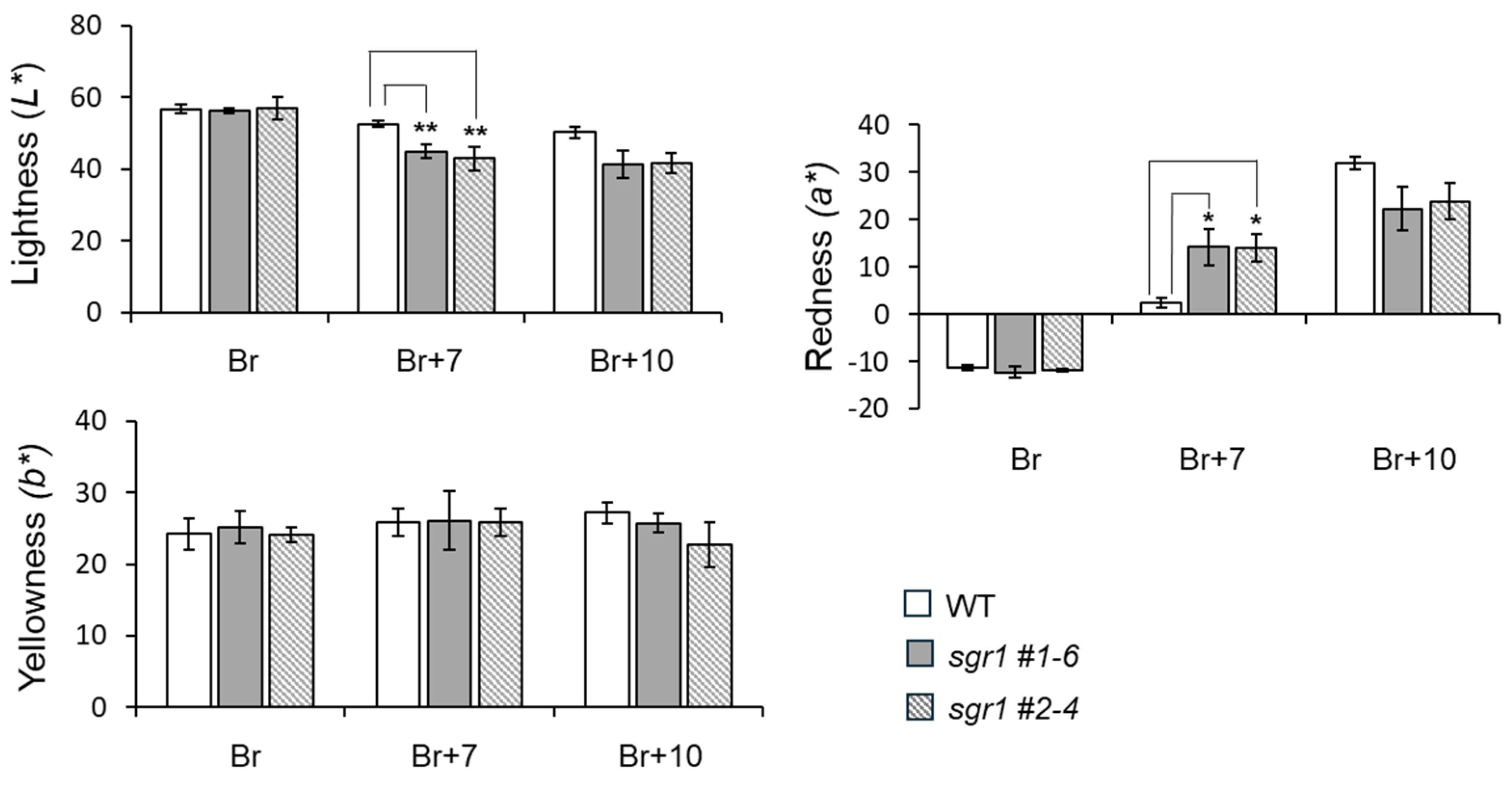

Figure 4. Colorimetric evaluation of sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Figure 4. Colorimetric evaluation of sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Ijms 25 05111 g004
Ijms 25 05111 g005

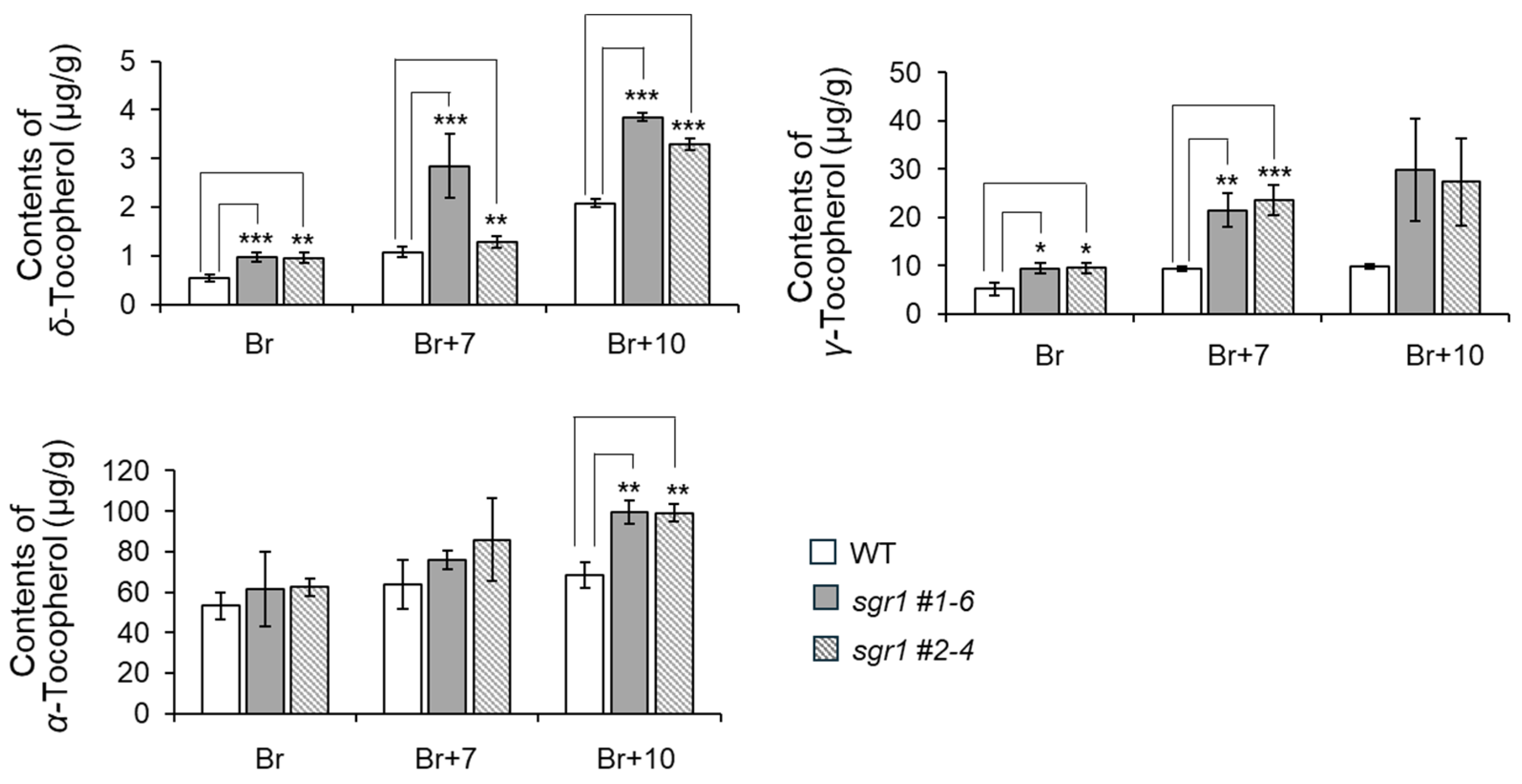

Figure 5. Tocopherol contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Figure 5. Tocopherol contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Ijms 25 05111 g005
Ijms 25 05111 g006

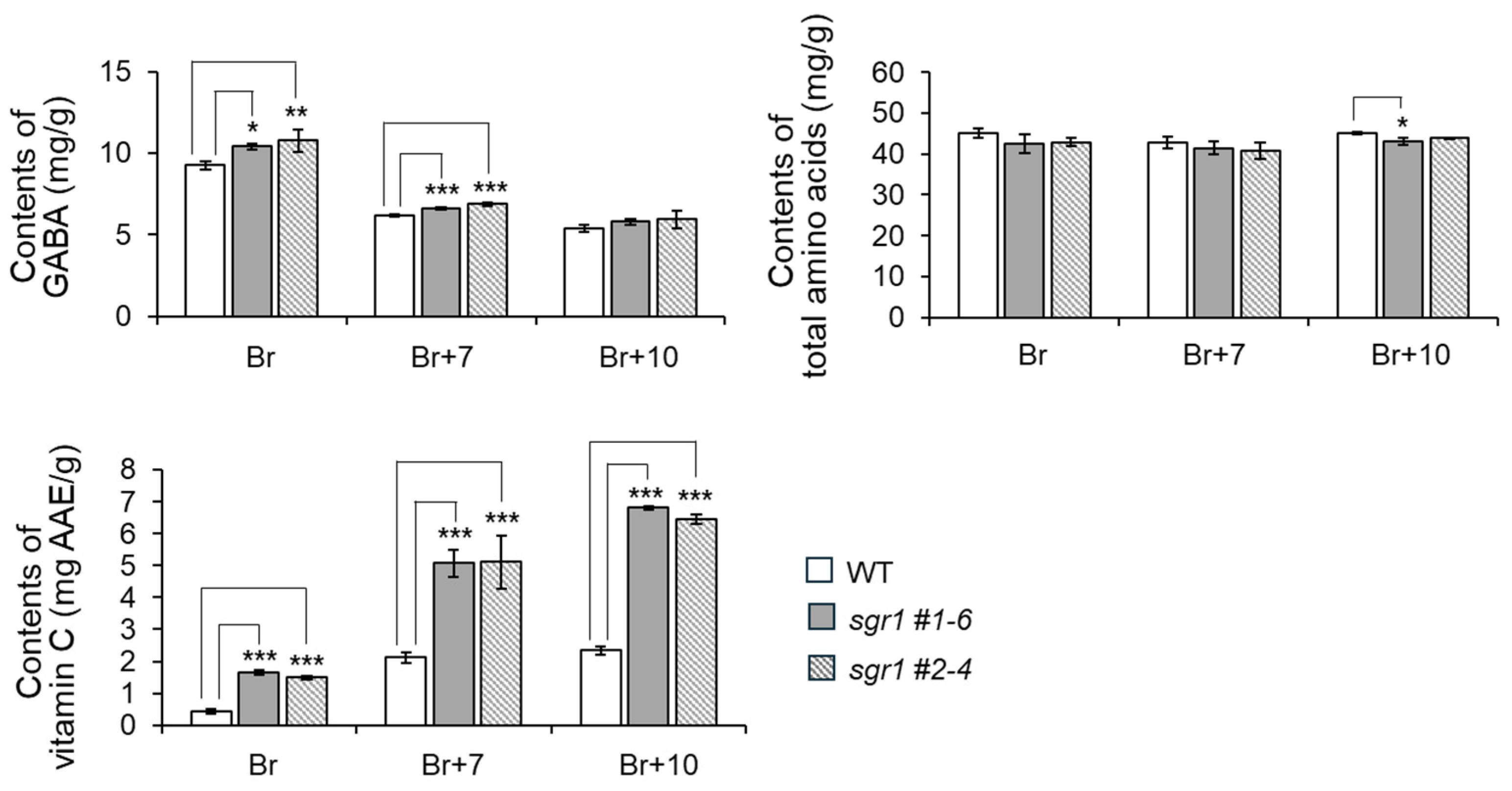

Figure 6. Free amino acid contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Figure 6. Free amino acid contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (* 0.01 < p < 0.05, ** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Ijms 25 05111 g006
Ijms 25 05111 g007

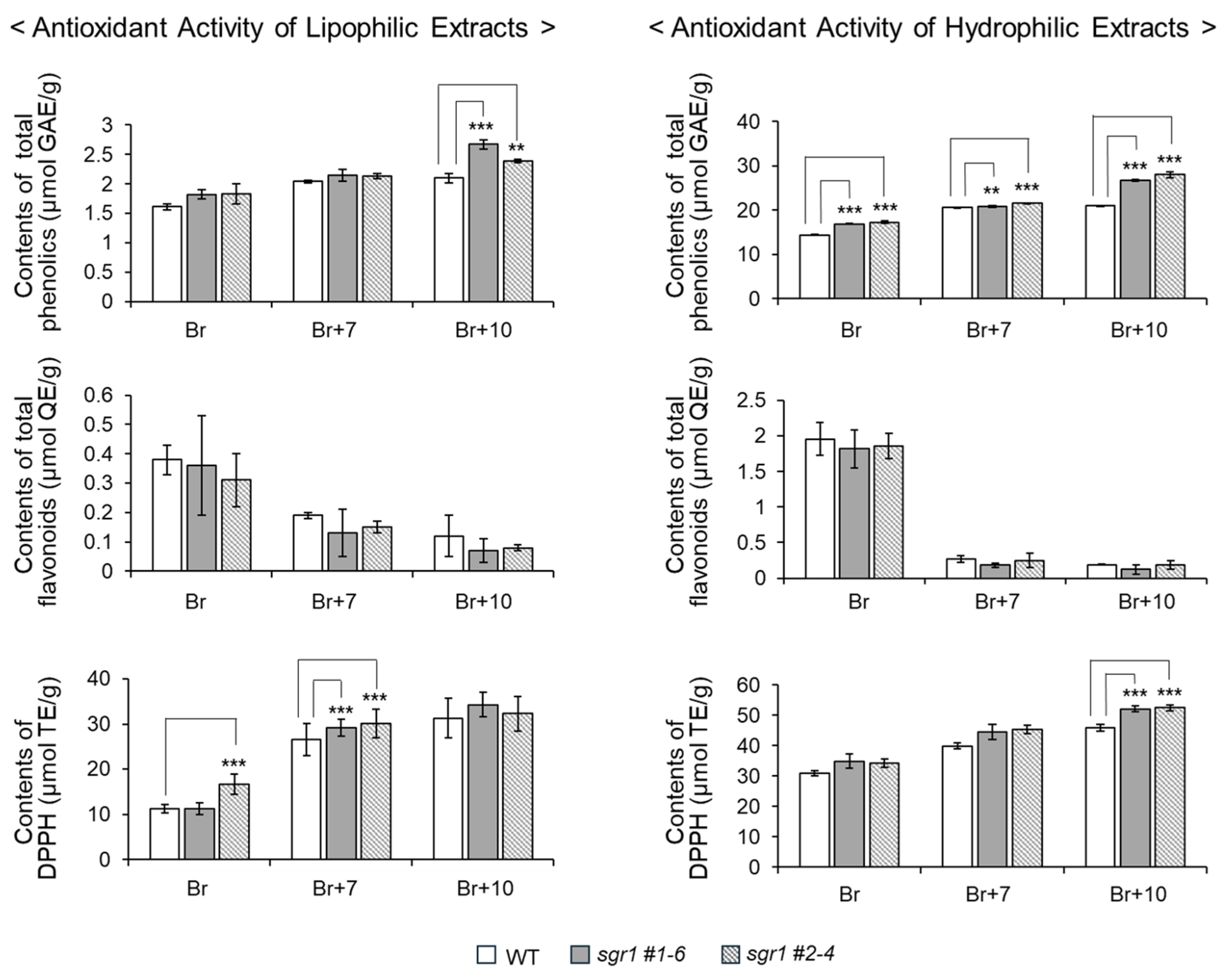

Figure 7. Total phenol contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Figure 7. Total phenol contents of WT and sgr1 null lines at the ripening development stage. The bars show a significant difference (** 0.001 < p < 0.01, *** p < 0.001) between WT and sgr1 null lines (Bonferroni’s test). Vertical bars show the standard error of the mean for three replicates.
Ijms 25 05111 g007
Table 1. Firmness, TSS, TA, and BAR of WT and sgr1 null lines at red ripe stage.
Table 1. Firmness, TSS, TA, and BAR of WT and sgr1 null lines at red ripe stage.
LinesFirmness (N)TSS (°Brix)TA (mg CAE/10 g)BAR
WT2.80 ± 0.214.70 ± 0.190.49 ± 0.039.47 ± 0.25
sgr1 #1-62.03 ± 0.24 *5.79 ± 0.14 ***0.41 ± 0.04 *14.10 ± 1.28 ***
sgr1 #2-42.13 ± 0.225.71 ± 0.15 ***0.42 ± 0.0113.60 ± 0.22 ***
Data represent the means ± SD of three replicate experiments. Asterisks show significant differences (* 0.01 < p < 0.05, *** p < 0.001) between sgr1 null lines and WT (Bonferroni’s test).
