Article

Combined Metabolome and Transcriptome Analysis Highlights the Host’s Influence on Cistanche deserticola Metabolite Accumulation

Institute of Medicinal Plant Development, Chinese Academy of Medicinal Science and Peking Union Medicinal College, Beijing 100193, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(9), 7968; https://doi.org/10.3390/ijms24097968
Submission received: 1 March 2023 / Revised: 17 April 2023 / Accepted: 22 April 2023 / Published: 27 April 2023
(This article belongs to the Special Issue Plant Genomics and Genome Editing 2.0)

Abstract

:
The medicinal plant Cistanche deserticola Ma (Orobanchaceae) is a holoparasitic angiosperm that takes life-essential materials from Haloxylon ammodendron (C. A. Mey.) Bunge (Amaranthaceae) roots. Although many experiments have been conducted to improve the quality of C. deserticola, little attention has been paid to the host’s influence on metabolite accumulation. In this study, transcriptomic and metabolomic analyses were performed to unveil the host’s role in C. deserticola’s metabolite accumulation, especially of phenylethanoid glycosides (PhGs). The results indicate that parasitism by C. deserticola causes significant changes in H. ammodendron roots in relation to metabolites and genes linked to phenylalanine metabolism, tryptophan metabolism and phenylpropanoid biosynthesis pathways, which provide precursors for PhGs. Correlation analysis of genes and metabolites further confirms that C. deserticola’s parasitism affects PhG biosynthesis in H. ammodendron roots. Then we found specific upregulation of glycosyltransferases in haustoria which connect the parasites and hosts. It was shown that C. deserticola absorbs PhG precursors from the host and that glycosylation takes place in the haustorium. We mainly discuss how the host resists C. deserticola parasitism and how this medicinal parasite exploits its unfavorable position and takes advantage of host-derived metabolites. Our study highlights that the status of the host plant affects not only the production but also the quality of Cistanches Herba, which provides a practical direction for medicinal plant cultivation.

1. Introduction

Cistanches Herba is a traditional Chinese medicine. In the Chinese Pharmacopoeia, Cistanches Herba is described as ‘the dried fleshy stem of Cistanche deserticola Ma or Cistanche mongolica Beck (previously named Cistanche tubulosa) (Orobanchaceae)’. Chinese medicine practitioners prefer using materials derived from C. deserticola because it has been distributed in a broader area including all of northwestern China throughout history and has, thus, been used as a tonic for a longer time. As a holoparasite, this plant loses photosynthetic capacity and takes nutrients as well as water from its host. In previous studies by our group, C. deserticola mostly parasitized Haloxylon ammodendron (C. A. Mey.) Bunge (Amaranthaceae) (Figure 1). We also put C. deserticola seeds around the roots of Haloxylon persicum Bunge ex Boiss. et Buhse (Amaranthaceae) plants, and they successfully developed haustoria. In recent years, Atriplex canescens (Pursh) Nutt. (Amaranthaceae) has been reported as a new host for C. deserticola [1]. Many studies have investigated the factors that influence Cistanches Herba quality, and the results demonstrate a complex mechanism relying on multi-factor cooperation. For example, soil affects the quality of Cistanches Herba in at least two aspects: First, the composition and function of soil microbiomes contribute to quality variation of C. deserticola in different ecotypes [2]. Secondly, the wound stress caused by soil friction triggers the accumulation of phenylethanoid glycosides [3]. C. deserticola samples collected in spring and autumn also differ in their phenylethanoid glycoside contents [4].
However, little attention has been paid to the host plant’s effect on the quality of C. deserticola, which cannot survive if it is separated from the host. Studies in other medicinal phytoparasites demonstrate that host plants significantly influence their quality. For example, Thesium chinense Turcz. (Santalaceae) plants have higher concentrations of total amino acids when parasitizing Triticum aestivum L. (Poaceae) than when parasitizing other hosts [5]. Another example of the host’s effect on quality is Scurrula ferruginea (Jack) Danser (Loranthaceae): S. ferruginea stems have different anti-inflammatory properties when parasitizing on three different host plants [6].
Phenylethanoid glycosides (PhGs) are the major active components in Cistanches Herba. PhGs have been reported to have strong antioxidant potential [7] and hypoglycemic/hypolipidemic [8] and anti-tumor [9] effects. In terms of phytochemical taxonomy, the co-occurrence of PhGs with iridoids is a characteristic of Lamiales species [10]. As iridoids in Orobanchaceae parasites are observed to be sequestered from the host [11], we wondered whether PhGs would exhibit the same behavior.
The aglycons of PhGs are derived from the tyrosine metabolism pathway. Tyrosol, the aglycon of salidroside and osmanthuside H, is derived from tyrosine by two-step or three-step enzymatic reactions [12]. Most PhGs have a feruloyl or caffeoyl moiety in the glucose backbone, and their antioxidant potential is related to these structures [13]. Caffeic acid and ferulic acid are derived from the phenylpropanoid pathway. Compared with tyrosine metabolism, this pathway has been elucidated more clearly due to the fact that it is the upstream pathway of several resistant metabolites in plants.
In this study, we compared C. deserticola fleshy stems, their hosts’ roots, and healthy H. ammodendron roots at the metabolomic and transcriptomic levels. By doing so we aimed to (1) explore the defensive changes in H. ammodendron roots caused by C. deserticola parasitism, (2) mark the candidate strategies used by C. deserticola to reduce host-derived damage, and (3) determine how this kind of host–parasite interaction influences C. deserticola metabolite accumulation, especially PhGs. Our research highlights the host’s influence on the quality of Cistanches Herba and proposes a direction for improvement in the field of medicinal plant cultivation.

2. Results

2.1. Metabolic Profiling of C. deserticola Fleshy Stems and H. ammodendron Roots

We collected C. deserticola fleshy stems, their hosts’ roots, and healthy H. ammodendron roots (Table 1) from the Bencaocongrong Planting Base, Ningxia, China. All the H. ammodendron plants at this base were planned to be the hosts of C. deserticola, and C. deserticola seeds had been sown around their roots. In the fall of 2019, we dug holes around the trees to find out whether they had been parasitized and chose nine parasitized trees and nine healthy trees to collect plant materials. In the summer of 2020, we followed the same procedure.
Based on the LC-MS/MS results, the metabolites in C. deserticola and its host plant H. ammodendron could be classified into 13 kinds, among which phenolic acids and lipids constitute a large proportion (Figure 2). Hierarchical cluster analysis (HCA) of the metabolites showed good intragroup repeatability as well as obvious intergroup difference (Figure S1A,B). The results of HCA also revealed that the CS cluster is a short distance from the HcS cluster, indicating a similarity between the parasite and its hosts. However, the CS cluster was far from the HS cluster, which had no physical connection with C. deserticola. Thus, the observed similarity was a consequence of parasitism. The principal component analysis (PCA) results showed significantly different accumulation and expression patterns of metabolites from C. deserticola fleshy stems and from the host and healthy H. ammodendron roots. Notably, HcF-vs.-HF and HcS-vs.-HS could be significantly separated by PCA, emphasizing the changes caused by parasites (Figure S1C,D).

2.2. Differently Accumulated Metabolites in C. deserticola Fleshy Stems and H. ammodendron Roots

To screen the differentially accumulated metabolites in C. deserticola fleshy stems and H. ammodendron roots (CF-vs.-HcF, HcF-vs.-HF, CS-vs.-HcS and HcS-vs.-HS), an orthogonal partial least squares discrimination analysis (OPLS-DA) was performed (Figure S2A–D). Based on the OPLS-DA results, metabolites were selected based on the thresholds of VIP ≥ 1 and ABS (fold change) ≥ 2, and 264, 159, 397, and 234 DAMs were found in CF-vs.-HcF, HcF-vs-HF, CS-vs.-HcS and HcS-vs.-HS, respectively. The DAMs were then annotated and assigned to KEGG pathways. The KEGG pathways for which CF-vs.-HcF DAMs were enriched significantly were tyrosine metabolism and tryptophan metabolism (Figure 3A). The significant enrichment pathways of CS-vs.-HcS were tyrosine metabolism and sulfur metabolism (Figure 3B). These results indicate significant differences in metabolites linked to the tyrosine metabolism pathway, from which phenylethanoids are derived, for C. deserticola fleshy stems and roots of its host. Interestingly, most DAMs from the tyrosine metabolism pathway had relatively low concentrations in C. deserticola except for rosmarinic acid and salidroside. The latter is a typical PhG derived from tyrosol. The KEGG pathways for which HcF-vs.-HF DAMs were significantly enriched were phenylalanine metabolism and tryptophan metabolism (Figure S3A). Five DAMs linked to phenylalanine metabolism: succinic acid, tyrosine, salicylic acid, benzoic acid, and phenylalanine. All of them were upregulated, and tyrosine was upregulated the most (8.60-fold). DAMs in the tryptophan pathway were upregulated except for N-acetyl-5-hydroxytryptamine, which was downregulated 0.00046-fold. The significant enrichment pathways of HcS-vs.-HS were pyruvate metabolism, glycolysis/gluconeogenesis, fructose/mannose metabolism, and propanoate metabolism (Figure S3B).

2.3. Phenylethanoid Glycosides and Their Precursors in C. deserticola Fleshy Stems and H. ammodendron Roots

New PhGs continue to be discovered, but not all of them have been included in online databases such as KEGG, and their complete biosynthetic pathways are unclear. Thus, we identified PhGs and candidate precursors according to the previous literature and compared their relative concentrations in C. deserticola fleshy stems and H. ammodendron roots.
In this study, we identified 19 PhGs in total (Tables S1 and S2). Nine of them took hydroxytyrosol as their aglycon. Among them, cistanoside H had the simplest structure, and only appeared in H. ammodendron roots in the summer (Figure 4A). Echinacoside appeared in all groups of samples, but its concentration in healthy H. ammodendron roots (HF and HS) was relatively low. 2’-Acetylacteoside was detected in C. deserticola fleshy stems (CF) and their hosts’ roots (HcF) in the fall. The other six PhGs were only detected in C. deserticola fleshy stems. Two PhGs took tyrosol as their aglycon and six PhGs took homovanillyl alcohol. PhGs that took tyrosol as their aglycon (salidroside, osmanthuside H) had simpler structures and appeared in C. deserticola fleshy stems (CS), their hosts’ roots (HcS) and healthy roots (HS) (Figure 4B). Cistanoside E bonded no caffeoyl or feruloyl groups, and it could be detected in CF, HcF, HF, CS, and HcS. On the other hand, the other five PhGs that took homovanillyl alcohol as their aglycon showed more complexity in their structures and were limited in distribution. Two PhGs contained other aglycons. Isocrenatoside was only detected in CF samples and isomartynoside in both CF and HcF samples. In a word, most PhGs were distributed only in C. deserticola fleshy stems, and those that appeared in both hosts and healthy H. ammodendron roots often had simpler structures, except for echinacoside and cistanoside A.
The precursors for PhGs could be classified as precursors for (1) the phenylethanoid aglycon and (2) the phenylpropanoid group modifying the glucose backbone. The former is linked to the tyrosine metabolism pathway and showed significantly different metabolite accumulation patterns between the parasite and host. The latter is produced from the phenylpropanoid biosynthesis pathway. In C. deserticola fleshy stems and H. ammodendron roots, no hydroxytyrosol or homovanillyl alcohol was detected. Tyrosol was distributed in all samples but maintained relatively lower levels in CF and CS (Figure 5). As polyphenol oxidase could also take glycosides as its substrate, PhGs such as echinacoside would be derived from simpler structures such as salidroside and cistanoside H. Dopamine, another candidate precursor for phenylethanoid aglycon, was only detected in H. ammodendron roots. The phenylpropanoid groups are often derived from caffeic acid or ferulic acid. Both phenylpropanoids showed relatively lower concentrations in CF and CS.

2.4. Transcriptomic Changes Caused by Parasitism of C. deserticola in H. ammodendron Roots

Besides the redistribution of metabolites, the parasitism of C. deserticola also caused significant transcriptomic changes in H. ammodendron roots. A total of 3291 differentially expressed genes were screened in the HcF-vs.-HF group, with 1280 upregulated and 2011 downregulated (Figure S4A). A total of 3992 DEGs were screened in the HcS-vs.-HS group, with 2116 upregulated and 1876 downregulated (Figure S4B). KEGG pathway enrichment analysis revealed that DEGs in the HcF-vs.-HF group were significantly enriched in metabolic pathways, phenylpropanoid biosynthesis, starch/sucrose metabolism, flavonoid biosynthesis, and fatty acid elongation (Figure S4C). The KEGG pathways for which HcS-vs.-HS DEGs were significantly enriched included terpenoid backbone biosynthesis, linoleic acid metabolism, phenylpropanoid biosynthesis, biosynthesis of secondary metabolites, alpha-linolenic acid metabolism, the MAPK signaling pathway, plant–pathogen interaction, isoquinoline alkaloid biosynthesis, isoflavonoid biosynthesis, and cyanoamino acid metabolism (Figure S4D). In both seasons, the expression levels of genes linked to phenylpropanoid biosynthesis were significantly changed in parasitized H. ammodendron roots compared with healthy ones. This indicates that the phytoparasite functions as a biotic stress. Similar to viruses and insects, invasion by the phytoparasite stimulates the host’s defensive response, and the phenylpropanoid biosynthesis pathway is one of the key pathways functioning in plant defense.

2.5. Genes Specifically Upregulated in Haustoria

The haustorium connects the phytoparasite and its host. Many reactions take place here and they have a great impact on the parasitic system’s homeostasis. To identify genes specifically upregulated in haustoria, we compared the expression data of haustoria with C. deserticola fleshy stems and H. ammodendron roots. DEGs were screened in the XS-vs.-CS and XS-vs.-HcS groups and enriched in KEGG pathways. In the XS-vs.-CS group, 25,842 DEGs were screened and 23,940 were up-regulated in the XS samples (Figure S5A). The DEGs were significantly enriched in plant hormone signal transduction, the MAPK signaling pathway of the plant, benzoxazinoid biosynthesis, terpenoid backbone biosynthesis, alpha-linolenic acid metabolism, and arachidonic acid metabolism (Figure S5C). In the XS-vs.-HcS group, 28,174 DEGs were identified and 27,490 were upregulated in the XS samples (Figure S5B). The DEGs were significantly enriched in plant hormone signal transduction and the proteasome (Figure S5D). In conclusion, the haustoria exhibited certain gene expression patterns that were significantly different from both the parasite and the host, and this specific expression pattern may take part in the parasitic system’s hormone signal transduction.
Though a large number of DEGs were screened, few genes were specifically upregulated in the XS samples. The Venn plot shows that 2880 unigenes were specifically upregulated in the haustoria (Figure 6A). These unigenes were translated into amino acid sequences and uploaded to the Mercator 4.0 online annotation tool. The annotation results reveal that these specifically upregulated genes are mainly linked to bins such as enzyme classification, RNA biosynthesis, solute transport, protein homeostasis, and phytohormone action (Figure 6B). Within the bin of “enzyme classification”, most sequences were annotated as transferases, mainly transferring phosphorus-containing groups and glycosyl groups (Figure 6C and Figure S6A). Phosphate is a decisive element in the parasitism of Orobanchaceae plants, and the relatively high glycosylation activity echoed the metabolomics results. Transporting solutes is another key function of the haustoria, and the annotation results showed that carrier-mediated transport was the main mode (Figure S6B). The phytohormone action in haustoria involved common hormones such as cytokine and auxin, as well as those especially important to phytoparasites such as strigolactone (Figure S6C). In a word, the haustorium functions as a center for metabolism, transportation, and signal transduction in the parasitic system, and it influences both the parasite and the host.

2.6. Integrated Analysis of Metabolites and Transcripts Linked to Phenylethanoid Glycoside Biosynthesis in H. ammodendron Roots

To investigate the differences in phenylethanoid glycoside biosynthesis caused by the parasitism of C. deserticola, transcriptomic and metabolomics data of H. ammodendron roots were analyzed together (Figure 7). Nine PhGs were detected in H. ammodendron roots: echinacoside, isomartynoside, osmanthuside H, salidroside, 2′-acetylacteoside, cistanoside A, cistanoside E, cistanoside H and epimeridinoside A. L-phenylalanine, L-tyrosine, tyrosol, L-dopa, ferulic acid, dopamine, and caffeic acid were found to be involved in phenylethanoid glycoside biosynthesis. In the HcF-vs.-HF group, dopamine, L-phenylalanine, L-tyrosine, tyrosol, echinacoside, isomartynoside, 2′-acetylacteoside, and cistanoside A were screened as DAMs, and DAMs in the HcS-vs.-HS group included tyrosol, cistanoside E, cistanoside H, osmanthuside H, and epimeridinoside A. In the HcF-vs.-HF group, 22 DEGs were identified as candidates for phenylethanoid glycoside biosynthesis (Table S3): C4H (2DEGs), 4CL (1DEG), C3H (1DEG), CCR (7DEGs), and UGT (11DEGs). In the HcS-vs.-HS group, 54 DEGs were found: 4CL (3DEGs), C3H (1DEG), CCR (12DEGs), HCT(3DEGs), TyDC(2DEGs), PAO(3DEGs), PPO(5DEGs), and UGT (24DEGs).
To further understand how DEGs and DAMs are involved in phenylethanoid glycoside biosynthesis, Pearson’s correlation analysis was performed (Figure S7A,B). In the HcF-vs.-HF group, the accumulation levels of echinacoside, 2′-acetylacteoside, and astanoside A were positively correlated with two UGT genes. Another phenylethanoid glycoside, isomartynoside, was also correlated with two UGTs. Meanwhile, the expression levels of C3H, C4H, and UGT were positively correlated with tyrosol and dopamine. In the HcS-vs.-HS group, the accumulation levels of osmanthuside H, astanoside E, and astanoside H were positively correlated with two 4CL, three CCR, one PPO, and three UGT genes. Six DEGs were correlated with tyrosol, including one PPO, one CCR, and four UGTs.

2.7. Identification and Phylogenetic Analysis of UGTs in C. deserticola and H. ammodendron

As shown by the metabolomic and transcriptomic results, glycosylation plays an important role in the communication between parasite and host. We identified UGTs in C. deserticola and H. ammodendron and performed a phylogenetic analysis to find out their possible functions. First, we annotated 124 unigenes as UGTs in C. deserticola and 258 unigenes in H. ammodendron. Then, unigenes encoding >300 amino acid proteins were selected and a Blastp analysis was performed. This yielded 74 and 134 UGTs in C. deserticola and H. ammodendron, respectively (Tables S4 and S5). In C. deserticola, the UGTs were separated into 18 families. Among them, the UGT74 family was the largest with 12 members, followed by UGT85 with 8 members. In H. ammodendron, there were 19 UGT families; the UGT85 family, which was the largest, had 15 members.
Then we aligned the UGTs in C. deserticola and H. ammodendron with representative sequences from Arabidopsis thaliana to construct a phylogenetic tree. These UGTs were phylogenetically separated into 13 conserved groups (A–M) identified in Arabidopsis and 1 novel group (P) identified in maize (Figure 8). The C. deserticola UGTs were incorporated into these groups except for Group N. Among them, eight UGT85 family members contributed to the construction of Group G, which was the largest C. deserticola UGT group. No Group J members were found in H. ammodendron UGTs. Group A was the largest H. ammodendron group, including 10 UGT91 family members and 5 UGT79 family members, followed by Group G with 13 UGT85 family members.

2.8. UGT Candidates Involved in Phenylethanoid Glycoside Biosynthesis

Combining the results of Blastp and phylogenetic analysis, we determined that 8 unigenes in C. deserticola and 12 unigenes in H. ammodendron showed 70–83% identity to characterized UGT85As and were phylogenetically related to the representative AtUGT85A1. Though most UGTs exhibited a broad substrate selectivity, UGT85A1 was found to prefer tyrosol as its most suitable substrate for salidroside production. The significantly positive correlation between Cluster-57997.0 and isomartynoside also confirmed the role of UGT85A subfamily members in PhG biosynthesis (Figure S7A,B). The other three PhGs differentially accumulated in HcF-vs.-HF (echinacoside, 2′-acetylacteoside, and cistanoside A) were positively correlated with Cluster-27477.1, which was 63% identical to A. thaliana UGT73B5 and phylogenetically related to the representative AtUGT73B3.

2.9. Quantitative RT-PCR Validation for C. deserticola and H. ammodendron Genes

Ten genes were selected to validate the accuracy of transcriptomic data using qRT-PCR analysis, including five C. deserticola, and five H. ammodendron genes. In C. deserticola, CYP98A, CYP96A, CYP35A, ABC-T (ABC transporter), and BG (1,3-beta-glucosidase) were selected. In H. ammodendron, C3H, HCT, 4CL, TyDC, and PPO were selected. The results were consistent with the transcriptome data (Figure 9A,B).

3. Discussion

Orobanchaceae root-parasitic plants take life-essential materials from their hosts, which causes significant damages to the hosts. Sunflowers (Helianthus annuus L.) infected by the holo-parasitic broomrape (Orobanche cumana) have larger and thinner leaves because of carbohydrate depletion [14]. Reduced height and weight have been observed in tobacco (Nicotiana spp.) parasitized by O. cernua [15]. Though retaining certain biosynthetic capacities, hemiparasitic plants do not stop stealing from autotrophic plants. The parasitism of witchweed (Striga spp.) has a significant impact on the head index, leaf biomass, leaf index, root biomass, root index, plant biomass, and root: shoot ratio of sorghum (Sorghum bicolor L. Moench) [16]. Rhinanthus minor has a direct negative influence on host productivity and competitive ability, which helps reconstruct plant communities in grassland [17]. To avoid or reduce losses, different strategies are used based on the developmental stages of the parasite. Before the haustorium is established, the main task is to prevent seed germination and haustorium initiation. Suppressing seed germination stimulants (in most cases strigolactones) biosynthesis and enhancing cell wall lignification are characteristic of pre-haustorial resistance [18,19]. If that fails and the haustorium attaches to the host root, the focus shifts to deconstructing the vascular connection and producing a toxic environment [20]. In the case of O. crenata, increased phenolic compounds in host plants are related to limited parasitic damage, which can be induced by salicylic acid and indole acetic acid [21]. A similar phenomenon is observed in sunflowers resistant to O. cumana, which is associated with the growth restriction of the parasite [22].
A more interesting phenomenon is the parasite’s response. Lignin monomers in plants can be classified into four types: H-unit, C-unit, S-unit, and G-unit. The S-unit lignifies the cell wall of sclerenchyma fibers and sclereids, whereas the G-unit contributes to the construction of tracheary elements [23]. In research comparing Phtheirospermum japonicum and Striga hermonthica, the haustorium of S. hermonthica could be initiated by both the S and G-unit, whereas that of P. japonicum was only induced by the S-unit [24]. That is, P. japonicum senses the root of its gymnosperm host which has no tracheary elements and initiates the haustorium. Thus, the consequence of cell wall lignification is contrary to the initial goal of host resistance. Lignin monomers are not the only host-derived resistant chemicals utilized by parasites. In Castilleja levisecta, iridoid glycoside concentrations differ depending on host species and distance. The host-derived diversity leads to different survival rates of Euphydryas editha feeding on C. levisecta, which is partially related to the iridoid glycosides sequestration [25]. The situation is similar for Orobanche ramose, which sequestrates pyridine alkaloids from its Nicotiana hosts, and Pedicularis semibarbata, which obtains quinolizidine alkaloids from Lupinus fulcratus [26,27]. In a word, parasitic plants make full use of materials from the hosts, even including those initially designed as weapons.
In our study, the metabolic changes brought about by C. deserticola parasitism were linked to phenylalanine metabolism, tryptophan metabolism, pyruvate metabolism, glycolysis/gluconeogenesis, fructose/mannose metabolism, and propanoate metabolism. The fructose and mannose metabolism pathway is critical to the success of parasitism. In the case of Orobanche aegyptiaca, the host-induced suppression of the mannose 6-phosphate reductase gene is concomitant with significant mannitol decrease and increased tubercle mortality [28]. In plant–pathogen interaction, the pathogen secretes mannitol as a buffer against oxidative stress, and the host plant activates mannitol dehydrogenase to counter it [29]. The relatively low mannitol level in parasitized H. ammodendron root is a consequence of this counteraction. However, mannitol also acts as an osmoprotectant. The most evident difference between parasitic plants and fungi is that the former takes nutrients from the host mainly by vascular bundles, which may be directed by osmotic potential. Thus, the gap in mannitol levels between C. deserticola and H. ammodendron contributes to the reversed source–sink relationship and the efficient uptake of nutrients. This is another good example of the parasite’s utilization of the host’s resistance. In addition, PhG biosynthesis can be enhanced by mannitol [30]. The similar accumulation patterns of PhGs and mannitol in H. ammodendron roots confirmed this.
At the transcriptomic level, the parasitism of C. deserticola caused significant changes linked to the phenylpropanoid pathway in H. ammodendron root. The phenylpropanoid pathway is the upstream pathway where lignin, lignan, coumarin, and flavonoid are derived [31]. These metabolites help to build physical and chemical barriers. By utilizing them, plants under abiotic/biotic stress can protect themselves. Activation of the phenylpropanoid pathway can be regarded as H. ammodendron’s defense response to the parasite. The mitogen-activated protein kinase (MAPK) signaling pathway is also triggered by parasitism. The MAPK signaling pathway is involved in multiple defense responses, including plant stress/defense hormone biosynthesis/signaling, reactive oxygen species (ROS) generation, stomatal closure, defense gene activation, phytoalexin biosynthesis, cell wall strengthening, and hypersensitive response (HR) cell death [32]. In H. ammodendron root parasitized by C. deserticola, most upstream genes in the MAPK signaling pathway were significantly upregulated, whereas downstream ones were inhibited. This indicates that the defense response is suppressed by parasite-derived effectors. The downregulation of genes linked to plant–pathogen interaction also demonstrated this phenomenon.
Orobanchaceae parasites sequester secondary metabolites from hosts, including polyacetylenes, alkaloids, and iridoid glycosides. These metabolites help in resisting herbivores and other stresses [11]. The situation is more complicated for PhGs. While holoparasites retain the capacity of PhG synthesis, their PhG accumulation is influenced by the host. In the case of O. laxissima, the acteoside content is significantly influenced by the host’s acteoside content [33]. In our study on Cistanche mongolica, the host species had no significant influence on PhG contents. However, the height and weight of the parasites were significantly affected by the host species, and PhG contents decreased as the parasite grew. No PhGs have been tested in Tamarix, but precursors such as caffeic, coumaric, and ferulic acids exist in Tamarix plants [34]. In this research, we found that the genes linked to PhG biosynthesis were expressed in H. ammodendron and were significantly upregulated by the parasite. The existence of PhGs in healthy H. ammodendron roots also confirmed its capacity to synthesize these metabolites as well as their precursors. The PhGs cistanoside H and osmanthuside H showed relatively low concentrations in the host roots compared with the healthy roots. This may also be the result of the parasite’s depletion of precursors. Further proof of the host’s precursor feeding was significantly lower concentrations of caffeic acid, tyrosol, and dopamine in C. deserticola.
Then we questioned why C. deserticola changed the structure of host-derived phenols. Phenylpropanoids such as caffeic acid, ferulic acid, and coniferyl-alcohol can damage various cellular components, and their toxicity decreases when bonded to glucose [35]. Consuming precursors also inhibits the host’s cell wall lignification for more efficient intrusion [23]. Although tyrosol toxicity in plants is not mentioned in the literature, research on rotifer (Philodina acuticornis) reveals that tyrosol is more toxic to salidroside [36]. Dopamine is an important hormone in animals, and it also plays a vital role in the plant kingdom. Endogenous dopamine in plants is involved in abiotic/biotic stresses such as drought, salinity, nutritional deficiency, and pathogens [37]. By reconstructing host-derived tyrosol and dopamine, the parasite inhibits the host’s resistance and creates a more comfortable environment for its invasion. The large number of UGT 85A members expressed in C. deserticola supported this point, as UGT85A family members catalyze the glycosylation of tyrosol [38]. In H. ammodendron, the PhG content was significantly related to one UGT85A and one UGT73B gene expression level. UGT73B is also linked to the glycosylation of tyrosol, though the product can be icariside. This explains the UGT expression in the haustorium, where the parasite builds a vascular connection with the host. Therefore, by improving glycosylation, the parasite detoxifies compounds from the host and protects itself. The PhGs, which are considered as bioactive compounds in C. deserticola, play a vital role in this self-protection process.

4. Materials and Methods

4.1. Plant Materials

The plant materials were collected from the Bencaocongrong Planting Base, Ningxia, China. The C. deserticola fleshy stems, H. ammodendron roots, and haustoria were harvested from the plant using sharp scissors and cleaned using ultra-pure water. Materials from 3 plants were mixed as a biological replicate and each group had 3 replicates. All the samples were rapidly frozen by liquid nitrogen and transported to the Institute for Medicinal Plant Development, Peking Union Medicinal College, Beijing, China, in boxes filled with dry ice. Then the samples were stored at −80 °C for metabolomic, transcriptomic, and gene expression analyses.

4.2. Analysis of Metabolites in C. deserticola Fleshy Stems and H. ammodendron Roots

For this analysis, 6 groups of samples with 3 biological replicates per group were vacuum-dried by vacuum freeze-dryer (Scientz-100F) and mashed with a mixer mill (MM 400, Retsch, Shanghai, China) with a zirconia bead for 1.5 min at 30 Hz. Then, 100 mg of the lyophilized powder was dissolved in 1.2 mL 70% methanol solution, vortexed 6 times for 30 s at intervals of 30 min, and kept at 4 °C overnight. After that, the solution was centrifuged at 12,000 rpm for 10 min and the extract was filtrated through a microporous membrane (SCAA-104, 0.22 μm pore size; ANPEL, Shanghai, China, http://www.anpel.com.cn/ (accessed on 15 March 2021)) for further analysis. To analyze the metabolites, an UPLC-ESI-MS/MS system (UPLC: Shimadzu Nexera X2, www.shimadzu.com.cn/ (accessed on 15 March 2021); MS: Applied Biosystems Q TRAP 4500, www.appliedbiosystems.com.cn/ (accessed on 15 March 2021)) was used [39,40]
Based on the mass spectrometry data, metabolites were identified using the Metware Database (MWDB, Wuhan, China) and quantified according to peak intensity. The quantification data of metabolites were normalized by unit variance scaling and used for PCA and HCA. OPLS-DA was performed after log2 transformation and mean centering. These analyses were carried out using R 3.6.3 software (http://www.r-project.org/; accessed on 20 November 2021) [41].

4.3. Screening of Differentially Accumulated Metabolites

To determine the metabolomic differences between C. deserticola and its host, differentially accumulated metabolites in the CF-vs.-HcF and CS-vs.-HcS groups were screened using the mass spectrometry data. VIP values were extracted from OPLS-DA results and metabolites with VIP ≥ 1 and absolute log2 (fold change) ≥ 1 were selected as differentially accumulated metabolites [42].
The DAMs were annotated using the KEGG Compound database (http://www.kegg.jp/kegg/compound/ (accessed on 25 March 2021)) and mapped to the KEGG Pathway database (http://www.kegg.jp/kegg/pathway.html (accessed on 25 March 2021)) [43]. Then a KEGG pathway enrichment analysis was performed, and the significance was determined by hypergeometric test p-values.
To investigate the changes caused by C. deserticola parasitism, the same procedure was followed for the HcF-vs.-HF and HcS-vs.-HS groups.

4.4. RNA Extraction and Illumina Sequencing

Total RNA was extracted from the plant tissues using a quick RNA isolation kit (DP452, Tiangen, Beijing, China). To ensure the RNA samples were integrated and DNA-free, agarose gel electrophoresis was performed. RNA purity was then determined by a nanophotometer. Following that, a Qubit 2.0 Fluorometer and an Agilent 2100 BioAnalyzer were used to accurately measure RNA concentration and integrity, respectively. The qualified samples were processed with oligo (dT) beads to enrich the mRNA, which was broken into fragments and used as templates for the cDNA library. To qualify the cDNA library, the fluorometer was used for primary quantification and the bioanalyzer was then used to insert text size. A q-PCR analysis was then performed to accurately quantify the library. The qualified library was sequenced using the Illumina HiSeq 4000 platform.

4.5. RNA-Seq Analysis of C. deserticola and H. ammodendron

Clean reads were obtained by eliminating low-quality reads and assembled using Trinity 2.6.6 software [44]. The transcripts were assembled and then clustered into unigenes. To explore the genes related to haustorium functions, we put unigenes from the CS, XS, HcS, and HS groups into one library and determined the gene expression levels in the whole parasitic system. The unigenes were annotated using the KEGG, NR, SwissProt, Trembl, GO, and KOG databases. Gene expression levels were calculated in terms of reads per kb per million reads (RPKM).
The differentially expressed genes were screened based on the thresholds of FDR < 0.5 and absolute log2FC > 1 using DESeq2 1.22.2 software [45]. Then a KEGG pathway enrichment analysis was performed, and the significance was determined by the hypergeometric test’s p-values.

4.6. Correlation Analysis of Inigenes and Metabolites Linked to PhG Biosynthesis

DEGs and DAMs linked to PhG biosynthesis were selected to perform Pearson’s correlation tests using SPSS 26.0 software. Correlations with Pearson’s correlation coefficient (PCC) ≥ 0.7 and p ≤ 0.05 were uploaded to Cytoscape 3.9.1 software to draw connection networks between DEGs and DAMs [46].

4.7. Identification and Phylogenetic Analysis of UGTs

The candidate UGTs in C. deserticola and H. ammodendron were identified following a procedure described by Cheng et al. [47]. First, a hidden Markov model (HMM) was retrieved from the Pfam database (http://pfam.sanger.ac.uk (accessed on 1 November 2022)) and the UGTs were identified using HMMER 3.0. Then, the identified unigenes were processed by the Simple Modular Architecture Research Tool (SMART) (http://smart.embl-heidelberg.de (accessed on 1 November 2022)) and ORF Finder (http://bioinf.ibun.unal.edu.co/servicios/sms/orf_find.html (accessed on 1 November 2022)) for additional validation. Following that, genes encoding protein sequences < 300 amino acids long were removed. The UGTs were processed by MEGA 10.2 software for further analysis [48]. Multiple sequence alignment was conducted using the ClustalW program [49]. The maximum likelihood method was used to generate a phylogenetic tree, with 1000 replicates used for bootstrap testing to validate the tree [50]. ITOL (Interactive Tree Of Life, https://itol.embl.de (accessed on 1 December 2022)) was used to modify the tree [51].

4.8. Quantitative RT-PCR Validation of Differential Gene Expression

Ten unigenes were selected to validate the accuracy of the transcriptomic data using qRT-PCR analysis. Reverse transcription was performed using a MonScript™ RTIII All-in-One Mix kit with dsDNAse (MR05101; Monad, Wuhan, China). The primers for the 10 unigenes were designed using Primer Premier 6.0, and 2 internal controls (Table S6) were prepared using sequences reported in the literature (Table S6) [52,53]. qRT-PCR analysis was performed using the Applied Biosystems 7500 platform (Thermo Fisher, Waltham, MA, USA) and a QuantiNova SYBR Green PCR Kit (208054, Qiagen, Hilden, Germany). Three biological replicates were assessed in each group and three technical replicates were included in each qRT-PCR reaction. The 2−ΔΔCt method was used to calculate the relative expression levels [54].

5. Conclusions

In this study, host metabolites and genes changed by C. deserticola parasitism were determined. These metabolites and genes were linked to phenylalanine metabolism, tryptophan metabolism, and phenylpropanoid biosynthesis pathways, which provide precursors for PhGs. C. deserticola makes use of host-derived components to produce PhGs. We highlight the host’s influence on the quality of Cistanches Herba and recommend that C. deserticola growers select suitable host plants.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24097968/s1.

Author Contributions

Conceptualization, C.X., J.W. and R.X.; methodology, H.W. and R.F.; software, R.F. and S.L.; validation, R.F., K.G. and S.L.; formal analysis, R.F. and S.L.; investigation, H.W. and R.X.; resources, H.Q. and R.X.; data curation, H.W. and R.F.; writing—original draft preparation, R.F.; writing—review and editing, R.X. and H.W.; visualization, R.F. and H.W.; supervision, R.X. and H.W.; project administration, R.X. and J.W.; funding acquisition, R.X. and C.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant number: 82274051 & 81773851), Fundamental Research Funds for the Central Scientific Research Institutions (Grant number: YZ-12-09) and National Key R&D Program of China (Grant number: 2022YFC3501502).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data in this study is available from the corresponding author upon reasonable request.

Acknowledgments

We thank Hongmei Luo, Yimian Ma and Xudong Xu for Figure editing and paper revision.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, F.; Zhuo, B.; Wang, S.; Lou, J.; Zhang, Y.; Chen, Q.; Shi, Z.; Song, Y.; Tu, P. Atriplex canescens: A new host for Cistanche deserticola. Heliyon 2021, 7, e07368. [Google Scholar] [CrossRef] [PubMed]
  2. Sun, X.; Zhang, L.; Pei, J.; Huang, L.F. Regulatory relationship between quality variation and environment of Cistanche deserticola in three ecotypes based on soil microbiome analysis. Sci. Rep. 2020, 10, 6662. [Google Scholar] [CrossRef] [PubMed]
  3. Hu, G.; Wu, T.; Chang, Y.; Zhan, X.; Jia, J. Wound Stress, an Unheeded Factor for Echinacoside Accumulation in Cistanche deserticola Y. C. Ma. Molecules 2018, 23, 893. [Google Scholar] [CrossRef] [PubMed]
  4. Cao, Z.; Zhao, W.; Wu, X. Determination of phenylethanoid glycosides from Cistanche deserticola in spring and autumn with LC-MS. J. Chin. Med. Mater. 2004, 27, 175–177. [Google Scholar]
  5. Guo, Q.-S.; Luo, F.-L. Comparative studies on the growth, chlorophyll, amino acids and minerals of Thesium chinense (Santalaceae) in association with different hosts. Nord. J. Bot. 2010, 28, 632–640. [Google Scholar] [CrossRef]
  6. Hong, X.; Isa, N.M.; Fakurazi, S.; Ismail, I.S. Phytochemical and anti-inflammatory properties of Scurrula ferruginea (Jack) Danser parasitising on three different host plants elucidated by NMR-based metabolomics. Phytochem. Anal. 2019, 31, 15–27. [Google Scholar] [CrossRef]
  7. Delicato, A.; Masi, M.; de Lara, F.; Rubiales, D.; Paolillo, I.; Lucci, V.; Falco, G.; Calabrò, V.; Evidente, A. In vitro characterization of iridoid and phenylethanoid glycosides from Cistanche phelypaea for nutraceutical and pharmacological applications. Phytotherapy Res. 2022, 36, 4155–4166. [Google Scholar] [CrossRef]
  8. Zhu, K.; Meng, Z.; Tian, Y.; Gu, R.; Xu, Z.; Fang, H.; Liu, W.; Huang, W.; Ding, G.; Xiao, W. Hypoglycemic and hypolipidemic effects of total glycosides of Cistanche tubulosa in diet/streptozotocin-induced diabetic rats. J. Ethnopharmacol. 2021, 276, 113991. [Google Scholar] [CrossRef]
  9. Yuan, P.; Fu, C.; Yang, Y.; Adila, A.; Zhou, F.; Wei, X.; Wang, W.; Lv, J.; Li, Y.; Xia, L.; et al. Cistanche tubulosa Phenylethanoid Glycosides Induce Apoptosis of Hepatocellular Carcinoma Cells by Mitochondria-Dependent and MAPK Pathways and Enhance Antitumor Effect through Combination with Cisplatin. Integr. Cancer Ther. 2021, 20, 15347354211013085. [Google Scholar] [CrossRef]
  10. Venditti, A.; Frezza, C.; Serafini, M.; Bianco, A. Iridoids and phenylethanoid from Pedicularis kerneri Dalla Torre growing in Dolomites, Italy. Nat. Prod. Res. 2016, 30, 327–331. [Google Scholar] [CrossRef]
  11. Scharenberg, F.; Zidorn, C. Genuine and Sequestered Natural Products from the Genus Orobanche (Orobanchaceae, Lamiales). Molecules 2018, 23, 2821. [Google Scholar] [CrossRef]
  12. Zhou, Y.; Zhu, J.; Shao, L.; Guo, M. Current advances in acteoside biosynthesis pathway elucidation and biosynthesis. Fitoterapia 2020, 142, 104495. [Google Scholar] [CrossRef]
  13. Jedrejek, D.; Pawelec, S.; Piwowarczyk, R.; Pecio, Ł.; Stochmal, A. Identification and occurrence of phenylethanoid and iridoid glycosides in six Polish broomrapes (Orobanche spp. and Phelipanche spp. Orobanchaceae). Phytochemistry 2020, 170, 112189. [Google Scholar] [CrossRef]
  14. Pincovici, S.; Cochavi, A.; Karnieli, A.; Ephrath, J.; Rachmilevitch, S. Source-sink relations of sunflower plants as affected by a parasite modifies carbon allocations and leaf traits. Plant Sci. 2018, 271, 100–107. [Google Scholar] [CrossRef]
  15. Swarnalatha, G.; Sarala, K.; Rao, K.P.; Baghyalakshmi, K.; Rao, K.R.S.S.; Bindu, J.P. Parasitic interactions of Orobanche with selected Nicotiana species and identification of effective resistant genotypes. Genet. Resour. Crop. Evol. 2020, 67, 1125–1136. [Google Scholar] [CrossRef]
  16. Gwatidzo, V.O.; Rugare, J.T.; Mabasa, S.; Mandumbu, R.; Chipomho, J.; Chikuta, S. In Vitro and In Vivo Evaluation of Sorghum (Sorghum bicolor L. Moench) Genotypes for Pre- and Post-attachment Resistance against Witchweed (Striga asiatica L. Kuntze). Intl. J. Agron. 2020, 2020, 9601901. [Google Scholar] [CrossRef]
  17. Fisher, J.P.; Phoenix, G.K.; Childs, D.Z.; Press, M.C.; Smith, S.W.; Pilkington, M.G.; Cameron, D.D. Parasitic plant litter input: A novel indirect mechanism influencing plant community structure. New Phytol. 2013, 198, 222–231. [Google Scholar] [CrossRef]
  18. Bari, V.K.; Abu Nassar, J.; Meir, A.; Aly, R. Targeted mutagenesis of two homologous ATP-binding cassette subfamily G (ABCG) genes in tomato confers resistance to parasitic weed Phelipanche aegyptiaca. J. Plant Res. 2021, 134, 585–597. [Google Scholar] [CrossRef]
  19. Madany, M.M.Y.; Saleh, A.M.; Habeeb, T.H.; Hozzein, W.N.; AbdElgawad, H. Silicon dioxide nanoparticles alleviate the threats of broomrape infection in tomato by inducing cell wall fortification and modulating ROS homeostasis. Environ. Sci. Nano 2020, 7, 1415–1430. [Google Scholar] [CrossRef]
  20. Fernández-Aparicio, M.; Csic, S.; Rubiales, D. Advances in understanding plant root response to weedy root parasites. In Improving Crop Root Function, 1st ed.; Gregory, P., Ed.; Burleig Dodds Science Publishing Limited: Cambridge, UK, 2021; pp. 215–230. [Google Scholar] [CrossRef]
  21. Briache, F.Z.; Ennami, M.; Mbasani-Mansi, J.; Lozzi, A.; Abousalim, A.; El Rodeny, W.; Amri, M.; Triqui, Z.E.A.; Mentag, R. Effects of Salicylic Acid and Indole Acetic Acid Exogenous Applications on Induction of Faba Bean Resistance against Orobanche crenata. Plant Pathol. J. 2020, 36, 476–490. [Google Scholar] [CrossRef]
  22. Martín-Sanz, A.; Pérez-Vich, B.; Rueda, S.; Fernández-Martínez, J.M.; Velasco, L. Characterization of post-haustorial resistance to sunflower broomrape. Crop Sci. 2020, 60, 1188–1198. [Google Scholar] [CrossRef]
  23. Barros, J.; Serk, H.; Granlund, I.; Pesquet, E. The cell biology of lignification in higher plants. Ann. Bot. 2015, 115, 1053–1074. [Google Scholar] [CrossRef] [PubMed]
  24. Cui, S.; Wada, S.; Tobimatsu, Y.; Takeda, Y.; Saucet, S.B.; Takano, T.; Umezawa, T.; Shirasu, K.; Yoshida, S. Host lignin composition affects haustorium induction in the parasitic plants Phtheirospermum japonicum and Striga hermonthica. New Phytol. 2018, 218, 710–723. [Google Scholar] [CrossRef] [PubMed]
  25. Haan, N.; Bakker, J.D.; Bowers, M. Hemiparasites can transmit indirect effects from their host plants to herbivores. Ecology 2017, 99, 399–410. [Google Scholar] [CrossRef]
  26. Scharenberg, F.; Stegemann, T.; Cicek, S.S.; Zidorn, C. Sequestration of pyridine alkaloids anabasine and nicotine from Nicotiana (Solanaceae) by Orobanche ramosa (Orobanchaceae). Biochem. Syst. Ecol. 2019, 86, 103908. [Google Scholar] [CrossRef]
  27. Stermitz, F.R.; Belofsky, G.N.; Ng, D.; Singer, M.C. Quinolizidine alkaloids obtained by Pedicularis semibarbata (Scrophulariaceae) from Lupinus fulcratus (Leguminosae) fail to influence the specialist herbivore Euphydryas editha (Lepidoptera). J. Chem. Ecol. 1989, 15, 2521–2530. [Google Scholar] [CrossRef]
  28. Aly, R.; Cholakh, H.; Joel, D.M.; Leibman, D.; Steinitz, B.; Zelcer, A.; Naglis, A.; Yarden, O.; Gal-On, A. Gene silencing of mannose 6-phosphate reductase in the parasitic weed Orobanche aegyptiaca through the production of homologous dsRNA sequences in the host plant. Plant Biotechnol. J. 2009, 7, 487–498. [Google Scholar] [CrossRef]
  29. Patel, T.K.; Williamson, J.D. Mannitol in Plants, Fungi, and Plant-Fungal Interactions. Trends Plant Sci. 2016, 21, 486–497. [Google Scholar] [CrossRef]
  30. Liu, C.Z.; Cheng, X.Y. Enhancement of phenylethanoid glycosides biosynthesis in cell cultures of Cistanche deserticola by osmotic stress. Plant Cell Rep. 2008, 27, 357–362. [Google Scholar] [CrossRef]
  31. Naoumkina, M.A.; Zhao, Q.; Gallego-Giraldo, L.; Dai, X.; Zhao, P.X.; Dixon, R.A. Genome-wide analysis of phenylpropanoid defence pathways. Mol. Plant Pathol. 2010, 11, 829–846. [Google Scholar] [CrossRef]
  32. Meng, X.; Zhang, S. MAPK Cascades in Plant Disease Resistance Signaling. Annu. Rev. Phytopathol. 2013, 51, 245–266. [Google Scholar] [CrossRef]
  33. Piwowarczyk, R.; Ochmian, I.; Lachowicz, S.; Kapusta, I.; Malinowska, K.; Ruraż, K. Correlational nutritional relationships and interactions between expansive holoparasite Orobanche laxissima and woody hosts on metal-rich soils. Phytochemistry 2021, 190, 112844. [Google Scholar] [CrossRef]
  34. Bahramsoltani, R.; Kalkhorani, M.; Zaidi, S.M.A.; Farzaei, M.H.; Rahimi, R. The genus Tamarix: Traditional uses, phytochemistry, and pharmacology. J. Ethnopharmacol. 2019, 246, 112245. [Google Scholar] [CrossRef]
  35. Le Roy, J.; Huss, B.; Creach, A.; Hawkins, S.; Neutelings, G. Glycosylation Is a Major Regulator of Phenylpropanoid Availability and Biological Activity in Plants. Front. Plant Sci. 2016, 7, 735. [Google Scholar] [CrossRef]
  36. Mácsai, L.; Datki, Z.L.; Csupor, D.; Horváth, A.; Zomborszki, Z.P. Biological Activities of Four Adaptogenic Plant Extracts and Their Active Substances on a Rotifer Model. Evid. Based Complement. Altern. Med. 2018, 2018, 3690683. [Google Scholar] [CrossRef]
  37. Liu, Q.; Gao, T.; Liu, W.; Liu, Y.; Zhao, Y.; Liu, Y.; Li, W.; Ding, K.; Ma, F.; Li, C. Functions of dopamine in plants: A review. Plant Signal. Behav. 2020, 15, 1827782. [Google Scholar] [CrossRef]
  38. Torrens-Spence, M.P.; Pluskal, T.; Li, F.-S.; Carballo, V.; Weng, J.-K. Complete pathway elucidation and heterologous reconstitution of Rhodiola salidroside biosynthesis. Mol. Plant 2018, 11, 205–217. [Google Scholar] [CrossRef]
  39. Chen, W.; Gong, L.; Guo, Z.; Wang, W.; Zhang, H.; Liu, X.; Yu, S.; Xiong, L.; Luo, J. A Novel Integrated Method for Large-Scale Detection, Identification, and Quantification of Widely Targeted Metabolites: Application in the Study of Rice Metabolomics. Mol. Plant 2013, 6, 1769–1780. [Google Scholar] [CrossRef]
  40. Fraga, C.G.; Clowers, B.H.; Moore, R.J.; Zink, E.M. Signature-discovery approach for sample matching of a nerve-agent precursor using liquid chromatography-mass spectrometry, XCMS, and chemometrics. Anal. Chem. 2010, 82, 4165–4173. [Google Scholar] [CrossRef]
  41. Chong, J.; Xia, J. MetaboAnalystR: An R package for flexible and reproducible analysis of metabolomics data. Bioinformatics 2018, 34, 4313–4314. [Google Scholar] [CrossRef]
  42. Thévenot, E.A.; Roux, A.; Xu, Y.; Ezan, E.; Junot, C. Analysis of the Human Adult Urinary Metabolome Variations with Age, Body Mass Index, and Gender by Implementing a Comprehensive Workflow for Univariate and OPLS Statistical Analyses. J. Proteome Res. 2015, 14, 3322–3335. [Google Scholar] [CrossRef] [PubMed]
  43. Ogata, H.; Goto, S.; Sato, K.; Fujibuchi, W.; Bono, H.; Kanehisa, M. KEGG: Kyoto Encyclopedia of Genes and Genomes. Nucleic Acids Res. 2000, 28, 29–34. [Google Scholar] [CrossRef] [PubMed]
  44. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.D.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644–652. [Google Scholar] [CrossRef] [PubMed]
  45. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome. Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed]
  46. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of Biomolecular Interaction Networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef]
  47. Cheng, Y.; Liu, H.; Tong, X.; Liu, Z.; Zhang, X.; Li, D.; Jiang, X.; Yu, X. Identification and analysis of CYP450 and UGT supergene family members from the transcriptome of Aralia elata (Miq.) seem reveal candidate genes for triterpenoid saponin biosynthesis. BMC Plant Biol. 2020, 20, 214. [Google Scholar] [CrossRef]
  48. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  49. Thompson, J.D.; Gibson, T.J.; Higgins, D.G. Multiple Sequence Alignment Using ClustalW and ClustalX. Curr. Protoc. Bioinform. 2002, 2, 2.3.1–2.3.22. [Google Scholar] [CrossRef]
  50. Jones, D.T.; Taylor, W.R.; Thornton, J.M. The rapid generation of mutation data matrices from protein sequences. Comput. Appl. Biosci. 1992, 8, 275–282. [Google Scholar] [CrossRef]
  51. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v5: An online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef]
  52. Wang, B.; Du, H.; Yao, Z.; Ren, C.; Ma, L.; Wang, J.; Zhang, H.; Ma, H. Validation of reference genes for accurate normalization of gene expression with quantitative real-time PCR in Haloxylon ammodendron under different abiotic stresses. Physiol. Mol. Biol. Plants 2018, 24, 455–463. [Google Scholar] [CrossRef]
  53. Li, Y.; Wang, X.; Chen, T.; Yao, F.; Li, C.; Tang, Q.; Sun, M.; Sun, G.; Hu, S.; Yu, J.; et al. RNA-Seq Based De Novo Transcriptome Assembly and Gene Discovery of Cistanche deserticola Fleshy Stem. PLoS ONE 2015, 10, e0125722. [Google Scholar] [CrossRef]
  54. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Figure 1. Cistanche deserticola Ma and its host plant. (A) Cistanche deserticola Ma fleshy stems collected for medicinal use and its host Haloxylon ammodendron (C. A. Mey.) Bunge. (B) C. deserticola inflorescence. (C) C. deserticola joins the host root. (D) Junction of C. deserticola with the host root (including haustorium).
Figure 1. Cistanche deserticola Ma and its host plant. (A) Cistanche deserticola Ma fleshy stems collected for medicinal use and its host Haloxylon ammodendron (C. A. Mey.) Bunge. (B) C. deserticola inflorescence. (C) C. deserticola joins the host root. (D) Junction of C. deserticola with the host root (including haustorium).
Ijms 24 07968 g001

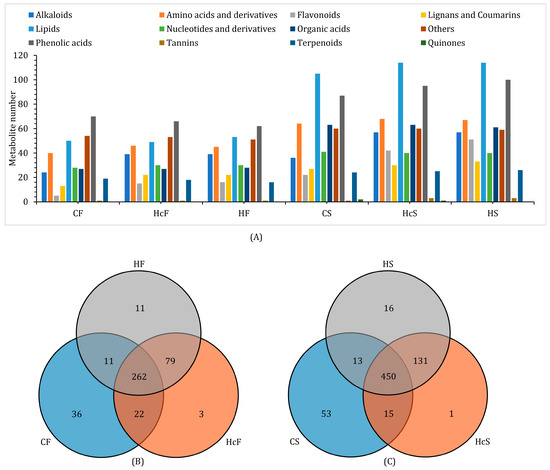

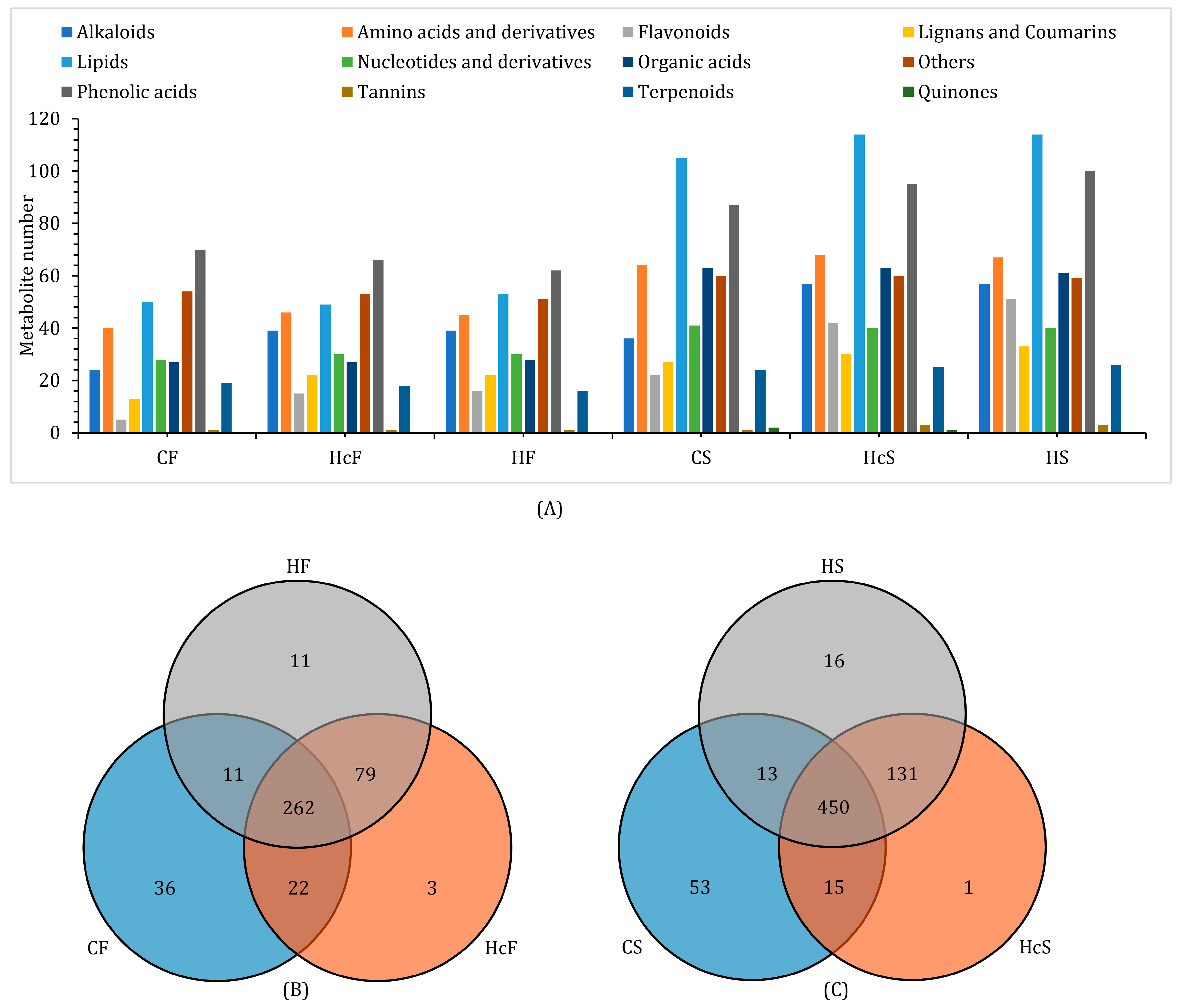

Figure 2. Summary of metabolites detected by using LC-MS/MS methods. (A) Classification of metabolites detected in C. deserticola fleshy stems, the hosts’ roots, and healthy H. ammodendron roots. (B) Venn plot revealing the relationship of metabolites in CF, HcF, and HF samples. The figures in circles represent the numbers of metabolites. (C) Venn plot revealing the relationship of metabolites in CS, HcS, and HS samples. The figures in circles represent the numbers of metabolites.
Figure 2. Summary of metabolites detected by using LC-MS/MS methods. (A) Classification of metabolites detected in C. deserticola fleshy stems, the hosts’ roots, and healthy H. ammodendron roots. (B) Venn plot revealing the relationship of metabolites in CF, HcF, and HF samples. The figures in circles represent the numbers of metabolites. (C) Venn plot revealing the relationship of metabolites in CS, HcS, and HS samples. The figures in circles represent the numbers of metabolites.
Ijms 24 07968 g002

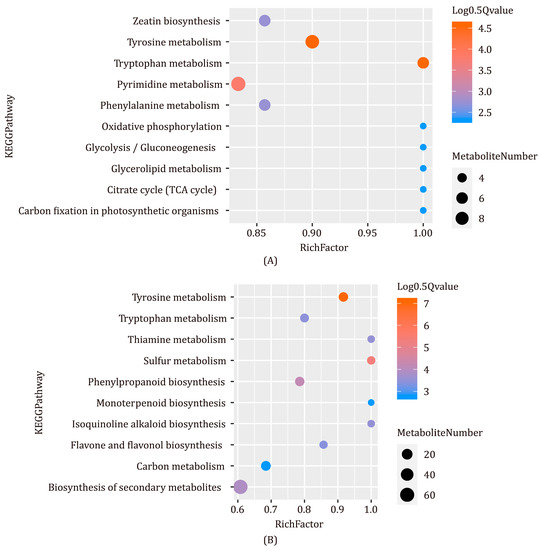

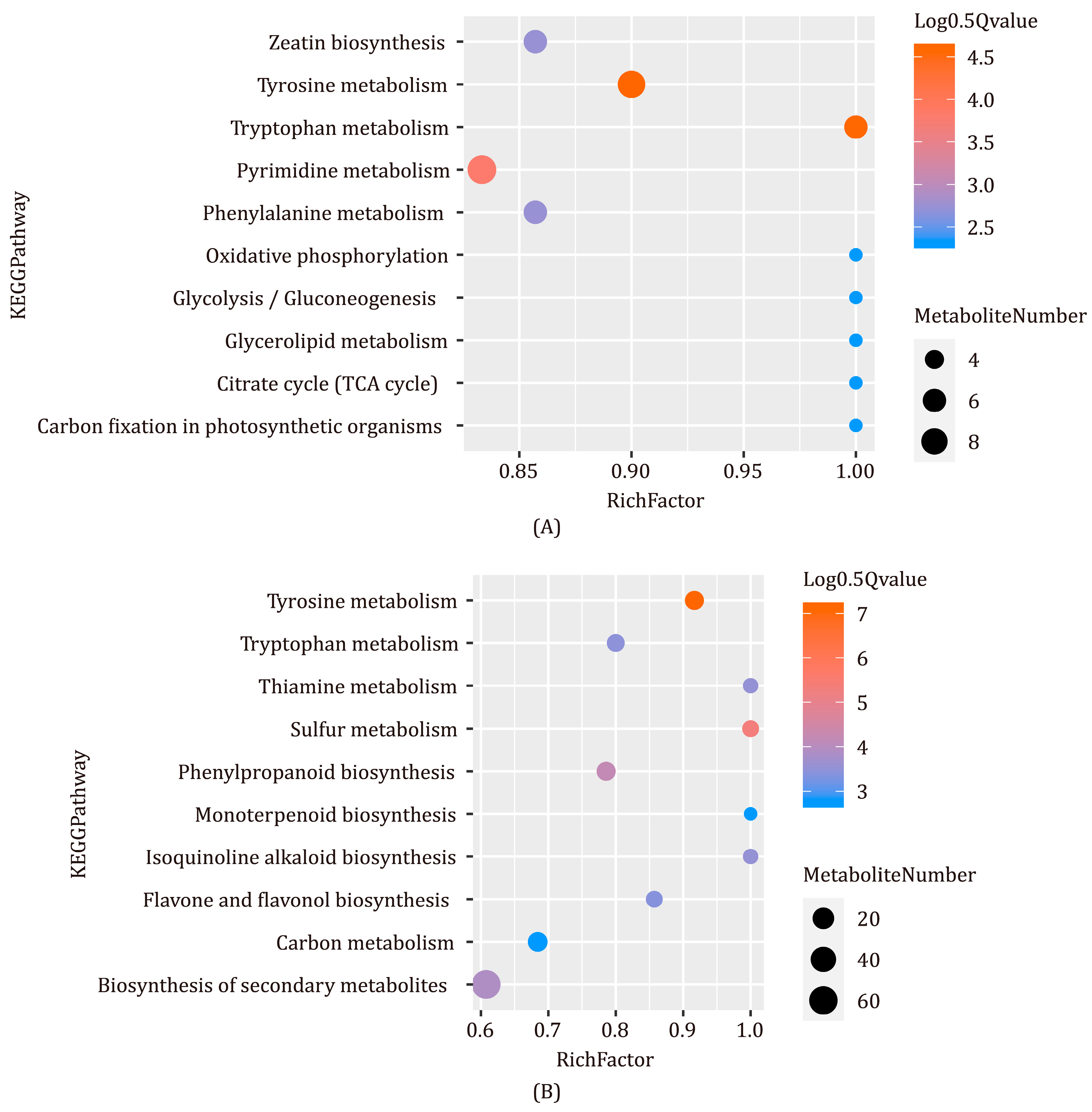

Figure 3. Bubble plots showing KEGG enrichment analysis results using DAMs in C. deserticola fleshy stems and the host H. ammodendron roots. The bubble’s color indicates the q value, and its size represents the number of DAMs enriched. (A) The bubble plot of the top 10 KEGG pathways to which CF-vs.-HcF DAMs were enriched. (B) The bubble plot of the top 10 KEGG pathways to which CS-vs.-HcS DAMs were enriched.
Figure 3. Bubble plots showing KEGG enrichment analysis results using DAMs in C. deserticola fleshy stems and the host H. ammodendron roots. The bubble’s color indicates the q value, and its size represents the number of DAMs enriched. (A) The bubble plot of the top 10 KEGG pathways to which CF-vs.-HcF DAMs were enriched. (B) The bubble plot of the top 10 KEGG pathways to which CS-vs.-HcS DAMs were enriched.
Ijms 24 07968 g003

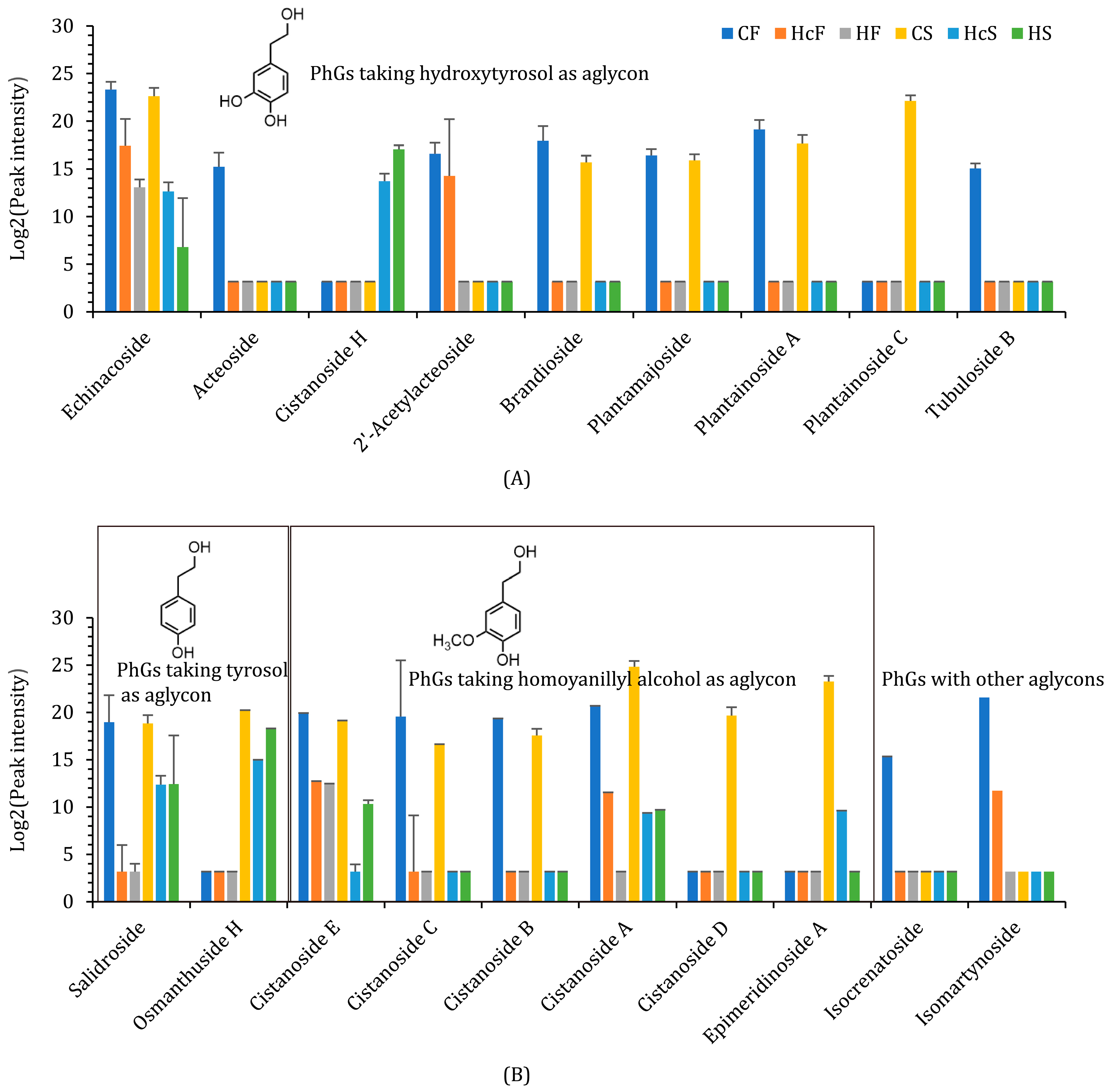

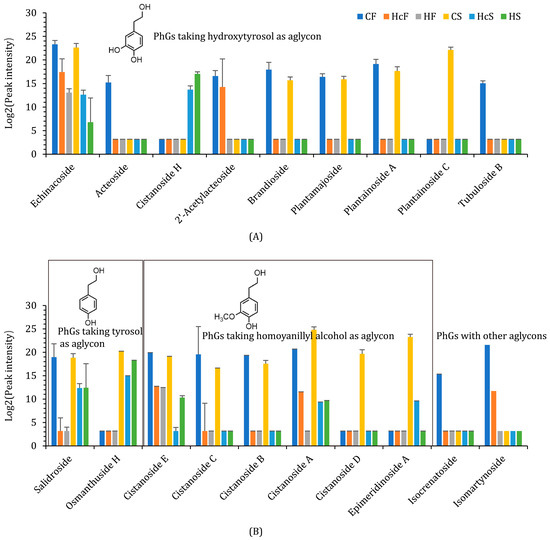

Figure 4. Relative contents of PhGs in C. deserticola fleshy stems, the host, and healthy H. ammodendron roots. The relative contents of PhGs were determined using peak intensity (mean ± SE, n = 3). (A) PhGs taking hydroxytyrosol as their aglycon. (B) PhGs taking other phenylethanoids as their aglycon.
Figure 4. Relative contents of PhGs in C. deserticola fleshy stems, the host, and healthy H. ammodendron roots. The relative contents of PhGs were determined using peak intensity (mean ± SE, n = 3). (A) PhGs taking hydroxytyrosol as their aglycon. (B) PhGs taking other phenylethanoids as their aglycon.
Ijms 24 07968 g004

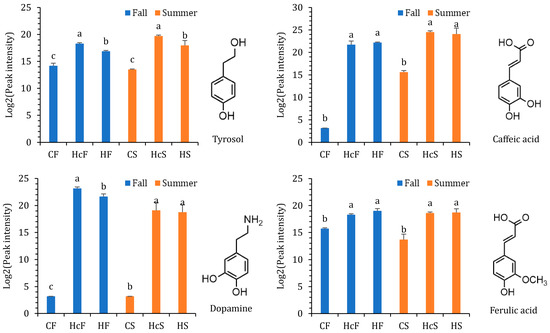

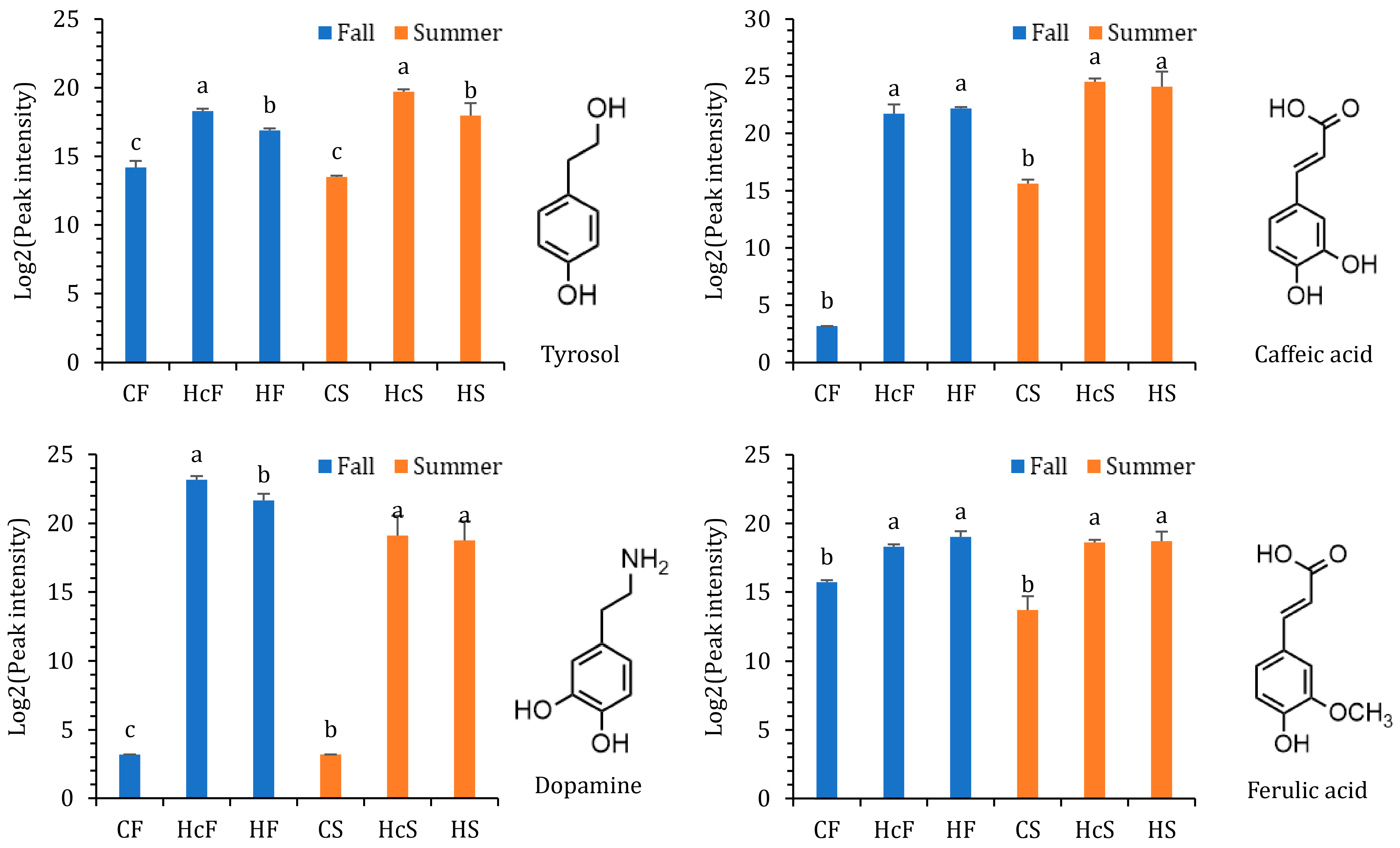

Figure 5. PhG precursors and their relative contents in C. deserticola fleshy stems, the host, and healthy H. ammodendron roots. The relative contents of PhG precursors were determined using peak intensity. Samples from different seasons were analyzed separately. Bars labeled with different letters are significantly different (mean ± SE, n = 3, Tukey’s HSD, p < 0.05).
Figure 5. PhG precursors and their relative contents in C. deserticola fleshy stems, the host, and healthy H. ammodendron roots. The relative contents of PhG precursors were determined using peak intensity. Samples from different seasons were analyzed separately. Bars labeled with different letters are significantly different (mean ± SE, n = 3, Tukey’s HSD, p < 0.05).
Ijms 24 07968 g005

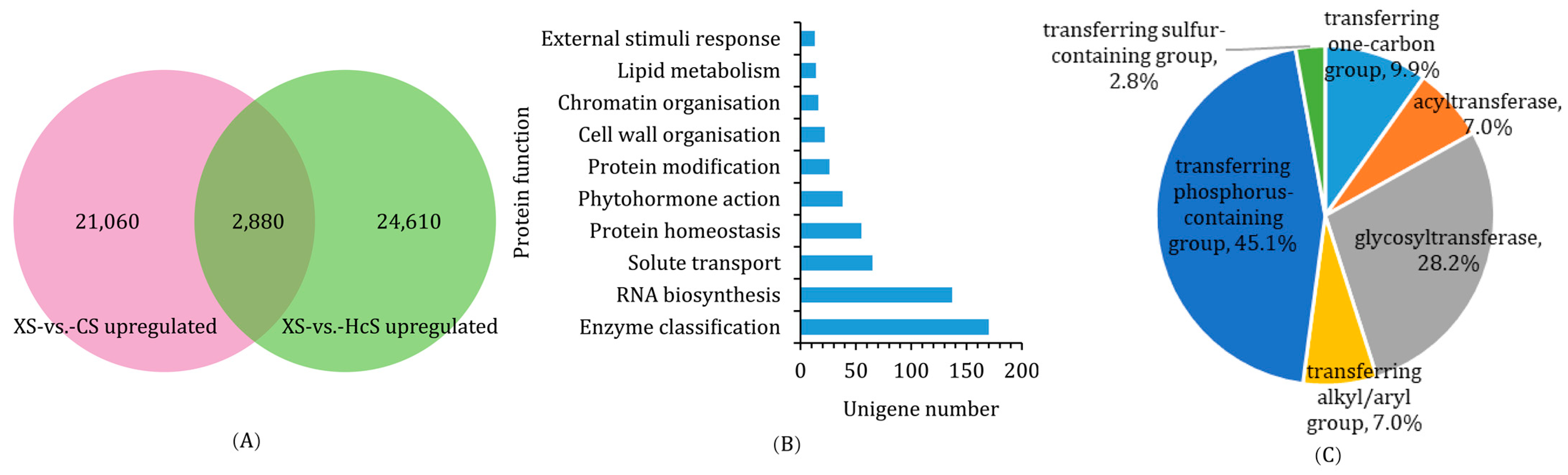

Figure 6. The screening and annotation of genes specifically upregulated in haustoria. (A) Venn plot showing the number of genes upregulated in XS samples compared with CS and HcS, respectively. The intersection indicates the number of genes specifically upregulated in haustoria. (B) The bar plot shows the top 10 Mercator classifications of genes specifically upregulated in haustoria. (C) The pie plot shows the classifications of genes annotated as ‘transferase’.
Figure 6. The screening and annotation of genes specifically upregulated in haustoria. (A) Venn plot showing the number of genes upregulated in XS samples compared with CS and HcS, respectively. The intersection indicates the number of genes specifically upregulated in haustoria. (B) The bar plot shows the top 10 Mercator classifications of genes specifically upregulated in haustoria. (C) The pie plot shows the classifications of genes annotated as ‘transferase’.
Ijms 24 07968 g006

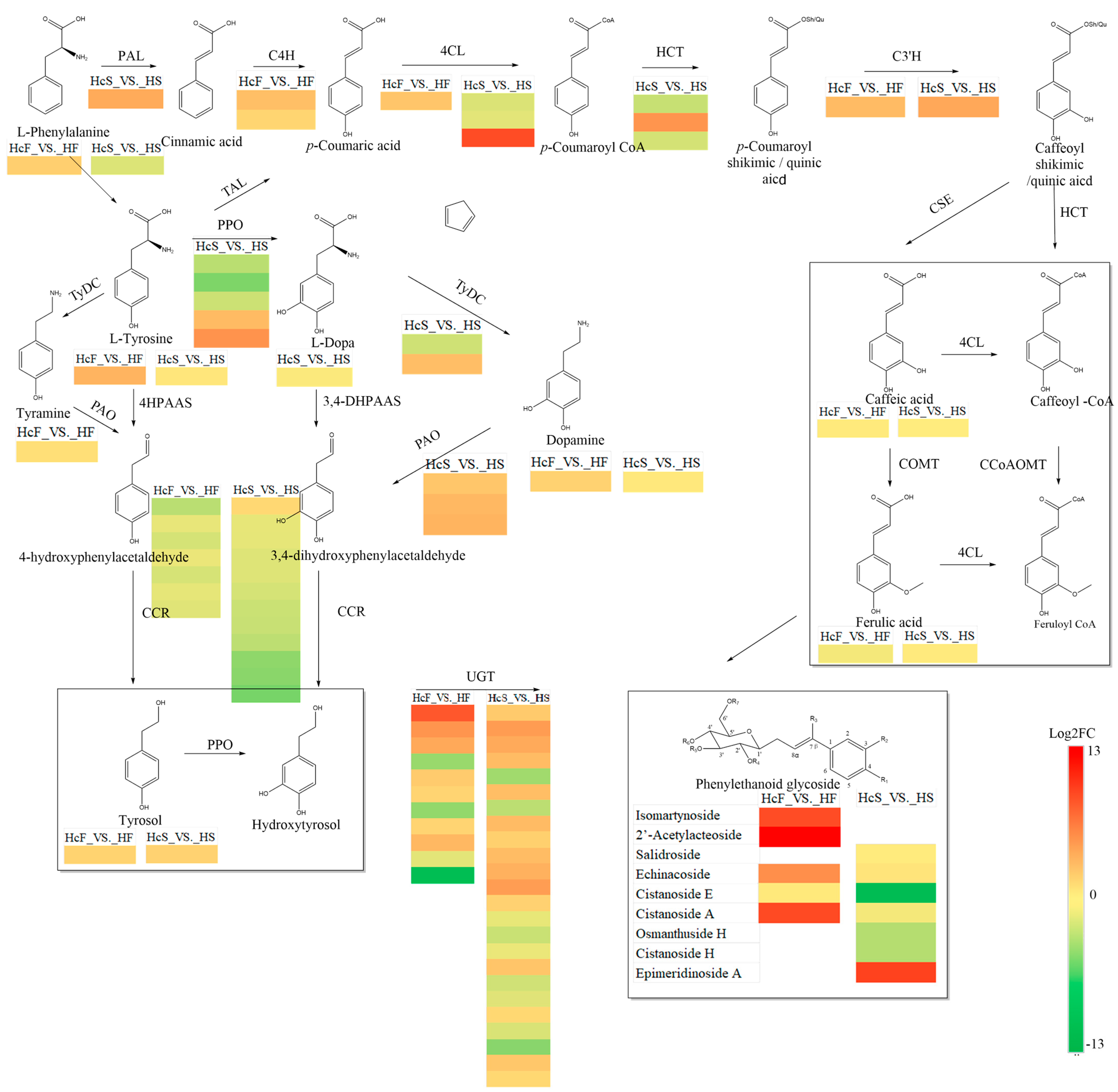

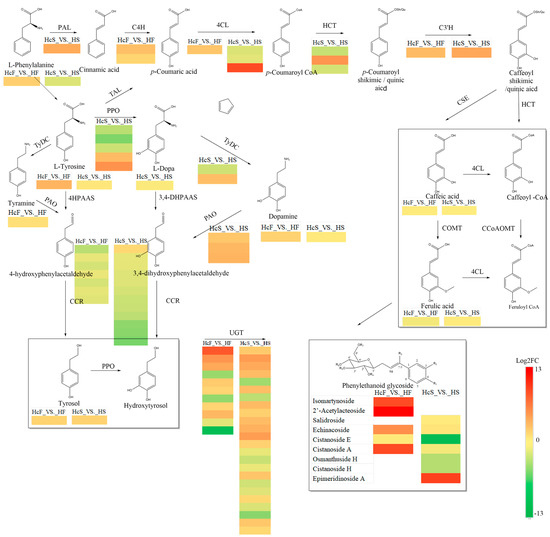

Figure 7. Phenylethanoid glycoside biosynthesis pathway in parasitized and healthy H. ammodendron roots. Grids with colors from green to red represent log2 fold changes in DEGs and metabolites (HcF-vs.-HF, HcS-vs.-HS). 4HPAAS, 4-hydroxyphenylacetaldehyde synthase; 4HPAR, 4-hydroxyphenylacetaldehyde reductase; TyDC, tyrosine decarboxylase; PPO, polyphenol oxidase; PAO, primary amine oxidase; CCR, cinnamyl-CoA reductase; PAL, phenylalanine ammonia-lyase; C4H, cinnamate 4-hydroxylase; 4CL, 4-coumarate: CoA ligase; HCT, p-hydroxycinnamoyl-CoA:qui-nate/shikimate p-hydroxycinnamoyltransferase; C3H, p-coumarate 3-hydroxylase; CSE, caffeoyl shikimate esterase; COMT, caffeic acid O-methyltransferase; CCoAOMT, caffeoyl-CoA O-methyltransferase.
Figure 7. Phenylethanoid glycoside biosynthesis pathway in parasitized and healthy H. ammodendron roots. Grids with colors from green to red represent log2 fold changes in DEGs and metabolites (HcF-vs.-HF, HcS-vs.-HS). 4HPAAS, 4-hydroxyphenylacetaldehyde synthase; 4HPAR, 4-hydroxyphenylacetaldehyde reductase; TyDC, tyrosine decarboxylase; PPO, polyphenol oxidase; PAO, primary amine oxidase; CCR, cinnamyl-CoA reductase; PAL, phenylalanine ammonia-lyase; C4H, cinnamate 4-hydroxylase; 4CL, 4-coumarate: CoA ligase; HCT, p-hydroxycinnamoyl-CoA:qui-nate/shikimate p-hydroxycinnamoyltransferase; C3H, p-coumarate 3-hydroxylase; CSE, caffeoyl shikimate esterase; COMT, caffeic acid O-methyltransferase; CCoAOMT, caffeoyl-CoA O-methyltransferase.
Ijms 24 07968 g007

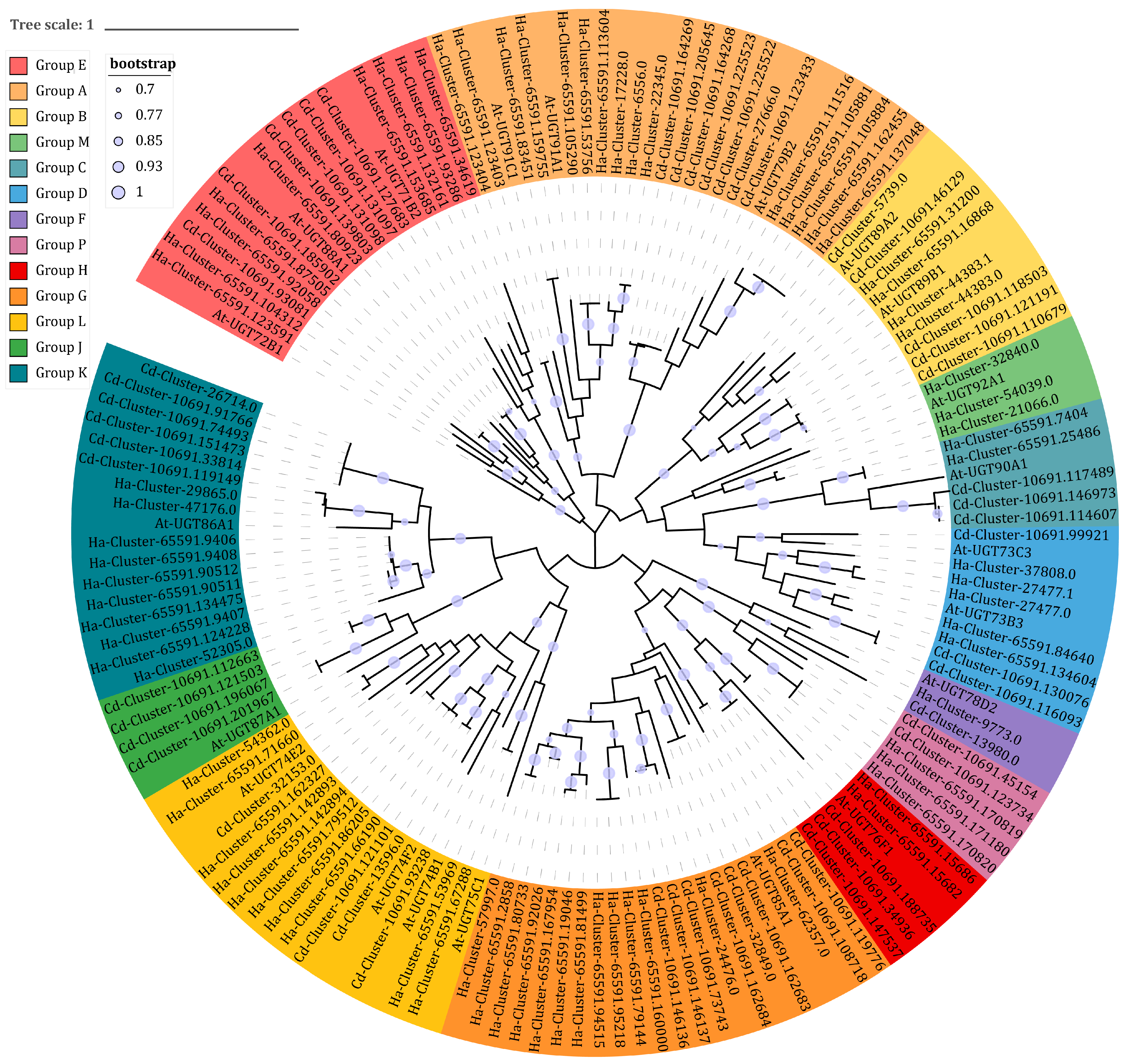

Figure 8. Phylogenetic tree of C. deserticola and H. ammodendron candidate UGTs using A. thaliana UGTs as representative sequences. Cd, C. deserticola; Ha, H. ammodendron; At, A. thaliana.
Figure 8. Phylogenetic tree of C. deserticola and H. ammodendron candidate UGTs using A. thaliana UGTs as representative sequences. Cd, C. deserticola; Ha, H. ammodendron; At, A. thaliana.
Ijms 24 07968 g008
Figure 9. qRT-PCR validation for C. deserticola and H. ammodendron genes. (A) Relative expression levels of CYP98A, CYP96A, CYP35A, ABC-T, and BG genes in C. deserticola. (B) Relative expression levels of C3H, HCT, 4CL, TyDC, and PPO genes in H. ammodendron.
Figure 9. qRT-PCR validation for C. deserticola and H. ammodendron genes. (A) Relative expression levels of CYP98A, CYP96A, CYP35A, ABC-T, and BG genes in C. deserticola. (B) Relative expression levels of C3H, HCT, 4CL, TyDC, and PPO genes in H. ammodendron.
Ijms 24 07968 g009
Table 1. Information about plant materials.
Table 1. Information about plant materials.
Sample IDSpeciesHarvesting TimeTissue
CFCF1C. deserticolaNovember 2019Fleshy stem, 5 cm from haustorium
CF2
CF3
HcFHcF1H. ammodendronRoot intruded by C. deserticola, 10 cm from haustorium
HcF2
HcF3
HFHF1Root of healthy plant
HF2
HF3
CSCS1C. deserticolaAugust 2020Fleshy stem, 5 cm from haustorium
CS2
CS3
HcSHcS1H. ammodendronRoot intruded by C. deserticola, 10 cm from haustorium
HcS2
HcS3
HSHS1Root of healthy plant
HS2
HS3
XSXS1C. deserticola and H. ammodendronHaustorium, the connecting place of C. deserticola and H. ammodendron, with a thickness of 0.5 cm
XS2
XS3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Feng, R.; Wei, H.; Xu, R.; Liu, S.; Wei, J.; Guo, K.; Qiao, H.; Xu, C. Combined Metabolome and Transcriptome Analysis Highlights the Host’s Influence on Cistanche deserticola Metabolite Accumulation. Int. J. Mol. Sci. 2023, 24, 7968. https://doi.org/10.3390/ijms24097968

AMA Style

Feng R, Wei H, Xu R, Liu S, Wei J, Guo K, Qiao H, Xu C. Combined Metabolome and Transcriptome Analysis Highlights the Host’s Influence on Cistanche deserticola Metabolite Accumulation. International Journal of Molecular Sciences. 2023; 24(9):7968. https://doi.org/10.3390/ijms24097968

Chicago/Turabian Style

Feng, Ru, Hongshuang Wei, Rong Xu, Sai Liu, Jianhe Wei, Kun Guo, Haili Qiao, and Changqing Xu. 2023. "Combined Metabolome and Transcriptome Analysis Highlights the Host’s Influence on Cistanche deserticola Metabolite Accumulation" International Journal of Molecular Sciences 24, no. 9: 7968. https://doi.org/10.3390/ijms24097968

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
