Review

Application Progress of the Single Domain Antibody in Medicine

by
Huaping Tang
1,†,
Yuan Gao
1,2,*,† and
Jiangyuan Han
1
1
College of Life Science and Technology, Gansu Agricultural University, Lanzhou 730070, China
2
Gansu Key Laboratory of Animal Generational Physiology and Reproductive Regulation, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(4), 4176; https://doi.org/10.3390/ijms24044176
Submission received: 17 January 2023 / Revised: 7 February 2023 / Accepted: 15 February 2023 / Published: 20 February 2023
(This article belongs to the Collection Feature Papers in Molecular Nanoscience)
Browse Figures
Versions Notes

Abstract

:
The camelid-derived single chain antibody (sdAb), also termed VHH or nanobody, is a unique, functional heavy (H)-chain antibody (HCAb). In contrast to conventional antibodies, sdAb is a unique antibody fragment consisting of a heavy-chain variable domain. It lacks light chains and a first constant domain (CH1). With a small molecular weight of only 12~15 kDa, sdAb has a similar antigen-binding affinity to conventional Abs but a higher solubility, which exerts unique advantages for the recognition and binding of functional, versatile, target-specific antigen fragments. In recent decades, with their unique structural and functional features, nanobodies have been considered promising agents and alternatives to traditional monoclonal antibodies. As a new generation of nano-biological tools, natural and synthetic nanobodies have been used in many fields of biomedicine, including biomolecular materials, biological research, medical diagnosis and immune therapies. This article briefly overviews the biomolecular structure, biochemical properties, immune acquisition and phage library construction of nanobodies and comprehensively reviews their applications in medical research. It is expected that this review will provide a reference for the further exploration and unveiling of nanobody properties and function, as well as a bright future for the development of drugs and therapeutic methods based on nanobodies.
Keywords:
sdAb; HCAb; nanobody; VHH

1. Introduction

Antibodies, also called immunoglobulins (Ig), are at the core of an adaptive immune system. They have the ability to recognize and eliminate specific foreign substances from the body. Due to a natural ability to bind to target antigens, antibodies demonstrate great value in biomedicine and drug development [1,2]. To improve the clinical therapeutic efficacy, increase antigen recognition specificity, eliminate the immunogenicity and improve the affinity and stability of antibodies, monoclonal antibodies (mAb) were designed and produced. Since 1975, a significant amount of effort has been invested in monoclonal antibodies. Many monoclonal-antibody-targeted drugs were generated and used in biomedical research, disease treatment and clinical diagnosis [3]. As common biological macromolecules, monoclonal antibodies have had a particularly important pharmaceutical, commercial value over the past several decades [4], such as acting as an antibody–drug conjugate in the combination of CD147 monoclonal antibodies (CD147 mAb) and camptothecin polyphosphoester nanoparticles to effectively and precisely target hepatocellular carcinoma cells, improving the clinical, therapeutic effect on tumors [5]. However, at present, it is also very mature to obtain monoclonal antibodies for clinical disease treatment through phage library construction technology. Monoclonal antibodies are still macromolecules and have a complex internal structure. Multiple factors, such as a susceptibility to variable region folding, a low macromolecular permeability in tissues, and a high host immunogenicity, greatly hinder the development and application of antibody medicines [4].
A natural, small, functional antibody known as a heavy-chain antibody (HCAb) was first reported in camelid serum in 1993 [6]. Unlike conventional antibodies with a heterotetrametric structure, camelid-derived HCAb is devoid of light-chain polypeptides and lacks the first constant domain (CH1) in heavy-chains. Remarkably, the antigen-binding fragment in HCAbs contains only one single-variable domain. This domain is termed VHH and is also known as a single-domain antibody (sdAb) or nanobody (Nb) [7]. Uniquely, the strict, monomeric state of these nanobodies provides the ability to recognize and bind antigens independently after cloning and expression in vitro [8], such as the simplified, monomeric VHH-Fc antibodies [9,10] and small-scale, secretory VHH expression in Saccharomyces cerevisiae [11]. With a smaller biomolecule in the size range of 12~15 kDa and a higher affinity and stability, nanobodies, as promising agents in antibody engineering, have successfully attracted the attention of many biologists. For instance, humanized VHHs [12,13,14], the recombinant variable domains of heavy-chain-only antibodies that are made using a recombinant gene technique [15], have been used in cancer-targeting therapy. Obviously, the appearance of nano-antibody targeting drugs can greatly promote the development of antibody drugs in the field of tumor therapy when compared with traditional mAbs. CAR-T therapy brought a breakthrough in immuno-cancer treatment. Excitingly, research has demonstrated that VHH-based CAR-Ts disrupt the major limitations posed by the single-chain fragment variable (scFv) of an mAb; these limitations cover anti-idiotypic responses and pre-matured scFv aggregation, resulting in antigen-independent CAR-T exhaustion [16]. To summarize, nanobodies form the basis of a wide variety of applications, such as biological research, biomaterial development, medical diagnosis, immunotherapy and clinical trials.
In this review, we comprehensively summarize the biomolecular structure of the HCAb and its VHH domain, mainly with respect to their biochemical properties, immune acquisition and phage library construction. We review some distinctive and interesting research and applications in the medical field, and expect that this review will provide a reference for the further exploration and unveiling of the properties and function of nanobodies, as well as providing a perspective for the development of drugs and therapeutic methods based on nanobodies.

2. Existing Forms of HCAb in Camelid Serum

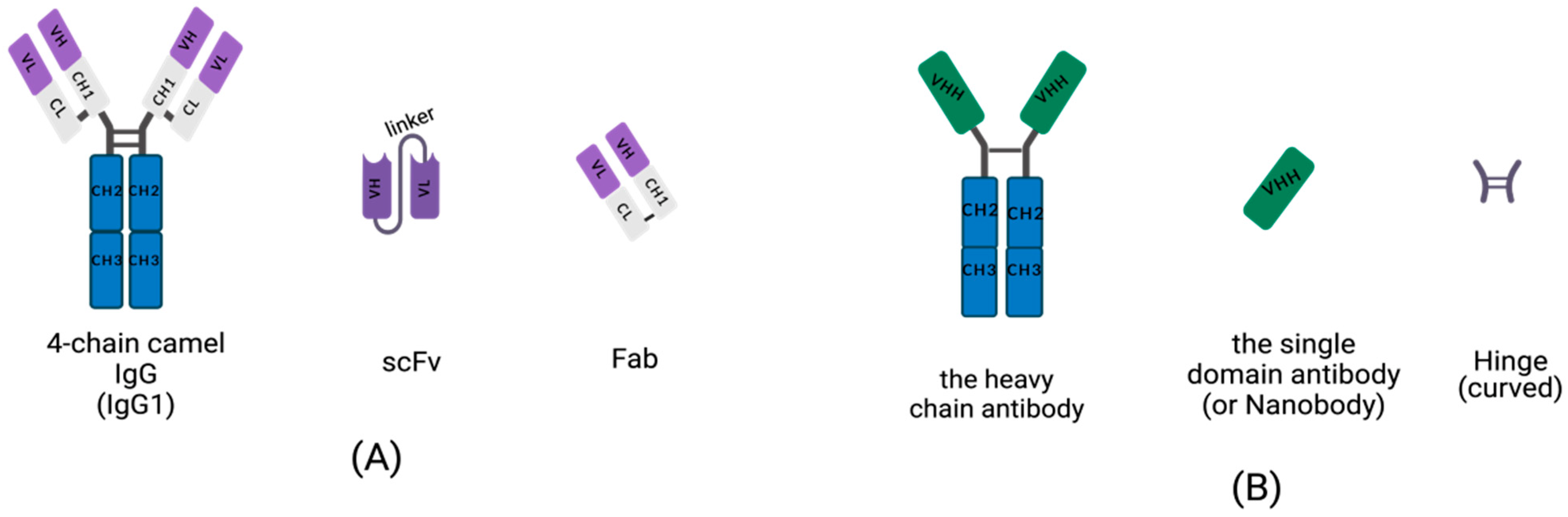

Conventional IgGs are tetramers consisting of two heavy-chains and two light chains (Figure 1A). The heavy-chain of an IgG includes three constant domains: CH1, CH2 and CH3, and a variable domain, the VH region. The light chain of an IgG contains a variable domain, VL, and a constant domain, CL (Figure 1A). Heavy-chains and light chains are linked by disulfide bonds between the VH and CH1. The variable regions, VH and VL, each contain three hypervariable, complementarity-determining regions (CDRs) that assemble to help form the correct antigen-binding site. Scientists are dedicated to manufacturing small, recombinant antibodies such as the single-chain fragment variable (scFv), which was generated by the concatenation of VH and VL via a linker oligopeptide using genetic engineering in vitro (Figure 1A) [17,18,19], and the fragment of antigen binding (Fab), which contains a light chain and the first two domains (VH and CH1 domain) of a heavy-chain, linked by hinges or disulfide bonds (Figure 1A) [20]. While the small, recombinant antibody has great potential for use in many fields, its development is limited by the insufficient affinity of VH and VL for antigens.
Homodimeric antibodies are different from the conventional, heterotetrametric antibodies that naturally exist in the serum of camelids, including camels, alpacas and vicugnas. The homodimeric antibody has only two heavy-chains and is devoid of light chains; it is named HCAb (Figure 1B) [21]. Both conventional, 4-chain IgGs and HCAbs are present in camelid serum and possess the abilities of antigen-specific recognition and binding. Camelid HCAb is charactered by the absence of light chains and the lack of the CH1 in the heavy-chain. Therefore, the single-variable domains easily form a propensity for concave surfaces as active sites or receptor-binding pockets. HCAbs contain only two constant regions, CH2 and CH3, and a variable region, VHH, in each chain (Figure 1B). The terminal domain of a VHH is to engage with an antigen. This is the smallest functional, antigen-binding fragment in an HCAb, also known as an sdAb or a nanobody (Figure 1B).

3. Molecular Structure of VHH

Muyldermans’s group constructed the VH/VHH dromedary germline database and compared the VH and VHH sequences of dromedary serum samples by PCR amplification. They found that the number of genes coding for VH and VHH of similar structures was almost the same in the camel genome, and that the VHHs evolved within a VH subgroup III [22]. Nevertheless, the variable domain sequences between the VH structure of the IgG and the VHH structure of the HCAb were an obvious distinction and mainly focused on the three high-variable regions, especially the amino acid sequence composition of the H3 loop with the largest change after rearrangement and the differences in the framework region, (FR) 2 [23].
The typical variable domain for the VHH structure of folded immunoglobulin is organized as nine β-strands, termed A-B-C-C’-C”-D-E-F-G and arranged in two sheets. The A, B, E, and D β-strands of one sheet lay one side and the C, C’, C”, G, and F strands lay on another. Three hypervariable (HV) regions cluster at one end of the domain: namely H1, H2, and H3. These regions are located in the loops that connect the B-C, C’-C”, and F-G strands, respectively. The three hypervariable regions are wrapped by the relatively conserved structure of the sheets, termed FR, and form a continuous surface with the capacity to bind to epitope, called the complementarity determining region (CDR) [24]. These three hypervariable regions are the most important parts for recognizing antigen-specific binding and have different functions. Compared with the HV loop of the conventional IgG1 VH domain, the sequence of the H1 loop is not classified, the H2 loop has a relatively canonical conformation and diverse structures, and the H3 loop has the largest difference in amino acid arrangement, sequence length, and structural change [25].
The longer H3 loop in the VHH domain of the HCAb may be due to the selection of multifunctional VHHs after the V-D-J rearrangement. With the expansion of H3, the entire HV loop also becomes longer, which can provide a sufficiently large antigen-interacting surface to better identify the epitope groove of the protein to combine with the antigen and antibody [26]. However, this specific antigen–antibody binding may also be due to the fact that the rearranged, autonomous VHH gene has a smaller molecule (independent of the appearance of VL domain, which can be seen in a conventional IgG1). This has not yet been proven by researchers with respect to molecular extended conformation kink folding and more complex molecular-recognition mechanisms [27]. Regardless, the expansion of the overall HV loop provides greater flexibility but also greatly reduces the stability of the internal structure of the VHH domain. Intriguingly, the extra interloop disulfide bond exists between the H1 and H3 loops. The interloop disulfide bond strengthens the extended HV loop structure and eliminates the flexibility brought by the longer H3 loop, which is beneficial for antigen binding [28].
Another distinction existing between the VHH domain of the sdAbs and the VH domain of the conventional antibody is the FR2 fragment. Researchers analyzed the VHH protein–antigen complex using X-ray crystallography and found that the hydrophobic amino acids in the VHH FR2 structure were replaced by the hydrophilic amino acids in the FR2 structure that cross-linked the VH-VL domain of conventional antibodies, which are Phe-42-Val, Glu-49-Gly, Arg-50-Leu, and Gly-52-Trp [29,30,31,32]. They explored the conformational space balance based on the hallmark amino acid residues of the sdAb VHH domain, thereby reconstructing the single-chain VHH domain. This can greatly improve the stability, solubility and biomolecule expression of nanobodies, which can be used as drugs and biosensors [33]. Reconstructing the nanobodies also demonstrated unique advantages such as the high affinity required to enable the specific targeting of antigen molecules, which is used to study and recognize target molecules in or on the surface of cells in cytochemistry [34].

4. Biochemical Features of the sdAb

4.1. Stability

Chemical inductions, such as a high concentration of guanidine hydrochloride (GuHcl) and urea, can lead to the reversible unfolding of antigens specifically bound to the CDR region and labile, refolded protein molecules. These can be achieved using far ultraviolet CD spectroscopy and surface plasmon resonance (SPR) for monitoring. In addition, the synergistic unfolding of the nanobody fragments was also observed by pressure induction. The above studies illustrate that the VHH fragment of HCAbs in camelid serum has a remarkably high conformational stability [35,36].
SdAbs can perform functions under high temperature exposure due to their ability to refold following heat denaturation. The VHH fragment of the HCAb in camel serum has a distinct thermo-reversible stability profile [37,38]. Most of the denatured VHH-R2 fragment population can be refolded at an extremely high temperature. These VHH-R2 molecules, induced by antigen–antibody production, are in an unfolded conformation before binding, indicating that the CDR region of the antigen recognition site in VHH has a non-canonical conformation, making the HCAb fragments fully thermally reversible [39,40]. The VHH fragments selected from the phage display library showed reversible thermal overlap with less aggregation via transient thermal denaturation [41]. Additionally, some efforts can further enhance the thermal stability of sdAbs by raising their melting temperature. Two common methods are: CDR grafting onto known, stable frameworks, and making point mutations to residues that have been identified to enhance stability from highly stable exemplars [42,43]. Notably, the insertion of a non-canonical disulfide bond between framework regions often yields an increase of 10–20 °C in melting temperature without considering the influence on affinity [41]. Evidence showed that the atypical Cys pairs generated in the VHH structure of the HCAbs via the replacement of Cys residues by Leu45 [41] in CDR-FRs produced a non-canonical disulfide linkage between CDR1-CDR3, endowing the VHH fragment with selective stabilization [44]. Additionally, increases in the net negative charge of proteins by chemical modification can increase the resistance of proteins to irreversible inactivation upon exposure to denaturing conditions and decrease the rate of protein aggregation, which is widely used in enzyme improvement [45]. It is also a potential method for improving the stability of a nanobody.
Recently, molecular dynamics (MD) simulations were established to predict mutations affecting the thermal stabilization of sdAbs [46]. This approach estimated the relative stability for a set of sdAbs for which both crystal structures and the melting transition temperature (Tm) were available. Correlations between the fraction of native atomic contacts (denoted by Q) and the experimental Tm values were generated based on computing the Q for the sdAbs at three different temperatures [46]. This approach provided valuable guidance for identifying potential mutation sites that are unlikely to be easily ascertained by any other means, which is useful for modeling to direct t experiments [41].

4.2. Affinity (Solubility)

The hydrophilicity of an antibody’s light-chain surface [47], which are adept at absorbing the hydrophobic surfaces of nonionic surfactants [48], is very important for the development of antibody drugs. The variable heavy-chain domain of human antibodies arises from recombination, and the dispersed proteins re-aggregate under physical conditions such as heat and acid. The characteristics of protein aggregation were studied by analyzing the CDR sequence of the phage display, which is convenient for the research, development, and application of VHs libraries [49]. Furthermore, researchers analyzed the CDR-region amino acid residues through the phage display of a human VH library with a constrained CDR3 loop. This yielded non-aggregating VHs, and the non-aggregative VHs almost existed in the non-canonical CDR1-CDR3 loop at the acid isoelectric point (PI). The PI distribution analysis of the human VH sequence and the Camelidae rearranged VHH sequence revealed that the VHH–acid ratio was higher. Therefore, the design of VHs libraries with non-canonical and non-aggregation intra-CDR disulfide bonds can greatly improve the solubility of the VH domain [50]. In addition, as it is known that proteins behave with minimal solubility at the isoelectric point, increasing the negative charge of the nanobodies in CDR sequences via mutation or modification can also prevent protein aggregation upon denaturation by, for instance, heat or acid [51].
In the VHH of an HCAb, the CDR-H3 region has a larger frequency variation, ranging from 10 to 24 amino acids [52], while the CDR3 fragment of the human VH domain has only 11.6 amino acids [53]. Therefore, compared to conventional Ig antibodies, the variable domain structure of the camelid sdAb has relatively longer CDR3 fragments. As can be seen in the 2.5A resolution representation of the complex crystal structure of the CDR3 region, CDR3s more readily provide antigen-binding sites on their surface grooves, and other parts of CDR3s can also penetrate deeply into the active site of a lysozyme complex. These unique characteristics of the camel VHH fragment determine its higher affinity, or solubility, and have certain anti-aggregation properties [54,55,56].

4.3. Epitope Recognition of Multivalent Bispecific Antibody of Nbs-Based Minimal Size

In recent decades, bispecific antibodies (BsAbs), as intermediate-sized biomolecules, have attracted extensive attention as therapeutic tools in the field of medicine [57,58]. Although BsAbs have excellent pharmacokinetics, they demonstrate extremely low penetration in renal tissue [59]. It is necessary to develop molecular binding mechanisms for soluble, double and trivalent conjugates to improve the retargeting function of effector T cells to tumors [60,61].
The VH and VL domains of the conventional antibody IgG were covered via two independently functioning VHH domains of the HCAb, assembled into bispecific VHH-IgG and combined with a heavy-chain heterodimerization technology to produce monovalent, bispecific, IgG-like antibodies [62]. Pekar’s team used the strand exchange engineering domain (SEED) technology to optimize the heterodimer of the VHH, which was inserted into the Fc backbone to generate trivalent, specific, IgG-like compounds. The generation of multivalent compounds can use ten amino acid linkers to connect the binding sites so that a VHH is engrafted onto a constant region, CH1, while the other VHH-based paratope is replaced on the CH1 region of the light chain, making full use of the biochemical properties of nanobodies without reducing the nanobodies’ affinity to construct a tetravalent, bispecific, IgG-like molecule [63].
Antigen-specific nanobodies are obtained by animal immunization and yeast antibody coupling agent display technology. The exogenous VHH is non-immunogenic [64], and humanized nanobodies are developed by altering the differentially marked amino acids of the VHH fragment [65].

5. Generation of VHH Libraries

The VHH repertoire of the dromedary HCAb is a biological protein molecule, produced through the stimulation of the B cells of immune animals with an antigen. The high-affinity VHH library generated via specifically combining two cognate antigens is also called the immune library. A unique advantage of maturated, in vivo immune libraries is the relatively high quality of VHH sequences to avoid the immunogenicity of antibodies [66,67]. In addition, there are two other types of VHH libraries (or nanobody libraries), i.e., naïve libraries [68] and synthetic libraries [69].
Some researchers immunized camelids with an anti-DNA mouse mAb, which can cause an anti-idiotypic response and activate the humoral immune system, generating VHHs by constructing phage libraries [70]. However, the molecular mimicry approach makes it difficult to obtain syngeneic anti-Ids using anti-idiotypics. Some other studies prepared variable domain fragments of useful, single-domain recombinant antibodies by immunizing llama libraries as an alternative to conventional, monoclonal antibody libraries [71]. Using the immunized alpaca B lymphocytes for VHH libraries, the construction has the unique properties of high titers of intact, single-domain antigen-cognate binders and an ease of affinity. These immunoselected, recombinant nanobody libraries are well expressed. Antigen-binding nanobody (chromobody) technology for the identification and tracking of antigens in living cells is a new and mature tool for the selection and identification of VHH libraries [72,73].

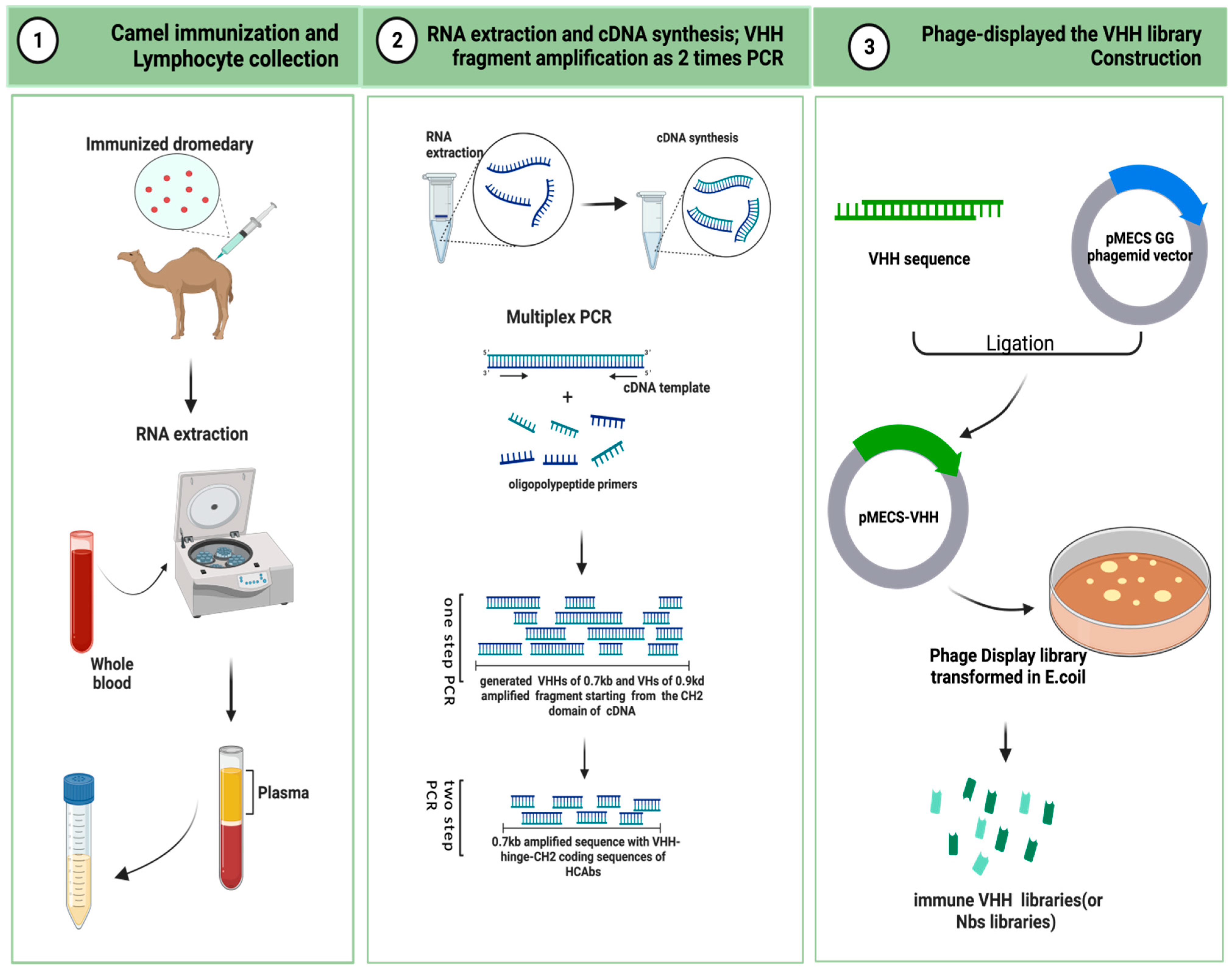

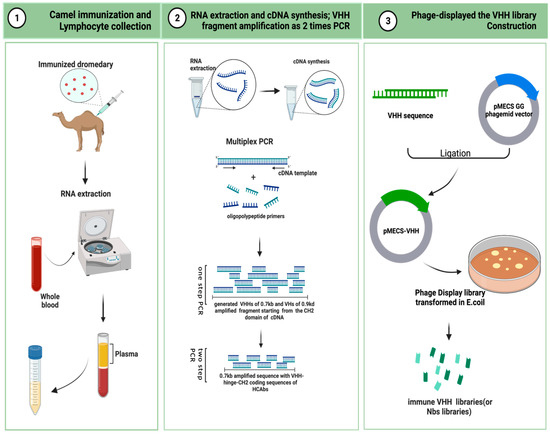

Here, we describe the critical steps in the preparation of an immunized VHH library. As is shown in Figure 2, camels are immunized to obtain a B lymphocyte blood sample in vivo, and the library is then cloned for display on bacteriophage particles in E. coli [74]. A single-domain VHH library with a minimal, fully engineered, antigen-binding fragment from a camelid and strict-monomer state, heavy-chain-only immunoglobulins with high-quality VHH sequences are responsive to specific antigen binding agents and small library sizes (106–108). Furthermore, affinity-matured, immune nanobody repertoires from these high-standard, immunized, in vivo procedures can better reach pre-specified epitopes and adapt to the immunogenicity of humanized antibodies for the preparation of bioengineered sdAbs [66,75].

5.1. Camel Immunization and Lymphocyte Collection

A healthy adult camel was injected with the antigenic protein of a mixed-compound adjuvant once every two weeks, four to eight times in two months. Camels can use less than approximately 200 mg of mixed adjuvant per injection. The anticoagulated blood of 50 mL from an immunized animal were collected after eight injections. B-lymphocytes were isolated from the immunized camel serum for total RNA extraction, and stored at −80 °C for later use. For long-term storage, the samples were placed in liquid nitrogen [76,77].

5.2. RNA Extraction and cDNA Synthesis: VHH Fragment Amplification from Two-Step PCR [78]

The total RNA was extracted from approximately 107 B-lymphocyte apheresis samples for cDNA synthesis. Oligomeric polypeptide primers were designed based on the single-chain variable domain sequences of the Ig antibodies, and PCR amplification was performed to obtain the VHH gene fragments.
The two-step PCR amplification began from the CH2 domain of an IgG cDNA template. It yielded two distinct PCR states of approximately 0.7 kb and 0.9 kd. The 0.7 kb amplification product was derived from the mRNA coding sequence of the variable domain of the homodimer antibody single chain, which required further agarose gel purification. The purified product was used as a template for PCR amplification again, and only the VHH sequence of the HCAb was obtained.

5.3. Phage Display of the VHH Library Construction [76]

The pMECS GG (a pUC-derived bacteriophage with an F1 responsive source and an IPTG-inducible Plac promoter expression) or another suitable phage display vector were used to ligate the gene fragments of the VHHs to the two-step, amplified PCR products to obtain affinity-matured, robust, recombinant VHH repertoires. The VHH gene sequence ligated to the recombinant vector was again purified and then transformed in E. coli TG1 to generate a small library (107 to 108) of high titer of target-specific binders:s the VHH library.

6. Nanobody Applications in Medical Research

6.1. Molecular Diagnostic Potential of Nanobodies

As an important part of modern medicine, molecular imaging can provide precise tracing and reliable information at the cellular or molecular level through radio-labeled antibodies [79]. Tumor molecular imaging promotes the early diagnosis and treatment of tumors, and can effectively detect biomarkers in the tumor microenvironment [80]. However, the molecular lesions of advanced tumors are complex, and conventional molecular imaging cannot detect scattered lesions. As smaller, intact, functional antigen binding agents with a small size (12–15 kDA), nanobodies demonstrate strong tissue penetration and high affinity and stability, revealing treatment pharmacokinetics and pharmacodynamics compatible with short-lived radioisotopes. They are more suitable for tracking advanced tumors [81,82,83].
Nanobody-based, non-invasive molecular imaging techniques have been widely used as cancer cell markers. One such example is 99mTc, a radio-labeled, anti-epidermal growth factor receptor (EGFR) nanobody that can detect EGFR-expressing cancer cells with higher accuracy and visualization [84]. As imaging immune checkpoint tracers for infiltrating macrophage immune diseases, nanobody-based imaging monitoring can identify immune response patterns, predict responses during therapy, and trace the biological processes of immune system activation, thereby improving immunotherapy [85]. More molecular imaging techniques based on nanobody development are shown in Table 1.

6.2. Clinical Trials of Humanized Nanobodies

In the FR characterization of camelid and human family counterparts, the major camelid immunoglobulin, light-chain, lambda variable region (IGLV) families 1 and 3 are 81 to 91% identical to their human counterparts, respectively. Human immunoglobulin heavy-chain variable region (IGHV) families 1 to 3 have FR sequence identities of 92 to 95% compared to camelids, with an overall identity ranging between 61 and 91%. By analyzing the FR framework and canonical CDR structures of the camelid, homodimeric antibody and its human counterparts, the V family gene sequences were matched and a high degree of homology was revealed. Based on highly homologous and remarkable physicochemical properties, camelid nanobodies can effectively deal with the immunogenicity brought by humanization and can provide a variety of clinical, therapeutic antibody transformations [99]. Identifying amino-acid-residue binding sites on the surface of the VHH structure would be help to humanize the nanobodies and further improve their stability, immunity, solubility, and affinity for antigen binding and develop clinical nanobody therapeutic platforms [100].
According to the unique properties of nanobodies, some reports synthesized an anti- human EGFR2 (HER2) nanobody and established animal models. The study testified that the anti-HER2 nanobody showed high, specific tumor uptake but low kidney uptake, demonstrating that anti-HER2 nanobodies have good sensitivity for tumor detection with non-toxicity in a preclinical, validated therapy [101]. Some nanobody-based antibody drugs have been used in preclinical and clinical applications, such as the 68Ga-HER2-nanobody used in Phase 1 of HER2-positive breast carcinoma, which demonstrated obvious efficacy after PET/CT assessment [102]. More clinical trials are available in Table 2.

6.3. Nanobodies as a Tumor Microenvironment

6.3.1. Nanobodies and Cellular Transmembrane Proteins’ EGFR Binding

In cancer therapy, links between nanobodies and cytokines form transmembrane, protein-bound nanobodies or soluble adhesives. Nanobodies are driven from the variable domain of the IgG1 single-heavy-chain-only antibody, and the binding sites on the surface of the variable domain can specifically recognize cognate–antigen [22]. Due to the small size and ease of affinity of the natural, in vivo, multifunctional nanobodies, nanobody-based, conjugated protein molecules are also relatively small and can penetrate the vasculature to reach the target tumor cells, interfering with cell signal transduction and inhibiting tumor cell proliferation [103].

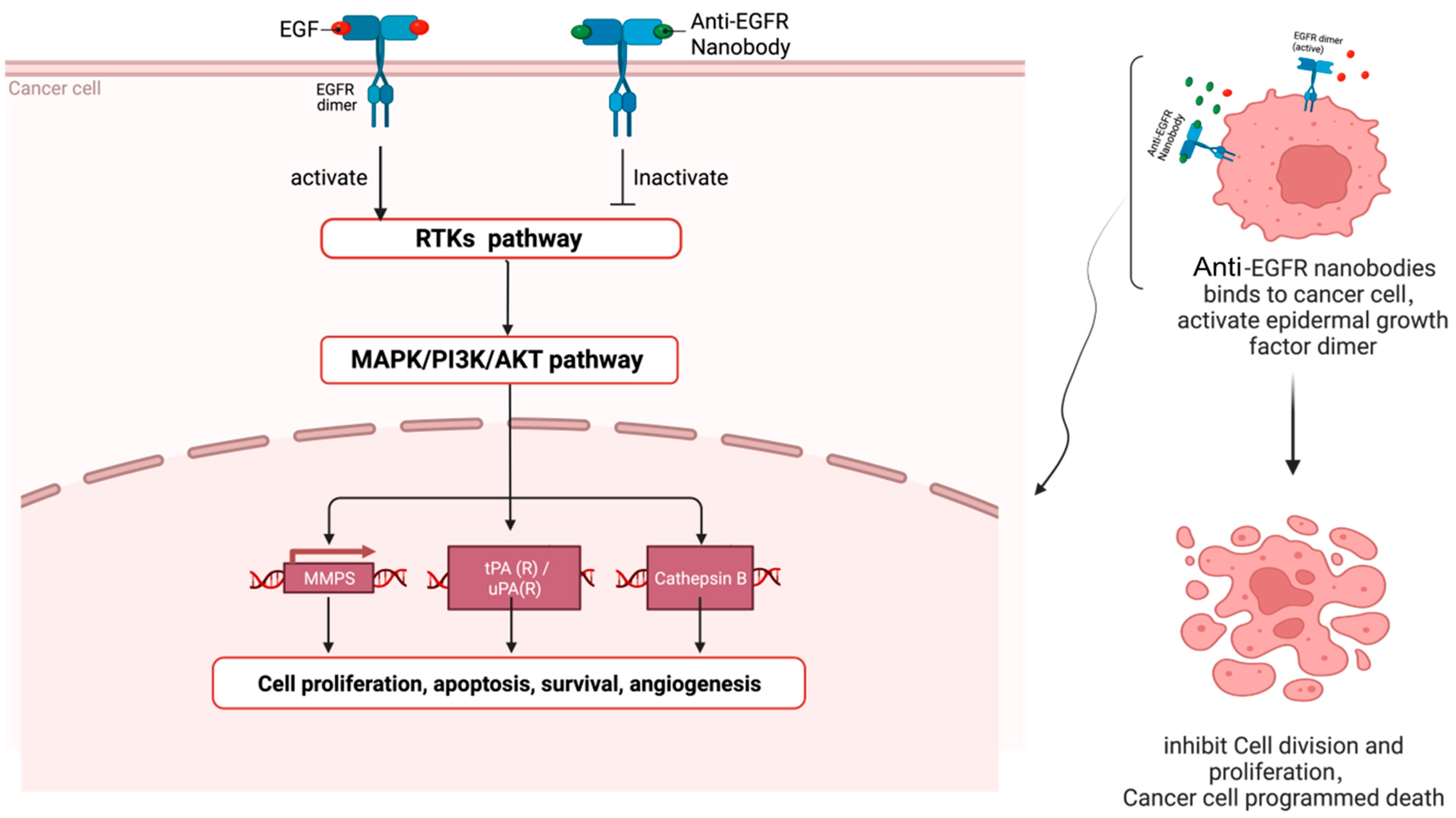

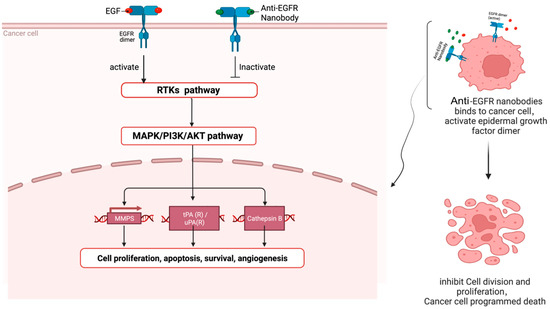

For example, the anti-EGFR nanobody can inhibit tumor cell proliferation by inhibiting the intracellular tyrosine kinase signaling pathway network (Figure 3) [104]. When human epidermal growth factor (EGF) binds to EGFR, EGFR and its relatives, the ERBB family members, have mutations or increased expression, which will trigger a cascade reaction of upstream and downstream signaling pathways in the ERBB signaling pathway, especially the intracellular tyrosine kinase signaling pathway, eventually becoming various malignant tumors [105].
Laeremans’s group produced an anti-EGFR nanobody via the immunization of camels with EGFR-containing cell preparations, the isolation of mRNA from the camel serum and the transcription into cDNA, and separating the variable domain fragments of the camel HCAb by gel electrophoresis, and displaying it in a bacteriophage system [106]. Additionally, bivalent and trivalent specific nanobodies were also synthesized to improve the affinity of the anti-EGFR nanobody. The inhibition of EGF-induced cell proliferation was then conducted in a cell model [107]. The study found that due to their small size (12~15 kDa), the natural “immune” nanobody could easily be formatted after binding to EGF, quickly passed through the blood, and only had a short residence time at the target, which is not suitable for cancer treatment. However, the improved, bivalent, anti-EGFR nanobody used albumin fusion binding to the nanobody unit, resulting in a bifunctional nanobody, exhibited enhanced penetration, stimulated the receptor tyrosine kinase activity, and prohibited the transduction of the EGFR signaling network [108]. Bispecific antibodies can enhance the binding of EGFR and nanobodies, guide the recruitment of T cells to the antibody, and have a stronger therapeutic effect to inhibit tumor cell proliferation. In addition, the renal permeability and in vivo pharmacokinetics of the “immune” nanobodies were also improved [109].

6.3.2. Nanobodies and Extracellular Target CXCR7 Binding

CXC chemokine receptors (CXCRs) 4 and 7 are both members of the seven-transmembrane domain G protein-coupled receptor (GPCR) subfamily that can bind to the extracellular chemokine ligand, CXCL12, and elicit complex immune responses in vitro or in vivo [110]. There is a balance between G-protein- and β-arrestin-mediated signaling pathways; as an agonist, CXCR7 is not coupled to the G protein, and can transmit signals through β-arrestin [111]. The β-arrestin of cytoplasmic adaptor proteins can be driven by the binding of chemokine ligands to the protein molecules’ CXCR7, which promotes the uptake of CXCL12 by the chemokine receptor CXCR7, thereby causing the high expression of CXCR7 receptors and causing the formation and metastasis of tumors. Actually, the overexpression of CXCR7 is related to many tumors from various origins, including the lung, breast, brain, prostate and kidney [112,113,114].

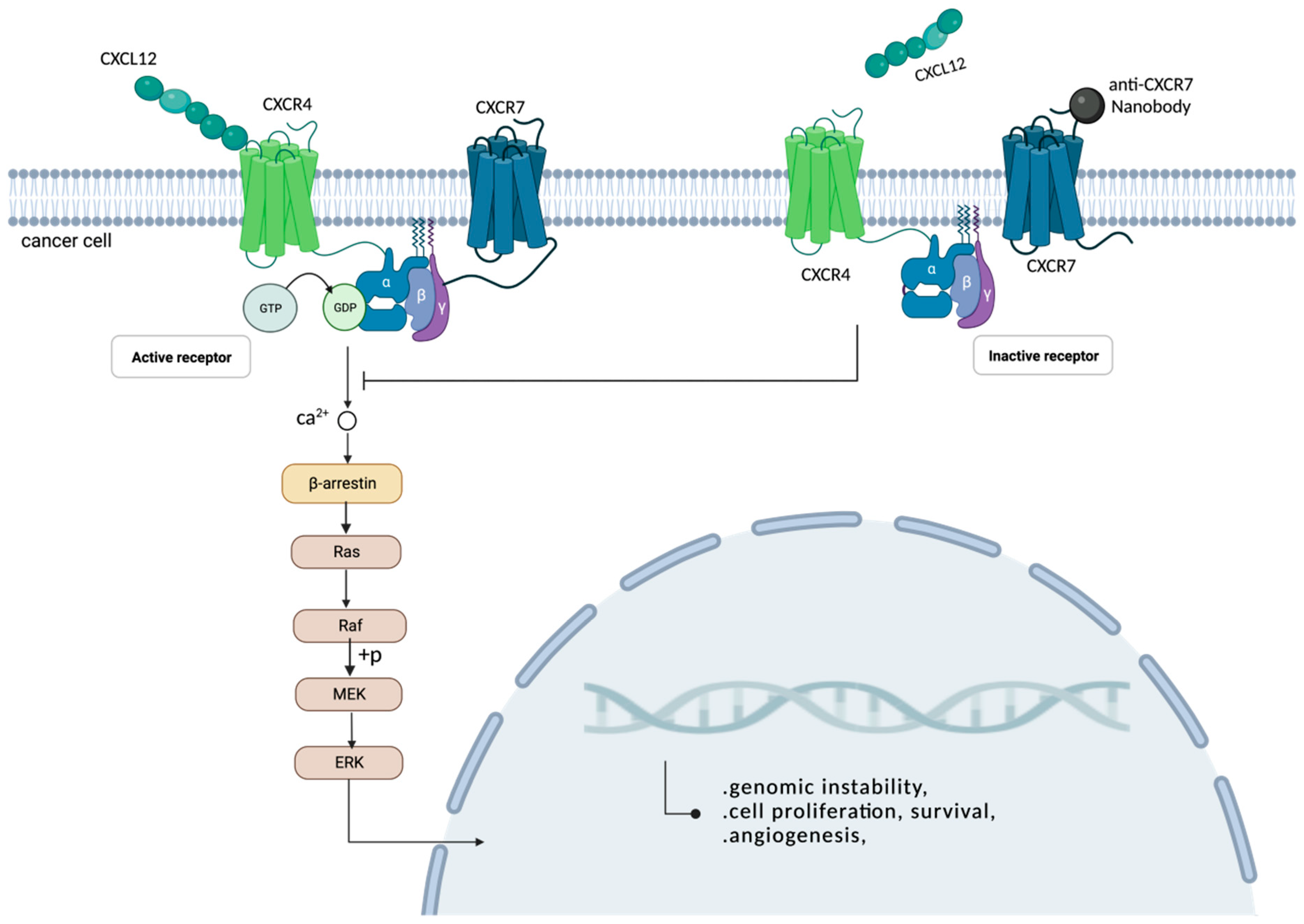

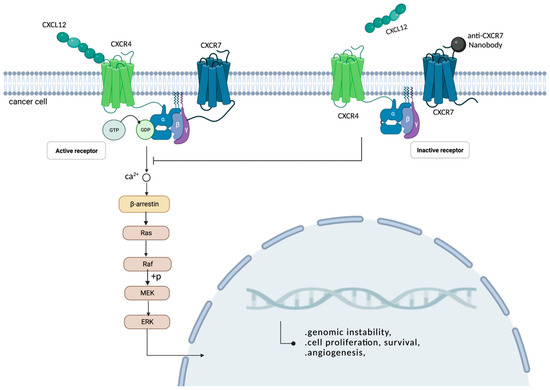

The CXCR7 nanobody, also called the VHH-derived llama immunoglobulin single variable domain, is a small-molecule ligand with a selective microaffinity characteristic that has a significant action in immune diseases and tumor-intervention therapeutics. This VHH-derived nanobody can compete with the ligand CXCL12 to bind the chemokine receptor CXCR7, antagonize the CXCL12 chemoattractant effect and inhibit the CXCR4/7-mediated signaling, hereby inhibiting the proliferation of tumors (Figure 4) [115,116].
Maussang’s team adopted two strategies to immunize llamas to ensure that highly selective nanobody-biologicals were produced that would compete for extracellular-membrane-binding receptors and could correctly target chemokine receptor CXCR7: namely, the CXCR7-targeting nanobody [117]. CXCR7 was expressed in human kidney cells (HEK293), which were then used to immunize llamas, and 78 unique, CXCR7-specific nanobodies were identified from 45 different lineages of B lymphocytes. These B lymphocytes are capable of producing the single-variable region of the naturally occurring, heavy-chain-only camelid immunoglobulin antibody. One or two N-terminal special CXCR7s and one C-terminal special, human-serum-albumin building block were used to construct bivalent and trivalent nanobodies. Finally, two rounds of PCR amplification were used for screening, targeting the CXCR7 nanobodies. Based on this, the research team developed and characterized a highly selective and functional CXCR7-targeting nanobody [117].
Many GPCRs have extremely complex and conserved conformational changes across species [118]. This is not conducive to the production of medical, therapeutic antibodies from the immune library. The nanobody platform, a novel biological tool for effectively handing difficult drug targets, is a class of valuable platform developing antibodies as functional antagonists of GPCR-mediated signaling in tumor therapy and other research applications [119]. A synthetic yeast display library can effectively screen antibody fragments that regulate receptors which are active in vitro and in vivo, paving the way for the drug therapy of GPCRs [120].

7. Conclusions and Prospective Research

The nanobody is the variable domain of heavy-chain-only antibodies, also called the sdAb. Since the discovery of the nanobody, due to its natural advantages, it has attracted the extensive attention of researchers and is considered to have a bright future in many fields, such as biomedicine and bioengineering. There have been many breakthroughs in nanobody research [121,122,123,124]. Compared with traditional antibodies, the nanobody has not only better physiochemical properties, such as a strict monomer state and high stability and solubility, but also has mature, multiplex PCR screening and a phage display technique. Therefore, for small molecules, nanobodies share new possibilities in many biomedical applications, including molecular imaging, clinical antibody drug development, and the use of humanized, tumor-targeting drugs in vitro. We comprehensively summarize the biomolecular structure of the nanobodies and their VHH domain, their major physiochemical properties, immune acquisition and phage library construction, and reviewed some distinctive and interesting research and applications in the medical field. We expect that this review will provide a reference for the further exploration and unveiling of the properties and function of nanobodies, as well as provide a perspective for the development of drugs and therapeutic methods based on nanobodies.
The nanobody present in camel B lymphocytes was obtained after antigen immunization. In addition to the homologous dimer antibody containing the nanobody, there are also a large number of homologous tetramer antibodies in camel serum after immunization. Although phages are a mature, recombinant antibody fragment technology, after two PCR amplifications, VHH libraries with a high stability and high affinity were obtained. However, due to their small size, which resulted in a short blood retention time and low immunogenicity [125], the VHH fragments obtained from the immunized camel serum made it difficult to achieve a subsequent clinical, therapeutic effect of humanized nanobodies. Although numerous studies have broken through this problem and achieved results [126,127], further in-depth research is required on how to make the efficient conversion of a small amount of VHH fragments for the subsequent clinical application of nanobodies.
Nanobodies are the smallest antigen-binding functional fragments, based on a small molecular weight, ease of identification, and the database knowing the VHH gene fragments. At the CDR region site that binds to the ligands of a specific structure, a binding-mutated site was built with loops that is easily varied and flexible. Based on the nanobodies’ physical properties of affinity and stability, the recombinant nanobodies are able to better pass through the blood–brain barrier, meaning that the nanobodies’ biologics can be targeted to the target lesions and achieve clinical, therapeutic effects. Compared with traditional antibodies, it is longer that the CDR3 region of the variable domain of the single, heavy-chain antibody present in camel serum, and substituted amino acid residues have been reported [128]. However, the folded conformation of the rearranged V-D-J fragment is not clear, and the function of the disappearing light-chain in the B-cell stage is also worth investigating.

Author Contributions

Conceptualization, Y.G.; data curation, H.T.; writing—original draft preparation, H.T. and Y.G.; writing—review and editing, J.H. and Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (32060783), Innovation Fund of Gansu Agricultural University (2022B-100) and the Science and Technology Innovation Fund of Gansu Agricultural University (GAU-QDFC-2022-11).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
