Article

A Proteomic Screen to Unravel the Molecular Pathways Associated with Warfarin-Induced or TNAP-Inhibited Arterial Calcification in Rats

by
Britt Opdebeeck
1,
Ellen Neven
1,
Stuart Maudsley
2,
Hanne Leysen
2,
Deborah Walter
2,
Hilde Geryl
1,
Patrick C. D’Haese
1 and
Anja Verhulst
1,*
1
Laboratory of Pathophysiology, Department of Biomedical Sciences, University of Antwerp, 2000 Antwerpen, Belgium
2
Receptor Biology Lab, Department of Biomedical Sciences, University of Antwerp, 2000 Antwerpen, Belgium
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(4), 3657; https://doi.org/10.3390/ijms24043657
Submission received: 21 November 2022 / Revised: 27 January 2023 / Accepted: 9 February 2023 / Published: 11 February 2023
(This article belongs to the Special Issue Soft Tissue Mineralization: Mechanisms, Diseases and Prevention)
Browse Figures
Review Reports Versions Notes

Abstract

:
Arterial media calcification refers to the pathological deposition of calcium phosphate crystals in the arterial wall. This pathology is a common and life-threatening complication in chronic kidney disease, diabetes and osteoporosis patients. Recently, we reported that the use of a TNAP inhibitor, SBI-425, attenuated arterial media calcification in a warfarin rat model. Employing a high-dimensionality unbiased proteomic approach, we also investigated the molecular signaling events associated with blocking arterial calcification through SBI-425 dosing. The remedial actions of SBI-425 were strongly associated with (i) a significant downregulation of inflammatory (acute phase response signaling) and steroid/glucose nuclear receptor signaling (LXR/RXR signaling) pathways and (ii) an upregulation of mitochondrial metabolic pathways (TCA cycle II and Fatty Acid β-oxidation I). Interestingly, we previously demonstrated that uremic toxin-induced arterial calcification contributes to the activation of the acute phase response signaling pathway. Therefore, both studies suggest a strong link between acute phase response signaling and arterial calcification across different conditions. The identification of therapeutic targets in these molecular signaling pathways may pave the way to novel therapies against the development of arterial media calcification.

1. Introduction

The high-dimensionality appreciation of human physiological and pathological mechanisms is continuously improving, leading to an elevation in lifespan throughout the world. Aging-related diseases are now a prominent feature in our society [1,2,3]. Chronic kidney disease (CKD), diabetes mellitus and osteoporosis are three examples of highly prevalent aging-related disorders that demonstrate multiple intertwined gerontological pathomechanisms. Patients afflicted with these conditions unfortunately often die from severe cardiovascular complications, including arterial media calcification, rather than from the primary disease itself [4,5,6]. During arterial media calcification, calcium phosphate crystals (also called hydroxyapatite) precipitate in the medial layer of the arterial vessel wall, thereby promoting arterial stiffness which in turn increases systolic blood pressure and engenders an elevated risk for left ventricular hypertrophy, impaired peripheral blood circulation and myocardial infarction [7]. Arterial media calcification is characterized by (i) a passive precipitation of calcium phosphate mineral and (ii) an active cell-regulated process in which vascular smooth muscle cells (VSMCs) undergo transdifferentiation towards bone-like cells [8]. In addition, the apoptosis of VSMCs is frequently evident during arterial media calcification, leading to the generation of apoptotic bodies which are perfect nidi for calcium phosphate crystal aggregation and growth [9,10]. Furthermore, reductions in calcification inhibitors, with a concomitant upregulation of pro-calcification factors, are often observed in these patients [8].
The anti-coagulant warfarin, when given at a high dosage (four–six times the normal therapeutic dosage employed for anti-coagulation) to rats stimulates a gradual development of calcification in the medial layer of the arterial wall over six weeks [11]. Warfarin blocks vitamin K recycling, leading to less vitamin K-dependent activation of the important calcification inhibitor matrix gla protein (MGP) [12].
Tissue non-specific alkaline phosphatase (TNAP) represents one of the aforementioned pro-calcification factors as it facilitates the hydrolysis of the calcification inhibitor pyrophosphate into inorganic phosphate [13]. Multiple studies have shown that TNAP overexpression in mice leads to overt arterial calcification [14,15,16]. We recently demonstrated that treatment with a tissue non-specific alkaline phosphatase (TNAP) inhibitor SBI-425 significantly inhibited warfarin-induced arterial media calcification in rats [17]. In the present study, using a high-dimensionality unbiased proteomic approach, we investigated the molecular nature of the signaling events associated with blocking arterial calcification through the TNAP inhibitor SBI-425.

2. Results

2.1. Proteome Profile of the Aortic Tissue of SBI-425 versus Vehicle-Treated Animals Exposed to Warfarin

In rats, the decrease in aortic calcification by TNAP inhibition resulted in the differential up- and downregulation of 155 and 159 proteins versus warfarin induced aortic calcification, respectively (see Supplemental Data). Table 1 gives the top 10 most differentially up- and down-regulated proteins in the aortic tissue of SBI-425-treated rats versus vehicle.

2.2. Relative Quantification of Fat Uncoupling Protein 1 in the Aortic Tissue

Western blot analysis of mitochondrial brown fat uncoupling protein 1 (UCP1), the third most up-regulated protein in Table 1, confirmed an increased expression of this protein, although not significant, in the aortic tissue of animals treated with SBI-425 versus vehicle ones. Figure 1 shows the relative quantification of a UCP1 western blot based on total protein normalization.

2.3. Decrease in Aortic Calcification by TNAP Inhibition Associates with Lipid/Glucose Homeostasis and Inflammation Pathways

An IPA-based canonical signaling pathway analysis was performed to link and coherently cluster the differentially expressed proteins to mechanistic signaling pathways. Both the inflammation pathway ‘Acute phase response signaling’ and the lipid/glucose homeostasis regulation pathway ‘LXR/RXR signaling’ were significantly populated, predominantly by downregulated proteins (Figure 2).
Furthermore, the predicted pathway z-score for the acute phase response signaling and LXR/RXR signaling were −0.7 and −2.67, respectively (Supplementary Data). An opposite effect is observed with regard to metabolic pathway regulation through TNAP inhibition (Figure 3).
In the aortic tissue of SBI-425-treated rats, the metabolic pathways ‘TCA cycle II’ and ‘Fatty Acid β-oxidation I’ were populated predominantly by upregulated proteins and in both cases showed positive predicted metabolic pathway z-scores of 3.162 (Supplementary Data). In addition, Figure 4 compares the relative expression profiles of the proteins in our proteome dataset to their effect on the respective pathway. This was carried out for ‘Acute phase response signaling’, ‘LXR/RXR signaling’, ‘TCA cycle II’ and ‘Fatty Acid β-oxidation I’.

2.4. Decrease in Aortic Calcification by TNAP Inhibition Associates with Anti-Hyperglycemic Events

Using the IPA-based Upstream analysis suite, the identification of upstream chemical and protein factors that are responsible for the up- or downregulation of 314 proteins in the SBI-425 proteome was performed. This analysis revealed a strong link between noncalcified SBI-425-treated vessels and (i) the upregulation of insulin-sensitizing proteins (i.e., PPAR signaling, insulin receptor) and (ii) chemical insulin sensitizers (i.e., rosiglitazone and troglitazone) (Figure 5).

3. Discussion

There is a pressing need for high-dimensionality analytical studies investigating novel therapeutic targets to treat arterial media calcification as this pathology significantly contributes to severe cardiovascular complications and increased mortality risk in the elderly and patients with CKD, diabetes and osteoporosis [4,5,6]. For this reason, a quantitative proteomic discovery/screening approach would be helpful to unravel important pathways that are involved in the pathogenic mechanism underlying the disease. In this study, arterial media calcification was induced in rats by exposing them to high warfarin doses, such that the calcification inhibitor matrix gla protein was inactivated [12]. As described in a previous publication, TNAP inhibitor SBI-425 efficiently inhibits the presence of arterial media calcification in these warfarin exposed rats [17]. However, here, we linked mechanistic signaling pathways to 314 differentially expressed proteins in the noncalcified aortic tissue of SBI-425-treated rats exposed to warfarin. A decrease in the inflammation pathway ‘Acute phase response signaling’ and the lipid/glucose homeostasis pathway ‘LXR/RXR signaling’ and an increase in the metabolic mitochondrial pathways ‘TCA cycle II’ and ‘Fatty Acid β-oxidation I’ was found. Interestingly, in line with these results, we reported that protein-bound uremic toxins indoxyl sulfate and p-cresyl sulfate induce arterial media calcification in CKD rats through the induction of the ‘Acute phase response signaling’ pathway [18]. Additionally, consistent with our results, Takehito Okui et al., using tandem mass tagging (TMT) proteomics, identified a role for fatty acid oxidation and mitochondrial TCA cycle pathways in calcified primary human coronary artery smooth muscle cells [19]. Vascular calcification in mice with the premature aging disorder (Hutchinson–Gilford progeria syndrome) is linked to VSMC mitochondrial dysfunction as a result of TNAP overexpression [20]. Moreover, Hsu J.J. et al. showed that LXR beta agonist-mediated VSMC calcification was attenuated by levamisol, a TNAP inhibitor [21], which is in agreement with our proteomic screen. Therefore, TNAP inhibitor SBI-425 treatment might inhibit aortic calcification in our rats by enhancing mitochondrial function and blocking the lipid homeostasis regulator LXR beta.
Furthermore, the thermogenesis-regulating protein UCP1 was the thirdly most upregulated protein in the aortic proteome of SBI-425-treated rats. A similar trend, although not significant, was found through selective UCP1 western blotting. The research group of Spiegelman et al. showed that bona fide VSMCs can convert into UCP1/PPARG-positive adipocyte-like cells via the overexpression of PRDM16 protein (coregulatory protein controlling brown adipocyte differentiation) and exposure to an adipogenic cocktail (insulin, rosiglitazone and triiodothyronine) [22]. In addition, the proteins UCP1, FABP4, PLIN4, SLC27A1, SIRT2 and COX7A2 were significantly upregulated in non-calcified/SBI-425-treated aortic tissues (see (differential expressed proteins) DEP list in Supplemental Data), and all of these are markers of adipose tissue [23]. Moreover, physical exercise is linked to regulating thermogenesis in brown adipocyte tissue [24]. Interestingly, several studies have shown a correlation between high-intensity/-volume exercise and arterial calcification [25]. Additionally, (i) marathon runners experience NLRP3 inflammasome-related vascular inflammation [26], in which UCP1 expression may play a role [27], and (ii) a strong correlation between the upregulation of acute phase proteins and performing world-class/Olympic sports has been found [28]. These findings may contribute to a potential explanation for a higher prevalence of arterial calcification in elite athletes. This is in line with the present study, which links arterial media calcification to an up- and downregulation of the acute phase response pathway and thermogenesis, respectively.
Furthermore, curated chemical and genomic/proteomic perturbagen matching analysis—predicting upstream regulators that could be responsible for the observed changes in the arterial proteins linked to SBI-425-induced signaling pathways—provided strong evidence for insulin-sensitizing protein regulators (PPAR signaling, insulin receptor signaling). Interestingly, we previously reported that the induction of CKD related arterial media calcification by protein-bound uremic toxins is correlated with increased glucose levels and insulin resistance [18]. Taken together, these results suggest that the thermogenesis regulator PPAR gamma and insulin receptor signaling activate the mitochondrial pathway ‘TCA cycle II’ and the metabolic pathway ‘Fatty Acid β-oxidation I’ in the noncalcified aortic tissue of SBI-425-treated rats.
While demonstrating nuanced and relevant details concerning the therapeutic effects of SBI-425, our study of course possesses certain limitations: (i) we cannot exclude whether the up/downregulation of the different pathways in the aortic tissue is directly attributed to SBI-425 treatment or rather due to the elimination of calcification, and (ii) this proteomic screening approach must be seen as a foundation for finding novel mechanisms (e.g., thermogenesis) in the arterial calcification process, bearing in mind that the further validation of potential agonists/antagonists of these pathways to provoke/inhibit arterial media calcification is necessary. Next to this, given the characteristics of the warfarin rat model, which only develops media calcifications, we only focused on this type of arterial calcification. It is well-known, however, that atherosclerotic plaque (intima) calcification is also often present in ageing diseases (i.e., CKD and diabetes). Since studies have reported an association between calcified plaques and an improved event-free survival due to plaque stabilization [29], it would be of value to validate the agonists/antagonists of the above-mentioned pathways in animal models developing either only intima or both intima and media arterial calcification.
In conclusion, the inhibition of arterial media calcification by TNAP inhibitor SBI-425 resulted into a downregulation of inflammation and lipid/glucose homeostasis pathways while favoring mitochondrial pathways, which could be linked to promoting thermogenesis.

4. Materials and Methods

4.1. Animal Experimentation

All animal experiments were performed in accordance with the National Institute of Health’s Guide for the Care and Use of Laboratory Animals 85-23 (1996) and approved by the University of Antwerp Ethics Committee (Permit number: 2017-05). Animals were housed two per cage, exposed to 12-h light/dark cycles and had free access to food and water. To induce vascular calcification, 20 male Wistar rats (200-250g, Iffa Credo, Belgium) were administered a warfarin-containing diet (0.30% warfarin and 0.15% vitamin K1 to prevent lethal bleeding) (synthetic diet from SSNIFF Spezialdiäten, Soest, Germany) for the entire study period and were subjected to the following treatments: (i) vehicle (n = 10) or (ii) 10 mg/kg/day SBI-425 (TNAP inhibitor) (n = 10). SBI-425 was provided by J.L. Millán and synthesized at the Prebys Center for Drug Discovery, Sanford Burnham Prebys Medical Discovery Institute (La Jolla, CA, USA). Vehicle and SBI-425 were administered daily via an i.p. catheter (rounded polyurethane catheter ROPAC-3.5PR, Access technologies, Skokie, IL, USA) from the start of warfarin exposure until the end of the study at week 7, as described in [17]. SBI-425 was dissolved in 1% ethanol, 0.3% sodium hydroxide and 98.97% dextrose (5% dissolved in PBS). Vehicle treatment consisted of the solvent without the addition of SBI-425. To collect aortic tissue for proteomic evaluation, rats were sacrificed by exsanguination via the retro-orbital plexus after anesthesia with 80 mg/kg ketamine (Pfizer, Puurs, Belgium) and 10 mg/kg xylazine (Bayer Animal Health, Monheim, Germany) via intraperitoneal injection.

4.2. Mass Spectrometry and Quantitative Proteomics of Aortic Samples

An unbiased quantitative proteomic approach using iTRAQ (isobaric mass-tag labeling for relative and absolute quantitation) labeling and mass spectrometry (MS) was applied to simultaneously identify and quantify the proteins that are differentially up- or downregulated in aortic samples of SBI-425 versus vehicle -exposed CKD animals. Hereto, the distal part of the abdominal aorta (from gonadal arteries to iliac split) was used. For each group, a selection of four distal abdominal aortas was performed based on the calcium scores found in the proximal part of the same abdominal aorta (from diaphragm to gonadal arteries). Samples with the highest calcium score were chosen from the vehicle group, while those with the lowest calcium score were chosen from the SBI-425 group. The aorta samples were ground completely in the protein extraction buffer (8 M urea, 2 M thiourea, 0.1% SDS in 50 mM triethylammonium bicarbonate solution). The concentrations of the proteins extracted from the aorta were quantified using the RCDC kit (Bio-Rad, Hercules, CA, USA). Equal amounts of proteins from each sample were reduced and alkylated by tris-2-carboxyethyl phosphine and 5-methyl-methanoethiosulphate before trypsin digestion, respectively. The resulting peptides from each sample were labelled using iTRAQ reagents (Sciex, Framingham, MA, USA) following the manufacturer’s instructions. To improve LC-MS/MS proteome coverage, samples were subjected to a 2D-LC fractionation system (Dionex ULTIMATE 3000, ThermoScientific, Waltham, MA, USA). The mixed peptides were first fractionated on a strong cationic exchange chromatography polysulfoethyl aspartamide column (1 mm × 150 mm, (Dionex)) and secondly separated on a nano-LC C18 column (200 Å, 2 μm, 75 μm × 25 cm (Dionex)). The nano-LC was coupled online to a QExactive™-Plus Orbitrap (ThermoScientific) mass spectrometer. The nano-LC eluents were infused to the Orbitrap mass-spectrometer with a capillary at 1.7 KV on a nano-ESI source at a flow rate of 300 nl/min. Data-dependent acquisition in positive ion mode was performed for a selected mass range of 350–1800 m/z at MS1 level (140,000 resolution) and MS2 level (17,500 resolution). The raw data were analyzed by Proteome Discoverer 2.0 Software (ThermoScientific) using Sequest HT as a search engine against the human UniProt/SwissProt database with a threshold of confidence above 99% (false discovery rate less than 1%). The list of identified proteins, containing iTRAQ ratios of expression levels over control samples, was generated.

4.3. Bioinformatic Analyses

Proteins identified according to the statistical MS cut-offs described previously were then subsequently used for further bioinformatics analyses [11,18]. To identify the significantly altered proteins, i.e., proteins differentially expressed due to SBI-425 treatment compared to vehicle exposure, raw iTRAQ ratios (SBI-425:vehicle) were first log2 transformed. Following log2 ratio transformation, differentially expressed protein (DEP) lists were created by identifying only proteins that possessed log2-transformed iTRAQ ratios two standard deviations (p < 0.05) from the calculated mean background expression variation level. Significant DEP lists (comprising proteins elevated or reduced in their expression in response to SBI-425) were then employed for further bioinformatics deconvolution using diverse informatics platforms including Ingenuity Pathway Analysis (Canonical Signaling Pathway and Upstream Regulator applications; https://www.qiagenbioinformatics.com/products/ingenuity-pathway-analysis/ (accessed on 15 September 2022)), GeneIndexer ([30,31]; https://geneindexer.com/ (accessed on 15 September 2022)), WebGestalt [32] and VennPlex ([33]; https://www.irp.nia.nih.gov/bioinformatics/vennplex.html (accessed on 15 September 2022)).

4.4. Western Blot

Protein was isolated from equivalent aorta samples used for mass spectrometry and quantitative proteomics. The aorta samples were ground and incubated on ice in RIPA buffer complemented with phospho- and protease inhibitors for one hour. The concentrations of proteins extracted from the aorta were quantified using the Pierce BCA protein assay (Thermofisher Scientific, Horsham, UK). Equal amounts of proteins (12 µg) from each sample were incubated for 5 min at 95 °C with sample buffer including Laemmli buffer (Bio-Rad Laboratories, Temse, Belgium) and 2.5% β-mercaptoethanol for the denaturation of proteins. Subsequently, proteins were separated by gel-electrophoresis on a 12% Mini-PROTEAN TGC Stain-Free Precast Gel (Bio-Rad Laboratories) at 200 V. Proteins were transferred to a PVDF membrane at 100V for one hour. The membrane was blocked with 5% bovine serum albumin (BSA) in Tris-buffered saline with 0.1% Tween 20 (TSBT) buffer for 1 h. To study the aortic protein expression of uncoupling protein 1 (UCP1), PVDF membrane was incubated overnight at 4 °C with UCP1 primary antibody (dilution 1:1000, Thermofisher Scientific, #PA1-24894, Horsham, UK). Furthermore, the membrane was washed multiple times with TBST and incubated for 1 h at room temperature with horseradish peroxidase (HRP)-conjugated secondary swine anti-rabbit (dilution 1:4000, Dako, P0399, Glostrup, Denmark). StrepTactin-HRP conjugate (dilution 1:10 000) was also added to visualize the unstained protein ladder (Precision Plus Protein unstained standards, Bio-Rad Laboratories, Temse, Belgium). A 5% BSA-TBST solution was used to dilute all antibodies. The membrane was washed multiple times with TBST, and proteins were detected via a Clarity Western enhanced chemiluminescent (ECL) substrate kit (Bio-Rad Laboratories). Relative protein quantification was performed through total lane protein normalization in Image Lab (Bio-rad, https://www.bio-rad.com/en-be/applications-technologies/total-protein-normalization?ID=PODYJQRT8IG9 (accessed on 15 September 2022)).

4.5. Statistical Analysis

Statistical comparisons were made by non-parametric testing (GraphPad Prism 9, Graphpad Software Inc., San Diego, CA, USA). To investigate the statistical difference between both groups, a Mann–Whitney U test was applied. A p-value < 0.05 was considered significant.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24043657/s1.

Author Contributions

B.O.: Conceptualization, methodology, investigation, data curation and writing—original draft preparation. E.N.: Conceptualization, methodology and investigation. S.M.: Methodology, data curation and writing—reviewing and editing. H.L.: Methodology. D.W.: Methodology. H.G.: Methodology. P.C.D.: Writing—reviewing and editing. A.V.: Conceptualization and writing—reviewing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fund for Scientific Research-Flanders (FWO), grant number 12Z0422N, and The APC was funded by the Laboratory of Pathophysiology.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Ethics Committee of University of Antwerp (protocol code: 2017-05 and date of approval: 23 February 2017).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data that support findings of this study are available upon request from the authors.

Acknowledgments

Neven E. was a postdoctoral fellow of the Fund for Scientific Research-Flanders (FWO). Opdebeeck B. is a fellow of the FWO. We especially thank Geert Dams, Hilde Geryl, Ludwig Lamberts, Rita Marynissen and Simonne Dauwe for their excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bakula, D.; Aliper, A.M.; Mamoshina, P.; Petr, M.A.; Teklu, A.; Baur, J.A.; Campisi, J.; Ewald, C.Y.; Georgievskaya, A.; Gladyshev, V.N.; et al. Aging and drug discovery. Aging 2018, 10, 3079–3088. [Google Scholar] [CrossRef] [PubMed]
  2. Montero-Odasso, M.; van der Velde, N.; Alexander, N.B.; Becker, C.; Blain, H.; Camicioli, R.; Close, J.; Duan, L.; Duque, G.; Ganz, D.A.; et al. New horizons in falls prevention and management for older adults: A global initiative. Age Ageing 2021, 50, 1499–1507. [Google Scholar] [CrossRef] [PubMed]
  3. van Gastel, J.; Leysen, H.; Boddaert, J.; Vangenechten, L.; Luttrell, L.M.; Martin, B.; Maudsley, S. Aging-related modifications to G protein-coupled receptor signaling diversity. Pharmacol. Ther. 2021, 223, 107793. [Google Scholar] [CrossRef]
  4. Cho, I.J.; Chang, H.J.; Park, H.B.; Heo, R.; Shin, S.; Shim, C.Y.; Hong, G.R.; Chung, N. Aortic calcification is associated with arterial stiffening, left ventricular hypertrophy, and diastolic dysfunction in elderly male patients with hypertension. J. Hypertens. 2015, 33, 1633–1641. [Google Scholar] [CrossRef]
  5. Mizobuchi, M.; Towler, D.; Slatopolsky, E. Vascular calcification: The killer of patients with chronic kidney disease. J. Am. Soc. Nephrol. JASN 2009, 20, 1453–1464. [Google Scholar] [CrossRef]
  6. Tölle, M.; Reshetnik, A.; Schuchardt, M.; Höhne, M.; van der Giet, M. Arteriosclerosis and vascular calcification: Causes, clinical assessment and therapy. Eur. J. Clin. Investig. 2015, 45, 976–985. [Google Scholar] [CrossRef]
  7. Van den Bergh, G.; Opdebeeck, B.; D’Haese, P.C.; Verhulst, A. The Vicious Cycle of Arterial Stiffness and Arterial Media Calcification. Trends. Mol. Med. 2019, 25, 1133–1146. [Google Scholar] [CrossRef] [PubMed]
  8. Neven, E.; De Schutter, T.M.; De Broe, M.E.; D’Haese, P.C. Cell biological and physicochemical aspects of arterial calcification. Kidney Int. 2011, 79, 1166–1177. [Google Scholar] [CrossRef]
  9. Proudfoot, D.; Skepper, J.N.; Hegyi, L.; Bennett, M.R.; Shanahan, C.M.; Weissberg, P.L. Apoptosis regulates human vascular calcification in vitro: Evidence for initiation of vascular calcification by apoptotic bodies. Circ. Res. 2000, 87, 1055–1062. [Google Scholar] [CrossRef] [PubMed]
  10. Shroff, R.C.; McNair, R.; Figg, N.; Skepper, J.N.; Schurgers, L.; Gupta, A.; Hiorns, M.; Donald, A.E.; Deanfield, J.; Rees, L.; et al. Dialysis accelerates medial vascular calcification in part by triggering smooth muscle cell apoptosis. Circulation 2008, 118, 1748–1757. [Google Scholar] [CrossRef] [Green Version]
  11. De Maré, A.; Maudsley, S.; Azmi, A.; Hendrickx, J.O.; Opdebeeck, B.; Neven, E.; D’Haese, P.C.; Verhulst, A. Sclerostin as Regulatory Molecule in Vascular Media Calcification and the Bone-Vascular Axis. Toxins 2019, 11, 428. [Google Scholar] [CrossRef] [PubMed]
  12. Price, P.A.; Faus, S.A.; Williamson, M.K. Warfarin causes rapid calcification of the elastic lamellae in rat arteries and heart valves. Arterioscler. Thromb. Vasc. Biol. 1998, 18, 1400–1407. [Google Scholar] [CrossRef] [PubMed]
  13. Villa-Bellosta, R.; Wang, X.; Millán, J.L.; Dubyak, G.R.; O’Neill, W.C. Extracellular pyrophosphate metabolism and calcification in vascular smooth muscle. Am. J. Physiol. Heart Circ. Physiol. 2011, 301, H61–H68. [Google Scholar] [CrossRef]
  14. Romanelli, F.; Corbo, A.; Salehi, M.; Yadav, M.C.; Salman, S.; Petrosian, D.; Rashidbaigi, O.J.; Chait, J.; Kuruvilla, J.; Plummer, M.; et al. Overexpression of tissue-nonspecific alkaline phosphatase (TNAP) in endothelial cells accelerates coronary artery disease in a mouse model of familial hypercholesterolemia. PLoS ONE 2017, 12, e0186426. [Google Scholar] [CrossRef]
  15. Savinov, A.Y.; Salehi, M.; Yadav, M.C.; Radichev, I.; Millán, J.L.; Savinova, O.V. Transgenic Overexpression of Tissue-Nonspecific Alkaline Phosphatase (TNAP) in Vascular Endothelium Results in Generalized Arterial Calcification. J. Am. Heart Assoc. 2015, 4, e002499. [Google Scholar] [CrossRef] [PubMed]
  16. Sheen, C.R.; Kuss, P.; Narisawa, S.; Yadav, M.C.; Nigro, J.; Wang, W.; Chhea, T.N.; Sergienko, E.A.; Kapoor, K.; Jackson, M.R.; et al. Pathophysiological role of vascular smooth muscle alkaline phosphatase in medial artery calcification. J. Bone Miner. Res. Off. J. Am. Soc. Bone Miner. Res. 2015, 30, 824–836. [Google Scholar] [CrossRef]
  17. Opdebeeck, B.; Neven, E.; Millán, J.L.; Pinkerton, A.B.; D’Haese, P.C.; Verhulst, A. Pharmacological TNAP inhibition efficiently inhibits arterial media calcification in a warfarin rat model but deserves careful consideration of potential physiological bone formation/mineralization impairment. Bone 2020, 137, 115392. [Google Scholar] [CrossRef]
  18. Opdebeeck, B.; Maudsley, S.; Azmi, A.; De Maré, A.; De Leger, W.; Meijers, B.; Verhulst, A.; Evenepoel, P.; D’Haese, P.C.; Neven, E. Indoxyl Sulfate and p-Cresyl Sulfate Promote Vascular Calcification and Associate with Glucose Intolerance. J. Am. Soc. Nephrol. JASN 2019, 30, 751–766. [Google Scholar] [CrossRef]
  19. Okui, T.; Iwashita, M.; Rogers, M.A.; Halu, A.; Atkins, S.K.; Kuraoka, S.; Abdelhamid, I.; Higashi, H.; Ramsaroop, A.; Aikawa, M.; et al. CROT (Carnitine O-Octanoyltransferase) Is a Novel Contributing Factor in Vascular Calcification via Promoting Fatty Acid Metabolism and Mitochondrial Dysfunction. Arterioscler. Thromb. Vasc. Biol. 2021, 41, 755–768. [Google Scholar] [CrossRef]
  20. Villa-Bellosta, R.; Rivera-Torres, J.; Osorio, F.G.; Acín-Pérez, R.; Enriquez, J.A.; López-Otín, C.; Andrés, V. Defective extracellular pyrophosphate metabolism promotes vascular calcification in a mouse model of Hutchinson-Gilford progeria syndrome that is ameliorated on pyrophosphate treatment. Circulation 2013, 127, 2442–2451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Hsu, J.J.; Lu, J.; Huang, M.S.; Geng, Y.; Sage, A.P.; Bradley, M.N.; Tontonoz, P.; Demer, L.L.; Tintut, Y. T0901317, an LXR agonist, augments PKA-induced vascular cell calcification. FEBS Lett. 2009, 583, 1344–1348. [Google Scholar] [CrossRef]
  22. Long, J.Z.; Svensson, K.J.; Tsai, L.; Zeng, X.; Roh, H.C.; Kong, X.; Rao, R.R.; Lou, J.; Lokurkar, I.; Baur, W.; et al. A smooth muscle-like origin for beige adipocytes. Cell Metab. 2014, 19, 810–820. [Google Scholar] [CrossRef] [PubMed]
  23. Pilkington, A.C.; Paz, H.A.; Wankhade, U.D. Beige Adipose Tissue Identification and Marker Specificity-Overview. Front. Endocrinol. 2021, 12, 599134. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, Y.; Qi, Z.; Ding, S. Exercise-Induced Adipose Tissue Thermogenesis and Browning: How to Explain the Conflicting Findings? Int. J. Mol. Sci. 2022, 23, 13142. [Google Scholar] [CrossRef]
  25. Aengevaeren, V.L.; Mosterd, A.; Sharma, S.; Prakken, N.H.J.; Möhlenkamp, S.; Thompson, P.D.; Velthuis, B.K.; Eijsvogels, T.M.H. Exercise and Coronary Atherosclerosis: Observations, Explanations, Relevance, and Clinical Management. Circulation 2020, 141, 1338–1350. [Google Scholar] [CrossRef]
  26. Kogel, A.; Fikenzer, S.; Uhlmann, L.; Opitz, L.; Kneuer, J.M.; Haeusler, K.G.; Endres, M.; Kratzsch, J.; Schwarz, V.; Werner, C.; et al. Extracellular Inflammasome Particles Are Released After Marathon Running and Induce Proinflammatory Effects in Endothelial Cells. Front. Physiol. 2022, 13, 866938. [Google Scholar] [CrossRef]
  27. Gu, P.; Hui, X.; Zheng, Q.; Gao, Y.; Jin, L.; Jiang, W.; Zhou, C.; Liu, T.; Huang, Y.; Liu, Q.; et al. Mitochondrial uncoupling protein 1 antagonizes atherosclerosis by blocking NLRP3 inflammasome-dependent interleukin-1β production. Sci. Adv. 2021, 7, eabl4024. [Google Scholar] [CrossRef] [PubMed]
  28. Bassini, A.; Sartoretto, S.; Jurisica, L.; Magno-França, A.; Anderson, L.; Pearson, T.; Razavi, M.; Chandran, V.; Martin, L., 3rd; Jurisica, I.; et al. Sportomics method to assess acute phase proteins in Olympic level athletes using dried blood spots and multiplex assay. Sci. Rep. 2022, 12, 19824. [Google Scholar] [CrossRef]
  29. Hou, Z.H.; Lu, B.; Gao, Y.; Jiang, S.L.; Wang, Y.; Li, W.; Budoff, M.J. Prognostic value of coronary CT angiography and calcium score for major adverse cardiac events in outpatients. JACC. Cardiovasc. Imaging 2012, 5, 990–999. [Google Scholar] [CrossRef]
  30. Roy, S.; Heinrich, K.; Phan, V.; Berry, M.W.; Homayouni, R. Latent Semantic Indexing of PubMed abstracts for identification of transcription factor candidates from microarray derived gene sets. BMC Bioinform. 2011, 12 (Suppl. 10), S19. [Google Scholar] [CrossRef] [Green Version]
  31. Chadwick, W.; Martin, B.; Chapter, M.C.; Park, S.S.; Wang, L.; Daimon, C.M.; Brenneman, R.; Maudsley, S. GIT2 acts as a potential keystone protein in functional hypothalamic networks associated with age-related phenotypic changes in rats. PLoS ONE 2012, 7, e36975. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, J.; Duncan, D.; Shi, Z.; Zhang, B. WEB-based GEne SeT AnaLysis Toolkit (WebGestalt): Update 2013. Nucleic Acids Res. 2013, 41, W77–W83. [Google Scholar] [CrossRef] [PubMed]
  33. Cai, H.; Chen, H.; Yi, T.; Daimon, C.M.; Boyle, J.P.; Peers, C.; Maudsley, S.; Martin, B. VennPlex—A novel Venn diagram program for comparing and visualizing datasets with differentially regulated datapoints. PLoS ONE 2013, 8, e53388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 24 03657 g001 550

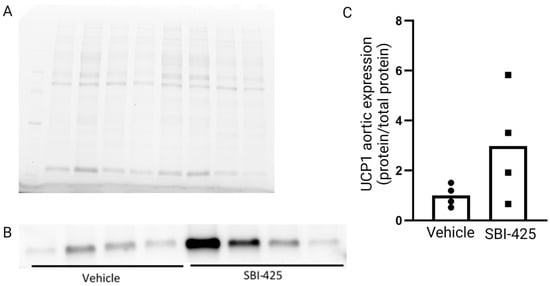

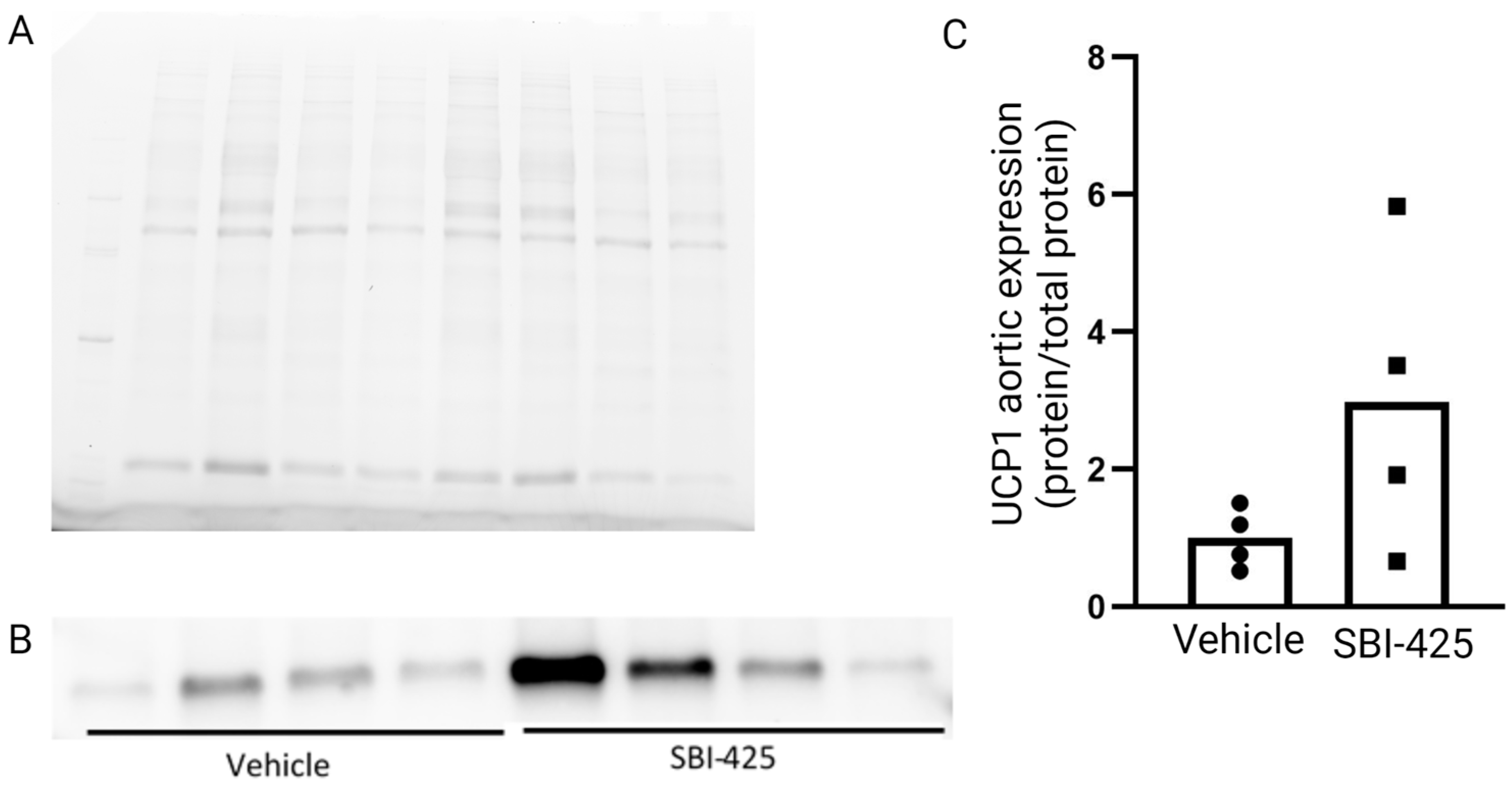

Figure 1. Relative quantification of UCP1 protein expression in the aortic tissue by western blotting. (A) Total lane protein quantification, (B) expression of UCP1 by western blotting and (C) relative quantification of UCP1, based on total lane protein normalization, in vehicle- and SBI-425-treated aortic tissues. Data presented as individual values (dots) and mean (histograms).
Figure 1. Relative quantification of UCP1 protein expression in the aortic tissue by western blotting. (A) Total lane protein quantification, (B) expression of UCP1 by western blotting and (C) relative quantification of UCP1, based on total lane protein normalization, in vehicle- and SBI-425-treated aortic tissues. Data presented as individual values (dots) and mean (histograms).
Ijms 24 03657 g001
Ijms 24 03657 g002 550

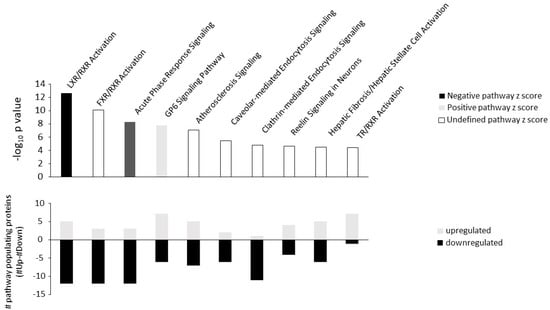

Figure 2. Signaling pathway analysis of the aortic tissue of SBI-425-treated rats versus vehicle. Ingenuity pathway analysis shows the amount of upregulated (grey bars) or downregulated (black bars) proteins in each signaling pathway.
Figure 2. Signaling pathway analysis of the aortic tissue of SBI-425-treated rats versus vehicle. Ingenuity pathway analysis shows the amount of upregulated (grey bars) or downregulated (black bars) proteins in each signaling pathway.
Ijms 24 03657 g002
Ijms 24 03657 g003 550

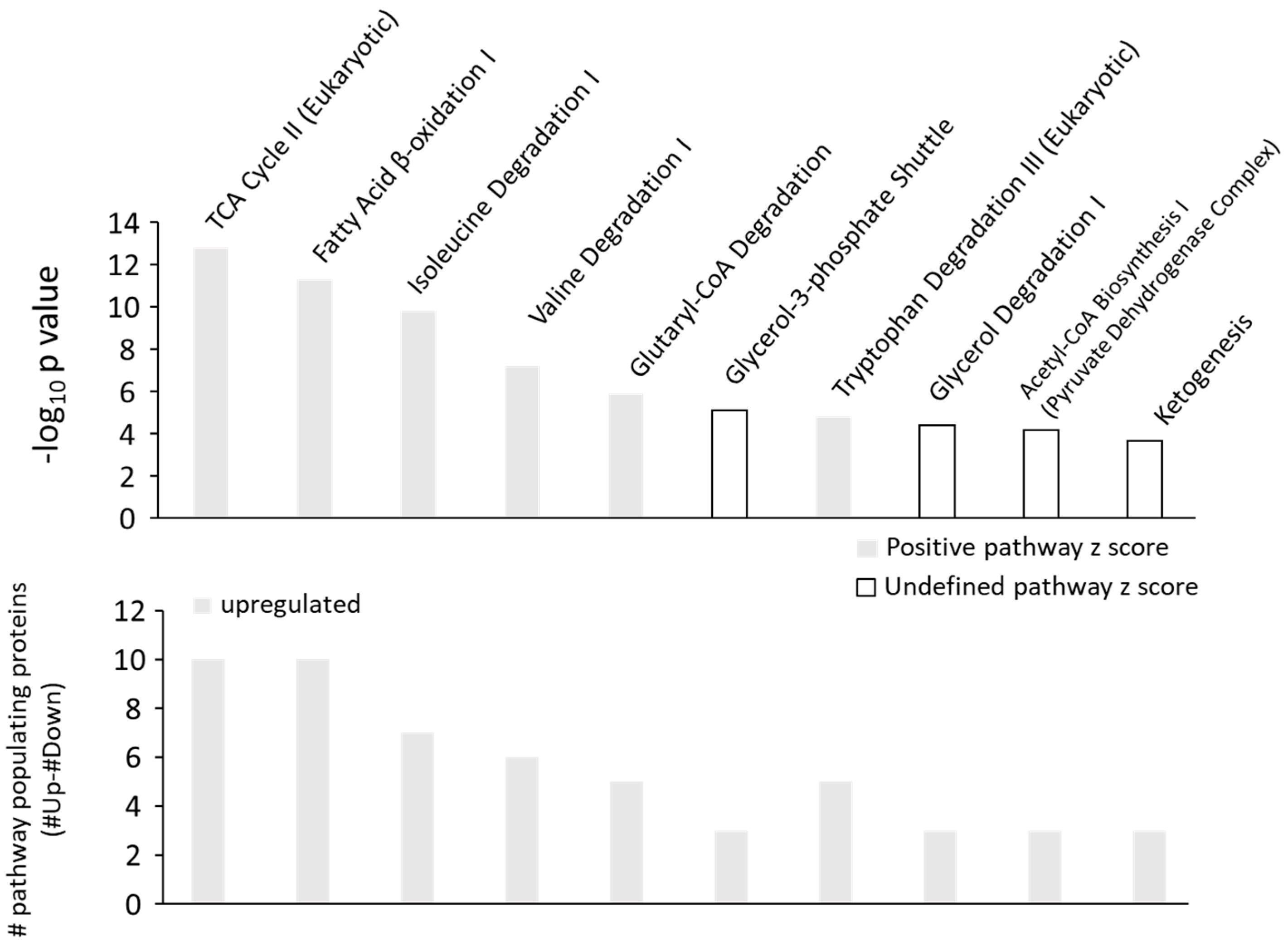

Figure 3. Metabolic pathway analysis of the aortic tissue of SBI-425-treated rats versus vehicle. Ingenuity pathway analysis shows the amount of upregulated (grey bars) proteins in each metabolic pathway.
Figure 3. Metabolic pathway analysis of the aortic tissue of SBI-425-treated rats versus vehicle. Ingenuity pathway analysis shows the amount of upregulated (grey bars) proteins in each metabolic pathway.
Ijms 24 03657 g003
Ijms 24 03657 g004 550

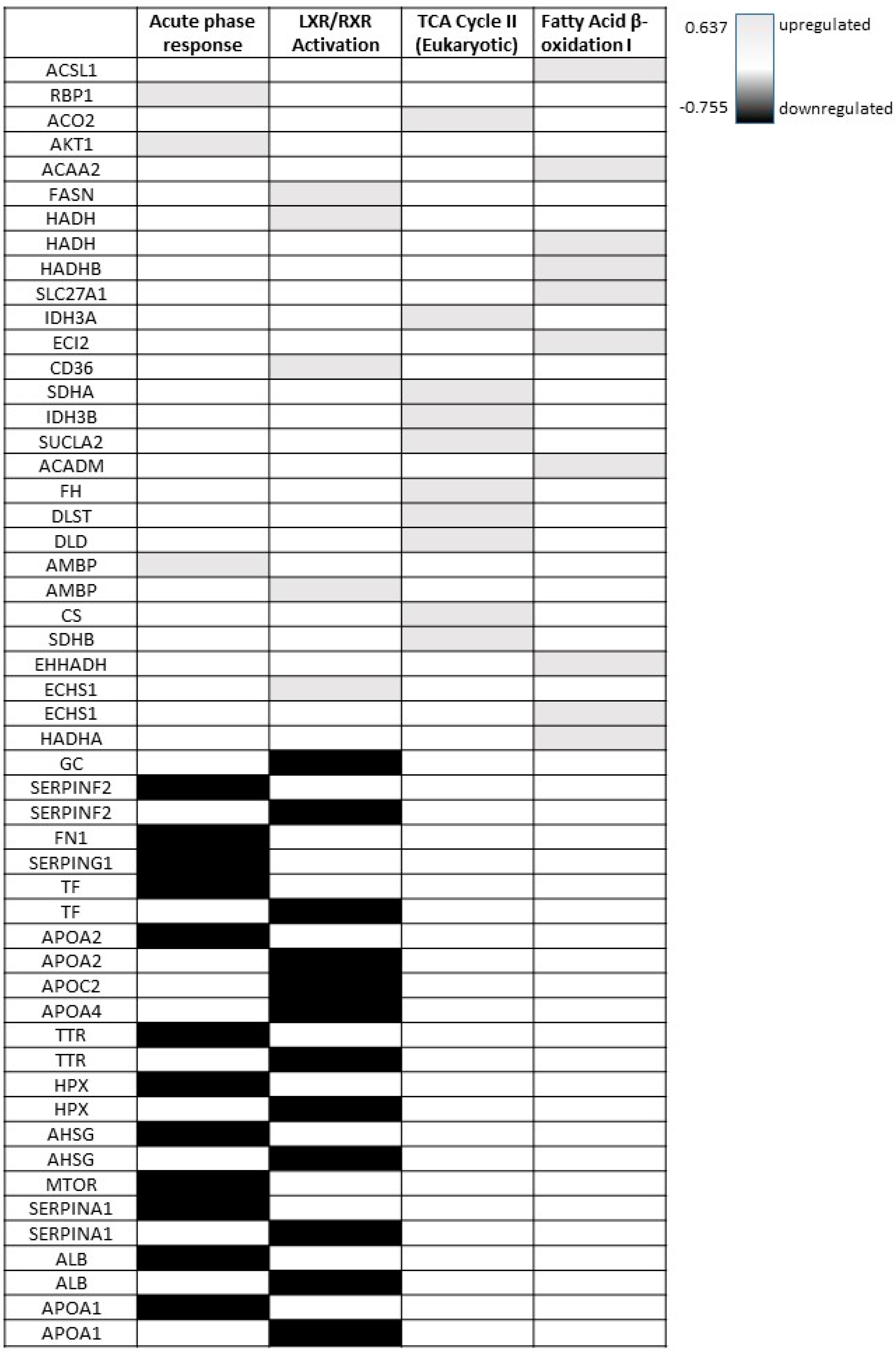

Figure 4. Association of protein responses to inflammatory, lipid/glucose homeostasis and mitochondrial signaling pathways in the aortic tissue of SBI-425-treated rats versus vehicle. A heatmap shows the response (grey = upregulation, black = downregulation) of (differentially expressed proteins) DEPs in the aortic tissue of SBI-425-treated rats to inflammation (acute phase response), lipid/glucose homeostasis regulation (LXR/RXR activation) and mitochondrial (TCA cycle II and Fatty Acid β-oxidation I) pathways.
Figure 4. Association of protein responses to inflammatory, lipid/glucose homeostasis and mitochondrial signaling pathways in the aortic tissue of SBI-425-treated rats versus vehicle. A heatmap shows the response (grey = upregulation, black = downregulation) of (differentially expressed proteins) DEPs in the aortic tissue of SBI-425-treated rats to inflammation (acute phase response), lipid/glucose homeostasis regulation (LXR/RXR activation) and mitochondrial (TCA cycle II and Fatty Acid β-oxidation I) pathways.
Ijms 24 03657 g004
Ijms 24 03657 g005 550

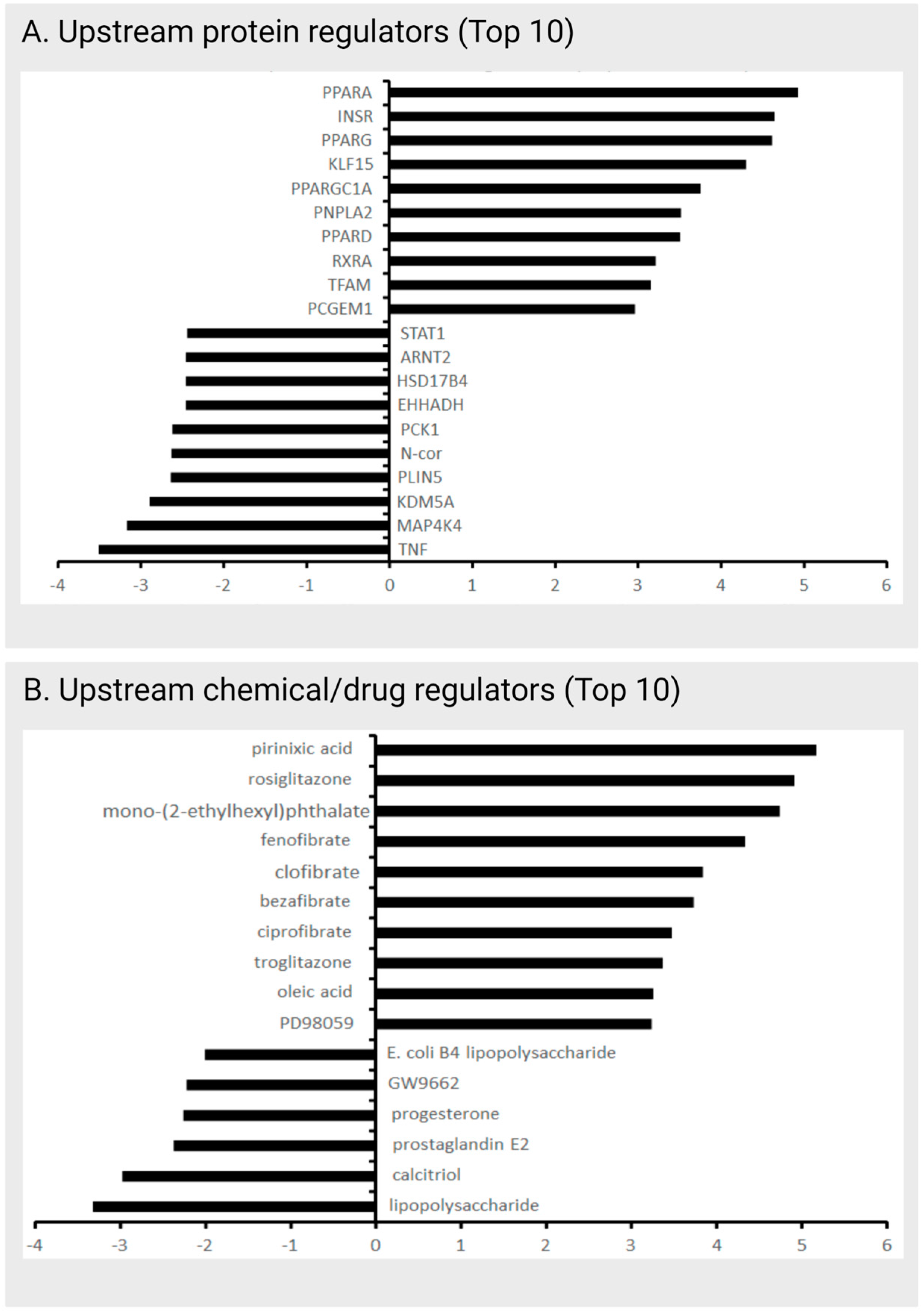

Figure 5. Ingenuity pathway upstream analysis (IPA) of the TNAP inhibitor treatment protein dataset. IPA ascribes a quantified z-score number (ordinate axis) that determines whether an upstream regulator has significantly more “activated” predications (z > 0) than “inhibited” predictions (z < 0). A strong role for altered energy metabolism was observed including upregulation of insulin-sensitizing protein (A) (i.e., PPAR signaling, insulin receptor (INSR)) and chemical regulators (B) (i.e., rosiglitazone and troglitazone).
Figure 5. Ingenuity pathway upstream analysis (IPA) of the TNAP inhibitor treatment protein dataset. IPA ascribes a quantified z-score number (ordinate axis) that determines whether an upstream regulator has significantly more “activated” predications (z > 0) than “inhibited” predictions (z < 0). A strong role for altered energy metabolism was observed including upregulation of insulin-sensitizing protein (A) (i.e., PPAR signaling, insulin receptor (INSR)) and chemical regulators (B) (i.e., rosiglitazone and troglitazone).
Ijms 24 03657 g005
Table
Table 1. Top 10 differentially up- or downregulated proteins in SBI-425 versus vehicle-treated aortic samples.
Table 1. Top 10 differentially up- or downregulated proteins in SBI-425 versus vehicle-treated aortic samples.
Protein DescriptionGene SymbolLog2 iTRAQ Ratio
Acyl-CoA desaturaseSCD10.718574
Histidine-rich calcium binding protein, isoform CRA_bHRC0.710522
Mitochondrial brown fat uncoupling protein 1UCP10.66522
Collagen alpha-1(I) chainCOL1A10.663793
CCR4-NOT transcription complex, subunit 1CNOT10.657795
Insulin receptor substrate 1IRS10.655246
Mitochondrial uncoupling protein 3UCP30.654558
Adenylosuccinate synthetase isozyme 1ADSSL10.650851
Fatty acid-binding protein, adipocyteFABP40.648864
Long-chain-fatty-acid-CoA ligase 1ACSL10.637461
Seminal vesicle secretory protein 4SVS4−3.16592
Seminal vesicle secretory protein 6SVS6−1.85127
Seminal vesicle secretory protein 5SVS5−1.53876
Epsilon 2 globinHBE2−1.33216
Dehydrogenase/reductase 7DHRS7−1.28143
Keratin, type II cytoskeletal 5KRT5−1.20467
Bone marrow proteoglycanPRG2−1.05433
Uncharacterized proteinLOC100912707−1.03433
Coronin 7CORO7−1.0073
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
