Surfaceome Profiling of Cell Lines and Patient-Derived Xenografts Confirm FGFR4, NCAM1, CD276, and Highlight AGRL2, JAM3, and L1CAM as Surface Targets for Rhabdomyosarcoma

by
Andrea Timpanaro
1,2,3,
Caroline Piccand
1,2,3,
Anne-Christine Uldry
4,
Peter Karl Bode
5,
Dzhangar Dzhumashev
1,2,3,
Rita Sala
1,2,
Manfred Heller
4,
Jochen Rössler
1,2 and
Michele Bernasconi
1,2,6,*
1
Department of Pediatric Hematology and Oncology, Inselspital, Bern University Hospital, University of Bern, 3010 Bern, Switzerland
2
Translational Cancer Research, Department for BioMedical Research (DBMR), University of Bern, 3008 Bern, Switzerland
3
Graduate School for Cellular and Biomedical Sciences, University of Bern, 3012 Bern, Switzerland
4
Proteomics & Mass Spectrometry Core Facility, Department for BioMedical Research (DBMR), University of Bern, 3008 Bern, Switzerland
5
Department of Pathology and Molecular Pathology, University Hospital Zurich, 8091 Zurich, Switzerland
6
Children’s Research Center, University Children’s Hospital Zurich, University of Zurich, 3032 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(3), 2601; https://doi.org/10.3390/ijms24032601
Submission received: 24 December 2022 / Revised: 17 January 2023 / Accepted: 27 January 2023 / Published: 30 January 2023
(This article belongs to the Special Issue New Strategies in Therapeutic Targets of Sarcoma: Translational Implications 2.0)
Browse Figures
Versions Notes

Abstract

:
Rhabdomyosarcoma (RMS) is the most common soft tissue sarcoma in children. The prognosis for patients with high-grade and metastatic disease is still very poor, and survivors are burdened with long-lasting side effects. Therefore, more effective and less toxic therapies are needed. Surface proteins are ideal targets for antibody-based therapies, like bispecific antibodies, antibody-drug conjugates, or chimeric antigen receptor (CAR) T-cells. Specific surface targets for RMS are scarce. Here, we performed a surfaceome profiling based on differential centrifugation enrichment of surface/membrane proteins and detection by LC-MS on six fusion-positive (FP) RMS cell lines, five fusion-negative (FN) RMS cell lines, and three RMS patient-derived xenografts (PDXs). A total of 699 proteins were detected in the three RMS groups. Ranking based on expression levels and comparison to expression in normal MRC-5 fibroblasts and myoblasts, followed by statistical analysis, highlighted known RMS targets such as FGFR4, NCAM1, and CD276/B7-H3, and revealed AGRL2, JAM3, MEGF10, GPC4, CADM2, as potential targets for immunotherapies of RMS. L1CAM expression was investigated in RMS tissues, and strong L1CAM expression was observed in more than 80% of alveolar RMS tumors, making it a practicable target for antibody-based therapies of alveolar RMS.

1. Introduction

Pediatric rhabdomyosarcoma (RMS) is the most common soft tissue sarcoma in children and young adults [1]. Each year it accounts for 3% of childhood cancers in the United States [2]. RMS is a heterogeneous group of malignant and metastatic tumors, which originate from a primitive mesenchymal cell [3]. Based on histology, RMS can be classified into different subtypes: embryonal RMS (eRMS; 60–70%) and alveolar RMS (aRMS; 20–30%) are the main subtypes; pleomorphic (pRMS) and spindle cell/sclerosing (s-scRMS) account for 7–15% of the cases [4]. The aggressive aRMS tumors carry one of the two characteristic chromosomal translocations, the t(2; 13)(q35; q14) or the t(1; 13)(p36; q14), which result in the expression of a PAX3-FOXO1 or PAX7-FOXO1 fusion transcription factor, respectively [5], and are therefore also called fusion-positive (FP). Embryonal RMS tumors have a better prognosis and are clinically indistinguishable from fusion-negative (FN) RMS [6].
Although overall five-year survival rates have improved with the combined use of surgery, radiation therapy and chemotherapy, prognosis remains poor in pediatric patients with metastatic and aggressive diseases, such as aRMS [7,8]. Moreover, long-term toxicities of the intense chemotherapy/radiation therapy regimens are now becoming more evident with improving survival [9,10]. Therefore, new therapies are desperately needed for children and young adults with high-risk and recurrent solid tumors.
Cell surface proteins are ideal targets for antibody-based therapies, like antibody-drug conjugates [11,12], bispecific antibodies [13,14], or chimeric antigen receptor (CAR) T cells [15,16,17]. However, specific surface antigens for RMS are scarce. Before the advent of omics technologies, the study of muscle development and biology revealed several surface proteins upregulated in RMS tumors, including the Insulin-like Growth Factor Receptor 1 (IGF1R/CD221) [18,19,20], the gamma subunit of the Acetylcholine Receptor (ACHG) [21], the Neural Cell Adhesion Molecule 1 (NCAM1/CD56) [22,23,24,25], and the Receptor tyrosine-protein kinase erbB-2 (ERBB2/HER2) [26,27,28,29,30]. Antibodies against IGFR1 were active in preclinical models [31,32], but failed to meet the expected clinical outcome. They achieved partial remissions in Ewing Sarcoma and RMS patients, but development and production were halted [33]. ACHG followed the same fate, despite having an extremely favorable preferential expression profile in RMS. Monoclonal antibodies and CAR T-cells have failed to achieve a significant preclinical effect [34], possibly because of the low copy numbers of the receptor on the surface. An antibody-drug conjugate (ADC) targeting NCAM1/CD56 was well tolerated in children, including RMS patients, but has shown limited clinical activity so far [35]. On the bright side, CAR T-cells targeting HER2 have promisingly contributed to inducing remission in a patient with metastatic RMS [36].
The advent of microarrays, and later of next-generation RNA sequencing led to the identification of several genes coding for surface proteins highly expressed in RMS tumors, FGFR4 being the most prominent [37,38,39]. Monoclonal antibodies [40], ADC [41], and CAR T cells are being developed with promising preclinical results [42,43]. Gene expression profiling has revealed that the gene coding for the cannabinoid receptor 1 (CB1) is highly upregulated in FP-RMS [44], but no targeting approaches have been developed yet. With more and more datasets available, efforts dedicated to identifying surface proteins have led to the identification of potential immunotherapy targets for pediatric solid tumors [45,46]. Specific targets identified for RMS included FGFR4, GPC3 and GPC5, and FOLR1 (alpha-folate receptor). Other important studies have been conducted to unravel the genomics [47] and (phospho)proteomics [48] profiles of RMS, but these efforts were not focused on defining the surface proteins expressed by RMS.
Recently, the immuno-transcriptomic profiling of a large set of extracranial pediatric solid tumors, including 129 RMS tumors and 35 RMS cell lines, defined the level of expression of the genes coding for surface proteins, providing an extremely useful resource to identify and evaluate potential targets [49]. Nevertheless, the complex relationship between mRNA and protein abundance, influenced by post-transcriptional and translational mechanisms, as well as by protein degradation [50], makes it hard to select specific surface targets from transcriptomics analysis.
So far, only one study dedicated to the identification of surface proteins in RMS has been reported [51]. This study, performed with two FP-RMS, two FN-RMS cell lines, and one RMS PDX, identified several surface proteins expressed in RMS, highlighting a possible role of B7-H3/CD276 in immune evasion.
Here, we report the surfaceome profiling of six FP-RMS and five FN-RMS cell lines and three PDXs, by differential centrifugation enrichment of surface/membrane proteins and mass spectrometry (MS) analysis, leading to the identification of 699 proteins expressed in RMS and of three novel putative cell surface targets for immunotherapy of RMS.

2. Results

2.1. Isolation and Enrichment of Membrane/Surface Proteins

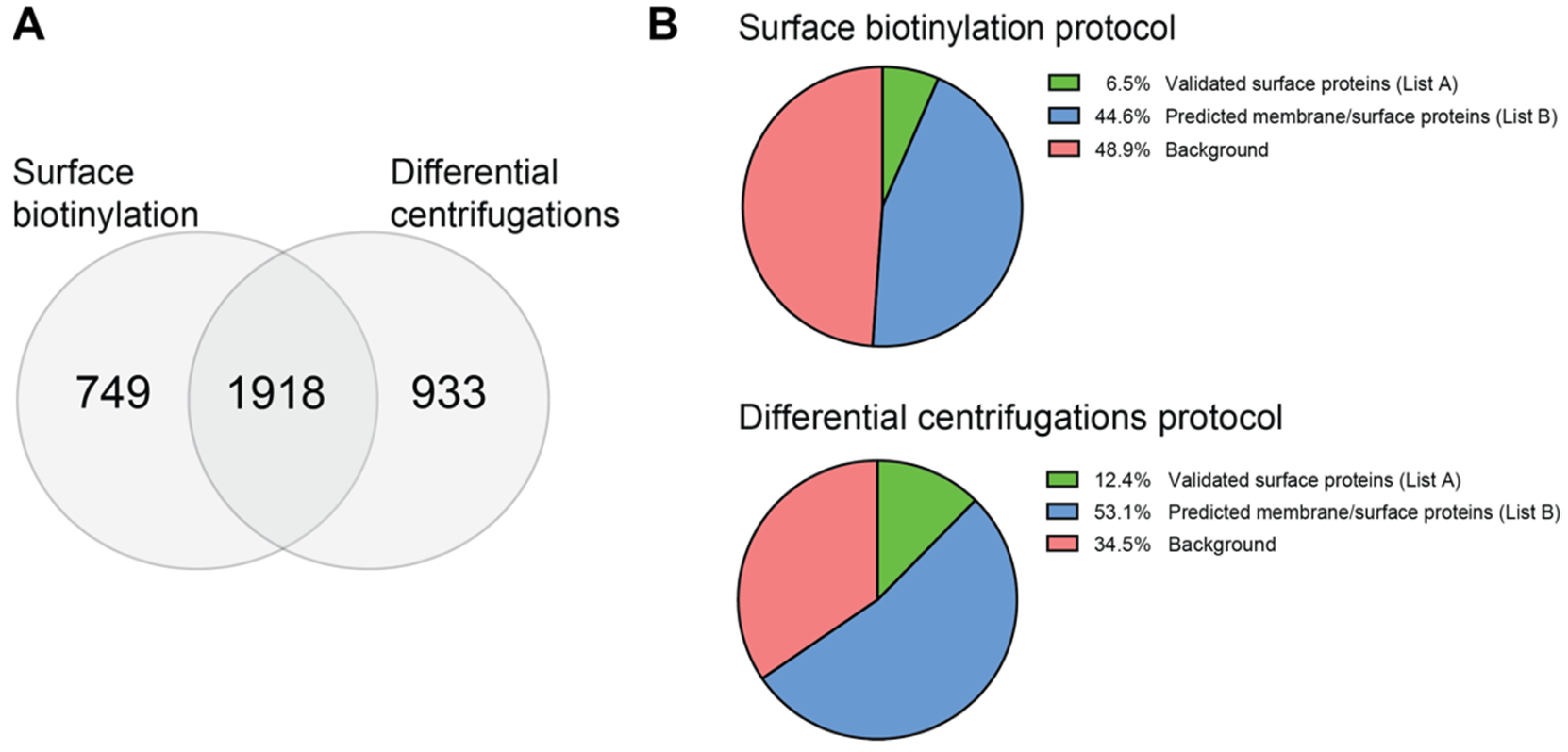

In order to identify novel and specific targets upregulated on the surface of rhabdomyosarcoma (RMS) cells by mass spectrometry (MS), we initially compared two methods for isolation of membrane/surface proteins: the first based on biotin labeling of cell surface proteins with the cleavable EZ-Link-Sulfo-NHS-SS-biotin, followed by isolation with a NeutrAvidin agarose column, and reducing elution with dithiothreitol (DTT); the second based on differential centrifugations and washes at high pH and high salts concentration [52]. In a preliminary experiment performed in triplicates with the Rh4 cell line, we could detect MS 2667 proteins with the surface biotinylation method and 2851 proteins with the differential centrifugations method. A total of 1918 proteins were detected with both methods (Figure 1A). A low enrichment for surface proteins and the high sensitivity of MS may often result in the detection of intracellular proteins.
To determine the enrichment efficiency of the two methods, the detected proteins were filtered with a list of 2886 annotated surface proteins, published by Bausch-Fluck et al. [53] (Supplementary Information List A), and with a list containing 7643 proteins compiled to include all the annotated membrane/surface proteins (Supplementary Information List B). This analysis showed that the differential centrifugations protocol produced a lower background (~35%) compared to the biotinylation protocol, which resulted in the detection of ~49% of intracellular proteins (Figure 1B). Interestingly, the differential centrifugations protocol resulted in a higher enrichment of annotated and predicted surface proteins. Therefore, this method was used for the next experiments.

2.2. Surfaceome Profiling Strategy and Proteomics Results Analysis

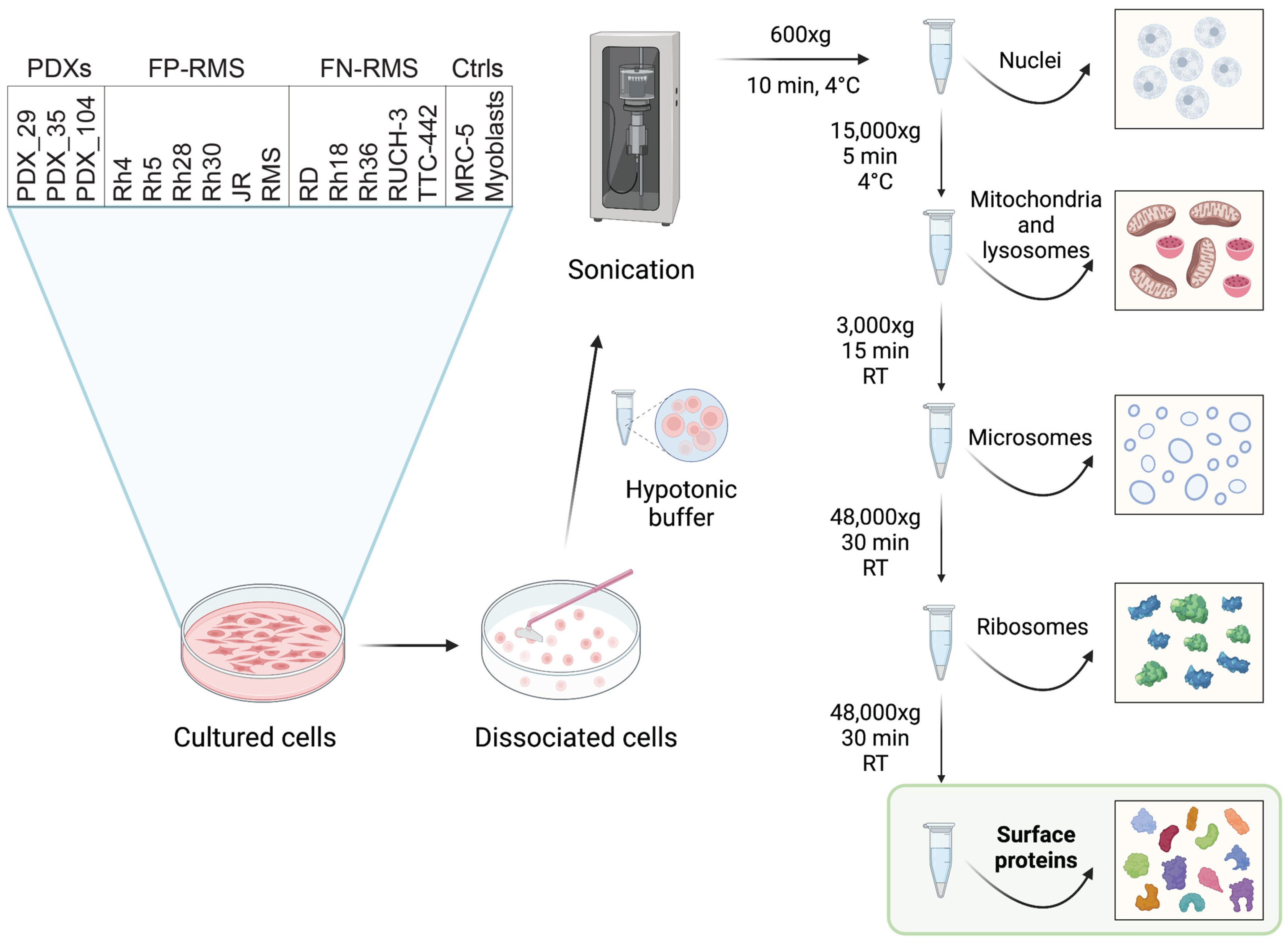

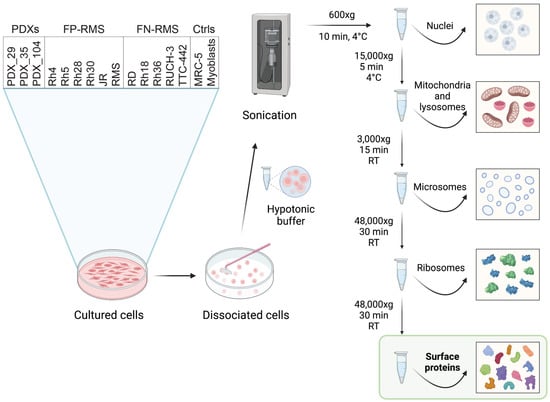

Eleven RMS cell lines, three PDXs, and MRC-5 human embryonal fibroblasts and primary myoblasts, as controls, were cultured, and surface membrane proteins were enriched following the differential centrifugations protocol, as shown in Figure 2.
The isolated proteins were then processed, and detection was performed by LC-MS. In total, 7373 proteins were detected and quantified (iTop3 values in Supplementary Information Tables S1 and S2). To analyze the MS data, we then applied the strategy summarized in Figure 3.

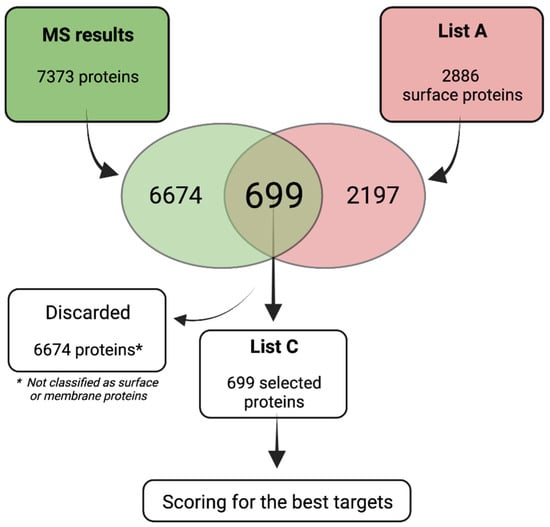

The 7373 proteins were then filtered with List A, revealing 699 membrane/surface proteins that were then selected to generate List C (Supplementary Information Table S3. To prioritize membrane/surface proteins with high and consistent expression in RMS cells lines and PDXs, and low or absent expression in controls, List C was processed with a scoring strategy taking into account the following parameters: (1) a number of RMS cell lines in which a protein was detected; (2) abundance mean, defined as “iTop3 mean”, of all the RMS cell lines; (3) ratio of the iTop3 values between PDXs, FP-RMS, and FN-RMS, with the controls MRC-5 and the primary myoblasts, expressed as the base-2 logarithm of Fold Change (Log2(FC)); (4) no detection in the controls MRC-5 and primary myoblasts; (5) high expression in the PDXs, since these are biologically closer to primary tumors (Table 1 and Table 2).
This approach attributes the lowest scores to the most abundant proteins in the three groups, PDXs, FP-RMS and FN-RMS, but not in the controls. An analysis of proteins upregulated two-fold in the different groups is available in Supplementary Information Tables S4–S7. The comprehensive list of all the ranked proteins is available as Supplementary Information (Supplementary Information Table S8). The first 100 proteins ranked by this scoring are presented in Table A1, as Top100, and in detail in Supplementary Information Tables S9 and S10.

2.3. Statistical Analysis of the Filtered Proteins Highlights Five Putative Therapeutic RMS Surface Targets

In parallel to the above selection of surface proteins, two different statistical analyses were performed in order to identify the most significant putative surface targets.

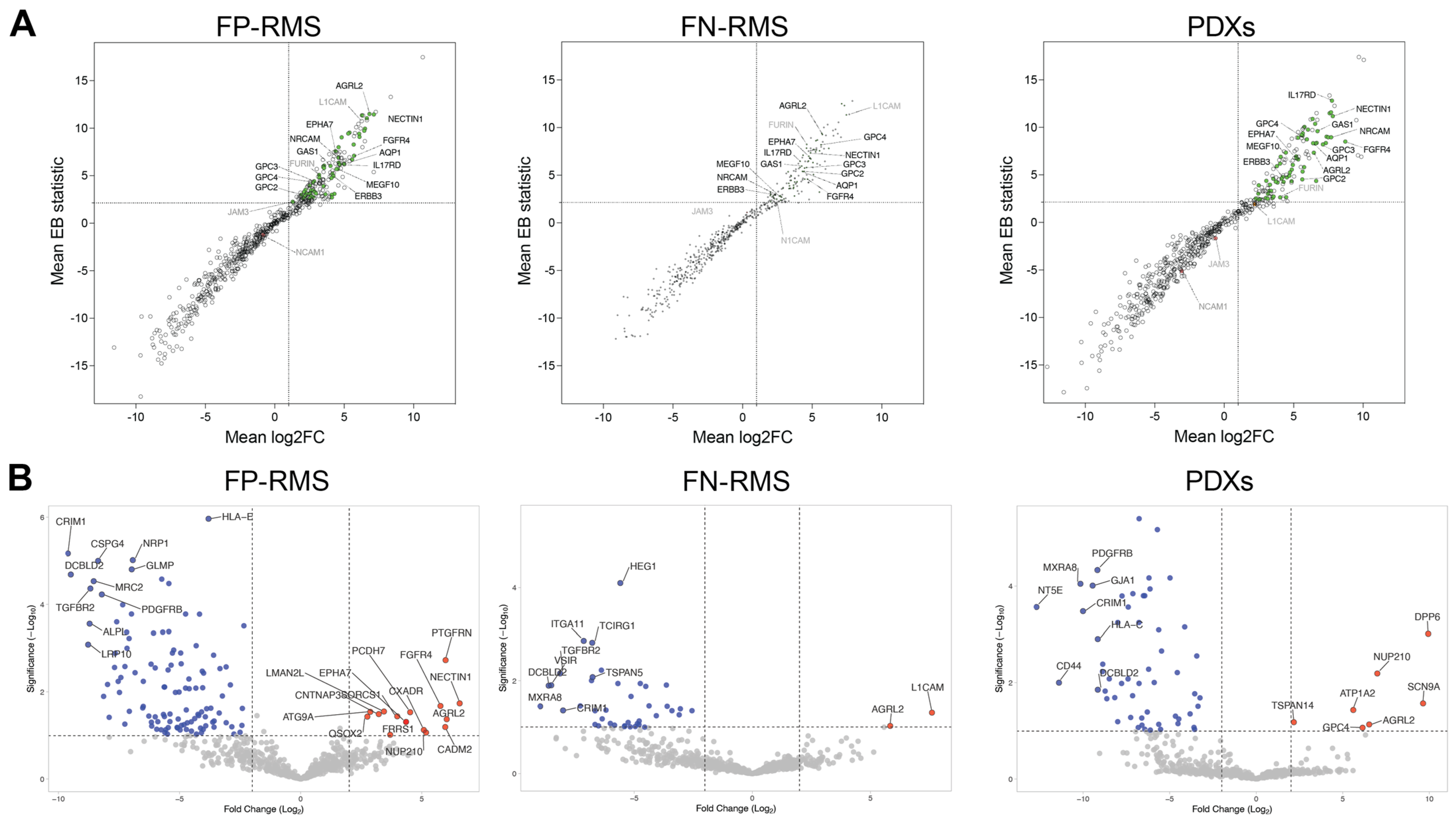

First, an individual cell-to-control differential expression test was performed. More specifically, the Empirical Bayes (EB) or moderated t-test was applied, as implemented in R [54,55].
Considering an average Log2(FoldChange) ≥ 2 versus an average EB statistic ≥ 2.132 across comparisons within a class (FP-RMS, FN-RMS, and PDXs), 63 proteins were identified as upregulated in all RMS groups, 32 of which were present in the Top100 corroborating our first selection (Supplementary Table S14). Among these, AGRL2, AQP1, EPHA7, ERBB3, FGFR4, GAS1, GPC2, GPC3, GPC4, IL17RD, MEGF10, NRCAM, NECTIN1 are highlighted in Figure 4A. L1CAM was significantly upregulated in FP-RMS and FN-RMS, NCAM1 only in FN-RMS, and JAM-3 only in FP-RMS (Figure 4A).
The second statistical analysis, called linear mixed model (LMM) and derived from the R implementation DREAM [56], is a statistical evaluation of all the respective FP-RMS, FN-RMS, and PDXs groups versus the controls, even though the groups are themselves collection of subgroups of replicates. The LMM analysis considers the variations within the cell lines as well. The LMM results were very stringent, and only AGRL2 was confirmed as significantly overexpressed in all three RMS groups. FGFR4 was identified in FP-RMS, L1CAM in FN-RMS, and GPC4 in PDXs (Figure 4B and Supplementary Information Table S13). To note is that LMM selected a larger number of downregulated than upregulated proteins in the RMS groups compared to the controls.
In conclusion, extended statistical analyses detected AGRL2, ranked first by our ranking strategy, as significantly overexpressed in all samples. Detection in several groups of FGFR4, a well-established target for RMS, validates our approach.

2.4. Expression of the Top100 Proteins in Normal Tissues

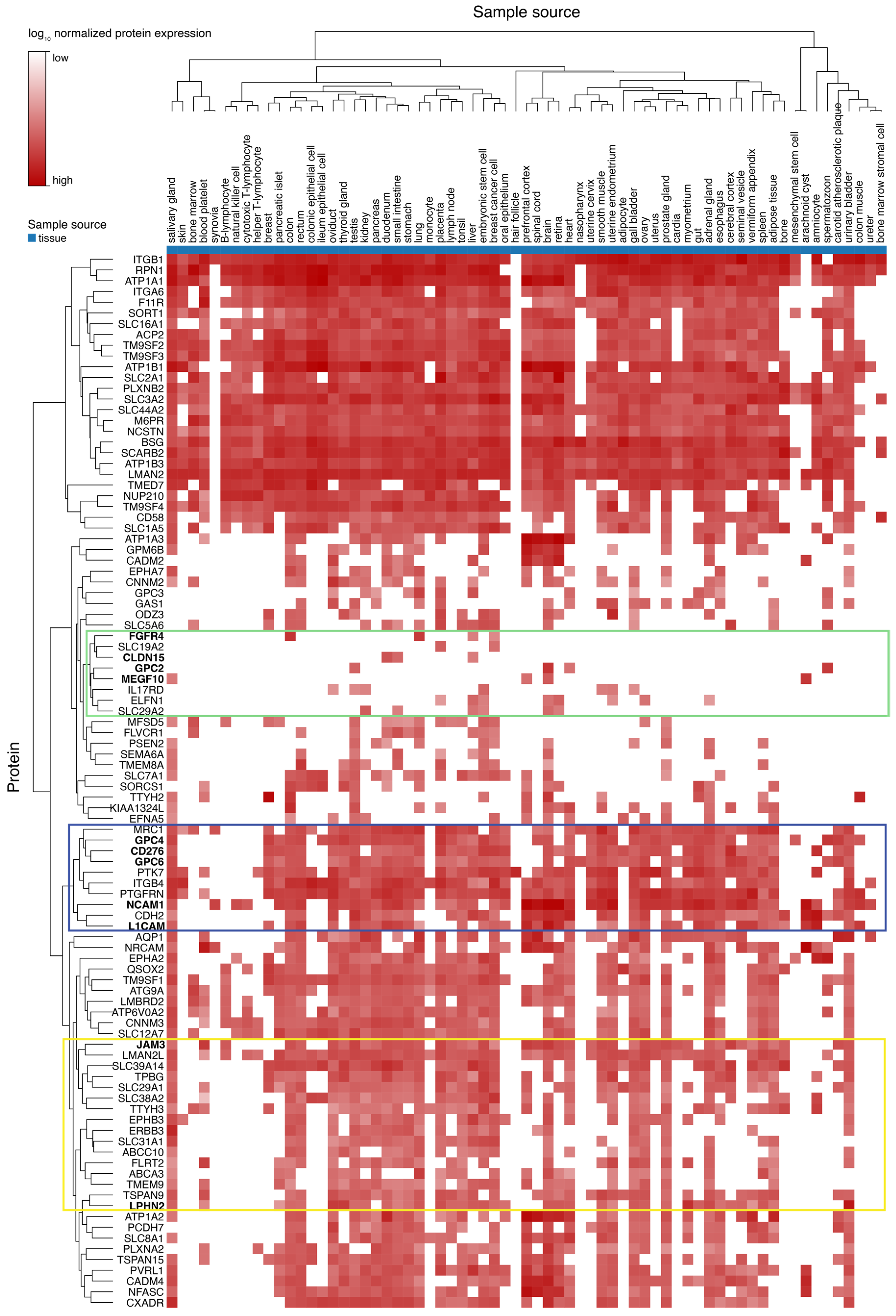

During the selection of the putative targets, we considered MRC-5 normal embryonal fibroblasts and immortalized primary myoblasts as controls. An ideal RMS target should be expressed at high levels in RMS and not, or at low levels, in all normal tissues. Therefore, to evaluate the expression of the Top100 proteins in normal tissues, we took advantage of proteomics data for normal tissues available from Proteomicsdb.org (accessed on 25 November 2022) [57,58,59]. The expression heatmap generated with the MS1 Top3 values (Tissue, SWISS-PROT only) confirms that FGFR4 is a very specific target because it is detected only in the colon, lung, and liver (Figure 5, green square) and highlights other excellent targets clustering together with FGFR4: Glypican-2 (GPC2), detected only in the testis and heart at low levels, and in spermatozoon and brain at medium levels; Multiple epidermal growth factor-like domains protein 10 (MEGF10), detected in brain, prefrontal cortex, and salivary gland at low levels, and in arachnoid cyst at medium levels; and Claudin-15 (CLDN15), detected only in duodenum, liver, and small intestine at low levels (Figure 5, green square).
Moreover, a cluster of candidates (Figure 5, blue square), including GPC4, GPC6, CD276, NCAM1, and L1CAM, are detected only at low-medium levels in most tissues. Interestingly, AGRL2 (LPHN2) and JAM3 (Figure 5, yellow square) clustering loosely together are detected in about 30 tissues but at low levels in almost all of them. For AGRL2, the highest expression is detected in the urinary bladder, myometrium, thyroid gland, oviduct, adrenal gland, and placenta.

2.5. Specific and High mRNA Expression of the Candidates in Patients’ RMS Samples

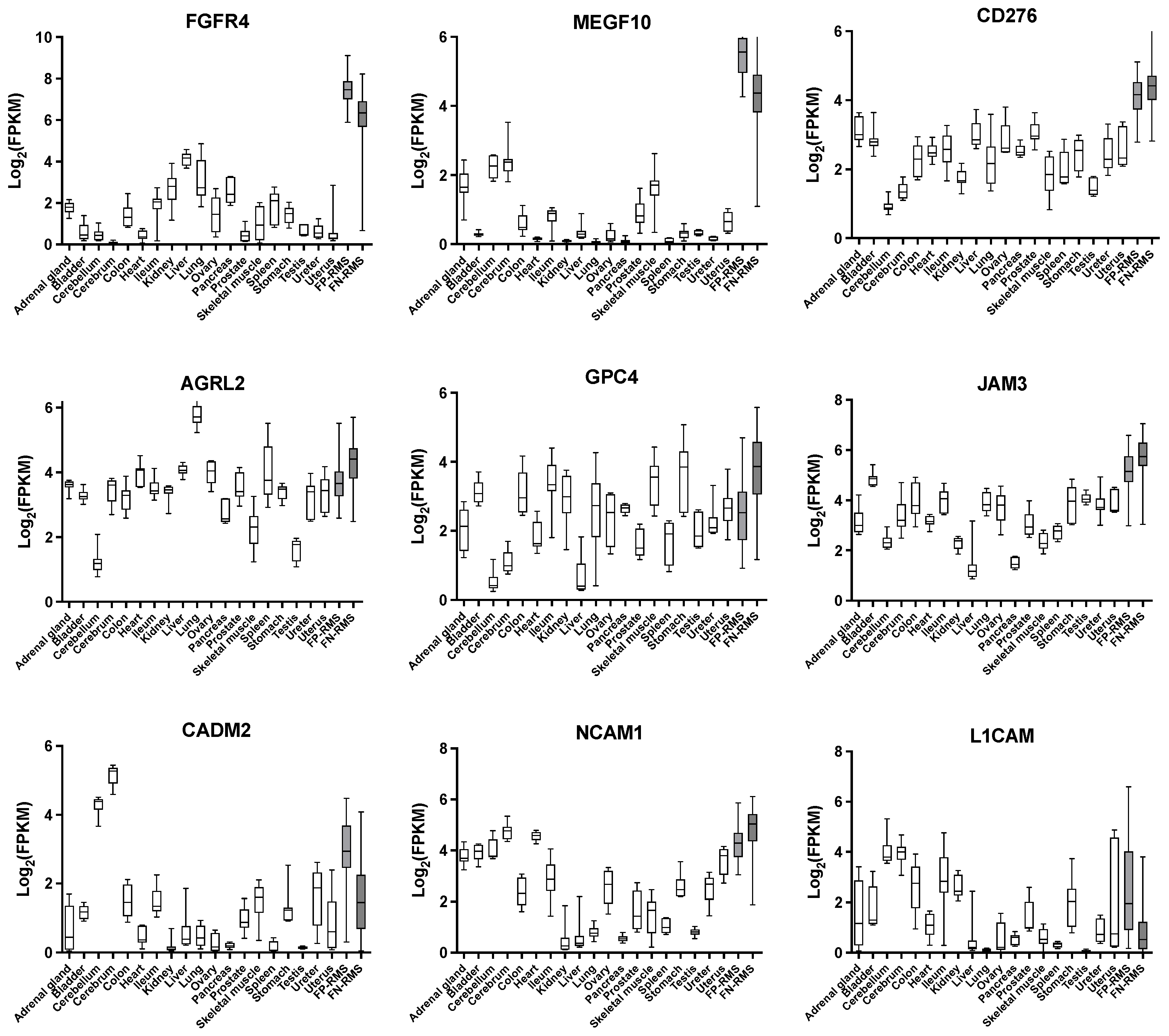

Since a direct comparison of our data with the normalized proteomic expression data in normal tissues from ProteomicsDB (Figure 5) is not possible, to investigate the therapeutic potential of the selected targets, we analyzed their expression in RMS patients’ samples and in normal tissues, by using transcriptomics data published by Brohl et al. [49] (Supplementary Information Tables S11 and S12). Transcriptomics analysis of normal tissues confirms the selective RMS expression of the candidates. Indeed, the most representative candidates, e.g., FGFR4, show a relatively low FPKM number in normal tissues when compared to RMS tumors, where expression is highest in FP-RMS (Figure 6). Highly specific expression of MEGF10 was observed in tumor samples, particularly in FP-RMS, compared to normal tissues. For MEGF10, the highest expression among normal tissues is observed in the cerebrum and cerebellum. CD276, JAM3, and NCAM1 also show higher expression in tumors compared to normal tissues, although expression in normal tissues is higher than for FGFR4 and MEGF10. Expression of GPC4 is high in the lungs, of L1CAM in the brain, and of GPC4 in the stomach. For these targets, a careful evaluation of protein expression in normal tissues will be required.

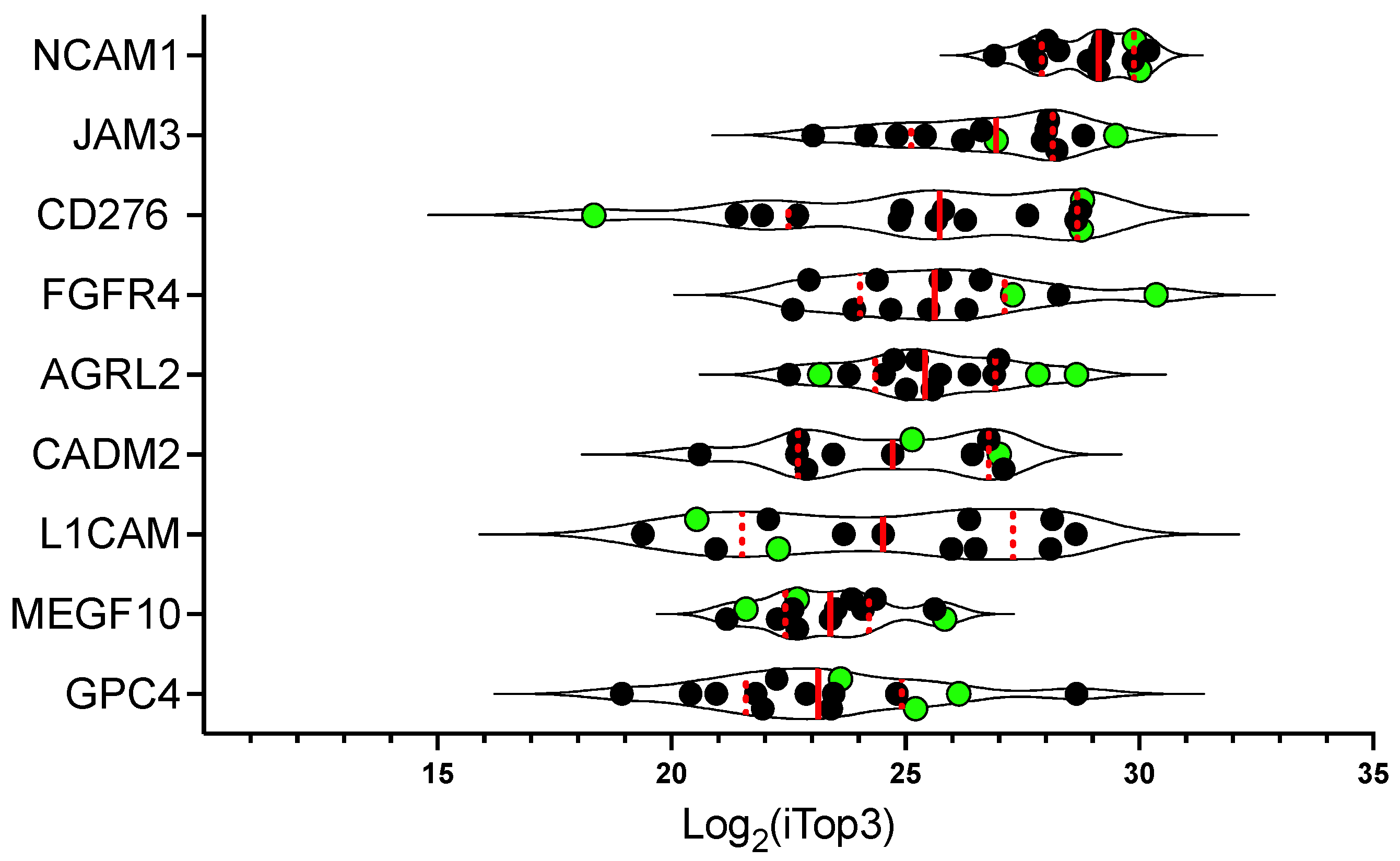

Next, we analyzed the distribution of peptides abundance of the most promising putative targets with a Log2(FC) > 2 in the RMS samples (Figure 7). The highest median Log2(iTop3) value was observed for NCAM1, followed by JAM3, CD276, FGFR4, AGRL2, CADM2, L1CAM, MEGF10, and GPC4. Importantly, all were consistently found in PDXs (green dots).
Taken together, these results validate our selection strategy and show that the targets of interest were indeed detected at highest levels on PDXs, suggesting that they might be valuable therapeutic targets for RMS.

2.6. Validation of AGRL2, L1CAM, and JAM3 Expression on RMS Cell Lines

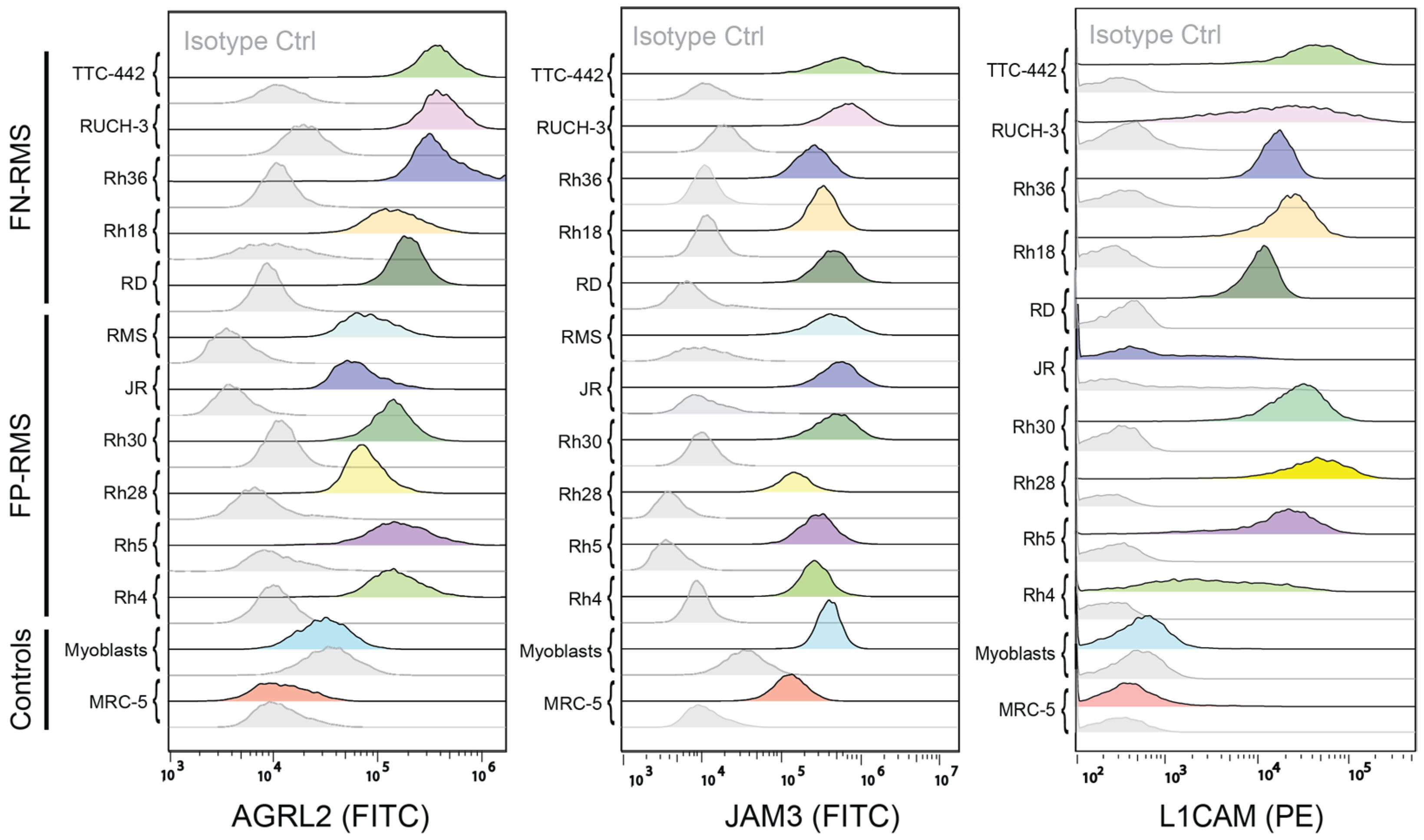

After performing surfaceome analysis and in silico selection for RMS surface targets, several candidates stood out in terms of high expression in RMS samples (NCAM1, JAM3, CD276, FGFR4, AGRL2, CADM2, L1CAM, and MEGF10) and some showed a particular low expression in normal tissues (FGFR4, MEGF10, and CD276). FGFR4 and NCAM1 are known targets for RMS; therefore, to reveal novel targets for RMS, we selected AGRL2, JAM3, and L1CAM and investigated the surface expression by Flow Cytometry on the eleven RMS cell lines and the two controls, MRC-5 and myoblasts, used in this study (Figure 8). For AGRL2 and JAM3, no directly labeled antibodies are commercially available; therefore, we had to use a two-step incubation with fluorescent secondary antibodies.
All RMS cells were positive for AGRL2, while the staining for MRC-5 fibroblasts and myoblasts was not above the control staining. The FP-RMS cell lines showed stronger staining than FN-RMS cell lines. JAM3 staining of RMS cell lines was consistently higher than AGRL2; however, staining in myoblasts and MRC-5 fibroblasts was higher than with isotype control, even though it was clearly lower than in RMS cell lines. L1CAM staining was clearly much higher in RMS cell lines compared to the controls. Therefore, these results demonstrate that the three proteins are expressed at high levels on most RMS cell lines and are expressed at much lower levels in the controls. This, on one side, validates our surfaceome profiling and selection strategy and, on the other side, reveals AGRL2, JAM3, and L1CAM as novel surface targets for RMS.

2.7. Expression of L1CAM in RMS Tumors and Inverse Correlation with Survival

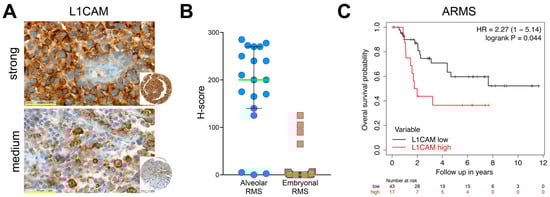

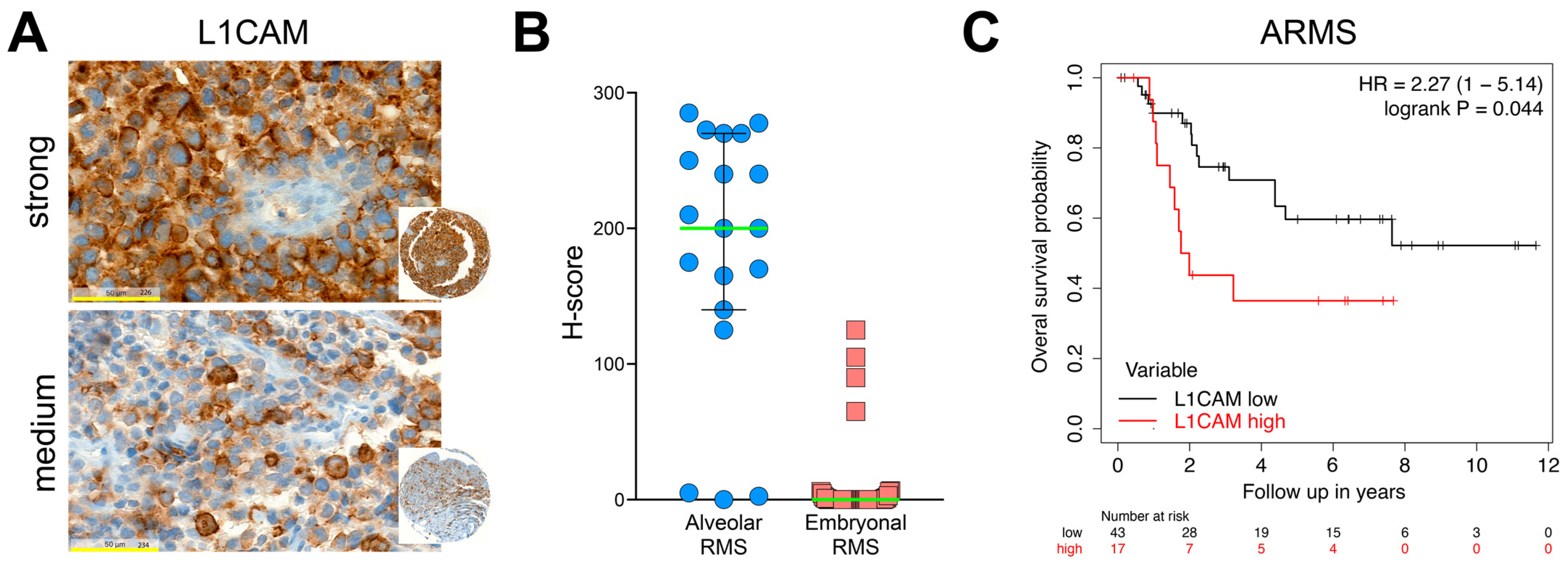

We next investigated the expression of L1CAM on a tissue microarray (TMA) with 248 cores from 124 RMS tumors, consisting of 24 ARMS and 100 ERMS [60]. Not all the cores were evaluable, so in the end, 17 ARMS and 60 ERMS could be evaluated. Most of ARMS showed strong (Figure 9A, upper) or medium (Figure 9A, lower) L1CAM staining. In contrast, 95% of ERMS were negative. The H-score indicates how 85% of ARMS have high L1CAM expression, while the great majority of ERMS is negative.
To investigate the relevance of L1CAM expression for clinical prognosis, we took advantage of an expression data set with survival information. We compared the overall survival of ARMS patients with mRNA levels of L1CAM. The best cut-off value was determined as 123.3 (range 3–390), and this revealed a significantly worse survival probability of ARMS patients with high L1CAM expression (p = 0.044; Figure 9C). Performing the same analysis on the whole cohort, including ARMS and ERMS patients, a cut-off of 57.3 resulted in a more significant logrank p-value of 0.0016, likely reflecting the better survival probability of ERMS vs. ARMS, and the L1CAM expression restricted to ARMS. In conclusion, L1CAM is highly expressed in the majority of ARMS, and within this histological subclass, higher expression of L1CAM seems to define a group of patients with even worse prognoses. Taken together, L1CAM targeted therapies could provide a therapeutic option for ARMS patients with very poor prognoses.

3. Discussion

In this work, we identified 699 surface proteins by performing a surfaceome profiling by differential centrifugations enrichment of surface/membrane proteins and LC-MS detection with six FP-RMS cell lines, five FN-RMS cell lines, and three RMS PDXs. Ranking of the protein based on iTop3 expression analysis, mRNA expression, and expression in control normal MRC-5 fibroblasts and myoblasts, followed by statistical analysis and investigation of protein and mRNA expression in normal tissues, yielded nine surface proteins highly expressed in RMS and with low expression or absent in normal tissues: FGFR4, MEGF10, CD276, AGRL2, GPC4, JAM3, CADM2, NCAM1, and L1CAM. Expression of three of these candidates—AGRL2, JAM3, and L1CAM—on RMS cell lines was confirmed by FACS.
In this study, we found two well-known and investigated targets for RMS, FGFR4 [37,38,39] and N1CAM [22,23,24,25], validating our approach. CD276 (B7-H3) has also been recently shown to be consistently overexpressed in RMS with high expression in 92% of FP-RMS and with medium-high intensity in 100% of FN-RMS tumors [62]. CD276 expression is regulated by the fusion protein PAX3-FOXO1 found in FP-RMS [63], and the monoclonal antibody 8H9, binding to a wide spectrum of tumors, including RMS, was found to target CD276 [64,65]. The B7-H3-targeting antibody-drug conjugate m276-SL-PBD was potently effective against pediatric cancers in preclinical solid tumor models, including RMS [66]. Expression of CD276 on RMS cells was independently identified by another group by surfaceome profiling and was shown to be a mediator of immune evasion [51]. All these results confirm that CD276 is a relevant target for RMS.
L1CAM. Among the novel targets not previously associated with RMS before, targeting approaches are most advanced for L1CAM, which is highly and consistently overexpressed in neuroblastoma [67,68,69], ovarian cancer [70,71], and testicular germ cell tumors [72]. L1CAM was very early targeted with CAR T cells [73], and the effort to improve the CAR design continues (NCT02311621). Our results show that 85% of ARMS are strongly positive for L1CAM, and 95% of ERMS are negative. In a large study of 5155 tumors, expression of L1CAM was found in 50% alveolar (FP) RMS (n = 42) and in 15% embryonal (FN) RMS (n = 55) [74], confirming our observation. Here, we also show higher expression of L1CAM in ARMS compared to ERMS at the mRNA level. So far, no attention has been dedicated to targeting RMS with L1CAM antibodies or CAR T-cells, but our results would suggest that a small group of RMS patients with the poorest prognosis might benefit from such an approach.
AGRL2, or Adhesion G protein-coupled receptor L2, is an adhesion G-protein-coupled receptor (aGPCR) that was first described in 2000 [75], and whose function has not been well investigated yet. Like other aGPCRs, AGRL2 has been associated with cancer (reviewed in [76]). AGRL2 was found to be upregulated by transcriptome profiling in urothelial carcinoma [77]. To the best of our knowledge, its expression or function have never been investigated in RMS.
CADM2, cell adhesion molecule 2, belongs to the immunoglobulin superfamily and regulates cell adhesion, in particular synaptic assembly [78,79]. Its role in cancer is not completely clear: it is overexpressed in glioma [80], prostate cancer [81], and renal carcinoma [82], in which it can act as a tumor suppressor, but it promotes tumor metastasis in other cancers such as non-small cell lung cancer metastasis [83] and in hepatocellular carcinoma [84], with a role in epithelial to mesenchymal transition (EMT). In our analysis, CADM2 was significantly upregulated in all three RMS groups, FP-RMS, FN-RMS, and PDXs; and its expression in normal tissues was restricted to the brain. CADM2’s role and expression in RMS still need to be investigated.
MEGF10 is a single transmembrane protein with particularly high expression in the CNS [85] and muscles [86,87]. In muscles, the expression seems to be restricted to satellite cells, the muscle progenitor cells, and MEGF10 mutations are associated with myopathies [88]. MEGF10 was among eleven RMS markers with high expression in RMS and low/no expression in normal peripheral blood or bone marrow to detect disseminated disease [89]. The overexpression of MEGF10 in RMS might be related to a block in myogenic differentiation [90]. Our analysis revealed a very restricted expression in normal tissues; however, CNS expression must be carefully evaluated to assess the safety of possible therapies targeting MEGF10. Overall, MEGF10 is a very appealing target for RMS therapy.
GPC4 belongs to the glypicans family, a family of heparan sulfate proteoglycans that are attached to the cell membrane via a glycosylphosphatidylinositol anchor, with a known role in cancer. So far, only GPC3 and GPC5 [91,92] have been associated with RMS (reviewed in [93]), but not GPC4. Several CAR constructs against glypicans have been developed, but so far, no GPC4 CAR has been reported [93], making the expression of GPC4 in RMS appealing for novel CAR design.
JAM3, or Junctional Adhesion Molecule (JAM) C, mediates heterotypic cell-cell interactions with its cognate receptor JAM2 [94,95]. JAM3 is involved in homing and mobilization of hematopoietic stem and progenitor cells within the bone marrow and by homology with zebrafish, might be involved in myocyte fusion [96,97]. JAMs are clearly involved in cell migration, polarization, and adhesion, and they are involved in cancer cells proliferation, migration, and invasion (reviewed in [98]). The function or expression of JAM3 in RMS has never been investigated.
Three additional promising targets could not be validated by FACS since we were not able to obtain a specific signal with the antibodies tested: EphA7 antibody clone 6C8G7 (Novus Biologicals, Centennial, CO; #NBP1-47425), FPRP clone 998107 (Novus Biologicals, #MAB100431), and SLC12A7 clone (R&D Systems, Minneapolis, MN; #MAB9030).
Among the RMS surface targets previously identified, HER2/ERBB2 is missing from our selected list. HER2 CAR T cells are being tested for RMS therapy, and one encouraging success has been reported [36]. HER2 was detected in FP-RMS cell lines and FN-RMS cell lines but not in PDXs; therefore, it was scored low and was also not selected in the following stringent analyses. A less stringent selection might have selected HER2/ERBB2, but also a higher number of proteins. Alternatively, the lack of identification of HER2/ERBB2 might reflect the heterogeneous expression of HER2 observed within tumors [99]. It is interesting to note, that HER3/ERBB3 was included in the Top100 list and showed significant expression in FP-RMS and FN-RMS cell lines, and PDXs. HER3/ERBB3 seems to be expressed in RMS more consistently than HER2/ERBB2 [99]. Although these results are dependent on the antibodies used and should be interpreted carefully, it is tempting to speculate that HER3 might be a good alternative to HER2/ERBB2 as a target for CAR T cell therapy in RMS.
One limitation of this type of study is posed by the availability of normal controls. Cultured primary cells like myoblasts, often used as a normal control for RMS, which express myogenic markers, or like fibroblasts, can be assumed to represent normal tissues; however, their surface expression can differ from normal tissues and can therefore serve only as a first screening tool. Proteomic databases representing ideally all human tissues are extremely useful to prioritize the targets with low expression in normal tissues. The challenge is how to compare our own data, e.g., surfaceome, with the reposited data that are derived from whole tissues and globally normalized. Detection of a protein in normal tissue does not disqualify it from being a viable therapeutic target. The difference in expression between tumor and normal tissue needs to be big enough to allow for selective targeting. Therefore, careful quantitative evaluation of the expression is mandatory. This is very important, since the identification of proteins exclusively expressed on tumors is a very rare event. The final evaluation of the therapeutic window needs to be performed in more complex model systems, non-human primates, and eventually in patients.
In conclusion, surfaceome profiling of cultured tumor cells is a very powerful tool to identify novel putative cell surface targets for antibody-based therapies, such as CAR T-cell therapy. Here, we confirm FGFR4, NCAM1, and CD276 as specific RMS targets, and identify AGRL2, JAM3, MEGF10, as promising candidates. In particular, high L1CAM expression observed in the aggressive ARMS histological subtype, and its inverse correlation with survival, support further investigation of L1CAM targeted therapies for patients with dismal prognosis.

4. Materials and Methods

4.1. Cell Culture

Human RMS cell lines RD, Rh4, Rh5, Rh18, Rh28, Rh30, Rh36, JR, RMS, RUCH-3, and TTC-442 were kindly provided by Prof. Beat Schäfer, University Children’s Hospital Zurich, Switzerland. PDX IC-pPDX-104 (referred to as PDX_104), IC-pPDX-29 (referred to as PDX_29), and IC-pPDX-35 (referred to as PDX_35) were established at the Institut Curie in Paris, France as described in [100,101]. IC-pPDX-29: 14-year-old female with recurrent primary paravertebral ARMS (PAX3-FOXO1 translocation status unknown). IC-pPDX-35: 13-year-old male with recurrent metastatic ARMS with PAX3-FOXO1 translocation to the mediastinum. IC-pPDX-104: 7-year-old female with recurrent primary ARMS with PAX3-FOXO1 translocation to the tibia. Immortalized human healthy primary myoblasts KM155C25Dist (referred to as myoblasts), kindly provided by the platform for immortalization of human cells from the Institut de Myologie (Sorbonne University, Paris, France), and the MRC-5 cell line (ATCC) were used as negative controls. All cell lines, with the exception of human myoblasts, were cultured in DMEM (BioConcept, Allschwil, Switzerland; #1-26F01-I), supplemented with 10% fetal bovine serum (FBS, Thermo Fisher Scientific—Gibco, Zug, Switzerland; #10270106), L-glutamine 2 mM (BioConcept, #5-10K00-H) and 100 U/mL Penicillin-Streptomycin (BioConcept, #4-01F00-H) at 37 °C and 5% CO2 in a humidified incubator. Myoblasts were cultured in Skeletal Muscle Cell Growth Medium (PromoCell, Heidelberg, Germany; #C-23060) supplemented with Skeletal Muscle Cell Growth Medium SupplementMix (PromoCell, #C-39365). IC-pPDX-104, IC-pPDX-29, and IC-pPDX-35 were cultured in five P15 dishes, precoated with 1:10 diluted matrigel (Corning, Amsterdam, The Netherlands; #354234) into 3 mL of precooled neurobasal medium (Gibco, #10888022), supplemented with Glutamax (Thermo Fisher Scientific—Gibco, #35050), 100 U/mL Penicillin-Streptomycin (BioConcept, #4-01F00-H), 2x B-27 (Thermo Fisher Scientific—Life Technologies, #17504044), 20 ng/mL bFGF (PeproTech, #AF-100-18B), 20 ng/mL EGF (PeproTech, London, UK; #AF-100-15).

4.2. Cell Surface Proteins Isolation

Membrane/surface proteins were enriched with two methods: (1) Cell surface biotinylation and isolation (Thermo Fisher Scientific, #A44390), following the manufacturer’s instructions; (2) with a two-step protocol of ultracentrifugation and high salt washes [52]. Briefly, 1 × 107 cells were seeded on five P15 dishes. On the day of the experiment, 80–90% confluent cells were gently washed twice with PBS at RT, collected with a scraper, and centrifuged at 700× g at RT for 5 min. After resuspension in 1 mL cold hypotonic buffer (50 mM Mannitol, 5 mM HEPES, pH 7.4), the cells were homogenized with 1 min sonication (10% duty cycle, Branson Sonifer 250, Thermo Fisher Scientific) and centrifuged at 600× g at 4 °C for 10 min. The supernatant was then processed following differential centrifugations: 15,000× g, 4 °C for 5 min; wash in 10 mM CaCl2; shaking at 4 °C for 10 min; 3000× g at RT for 15 min; 48,000× g for 30 min at RT; wash in 1 M KCl; 48,000× g at RT for 30 min; wash in 0.5 mL 100 mM Na2CO3; 48,000× g at RT for 30 min. Next, all the samples were resuspended in 20 µL Laemmli buffer (62.5 mM TrisHCl, pH 6.8, 1% SDS, 10% Glycerol, 40 mM DTT) and separated by 1D gel-electrophoresis, 1.5 cm long gel-migration. For all the cell lines, three replicates were obtained. The SDS gel was fixed with 10% glacial acetic acid/40% EtOH, stained with 0.1% Brilliant Blue G in 45% EtOH/10% acetic acid and destained with 10% glacial acetic acid/40% EtOH in order to visualize the protein bands. Each lane was cut in four horizontal bands, and each band was further cut into six gel cubes. The six pieces of gel were then stored in 20% EtOH at 4 °C until processing.

4.3. In-Gel Digestion and Mass Spectrometry (MS)

MS experiments were performed in collaboration with the DBMR proteomics core facility (University of Bern). Proteins were in-gel digested as previously described [102]. Digests were loaded onto a precolumn (C18 PepMap 100, 5 µm, 100 A, 300 µm i.d. × 5 mm length, Thermo Fisher Scientific) at a flow rate of 50 µL/min with solvent C (0.05% TFA in water/acetonitrile 98:2). After loading, peptides were eluted in back flush mode onto a homemade C18 CSH Waters column (1.7 μm, 130 Å, 75 μm × 20 cm) by applying a 40 min gradient of 5% acetonitrile to 40% in water, 0.1% formic acid, at a flow rate of 250 nL/min. The column effluent was directly coupled to a Fusion LUMOS mass spectrometer (Thermo Fischer Scientific) via a nano-spray ESI source. Data acquisition was made in data-dependent mode with precursor ion scans recorded in the orbitrap with a resolution of 120,000 (at m/z = 250) parallel to top speed fragment spectra of the most intense precursor ions in the Linear trap for a cycle time of 3 s maximum.
The samples were searched and quantified with MaxQuant [103] version 2.0.1.0, using the SWISS-PROT [104] Homo sapiens database (April 2021 release) containing isoforms, and to which common contaminants were added. Search parameters were the following: enzyme was set to strict trypsin, with a maximum of three missed cleavages allowed; the first search peptide tolerance was set to 10 ppm, and the MS/MS match tolerance to 0.4 Da; carbamidomethylation on cysteine was set as a fixed modification, while methionine oxidation, asparagine, and glutamine deamidation, and protein N-terminal acetylation were set as variable modifications. The matches between runs were enabled, with the corresponding fractions labeled 1 to 4. The Top3 values were calculated by first normalizing peptide forms with variance stabilization normalization [105] and imputing them (see below) before summing the top three intensities.
Imputation at the peptide level was performed as follows: if there was at most one non-zero value in a group of replicates, then the remaining missing values were drawn from a Gaussian distribution of width 0.3 times the sample standard deviation and centered at the sample distribution mean minus 2.8 times the sample standard deviation; any remaining missing values were imputed by the Maximum Likelihood Estimation (MLE) method [106].

4.4. MS Data Processing and Data Mining

MS-derived data were inspected with the Panther database (www.pantherdb.org (accessed on 15 September 2022)) to evaluate the amount of membrane-associated proteins and validate the experiments. To select membrane/surface proteins with higher confidence, two published lists of predicted/annotated membrane/surface proteins were used. List A, a list of 2886 predicted and experimentally validated surface proteins by SURFY with an accuracy of 93.5%, which is included in the Cell Surface Protein Atlas (CSPA), published by Bausch et al. (Supplementary Information, List A) [53]. List B [107], a comprehensive list of 7643 membrane/surface proteins generated bioinformatically, by pooling annotated surface proteins from Gene Ontology [108], transmembrane proteins predicted by hidden Markov models (TMHMM) [109], and glycosylphosphatidylinositol (GPI)-anchored proteins [107] (Supplementary Information, List B).
Subcellular localization of the putative targets was verified by using Genecards source (www.genecards.org (accessed on 15 September 2022)); protein expression in normal tissues was evaluated with Human Protein Atlas database (www.proteinatlas.org (accessed on 15 September 2022)) checking RNA expression (nTPM) and protein expression (score). The UniProt Knowledgebase was used to confirm single candidates as membrane proteins (www.uniprot.org (accessed on 15 September 2022)). Briefly, membrane/surface proteins classified in UniProt as “reviewed” were sorted by the keywords “Homo sapiens” in Taxonomy and “Transmembrane” in Subcellular location searching fields, and the corresponding gene names were converted into UniProt KB ID.

4.5. Scoring Strategy for Sorted Membrane/Surface Proteins

The membrane/surface proteins extracted from the MS data were further processed to determine the Top100 upregulated surface proteins. A stringent scoring was designed to assign lower grades to the most RMS-specific candidates, expressed at the highest levels (Table 1).

4.6. Statistical Analysis

Differential expression by moderated t-statistics and significance evaluation was performed following Uldry et al., 2022 [110], with a minimum of log2 fold change of 1 and a maximum adjusted p-value of 0.05 for each individual comparison using the imputed Top3 intensities for each set of cells, Results for C-list proteins were summarized by plotting on the x-axis the average log2 fold changes between each cell of the set and MRC-5 and Myoblasts, and on the y-axis, the average of the corresponding moderated t-statistics of the comparisons. Proteins for which the moderated t-statistics were above 2.132 (95th percentile of the corresponding Student’s distribution) in all three sets of cells were considered of interest. Graphs were generated with R. The linear mixed model (LMM) was derived from the R implementation DREAM [56] and was used to perform a statistical evaluation of all the respective FP-RMS, FN-RMS, and PDXs groups versus the controls while accounting for the fact that each subgroup of replicates are repeated measurements. Differential expression and significance evaluation were performed as above. Volcano plots were generated with the online tool VolcanoNoseR [111].

4.7. Transcriptomics Data Analysis

The mRNA expression data of the genes corresponding to the Top100 putative targets for RMS tumors and normal tissues were obtained from the RMS whole-transcriptome sequencing data set (dbGaP Study Accession: phs000720.v3.p1), reported in 2021 by Brohl et al. [49].

4.8. Scoring Strategy for mRNA Data from RMS Tumors

The mRNA levels of the genes for the Top100 proteins were ranked by applying the scores in Table 2.

4.9. Antibodies

Primary antibodies for Flow Cytometry: mouse anti-latrophilin 2/AGRL2/LPHN2 (1 µg/106 cells; R&D Systems, #MAB105881-SP); mouse anti-glypican 4 (1 µg/106 cells; R&D Systems, MAB9195-SP); mouse anti-JAM3 (1 µg/106 cells; R&D SYSTEMS, MAB11891-SP); PE-conjugated anti-L1CAM, (1:20; Miltenyi Biotec, Bergisch Gladbach, Germany; #130-100-691); PE-conjugated anti-FGFR4 (1:100; Biolegend, London, UK; #324306). Secondary antibodies: FITC Goat anti-mouse IgG antibody (1:500; BioLegend, #405305). Isotype controls: mouse FITC-conjugated IgG1, κ Isotype Ctrl Antibody (1:100; BioLegend, #400108); rabbit PE-conjugated (1:100; R&D Systems, #AB-105-C).

4.10. Flow Cytometry Analysis

Cells were detached with Accutase (Thermo Fisher Scientific) for 10 min at 37 °C, washed with PBS, and counted. 100,000 cells were incubated in 100 µL FACS buffer (2% BSA in PBS) with the primary antibodies at the optimized concentrations for 30 min at RT. Flow cytometry measurements were performed with a CytoFLEX device (Beckman Coulter, Krefeld, Germany). The results were analyzed by FlowJo v10.8.1 Software (BD Life Sciences, Allschwil, Switzerland).

4.11. Tissue Microarrays

A tissue microarray with 248 cores from 124 RMS tumors (24 ARMS, of which 17 with known FOXO1 gene rearrangements and 100 ERMS) was constructed [60]. Tumors used were collected at the University Hospital Zurich, Switzerland and at the Kiel Pediatric Tumor Registry, Kiel, Germany. Immunohistochemistry was performed essentially as described in [72] by using the monoclonal antibody anti-L1CAM (clone 14.10, directed to the ectodomain, 1:200).

4.12. Survival Analysis

The correlation between L1CAM mRNA expression levels and RMS survival was analyzed with the dataset “Rhabdomyosarcoma Davicioni 147” publicly available through the R2 Genomics Analysis and Visualization Platform (http://r2.amc.nl; ps_avgpres_rmstriche147_u133a (accessed on 12 January 2023)), derived from a comprehensive analysis of 147 RMS samples [39], and survival data were obtained from the supplementary Tables in Davicioni et al. [112]. The Kaplan–Meier plot was generated with https://kmplot.com (accessed on 15 Juanuary 2023) autoselecting for best cut-off and performing univariate Cox regression as described [113]. Significance was computed using the Cox–Mantel (logrank) test [61].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24032601/s1.

Author Contributions

Conceptualization, A.T. and M.B.; methodology, A.T., C.P., R.S., A.-C.U., M.H. and M.B.; software, A.-C.U. and M.H.; validation, A.T., D.D., C.P. and M.B.; formal analysis, A.T., A.-C.U., M.H., P.K.B. and M.B.; investigation, A.T., C.P., R.S. and A.-C.U.; data curation, A.T., A.-C.U., M.H. and M.B.; writing—original draft preparation, A.T. and M.B.; writing—review and editing, A.T., C.P., P.K.B., D.D., R.S., A.-C.U., M.H., J.R. and M.B.; visualization, A.T., A.-C.U. and M.B.; supervision, J.R. and M.B.; project administration, J.R. and M.B.; funding acquisition, J.R. and M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the “Bernese Foundation for Children and Young Adults with Cancer/Berner Stiftung für krebskranke Kinder und Jugendliche”, and the “Stiftung zur Krebsbekämpfung”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Proteomics data have been deposited to proteomeXchange.org (identifier PXD039480) [114].

Acknowledgments

We thank the Institute of Myology, Paris, France, for providing humanized myoblasts. We are also very grateful to Sophie Braga Lagache and Natasha Buchs of the Core Facility Proteomics & Mass Spectrometry for their skillful help in protein isolation and MS analysis; to Stephan Müller and the Flow Cytometry and Cell Sorting (FCCS) facility; as well as the Live Cell Imaging (LCI) facility of the DBMR (University of Bern) for their support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table
Table A1. List C: “Top100” list of surface proteins ranked by the criteria of the MS scoring strategy.
Table A1. List C: “Top100” list of surface proteins ranked by the criteria of the MS scoring strategy.
#UniProt IDEntry NameProtein Name (Alternative Names)Mean iTop3 in RMSMean iTop3 in CtrlsLog2
(Ratio RMS/Ctrls)		Score
1O95490-2ADGRL2Isoform 2 of Adhesion G protein-coupled receptor L2 OS = Homo sapiens OX = 9606 GN = ADGRL2; Isoform 5 of Adhesion G protein-coupled receptor L2 OS = Homo sapiens OX = 9606 GN = ADGRL21.10 × 1080.0010.0001
2O75487GPC4Glypican-4 OS = Homo sapiens OX = 9606 GN = GPC4 PE = 1 SV = 4; Isoform 2 of Glypican-4 OS = Homo sapiens OX = 9606 GN = GPC44.72 × 1070.0010.0003
3Q15375-2EPHA7Isoform 2 of Ephrin type-A receptor 7 OS = Homo sapiens OX = 9606 GN = EPHA7; Isoform 4 of Ephrin type-A receptor 7 OS = Homo sapiens OX = 9606 GN = EPHA7; Ephrin type-A receptor 72.97 × 1070.0010.0003
4P32004-3L1CAMIsoform 3 of Neural cell adhesion molecule L1 OS = Homo sapiens OX = 9606 GN = L1CAM8.29 × 1070.0010.0004
5Q8TEM1NUP210Nuclear pore membrane glycoprotein 210 OS = Homo sapiens OX = 9606 GN = NUP210 PE = 1 SV = 37.10 × 1073.47 × 1057.6775
6Q9P2B2PTGFRNProstaglandin F2 receptor negative regulator OS = Homo sapiens OX = 9606 GN = PTGFRN PE = 1 SV = 21.35 × 1082.18 × 1065.9585
7P13591NCAM1Neural cell adhesion molecule 1 OS = Homo sapiens OX = 9606 GN = NCAM1 PE = 1 SV = 37.02 × 1080.0010.0006
8Q15223NECTIN1Nectin-1 OS = Homo sapiens OX = 9606 GN = NECTIN1 PE = 1 SV = 3 8.31 × 1070.0010.0008.5
9Q8N3J6-2CADM2Isoform 2 of Cell adhesion molecule 2 OS = Homo sapiens OX = 9606 GN = CADM2; Isoform 3 of Cell adhesion molecule 2 OS = Homo sapiens OX = 9606 GN = CADM2; Cell adhesion molecule 25.24 × 1070.0010.00010
10P22455FGFR4Fibroblast growth factor receptor 4 OS = Homo sapiens OX = 9606 GN = FGFR4 PE = 1 SV = 2; Isoform 2 of Fibroblast growth factor receptor 4 OS = Homo sapiens OX = 9606 GN = FGFR43.02 × 1088.76 × 1065.10510.5
11P52803EFNA5Ephrin-A5 OS = Homo sapiens OX = 9606 GN = EFNA5 PE = 1 SV = 11.03 × 1070.0010.00010.5
12P54826GAS1Growth arrest-specific protein 1 OS = Homo sapiens OX = 9606 GN = GAS1 PE = 2 SV = 22.27 × 1070.0010.00010.5
13P78310CXADRCoxsackievirus and adenovirus receptor OS = Homo sapiens OX = 9606 GN = CXADR PE = 1 SV = 1; Isoform 7 of Coxsackievirus and adenovirus receptor OS = Homo sapiens OX = 9606 GN = CXADR4.98 × 1070.0010.00010.5
14Q9Y5Y0FLVCR1Feline leukemia virus subgroup C receptor-related protein 1 OS = Homo sapiens OX = 9606 GN = FLVCR1 PE = 1 SV = 16.64 × 1072.07 × 1065.00210.5
15Q9BSA4TTYH2Protein tweety homolog 2 OS = Homo sapiens OX = 9606 GN = TTYH2 PE = 1 SV = 34.05 × 1070.0010.00011
16Q9Y666SLC12A7Solute carrier family 12 member 7 OS = Homo sapiens OX = 9606 GN = SLC12A7 PE = 1 SV = 37.23 × 1075.88 × 1063.61811
17Q6ZRP7QSOX2Sulfhydryl oxidase 2 OS = Homo sapiens OX = 9606 GN = QSOX2 PE = 1 SV = 31.76 × 1082.66 × 1072.72412
18Q9P0T7TMEM9Proton-transporting V-type ATPase complex assembly regulator TMEM9 OS = Homo sapiens OX = 9606 GN = TMEM9 PE = 1 SV = 11.54 × 1082.44 × 1072.66212
19Q9Y289SLC5A6Sodium-dependent multivitamin transporter OS = Homo sapiens OX = 9606 GN = SLC5A6 PE = 2 SV = 25.08 × 1072.95 × 1064.10512
20O43155FLRT2Leucine-rich repeat transmembrane protein FLRT2 OS = Homo sapiens OX = 9606 GN = FLRT2 PE = 1 SV = 12.07 × 1070.0010.00012.5
21O75051PLXNA2Plexin-A2 OS = Homo sapiens OX = 9606 GN = PLXNA2 PE = 1 SV = 45.39 × 1071.03 × 1072.38213
22P16144-4ITGB4Isoform Beta-4D of Integrin beta-4 OS = Homo sapiens OX = 9606 GN = ITGB4; Isoform Beta-4A of Integrin beta-4 OS = Homo sapiens OX = 9606 GN = ITGB45.63 × 1070.0010.00013
23P50993ATP1A2Sodium/potassium-transporting ATPase subunit alpha-2 OS = Homo sapiens OX = 9606 GN = ATP1A2 PE = 1 SV = 11.16 × 1070.0010.00013
24Q6N075MFSD5Molybdate-anion transporter OS = Homo sapiens OX = 9606 GN = MFSD5 PE = 1 SV = 2; Isoform 2 of Molybdate-anion transporter OS = Homo sapiens OX = 9606 GN = MFSD59.47 × 1060.0010.00013
25Q8NFZ8CADM4Cell adhesion molecule 4 OS = Homo sapiens OX = 9606 GN = CADM4 PE = 1 SV = 11.05 × 1070.0010.00013
26Q99808SLC29A1Equilibrative nucleoside transporter 1 OS = Homo sapiens OX = 9606 GN = SLC29A1 PE = 1 SV = 33.24 × 1086.67 × 1072.28113
27Q9BX67JAM3Junctional adhesion molecule C OS = Homo sapiens OX = 9606 GN = JAM3 PE = 1 SV = 1; Isoform 2 of Junctional adhesion molecule C OS = Homo sapiens OX = 9606 GN = JAM32.60 × 1085.58 × 1072.22013
28P13637ATP1A3Sodium/potassium-transporting ATPase subunit alpha-3 OS = Homo sapiens OX = 9606 GN = ATP1A3 PE = 1 SV = 32.87 × 1070.0010.00013.5
29P49810-2PSEN2Isoform 2 of Presenilin-2 OS = Homo sapiens OX = 9606 GN = PSEN2; Isoform 3 of Presenilin-2 OS = Homo sapiens OX = 9606 GN = PSEN23.57 × 1079.20 × 1055.27713.5
30Q9H2E6SEMA6ASemaphorin-6A OS = Homo sapiens OX = 9606 GN = SEMA6A PE = 1 SV = 21.40 × 1070.0010.00013.5
31O60245PCDH7Protocadherin-7 OS = Homo sapiens OX = 9606 GN = PCDH7 PE = 1 SV = 21.87 × 1078.32 × 1054.49214
32O95858TSPAN15Tetraspanin-15 OS = Homo sapiens OX = 9606 GN = TSPAN15 PE = 1 SV = 19.18 × 1060.0010.00014
33P20645M6PRCation-dependent mannose-6-phosphate receptor OS = Homo sapiens OX = 9606 GN = M6PR PE = 1 SV = 11.08 × 1098.52 × 1080.34714
34Q13491-4GPM6BIsoform 4 of Neuronal membrane glycoprotein M6-b OS = Homo sapiens OX = 9606 GN = GPM6B3.04 × 1070.0010.00014
35Q14542SLC29A2Equilibrative nucleoside transporter 2 OS = Homo sapiens OX = 9606 GN = SLC29A2 PE = 1 SV = 31.95 × 1070.0010.00014
36Q15043-2SLC39A14Isoform 3 of Metal cation symporter ZIP14 OS = Homo sapiens OX = 9606 GN = SLC39A142.31 × 1085.48 × 1072.07914
37Q92823-3NRCAMIsoform 3 of Neuronal cell adhesion molecule OS = Homo sapiens OX = 9606 GN = NRCAM3.76 × 1070.0010.00014
38Q96KG7MEGF10Multiple epidermal growth factor-like domains protein 10 OS = Homo sapiens OX = 9606 GN = MEGF10 PE = 1 SV = 11.77 × 1074.02 × 1062.14214
39Q9H0V9LMAN2LVIP36-like protein OS = Homo sapiens OX = 9606 GN = LMAN2L PE = 1 SV = 1; Isoform 2 of VIP36-like protein OS = Homo sapiens OX = 9606 GN = LMAN2L7.37 × 1072.20 × 1071.74714
40P29972AQP1Aquaporin-1 OS = Homo sapiens OX = 9606 GN = AQP1 PE = 1 SV = 31.86 × 1070.0010.00015
41P53985SLC16A1Monocarboxylate transporter 1 OS = Homo sapiens OX = 9606 GN = SLC16A1 PE = 1 SV = 34.93 × 1081.94 × 1081.34615
42Q12907LMAN2Vesicular integral-membrane protein VIP36 OS = Homo sapiens OX = 9606 GN = LMAN2 PE = 1 SV = 16.67 × 1086.11 × 1080.12815
43Q5T3U5-2ABCC10Isoform 2 of ATP-binding cassette sub-family C member 10 OS = Homo sapiens OX = 9606 GN = ABCC10; ATP-binding cassette sub-family C member 10 OS = Homo sapiens OX = 9606 GN = ABCC10 PE = 1 SV = 11.13 × 1070.0010.00015
44Q7Z3C6ATG9AAutophagy-related protein 9A OS = Homo sapiens OX = 9606 GN = ATG9A PE = 1 SV = 37.88 × 1071.69 × 1072.22215
45Q92544TM9SF4Transmembrane 9 superfamily member 4 OS = Homo sapiens OX = 9606 GN = TM9SF4 PE = 1 SV = 27.35 × 1083.90 × 1080.91315
46O94856-4NFASCIsoform 4 of Neurofascin OS = Homo sapiens OX = 9606 GN = NFASC5.07 × 1070.0010.00015.5
47P0C7U0ELFN1Protein ELFN1 OS = Homo sapiens OX = 9606 GN = ELFN1 PE = 1 SV = 25.88 × 1070.0010.00015.5
48P32418-2SLC8A1Isoform 3 of Sodium/calcium exchanger 1 OS = Homo sapiens OX = 9606 GN = SLC8A14.50 × 1093.46 × 1077.02215.5
49P04843RPN1Dolichyl-diphosphooligosaccharide—protein glycosyltransferase subunit 1 OS = Homo sapiens OX = 9606 GN = RPN1 PE = 1 SV = 11.43 × 1093.21 × 109−1.16616
50P05023-3ATP1A1Isoform 3 of Sodium/potassium-transporting ATPase subunit alpha-1 OS = Homo sapiens OX = 9606 GN = ATP1A11.51 × 1091.81 × 109−0.25716
51P05556ITGB1Integrin beta-1 OS = Homo sapiens OX = 9606 GN = ITGB1 PE = 1 SV = 21.69 × 1095.95 × 109−1.81816
52P35613BSGBasigin OS = Homo sapiens OX = 9606 GN = BSG PE = 1 SV = 21.17 × 1097.28 × 1080.68216
53P54709ATP1B3Sodium/potassium-transporting ATPase subunit beta-3 OS = Homo sapiens OX = 9606 GN = ATP1B3 PE = 1 SV = 11.19 × 1097.59 × 1080.64916
54P56746CLDN15Claudin-15 OS = Homo sapiens OX = 9606 GN = CLDN15 PE = 1 SV = 14.67 × 1060.0010.00016
55Q99805TM9SF2Transmembrane 9 superfamily member 2 OS = Homo sapiens OX = 9606 GN = TM9SF2 PE = 1 SV = 13.08 × 1082.88 × 1080.09416
56Q9BZM6ULBP1UL16-binding protein 1 OS = Homo sapiens OX = 9606 GN = ULBP1 PE = 1 SV = 15.59 × 1060.0010.00016
57Q9H8M5CNNM2Metal transporter CNNM2 OS = Homo sapiens OX = 9606 GN = CNNM2 PE = 1 SV = 24.54 × 1060.0010.00016
58Q9P273TENM3Teneurin-3 OS = Homo sapiens OX = 9606 GN = TENM3 PE = 2 SV = 31.90 × 1075.83 × 1061.70516
59O15431SLC31A1High affinity copper uptake protein 1 OS = Homo sapiens OX = 9606 GN = SLC31A1 PE = 1 SV = 11.31 × 1081.21 × 1080.11717
60P11117ACP2Lysosomal acid phosphatase OS = Homo sapiens OX = 9606 GN = ACP2 PE = 1 SV = 31.26 × 1081.14 × 1080.14017
61P19256-2CD58Isoform 2 of Lymphocyte function-associated antigen 3 OS = Homo sapiens OX = 9606 GN = CD582.86 × 1060.0010.00017
62P41143OPRD1Delta-type opioid receptor OS = Homo sapiens OX = 9606 GN = OPRD1 PE = 1 SV = 41.17 × 1070.0010.00017
63P51654GPC3Glypican-3 OS = Homo sapiens OX = 9606 GN = GPC3 PE = 1 SV = 13.15 × 1070.0010.00017
64Q13308PTK7Inactive tyrosine-protein kinase 7 OS = Homo sapiens OX = 9606 GN = PTK7 PE = 1 SV = 22.36 × 1082.06 × 1080.19317
65Q14108SCARB2Lysosome membrane protein 2 OS = Homo sapiens OX = 9606 GN = SCARB2 PE = 1 SV = 28.23 × 1081.60 × 109−0.96217
66Q15758SLC1A5Neutral amino acid transporter B(0) OS = Homo sapiens OX = 9606 GN = SLC1A5 PE = 1 SV = 25.35 × 1084.48 × 1080.25417
67Q5ZPR3CD276CD276 antigen OS = Homo sapiens OX = 9606 GN = CD276 PE = 1 SV = 11.83 × 1081.34 × 1080.44917
68Q68DH5LMBRD2G-protein coupled receptor-associated protein LMBRD2 OS = Homo sapiens OX = 9606 GN = LMBRD2 PE = 1 SV = 14.27 × 1071.40 × 1071.60917
69Q8NFM7-4IL17RDIsoform 4 of Interleukin-17 receptor D OS = Homo sapiens OX = 9606 GN = IL17RD3.41 × 1070.0010.00017
70Q8WY21-3SORCS1Isoform 3 of VPS10 domain-containing receptor SorCS1 OS = Homo sapiens OX = 9606 GN = SORCS1; 3.79 × 1074.25 × 1063.16017
71Q92542NCSTNNicastrin OS = Homo sapiens OX = 9606 GN = NCSTN PE = 1 SV = 2; Isoform 2 of Nicastrin OS = Homo sapiens OX = 9606 GN = NCSTN5.52 × 1084.31 × 1080.35817
72Q9Y625GPC6Glypican-6 OS = Homo sapiens OX = 9606 GN = GPC6 PE = 1 SV = 16.19 × 1079.59 × 1062.69117
73O15031PLXNB2Plexin-B2 OS = Homo sapiens OX = 9606 GN = PLXNB2 PE = 1 SV = 32.73 × 1085.04 × 108−0.88618
74O15321-2TM9SF1Isoform 2 of Transmembrane 9 superfamily member 1 OS = Homo sapiens OX = 9606 GN = TM9SF1; Transmembrane 9 superfamily member 1 OS = Homo sapiens OX = 9606 GN = TM9SF1 PE = 2 SV = 27.34 × 1075.57 × 1070.39718
75O75954TSPAN9Tetraspanin-9 OS = Homo sapiens OX = 9606 GN = TSPAN9 PE = 1 SV = 16.23 × 1074.35 × 1070.51818
76P05026-2ATP1B1Isoform 2 of Sodium/potassium-transporting ATPase subunit beta-1 OS = Homo sapiens OX = 9606 GN = ATP1B1; Sodium/potassium-transporting ATPase subunit beta-1 OS = Homo sapiens OX = 9606 GN = ATP1B1 PE = 1 SV = 12.61 × 1084.10 × 108−0.65218
77P11166SLC2A1Solute carrier family 2, facilitated glucose transporter member 1 OS = Homo sapiens OX = 9606 GN = SLC2A1 PE = 1 SV = 23.30 × 1083.01 × 109−3.18918
78P21860-4ERBB3Isoform 4 of Receptor tyrosine-protein kinase erbB-3 OS = Homo sapiens OX = 9606 GN = ERBB3; Receptor tyrosine-protein kinase erbB-3 OS = Homo sapiens OX = 9606 GN = ERBB3 PE = 1 SV = 12.72 × 1075.26 × 1055.69418
79P22897-2MRC1Isoform 2 of Macrophage mannose receptor 1 OS = Homo sapiens OX = 9606 GN = MRC1; Macrophage mannose receptor 1 OS = Homo sapiens OX = 9606 GN = MRC1 PE = 1 SV = 11.22 × 1070.0010.00018
80P23229-4ITGA6Isoform Alpha-6X2A of Integrin alpha-6 OS = Homo sapiens OX = 9606 GN = ITGA63.29 × 1083.60 × 108−0.13018
81P29317EPHA2Ephrin type-A receptor 2 OS = Homo sapiens OX = 9606 GN = EPHA2 PE = 1 SV = 23.58 × 1086.30 × 108−0.81718
82P30825SLC7A1High affinity cationic amino acid transporter 1 OS = Homo sapiens OX = 9606 GN = SLC7A1 PE = 1 SV = 11.97 × 1087.64 × 1071.36318
83P54753EPHB3Ephrin type-B receptor 3 OS = Homo sapiens OX = 9606 GN = EPHB3 PE = 1 SV = 25.16 × 1075.00 × 1070.04418
84Q8IWA5SLC44A2Choline transporter-like protein 2 OS = Homo sapiens OX = 9606 GN = SLC44A2 PE = 1 SV = 3; 2.57 × 1082.33 × 1080.13818
85Q8NE01CNNM3Metal transporter CNNM3 OS = Homo sapiens OX = 9606 GN = CNNM3 PE = 1 SV = 12.31 × 1075.81 × 1061.99118
86Q96QD8SLC38A2Sodium-coupled neutral amino acid transporter 2 OS = Homo sapiens OX = 9606 GN = SLC38A2 PE = 1 SV = 23.85 × 1083.36 × 109−3.12518
87Q99523SORT1Sortilin OS = Homo sapiens OX = 9606 GN = SORT1 PE = 1 SV = 33.49 × 1084.82 × 108−0.46618
88Q9C0H2-4TTYH3Isoform 4 of Protein tweety homolog 3 OS = Homo sapiens OX = 9606 GN = TTYH32.51 × 1084.19 × 108−0.73918
89Q9HD45TM9SF3Transmembrane 9 superfamily member 3 OS = Homo sapiens OX = 9606 GN = TM9SF3 PE = 1 SV = 23.88 × 1084.46 × 108−0.20118
90Q9Y3B3TMED7Transmembrane emp24 domain-containing protein 7 OS = Homo sapiens OX = 9606 GN = TMED7 PE = 1 SV = 22.92 × 1083.64 × 108−0.31818
91Q9Y487ATP6V0A2V-type proton ATPase 116 kDa subunit a2 OS = Homo sapiens OX = 9606 GN = ATP6V0A2 PE = 1 SV = 26.50 × 1074.24 × 1070.61718
92Q9Y624F11RJunctional adhesion molecule A OS = Homo sapiens OX = 9606 GN = F11R PE = 1 SV = 1; Isoform 2 of Junctional adhesion molecule A OS = Homo sapiens OX = 9606 GN = F11R9.98 × 1060.0010.00018
93A8MWY0ELAPOR2Endosome/lysosome-associated apoptosis and autophagy regulator family member 2 OS = Homo sapiens OX = 9606 GN = ELAPOR2 PE = 1 SV = 26.32 × 1060.0010.00018.5
94P19022-2CDH2Isoform 2 of Cadherin-2 OS = Homo sapiens OX = 9606 GN = CDH2; Cadherin-2 OS = Homo sapiens OX = 9606 GN = CDH2 PE = 1 SV = 41.17 × 1086.33 × 1070.88818.5
95Q13641TPBGTrophoblast glycoprotein OS = Homo sapiens OX = 9606 GN = TPBG PE = 1 SV = 12.32 × 1083.40 × 108−0.55518.5
96Q8N158GPC2Glypican-2 OS = Homo sapiens OX = 9606 GN = GPC2 PE = 2 SV = 16.34 × 1060.0010.00018.5
97Q99758ABCA3Phospholipid-transporting ATPase ABCA3 OS = Homo sapiens OX = 9606 GN = ABCA3 PE = 1 SV = 22.36 × 1070.0010.00018.5
98Q9HCN3PGAP6Post-GPI attachment to proteins factor 6 OS = Homo sapiens OX = 9606 GN = PGAP6 PE = 1 SV = 37.34 × 1060.0010.00018.5
99O14672ADAM10Disintegrin and metalloproteinase domain-containing protein 10 OS = Homo sapiens OX = 9606 GN = ADAM10 PE = 1 SV = 11.34 × 1083.71 × 108−1.47419
100O15118NPC1NPC intracellular cholesterol transporter 1 OS = Homo sapiens OX = 9606 GN = NPC1 PE = 1 SV = 22.08 × 1081.87 × 1080.14819

References

  1. Hawkins, D.S.; Spunt, S.L.; Skapek, S.X.; COG Soft Tissue Sarcoma Committee. Children’s Oncology Group’s 2013 blueprint for research: Soft tissue sarcomas. Pediatr. Blood Cancer 2013, 60, 1001–1008. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Siegel, R.L.; Miller, K.D.; Fuchs, H.E.; Jemal, A. Cancer statistics, 2022. CA Cancer J. Clin. 2022, 72, 7–33. [Google Scholar] [CrossRef] [PubMed]
  3. Hettmer, S.; Wagers, A.J. Muscling in: Uncovering the origins of rhabdomyosarcoma. Nat. Med. 2010, 16, 171–173. [Google Scholar] [CrossRef] [PubMed]
  4. The WHO Classification of Tumours Editorial Board. WHO Classification of Tumours Soft Tissue and Bone Tumours, 5th ed.; IARC Press: Lyon, France, 2020; pp. 201–215. [Google Scholar]
  5. Barr, F.G.; Smith, L.M.; Lynch, J.C.; Strzelecki, D.; Parham, D.M.; Qualman, S.J.; Breitfeld, P.P. Examination of gene fusion status in archival samples of alveolar rhabdomyosarcoma entered on the Intergroup Rhabdomyosarcoma Study-III trial: A report from the Children’s Oncology Group. J. Mol. Diagn. 2006, 8, 202–208. [Google Scholar] [CrossRef] [Green Version]
  6. Williamson, D.; Missiaglia, E.; de Reynies, A.; Pierron, G.; Thuille, B.; Palenzuela, G.; Thway, K.; Orbach, D.; Lae, M.; Freneaux, P.; et al. Fusion gene-negative alveolar rhabdomyosarcoma is clinically and molecularly indistinguishable from embryonal rhabdomyosarcoma. J. Clin. Oncol. 2010, 28, 2151–2158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Malempati, S.; Weigel, B.J.; Chi, Y.Y.; Tian, J.; Anderson, J.R.; Parham, D.M.; Teot, L.A.; Rodeberg, D.A.; Yock, T.I.; Shulkin, B.L.; et al. The addition of cixutumumab or temozolomide to intensive multiagent chemotherapy is feasible but does not improve outcome for patients with metastatic rhabdomyosarcoma: A report from the Children’s Oncology Group. Cancer 2019, 125, 290–297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Shern, J.F.; Selfe, J.; Izquierdo, E.; Patidar, R.; Chou, H.C.; Song, Y.K.; Yohe, M.E.; Sindiri, S.; Wei, J.; Wen, X.; et al. Genomic Classification and Clinical Outcome in Rhabdomyosarcoma: A Report From an International Consortium. J. Clin. Oncol. 2021, 39, 2859–2871. [Google Scholar] [CrossRef]
  9. Punyko, J.A.; Mertens, A.C.; Gurney, J.G.; Yasui, Y.; Donaldson, S.S.; Rodeberg, D.A.; Raney, R.B.; Stovall, M.; Sklar, C.A.; Robison, L.L.; et al. Long-term medical effects of childhood and adolescent rhabdomyosarcoma: A report from the childhood cancer survivor study. Pediatr. Blood Cancer 2005, 44, 643–653. [Google Scholar] [CrossRef]
  10. Owosho, A.A.; Brady, P.; Wolden, S.L.; Wexler, L.H.; Antonescu, C.R.; Huryn, J.M.; Estilo, C.L. Long-term effect of chemotherapy-intensity-modulated radiation therapy (chemo-IMRT) on dentofacial development in head and neck rhabdomyosarcoma patients. Pediatr. Hematol. Oncol. 2016, 33, 383–392. [Google Scholar] [CrossRef] [Green Version]
  11. Zolot, R.S.; Basu, S.; Million, R.P. Antibody-drug conjugates. Nat. Rev. Drug Discov. 2013, 12, 259–260. [Google Scholar] [CrossRef]
  12. Drago, J.Z.; Modi, S.; Chandarlapaty, S. Unlocking the potential of antibody-drug conjugates for cancer therapy. Nat. Rev. Clin. Oncol. 2021, 18, 327–344. [Google Scholar] [CrossRef] [PubMed]
  13. Blanco, B.; Dominguez-Alonso, C.; Alvarez-Vallina, L. Bispecific Immunomodulatory Antibodies for Cancer Immunotherapy. Clin. Cancer Res. 2021, 27, 5457–5464. [Google Scholar] [CrossRef] [PubMed]
  14. Esfandiari, A.; Cassidy, S.; Webster, R.M. Bispecific antibodies in oncology. Nat. Rev. Drug Discov. 2022, 21, 411–412. [Google Scholar] [CrossRef]
  15. June, C.H.; Sadelain, M. Chimeric Antigen Receptor Therapy. N. Engl. J. Med. 2018, 379, 64–73. [Google Scholar] [CrossRef] [PubMed]
  16. Larson, R.C.; Maus, M.V. Recent advances and discoveries in the mechanisms and functions of CAR T cells. Nat. Rev. Cancer 2021, 21, 145–161. [Google Scholar] [CrossRef]
  17. June, C.H.; O’Connor, R.S.; Kawalekar, O.U.; Ghassemi, S.; Milone, M.C. CAR T cell immunotherapy for human cancer. Science 2018, 359, 1361–1365. [Google Scholar] [CrossRef] [Green Version]
  18. El-Badry, O.M.; Minniti, C.; Kohn, E.C.; Houghton, P.J.; Daughaday, W.H.; Helman, L.J. Insulin-like growth factor II acts as an autocrine growth and motility factor in human rhabdomyosarcoma tumors. Cell Growth Differ. 1990, 1, 325–331. [Google Scholar]
  19. Wan, X.; Helman, L.J. Levels of PTEN protein modulate Akt phosphorylation on serine 473, but not on threonine 308, in IGF-II-overexpressing rhabdomyosarcomas cells. Oncogene 2003, 22, 8205–8211. [Google Scholar] [CrossRef] [Green Version]
  20. Shapiro, D.N.; Jones, B.G.; Shapiro, L.H.; Dias, P.; Houghton, P.J. Antisense-mediated reduction in insulin-like growth factor-I receptor expression suppresses the malignant phenotype of a human alveolar rhabdomyosarcoma. J. Clin. Investig. 1994, 94, 1235–1242. [Google Scholar] [CrossRef]
  21. Gattenloehner, S.; Vincent, A.; Leuschner, I.; Tzartos, S.; Muller-Hermelink, H.K.; Kirchner, T.; Marx, A. The fetal form of the acetylcholine receptor distinguishes rhabdomyosarcomas from other childhood tumors. Am. J. Pathol. 1998, 152, 437–444. [Google Scholar]
  22. Mechtersheimer, G.; Staudter, M.; Möller, P. Expression of the Natural Killer Cell-associated Antigens CD56 and CD57 in Human Neural and Striated Muscle Cells and in Their Tumors1. Cancer Res. 1991, 51, 1300–1307. [Google Scholar] [PubMed]
  23. Phimister, E.G.; Culverwell, A.; Patel, K.; Kemshead, J.T. Tissue-specific expression of neural cell adhesion molecule (NCAM) may allow differential diagnosis of neuroblastoma from embryonal rhabdomyosarcoma. Eur. J. Cancer 1994, 30A, 1552–1558. [Google Scholar] [CrossRef] [PubMed]
  24. Gluer, S.; Schelp, C.; von Schweinitz, D.; Gerardy-Schahn, R. Polysialylated neural cell adhesion molecule in childhood rhabdomyosarcoma. Pediatr. Res. 1998, 43, 145–147. [Google Scholar] [CrossRef] [Green Version]
  25. Bahrami, A.; Gown, A.M.; Baird, G.S.; Hicks, M.J.; Folpe, A.L. Aberrant expression of epithelial and neuroendocrine markers in alveolar rhabdomyosarcoma: A potentially serious diagnostic pitfall. Mod. Pathol. 2008, 21, 795–806. [Google Scholar] [CrossRef] [Green Version]
  26. De Giovanni, C.; Landuzzi, L.; Frabetti, F.; Nicoletti, G.; Griffoni, C.; Rossi, I.; Mazzotti, M.; Scotto, L.; Nanni, P.; Lollini, P.-L. Antisense Epidermal Growth Factor Receptor Transfection Impairs the Proliferative Ability of Human Rhabdomyosarcoma Cells. Cancer Res. 1996, 56, 3898–3901. [Google Scholar]
  27. Andrechek, E.R.; Hardy, W.R.; Girgis-Gabardo, A.A.; Perry, R.L.; Butler, R.; Graham, F.L.; Kahn, R.C.; Rudnicki, M.A.; Muller, W.J. ErbB2 is required for muscle spindle and myoblast cell survival. Mol. Cell. Biol. 2002, 22, 4714–4722. [Google Scholar] [CrossRef] [Green Version]
  28. Nanni, P.; Nicoletti, G.; De Giovanni, C.; Croci, S.; Astolfi, A.; Landuzzi, L.; Di Carlo, E.; Iezzi, M.; Musiani, P.; Lollini, P.-L. Development of Rhabdomyosarcoma in HER-2/neu Transgenic p53 Mutant Mice1. Cancer Res. 2003, 63, 2728–2732. [Google Scholar] [PubMed]
  29. Armistead, P.M.; Salganick, J.; Roh, J.S.; Steinert, D.M.; Patel, S.; Munsell, M.; El-Naggar, A.K.; Benjamin, R.S.; Zhang, W.; Trent, J.C. Expression of receptor tyrosine kinases and apoptotic molecules in rhabdomyosarcoma: Correlation with overall survival in 105 patients. Cancer 2007, 110, 2293–2303. [Google Scholar] [CrossRef]
  30. Ganti, R.; Skapek, S.X.; Zhang, J.; Fuller, C.E.; Wu, J.; Billups, C.A.; Breitfeld, P.P.; Dalton, J.D.; Meyer, W.H.; Khoury, J.D. Expression and genomic status of EGFR and ErbB-2 in alveolar and embryonal rhabdomyosarcoma. Mod. Pathol. 2006, 19, 1213–1220. [Google Scholar] [CrossRef] [Green Version]
  31. Mayeenuddin, L.H.; Yu, Y.; Kang, Z.; Helman, L.J.; Cao, L. Insulin-like growth factor 1 receptor antibody induces rhabdomyosarcoma cell death via a process involving AKT and Bcl-x(L). Oncogene 2010, 29, 6367–6377. [Google Scholar] [CrossRef] [Green Version]
  32. Kalebic, T.; Tsokos, M.; Helman, L.J. In Vivo Treatment with Antibody against IGF-1 Receptor Suppresses Growth of Human Rhabdomyosarcoma and Down-Regulates p34cdc2. Cancer Res. 1994, 54, 5531–5534. [Google Scholar] [PubMed]
  33. Gombos, A.; Metzger-Filho, O.; Dal Lago, L.; Awada-Hussein, A. Clinical development of insulin-like growth factor receptor--1 (IGF-1R) inhibitors: At the crossroad? Investig. New Drugs 2012, 30, 2433–2442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Simon-Keller, K.; Barth, S.; Vincent, A.; Marx, A. Targeting the fetal acetylcholine receptor in rhabdomyosarcoma. Expert. Opin. Targets 2013, 17, 127–138. [Google Scholar] [CrossRef] [PubMed]
  35. Geller, J.I.; Pressey, J.G.; Smith, M.A.; Kudgus, R.A.; Cajaiba, M.; Reid, J.M.; Hall, D.; Barkauskas, D.A.; Voss, S.D.; Cho, S.Y.; et al. ADVL1522: A phase 2 study of lorvotuzumab mertansine (IMGN901) in children with relapsed or refractory wilms tumor, rhabdomyosarcoma, neuroblastoma, pleuropulmonary blastoma, malignant peripheral nerve sheath tumor, or synovial sarcoma-A Children’s Oncology Group study. Cancer 2020, 126, 5303–5310. [Google Scholar] [CrossRef] [PubMed]
  36. Hegde, M.; Joseph, S.K.; Pashankar, F.; DeRenzo, C.; Sanber, K.; Navai, S.; Byrd, T.T.; Hicks, J.; Xu, M.L.; Gerken, C.; et al. Tumor response and endogenous immune reactivity after administration of HER2 CAR T cells in a child with metastatic rhabdomyosarcoma. Nat. Commun. 2020, 11, 3549. [Google Scholar] [CrossRef]
  37. Khan, J.; Wei, J.S.; Ringner, M.; Saal, L.H.; Ladanyi, M.; Westermann, F.; Berthold, F.; Schwab, M.; Antonescu, C.R.; Peterson, C.; et al. Classification and diagnostic prediction of cancers using gene expression profiling and artificial neural networks. Nat. Med. 2001, 7, 673–679. [Google Scholar] [CrossRef] [PubMed]
  38. Baird, K.; Davis, S.; Antonescu, C.R.; Harper, U.L.; Walker, R.L.; Chen, Y.; Glatfelter, A.A.; Duray, P.H.; Meltzer, P.S. Gene expression profiling of human sarcomas: Insights into sarcoma biology. Cancer Res. 2005, 65, 9226–9235. [Google Scholar] [CrossRef] [Green Version]
  39. Davicioni, E.; Finckenstein, F.G.; Shahbazian, V.; Buckley, J.D.; Triche, T.J.; Anderson, M.J. Identification of a PAX-FKHR gene expression signature that defines molecular classes and determines the prognosis of alveolar rhabdomyosarcomas. Cancer Res. 2006, 66, 6936–6946. [Google Scholar] [CrossRef] [Green Version]
  40. Baskar, S.; Shivaprasad, N.; Zhu, Z.; Dimitrov, D.; Sigrist, M.; Sorensen, P.; Yohe, M.; Shern, J.; Maris, J.; Mackall, C.; et al. Abstract 2488: FGFR4 as a potential therapeutic target for monoclonal antibody based intervention in rhabdomyosarcoma. Cancer Res. 2015, 75, 2488. [Google Scholar] [CrossRef]
  41. Meyer, M.J.; Jenkins, D.; Batt, D.; Mosher, R.; Isaacs, R.; Hu, T.; Capka, V.; Zhang, X.; Chen, D.; Tang, L.; et al. Abstract 1680: In vitro and in vivo activity of a highly potent and novel FGFR2/FGFR4 dual targeting antibody-drug conjugate. Cancer Res. 2015, 75, 1680. [Google Scholar] [CrossRef]
  42. Sullivan, P.M.; Kumar, R.; Li, W.; Hoglund, V.; Wang, L.; Zhang, Y.; Shi, M.; Baek, D.; Cheuk, A.; Jensen, M.C.; et al. FGFR4-targeted chimeric antigen receptors (CARs) combined with anti-myeloid poly-pharmacy effectively treats orthotopic rhabdomyosarcoma. Mol. Cancer Ther. 2022, 21, 1608–1621. [Google Scholar] [CrossRef]
  43. Alijaj, N.; Moutel, S.; Gouveia, Z.L.; Gray, M.; Roveri, M.; Dzhumashev, D.; Weber, F.; Meier, G.; Luciani, P.; Rössler, J.K. Novel FGFR4-Targeting Single-Domain Antibodies for Multiple Targeted Therapies against Rhabdomyosarcoma. Cancers 2020, 12, 3313. [Google Scholar] [CrossRef]
  44. Oesch, S.; Walter, D.; Wachtel, M.; Pretre, K.; Salazar, M.; Guzman, M.; Velasco, G.; Schafer, B.W. Cannabinoid receptor 1 is a potential drug target for treatment of translocation-positive rhabdomyosarcoma. Mol. Cancer Ther. 2009, 8, 1838–1845. [Google Scholar] [CrossRef]
  45. Orentas, R.J.; Yang, J.J.; Wen, X.; Wei, J.S.; Mackall, C.L.; Khan, J. Identification of cell surface proteins as potential immunotherapy targets in 12 pediatric cancers. Front. Oncol. 2012, 2, 194. [Google Scholar] [CrossRef] [Green Version]
  46. Orentas, R.J.; Lee, D.W.; Mackall, C. Immunotherapy targets in pediatric cancer. Front. Oncol. 2012, 2, 3. [Google Scholar] [CrossRef] [Green Version]
  47. Shern, J.F.; Chen, L.; Chmielecki, J.; Wei, J.S.; Patidar, R.; Rosenberg, M.; Ambrogio, L.; Auclair, D.; Wang, J.; Song, Y.K.; et al. Comprehensive genomic analysis of rhabdomyosarcoma reveals a landscape of alterations affecting a common genetic axis in fusion-positive and fusion-negative tumors. Cancer Discov. 2014, 4, 216–231. [Google Scholar] [CrossRef] [Green Version]
  48. Stewart, E.; McEvoy, J.; Wang, H.; Chen, X.; Honnell, V.; Ocarz, M.; Gordon, B.; Dapper, J.; Blankenship, K.; Yang, Y.; et al. Identification of Therapeutic Targets in Rhabdomyosarcoma through Integrated Genomic, Epigenomic, and Proteomic Analyses. Cancer Cell 2018, 34, 411.e419–426.e419. [Google Scholar] [CrossRef] [Green Version]
  49. Brohl, A.S.; Sindiri, S.; Wei, J.S.; Milewski, D.; Chou, H.C.; Song, Y.K.; Wen, X.; Kumar, J.; Reardon, H.V.; Mudunuri, U.S.; et al. Immuno-transcriptomic profiling of extracranial pediatric solid malignancies. Cell Rep. 2021, 37, 110047. [Google Scholar] [CrossRef]
  50. Vogel, C.; Marcotte, E.M. Insights into the regulation of protein abundance from proteomic and transcriptomic analyses. Nat. Rev. Genet. 2012, 13, 227–232. [Google Scholar] [CrossRef] [Green Version]
  51. Lavoie, R.R.; Gargollo, P.C.; Ahmed, M.E.; Kim, Y.; Baer, E.; Phelps, D.A.; Charlesworth, C.M.; Madden, B.J.; Wang, L.; Houghton, P.J.; et al. Surfaceome Profiling of Rhabdomyosarcoma Reveals B7-H3 as a Mediator of Immune Evasion. Cancers 2021, 13, 4528. [Google Scholar] [CrossRef]
  52. Lin, P.H.; Selinfreund, R.; Wakshull, E.; Wharton, W. Rapid and efficient purification of plasma membrane from cultured cells: Characterization of epidermal growth factor binding. Biochemistry 1987, 26, 731–736. [Google Scholar] [CrossRef]
  53. Bausch-Fluck, D.; Goldmann, U.; Muller, S.; van Oostrum, M.; Muller, M.; Schubert, O.T.; Wollscheid, B. The in silico human surfaceome. Proc. Natl. Acad. Sci. USA 2018, 115, E10988–E10997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. Limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef] [PubMed]
  55. Kammers, K.; Cole, R.N.; Tiengwe, C.; Ruczinski, I. Detecting Significant Changes in Protein Abundance. EuPA Open Proteom. 2015, 7, 11–19. [Google Scholar] [CrossRef] [Green Version]
  56. Hoffman, G.E.; Roussos, P. Dream: Powerful differential expression analysis for repeated measures designs. Bioinformatics 2021, 37, 192–201. [Google Scholar] [CrossRef] [PubMed]
  57. Schmidt, T.; Samaras, P.; Frejno, M.; Gessulat, S.; Barnert, M.; Kienegger, H.; Krcmar, H.; Schlegl, J.; Ehrlich, H.C.; Aiche, S.; et al. ProteomicsDB. Nucleic. Acids. Res. 2018, 46, D1271–D1281. [Google Scholar] [CrossRef] [Green Version]
  58. Samaras, P.; Schmidt, T.; Frejno, M.; Gessulat, S.; Reinecke, M.; Jarzab, A.; Zecha, J.; Mergner, J.; Giansanti, P.; Ehrlich, H.C.; et al. ProteomicsDB: A multi-omics and multi-organism resource for life science research. Nucleic Acids Res. 2020, 48, D1153–D1163. [Google Scholar] [CrossRef]
  59. Lautenbacher, L.; Samaras, P.; Muller, J.; Grafberger, A.; Shraideh, M.; Rank, J.; Fuchs, S.T.; Schmidt, T.K.; The, M.; Dallago, C.; et al. ProteomicsDB: Toward a FAIR open-source resource for life-science research. Nucleic Acids Res. 2022, 50, D1541–D1552. [Google Scholar] [CrossRef]
  60. Azorsa, D.O.; Bode, P.K.; Wachtel, M.; Cheuk, A.T.C.; Meltzer, P.S.; Vokuhl, C.; Camenisch, U.; Khov, H.L.; Bode, B.; Schafer, B.W.; et al. Immunohistochemical detection of PAX-FOXO1 fusion proteins in alveolar rhabdomyosarcoma using breakpoint specific monoclonal antibodies. Mod. Pathol. 2021, 34, 748–757. [Google Scholar] [CrossRef]
  61. Cox, D.R. Regression Models and Life-Tables. J. R. Stat. Soc. Ser. B Methodol. 1972, 34, 187–202. [Google Scholar] [CrossRef]
  62. Majzner, R.G.; Theruvath, J.L.; Nellan, A.; Heitzeneder, S.; Cui, Y.; Mount, C.W.; Rietberg, S.P.; Linde, M.H.; Xu, P.; Rota, C.; et al. CAR T cells targeting B7-H3, a pan-cancer antigen, demonstrate potent preclinical activity against pediatric solid tumors and brain tumors. Clin. Cancer Res. 2019, 25, 2560–2574. [Google Scholar] [CrossRef]
  63. Kanayama, T.; Miyachi, M.; Sugimoto, Y.; Yagyu, S.; Kikuchi, K.; Tsuchiya, K.; Iehara, T.; Hosoi, H. Reduced B7-H3 expression by PAX3-FOXO1 knockdown inhibits cellular motility and promotes myogenic differentiation in alveolar rhabdomyosarcoma. Sci. Rep. 2021, 11, 18802. [Google Scholar] [CrossRef]
  64. Modak, S.; Kramer, K.; Gultekin, S.H.; Guo, H.F.; Cheung, N.K. Monoclonal antibody 8H9 targets a novel cell surface antigen expressed by a wide spectrum of human solid tumors. Cancer Res. 2001, 61, 4048–4054. [Google Scholar]
  65. Modak, S.; Guo, H.F.; Humm, J.L.; Smith-Jones, P.M.; Larson, S.M.; Cheung, N.K. Radioimmunotargeting of human rhabdomyosarcoma using monoclonal antibody 8H9. Cancer Biother. Radiopharm. 2005, 20, 534–546. [Google Scholar] [CrossRef]
  66. Kendsersky, N.M.; Lindsay, J.; Kolb, E.A.; Smith, M.A.; Teicher, B.A.; Erickson, S.W.; Earley, E.J.; Mosse, Y.P.; Martinez, D.; Pogoriler, J.; et al. The B7-H3-Targeting Antibody-Drug Conjugate m276-SL-PBD Is Potently Effective Against Pediatric Cancer Preclinical Solid Tumor Models. Clin. Cancer Res. 2021, 27, 2938–2946. [Google Scholar] [CrossRef]
  67. Meli, M.L.; Carrel, F.; Waibel, R.; Amstutz, H.; Crompton, N.; Jaussi, R.; Moch, H.; Schubiger, P.A.; Novak-Hofer, I. Anti-neuroblastoma antibody chCE7 binds to an isoform of L1-CAM present in renal carcinoma cells. Int. J. Cancer 1999, 83, 401–408. [Google Scholar] [CrossRef]
  68. Kunkele, A.; Johnson, A.J.; Rolczynski, L.S.; Chang, C.A.; Hoglund, V.; Kelly-Spratt, K.S.; Jensen, M.C. Functional Tuning of CARs Reveals Signaling Threshold above Which CD8+ CTL Antitumor Potency Is Attenuated due to Cell Fas-FasL-Dependent AICD. Cancer Immunol. Res. 2015, 3, 368–379. [Google Scholar] [CrossRef] [Green Version]
  69. Kunkele, A.; Taraseviciute, A.; Finn, L.S.; Johnson, A.J.; Berger, C.; Finney, O.; Chang, C.A.; Rolczynski, L.S.; Brown, C.; Mgebroff, S.; et al. Preclinical Assessment of CD171-Directed CAR T-cell Adoptive Therapy for Childhood Neuroblastoma: CE7 Epitope Target Safety and Product Manufacturing Feasibility. Clin. Cancer Res. 2017, 23, 466–477. [Google Scholar] [CrossRef] [Green Version]
  70. Hong, H.; Stastny, M.; Brown, C.; Chang, W.C.; Ostberg, J.R.; Forman, S.J.; Jensen, M.C. Diverse solid tumors expressing a restricted epitope of L1-CAM can be targeted by chimeric antigen receptor redirected T lymphocytes. J. Immunother. 2014, 37, 93–104. [Google Scholar] [CrossRef]
  71. Daponte, A.; Kostopoulou, E.; Kollia, P.; Papamichali, R.; Vanakara, P.; Hadjichristodoulou, C.; Nakou, M.; Samara, S.; Koukoulis, G.; Messinis, I.E. L1 (CAM) (CD171) in ovarian serous neoplasms. Eur. J. Gynaecol. Oncol. 2008, 29, 26–30. [Google Scholar]
  72. Fankhauser, C.D.; Bode, P.K.; Hermanns, T.; Sander, S.; Beyer, J.; Sulser, T.; Altevogt, P.; Moch, H.; Tischler, V. L1-CAM is commonly expressed in testicular germ cell tumours. J. Clin. Pathol. 2016, 69, 460–462. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Park, J.R.; Digiusto, D.L.; Slovak, M.; Wright, C.; Naranjo, A.; Wagner, J.; Meechoovet, H.B.; Bautista, C.; Chang, W.C.; Ostberg, J.R.; et al. Adoptive transfer of chimeric antigen receptor re-directed cytolytic T lymphocyte clones in patients with neuroblastoma. Mol. Ther. 2007, 15, 825–833. [Google Scholar] [CrossRef] [PubMed]
  74. Inaguma, S.; Wang, Z.; Lasota, J.P.; Miettinen, M.M. Expression of neural cell adhesion molecule L1 (CD171) in neuroectodermal and other tumors: An immunohistochemical study of 5155 tumors and critical evaluation of CD171 prognostic value in gastrointestinal stromal tumors. Oncotarget 2016, 7, 55276–55289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. White, G.R.; Varley, J.M.; Heighway, J. Genomic structure and expression profile of LPHH1, a 7TM gene variably expressed in breast cancer cell lines. Biochim. Biophys. Acta 2000, 1491, 75–92. [Google Scholar] [CrossRef]
  76. Bondarev, A.D.; Attwood, M.M.; Jonsson, J.; Chubarev, V.N.; Tarasov, V.V.; Schioth, H.B. Opportunities and challenges for drug discovery in modulating Adhesion G protein-coupled receptor (GPCR) functions. Expert Opin. Drug Discov. 2020, 15, 1291–1307. [Google Scholar] [CrossRef]
  77. Zhang, S.; Liu, Y.; Liu, Z.; Zhang, C.; Cao, H.; Ye, Y.; Wang, S.; Zhang, Y.; Xiao, S.; Yang, P.; et al. Transcriptome profiling of a multiple recurrent muscle-invasive urothelial carcinoma of the bladder by deep sequencing. PLoS ONE 2014, 9, e91466. [Google Scholar] [CrossRef]
  78. Pellissier, F.; Gerber, A.; Bauer, C.; Ballivet, M.; Ossipow, V. The adhesion molecule Necl-3/SynCAM-2 localizes to myelinated axons, binds to oligodendrocytes and promotes cell adhesion. BMC Neurosci. 2007, 8, 90. [Google Scholar] [CrossRef] [Green Version]
  79. Rathjen, T.; Yan, X.; Kononenko, N.L.; Ku, M.C.; Song, K.; Ferrarese, L.; Tarallo, V.; Puchkov, D.; Kochlamazashvili, G.; Brachs, S.; et al. Regulation of body weight and energy homeostasis by neuronal cell adhesion molecule 1. Nat. Neurosci. 2017, 20, 1096–1103. [Google Scholar] [CrossRef] [Green Version]
  80. Liu, N.; Yang, C.; Bai, W.; Wang, Z.; Wang, X.; Johnson, M.; Wang, W.; Zhang, P.; Yang, H.; Liu, H.; et al. CADM2 inhibits human glioma proliferation, migration and invasion. Oncol. Rep. 2019, 41, 2273–2280. [Google Scholar] [CrossRef]
  81. Chang, G.; Xu, S.; Dhir, R.; Chandran, U.; O’Keefe, D.S.; Greenberg, N.M.; Gingrich, J.R. Hypoexpression and epigenetic regulation of candidate tumor suppressor gene CADM-2 in human prostate cancer. Clin. Cancer Res. 2010, 16, 5390–5401. [Google Scholar] [CrossRef] [Green Version]
  82. He, W.; Li, X.; Xu, S.; Ai, J.; Gong, Y.; Gregg, J.L.; Guan, R.; Qiu, W.; Xin, D.; Gingrich, J.R.; et al. Aberrant methylation and loss of CADM2 tumor suppressor expression is associated with human renal cell carcinoma tumor progression. Biochem. Biophys. Res. Commun. 2013, 435, 526–532. [Google Scholar] [CrossRef] [PubMed]
  83. Dai, L.; Zhao, J.; Yin, J.; Fu, W.; Chen, G. Cell adhesion molecule 2 (CADM2) promotes brain metastasis by inducing epithelial-mesenchymal transition (EMT) in human non-small cell lung cancer. Ann. Transl. Med. 2020, 8, 465. [Google Scholar] [CrossRef] [PubMed]
  84. Li, D.; Zhang, Y.; Zhang, H.; Zhan, C.; Li, X.; Ba, T.; Qiu, Z.; Fang, E.; Lv, G.; Zou, C.; et al. CADM2, as a new target of miR-10b, promotes tumor metastasis through FAK/AKT pathway in hepatocellular carcinoma. J. Exp. Clin. Cancer Res. 2018, 37, 46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Chung, W.S.; Clarke, L.E.; Wang, G.X.; Stafford, B.K.; Sher, A.; Chakraborty, C.; Joung, J.; Foo, L.C.; Thompson, A.; Chen, C.; et al. Astrocytes mediate synapse elimination through MEGF10 and MERTK pathways. Nature 2013, 504, 394–400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Seale, P.; Ishibashi, J.; Holterman, C.; Rudnicki, M.A. Muscle satellite cell-specific genes identified by genetic profiling of MyoD-deficient myogenic cell. Dev. Biol. 2004, 275, 287–300. [Google Scholar] [CrossRef]
  87. Saha, M.; Mitsuhashi, S.; Jones, M.D.; Manko, K.; Reddy, H.M.; Bruels, C.C.; Cho, K.A.; Pacak, C.A.; Draper, I.; Kang, P.B. Consequences of MEGF10 deficiency on myoblast function and Notch1 interactions. Hum. Mol. Genet. 2017, 26, 2984–3000. [Google Scholar] [CrossRef] [Green Version]
  88. Ganassi, M.; Muntoni, F.; Zammit, P.S. Defining and identifying satellite cell-opathies within muscular dystrophies and myopathies. Exp. Cell Res. 2022, 411, 112906. [Google Scholar] [CrossRef]
  89. Lak, N.S.M.; Voormanns, T.L.; Zappeij-Kannegieter, L.; van Zogchel, L.M.J.; Fiocco, M.; van Noesel, M.M.; Merks, J.H.M.; van der Schoot, C.E.; Tytgat, G.A.M.; Stutterheim, J. Improving Risk Stratification for Pediatric Patients with Rhabdomyosarcoma by Molecular Detection of Disseminated Disease. Clin. Cancer Res. 2021, 27, 5576–5585. [Google Scholar] [CrossRef]
  90. Holterman, C.E.; Le Grand, F.; Kuang, S.; Seale, P.; Rudnicki, M.A. Megf10 regulates the progression of the satellite cell myogenic program. J. Cell. Biol. 2007, 179, 911–922. [Google Scholar] [CrossRef]
  91. Williamson, D.; Selfe, J.; Gordon, T.; Lu, Y.J.; Pritchard-Jones, K.; Murai, K.; Jones, P.; Workman, P.; Shipley, J. Role for amplification and expression of glypican-5 in rhabdomyosarcoma. Cancer Res. 2007, 67, 57–65. [Google Scholar] [CrossRef] [Green Version]
  92. Li, F.; Shi, W.; Capurro, M.; Filmus, J. Glypican-5 stimulates rhabdomyosarcoma cell proliferation by activating Hedgehog signaling. J. Cell Biol. 2011, 192, 691–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Li, N.; Spetz, M.R.; Ho, M. The Role of Glypicans in Cancer Progression and Therapy. J. Histochem. Cytochem. 2020, 68, 841–862. [Google Scholar] [CrossRef]
  94. Liang, T.W.; Chiu, H.H.; Gurney, A.; Sidle, A.; Tumas, D.B.; Schow, P.; Foster, J.; Klassen, T.; Dennis, K.; DeMarco, R.A.; et al. Vascular endothelial-junctional adhesion molecule (VE-JAM)/JAM 2 interacts with T, NK, and dendritic cells through JAM 3. J. Immunol. 2002, 168, 1618–1626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Arrate, M.P.; Rodriguez, J.M.; Tran, T.M.; Brock, T.A.; Cunningham, S.A. Cloning of human junctional adhesion molecule 3 (JAM3) and its identification as the JAM2 counter-receptor. J. Biol. Chem. 2001, 276, 45826–45832. [Google Scholar] [CrossRef] [Green Version]
  96. Powell, G.T.; Wright, G.J. Jamb and jamc are essential for vertebrate myocyte fusion. PLoS Biol. 2011, 9, e1001216. [Google Scholar] [CrossRef]
  97. Hromowyk, K.J.; Talbot, J.C.; Martin, B.L.; Janssen, P.M.L.; Amacher, S.L. Cell fusion is differentially regulated in zebrafish post-embryonic slow and fast muscle. Dev. Biol. 2020, 462, 85–100. [Google Scholar] [CrossRef] [PubMed]
  98. Lauko, A.; Mu, Z.; Gutmann, D.H.; Naik, U.P.; Lathia, J.D. Junctional Adhesion Molecules in Cancer: A Paradigm for the Diverse Functions of Cell-Cell Interactions in Tumor Progression. Cancer Res. 2020, 80, 4878–4885. [Google Scholar] [CrossRef] [PubMed]
  99. Hosonaga, M.; Arima, Y.; Sampetrean, O.; Komura, D.; Koya, I.; Sasaki, T.; Sato, E.; Okano, H.; Kudoh, J.; Ishikawa, S.; et al. HER2 Heterogeneity Is Associated with Poor Survival in HER2-Positive Breast Cancer. Int. J. Mol. Sci. 2018, 19, 2158. [Google Scholar] [CrossRef] [Green Version]
  100. Manzella, G.; Schreck, L.D.; Breunis, W.B.; Molenaar, J.; Merks, H.; Barr, F.G.; Sun, W.; Rommele, M.; Zhang, L.; Tchinda, J.; et al. Phenotypic profiling with a living biobank of primary rhabdomyosarcoma unravels disease heterogeneity and AKT sensitivity. Nat. Commun. 2020, 11, 4629. [Google Scholar] [CrossRef]
  101. Danielli, S.G.; Porpiglia, E.; De Micheli, A.J.; Navarro, N.; Zellinger, M.J.; Bechtold, I.; Kisele, S.; Volken, L.; Marques, J.G.; Kasper, S.; et al. Single-cell mapping of tumor heterogeneity in pediatric rhabdomyosarcoma reveals developmental signatures with therapeutic relevance. BioRxiv 2022. [Google Scholar] [CrossRef]
  102. Gunasekera, K.; Wuthrich, D.; Braga-Lagache, S.; Heller, M.; Ochsenreiter, T. Proteome remodelling during development from blood to insect-form Trypanosoma brucei quantified by SILAC and mass spectrometry. BMC Genom. 2012, 13, 556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Cox, J.; Mann, M. MaxQuant enables high peptide identification rates, individualized p.p.b.-range mass accuracies and proteome-wide protein quantification. Nat. Biotechnol. 2008, 26, 1367–1372. [Google Scholar] [CrossRef] [PubMed]
  104. UniProt, C. UniProt: A worldwide hub of protein knowledge. Nucleic Acids Res. 2019, 47, D506–D515. [Google Scholar] [CrossRef] [Green Version]
  105. Huber, W.; von Heydebreck, A.; Sultmann, H.; Poustka, A.; Vingron, M. Variance stabilization applied to microarray data calibration and to the quantification of differential expression. Bioinformatics 2002, 18 (Suppl. S1), S96–S104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Silver, J.D.; Ritchie, M.E.; Smyth, G.K. Microarray background correction: Maximum likelihood estimation for the normal-exponential convolution. Biostatistics 2009, 10, 352–363. [Google Scholar] [CrossRef]
  107. Lee, J.K.; Bangayan, N.J.; Chai, T.; Smith, B.A.; Pariva, T.E.; Yun, S.; Vashisht, A.; Zhang, Q.; Park, J.W.; Corey, E.; et al. Systemic surfaceome profiling identifies target antigens for immune-based therapy in subtypes of advanced prostate cancer. Proc. Natl. Acad. Sci. USA 2018, 115, E4473–E4482. [Google Scholar] [CrossRef] [Green Version]
  108. Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene ontology: Tool for the unification of biology. The Gene Ontology Consortium. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef] [Green Version]
  109. Sonnhammer, E.L.; von Heijne, G.; Krogh, A. A hidden Markov model for predicting transmembrane helices in protein sequences. Proc. Int. Conf. Intell. Syst. Mol. Biol. 1998, 6, 175–182. [Google Scholar]
  110. Uldry, A.C.; Maciel-Dominguez, A.; Jornod, M.; Buchs, N.; Braga-Lagache, S.; Brodard, J.; Jankovic, J.; Bonadies, N.; Heller, M. Effect of Sample Transportation on the Proteome of Human Circulating Blood Extracellular Vesicles. Int. J. Mol. Sci. 2022, 23, 4515. [Google Scholar] [CrossRef]
  111. Goedhart, J.; Luijsterburg, M.S. VolcaNoseR is a web app for creating, exploring, labeling and sharing volcano plots. Sci. Rep. 2020, 10, 20560. [Google Scholar] [CrossRef]
  112. Davicioni, E.; Anderson, M.J.; Finckenstein, F.G.; Lynch, J.C.; Qualman, S.J.; Shimada, H.; Schofield, D.E.; Buckley, J.D.; Meyer, W.H.; Sorensen, P.H.; et al. Molecular classification of rhabdomyosarcoma—Genotypic and phenotypic determinants of diagnosis: A report from the Children’s Oncology Group. Am. J. Pathol. 2009, 174, 550–564. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Lanczky, A.; Gyorffy, B. Web-Based Survival Analysis Tool Tailored for Medical Research (KMplot): Development and Implementation. J. Med. Internet Res. 2021, 23, e27633. [Google Scholar] [CrossRef] [PubMed]
  114. Deutsch, E.W.; Bandeira, N.; Sharma, V.; Perez-Riverol, Y.; Carver, J.J.; Kundu, D.J.; Garcia-Seisdedos, D.; Jarnuczak, A.F.; Hewapathirana, S.; Pullman, B.S.; et al. The ProteomeXchange consortium in 2020: Enabling ‘big data’ approaches in proteomics. Nucleic Acids Res. 2020, 48, D1145–D1152. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 02601 g001 550
Figure 1. Comparison of surface biotinylation and differential centrifugations for the enrichment of membrane/surface proteins. Two methods for the enrichment of membrane/surface proteins were compared in a pilot experiment with the Rh4 cell line in triplicates. (A) More proteins were detected after differential centrifugations enrichment than after surface biotinylation, but there was a consistent overlap between the two methods. (B) Differential centrifugations resulted in the enrichment of a higher number of membrane/surface proteins than surface biotinylation and in a lower background of intracellular proteins. Created with Biorender.com.
Figure 1. Comparison of surface biotinylation and differential centrifugations for the enrichment of membrane/surface proteins. Two methods for the enrichment of membrane/surface proteins were compared in a pilot experiment with the Rh4 cell line in triplicates. (A) More proteins were detected after differential centrifugations enrichment than after surface biotinylation, but there was a consistent overlap between the two methods. (B) Differential centrifugations resulted in the enrichment of a higher number of membrane/surface proteins than surface biotinylation and in a lower background of intracellular proteins. Created with Biorender.com.
Ijms 24 02601 g001
Ijms 24 02601 g002 550
Figure 2. RMS cell lines and PDXs are used for differential centrifugation enrichment of membrane/surface proteins. RMS cell lines and PDXs, as well as the normal controls MRC-5 human embryonal fibroblasts and primary human myoblast, were cultured and used for the isolation of membrane/surface proteins. All experiments were performed in triplicates. Created with Biorender.com.
Figure 2. RMS cell lines and PDXs are used for differential centrifugation enrichment of membrane/surface proteins. RMS cell lines and PDXs, as well as the normal controls MRC-5 human embryonal fibroblasts and primary human myoblast, were cultured and used for the isolation of membrane/surface proteins. All experiments were performed in triplicates. Created with Biorender.com.
Ijms 24 02601 g002
Ijms 24 02601 g003 550
Figure 3. Schematic outline of the strategy used to analyze mass spectrometry data. The surfaceome of six FP-RMS cell lines, five FN-RMS cell lines, and three RMS PDXs were analyzed by MS. The strategy adopted to analyze the MS data is shown. The MS results were filtered with a list of annotated surface proteins (List A). A total of 699 proteins predicted to be surface proteins (List C) were then further prioritized by a scoring strategy to identify highly expressed proteins specific to RMS.
Figure 3. Schematic outline of the strategy used to analyze mass spectrometry data. The surfaceome of six FP-RMS cell lines, five FN-RMS cell lines, and three RMS PDXs were analyzed by MS. The strategy adopted to analyze the MS data is shown. The MS results were filtered with a list of annotated surface proteins (List A). A total of 699 proteins predicted to be surface proteins (List C) were then further prioritized by a scoring strategy to identify highly expressed proteins specific to RMS.
Ijms 24 02601 g003
Ijms 24 02601 g004 550
Figure 4. AGRL2 is significantly upregulated in FP-RMS, FN-RMS cell lines, and RMS PDXs. Results for the 699 proteins of interest (List C) using the imputed iTop3 intensities are shown for each set of cells. Two statistical analyses were used: (A) Cell-to-control differential expression. Shown here are the average log2 fold changes between each cell of the set and MRC-5 and myoblasts versus the average of the corresponding moderated t-statistics of the comparisons. The proteins for which the moderated t-statistics were above 2.132 (95th percentile of the corresponding Student’s distribution) in all three sets of cells are highlighted in green, with some of the proteins present in the Top100 labeled. (B) Linear mixed model (LMM) was used as a statistical evaluation of the protein abundances detected in all the distinct groups (FP-RMS, FN-RMS, and PDXs) versus the controls. A threshold of significance (−log10) ≥ 1.3 and|log2FC| ≥ 1 was set to plot the statistically significant proteins in volcano plots. AGRL2 is the only protein significantly upregulated in all three RMS groups with this analysis.
Figure 4. AGRL2 is significantly upregulated in FP-RMS, FN-RMS cell lines, and RMS PDXs. Results for the 699 proteins of interest (List C) using the imputed iTop3 intensities are shown for each set of cells. Two statistical analyses were used: (A) Cell-to-control differential expression. Shown here are the average log2 fold changes between each cell of the set and MRC-5 and myoblasts versus the average of the corresponding moderated t-statistics of the comparisons. The proteins for which the moderated t-statistics were above 2.132 (95th percentile of the corresponding Student’s distribution) in all three sets of cells are highlighted in green, with some of the proteins present in the Top100 labeled. (B) Linear mixed model (LMM) was used as a statistical evaluation of the protein abundances detected in all the distinct groups (FP-RMS, FN-RMS, and PDXs) versus the controls. A threshold of significance (−log10) ≥ 1.3 and|log2FC| ≥ 1 was set to plot the statistically significant proteins in volcano plots. AGRL2 is the only protein significantly upregulated in all three RMS groups with this analysis.
Ijms 24 02601 g004
Ijms 24 02601 g005 550
Figure 5. Top100 proteins expression in normal tissues. Protein expression levels expressed as normalized iTop3 values for the selected Top100 proteins in normal tissues were generated with the ProteomicsDB database analytic toolbox expression heat map by selecting Tissue, MS1, Top3, and SWISS-PROT only. FGFR4 and GPC2 (green square) were detected in a few normal tissues. GPC4, CD276, N1CAM, and L1CAM (blue square) cluster close together and are expressed at low-medium levels in most of the considered normal tissues. AGRL2 (indicated as LPHN2 in the figure) and JAM3 (yellow square) cluster loosely together and are detected in several normal tissues but mostly at low levels. The values represented can be found in Supplementary Information Table S15, and are the mean total sum normalized protein expression value across all samples that are stored in the database PrtoteomicsDB.
Figure 5. Top100 proteins expression in normal tissues. Protein expression levels expressed as normalized iTop3 values for the selected Top100 proteins in normal tissues were generated with the ProteomicsDB database analytic toolbox expression heat map by selecting Tissue, MS1, Top3, and SWISS-PROT only. FGFR4 and GPC2 (green square) were detected in a few normal tissues. GPC4, CD276, N1CAM, and L1CAM (blue square) cluster close together and are expressed at low-medium levels in most of the considered normal tissues. AGRL2 (indicated as LPHN2 in the figure) and JAM3 (yellow square) cluster loosely together and are detected in several normal tissues but mostly at low levels. The values represented can be found in Supplementary Information Table S15, and are the mean total sum normalized protein expression value across all samples that are stored in the database PrtoteomicsDB.
Ijms 24 02601 g005
Ijms 24 02601 g006 550
Figure 6. Transcript expression of selected candidates in RMS patients’ samples and normal tissues. Transcript numbers were obtained from a published RNAseq data set of 38 FP-RMS, 60 FN-RMS, and 5–20 normal tissues per organ [49]. FGFR4, MEGF10, and CD276 show a clear higher expression in tumors (grey boxes) compared to normal tissues (white boxed). Box and whiskers show the median with the 25th to 75th percentiles. Bars represent the minimum and maximum values.
Figure 6. Transcript expression of selected candidates in RMS patients’ samples and normal tissues. Transcript numbers were obtained from a published RNAseq data set of 38 FP-RMS, 60 FN-RMS, and 5–20 normal tissues per organ [49]. FGFR4, MEGF10, and CD276 show a clear higher expression in tumors (grey boxes) compared to normal tissues (white boxed). Box and whiskers show the median with the 25th to 75th percentiles. Bars represent the minimum and maximum values.
Ijms 24 02601 g006
Ijms 24 02601 g007 550
Figure 7. Proteomics abundance distribution of the candidates in the RMS samples. Log2(iTop3) of all the samples were plotted for the selected membrane/surface proteins. The proteins were ranked by the median expression from top to bottom. The highest expression was consistently identified in PDXs (green dots), except for L1CAM, which was expressed at lower levels in PDXs compared to cell lines. Shown are the median (red line) and quartiles (dotted red line).
Figure 7. Proteomics abundance distribution of the candidates in the RMS samples. Log2(iTop3) of all the samples were plotted for the selected membrane/surface proteins. The proteins were ranked by the median expression from top to bottom. The highest expression was consistently identified in PDXs (green dots), except for L1CAM, which was expressed at lower levels in PDXs compared to cell lines. Shown are the median (red line) and quartiles (dotted red line).
Ijms 24 02601 g007
Ijms 24 02601 g008 550
Figure 8. Surface expression of the selected targets on RMS cell lines. Expression of AGRL2, JAM3, and L1CAM was measured by FACS on eleven RMS cell lines, and on MRC-5 fibroblasts and myoblasts as controls. For AGRL2 and JAM3, the primary antibody was incubated with 100,000 cells and detected with an Alexa488-conjugated secondary antibody. For L1CAM, a PE-labeled antibody was used. A total of 10,000 events were collected.
Figure 8. Surface expression of the selected targets on RMS cell lines. Expression of AGRL2, JAM3, and L1CAM was measured by FACS on eleven RMS cell lines, and on MRC-5 fibroblasts and myoblasts as controls. For AGRL2 and JAM3, the primary antibody was incubated with 100,000 cells and detected with an Alexa488-conjugated secondary antibody. For L1CAM, a PE-labeled antibody was used. A total of 10,000 events were collected.
Ijms 24 02601 g008
Ijms 24 02601 g009 550
Figure 9. L1CAM is detected in the majority of ARMS cases by IHC, and a high L1CAM mRNA expression correlates with poorer survival. A tissue microarray (TMA) including 24 ARMS and 100 ERMS was stained with L1CAM antibody clone 14.10. (A) Upper panel: ARMS sample with strong L1CAM staining, A. lower panel, ARMS sample with medium L1CAM staining. Magnification 40×, yellow bars represent 50 µm. (B) H-score for L1CAM was calculated by adding the percentage of cells showing strong staining multiplied by 3, to medium staining by 2 and to weak staining. Evaluable tissues: ARMS n = 19, ERMS n = 60. Green bars represent the median value, with a 95% confidence interval. (C) Kaplan–Meier survival plot of patients with ARMS comparing high and low L1CAM mRNA expression. Data were obtained from the cohort Davicioni 147 [39] and deposited to the R2: Genomics Analysis and Visualization Platform (http://r2.amc.nl (accessed on 12 January 2023)). Analysis was performed on the ARMS subset using the custom Kaplan–Meier tool (http://kmplot.com (accessed on 14 January 2023)). Shown are the hazard rate (HR) and the Cox–Mantel (logrank) test [61].
Figure 9. L1CAM is detected in the majority of ARMS cases by IHC, and a high L1CAM mRNA expression correlates with poorer survival. A tissue microarray (TMA) including 24 ARMS and 100 ERMS was stained with L1CAM antibody clone 14.10. (A) Upper panel: ARMS sample with strong L1CAM staining, A. lower panel, ARMS sample with medium L1CAM staining. Magnification 40×, yellow bars represent 50 µm. (B) H-score for L1CAM was calculated by adding the percentage of cells showing strong staining multiplied by 3, to medium staining by 2 and to weak staining. Evaluable tissues: ARMS n = 19, ERMS n = 60. Green bars represent the median value, with a 95% confidence interval. (C) Kaplan–Meier survival plot of patients with ARMS comparing high and low L1CAM mRNA expression. Data were obtained from the cohort Davicioni 147 [39] and deposited to the R2: Genomics Analysis and Visualization Platform (http://r2.amc.nl (accessed on 12 January 2023)). Analysis was performed on the ARMS subset using the custom Kaplan–Meier tool (http://kmplot.com (accessed on 14 January 2023)). Shown are the hazard rate (HR) and the Cox–Mantel (logrank) test [61].
Ijms 24 02601 g009
Table
Table 1. Scoring for membrane/surface proteins extracted from the proteomics data analysis.
Table 1. Scoring for membrane/surface proteins extracted from the proteomics data analysis.
Score for Number of Cell LinesScore for iTop3 Mean in All the Cell Lines
Number of Cell LinesScoreiTop3 RangeScore
140>2,500,000,0000
130.52,500,000,000–1,000,000,0001
121.51,000,000,000–500,000,0002
113500,000,000–250,000,0003
105250,000,000–100,000,0004
97.5100,000,000–50,000,0005
81050,000,000–25,000,0006
71525,000,000–10,000,0007
≤63010,000,000–5,000,0008
Score for Detection in the ControlsScore for Log2(FoldChange)
In 0/2 Ctrl cell lines0If Log2(FC) = 100
In 1/2 Ctrl cell lines2.5If 6 ≤ Log2(FC) < 100.5
In 2/2 Ctrl cell lines5If 5 ≤ Log2(FC) < 61
Bonus for Expression in PDXsIf 4 ≤ Log2(FC) < 51.5
In 3/3 PDXs0If 3 ≤ Log2(FC) < 42
In 2/3 PDXs0.5If 2 ≤ Log2(FC) < 32.5
In 1/3 PDXs1If 1 ≤ Log2(FC) < 23
In No PDXs1.5If Log2(FC) < 13.5
Bonus for RMS Specific Expression and High Abundance in All the Cell Lines
If Mean iTop3 expression > 107−3
Log2(FC) = 10 *
CL ≥ 13
* The Log2(FC) of proteins not expressed in the controls received a maximum fixed score of 10 for the scoring strategy. FC: Fold Change; CL: number of Cell Lines.
Table
Table 2. Scoring strategy for mRNA expression.
Table 2. Scoring strategy for mRNA expression.
Score for Expression in Normal TissuesScore for Expression in RMS Tumors
FPKMScoreFPKMScore
<50.0>5000.0
5–100.5250–5000.5
10–501.5100–2501.5
50–1003.050–1003.0
100–2505.025–505.0
250–5007.510–257.5
>50010.05–1010.0
<515.0
Score for Expression in the Controls *Score for Log2(FC)
In 0 Ctrls0.00If Log2(FC) ≥ 50
In 1 Ctrls0.25If 4 ≤ Log2(FC) < 51
In 2 Ctrls0.50If 3 ≤ Log2(FC) < 42
In 3 Ctrls0.75If 2 ≤ Log2(FC) < 33
In 4 Ctrls1.00If 1.5 ≤ Log2(FC) < 24
In 5 Ctrls1.25If 1 ≤ Log2(FC) < 1.55
If Log2(FC) < 110
* Controls tissues: brain, heart, kidney, liver, and lung.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Timpanaro, A.; Piccand, C.; Uldry, A.-C.; Bode, P.K.; Dzhumashev, D.; Sala, R.; Heller, M.; Rössler, J.; Bernasconi, M. Surfaceome Profiling of Cell Lines and Patient-Derived Xenografts Confirm FGFR4, NCAM1, CD276, and Highlight AGRL2, JAM3, and L1CAM as Surface Targets for Rhabdomyosarcoma. Int. J. Mol. Sci. 2023, 24, 2601. https://doi.org/10.3390/ijms24032601

AMA Style

Timpanaro A, Piccand C, Uldry A-C, Bode PK, Dzhumashev D, Sala R, Heller M, Rössler J, Bernasconi M. Surfaceome Profiling of Cell Lines and Patient-Derived Xenografts Confirm FGFR4, NCAM1, CD276, and Highlight AGRL2, JAM3, and L1CAM as Surface Targets for Rhabdomyosarcoma. International Journal of Molecular Sciences. 2023; 24(3):2601. https://doi.org/10.3390/ijms24032601

Chicago/Turabian Style

Timpanaro, Andrea, Caroline Piccand, Anne-Christine Uldry, Peter Karl Bode, Dzhangar Dzhumashev, Rita Sala, Manfred Heller, Jochen Rössler, and Michele Bernasconi. 2023. "Surfaceome Profiling of Cell Lines and Patient-Derived Xenografts Confirm FGFR4, NCAM1, CD276, and Highlight AGRL2, JAM3, and L1CAM as Surface Targets for Rhabdomyosarcoma" International Journal of Molecular Sciences 24, no. 3: 2601. https://doi.org/10.3390/ijms24032601

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
