Article

Expression of EMP 1, 2, and 3 in Adrenal Cortical Neoplasm and Pheochromocytoma

by
Yoon Jin Cha
and
Ja Seung Koo
*
Department of Pathology, Yonsei University College of Medicine, Seoul 120-752, Republic of Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(16), 13016; https://doi.org/10.3390/ijms241613016
Submission received: 2 August 2023 / Revised: 16 August 2023 / Accepted: 18 August 2023 / Published: 21 August 2023
(This article belongs to the Special Issue Inflammatory Response in Endocrine Disorders)
Browse Figures
Review Reports Versions Notes

Abstract

:
The purpose of this study is to investigate the expression of the epithelial membrane proteins (EMP) 1, 2, and 3 in adrenal gland neoplasm and to explore the broader implications of this. Tissue microarrays were constructed for 132 cases of adrenal cortical neoplasms (ACN) (adrenal cortical adenoma (115 cases), and carcinoma (17 cases)) and 189 cases of pheochromocytoma. Immunohistochemical staining was performed to identify EMP 1, 2, and 3, and was compared with clinicopathological parameters. The H-score of EMP 3 (p < 0.001) was higher in pheochromocytoma when compared to that of ACN, and the H-score of EMP 1 (p < 0.001) and EMP 3 (p < 0.001) was higher in adrenal cortical carcinomas when compared to that of adrenal cortical adenomas. A higher EMP 1 H-score was observed in pheochromocytomas with a GAPP score ≥3 (p = 0.018). In univariate analysis, high levels of EMP 1 and EMP 3 expression in ACN were associated with shorter overall survival (p = 0.001). Differences were observed in the expression of EMPs between ACN and pheochromocytoma. EMPs are associated with malignant tumor biology in adrenal cortical neoplasm and pheochromocytoma, suggesting the role of a prognostic and/or predictive factor for EMPs in adrenal tumor.

1. Introduction

Adrenal gland neoplasms primarily encompass adrenal cortical neoplasms (ACNs) and pheochromocytomas (PCCs), localized in the adrenal cortex and adrenal medulla, respectively. ACNs, comprising adrenal cortical adenomas (ACAs) and adrenal cortical carcinomas (ACCs), are relatively uncommon tumors, and distinguishing between them histologically presents challenges [1]. ACCs, characterized by their rarity and high malignancy, still possess significant gaps in our understanding of their tumor biology, with a lack of effective targeted therapies available [2]. ACC patients are known to have a recurrence rate of over 50% within five years after surgical resection [3], and a significant number of patients are already diagnosed with metastatic disease at the time of diagnosis [4,5]. Therefore, to date, complete surgical excision remains the most important treatment modality. However, additional medical treatment can play a crucial role in ACC management. In addition to traditional chemotherapy agents, the only ACC medication approved by the US FDA is mitotane, which inhibits steroid synthesis [6]. Furthermore, clinical trials are underway for immunotherapy agents [7,8,9,10], tyrosine kinase inhibitors [11,12], and monoclonal antibody drugs [13,14]. However, their effectiveness is still limited.
PCC is commonly discovered incidentally through health screenings, accounting for approximately 20–60% of cases, and it represents about 4–8% of all adrenal incidentalomas [15,16]. Previously, about 10% of PCCs were considered malignant [17]. However, currently, all PCCs are believed to have metastatic potential [18]. Most PCCs can be treated surgically [19]. For metastatic PCC, traditional chemotherapy agents have been used in the past [20,21]. However, more recent attempts involve the use of tyrosine kinase inhibitors [22], peptide receptor radionuclide [23], histone deacetylase inhibitors [24], and immune checkpoint inhibitors [25]. Likewise, it is challenging to differentiate between benign and malignant PCC through histological examination alone, and confirming a diagnosis of malignant PCC necessitates the identification of distant metastasis [26]. Consequently, adrenal neoplasm presents the intricate challenge of prognostic prediction for these tumors.
Epithelial membrane proteins (EMPs) 1, 2, and 3 are members of the myelin protein 22-kDa (PMP22) gene family. While they primarily function in the peripheral nervous system, their distinct roles in various tumors have been documented [27,28]. EMP 1 is involved in tumor cell adhesion through the PI3K/AKT pathway [29], EMP 2 contributes to tumor cell migration via the FAK/Src pathway [30,31], and EMP 3 plays a role in tumor cell survival and metastasis through the ErbB2-PI3K-AKT pathway [32,33]. However, these EMPs have been reported to exhibit both tumor-promoting and tumor-suppressing effects in different types of cancers. For instance, EMP 1 is associated with metastatic features in melanoma [34], but acts as a negative regulator of tumor cell growth and metastasis in nasopharyngeal [35], stomach [36], and colorectal cancer [37]. EMP 2 functions as an oncogene in hormone-related cancers such as breast, ovarian, and endometrial cancer [31,38,39,40], while serving as a tumor-suppressor gene in nasopharyngeal [41] and urothelial cancer [42]. EMP 3 is upregulated in HER-2-positive breast cancer [43] and is associated with Myc proteins [44], and its knockdown has been shown to reduce cell proliferation and invasiveness in hepatocellular carcinoma [33]. Conversely, EMP 3 is downregulated in neuroblastoma [45], glioma [45], non-small cell lung cancer (NSCLC) [46], and esophageal cancer [47], where it inhibits cell proliferation. Although EMPs have been extensively studied in various tumor types, research on their expression in adrenal neoplasms has been limited. In the case of ACN, due to the limitations of predicting tumor behavior solely based on pathological findings, various diagnostic systems such as the Weiss scoring system [48], Reticulin algorithm [49], and Helsinki score [50] have been proposed and utilized to overcome this. Additionally, ancillary immunohistochemical markers such as Ki-67 [51], p53 [52], CYP11B-2 [53], SF-1 [54], CYP2W1 [55], and RRM1 [56] have been suggested as prognostic and/or predictive factors. However, their practical application in clinical settings is limited. Similarly, for PCC, relying solely on pathological observations for predicting tumor behavior has limitations. To address this, various diagnostic systems such as the PASS system [57], GAPP system [58], and COPPS system [59] have been proposed and used. Ancillary immunohistochemical markers such as Ki-67 [60], SDHB [61], and S-100 [62] have been suggested as prognostic factors. If the expression of EMPs is observed in specific adrenal tumors and the pattern of expression varies according to tumor biology, there is potential for EMPs to serve as prognostic and/or predictive factors in adrenal tumors. Thus, the objective of this study is to investigate the expression of EMP 1, 2, and 3 in human adrenal gland tumors and explore their potential implications.

2. Results

2.1. Patient’s Basal Characteristics

The basal characteristics of the patients included are presented in Supplementary Tables S2 and S3. The study included a total of 132 cases of ACN, with 115 cases classified as ACA, 17 cases as ACC, and 189 cases as PCC. A comparison between ACC and ACA revealed that ACC exhibited a larger tumor size, higher Fuhrman grade, increased and atypical mitosis, and lower clear-cell proportion, demonstrating statistical significance (p < 0.001). Additionally, ACC displayed features such as diffuse architecture, necrosis, and invasion of venous/sinusoidal structures and capsules. Although two ACC cases had Weiss scores of 4 or less, they were diagnosed as ACC due to the presence of distant metastasis at the time of diagnosis. Notably, tumor recurrence, distant metastasis, and patient mortality were exclusively observed in ACC cases. Regarding PCC, the GAPP score ranged from 0 to 2 in 138 cases (73.0%), 3 to 6 in 50 cases (26.5%), and 7 to 10 in 1 case (0.5%). Tumor recurrence occurred in 5 cases (2.6%), distant metastasis in 7 cases (3.7%), and patient death in 11 cases (5.8%).

2.2. Expression of EMP 1, 2, and 3 in Adrenal Cortical Neoplasm and Pheochromocytoma

The immunohistochemistry results for EMP 1, 2, and 3, including H-scores, are shown in Table 1. The H-scores (mean ± SD, range) of EMP 1, 2, and 3 in ACN were 91.6 ± 101.0 (0–300), 2.2 ± 12.0 (0–90), and 63.4 ± 82.4 (0–300), respectively, while those in PCC were 105.9 ± 78.4 (0–300), 0.6 ± 5.6 (0–60), and 102.5 ± 80.1 (0–300), respectively (Table 1). Therefore, in ACN, EMP 1, 2, and 3 were defined as low when the H-score was ≤90, ≤2 and ≤65, respectively. In PCC, EMP 1, 2, and 3 were defined as low when the H-score was ≤100, ≤0, and ≤100, respectively. When investigating the expression of the EMP family in ACN and PCC, an examination of the IHC proportion score based on the IHC intensity score reveals a significant increase in the IHC proportion score as the IHC intensity score increases for EMP1 and EMP3 (Supplementary Table S4).
When examining the H-scores of EMP 1, 2, and 3 in relation to ACN and PCC, a statistically significant distinction was observed in EMP 3 (p < 0.001). Specifically, PCC exhibited significantly higher H-scores compared to ACN (Table 1 and Figure 1). After comparing the expression of EMP 1, 2, and 3 between ACA and ACC, a statistically significant difference was observed in the H-scores of ACC and ACA in EMP 1 (p < 0.001) and EMP 3 (p < 0.001), with ACC showing higher H-scores than ACA (Supplementary Table S5). Upon investigating the expression of EMP 1, 2, and 3 in low- and high-expression groups within ACA and ACC, a statistically significant distinction was observed in EMP 1 (p < 0.001) and EMP 3 (p < 0.001). Notably, ACC exhibited a higher proportion of high expression compared to ACA (Table 2 and Figure 2). In ACN, serum aldosterone levels showed differences according to EMP 1 and EMP 2 statuses. In the EMP 1 and EMP 2 low-expression groups, serum aldosterone levels were significantly elevated (p = 0.001 and p = 0.008, respectively, Supplementary Table S6).
When examining the H-scores of EMP 1, 2, and 3 in PCCs based on the GAPP score, a statistically significant distinction was observed in EMP 1, indicating higher H-scores in PCC cases with a GAPP score of 3 or higher (p = 0.018, Supplementary Table S7). Upon investigating the expression of EMP 1, 2, and 3 in low- and high-expression groups based on the GAPP score, a statistically significant distinction was observed in EMP 1. Notably, a higher proportion of PCCs with a GAPP score of 3 or more exhibited high expressions of EMP 1 (p = 0.013, Table 3). In PCC, there was no significant difference observed in 24 h urine catecholamine levels according to EMP-level status (Supplementary Table S8).

2.3. Correlations between EMP 1, 2, and 3 Expressions and the Clinicopathological Factors of Adrenal Neoplasm

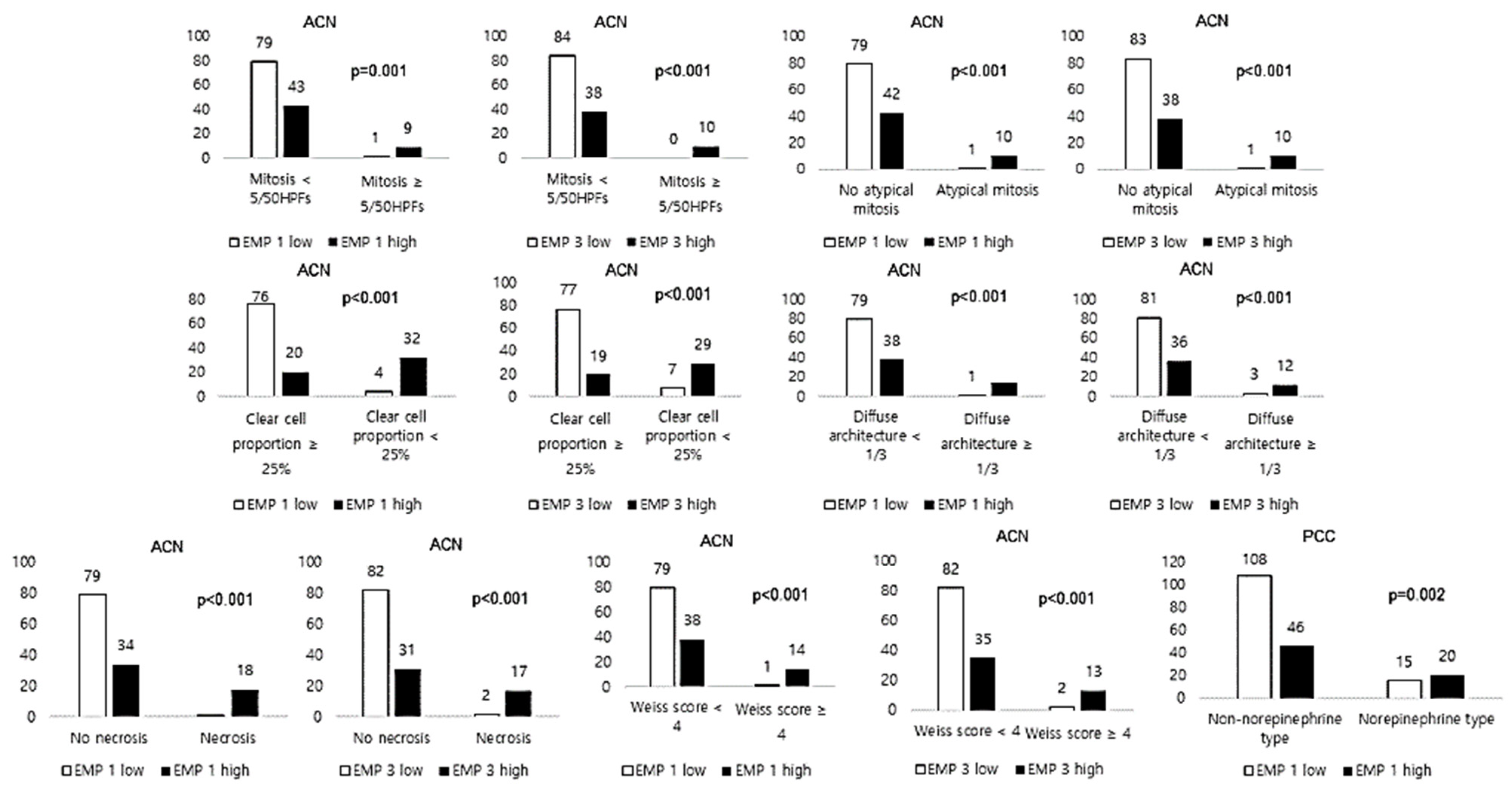

Figure 3 displays the expression levels of EMP 1, 2, and 3 and their association with the clinicopathological factors of PCC and ACN. In PCC, the catecholamine type was associated with EMP 1 (p = 0.002), and the norepinephrine type was associated with high expression levels of EMP 1 (Figure 3). In ACN, EMP 1 and EMP 3 were associated with changes in mitosis (p < 0.001), atypical mitosis (p < 0.001), clear-cell proportion (p < 0.001), diffuse architecture proportion (p < 0.001), necrosis (p < 0.001), and the Weiss score (p < 0.001). High expression levels of EMP 1 and 3 were associated with higher levels of mitosis, atypical mitosis, lower clear-cell proportions, higher diffuse architecture proportions, an increase in necrosis, and higher Weiss scores when compared to that of low levels of EMP 1 and 3 expressions (Figure 3).

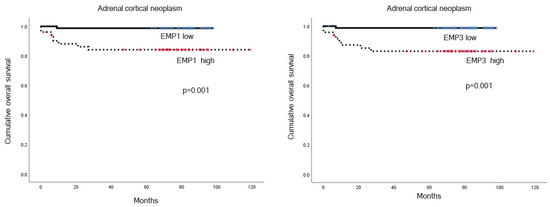

2.4. The Impact of EMP 1, 2, and 3 Expression Levels in PCC and ACN on Patient Prognosis

No statistically significant differences were found when analyzing the impact of EMP 1, 2, and 3 expression levels on patient prognosis in PCC using univariate analysis (Table 4). However, in ACN, the association between EMP 1, 2, and 3 expression and patient prognosis was investigated, and high levels of EMP 1 and 3 expressions were significantly associated with shorter overall survival (OS) (p = 0.001, Table 5 and Figure 4) when compared to low levels of EMP 1 and 3. In the multivariate Cox analysis, venous invasion (hazard ratio: 193.9, 95% CI: 3.054–12,313, p = 0.013) was the only factor that showed a significant association with shorter OS (Table 6).

3. Discussion

This study focused on examining the expression of EMPs in tumors originating from the adrenal gland. Initially, it was observed that the expression of EMP 3 was elevated in PCC compared to ACN. Previous studies have examined the expression of EMP 1, 2, and 3 in various human tumors, but there are limitations to direct comparisons with previous studies as there has been no investigation of EMP expression in ACN and PCC. It has been reported that EMPs may exhibit both tumor-suppressor and -promoter roles, and that their expression can increase or decrease depending on the type of tumor. For EMP 1, representative cancers demonstrating an increase in expression include head/neck [63,64], breast [65,66], and stomach cancer [67,68], while representative cancers exhibiting a decrease in expression include oral cavity [63], and nasopharynx cancer [35]. For EMP 2, representative cancers displaying an increase in expression include nasopharynx cancer [69,70] and uterine endometrial carcinoma [71,72], while those showing a decrease in expression include urothelial carcinoma [42]. Finally, for EMP 3, an increase in its expression is demonstrated in breast cancer [73], and a decrease in its expression is observed in lung cancer [46].
In PCC, the expression of EMP 3 was higher compared to that of ACN. A previous study suggested that EMP 3 (a myelin-related gene located at 19q13.3) is a likely tumor-suppressor gene, because of its genomic deletion in the 19q13 chromosomal region in neural origin tumors, such as neuroblastoma and glial tumors [74,75]. Further investigation has shown that EMP 3 transcriptional silencing occurs in neuroblastoma and glial tumors due to hypermethylation [45]. Therefore, as PCC is also a neural crest origin tumor like neuroblastoma, hypermethylation-mediated EMP 3 silencing can be expected in PCC. However, it has been reported that EMP 3 is more frequently methylated in neuroblastoma than in PCC (methylation rate: 68.4% versus 6.1%), which could explain the retainment of EMP 3 expression in PCC [76].
In PCC, there was a significant increase in the expression of EMP 1 when the GAPP score was three or higher. EMP 1 expression is commonly detected in early and immature neurons, indicating its potential association with neurogenesis during the development of both the central and peripheral nervous systems [77]. Since a high GAPP score in PCC indicates a higher malignant and metastatic potential [60,61], high EMP 1 expression in PCC could be associated with this potential. EMP 1 has been suggested to play a tumor-promoter role in other tumors by promoting cell proliferation, migration, and invasion [29,78,79,80,81,82]. The PI3K/AKT pathway is crucial in EMP 1’s oncogenic role [29,82]. In PCC, AKT signaling has been reported to be activated in various situations in in vitro cell line studies [83,84,85], and the expression of PI3K/AKT-pathway-related molecules is also reported to be high in human PCC tissues [83,86]. Moreover, the expression of phosphorylated S6, one of the PI3K/AKT-pathway-related molecules, is higher in metastatic PCC than in the non-tumor adrenal medulla and primary pheochromocytoma [87]. Therefore, further studies are necessary to investigate the impact of EMP 1 on the PI3K/AKT pathway and the malignant/metastatic potential in PCC. Various scoring systems have been proposed to predict the tumor behavior of PCC. Among these, the GAPP and COPPS scoring systems include ancillary IHC markers as components. In the GAPP system, Ki-67 is incorporated [58], while the COPPS system includes S-100 and/or SDHB [59]. Therefore, further research is needed to develop an effective system for predicting PCC behavior using a combination of multiple clinicopathologic factors and EMPs, particularly EMP1.
Our results suggest that EMP 1 and 3 may contribute to the oncogenic role in malignant tumors in ACN, as they showed significantly higher expression in ACC than in ACA. As a possible mechanism of action for EMP 1 and 3 in ACC, cross-talk with the ErbB family receptors (ErbB-1 (HER1 or epidermal growth factor receptor, EGFR), ErbB-2 (HER2), ErbB-3 (HER3), and ErbB-4 (HER4)) may exist. Previous studies have reported functional interactions between EM 3 and HER-2 in urothelial and breast cancer [32,43,88], and further interplay between EMP 1 and EGFR in lung cancer [89]. ACC also showed significant EGFR overexpression when compared to ACA [90,91], indicating that increased EMP 1 and EMP 3 may interact with EGFR. Additionally, one of the signaling pathways activated in ACC is IGF-IGFR signaling [92], with co-overexpression of EGFR and IGF1R observed in approximately 53% of ACC cases [91]. Therefore, further studies are needed to investigate the interaction between EMP 1/EMP 3 and cell membranous receptors such as EGFR and IGF1R in ACC. Another possible mechanism for the oncogenic role of EMP 1 and EMP 3 in ACC, is the activation of the PI3K/AKT pathway. ACC showed higher expression of p-Akt (Ser473), a molecule related to the PI3K/AKT pathway, than that of ACA and normal tissue [93,94]. Since EMP 1 and 3 play an important role in the PI3K/AKT pathway in other tumors [29,32,33], their association with the PI3K/AKT pathway in ACC can also be proposed. However, additional studies are needed to investigate this. In this study, high expression of EMP 1 and 3 was associated with poor prognosis in ACN. Previous studies have also reported that high expression levels of EMP 1 are a poor prognostic factor in urothelial carcinoma [95] and pediatric leukemia [79]. Furthermore, high expression levels of EMP 3 are a poor prognostic factor in brain glioma [62], breast phyllodes tumor [96], gastric cancer [97], and urothelial carcinoma [32]. However, EMPs have dual roles as tumor-suppressors and tumor-promoters. Therefore, additional studies are needed to determine their role as tumor prognostic markers depending on the type of tumor. Various scoring systems have been proposed to predict the tumor behavior of ACC. Among these, the Reticulin algorithm and Helsinki score system include ancillary special stain results as components. In the Reticulin algorithm, reticulin stain is incorporated [49], while the Helsinki score system includes Ki-67 [50]. Therefore, further research is necessary to investigate an effective system for predicting ACC behavior using a combination of multiple clinicopathologic factors and EMPs, especially EMP1 and EMP3.
This study suggests that EMP may be a therapeutic target for adrenal neoplasms such as ACC and PCC. Previous studies have demonstrated the inhibitory effects of anti-EMP 2 recombinant bivalent antibody fragments (diabodies) on the proliferation and induction of apoptosis in uterine endometrial and ovarian cancer [39,98]. Moreover, anti-EMP 2 IgG1 was shown to promote cell death and inhibit cell invasion in breast cancer [40]. Therefore, EMP inhibitors could be proposed as one of the therapeutic agents for tumors, but there are several obstacles to developing monoclonal antibodies that target EMP. One of the most important obstacles is that EMP has a very complex effect on tumors, showing different tumor-suppressor and -promoter roles depending on the distinct tumor type. Therefore, further preclinical and clinical studies targeting adrenal neoplasms are needed.
In conclusion, EMP expression levels were shown to be significantly different between ACN and PCC, and EMPs are associated with malignant tumor biology in adrenal cortical neoplasm and pheochromocytoma, suggesting the role of a prognostic and/or predictive factor for EMPs in adrenal tumor.

4. Materials and Methods

4.1. Patient Selection

The focus of this research was on individuals who underwent surgery for ACC and PCC between January 2000 and December 2012 at Severance Hospital. The study did not include individuals who underwent preoperative chemotherapy. The Institutional Review Board of Yonsei University Severance Hospital granted approval for the study (IRB number: 4-2021-0393). Endocrine pathologists (Koo JS) retrospectively reviewed all cases, conducting histology using hematoxylin and eosin (H&E)-stained slides. Clinicopathological data, such as age at diagnosis, disease recurrence, metastasis, current status, and length of follow-up, were extracted from the patients’ medical records.

4.2. Tissue Microarrays

After careful selection of representative regions on H&E-stained slides, corresponding spots were identified on the surface of the corresponding paraffin block. Core biopsies measuring 5 mm were then obtained from the chosen regions and placed into a recipient block measuring 5 × 4. To reduce extraction bias, more than two tissue cores were taken from each case. Each tissue core was assigned a distinct microarray location number, which was linked to a comprehensive database containing additional clinicopathological information.

4.3. Immunohistochemistry

In this research, immunohistochemistry (IHC) was carried out utilizing formalin-fixed, paraffin-embedded tissue sections. Tissue sections measuring 3 μm in thickness were prepared from paraffin blocks. These sections underwent a process of deparaffinization and rehydration using xylene and alcohol solutions. For antigen retrieval, cell conditioning 1 (CC1) buffer (citrate buffer pH 6.0, Ventana Medical System) was employed. IHC staining was conducted using the Ventana Discovery XT automated stainer (Ventana Medical System, Tucson, AZ, USA), which included appropriate positive and negative controls. The antibodies employed for IHC in this study are listed in Supplementary Table S1 and IHC stains for EMP 1, EMP2 and EMP3 in normal adrenal gland are shown in Supplementary Figure S1.

4.4. Interpretation of Immunohistochemical Staining

Immunohistochemical markers were visualized using light microscopy. The expression of these markers was assessed using the semi-quantitative H-score method and evaluated in tumor cells. The H-score system generates a comprehensive range from 0 to 300, which is determined by multiplying the dominant staining intensity score (0 = no staining; 1 = weak or barely detectable staining; 2 = distinct brown staining; 3 = strong dark brown staining) by the percentage (0–100%) of positive cells [99]. If the calculated H-score exceeded the mean value, it was categorized as high expression; conversely, if it fell below the mean value, it was classified as low expression.

4.5. Statistical Analysis

The Statistical Package for the Social Sciences (SPSS) for Windows, Version 24.0 (SPSS Inc., Chicago, IL, USA) was utilized for data analysis. To determine statistical significance, Student’s t-test and Fisher’s exact test were employed for continuous and categorical variables, respectively. In the case of analyzing data with multiple comparisons, a corrected p-value was calculated using the Bonferroni multiple comparison procedure. Statistical differences were considered significant if p < 0.05. Kaplan–Meier survival curves and log-rank statistics were employed to evaluate tumor recurrence time and overall survival (OS). Additionally, the Cox proportional hazards model was utilized to perform multivariate regression analysis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241613016/s1.

Author Contributions

Conceptualization, J.S.K.; methodology, Y.J.C. and J.S.K.; validation, Y.J.C. and J.S.K.; formal analysis, Y.J.C. and J.S.K.; investigation, J.S.K.; resources, J.S.K.; data curation, Y.J.C. and J.S.K.; writing—original draft preparation, Y.J.C. and J.S.K.; writing—review and editing, J.S.K.; supervision, J.S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study adhered to the principles of the Declaration of Helsinki and obtained approval from the Institutional Review Board of Yonsei University Severance Hospital (IRB number: 4-2021-0393).

Informed Consent Statement

Due to the retrospective nature of the study, patient consent was exempted by the Institutional Review Board of Yonsei University Severance Hospital.

Data Availability Statement

All data pertaining to the study are comprehensively included in both the article and its Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Erickson, L.A. Challenges in surgical pathology of adrenocortical tumours. Histopathology 2018, 72, 82–96. [Google Scholar] [CrossRef] [PubMed]
  2. Varghese, J.; Habra, M.A. Update on adrenocortical carcinoma management and future directions. Curr. Opin. Endocrinol. Diabetes Obes. 2017, 24, 208–214. [Google Scholar] [CrossRef] [PubMed]
  3. Glover, A.R.; Ip, J.C.; Zhao, J.T.; Soon, P.S.; Robinson, B.G.; Sidhu, S.B. Current management options for recurrent adrenocortical carcinoma. Onco Targets Ther. 2013, 6, 635–643. [Google Scholar] [CrossRef] [PubMed]
  4. Fassnacht, M.; Dekkers, O.M.; Else, T.; Baudin, E.; Berruti, A.; de Krijger, R.; Haak, H.R.; Mihai, R.; Assie, G.; Terzolo, M. European society of endocrinology clinical practice guidelines on the management of adrenocortical carcinoma in adults, in collaboration with the European Network for the Study of Adrenal Tumors. Eur. J. Endocrinol. 2018, 179, G1–G46. [Google Scholar] [CrossRef]
  5. Assié, G.; Antoni, G.; Tissier, F.; Caillou, B.; Abiven, G.; Gicquel, C.; Leboulleux, S.; Travagli, J.P.; Dromain, C.; Bertagna, X.; et al. Prognostic parameters of metastatic adrenocortical carcinoma. J. Clin. Endocrinol. Metab. 2007, 92, 148–154. [Google Scholar] [CrossRef]
  6. Puglisi, S.; Calabrese, A.; Basile, V.; Pia, A.; Reimondo, G.; Perotti, P.; Terzolo, M. New perspectives for mitotane treatment of adrenocortical carcinoma. Best. Pract. Res. Clin. Endocrinol. Metab. 2020, 34, 101415. [Google Scholar] [CrossRef]
  7. Carneiro, B.A.; Konda, B.; Costa, R.B.; Costa, R.L.B.; Sagar, V.; Gursel, D.B.; Kirschner, L.S.; Chae, Y.K.; Abdulkadir, S.A.; Rademaker, A.; et al. Nivolumab in metastatic adrenocortical carcinoma: Results of a phase 2 trial. J. Clin. Endocrinol. Metab. 2019, 104, 6193–6200. [Google Scholar] [CrossRef]
  8. Habra, M.A.; Stephen, B.; Campbell, M.; Hess, K.; Tapia, C.; Xu, M.; Rodon Ahnert, J.; Jimenez, C.; Lee, J.E.; Perrier, N.D.; et al. Phase ii clinical trial of pembrolizumab efficacy and safety in advanced adrenocortical carcinoma. J. Immunother. Cancer 2019, 7, 253. [Google Scholar] [CrossRef]
  9. Le Tourneau, C.; Hoimes, C.; Zarwan, C.; Wong, D.J.; Bauer, S.; Claus, R.; Wermke, M.; Hariharan, S.; von Heydebreck, A.; Kasturi, V.; et al. Avelumab in patients with previously treated metastatic adrenocortical carcinoma: Phase 1b results from the javelin solid tumor trial. J. Immunother. Cancer 2018, 6, 111. [Google Scholar] [CrossRef]
  10. Raj, N.; Zheng, Y.; Kelly, V.; Katz, S.S.; Chou, J.; Do, R.K.G.; Capanu, M.; Zamarin, D.; Saltz, L.B.; Ariyan, C.E.; et al. PD-1 Blockade in advanced adrenocortical carcinoma. J. Clin. Oncol. 2020, 38, 71–80. [Google Scholar] [CrossRef]
  11. Berruti, A.; Sperone, P.; Ferrero, A.; Germano, A.; Ardito, A.; Priola, A.M.; De Francia, S.; Volante, M.; Daffara, F.; Generali, D.; et al. Phase ii study of weekly paclitaxel and sorafenib as second/third-line therapy in patients with adrenocortical carcinoma. Eur. J. Endocrinol. 2012, 166, 451–458. [Google Scholar] [CrossRef] [PubMed]
  12. O’Sullivan, C.; Edgerly, M.; Velarde, M.; Wilkerson, J.; Venkatesan, A.M.; Pittaluga, S.; Yang, S.X.; Nguyen, D.; Balasubramaniam, S.; Fojo, T. The vegf inhibitor axitinib has limited effectiveness as a therapy for adrenocortical cancer. J. Clin. Endocrinol. Metab. 2014, 99, 1291–1297. [Google Scholar] [CrossRef] [PubMed]
  13. Fassnacht, M.; Berruti, A.; Baudin, E.; Demeure, M.J.; Gilbert, J.; Haak, H.; Kroiss, M.; Quinn, D.I.; Hesseltine, E.; Ronchi, C.L.; et al. Linsitinib (osi-906) versus placebo for patients with locally advanced or metastatic adrenocortical carcinoma: A double-blind, randomised, phase 3 study. Lancet Oncol. 2015, 16, 426–435. [Google Scholar] [CrossRef]
  14. Naing, A.; Lorusso, P.; Fu, S.; Hong, D.; Chen, H.X.; Doyle, L.A.; Phan, A.T.; Habra, M.A.; Kurzrock, R. Insulin growth factor receptor (igf-1r) antibody cixutumumab combined with the mtor inhibitor temsirolimus in patients with metastatic adrenocortical carcinoma. Br. J. Cancer 2013, 108, 826–830. [Google Scholar] [CrossRef] [PubMed]
  15. Fassnacht, M.; Arlt, W.; Bancos, I.; Dralle, H.; Newell-Price, J.; Sahdev, A.; Tabarin, A.; Terzolo, M.; Tsagarakis, S.; Dekkers, O.M. Management of adrenal incidentalomas: European society of endocrinology clinical practice guideline in collaboration with the European Network for the Study of Adrenal Tumors. Eur. J. Endocrinol. 2016, 175, G1–G34. [Google Scholar] [CrossRef]
  16. Patel, D.; Phay, J.E.; Yen, T.W.F.; Dickson, P.V.; Wang, T.S.; Garcia, R.; Yang, A.D.; Kim, L.T.; Solórzano, C.C. Update on pheochromocytoma and paraganglioma from the sso endocrine and head and neck disease site working group, part 2 of 2: Perioperative management and outcomes of pheochromocytoma and paraganglioma. Ann. Surg. Oncol. 2020, 27, 1338–1347. [Google Scholar] [CrossRef] [PubMed]
  17. Plouin, P.F.; Amar, L.; Dekkers, O.M.; Fassnacht, M.; Gimenez-Roqueplo, A.P.; Lenders, J.W.; Lussey-Lepoutre, C.; Steichen, O. European society of endocrinology clinical practice guideline for long-term follow-up of patients operated on for a phaeochromocytoma or a paraganglioma. Eur. J. Endocrinol. 2016, 174, G1–G10. [Google Scholar] [CrossRef]
  18. Lam, A.K. Update on adrenal tumours in 2017 world health Organization (WHO) of endocrine tumours. Endocr. Pathol. 2017, 28, 213–227. [Google Scholar] [CrossRef]
  19. Lenders, J.W.; Duh, Q.Y.; Eisenhofer, G.; Gimenez-Roqueplo, A.P.; Grebe, S.K.; Murad, M.H.; Naruse, M.; Pacak, K.; Young, W.F., Jr. Pheochromocytoma and paraganglioma: An endocrine society clinical practice guideline. J. Clin. Endocrinol. Metab. 2014, 99, 1915–1942. [Google Scholar] [CrossRef]
  20. Corssmit, E.P.M.; Snel, M.; Kapiteijn, E. Malignant pheochromocytoma and paraganglioma: Management options. Curr. Opin. Oncol. 2020, 32, 20–26. [Google Scholar] [CrossRef]
  21. Tanabe, A.; Naruse, M.; Nomura, K.; Tsuiki, M.; Tsumagari, A.; Ichihara, A. Combination chemotherapy with cyclophosphamide, vincristine, and dacarbazine in patients with malignant pheochromocytoma and paraganglioma. Horm. Cancer 2013, 4, 103–110. [Google Scholar] [CrossRef]
  22. Ayala-Ramirez, M.; Chougnet, C.N.; Habra, M.A.; Palmer, J.L.; Leboulleux, S.; Cabanillas, M.E.; Caramella, C.; Anderson, P.; Al Ghuzlan, A.; Waguespack, S.G.; et al. Treatment with sunitinib for patients with progressive metastatic pheochromocytomas and sympathetic paragangliomas. J. Clin. Endocrinol. Metab. 2012, 97, 4040–4050. [Google Scholar] [CrossRef] [PubMed]
  23. Nastos, K.; Cheung, V.T.F.; Toumpanakis, C.; Navalkissoor, S.; Quigley, A.M.; Caplin, M.; Khoo, B. Peptide receptor radionuclide treatment and (131)I-mibg in the management of patients with metastatic/progressive phaeochromocytomas and paragangliomas. J. Surg. Oncol. 2017, 115, 425–434. [Google Scholar] [CrossRef] [PubMed]
  24. Manta, A.; Kazanas, S.; Karamaroudis, S.; Gogas, H.; Ziogas, D.C. Histone deacetylase inhibitors as a novel therapeutic approach for pheochromocytomas and paragangliomas. Oncol. Res. 2022, 30, 211–219. [Google Scholar] [CrossRef]
  25. Jimenez, C.; Armaiz-Pena, G.; Dahia, P.L.M.; Lu, Y.; Toledo, R.A.; Varghese, J.; Habra, M.A. Endocrine and neuroendocrine tumors special issue-checkpoint inhibitors for adrenocortical carcinoma and metastatic pheochromocytoma and paraganglioma: Do they work? Cancers 2022, 14, 467. [Google Scholar] [CrossRef]
  26. Lenders, J.W.; Eisenhofer, G.; Mannelli, M.; Pacak, K. Phaeochromocytoma. Lancet 2005, 366, 665–675. [Google Scholar] [CrossRef] [PubMed]
  27. Lobsiger, C.S.; Magyar, J.P.; Taylor, V.; Wulf, P.; Welcher, A.A.; Program, A.E.; Suter, U. Identification and characterization of a cDNA and the structural gene encoding the mouse epithelial membrane protein-1. Genomics 1996, 36, 379–387. [Google Scholar] [CrossRef]
  28. Wang, Y.-W.; Cheng, H.-L.; Ding, Y.-R.; Chou, L.-H.; Chow, N.-H. EMP1, EMP 2, and EMP3 as novel therapeutic targets in human cancer. Biochim. Biophys. Acta (BBA)-Rev. Cancer 2017, 1868, 199–211. [Google Scholar] [CrossRef]
  29. Lai, S.; Wang, G.; Cao, X.; Li, Z.; Hu, J.; Wang, J. EMP-1 promotes tumorigenesis of nsclc through PI3K/AKT pathway. J. Huazhong Univ. Sci. Technol. Med. Sci. 2012, 32, 834–838. [Google Scholar] [CrossRef]
  30. Fu, M.; Rao, R.; Sudhakar, D.; Hogue, C.P.; Rutta, Z.; Morales, S.; Gordon, L.K.; Braun, J.; Goodglick, L.; Wadehra, M. Epithelial membrane protein-2 promotes endometrial tumor formation through activation of FAK and Src. PLoS ONE 2011, 6, e19945. [Google Scholar] [CrossRef]
  31. Gordon, L.K.; Kiyohara, M.; Fu, M.; Braun, J.; Dhawan, P.; Chan, A.; Goodglick, L.; Wadehra, M. EMP2 regulates angiogenesis in endometrial cancer cells through induction of VEGF. Oncogene 2013, 32, 5369–5376. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, Y.-W.; Li, W.-M.; Wu, W.-J.; Chai, C.-Y.; Liu, H.-S.; Lai, M.-D.; Chow, N.-H. Potential significance of EMP3 in patients with upper urinary tract urothelial carcinoma: Crosstalk with ErbB2-PI3K-Akt Pathway. J. Urol. 2014, 192, 242–251. [Google Scholar] [CrossRef] [PubMed]
  33. Hsieh, Y.H.; Hsieh, S.C.; Lee, C.H.; Yang, S.F.; Cheng, C.W.; Tang, M.J.; Lin, C.L.; Lin, C.L.; Chou, R.H. Targeting emp3 suppresses proliferation and invasion of hepatocellular carcinoma cells through inactivation of PI3K/Akt pathway. Oncotarget 2015, 6, 34859–34874. [Google Scholar] [CrossRef] [PubMed]
  34. Kaochar, S.; Dong, J.; Torres, M.; Rajapakshe, K.; Nikolos, F.; Davis, C.M.; Ehli, E.A.; Coarfa, C.; Mitsiades, N.; Poulaki, V. Icg-001 exerts potent anticancer activity against uveal melanoma cells. Investig. Ophthalmol. Vis. Sci. 2018, 59, 132–143. [Google Scholar] [CrossRef]
  35. Sun, G.G.; Lu, Y.F.; Fu, Z.Z.; Cheng, Y.J.; Hu, W.N. EMP1 inhibits nasopharyngeal cancer cell growth and metastasis through induction apoptosis and angiogenesis. Tumour Biol. 2014, 35, 3185–3193. [Google Scholar] [CrossRef]
  36. Sun, G.; Zhao, G.; Lu, Y.; Wang, Y.; Yang, C. Association of EMP1 with gastric carcinoma invasion, survival and prognosis. Int. J. Oncol. 2014, 45, 1091–1098. [Google Scholar] [CrossRef]
  37. Sun, G.G.; Wang, Y.D.; Cui, D.W.; Cheng, Y.J.; Hu, W.N. Epithelial membrane protein 1 negatively regulates cell growth and metastasis in colorectal carcinoma. World J. Gastroenterol. 2014, 20, 4001–4010. [Google Scholar] [CrossRef]
  38. Fu, M.; Maresh, E.L.; Helguera, G.F.; Kiyohara, M.; Qin, Y.; Ashki, N.; Daniels-Wells, T.R.; Aziz, N.; Gordon, L.K.; Braun, J.; et al. Rationale and preclinical efficacy of a novel anti-EMP2 antibody for the treatment of invasive breast cancer. Mol. Cancer Ther. 2014, 13, 902–915. [Google Scholar] [CrossRef]
  39. Fu, M.; Maresh, E.L.; Soslow, R.A.; Alavi, M.; Mah, V.; Zhou, Q.; Iasonos, A.; Goodglick, L.; Gordon, L.K.; Braun, J.; et al. Epithelial membrane protein-2 is a novel therapeutic target in ovarian cancer. Clin. Cancer Res. 2010, 16, 3954–3963. [Google Scholar] [CrossRef]
  40. Kiyohara, M.H.; Dillard, C.; Tsui, J.; Kim, S.R.; Lu, J.; Sachdev, D.; Goodglick, L.; Tong, M.; Torous, V.F.; Aryasomayajula, C.; et al. EMP2 is a novel therapeutic target for endometrial cancer stem cells. Oncogene 2017, 36, 5793–5807. [Google Scholar] [CrossRef]
  41. Tang, M.; Liu, R.Y.; Zhou, C.; Yuan, M.Z.; Wu, D.M.; Yuan, Z.; Zhang, P.; Lang, J.Y. EMP2 re-expression inhibits growth and enhances radiosensitivity in nasopharyngeal carcinoma. Tumour Biol. 2017, 39, 1010428317695972. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Y.W.; Li, W.M.; Wu, W.J.; Chai, C.Y.; Chang, T.Y.; Sun, Y.; Cheng, C.J.; Shiue, Y.L.; Su, S.J.; Cheng, H.L.; et al. Epithelial membrane protein 2 is a prognostic indictor for patients with urothelial carcinoma of the upper urinary tract. Am. J. Pathol. 2013, 183, 709–719. [Google Scholar] [CrossRef]
  43. Mackay, A.; Jones, C.; Dexter, T.; Silva, R.L.; Bulmer, K.; Jones, A.; Simpson, P.; Harris, R.A.; Jat, P.S.; Neville, A.M.; et al. cDNA microarray analysis of genes associated with ERBB2 (HER2/neu) overexpression in human mammary luminal epithelial cells. Oncogene 2003, 22, 2680–2688. [Google Scholar] [CrossRef] [PubMed]
  44. Ben-Porath, I.; Kozak, C.A.; Benvenisty, N. Chromosomal mapping of Tmp (Emp1), Xmp (Emp2), and Ymp (Emp3), genes encoding membrane proteins related to Pmp22. Genomics 1998, 49, 443–447. [Google Scholar] [CrossRef] [PubMed]
  45. Alaminos, M.; Dávalos, V.; Ropero, S.; Setién, F.; Paz, M.F.; Herranz, M.; Fraga, M.F.; Mora, J.; Cheung, N.K.; Gerald, W.L.; et al. EMP3, a myelin-related gene located in the critical 19q13.3 region, is epigenetically silenced and exhibits features of a candidate tumor suppressor in glioma and neuroblastoma. Cancer Res. 2005, 65, 2565–2571. [Google Scholar] [CrossRef]
  46. Xue, Q.; Zhou, Y.; Wan, C.; Lv, L.; Chen, B.; Cao, X.; Ju, G.; Huang, Y.; Ni, R.; Mao, G. Epithelial membrane protein 3 is frequently shown as promoter methylation and functions as a tumor suppressor gene in non-small cell lung cancer. Exp. Mol. Pathol. 2013, 95, 313–318. [Google Scholar] [CrossRef]
  47. Fumoto, S.; Hiyama, K.; Tanimoto, K.; Noguchi, T.; Hihara, J.; Hiyama, E.; Noguchi, T.; Nishiyama, M. EMP3 as a tumor suppressor gene for esophageal squamous cell carcinoma. Cancer Lett. 2009, 274, 25–32. [Google Scholar] [CrossRef] [PubMed]
  48. Aubert, S.; Wacrenier, A.; Leroy, X.; Devos, P.; Carnaille, B.; Proye, C.; Wemeau, J.L.; Lecomte-Houcke, M.; Leteurtre, E. Weiss system revisited: A clinicopathologic and immunohistochemical study of 49 adrenocortical tumors. Am. J. Surg. Pathol. 2002, 26, 1612–1619. [Google Scholar] [CrossRef]
  49. Volante, M.; Bollito, E.; Sperone, P.; Tavaglione, V.; Daffara, F.; Porpiglia, F.; Terzolo, M.; Berruti, A.; Papotti, M. Clinicopathological study of a series of 92 adrenocortical carcinomas: From a proposal of simplified diagnostic algorithm to prognostic stratification. Histopathology 2009, 55, 535–543. [Google Scholar] [CrossRef]
  50. Pennanen, M.; Heiskanen, I.; Sane, T.; Remes, S.; Mustonen, H.; Haglund, C.; Arola, J. Helsinki score-a novel model for prediction of metastases in adrenocortical carcinomas. Hum. Pathol. 2015, 46, 404–410. [Google Scholar] [CrossRef]
  51. Beuschlein, F.; Weigel, J.; Saeger, W.; Kroiss, M.; Wild, V.; Daffara, F.; Libé, R.; Ardito, A.; Al Ghuzlan, A.; Quinkler, M.; et al. Major prognostic role of Ki67 in localized adrenocortical carcinoma after complete resection. J. Clin. Endocrinol. Metab. 2015, 100, 841–849. [Google Scholar] [CrossRef] [PubMed]
  52. Ragazzon, B.; Libé, R.; Gaujoux, S.; Assié, G.; Fratticci, A.; Launay, P.; Clauser, E.; Bertagna, X.; Tissier, F.; de Reyniès, A.; et al. Transcriptome analysis reveals that p53 and β-catenin alterations occur in a group of aggressive adrenocortical cancers. Cancer Res. 2010, 70, 8276–8281. [Google Scholar] [CrossRef]
  53. Mouat, I.C.; Omata, K.; McDaniel, A.S.; Hattangady, N.G.; Talapatra, D.; Cani, A.K.; Hovelson, D.H.; Tomlins, S.A.; Rainey, W.E.; Hammer, G.D.; et al. Somatic mutations in adrenocortical carcinoma with primary aldosteronism or hyperreninemic hyperaldosteronism. Endocr. Relat. Cancer 2019, 26, 217–225. [Google Scholar] [CrossRef] [PubMed]
  54. Sbiera, S.; Schmull, S.; Assie, G.; Voelker, H.U.; Kraus, L.; Beyer, M.; Ragazzon, B.; Beuschlein, F.; Willenberg, H.S.; Hahner, S.; et al. High diagnostic and prognostic value of steroidogenic factor-1 expression in adrenal tumors. J. Clin. Endocrinol. Metab. 2010, 95, E161–E171. [Google Scholar] [CrossRef] [PubMed]
  55. Ronchi, C.L.; Sbiera, S.; Volante, M.; Steinhauer, S.; Scott-Wild, V.; Altieri, B.; Kroiss, M.; Bala, M.; Papotti, M.; Deutschbein, T.; et al. CYP2W1 is highly expressed in adrenal glands and is positively associated with the response to mitotane in adrenocortical carcinoma. PLoS ONE 2014, 9, e105855. [Google Scholar] [CrossRef]
  56. Volante, M.; Terzolo, M.; Fassnacht, M.; Rapa, I.; Germano, A.; Sbiera, S.; Daffara, F.; Sperone, P.; Scagliotti, G.; Allolio, B.; et al. Ribonucleotide reductase large subunit (RRM1) gene expression may predict efficacy of adjuvant mitotane in adrenocortical cancer. Clin. Cancer Res. 2012, 18, 3452–3461. [Google Scholar] [CrossRef] [PubMed]
  57. Thompson, L.D. Pheochromocytoma of the Adrenal gland Scaled Score (PASS) to separate benign from malignant neoplasms: A clinicopathologic and immunophenotypic study of 100 cases. Am. J. Surg. Pathol. 2002, 26, 551–566. [Google Scholar] [CrossRef]
  58. Kimura, N.; Takayanagi, R.; Takizawa, N.; Itagaki, E.; Katabami, T.; Kakoi, N.; Rakugi, H.; Ikeda, Y.; Tanabe, A.; Nigawara, T.; et al. Pathological grading for predicting metastasis in phaeochromocytoma and paraganglioma. Endocr. Relat. Cancer 2014, 21, 405–414. [Google Scholar] [CrossRef]
  59. Pierre, C.; Agopiantz, M.; Brunaud, L.; Battaglia-Hsu, S.F.; Max, A.; Pouget, C.; Nomine, C.; Lomazzi, S.; Vignaud, J.M.; Weryha, G.; et al. COPPS, a composite score integrating pathological features, PS100 and SDHB losses, predicts the risk of metastasis and progression-free survival in pheochromocytomas/paragangliomas. Virchows Arch. 2019, 474, 721–734. [Google Scholar] [CrossRef]
  60. Wachtel, H.; Hutchens, T.; Baraban, E.; Schwartz, L.E.; Montone, K.; Baloch, Z.; LiVolsi, V.; Krumeich, L.; Fraker, D.L.; Nathanson, K.L.; et al. Predicting metastatic potential in pheochromocytoma and paraganglioma: A comparison of pass and gapp scoring systems. J. Clin. Endocrinol. Metab. 2020, 105, e4661–e4670. [Google Scholar] [CrossRef]
  61. Koh, J.M.; Ahn, S.H.; Kim, H.; Kim, B.J.; Sung, T.Y.; Kim, Y.H.; Hong, S.J.; Song, D.E.; Lee, S.H. Validation of pathological grading systems for predicting metastatic potential in pheochromocytoma and paraganglioma. PLoS ONE 2017, 12, e0187398. [Google Scholar] [CrossRef]
  62. Unger, P.; Hoffman, K.; Pertsemlidis, D.; Thung, S.; Wolfe, D.; Kaneko, M. S100 protein-positive sustentacular cells in malignant and locally aggressive adrenal pheochromocytomas. Arch. Pathol. Lab. Med. 1991, 115, 484–487. [Google Scholar]
  63. Kuriakose, M.A.; Chen, W.T.; He, Z.M.; Sikora, A.G.; Zhang, P.; Zhang, Z.Y.; Qiu, W.L.; Hsu, D.F.; McMunn-Coffran, C.; Brown, S.M.; et al. Selection and validation of differentially expressed genes in head and neck cancer. Cell Mol. Life Sci. 2004, 61, 1372–1383. [Google Scholar] [CrossRef] [PubMed]
  64. Yu, Y.H.; Kuo, H.K.; Chang, K.W. The evolving transcriptome of head and neck squamous cell carcinoma: A systematic review. PLoS ONE 2008, 3, e3215. [Google Scholar] [CrossRef] [PubMed]
  65. Sun, G.G.; Wang, Y.D.; Lu, Y.F.; Hu, W.N. EMP1, a member of a new family of antiproliferative genes in breast carcinoma. Tumour Biol. 2014, 35, 3347–3354. [Google Scholar] [CrossRef] [PubMed]
  66. Turashvili, G.; Bouchal, J.; Ehrmann, J.; Fridman, E.; Skarda, J.; Kolar, Z. Novel immunohistochemical markers for the differentiation of lobular and ductal invasive breast carcinomas. Biomed. Pap. Med. Fac. Univ. Palacky Olomouc Czech Repub. 2007, 151, 59–64. [Google Scholar] [CrossRef] [PubMed]
  67. Hippo, Y.; Yashiro, M.; Ishii, M.; Taniguchi, H.; Tsutsumi, S.; Hirakawa, K.; Kodama, T.; Aburatani, H. Differential gene expression profiles of scirrhous gastric cancer cells with high metastatic potential to peritoneum or lymph nodes. Cancer Res. 2001, 61, 889–895. [Google Scholar] [PubMed]
  68. Johnson, A.H.; Frierson, H.F.; Zaika, A.; Powell, S.M.; Roche, J.; Crowe, S.; Moskaluk, C.A.; El-Rifai, W. Expression of tight-junction protein claudin-7 is an early event in gastric tumorigenesis. Am. J. Pathol. 2005, 167, 577–584. [Google Scholar] [CrossRef]
  69. Ahmed, H.G.; Abdul Gader Suliman, R.S.; Abd El Aziz, M.S.; Alshammari, F.D. Immunohistochemical expression of cytokeratins and epithelial membrane protein 2 in nasopharyngeal carcinoma and its potential implications. Asian Pac. J. Cancer Prev. 2015, 16, 653–656. [Google Scholar] [CrossRef]
  70. Chen, Y.H.; Wu, L.C.; Wu, W.R.; Lin, H.J.; Lee, S.W.; Lin, C.Y.; Chang, S.L.; Chow, N.H.; Huang, H.Y.; Li, C.F.; et al. Loss of epithelial membrane protein-2 expression confers an independent prognosticator in nasopharyngeal carcinoma: A cohort study. BMJ Open 2012, 2, e000900. [Google Scholar] [CrossRef]
  71. Habeeb, O.; Goodglick, L.; Soslow, R.A.; Rao, R.G.; Gordon, L.K.; Schirripa, O.; Horvath, S.; Braun, J.; Seligson, D.B.; Wadehra, M. Epithelial membrane protein-2 expression is an early predictor of endometrial cancer development. Cancer 2010, 116, 4718–4726. [Google Scholar] [CrossRef]
  72. Wadehra, M.; Natarajan, S.; Seligson, D.B.; Williams, C.J.; Hummer, A.J.; Hedvat, C.; Braun, J.; Soslow, R.A. Expression of epithelial membrane protein-2 is associated with endometrial adenocarcinoma of unfavorable outcome. Cancer 2006, 107, 90–98. [Google Scholar] [CrossRef]
  73. Evtimova, V.; Zeillinger, R.; Weidle, U.H. Identification of genes associated with the invasive status of human mammary carcinoma cell lines by transcriptional profiling. Tumour Biol. 2003, 24, 189–198. [Google Scholar] [CrossRef] [PubMed]
  74. Mora, J.; Cheung, N.K.; Chen, L.; Qin, J.; Gerald, W. Loss of heterozygosity at 19q13.3 is associated with locally aggressive neuroblastoma. Clin. Cancer Res. 2001, 7, 1358–1361. [Google Scholar] [PubMed]
  75. Smith, J.S.; Alderete, B.; Minn, Y.; Borell, T.J.; Perry, A.; Mohapatra, G.; Hosek, S.M.; Kimmel, D.; O’Fallon, J.; Yates, A.; et al. Localization of common deletion regions on 1p and 19q in human gliomas and their association with histological subtype. Oncogene 1999, 18, 4144–4152. [Google Scholar] [CrossRef] [PubMed]
  76. Margetts, C.D.; Morris, M.; Astuti, D.; Gentle, D.C.; Cascon, A.; McRonald, F.E.; Catchpoole, D.; Robledo, M.; Neumann, H.P.; Latif, F.; et al. Evaluation of a functional epigenetic approach to identify promoter region methylation in phaeochromocytoma and neuroblastoma. Endocr. Relat. Cancer 2008, 15, 777–786. [Google Scholar] [CrossRef]
  77. Wulf, P.; Suter, U. Embryonic expression of epithelial membrane protein 1 in early neurons. Brain Res. Dev. Brain Res. 1999, 116, 169–180. [Google Scholar] [CrossRef]
  78. Ahmat Amin, M.K.B.; Shimizu, A.; Zankov, D.P.; Sato, A.; Kurita, S.; Ito, M.; Maeda, T.; Yoshida, T.; Sakaue, T.; Higashiyama, S.; et al. Epithelial membrane protein 1 promotes tumor metastasis by enhancing cell migration via copine-III and Rac1. Oncogene 2018, 37, 5416–5434. [Google Scholar] [CrossRef]
  79. Ariës, I.M.; Jerchel, I.S.; van den Dungen, R.E.; van den Berk, L.C.; Boer, J.M.; Horstmann, M.A.; Escherich, G.; Pieters, R.; den Boer, M.L. EMP1, a novel poor prognostic factor in pediatric leukemia regulates prednisolone resistance, cell proliferation, migration and adhesion. Leukemia 2014, 28, 1828–1837. [Google Scholar] [CrossRef]
  80. Miao, L.; Jiang, Z.; Wang, J.; Yang, N.; Qi, Q.; Zhou, W.; Feng, Z.; Li, W.; Zhang, Q.; Huang, B.; et al. Epithelial membrane protein 1 promotes glioblastoma progression through the PI3K/AKT/mTOR signaling pathway. Oncol. Rep. 2019, 42, 605–614. [Google Scholar] [CrossRef]
  81. Sun, G.G.; Wang, Y.D.; Cui, D.W.; Cheng, Y.J.; Hu, W.N. EMP1 regulates caspase-9 and VEGFC expression and suppresses prostate cancer cell proliferation and invasion. Tumour Biol. 2014, 35, 3455–3462. [Google Scholar] [CrossRef] [PubMed]
  82. Wang, J.; Li, X.; Wu, H.; Wang, H.; Yao, L.; Deng, Z.; Zhou, Y. EMP1 regulates cell proliferation, migration, and stemness in gliomas through PI3K-AKT signaling and CD44. J. Cell Biochem. 2019, 120, 17142–17150. [Google Scholar] [CrossRef] [PubMed]
  83. Adler, J.T.; Hottinger, D.G.; Kunnimalaiyaan, M.; Chen, H. Inhibition of the PI3K pathway suppresses hormonal secretion and limits growth in pheochromocytoma cells. World J. Surg. 2009, 33, 2452–2457. [Google Scholar] [CrossRef]
  84. Alvarez-Tejado, M.; Naranjo-Suarez, S.; Jiménez, C.; Carrera, A.C.; Landázuri, M.O.; del Peso, L. Hypoxia induces the activation of the phosphatidylinositol 3-kinase/Akt cell survival pathway in PC12 cells: Protective role in apoptosis. J. Biol. Chem. 2001, 276, 22368–22374. [Google Scholar] [CrossRef] [PubMed]
  85. Yao, R.; Cooper, G.M. Requirement for phosphatidylinositol-3 kinase in the prevention of apoptosis by nerve growth factor. Science 1995, 267, 2003–2006. [Google Scholar] [CrossRef]
  86. Fassnacht, M.; Weismann, D.; Ebert, S.; Adam, P.; Zink, M.; Beuschlein, F.; Hahner, S.; Allolio, B. AKT is highly phosphorylated in pheochromocytomas but not in benign adrenocortical tumors. J. Clin. Endocrinol. Metab. 2005, 90, 4366–4370. [Google Scholar] [CrossRef]
  87. Chaux, A.; Brimo, F.; Gonzalez-Roibon, N.; Shah, S.; Schultz, L.; Rizk, J.M.; Argani, P.; Hicks, J.; Netto, G.J. Immunohistochemical evidence of dysregulation of the mammalian target of rapamycin pathway in primary and metastatic pheochromocytomas. Urology 2012, 80, 736.e7–736.e12. [Google Scholar] [CrossRef]
  88. Zhou, W.; Jiang, Z.; Li, X.; Xu, F.; Liu, Y.; Wen, P.; Kong, L.; Hou, M.; Yu, J. EMP3 overexpression in primary breast carcinomas is not associated with epigenetic aberrations. J. Korean Med. Sci. 2009, 24, 97–103. [Google Scholar] [CrossRef]
  89. Jain, A.; Tindell, C.A.; Laux, I.; Hunter, J.B.; Curran, J.; Galkin, A.; Afar, D.E.; Aronson, N.; Shak, S.; Natale, R.B.; et al. Epithelial membrane protein-1 is a biomarker of gefitinib resistance. Proc. Natl. Acad. Sci. USA 2005, 102, 11858–11863. [Google Scholar] [CrossRef]
  90. Adam, P.; Hahner, S.; Hartmann, M.; Heinrich, B.; Quinkler, M.; Willenberg, H.S.; Saeger, W.; Sbiera, S.; Schmull, S.; Voelker, H.U.; et al. Epidermal growth factor receptor in adrenocortical tumors: Analysis of gene sequence, protein expression and correlation with clinical outcome. Mod. Pathol. 2010, 23, 1596–1604. [Google Scholar] [CrossRef]
  91. Xu, L.; Qi, Y.; Xu, Y.; Lian, J.; Wang, X.; Ning, G.; Wang, W.; Zhu, Y. Co-inhibition of EGFR and IGF1R synergistically impacts therapeutically on adrenocortical carcinoma. Oncotarget 2016, 7, 36235–36246. [Google Scholar] [CrossRef]
  92. Demeure, M.J.; Bussey, K.J.; Kirschner, L.S. Targeted therapies for adrenocortical carcinoma: IGF and beyond. Horm. Cancer 2011, 2, 385–392. [Google Scholar] [CrossRef] [PubMed]
  93. Barlaskar, F.M.; Spalding, A.C.; Heaton, J.H.; Kuick, R.; Kim, A.C.; Thomas, D.G.; Giordano, T.J.; Ben-Josef, E.; Hammer, G.D. Preclinical targeting of the type I insulin-like growth factor receptor in adrenocortical carcinoma. J. Clin. Endocrinol. Metab. 2009, 94, 204–212. [Google Scholar] [CrossRef]
  94. Ronchi, C.L.; Sbiera, S.; Leich, E.; Tissier, F.; Steinhauer, S.; Deutschbein, T.; Fassnacht, M.; Allolio, B. Low SGK1 expression in human adrenocortical tumors is associated with ACTH-independent glucocorticoid secretion and poor prognosis. J. Clin. Endocrinol. Metab. 2012, 97, E2251–E2260. [Google Scholar] [CrossRef] [PubMed]
  95. Lin, B.; Zhang, T.; Ye, X.; Yang, H. High expression of EMP1 predicts a poor prognosis and correlates with immune infiltrates in bladder urothelial carcinoma. Oncol. Lett. 2020, 20, 2840–2854. [Google Scholar] [CrossRef] [PubMed]
  96. Cha, Y.J.; Koo, J.S. Expression of EMP1, EMP2, and EMP3 in breast phyllodes tumors. PLoS ONE 2020, 15, e0238466. [Google Scholar] [CrossRef]
  97. Han, M.; Xu, W. EMP3 is induced by TWIST1/2 and regulates epithelial-to-mesenchymal transition of gastric cancer cells. Tumour Biol. 2017, 39, 1010428317718404. [Google Scholar] [CrossRef]
  98. Shimazaki, K.; Lepin, E.J.; Wei, B.; Nagy, A.K.; Coulam, C.P.; Mareninov, S.; Fu, M.; Wu, A.M.; Marks, J.D.; Braun, J.; et al. Diabodies targeting epithelial membrane protein 2 reduce tumorigenicity of human endometrial cancer cell lines. Clin. Cancer Res. 2008, 14, 7367–7377. [Google Scholar] [CrossRef]
  99. Park, E.; Park, S.Y.; Kim, H.; Sun, P.L.; Jin, Y.; Cho, S.K.; Kim, K.; Lee, C.T.; Chung, J.H. Membranous insulin-like growth factor-1 receptor (IGF1R) expression is predictive of poor prognosis in patients with epidermal growth factor receptor (EGFR)-mutant lung adenocarcinoma. J. Pathol. Transl. Med. 2015, 49, 382–388. [Google Scholar] [CrossRef]
Ijms 24 13016 g001
Figure 1. Expression of epithelial membrane proteins (EMPs) 1, 2, and 3 in adrenal neoplasm. Pheochromocytomas (PCC) show higher expression of EMP 3 than that of adrenal cortical neoplasm (ACN) [X400, scale bar: 20 μm].
Figure 1. Expression of epithelial membrane proteins (EMPs) 1, 2, and 3 in adrenal neoplasm. Pheochromocytomas (PCC) show higher expression of EMP 3 than that of adrenal cortical neoplasm (ACN) [X400, scale bar: 20 μm].
Ijms 24 13016 g001
Ijms 24 13016 g002
Figure 2. Expression of EMP 1, 2, and 3 in adrenal cortical neoplasm. Adrenal cortical carcinomas (ACC) show higher expression of EMP 1 and 3 than that of adrenal cortical adenomas (ACA) [X400, scale bar: 20 μm].
Figure 2. Expression of EMP 1, 2, and 3 in adrenal cortical neoplasm. Adrenal cortical carcinomas (ACC) show higher expression of EMP 1 and 3 than that of adrenal cortical adenomas (ACA) [X400, scale bar: 20 μm].
Ijms 24 13016 g002
Ijms 24 13016 g003
Figure 3. Correlations between EMP 1, 2, and 3 expressions and the clinicopathological factors of adrenal neoplasm.
Figure 3. Correlations between EMP 1, 2, and 3 expressions and the clinicopathological factors of adrenal neoplasm.
Ijms 24 13016 g003
Ijms 24 13016 g004
Figure 4. The impact of EMP 1 and 3 expressions in ACN on patient prognosis. EMP 1 and 3 were found to be significantly associated with overall survival (OS), with high EMP 1 and 3 expression levels being associated with shorter OS in adrenal cortical neoplasm (p = 0.001).
Figure 4. The impact of EMP 1 and 3 expressions in ACN on patient prognosis. EMP 1 and 3 were found to be significantly associated with overall survival (OS), with high EMP 1 and 3 expression levels being associated with shorter OS in adrenal cortical neoplasm (p = 0.001).
Ijms 24 13016 g004
Table 1. H-scores of EMP 1, 2, and 3 in adrenal neoplasm.
Table 1. H-scores of EMP 1, 2, and 3 in adrenal neoplasm.
EMP TypeTotal
N = 321
H-Score (Mean ± SD)		Adrenal Cortical Neoplasm
n = 132
H-Score (Mean ± SD)		Pheochromocytoma
n = 189
H-Score (Mean ± SD)		p-Value
EMP1100.0 ± 88.591.6 ± 101.0105.9 ± 78.40.154
EMP21.3 ± 8.82.2 ± 12.00.6 ± 5.60.134
EMP386.4 ± 83.263.4 ± 82.4102.5 ± 80.1<0.001
SD, standard deviation.
Table 2. Expression of EMP 1, 2, and 3 in adrenal cortical neoplasm.
Table 2. Expression of EMP 1, 2, and 3 in adrenal cortical neoplasm.
EMP TypeTotal
N = 132 (%)		Adrenal Cortical Adenoma,
n = 115 (%)		Adrenal Cortical Carcinoma,
n = 17 (%)		p-Value
EMP 1 <0.001
Low80 (60.6)79 (68.7)1 (5.9)
High52 (39.4)36 (31.3)16 (94.1)
EMP 2 0.594
Low125 (94.7)108 (93.9)17 (100.0)
High7 (5.3)7 (6.1)0 (0.0)
EMP 3 <0.001
Low84 (63.6)82 (71.3)2 (11.8)
High48 (36.4)33 (28.7)15 (88.2)
Table 3. The expression levels of EMP 1, 2, and 3 in pheochromocytoma based on the GAPP score.
Table 3. The expression levels of EMP 1, 2, and 3 in pheochromocytoma based on the GAPP score.
EMP TypeTotal
N = 189 (%)		GAPP < 3
n = 138 (%)		GAPP ≥ 3
n = 51 (%)		p-Value
EMP 1 0.013
Low123 (65.1)97 (70.3)26 (51.0)
High66 (34.9)41 (29.7)25 (49.0)
EMP 2 0.565
Low186 (98.4)135 (97.8)51 (100.0)
High3 (1.6)3 (2.2)0 (0.0)
EMP 3 0.728
Low126 (66.7)91 (65.9)35 (68.6)
High63 (33.3)47 (34.1)16 (31.4)
GAPP, grading system for adrenal pheochromocytoma and paraganglioma.
Table 4. The impact of EMP 1, 2, and 3 expressions in pheochromocytoma on disease-free survival and overall survival, assessed through univariate analysis using the log-rank test.
Table 4. The impact of EMP 1, 2, and 3 expressions in pheochromocytoma on disease-free survival and overall survival, assessed through univariate analysis using the log-rank test.
EMP Type No. of Patients/
Recurrence/Death		Disease-Free SurvivalOverall Survival
Mean Survival Months (95% CI)p-ValueMean Survival Months (95% CI)p-Value
EMP 1 0.468 0.564
Low122/4/6151 (140–162) 153 (142–164)
High66/1/5154 (148–161) 141 (126–155)
EMP 2 0.727 0.645
Low185/5/11N/A N/A
High3/0/0N/A N/A
EMP 3 0.550 0.784
Low125/4/8151 (142–161) 150 (138–161)
High63/1/3102 (99–105) 97 (91–104)
CI, confidence interval.
Table 5. The impact of EMP 1, 2, and 3 expressions in adrenal cortical neoplasm on disease-free survival and overall survival, assessed through univariate analysis using the log-rank test.
Table 5. The impact of EMP 1, 2, and 3 expressions in adrenal cortical neoplasm on disease-free survival and overall survival, assessed through univariate analysis using the log-rank test.
EMP TypeNo. of Patients/
Recurrence/Death		Disease-Free SurvivalOverall Survival
Mean Survival Months (95% CI)p-ValueMean Survival Months (95% CI)p-Value
EMP 1 0.019 0.001
Low80/0/1N/A 96 (94–99)
High52/3/8N/A 101 (90–112)
EMP 2 0.669 0.467
Low125/3/9N/A N/A
High7/0/0N/A N/A
EMP 3 0.013 0.001
Low84/0/1N/A 96 (94–99)
High48/3/8N/A 100 (88–112)
CI, confidence interval.
Table 6. Multivariate overall-survival analysis of patients with adrenal cortical neoplasm.
Table 6. Multivariate overall-survival analysis of patients with adrenal cortical neoplasm.
ParameterHazard Ratio95% CIp-Value
Fuhrman grade 0.507
1, 2 versus 3, 45.0700.042–613.7
Mitosis (/50HPFs) 0.401
≤5 versus >54.3200.142–131.8
Atypical mitosis 0.318
Absent versus Present3.6710.287–47.04
Clear cell proportion 0.293
≥25% versus <25%9.6810.140–668.3
Diffuse architecture (proportion) 0.430
<1/3 versus ≥1/33.0920.188–50.97
Venous invasion 0.013
Absent versus Present193.93.054–12,313
Capsular invasion 0.950
Absent versus Present1.0750.110–10.48
Weiss score 0.384
<4 versus ≥40.1010.001–17.62
EMP 1 0.244
Low versus High20.8920.126–3458
EMP 3 0.475
Low versus High8.6580.023–3210
CI, confidence interval.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cha, Y.J.; Koo, J.S. Expression of EMP 1, 2, and 3 in Adrenal Cortical Neoplasm and Pheochromocytoma. Int. J. Mol. Sci. 2023, 24, 13016. https://doi.org/10.3390/ijms241613016

AMA Style

Cha YJ, Koo JS. Expression of EMP 1, 2, and 3 in Adrenal Cortical Neoplasm and Pheochromocytoma. International Journal of Molecular Sciences. 2023; 24(16):13016. https://doi.org/10.3390/ijms241613016

Chicago/Turabian Style

Cha, Yoon Jin, and Ja Seung Koo. 2023. "Expression of EMP 1, 2, and 3 in Adrenal Cortical Neoplasm and Pheochromocytoma" International Journal of Molecular Sciences 24, no. 16: 13016. https://doi.org/10.3390/ijms241613016

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
