Characterization and Gene Mapping of an Open-Glume Oryza sativa L. Mutant

by
Xingxue Mao
1,2,
Xiaoyu Zheng
1,2,
Wenfeng Chen
1,2,* and
Chen Li
1,2,*
1
Rice Research Institute, Guangdong Academy of Agricultural Sciences, Guangzhou 510640, China
2
Guangdong Key Laboratory of New Technology in Rice Breeding, Guangzhou 510640, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(16), 12702; https://doi.org/10.3390/ijms241612702
Submission received: 18 July 2023 / Revised: 4 August 2023 / Accepted: 9 August 2023 / Published: 11 August 2023
(This article belongs to the Special Issue Plant Genomics and Genome Editing 2.0)
Browse Figures
Versions Notes

Abstract

:
Floral organ development determines agricultural productivity by affecting seed development, seed quality, and final yield. In this study, we described the novel ogl mutant in rice (Oryza sativa L.), which is characterized by an open-glume phenotype, increased pistil number, reduced stamen number, decreased seed setting rate, and smaller rice grains. Genetic analysis showed that the open-glume phenotype might be controlled by a recessive qualitative trait locus. Employing bulked segregant analysis (BSA), one candidate region was identified on rice chromosome 1. The glume opening phenotype cosegregated with SNP (Chr1:1522703), which was located at the start codon of one transcript of OsJAG, resulting in partial loss of OsJAG function. cDNA analysis revealed that OsJAG encodes two transcript variants. Compared to normal plants, the expression of OsJAG.1 was upregulated in open-glume plants. When investigating the glume phenotype, we found that the expression of genes related to floral development changed greatly in open-glume plants. Taken together, this work increases our understanding of the developmental role of OsJAG in rice floral development.

1. Introduction

Rice (Oryza sativa L.) is one of the major food crops in the world, serving as a caloric foundation for more than half of the world’s population [1,2,3]. Seed yield is the ultimate goal of rice production, which is dependent on floral organ development. Numerous genes related to flower development have been demonstrated to regulate seed development and final yield [4,5,6]. Even the development of glumes influences seed yield [7,8]. In hybrid rice, glume opening is beneficial for pollen dispersal and pollen acceptance on the pistil, which is an indispensable and favorable reproductive trait [9,10,11]. Usually, the glume determines grain size and protects the developing seeds during the filling stage and the mature stages, especially in high-temperature and humidity conditions [12,13]. Glume opening renders rice susceptible to microbial invasion and rainwater infiltration, which can result in seed deterioration and preharvest sprouting. Severe glume opening often leads to inactive seeds. In a word, every floral organ is closely related to seed development [5,14,15], so understanding floral organ development is of great significance to inform agricultural practices.
Numerous genes have been reported to influence the development of flower organs in rice. For example, the MADS (minichromosome maintenance 1, AGAMOUS, DEFICIENS, Serum response factor) family of transcription factors prominently controls floret development [15,16,17]. OsMADS1 mutants exhibit phenotypic variation among different alleles, including leaf-like glumes, naked rice, glume-like lodicules, altered morphology, and the numbers of stamens and pistils [18,19,20,21,22]. Mutation of OsMADS15 causes shrunken paleae and uncoordinated development of paleae and lemma that result in incomplete closure of florets [23]. Interestingly, double mutations in OsMADS1 and OsMADS15 result in asexual reproduction in rice [23]. A well-characterized heterosis gene, GW3p6, which is an allele of OsMADS1 with an altered splicing pattern that truncates 32 amino acid residues at the C-terminus, causes an increase in grain length, grain weight, and yield [24]. OsMADS1 interacts with GS3, DEP1, and GGC2 to regulate rice-grain shape [6,25]. WG7 can also affect grain width by regulating OsMADS1 transcription [26].
Aside from MADS genes, other rice mutants from various genes have been implicated in glume formation and integrity. BSG1 encodes a DUF640 domain protein of unknown function and a bsg1 mutant has shown loosely interlocked lemmas and paleae, beak-shaped grains, and an approximate 50% decrease in 1000-grain weight [4]. OsWOX3A encodes a transcriptional activator that causes unclosed florets and fewer spikelets per panicle when mutated [27]. Overexpression of microRNA172 family genes leads to glume opening, longer lemma and palea, and abnormal floral organ development [14]. OsJAG (SL1) encodes a C2H2 zinc finger transcription factor. Mutants in OsJAG display open-glume phenotypes, distorted paleae/lemmas, greater numbers of pistils, fewer or missing stamen, and male-sterile florets [28,29]. Arabidopsis mutants in AtJAG (jag-1) have stunted sepals and anthers than their wild-type counterparts with male-sterile flowers [30].
In this study, we characterized a recessive mutant that we refer to as open-glume rice (ogl). Via BSA, we discovered that ogl harbors a novel allele of the OsJAG gene (OsJAGogl), which has a point mutation that causes the start-loss of one transcript. Further analysis showed that the point mutation in OsJAGogl is associated with an open-glume phenotype. Furthermore, the expression levels of genes related to floret development were altered in open-glume plants. Taken together, this work bolsters our understanding of the role of OsJAG in rice floral organ development and glume formation.

2. Results

2.1. Characterization of the ogl Rice Mutant

The ogl mutant is a spontaneous mutant that was discovered in a paddy field growing diverse indica rice varieties. As such, we deduced that ogl is of indica background. There was no significant difference in the vegetative tissues of ogl and YMSM (Yuanmeisimiao), an indica rice cultivar showing normal florets. The ogl mutant was originally discovered for its recognizable open-glume phenotype (Figure 1A,B,G). A normal rice floret is composed of one pistil (two stigmas) and six stamens (Figure 1C). In the ogl mutant, there are 0–6 stamens and multiple pistils in the floret (Figure 1D–F). One week after anthesis, YMSM florets remained in a glume-closed state but were open in ogl florets (Figure 1A). Before heading, the florets were collected and transversely sectioned across the middle to observe the glume. In YMSM, the lemma curled inward, the palea curled outward, and both clasped each other at the edge (Figure 1H). In ogl, the lemma and palea were similar in appearance to YMSM but they did not clasp each other (Figure 1I), suggesting that unsynchronized development might be the main reason for the abnormal glume. Although the development of stamens was abnormal and the number of anthers decreased, I2-KI staining revealed normal pollen development (Figure 1J,K). The self-seed setting rate of ogl decreased significantly (Figure 1L), which also indicated that the successfully developed anthers contained active pollen despite a decrease in the number of anthers.

2.2. Genetic Analysis of the Open-Glume Phenotype

The open-glume phenotype of ogl-inbred lines was stable in three consecutive generations, which indicates that the phenotype was heritable. To identify the gene responsible for the open-glume phenotype, we constructed a mapping population derived from a cross between ogl and YMSM. All of the F1 plants showed a normal floret phenotype, suggesting that the open-glume phenotype was a recessive trait. In the F2 populations, the segregation ratios of normal to open-glumes were more than 6.0 (Table 1), which deviated from a typical ratio of 3:1. We speculated that the low ratio of open-glume plants might be caused by anther and reproductive defects and the open-glume phenotype might be controlled by one recessive gene.

2.3. Cloning of the OsJAGogl Gene

To identify the open-glume-conferring gene, the extreme phenotype pools were constructed using the F2 population for bulked segregation analysis (BSA). A total of 59.9 Gb of effective data were obtained from the sequencing results. The sequencing data from the normal floret and glume-open floret pools were 26.9 Gb and 22.3 Gb, respectively. The Q30 of each pool was greater than 93.68%. With R498 as the reference genome (www.mbkbase.org/R498, accessed on 10 January 2023), 2,868,510 SNPs were identified in the normal floret pool and 2,885,176 SNPs in the open-glume pool. BSA-Seq data analysis was performed with TBtools [31]. For thresholding, 95% confidence levels were selected and a candidate region (14,759~7,736,351 bp) was identified on the short arm of chromosome 1 (Figure 2). This result supported the deduction that the open-glume phenotype was controlled by a recessive gene. First, we screened 358 exonic SNPs of 157 genes in the candidate region. Among them, 7 SNPs resulted in aberrant start codons or stop codons (Table 2). Based on the SNP data of MBKBASE (www.mbkbase.org, accessed on 10 March 2023), SNP (Chr1: 1522703) was not previously reported, suggesting that it was a novel variant.
According to the annotation information, SNP (Chr1: 1522703) is located within gene OsR498G0100098300.01, which encodes a single C2H2 zinc finger protein, OsJAG, known to regulate the development of floral organs in rice [28,29]. We designed primers to check the mutation in OsJAG. The DNA of YMSM, ogl, and F1 plants were used as templates for amplification. The sequencing results showed that the base transversion SNP (Chr1:1522703) occurred in OsJAG in the ogl genome and resulted in a new OsJAG allele, which was then designated as OsJAGogl.
The sequencing chromatogram of F1 plants showed that the amplification efficiencies of the two alleles were similar and there was no obvious competitive inhibition (Figure 3). To further verify the candidate gene, another 60 open-glume plants were randomly selected to extract DNA for PCR and every five PCR products were mixed and sequenced. The results showed that all open-glume plants contained homozygous OsJAGogl. We amplified the entire genomic region of OsJAG from YMSM and ogl for sequencing. Referring to YMSM and R498, we did not find any new SNP in OsJAGogl, except for SNP(Chr1:1522703) (Table 3).

2.4. Analysis of Splicing and Expression Patterns of OsJAG

According to NCBI, OsJAG produces two transcript variants XM_026023842.1 (OsJAG.2) and XM_015791728.2 (OsJAG.1) (Figure 4A). Compared to OsJAG.2, there are 12 additional nucleotides following the start codon in OsJAG.1. We amplified the fragments of OsJAG.2 from F1 cDNA. The sequence results supported the transcriptional prediction of OsJAG.2 from NCBI (Figure 4B). At the same time, the double peak in the sequencing chromatogram confirmed that the transcript OsJAG.2ogl was also present in the F1 plant. We also amplified the 5′ fragments of OsJAG.1 and OsJAG.2 with the cDNA from ogl and YMSM, respectively, and confirmed that both transcripts existed in ogl and YMSM (Figure 4C). We also compared the expression levels of OsJAG.1 and OsJAG.2 between normal plants and glume-open plants from the F3 population. We found that the expression level of OsJAG.1 was extremely significantly upregulated in glume-open plants (Figure 4D).

2.5. Expression Analysis of Genes Related to Floral Organ Development

OsJAG is a key regulatory gene in the development of floral organs, indicating that there are many downstream genes regulated by it [29]. To further understand the function of OsJAG, we analyzed the expression of A/B/C/D/E-class genes in young panicles (5 mm in length) of normal plants and open-glume plants, respectively. The results showed that the expression of many genes was altered in the ogl mutant background (Figure 5), including upregulation of genes from class A (OsMADS14/15), class C (DL), class D (OsMADS13 and REP1), and class E (OsMADS6/22/34). Class B genes (OsMADS2/16) did not vary but some E-class genes (OsMADS57) were downregulated. Ap2 family genes were previously demonstrated to regulate the development of rice florets [14] and our results demonstrated the upregulation of AP2-3 in ogl. All of these results indicated that OsJAG could regulate the expression of A/B/C/D/E-class genes and AP2 genes.

3. Discussion

A natural open-glume mutant, ogl, was originally discovered in the paddy field. The main characteristics of the ogl floret were that the lemma and palea could not clasp to each other, the number of stamens decreased, and the number of pistils increased (Figure 1). Genetic analysis and gene mapping were thus carried out (Table 1 and Figure 2) and a novel allele, referred to as OsJAGogl, was identified (Figure 3). All of the randomly selected open-glume plants contained homozygous OsJAGogl, indicating that OsJAGogl resulted in the open-glume phenotype. The sequencing results of cDNA fragments confirmed that OsJAG.2ogl lost its original start codon. The functions of OsJAG.1 and OsJAG.2 are believed to be partially similar, so the upregulation of OsJAG.1 in open-glume plants may be the result of self-regulation to compensate for the loss of OsJAG.2ogl function (Figure 4D).
In Arabidopsis thaliana, an ABCDE model of flower development has been established for decades [32,33,34] and has since been extended to flower development in monocotyledonous plants [35,36,37]. We compared the expression of ABCDE genes between normal plants and open-glume plants (Figure 5). Generally, C-class genes and D-class genes promote the development of carpels, so the upregulation of C-class genes and D-class genes might cause the transformation of stamens into pistils. E-class genes were both upregulated and downregulated in ogl mutants, suggesting that there are unknown factors involved in floret development in rice. Overexpression of OsMADS22 resulted in aberrant floral morphogenesis [38]. We detected the upregulated expression of OsMADS22 in ogl, suggesting that OsMADS22 may mediate the phenotype of abnormal florets. A-class genes specify the identity of sepals [34]. Some A-class genes were upregulated in ogl, which might cause imbalanced growth of lemma and paleae and result in the open-glume phenotype. Complete inactivation of OsJAG leads to infertility [29]. In ogl, OsJAG partially lost its function as only one transcript of OsJAGogl was inactivated (Figure 3 and Figure 4 and Table 3). The generation of a small number of homozygous seeds also supports the above inference (Figure 1G). The amino acid sequence determines protein function, and the amino acid sequence of OsJAG1 is similar to that of OsJAG2, but the N-terminus of OsJAG1 has four more amino acid residues than OsJAG2, suggesting that their functions are similar. However, our results show that OsJAG1 can not completely replace the function of OsJAG2 (Figure 1). The sl1 florets displayed homeotic conversions and some stamens converted into stigmas [29]. The ogl florets also displayed a similar conversion, which indicated that OsJAG.2 was also necessary for the development of stamens. The mutation OsMADS16(spw1) caused the transformation of stamens to carpels [39] and the expression of OsMADS16 was downregulated in sl1 [29], suggesting that OsJAG might regulate OsMADS16 expression. However, no significant downregulation of OsMADS16 was detected in ogl (Figure 5). Taken together, these results indicated that the functions of two transcripts of OsJAG need to be respectively studied and the mutant ogl will serve as a useful tool for this task in the future.
OsJAG is mainly expressed in the panicle [28,29,40] and the mutants ogl and sl1 showed no obvious phenotype during vegetative growth [29], which suggested that OsJAG mainly affected floral organ development. Interestingly, the homologous gene of OsJAG in Arabidopsis thaliana did not show similar homeotic conversions during flower development [30,41,42]. The transformation from stamen to stigma was not observed even in the double mutant jag nub (AtNUB has produced possible functional redundancy of AtJAG in Arabidopsis) [43], suggesting that OsJAG may have evolved its homeotic conversions function after the lineage split between monocotyledons and dicotyledonous plants. Overexpression of OsJAG.1 led to a decrease in plant height [29], suggesting that OsJAG.1 has a potential function in regulating vegetative growth, which is similar to that of AtJAG in Arabidopsis [30,43]. Weak expression of OsJAG was also detected in roots and leaves by semiquantitative RT–PCR and GUS staining [28]. It is suggested that OsJAG may regulate vegetative growth in an unknown way, even if the effect is not great.
The phenotypes of ogl were similar to those of OsMADS1 mutants, such as the abnormal glume and a decreased number of stamens (Figure 1A–I) [19,20,22]. The OsMADS1–microRNA172–AP2 model controls floret development in rice [14]. We detected the expression of OsMADS1 and three AP2 genes and AP2-3 was significantly upregulated in ogl, suggesting that the phenotype of ogl is not seemingly related to the OsMADS1–microRNA172–AP2 pathway, although OsJAG can affect the expression of some AP2 genes.

4. Materials and Methods

4.1. Plant Materials

YMSM (Yuanmeisimiao) is an indica rice cultivar developed by crossbreeding, which displays normal floret development. The ogl mutant was originally discovered in the late season of 2020. Since the surrounding cultivars were indica rice, we deduced that ogl is of indica background. Since its original wild type is unknown, YMSM was used as a control in the phenotype analysis. All materials are cultivated in the normal season at the Baiyun Experimental Station of Guangzhou, Guangdong Province, China.

4.2. BSA Sequencing and SNP Analysis

Segregating F2 populations were derived from the cross of ogl (female parent) with YMSM (male parent). After heading, 20 plants with glume opening florets and 20 plants with normal florets were randomly selected from the segregating population. The genomic DNA of each plant was extracted from the leaves. The quality and concentration of the extracted DNA were tested by the nanodrop spectrophotometer. An equal amount of DNA from plants exhibiting similar glume phenotypes was mixed to construct the extreme phenotype mixing pool. Two extreme pools, normal floret and open glume floret, were sent to Higentec Technologies Co., Ltd. (Hunan, China) for genome sequence and SNP analysis with the genome of R498 as the reference (www.mbkbase.org/R498/, accessed on 10 January 2023). SNPs with a read support of less than 4 were filtered out.

4.3. SNP Analysis

Based on the upstream and downstream sequence information of SNP, primers were designed by online software (www.ncbi.nlm.nih.gov/tools/primer-blast/, accessed on 20 March 2023). The fragments containing the SNP were PCR-amplified with KOD-FX(TOYOBO) and sequenced by Sangon Biotech (Shanghai) to check the SNP genotype.

4.4. Microscopic Observations of Glume Sections

Floret samples from the ogl and YMSM plants were collected the day before heading and fixed in FAA solution. Dehydration and infiltration steps were carried out and then embedded in paraffin. Tissue cross sections (10 μm in thickness) were cut into semithin sections and fished out onto the microscope slides. The slides were kept in a 1% (w/v) Toluidine blue solution for 2 min, washed with running water, differentiated with 95% alcohol, and observed under a Nikon optical microscope (Nikon Eclipse E100, Tokyo, Japan).

4.5. Gene Expression Analysis

The open-glume plants and normal plants were selected based on our SNP analysis (Chr1: 1522703) from the F3 population and 10 panicles were collected from different individual plants displaying these phenotypes and stored in liquid nitrogen when the panicles were 5 mm in length. The total RNA was extracted using Trizol (Invitrogen, Waltham, MA, USA) according to the manufacturer’s instructions and was treated with DNase I (Takara, Beijing, China) to remove genomic DNA contamination. The quality and concentration of the extracted RNA were checked using the nanodrop spectrophotometer. First-strand cDNAs were synthesized from 1 μg total RNA using the EvoM-MLV First-Strand cDNA Synthesis Kit (Accurate Biology, Changsha, China). qRT-PCR was performed using SYBR Green Mix (Accurate Biology, Changsha, China) on a CFX Connect™ Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). The OsEF1α gene was used as an endogenous control. The primers used for qRT-PCR are listed in Supplementary Materials Table S1.

4.6. I2-KI Staining of Pollen Grains

Anthers were sampled 2–3 h before heading, placed on the slide, mashed, and stained with a 1% iodine potassium iodide (I2-KI) solution. The staining pattern was observed using a BK5000-FL (Optec, Shenzhen, China) microscope. One anther was selected from each floret and 10 anthers each from YMSM, and ogl were sampled for I2-KI staining analysis.

5. Conclusions

In this paper, a rice mutant, ogl, was reported and its phenotypic characteristics were described in detail. Genetic analysis and bulked segregation analysis showed that the open-glume phenotype was controlled by one recessive gene and OsJAGogl was identified as the candidate gene. OsJAG encodes two versions of transcripts. Compared to OsJAG.2, there are 12 additional nucleotides following the start codon in OsJAG.1. In open-glume plants, the start codon of OsJAG.2 is mutated and the expression of OsJAG.1 is upregulated, which suggests that OsJAG.2 plays an indispensable role in flower development. The expression level of multiple flower development-related genes was altered in open-glume plants and the expression trends of associated genes were different from that in OsJAG (SL1) [29], which indicates that the functions of the two transcripts of OsJAG need to be further studied. Thus, this study provides new genetic material and preliminary results for further study of the function of OsJAG in rice-floret development.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241612702/s1. Table S1, List of primers used in this study.

Author Contributions

Conceptualization, C.L. and W.C.; methodology, X.M. and X.Z.; investigation, X.Z.; resources, W.C.; writing—original draft preparation, X.M.; writing—review and editing, C.L. and W.C.; visualization, X.M.; supervision, C.L.; project administration, C.L. and W.C.; funding acquisition, X.M., W.C., and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Guangdong Basic and Applied Basic Research Foundation (2019A1515011208), the Agricultural Competitive Industry Discipline Team Building Project of Guangdong Academy of Agricultural Sciences (202101TD), the Guangdong Special Funds for Rural Revitalization (2022-NBH-00-012), the Projects of Guangdong Key Laboratory (2020B1212060047), and the Key Field Research and Development Project of Guangdong Province (2022B0202110003).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding authors.

Acknowledgments

The authors thank Higentec Technologies Co., Ltd. (Hunan, China) for assistance with the bioinformatics analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmad, M. Genomics and transcriptomics to protect rice (Oryza sativa. L.) from abiotic stressors: -pathways to achieving zero hunger. Front. Plant Sci. 2022, 13, 1002596. [Google Scholar] [CrossRef] [PubMed]
  2. Gross, B.L.; Zhao, Z. Archaeological and genetic insights into the origins of domesticated rice. Proc. Natl. Acad. Sci. USA 2014, 111, 6190–6197. [Google Scholar] [CrossRef] [PubMed]
  3. Subudhi, P.K. Molecular research in rice. Int. J. Mol. Sci. 2023, 24, 10063. [Google Scholar] [CrossRef] [PubMed]
  4. Yan, D.; Zhou, Y.; Ye, S.; Zeng, L.; Zhang, X.; He, Z. BEAK-SHAPED GRAIN 1/TRIANGULAR HULL 1, a DUF640 gene, is associated with grain shape, size and weight in rice. Sci. China Life Sci. 2013, 56, 275–284. [Google Scholar] [CrossRef] [Green Version]
  5. Mehra, P.; Pandey, B.K.; Verma, L.; Prusty, A.; Singh, A.P.; Sharma, S.; Malik, N.; Bennett, M.J.; Parida, S.K.; Giri, J.; et al. OsJAZ11 regulates spikelet and seed development in rice. Plant Direct 2022, 6, e401. [Google Scholar] [CrossRef]
  6. Liu, Q.; Han, R.; Wu, K.; Zhang, J.; Ye, Y.; Wang, S.; Chen, J.; Pan, Y.; Li, Q.; Xu, X.; et al. G-protein βγ subunits determine grain size through interaction with MADS-domain transcription factors in rice. Nat. Commun. 2018, 9, 852. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Abebe, T.; Skadsen, R.W.; Kaeppler, H.F. Cloning and identification of highly expressed genes in barley lemma and palea. Crop Sci. 2004, 44, 942–950. [Google Scholar] [CrossRef] [Green Version]
  8. Adamski, N.M.; Simmonds, J.; Brinton, J.F.; Backhaus, A.E.; Chen, Y.; Smedley, M.; Hayta, S.; Florio, T.; Crane, P.; Scott, P.; et al. Ectopic expression of Triticum polonicum VRT-A2 underlies elongated glumes and grains in hexaploid wheat in a dosage-dependent manner. Plant Cell 2021, 33, 2296–2319. [Google Scholar] [CrossRef]
  9. Van Doorn, W.G.; Kamdee, C. Flower opening and closure: An update. J. Exp. Bot. 2014, 65, 5749–5757. [Google Scholar] [CrossRef]
  10. Kobayasi, K.; Sakai, H.; Tokida, T.; Nakamura, H.; Usui, Y.; Yoshimoto, M.; Hasegawa, T. Effects of free-air CO2 enrichment on flower opening time in rice. Plant Prod. Sci. 2019, 22, 367–373. [Google Scholar] [CrossRef] [Green Version]
  11. Kobayasi, K.; Atsuta, Y. Sterility and poor pollination due to early flower opening induced by methyl jasmonate. Plant Prod. Sci. 2010, 13, 29–36. [Google Scholar] [CrossRef]
  12. Gale, M.D.; Flintham, J.E.; Devos, K.M. Cereal comparative genetics and preharvest sprouting. Euphytica 2002, 126, 21–25. [Google Scholar] [CrossRef]
  13. Aruna, C.; Das, I.K.; Reddy, P.S.; Ghorade, R.B.; Gulhane, A.R.; Kalpande, V.V.; Kajjidoni, S.T.; Hanamaratti, N.G.; Chattannavar, S.N.; Mehtre, S.; et al. Development of sorghum genotypes for improved yield and resistance to grain mold using population breeding approach. Front. Plant Sci. 2021, 12, 687332. [Google Scholar] [PubMed]
  14. Dai, Z.; Wang, J.; Zhu, M.; Miao, X.; Shi, Z. OsMADS1 represses microRNA172 in elongation of palea/lemma development in rice. Front Plant Sci. 2016, 7, 1891. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Do, V.G.; Lee, Y.; Kim, S.; Yang, S.; Park, J.; Do, G. Introducing MdTFL1 promotes heading date and produces semi-draft phenotype in rice. Int. J. Mol. Sci. 2023, 24, 10365. [Google Scholar] [CrossRef]
  16. Fornara, F.; Parenicová, L.; Falasca, G.; Pelucchi, N.; Masiero, S.; Ciannamea, S.; Lopez-Dee, Z.; Altamura, M.M.; Colombo, L.; Kater, M.M. Functional characterization of OsMADS18, a member of the AP1/SQUA subfamily of MADS box genes. Plant Physiol. 2004, 135, 2207–2219. [Google Scholar] [CrossRef] [Green Version]
  17. Ng, M.; Yanofsky, M.F. Function and evolution of the plant MADS-box gene family. Nat. Rev. Genet. 2001, 2, 186–195. [Google Scholar] [CrossRef]
  18. Prasad, K.; Sriram, P.; Kumar, C.S.; Kushalappa, K.; Vijayraghavan, U. Ectopic expression of rice OsMADS1 reveals a role in specifying the lemma and palea, grass floral organs analogous to sepals. Dev. Genes Evol. 2001, 211, 281–290. [Google Scholar] [CrossRef] [Green Version]
  19. Jeon, J.S.; Jang, S.; Lee, S.; Nam, J.; Kim, C.; Lee, S.H.; Chung, Y.Y.; Kim, S.R.; Lee, Y.H.; Cho, Y.G.; et al. Leafy hull sterile1 is a homeotic mutation in a rice MADS box gene affecting rice flower development. Plant Cell 2000, 12, 871–884. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Prasad, K.; Parameswaran, S.; Vijayraghavan, U. OsMADS1, a rice mads-box factor, controls differentiation of specific cell types in the lemma and palea and is an early-acting regulator of inner floral organs. Plant J. 2005, 43, 915–928. [Google Scholar] [CrossRef]
  21. Agrawal, G.K.; Abe, K.; Yamazaki, M.; Miyao, A.; Hirochika, H. Conservation of the E-function for floral organ identity in rice revealed by the analysis of tissue culture-induced loss-of-function mutants of the OsMADS1 gene. Plant Mol. Biol. 2005, 59, 125–135. [Google Scholar] [PubMed]
  22. Khanday, I.; Yadav, S.R.; Vijayraghavan, U. Rice lhs1/osmads1 controls floret meristem specification by coordinated regulation of transcription factors and hormone signaling pathways. Plant Physiol. 2013, 161, 1970–1983. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, K.; Tang, D.; Hong, L.; Xu, W.; Huang, J.; Li, M.; Gu, M.; Xue, Y.; Cheng, Z. DEP and AFO regulate reproductive habit in rice. PLoS Genet. 2010, 6, e1000818. [Google Scholar] [CrossRef] [Green Version]
  24. Wang, C.; Tang, S.; Zhan, Q.; Hou, Q.; Zhao, Y.; Zhao, Q.; Feng, Q.; Zhou, C.; Lyu, D.; Cui, L.; et al. Dissecting a heterotic gene through gradedpool-seq mapping informs a rice-improvement strategy. Nat. Commun. 2019, 10, 2982. [Google Scholar] [PubMed] [Green Version]
  25. Hu, Y.; Liang, W.; Yin, C.; Yang, X.; Ping, B.; Li, A.; Jia, R.; Chen, M.; Luo, Z.; Cai, Q.; et al. Interactions of OsMADS1 with floral homeotic genes in rice flower development. Mol. Plant 2015, 8, 1366–1384. [Google Scholar]
  26. Huang, Y.; Bai, X.; Cheng, N.; Xiao, J.; Li, X.; Xing, Y. Wide Grain 7 increases grain width by enhancing H3K4me3 enrichment in the OsMADS1 promoter in rice (Oryza sativa L.). J. Plant 2020, 102, 517–528. [Google Scholar] [CrossRef]
  27. Cho, S.H.; Yoo, S.C.; Zhang, H.; Pandeya, D.; Koh, H.J.; Hwang, J.Y.; Kim, G.T.; Paek, N.C. The rice narrow leaf2 and narrow leaf3 loci encode WUSCHEL-related homeobox 3A (OsWOX3A) and function in leaf, spikelet, tiller and lateral root development. New Phytol. 2013, 198, 1071–1084. [Google Scholar] [CrossRef]
  28. Duan, Y.; Diao, Z.; Liu, H.; Cai, M.; Wang, F.; Lan, T.; Wu, W. Molecular cloning and functional characterization of OsJAG gene based on a complete-deletion mutant in rice (Oryza sativa L). Plant Mol. Biol. 2010, 74, 605–615. [Google Scholar] [CrossRef]
  29. Xiao, H.; Tang, J.; Li, Y.; Wang, W.; Li, X.; Jin, L.; Xie, R.; Luo, H.; Zhao, X.; Meng, Z.; et al. STAMENLESS 1, encoding a single C2H2 zinc finger protein, regulates floral organ identity in rice. Plant J. 2009, 59, 789–801. [Google Scholar]
  30. Dinneny, J.R.; Yadegari, R.; Fischer, R.L.; Yanofsky, M.F.; Weigel, D. The role of JAGGED in shaping lateral organs. Development 2004, 131, 1101–1110. [Google Scholar] [CrossRef] [Green Version]
  31. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  32. Coen, E.S.; Meyerowitz, E.M. The war of the whorls: Genetic interactions controlling flower development. Nature 1991, 353, 31–37. [Google Scholar] [CrossRef]
  33. Ditta, G.; Pinyopich, A.; Robles, P.; Pelaz, S.; Yanofsky, M.F. The SEP4 gene of Arabidopsis thaliana functions in floral organ and meristem identity. Curr. Biol. 2004, 14, 1935–1940. [Google Scholar] [CrossRef] [Green Version]
  34. Weigel, D.; Meyerowitz, E.M. The ABCs of floral homeotic genes. Cell 1994, 78, 203–209. [Google Scholar] [CrossRef]
  35. Zhang, D.; Yuan, Z. Molecular control of grass inflorescence development. Annu. Rev. Plant Biol. 2014, 65, 553–578. [Google Scholar] [CrossRef]
  36. Yamaguchi, T.; Lee, D.Y.; Miyao, A.; Hirochika, H.; An, G.; Hirano, H.Y. Functional diversification of the two C-class mads box genes OsMADS3 and OsMADS58 in oryza sativa. Plant Cell 2006, 18, 15–28. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Thompson, B.E.; Hake, S. Translational biology: From Arabidopsis flowers to grass inflorescence architecture. Plant Physiol. 2009, 149, 38–45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Sentoku, N.; Kato, H.; Kitano, H.; Imai, R. OsMADS22, an StMADS11-like MADS-box gene of rice, is expressed in non-vegetative tissues and its ectopic expression induces spikelet meristem indeterminacy. Mol. Genet. Genom. 2005, 273, 1–9. [Google Scholar] [CrossRef] [PubMed]
  39. Nagasawa, N.; Miyoshi, M.; Sano, Y.; Satoh, H.; Hirano, H.; Sakai, H.; Nagato, Y. SUPERWOMAN1 and DROOPING LEAF genes control floral organ identity in rice. Development 2003, 130, 705–718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Sato, Y.; Takehisa, H.; Kamatsuki, K.; Minami, H.; Namiki, N.; Ikawa, H.; Ohyanagi, H.; Sugimoto, K.; Antonio, B.A.; Nagamura, Y. Ricexpro version 3.0: Expanding the informatics resource for rice transcriptome. Nucleic Acids Res. 2012, 41, D1206–D1213. [Google Scholar] [CrossRef] [Green Version]
  41. Rast-Somssich, M.I.; Žádníková, P.; Schmid, S.; Kieffer, M.; Kepinski, S.; Simon, R. The Arabidopsis JAGGED LATERAL ORGANS (JLO) gene sensitizes plants to auxin. J. Exp. Bot. 2017, 68, 2741–2755. [Google Scholar] [CrossRef] [Green Version]
  42. Schiessl, K.; Muiño, J.M.; Sablowski, R. Arabidopsis JAGGED links floral organ patterning to tissue growth by repressing Kip-related cell cycle inhibitors. Proc. Natl. Acad. Sci. USA 2014, 111, 2830–2835. [Google Scholar] [CrossRef]
  43. Dinneny, J.R.; Weigel, D.; Yanofsky, M.F. NUBBIN and JAGGED define stamen and carpel shape in Arabidopsis. Development 2006, 133, 1645–1655. [Google Scholar] [CrossRef] [Green Version]
Ijms 24 12702 g001
Figure 1. Morphological characteristics of the ogl mutant. (A) Panicle morphology of YMSM (left) and ogl (right). (B) The floret of YMSM (left) and ogl (right), bar = 2 mm. (C–F) The floret of YMSM (C) and ogl (D–F) after opening the glumes, bar = 2 mm. (G) The mature grains of YMSM and ogl, bar = 2 mm. (H,I) Transverse section from the middle of glume of YMSM (H) and ogl (I), bar = 200 μm. (J,K) I2-KI staining results of pollen grains of YMSM (J) and ogl (K), bar = 100 μm. (L) Comparison of setting rate between YMSM and ogl. Student’s t-tests were used to generate p-values. (** p < 0.01).
Figure 1. Morphological characteristics of the ogl mutant. (A) Panicle morphology of YMSM (left) and ogl (right). (B) The floret of YMSM (left) and ogl (right), bar = 2 mm. (C–F) The floret of YMSM (C) and ogl (D–F) after opening the glumes, bar = 2 mm. (G) The mature grains of YMSM and ogl, bar = 2 mm. (H,I) Transverse section from the middle of glume of YMSM (H) and ogl (I), bar = 200 μm. (J,K) I2-KI staining results of pollen grains of YMSM (J) and ogl (K), bar = 100 μm. (L) Comparison of setting rate between YMSM and ogl. Student’s t-tests were used to generate p-values. (** p < 0.01).
Ijms 24 12702 g001
Ijms 24 12702 g002

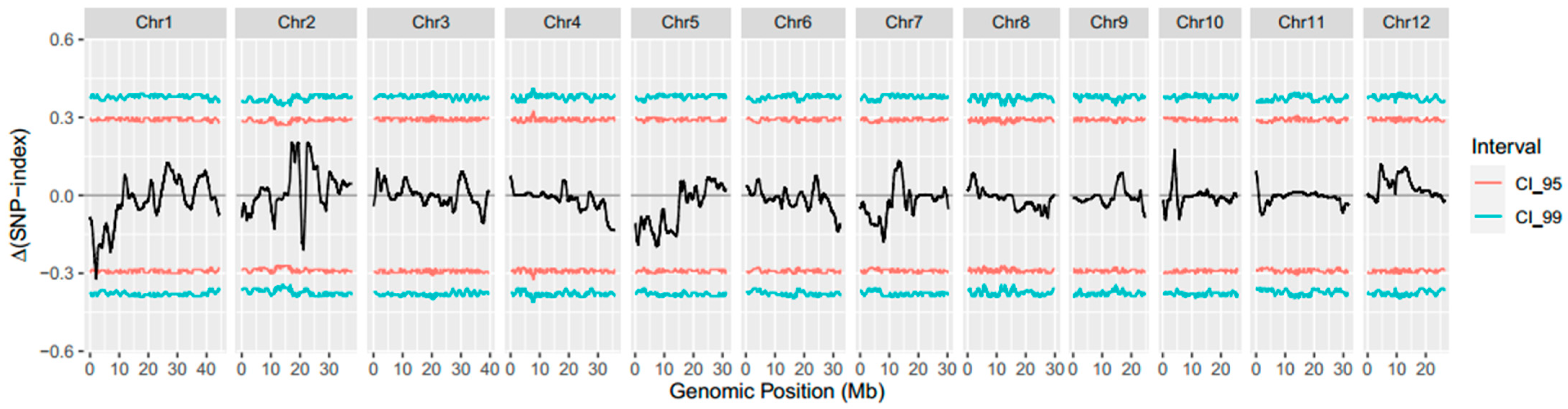

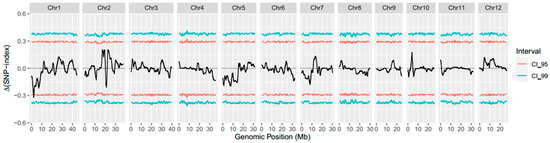

Figure 2. Distribution of △(SNP index) between two extreme pools. The black line represents △(SNP index). The red lines represent thresholds of 95%. The cyan lines represent thresholds of 99%.
Figure 2. Distribution of △(SNP index) between two extreme pools. The black line represents △(SNP index). The red lines represent thresholds of 95%. The cyan lines represent thresholds of 99%.
Ijms 24 12702 g002
Ijms 24 12702 g003

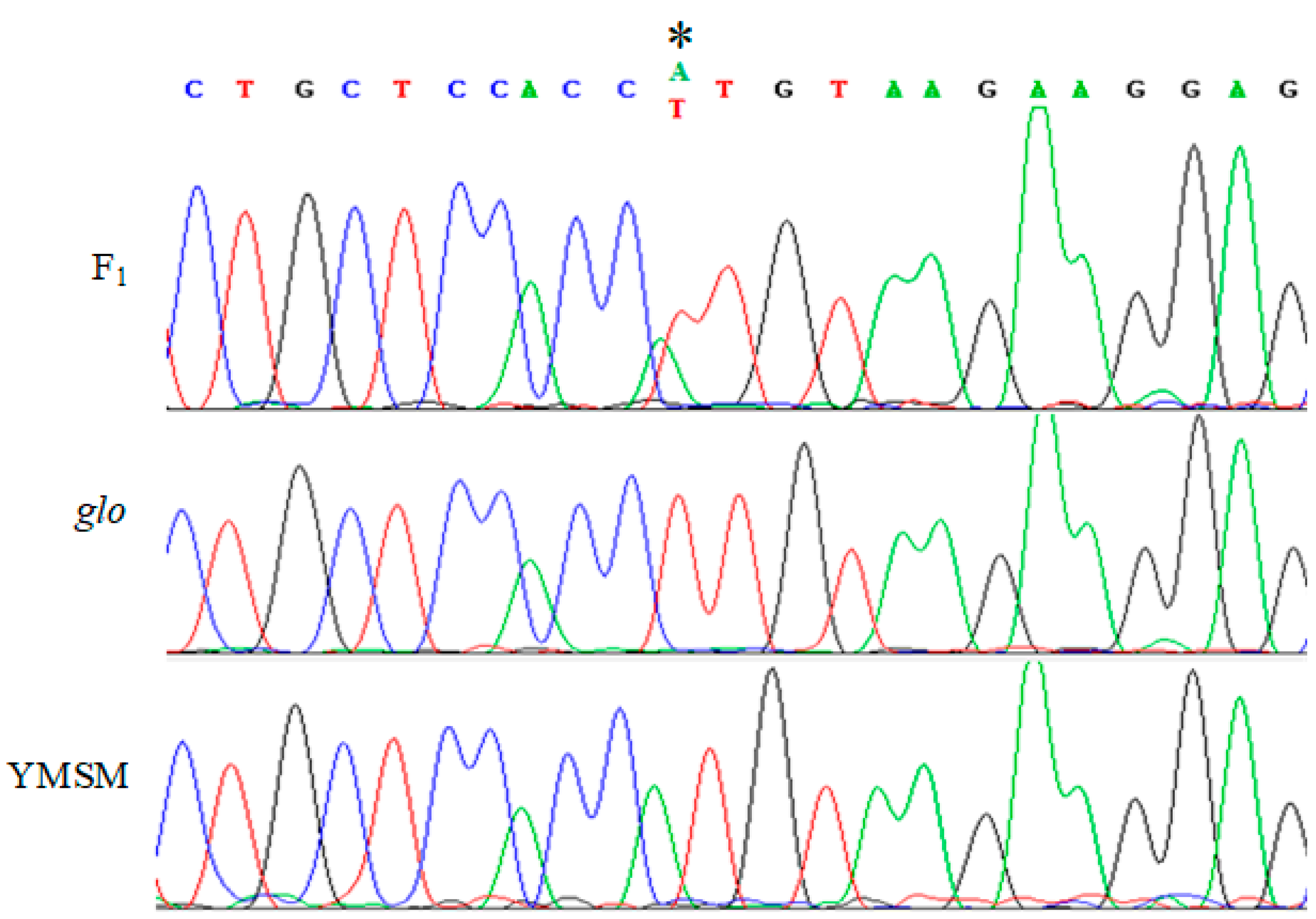

Figure 3. The sequencing results of SNP (Ch1:1522703) in YMSM YMSM, ogl, and F1. * indicates SNP (Ch1: 1522703).
Figure 3. The sequencing results of SNP (Ch1:1522703) in YMSM YMSM, ogl, and F1. * indicates SNP (Ch1: 1522703).
Ijms 24 12702 g003
Ijms 24 12702 g004

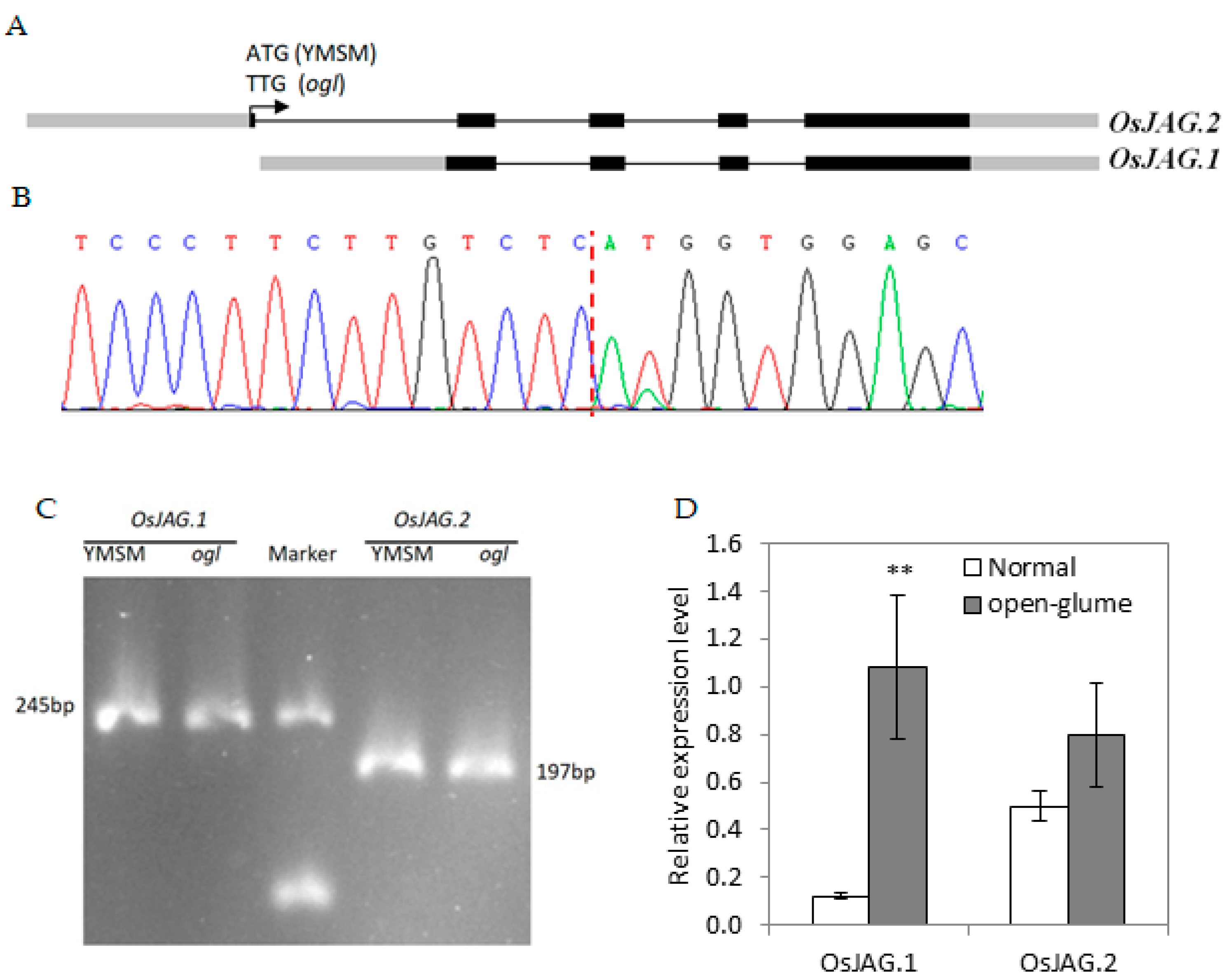

Figure 4. Analysis of the two expressed OsJAG transcripts. (A) Schematic diagram of the two transcripts of OsJAG denoted in NCBI. The grey box represents the untranslated sequence, the black box represents the coding sequence, and the black line represents the intron regions. The arrow indicated the start codon of OsJAG.1. (B) The reverse sequencing result of transcript OsJAG.2 in the F1 generation. The red dotted line indicates the splice site. (C) Agarose gel electrophoretic analysis of partial fragments of two transcripts of OsJAG. (D) The expression analysis of two transcripts in normal plants and open-glume plants from the F3 population. Values represent the mean ± SD of three biological replicates, with every replicate containing three young panicles from different plants. Student’s t-tests were used to generate p-values. (** p < 0.01).
Figure 4. Analysis of the two expressed OsJAG transcripts. (A) Schematic diagram of the two transcripts of OsJAG denoted in NCBI. The grey box represents the untranslated sequence, the black box represents the coding sequence, and the black line represents the intron regions. The arrow indicated the start codon of OsJAG.1. (B) The reverse sequencing result of transcript OsJAG.2 in the F1 generation. The red dotted line indicates the splice site. (C) Agarose gel electrophoretic analysis of partial fragments of two transcripts of OsJAG. (D) The expression analysis of two transcripts in normal plants and open-glume plants from the F3 population. Values represent the mean ± SD of three biological replicates, with every replicate containing three young panicles from different plants. Student’s t-tests were used to generate p-values. (** p < 0.01).
Ijms 24 12702 g004
Ijms 24 12702 g005

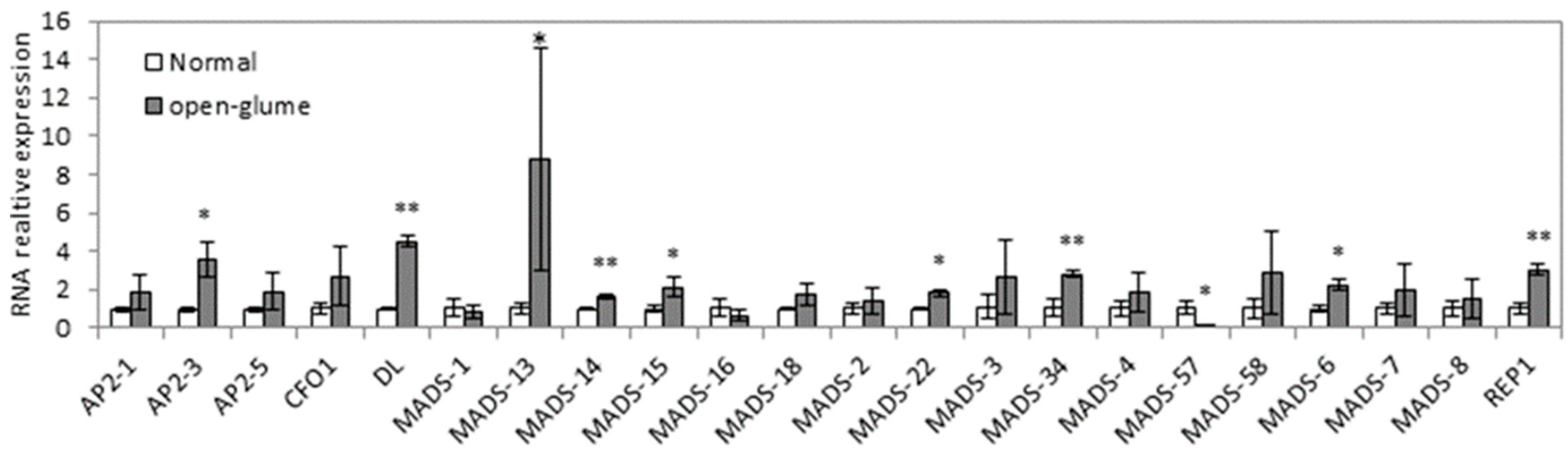

Figure 5. Expression analysis of genes related to floral development by quantitative RT-PCR. Values represent the means ± SD of three biological replicates. Student’s t-tests were used to generate p-values. (* p < 0.05, ** p < 0.01).
Figure 5. Expression analysis of genes related to floral development by quantitative RT-PCR. Values represent the means ± SD of three biological replicates. Student’s t-tests were used to generate p-values. (* p < 0.05, ** p < 0.01).
Ijms 24 12702 g005
Table 1. Segregation analysis of the F2 population.
Table 1. Segregation analysis of the F2 population.
Family LineF2
No. of Plants with Normal PhenotypeNo. of Plants with Open-Glume PhenotypeRatio
(Normal/Open-Glume)		Total Plantsχ2 (3:1)
1381636.0544427.10
2251327.8428327.57
31881711.0620529.63
χ2(0.05, 1) = 3.84 (3∶1).
Table 2. Seven SNPs in candidate regions.
Table 2. Seven SNPs in candidate regions.
PositionRefAltAnnoGene IDFunctionHigh Expression Tissue
Chr1:626540ATstop-lossOsR498G0100035900.01Conserved hypothetical protein Root
Chr1:667077GTstop-gainOsR498G0100039300.01Uncharacterized proteinRoot tip and endosperm
Chr1:704735GAstop-gainOsR498G0100042300.01Nucleoside triphosphate hydrolaseEndosperm
Chr1:1389031ATstop-gainOsR498G0100088600.013-hydroxyisobutyryl-CoA hydrolase-like protein 5Leaf and root
Chr1:1522703ATstart-lossOsR498G0100098300.01Zinc finger proteinPanicle and callus
Chr1:3175821GTstop-gainOsR498G0100212200.01Receptor-like proteinPollen
Chr1:3188476GTstop-gainOsR498G0100212200.01Receptor-like proteinPollen
Table 3. Haplotypes derived from R498 YMSM and ogl.
Table 3. Haplotypes derived from R498 YMSM and ogl.
Position15227031523044152329515235901523663152376815241711524265
R498ATGAAGAA
YMSMACGAGGCG
oglTCATATCG
AnnotationStartlossIntronSer-AsnIntronSynonymousIntronIntronSynonymous
