Review

Preparation and Modification Technology Analysis of Ionic Polymer-Metal Composites (IPMCs)

by
Chendong He
1,2,
Yunqing Gu
1,2,*,
Junjun Zhang
1,2,
Longbiao Ma
1,2,
Muhan Yan
1,2,
Jiegang Mou
1,2,* and
Yun Ren
3
1
College of Metrology & Measurement Engineering, China Jiliang University, Hangzhou 310018, China
2
Zhejiang Engineering Research Center of Fluid Equipment & Measurement and Control Technology, Hangzhou 310018, China
3
Zhijiang College, Zhejiang University of Technology, Shaoxing 312030, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(7), 3522; https://doi.org/10.3390/ijms23073522
Submission received: 21 February 2022 / Revised: 10 March 2022 / Accepted: 22 March 2022 / Published: 24 March 2022
(This article belongs to the Collection Feature Papers in Materials Science)
Browse Figures
Versions Notes

Abstract

:
As a new type of flexible smart material, ionic polymer-metal composite (IPMC) has the advantages of being lightweight and having fast responses, good flexibility, and large deformation ranges. However, IPMC has the disadvantages of a small driving force and short lifespan. Based on this, this paper firstly analyzes the driving mechanism of IPMC. Then, it focuses on the current preparation technology of IPMC from the aspects of electroless plating and mechanical plating. The advantages and disadvantages of various preparation methods are analyzed. Due to the special driving mechanism of IPMC, there is a problem of short non-aqueous working time. Therefore, the modification research of IPMC is reviewed from the aspects of the basement membrane, working medium, and electrode materials. Finally, the current challenges and future development prospects of IPMC are discussed.

1. Introduction

Since the concept of smart materials was first proposed in the late 1980s, the research on smart materials has received increasing attention. Smart materials can sense external stimuli and decide how to deal with them properly. The smart material itself is a new type of executable functional material. They can be divided into two categories based on their response to external stimuli. The first category is “property change” materials, where the input of energy results in a chemical or mechanical change in their properties. The second category is “energy exchange” materials that can respond to changes in their internal energy levels, while their material properties remain unchanged [1]. Table 1 lists the smart materials and their defining characteristics in these two product categories.
Among them, electroactive polymers (EAPs) are regarded as a new type of flexible smart material. It can produce large size and shape changes when stimulated by currents, voltages, or electric fields. This is very similar to the phenomenon that biological muscles can change their length under the stimulation of nerve signals; thus, they are called “artificial muscles” [8]. According to the driving mechanism of electroactive polymers, they can be roughly divided into ionic type and electric welding type. Table 2 presents the performance comparison of two typical EAP materials.
Although the electric field type EAP material can produce large deformations under the drive of direct currents, the required excitation electric field is relatively high. On the contrary, ionic EAP uses water or other solutions as a medium to conduct ions, so the excitation voltage of ionic EAP is much lower than that of electronic EAP materials [15]. In addition, compared with the electric field type EAP material, the ionic type EAP material also has the characteristics of low density and being lightweight. Among ionic EAP materials, IPMC has the advantages of fast response, good stability, and large deformation. It has great application potentials in aerospace, biomedicine, bionic machinery, flexible sensors, etc., [16,17,18,19].
The development of IPMC can be traced back to the 1940s. Researchers found that a layer of colloidal silver can be rapidly deposited onto the surface of a membrane to prepare a thin membrane material with conductive function. This is the prototype of IPMC and was first used in ion-exchange membranes for fuel cells in 1959 [20]. Since then, ion exchange membrane technology has attracted great attention. However, the IPMC prepared by this method cannot be used as an electrode because the metal layer is not tightly combined with the polymer surface. With continuous in-depth research, breakthroughs have been made in related technologies. In the 1970s, researchers used the redox method [21] to electroplate precious metals on the surface of the polymer basement membrane, thus solving this problem. Although many researchers have carried out many fruitful studies on IPMC materials in recent years, there are very few mature commercial IPMC material products. Most of the research is still in the laboratory stage, mainly because of the wide variety of preparation processes that still differ in some key steps. This makes the properties of the prepared IPMC materials vary greatly, and it is difficult to meet the needs of practical applications. Due to the small output force, the application of IPMC materials in most occasions is limited [22].
As an emerging smart material, IPMC has similar properties to human muscles and has many advantages unmatched by other materials. The research on IPMC materials has been significantly developed in the past ten years. In this paper, the structural composition and driving mechanism of IPMC materials are firstly analyzed. Then, the preparation technology of IPMC and the modification research work of IPMC in recent years are reviewed in detail, and the performance improvement measures are evaluated. Finally, the development prospect has been provided.

2. IPMC Driving Mechanism

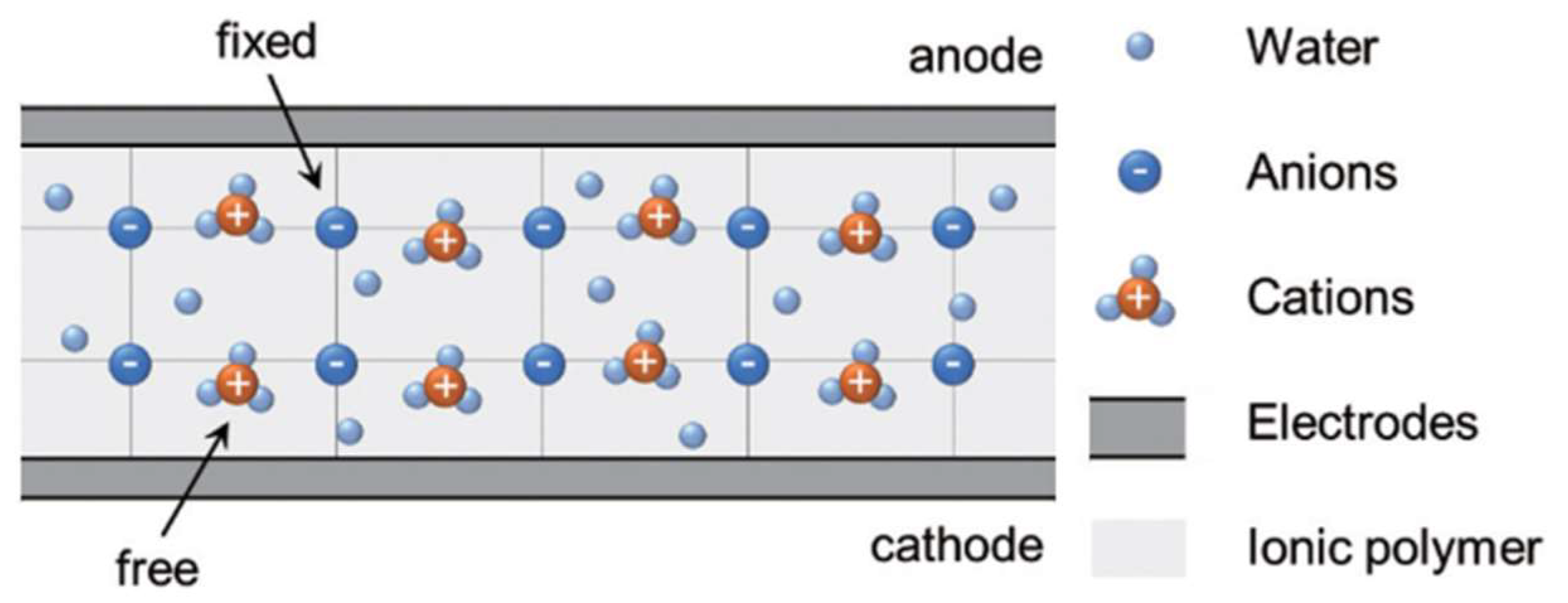

IPMC usually has a sandwich structure, as shown in Figure 1 [23]. It is mainly composed of an ion-exchange membrane in the middle layer and electrodes deposited on both sides of the basement membrane by chemical or physical methods [24]. The ion-exchange membrane acts as a channel for selective ion movement, providing the framework for strain to occur. The ion-exchange membrane for preparing IPMC requires excellent chemical stability and proton conductivity; thus, it is usually a perfluorinated ion-exchange membrane [25].
Commonly used perfluorinated ion exchange membranes include the Nafion membrane, flemion membrane, and alciplex membrane. Compared with the flemion and alciplex membrane, the Nafion membrane has the characteristics of high ionic conductivity, high temperature resistance, and chemical corrosion resistance [26]. Therefore, the Nafion membrane has been widely used to manufacture IPMC [27]. The ion-exchange membrane contains a hydrophobic polymer grid [28], movable ions, and a certain amount of solvent. The internal movable ions provide driving and sensing capabilities. The solvent mainly provides transmission media and channels movable ions, mainly including the most commonly used water, organic solvents, and ionic solutions [29,30,31]. The electrode is a vital part of IPMC, and it has two main functions: One is to act as a carrier of applied voltage and conduct current; the other is to form a capacitor with the intermediate layer that can accommodate a certain amount of charge [32]. The surface resistance of the electrode can directly affect the output performance of IPMC; thus, in the preparation process of IPMC material, in order to reduce the surface’s resistance of the electrode, a thin membrane electrode will be plated on the outside of the initially formed electrode [33].

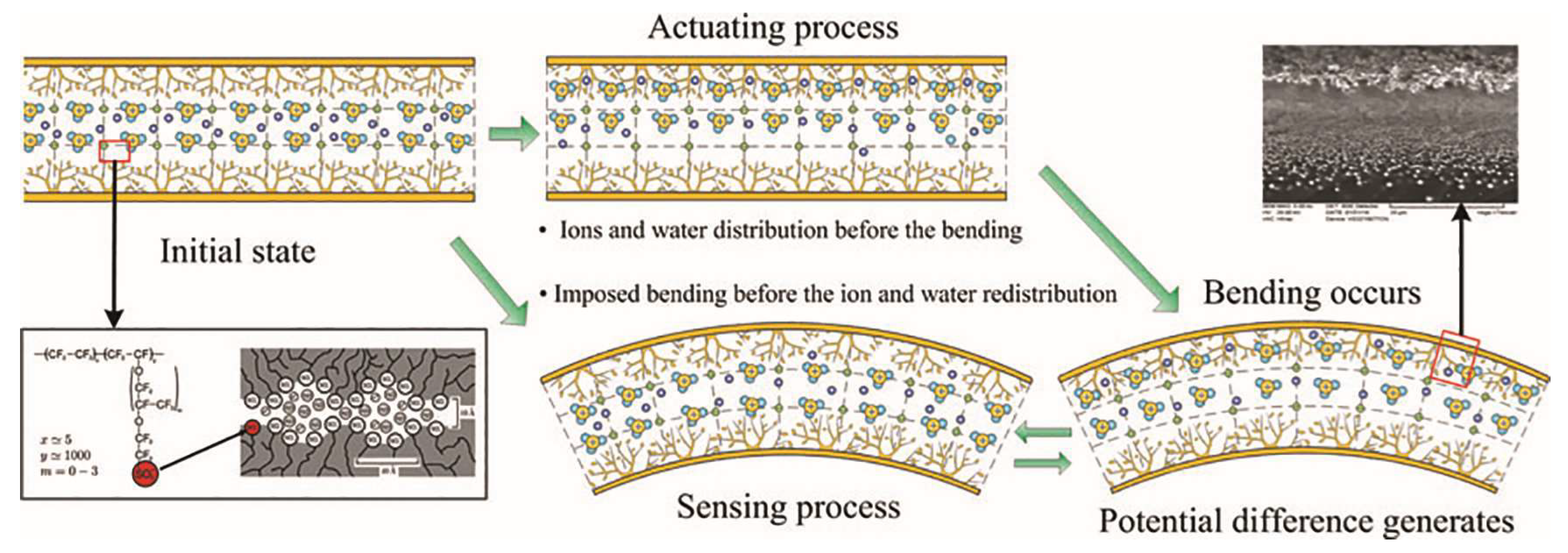

The driving mechanism of IPMC is shown in Figure 2 [34]. The basic energy exchange mechanism can be described as follows: On the one hand, when a voltage signal is applied to the upper and lower surface electrodes of the IPMC material, a balanced electric field is formed between the metal layers. Subsequently, the movable cations move directionally under the action of an electric field, resulting in the uneven distribution of ion concentration along the thickness’ direction. On the other hand, because the mobile cations combine with water molecules to form hydrated cations, the hydrated cations migrate to the cathode side under the action of an electric field force, and the fixed anions remain on the polymer skeleton. This will cause the contraction of the anode and the expansion of the cathode and macroscopically cause the material to bend towards the anode and deform [35]. During the sensing process, when an external force load is applied to the IPMC material, the material first bends and deforms. At this time, the stress distribution inside the material is uneven, and the ions and solvent molecules are forced to redistribute, resulting in an increase in ions on the expanding side and the shrinking side. The ions are reduced, creating a potential difference between the upper and lower electrode layers [36].
Due to the special driving mechanism of IPMC, water will be electrolyzed during the driving process [37], which greatly limits the life cycle of the material, which poses a serious challenge for researchers to use IPMC in practical applications. In order to solve the problems of the service life and response of IPMC, various researchers have concentrated on the preparation technology of IPMC in order to use it in the actual industry.

3. Preparation Technology of IPMC

In order to further improve the output force and dynamic response characteristics of IPMC, as well as improve its durability, a large number of researchers have devoted themselves to the preparation technology of IPMC. At present, in addition to the traditional preparation method of IPMC, its preparation technology can be roughly divided into two categories: electroless plating method and mechanical plating method.

3.1. Electroless Plating Preparation Method

The electroless plating method ensures good bonding between the intermediate polymer membrane layer and the electrode layer, which is considered to be a better method for preparing the IPMC sensor than compared to mechanical plating [38]. Electroless plating mainly includes three methods: impregnation–reduction method, reverse electroless plating method, and co-reduction method.

3.1.1. Impregnation-Reduction Method

The most typical preparation method of IPMC in electroless plating is the impregnation–reduction method. The general preparation process is as follows: The polymer membrane is immersed in metal salts to replace the metal cations in the membrane completely. After being taken out, the metal cations are reduced to metal particles with the help of a reducing agent. After repeated experiments, the metal particles accumulate into a certain thickness of metal electrodes [39]. In an early study of chemical deposition by Takenaka et al., a suitable reducing agent was used to reduce the metal ions in the plating solution and deposit them on the surface of the substrate, which was called the “reducing agent penetration method (RP)” [40]. After that, Millet et al. proposed an RP-like impregnation–reduction (IR) method [41], which is to reduce the metal cations infiltrated into the polymer membrane using a reducing agent. Compared with the RP process, the IR preparation method makes the bonding fastness of the electrode layer and the polymer membrane of the IPMC sensor larger, and the electrode is more durable [42]. Palmre et al. [39] prepared the IPMC actuator by the impregnation–reduction method, and its nanothorn electrode can provide a longer life cycle. The actuator was actuated repeatedly for more than 23,000 cycles without a significant drop in displacement amplitude.

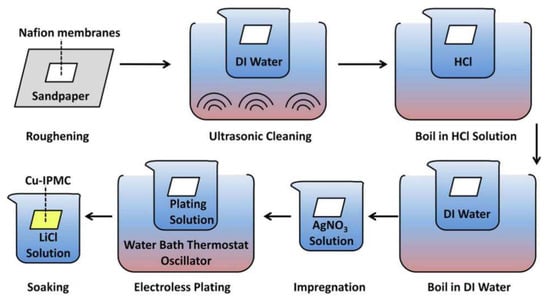

The impregnation–reduction method is often used for the preparation of traditional IPMC. The traditional IPMC uses Nafion-117 as the basement membrane material. The preparation process includes four steps: basement membrane pretreatment, ion adsorption, electroless plating, and ion exchange, as shown in Figure 3 [43].
(1) Pretreatment of basement membrane: The ion-exchange polymer basement membrane is one of the important factors determining the driving performance of IPMC. Pretreatment of this membrane can change the chemical stability and proton conductivity of the membrane. The pretreatment of basement membrane mainly includes cutting, roughening, and cleaning. Roughening the membrane can facilitate the deposition of metal particles and is an important method for enhancing the interfacial adhesion between the polymer substrate and the metal electrode [44]. Commonly used roughening methods include sandpaper grinding, sandblasting equipment grinding, plasma treatment, etc. During the grinding process, a large number of hard particles will remain on the surface of the basement membrane. In order to improve the deposition quality of the electrode, the IPMC material needs to be cleaned [45].
(2) Ion adsorption: The purpose of ion adsorption is to provide metal ions for reduction. For example, for Pt-type IPMC, the pretreated basement membrane is soaked in platinum ammonium solution for platinum ion adsorption [46].
(3) Electroless plating: IPMC electrodes are usually prepared by electroless plating. The most commonly used method in the electroless plating process is the impregnation–reduction method. Its realization is based on the principle of the chemical reduction of metals. Firstly, the basement membrane is immersed in a solution containing precious metal ions such as Pt, Au, and Ni. Then, a suitable reducing agent is selected to reduce the metal ions adsorbed on the surface of the Nafion membrane and they are precipitated on both sides of the membrane to form metal electrodes [47].
(4) Ion exchange: Before IPMC is used, it is necessary to replace H+ in the Nafion membrane with other cations by ion exchange. The smaller the radius of the metal cation, the better the permeability and the greater the deformation force generated by IPMC. The force generated by the deformation of IPMC containing Li+ is the largest, followed by Na+, then K+, Ca2+, Mg2+, and Ba2+ [48].
In the reduction process of traditional IPMC preparation, since the Nafion membrane is directly placed in the beaker, there is a risk that the Nafion membrane is in contact with the beaker wall or superimposed on each other, resulting in uneven electrode reduction. Moreover, traditional IPMC preparation methods are complicated, time consuming, and expensive, so many scholars are devoted to researching new IPMC preparation technologies.

3.1.2. Reverse Electroless Plating Method

In recent years, Chung et al. [49] developed a new method for preparing IPMC. They plated platinum metal electrode on a Nafion membrane by reverse electroless plating. The specific step is to immerse Nafion into NaBH4, and then immerse it in (Pt(NH3)4)Cl2 with different concentrations to trigger the redox reaction. The results show that the prepared IPMC has a longer bending life. It is able to vibrate for 8 h under 5 V at 0.1 Hz drive. By reverse electroless plating, finely dispersed platinum particles can be obtained with a smaller average particle size and a more uniform distribution in the near-boundary region. Compared with the traditional preparation process, the penetration rate of metal particles in the membrane is also higher [50].

3.1.3. Co-Reduction Method

In order to reduce the use of expensive noble metals in the preparation of ionic polymer sensors, Bennett et al. [51] developed a co-reduction method to achieve IPMC for the preparation of noble metal and non-noble metal composite electrodes. The co-reduction method generally refers to the reduction of two different metals onto the same polymer membrane to realize the preparation of IPMC flexible sensors based on composite electrodes. The specific steps are the deposition of an alloy of platinum and copper in a dip-reduction process, followed by using a 50 nm layer of gold to increase the surface conductivity of the electrode. After 6000 cycles with a 3.0 V drive input, the free tip displacement still exceeded 30% of its original value. This shows that the stability of non-precious metal electrodes can be improved by adding a small amount of noble metal as an alloying metal. The metal particle distribution and interfacial area can be controlled by changing the ratio of noble metal and non-noble metal ion concentrations within the membrane.

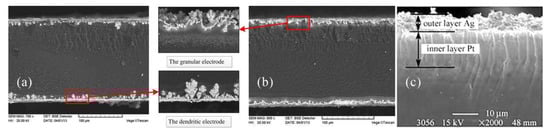

The cross-sectional morphologies of IPMC prepared by the dipping–reduction method, reverse electroless plating method, and co-reduction method are shown in Figure 4. It can be observed that, in the impregnation–reduction method, the metal cations move to the surface of the membrane and are reduced to the surface of the ion-exchange membrane to form a surface electrode layer; thus, it has a higher surface roughness. The metal particles in the electrode layer prepared by the reverse electroless plating method are evenly distributed, and the surface roughness of the electrode layer is low. However, prepared by the co-reduction method, since the distribution of metal particles can be changed, the interface morphology features are diverse.

3.2. Mechanical Plating Preparation Method

Due to the disadvantages of electroless plating, such as being time consuming, having high cost, the batch’s nature, and the inability to mass produce, mechanical plating is more suitable for the preparation of IPMC sensors with non-metallic electrodes. The IPMC electrodes prepared by mechanical plating have good uniformity. However, there is a problem of insufficient bonding fastness between the electrode and the intermediate layer, and the performance is unstable in practical applications [52]. The four commonly used mechanical plating methods are physical vapor deposition, solution casting, hot pressing, and direct assembly.

3.2.1. Physical Vapor Deposition Method

Physical Vapor Deposition (PVD) is a technique for producing hard coatings (thin membranes). According to the difference in the physical mechanism of deposition, physical vapor deposition is generally divided into vacuum evaporation coating technology, sputtering coating, ion coating, and molecular beam epitaxy [53]. The most commonly used method is sputtering, which can be used alone or in combination with other methods such as electroplating and electroless plating [54]. Siripong et al. [55] first deposited 20~30 nm gold on the Nafion membrane by sputtering and then electrodeposited one μm nickel. Sputtering coating provides a simple method for electrode deposition, which greatly shortens the preparation time of IPMC-flexible sensors, and the thickness of the electrode and the roughness of its surface are controllable.

3.2.2. Solution Casting Method

The preparation of flexible IPMC sensors by solution casting mainly includes two aspects: plating conductive layers or increasing the thickness of polymer membranes. Among them, plating conductive layer generally refers to mixing the Nafion solution with a conductive powder, such as carbon, gold, silver, copper, platinum, etc., and then curing at a certain temperature to stabilize the electrode layer [56]. However, this method has strict requirements for the adjustment of variables such as temperature and solution concentration, and there is the problem where it is difficult to repeat. Chung et al. [50] used silver nanopowders to coat the electrode layer in Nafion solution and baked it to ensure the stability of the prepared IPMC membrane. In addition, increasing the thickness of the polymer membrane by casting can enhance the peel strength of the electrode to a certain extent, but from another point of view, the increase in the thickness also increases the difficulty of IPMC deformation. Certainly, the solution casting method provides a feasible means for the shape-variant fabrication of sensors [57].

3.2.3. Hot-Pressing Method

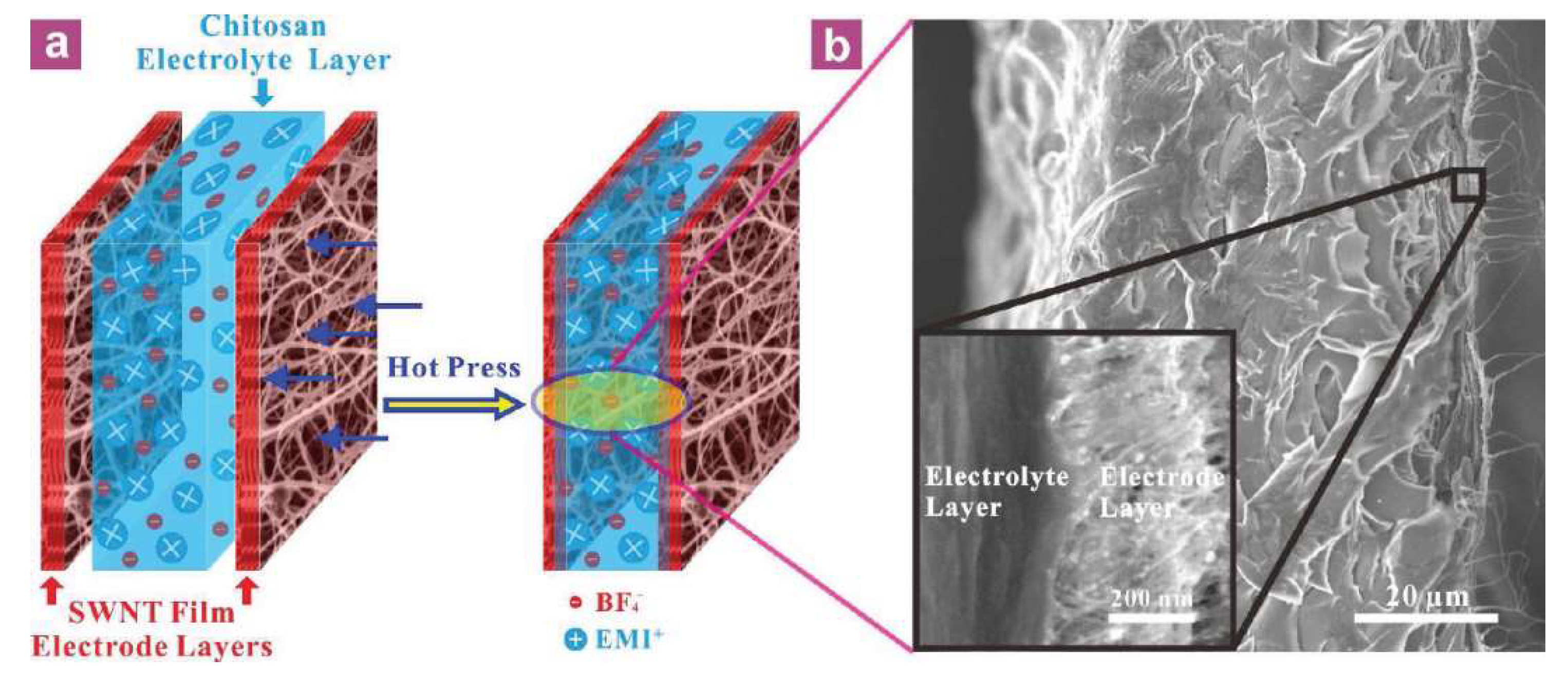

The hot-pressing method comprises attaching a plurality of relatively thin Nafion membranes and compositing them together with a hot-pressing system so that the polymer membrane prepared for IPMC reaches a specific thickness. Compared with the solution casting method, the hot-pressing method is a simpler process to increase the thickness of the polymer membrane layer, which allows strong repeatability and the easy control of the thickness of the membrane [58]. Li et al. [59] fabricated a novel actuator based on carbon nanotubes and chitosan by using the hot-pressing method. Compared to previous ion-electroactive polymer actuators, multiple aspects of performance have been improved. These include a fast response rate (19 ms), a wider range of available frequencies, and a higher mechanical output power density (244 W/kg), as shown in Figure 5.

3.2.4. Direct Assembly Method

The direct assembly method is mainly used for plating dry membranes. The general operation is to coat the electrode solution on the polymer membrane directly, but at this time, there is a problem that the adhesion between the intermediate polymer membrane layer and the electrode layer is not firm [60]. The membrane is autoclaved to enhance the adhesion between the two. In addition, electrospinning has been used to achieve layer-by-layer self-assembly to prepare conductive network composites. A mat based on co-polymer nanofibers of Nafion and PTFE was developed by Nah et al. through an electrospinning process [61]. Among them, the nanofiber mat is composed of random continuous fibers with a diameter of about 200 nm. Using DAP technology to coat the nano mat can obtain an electrode layer with a thickness of about 25 μm. Compared with the traditional IPMC sensor, the fiber mat allows the response time of the sensor to be improved to a certain extent.

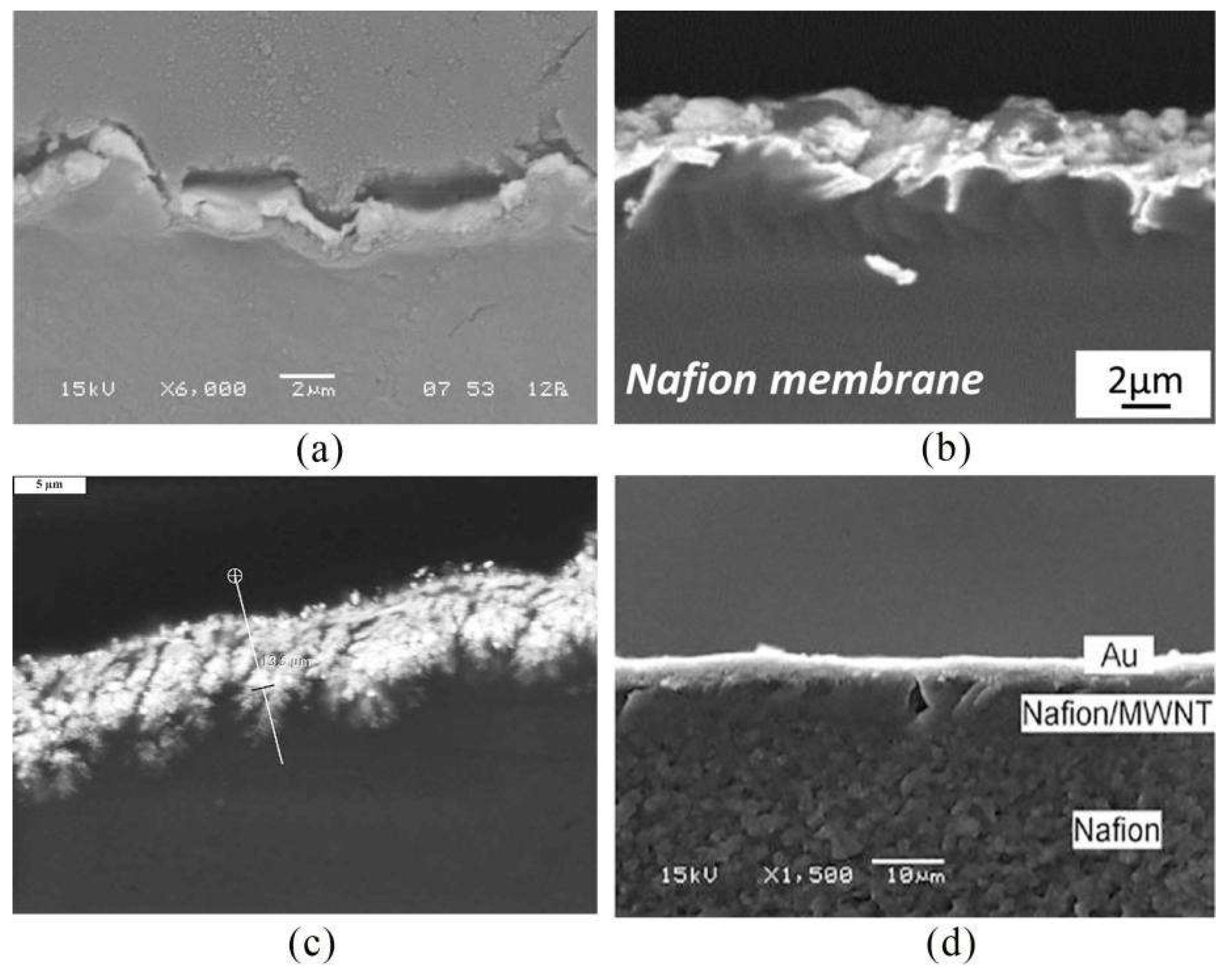

Figure 6 shows the cross-sectional morphology of IPMC fabricated by physical vapor deposition, solution casting, hot pressing, and direct assembly. It can be observed that although the density of the deposited membrane is strong in the physical vapor deposition method, due to the intense metal ionization process, more impurity particles will be generated, and the coating surface will be rough. The electrode layer prepared by the solution casting method has uneven membrane formation and poor adhesion of carbon particles to the polymer, which adversely affects the transduction of IPMC. However, by the hot-pressing method, there is no boundary layer between the membranes, and the bonding effect is good. Since the distribution of metal particles can be changed, the interface morphologies are diverse. Fabrication by the direct assembly, assisted by hot pressing, improves adhesion between the electrode layers and membranes, but the adhesion of the conductive surfaces to high surface area electrodes results in performance degradation.
The comparison of electroless plating and mechanical plating preparation technology of IPMC is shown in Table 3. The biggest difference between the electroless plating method and the mechanical plating method is whether there is mutual penetration between the metal particles and the polymer membrane. Penetration can ensure that the IPMC sensor forms an interface layer; that is, the transition layer between the middle polymer membrane layer and the upper and lower surface metal electrodes. Such a transition layer can improve the conduction characteristics of the sensor, which is believed to be due to the increase in double-layer capacitance. Although the electroless plating method is time consuming, complex, and has a relatively high cost, it ensures that there is a good transition layer in the IPMC sensor. Moreover, the electrode layer of IPMC prepared by electroless plating is more durable and has a longer life cycle, which is more energy saving and environmentally friendly than mechanical plating. Although the mechanical plating method has a relatively simple process and short preparation times, the IPMC sensor prepared by this method has no transition layer structure or the transition layer structure is extremely thin.
Although IPMC has the advantages of a low driving voltage, large displacement deformation, rapid response, and being light weight, it has a very broad application prospect as a new type of electric driving material. However, according to the current research results at home and abroad, the existing IPMC still needs to overcome many technical difficulties, such as small output force, short non-water working time, and instability during long-term use [62,63,64]. Therefore, many researchers have studied the modification of IPMC to solve the limitations in its application.

4. Study on Modification of IPMC

Although IPMC has many advantages and application prospects, there are still many areas that need to be improved. For example, factors such as strain reduction under DC voltage, low power output, solvent evaporation, and non-standard preparation process limit the application of IPMC. According to the structure of IPMC itself, it can be modified from the following aspects to improve the driving performance of IPMC:
(1) Preparation of basement membranes with diverse structures to meet the diverse needs of IPMC in practical applications.
(2) Optimize the surface electrode of IPMC, reduce the cost of electrode fabrication, and reduce electrode surface cracks.
(3) Optimize the working medium of IPMC, improve its driving stability, and prolong the non-aqueous working time of IPMC.

4.1. Study on Modification of IPMC Basement Membrane

The ion-exchange basement membrane has a very important influence on the driving performance of IPMC. The properties of the basement membrane, elastic modulus, water content, migration channels, and other factors will affect the driving performance of IPMC.
A novel ionic polymer–metal composite can be fabricated by adding multi-walled carbon nanotubes (MWCNTs) in Nafion solution [65]. By conducting experiments, it was found that the resistance of the modified MWCNTs/IPMC is much lower than that of the conventional IPMC material. Moreover, under the DC voltage of 4 V, the maximum output force of MWCNTs/IPMC is 3.25 mN, which is 14.84% higher than that of conventional IPMC materials. These significantly improved properties are attributed to the MWCNTs doped into Nafion. The surface morphology of the composite electrode was investigated by scanning electron microscopy, as shown in Figure 7. It was found that the addition of MWCNTs could make the surface coating of the composite electrode smooth and uniform, so the electrode surface resistance is reduced. At the same time, the rigidity of the Nafion membrane is also enhanced to increase its output performance.
Although the Nafion membrane is currently the most widely used fluorine-containing ion exchange membrane, it has the advantages of high chemical stability and mature commercial products. However, in practical applications, fluorine-containing ion-exchange membranes have a high cost, low output force, and retraction problems [66]. Based on the shortage of fluorine-containing ion-exchange membranes, blended composite ion-exchange membranes and novel hydrocarbon backbone ion–polymer membranes were developed to replace fluorine-containing ion-exchange membranes.
The blended composite ion exchange membrane is to improve the actuation performance of the ion exchange membrane by means of polymer blending. One of the high-performance IPMCs based on polystyrene sulfonic acid (PSSA), with PSSA as the hydrophilic proton-conducting functional group, was direct radiation-induced graft-polymerization on polyvinylidene fluoride (PVDF) [67]. Flexible porous membranes were fabricated by a solution casting process. The experimental results show that the PVDF-g-PSSA membrane with the highest engraftment level has the highest average bending strain at 0.1 Hz and 4 V. This is because the porous microstructure of the PVDF-g-PSSA membrane improves the water content and electrical conductivity of the membrane, and the internal nanoscale ionic structure is more conducive to the migration of ions, thereby improving driving performance. Moreover, PSSA is also a water-soluble polyelectrolyte, which can provide free charge carriers to enhance ionic conductivity.
New hydrocarbon main chain ionic polymer membranes include sulfonated polyetheretherketone (speek) and sulfonated poly (styrene-ran-ethylene) (spse); these new ion exchange membranes have the advantages of strong ion exchange capacity, good proton conductivity, low cost, and environmental protection [68].
SPEEK membrane has the advantages of excellent chemical resistance, long life, and low cost [69]. The ionic conductivity and mobility of SPEEK are highly dependent on the degree of sulfonation. The reaction conditions such as sulfuric acid concentration, reaction time, and operating temperature can be adjusted by controlling these parameters. SPEEK-IPMC with different sulfonation degrees was prepared for experiments [70]. The experiments showed that the ion exchange capacity, water absorption rate, and ionic conductivity of SPEEK membrane increased with the increase in membrane sulfonation degree, and they were similar to the traditional Nafion membrane. Compared with the Nafion membrane, the high molecular rigidity of SPEEK membrane leads to its higher tensile modulus in both dry and wet states, as shown in Figure 8 [71]. However, the tensile modulus of SPEEK membrane in wet state and intensity decreased with increasing degrees of sulfonation (DS). This is because the absorbed water can act as a plasticizer, reducing the interaction between the SPEEK segment chains.

4.2. Study on Modification of Working Medium of IPMC

The bending deformation of IPMC with water as the working medium is caused by the migration of internally hydrated cations; thus, the work of IPMC relies on water molecules in the basement membrane [72]. When the applied electric field is greater than 1.23 V, the water molecules in the IPMC will be electrolyzed, and the long-term operation of the IPMC in the air will cause the water to volatilize to a certain extent. The electrolysis and volatilization of water will result in the gradual reduction in water in the IPMC, which will eventually render the IPMC ineffective [73]. Water as the working medium of IPMC has some disadvantages, so finding a stable working medium is of great significance for the practical application of IPMC.
The results of a series of tests using ethylene glycol as a solvent showed greater resistance to electrolysis and lower stiffness compared to conventional water-based IPMC actuators. This is due to the fact that ethylene glycol is polar, has a viscosity about 16 times that of water at room temperature, has a larger molecular mass, has a greater absorption of the solvent, and has better driving performance and subsequent relaxation in the air [74]. However, compared with ethylene glycol, the IPMC samples with water as solvent drive faster and the samples have higher overall capacitance. Therefore, a large number of studies have used ionic liquids as the working medium of IPMC [75,76,77]. The physical and electrochemical properties of ionic liquids largely depend on the nature and size of their cationic and anionic components. The ionic liquid can solvate and plasticize the Nafion side groups, stimulating the fluorocarbon Nafion host to organize into a microcrystalline structure. The IPMC driving performance is improved by reducing the crystallinity of the IPMC basement membrane and increasing its ionic conductivity [78].

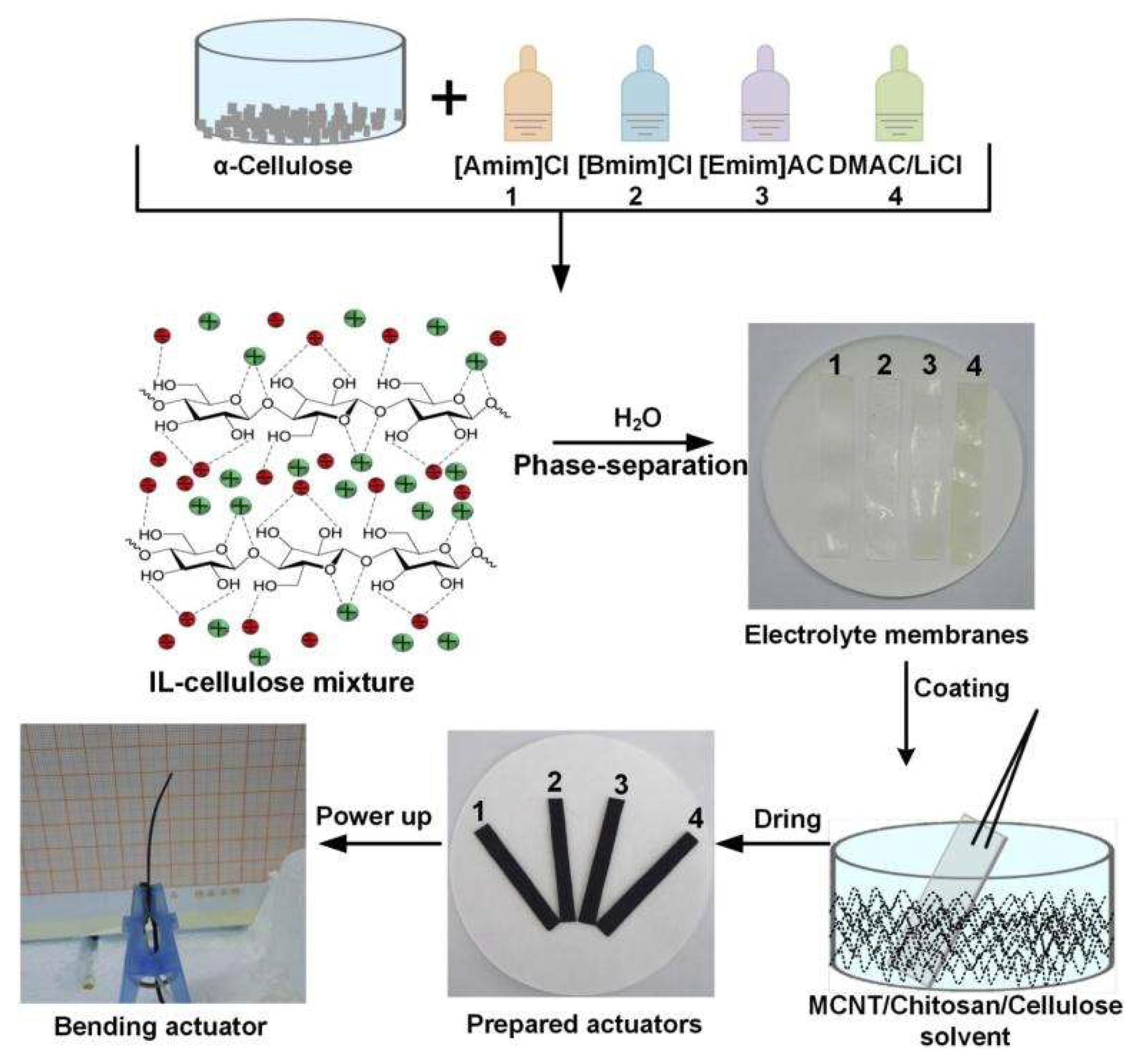

Mesoporous regenerated cellulose/ionic liquid (IL-Cel) was used as the ionic liquid medium. A flexible nano biocomposite artificial muscle with a high porosity of 91.31% was prepared, as shown in Figure 9 [79]. The IL-Cel electrolyte membrane prepared by the liquid phase separation method has absolute advantages in flexibility and ion transfer efficiency. The actuator is increased by four times and two times.

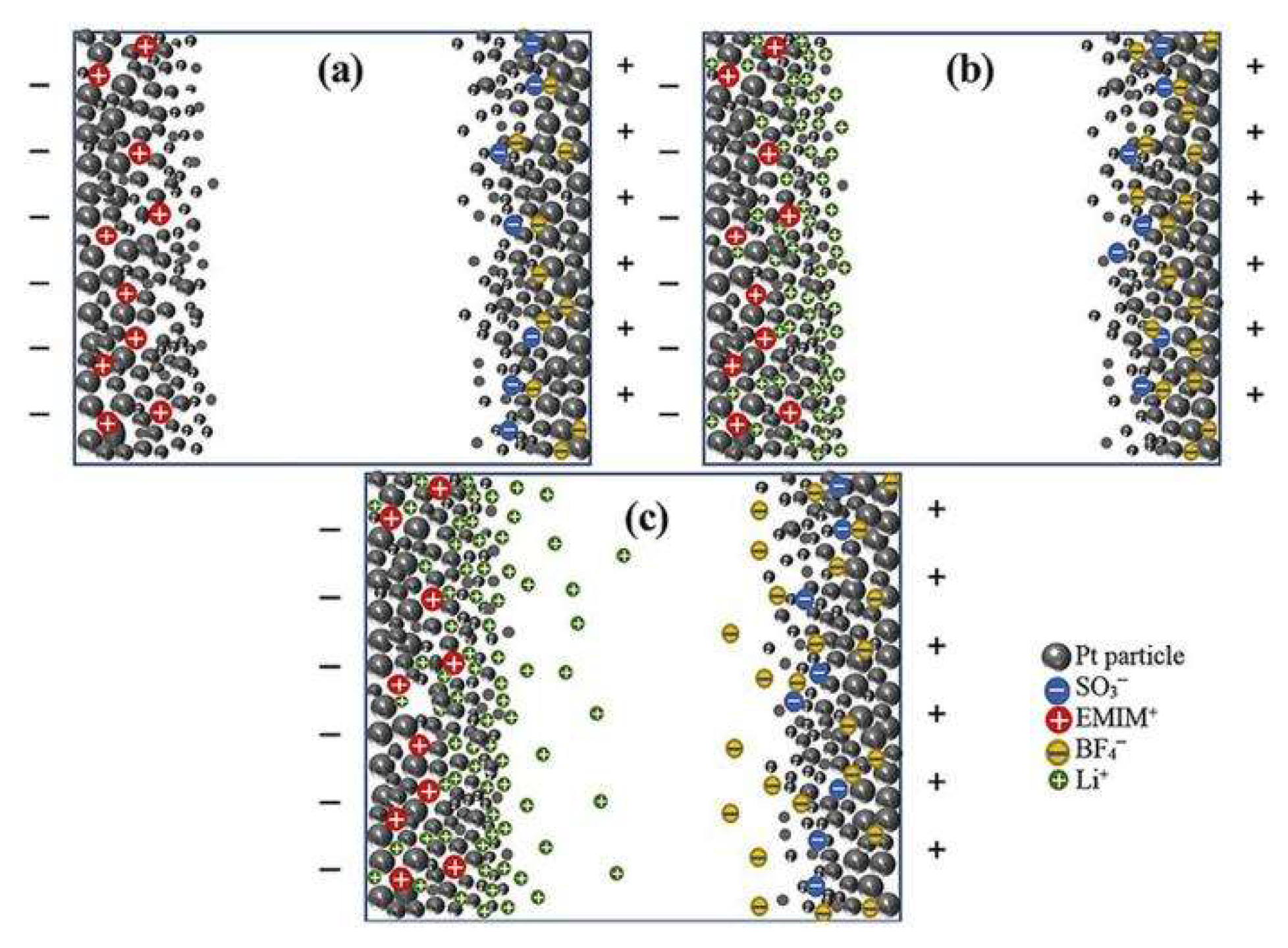

IPMC actuators were prepared with different concentrations of imidazolium-based ionic liquids and the actuators were tracked by electromechanical and electrochemical measurement methods, as shown in Figure 10 [48]. The number of free ions in the polymer increases with increasing Li+ ion concentration in the IPMC actuator. Because excess ions cannot promote the formation of electric double layers, this can increase the ionic conductivity of the bulk polymer and degrade the capacitive properties of the actuator. The addition of an appropriate concentration of Li+ ions to the ion-based system leads to a significant increase in the capacitance, ionic conductance, working life, and displacement rate of the actuator [75].
As the working medium of the driver, the ionic liquid has significantly enhanced the performance stability of the driver. With the development of flexible electrode materials such as graphene, a new type of ionic liquid actuator with chitosan as the polymer substrate and carbon material as the electrode is gradually developed. This type of driver can also show stable output performance in the air.

4.3. Study on Electrode Modification of IPMC

Electrodes are very important components in IPMC membranes. Different electrode properties, such as morphology, materials, and electrode thickness, can directly affect the electrical and actuation properties of IPMC. The surface resistance of the electrode directly affects the output force of IPMC [80]. The electrode materials of IPMC can be divided into metal electrode materials and carbon electrode materials. Metal electrode materials are the most used electrode materials at present. Asaka et al. [81] were the first to study the preparation method of Au-type IPMC materials. They obtained Au-type IPMC materials with dendritic infiltration electrodes only by repeated soaking–reduction plating steps. This unique electrode morphology greatly improved the material. However, the organic Au salt used in it has a complex synthesis process and expensive raw materials, so it is rarely used in practice. Therefore, finding an electrode material with excellent braking performance is of great significance for the practical application of IPMC.
Due to the hydration requirements of IPMC, attention must be paid to the type of metal used for galvanization. It is critical that metals remain stable under hydration and resist corrosion. At present, the metal electrodes of IPMC are commonly used precious metal materials (Au, Pd, Pt, etc.). IPMCs with different metal–electrode interface properties were prepared by depositing on the surface of the ion-exchange membrane by using an impregnation–reduction process, as shown in Figure 11. From the morphology of the infiltration electrode, Au-type IPMC presents a dendritic electrode, and the infiltration electrode is obvious. Pd-type IPMC is a granular electrode [82], while Pt-type IPMC is a layered electrode [83]. Among the IPMC of the above-mentioned metal electrodes, the Au-type IPMC material has the best performance. This type of electrode has a good binding effect with the basement membrane and has good conductivity and stability. The Pd-type IPMC material has poor performance, and its response speed and displacement are smaller than the other two kinds of IPMC.
Although the metal electrode has high conductivity, the compatibility of metal and polymer is not good. Inevitably, the metal electrode and the ion exchange membrane will flake off during repeated use, which affects the actuation performance of the IPMC membrane [84]. To develop high-performance IPMCs, highly conductive carbon materials are used as electrodes for IPMCs. Carbon nanotubes and graphene show strong application prospects due to their unique physical properties and structural advantages, such as large surface area, high electrical conductivity, and high mechanical strength [85].

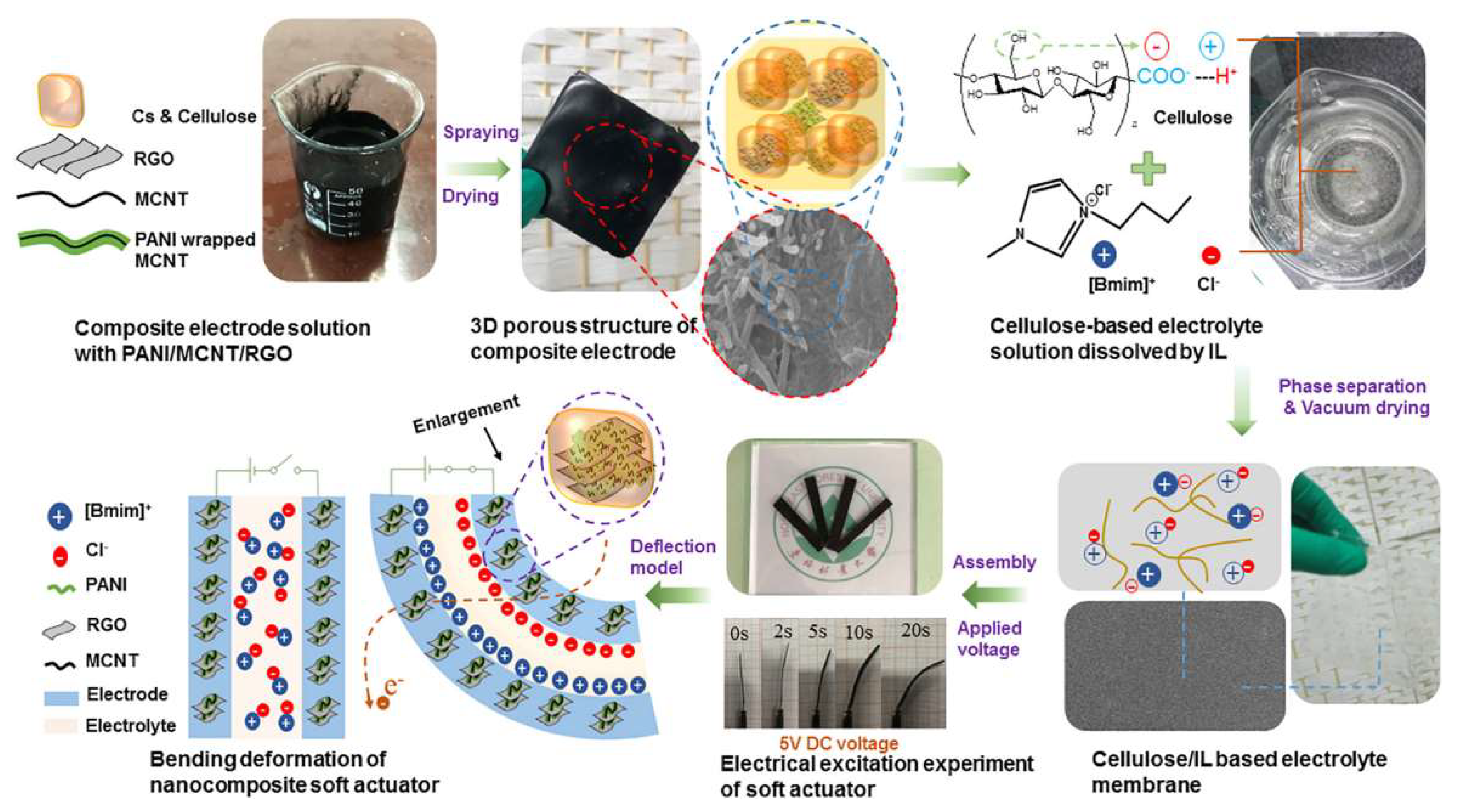

First, highly conductive polyaniline doped with reduced graphene oxide/carbon nanosheets and a natural biopolymer cellulose-based electrolyte constitute a 3D porous electrode. Subsequently, a renewable biocompatible nanocomposite soft actuator was prepared, as shown in Figure 12 [86]. The actuator enables large deformations, high-performance flexibility, good breathability, and highly durable muscle performance.
The modification studies of IPMC from three aspects of the basement membrane, working medium, and electrode are shown in Table 4. It can be observed that the modification from the basement membrane can improve the driving performance by increasing the rigidity of the IPMC. Modification from the working medium can improve the stability and working life of IPMC. Modification from the electrode can improve the conductivity of IPMC. Modification from the above three aspects has its own advantages and disadvantages, so scholars will conduct modification research on two or three aspects to improve the driving performance of IPMC.

5. Conclusions

IPMC materials have many excellent properties, such as large deformation, fast response time, and low driving voltage, which allow them to continue to be one of the research hotspots in smart materials. Because of its unique mechanical and electrical properties, it can be well used in drivers, sensors, etc. However, it is precisely because of the special driving mechanism of IPMC that water will be electrolyzed during the driving process, resulting in many problems of IPMC, such as small output force, short non-water working time, etc. In order to solve these problems and improve the driving performance of IPMC, researchers have conducted a lot of research work, starting from the preparation technology and modification of IPMC.
In terms of preparation technology, the IPMC prepared by electroless plating can form a transition layer well and improve the driving performance. Although the IPMC electrode prepared by mechanical plating has good uniformity, the bonding fastness between the electrode and the intermediate layer is not sufficient, which will result in the instability of IPMC. Therefore, IPMC prepared by electroless plating, even if it is expensive, has more stable performance than IPMC prepared by mechanical plating; thus, it is more widely used than mechanical plating. In terms of modification research, researchers have carried out modification research from three aspects: IPMC basement membrane, working medium, and electrode material. By modifying different aspects, the different properties of IPMC are improved, such as improving the rigidity of the basement membrane, the conductivity of the electrode, and the stability of the IPMC.
A lot of work is still needed for research before IPMC is widely used. Since IPMC is generally prepared by electroless plating, it faces the challenge of high cost and time-consuming preparation. It is necessary to develop an economical and time-saving preparation technology. Most of the current work focuses on driving IPMC, and there are few research studies on sensing IPMC. Therefore, using the driving characteristics of IPMC, it is widely used in bionic robots. If the problem of electrode delamination and cracking during the use of IPMC can be overcome, and the system integration method of IPMC and flexible products can be explored, IPMC can be used as a wearable sensor. It will have broad application prospects in the fields of medical monitoring and sports fitness.

Author Contributions

Conceptualization and design, Y.G., C.H. and J.M.; writing—manuscript preparation, Y.G., C.H. and J.Z.; writing—review and editing, C.H., L.M., M.Y. and Y.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Zhejiang Provincial Natural Science Foundation of China (LY22E050015), Science and Technology Plan Project of State Administration for Market Regulation (2020MK192), and Zhejiang Provincial Science and Technology Plan Project of China (2021C01052).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tiwari, R.; Garcia, E. The state of understanding of ionic polymer metal composite architecture: A review. Smart Mater. Struct. 2011, 20, 083001. [Google Scholar] [CrossRef]
  2. Fabiani, C.; Pisello, A.L.; Bou-Zeid, E.; Yang, J.; Cotana, F. Adaptive measures for mitigating urban heat islands: The potential of thermochromic materials to control roofing energy balance. Appl. Energ. 2019, 247, 155–170. [Google Scholar] [CrossRef]
  3. Wu, J.; Gong, X.; Fan, Y.; Xia, H. Anisotropic polyurethane magnetorheological elastomer prepared through in situ polycondensation under a magnetic field. Smart Mater. Struct. 2010, 19, 105007. [Google Scholar] [CrossRef]
  4. Huang, Z.; Ye, Q.; Shi, Z.; Tang, J.N.; Ouyang, X.; Chen, D.Z. Multiple phase change-stimulated shape memory and self-healing epoxy composites with thermal regulation function. Chem. Eng. J. 2021, 409, 127382. [Google Scholar] [CrossRef]
  5. Tsai, S.R.; Hamblin, M.R. Biological effects and medical applications of infrared radiation. J. Photoch. Photobiol. B 2017, 170, 197–207. [Google Scholar] [CrossRef] [Green Version]
  6. Chen, L.; Wong, M.C.; Bai, G.; Jie, W.; Hao, J. White and green light emissions of flexible polymer composites under electric field and multiple strains. Nano Energy 2015, 14, 372–381. [Google Scholar] [CrossRef]
  7. Zhang, F.; Zang, Y.; Huang, D.; Di, C.A.; Zhu, D. Flexible and self-powered temperature–pressure dual-parameter sensors using microstructure-frame-supported organic thermoelectric materials. Nat. Commun. 2015, 6, 8356. [Google Scholar] [CrossRef]
  8. Bashir, M.; Rajendran, P. A review on electroactive polymers development for aerospace applications. J. Intell. Mater. Syst. Struct. 2018, 29, 3681–3695. [Google Scholar] [CrossRef]
  9. Wang, T.; Farajollahi, M.; Choi, Y.S.; Lin, I.T.; Marshall, J.E.; Thompson, N.M.; Sohini, K.-N.; John, M.; Smoukov, S.K. Electroactive polymers for sensing. Interface Focus 2016, 6, 20160026. [Google Scholar] [CrossRef]
  10. Zhang, J.; Bai, Q.; Zhang, Z. Dealloying-driven nanoporous palladium with superior electrochemical actuation performance. Nanoscale 2016, 8, 7287–7295. [Google Scholar] [CrossRef]
  11. Torop, J.; Palmre, V.; Arulepp, M.; Sugino, T.; Asaka, K.; Aabloo, A. Flexible supercapacitor-like actuator with carbide-derived carbon electrodes. Carbon 2011, 49, 3113–3119. [Google Scholar] [CrossRef]
  12. Niu, X.; Stoyanov, H.; Hu, W.; Leo, R.; Brochu, P.; Pei, Q. Synthesizing a new dielectric elastomer exhibiting large actuation strain and suppressed electromechanical instability without prestretching. J. Polym. Sci. Pol. Phys. 2013, 51, 197–206. [Google Scholar] [CrossRef]
  13. Mirfakhrai, T.; Madden, J.D.; Baughman, R.H. Polymer artificial muscles. Mater. Today 2007, 10, 30–38. [Google Scholar] [CrossRef]
  14. Shankar, R.; Ghosh, T.K.; Spontak, R.J. Dielectric elastomers as next-generation polymeric actuators. Soft Matter 2007, 3, 1116–1129. [Google Scholar] [CrossRef]
  15. Bar-Cohen, Y.; Anderson, I.A. Electroactive polymer (EAP) actuators-background review. Mech. Soft Mater. 2019, 1, 5. [Google Scholar] [CrossRef] [Green Version]
  16. Shen, Q.; Wang, T.; Liang, J.; Wen, L. Hydrodynamic performance of a biomimetic robotic swimmer actuated by ionic polymer–metal composite. Smart Mater. Struct. 2013, 22, 075035. [Google Scholar] [CrossRef]
  17. Kong, L.; Chen, W. Carbon nanotube and graphene-based bioinspired electrochemical actuators. Adv. Mater. 2014, 26, 1025–1043. [Google Scholar] [CrossRef]
  18. Chen, Z. A review on robotic fish enabled by ionic polymer–metal composite artificial muscles. Robot. Biomim. 2017, 4, 24. [Google Scholar] [CrossRef] [Green Version]
  19. Palza, H.; Zapata, P.A.; Angulo-Pineda, C. Electroactive smart polymers for biomedical applications. Materials 2019, 12, 277. [Google Scholar] [CrossRef] [Green Version]
  20. Grubb, W.T.; Niedrach, L.W. Batteries with solid ion-exchange membrane electrolytes: II. Low-temperature hydrogen-oxygen fuel cells. J. Electrochem. Soc. 1960, 107, 131–135. [Google Scholar] [CrossRef]
  21. Noonan, C.; Tajvidi, M.; Tayeb, A.H.; Shahinpoor, M.; Tabatabaie, S.E. Structure-property relationships in hybrid cellulose nanofibrils/Nafion-based ionic polymer-metal composites. Materials 2019, 12, 1269. [Google Scholar] [CrossRef] [Green Version]
  22. Yu, M.; He, Q.S.; Ding, Y.; Guo, D.J.; Li, J.B.; Dai, Z.D. Force optimization of ionic polymer metal composite actuators by an orthogonal array method. Chin. Sci. Bull. 2011, 56, 2061–2070. [Google Scholar] [CrossRef] [Green Version]
  23. Ho, D.; Cho, S.; Choi, Y.Y.; Choi, Y.J.; Cho, J.H. Trends of Nafion-based IPMC application and development. Ceramist 2020, 23, 16–26. [Google Scholar] [CrossRef]
  24. Yang, L.; Zhang, D.; Zhang, X.; Tian, A. Electroless copper deposition and interface characteristics of ionic electroactive polymer. J. Mater. Res. Technol. 2021, 11, 849–856. [Google Scholar] [CrossRef]
  25. Park, J.; Palmre, V.; Hwang, T.; Kim, K.; Yim, W.; Bae, C. Electromechanical performance and other characteristics of IPMCs fabricated with various commercially available ion exchange membranes. Smart Mater. Struct. 2014, 23, 074001. [Google Scholar] [CrossRef]
  26. Gu, Y.; Yu, L.; Mou, J.; Wu, D.; Xu, M.; Zhou, P.; Ren, Y. Research strategies to develop environmentally friendly marine antifouling coatings. Mar. Drugs 2020, 18, 371. [Google Scholar] [CrossRef]
  27. Jo, C.; Pugal, D.; Oh, I.K.; Kim, K.J.; Asaka, K. Recent advances in ionic polymer–metal composite actuators and their modeling and applications. Prog. Polym. Sci. 2013, 38, 1037–1066. [Google Scholar] [CrossRef]
  28. Gu, Y.; Yu, S.; Mou, J.; Wu, D.; Zheng, S. Research progress on the collaborative drag reduction effect of polymers and surfactants. Materials 2020, 13, 444. [Google Scholar] [CrossRef] [Green Version]
  29. Guo, D.; Han, Y.; Huang, J.; Meng, E.; Ma, L.; Zhang, H.; Ding, Y. Hydrophilic poly (vinylidene fluoride) film with enhanced inner channels for both water-and ionic liquid-driven ion-exchange polymer metal composite actuators. ACS Appl. Mater. Inter. 2019, 11, 2386–2397. [Google Scholar] [CrossRef]
  30. Almomani, A.; Hong, W.; Hong, W.; Montazami, R. Influence of temperature on the electromechanical properties of ionic liquid-doped ionic polymer-metal composite actuators. Polymers 2017, 9, 358. [Google Scholar] [CrossRef] [Green Version]
  31. Lei, H.; Li, W.; Tan, X. Encapsulation of ionic polymer-metal composite (IPMC) sensors with thick parylene: Fabrication process and characterization results. Sensor. Actuat. A-Phys. 2014, 217, 1–12. [Google Scholar] [CrossRef]
  32. Wu, G.; Hu, Y.; Liu, Y.; Zhao, J.; Chen, X.; Whoehling, V.; Plesse, C.; Nguyen, G.T.; Chen, W. Graphitic carbon nitride nanosheet electrode-based high-performance ionic actuator. Nat. Commun. 2015, 6, 7258. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Mousavi, M.S.S.; Alaei, A.; Hasani, M.; Kolahdouz, M.; Manteghi, F.; Ataei, F. Fabrication of ionic polymer metal composite for bio-actuation application: Sputtering and electroless plating methods. Mater. Res. Express 2018, 6, 035312. [Google Scholar] [CrossRef]
  34. Wang, Y.; Chen, H.; Liu, J.; Zhu, Z.; Chang, L.; Li, D.; Jia, S. Aided manufacturing techniques and applications in optics and manipulation for ionic polymer-metal composites as soft sensors and actuators. J. Polym. Eng. 2015, 35, 611–626. [Google Scholar] [CrossRef]
  35. Bhandari, B.; Lee, G.Y.; Ahn, S.H. A review on IPMC material as actuators and sensors: Fabrications, characteristics and applications. Int. J. Precis. Eng. Man. 2012, 13, 141–163. [Google Scholar] [CrossRef]
  36. MohdIsa, W.; Hunt, A.; HosseinNia, S.H. Sensing and self-sensing actuation methods for ionic polymer–metal composite (IPMC): A review. Sensors 2019, 19, 3967. [Google Scholar] [CrossRef] [Green Version]
  37. Khan, A.; Luqman, M.; Dutta, A. Kraton based ionic polymer metal composite (IPMC) actuator. Sensor. Actuat. A-Phys. 2014, 216, 295–300. [Google Scholar] [CrossRef]
  38. Yip, J.; Feng, L.S.; Hang, C.W.; Marcus, Y.C.W.; Wai, K.C. Experimentally validated improvement of IPMC performance through alternation of pretreatment and electroless plating processes. Smart Mater. Struct. 2010, 20, 015009. [Google Scholar] [CrossRef]
  39. Palmre, V.; Pugal, D.; Kim, K.J.; Leang, K.K.; Asaka, K.; Aabloo, A. Nanothorn electrodes for ionic polymer-metal composite artificial muscles. Sci. Rep. 2014, 4, 6176. [Google Scholar] [CrossRef] [Green Version]
  40. Takenaka, H.; Torikai, E.; Kawami, Y.; Wakabayashi, N. Solid polymer electrolyte water electrolysis. Int. J. Hydrog. Energ. 1982, 7, 397–403. [Google Scholar] [CrossRef]
  41. Millet, P.; Pineri, M.; Durand, R. New solid polymer electrolyte composites for water electrolysis. J. Appl. Electrochem. 1989, 19, 162–166. [Google Scholar] [CrossRef]
  42. Wang, Y.; Liu, J.; Zhu, Y.; Zhu, D.; Chen, H. Formation and characterization of dendritic interfacial electrodes inside an ionomer. ACS Appl. Mater. Int. 2017, 9, 30258–30262. [Google Scholar] [CrossRef]
  43. Yang, L.; Wang, H.; Zhang, X. Recent progress in preparation process of ionic polymer-metal composites. Results Phys. 2021, 29, 104800. [Google Scholar] [CrossRef]
  44. Kim, S.J.; Lee, I.T.; Kim, Y.H. Performance enhancement of IPMC actuator by plasma surface treatment. Smart Mater. Struct. 2007, 16, N6. [Google Scholar] [CrossRef]
  45. Wang, Y.; Zhu, Z.; Chen, H.; Luo, B.; Chang, L.; Wang, Y.; Li, D. Effects of preparation steps on the physical parameters and electromechanical properties of IPMC actuators. Smart Mater. Struct. 2014, 23, 125015. [Google Scholar] [CrossRef]
  46. Naji, L.; Safari, M.; Moaven, S. Fabrication of SGO/Nafion-based IPMC soft actuators with sea anemone-like Pt electrodes and enhanced actuation performance. Carbon 2016, 100, 243–257. [Google Scholar] [CrossRef]
  47. Faraji, S.; Ani, F.N. The development supercapacitor from activated carbon by electroless plating—A review. Renew. Sustain. Energy. Rev. 2015, 42, 823–834. [Google Scholar] [CrossRef]
  48. Safari, M.; Naji, L.; Baker, R.T.; Taromi, F.A. The enhancement effect of lithium ions on actuation performance of ionic liquid-based IPMC soft actuators. Polymer 2015, 76, 140–149. [Google Scholar] [CrossRef] [Green Version]
  49. Chung, R.J.; Chin, T.S.; Chen, L.C.; Hsieh, M.F. Preparation of gradually componential metal electrode on solution-casted Nafion™ membrane. Biomol. Eng. 2007, 24, 434–437. [Google Scholar] [CrossRef]
  50. Chung, C.K.; Fung, P.K.; Hong, Y.Z.; Ju, M.S.; Lin, C.C.K.; Wu, T.C. A novel fabrication of ionic polymer-metal composites (IPMC) actuator with silver nano-powders. Sens. Actuat. B-Chem. 2006, 117, 367–375. [Google Scholar] [CrossRef]
  51. Bennett, M.D.; Leo, D.J. Manufacture and characterization of ionic polymer transducers employing non-precious metal electrodes. Smart Mater. Struct. 2003, 12, 424. [Google Scholar] [CrossRef]
  52. Ma, S.; Zhang, Y.; Liang, Y.; Ren, L.; Tian, W.; Ren, L. High-performance ionic-polymer–metal composite: Toward large-deformation fast-response artificial muscles. Adv. Funct. Mater. 2020, 30, 1908508. [Google Scholar] [CrossRef]
  53. Guo, H.; Gong, S.; Khor, K.A.; Xu, H. Effect of thermal exposure on the microstructure and properties of EB-PVD gradient thermal barrier coatings. Surf. Coat. Technol. 2003, 168, 23–29. [Google Scholar] [CrossRef]
  54. Fu, R.; Yang, Y.; Lu, C.; Ming, Y.; Zhao, X.; Hu, Y.; Zhao, L.; Hao, J.; Chen, W. Large-Scale Fabrication of High-Performance Ionic Polymer–Metal Composite Flexible Sensors by in Situ Plasma Etching and Magnetron Sputtering. ACS Omega 2018, 3, 9146–9154. [Google Scholar] [CrossRef]
  55. Siripong, M.; Fredholm, S.; Nguyen, Q.A.; Shih, B.; Itescu, J.; Stolk, J. A cost-effective fabrication method for ionic polymer-metal composites. MRS Online Proc. Libr. 2005, 889, 403. [Google Scholar] [CrossRef]
  56. Yang, L.; Zhang, D.; Zhang, X.; Tian, A.; He, M. Property of ionic polymer metal composite with different thicknesses based on solution casting technique. Int. J. Mod. Phys. B 2020, 34, 2050263. [Google Scholar] [CrossRef]
  57. Tiwari, R.; Kim, K.J.; Kim, S.M. Ionic polymer-metal composite as energy harvesters. Smart Struct. Syst. 2008, 4, 549–563. [Google Scholar] [CrossRef]
  58. Shahinpoor, M.; Kim, K.J. Novel ionic polymer–metal composites equipped with physically loaded particulate electrodes as biomimetic sensors, actuators and artificial muscles. Sensor. Actuat. A-Phys. 2002, 96, 125–132. [Google Scholar] [CrossRef]
  59. Li, J.; Ma, W.; Song, L.; Niu, Z.; Cai, L.; Zeng, Q.; Zhang, X.; Dong, H.; Zhao, D.; Zhou, W.; et al. Superfast-response and ultrahigh-power-density electromechanical actuators based on hierarchal carbon nanotube electrodes and chitosan. Nano Lett. 2011, 11, 4636–4641. [Google Scholar] [CrossRef]
  60. Lee, J.W.; Yoo, Y.T. Preparation and performance of IPMC actuators with electrospun Nafion®–MWNT composite electrodes. Sens. Actuat. B-Chem. 2011, 159, 103–111. [Google Scholar] [CrossRef]
  61. Nah, C.; Lee, Y.S.; Cho, B.H.; Yu, H.C.; Akle, B.; Leo, D.J. Preparation and properties of nanofibrous Nafion mats for ionic polymer metal composites. Compos. Sci. Technol. 2008, 68, 2960–2964. [Google Scholar] [CrossRef]
  62. Beigi, F.; Mousavi, M.S.S.; Manteghi, F.; Kolahdouz, M. Doped nafion-layered double hydroxide nanoparticles as a modified ionic polymer metal composite sheet for a high-responsive humidity sensor. Appl. Clay Sci. 2018, 166, 131–136. [Google Scholar] [CrossRef]
  63. Chang, X.L.; Chee, P.S.; Lim, E.H.; Tan, R.C.C. A novel crenellated ionic polymer-metal composite (IPMC) actuator with enhanced electromechanical performances. Smart Mater. Struct. 2019, 28, 115011. [Google Scholar] [CrossRef]
  64. Boldini, A.; Jose, K.; Cha, Y.; Porfiri, M. Enhancing the deformation range of ionic polymer metal composites through electrostatic actuation. Appl. Phys. Lett. 2018, 112, 261903. [Google Scholar] [CrossRef]
  65. Hao, L.N.; Chen, Y.; Zhao, Y.S. Research on enhanced performance of ionic polymer metal composite by multiwalled carbon nanotubes. Mater. Res. Innov. 2015, 19 (Suppl. S1), 477–481. [Google Scholar] [CrossRef]
  66. Wilson, S.A.; Jourdain, R.P.; Zhang, Q.; Dorey, R.A.; Bowen, C.R.; Willander, M.; Wahab, Q.U.; Willander, M.; Al-hilli, S.M.; Nur, O.; et al. New materials for micro-scale sensors and actuators: An engineering review. Mater. Sci. Eng. 2007, 56, 1–129. [Google Scholar] [CrossRef] [Green Version]
  67. Mehraeen, S.; Sadeghi, S.; Cebeci, F.Ç.; Papila, M.; Gürsel, S.A. Polyvinylidene fluoride grafted poly (styrene sulfonic acid) as ionic polymer-metal composite actuator. Sens. Actuat. A-Phys. 2018, 279, 157–167. [Google Scholar] [CrossRef]
  68. Lee, J.W.; Hong, S.M.; Kim, J.; Koo, C.M. Novel sulfonated styrenic pentablock copolymer/silicate nanocomposite membranes with controlled ion channels and their IPMC transducers. Sens. Actuat. B-Chem. 2012, 162, 369–376. [Google Scholar] [CrossRef]
  69. Shang, X.; Fang, S.; Meng, Y. Synthesis and characterization of poly (arylene ether ketone) with sulfonated fluorene pendants for proton exchange membrane. J. Membr. Sci. 2007, 297, 90–97. [Google Scholar] [CrossRef]
  70. Sgreccia, E.; Chailan, J.F.; Khadhraoui, M.; Di Vona, M.L.; Knauth, P. Mechanical properties of proton-conducting sulfonated aromatic polymer membranes: Stress–strain tests and dynamical analysis. J. Power Sour. 2010, 195, 7770–7775. [Google Scholar] [CrossRef] [Green Version]
  71. Tang, Y.; Xue, Z.; Xie, X.; Zhou, X. Ionic polymer–metal composite actuator based on sulfonated poly (ether ether ketone) with different degrees of sulfonation. Sens. Actuat. A-Phys. 2016, 238, 167–176. [Google Scholar] [CrossRef]
  72. Zhu, Z.; Asaka, K.; Chang, L.; Takagi, K.; Chen, H. Multiphysics of ionic polymer–metal composite actuator. J. Appl. Phys. 2013, 114, 084902. [Google Scholar] [CrossRef]
  73. Shahinpoor, M. Ionic polymer–conductor composites as biomimetic sensors, robotic actuators and artificial muscles—A review. Electrochim. Acta 2003, 48, 2343–2353. [Google Scholar] [CrossRef]
  74. Hong, W.; Almomani, A.; Montazami, R. Influence of ionic liquid concentration on the electromechanical performance of ionic electroactive polymer actuators. Org. Electron. 2014, 15, 2982–2987. [Google Scholar] [CrossRef]
  75. He, Q.; Vokoun, D.; Stalbaum, T.; Kim, K.J.; Fedorchenko, A.I.; Zhou, X.; Yu, M.; Dai, Z. Mechanoelectric transduction of ionic polymer-graphene composite sensor with ionic liquid as electrolyte. Sens. Actuat. A-Phys. 2019, 286, 68–77. [Google Scholar] [CrossRef]
  76. Shen, C.; Zhao, Q.; Evans, C.M. Precise network polymerized ionic liquids for low-voltage, dopant-free soft actuators. Adv. Mater. Technol. 2020, 4, 1800535. [Google Scholar] [CrossRef]
  77. Yang, J.; Yao, J.; Wang, S. Electromechanical response performance of a reinforced biomass gel artificial muscle based on natural polysaccharide of sodium alginate doped with an ionic liquid for micro-nano regulation. Carbohyd. Polym. 2022, 275, 118717. [Google Scholar] [CrossRef]
  78. Noto, V.D.; Piga, M.; Giffin, G.A.; Lavina, S.; Smotkin, E.S.; Sanchez, J.Y.; Iojoiu, C. Influence of anions on proton-conducting membranes based on neutralized nafion 117, triethylammonium methanesulfonate, and triethylammonium perfluorobutanesulfonate. 1. Synthesis and properties. J. Phys. Chem. C 2012, 116, 1361–1369. [Google Scholar] [CrossRef]
  79. Sun, Z.; Yang, L.; Zhang, D.; Song, W. High performance, flexible and renewable nano-biocomposite artificial muscle based on mesoporous cellulose/ionic liquid electrolyte membrane. Sens. Actuat. B-Chem. 2019, 283, 579–589. [Google Scholar] [CrossRef]
  80. Wang, Y.; Zhu, Z.; Liu, J.; Chang, L.; Chen, H. Effects of surface roughening of Nafion 117 on the mechanical and physicochemical properties of ionic polymer–metal composite (IPMC) actuators. Smart Mater. Struct. 2016, 25, 085012. [Google Scholar] [CrossRef]
  81. Asaka, K.; Oguro, K. Bending of polyelectrolyte membrane–platinum composite by electric stimuli III: Self-oscillation. Electrochim. Acta 2000, 45, 4517–4523. [Google Scholar] [CrossRef]
  82. Wang, Y.; Chen, H.; Wang, Y.; Zhu, Z.; Li, D. Effect of dehydration on the mechanical and physicochemical properties of gold-and palladium-ionomeric polymer-metal composite (IPMC) actuators. Electrochim. Acta 2014, 129, 450–458. [Google Scholar] [CrossRef]
  83. Chen, Q.; Xiong, K.; Bian, K.; Jin, N.; Wang, B. Preparation and performance of soft actuator based on IPMC with silver electrodes. Front. Mech. Eng. China 2009, 4, 436–440. [Google Scholar] [CrossRef]
  84. Esmaeli, E.; Ganjian, M.; Rastegar, H.; Kolahdouz, M.; Kolahdouz, Z.; Zhang, G.Q. Humidity sensor based on the ionic polymer metal composite. Sens. Actuat. B-Chem. 2017, 247, 498–504. [Google Scholar] [CrossRef]
  85. Azizi-Lalabadi, M.; Jafari, S.M. Bio-nanocomposites of graphene with biopolymers; fabrication, properties, and applications. Adv. Colloid Interfac. 2021, 292, 102416. [Google Scholar] [CrossRef]
  86. Sun, Z.; Du, S.; Zhang, D.; Song, W. Influence of pH and loading of PANI on electrochemical and electromechanical properties for high-performance renewable soft actuator with nano-biocomposite electrode. React. Funct. Polym. 2019, 139, 102–111. [Google Scholar] [CrossRef]
Ijms 23 03522 g001 550
Figure 1. Structure diagram of IPMC [23].
Figure 1. Structure diagram of IPMC [23].
Ijms 23 03522 g001
Ijms 23 03522 g002 550
Figure 2. Schematic diagram of IPMC driving mechanism [34].
Figure 2. Schematic diagram of IPMC driving mechanism [34].
Ijms 23 03522 g002
Ijms 23 03522 g003 550
Figure 3. Traditional preparation process of IPMC [43].
Figure 3. Traditional preparation process of IPMC [43].
Ijms 23 03522 g003
Ijms 23 03522 g004 550

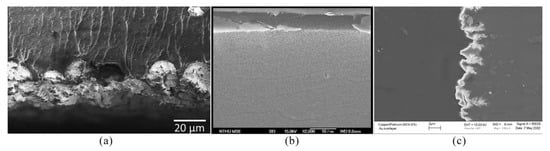

Figure 4. Cross-sectional morphology of IPMC prepared by different electroless plating methods. (a) Prepared by impregnation–reduction method [39]. (b) Prepared by reverse electroless plating method [49]. (c) Prepared by co-reduction method [51].
Figure 4. Cross-sectional morphology of IPMC prepared by different electroless plating methods. (a) Prepared by impregnation–reduction method [39]. (b) Prepared by reverse electroless plating method [49]. (c) Prepared by co-reduction method [51].
Ijms 23 03522 g004
Ijms 23 03522 g005 550
Figure 5. Chitosan actuator based on hot pressing method [59]. (a) Schematic diagram of the assembly and bimorph configuration of an actuator. (b) Typical SEM cross-sectional image of a bimorph configured actuator.
Figure 5. Chitosan actuator based on hot pressing method [59]. (a) Schematic diagram of the assembly and bimorph configuration of an actuator. (b) Typical SEM cross-sectional image of a bimorph configured actuator.
Ijms 23 03522 g005
Ijms 23 03522 g006 550
Figure 6. Cross-sectional morphology of IPMC prepared by different physical plating methods. (a) Prepared by physical vapor deposition method [55]. (b) Prepared by solution casting method [56]. (c) Prepared by hot-pressing method [58]. (d) Prepared by direct assembly method [60].
Figure 6. Cross-sectional morphology of IPMC prepared by different physical plating methods. (a) Prepared by physical vapor deposition method [55]. (b) Prepared by solution casting method [56]. (c) Prepared by hot-pressing method [58]. (d) Prepared by direct assembly method [60].
Ijms 23 03522 g006
Ijms 23 03522 g007 550
Figure 7. Surface morphology of IPMC composite electrode observed by SEM. (a) IPMC electrode surface without MWCNTs. (b) IPMC electrode surface with MWCNTs added [65].
Figure 7. Surface morphology of IPMC composite electrode observed by SEM. (a) IPMC electrode surface without MWCNTs. (b) IPMC electrode surface with MWCNTs added [65].
Ijms 23 03522 g007
Ijms 23 03522 g008 550
Figure 8. Nafion and SPEEK membranes in dry and wet state. (a) Tensile modulus and (b) tensile strength [71].
Figure 8. Nafion and SPEEK membranes in dry and wet state. (a) Tensile modulus and (b) tensile strength [71].
Ijms 23 03522 g008
Ijms 23 03522 g009 550
Figure 9. Preparation of biocomposite actuators based on mesoporous renewable cellulose/ionic liquids [79].
Figure 9. Preparation of biocomposite actuators based on mesoporous renewable cellulose/ionic liquids [79].
Ijms 23 03522 g009
Ijms 23 03522 g010 550
Figure 10. Schematic diagram of IPMC bilayer structures prepared by imidazolium-based ionic liquids with different concentrations. (a) Without Li+ ions. (b) Optimal concentration of Li+ ions (0.1 M). (c) Higher concentrations of Li+ ions (>0.1 M) [48].
Figure 10. Schematic diagram of IPMC bilayer structures prepared by imidazolium-based ionic liquids with different concentrations. (a) Without Li+ ions. (b) Optimal concentration of Li+ ions (0.1 M). (c) Higher concentrations of Li+ ions (>0.1 M) [48].
Ijms 23 03522 g010
Ijms 23 03522 g011 550
Figure 11. Electrode morphology of IPMC with different metal types. (a) Dendritic Au electrode. (b) Granular Pd electrode [82]. (c) Layered Pt electrode [83].
Figure 11. Electrode morphology of IPMC with different metal types. (a) Dendritic Au electrode. (b) Granular Pd electrode [82]. (c) Layered Pt electrode [83].
Ijms 23 03522 g011
Ijms 23 03522 g012 550
Figure 12. Preparation of renewable biocompatible nanocomposite soft actuator based on three-dimensional porous electrode [86].
Figure 12. Preparation of renewable biocompatible nanocomposite soft actuator based on three-dimensional porous electrode [86].
Ijms 23 03522 g012
Table
Table 1. Smart material classification.
Table 1. Smart material classification.
TypeMaterialStimulantResult ImpactRef.
Property changesThermochromicThermal energySpectral reflectance[2]
MagnetorheologicalMagnetic fieldViscosity[3]
Shape memoryThermal energyCrystal phase transition[4]
Energy exchangesPhotovoltaic power generationRadiant energyElectric current[5]
Electroactive polymerElectric fieldStress[6]
ThermoelectricElectric currentTemperature difference[7]
Table
Table 2. Performance comparison of different types of EAP materials.
Table 2. Performance comparison of different types of EAP materials.
TypeCategoryStrain Rate (%)Stress (MPa)Response TimeStiffness (MPa)Density (g/cm3)Drive VoltageRef.
Ionic typeIPMC>2010~30ms~s70~3001~31~5 V[9]
Conductive polymers0.15ms~s>1031.48<10 V[10]
Ionic gel40-min0.11.10 V/mm[11]
Electric field typeDielectric elastomer3000.2ms0.51.5144 V/μm[12]
Ferroelectric polymer2~1045ms1~1031.78200 V/μm[13]
Electrostrictive elastomer1.765ms6007.512 V/μm[14]
Table
Table 3. Comparison of IPMC preparation technology.
Table 3. Comparison of IPMC preparation technology.
CategoryPreparation MethodAdvantageDisadvantageRef.
Electroless platingImpregnation–reduction methodForms durable metal electrode layersTime consuming and costly[41]
Reverse electroless platingMore uniform metal particle distributionThe process is complicated[49]
Co-reduction methodNon metallic materials can be usedTime consuming and costly[51]
Mechanical platingPhysical vapor depositionTime saving and large area preparationPoor bond fastness[55]
Solution casting methodDiversified shapesNeed to be used with other methods[56]
Hot-pressing methodThe thickness of the membrane is controllablePoor flexibility[58]
Direct assembly methodEasy to operatePoor interface bonding[60]
Table
Table 4. Study on modification of IPMC.
Table 4. Study on modification of IPMC.
Modification AspectAdvantageDisadvantageRef.
Modification of basement membraneMWCNTs/IPMCThe surface coating is smooth and uniform, and the rigidity of the basement membrane is enhancedThere are problems with low output force and retraction[65]
Blended composite ion exchange membraneConducive to ion migration and improve driving performanceHigher cost[67]
Hydrocarbon backbone ion polymer membraneGood proton conductivity, low cost and environmental protectionTime consuming to prepare polymeric membranes[71]
Modification of the working mediumOrganic solventsImprove the stability of the basement membraneSlow driving speed[74]
Ionic liquidImprove drive performance and operating lifeHigher cost[79]
Modification of electrodesRare metalsGood conductivity and stabilityEasy to fall off after repeated use[82]
Carbon materialHigh performance, high conductivityHigher cost[86]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

He, C.; Gu, Y.; Zhang, J.; Ma, L.; Yan, M.; Mou, J.; Ren, Y. Preparation and Modification Technology Analysis of Ionic Polymer-Metal Composites (IPMCs). Int. J. Mol. Sci. 2022, 23, 3522. https://doi.org/10.3390/ijms23073522

AMA Style

He C, Gu Y, Zhang J, Ma L, Yan M, Mou J, Ren Y. Preparation and Modification Technology Analysis of Ionic Polymer-Metal Composites (IPMCs). International Journal of Molecular Sciences. 2022; 23(7):3522. https://doi.org/10.3390/ijms23073522

Chicago/Turabian Style

He, Chendong, Yunqing Gu, Junjun Zhang, Longbiao Ma, Muhan Yan, Jiegang Mou, and Yun Ren. 2022. "Preparation and Modification Technology Analysis of Ionic Polymer-Metal Composites (IPMCs)" International Journal of Molecular Sciences 23, no. 7: 3522. https://doi.org/10.3390/ijms23073522

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
