HuNAC20 and HuNAC25, Two Novel NAC Genes from Pitaya, Confer Cold Tolerance in Transgenic Arabidopsis

by
Xinglong Hu
,
Fangfang Xie
,
Wenwei Liang
,
Yinhao Liang
,
Zhike Zhang
,
Jietang Zhao
,
Guibing Hu
and
Yonghua Qin
*
Guangdong Provincial Key Laboratory of Postharvest Science of Fruits and Vegetables, Key Laboratory of Biology and Genetic Improvement of Horticultural Crops (South China), Ministry of Agriculture and Rural Affairs, College of Horticulture, South China Agricultural University, Guangzhou 510642, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(4), 2189; https://doi.org/10.3390/ijms23042189
Submission received: 14 January 2022 / Revised: 11 February 2022 / Accepted: 11 February 2022 / Published: 16 February 2022
(This article belongs to the Special Issue Molecular Genetics and Plant Breeding 2.0)
Browse Figures
Versions Notes

Abstract

:
NAC transcription factors are one of the largest families of transcriptional regulators in plants, and members of the gene family play vital roles in regulating plant growth and development processes including biotic/abiotic stress responses. However, little information is available about the NAC family in pitaya. In this study, we conducted a genome-wide analysis and a total of 64 NACs (named HuNAC1-HuNAC64) were identified in pitaya (Hylocereus). These genes were grouped into fifteen subgroups with diversities in gene proportions, exon–intron structures, and conserved motifs. Genome mapping analysis revealed that HuNAC genes were unevenly scattered on all eleven chromosomes. Synteny analysis indicated that the segmental duplication events played key roles in the expansion of the pitaya NAC gene family. Expression levels of these HuNAC genes were analyzed under cold treatments using qRT-PCR. Four HuNAC genes, i.e., HuNAC7, HuNAC20, HuNAC25, and HuNAC30, were highly induced by cold stress. HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were localized exclusively in the nucleus. HuNAC20, HuNAC25, and HuNAC30 were transcriptional activators while HuNAC7 was a transcriptional repressor. Overexpression of HuNAC20 and HuNAC25 in Arabidopsis thaliana significantly enhanced tolerance to cold stress through decreasing ion leakage, malondialdehyde (MDA), and H2O2 and O2− accumulation, accompanied by upregulating the expression of cold-responsive genes (AtRD29A, AtCOR15A, AtCOR47, and AtKIN1). This study presents comprehensive information on the understanding of the NAC gene family and provides candidate genes to breed new pitaya cultivars with tolerance to cold conditions through genetic transformation.

1. Introduction

Transcription factors (TFs) and cis-elements function in the promoter region of different stress-related genes, and thereby alter their expression in response to the stress tolerance [1,2]. Many plant TFs, including MYB, bHLH, AP2, MYC, WRKY, and NAC, have been identified and play diverse functions in various biological processes [3]. Among those TFs, NACs are one of the largest families and play important roles in diverse developmental processes in plants [4,5]. The name of the NAC gene family was derived from the three earliest characterized proteins with a particular domain (NAC domain) from petunia NAM (no apical meristem), Arabidopsis ATAF1/2, and CUC2 (cup-shaped cotyledon) [6,7].
Protein sequences of this family reveal that a typical NAC TF has a highly conserved NAC domain with about 160 amino acid residues at the N-terminal region while the C-terminal region is highly diversified in length and sequence, which is considered the transcriptional activation domain [8]. The NAC domain is further divided into five subdomains (A–E) that represent motifs for both DNA-binding and protein–protein interactions [9]. “A” sub-domain functions in the dimerization of the TF, “B”, and “E” have distinctive functions of proteins while “C” and “D” are positively charged and allow the TF to bind to the DNA [10,11,12].
The NAC family widely exists in various kinds of plants involving diverse biological processes, including flower formation [13], lateral root formation [14], leaf senescence [15], hormone signaling [16], cell division [17], secondary wall synthesis [18], and fruit growth and ripening [19,20]. NAC TFs have attracted a lot of attention as regulators in plant tolerance during biotic and abiotic stresses such as high salinity, drought, temperature, and pathogen defense [21,22,23,24]. Therefore, the NAC TF family is of great importance for plants to resist harsh environmental conditions. Among these adverse external stimuli, cold stress has become a major environmental factor limiting plant growth and productivity throughout the world [25]. Previous studies have showed that some plant NAC TFs are involved in plant cold stress. Overexpression of MbNAC25 in Arabidopsis could improve the tolerance to cold and salinity stresses via enhanced scavenging capability of reactive oxygen species (ROS) [26]. Transgenic Arabidopsis plants overexpressing the GmNAC20 gene enhanced tolerance to salt and freezing stresses. GmNAC20 may regulate cold stress tolerance through activation of the DREB/CBF–COR pathway [14]. The plasma membrane-associated transcription factor, ANAC062, is an important regulator in the cold tolerance signal pathway [27]. Overexpressing LINAC2 in Arabidopsis thaliana could enhance tolerance to cold stress and activated the expression of many cold-responsive genes [28].
Pitaya, a tropical and subtropical plant belonging to Hylocereus or Selenicereus in the family Cactaceae, is famous for its high nutritional, economic, and medicinal values [29]. Moreover, pitaya can adapt to a wide ecological range such adverse environmental conditions as drought, heat, and poor soil due to it being a kind of succulent plant [30]. Genome-wide surveys of the NAC family have been identified in various plant species, such as Arabidopsis [8], rice [8], maize [31], pepper [32], pear [33], apple [34], and wheat [35]. However, comprehensive analysis of the NAC family in pitaya has not been reported yet. With the completion of the chromosome-level genome sequencing of pitaya [36], it provides a great opportunity to systematically study the NAC family at the genome-wide level. In this study, the NAC family in the pitaya genome were identified and their phylogeny, genomic structures, conserved motifs, chromosomal locations, synteny, and expression levels were analyzed. Transgenic arabidopsis plants harboring HuNAC20 and HuNAC25 were studied under cold treatment. The aim of the present study is to identify and validate the candidate HuNAC genes involved in cold–stress response that can be used for transgenic breeding to enhance the cold tolerance in pitaya.

2. Results

2.1. Genome-Wide Identification of NAC Family Genes

To identify pitaya NAC TF encoding genes, all proteins were annotated from the H. undatus genome [36]. In total, 64 NAC genes were identified and named HuNAC1 to HuNAC64 according to their chromosomal position. Each of these HuNAC proteins contained an NAM domain (PF02365.15), a specific conserved domain of NAC TF protein family (Supplementary File S1). These genes encoded predicted proteins ranging from 154 to 684 AA (amino acids) with isoelectric point (PI) values ranging from 5.33 to 9.19 and molecular weights from 17.95 to 75.87 KDa (Table S1). Subcellular location of these genes was predicted using an online tool from Molecular Bioinformatics Center (http://cello.life.nctu.edu.tw/) (Accessed on 13 January 2022). The subcellular localization and the protein sequences of the 64 HuNACs were listed in Supplementary File S2. Among the 64 NAC proteins, five (HuNAC16, HuNAC17, HuNAC21, HuNAC52, and HuNAC55) were predicted to be located in the cytoplasmic; three (HuNAC3, HuNAC34, and HuNAC48) were chloroplast; two (HuNAC4 and HuNAC10) were mitochondrial; and the rest were localized in the nucleus.

2.2. Phylogenetic Analyses of NAC Family Members

To explore the evolutionary relationships among HuNAC genes, a Maximum Likelihood (ML) phylogenetic tree was constructed according to NAC protein sequences from H. undatus and A. thaliana (Figure 1). Based on the ANAC classification and NAC domain alignments of HuNACs, all members of the HuNACs and ANACs were divided into two major groups: Groups A and B. The tree was divided into fifteen subgroups in Group A (A1-15) according to similarities in NAC domain structures. The number of HuNAC genes in each subgroup varied greatly. Subgroups A14 and A13 had only one and two genes, respectively. Subgroup A1 constituted the largest clades with 12 pitaya NAC members, followed by Subgroup A3 with 10 sequences. However, no members were detected in Group B in pitaya, suggesting that they might have been lost in these subfamilies.

2.3. Gene Structure and Conserved Motif Analyses of HuNACs

To better understand the similarity and diversity of the HuNAC genes, the exon/intron distributions of HuNAC and conserved motifs were analyzed. As shown in Figure 2, the 64 NAC genes were divided into 15 subcases. Genes within the same subcase had a similar exon/intron structure in terms of intron number and exon length. For example, among the 12 members in subgroup A3, 11 had two introns, while six genes in subgroup A4 had 2–5 introns.
The conserved motifs of NAC family proteins in pitaya were investigated using MEME online software. Based on this program, 20 distinct motifs were identified (Figure S1). According to frequencies of occurrence, motifs 1, 4, and 3 were the three most frequently presented motifs which were observed in all HuNAC proteins, and most of the conserved motifs were located at the N-terminus. Among the 20 motifs, motif 2, motif 4, motif 3, and motif 5 had the subdomains A, B, D, and E, respectively, and motifs 1 and 6 contained subdomain C (Figure 2D). These results are consistent with the finding that a connection existed between subfamilies and motifs [37].

2.4. Chromosomal Localization and Synteny Analyses of HuNACs

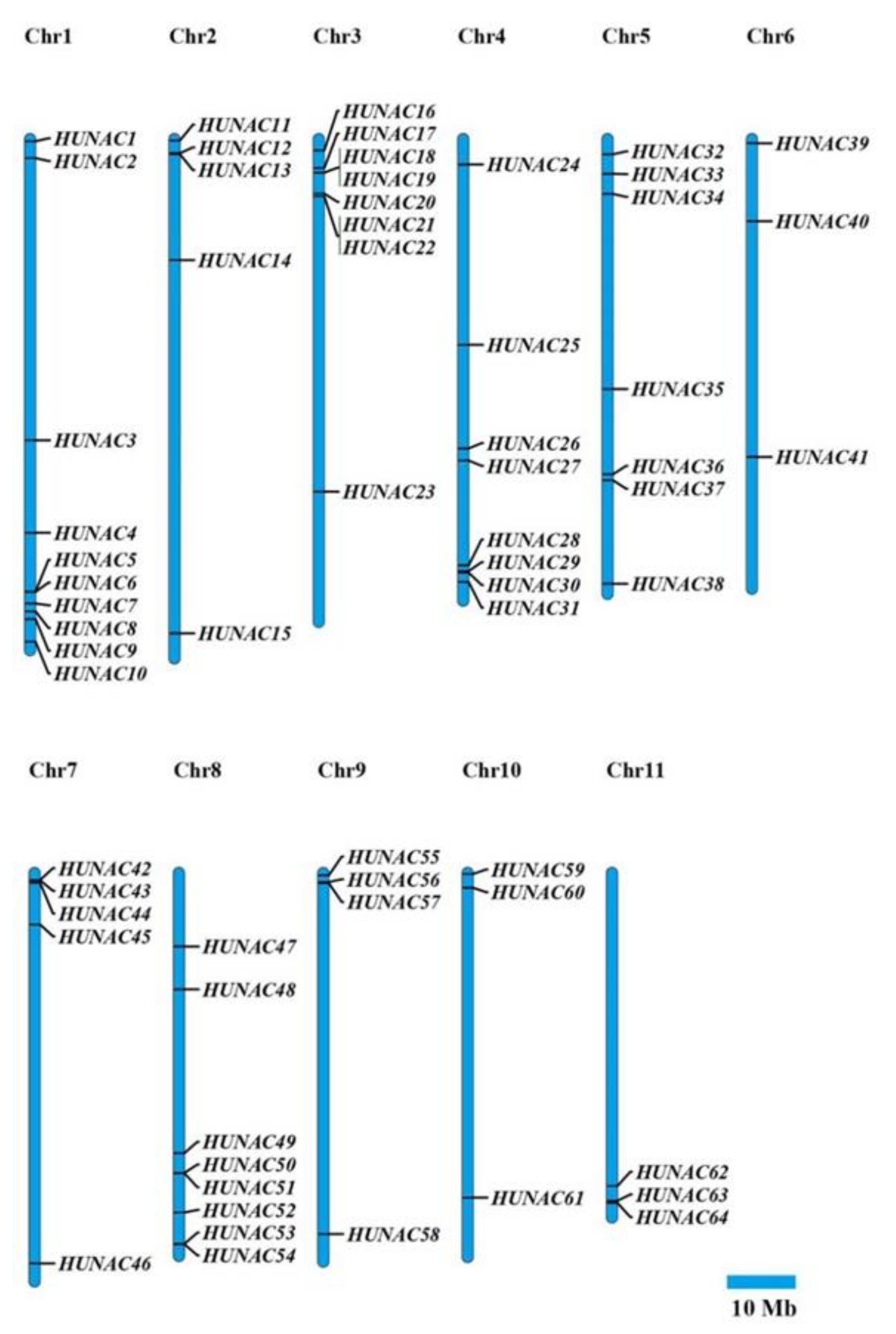

Genome chromosomal location analyses revealed that the 64 HuNAC genes were unevenly scattered on all 11 chromosomes (Figure 3). Chromosomes 1, 3, 4, and 8 contained 12, 8, 8, and 8 HuNAC genes, respectively. Chromosomes 6, 10, and 11 had only three HuNAC genes. The average numbers of HuNAC genes on the chromosome were approximately 6.0.

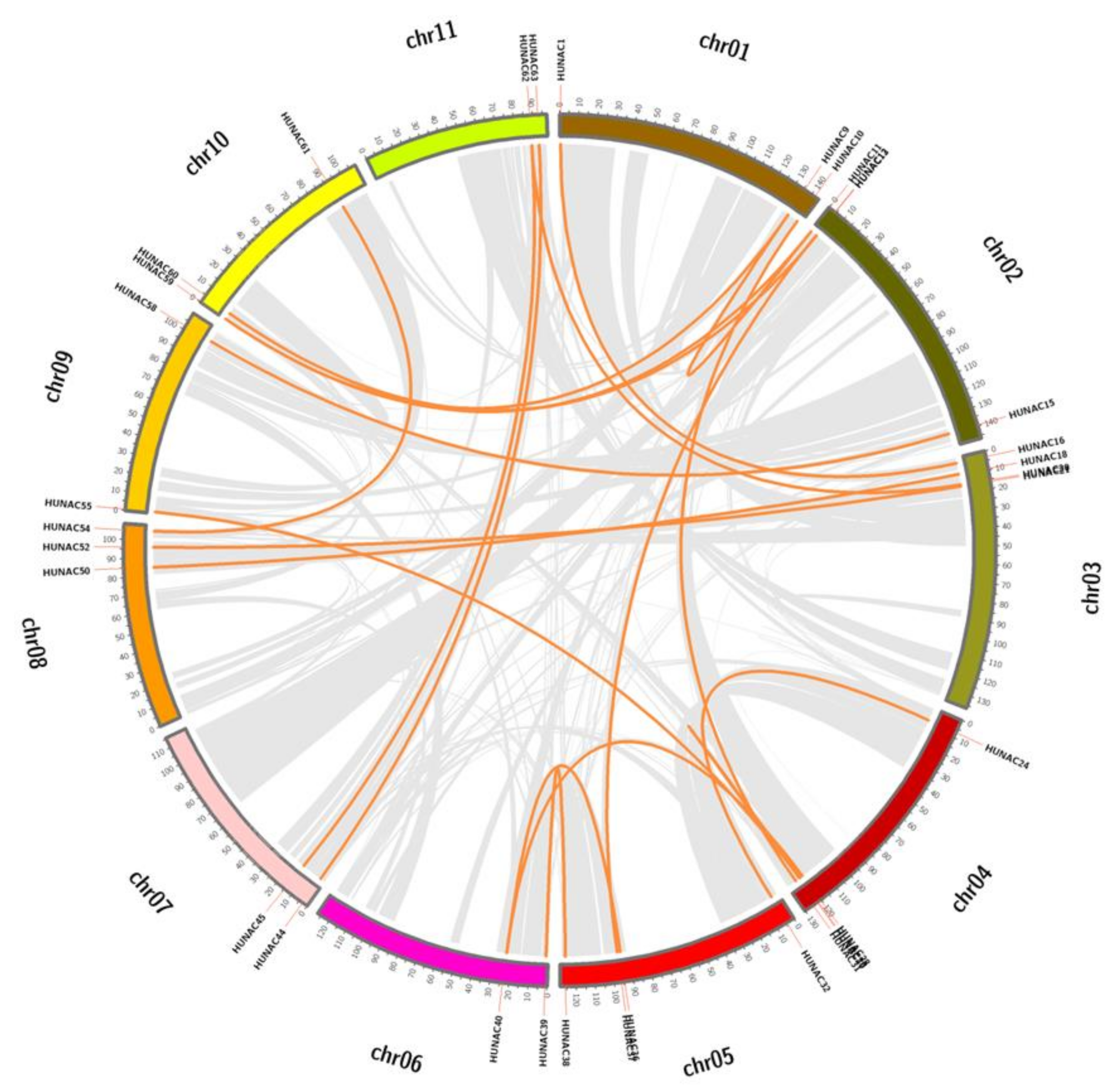

The phenomenon of gene duplication has been recognized to occur throughout plant evolution, and plays an important role in the expansion of the large gene families in plant [38]. Gene duplication events were investigated to clarify the expansion patterns of the NAC family in pitaya. Twenty segmental duplicated events with 33 HuNAC genes were identified in the pitaya genome (Figure 4; Supplementary File S3). The high-identity segmental duplication events in pitaya suggested that this duplication type likely plays a crucial role in the expansion of the pitaya NAC gene family.

2.5. Expression Analyses of HuNAC Genes under Cold Treatment

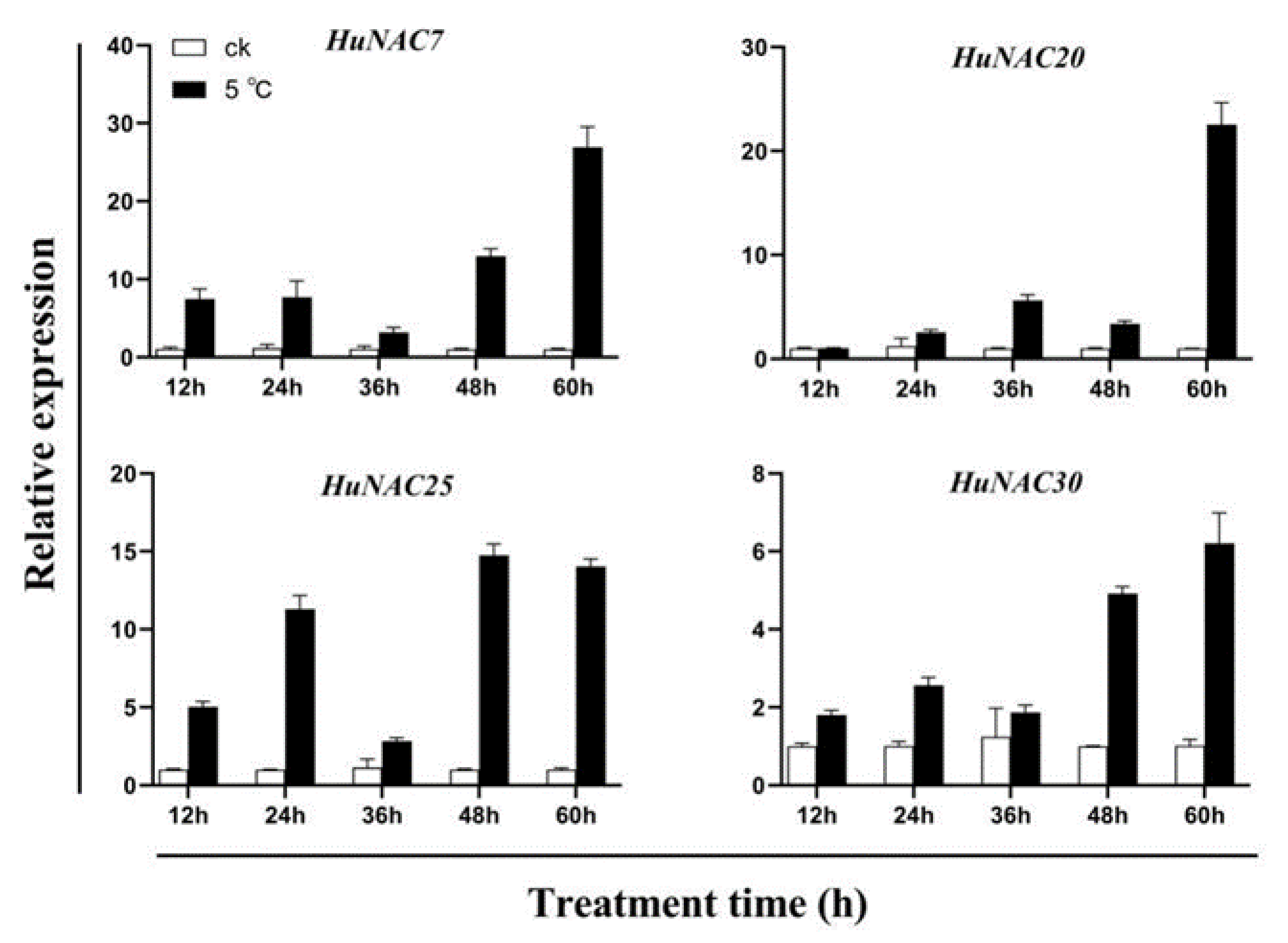

In plants, many NAC genes are involved in the response to abiotic stresses. Therefore, the expression patterns and putative functions of all 64 HuNAC genes were analyzed under cold conditions, and 49 HuNAC genes were induced under cold treatment (Figure S2). As shown in Figure 5, compared with normal temperature, higher expression levels of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were detected at a low temperature. The expression of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 showed a trend of gradual increase. HuNAC7, HuNAC25, and HuNAC30 were strongly induced at 24 h after cold treatment, while expression levels of HuNAC20 significantly increased at 36 h after cold treatment. Expressions of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 reached their maximum levels at 60 h after cold treatment.

2.6. Subcellular Localization and Transcriptional Activation Analyses of HuNACs

To analyze the subcellular localization of HuNAC7, HuNAC20, HuNAC25, and HuNAC30, their full-length coding sequences were fused with the GFP to construct 35S-HuNACs-GFP vectors, and transiently expressed in leaves of N. benthamiana. As shown in Figure 6, the fluorescence of HuNACs-GFP were predominately observed in the nucleus of epidermal cells, while the GFP signal of positive control was detected around the cytoplasm and the nucleus. Those results suggested that the HuNAC7, HuNAC20, HuNAC25, and HuNAC30, like the other reported NAC proteins [39], encoded nuclear proteins. Full-length coding regions of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were fused to the GAL4BD to generate pGBKT7-HuNACs fusion plasmids to study the transcriptional activation abilities of HuNACs. Like the positive control (pGBKT7-53+pGADT7-T), yeast cells expressing the HuNAC20, HuNAC25, and HuNAC30 grew well on SD/-Trp-His-Ade and showed α-galactosidase activity, indicating that HuNAC20, HuNAC25, and HuNAC30 had trans-activation ability in yeast cells; however, yeast cells expressing the HuNAC7 could not grow on SD/-Trp-His-Ade (pGBKT7) (Figure 7A). Trans-activation of HuNACs were further verified in leaves of N. benthamiana using the dual-luciferase reporter system. Compared with the negative control, the expression of the positive control (BD-62SK-VP16), HuNAC20, HuNAC25, and HuNAC30 resulted in a higher value of the LUC/REN ratio. However, HuNAC7 significantly repressed the expression of the LUC reporter in comparison to the negative control (pBD) and the ratio of LUC/REN of HuNAC7 was 0.3-fold compared with the pBD (Figure 7C). These results demonstrated that HuNAC20, HuNAC25, and HuNAC30 are transcriptional activators while HuNAC7 is a transcriptional repressor.

2.7. Phylogenetic and Sequence Analyses of HuNAC20 and HuNAC25

HuNAC20 and HuNAC25 were cloned based on the sequences of the pitaya genome [36]. The full-length coding DNA sequences (CDSs) of HuNAC20 and HuNAC25 were both 891 bp, encoding 296 amino acids with molecular weights of 33.74 and 33.65 kDa and pIs of 7.69 and 6.26, respectively. Homologous analyses of HuNAC20, HuNAC25, and 18 NAC protein sequences from different plant species were aligned with DNAMAN software. The similarity between HuNAC20 and HuNAC25 was 17.7% (Figure S3a). Both HuNAC20 and HuNAC25 had a conserved subdomains (A–E) in the N-terminal region and a diverse activation domain in C-terminal, respectively. HuNAC20 and HuNAC25 both contained a conserved nuclear localization signal (NLS) (Figure S3b,c). HuNAC20 shared 78.2% similarity with CqNAC2 (XP_021772603.1) from Chenopodium quinoa and 77.6% similarity with BvATAF2 (QGZ00533.1) from Beta vulgaris. HuNAC25 had 67.2% similarity with BvNAC (XP_010679326.1) from Beta vulgaris and 64.0% similarity with MeNAC (XP_021630142.1) from Manihot esculenta.

2.8. Overexpression of HuNAC20 and HuNAC25 in Arabidopsis Enhanced Tolerance to Freezing Stress

To further explore the function of HuNAC20 and HuNAC25, we generated transgenic A. thaliana plants constitutively expressing HuNAC20 and HuNAC25 driven by the 35S promoter. Homozygous T3 lines were obtained on the basis of 3:1 segregation for kanamycin resistance phenotype. Expression levels of the target genes in the homozygous transgenic lines were analyzed by RT-qPCR. Two independent T3 transgenic lines with a relatively high expression of HuNAC20 (NAC20-L1 and NAC20-L3) and HuNAC25 (NAC25-L2 and NAC25-L3) were selected for cold tolerance experiments.
At normal conditions, no significant difference in morphology was observed between transgenic lines and WT plants. After cold acclimation (48 h at 4 °C) and recovery for 6 d at 22 °C, transgenic plants displayed better performance than wild-type under freezing treatment (−6 °C for 6 h) (Figure 8A and Figure 9A). Most WT plants died with a survival rate at around 8.0%. The survival rates of the transgenic lines (90.0% for NAC20-L1, 88.0% for NAC20-L3, 82.0% for NAC25-L2 and 78.0% for NAC25-L3) were significantly higher than that of WT plants (8.0%) (Figure 8C and Figure 9C). These results indicated that overexpression of HuNAC20 and HuNAC25 in A. thaliana enhances tolerance to cold stress.

2.9. Overexpression of HuNAC20 and HuNAC25 Affected Ion Leakage, MDA Contents, H2O2, and O2− Accumulation under Cold Stress

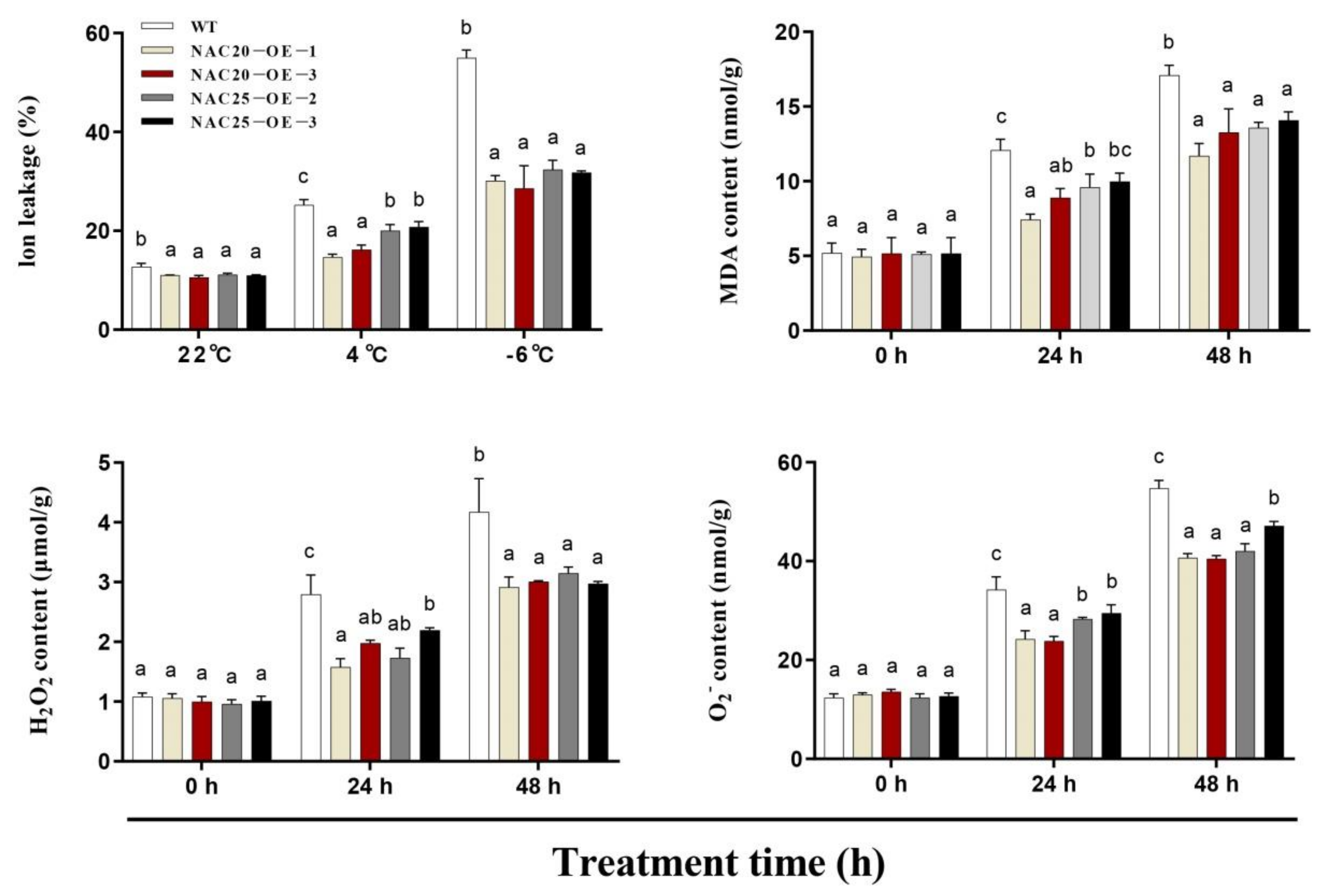

Ion leakage, MDA content, H2O2, and O2− accumulation are commonly used to assess stress resistance capacity during abiotic stresses. Under normal conditions (22 °C), no significant differences in ion leakage, MDA, H2O2, and O2− contents were detected between the transgenic lines and WT plants. Ion leakage, MDA, H2O2, and O2− contents gradually increased in both transgenic lines and WT plants after cold treatment. The levels of ion leakage in the transgenic lines were significantly lower than those in WT plants during cold (4 °C for 48 h) and freezing treatments (−6 °C for 6 h). After cold treatment for 24 h and 48 h, MDA, H2O2, and O2− contents in the transgenic lines were significantly lower than those in WT plants (Figure 10). These results suggested that overexpression of HuNAC20 and HuNAC25 enhances A. thaliana tolerance to cold stress by altering the ion leakage, MDA, H2O2, and O2− accumulation.

2.10. Overexpression of HuNAC20 and HuNAC25 Activated the Expression of Cold-Responsive Genes under Cold Stress

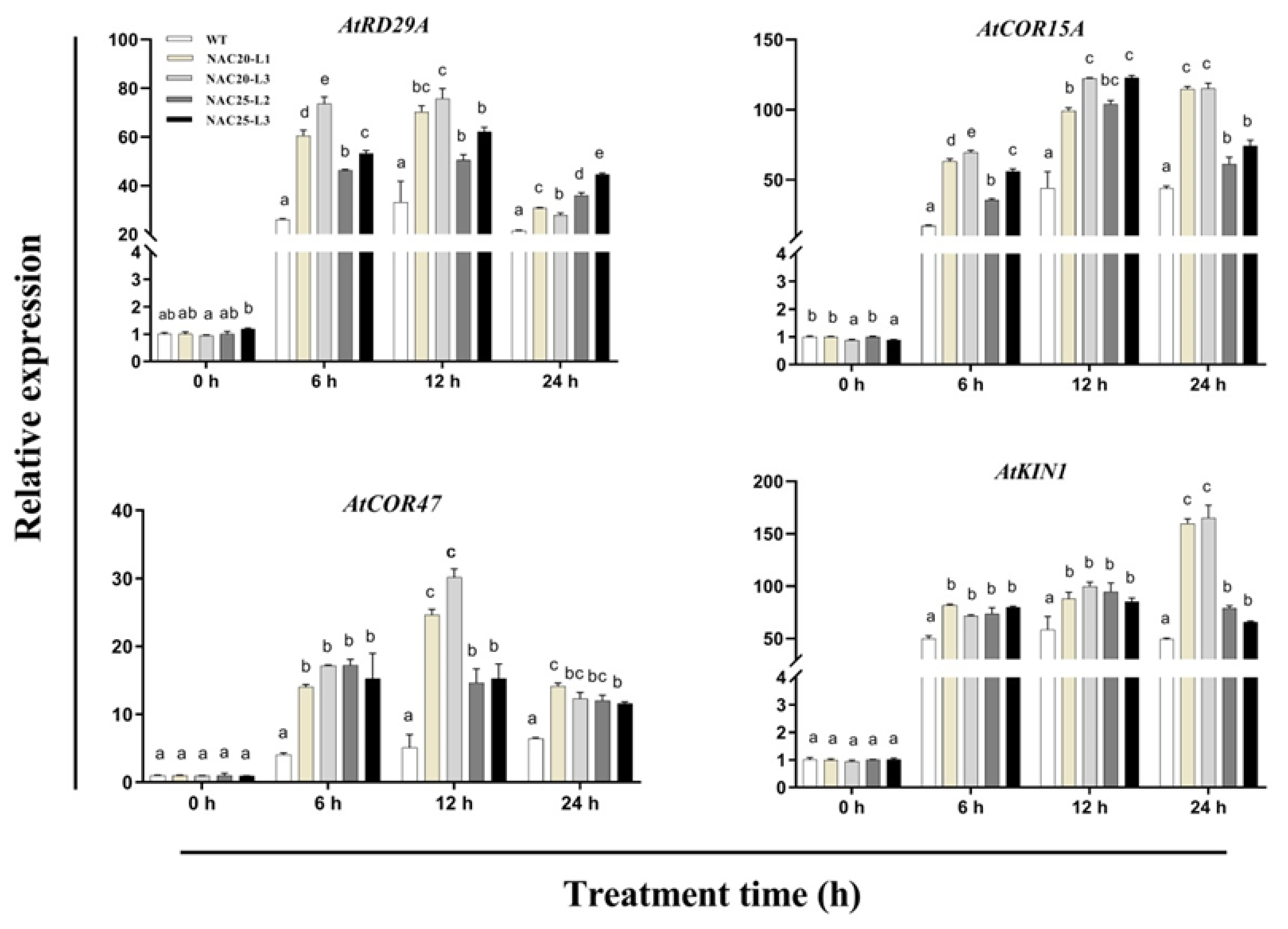

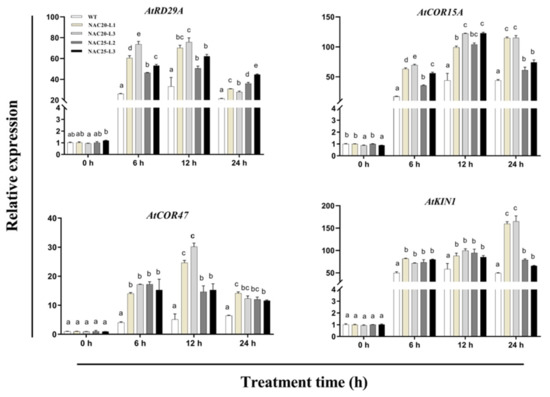

The transcript levels of cold-responsive genes including AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 were analyzed in HuNAC20 and HuNAC25 transgenic lines and WT plants under cold treatment. The expressions of these genes in transgenic lines and WT plants were relatively low under normal conditions (22 °C). Compared with WT plants, higher transcripts of AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 were observed in HuNAC20 and HuNAC25 transgenic plants after 24 h under cold treatment (Figure 11). These results indicated that HuNAC20 and HuNAC25 could activate expression levels of AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 responsible for stronger tolerance to cold stress in transgenic A. thaliana lines.

3. Discussion

NAC is one of the largest families of TFs unique to plants and plays important roles in defense against harsh environmental conditions [40,41]. NAC TFs also play crucial roles in plant physiological processes [42]. With the development of whole genome sequencing technology, great progress has been made in identification of NAC genes from Arabidopsis [8], rice [8], cucumber [24], pepper [32], and apple [34]. However, little information is available about the NAC family in pitaya. In the present study, a total of 64 NAC genes distributed in 11 chromosomes were identified from pitaya (Figure 3). Great differences in the size, sequence, physical, and chemical properties of the proteins encoded by HuNACs were detected, which was consistent with NACs from the other plant species [22,24,33,38]. The phylogenetic analyses showed that these HuNACs were classified into 15 subgroups with ANACs in the Group A, and the subgroup A1 had the most HuNACs (19%), followed by the A3 (16%), whereas the A14 subgroup had the fewest genes (2%) (Figure 1). However, Group B had no member of HuNACs similar to the results from quinoa [43]. Most HuNACs had three exons and two introns (Figure 2), indicating that the genetic structural diversity of NAC in pitaya, which was similar to that of the other species such as kiwifruit [44], Musa Acuminata [45], cucumber [24], and white pear [22]. High segmental duplication events resulted in the expansion of the NAC gene family in H. undatus (Figure 4), which was consistent with the evolutionary pattern in pineapple [38]. Therefore, we speculated that these pitaya-specific NAC genes may have special roles in pitaya.
The growth and development of pitaya are frequently affected by abiotic stresses such as drought, high salinity, or extreme temperatures [46,47]. Cold stress is one of the most important influencing factors restricting pitaya production in South China. Previous studies have suggested that NAC TFs can be induced by cold stress. Overexpression of SlNAC35 enhanced chilling tolerance of transgenic tomato [48]. Compared with non-cold control fruits, the expression level of MaNAC1 in the fruits directly stored at 7 °C was significantly increased [49]. VvNAC17, a novel NAC TF, was expressed in various tissues under cold treatment and enhanced freezing tolerance in transgenic Arabidopsis [50]. In this study, expressions of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were strongly induced under cold-stress (Figure 5), indicating that they may be involved in plant responses to cold stress. Subcellular localization is important to elucidate protein function. In our study, HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were nuclear proteins (Figure 6), which is consistent with the other reported NAC proteins [16,39,45].
NAC proteins are involved in plant responses to cold stress. Overexpressing LlNAC2 in A. thaliana enhanced tolerance to cold stress. Compared with WT plants, the transgenic plants had lower electrolyte leakage and higher levels of soluble sugars [28]. Overexpression of GmNAC20 confers tolerance of freezing stress in transgenic plants by regulating downstream stress-responsive genes such as cor6.6, cor78, and cor15A [14]. Overexpressing MbNAC25 in Arabidopsis increased cold tolerance via enhanced scavenging capability of reactive oxygen species (ROS) under low-temperature stress (4 °C) [51]. In the present study, two novel NAC TFs, i.e., HuNAC20 and HuNAC25, were cloned from pitaya. HuNAC20 and HuNAC25 were nuclear-localized NAC-type DNA-binding proteins. Overexpression of HuNAC20 and HuNAC25 in Arabidopsis enhanced cold tolerance. Ion leakage, MDA contents, and H2O2 and O2− accumulation are commonly used to assess the severity of membrane lipid damage under stress conditions [52]. In our study, overexpression of HuNAC20 and HuNAC25 in Arabidopsis lines resulted in lower contents of ion leakage, MDA, and H2O2 and O2− under cold stress. Compared with WT, higher expression levels of the cold-responsive genes (AtRD29A, AtCOR15A, AtCOR47, and AtKIN1) were detected in the transgenic plants under cold stress (Figure 11). These results indicated that overexpression of HuNAC20 and HuNAC25 in A. thaliana could activate expressions of AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 under cold stress (Figure 12). The results are consistent with those NAC TFs from the other plants species such as Lilium lancifolium [28], Solanum lycopersicum [48,53], and Malus baccata [51]. Putative binding cis-elements of NAC proteins have been identified to localize in the promoter sequences of these genes [54]. However, the mechanism of interaction between HuNAC20 and HuNAC25 and the cold-responsive genes is still not clear yet, and further study is necessary to elucidate it.

4. Conclusions

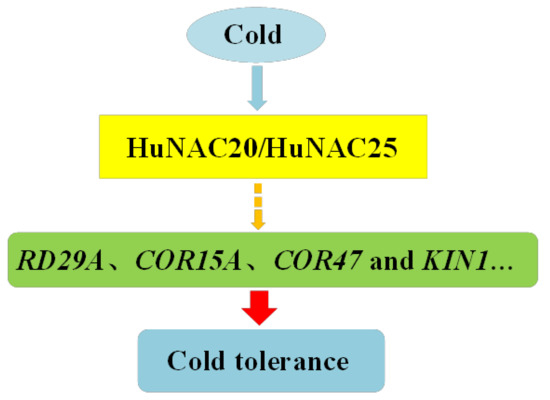

In summary, this study provides the first report on identification and characterization of the NAC gene family based on the genome-wide analyses of the H. undatus genome. A total of 64 HuNAC were identified and divided into fifteen subfamilies. The 64 HuNAC were unevenly scattered on all 11 chromosomes. HuNAC7, HuNAC20, HuNAC25, and HuNAC30 may be involved in cold stress tolerance according to their expression patterns. HuNAC7, HuNAC20, HuNAC25, and HuNAC30 were nucleus proteins. HuNAC20, HuNAC25, and HuNAC30 had transcriptional activity while HuNAC7 acted as a transcriptional repressor. Overexpressing HuNAC20 and HuNAC25 in Arabidopsis enhanced tolerance of cold stress by altering the expression of cold-responsive genes in transgenic plants. The results of the present study provide valuable information for a better understanding of NAC TFs involved in cold–stress response in pitaya.

5. Materials and Methods

5.1. Identification of the Pitaya NAC Gene

The Hidden Markov Model (HMM) profiles of the NAM domain PF02365.15 were downloaded from the Pfam database (https://pfam.xfam.org/) (Accessed on 13 January 2022). HMM was used to search NAM (PF02365.15) domains from the pitaya genome with values (e-value) cut-off at 1.0 [36]. The integrity of the NAM domain was determined using the online program SMART with an e-value < 0.1. The length, molecular weight, and isoelectric point of each NAC protein were predicted by the online ExPasy program (https://web.expasy.org/protparam/) (accessed on 13 January 2022).

5.2. Phylogenetic Analyses of the Pitaya NAC Gene

To investigate the phylogenetic relationship of the NAC gene families in Arabidopsis and H. undatus, the Arabidopsis NAC protein sequences were downloaded from the Arabidopsis Information Resource (https://www.arabidopsis.org/) (accessed on 13 January 2022). All NAC TFs were aligned using the MUSCLE set at default parameters [55]. The Maximum Likelihood (ML) phylogenetic tree was constructed using the MEGA7 program [56]. Bootstrapping was performed with 1000 replications. The tree was exhibited by the EVOLVIEW online tool (https://www.evolgenius.info/evolview/) (accessed on 13 January 2022).

5.3. Analyses of Gene Structure and Conserved Motifs in the HuNAC Family

The gene structure of each HuNAC gene was drawn using the TBtools software [57]. The MEME (http://meme-suite.org/tools/meme) (accessed on 13 January 2022) was used to identify the unknown conserved motifs with the following parameters: site distribution: zero or one occurrence (of a contributing motif site) per sequence, maximum number of motifs: 25, and optimum motif width ≥6 and ≤200.

5.4. Chromosomal Locations and Synteny Analyses of HuNAC Genes

The chromosome location of each HuNAC gene was obtained from the pitaya genome [36]. These data were then integrated and plotted using Mapchart software [58]. The Multiple Collinearity Scan toolkit (MCscanX) was applied to analyze the duplication pattern for each HuNAC followed the operation manual [59].

5.5. Plant Material

Stems (6–8 cm in height) in vitro from pitaya cultivar ‘Hongguan No. 1’ (Hylocereus monacanthus) on rooting medium (MS containing 0.5 mM IBA) for 15 d were used as materials [60]. The pitaya plants were cultured in a climate chamber at the South China Agricultural University (Guangzhou, China) under a temperature range of 23–25 °C and a 16 h light (50 μmol m−2 s−1) and 8 h dark. Plantlets were placed in a climate cabinet at 5 °C to analyze the expression patterns of the NAC family. The stems from treatments and control were collected respectively at 12, 24, 36, 48, and 60 h after treatment, immediately frozen in liquid nitrogen and stored at −80 °C until future analysis.
Arabidopsis thaliana Columbia-0 (Col-0) was used for genetic transformation of HuNAC20 and HuNAC25. Transgenic lines and WT plants were grown in 9 cm × 9 cm plastic pots containing a 1:1 mixture of sterile peat soil and vermiculite with normal management in a growth chamber [24 ± 1 °C, 16 h light (50 μmol m−2 s−1) and 8 h dark and 65% relative humidity]. Seeds of Nicotiana benthamiana were planted and cultured under the same conditions.

5.6. Analyses of Ion Leakage, MDA Content, H2O2 and O2−

Three-week-old seedlings of transgenic Arabidopsis lines and WT were treated at −6 °C for 6 h after cold acclimation at 4 °C for 48 h, followed by 4 °C in the dark for 12 h. The plants were transferred to normal conditions (22 °C) for recovery for 6 d, and then the survival rates were counted. Photos were taken before freezing and after recovery. The rosette leaves were collected for analyses of ion leakage [61], malondialdehyde (MDA) content, and H2O2 and O2− accumulation [62,63]. For chilling treatment, the seedlings were put in a 4 °C incubator, and leaves were collected respectively at 0, 6, 12, and 24 h for expression analyses of cold-responsive genes (AtRD29A, AtCOR15A, AtCOR47, and AtKIN1) [64], and AtACTIN2 (AT1G13320) were used as internal control [61]. Specific primers are listed in Supplementary File S4.

5.7. Gene Cloning and Expression Analyses

Total RNA was isolated using the EASYspin Plus Complex Plant RNA Kit (RN53) (Aidlab Biotechnology, Beijing) according to the manufacturer’s protocol. Single-stranded cDNA was synthesized using the PrimeScript™ RT Reagent Kit with gDNA Eraser (TaKaRa, Shiga, Japan). The RT-qPCR primers were designed by BatchPrimer3 (https://probes.pw.usda.gov/cgi-bin/batchprimer3/batchprimer3.cgi) (accessed on 13 January 2022), and the Actin(1) reference gene was used as the internal control [65]. RT-qPCR was performed in an CFX384-Real-Time system (C1000 Touch Thermal Cycler, Bio-Rad, CA, USA) using the RealUniversal Color PreMix (SYBR Green) (TIANGEN, Beijing, China). Specific primers are in Supplementary File S4. Each experiment was repeated in triplicate using independent RNA samples. Relative gene expression levels were calculated using the 2−∆∆CT method [66].
The full-length coding sequences of HuNACs were cloned using I-5TM2×High-Fidelity Master Mix (MCLAB, San Francisco, CA, USA) with specific primers (Supplementary File S5).

5.8. Subcellular Localization Analyses

The full lengths of HuNAC7/20/25/30 without a stop codon were subcloned into the pGreen-35S-GFP vector to fuse with the gene sequence of green fluorescent protein (GFP) (primers are listed in Supplementary File S5). Then, the pGreen- HuNAC7/20/25/30-35S-GFP and the control pGreen-35S-GFP vector were transferred into the Agrobacterium tumefaciens strain GV3101 (pSoup-p19), and injected into the abaxial side of 4- to 6-week-old N. benthamiana leaves. After 48 h of infiltration, infected leaf tissues were collected for analyses. The GFP signal was captured under a fluorescence microscope (ZEISS LCM-800, Oberkochen, Germany). All assays were repeated three times.

5.9. Transcriptional Activation Analyses in Yeast Cells

The pGBKT7-HuNACs, pGBKT7-p53 and pGBKT7 empty plasmids were transferred into the Y2HGold yeast strain independently using the lithium acetate method (PT1172-1, Clontech) (primers are listed in Supplementary File S5). The transformed yeast cells were cultured on SD/-Trp and SD/-Trp-His-Ade medium. The growth status of yeast cells and the activity of X-α-galactosidase (X-α-Gal) were observed after incubation with 20 mg/mL X-α-Gal for 10–30 min.

5.10. Dual-Luciferase Reporter Assays in N. benthamiana Leaves

For transcriptional activity analyses of HuNACs in N. benthamiana leaves, coding sequences of HuNAC7/20/25/30 were cloned into the 35S promoter-driven pBD vectors to fuse with the yeast GAL4 DNA-binding domain (GAL4BD) as an effector (pBD-HuNACs). The double-reporter vector contained a firefly luciferase (LUC) driven by five copies of the GAL4-binding elements (5×GAL4) and minimal TATA region of CaMV 35S. Renilla luciferase (REN) in the same vector driven by the CaMV 35S promoter was used for normalization. The primers are listed in Supplementary File S5.

5.11. Arabidopsis thaliana Transformation and Phenotypic Analyses

The open read frame (ORF) of HuNAC20 and HuNAC25 were subcloned into the pPZP6K90 vector under the control of the 35S promoter and introduced into Agrobacterium tumefaciens strain GV3101. The recombinant vectors were transformed into Arabidopsis Col-0 using the floral dip method. Positive plants were screened on MS medium containing 100 mg L−1 kanamycin and identified by PCR detection. The expression levels of HuNAC20 and HuNAC25 in the homozygous T3 transgenic lines were analyzed by RT-qPCR, and the primers used were listed in Supplementary File S5. Two homozygous T3 transgenic lines were used for cold tolerance experiments and photographed with a digital camera (G16, Canon, City, Japan).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23042189/s1.

Author Contributions

Conceived and designed the experiments, X.H. and Y.Q.; Performed the experiments, X.H., F.X., W.L. and Y.L.; Analyzed the data: X.H., F.X. and Y.Q.; Contributed reagents/materials/analysis tools: Z.Z., J.Z. and G.H.; Wrote and revised the paper: X.H. and Y.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Key Realm R&D Program of Guangdong Province (2018B020202011), the Science and Technology Program of Guangzhou (202002020060), the Science and Technology Program of Zhanjiang (2019A01003), and the Key Science and Technology Planning Project of Guangzhou (201904020015).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

TFTranscription factor
RT-qPCRReverse transcription quantitative real-time polymerase chain reaction
AAAmino acid
PIIsoelectric point
kDaKilodaltons
MDAMalondialdehyde
ROSReactive oxygen species
NAMNo apical meristem
GFPGreen fluorescent protein
LUCLuciferase
RENRenilla
ORFOpen read frame
CDSCoding sequence
WTWild type
CORCold regulated
IBAIndole-3-butyric acid
NCBINational Center for Biotechnology Information

References

  1. Singh, D.; Laxmi, A. Transcriptional regulation of drought response: A tortuous network of transcriptional factors. Front. Plant Sci. 2015, 6, 895. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Samo, N.; Wang, X.C.; Imran, M.; Bux, H.; Ahmed, S.; Hu, Y.G. Nac Vs: Abiotic stresses, current understanding and perspective, with special reference to the crops of Poaceae family. Pak. J. Bot. 2019, 51, 2037–2045. [Google Scholar] [CrossRef]
  3. Yamasaki, K.; Kigawa, T.; Inoue, M.; Watanabe, S.; Tateno, M.; Seki, M.; Shinozaki, K.; Yokoyama, S. Structures and evolutionary origins of plant-specific transcription factor DNA-binding domains. Plant Physiol. Biochem. 2008, 46, 394–401. [Google Scholar] [CrossRef] [PubMed]
  4. Puranik, S.; Sahu, P.P.; Srivastava, P.S.; Prasad, M. NAC proteins: Regulation and role in stress tolerance. Trends Plant Sci. 2012, 17, 369–381. [Google Scholar] [CrossRef]
  5. Singh, S.; Koyama, H.; Bhati, K.K.; Alok, A. The biotechnological importance of the plant-specific NAC transcription factor family in crop improvement. J. Plant Res. 2021, 134, 475–495. [Google Scholar] [CrossRef]
  6. Tran, L.S.P.; Nakashima, K.; Sakuma, Y.; Simpson, S.D.; Fujita, Y.; Maruyama, K.; Fujita, M.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Isolation and functional analysis of Arabidopsis stress-inducible NAC transcription factors that bind to a drought-responsive cis-element in the early responsive to dehydration stress 1 promoter. Plant Cell 2004, 16, 2481–2498. [Google Scholar] [CrossRef] [Green Version]
  7. Olsen, A.N.; Ernst, H.A.; Lo Leggio, L.; Skriver, K. NAC transcription factors: Structurally distinct, functionally diverse. Trends Plant Sci. 2005, 10, 79–87. [Google Scholar] [CrossRef]
  8. Ooka, H.; Satoh, K.; Doi, K.; Nagata, T.; Otomo, Y.; Murakami, K.; Matsubara, K.; Osato, N.; Kawai, J.; Carninci, P.; et al. Comprehensive analysis of NAC family genes in Oryza sativa and Arabidopsis thaliana. DNA Res. 2003, 10, 239–247. [Google Scholar] [CrossRef]
  9. Jensen, M.K.; Kjaersgaard, T.; Nielsen, M.M.; Galberg, P.; Petersen, K.; O’Shea, C.; Skriver, K. The Arabidopsis thaliana NAC transcription factor family: Structure-function relationships and determinants of ANAC019 stress signalling. Biochem. J. 2010, 426, 183–196. [Google Scholar] [CrossRef] [Green Version]
  10. Chen, Q.F.; Wang, Q.; Xiong, L.Z.; Lou, Z.Y. A structural view of the conserved domain of rice stress-responsive NAC1. Protein Cell 2011, 2, 55–63. [Google Scholar] [CrossRef] [Green Version]
  11. Delessert, C.; Kazan, K.; Wilson, I.W.; Van Der Straeten, D.; Manners, J.; Dennis, E.S.; Dolferus, R. The transcription factor ATAF2 represses the expression of pathogenesis-related genes in Arabidopsis. Plant J. 2005, 43, 745–757. [Google Scholar] [CrossRef]
  12. Puranik, S.; Bahadur, R.P.; Srivastava, P.S.; Prasad, M. Molecular cloning and characterization of a membrane associated NAC family gene, SiNAC from Foxtail Millet [Setaria italica (L.) P. Beauv.]. Mol. Biotechnol. 2011, 49, 138–150. [Google Scholar] [CrossRef]
  13. Guo, S.; Dai, S.; Singh, P.K.; Wang, H.; Wang, Y.; Tan, J.L.H.; Wee, W.; Ito, T. A membrane-bound NAC-like transcription factor OsNTL5 represses the flowering in Oryza sativa. Front. Plant Sci. 2018, 9, 555. [Google Scholar] [CrossRef] [Green Version]
  14. Hao, Y.J.; Wei, W.; Song, Q.X.; Chen, H.W.; Zhang, Y.Q.; Wang, F.; Zou, H.F.; Lei, G.; Tian, A.G.; Zhang, W.K.; et al. Soybean NAC transcription factors promote abiotic stress tolerance and lateral root formation in transgenic plants. Plant J. 2011, 68, 302–313. [Google Scholar] [CrossRef]
  15. Kim, H.J.; Nam, H.G.; Lim, P.O. Regulatory network of NAC transcription factors in leaf senescence. Curr. Opin. Plant Biol. 2016, 33, 48–56. [Google Scholar] [CrossRef]
  16. He, X.J.; Mu, R.L.; Cao, W.H.; Zhang, Z.G.; Zhang, J.S.; Chen, S.Y. AtNAC2, a transcription factor downstream of ethylene and auxin signaling pathways, is involved in salt stress response and lateral root development. Plant J. 2005, 44, 903–916. [Google Scholar] [CrossRef]
  17. Kim, Y.S.; Kim, S.G.; Park, J.E.; Park, H.Y.; Lim, M.H.; Chua, N.H.; Park, C.M. A membrane-bound NAC transcription factor regulates cell division in Arabidopsis. Plant Cell 2006, 18, 3132–3144. [Google Scholar] [CrossRef] [Green Version]
  18. Zhong, R.Q.; Demura, T.; Ye, Z.H. SND1, a NAC domain transcription factor, is a key regulator of secondary wall synthesis in fibers of Arabidopsis. Plant Cell 2006, 18, 3158–3170. [Google Scholar] [CrossRef] [Green Version]
  19. Zhou, H.; Kui, L.W.; Wang, H.L.; Gu, C.; Dare, A.P.; Espley, R.V.; He, H.P.; Allan, A.C.; Han, Y.P. Molecular genetics of blood-fleshed peach reveals activation of anthocyanin biosynthesis by NAC transcription factors. Plant J. 2015, 82, 105–121. [Google Scholar] [CrossRef]
  20. Giovannoni, J.J. Genetic regulation of fruit development and ripening. Plant Cell 2004, 16, S170–S180. [Google Scholar] [CrossRef] [Green Version]
  21. Dudhate, A.; Shinde, H.; Yu, P.; Tsugama, D.; Gupta, S.K.; Liu, S.; Takano, T. Comprehensive analysis of NAC transcription factor family uncovers drought and salinity stress response in pearl millet (Pennisetum glaucum). BMC Genom. 2021, 22, 70. [Google Scholar] [CrossRef] [PubMed]
  22. Gong, X.; Zhao, L.Y.; Song, X.F.; Lin, Z.K.; Gu, B.J.; Yan, J.X.; Zhang, S.L.; Tao, S.T.; Huang, X.S. Genome-wide analyses and expression patterns under abiotic stress of NAC transcription factors in white pear (Pyrus bretschneideri). BMC Plant Biol. 2019, 19, 161. [Google Scholar] [CrossRef]
  23. Wu, Q.; Bai, X.; Zhao, W.; Shi, X.D.; Xiang, D.B.; Wan, Y.; Wu, X.Y.; Sun, Y.X.; Zhao, J.L.; Peng, L.X.; et al. Investigation into the underlying regulatory mechanisms shaping inflorescence architecture in Chenopodium quinoa. BMC Genom. 2019, 20, 658. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, X.W.; Wang, T.; Bartholomew, E.; Black, K.; Dong, M.M.; Zhang, Y.Q.; Yang, S.; Cai, Y.L.; Xue, S.D.; Weng, Y.Q.; et al. Comprehensive analysis of NAC transcription factors and their expression during fruit spine development in cucumber (Cucumis sativus L.). Hortic. Res. 2018, 5, 31. [Google Scholar] [CrossRef] [PubMed]
  25. Dong, H.; Chen, Q.; Dai, Y.; Hu, W.; Zhang, S.; Huang, X. Genome-wide identification of PbrbHLH family genes, and expression analysis in response to drought and cold stresses in pear (Pyrus bretschneideri). BMC Plant Biol. 2021, 21, 86. [Google Scholar] [CrossRef] [PubMed]
  26. Han, D.G.; Du, M.; Zhou, Z.Y.; Wang, S.; Li, T.M.; Han, J.X.; Xu, T.L.; Yang, G.H. An NAC transcription factor gene from Malus baccata, MbNAC29, increases cold and high salinity tolerance in Arabidopsis. In Vitro Cell. Dev. Biol.-Plant 2020, 56, 588–599. [Google Scholar] [CrossRef]
  27. Yang, Z.T.; Lu, S.J.; Wang, M.J.; Bi, D.L.; Sun, L.; Zhou, S.F.; Song, Z.T.; Liu, J.X. A plasma membrane-tethered transcription factor, NAC062/ANAC062/NTL6, mediates the unfolded protein response in Arabidopsis. Plant J. 2014, 79, 1033–1043. [Google Scholar] [CrossRef] [PubMed]
  28. Yong, Y.B.; Zhang, Y.; Lyu, Y.M. A stress-responsive NAC transcription factor from tiger lily (LlNAC2) interacts with LlDREB1 and LlZHFD4 and enhances various abiotic stress tolerance in Arabidopsis. Int. J. Mol. Sci. 2019, 20, 3225. [Google Scholar] [CrossRef] [Green Version]
  29. Obregón La Rosa, A.; Lozano Zanelly, G.A. Nutritional and bioactive compounds of three fruits from the peruvian highlands and jungle as a potential source of nutrients for human consumption. Cienc. Tecnol. Agropecu. 2021, 22, e1835. [Google Scholar]
  30. Ibrahim, S.R.M.; Mohamed, G.A.; Khedr, A.I.M.; Zayed, M.F.; El-Kholy, A.A.S. Genus Hylocereus: Beneficial phytochemicals, nutritional importance, and biological relevance-A review. J. Food Biochem. 2018, 42, e12491. [Google Scholar] [CrossRef]
  31. Peng, X.J.; Zhao, Y.; Li, X.M.; Wu, M.; Chai, W.B.; Sheng, L.; Wang, Y.; Dong, Q.; Jiang, H.Y.; Cheng, B.J. Genomewide identification, classification and analysis of NAC type gene family in maize. J. Genet. 2015, 94, 377–390. [Google Scholar] [CrossRef]
  32. Diao, W.P.; Snyder, J.C.; Wang, S.B.; Liu, J.B.; Pan, B.G.; Guo, G.J.; Ge, W.; Dawood, M. Genome-wide analyses of the NAC transcription factor gene family in Pepper (Capsicum annuum L.): Chromosome location, phylogeny, structure, expression patterns, cis-elements in the promoter, and interaction network. Int. J. Mol. Sci. 2018, 19, 1028. [Google Scholar] [CrossRef] [Green Version]
  33. Ahmad, M.; Yan, X.H.; Li, J.Z.; Yang, Q.S.; Jamil, W.; Teng, Y.W.; Bai, S.L. Genome-wide identification and predicted functional analyses of NAC transcription factors in Asian pears. BMC Plant Biol. 2018, 18, 214. [Google Scholar] [CrossRef] [Green Version]
  34. Su, H.Y.; Zhang, S.Z.; Yuan, X.W.; Chen, C.T.; Wang, X.F.; Hao, Y.J. Genome-wide analysis and identification of stress-responsive genes of the NAM-ATAF1,2-CUC2 transcription factor family in apple. Plant Physiol. Biochem. 2013, 71, 11–21. [Google Scholar] [CrossRef]
  35. Borrill, P.; Harrington, S.A.; Uauy, C. Genome-wide sequence and expression analysis of the NAC transcription factor family in polyploid wheat. G3-Genes Genom. Genet. 2017, 7, 3019–3029. [Google Scholar] [CrossRef] [Green Version]
  36. Chen, J.Y.; Xie, F.F.; Cui, Y.Z.; Chen, C.B.; Lu, W.J.; Hu, X.D.; Hua, Q.Z.; Zhao, J.; Wu, Z.J.; Gao, D.; et al. A chromosome-scale genome sequence of pitaya (Hylocereus undatus) provides novel insights into the genome evolution and regulation of betalain biosynthesis. Hortic. Res. 2021, 8, 164. [Google Scholar] [CrossRef]
  37. Li, P.X.; Peng, Z.Y.; Xu, P.L.; Tang, G.Y.; Ma, C.L.; Zhu, J.Q.; Shan, L.; Wan, S.B. Genome-wide identification of NAC transcription factors and their functional prediction of abiotic stress response in peanut. Front. Genet. 2021, 12, 240. [Google Scholar] [CrossRef]
  38. Liu, C.Y.; Xie, T.; Chen, C.J.; Luan, A.P.; Long, J.M.; Li, C.H.; Ding, Y.Q.; He, Y.H. Genome-wide organization and expression profiling of the R2R3-MYB transcription factor family in pineapple (Ananas comosus). BMC Genom. 2017, 18, 503. [Google Scholar] [CrossRef] [Green Version]
  39. Fan, Z.Q.; Tan, X.L.; Chen, J.W.; Liu, Z.L.; Kuang, J.F.; Lu, W.J.; Shan, W.; Chen, J.Y. BrNAC055, a novel transcriptional activator, regulates leaf senescence in Chinese flowering cabbage by modulating reactive oxygen species production and chlorophyll degradation. J. Agric. Food Chem. 2018, 66, 9399–9408. [Google Scholar] [CrossRef]
  40. Nuruzzaman, M.; Sharoni, A.M.; Kikuchi, S. Roles of NAC transcription factors in the regulation of biotic and abiotic stress responses in plants. Front. Microbiol. 2013, 4, 248. [Google Scholar] [CrossRef] [Green Version]
  41. Tweneboah, S.; Oh, S.K. Biological roles of NAC transcription factors in the regulation of biotic and abiotic stress responses in solanaceous crops. J. Plant Biotechnol. 2017, 44, 1–11. [Google Scholar] [CrossRef] [Green Version]
  42. Shao, H.B.; Wang, H.Y.; Tang, X.L. NAC transcription factors in plant multiple abiotic stress responses: Progress and prospects. Front. Plant Sci. 2015, 6, 902. [Google Scholar] [CrossRef] [Green Version]
  43. Li, F.; Guo, X.H.; Liu, J.X.; Zhou, F.; Liu, W.Y.; Wu, J.; Zhang, H.L.; Cao, H.F.; Su, H.Z.; Wen, R.Y. Genome-wide identification, characterization, and expression analysis of the NAC transcription factor in Chenopodium quinoa. Genes 2019, 10, 500. [Google Scholar] [CrossRef] [Green Version]
  44. Jia, D.F.; Jiang, Z.Q.; Fu, H.H.; Chen, L.; Liao, G.L.; He, Y.Q.; Huang, C.H.; Xu, X.B. Genome-wide identification and comprehensive analysis of NAC family genes involved in fruit development in kiwifruit (Actinidia). BMC Plant Biol. 2021, 21, 44. [Google Scholar] [CrossRef]
  45. Li, B.; Fan, R.Y.; Yang, Q.S.; Hu, C.H.; Sheng, O.; Deng, G.M.; Dong, T.; Li, C.Y.; Peng, X.X.; Bi, F.C.; et al. Genome-wide identification and characterization of the NAC transcription factor family in Musa Acuminata and expression analysis during fruit ripening. Int. J. Mol. Sci. 2020, 21, 634. [Google Scholar] [CrossRef] [Green Version]
  46. Nie, Q.; Qiao, G.; Peng, L.; Wen, X.P. Transcriptional activation of long terminal repeat retrotransposon sequences in the genome of pitaya under abiotic stress. Plant Physiol. Biochem. 2019, 135, 460–468. [Google Scholar] [CrossRef]
  47. Li, A.L.; Wen, Z.; Yang, K.; Wen, X.P. Conserved miR396b-GRF regulation is involved in abiotic stress responses in pitaya (Hylocereus polyrhizus). Int. J. Mol. Sci. 2019, 20, 2501. [Google Scholar] [CrossRef] [Green Version]
  48. Wang, G.D.; Liu, Q.; Shang, X.T.; Chen, C.; Xu, N.; Guan, J.; Meng, Q.W. Overexpression of transcription factor SlNAC35 enhances the chilling tolerance of transgenic tomato. Biol. Plantarum. 2018, 62, 479–488. [Google Scholar] [CrossRef]
  49. Shan, W.; Kuang, J.F.; Lu, W.J.; Chen, J.Y. Banana fruit NAC transcription factor MaNAC1 is a direct target of MaICE1 and involved in cold stress through interacting with MaCBF1. Plant Cell Environ. 2014, 37, 2116–2127. [Google Scholar] [CrossRef]
  50. Ju, Y.L.; Yue, X.F.; Min, Z.; Wang, X.H.; Fang, Y.L.; Zhang, J.X. VvNAC17, a novel stress-responsive grapevine (Vitis vinifera L.) NAC transcription factor, increases sensitivity to abscisic acid and enhances salinity, freezing, and drought tolerance in transgenic Arabidopsis. Plant Physiol. Biochem. 2020, 146, 98–111. [Google Scholar] [CrossRef]
  51. Han, D.G.; Du, M.; Zhou, Z.Y.; Wang, S.; Li, T.M.; Han, J.X.; Xu, T.L.; Yang, G.H. Overexpression of a Malus baccata NAC transcription factor gene MbNAC25 increases cold and salinity tolerance in Arabidopsis. Int. J. Mol. Sci. 2020, 21, 1198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Hu, L.X.; Li, H.Y.; Pang, H.C.; Fu, J.M. Responses of antioxidant gene, protein and enzymes to salinity stress in two genotypes of perennial ryegrass (Lolium perenne) differing in salt tolerance. J. Plant Physiol. 2012, 169, 146–156. [Google Scholar] [CrossRef] [PubMed]
  53. Li, X.D.; Zhuang, K.Y.; Liu, Z.M.; Yang, D.Y.; Ma, N.N.; Meng, Q.W. Overexpression of a novel NAC-type tomato transcription factor, SlNAM1, enhances the chilling stress tolerance of transgenic tobacco. J. Plant Physiol. 2016, 204, 54–65. [Google Scholar] [CrossRef] [PubMed]
  54. Jiang, G.M.; Jiang, X.Q.; Lu, P.T.; Liu, J.T.; Gao, J.P.; Zhang, C.Q. The Rose (Rosa hybrida) NAC transcription factor 3 gene, RhNAC3, involved in ABA signaling pathway both in Rose and Arabidopsis. PLoS ONE 2014, 9, e109415. [Google Scholar] [CrossRef] [Green Version]
  55. Edgar, R.C. MUSCLE: A multiple sequence alignment method with reduced time and space complexity. BMC Bioinform. 2004, 5, 113. [Google Scholar] [CrossRef] [Green Version]
  56. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  57. Chen, C.J.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.H.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant. 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  58. Voorrips, R.E. MapChart: Software for the graphical presentation of linkage maps and QTLs. J. Hered. 2002, 93, 77–78. [Google Scholar] [CrossRef] [Green Version]
  59. Wang, Y.P.; Tang, H.B.; Debarry, J.D.; Tan, X.; Li, J.P.; Wang, X.Y.; Lee, T.H.; Jin, H.Z.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [Green Version]
  60. Nie, Q.; Gao, G.L.; Fan, Q.J.; Qiao, G.; Wen, X.P.; Liu, T.; Peng, Z.J.; Cai, Y.Q. Isolation and characterization of a catalase gene "HuCAT3" from pitaya (Hylocereus undatus) and its expression under abiotic stress. Gene 2015, 563, 63–71. [Google Scholar] [CrossRef]
  61. Ding, Y.L.; Li, H.; Zhang, X.Y.; Xie, Q.; Gong, Z.Z.; Yang, S.H. OST1 kinase modulates freezing tolerance by enhancing ICE1 stability in Arabidopsis. Dev. Cell 2015, 32, 278–289. [Google Scholar] [CrossRef] [Green Version]
  62. Guo, F.Q.; Crawford, N.M. Arabidopsis nitric oxide synthase1 is targeted to mitochondria and protects against oxidative damage and dark-induced senescence. Plant Cell 2005, 17, 3436–3450. [Google Scholar] [CrossRef] [Green Version]
  63. Shi, J.; Fu, X.Z.; Peng, T.; Huang, X.S.; Fan, Q.J.; Liu, J.H. Spermine pretreatment confers dehydration tolerance of citrus in vitro plants via modulation of antioxidative capacity and stomatal response. Tree Physiol. 2010, 30, 914–922. [Google Scholar] [CrossRef]
  64. Gilmour, S.J.; Zarka, D.G.; Stockinger, E.J.; Salazar, M.P.; Houghton, J.M.; Thomashow, M.F. Low temperature regulation of the Arabidopsis CBF family of AP2 transcriptional activators as an early step in cold-induced COR gene expression. Plant J. 1998, 16, 433–442. [Google Scholar] [CrossRef]
  65. Chen, C.B.; Wu, J.Y.; Hua, Q.Z.; Tel-Zur, N.; Xie, F.F.; Zhang, Z.K.; Chen, J.Y.; Zhang, R.; Hu, G.B.; Zhao, J.T.; et al. Identification of reliable reference genes for quantitative real-time PCR normalization in pitaya. Plant Methods 2019, 15, 70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Ijms 23 02189 g001 550

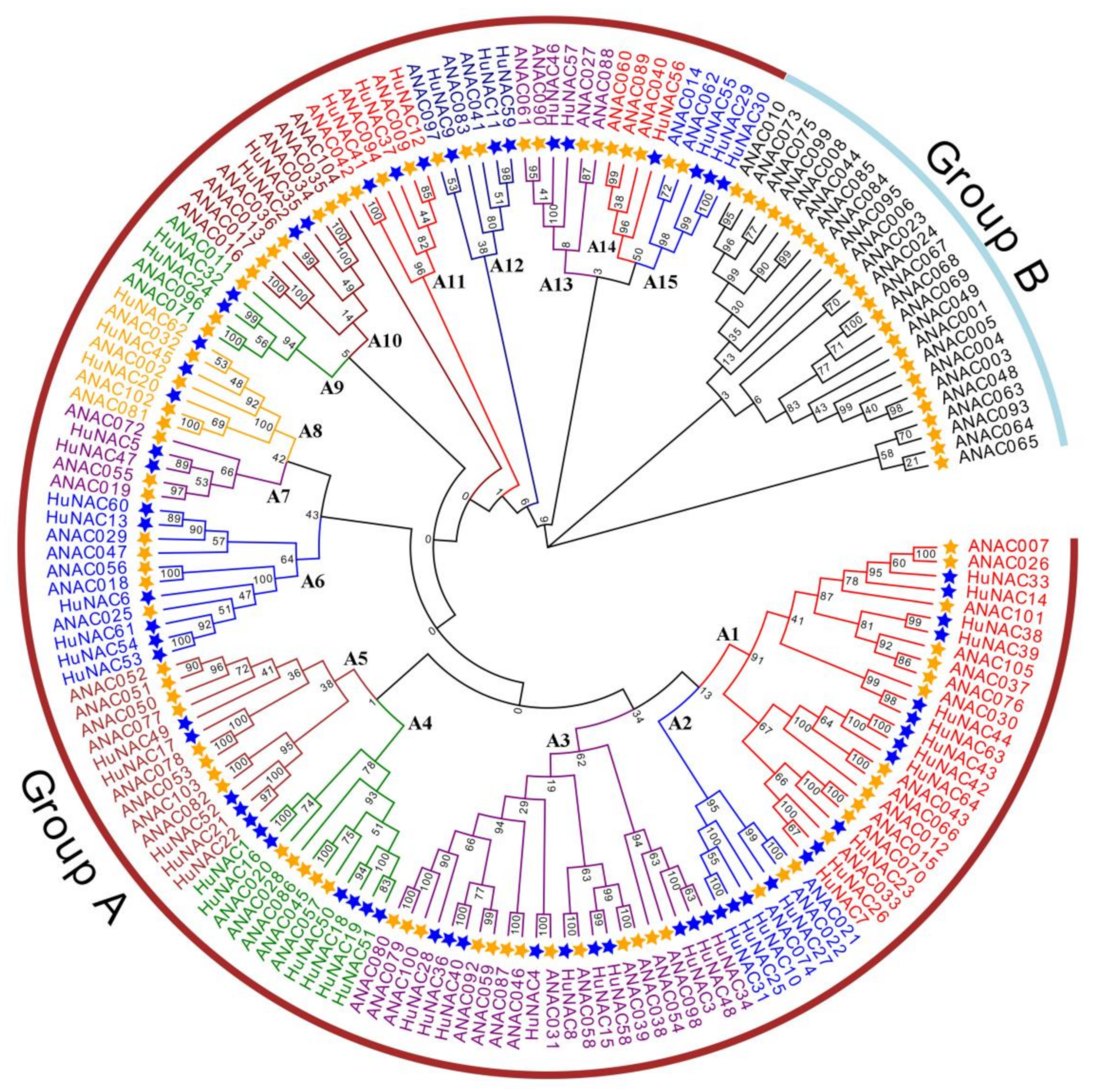

Figure 1. Phylogenetic tree analyses of NAC transcription factor family in pitaya (64 genes) and A. thaliana (105 genes). The full-length sequences of the NAC proteins were aligned using ClustalW, and the phylogenetic tree was constructed using the maximum-likelihood method in the MEGAX software. The Bootstrap value was 1000 replicates. HuNACs were indicated by blue stars. All members from both species were designated as Group A (A1-A15) and Group B. Each of the subfamily is indicated in a specific color.
Figure 1. Phylogenetic tree analyses of NAC transcription factor family in pitaya (64 genes) and A. thaliana (105 genes). The full-length sequences of the NAC proteins were aligned using ClustalW, and the phylogenetic tree was constructed using the maximum-likelihood method in the MEGAX software. The Bootstrap value was 1000 replicates. HuNACs were indicated by blue stars. All members from both species were designated as Group A (A1-A15) and Group B. Each of the subfamily is indicated in a specific color.
Ijms 23 02189 g001
Ijms 23 02189 g002 550

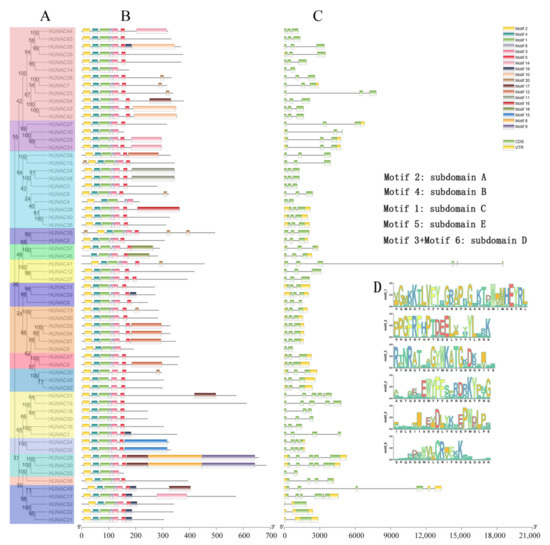

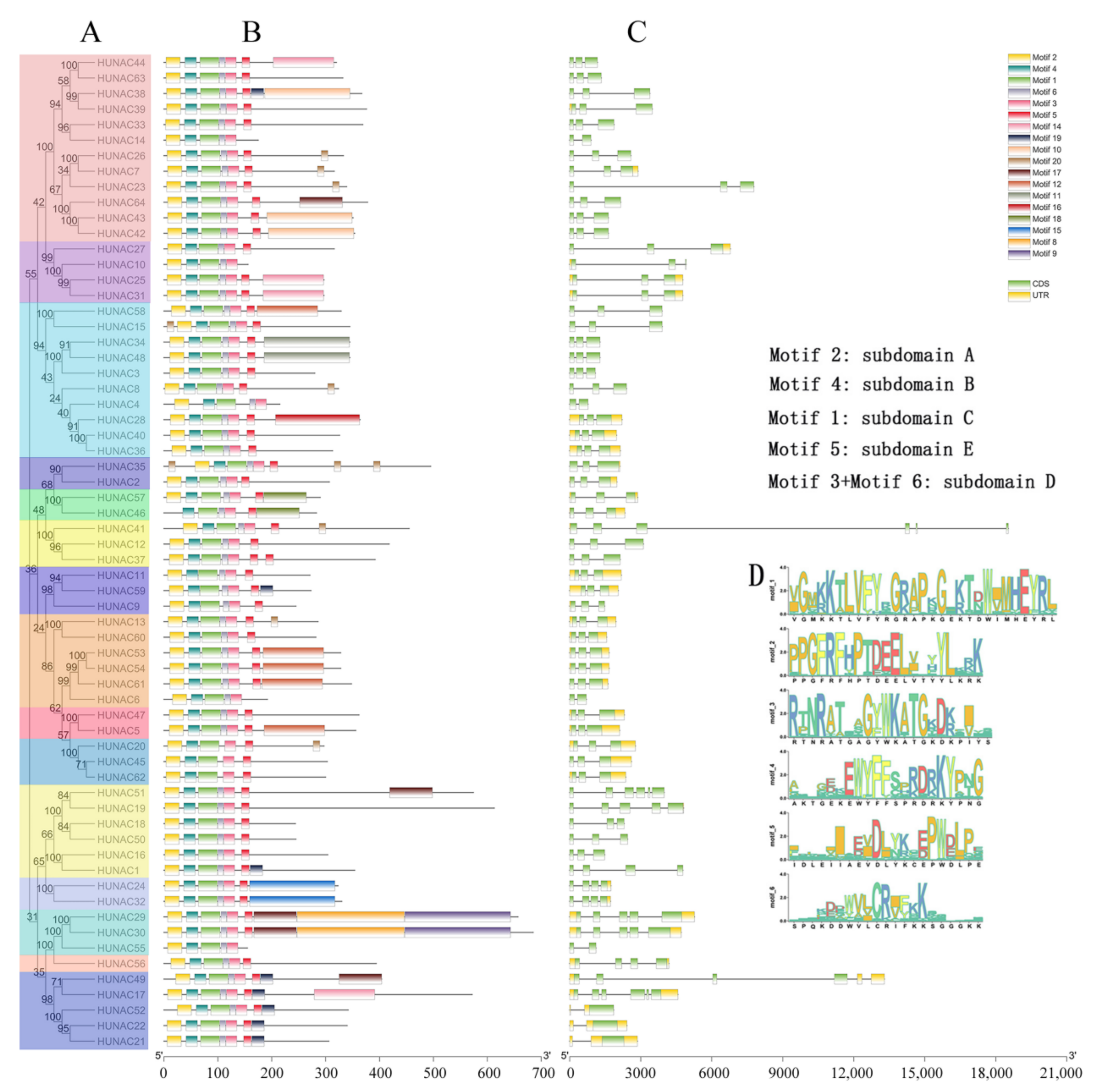

Figure 2. Phylogenetic relationship, gene structure, and conserved motif analyses of 64 HuNAC genes. (A) Phylogenetic tree. The phylogenetic tree was constructed using the neighbor-joining method through MEGAX software. The bootstrap analysis was conducted with 1000 replicates. (B) protein motif. Schematic diagrams of possible conserved motifs in HuNAC proteins. MEME tool was used to find out the conserved motifs; (C) gene structure. The green bars indicate the exons, and the black lines indicate the introns. Yellow bars indicate the UTR region; (D) the sequences of key motifs (motif 1, motif 2, motif 3, motif 4, motif 5 and motif 6).
Figure 2. Phylogenetic relationship, gene structure, and conserved motif analyses of 64 HuNAC genes. (A) Phylogenetic tree. The phylogenetic tree was constructed using the neighbor-joining method through MEGAX software. The bootstrap analysis was conducted with 1000 replicates. (B) protein motif. Schematic diagrams of possible conserved motifs in HuNAC proteins. MEME tool was used to find out the conserved motifs; (C) gene structure. The green bars indicate the exons, and the black lines indicate the introns. Yellow bars indicate the UTR region; (D) the sequences of key motifs (motif 1, motif 2, motif 3, motif 4, motif 5 and motif 6).
Ijms 23 02189 g002
Ijms 23 02189 g003 550
Figure 3. Schematic diagrams of the chromosomal location of the HuNAC genes. Eleven chromosomes with varying lengths are shown on the megabases (Mb) scale on the left, and the chromosome number is shown on top of each chromosome.
Figure 3. Schematic diagrams of the chromosomal location of the HuNAC genes. Eleven chromosomes with varying lengths are shown on the megabases (Mb) scale on the left, and the chromosome number is shown on top of each chromosome.
Ijms 23 02189 g003
Ijms 23 02189 g004 550
Figure 4. Schematic representations of interchromosomal relationships of the HuNAC genes. Gray lines represent all synteny blocks in the pitaya genome, and the orange lines indicate duplicated NAC gene pairs. The chromosome number is indicated at the top of each chromosome.
Figure 4. Schematic representations of interchromosomal relationships of the HuNAC genes. Gray lines represent all synteny blocks in the pitaya genome, and the orange lines indicate duplicated NAC gene pairs. The chromosome number is indicated at the top of each chromosome.
Ijms 23 02189 g004
Ijms 23 02189 g005 550
Figure 5. Expression analyses of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 under cold stress. Three biological replicates were used and bars represent the relative expression of different genes under cold stress.
Figure 5. Expression analyses of HuNAC7, HuNAC20, HuNAC25, and HuNAC30 under cold stress. Three biological replicates were used and bars represent the relative expression of different genes under cold stress.
Ijms 23 02189 g005
Ijms 23 02189 g006 550
Figure 6. Subcellular localization of HuNACs in Nicotiana benthamiana leaves. The fusion protein and GFP-positive control were transiently expressed in N. benthamiana leaves by Agrobacterium tumefaciens strain GV3101 (pSoup-p19), respectively. Bars = 20 μm.
Figure 6. Subcellular localization of HuNACs in Nicotiana benthamiana leaves. The fusion protein and GFP-positive control were transiently expressed in N. benthamiana leaves by Agrobacterium tumefaciens strain GV3101 (pSoup-p19), respectively. Bars = 20 μm.
Ijms 23 02189 g006
Ijms 23 02189 g007 550
Figure 7. Transcriptional activation analyses of HuNACs. (A) transcriptional activation of HuNAC in yeast cells. pGBKT7 and pGBKT7-53 + pGADT7-T were used as negative and positive controls, respectively. Transcription activation was monitored according to growth status of yeast cells and an α-Gal assay; (B) diagrams of the reporter and effector vectors; (C) transcriptional activation of HuNACs in N. benthamiana leaves. The trans-activation ability of HuNACs is indicated by the ratio of LUC to REN. The LUC/REN ratio of the empty pBD vector (negative control) was used as a calibrator (set as 1). pBD-VP16 was used as a positive control. The asterisk indicates a significant difference at the 1% level compared to the pBD.
Figure 7. Transcriptional activation analyses of HuNACs. (A) transcriptional activation of HuNAC in yeast cells. pGBKT7 and pGBKT7-53 + pGADT7-T were used as negative and positive controls, respectively. Transcription activation was monitored according to growth status of yeast cells and an α-Gal assay; (B) diagrams of the reporter and effector vectors; (C) transcriptional activation of HuNACs in N. benthamiana leaves. The trans-activation ability of HuNACs is indicated by the ratio of LUC to REN. The LUC/REN ratio of the empty pBD vector (negative control) was used as a calibrator (set as 1). pBD-VP16 was used as a positive control. The asterisk indicates a significant difference at the 1% level compared to the pBD.
Ijms 23 02189 g007
Ijms 23 02189 g008 550
Figure 8. Overexpression of HuNAC20 in Arabidopsis enhanced freezing tolerance. (A) Performance and (C) survival rates of WT and HuNAC20 transgenic plants after freezing; (B) expression levels of HuNAC20 in WT and transgenic plants. AtACTIN2 was used as an internal control. Twenty seedlings per transgenic line were used in each freezing treatment. Data represent average values from three biological replicates (±S.D.). Asterisks indicate significant differences (** p < 0.01) between the transgenic lines and WT plants.
Figure 8. Overexpression of HuNAC20 in Arabidopsis enhanced freezing tolerance. (A) Performance and (C) survival rates of WT and HuNAC20 transgenic plants after freezing; (B) expression levels of HuNAC20 in WT and transgenic plants. AtACTIN2 was used as an internal control. Twenty seedlings per transgenic line were used in each freezing treatment. Data represent average values from three biological replicates (±S.D.). Asterisks indicate significant differences (** p < 0.01) between the transgenic lines and WT plants.
Ijms 23 02189 g008
Ijms 23 02189 g009 550
Figure 9. Overexpression of HuNAC25 in Arabidopsis enhanced freezing tolerance. (A) performance and (C) survival rates of WT and HuNAC25 transgenic plants after freezing; (B) expression levels of HuNAC25 in WT and transgenic plants. AtACTIN2 was used as an internal control. Twenty seedlings per transgenic line were used in each freezing treatment. Data represent average values from three biological replicates (±S.D.). Asterisks indicate significant differences (** p < 0.01) between the transgenic lines and WT plants.
Figure 9. Overexpression of HuNAC25 in Arabidopsis enhanced freezing tolerance. (A) performance and (C) survival rates of WT and HuNAC25 transgenic plants after freezing; (B) expression levels of HuNAC25 in WT and transgenic plants. AtACTIN2 was used as an internal control. Twenty seedlings per transgenic line were used in each freezing treatment. Data represent average values from three biological replicates (±S.D.). Asterisks indicate significant differences (** p < 0.01) between the transgenic lines and WT plants.
Ijms 23 02189 g009
Ijms 23 02189 g010 550
Figure 10. Changes of ion leakage, MDA content, H2O2, and O2− of WT and transgenic lines under cold stress. Ion leakage were determined in WT and transgenic lines under cold stress (4 °C for 48 h) and freezing (−6 °C for 6 h) treatments. MDA, H2O2, and O2− accumulation were determined in WT and transgenic lines under cold stress (4 °C for 48 h). Data represent average values from three biological replicates (±S.D.). The different letters above bars indicate significant differences at the p < 0.05 level according to Duncan’s multiple comparison tests.
Figure 10. Changes of ion leakage, MDA content, H2O2, and O2− of WT and transgenic lines under cold stress. Ion leakage were determined in WT and transgenic lines under cold stress (4 °C for 48 h) and freezing (−6 °C for 6 h) treatments. MDA, H2O2, and O2− accumulation were determined in WT and transgenic lines under cold stress (4 °C for 48 h). Data represent average values from three biological replicates (±S.D.). The different letters above bars indicate significant differences at the p < 0.05 level according to Duncan’s multiple comparison tests.
Ijms 23 02189 g010
Ijms 23 02189 g011 550
Figure 11. Expression analyses of AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 in WT and transgenic lines under cold stress. Data represented average values from three biological replicates (±S.D.). The different letters above bars indicated significant differences at the p < 0.05 level according to Duncan’s multiple comparison tests.
Figure 11. Expression analyses of AtRD29A, AtCOR15A, AtCOR47, and AtKIN1 in WT and transgenic lines under cold stress. Data represented average values from three biological replicates (±S.D.). The different letters above bars indicated significant differences at the p < 0.05 level according to Duncan’s multiple comparison tests.
Ijms 23 02189 g011
Ijms 23 02189 g012 550
Figure 12. The proposed model of HuNAC20 and HuNAC25-mediated cold stress-responsive signaling. Cold stress induces the expression of HuNAC20 and HuNAC25. HuNAC20 and HuNAC25 regulate the expressions of cold-responsive genes by binding to the cis-elements of cold-responsive proteins in their promoters, and then modulate plant tolerance to cold stress.
Figure 12. The proposed model of HuNAC20 and HuNAC25-mediated cold stress-responsive signaling. Cold stress induces the expression of HuNAC20 and HuNAC25. HuNAC20 and HuNAC25 regulate the expressions of cold-responsive genes by binding to the cis-elements of cold-responsive proteins in their promoters, and then modulate plant tolerance to cold stress.
Ijms 23 02189 g012
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, X.; Xie, F.; Liang, W.; Liang, Y.; Zhang, Z.; Zhao, J.; Hu, G.; Qin, Y. HuNAC20 and HuNAC25, Two Novel NAC Genes from Pitaya, Confer Cold Tolerance in Transgenic Arabidopsis. Int. J. Mol. Sci. 2022, 23, 2189. https://doi.org/10.3390/ijms23042189

AMA Style

Hu X, Xie F, Liang W, Liang Y, Zhang Z, Zhao J, Hu G, Qin Y. HuNAC20 and HuNAC25, Two Novel NAC Genes from Pitaya, Confer Cold Tolerance in Transgenic Arabidopsis. International Journal of Molecular Sciences. 2022; 23(4):2189. https://doi.org/10.3390/ijms23042189

Chicago/Turabian Style

Hu, Xinglong, Fangfang Xie, Wenwei Liang, Yinhao Liang, Zhike Zhang, Jietang Zhao, Guibing Hu, and Yonghua Qin. 2022. "HuNAC20 and HuNAC25, Two Novel NAC Genes from Pitaya, Confer Cold Tolerance in Transgenic Arabidopsis" International Journal of Molecular Sciences 23, no. 4: 2189. https://doi.org/10.3390/ijms23042189

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
