Article

P-Glycoprotein and Androgen Receptor Expression Reveals Independence of Canine Prostate Cancer from Androgen Hormone Stimulation

by
Alexandre Matheus Baesso Cavalca
1,
Andressa Brandi
1,
Ricardo Henrique Fonseca-Alves
2,
Renée Laufer-Amorim
3 and
Carlos Eduardo Fonseca-Alves
1,4,*
1
Department of Veterinary Surgery and Anesthesiology, School of Veterinary Medicine and Animal Science, São Paulo State University—UNESP, Botucatu 18618-687, Brazil
2
Department of Electrical Engineering, School of Electrical, Mechanical and Computer Engineering, Federal University of Goias—UFG, Goiania 74690-900, Brazil
3
Department of Veterinary Clinic, School of Veterinary Medicine and Animal Science, São Paulo State University—UNESP, Botucatu 18618-687, Brazil
4
Institute of Health Sciences, Paulista University—UNIP, Bauru 17048-290, Brazil
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(3), 1163; https://doi.org/10.3390/ijms23031163
Submission received: 16 November 2021 / Revised: 4 January 2022 / Accepted: 18 January 2022 / Published: 21 January 2022
(This article belongs to the Special Issue Molecular Advances in Prostate Cancer)
Browse Figures
Versions Notes

Abstract

:
Canine prostate cancer (PC) is an aggressive disease, and dogs can be considered comparative models for human PC. In recent years, canine PC has been shown to resemble human castrate-resistant prostate cancer. The influx and efflux of testosterone in prostatic luminal cells are regulated by P-glycoprotein (P-gp). Therefore, human PC generally lacks P-gp expression and maintains the expression of androgen receptors (ARs). However, this co-expression has not previously been investigated in dogs. Therefore, this study aimed to evaluate AR and P-gp co-expression to elucidate these protein patterns in canine prostate samples. We identified AR/P-gp double immunofluorescence co-expression of both proteins in normal luminal cells. However, in canine PC, cells lack AR expression and exhibit increased P-gp expression. These results were confirmed by gene expression analyses. Overall, our results strongly suggest that normal canine prostate testosterone influx may be regulated by P-gp expression, and that during progression to PC, prostatic cells lack AR expression and P-gp overexpress. P-gp expression in canine PC may be related to a phenotype of multiple drug resistance.

1. Introduction

The prostate is a hormone-dependent gland with androgens that play a pivotal role in its development and maintenance [1]. Prostate luminal cells express the androgen receptor (AR) in the nucleus, and testosterone acts directly on its receptor, inducing cell proliferation under physiological conditions [2]. The influx and efflux control of steroidal hormones through the plasma membrane has been widely studied in human tissues, and P-glycoprotein (P-gp) plays a central role in this process [3,4,5,6]. P-gp is a transport protein encoded by the multidrug resistance gene MDR1 and belongs to the ATP-binding cassette superfamily [7]. P-gp acts as a pump that induces efflux of xenobiotics and other substances from the cytoplasm to the extracellular space, including the physiological regulation of testosterone in normal luminal prostatic cells [8].
As testosterone levels and AR expression are important for normal prostatic epithelium development and maintenance, it is unsurprising that human prostate cancer (PC) also adopts this mechanism to induce tumor cell proliferation [8]. The central role of the AR signaling pathway in PC has been studied for decades, revealing evidence that orchiectomy can induce PC regression. Huggins and Hodges [9] provided a new perspective on this disease’s therapeutic approach. It is well-established that PC expresses AR in the early stages of carcinogenesis, and androgen deprivation is the first-line treatment for human PC [10]. During the early stages of carcinogenesis, PC cells suppress P-gp expression, leading to testosterone accumulation in the cell cytoplasm. Thus, due to AR-positive expression in the nuclei, cytoplasmic testosterone can induce cell proliferation [7]. Therefore, the early stages of human PC express AR and induce P-gp downregulation to maintain high intracellular testosterone levels. However, androgen-resistant tumor cells do not require testosterone for cell proliferation. Thus, these cells increase P-gp expression, leading to a multidrug-resistant phenotype to acquire a more aggressive phenotype [11].
Besides humans, dogs are the only mammals that develop PC with a high frequency, and dogs have been considered a model for human PC study [12]. However, recent studies have indicated that canine PC could be used as a model for castrate-resistant PC (CRPC) [13,14]. The typical human PC expresses AR, NKX3.1, and PTEN, while CRPC generally lacks NKX3.1 and PTEN expression, conferring a more aggressive phenotype. Conversely, several studies have demonstrated that canine PC demonstrates NKX3.1 [14,15,16] and PTEN [13,14,15,17,18,19] downregulation, similar to human CRPC.
Although P-gp is important for the regulation of intracellular testosterone and binding to its receptor in prostatic luminal cells, no previous studies have demonstrated P-gp expression in canine prostate samples or the association of P-gp/AR expression in prostatic tissues. Owing to the importance of P-gp in the plasma membrane in PC development, this study aimed to evaluate AR and P-gp co-expression to elucidate these protein patterns in canine prostate samples. Moreover, we performed an in silico analysis of human PC data regarding AR and P-gp expression, comparing the results with those of the dog’s PC.

2. Results

AR expression is pivotal for PC development and maintenance. Testosterone can bind the ARs in the nucleus to stimulate proliferation. This mechanism is physiologically controlled by P-gp, a transmembrane glycoprotein responsible for intracellular testosterone efflux. Therefore, since canine PC is an aggressive disease and generally lacks AR expression, we hypothesize that canine PC will demonstrate low levels of AR and P-gp overexpression. It is phenotypically different from a typical human PC. Thus, because dogs can be considered models of human PC, this model could resemble only human PC with aggressive behavior. In this context, we investigated P-gp and AR gene and protein expression in canine tissue samples and performed in silico analysis to investigate P-gp and AR gene and protein expression in human PC samples. Moreover, we attempted to associate P-gp and AR expression with overall survival and disease-free interval in human PC patients.

2.1. AR/P-gp Double Staining in Canine Prostatic Samples

The AR protein was located in the cell nucleus in normal, proliferative inflammatory atrophy (PIA), and PC samples, with cytoplasmic expression in PC samples. P-gp demonstrated membranous expression in normal samples and membranous/cytoplasmic expression in PIA and PC samples. A higher number of AR-positive cells was identified in the normal samples than in the PIA and PC samples (p < 0.0001) (Figure 1A). However, P-gp expression was higher in PC samples than in normal and PIA samples (p < 0.0001) (Figure 1B). When the number of double-stained cells was evaluated, a higher number of double-stained cells was observed in normal samples compared to PIA and PC samples (p < 0.0001) (Figure 1C). In both the normal (Figure 1D) and PIA (Figure 1E) samples, there was a positive correlation between AR and P-gp expression, indicating that samples with higher AR expression also presented higher P-gp expression. Conversely, no correlation between AR and P-gp was detected (r = 0.1121, p = 0.6879) in the PC samples (Figure 1F). Individual results regarding AR and P-gp expression in each sample are shown in Supplementary Table S1.
Therefore, in the normal canine prostate, both AR/P-gp are expressed, while PC shows increased P-gp expression (including cytoplasmic accumulation) and lacks AR (Figure 2).

2.2. AR and MDR1 Molecular Evaluation Indicates Independence of Hormone Regulation

MDR1 and AR gene expression was assessed in normal, PIA, and PC samples, and revealed a higher MDR1 expression in PC than in normal and PIA samples (p = 0.0187) (Figure 3). However, AR transcripts were higher in normal samples than that in PIA and PC samples. We also investigated the correlation between MDR1 and AR transcripts in the normal, PIA, and PC samples. In normal samples, linear regression analysis revealed a positive linear regression between MDR1 and AR transcripts (r2 = 0.5245) (Figure 3). In PIA samples, a linear positive regression association was also found between MDR1 and AR transcripts (r2 = 0.4477). In canine PC, no correlation or linear regression association was observed. These results indicate that canine PC lacks testosterone stimulus (lacking nuclear AR) and overexpresses MDR-1 transcripts (leading to high P-gp expression), demonstrating its independence in hormone regulation.
In human PC, MDR1 hypermethylation is a well-known mechanism for decreasing P-gp expression, leading to testosterone influx. However, no previous studies have investigated MDR1 hypermethylation in canine PC. Therefore, we performed pyrosequencing of normal, PIA, and PC samples to investigate MDR1 methylation status. No methylation of the MDR1 promoter region was observed in normal samples, indicating that methylation is not a physiological regulatory mechanism. In PIA samples, the methylation percentage was 3.8% and no methylation was detected in MDR1 in PC samples.

2.3. AR and P-gp Expression in Human PC

To provide a more reliable comparison between canine and human PC, we performed in silico analysis of AR and P-gp in human PC to provide a more reliable comparison between canine and human PC. First, we investigated AR and P-gp expression patterns in normal prostate and PC samples using the Human Protein Atlas. In the normal human prostate, AR demonstrates strong nuclear expression, and this expression pattern remains in PC, which shows moderate to strong AR expression (Figure 4). Conversely, P-gp showed weak membranous/cytoplasmic expression in normal prostatic samples, while PC showed negative to moderate expression (Figure 5).
MDR1 and AR gene expressions were also assessed in human normal prostate tissue (n = 152) and compared to PC (n = 492). MDR1 expression was lower in human PC samples than that in normal samples (Figure 6). However, AR transcripts were higher in the PC samples than in the normal samples (Figure 6). This indicates an MDR1-low/AR-high profile in human PC. Correlation analysis was performed between MDR1 and AR transcripts in normal human prostate samples and PC. There was no correlation between MDR1 and AR transcripts in normal prostatic samples (r = 0.12, p = 0.25), but there was a positive correlation between MDR1 and AR transcripts in human PC samples (r = 0.099 and p = 0.028) (Figure 6).
Regarding survival analysis, no association was found between patients with low or high AR expression and MDR1 expression with overall survival and disease-free interval.

3. Discussion

For many years, canine PC has been considered a model for human PC, and several studies have proposed and evaluated the importance of the canine model from a single health perspective [20,21,22,23,24,25]. However, based on our previous results [13,14], we propose that dogs can be used in comparative studies considering the particularities of PC in both species. In human PC, tumors generally express ARs and respond to androgen deprivation therapy [2]. Only one set of tumors became resistant to androgen deprivation and required additional aggressive treatment [26]. Nevertheless, canine PC appears to originate under low testosterone stimulation and negative to low AR expression [13,19,27]. Therefore, dogs could not be a model for the usual human type of PC (luminal phenotype with AR-positive expression). Thus, we investigated the role of P-gp and AR receptors in canine prostatic samples to comprehend the role of these markers in the canine prostate.
As AR plays a pivotal role in normal prostate cells and PC cells [2], several studies have investigated the role of MDR1 and its protein (P-gp) in human PC. It was previously hypothesized and demonstrated that the MDR1 promoter region is hypermethylated during PC development, leading to a higher influx of testosterone in prostatic neoplastic cells [28,29,30,31]. Based on this information, we performed an in silico analysis of previous literature to confirm our hypothesis. The phenotype of the human normal prostate shows low P-gp protein expression and strong AR expression in the nucleus of luminal cells. Moreover, canine normal prostate cells also demonstrated nuclear AR expression; however, different from human normal prostate cells showed higher membranous P-gp expression. Since P-gp can bind testosterone, its overexpression is important for prostate cell regulation. Interestingly, in canine PIA, loss of AR expression and loss of membranous P-gp (cytoplasmic accumulation in this lesion) were observed.
Canine PIA was previously associated with decreased gene and protein AR expression and mutations, leading to AR downregulation [23]. Our doubling staining results reinforced this previous finding and demonstrated that PIA progression could lead to PC development from cancer cells independent of testosterone. Usual-type human PC appears to progress from high-grade prostatic intraepithelial neoplasia (HGPIN), which is a controversial lesion. Some authors believe that PIA can progress to PC or HGPIN, being a PC precursor lesion [32,33]. However, some researchers have not demonstrated this association [34,35]. In canine prostatic pathology, HGPIN was previously reported to be frequently associated with canine PC [36,37]. However, HGPIN appears to have a very low frequency in dogs [12]. Godoy et al. [23] investigated 469 prostate tissues from different dogs and found only 14 tissue samples with PIN. Regarding PIA, the authors found 171 dogs with these lesions and 84 dogs with PC. Among the dogs with PC, 51 of 84 had concomitant PIA.
In addition to decreased AR protein expression, canine PC also showed decreased AR transcript levels. However, we did not obtain serum samples from these dogs to investigate testosterone levels. Since the tumors showed AR gene and protein downregulation, we believe that these tumors are independent of androgen hormones. In human PC, even with tumor androgen resistance, cancer cells generally express AR. This is a particular difference between human and canine PCs. Even with different phenotypes, tumors do not respond to androgen deprivation in both cases. Therefore, we strongly support the use of dogs as a model for this specific set of human tumors.
Canine PC is considered an aggressive disease with a low response to systemic therapies [12]. One reason for this phenomenon may be P-gp overexpression. MDR1 overexpression is widely known as a resistance phenotype in different tumor subtypes [38,39]. Thus, our results indicated the importance of P-gp in canine PC resistance. Thiemeyer et al. [40] performed a molecular characterization of canine PC, revealing MDR1 overexpression (log2 fold change 3.6) and AR downregulation (log2 Fold Change −3.1), supporting the idea that canine PC develops under low androgen hormone stimulation and P-gp overexpression. Moreover, this phenotype may be related to multidrug-resistant tumors. Interestingly, Azakami et al. [41] investigated the growth of a canine PC cell line (CHP-1) under dihydrotestosterone stimulation, demonstrating low AR expression in this cell line and reinforcing its growth independent of androgen hormone stimulation.
From the clinical perspective of dogs with PC, our results also provide new information regarding tumor resistance. Although P-gp is responsible for androgen hormone efflux in the prostate, it is also associated with multiple drug resistance. Canine PC is a highly aggressive disease, with aggressive clinical behavior and a lack of response to chemotherapy [42,43]. P-gp overexpression may explain the lack of response to standard chemotherapy. To the best of our knowledge, this is the first study to report P-gp overexpression in canine PC. Therefore, future studies associating P-gp expression with standard chemotherapy responses could help to understand the mechanism involved in this phenomenon.
Another important aspect associated with canine PC’s clinical behavior is the cytoplasmic expression of AR. Non-nuclear AR expression was recently reported in canine PC [19,44]. However, in human cancers, including PC, non-nuclear AR signaling has been associated with aggressive characteristics, including epithelial-mesenchymal transition and metastasis [45,46]. AR nuclear expression is associated with hormone-dependent signaling pathways; however, AR splice variants can be found with different cellular localization, with a clinical impact on human patients [47]. Thus, as occurs in some human cancers, including PC, AR cytoplasmic expression can be associated with different signaling pathways, leading to aggressive tumor behavior.
Therefore, our results strongly suggest that canine PC is generally independent of androgen hormone stimulation and that dogs may be an interesting model for this set of tumors in humans.

4. Material and Methods

4.1. Ethical Approval

This study was performed in accordance with national and international recommendations for the care and use of animals [48]. All procedures were performed after receiving approval from the Institutional Ethics Committee on Animal Use (CEUA, # 107/2015), and all owners signed a written consent form, allowing the sample to be used in the research.

4.2. Tumor Samples

This study included 35 prostate samples from the veterinary pathology archive. Only samples from intact dogs with paraffin-embedded tissue for immunohistochemistry and paired frozen samples for molecular analysis were included in this study. Ten normal prostate, 10 proliferative inflammatory atrophies, and 15 prostatic carcinoma samples were selected. For each diagnosis, hematoxylin and eosin staining was performed, and carcinomas were classified according to Palmieri et al. [12]. The PIA classification was based on Godoy et al. [23].

4.3. Double Immunofluorescence

Double immunofluorescence was performed based on a previously reported technique for double immunohistochemistry [49] and immunofluorescence [50] with modifications. Briefly, a two-color immunofluorescence stain was performed using P-glycoprotein (green color) and AR (red color) antibodies. Tissue samples were deparaffinized, and antigen retrieval was performed using citrate buffer solution (pH 6.) in a commercial pressure chamber (Dako, Carpinteria, CA, USA) for 30 s at 125 °C, followed by 25 min at 94 °C, and cooling for 15 min. Then, unpacific binding proteins were blocked using a commercial solution for 30 min (Dako, Carpinteria, CA, USA). Anti-rabbit polyclonal AR (1:50) was purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Alexa Fluor 484 (Invitrogen, Carlsbad, CA, USA) at a 2 μg/mL dilution in phosphate-buffered saline (PBS) for 1 h and the slides were washed using PBS solution. The second primary antibody was applied (1:700 monoclonal mouse anti-P-gp clone C494, BioLegend, San Diego, CA, USA) overnight. Then, the secondary goat anti-mouse antibody was conjugated with Alexa Fluor® 594 (BioLegend, San Diego, CA, USA), for one hour. Slides were counterstained with 4-6-diamidino-2-phenylindole (DAPI; Sigma, Portland, OR, USA) and evaluated using a laser scanning confocal microscope (Leica Biosystems, Wetzlar, Germany).

4.4. Gene Expression

Tissue macrodissection, mRNA extraction, cDNA synthesis, and qPCR were performed as in previous literature [19]. Briefly, mRNA was extracted using the RecoverAll™ Total Nucleic Acid Kit (Ambion, Life Technologies, MA, USA), and mRNA quantity was evaluated using a spectrophotometer (NanoDrop ND-1000, Thermo Fisher, Waltham, MA, USA). The primer sequences for MDR1 were as follows: 5′CGCAACCTCCACCGAGAA3 (forward) and 5′CGCAACCTCCACCGAGAA 3′ (reverse). The sequences of endogenous HPRT and AR genes have been previously published [19]. qPCR for MDR1, AR and HPRT (endogenous) genes was conducted in a total volume of 10 μL containing Power SYBR Green PCR Master Mix (Applied Biosystems; Foster City, CA, USA), 1 μL of cDNA (1:10), and 0.3 μM of each primer. The reactions were performed in triplicate in 384-well plates using QuantStudio 12 K Flex Thermal Cycler equipment (Applied Biosystems, Foster City, CA, USA). The amplification reaction conditions for all primers were 40 cycles of 15 s at 94 °C and 1 min at 60 °C. PCR product specificity was determined using the dissociation curve for all experiments. The relative gene expression was quantified using the 2−ΔΔCT method.

4.5. Quantitative Bisulfite Pyrosequencing

Pyrosequencing analysis was performed to evaluate the frequency of MDR1 promoter methylation according to a previous study [51]. Each diagnosis was confirmed, and pyrosequencing was performed as previously described [43]. Briefly, bisulfite conversion of genomic DNA was performed using an EZ DNA Methylation-Gold Kit (Zymo Research Corporation, Irvine, CA, USA). The forward (5′ GGTTTGGGTTTTTTGGAGT 3′) and reverse (5′ CCTCCTAAAACTCCAACCT 3′) primers of MDR1 CpG island (Gene ID: 403879) were amplified by PCR (HotStarTaq Master Mix kit, Qiagen) and pyrosequencing was performed using a sequencing primer (5′ TATATTTTGGTGTTTTTG 3′) following the manufacturer’s instructions (PyroMark ID Q96, Qiagen and Biotage, Uppsala, Sweden).

4.6. P-Glycoprotein and AR Expression in Human PC

As dogs are considered an interesting model for human PC, we performed an in silico analysis of P-gp and AR gene and protein expression in human PC. First, we evaluated P-gp and AR expression protein patterns using the Human Protein Atlas (THPA) database (https://www.proteinatlas.org/, accessed on 10 November 2021) [52]. In this analysis, protein localization was evaluated, and the protein pattern was divided into the following categories: negative, low, moderate, or high. In this step, 43 images of P-gp immunoexpression from PC-affected patients and five normal prostate samples were evaluated. For AR immunoexpression, 30 PC tissue and three normal prostate images were available for analysis. We then analyzed the MDR1 and AR gene expression PC samples using The Cancer Genome Atlas (n = 492) samples compared to normal prostate samples from the Genotype-Tissue Expression project (https://gtexportal.org/home/, accessed on 10 November 2021) matched (n = 152), using the Gene Expression Profiling Interactive Analysis (GEPIA) (http://gepia.cancer-pku.cn/, accessed on 10 November 2021) [53]. The criteria used for this analysis were a p-value cutoff of 0.01, Log2FC cutoff of 1, and jitter size of 0.4 with data presented on the log scale. Survival analysis was performed using a dataset containing 492 PC (PRAD) samples available from both the GEPIA and THPA portals. Using GEPIA, survival analysis was performed using MDR1 and AR median expression as cut-offs to classify patients as high or low expression. Pearson’s correlation between MDR1 and AR transcripts was also determined using GEPIA. The confidence interval was set to 95%, and axis units were provided in months. The disease-free interval was calculated using the same parameters.

4.7. Statistical Analysis

Immunofluorescence slides were analyzed by counting the total number of cells (based on DAPI counterstaining) and evaluating the number of P-gp-positive cells, AR-positive cells, and P-gp/AR double-stained cells separately. The Mann–Whitney test or analysis of variance (ANOVA) was applied to identify statistical differences. For gene expression, the Mann–Whitney test and ANOVA were used to investigate statistical differences. Linear regression analysis and Spearman’s correlation tests were used for comparisons between two variables. Statistical analyses were performed using GraphPad Prism 5 v.5.0 (GraphPad Software Inc., La Jolla, CA, USA). The Kruskal–Wallis or Mann–Whitney U test was used to compare MDR1 and AR transcript levels between the normal and PC samples. Statistical significance was set at p < 0.05. The correlation coefficients (r) were interpreted according to Pett, Lackey and Sullivan [54], dividing the classifications into weak (0 < r > 0.29), low (0.30 < r > 0.49), moderate (0.49 < r > 0.60), strong (0.61 < r > 0.89) or very strong (0.90 < r > 1); whether they were positive or negative.

5. Conclusions

Overall, our results strongly suggest that normal canine prostate testosterone influx may be regulated by P-gp expression, and during progression to PC, prostatic cells lack AR expression and overexpress P-gp. P-gp expression in canine PC may be related to the phenotype of multiple drug resistance.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms23031163/s1.

Author Contributions

Conceptualization, A.M.B.C. and C.E.F.-A.; methodology, A.M.B.C., A.B. and C.E.F.-A.; formal analysis, A.M.B.C., R.H.F.-A. and C.E.F.-A.; and investigation, A.M.B.C., R.L.-A. and C.E.F.-A.; resources, C.E.F.-A.; data curation, A.M.B.C. and C.E.F.-A.; writing—original draft preparation, A.M.B.C., R.H.F.-A. and C.E.F.-A.; writing—review and editing, R.H.F.-A., A.B., R.L.-A. and C.E.F.-A.; funding acquisition; C.E.F.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the São Paulo State Research Foundation (FAPESP protocol #2015/25400-7).

Institutional Review Board Statement

This study was performed in accordance with the national and international recommendations for the care and use of animals (National Research Council, 2011). All procedures were performed after receiving approval from the Institutional Ethics Committee on Animal Use (CEUA, # 107/2015).

Informed Consent Statement

All owners signed a written consent form allowing the sample to be used in the research.

Data Availability Statement

Supporting data are available in this manuscript text or the supplementary data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Griffin, J.E. Androgen resistance—The clinical and molecular spectrum. N. Engl. J. Med. 1992, 326, 611–618. [Google Scholar]
  2. Banerjee, P.P.; Banerjee, S.; Brown, T.R.; Zirkin, B.R. Androgen action in prostate function and disease. Am. J. Clin. Exp. Urol. 2018, 6, 62–77. [Google Scholar] [PubMed]
  3. Evans, R.M. The steroid and thyroid hormone receptor superfamily. Science 1988, 240, 889–895. [Google Scholar] [CrossRef]
  4. Rosner, W.; Hryb, D.J.; Khan, M.S.; Nakhla, A.M.; Romas, N.A. Sex hormone-binding globulin mediates steroid hormone signal transduction at the plasma membrane. J. Steroid Biochem. Mol. Biol. 1999, 69, 481–485. [Google Scholar] [CrossRef]
  5. Giorgi, E.P.; Stein, W.D. The transport of steroids into animal cells in culture. Endocrinology 1981, 108, 688–697. [Google Scholar] [CrossRef] [PubMed]
  6. Fojo, A.T.; Ueda, K.; Slamon, D.J.; Poplack, D.G.; Gottesman, M.M.; Pastan, I. Expression of a multidrug-resistance gene in human tumors and tissues. Proc. Natl. Acad. Sci. USA 1987, 84, 265–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Fedoruk, M.N.; Giménez-Bonafé, P.; Guns, E.S.; Mayer, L.D.; Nelson, C.C. P-glycoprotein increases the efflux of the androgen dihydrotestosterone and reduces androgen responsive gene activity in prostate tumor cells. Prostate 2004, 59, 77–90. [Google Scholar] [CrossRef]
  8. Dai, C.; Heemers, H.; Sharifi, N. Androgen Signaling in Prostate Cancer. Cold Spring Harb. Perspect. Med. 2017, 7, a030452. [Google Scholar] [CrossRef] [Green Version]
  9. Huggins, C.; Hodges, C.V. Studies on prostatic cancer. I: The effect of castration, of estrogen and of androgen injection on serum phosphatases in metastatic carcinoma of the prostate. Cancer Res. 1941, 1, 293–297. [Google Scholar]
  10. Harris, W.P.; Mostaghel, E.A.; Nelson, P.S.; Montgomery, B. Androgen deprivation therapy: Progress in understanding mechanisms of resistance and optimizing androgen depletion. Nat. Clin. Pract. Urol. 2009, 6, 76–85. [Google Scholar] [CrossRef]
  11. Shimizu, Y.; Tamada, S.; Kato, M.; Hirayama, Y.; Takeyama, Y.; Iguchi, T.; Sadar, M.D.; Nakatani, T. Androgen Receptor Splice Variant 7 Drives the Growth of Castration Resistant Prostate Cancer without Being Involved in the Efficacy of Taxane Chemotherapy. J. Clin. Med. 2018, 7, 444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Palmieri, C.; Foster, R.A.; Grieco, V.; Fonseca-Alves, C.E.; Wood, G.A.; Culp, W.T.N.; Murua, E.H.; De Marzo, A.M.; Laufer-Amorim, R. Histopathological Terminology Standards for the Reporting of Prostatic Epithelial Lesions in Dogs. J. Comp. Pathol. 2019, 171, 30–37. [Google Scholar] [CrossRef]
  13. Laufer-Amorim, R.; Fonseca-Alves, C.E.; Villacis, R.A.R.; Linde, S.A.D.; Carvalho, M.; Larsen, S.J.; Marchi, F.A.; Rogatto, S.R. Comprehensive Genomic Profiling of Androgen-Receptor-Negative Canine Prostate Cancer. Int. J. Mol. Sci. 2019, 20, 1555. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Fonseca-Alves, C.E.; Kobayashi, P.E.; Rivera-Calderón, L.G.; Felisbino, S.L.; Rinaldi, J.C.; Drigo, S.A.; Rogatto, S.R.; Laufer-Amorim, R. Immunohistochemical panel to characterize canine prostate carcinomas according to aberrant p63 expression. PLoS ONE 2018, 13, e0199173. [Google Scholar] [CrossRef] [PubMed]
  15. Fonseca-Alves, C.E.; Kobayashi, P.E.; Laufer-Amorim, R. Evaluation of NKX3.1 and C-MYC expression in canine prostatic cancer. Res. Vet. Sci. 2018, 118, 365–370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Fonseca-Alves, C.E.; Rodrigues, M.M.; de Moura, V.M.; Rogatto, S.R.; Laufer-Amorim, R. Alterations of C- MYC, NKX3.1, and E-cadherin expression in canine prostate carcinogenesis. Microsc. Res. Tech. 2013, 76, 1250–1256. [Google Scholar] [CrossRef]
  17. Kobayashi, P.E.; Rodrigues, M.M.P.; Gartner, F.; Rema, A.; Fonseca-Alves, C.E.; Laufer-Amorim, R. Association between decreased expression of estrogen receptor alpha, androgen receptor and phosphatase and tensin homolog immunoexpression in the canine prostate. Pesq. Vet. Bras. 2019, 39, 40–46. [Google Scholar] [CrossRef]
  18. Lin, H.Y.; Palmieri, C. Is STAT3 and PTEN Expression Altered in Canine Prostate Cancer? J. Comp. Pathol. 2016, 155, 185–189. [Google Scholar] [CrossRef]
  19. Rivera-Calderón, L.G.; Fonseca-Alves, C.E.; Kobayashi, P.E.; Carvalho, M.; Drigo, S.A.; de Oliveira, V.R.; Laufer-Amorim, R. Alterations in PTEN, MDM2, TP53 and AR protein and gene expression are associated with canine prostate carcinogenesis. Res. Vet. Sci. 2016, 106, 56–61. [Google Scholar] [CrossRef] [Green Version]
  20. Lim, B.; Kim, H.B.; Jeong, S.; Kim, S.H.; Kang, J.M.; Park, Y.; Won, D.S.; Kim, J.W.; Ryu, D.S.; Kim, Y.; et al. Novel platinum bipolar electrode for irreversible electroporation in prostate cancer: Preclinical study in the beagle prostate. Sci. Rep. 2021, 11, 17194. [Google Scholar] [CrossRef]
  21. Pellerin, O.; Déan, C.; Reb, P.; Chaix, C.; Floch, F.; Tierny, D.; Sapoval, M. Prostate artery chemoembolization in prostate cancer: A proof of concept study in spontaneous prostate cancer in a canine model. Diagn. Interv. Imaging 2021, 2211–5684, 00172–00178. [Google Scholar] [CrossRef] [PubMed]
  22. Leis-Filho, A.F.; Lainetti, P.D.; Kobayashi, P.E.; Palmieri, C.; Amorim, R.L.; Fonseca-Alves, C.E. Expression and prognostic significance of vascular endothelial growth factor-A (VEGF-A) and its receptor in canine prostate cancer. Prostate 2021, 81, 1021–1031. [Google Scholar] [CrossRef] [PubMed]
  23. De Godoy, F.G.; Pedrina, B.; de Faria, L.P.; Kobayashi, P.E.; Govoni, V.M.; Palmieri, C.; de Moura, V.M.B.D.; Laufer-Amorim, R.; Fonseca-Alves, C.E. Morphological and Molecular Characterization of Proliferative Inflammatory Atrophy in Canine Prostatic Samples. Cancers 2021, 13, 1887. [Google Scholar] [CrossRef]
  24. Bongiovanni, L.; Caposano, F.; Romanucci, M.; Grieco, V.; Malatesta, D.; Brachelente, C.; Massimini, M.; Benazzi, C.; Thomas, R.E.; Salda, L.D. Survivin and Sox9: Potential Stem Cell Markers in Canine Normal, Hyperplastic, and Neoplastic Canine Prostate. Vet. Pathol. 2019, 56, 200–207. [Google Scholar] [CrossRef] [PubMed]
  25. Leis-Filho, A.F.; Lainetti, P.F.; Franzoni, M.S.; Palmieri, C.; Kobayshi, P.E.; Laufer-Amorim, R.; Fonseca-Alves, C.E. A Comparative in Silico Analysis of CD24’s Prognostic Value in Human and Canine Prostate Cancer. J. Pers. Med. 2021, 11, 232. [Google Scholar] [CrossRef] [PubMed]
  26. Che, M.; Chaturvedi, A.; Munro, S.A.; Pitzen, S.P.; Ling, A.; Zhang, W.; Mentzer, J.; Ku, S.Y.; Puca, L.; Zhu, Y.; et al. Opposing transcriptional programs of KLF5 and AR emerge during therapy for advanced prostate cancer. Nat. Commun. 2021, 12, 6377. [Google Scholar] [CrossRef] [PubMed]
  27. Romanucci, M.; Frattone, L.; Ciccarelli, A.; Bongiovanni, L.; Malatesta, D.; Benazzi, C.; Brachelente, C.; Della-Salda, L. Immunohistochemical expression of heat shock proteins, p63 and androgen receptor in benign prostatic hyperplasia and prostatic carcinoma in the dog. Vet. Comp. Oncol. 2016, 14, 337–349. [Google Scholar] [CrossRef]
  28. Enokida, H.; Shiina, H.; Igawa, M.; Ogishima, T.; Kawakami, T.; Bassett, W.W.; Anast, J.W.; Li, L.C.; Urakami, S.; Terashima, M.; et al. CpG hypermethylation of MDR1 gene contributes to the pathogenesis and progression of human prostate cancer. Cancer Res. 2004, 64, 5956–5962. [Google Scholar] [CrossRef] [Green Version]
  29. Nowacka-Zawisza, M.; Wiśnik, E. DNA methylation and histone modifications as epigenetic regulation in prostate cancer (Review). Oncol. Rep. 2017, 38, 2587–2596. [Google Scholar] [CrossRef] [Green Version]
  30. Enokida, H.; Shiina, H.; Urakami, S.; Igawa, M.; Ogishima, T.; Li, L.C.; Kawahara, M.; Nakagawa, M.; Kane, C.J.; Carroll, P.R.; et al. Multigene methylation analysis for detection and staging of prostate cancer. Clin. Cancer Res. 2005, 11, 6582–6588. [Google Scholar] [CrossRef] [Green Version]
  31. Ellinger, J.; Bastian, P.J.; Jurgan, T.; Biermann, K.; Kah, P.; Heukamp, L.C.; Wernert, N.; Müller, S.C.; von Ruecker, A. CpG island hypermethylation at multiple gene sites in diagnosis and prognosis of prostate cancer. Urology 2008, 71, 161–167. [Google Scholar] [CrossRef] [PubMed]
  32. De Marzo, A.M.; Marchi, V.L.; Epstein, J.I.; Nelson, W.G. Proliferative inflammatory atrophy of the prostate: Implications for prostatic carcinogenesis. Am. J. Pathol. 1999, 155, 1985–1992. [Google Scholar] [CrossRef]
  33. Nakayama, M.; Bennett, C.J.; Hicks, J.L.; Epstein, J.I.; Platz, E.A.; Nelson, W.G.; De Marzo, A.M. Hypermethylation of the human glutathione S-transferase-pi gene (GSTP1) CpG island is present in a subset of proliferative inflammatory atrophy lesions but not in normal or hyperplastic epithelium of the prostate: A detailed study using laser-capture microdissection. Am. J. Pathol. 2003, 163, 923–933. [Google Scholar] [PubMed]
  34. Servian, P.; Celma, A.; Planas, J.; Placer, J.; de Torres, I.M.; Morote, J. Clinical Significance of Proliferative Inflammatory Atrophy in Negative Prostatic Biopsies. Prostate 2016, 76, 1501–1506. [Google Scholar] [CrossRef] [PubMed]
  35. Russo, G.I.; Cimino, S.; Giranio, G.; Regis, F.; Favilla, V.; Privitera, S.; Motta, F.; Caltabiano, R.; Stenzl, A.; Todenhöfer, T.; et al. Metabolic syndrome is not associated with greater evidences of proliferative inflammatory atrophy and inflammation in patients with suspected prostate cancer. Urol. Oncol. 2018, 36, 240. [Google Scholar] [CrossRef]
  36. Bostwick, D.G.; Ramnani, D.; Qian, J. Prostatic intraepithelial neoplasia: Animal models 2000. Prostate 2000, 43, 286–294. [Google Scholar] [CrossRef]
  37. Waters, D.J. High-grade prostatic intraepithelial neoplasia in dogs. Eur. Urol. 1999, 35, 456–458. [Google Scholar] [CrossRef]
  38. Lainetti, P.F.; Leis-Filho, A.F.; Laufer-Amorim, R.; Battazza, A.; Fonseca-Alves, C.E. Mechanisms of Resistance to Chemotherapy in Breast Cancer and Possible Targets in Drug Delivery Systems. Pharmaceutics 2020, 12, 1193. [Google Scholar] [CrossRef] [PubMed]
  39. Elia, S.G.; Al-Karmalawy, A.A.; Nasr, M.Y.; Elshal, M.F. Loperamide potentiates doxorubicin sensitivity in triple-negative breast cancer cells by targeting MDR1 and JNK and suppressing mTOR and Bcl-2: In vitro and molecular docking study. J. Biochem. Mol. Toxicol. 2021, 31, e22938. [Google Scholar] [CrossRef]
  40. Thiemeyer, H.; Taher, L.; Schille, J.T.; Packeiser, E.M.; Harder, L.K.; Hewicker-Trautwein, M.; Brenig, B.; Schütz, E.; Beck, J.; Nolte, I.; et al. An RNA-Seq-Based Framework for Characterizing Canine Prostate Cancer and Prioritizing Clinically Relevant Biomarker Candidate Genes. Int. J. Mol. Sci. 2021, 25, 11481. [Google Scholar] [CrossRef]
  41. Azakami, D.; Nakahira, R.; Kato, Y.; Michishita, M.; Kobayashi, M.; Onozawa, E.; Bonkobara, M.; Kobayashi, M.; Takahashi, K.; Watanabe, M.; et al. The canine prostate cancer cell line CHP-1 shows over-expression of the co-chaperone small glutamine-rich tetratricopeptide repeat-containing protein α. Vet. Comp. Oncol. 2017, 15, 557–562. [Google Scholar] [CrossRef]
  42. L’Eplattenier, H.F.; Lai, C.L.; van den Ham, R.; Mol, J.; van Sluijs, F.; Teske, E. Regulation of COX-2 expression in canine prostate carcinoma: Increased COX-2 expression is not related to inflammation. J. Vet. Intern. Med. 2007, 21, 776–782. [Google Scholar] [CrossRef]
  43. Sorenmo, K.U.; Goldschmidt, M.H.; Shofer, F.S.; Goldkamp, C.; Ferracone, J. Evaluation of cyclooxygenase-1 and cyclooxygenase-2 expression and the effect of cyclooxygenase inhibitors in canine prostatic carcinoma. Vet. Comp. Oncol. 2004, 2, 13–23. [Google Scholar] [CrossRef] [PubMed]
  44. Akter, S.H.; Lean, F.Z.; Lu, J.; Grieco, V.; Palmieri, C. Different Growth Patterns of Canine Prostatic Carcinoma Suggests Different Models of Tumor-Initiating Cells. Vet. Pathol. 2015, 52, 1027–1033. [Google Scholar] [CrossRef]
  45. Kuasne, H.; Barros-Filho, M.C.; Marchi, F.A.; Drigo, S.A.; Scapulatempo-Neto, C.; Faria, E.F.; Rogatto, S.R. Nuclear loss and cytoplasmic expression of androgen receptor in penile carcinomas: Role as a driver event and as a prognosis factor. Virchows Arch. 2018, 473, 607–614. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zamagni, A.; Cortesi, M.; Zanoni, M.; Tesei, A. Non-nuclear AR Signaling in Prostate Cancer. Front. Chem. 2019, 26, 651. [Google Scholar] [CrossRef]
  47. König, P.; Eckstein, M.; Jung, R.; Abdulrahman, A.; Guzman, J.; Weigelt, K.; Serrero, G.; Hayashi, J.; Geppert, C.; Stöhr, R.; et al. Expression of AR-V7 (Androgen Receptor Variant 7) Protein in Granular Cytoplasmic Structures Is an Independent Prognostic Factor in Prostate Cancer Patients. Cancers 2020, 12, 2639. [Google Scholar] [CrossRef]
  48. National Research Council. Guide for the Care and Use of Laboratory Animals, 8th ed.; National Academies Press: Washington, DC, USA, 2011. [Google Scholar]
  49. Fonseca-Alves, C.E.; Bento, D.D.; Torres-Neto, R.; Werner, J.; Kitchell, B.; Laufer-Amorim, R. Ki67/KIT double immunohistochemical staining in cutaneous mast cell tumors from Boxer dogs. Res. Vet. Sci. 2015, 102, 122–126. [Google Scholar] [CrossRef] [PubMed]
  50. Costa, C.D.; Justo, A.A.; Kobayashi, P.E.; Story, M.M.; Palmieri, C.; Laufer-Amorim, R.; Fonseca-Alves, C.E. Characterization of OCT3/4, Nestin, NANOG, CD44 and CD24 as stem cell markers in canine prostate cancer. Int. J. Biochem. Cell Biol. 2019, 108, 21–28. [Google Scholar] [CrossRef]
  51. Fonseca-Alves, C.E.; Kobayashi, P.E.; Leis-Filho, A.F.; Lainetti, P.F.; Grieco, V.; Kuasne, H.; Rogatto, S.R.; Laufer-Amorim, R. E-Cadherin Downregulation is Mediated by Promoter Methylation in Canine Prostate Cancer. Front. Genet. 2019, 10, 1242. [Google Scholar] [CrossRef]
  52. Uhlén, M.; Fagerberg, L.; Hallström, B.M.; Lindskog, C.; Oksvold, P.; Mardinoglu, A.; Sivertsson, Å.; Kampf, C.; Sjöstedt, E.; Asplund, A.; et al. Tissue-based map of the human proteome. Science 2015, 347, 1260419. [Google Scholar] [CrossRef] [PubMed]
  53. Tang, Z.; Li, C.; Kang, B.; Gao, G.; Li, C.; Zhang, Z. GEPIA: A web server for cancer and normal gene expression profiling and interactive analyses. Nucleic Acids Res. 2017, 45, W98–W102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Pett, M.A.; Lackey, N.R.; Sullivan, J.J. Making Sense of Factor Analysis: The Use of Factor Analysis for Instrument Development in Health Care Research; Sage: Thousand Oaks, CA, USA, 2003. [Google Scholar]
Ijms 23 01163 g001 550

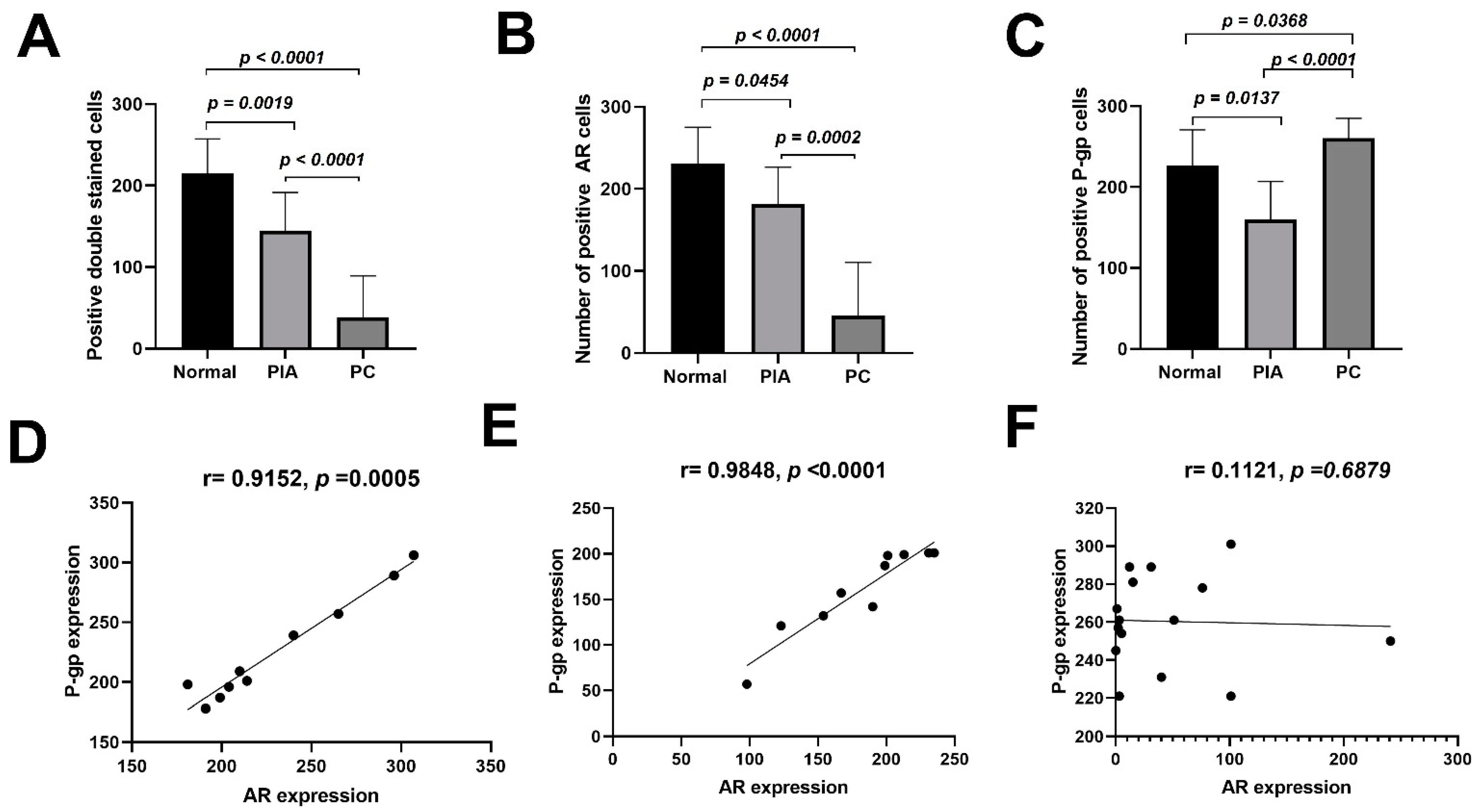

Figure 1. Expression of androgen receptor (AR), P-glycoprotein (P-gp) and doubled stained cells (AR/P-gp) in canine prostatic samples. (A): Analysis of variance (ANOVA) revealing high doubled stained cells (AR/P-gp) in normal samples and decreased expression on proliferative inflammatory atrophy (PIA) and prostate cancer (PC) samples. (B): High AR expression in normal samples compared to PIA and PC. (C): ANOVA analysis revealing higher P-gp expression on PC samples, compared to normal and PIA. (D): Positive correlation between the number of AR and P-gp positive stained cells in normal samples, indicating a dependency of both variables. Therefore, in normal prostate, increased AR expression also increases P-gp expression. (E): Correlation analysis revealing that samples with higher AR expression also demonstrate higher P-gp expression in PIA samples. Similar to normal samples, in PIA samples, AR and P-gp expression presents dependency, indicating control of P-gp to androgen hormones influx. (F): No correlation is found between AR and P-gp expression in PC samples. Thus, in canine PC, no dependency or relation is detected between AR and P-gp expression.
Figure 1. Expression of androgen receptor (AR), P-glycoprotein (P-gp) and doubled stained cells (AR/P-gp) in canine prostatic samples. (A): Analysis of variance (ANOVA) revealing high doubled stained cells (AR/P-gp) in normal samples and decreased expression on proliferative inflammatory atrophy (PIA) and prostate cancer (PC) samples. (B): High AR expression in normal samples compared to PIA and PC. (C): ANOVA analysis revealing higher P-gp expression on PC samples, compared to normal and PIA. (D): Positive correlation between the number of AR and P-gp positive stained cells in normal samples, indicating a dependency of both variables. Therefore, in normal prostate, increased AR expression also increases P-gp expression. (E): Correlation analysis revealing that samples with higher AR expression also demonstrate higher P-gp expression in PIA samples. Similar to normal samples, in PIA samples, AR and P-gp expression presents dependency, indicating control of P-gp to androgen hormones influx. (F): No correlation is found between AR and P-gp expression in PC samples. Thus, in canine PC, no dependency or relation is detected between AR and P-gp expression.
Ijms 23 01163 g001
Ijms 23 01163 g002 550
Figure 2. Immunofluorescence analysis of androgen receptor (AR) (green color) and P-glycoprotein (P-gp) (red color) in canine prostatic samples. (A–D): expression of P-gp (B) and AR (C) in normal prostate samples and merged image (D) demonstrating the doubled stained cells with AR expression in nucleus and P-gp in cell membrane. (E–H): expression of P-gp (F), AR (G) and merged image (AR/P-gp) in PIA samples with surrounding normal tissue. The normal prostatic cells are showing positive P-gp expression in the membrane and nuclear AR expression (arrows). Conversely, PIA areas are showing no membranous P-gp and lack of AR expression (nucleus stained with DAPI—blue color) (arrowhead). (I–L): Canine PC with solid pattern showing cytoplasmic and membranous P-gp expression (J) and AR cytoplasmic expression (K). In the merged image (AR/P-gp double-stained) (L), it is observed lack of nuclear AR (cells stained with DAPI) and cell cytoplasm with yellowish stained (indicating a colocalization of AR and P-gp in cytoplasm). (M–O) and ‘(P): PC samples showing low P-gp expression and high AR cytoplasmic expression with no nuclear expression (P–T): PC samples showing P-gp membranous expression with AR stained in nucleus and cytoplasm (T–X), and (Z): PC samples revealing membranous P-gp expression with AR cytoplasmic expression (Z). Immunofluorescence images, DAPI counterstaining.
Figure 2. Immunofluorescence analysis of androgen receptor (AR) (green color) and P-glycoprotein (P-gp) (red color) in canine prostatic samples. (A–D): expression of P-gp (B) and AR (C) in normal prostate samples and merged image (D) demonstrating the doubled stained cells with AR expression in nucleus and P-gp in cell membrane. (E–H): expression of P-gp (F), AR (G) and merged image (AR/P-gp) in PIA samples with surrounding normal tissue. The normal prostatic cells are showing positive P-gp expression in the membrane and nuclear AR expression (arrows). Conversely, PIA areas are showing no membranous P-gp and lack of AR expression (nucleus stained with DAPI—blue color) (arrowhead). (I–L): Canine PC with solid pattern showing cytoplasmic and membranous P-gp expression (J) and AR cytoplasmic expression (K). In the merged image (AR/P-gp double-stained) (L), it is observed lack of nuclear AR (cells stained with DAPI) and cell cytoplasm with yellowish stained (indicating a colocalization of AR and P-gp in cytoplasm). (M–O) and ‘(P): PC samples showing low P-gp expression and high AR cytoplasmic expression with no nuclear expression (P–T): PC samples showing P-gp membranous expression with AR stained in nucleus and cytoplasm (T–X), and (Z): PC samples revealing membranous P-gp expression with AR cytoplasmic expression (Z). Immunofluorescence images, DAPI counterstaining.
Ijms 23 01163 g002
Ijms 23 01163 g003 550

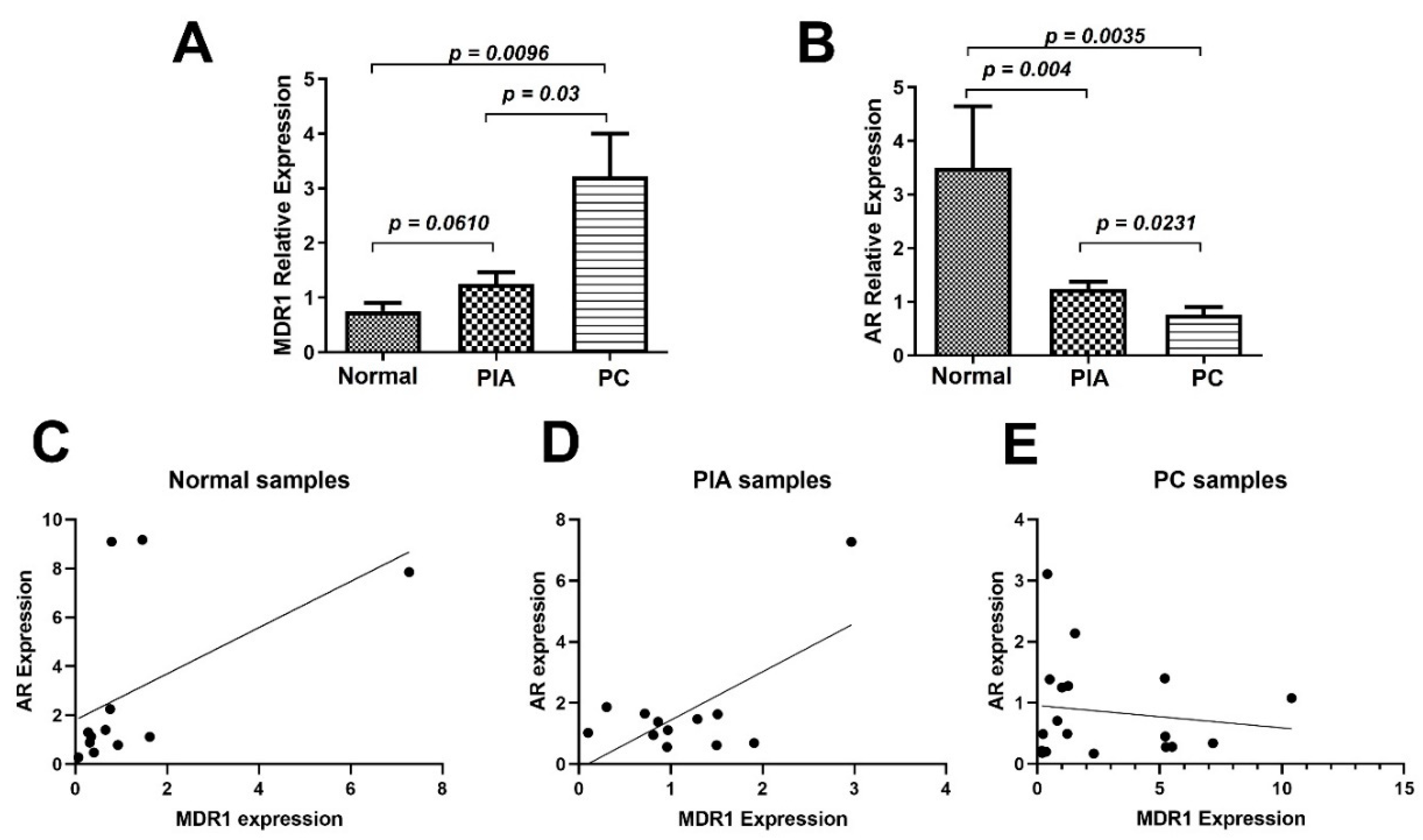

Figure 3. MDR1 and AR gene expression analysis in canine prostatic samples. (A): MDR1 expression revealing higher transcript levels on canine prostate cancer (PC), compared to normal and proliferative inflammatory atrophy (PIA) samples. (B): AR transcripts in canine prostatic samples. A higher AR expression on normal samples, compared to normal and PIA samples is observed. (C): Linear regression analysis revealing a positive association between MDR1 and AR transcripts. (D): Canine PC lacking association between MDR1 and AR transcripts. (E): Linear regression revealing positive association between MDR1 and AR transcripts.
Figure 3. MDR1 and AR gene expression analysis in canine prostatic samples. (A): MDR1 expression revealing higher transcript levels on canine prostate cancer (PC), compared to normal and proliferative inflammatory atrophy (PIA) samples. (B): AR transcripts in canine prostatic samples. A higher AR expression on normal samples, compared to normal and PIA samples is observed. (C): Linear regression analysis revealing a positive association between MDR1 and AR transcripts. (D): Canine PC lacking association between MDR1 and AR transcripts. (E): Linear regression revealing positive association between MDR1 and AR transcripts.
Ijms 23 01163 g003
Ijms 23 01163 g004 550
Figure 4. AR immunohistochemical expression human prostatic samples. (A): Normal prostate gland demonstrating strong nuclear AR expression in luminal cells. (B): A high-grade prostate cancer (PC) showing strong nuclear AR expression. (C): A low grade PC sample showing moderate AR nuclear expression. (D): A high-grade PC showing moderate nuclear AR expression. Image credit of the IHC images: Human Protein Atlas, www.proteinatlas.org. Image available at the following URL: https://www.proteinatlas.org/ENSG00000169083-AR/pathology/prostate+cancer, accessed on 16 November 2021.
Figure 4. AR immunohistochemical expression human prostatic samples. (A): Normal prostate gland demonstrating strong nuclear AR expression in luminal cells. (B): A high-grade prostate cancer (PC) showing strong nuclear AR expression. (C): A low grade PC sample showing moderate AR nuclear expression. (D): A high-grade PC showing moderate nuclear AR expression. Image credit of the IHC images: Human Protein Atlas, www.proteinatlas.org. Image available at the following URL: https://www.proteinatlas.org/ENSG00000169083-AR/pathology/prostate+cancer, accessed on 16 November 2021.
Ijms 23 01163 g004
Ijms 23 01163 g005 550
Figure 5. P-glycoprotein (P-gp) immunohistochemical expression human prostatic samples. (A): Normal prostate gland showing weak membranous P-gp expression by luminal cells. (B): A high-grade prostate cancer (PC) showing no P-gp expression. (C): A PC representing moderate cytoplasmic and membranous P-gp expression. (D): A high-grade PC showing strong membranous and cytoplasmic P-gp expression. Image credit of the IHC images: Human Protein Atlas, www.proteinatlas.org. Image available at the following URL: https://www.proteinatlas.org/ENSG00000085563-ABCB1/pathology/prostate+cancer#img, accessed on 16 November 2021.
Figure 5. P-glycoprotein (P-gp) immunohistochemical expression human prostatic samples. (A): Normal prostate gland showing weak membranous P-gp expression by luminal cells. (B): A high-grade prostate cancer (PC) showing no P-gp expression. (C): A PC representing moderate cytoplasmic and membranous P-gp expression. (D): A high-grade PC showing strong membranous and cytoplasmic P-gp expression. Image credit of the IHC images: Human Protein Atlas, www.proteinatlas.org. Image available at the following URL: https://www.proteinatlas.org/ENSG00000085563-ABCB1/pathology/prostate+cancer#img, accessed on 16 November 2021.
Ijms 23 01163 g005
Ijms 23 01163 g006 550

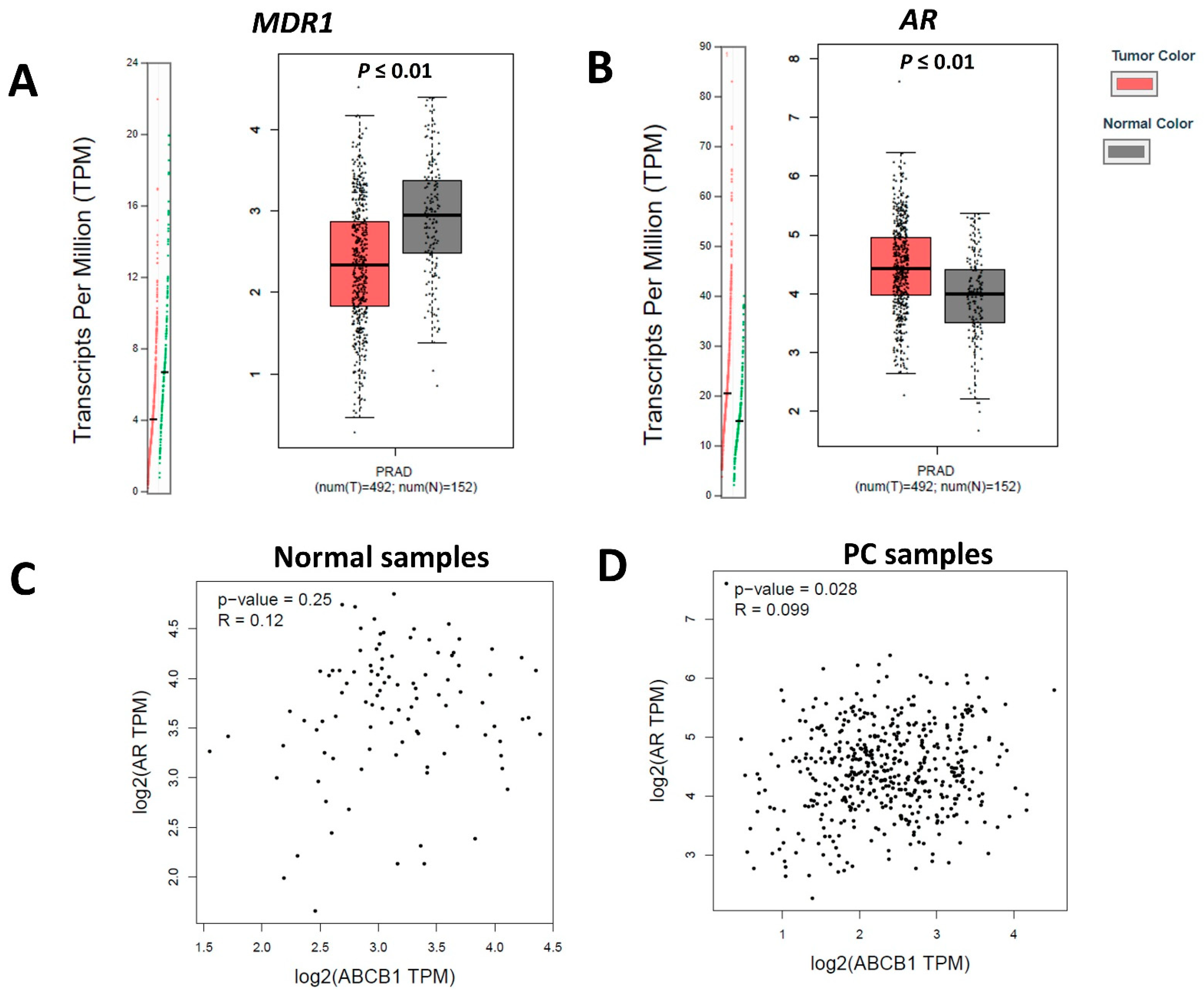

Figure 6. MDR1 and AR transcriptional evaluation on human prostate samples. (A): Higher MDR1 gene expression in normal prostatic samples compared to prostate cancer (PC) samples. The normal samples demonstrate higher transcripts per million (TPM) (green dots) than PC (red dots). (B): AR gene expression in normal prostate and PC cases. Higher AR expression on PC samples is observed. The normal samples demonstrate lower TPM (green dots) than PC (red dots). (C): Correlation analysis between MDR1 and AR gene expression in normal prostatic samples showing no association. (D): Positive low correlation between MDR1 and AR transcripts on human PC samples. The gene expression dotplot is generated using the GEPIA database (http://gepia.cancer-pku.cn/about.html, accessed on 16 November 2021). PRAD: PC dataset.
Figure 6. MDR1 and AR transcriptional evaluation on human prostate samples. (A): Higher MDR1 gene expression in normal prostatic samples compared to prostate cancer (PC) samples. The normal samples demonstrate higher transcripts per million (TPM) (green dots) than PC (red dots). (B): AR gene expression in normal prostate and PC cases. Higher AR expression on PC samples is observed. The normal samples demonstrate lower TPM (green dots) than PC (red dots). (C): Correlation analysis between MDR1 and AR gene expression in normal prostatic samples showing no association. (D): Positive low correlation between MDR1 and AR transcripts on human PC samples. The gene expression dotplot is generated using the GEPIA database (http://gepia.cancer-pku.cn/about.html, accessed on 16 November 2021). PRAD: PC dataset.
Ijms 23 01163 g006
