Fine Mapping and Candidate Gene Analysis of Pm36, a Wild Emmer-Derived Powdery Mildew Resistance Locus in Durum Wheat

by
Domenica Nigro
1,
Antonio Blanco
1,*,
Luciana Piarulli
1,
Massimo Antonio Signorile
1,
Pasqualina Colasuonno
1,
Emanuela Blanco
2 and
Rosanna Simeone
1
1
Department of Soil, Plant and Food Sciences (DiSSPA), Genetics and Plant Breeding Section, University of Bari Aldo Moro, Via Amendola 165/A, 70126 Bari, Italy
2
Institute of Biosciences and Bioresources, National Research Council, Via Amendola 165/A, 70126 Bari, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(21), 13659; https://doi.org/10.3390/ijms232113659
Submission received: 18 October 2022 / Revised: 3 November 2022 / Accepted: 4 November 2022 / Published: 7 November 2022
(This article belongs to the Special Issue Plant Genomics and Bioinformatics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Powdery mildew (PM) is an economically important foliar disease of cultivated cereals worldwide. The cultivation of disease-resistant varieties is considered the most efficient, sustainable and economical strategy for disease management. The objectives of the current study were to fine map the chromosomal region harboring the wild emmer PM resistance locus Pm36 and to identify candidate genes by exploiting the improved tetraploid wheat genomic resources. A set of backcross inbred lines (BILs) of durum wheat were genotyped with the SNP 25K chip array and comparison of the PM-resistant and susceptible lines defined a 1.5 cM region (physical interval of 1.08 Mb) harboring Pm36. The genetic map constructed with F2:3 progenies derived by crossing the PM resistant line 5BIL-42 and the durum parent Latino, restricted to 0.3 cM the genetic distance between Pm36 and the SNP marker IWB22904 (physical distance 0.515 Mb). The distribution of the marker interval including Pm36 in a tetraploid wheat collection indicated that the positive allele was largely present in the domesticated and wild emmer Triticum turgidum spp. dicoccum and ssp. dicoccoides. Ten high-confidence protein coding genes were identified in the Pm36 region of the emmer, durum and bread wheat reference genomes, while three added genes showed no homologous in the emmer genome. The tightly linked markers can be used for marker-assisted selection in wheat breeding programs, and as starting point for the Pm36 map-based cloning.

1. Introduction

Durum and common wheat are susceptible to a series of biotic adversities. Fungal diseases, such as rusts, Fusarium head blight, Helminthosporium leaf blight, Septoria leaf blotch, tan spot and powdery mildew, can cause substantial yield losses and alterations of grain quality properties [1]. Wheat powdery mildew, caused by Blumeria graminis (DC) Speer f. sp. tritici Em. Marchal (syn. Erysiphe graminis f. sp. tritici) (Btg), is one of the most economically important diseases in areas with high rainfall and semi-continental climate as well as in hot and dry climate regions where semi-dwarf wheat varieties, high nitrogen fertilization and irrigated practices are widespread [2,3]. Powdery mildew is an obligate biotrophic parasite as it depends on a living host for its growth and propagation [4]. The fungus lives on the surface of the host, infecting all parts of the plant (culm, sheath, leaves, awn, ear). Initially, the infected tissue shows diffuse chlorosis, then an epiphytic mycelium develops which can cover the entire leaf blade. The mycelium constitutes a barrier to photosynthetic activity and leads to an increase in transpiration; haustoria are responsible for delivering nutrients from the epidermal cells [5]. Wheat is susceptible during the stem elongation stage, but the most serious damage occurs in the heading-flowering stage. Infected plants lose vigor and grain yield suffers both quantitative and qualitative damage. Losses of 10–15% of grain yield can increase up to 40% when infection occurs before or during flowering; the recordable damage in the field varies from 13% to 34% with mild infestations and up to 50% with high disease severity [6].
The comprehensive prevention and control of wheat powdery mildew is based on the use of fungicides, the application of silicate, biological control and the cultivation of resistant varieties [7]. The growing interest in practices with higher environmental, economic and social sustainability has pushed the integration of the different methods of disease control with the aim of reducing the massive deployment of phytosanitary products, which can have an impact on the environment and the health of consumers and operators [8]. The cultivation of disease-resistant varieties is considered the most efficient, sustainable and economical strategy to prevent and control fungal diseases in wheat and other crops generally protected by chemical treatments [9]. Plant resistances to a pathogen species can be of qualitative and quantitative types [10]. The qualitative resistance (vertical resistance, oligogenic resistance, host-specific resistance) is controlled by a few major genes, generally of dominant inheritance, effective only against some races of the pathogen. Studies on the genetics of host–parasite interaction have led to the formulation of the gene-to-gene theory which involves the interaction of a resistance gene (R) of the plant and an avirulence gene (Avr) of the pathogen [11]. Recognition between the products of R and Avr genes triggers a series of events leading to the activation of defense mechanisms and the arrest of the pathogen growth [12]. So far, 68 loci for PM resistance have been identified (Pm1-Pm68) in the primary and secondary gene pools of cultivated wheat including Triticum and Aegilops species [13,14]. Some resistant genes have been also identified and transferred to wheat from the tertiary gene pool comprising some more distant species belonging to the genera Secale, Thynopyrum and Dasypyrum [13].
Thirteen PM resistance genes have been cloned: Pm2 on chromosome arm 5DS [15], Pm3 on 1AL [16], Pm4 on 2AL [17], Pm5 on 7BL [18], Pm8 on 1BL [19], Pm17 on 1RS.1AL [20], Pm21 on 6VS.6AL [21,22,23], Pm24 on 1DS [24], Pm38 on 7DS [25], Pm40 on 7BS [26], Pm41 on 3BL [27], Pm46 on 5DS [28] and Pm60 on 7AL [29]. Most cloned genes encode a nucleotide binding and leucine-rich repeat (NBS-LRR) protein that activates effector-triggered immunity [30]. Exceptions are Pm24 encoding a tandem kinase [24], Pm4 and Pm21 which encode a serine/threonine kinase [17,31] and Pm26 and Pm38 encoding a hexose transporter and an ABC transporter, respectively [25,28]. Another important exception is the mlo recessive gene, firstly studied in barley [32] and later reported in rice and wheat [33,34], which confers broad-spectrum resistance against each of the known Bgt isolates. Host-specific resistance confers a high degree of resistance to the host at seedling and adult plant, but it can be easily circumvented by the appearance of genetic variants of the pathogen characterized by new alleles at the Avr locus [13]. Consequently, new R genes must be continuously identified within the cultivated or wild species germplasm and used, through traditional approaches or advanced genetic biotechnologies, for varietal improvement [35,36].
The other type of resistance, often designated polygenic resistance, horizontal resistance, quantitative resistance or adult plant resistance (APR), is non-race specific and determined by several genes with additive effects (quantitative trait loci, QTL); often this type of resistance is partial and effective at adult-plant stage, but it is shown to be durable [37]. Genetic dissection of quantitative resistance is carried out on germplasm collections by genome-wide association mapping (GWAS) based on linkage disequilibrium (LD) [38], or on segregating biparental populations by the traditional linkage-based QTL mapping [39]. Both methodologies exploit the genetic association between molecular markers and QTL. Conventional mapping populations (F2, BC1, recombinant inbred lines, doubled haploids) have been generally used for mapping both QTL and major genes [40]. Advanced mapping populations, such as chromosome segment substitution lines, backcross inbred lines and near isogenic lines, are valuable genetic resources for basic and applied research on simple and complex traits which potentially address the limitations of conventional mapping populations 41. Advantages and disadvantages of the different segregating populations and their use in mapping studies were previously reported by Cavanagh et al. [41]. More than 100 QTL distributed on all wheat chromosomes have been detected and mapped in several studies; none of them have yet been cloned [13].
The screening of a set of 94 homozygous backcross inbred lines (BILs) for PM resistance, obtained by crossing the PM-susceptible durum wheat (Triticum turgidum ssp. durum) cv. Latino (recurrent parent) and the PM-resistant wild emmer wheat (Triticum turgidum ssp. dicoccoides) accession MG29896 (donor parent), identified three BILs (5BIL-29, 5BIL-42, 5BIL-50) displaying significant adult plant resistance to natural PM infection [42]. The phenotypic segregation pattern of two segregating populations (F2:3 progenies of the crosses 5BIL-29 x Latino and 5BIL-42 x Latino) evaluated at two-leaf stage seedlings and the molecular analysis with AFLP and SSR markers indicated a single dominant PM resistance gene on chromosome arm 5BL (bin 5BL6-0.55-0.76), later designated Pm36 [42]. The main objectives of the current study were (a) to fine map the chromosomal region harboring the locus Pm36 with SNP marker by using primary and secondary homozygote recombinant BILs and by linkage analysis in a segregating population; and (b) to identify candidate genes for Pm36 by exploiting the improved tetraploid wheat genomic resources. Identification and characterization of genetic loci controlling seedling and adult plant resistance to powdery mildew will provide additional genetic resources to breeders to improve commercial cultivars of durum and bread wheat. The tightly linked markers to Pm36 can be used in marker-assisted selection (MAS) programs and as starting point for the Pm36 map-based cloning.

2. Results

2.1. Molecular Characterization of Backcross Inbred Lines

A set of 94 backcross inbred lines, obtained by backcrossing the PM resistant wild emmer wheat accession MG29896 with the PM susceptible durum wheat Latino (recurrent parent), were genotyped with the wheat SNP 15K chip array developed by Wang et al. [43] in order to characterize and define the introgressed dicoccoides 5BL chromosomal region carrying the Pm36 locus, and possibly to dissect other useful quantitative traits in the future. The main features of the three PM-resistant lines (5BIL-29, 5BIL-42, 5BIL-50) and one relevant PM susceptible line (5BIL-20) are reported in Table 1 and Figure 1.
By using the durum consensus linkage map [44] as reference map, the introgressed 5BL dicoccoides chromosome segments carrying the Pm36 locus were estimated to be 9.3 cM, 20.0 cM and 25.7 cM long in the PM-resistant lines 5BIL-42, 5BIL-50 and 5BIL-29, respectively. Their physical position was determined by BLAST-ing the 100 bp sequences including the SNP of the adjacent markers of each introgressed emmer segment against the durum wheat Svevo reference genome [45] and the wild emmer wheat Zavitan reference genome v2.0 [46]. The physical length ranged from 15.2 Mb in 5BIL-42, to 35.5 Mb in 5BIL-50, to 46.9 Mb in 5BIL-29. Comparison of the chromosome segments introgressed in the PM-resistant and -susceptible lines (Figure 1e) allowed us to define a 5BL target genetic region of 7.3 cM delimited by the centromeric proximal marker IWB22904 (cM 106.0) of the PM-resistant line 5BIL-42 and the centromeric distal marker IWB55478 (cM 113.3) of the PM-resistant line 5BIL-50.

2.2. Genetic Mapping of the Target Region Harboring Pm36

The PM-resistant line 5BIL-42 with the shortest introgressed dicoccoides segment was selected for further analysis and then crossed to the recurrent durum parent Latino to better define the Pm36 position and to narrow down the introgressed region. A total of 252 F2:3 families were phenotyped at seedling stage for the response to the Bgt isolate O2 in a greenhouse experiment (Figure 2), and the observed phenotypic segregation ratio (75 homozygous resistant, 109 segregating and 68 homozygous susceptible) validated the hypothesis of the monofactorial control of the PM resistance (X2 = 4.58; 0.25 > p > 0.10).
These 252 F2:3 progenies, together with the 144 F2:3 progenies of the same cross previously developed [42], were genotyped with 18 SNP markers located in the target region (marker interval IWB22904-IWB55478) according to the durum wheat consensus map [44]. The EST-SSR BJ261635 marker, previously found to be tightly linked to Pm36 [42], was also used to genotype all the 396 progenies. Two SNP markers failed and three had more than 10% of missing data and were discarded; 45 F2:3 progenies with more than 20% missing data were also removed. The resulting genetic map was then constructed with 351 progenies including 13 SNP markers, the EST-SSR BJ261635 marker and the Pm36 phenotypic data (Figure 3). Surprisingly, Pm36 mapped at centromeric proximal end of the genetic map tightly associated to the SNP markers IWB22904, IWB65455 and IWB69885 and to the EST-SSR marker BJ261635. The BLAST analysis of the BJ261635 and IWB22904 sequences against the Zavitan and Svevo reference genomes indicated that both markers were located within the same gene (TRIDC5BG056780 of the emmer genome and TRITD5Bv1G186920 of the durum genome). The total length of the genetic map was 10.0 cM, comparable to the length of the same chromosomal segment in the durum consensus map (9.3 cM) [44]. The physical-to-genetic distance ratio (1.71 Mb/cM and 1.74 Mb/cM in the durum and emmer genomes, respectively), and the estimated 0.3 cM genetic distance between Pm36 and the nearest marker IWB22904, indicated that Pm36 was in the centromeric proximal position at 515,731–520,760 bp from IWB22904.

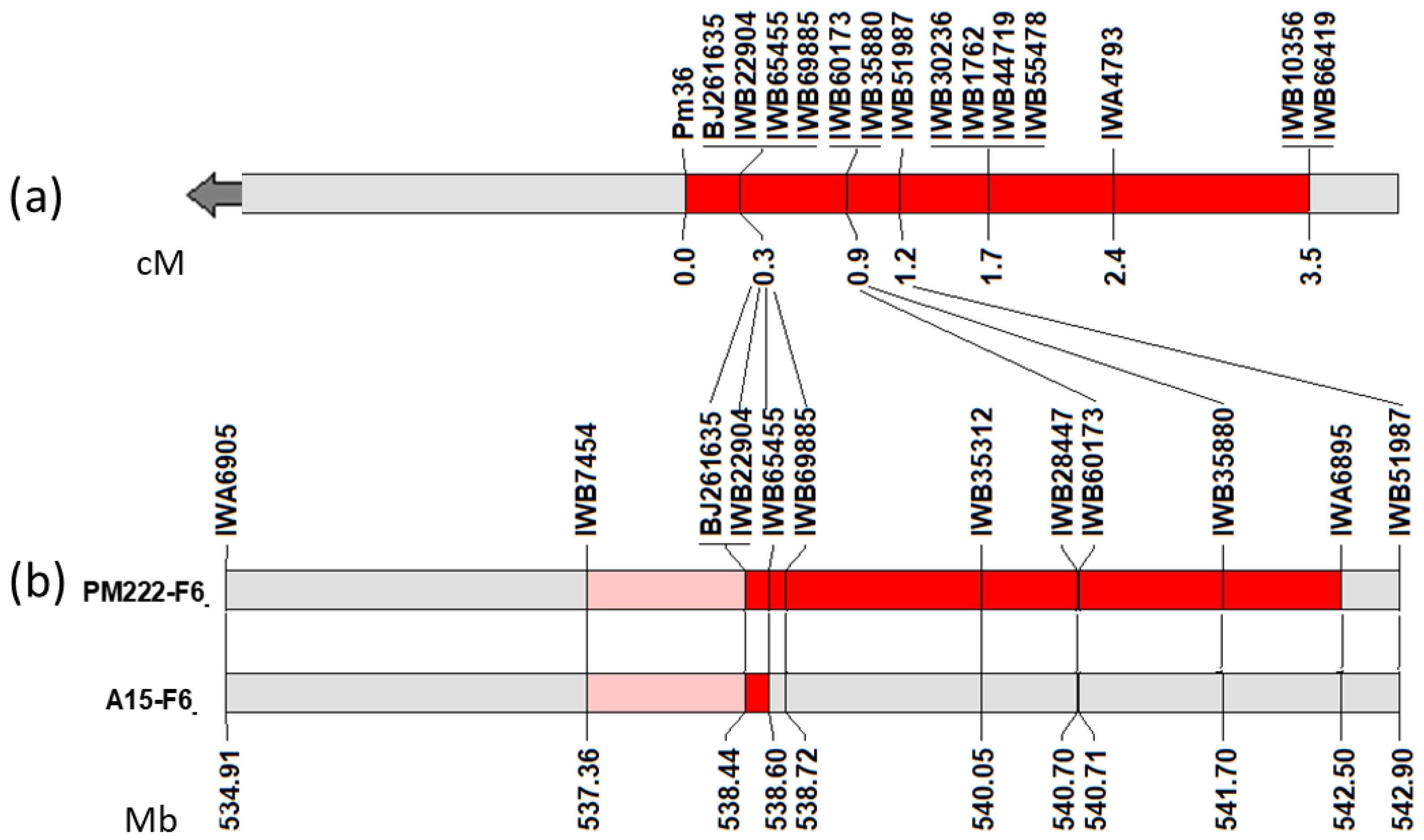

Twelve 5BIL-42 x Latino F2:3 progenies heterozygotes for the Pm36 target region were selected and selfed to the F6 generation to identify secondary recombinants with an introgressed emmer segment shorter than the 5BIL-42 one (Table 1). The genotyping of the relevant A15-F6 and PM222-F6 secondary recombinant lines with the wheat SNP 25K chip array allowed us to delimitate the chromosomal interval harboring Pm36 between the polymorphic marker IWB22904 (cM 106.0) and the nearest non-polymorphic marker IWB7454 (cM 104.5) between 5BIL-42 and Latino. This genetic interval (1.5 cM) corresponds to a physical interval of 1,086,588 bp in the durum genome and 1,144,414 bp in the emmer wheat genome (Figure 3b).

2.3. Distribution of Pm36 in a Tetraploid Wheat Collection

The distribution of the IWB7454-IWB22904 marker interval including Pm36, potentially useful in durum wheat research and breeding programs, was investigated in a tetraploid wheat collection comprising 214 wild and cultivated accessions of seven T. turgidum subspecies (durum, turanicum, polonicum, turgidum, carthlicum, dicoccum, dicoccoides) previously evaluated at seedling and adult plants for PM resistance [47]. The positive allele was found in 20 (9.3%) accessions (Table 2), but its distribution varied greatly among subspecies: it was completely absent in ssp. durum, ssp. turanicum, ssp. polonicum, and ssp. carthlicum, and with a low frequency (n = 1, 6.3%) in the ssp. turgidum, while it was largely present in the domesticated and wild emmer spp. dicoccum and ssp. dicoccoides (66.7% and 77.8%, respectively). The low occurrence in cultivated or sporadically cultivated subspecies of T. turgidum could be attributed to the large use of well-known PM-resistance genes, such as Pm2, Pm3, Pm4 and other genes derived from wheat landraces, in wheat breeding programs compared to the reduced use of the wild wheat resources for improving the PM disease resistance. However, not all accessions with the positive allele were PM-resistant, likely because the occurrence of recombination events between the molecular markers and the Pm36 locus. Therefore, these markers should be investigated in the specific materials before being used for marker-assisted selection in wheat breeding programs.

2.4. Candidate Genes of Pm36

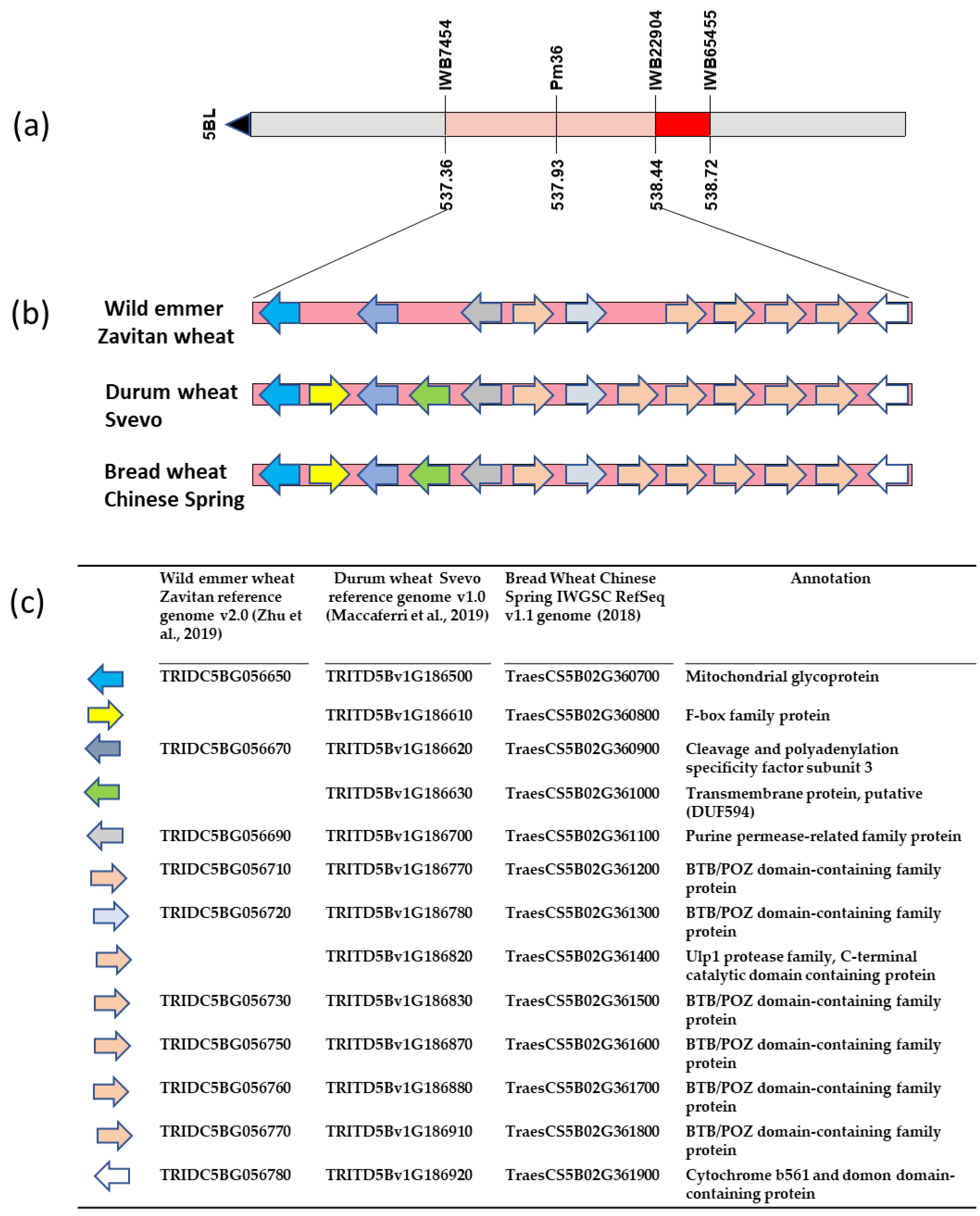

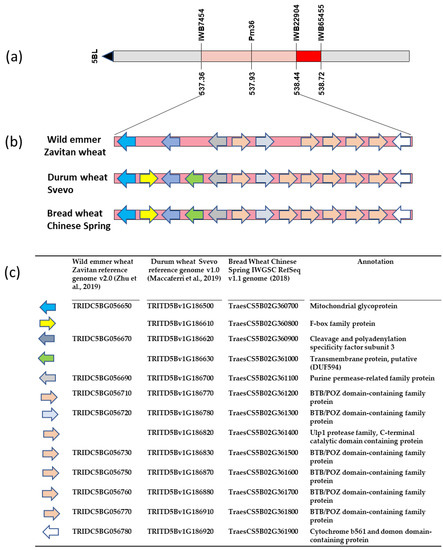

The sequences of the markers IWB7454 and IWB22904, delimiting the 5BL genomic region including Pm36 within a genetic interval of 1.5 cM, were used to define the corresponding physical interval in the wild emmer wheat Zavitan v2.0 reference genome [46], in the durum wheat Svevo reference genome [45] and in the bread wheat Chinese Spring v1.0 reference genome [48]. The target regions, corresponding to 1,144,414 nucleotides (555,463,725–556,608,139) in the Zavitan sequence, to 1,086,588 nucleotides (537,358,372–538,445,060) in the Svevo sequence and to 1,076,901 nucleotides (540,266,345–541,343,246) in the Chinese Spring genome (https://wheat.pw.usda.gov) (10 October 2022), were further investigated to identify candidate genes involved in the PM resistance.
Thirteen high-confidence protein-coding genes were found to be annotated (Figure 4, Table S1), including the two genes within which the sequences of the two markers IWB7454 and IWB22904 flanking the target interval were found. A highly micro-collinearity was detected among the wild emmer wheat and the cultivated durum and bread wheat. Three genes identified in durum and bread wheat showed no homologue in the dicoccoides genome: TRITD5Bv1G186610, encoding a F-box family protein, TRITD5Bv1G186630, encoding a Transmembrane protein, putative (DUF594), and TRITD5Bv1G186820 encoding a Ulp1 protease family, C-terminal catalytic domain containing protein. Out of the remaining ten genes underlying the target region, six were found to be encoding for BTB/POZ domain-containing family protein, and the other four being a Mitochondrial glycoprotein, a Cleavage and polyadenylation specificity factor subunit 3, a Purine permease-related family protein and a Cytochrome b561 and domon domain-containing protein.
The WheatOmics 1.0 database (http://wheatomics.sdau.edu.cn/) (10 October 2022) was searched by querying the homologous Chinese Spring gene IDs to carry out in silico expression analysis aimed to determine whether a differential expression after powdery mildew inoculation was shown (expression data on leaves sampled 24, 48 and 72 h after inoculation [49]). Interestingly, five genes showed a significant differential expression. TraesCS5B02G360900, a homologous gene of TRITD5Bv1G186620, encoding for a Cleavage and polyadenylation specificity factor subunit 3, was found to be significantly differentially expressed at 48 and 72 h after inoculation compared to control. TraesCS5B02G361100, a homologous gene of TRITD5Bv1G186700, encoding for a Purine permease-related family protein, was found to be significantly differentially expressed at 72 h after inoculation. The other three genes all encoded for a BTB/POZ domain-containing family protein; TraesCS5B02G361200 and TraesCS5B02G361500, homologous of TRITD5Bv1G186770 and TRITD5Bv1G186830, respectively, were found to be significantly differentially expressed at 48 and 72 h after inoculation, while TraesCS5B01G361700, a homologous gene of TRITD5Bv1G186880, was differentially expressed only at 72 h after inoculation. Expression data of the above-mentioned genes are reported in Supplementary Figure S1.

3. Discussion

3.1. Comparison of Pm36 with Known Powdery Mildew Resistance Genes and QTL Mapped on 5BL

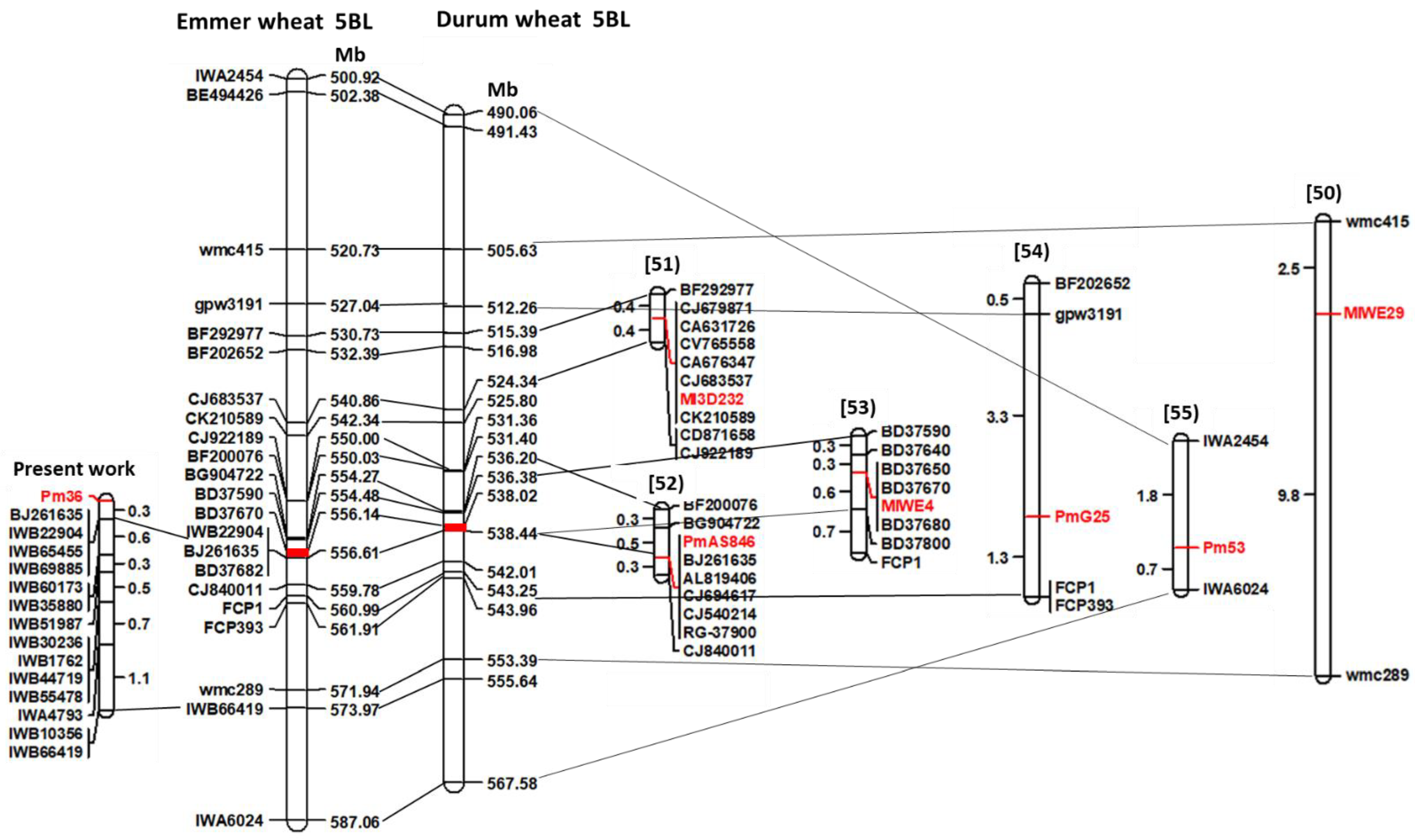

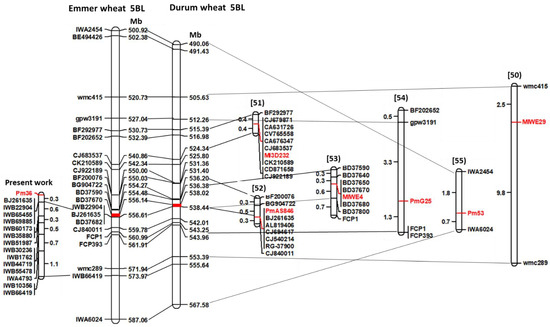

Seven PM loci, Pm36 [42], MlWE29 [50], M3D232 [51], PmAS846 [52], MlWE4 [53], PmG25 [54] and Pm53 [55], were located on chromosome arm 5BL by using different SSR, EST-SSR, EST-STS and SNP markers. These loci were all found to be dominant or incompletely dominant PM-resistant genes. Comparative mapping was carried out by the comprehensive wheat genomic resources recently developed in tetraploid wheat, such as the high-density durum genetic linkage map [44], the wild emmer Zavitan reference genome [46], the durum Svevo reference genome [45], and the web-based tools providing wheat genomic data (https://plants.ensembl.org/index.html; https://wheat.pw.usda.gov/) (10 October 2022). Sequences of the different types of markers employed in the above PM mapping studies were used in BLAST analyses to determine the physical position of adjacent markers of each Pm locus in the wild emmer and durum references genomes (Figure 5).
Pm36, PmAS846 and MlWE4, all derived from wild emmer accessions, covered the physical interval 554.27–556.61 Mb in the emmer genome and 536.38–538.44 Mb in the durum genome. These three PM loci, tightly associated to the EST-SSR markers BJ261635 and BD37680 and to the SNP marker IBW22904, whose sequences were found to be located within the same gene (TRITD5Bv1G186920), very likely correspond to different alleles of the same PM locus or to different loci located in a short 5BL genomic region.
The flanking markers of the PM locus M3D232, originated from the wild emmer accession I222 [51], cover the physical chromosomal interval 530.73–540.86 Mb in the emmer genome and 515.39–524.34 Mb in the Svevo genome, and therefore should be a PM-resistant gene different from Pm36, PmAS846 and MlWE4.
The markers wmc415 and wmc289, flanking MlW29, which originated from the emmer accession WE29 [50], the markers gpw3191 and FCP1 flanking PmG25, which originated from the emmer accession G25 [54] and the SNP markers IWA2454 and IVA6024 adjacent to the Pm53, which were introgressed from Aegilops speltoides into common wheat [55], cover a 5BL genomic interval too large that does not allow the clarification of the exact relationships among them and with the other mentioned PM loci Pm36, PmAS846 and MlWE4.
Some QTL for PM resistance have been also detected on the long arm of chromosome 5BL: QPm.sfr-5B [56], QPm.inra-5B.2 [57], Qpm.caas-5BL.1, Qpm.caas-5BL.2, Qpm.caas-5BL.3 [58]. The QTL positions established by RFLP and SSR markers reported in the above investigations are not comparable and do not allow us to determine the relationships with the other mentioned PM loci. High-density marker maps or allelism tests could clarify their relationships.

3.2. Candidate Genes and In Silico Expression

The recently released and publicly available wild emmer [46] and durum wheat genomes [45] represent great tools in unveiling the functional role of potential candidate genes involved in specific metabolic pathways as well as for investigating surrounded genomic region. The analysis of the physical region containing the Pm36 locus investigated in this work showed the presence of ten and thirteen high-confidence genes in wild emmer and durum wheat genomes, respectively, including F-box family protein, Cleavage and polyadenylation specificity factor subunit 3, Purine permease-related family protein, and several BTB/POZ domain-containing family proteins.
F-box proteins have regulatory function in protein degradation through E3 ubiquitin ligase proteolytic mechanism in response to several cellular signals during plant development and growth, as well as hormone and biotic/abiotic stress responses [59]. A recent paper [60] focused on analysing this protein family in the wheat genome along with their expression profiling at different developmental stages. Almost 1800 F-box genes were identified, and GO annotation assigned to more than 1000 of them. Ubiquitination and ubiquitin activity proteins were the most represented. Several papers found this class of proteins also involved in plant response to both biotic/abiotic stresses. In wheat, the cyclin F-box domain TaCFBD gene is involved in inflorescence development and cold stress responses [61]. The TaFBA1 F-box protein with an FBA domain has been implicated in drought and heat stress tolerance [62], whereas the F-box protein TaJAZ1 regulates resistance against powdery mildew [63].
Cleavage and polyadenylation of precursor mRNA is a crucial process for mRNA maturation. A subgroup of the protein known as “cleavage and polyadenylation specificity factor (CPSF)” is needed for both cleavage and polyadenylation in plants and animals. Proteomic studies carried out by Zhao et al., [64] characterized each subunit along with other polyadenylation related proteins. Cleavage and polyadenylation specificity factor subunit 3 (CPSF3, also known as CSFP73-I) is one of the components of CPSF complex in plants, which play a key role in pre-mRNA 3′-end formation but may also function as mRNA 3′-end-processing endonuclease and be involved in the histone 3′-end pre-mRNA processing [65].
Polyadenylation regulation of gene expression by CPSF30 occurs in a subset of biological processes, including plant development, disease resistance, and abiotic stress tolerance [66]. To date, the 73Kda subunit of CPSF complex has been extensively studied in Arabidopsis, where it has been demonstrated to affect reproductive development, especially early embryo development [67]. The significant expression after powdery mildew inoculation compared to control in bread wheat (Supplementary Figure S1) suggests that a further and more focused analysis of this gene might be considered to confirm its eventual involvement in biotic stress response.
Purine permeases (PUPs) have been extensively studied in Arabidopsis. Among the 21 genes identified within AtPUP gene family, three members have been comprehensively studied—AtPUP1, AtPUP2 and AtPUP3 [68]—and their function established. AtPUP1 and 2 mediate energy-dependent high-affinity adenine uptake and cytokinin transport while AtPUP3 influences the transport of purine and purine derivatives during pollen tube elongation and pollen germination [69]. The AtPUP family not only mediated the transport of adenine and CKs but also mediated the transport of other compounds such as adenine, cytosine or secondary compounds such as cytokinins and caffeine [70]. In silico expression data showed a bread wheat purine permease located on 5B chromosome being significantly expressed at 72 h after powdery mildew inoculation, thus suggesting the potential involvement of other PUP family members in biotic stress resistance (Supplementary Figure S1).
An interesting outcome from our study was the detection of six BTB/POZ domain-containing family proteins within the physical interval including Pm36, and three of them were found to be significantly expressed in bread wheat (Supplementary Figure S1). The sequence and structural analysis of this domain proteins was reported by Stogios et al. [71]. The BTB domain, bric-à-brac, tramtrack and broad complex transcription regulators (also known as the POZ domain, poxvirus and zinc finger) is a protein–protein interaction motif in eukaryotes. The BTB/POZ domain has a highly conserved region and is often present at the protein N terminus. The wide range of sequence and length variation (approximatively 120 amino acids) between orthologs and paralogs suggested their potential involvement in different molecular, biochemical and biological functions [71]. Indeed, a variety of functional roles were firstly identified for the domain such as transcription repression [72] and protein ubiquitination/degradation [73]. More recent studies identified the BTB/POZ protein family involved in plant growth and development as well as in plant defense regulation in responses to biotic and abiotic stresses. Genome-wide analysis of the BTB/POZ gene family in different plant species confirmed some members being involved in the regulation of gametophyte development, seed germination, inflorescence architecture and branching [74]. Interestingly, others have been found to be engaged in environmental responses, including defense against pathogens and parasites, as well as responses to nutrient shortage, toxic heavy metals, and several other stressors [75,76].
A further analysis of the candidate genes we identified will be necessary to confirm their involvement in the regulation of plant responses to environmental stresses and eventually exploit their applications in stress tolerance engineering.

3.3. Pm36 Value in Wheat Breeding

The genetic resistance of cultivated wheat germplasm can be overcome due to the emergence of new Bgt races capable of generating severe PM epidemics [77,78]. The identification and validation of novel genes/QTL for PM resistance can successfully contribute to enrich the resistance source available to wheat breeders. The wild emmer wheat, a progenitor of cultivated durum and bread wheat, is a rich genetic resource of favorable genes useful for wheat improvement including resistance genes for fungal diseases (stripe rust, leaf rust, stem rust, powdery mildew, Fusarium head blight) [79]. At least 20 PM-resistance genes have been so far identified and characterized in the wild emmer wheat [80]. This wild wheat can be easily crossed with the cultivated common and durum wheat, its A and B genome chromosomes readily pair with their wheat homologues and recombinants can be selected in segregating populations without linkage drag problems [79]. Thus, the rich genetic diversity of this wild wheat can be usefully used to diversify the source of Bgt resistance genes in cultivated wheat. In the current work, a short chromosomal region of the wild emmer wheat, delimited by the SNP molecular markers IWB7454 and IWB22904 and the EST-SSR BJ261635 and including the PM-resistant Pm36 locus, was transferred to a durum wheat cultivated background. Fine mapping using homozygous backcross inbreed lines and a segregating population delimited Pm36 to a physical interval of approximately 1086 kb region in the durum genome containing thirteen annotated high-confidence protein-coding genes.
These results provide valuable information for marker-assisted selection (MAS) for powdery mildew resistance to expedite the selection of wheat cultivars with improved disease resistance and represent a starting point for the map-based cloning of the Pm36 gene.

4. Materials and Methods

4.1. Plant Materials

A set of 94 backcross inbred lines (BILs) was previously developed from crossing one PM resistant accession (MG29896) of the wild emmer wheat (T. turgidum ssp. dicoccoides), with the semi-dwarf and high-yielding durum wheat cv. Latino as described by Blanco [42]. Briefly, 110 F1 plants were backcrossed five times to the durum recurrent parent to achieve BC5F1 plants, which were selfed to the BC5F7 generation using the single-seed descent method. No selection was carried out during the backcrossing and self-fertilization generations; however, some lines were lost and the BC5F7 generation consisted of 94 BILs. In the current study the BILs population and the parental lines were genotyped with the wheat SNP 15K chip array developed by Wang et al. [43]. A segregant population of 252 F2-F3 progenies was developed by crossing the PM-resistant line 5BIL-42 with the durum wheat Latino and tested for the PM resistance at seedlings at two-leaf stage in a greenhouse experiment. A set of secondary recombinant lines was produced by selfing 12 selected F3 progenies heterozygote for the Pm36 target region to the F6 generation.

4.2. Powdery Mildew Resistance Assays

The PM evaluation of 252 F2-F3 progenies and the parental lines 5BIL-42 and Latino was carried out under controlled greenhouse conditions with the highly virulent Bgt isolate O2 [49]. A total of 20 seeds of each progeny and parent were sown in 15 cm-diameter round pots and grown to the two-leaf stage. A plastic tower was used for the inoculation of PM spores at a density of 4 × 103 conidia cm−2. When the susceptible durum parental line Latino showed fully developed PM symptoms (12 days after inoculation), each F2-F3 progeny was individually assessed as PM homozygous resistant, segregating and homozygous susceptible.

4.3. DNA Extraction and SNP Marker Analysis

The GeneElute Plant Genomic Miniprep Kit (Sigma, Waltham, MA, USA) was used for DNA extraction from fresh leaves of each BIL, parental line and F2:F3 progeny. DNA concentration and quality were checked by both agarose gel-electrophoresis and NanoDrop2000 (Thermo Scientific™, Waltham, MA, USA). Genomic DNA of each sample was diluted to 50 ng/µL and sent to TraitGenetics GmbH (Gatersleben, Germany) (http://www.traitgenetics.de) for the sample genotyping with the wheat SNP 15K or 25K chip array developed by Illumina CSProR (San Diego, CA, USA) as described by Wang [43].
Based on genomic locations of SNP markers in the Zavitan reference genome, Svevo reference genome and the durum consensus map [44,45,46], 18 SNP markers (IWA4793, IWB10356, IWB1762, IWB22904, IWB28447, IWB35312, IWB30236, IWB35880, IWB44719, IWB5145, IWB51987, IWB55478, IWB60173, IWB65455, IWB66419, IWB67424, IWB69885, IWB72546) were identified in the 5BL chromosome region including Pm36 to be used in linkage analysis. PCR-based KASP (Kompetitive Allele-Specific PCR) genotyping of each progeny of the segregant F2:F3 population was performed by LGC Biosearch Technologies, Herts, UK ([email protected]). The BJ261635 EST–SSR marker was amplified by the primer pair F(5′ TAGCCTGGTACCATTCTGCC) and R(5′ CTAGGCCTTCTGGTGTAATG) as described by [42]. The amplification products were separated by capillary electrophoresis in an automated DNA sequencer (ABIPRISM 3100 Avant, Applera, Norwalk, CT, USA).

4.4. Linkage Analysis

Goodness-of-fit at p > 0.01 of segregation ratios to expected ratio for each marker and PM segregation data was determined by the Chi-squared test. Markers with more than 10% missing data and F2:3 progenies with more than 20% missing data were removed from linkage analysis. Linkage between markers and determination of the linear order of loci was performed by QTL IciMapping 4.2. The Kosambi mapping function was used to calculate map distances.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232113659/s1.

Author Contributions

Conceptualization, A.B. and R.S.; methodology, R.S., A.B., L.P., P.C., E.B. and D.N.; software, A.B., P.C., D.N. and E.B.; data curation, L.P., P.C., E.B., D.N. and M.A.S.; writing—original draft preparation, A.B. and D.N.; writing—review and editing, R.S., A.B., L.P., D.N., E.B. and P.C.; supervision, R.S., D.N. and A.B.; project administration, R.S.; funding acquisition, R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by the project SaveGrain CER (Biodiversità dei cereali antichi pugliesi per la sostenibilità e della qualità)–PSR Puglia 2014–2022 Mis. 10.2, operazione 10.2.1).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

QTLQuantitative Trait Loci
APRAdult plant resistance
SRSeedling resistance
BgtBlumeria graminis f. sp. tritici
PMPowdery mildew
SNPSingle Nucleotide Polymorphism
NBS-LRRNucleotide Binding Sites and Leucine-Rich Repeat proteins
SSRSimple Sequence Repeat

References

  1. Savary, S.; Willocquet, L.; Pethybridge, S.J.; Esker, P.; Mc Roberts, N.; Nelson, A. The global burden of pathogens and pests on major food crops. Nat. Ecol. Evol. 2019, 3, 430–439. [Google Scholar] [CrossRef] [PubMed]
  2. Mehta, Y.R. Wheat and wheat production constraints. In Wheat Diseases and Their Management; Springer: Cham, Switzerland, 2014; pp. 1–16. [Google Scholar]
  3. Li, G.; Xu, X.; Tan, C.; Carver, B.F.; Bai, G.; Wang, X.; Bonman, J.M.; Wu, Y.; Hunger, R.; Cowger, C. Identification of powdery mildew resistance loci in wheat by integrating Genome-Wide Association Study (GWAS) and linkage mapping. Crop J. 2019, 7, 294–306. [Google Scholar] [CrossRef]
  4. Both, M.; Csukai, M.; Stumpf, M.P.; Spanu, P.D. Gene expression profiles of Blumeria graminis indicate dynamic changes to primary metabolism during development of an obligate biotrophic pathogen. Plant Cell 2005, 17, 2107–2122. [Google Scholar] [CrossRef] [Green Version]
  5. Glawe, D.A. The powdery mildews: A review of the world’s most familiar (yet poorly known) plant pathogens. Annu. Rev. Phytopathol. 2008, 46, 27–51. [Google Scholar] [CrossRef] [PubMed]
  6. Griffey, C.A.; Das, M.K.; Stromberg, E.L. Effectiveness of adult-plant resistance in reducing grain yield loss to powdery mildew in winter wheat. Plant Dis. 1993, 77, 618–622. [Google Scholar] [CrossRef]
  7. Gao, H.; Niu, J.; Li, S. Impacts of wheat powdery mildew on grain yield & quality and its prevention and control methods. Am. J. Agric. For. 2018, 6, 141–147. [Google Scholar]
  8. Simón, M.R.; Ayala, F.M.; Golik, S.I.; Terrile, I.I.; Cordo, C.A.; Perelló, A.E.; Moreno, V.; Chidichimo, H.O. Integrated foliar disease management to prevent yield loss in Argentinean wheat production. Agron. J. 2011, 103, 1441–1451. [Google Scholar] [CrossRef] [Green Version]
  9. Summer, R.W.; Brown, J.K.M. Constraints on breeding for disease resistance in commercially competitive wheat cultivars. Plant Pathol. 2013, 62, 115–121. [Google Scholar] [CrossRef]
  10. Huang, X.Q.; Röder, M.S. Molecular mapping of powdery mildew resistance genes in wheat: A review. Euphytica 2004, 137, 203–223. [Google Scholar] [CrossRef]
  11. Flor, H.H. Current status of the gene-for-gene concept. Annu. Rev. Phytopathol. 1971, 9, 275–296. [Google Scholar] [CrossRef]
  12. Delaney, T.P. Genetic dissection of acquired resistance to disease. Plant Physiol. 1997, 113, 5. [Google Scholar] [CrossRef] [PubMed]
  13. Kang, Y.; Zou, M.; Merry, A.; Barry, K. Mechanisms of Powdery Mildew Resistance of Wheat—A Review of Molecular Breeding. Plant Pathol. 2020, 69, 601–617. [Google Scholar] [CrossRef]
  14. McIntosh, R.A.; Dubcovsky, J.; Rogers, W.J.; Xia, X.C.; Raupp, W.J. Catalogue of gene symbols for wheat: 2021 Supplement. Annu. Wheat Newsl. 2021, 67, e104–e113. [Google Scholar]
  15. Sánchez-Martín, J.; Steuernagel, B.; Ghosh, S.; Herren, G.; Hurni, S.; Adamski, N.; Vrána, J.; Kubaláková, M.; Krattinger, S.G.; Wicker, T.; et al. Rapid gene isolation in barley and wheat by mutant chromosome sequencing. Genome Biol. 2016, 17, 221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Yahiaoui, N.; Srichumpa, P.; Dudler, R.; Keller, B. Genome analysis at different ploidy levels allows cloning of the powdery mildew resistance gene Pm3b from hexaploid wheat. Plant J. 2004, 37, 528–538. [Google Scholar] [CrossRef] [PubMed]
  17. Sánchez-Martín, J.; Widrig, V.; Herren, G.; Wicker, T.; Zbinden, H.; Gronnier, J.; Spörri, L.; Praz, C.R.; Heuberger, M.; Kolodziej, M.C. Wheat Pm4 resistance to powdery mildew is controlled by alternative splice variants encoding chimeric proteins. Nat. Plants 2021, 7, 327–341. [Google Scholar] [CrossRef]
  18. Xie, J.; Guo, G.; Wang, Y.; Hu, T.; Wang, L. A rare single nucleotide variant in Pm5e confers powdery mildew resistance in common wheat. New Phytol. 2020, 228, 1011–1026. [Google Scholar] [CrossRef]
  19. Hurni, S.; Brunner, S.; Buchmann, G.; Herren, G.; Jordan, T.; Krukowski, P.; Wicker, T.; Yahiaoui, N.; Mago, R.; Keller, B. Rye Pm8 and wheat Pm3 are orthologous genes and show evolutionary conservation of resistance function against powdery mildew. Plant J. 2013, 76, 957–969. [Google Scholar] [CrossRef]
  20. Singh, S.P.; Hurni, S.; Ruinelli, M.; Brunner, S.; Sanchez-Martin, J.; Krukowski, P.; Peditto, D.; Buchmann, G.; Zbinden, H.; Keller, B. Evolutionary divergence of the rye Pm17 and Pm8 resistance genes reveals ancient diversity. Plant Mol. Biol. 2018, 98, 249–260. [Google Scholar] [CrossRef]
  21. Cao, A.; Xing, L.; Wang, X.; Yang, X.; Wang, W.; Sun, Y.; Qian, C.; Ni, J.; Chen, Y.; Liu, D.; et al. Serine/threonine kinase gene stpk-v, a key member of powdery mildew resistance gene Pm21, confers powdery mildew resistance in wheat. Proc. Natl. Acad. Sci. USA 2011, 108, 7727–7732. [Google Scholar] [CrossRef] [Green Version]
  22. He, H.; Zhu, S.; Zhao, R.; Jiang, Z.; Ji, Y.; Ji, J.; Qiu, D.; Li, H.; Bie, T. Pm21, encoding a typical CC-NBS-LRR protein, confers broad-spectrum resistance to wheat powdery mildew disease. Mol. Plant 2018, 11, 879–882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Xing, L.; Hu, P.; Liu, J.; Witek, K.; Zhou, S.; Xu, J.; Zhou, W.; Gao, L.; Huang, Z.; Zhang, R.; et al. Pm21 from Haynaldia villosa encodes a CC-NBS-LRR protein conferring powdery mildew resistance in wheat. Mol. Plant 2018, 11, 874–878. [Google Scholar] [CrossRef] [PubMed]
  24. Lu, P.; Guo, L.; Wang, Z.; Li, B.; Li, J.; Li, Y.; Qiu, D.; Shi, W.; Yang, L.; Wang, N. A rare gain of function mutation in a wheat tandem kinase confers resistance to powdery mildew. Nat. Commun. 2020, 11, 680. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Krattinger, S.G.; Lagudah, E.S.; Spielmeyer, W.; Singh, R.P.; Huerta-Espino, J.; McFadden, H.; Bossolini, E.; Selter, L.L.; Keller, B. A putative ABC transporter confers durable resistance to multiple fungal pathogens in wheat. Science 2009, 323, 1360–1363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Yang, H.; Zhong, S.; Chen, C.; Yang, H.; Chen, W.; Tan, F.; Luo, P. Identification and cloning of a CC-NBS-NBS-LRR gene as a candidate of Pm40 by integrated analysis of both the available transcriptional data and published linkage mapping. Int. J. Mol. Sci. 2021, 22, 10239. [Google Scholar] [CrossRef]
  27. Li, M.; Dong, L.; Li, B.; Wang, Z.; Xie, J.; Qiu, D.; Li, Y.; Shi, W.; Yang, L.; Wu, Q.; et al. A CNL protein in wild emmer wheat confers powdery mildew resistance. New Phytol. 2020, 228, 1027–1037. [Google Scholar] [CrossRef]
  28. Moore, J.W.; Herrera-Foessel, S.; Lan, C.; Schnippenkoetter, W.; Ayliffe, M.; Huerta-Espino, J.; Lillemo, M.; Viccars, L.; Milne, R.; Periyannan, S.; et al. Recently evolved hexose transporter variant confers resistance to multiple pathogens in wheat. Nat. Genet. 2015, 47, 1494–1498. [Google Scholar] [CrossRef]
  29. Zou, S.; Wang, H.; Li, Y.; Kong, Z.; Tang, D. The NB-LRR gene Pm60 confers powdery mildew resistance in wheat. New Phytol. 2018, 218, 298–309. [Google Scholar] [CrossRef] [Green Version]
  30. Kourelis, J.; Van Der Hoorn, R.A. Defended to the nines: 25 years of resistance gene cloning identifies nine mechanisms for R protein function. Plant Cell 2018, 30, 285–299. [Google Scholar] [CrossRef] [Green Version]
  31. Yao, D.; Ijaz, W.; Liu, Y.; Hu, J.; Peng, W.; Zhang, B.; Sun, G. Identification of a Pm4 Allele as a Powdery Mildew Resistance Gene in Wheat Line Xiaomaomai. Int. J. Mol. Sci. 2022, 23, 1194. [Google Scholar] [CrossRef]
  32. Jorgensen, J.H. Discovery, characterization and exploitation of Mlo powdery mildew resistance in barley. Euphytica 1972, 63, 141–152. [Google Scholar] [CrossRef]
  33. Devoto, A.; Hartmann, H.A.; Piffanelli, P.; Elliott, C.; Simmons, C.; Taramino, G. Molecular phylogeny and evolution of the plant-specific seven-transmembrane MLO family. J. Mol. Evol. 2003, 56, 77–88. [Google Scholar] [CrossRef] [PubMed]
  34. Varallyay, E.; Giczey, G.; Burgyan, J. Virus-induced gene silencing of Mlo genes induces powdery mildew resistance in Triticum aestivum. Arch. Virol. 2012, 157, 1345–1350. [Google Scholar] [CrossRef]
  35. Boyd, L.A.; Ridout, C.; O’Sullivan, D.M.; Leach, J.E.; Leung, H. Plant–pathogen interactions: Disease resistance in modern agriculture. Trends Gen. 2013, 29, 233–240. [Google Scholar] [CrossRef] [PubMed]
  36. Bigini, V.; Camerlengo, F.; Botticella, E.; Sestili, F.; Savatin, D.V. Biotechnological resources to increase disease-resistance by improving plant immunity: A sustainable approach to save cereal crop production. Plants 2021, 10, 1146. [Google Scholar] [CrossRef] [PubMed]
  37. Dangl, J.L.; Jones, J.D.G. Plant pathogens and integrated defence responses to infection. Nature 2001, 411, 826–833. [Google Scholar] [CrossRef]
  38. Rafalski, J.A. Association genetics in crop improvement. Curr. Opin. Plant. Biol. 2010, 13, 174–180. [Google Scholar] [CrossRef]
  39. Lander, E.S.; Botstein, D. Mapping mendelian factors underlying quantitative traits using RFLP linkage maps. Genetics 1989, 121, 185–199. [Google Scholar] [CrossRef]
  40. Arif, M.; Nagel, M.; Neumann, K.; Kobiljski, B.; Lohwasser, U.; Börner, A. Genetic studies of seed longevity in hexaploid wheat exploiting segregation and association mapping approaches. Euphytica 2012, 186, 1–13. [Google Scholar] [CrossRef]
  41. Cavanagh, C.; Morell, M.; Mackay, I.; Powell, W. From mutations to MAGIC: Resources for gene discovery, validation and delivery in crop plants. Curr. Opin. Plant Biol. 2008, 11, 215–221. [Google Scholar] [CrossRef]
  42. Blanco, A.; Gadaleta, A.; Cenci, A.; Carluccio, A.V.; Abdelbacki, A.M.M.; Simeone, R. Molecular mapping of the novel powdery mildew resistance gene Pm36 introgressed from Triticum turgidum var. dicoccoides in durum wheat. Theor. Appl. Genet. 2008, 117, 135–142. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, S.; Wong, D.; Forrest, K.; Allen, A.; Chao, S.; Huang, B.E.; Akhunov, E. Characterization of polyploid wheat genomic diversity using a high-density 90,000 single nucleotide polymorphism array. Plant Biotechnol. J. 2014, 12, 787–796. [Google Scholar] [CrossRef] [PubMed]
  44. Maccaferri, M.; Ricci, A.; Salvi, S.; Milner, S.G.; Noli, E.; Martelli, P.L.; Casadio, R.; Akhunov, E.; Scalabrin, S.; Vendramin, V.; et al. A high-density, SNP-based consensus map of tetraploid wheat as a bridge to integrate durum and bread wheat genomics and breeding. Plant Biotechnol. J. 2015, 13, 648–663. [Google Scholar] [CrossRef] [PubMed]
  45. Maccaferri, M.; Harris, N.S.; Twardziok, S.O.; Pasam, R.K.; Gundlach, H.; Spannagl, M.; Ormanbekova, D.; Lux, T.; Prade, V.M.; Milner, S.G.; et al. Durum wheat genome highlights past domestication signatures and future improvement targets. Nat. Genet. 2019, 51, 885–895. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zhu, T.; Wang, L.; Rodriguez, J.C.; Deal, K.R.; Avni, R.; Distelfeld, A.; McGuire, P.E.; Dvorak, J.; Luo, M.C. Improved genome sequence of wild emmer wheat Zavitan with the aid of optical maps. G3 Genes Genomes Genet. 2019, 9, 619–624. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Simeone, R.; Piarulli, L.; Nigro, D.; Signorile, M.A.; Blanco, E.; Mangini, G.; Blanco, A. Mapping powdery mildew (Blumeria graminis f. sp. tritici) resistance in wild and cultivated tetraploid wheats. Int. J. Mol. Sci. 2020, 21, 7910. [Google Scholar] [CrossRef] [PubMed]
  48. International Wheat Genome Sequencing Consortium (IWGSC); Appels, R.; Eversole, K.; Stein, N.; Feuillet, C.; Keller, B.; Rogers, J.; Pozniak, C.J.; Choulet, F.; Distelfeld, A.; et al. Shifting the limits in wheat research and breeding using a fully annotated reference genome. Science 2018, 361, eaar7191. [Google Scholar]
  49. Zhang, H.; Yang, Y.; Wang, C.; Liu, M.; Li, H.; Fu, Y.; Wang, Y.; Nie, Y.; Liu, X.; Ji, W. Large-scale transcriptome comparison reveals distinct gene activations in wheat responding to stripe rust and powdery mildew. BMC Genom. 2014, 15, 898. [Google Scholar] [CrossRef] [Green Version]
  50. Zhang, L.; Hua, W.; Guan, H.; Li, G.; Xie, C.; Yang, Z.; Liu, Z. Molecular mapping of powdery mildew resistance gene MlWE29 in wheat originated from wild emmer (Triticum turgidum var. dicoccoides). Acta Agron. Sin. 2009, 35, 998–1005. [Google Scholar] [CrossRef]
  51. Zhang, H.; Guan, H.; Li, J.; Zhu, J.; Xie, C.; Zhou, Y.; Duan, X.; Yang, T.; Sun, Q.; Liu, Z. Genetic and comparative genomics mapping reveals that a powdery mildew resistance gene Ml3D232 originating from wild emmer co-segregates with an NBS-LRR analog in common wheat (Triticum aestivum L). Theor. Appl. Genet. 2010, 121, 1613–1621. [Google Scholar] [CrossRef]
  52. Xue, F.; Ji, W.; Wang, C.; Zhang, H.; Yang, B. High-density mapping and marker development for the powdery mildew resistance gene PmAS846 derived from wild emmer wheat (Triticum turgidum var. dicoccoides). Theor. Appl. Genet. 2012, 124, 1549–1560. [Google Scholar] [CrossRef]
  53. Zhang, D.; Ouyang, S.H.; Wang, L.L.; Yu, C.U.I.; Wu, Q.H.; Liang, Y.; Liu, Z.Y. Comparative genetic mapping revealed powdery mildew resistance gene MlWE4 derived from wild emmer is located in same genomic region of Pm36 and Ml3D232 on chromosome 5BL. J. Integr. Agric. 2015, 14, 603–609. [Google Scholar] [CrossRef] [Green Version]
  54. Alam, M.A.; Xue, F.; Ali, M.; Wang, C.; Ji, W. Identification and molecular mapping of powdery mildew resistance gene PmG25 in common wheat originated from wild emmer (Triticum turgidum var. dicoccoides). Pak. J. Bot. 2013, 45, 203–208. [Google Scholar]
  55. Petersen, S.; Lyerly, J.H.; Worthington, M.L.; Parks, W.R.; Cowger, C.; Marshall, D.S.; Murphy, J.P. Mapping of powdery mildew resistance gene Pm53 introgressed from Aegilops speltoides into soft red winter wheat. Theor. Appl. Genet. 2015, 128, 303–312. [Google Scholar] [CrossRef] [PubMed]
  56. Keller, M.; Keller, B.; Schachermayr, G.; Winzeler, M.; Schmid, J.E.; Stamp, P.; Messmer, M.M. Quantitative trait loci for resistance against powdery mildew in a segregating wheat × spelt population. Theor. Appl. Genet. 1999, 98, 903–912. [Google Scholar] [CrossRef]
  57. Bougot, Y.; Lemoine, J.; Pavoine, M.T.; Guyomar’ch, H.; Gautier, V.; Muranty, H.; Barloy, D. A major QTL effect controlling resistance to powdery mildew in winter wheat at the adult plant stage. Plant Breed. 2006, 125, 550–556. [Google Scholar] [CrossRef]
  58. Asad, M.A.; Bin, B.A.I.; Lan, C.X.; Jun, Y.A.N.; Xia, X.C.; Zhang, Y.; He, Z.H. QTL mapping for adult plant resistance to powdery mildew in Italian wheat cv. Strampelli. J. Integr. Agric. 2013, 12, 756–764. [Google Scholar] [CrossRef]
  59. Stefanowicz, K.; Lannoo, N.; Van Damme, E.J. Plant F-box proteins-judges between life and death. Crit. Rev. Plant Sci. 2015, 34, 523–552. [Google Scholar] [CrossRef]
  60. Hong, M.J.; Kim, J.B.; Seo, Y.W.; Kim, D.Y. F-box genes in the wheat genome and expression profiling in wheat at different developmental stages. Genes 2020, 11, 1154. [Google Scholar] [CrossRef]
  61. Hong, M.J.; Kim, D.Y.; Kang, S.Y.; Kim, D.S.; Kim, J.B.; Seo, Y.W. Wheat F-box protein recruits proteins and regulates their abundance during wheat spike development. Mol. Biol. Rep. 2012, 39, 9681–9696. [Google Scholar] [CrossRef]
  62. An, J.; Li, Q.; Yang, J.; Zhang, G.; Zhao, Z.; Wu, Y.; Wang, W. Wheat F-box protein TaFBA1 positively regulates plant drought tolerance but negatively regulates stomatal closure. Front. Plant Sci. 2019, 10, 1242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Jing, Y.; Liu, J.; Liu, P.; Ming, D.; Sun, J. Overexpression of TaJAZ1 increases powdery mildew resistance through promoting reactive oxygen species accumulation in bread wheat. Sci. Rep. 2019, 9, 5691. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Zhao, H.; Xing, D.; Li, Q.Q. Unique features of plant cleavage and polyadenylation specificity factor revealed by proteomic studies. Plant Physiol. 2009, 151, 1546–1556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Zhao, Q.; Ren, Y.R.; Wang, Q.J.; Wang, X.F.; You, C.X.; Hao, Y.J. Ubiquitination-related MdBT scaffold proteins target a bHLH transcription factor for iron homeostasis. Plant Physiol. 2016, 172, 1973–1988. [Google Scholar] [CrossRef]
  66. Chakrabarti, M.; Hunt, A.G. CPSF30 at the interface of alternative polyadenylation and cellular signaling in plants. Biomolecules 2015, 5, 1151–1168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Xu, C.; Park, S.J.; Van Eck, J.; Lippman, Z.B. Control of inflorescence architecture in tomato by BTB/POZ transcriptional regulators. Genes Dev. 2016, 30, 2048–2061. [Google Scholar] [CrossRef] [Green Version]
  68. Cedzich, A.; Stransky, H.; Schulz, B.; Frommer, W.B. Characterization of cytokinin and adenine transport in Arabidopsis cell cultures. Plant Physiol. 2008, 148, 1857–1867. [Google Scholar] [CrossRef]
  69. Bürkle, L.; Cedzich, A.; Döpke, C.; Stransky, H.; Okumoto, S.; Gillissen, B.; Frommer, W.B. Transport of cytokinins mediated by purine transporters of the PUP family expressed in phloem, hydathodes, and pollen of Arabidopsis. Plant J. 2003, 34, 13–26. [Google Scholar] [CrossRef]
  70. Mansfield, T.A.; Schultes, N.P.; Mourad, G.S. AtAzg1 and AtAzg2 comprise a novel family of purine transporters in Arabidopsis. FEBS Lett. 2009, 583, 481–486. [Google Scholar] [CrossRef] [Green Version]
  71. Stogios, P.J.; Downs, G.S.; Jauhal, J.J.; Nandra, S.K.; Privé, G.G. Sequence and structural analysis of BTB domain proteins. Genome Biol. 2005, 6, R82. [Google Scholar] [CrossRef] [Green Version]
  72. Ahmad, K.F.; Melnick, A.; Lax, S.; Bouchard, D.; Liu, J.; Kiang, C.L.; Privé, G.G. Mechanism of SMRT corepressor recruitment by the BCL6 BTB domain. Mol. Cell. 2003, 12, 1551–1564. [Google Scholar] [CrossRef]
  73. Kobayashi, A.; Kang, M.I.; Okawa, H.; Ohtsuji, M.; Zenke, Y.; Chiba, T.; Yamamoto, M. Oxidative stress sensor Keap1 functions as an adaptor for Cul3-based E3 ligase to regulate proteasomal degradation of Nrf2. Mol. Cell. Biol. 2004, 24, 7130–7139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Dong, Z.; Li, W.; Unger-Wallace, E.; Yang, J.; Vollbrecht, E.; Chuck, G. Ideal crop plant architecture is mediated by tassels replace upper ears1, a BTB/POZ ankyrin repeat gene directly targeted by TEOSINTE BRANCHED1. Proc. Natl. Acad. Sci. USA 2017, 114, E8656–E8664. [Google Scholar] [CrossRef] [Green Version]
  75. Shalmani, A.; Huang, Y.B.; Chen, Y.B.; Muhammad, I.; Li, B.B.; Ullah, U.; Chen, K.M. The highly interactive BTB domain targeting other functional domains to diversify the function of BTB proteins in rice growth and development. Int. J. Biol. Macromol. 2021, 192, 1311–1324. [Google Scholar] [CrossRef] [PubMed]
  76. Morimoto, K.; Ohama, N.; Kidokoro, S.; Mizoi, J.; Takahashi, F.; Todaka, D.; Yamaguchi-Shinozaki, K. BPM-CUL3 E3 ligase modulates thermotolerance by facilitating negative regulatory domain-mediated degradation of DREB2A in Arabidopsis. Proc. Natl. Acad. Sci. USA 2017, 114, E8528–E8536. [Google Scholar] [CrossRef] [Green Version]
  77. Parks, R.; Carbone, I.; Murphy, J.P.; Marshall, D.; Cowger, C. Virulence structure of the Eastern U.S. wheat powdery mildew population. Plant Dis. 2008, 92, 1074–1082. [Google Scholar] [CrossRef] [Green Version]
  78. Cowger, C.; Mehra, L.; Arellano, C.; Meyers, E.; Murphy, J.P. Virulence differences in Blumeria graminis f. sp. tritici from the central and eastern United States. Phytopathology 2018, 108, 402–411. [Google Scholar] [CrossRef] [Green Version]
  79. Nevo, E. Evolution of wild emmer wheat and crop improvement. J. Syst. Evol. 2014, 52, 673–696. [Google Scholar] [CrossRef]
  80. Zhu, K.; Li, M.; Wu, H.; Zhang, D.; Dong, L.; Wu, Q.; Hua, W. Fine mapping of powdery mildew resistance gene MlWE74 derived from wild emmer wheat (Triticum turgidum ssp. dicoccoides) in an NBS-LRR gene cluster. Theor. Appl. Genet. 2022, 135, 1235–1245. [Google Scholar] [CrossRef]
Ijms 23 13659 g001 550

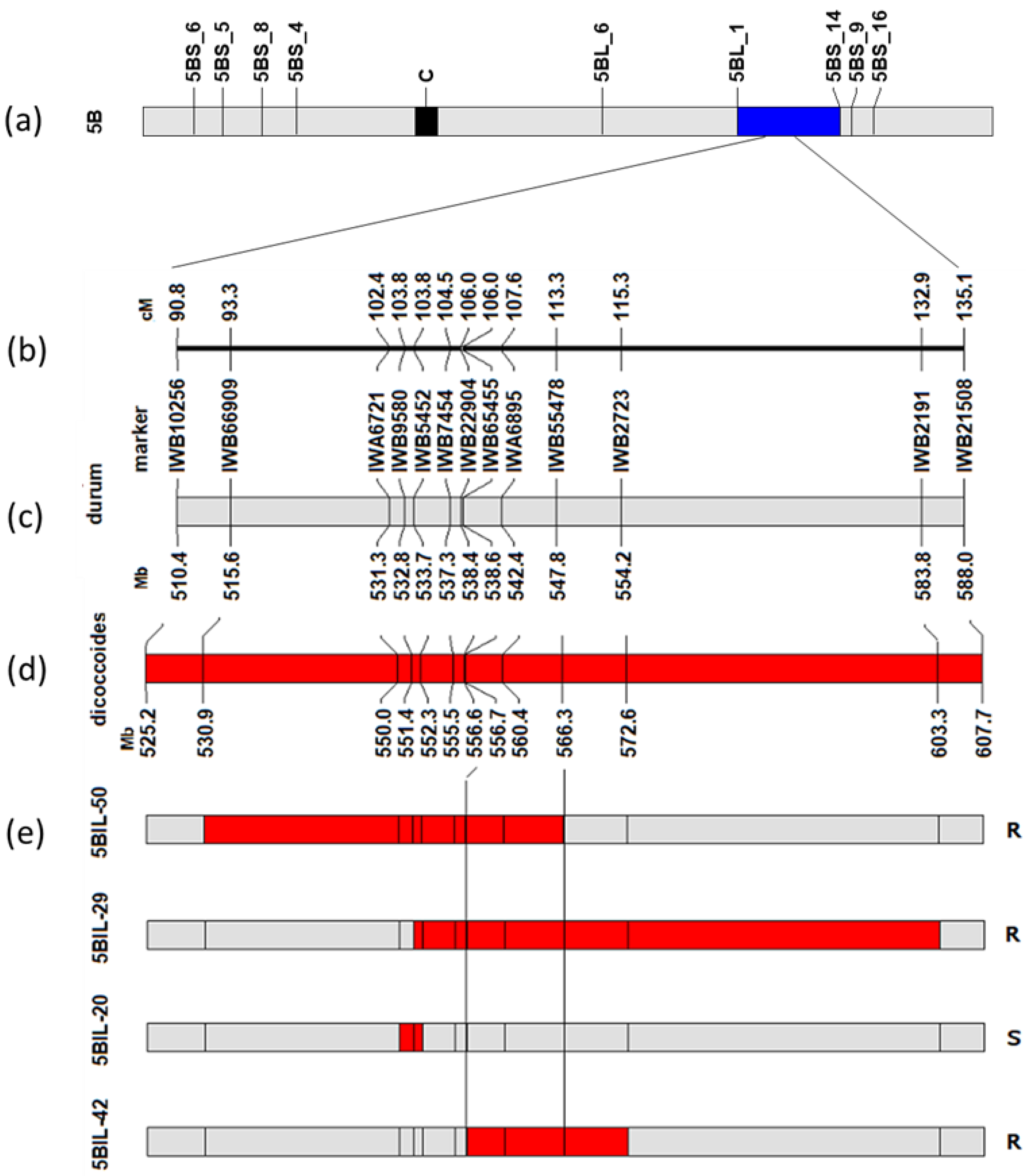

Figure 1. Fine mapping of the wild emmer-derived powdery mildew resistance Pm36 locus using homozygous backcross inbred lines (BILs) of durum wheat. (a) Physical location of Pm36 on the 5BL chromosome arm (bin 5BL_1) (blue block); (b) Genetic map of the 5BL region harboring Pm36 with the genetic position (cM) of relevant SNP markers according to the consensus durum map [44]; (c,d) Schematic representation of the durum wheat Svevo reference genome (grey block) [45] and the dicoccoides Zavitan reference genome v2.0 (red block) [46] with the physical position (Mb) of relevant SNP markers; (e) Genotype and phenotype of four BILs (5BIL-50, 5BIL-29, 5BIL-20, 5BIL-42). S and R on the right of the bars indicate susceptible and resistant phenotype, respectively. Gray and red rectangles represent the genotypes of the PM-susceptible durum wheat Latino and the PM-resistant lines, respectively. Pm36 was placed within a 7.3 cM interval flanked by IWB55478 and IWB22904 (between two vertical lines) based on the genotypes of the BILs at the marker loci and their PM phenotypes.
Figure 1. Fine mapping of the wild emmer-derived powdery mildew resistance Pm36 locus using homozygous backcross inbred lines (BILs) of durum wheat. (a) Physical location of Pm36 on the 5BL chromosome arm (bin 5BL_1) (blue block); (b) Genetic map of the 5BL region harboring Pm36 with the genetic position (cM) of relevant SNP markers according to the consensus durum map [44]; (c,d) Schematic representation of the durum wheat Svevo reference genome (grey block) [45] and the dicoccoides Zavitan reference genome v2.0 (red block) [46] with the physical position (Mb) of relevant SNP markers; (e) Genotype and phenotype of four BILs (5BIL-50, 5BIL-29, 5BIL-20, 5BIL-42). S and R on the right of the bars indicate susceptible and resistant phenotype, respectively. Gray and red rectangles represent the genotypes of the PM-susceptible durum wheat Latino and the PM-resistant lines, respectively. Pm36 was placed within a 7.3 cM interval flanked by IWB55478 and IWB22904 (between two vertical lines) based on the genotypes of the BILs at the marker loci and their PM phenotypes.
Ijms 23 13659 g001
Ijms 23 13659 g002 550
Figure 2. Phenotypes of powdery mildew resistant durum backcross inbred line 5BIL-42 (on the left) and of the durum recurrent parental line Latino (on the right) 12 days post-inoculation with Bgt race O2.
Figure 2. Phenotypes of powdery mildew resistant durum backcross inbred line 5BIL-42 (on the left) and of the durum recurrent parental line Latino (on the right) 12 days post-inoculation with Bgt race O2.
Ijms 23 13659 g002
Ijms 23 13659 g003 550
Figure 3. Fine mapping of Pm36. (a) Genetic linkage map of the 5BL chromosome region harboring Pm36 generated in the 5BIL-42 x Latino F2:3 progeny population. The grey and red regions represent the durum and the dicoccoides chromosomal segments, respectively. Marker loci are listed above and genetic distances in cM are shown at the bottom of the chromosome bar. The arrow point to the centromere; (b) Secondary recombinant homozygous lines (A15-F6 and PM222-F6) including introgressed dicoccoides chromosomal regions shorter than the 5BIL-42 one; the pink segments indicate the chromosomal interval harboring Pm36. Marker loci are listed above and physical distances in Mb are shown at the bottom of the chromosome bar. The lines connect the common markers between the genetic map and the physical map of the secondary recombinant lines.
Figure 3. Fine mapping of Pm36. (a) Genetic linkage map of the 5BL chromosome region harboring Pm36 generated in the 5BIL-42 x Latino F2:3 progeny population. The grey and red regions represent the durum and the dicoccoides chromosomal segments, respectively. Marker loci are listed above and genetic distances in cM are shown at the bottom of the chromosome bar. The arrow point to the centromere; (b) Secondary recombinant homozygous lines (A15-F6 and PM222-F6) including introgressed dicoccoides chromosomal regions shorter than the 5BIL-42 one; the pink segments indicate the chromosomal interval harboring Pm36. Marker loci are listed above and physical distances in Mb are shown at the bottom of the chromosome bar. The lines connect the common markers between the genetic map and the physical map of the secondary recombinant lines.
Ijms 23 13659 g003
Ijms 23 13659 g004 550
Figure 4. Fine mapping and candidate genes of Pm36. (a) High-density map positioned Pm36 within a 1.08 Mb physical interval in the durum wheat Svevo reference genome [45]. Black arrow indicates direction of the centromere; (b) Micro-collinearity of the genomic region of Pm36 between the wild emmer Zavitan [46], durum wheat Svevo [45] and bread wheat Chinese Spring genomes [48]. Arrows represent the annotated genes in each species and their direction indicates which strand they are located on; (c) Genes’ ID and their annotated functions in the emmer, durum and bread wheat genomes.
Figure 4. Fine mapping and candidate genes of Pm36. (a) High-density map positioned Pm36 within a 1.08 Mb physical interval in the durum wheat Svevo reference genome [45]. Black arrow indicates direction of the centromere; (b) Micro-collinearity of the genomic region of Pm36 between the wild emmer Zavitan [46], durum wheat Svevo [45] and bread wheat Chinese Spring genomes [48]. Arrows represent the annotated genes in each species and their direction indicates which strand they are located on; (c) Genes’ ID and their annotated functions in the emmer, durum and bread wheat genomes.
Ijms 23 13659 g004
Ijms 23 13659 g005 550
Figure 5. Comparison of the genetic linkage map of Pm36 with those reported for the powdery mildew resistance genes MlWE29 [50], M3D232 [51], PmAS846 [52], MlWE4 [53], PmG25 [54], Pm53 [55] located on the 5BL chromosome arm. Marker sequences of each map were physically located (in Mb) on the wild emmer Zavitan reference genome v2.0 [46] and on the Svevo reference genome v1.0 [45] to make possible the comparison of genetic maps constructed with different molecular markers. Marker loci are listed to the left of the emmer and durum physical maps and Mb distances are shown to the right. The partial comparison maps show the references above the maps, the marker loci on the right and the genetic distance in centiMorgan (cM) on the left. The lines connect the flanking markers of each map with their physical location (in Mb) on the emmer and durum genomes. The red blocks indicate the Pm36 genomic interval.
Figure 5. Comparison of the genetic linkage map of Pm36 with those reported for the powdery mildew resistance genes MlWE29 [50], M3D232 [51], PmAS846 [52], MlWE4 [53], PmG25 [54], Pm53 [55] located on the 5BL chromosome arm. Marker sequences of each map were physically located (in Mb) on the wild emmer Zavitan reference genome v2.0 [46] and on the Svevo reference genome v1.0 [45] to make possible the comparison of genetic maps constructed with different molecular markers. Marker loci are listed to the left of the emmer and durum physical maps and Mb distances are shown to the right. The partial comparison maps show the references above the maps, the marker loci on the right and the genetic distance in centiMorgan (cM) on the left. The lines connect the flanking markers of each map with their physical location (in Mb) on the emmer and durum genomes. The red blocks indicate the Pm36 genomic interval.
Ijms 23 13659 g005
Table
Table 1. Genetic and physical position in the durum wheat Svevo reference genome and in the wild emmer wheat Zavitan reference genome of the 5BL introgressed dicoccoides segments in six backcross inbred lines of durum wheat.
Table 1. Genetic and physical position in the durum wheat Svevo reference genome and in the wild emmer wheat Zavitan reference genome of the 5BL introgressed dicoccoides segments in six backcross inbred lines of durum wheat.
LinesAdjacent SNP
Markers		Genetic
Position *		Genetic Length *Durum Wheat Svevo
Reference
Genome v1.0		Wild Emmer Wheat Zavitan Reference
Genome v2.0		Powdery
Mildew
(cM)(cM)Physical
Position (bp)		Length
(bp)		Physical
Position (bp)		Length
(bp)
5BIL-20IWB6721-IWB5452102.4–103.81.4531,347,607–533,723,3102,375,703549,987,942–552,272,9762,285,034Susceptible
5BIL-50IWB66909-IWB5547893.3–113.320.0515,585,430–547,845,67032,260,240530,853,710–566,309,83635,456,126Resistant
5BIL-29IWB9580-IWB2191103.8–132.929.1532,842,874–583,808,64150,965,767551,389,765–603,305,15051,915,385Resistant
5BIL-42IWB22904-IWB2753106.0–115.39.3538,444,960–55,4157,61215,712,652556,608,139–572,559,55815,951,419Resistant
Secondary recombinants
PM222-F6IWB22904-IWA6895106–107.61.6538,444,960–542,499,6444,054,684556,608,139–560,376,7393,768,600Resistant
A15-F6IWB22904-IWB65455106.00.0538,444,960–538,604,270159,310556,608,139–556,748,732140,593Resistant
* Genetic position in the durum wheat consensus map [44].
Table
Table 2. Frequency of the Pm36 resistant allele (chromosome regions included by the flanking markers IWB7454 and IWB22904) in a collection of 214 tetraploid wheat accessions evaluated for their reaction to Blumeria graminis f. sp. tritici at adult plant and seedling (race O2) stages. All lines were classified into two groups with resistant lines scoring 0–2 at seedlings and adult plants, and susceptible lines scoring 2.1–4.0 at seedlings and 2.1–9.0 at adult plants [47].
Table 2. Frequency of the Pm36 resistant allele (chromosome regions included by the flanking markers IWB7454 and IWB22904) in a collection of 214 tetraploid wheat accessions evaluated for their reaction to Blumeria graminis f. sp. tritici at adult plant and seedling (race O2) stages. All lines were classified into two groups with resistant lines scoring 0–2 at seedlings and adult plants, and susceptible lines scoring 2.1–4.0 at seedlings and 2.1–9.0 at adult plants [47].
T. turgidum SubspeciesTotal Number of AccessionsFrequency of Resistant AlleleAdult Plants
(Scale 0–9)		Seedling
(Scale 0–4)
Resistant AccessionsResistant Accessions
N.%N.%N.%
durum1210 0 0
turanicum200 0 0
polonicum190 0 0
turgidum1616.30 0
carthlicum110 0 0
dicoccum181266.71191.7541.7
dicoccoides9777.8685.7685.7
Whole collection214209.321105.01680.0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nigro, D.; Blanco, A.; Piarulli, L.; Signorile, M.A.; Colasuonno, P.; Blanco, E.; Simeone, R. Fine Mapping and Candidate Gene Analysis of Pm36, a Wild Emmer-Derived Powdery Mildew Resistance Locus in Durum Wheat. Int. J. Mol. Sci. 2022, 23, 13659. https://doi.org/10.3390/ijms232113659

AMA Style

Nigro D, Blanco A, Piarulli L, Signorile MA, Colasuonno P, Blanco E, Simeone R. Fine Mapping and Candidate Gene Analysis of Pm36, a Wild Emmer-Derived Powdery Mildew Resistance Locus in Durum Wheat. International Journal of Molecular Sciences. 2022; 23(21):13659. https://doi.org/10.3390/ijms232113659

Chicago/Turabian Style

Nigro, Domenica, Antonio Blanco, Luciana Piarulli, Massimo Antonio Signorile, Pasqualina Colasuonno, Emanuela Blanco, and Rosanna Simeone. 2022. "Fine Mapping and Candidate Gene Analysis of Pm36, a Wild Emmer-Derived Powdery Mildew Resistance Locus in Durum Wheat" International Journal of Molecular Sciences 23, no. 21: 13659. https://doi.org/10.3390/ijms232113659

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
