Selection of Diagnostically Significant Regions of the SLC26A4 Gene Involved in Hearing Loss

by
Valeriia Yu. Danilchenko
1,2,
Marina V. Zytsar
1,
Ekaterina A. Maslova
1,2 and
Olga L. Posukh
1,2,*
1
Federal Research Center Institute of Cytology and Genetics, Siberian Branch of the Russian Academy of Sciences, 630090 Novosibirsk, Russia
2
Novosibirsk State University, 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(21), 13453; https://doi.org/10.3390/ijms232113453
Submission received: 28 September 2022 / Revised: 23 October 2022 / Accepted: 1 November 2022 / Published: 3 November 2022
(This article belongs to the Special Issue Medical Genetics, Genomics and Bioinformatics—2022)
Browse Figures
Versions Notes

Abstract

:
Screening pathogenic variants in the SLC26A4 gene is an important part of molecular genetic testing for hearing loss (HL) since they are one of the common causes of hereditary HL in many populations. However, a large size of the SLC26A4 gene (20 coding exons) predetermines the difficulties of its complete mutational analysis, especially in large samples of patients. In addition, the regional or ethno-specific prevalence of SLC26A4 pathogenic variants has not yet been fully elucidated, except variants c.919-2A>G and c.2168A>G (p.His723Arg), which have been proven to be most common in Asian populations. We explored the distribution of currently known pathogenic and likely pathogenic (PLP) variants across the SLC26A4 gene sequence presented in the Deafness Variation Database for the selection of potential diagnostically important parts of this gene. As a result of this bioinformatic analysis, we found that molecular testing ten SLC26A4 exons (4, 6, 10, 11, 13–17 and 19) with flanking intronic regions can provide a diagnostic rate of 61.9% for all PLP variants in the SLC26A4 gene. The primary sequencing of these SLC26A4 regions may be applied as an initial effective diagnostic testing in samples of patients of unknown ethnicity or as a subsequent step after the targeted testing of already-known ethno- or region-specific pathogenic SLC26A4 variants.

1. Introduction

Over 5% of the world’s human population is affected by hearing loss (HL) [1], and more than a half of all HL cases are a result of genetic causes [2]. Hereditary HL represents both nonsyndromic (isolated) forms and several hundred different syndromes, including HL as one of the clinical symptoms. No less than 120 genes are currently known to be implicated in nonsyndromic HL. The loci responsible for different nonsyndromic HL forms and corresponding HL phenotypes are abbreviated DFN (stands for DeaFNess). According to the mode of inheritance, nonsyndromic HL can be classified as autosomal dominant (DFNA), autosomal recessive (DFNB), or X-linked (DFNX) [3]. Autosomal recessive nonsyndromic hearing loss 1A (DFNB1A, OMIM 220290), caused by pathogenic variants in the GJB2 gene (13q12.11, OMIM 121011), is considered to be the most common form of HL in many global populations [4].
The second common contributor to the etiology of hereditary HL in many global regions, at least in Asian countries, is the SLC26A4 (Solute carrier family 26, member 4/pendrin, 7q22.3, OMIM 605646) gene [5,6,7,8,9,10]. SLC26A4 encodes an anion transporter protein known as pendrin (780 amino acids), which belongs to the solute carrier family 26A. The high expression of SLC26A4 is observed in tissues of the inner ear, thyroid and kidneys. Mutations in the SLC26A4 gene cause nonsyndromic recessive deafness (DFNB4, OMIM 600791) and Pendred syndrome (PDS, OMIM 274600), which combines sensorineural HL and the enlargement of the thyroid glands (goiter). In the inner ear, pendrin has been shown to be responsible for maintaining the endocochlear potential and fluid homeostasis, whereas in the thyroid, pendrin mediates iodide transport [11,12,13,14,15,16]. The SLC26A4-related HL is accompanied by the enlarged vestibular aqueduct (EVA) and other malformations of the inner ear structures. These malformations appear to be due to endolymphatic hydrops as a likely consequence of defects in anion and fluid transport because of the deficiency or dysfunction of pendrin [14,15,16].
The SLC26A4 gene is located in chromosome 7 (7:107,660,828-107,717,809; GRCh38 assembly), covers about 57 kb of genomic DNA and comprises 21 exons (including the first non-coding exon). To date, the total number of variations identified in the SLC26A4 gene sequence exceeds 22500 (dbSNP: https://www.ncbi.nlm.nih.gov/snp/?term=SLC26A4, accessed on 1 August 2022). Among them, several hundred variants (including missense, frameshift, splicing site, nonsense and small deletion mutations) are shown to be associated with a wide range of HL phenotypes (the Deafness Variation Database: https://deafnessvariationdatabase.org/gene/SLC26A4, accessed on 6 June 2022; Clin-Var: https://www.ncbi.nlm.nih.gov/clinvar/?term=SLC26A4, accessed on 6 June 2022; the Human Gene Mutation Database: http://www.hgmd.cf.ac.uk/ac/, accessed on 1 February 2022).
Many worldwide studies aimed at assessing the contribution of SLC26A4 to the HL etiology and studying the genotype–phenotype correlations mediated by the presence of different SLC26A4 pathogenic variants in patients. Thereby, their screening has become an important part of molecular genetic testing for HL, especially in patients with detected EVA. Numerous studies revealed a diverse spectrum of SLC26A4 pathogenic variants and their varying prevalence in patients from different regions of the world [5,6,7,9,17,18,19,20]. These facts could be due to the region-specific landscape of the SLC26A4 gene’s allelic diversity, the heterogeneity in size and phenotypic characteristics of the examined cohorts of patients in different studies, and the variable sensitivity of methods used for the SLC26A4 analysis. The region- or ethno-specific prevalence of the SLC26A4 pathogenic variants has not yet been fully elucidated. However, the spectrum of SLC26A4 pathogenic variants found in Asian populations appears to differ from that in populations of Caucasian origins [9,19]. For example, pathogenic variants c.919-2A>G (previously named IVS7-2A>G) and c.2168A>G (p.His723Arg) are the most common in East Asian populations, whereas they are very rare in Europe [9,19].
The sequential analysis of the SLC26A4 gene in a particular patient continues until two recessive pathogenic SLC26A4 variants are detected; therefore, a diagnosis is made. The mutational analysis of the SLC26A4 gene nucleotide sequence during routine diagnostics is difficult due to the large size of the gene. Various strategies are used to diagnose the SLC26A4-associated HL. There is a targeted search (from detection of a single mutation to simultaneous detection of several dozen mutations) of SLC26A4 variants that are already known as pathogenic (including traditional allele specific oligonucleotide analysis, PCR-RFLP-analysis (Polymerase Chain Reaction-Restriction Fragment Length Polymorphism), different SNP (Single Nucleotide Polymorphism) scan assays and microarray-based technology) or preliminary screenings by SSCP (Single Strand Conformation Polymorphism) or DHPLC (Denaturing High Performance Liquid Chromatography) analysis of such variants followed by confirmations by using direct sequencing [6,21,22,23,24,25,26,27,28,29]. In addition, next-generation sequencing (NGS) techniques, which are capable of detecting both known and novel causative variants in many genes implicated in HL, including SLC26A4, are increasingly used for routine diagnostics [30,31]. All these approaches are also widely used in different multi-step hierarchical screenings specifically designed for a particular population or region. Each of these diagnostic methods has its own advantages and limitations, but in any case, direct sequencing is considered necessary to confirm the presence of causative variants identified in patients. At the same time, the initial Sanger sequencing (as the gold standard for identifying mutations) of all SLC26A4 coding exons and adjacent splicing sites could be a successful one-step detection of all sequence variations of this gene, including those that could be considered pathogenic after a comprehensive assessment of their impact on protein structure and function. However, a thorough analysis of all required SLC26A4 fragments can be expensive, especially in large samples of patients with unexplained HL.
This study aims to analyze the distribution of currently known causative (implicated in HL) variations in the SLC26A4 gene for the bioinformatic preselection of its potential regions that have the most significant diagnostic value for molecular testing in patients with HL.

2. Results

The SLC26A4 is a relatively large gene covering about 57 kb of genomic DNA. The canonical transcript ENST00000644269.2 (ENSEMBL: https://www.ensembl.org, accessed on 6 June 2022), which is 4737 bp long, includes 21 exons within 2343-bp cDNA, one of which (exon 1) is non-coding. Due to the large size of SLC26A4, there are certain difficulties in its complete mutational analysis, and it is labor-intensive, time-consuming and expensive, especially in large patient cohorts.
To select the most diagnostically significant regions of SLC26A4, we performed the bioinformatic analysis of the distribution of currently known causative variations in the SLC26A4 sequence based on the data from the Deafness Variation Database (DVD: https://deafnessvariationdatabase.org/, accessed on 6 June 2022) [32]. The DVD is a comprehensive, open-access resource that integrates all available genetic, genomic, and clinical data together with expert curation to generate a single classification for each variant in the genes implicated in syndromic and non-syndromic deafness [32]. For the categorization of variants, DVD uses available information from ClinVar and/or the published literature on PubMed; an assessment of functional significance and conservation of missense variants by six computational methods (PhyloP, SIFT, LRT, MutationTaster, PolyPhen HDIV and GERP); and the data on MAF (minor allele frequency). As a result, each variant could be classified as benign (B), likely benign (LB), likely pathogenic (LP), pathogenic (P) and a variant of unknown significance (VUS). The DVD also characterizes the molecular profile of variants within different classification categories, focusing on variants in coding and splice regions, and groups them by type (nonsense, splice-site, frameshift indels, start / stop loss, in-frame indels, missense, UTRs, intronic and synonymous) across all variant classifications (P, LP, VUS, LB and B).
To date, 8647 SLC26A4 different variants (P, LP, VUS, LB and B) have been reported on the DVD (Figure 1). Among them, there are a total of 605 P and LP variants (PLP variants) and their proportions in the entire SLC26A4 sequence and in coding and intronic regions are 7.0%, 32.4% and 1.4%, respectively (Figure 1). Only two P variants were detected in the upstream/5′-UTR regions (rs60284988/NM_000441.1:c.-103T>C and rs545973091/NM_000441.1:c.-60A>G) [33,34], while no P or LP variants were found in the 3′-UTR region.

2.1. PLP Variants in the SLC26A4 Coding Region

The PLP variants (512 in total) make up an essential part (32.4%) of all variations in the SLC26A4 coding region encompassing 20 exons (Figure 1b). According to their molecular consequences, the PLP variants located in the SLC26A4 coding region can be divided into two main subgroups: (1) the variants leading to any structural changes (missense variant, frameshift variant, stop gained, inframe deletion/insertion, start lost and stop gained/frameshift variant) within the physical boundaries of the exons (457 variants, 89.3%) and (2) the variants leading to any splicing failures (55 variants, 10.7%) (Figure 2). In addition, three LP variants characterized by the DVD as the “splice acceptor variant/coding sequence variant” (c.765_765+3del and c.1539_1544+6del) or “splice donor variant/coding sequence variant” (c.919-19_932del) affect both coding and intronic SLC26A4 regions.
Among all PLP variants in the SLC26A4 coding region, the common molecular alterations are the missense variants, followed by the frameshift variants (Figure 2). It is worth noting that in the SLC26A4 coding region, ten PLP variants located in different exons are synonymous (Figure 2, Table S1). These variants have only been found in individual patients with HL [23,35,36,37,38,39,40,41,42]. Currently, there is convincing evidence of the involvement of synonymous variants (“silent” genetic variations) in the development of at least 50 different human diseases; however, their pathogenic role seems to be underestimated. There is growing evidence that synonymous variants can play multiple regulatory roles in both transcription and translation (the disruption of the spliceosome, altering mRNA degradation, disruption of protein folding and the influence on the level of protein synthesis) [43,44,45]. Among ten synonymous PLP variants in the SLC26A4 coding region, three variants, characterized by the DVD as “splice region variant/synonymous variant”, appear to result in exon skipping (Table S1). For example, according to in silico analysis, variant c.1803G>A (p.Lys601=), which occurs at the terminal nucleotide of exon 16, affects canonical splice donor nucleotide positions and causes the complete skipping of this exon, which was experimentally confirmed [39,42]. For other synonymous SLC26A4 variants, their putative pathogenicity has not yet been confirmed by experimental studies.
The physical size of SLC26A4 coding exons varies from 55 bp (exon 18) to 231 bp (exon 17) (Ensembl: transcript: ENST00000644269.2) (Figure 3). The exception is exon 21, which comprises 2387 bp, although only initial 24 nucleotides refer to the translated sequence [46,47]. The number of known PLP variants across the SLC26A4 coding exons also varies substantially: from 1 in exon 20 to 52 in exon 17. In order to select SLC26A4 exons with the highest load of the PLP variants, the number of these variants was normalized by exon size (Figure 3). Ten exons (4, 6, 10, 11, 13–17 and 19) had variation rates higher than a mean (median value = 21.39) of a number of PLP variants per an exon size (Figure 3). These exons included 63.9% of all known PLP variants in the SLC26A4 coding region.

2.2. PLP Variants in the SLC26A4 Intronic Regions

Knowledge on the pathogenic role of genetic variants localized in the intronic regions of genes increased significantly in recent years. Along with variants, which directly affect the splicing machinery, many studies shed light on the involvement of other intronic variants in the occurrence of many human diseases [48,49,50,51,52,53]. The “classical” splice acceptor and splice donor variants disrupting canonical splice sites at positions -1, -2 (3’ acceptor splice site) or +1, +2 (5’ donor splice site) are the most important for proper splicing and can lead to exon skipping or the emergence of an alternative splicing motif. The variants located in intronic regions near splice junctions (outside the canonical splice sites) appear to be also important for splicing, but studies that evaluated their pathogenic effects in detail on splicing are still limited [49,52,53,54]. In addition, mutations in deep intronic regions have been documented in multiple diseases. Vaz-Drago et al. [50] analyzed 185 reported deep intronic mutations across over 75 disease-associated genes. They concluded that deleterious variants located at least 100 bp from the nearest canonical splice site most commonly lead to pseudo-exon inclusion due to the activation of non-canonical splice sites or changes in splicing regulatory elements and also can disrupt transcription regulatory motifs and non-coding RNA genes [50].
The length of the SLC26A4 introns varies from 140 nucleotides (intron 11) to 8702 (intron 3). The PLP variants located in the SLC26A4 intronic regions make up 1.4% of all variations in the SLC26A4 intronic regions (Figure 1c). According to the DVD, the intronic PLP variants (91 in total) were classified as “splice donor variant” (n = 37), “splice acceptor variant” (n = 23), “splice region variant/intron variant” (n = 22), “intron variant” (n = 8), and “splice donor variant/intron variant” (n = 1). Among them, the “classical” splice acceptor and splice donor variants disrupting canonical splice sites at positions −1, −2 or +1, +2, are predominant (65.9%) (Figure 4). For example, a well-known pathogenic variant c.919-2A>G, which is common in Asian populations [5,7,10,19,23], is located in intron 7 and leads to skipping exon 8, with the formation of a stop codon at amino acid position 311 and, finally, a truncated form of a pendrin molecule.
Another relatively large group of intronic PLP variants (24.2% out of all PLP variants found in SLC26A4 introns) is the “splice region variants/intron variants” group, which includes PLP variants located at −3–−8 or at +3–+7 nucleotide positions (Figure 4). These rare variants have been found in a few patients from different regions of the world. The potential damaging effects of these variants on splicing have been evaluated using different splice prediction computational tools. The experimental studies to confirm these predictions were carried out only for nine variants (c.1002-4C>G, c.1149+3A>G, c.765+3A>T, c.1001+4A>G, c.1001+5G>C, c.1001+5G>T, c.1149+3A>G, c.1341+3A>C, c.1544+5G>A and c.1707+5G>A) [42,55,56,57], although not all experimental data were consistent. For example, in the study by Park et al. [55], functional consequences of novel splice site variants c.415+4A>G and c.1707+5G>A were predicted by the BDGP Splice Site Prediction algorithm, which concluded that these variants significantly affect splicing [55]. However, later, in the study by Lee et al. [42], the assessment of these variants by minigene splicing assay revealed that variant c.1707+5G>A leads to aberrant splicing, while variant c.415+4A>G does not interrupt normal splicing [42]. Several rare PLP variants described as “intron variants” are located deeper in introns of SLC26A4 (Figure 4). They were found in a compound heterozygosity state only in individual patients from China and Japan [8,29,35,40,58,59]. Some of them were predicted to lead to aberrant splicing [29,58,59]. A rare “splice donor variant/intron variant” c.164+2_164+5delinsGAGG in intron 2 found in only one family from Pakistan is predicted to result in skipping of exon 2 and loss of SLC26A4 expression [60]. The “splice region variant/intron variant” 1342-2_1343dupAGTC has been reported as a compound heterozygous variant in several individuals with EVA [34]. This variant (ClinVar ID: 43506) appears to result in the duplication of a conserved splice site at the beginning of exon 12, which could either deleteriously affect the splicing of the transcript or cause a frameshift if four additional bases are included in the exon.
Thus, it can be concluded that all currently known intronic PLP variants in the SLC26A4 gene sequence are located in close proximity (about 50 nucleotides) to exon–intron boundaries, thereby determining the importance of these SLC26A4 regions for diagnostic purposes.

2.3. Prevalence of the SLC26A4 PLP Variants in Different Populations

One of the important criteria for the variant interpretation used by the DVD is the information about their MAFs (minor allele frequencies) obtained from the Genome Aggregation Database (gnomAD, https://gnomad.broadinstitute.org/, accessed on 6 June 2022). In most genes associated with recessive HL, variants with a MAF of ≥0.005 (0.5%) are likely to be benign. However, there are certain exceptions and limitations because several genes, including SLC26A4, do not adhere to this cutoff; in small populations, certain variants may be observed with higher MAFs; in addition, MAFs are not available for all variants [32,61].
The data on MAFs for PLP variants of the SLC26A4 gene presented on the DVD, which were obtained from gnomAD (version 2.1.1), are currently available for only 33.9% (205/605) of them. The MAFs of the SLC26A4 PLP variants vary from 0% (three variants p.Ser93ArgfsTer4, p.Pro123Ser and p.Gln736Ter) to 0.506367% (variant c.919-2A>G, common in East Asian populations). Ultra-rare (0% < MAF% < 0.05%) variants prevail and represent 85.4% (n = 175/205) of all PLP variants with available MAFs while the MAFs for the remaining 27 PLP variants exceed 0.05%.
Another set of data on the prevalence of pathogenic SLC26A4 variants can be obtained from numerous studies aimed at assessing the contribution of SLC26A4 to the HL etiology and studying the genotype–phenotype correlations mediated by the presence of different SLC26A4 pathogenic variants in patients. Lu et al. [19] performed a comprehensive meta-analysis to evaluate the diagnostic value of SLC26A4 mutant alleles and their correlations with multiethnic hearing phenotypes in EVA patients [19]. They summarized data from 24 articles from Asia, Europe and North America (2294 cases and 3193 controls in multiethnic cohorts) and revealed a set of SLC26A4 mutations (n = 22) that were at the top of 10% mutation rate in patients with HL in all ethnicities [19].
To select the most frequent PLP variants in the SCL26A4 gene, we integrated the data on the allelic frequencies of common SLC26A4 mutations from the study by Lu et al. [19] with the PLP variants having the highest MAFs (not less than 0.05%) from the data on the gnomAD populations (presented on the DVD). Summarized data including 42 PLP variants are presented in Table S2. Twenty PLP variants with MAF > 0.05% were not mentioned in the list of common SLC26A4 mutations from the study by Lu et al. [19]. High SLC26A4 mutation rates in patients and relatively high MAFs (>0.05%) coincided for only seven common SLC26A4 mutations: c.919-2A>G, p.His723Arg and p.Ala360Val in East Asian populations (gnomad_AF_eas); p.Phe335Leu and p.Thr410Met in South Asian populations (gnomad_AF_sas); p.Gly209Val and p.Leu236Pro in European (non-Finnish) populations (gnomad_AF_nfe). Among other 13 common SLC26A4 mutations from the study by Lu et al. [19], the MAF varies from 0 (variants p.Ala372Val and p.Leu676Gln) to 0.0397655% (variant c.1001+1G>A) (Table S2).

3. Discussion

Screening for SLC26A4 pathogenic variants in patients with HL is an important part of molecular genetic testing for HL. Understanding the rates of SLC26A4-related HL in a particular population is very important to develop an optimal algorithm for molecular testing. However, despite the fact that such data are already known from numerous studies [5,6,7,9,17,18,19,20], there is no accurate evaluation of the pathogenic contribution of SLC26A4 to HL in different regions of the world.
The phenotypes of SLC26A4-related HL range from nonsyndromic recessive sensorineural HL (DFNB4) to Pendred syndrome with varying onsets with respect to its full clinical manifestation. In addition to this, the enlargement of the vestibular aqueduct (EVA) is a penetrant feature of SLC26A4-related HL. All of this predetermines the heterogeneity of the examined cohorts of patients (patients with nonsyndromic HL without the preselection of EVA or Pendred syndrome, patients with diagnosed EVA or Pendred syndrome, pediatric or adult patients, etc.) in different studies. In addition, a search for casual variants in SLC26A4 during routine molecular diagnostics is complicated by the large size of this gene, including 20 coding exons and diagnostically important flanking intronic regions.
Various strategies, including a targeted search of particular pathogenic SLC26A4 variants, different multi-step hierarchical screenings and/or the NGS techniques, are currently used for the molecular diagnostics of the SLC26A4-related HL; however, their diagnostic rates can vary depending on the applied methods [6,21,22,23,24,25,26,27,28,29,30,31]. All of these diagnostic approaches have certain limitations, such as, for example, the possible omission of other pathogenic SLC26A4 variants in targeted screenings and the still limited use of NGS analysis for routine diagnostics. In this regard, it seems important to optimize the testing of the SLC26A4 gene by the preliminary selection of the most diagnostically important regions of this gene for their priority analysis. A thorough analysis of the distribution of known causal variations along the SLC26A4 gene sequence followed by a selection of its regions with the highest load of such variants seems reasonable to solve this problem.
We selected all known PLP variants in the SLC26A4 gene currently reported in the DVD (605 in total) and analyzed their distributions along the sequence of this gene. The PLP variants located within the physical boundaries of SLC26A4 coding exons account for about 85% (512 in total) of all PLP variants in this gene. Most of them directly lead to any changes in the structure and functions of the protein (missense, frameshift, stop gained and start lost variants); however, some of such variants (n = 55) are known to affect the proper splicing process. All currently known intronic PLP variants (91 in total) in the SLC26A4 gene sequence are located in close proximity (about 50 nucleotides) to the exon-intron boundaries and disrupt splicing. Most are canonical splice sites (−1, −2 or +1, +2) variants. Thus, in total, PLP variants that in any way affect splicing make up a significant part of all PLP variants in the SLC26A4 gene (24.1%, 146/605).
In order to identify the SLC26A4 regions with the highest load of PLP variants, we combined the data on PLP variants located in coding exons with those in adjacent intronic regions (about 50 nucleotides). As a result, ten regions of the SLC26A4 gene sequence (exons 4, 6, 10, 11, 13–17 and 19 and their flanking intronic regions), which appear to have the greatest potential diagnostic value, were identified (Figure 5). Mutational analysis of these parts of SLC26A4 gene sequence can potentially provide a diagnostic rate of 61.9% of all currently known PLP variants in this gene.
The increased rates of PLP variants in several specific regions of the SLC26A4 gene sequence may indicate that they affect the most functionally significant domains of the pendrin protein. No experimental structure of pendrin is currently available, and different topology models with varying numbers (from 11 to 15) of transmembrane segments were proposed [62,63,64]. Pendrin belongs to the SLC26 anion transporter protein family. The SLC26 proteins were originally predicted to contain ~12 transmembrane (TM) segments with the cytoplasmic N- and C-termini followed by the STAS (Sulphate Transporter and AntiSigma factor antagonist) domain at the C-terminus [64,65,66]. The presence of disease-causing mutations in the STAS domains of other SLC26 proteins attests to the structural importance of this functional region of pendrin, although the exact role of the STAS domain has not yet been elucidated [65,66]. It has been suggested that the STAS domain may play a role in nucleotide binding and/or interactions with other proteins, including other transporters, cytoskeletal scaffolds and with enzymes metabolizing transported anion substrates [62,66,67].
The STAS domain of the pendrin protein consists of 195 amino acid residues (from 535/536 to 728/729 amino acid positions) encoded by exons 14–19 (UniProt: https://www.uniprot.org/uniprot/O43511, accessed on 6 June 2022); Deafness Variation Database: https://deafnessvariationdatabase.org/gene/SLC26A4, accessed on 6 June 2022). About one-quarter of all PLP variants in the SLC26A4 coding exons are located in this particular SLC26A4 region, thereby emphasizing its diagnostic value.
The data on the prevalence of SLC26A4 PLP variants in different regions of the world are very important for the development of optimal algorithms for the diagnostic testing of SLC26A4 in a particular population. Currently, the general trends in the worldwide prevalence of different SLC26A4 PLP variants have not yet been fully elucidated. The uneven prevalence of PLP variants in the SLC26A4 gene in different populations or geographical regions may be influenced by the ethnicity of the studied patients, the history of a population to which they belong, and by the heterogeneity of the examined cohorts of patients or a variable sensitivity of diagnostic methods applied in a particular group of patients.
The prevalence of SLC26A4 PLP variants in different regions of the world was presented in several reviews [6,8,9,18,19,20,40,68]. The presence of relatively few SLC26A4 PLP variants (p.Arg409His, p.Thr410Met, p.Leu445Trp, and p.Leu597Ser) can be ubiquitously observed in all regions of the world; however, their frequencies vary greatly depending on the specific region [9,19,20,68]. The spectrum of SLC26A4 pathogenic variants found in Asian populations appears to differ from that in populations of Caucasian origin. At the very least, the variants c.919-2A>G and p.His723Arg are the most common in East Asian populations, while they are very rare in Europe; by contrast, variants c.1001+1G>A, p.Val138Phe, p.Thr416Pro, p.Leu236Pro and p.Gly209Val are prevalent in many Caucasian populations [9,19].
The accumulation of specific PLP variants in certain populations can be a result of the founder effect, as it was evidenced for p.His723Arg in Japanese and Koreans and c.919-2A>G in Chinese [5,9,69]. The role of founder effect was also suggested in the prevalence of several other PLP variants in some local populations: p.Ser90Leu, p.Val239Asp, p.Gln446Arg in families from Pakistan [68,70], p.Val138Phe in German patients [71], c.965dup (p.Asn322LysfsTer8) in Iranian patients [72] and p.Gln514Arg in Spanish patients [36]. In addition, in our recent study [73], we revealed high frequencies of variant p.Leu676Gln, which is rare in other populations, and of a novel variant c.1545T>G (p.Phe515Leu), which both explain a significant part of the SLC26A4-related HL in Tuvinian patients belonging to indigenous Turkic-speaking people living in the Tyva Republic (Southern Siberia, Russia).
The integration of data on PLP variants with relatively high MAFs (>0.05%) derived from the gnomAD populations with data on allelic frequencies of the most frequent SLC26A4 mutations in patients worldwide from a meta-analysis by Lu et al. [19] allowed us to identify 42 most common PLP variants, although high MAFs and high mutation rates in patients have coincided for only seven of them (Table S2, Figure 5).
Thus, the current data on the distribution of SLC26A4 PLP variants in different populations do not allow making a reasonable conclusion about general patterns of their prevalence worldwide.
Mutational analysis of the SLC26A4 gene in a particular patient, due to a recessive inheritance pattern of the SLC26A4-related HL, should continue until two recessive pathogenic variants of SLC26A4 are detected and, thereby, molecular diagnosis could be made. Various strategies are used to diagnose the SLC26A4-associated HL. Each of the diagnostic methods has its own advantages and limitations, but in any case, direct Sanger sequencing (as the gold standard for identifying mutations) is considered necessary to confirm the presence of causative variants that are identified in patients. The priority sequencing of the most diagnostically important regions of the SLC26A4 gene, selected in our study, could be a successful one step-detection of 61.9% of all currently known PLP variants in the SLC26A4 gene. This approach can be effective as a relatively inexpensive initial diagnostic testing in large samples of patients of unknown ethnicity or it can be applied in any multi-step hierarchical diagnostic screenings, specifically designed for a particular population or region. For example, in the case when it is already known that some specific PLP variants are most common in a certain population (c.919-2A>G in Chinese or p.His723Arg in Japanese and Koreans), this approach can also be applied after a targeted analysis of such variants.

4. Materials and Methods

For the bioinformatic analysis of SLC26A4 gene sequence variations, we used the DVD v9 version of the Deafness Variation Database (DVD), which includes all known genetic variants presented in 224 deafness-associated genes (Deafness Variation Database: https://deafnessvariationdatabase.org/gene/SLC26A4, accessed on 6 June 2022) [32].
Web Resources:
SLC26A4 gene:
The canonical transcript: ENST00000644269.2 (ENSEMBL: https://www.ensembl.org/, accessed on 6 June 2022).
NCBI Reference Sequence:
NM_000441.2 (https://www.ncbi.nlm.nih.gov/nuccore/NM_000441, accessed on 6 June 2022),
NC_000007.13 (https://www.ncbi.nlm.nih.gov/nuccore/NC_000007.13, accessed on 6 June 2022).
The consensus coding sequence (CCDS): CCDS 5746.1. (https://www.ncbi.nlm.nih.gov/projects/CCDS/CcdsBrowse.cgi?REQUEST=ALLFIELDS&DATA=CCDS5746, accessed on 6 June 2022).
Protein pendrin:
NCBI Reference Sequence: NP_000432.1 (https://www.ncbi.nlm.nih.gov/protein/NP_000432.1, accessed on 6 June 2022).
UniProt: O43511 (UniProt: https://www.uniprot.org/uniprot/O43511, accessed on 6 June 2022).

5. Conclusions

The bioinformatic analysis of the distribution of PLP variants across the SLC26A4 gene sequence revealed the most diagnostically important regions of this gene (exons 4, 6, 10, 11, 13–17 and 19 with flanking intronic regions), the sequencing of which can provide a diagnostic rate of 61.9% for all currently known PLP variants in the SLC26A4 gene. The primary analysis of these SLC26A4 regions may be applied as an initial effective diagnostic test in samples of patients of unknown ethnicity or as a subsequent step after the targeted testing of already-known ethno- or region-specific pathogenic SLC26A4 variants.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232113453/s1.

Author Contributions

Conceptualization, O.L.P.; methodology, V.Y.D., O.L.P. and M.V.Z.; formal analysis, V.Y.D., M.V.Z. and E.A.M.; investigation, V.Y.D., M.V.Z. and E.A.M.; resources, M.V.Z. and O.L.P.; writing—original draft preparation, V.Y.D., M.V.Z., E.A.M. and O.L.P.; writing—review and editing, V.Y.D., M.V.Z., O.L.P. and E.A.M.; supervision, O.L.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation grant No 21-75-00030, https://rscf.ru/en/project/21-75-00030/ (to M.V.Z., E.A.M. and V.Y.D.) and by the Ministry of Education and Science of Russian Federation (grant No FSUS-2020-0040) (to O.L.P.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article and in Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization. Available online: https://www.who.int/en/news-room/fact-sheets/detail/deafness-and-hearing-loss (accessed on 1 June 2022).
  2. Morton, C.C.; Nance, W.E. Newborn Hearing Screening—A Silent Revolution. N. Engl. J. Med. 2006, 354, 2151–2164. [Google Scholar] [CrossRef] [PubMed]
  3. Van Camp, G.; Smith, R.J.H. Hereditary Hearing Loss Homepage. Available online: https://hereditaryhearingloss.org (accessed on 1 June 2022).
  4. del Castillo, F.J.; del Castillo, I. DFNB1 Non-syndromic Hearing Impairment: Diversity of Mutations and Associated Phenotypes. Front. Mol. Neurosci. 2017, 10, 428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Park, H.J.; Shaukat, S.; Liu, X.Z.; Hahn, S.H.; Naz, S.; Ghosh, M.; Kim, H.N.; Moon, S.K.; Abe, S.; Tukamoto, K.; et al. Origins and frequencies of SLC26A4 (PDS) mutations in east and south Asians: Global implications for the epidemiology of deafness. J. Med. Genet. 2003, 40, 242–248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Albert, S.; Blons, H.; Jonard, L.; Feldmann, D.; Chauvin, P.; Loundon, N.; Sergent-Allaoui, A.; Houang, M.; Joannard, A.; Schmerber, S.; et al. SLC26A4 gene is frequently involved in nonsyndromic hearing impairment with enlarged vestibular aqueduct in Caucasian populations. Eur. J. Hum. Genet. 2006, 14, 773–779. [Google Scholar] [CrossRef]
  7. Wang, Q.J.; Zhao, Y.L.; Rao, S.Q.; Guo, Y.F.; Yuan, H.; Zong, L.; Guan, J.; Xu, B.C.; Wang, D.Y.; Han, M.K.; et al. A distinct spectrum of SLC26A4 mutations in patients with enlarged vestibular aqueduct in China. Clin. Genet. 2007, 72, 245–254. [Google Scholar] [CrossRef]
  8. Miyagawa, M.; Nishio, S.Y.; Usami, S.; Deafness Gene Study Consortium. Mutation spectrum and genotype-phenotype correlation of hearing loss patients caused by SLC26A4 mutations in the Japanese: A large cohort study. J. Hum. Genet. 2014, 59, 262–268. [Google Scholar] [CrossRef] [Green Version]
  9. Tsukada, K.; Nishio, S.Y.; Hattori, M.; Usami, S. Ethnic-specific spectrum of GJB2 and SLC26A4 mutations: Their origin and a literature review. Ann. Otol. Rhinol. Laryngol. 2015, 124 (Suppl. S1), 61S–76S. [Google Scholar] [CrossRef]
  10. Erdenechuluun, J.; Lin, Y.-H.; Ganbat, K.; Bataakhuu, D.; Makhbal, Z.; Tsai, C.-Y.; Lin, Y.-H.; Chan, Y.-H.; Hsu, C.-J.; Hsu, W.-C.; et al. Unique spectra of deafness-associated mutations in Mongolians provide insights into the genetic relationships among Eurasian populations. PLoS ONE 2018, 13, e0209797. [Google Scholar] [CrossRef] [Green Version]
  11. Everett, L.A.; Glaser, B.; Beck, J.C.; Idol, J.R.; Buchs, A.; Heyman, M.; Adawi, F.; Hazani, E.; Nassir, E.; Baxevanis, A.D.; et al. Pendred syndrome is caused by mutations in a putative sulphate transporter gene (PDS). Nat. Genet. 1997, 17, 411–422. [Google Scholar] [CrossRef]
  12. Everett, L.A.; Morsli, H.; Wu, D.K.; Green, E.D. Expression pattern of the mouse ortholog of the Pendred’s syndrome gene (Pds) suggests a key role for pendrin in the inner ear. Proc. Natl. Acad. Sci. USA 1999, 96, 9727–9732. [Google Scholar] [CrossRef]
  13. Dror, A.A.; Brownstein, Z.; Avraham, K.B. Integration of human and mouse genetics reveals pendrin function in hearing and deafness. Cell Physiol. Biochem. 2011, 28, 535–544. [Google Scholar] [CrossRef] [PubMed]
  14. Choi, B.Y.; Kim, H.M.; Ito, T.; Lee, K.Y.; Li, X.; Monahan, K.; Wen, Y.; Wilson, E.; Kurima, K.; Saunders, T.L.; et al. Mouse model of enlarged vestibular aqueducts defines temporal requirement of Slc26a4 expression for hearing acquisition. J. Clin. Invest. 2011, 121, 4516–4525. [Google Scholar] [CrossRef] [PubMed]
  15. Li, X.; Sanneman, J.D.; Harbidge, D.G.; Zhou, F.; Ito, T.; Nelson, R.; Picard, N.; Chambrey, R.; Eladari, D.; Miesner, T.; et al. SLC26A4 targeted to the endolymphatic sac rescues hearing and balance in Slc26a4 mutant mice. PLoS Genet. 2013, 9, e1003641. [Google Scholar] [CrossRef] [PubMed]
  16. Honda, K.; Griffith, A.J. Genetic architecture and phenotypic landscape of SLC26A4-related hearing loss. Hum. Genet. 2022, 141, 455–464. [Google Scholar] [CrossRef] [PubMed]
  17. Blons, H.; Feldmann, D.; Duval, V.; Messaz, O.; Denoyelle, F.; Loundon, N.; Sergout-Allaoui, A.; Houang, M.; Duriez, F.; Lacombe, D.; et al. Screening of SLC26A4 (PDS) gene in Pendred’s syndrome: A large spectrum of mutations in France and phenotypic heterogeneity. Clin. Genet. 2004, 66, 333–340. [Google Scholar] [CrossRef] [PubMed]
  18. Du, W.; Guo, Y.; Wang, C.; Wang, Y.; Liu, X. A systematic review and meta-analysis of common mutations of SLC26A4 gene in Asian populations. Int. J. Pediatr. Otorhinolaryngol. 2013, 77, 1670–1676. [Google Scholar] [CrossRef]
  19. Lu, Y.J.; Yao, J.; Wei, Q.J.; Xing, G.Q.; Cao, X. Diagnostic Value of SLC26A4 Mutation Status in Hereditary Hearing Loss With EVA: A PRISMA-Compliant Meta-Analysis. Medicine 2015, 94, e2248. [Google Scholar] [CrossRef]
  20. Koohiyan, M. A systematic review of SLC26A4 mutations causing hearing loss in the Iranian population. Int. J. Pediatr. Otorhinolaryngol. 2019, 125, 1–5. [Google Scholar] [CrossRef]
  21. Gardner, P.; Oitmaa, E.; Messner, A.; Hoefsloot, L.; Metspalu, A.; Schrijver, I. Simultaneous multigene mutation detection in patients with sensorineural hearing loss through a novel diagnostic microarray: A new approach for newborn screening follow-up. Pediatrics 2006, 118, 985–994. [Google Scholar] [CrossRef]
  22. Prasad, S.; Kölln, K.A.; Cucci, R.A.; Trembath, R.C.; Van Camp, G.; Smith, R.J. Pendred syndrome and DFNB4-mutation screening of SLC26A4 by denaturing high-performance liquid chromatography and the identification of eleven novel mutations. Am. J. Med. Genet. A. 2004, 124A, 1–9. [Google Scholar] [CrossRef]
  23. Dai, P.; Li, Q.; Huang, D.; Yuan, Y.; Kang, D.; Miller, D.T.; Shao, H.; Zhu, Q.; He, J.; Yu, F.; et al. SLC26A4 c.919-2A>G varies among Chinese ethnic groups as a cause of hearing loss. Genet. Med. 2008, 10, 586–592. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Chen, N.; Tranebjærg, L.; Rendtorff, N.D.; Schrijver, I. Mutation analysis of SLC26A4 for Pendred syndrome and nonsyndromic hearing loss by high-resolution melting. J. Mol. Diagn. 2011, 13, 416–426. [Google Scholar] [CrossRef] [PubMed]
  25. Mercer, S.; Mutton, P.; Dahl, H.H. Identification of SLC26A4 mutations in patients with hearing loss and enlarged vestibular aqueduct using high-resolution melting curve analysis. Genet. Test. Mol. Biomark. 2011, 15, 365–368. [Google Scholar] [CrossRef] [PubMed]
  26. Usami, S.; Nishio, S.Y.; Nagano, M.; Abe, S.; Yamaguchi, T. Deafness Gene Study Consortium. Simultaneous screening of multiple mutations by invader assay improves molecular diagnosis of hereditary hearing loss: A multicenter study. PLoS ONE 2012, 7, e31276. [Google Scholar] [CrossRef]
  27. Wu, H.; Feng, Y.; Jiang, L.; Pan, Q.; Liu, Y.; Liu, C.; He, C.; Chen, H.; Liu, X.; Hu, C.; et al. Application of a New Genetic Deafness Microarray for Detecting Mutations in the Deaf in China. PLoS ONE 2016, 11, e0151909. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, X.; Hong, Y.; Cai, P.; Tang, N.; Chen, Y.; Yan, T.; Liu, Y.; Huang, Q.; Li, Q. Rapid and Reliable Detection of Nonsyndromic Hearing Loss Mutations by Multicolor Melting Curve Analysis. Sci. Rep. 2017, 7, 42894. [Google Scholar] [CrossRef] [Green Version]
  29. Choi, B.Y.; Stewart, A.K.; Nishimura, K.K.; Cha, W.J.; Seong, M.W.; Park, S.S.; Kim, S.W.; Chun, Y.S.; Chung, J.W.; Park, S.N.; et al. Efficient molecular genetic diagnosis of enlarged vestibular aqueducts in East Asians. Genet. Test. Mol. Biomark. 2009, 13, 679–687. [Google Scholar] [CrossRef]
  30. Liu, Y.; Wang, L.; Feng, Y.; He, C.; Liu, D.; Cai, X.; Jiang, L.; Chen, H.; Liu, C.; Wu, H.; et al. A New Genetic Diagnostic for Enlarged Vestibular Aqueduct Based on Next-Generation Sequencing. PLoS ONE 2016, 11, e0168508. [Google Scholar] [CrossRef] [Green Version]
  31. Sakuma, N.; Moteki, H.; Takahashi, M.; Nishio, S.Y.; Arai, Y.; Yamashita, Y.; Oridate, N.; Usami, S. An effective screening strategy for deafness in combination with a next-generation sequencing platform: A consecutive analysis. J. Hum. Genet. 2016, 61, 253–261. [Google Scholar] [CrossRef]
  32. Azaiez, H.; Booth, K.T.; Ephraim, S.S.; Crone, B.; Black-Ziegelbein, E.A.; Marini, R.J.; Shearer, A.E.; Sloan-Heggen, C.M.; Kolbe, D.; Casavant, T.; et al. Genomic Landscape and Mutational Signatures of Deafness-Associated Genes. Am. J. Hum. Genet. 2018, 103, 484–497. [Google Scholar] [CrossRef]
  33. Yang, T.; Vidarsson, H.; Rodrigo-Blomqvist, S.; Rosengren, S.S.; Enerback, S.; Smith, R.J. Transcriptional control of SLC26A4 is involved in Pendred syndrome and nonsyndromic enlargement of vestibular aqueduct (DFNB4). Am. J. Hum. Genet. 2007, 80, 1055–1063. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Choi, B.Y.; Stewart, A.K.; Madeo, A.C.; Pryor, S.P.; Lenhard, S.; Kittles, R.; Eisenman, D.; Kim, H.J.; Niparko, J.; Thomsen, J.; et al. Hypo-functional SLC26A4 variants associated with nonsyndromic hearing loss and enlargement of the vestibular aqueduct: Genotype-phenotype correlation or coincidental polymorphisms? Hum. Mutat. 2009, 30, 599–608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Yuan, Y.; Guo, W.; Tang, J.; Zhang, G.; Wang, G.; Han, M.; Zhang, X.; Yang, S.; He, D.Z.; Dai, P. Molecular epidemiology and functional assessment of novel allelic variants of SLC26A4 in non-syndromic hearing loss patients with enlarged vestibular aqueduct in China. PLoS ONE 2012, 7, e49984. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Pera, A.; Dossena, S.; Rodighiero, S.; Gandía, M.; Bottà, G.; Meyer, G.; Moreno, F.; Nofziger, C.; Hernández-Chico, C.; Paulmichl, M. Functional assessment of allelic variants in the SLC26A4 gene involved in Pendred syndrome and nonsyndromic EVA. Proc. Natl. Acad. Sci. USA 2008, 105, 18608–18613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Yuan, Y.; You, Y.; Huang, D.; Cui, J.; Wang, Y.; Wang, Q.; Yu, F.; Kang, D.; Yuan, H.; Han, D.; et al. Comprehensive molecular etiology analysis of nonsyndromic hearing impairment from typical areas in China. J. Transl. Med. 2009, 7, 79. [Google Scholar] [CrossRef] [Green Version]
  38. Kallel, R.; Niasme-Grare, M.; Belguith-Maalej, S.; Mnif, M.; Abid, M.; Ayadi, H.; Masmoudi, S.; Jonard, L.; Hadj Kacem, H. Screening of SLC26A4 gene in autoimmune thyroid diseases. Int. J. Immunogenet. 2013, 40, 284–291. [Google Scholar] [CrossRef]
  39. Kim, Y.; Kim, H.R.; Kim, J.; Shin, J.W.; Park, H.J.; Choi, J.Y.; Kim, U.K.; Lee, K.A. A novel synonymous mutation causing complete skipping of exon 16 in the SLC26A4 gene in a Korean family with hearing loss. Biochem. Biophys. Res. Commun. 2013, 430, 1147–1150. [Google Scholar] [CrossRef]
  40. Nishio, S.Y.; Usami, S. Deafness gene variations in a 1120 nonsyndromic hearing loss cohort: Molecular epidemiology and deafness mutation spectrum of patients in Japan. Ann. Otol. Rhinol. Laryngol. 2015, 124 (Suppl. S1), 49S–60S. [Google Scholar] [CrossRef]
  41. de Filippis, T.; Gelmini, G.; Paraboschi, E.; Vigone, M.C.; Di Frenna, M.; Marelli, F.; Bonomi, M.; Cassio, A.; Larizza, D.; Moro, M.; et al. A frequent oligogenic involvement in congenital hypothyroidism. Hum. Mol. Genet. 2017, 26, 2507–2514. [Google Scholar] [CrossRef] [Green Version]
  42. Lee, B.; Kim, Y.R.; Kim, S.J.; Goh, S.H.; Kim, J.H.; Oh, S.K.; Baek, J.I.; Kim, U.K.; Lee, K.Y. Modified U1 snRNA and antisense oligonucleotides rescue splice mutations in SLC26A4 that cause hereditary hearing loss. Hum Mutat. 2019, 40, 1172–1180. [Google Scholar] [CrossRef]
  43. Cartegni, L.; Chew, S.L.; Krainer, A.R. Listening to silence and understanding nonsense: Exonic mutations that affect splicing. Nat. Rev. Genet. 2002, 4, 285–298. [Google Scholar] [CrossRef]
  44. Sauna, Z.E.; Kimchi-Sarfaty, C. Understanding the contribution of synonymous mutations to human disease. Nat. Rev. Genet. 2011, 10, 683–691. [Google Scholar] [CrossRef] [PubMed]
  45. Hunt, R.C.; Simhadri, V.L.; Iandoli, M.; Sauna, Z.E.; Kimchi-Sarfaty, C. Exposing synonymous mutations. Trends Genet. 2014, 30, 308–321. [Google Scholar] [CrossRef] [PubMed]
  46. López-Bigas, N.; Melchionda, S.; de Cid, R.; Grifa, A.; Zelante, L.; Govea, N.; Arbonés, M.L.; Gasparini, P.; Estivill, X. Erratum: Identification of five new mutations of PDS/SLC26A4 in Mediterranean families with hearing impairment. Hum. Mutat. 2002, 20, 77–78. [Google Scholar] [CrossRef]
  47. Pryor, S.P.; Madeo, A.C.; Reynolds, J.C.; Sarlis, N.J.; Arnos, K.S.; Nance, W.E.; Yang, Y.; Zalewski, C.K.; Brewer, C.C.; Butman, J.A.; et al. SLC26A4/PDS genotype-phenotype correlation in hearing loss with enlargement of the vestibular aqueduct (EVA): Evidence that Pendred syndrome and non-syndromic EVA are distinct clinical and genetic entities. J. Med. Genet. 2005, 42, 159–165. [Google Scholar] [CrossRef] [Green Version]
  48. Krawczak, M.; Thomas, N.S.; Hundrieser, B.; Mort, M.; Wittig, M.; Hampe, J.; Cooper, D.N. Single base-pair substitutions in exon-intron junctions of human genes: Nature, distribution, and consequences for mRNA splicing. Hum. Mutat. 2007, 28, 150–158. [Google Scholar] [CrossRef] [PubMed]
  49. Ward, A.J.; Cooper, T.A. The pathobiology of splicing. J. Pathol. 2010, 220, 152–163. [Google Scholar] [CrossRef]
  50. Vaz-Drago, R.; Custódio, N.; Carmo-Fonseca, M. Deep intronic mutations and human disease. Hum. Genet. 2017, 136, 1093–1111. [Google Scholar] [CrossRef]
  51. Abramowicz, A.; Gos, M. Splicing mutations in human genetic disorders: Examples, detection, and confirmation. J. Appl. Genet. 2018, 59, 253–268. [Google Scholar] [CrossRef] [Green Version]
  52. Zhang, S.; Samocha, K.E.; Rivas, M.A.; Karczewski, K.J.; Daly, E.; Schmandt, B.; Neale, B.M.; MacArthur, D.G.; Daly, M.J. Base-specific mutational intolerance near splice sites clarifies the role of nonessential splice nucleotides. Genome Res. 2018, 28, 968–974. [Google Scholar] [CrossRef]
  53. Lord, J.; Gallone, G.; Short, P.J.; McRae, J.F.; Ironfield, H.; Wynn, E.H.; Gerety, S.S.; He, L.; Kerr, B.; Johnson, D.S.; et al. Deciphering Developmental Disorders study. Pathogenicity and selective constraint on variation near splice sites. Genome Res. 2019, 29, 159–170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Riolo, G.; Cantara, S.; Ricci, C. What’s Wrong in a Jump? Prediction and Validation of Splice Site Variants. Methods Protoc. 2021, 4, 62. [Google Scholar] [CrossRef] [PubMed]
  55. Park, H.J.; Lee, S.J.; Jin, H.S.; Lee, J.O.; Go, S.H.; Jang, H.S.; Moon, S.K.; Lee, S.C.; Chun, Y.M.; Lee, H.K.; et al. Genetic basis of hearing loss associated with enlarged vestibular aqueducts in Koreans. Clin. Genet. 2005, 67, 160–165. [Google Scholar] [CrossRef]
  56. Massa, G.; Jaenen, N.; de Varebeke, S.J.; Peeters, N.; Wuyts, W. Solitary thyroid nodule as presenting symptom of Pendred syndrome caused by a novel splice-site mutation in intron 8 of the SLC26A4 gene. Eur. J. Pediatr. 2003, 162, 674–677. [Google Scholar] [CrossRef] [PubMed]
  57. Wasano, K.; Takahashi, S.; Rosenberg, S.K.; Kojima, T.; Mutai, H.; Matsunaga, T.; Ogawa, K.; Homma, K. Systematic quantification of the anion transport function of pendrin (SLC26A4) and its disease-associated variants. Hum. Mutat. 2020, 41, 316–331. [Google Scholar] [CrossRef]
  58. Hu, H.; Wu, L.; Feng, Y.; Pan, Q.; Long, Z.; Li, J.; Dai, H.; Xia, K.; Liang, D.; Niikawa, N.; et al. Molecular analysis of hearing loss associated with enlarged vestibular aqueduct in the mainland Chinese: A unique SLC26A4 mutation spectrum. J. Hum. Genet. 2007, 52, 492–497. [Google Scholar] [CrossRef] [Green Version]
  59. Okamoto, Y.; Mutai, H.; Nakano, A.; Arimoto, Y.; Sugiuchi, T.; Masuda, S.; Morimoto, N.; Sakamoto, H.; Ogahara, N.; Takagi, A.; et al. Subgroups of enlarged vestibular aqueduct in relation to SLC26A4 mutations and hearing loss. Laryngoscope 2014, 124, E134–E140. [Google Scholar] [CrossRef]
  60. Hussain, S.; Khattak, J.Z.; Ismail, M.; Mansoor, Q.; Khan, M.H. Molecular characterization of autosomal recessive non syndromic hearing loss in selected families from District Mardan, Pakistan. Pak. J. Pharm. Sci. 2018, 31, 51–56. [Google Scholar]
  61. Shearer, A.E.; Eppsteiner, R.W.; Booth, K.T.; Ephraim, S.S.; Gurrola, J., 2nd; Simpson, A.; Black-Ziegelbein, E.A.; Joshi, S.; Ravi, H.; Giuffre, A.C.; et al. Utilizing ethnic-specific differences in minor allele frequency to recategorize reported pathogenic deafness variants. Am. J. Hum. Genet. 2014, 95, 445–453. [Google Scholar] [CrossRef] [Green Version]
  62. Dossena, S.; Rodighiero, S.; Vezzoli, V.; Nofziger, C.; Salvioni, E.; Boccazzi, M.; Grabmayer, E.; Bottà, G.; Meyer, G.; Fugazzola, L.; et al. Functional characterization of wild-type and mutated pendrin (SLC26A4), the anion transporter involved in Pendred syndrome. J. Mol. Endocrinol. 2009, 43, 93–103. [Google Scholar] [CrossRef] [Green Version]
  63. Bassot, C.; Minervini, G.; Leonardi, E.; Tosatto, S.C. Mapping pathogenic mutations suggests an innovative structural model for the pendrin (SLC26A4) transmembrane domain. Biochimie 2017, 132, 109–120. [Google Scholar] [CrossRef] [PubMed]
  64. Rapp, C.; Bai, X.; Reithmeier, R.A.F. Molecular analysis of human solute carrier SLC26 anion transporter disease-causing mutations using 3-dimensional homology modeling. Biochim. Biophys. Acta Biomembr. 2017, 1859, 2420–2434. [Google Scholar] [CrossRef] [PubMed]
  65. Aravind, L.; Koonin, E.V. The STAS domain—a link between anion transporters and antisigma-factor antagonists. Curr. Biol. 2000, 10, R53–R55. [Google Scholar] [CrossRef] [Green Version]
  66. Sharma, A.K.; Rigby, A.C.; Alper, S.L. STAS domain structure and function. Cell Physiol. Biochem. 2011, 28, 407–422. [Google Scholar] [CrossRef] [Green Version]
  67. Benvenga, S.; Guarneri, F. Homology of pendrin, sodium-iodide symporter and apical iodide transporter. Front. Biosci. 2018, 23, 1864–1873. [Google Scholar] [CrossRef]
  68. Naz, S. Molecular genetic landscape of hereditary hearing loss in Pakistan. Hum. Genet. 2022, 141, 633–648. [Google Scholar] [CrossRef]
  69. Wu, C.C.; Yeh, T.H.; Chen, P.J.; Hsu, C.J. Prevalent SLC26A4 mutations in patients with enlarged vestibular aqueduct and/or Mondini dysplasia: A unique spectrum of mutations in Taiwan, including a frequent founder mutation. Laryngoscope 2005, 115, 1060–1064. [Google Scholar] [CrossRef]
  70. Anwar, S.; Riazuddin, S.; Ahmed, Z.M.; Tasneem, S.; Ateeq-ul-Jaleel.; Khan, S.Y.; Griffith, A.J.; Friedman, T.B.; Riazuddin, S. SLC26A4 mutation spectrum associated with DFNB4 deafness and Pendred’s syndrome in Pakistanis. J. Hum. Genet. 2009, 54, 266–270. [Google Scholar] [CrossRef]
  71. Borck, G.; Roth, C.; Martiné, U.; Wildhardt, G.; Pohlenz, J. Mutations in the PDS gene in German families with Pendred’s syndrome: V138F is a founder mutation. J. Clin. Endocrinol. Metab. 2003, 88, 2916–2921. [Google Scholar] [CrossRef] [Green Version]
  72. Mohseni, M.; Honarpour, A.; Mozafari, R.; Davarnia, B.; Najmabadi, H.; Kahrizi, K. Identification of a founder mutation for Pendred syndrome in families from northwest Iran. Int. J. Pediatr. Otorhinolaryngol. 2014, 78, 1828–1832. [Google Scholar] [CrossRef]
  73. Danilchenko, V.Y.; Zytsar, M.V.; Maslova, E.A.; Bady-Khoo, M.S.; Barashkov, N.A.; Morozov, I.V.; Bondar, A.A.; Posukh, O.L. Different Rates of the SLC26A4-Related Hearing Loss in Two Indigenous Peoples of Southern Siberia (Russia). Diagnostics 2021, 11, 2378. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 13453 g001 550

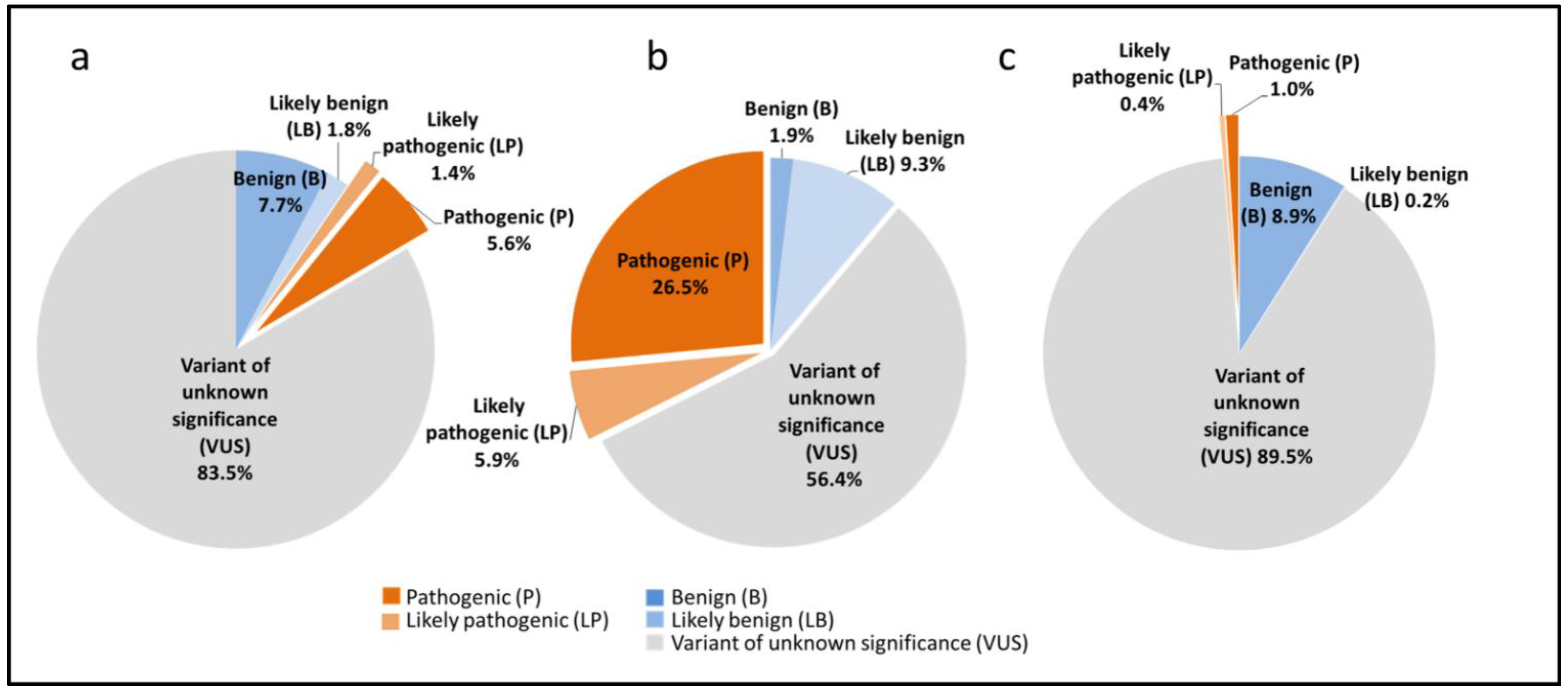

Figure 1. The proportions of different SLC26A4 variants (P, LP, VUS, LB and B). (a) Different types of variants in the entire SLC26A4 gene sequence. (b) Different types of variants in the SLC26A4 coding region. (c) Different types of variants in the SLC26A4 intronic regions.
Figure 1. The proportions of different SLC26A4 variants (P, LP, VUS, LB and B). (a) Different types of variants in the entire SLC26A4 gene sequence. (b) Different types of variants in the SLC26A4 coding region. (c) Different types of variants in the SLC26A4 intronic regions.
Ijms 23 13453 g001
Ijms 23 13453 g002 550

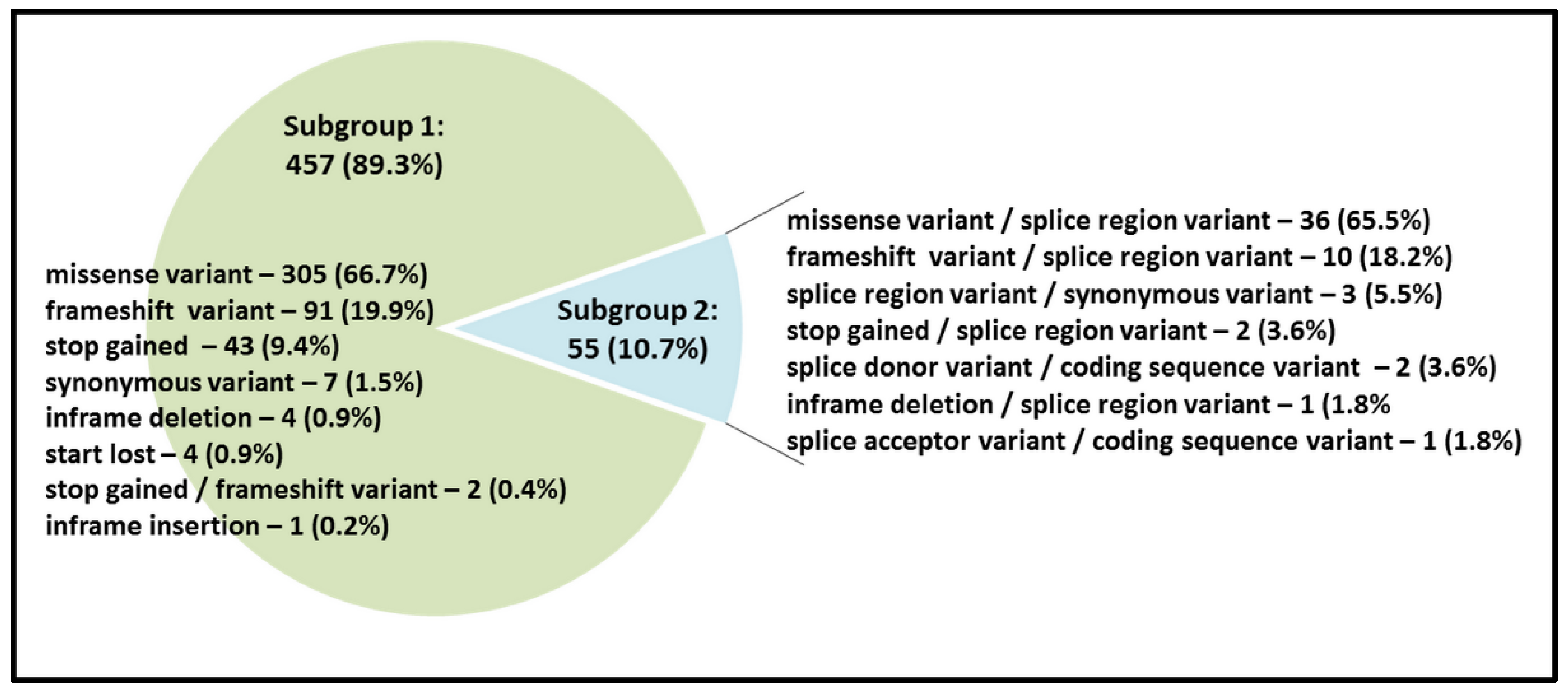

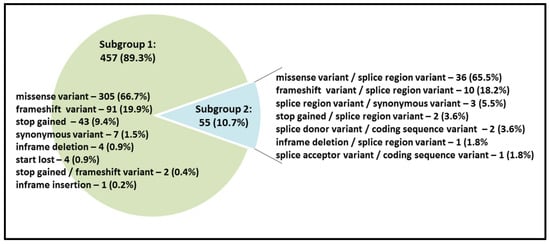

Figure 2. The distribution of PLP variants located in the SLC26A4 coding region according to their molecular consequences.
Figure 2. The distribution of PLP variants located in the SLC26A4 coding region according to their molecular consequences.
Ijms 23 13453 g002
Ijms 23 13453 g003 550

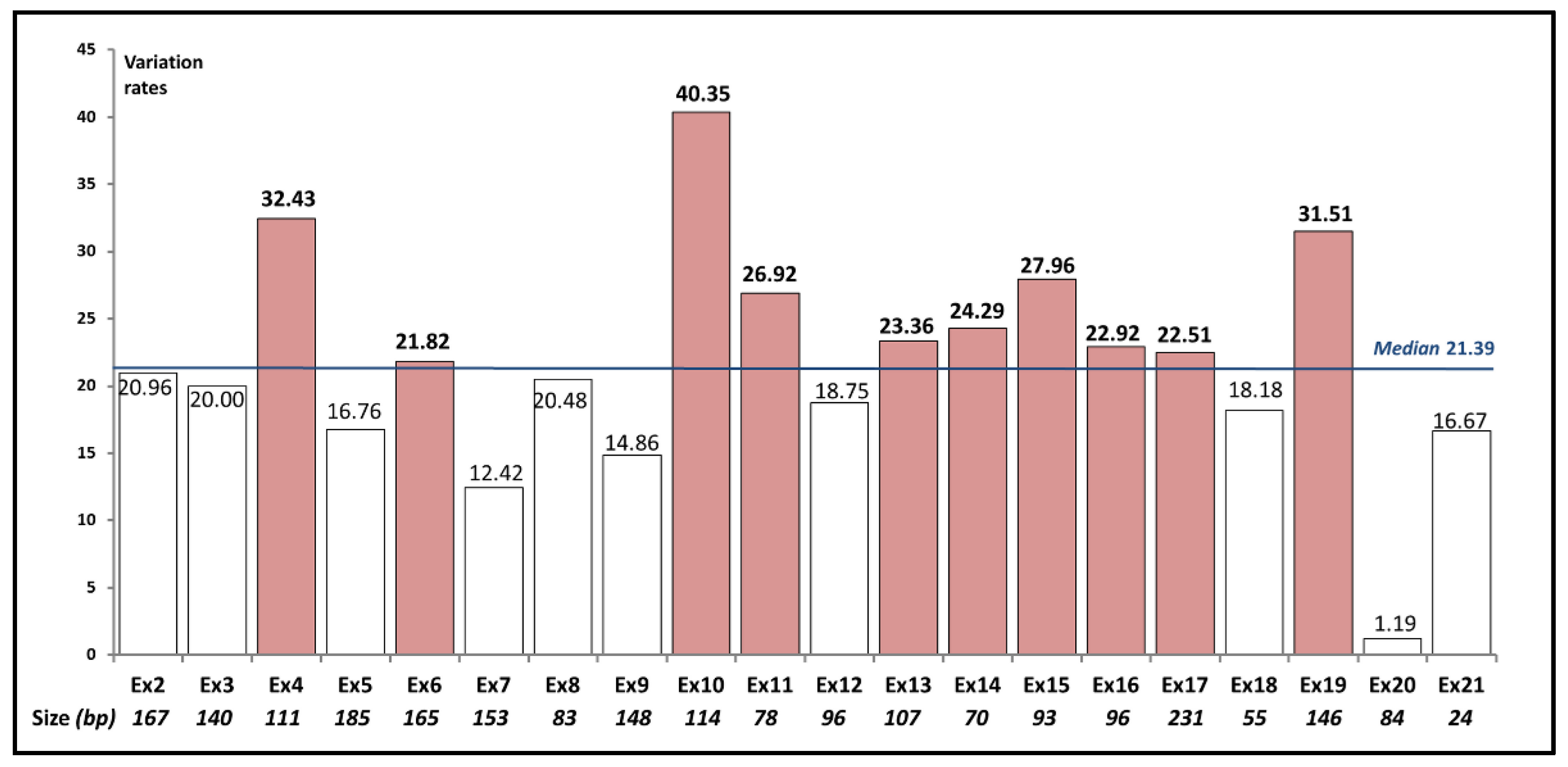

Figure 3. The PLP variation rates in the SLC26A4 coding exons. The exons with the variation rates above the threshold (median = 21.39) are colored.
Figure 3. The PLP variation rates in the SLC26A4 coding exons. The exons with the variation rates above the threshold (median = 21.39) are colored.
Ijms 23 13453 g003
Ijms 23 13453 g004 550

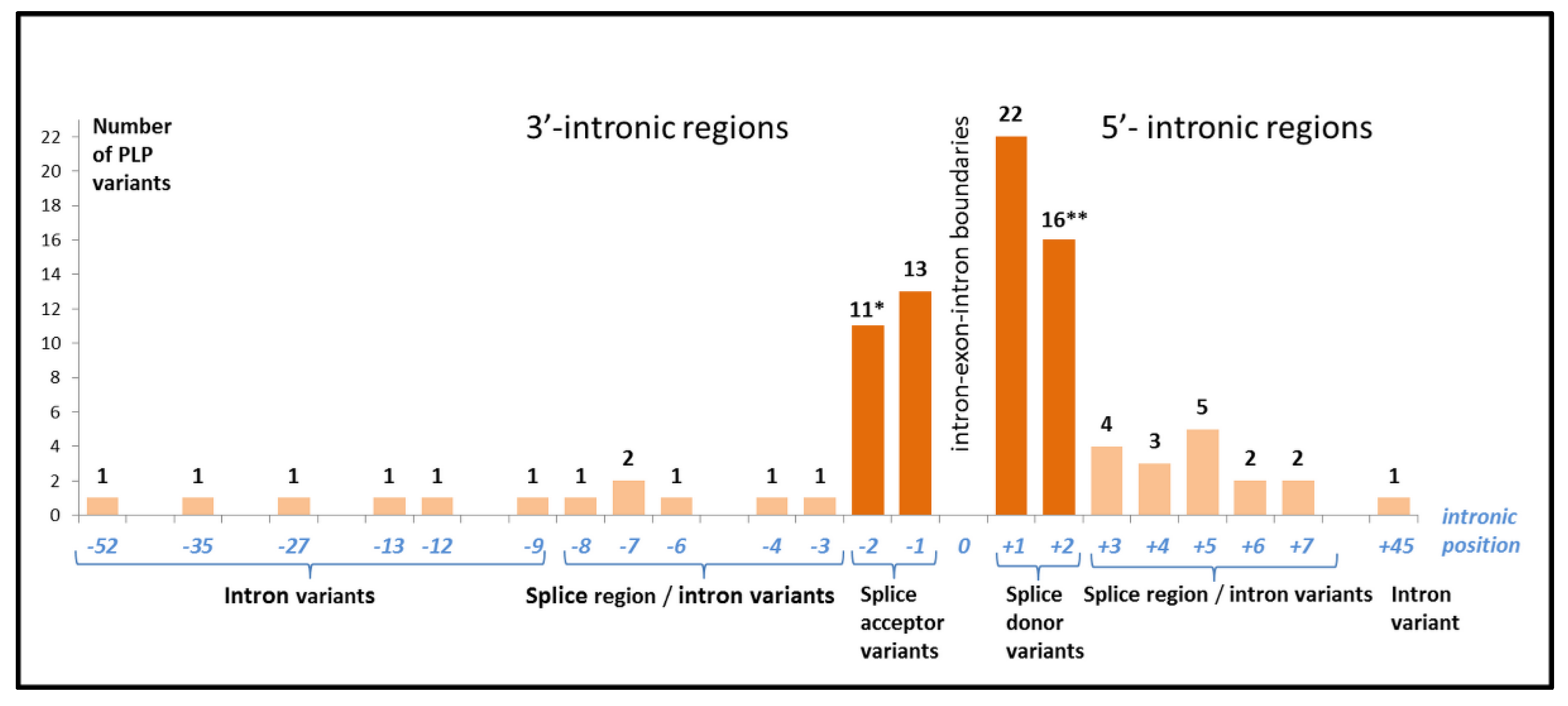

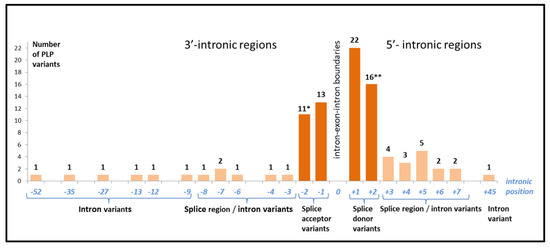

Figure 4. Distribution of PLP variants located in the SLC26A4 intronic regions. *—variant c.1342-2_1343dup (splice region variant /intron variant) was included; **—variant c.164+2_164+5delinsGAGG (“splice donor variant/intron variant”) was included.
Figure 4. Distribution of PLP variants located in the SLC26A4 intronic regions. *—variant c.1342-2_1343dup (splice region variant /intron variant) was included; **—variant c.164+2_164+5delinsGAGG (“splice donor variant/intron variant”) was included.
Ijms 23 13453 g004
Ijms 23 13453 g005 550

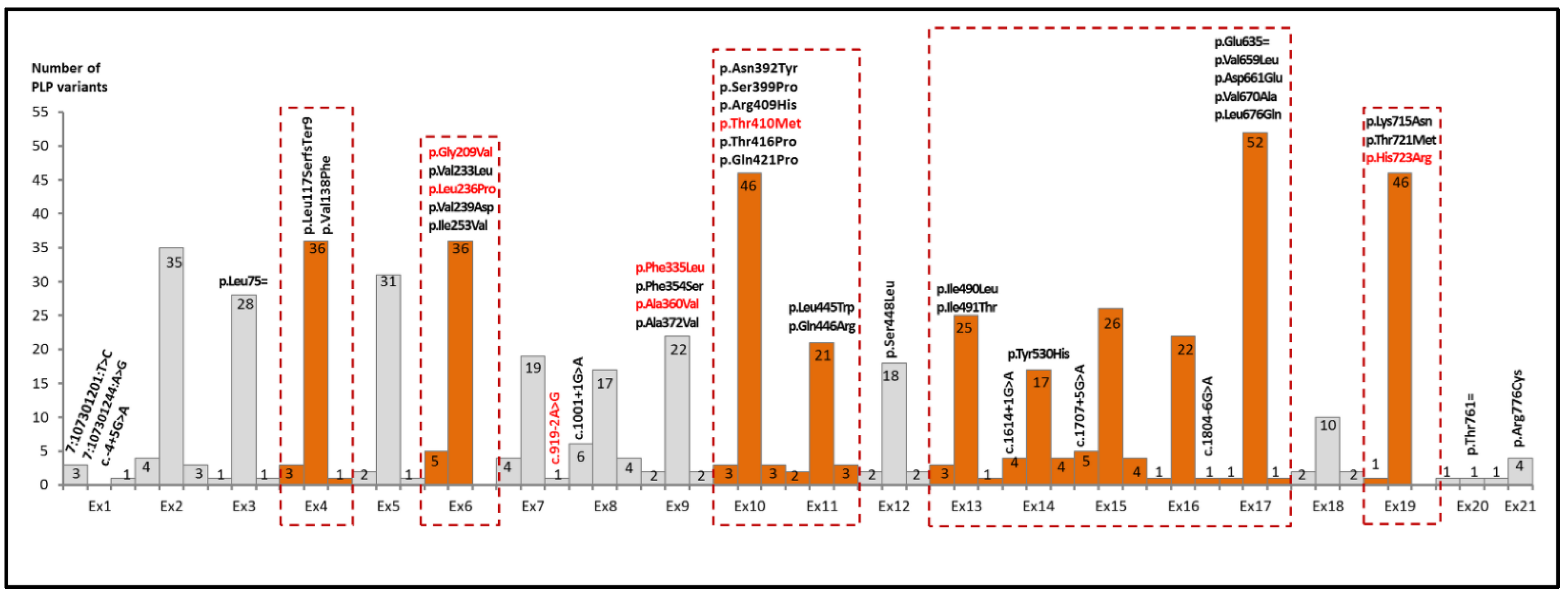

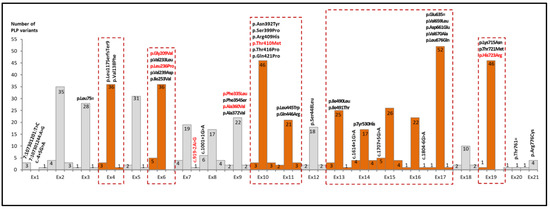

Figure 5. The regions of the SLC26A4 gene sequence with the highest diagnostic value. The exons with high rates of the PLP variants with adjacent intronic regions are marked in orange color and highlighted with a dotted line. The most common PLP variants (n = 42, see in text and Table S2) are shown above the bars. Seven variants with both relatively high MAFs (>0.05%) and high mutation rates in patients are shown in red.
Figure 5. The regions of the SLC26A4 gene sequence with the highest diagnostic value. The exons with high rates of the PLP variants with adjacent intronic regions are marked in orange color and highlighted with a dotted line. The most common PLP variants (n = 42, see in text and Table S2) are shown above the bars. Seven variants with both relatively high MAFs (>0.05%) and high mutation rates in patients are shown in red.
Ijms 23 13453 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Danilchenko, V.Y.; Zytsar, M.V.; Maslova, E.A.; Posukh, O.L. Selection of Diagnostically Significant Regions of the SLC26A4 Gene Involved in Hearing Loss. Int. J. Mol. Sci. 2022, 23, 13453. https://doi.org/10.3390/ijms232113453

AMA Style

Danilchenko VY, Zytsar MV, Maslova EA, Posukh OL. Selection of Diagnostically Significant Regions of the SLC26A4 Gene Involved in Hearing Loss. International Journal of Molecular Sciences. 2022; 23(21):13453. https://doi.org/10.3390/ijms232113453

Chicago/Turabian Style

Danilchenko, Valeriia Yu., Marina V. Zytsar, Ekaterina A. Maslova, and Olga L. Posukh. 2022. "Selection of Diagnostically Significant Regions of the SLC26A4 Gene Involved in Hearing Loss" International Journal of Molecular Sciences 23, no. 21: 13453. https://doi.org/10.3390/ijms232113453

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
