Article

In Silico Structural Analysis of Serine Carboxypeptidase Nf314, a Potential Drug Target in Naegleria fowleri Infections

by
Pablo A. Madero-Ayala
,
Rosa E. Mares-Alejandre
and
Marco A. Ramos-Ibarra
*
Biotechnology and Biosciences Research Group, Faculty of Chemical Sciences and Engineering, Autonomous University of Baja California, Tijuana 22390, Mexico
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(20), 12203; https://doi.org/10.3390/ijms232012203
Submission received: 3 September 2022 / Revised: 28 September 2022 / Accepted: 12 October 2022 / Published: 13 October 2022
(This article belongs to the Special Issue Emerging Topics in Structural Biology)
Browse Figures
Versions Notes

Abstract

:
Naegleria fowleri, also known as the “brain-eating” amoeba, is a free-living protozoan that resides in freshwater bodies. This pathogenic amoeba infects humans as a casual event when swimming in contaminated water. Upon inhalation, N. fowleri invades the central nervous system and causes primary amoebic meningoencephalitis (PAM), a rapidly progressive and often fatal disease. Although PAM is considered rare, reducing its case fatality rate compels the search for pathogen-specific proteins with a structure–function relationship that favors their application as targets for discovering new or improved drugs against N. fowleri infections. Herein, we report a computational approach to study the structural features of Nf314 (a serine carboxypeptidase that is a virulence-related protein in N. fowleri infections) and assess its potential as a drug target, using bioinformatics tools and in silico molecular docking experiments. Our findings suggest that Nf314 has a ligand binding site suitable for the structure-based design of specific inhibitors. This study represents a further step toward postulating a reliable therapeutic target to treat PAM with drugs specifically aimed at blocking the pathogen proliferation by inhibiting protein function.

1. Introduction

Carboxypeptidases are hydrolytic enzymes that cleave the C-terminal peptide bond of proteins and polypeptides, releasing free amino acid residues (usually one at a time). Furthermore, this biochemical reaction is a post-translational modification that plays a critical role in the degradation, processing, and modulation of intracellular proteins. Based on the catalytic mechanism, a typical classification sorts them into serine, metal, and cysteine carboxypeptidases [1,2,3,4].
Serine carboxypeptidases are protein components of vacuoles (plants and fungi) and lysosomes (protozoa and animal cells) [5,6,7,8,9,10,11]. Most of those studied are involved in the intracellular turnover of polypeptide substrates, but some also release amino acids from extracellular proteins or peptides [1,12,13,14,15]. Interestingly, those isolated from fungi are single polypeptides, whereas those from animal cells comprise two polypeptides linked by disulfide bonds [1,3,7,9,16,17,18].
The free-living amoeba Naegleria fowleri (also known as the «brain-eating» amoeba) feeds mainly on bacteria, resides in freshwater bodies, and tolerates climates up to 45 °C [19,20]. As a casual event, this pathogenic protozoan infects humans when swimming in contaminated freshwater [21]. After entering the body via the nose, N. fowleri invades the central nervous system and causes primary amoebic meningoencephalitis (PAM), a rapidly progressive and often fatal condition [20,21,22]. The standard drug to treat this disease is the antibiotic amphotericin B. However, the case fatality rate remains higher than 95%, even after opportune drug therapy [23,24,25].
Globally, epidemiological data underestimates N. fowleri infections because of the lack of accurate diagnostic tests and adequate surveillance programs [26]. In addition, efforts to develop complementary and alternative therapies are limited due to the rarity of PAM cases [20,23,24]. Nevertheless, the need for new or improved therapeutic agents capable of reducing the current case fatality rate remains compelling. In this regard, the available genomic/transcriptomic/proteomic data about N. fowleri provide information on specific biomolecules, e.g., novel virulence-associated gene products or well-known essential proteins, which contain structural differences from their human counterparts and that are suitable drug targets for treating PAM [27,28,29,30,31].
Nf314 is a serine carboxypeptidase first identified as the polypeptide encoded by a transcript differentially expressed in highly virulent cells of the N. fowleri LEE strain. Furthermore, increased transcript levels correlated with the ability of these amoebae to feed on mammalian cells. However, it appears to be required for pathogenesis but not for increased virulence, as brain cell-fed amoebae showed limited ability to kill mice [32]. Moreover, recent genomic and transcriptomic studies confirmed overexpression in mouse-passaged amoebic cells compared to those grown in culture [30]. Consequently, it was feasible to assume that Nf314 is a virulence-related protein in N. fowleri infections. Here, we performed a biocomputational approach to study the structural features of Nf314 and assess its potential as a target to discover adjuvant drugs capable of blocking amoebic infection and, thus, reducing the risk of PAM disease.

2. Results and Discussion

2.1. Nf314, a Virulence-Related Serine Carboxypeptidase

According to the original entry, Nf314 is a 54 kDa protein consisting of 482 amino acid residues (GenBank M88397; UniProtKB P42661). However, a search in AmoebaDB revealed a 17-residue segment missing at its N-terminus, yielding a 56 kDa polypeptide, as encoded by a single gene in two strains of N. fowleri: FDP41_000254 (in ATCC_30894) and NfTy_024570 (in Ty). As expected, primary structure analysis validated its secretory nature: lysosomal localization and probable export to the extracellular space. Moreover, its highly confident peptidase domain (1.4 × 10−145) contained the conserved catalytic triad, i.e., Ser180, Asp416, and His476 (Supplementary Figure S1), and two structural patterns linked to the active site: 176-LAGESYGG-183 and 466-LTFITVRGAGHMVPLVKP-483. Further secondary (2D) structure analysis showed that it displayed an α/β-hydrolase fold (Supplementary Figure S2) [33], typical of the S10_peptidase protein family (MEROPS classification, https://www.ebi.ac.uk/merops/; accessed on 6 June 2022) [34].
A three-dimensional (3D) model, generated by automatic template-based prediction, revealed further insights into the tertiary structure of the Nf314 protein. The crystal structures of human protective protein/cathepsin A (PDB 1IVY) [35] and Sorghum bicolor hydroxynitrile lyase (PDB 1GXS) [36] served as suitable templates. The best 3D model (Figure 1A) displayed a good global quality score (0.695) and significant p-value (1.89 × 10−8), suggesting native-like conformation [37]. Likewise, the Ramachandran plot showed that 90.2% of the non-Gly/Pro residues were in the most favored regions, plus an additional 8.6% in allowed regions; and the estimated Z-score for overall quality, −7.62, was within the expected range for proteins of comparable size (Supplementary Figure S3). Furthermore, it appeared that three disulfide bonds stabilized the 3D structure, since six Cys residues had the spatial proximity required for chemical pairing (i.e., Cβ-Cβ distance ≤ 4.5 Å [38]): Cys88↔Cys382, Cys248↔Cys261, and Cys284↔Cys348.
Two supplementary structural analyses detected neighboring disordered sequences located within the catalytic domain of Nf314. In particular, analysis of non-native 2D structures showed that the residue composition of the Lys296-Gln312 segment resembled those identified in dynamically disordered sequences (Supplementary Figure S4). Furthermore, evaluation of the 3D model quality, based on local scoring, revealed that the Leu319-Pro340 segment exhibited distances ≥4 Å between the Cα atoms in the model and their equivalents in the native structure, implying low-quality modeling, due to local intrinsic disorder (Supplementary Figure S5). Remarkably, both sequences could be portions of a putative non-terminal propeptide region (Figure 1B).

2.2. Nf314 Contains a Non-Terminal Propeptide Region

A comparative structural analysis, using human protective protein/cathepsin A (hPPCA) as a template, supported the hypothesis that a putative disordered region was the propeptide of Nf314 (Figure 2). This theoretical approach also provided further insight into the most probable proteolytic cleavage sites for its processing, a post-translational modification required for enzyme maturation.
The hPPCA protein consisted of 480 amino acid residues comprising a signal peptide and a serine carboxypeptidase domain stabilized by four disulfide bonds (Figure 2A). In vivo, it was produced as a preproenzyme and transported via the secretory pathway to the lysosome. However, before reaching this compartment, its signal peptide was cleaved, and the resulting proenzyme remained inactive, due to a propeptide that blocks the catalytic site. Once inside the lysosome, this structural lid was processed by trypsin-like proteases, relieving inhibition and producing the mature/active hPPCA enzyme, which consisted of two polypeptide chains (32 and 20 kDa) linked by disulfide bonds [7,35,39]. Remarkably, a comparison of the primary structure showed that the Nf314 protein (Figure 2B) and hPPCA shared significant similarities, e.g., the relative location of the catalytic triad and the propeptide region. Moreover, a local pairwise sequence alignment revealed putative cleavage sites for trypsin-like proteases, including those potentially involved in Nf314 propeptide processing: Lys294↓Leu295 and Arg341↓Phe342 (Figure 2C). Based on these findings, it seemed rational to propose that the polypeptide sequence extending from Leu295 to Arg341 was the propeptide of Nf314, which might be the structural modulator of protein function (blocking the catalytic site and, thus, preventing uncontrolled enzyme activity during the inactive state [40,41]), and had to be further processed by trypsin-like proteases to obtain the mature protein.

2.3. Mature Nf314 Exhibits a Ligand Binding Site

A computational approach comprising manual editing (i.e., propeptide removal) of the previously generated 3D model, followed by structural stabilization using molecular dynamics (MD) simulations, produced a consistent model for the mature Nf314 enzyme, as confirmed by a structural quality analysis: 93.6% of the residues scored acceptable values (≥0.2) in the 3D/1D correlation profile. Moreover, its ligand binding site showed significant overlap with counterparts of similar proteins whose 3D structure has been solved, including the most probable ligand-contacting residues and the protein–ligand interaction pocket (Figure 3).

2.4. Nf314 Has Potential as a Drug Target

Three β-amino acid derivatives, identified as hPPCA inhibitors [42], named 2a, 8a, and 15a (Supplementary Figure S6), functioned as the test ligands to assess the potential of Nf314 as a drug target. Remarkably, in silico molecular docking experiments and MD simulations revealed that all ligands formed stable complexes with the receptor, showing plausible binding energies (Table 1). Moreover, the latter values were equivalent to those calculated for the hPPCA–ligand complexes: −8.6, −8.8, and −8.4 (in kcal/mol) for 2a, 8a, and 15a, respectively. Therefore, it is worth noticing that this remark indirectly validated our approach and the resulting data, as both estimations applied inputs from the same biocomputational protocol.
In particular, compound 2a (also known as SAR164653 or SAR1) is regarded as the first-line inhibitor of hPPCA because it successfully passed early phase clinical trials, showing a favorable safety profile in healthy human subjects [43], and has potential as a heart failure attenuating drug in post-myocardial infarction treatment [44]. Based on this information, it seems reasonable to propose that compound 2a represents a reliable lead for Nf314-specific drug design. Furthermore, detailed structural analyses supported the latter suggestion. For instance, the most stable complex showed that compound 2a posed inside the ligand-binding pocket of Nf314 (Figure 4A), establishing a significant number of non-covalent interactions (Figure 4B), and remained bound to Nf314 under solvated conditions and unrestricted protein dynamics (Figure 4C). Moreover, it exhibited moderate binding affinity (i.e., a free energy of −1.6 kcal/mol).
Overall, the other two ligands (compounds 8a and 15a) showed valuable structural features as well (Supplementary Figure S7), so they could be useful as support molecules in a broad and exhaustive approach for the Nf314-specific drug design, ensuring target selectivity and, thus, reducing the risk of potential side effects associated with inhibition of hPPCA and other human proteases.

3. Materials and Methods

3.1. Sequence Retrieval and Database Searching

The polypeptide sequence of Nf314 (deduced from a virulence-related transcript in N. fowleri LEE strain [32]) was retrieved from UniProtKB (https://www.uniprot.org/; accessed on 14 June 2022) [45], using the accession number P42661. This sequence was later used as a query to identify the complete sequence by BLAST search in AmoebaDB (https://amoebadb.org/; accessed on 14 June 2022) [46,47], which contains the genomic databases of three N. fowleri strains: ATCC_30863, ATCC_30894, and Ty.

3.2. Primary and Secondary Structure Analyses

The primary physicochemical parameters were determined using the Expasy ProtParam tool (https://web.expasy.org/protparam/; accessed on 15 June 2022) [48]. The conserved, potentially functional serine carboxypeptidase domain was delimited using the NCBI CD-Search tool (https://www.ncbi.nlm.nih.gov/Structure/cdd/; accessed on 15 June 2022) [49,50], whereas the protein architecture was defined using the database services of InterPro (https://www.ebi.ac.uk/interpro/; accessed on 20 June 2022) [51], Pfam (https://pfam.xfam.org/; accessed on 20 June 2022) [52], and SMART (http://smart.embl-heidelberg.de/; accessed on 20 June 2022) [53]. Protein sorting signals and subcellular localization were verified using SignalP, TargetP, and DeepLoc (https://services.healthtech.dtu.dk/; accessed on 20 June 2022) [54,55,56]. The secondary structure, and the putative disordered regions, were predicted using the PSIPRED workbench (http://bioinf.cs.ucl.ac.uk/psipred/; accessed on 21 June 2022) [57]. Orthologous proteins were detected using the NCBI BLAST search engine (https://blast.ncbi.nlm.nih.gov/; accessed on 21 June 2022) [58]. Unless otherwise specified, all multiple sequence alignments were generated using the EBI Clustal Omega tool (https://www.ebi.ac.uk/Tools/msa/clustalo/; accessed on 21 June 2022) [59].

3.3. Template-Based Modeling and 3D Structure Validation

A 3D model for the Nf314 proenzyme was produced by automatic template-based prediction using IntFOLD (https://www.reading.ac.uk/bioinf/IntFOLD/; accessed on 23 June 2022) [37]. The output of this server included estimation of model accuracy and identification of ligand binding residues applying the ModFOLD [60] and FunFOLD [61] methods. The PROCHECK (https://saves.mbi.ucla.edu/; accessed on 25 June 2022) [62] and ProSA (https://prosa.services.came.sbg.ac.at/; accessed on 25 June 2022) [63] evaluation tools further validated the tertiary structure.
The best representative 3D structure for the mature Nf314 enzyme was generated by computer-aided removal of the propeptide and structural stabilization through MD simulations, using the proenzyme model as a starting conformation. The computational resources of VMD [64] and QwikMD [65] were combined to get a stable 3D structure under solvated conditions. Two consecutive 30-ns simulations were performed at 25 °C on NPT systems with explicit solvent and standard settings for minimization, annealing, and equilibrium. Briefly, the first one refined and stabilized the newly generated free-end residues, and the 3D conformation from a cluster analysis served as a source for the second one, conducted without any constraints. Lastly, a further cluster analysis worked to select the best 3D model, validated by the online structural quality assessment tool VERIFY3D [66], available at SAVES (https://saves.mbi.ucla.edu/; accessed on 26 June 2022).
The protein tertiary structure was analyzed using the UCSF Chimera and ChimeraX as interactive systems for molecular graphics [67,68].

3.4. Analysis of the Protein-Ligand Binding Site

The ligand-binding site of the mature Nf314 enzyme was predicted using the online computational services of FunFOLD (https://www.reading.ac.uk/bioinf/FunFOLD/; accessed on 3 July 2022) [61] and COACH (https://zhanggroup.org/COACH/; accessed on 3 July 2022) [69,70]. The output of these web tools, i.e., the most probable ligand-contacting residues and the protein–ligand interaction pocket, were combined and filtered, and the resulting ligand-binding site was validated using CASTp (http://sts.bioe.uic.edu/castp/; accessed on 3 July 2022) [69]. The topography of the ligand binding surface was visualized using UCSF Chimera.

3.5. In Silico Molecular Docking Experiments

The 3D structure of mature Nf314 was used as a receptor for in silico molecular docking experiments of three β-amino acid derivatives (ligands), using the AutoDock Vina [71] and MGLTools [72] software with standard conditions for automated receptor–ligand binding prediction. Briefly, a grid box was defined in the receptor (based on the 3D conformation of its binding site) and used as the target for docking, assuming a rigid receptor and a flexible ligand. Moreover, independent standard MD simulations were performed to assess the stability of the resulting receptor–ligand complex. The three best clusters from each simulation were analyzed using UCSF Chimera. Theoretical binding energy was estimated using the docking software default settings. In addition, the CaFE tool was employed to calculate the binding affinity, with molecular mechanics Poisson–Boltzmann surface (MM/PBSA) as the end-point method [73].

4. Conclusions

The high case fatality rate of human primary amoebic meningoencephalitis (PAM), a rapidly progressive disease caused by accidental infection with the free-living amoeba N. fowleri, and the current limited availability of effective drugs against the pathogen, compel the search for specific therapeutic targets (e.g., virulence-associated proteins) leading to the discovery of novel, or improved, drugs with potential application in the medical treatment of PAM disease. Considering the latter premises as sound arguments, we performed a biocomputational approach to study the serine carboxypeptidase Nf314 and evaluate its prospects as a drug target. Our findings reveal that its ligand-binding site displays a conformation amenable to interacting with specific molecules, e.g., it forms stable receptor–ligand complexes with three β-amino acid derivatives that have shown pharmacological inhibition of the human homolog. Moreover, these derivatives could be useful as lead molecules for the rational design of structure-based Nf314-specific inhibitors. Although experimental studies are required to validate the protein structure and characterize its enzyme activity, including inhibition by compound 2a, this in silico structural approach is the first step toward recognizing this virulence-related protein as a target for the discovery of new drugs with the potential to block N. fowleri infection and, thus, its progression to PAM disease.

Supplementary Materials

The following supporting information is available (downloadable) at: https://www.mdpi.com/article/10.3390/ijms232012203/s1.

Author Contributions

Conceptualization, methodology, and investigation, P.A.M.-A. and M.A.R.-I.; validation and formal analysis, all authors; supervision, R.E.M.-A. and M.A.R.-I.; writing—original draft preparation, P.A.M.-A.; writing—review and editing, M.A.R.-I. All authors have read and agreed to the published version of the manuscript.

Funding

The National Council for Science and Technology (CONACyT, Mexico; CF-2019-01-170715) and the Autonomous University of Baja California (UABC, Mexico; CPI/300/735/E) funded this study. Funding sponsors were not involved in the study design, data analysis, writing of the paper, and decision to publish.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All relevant and supporting data, except nucleotide and polypeptide sequences, are included in this paper and the supplementary materials document.

Acknowledgments

Pablo A. Madero-Ayala receives a full scholarship for Ph.D. studies (Doctor of Science) from CONACyT, Mexico.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Breddam, K. Serine carboxypeptidases. A review. Carlsberg Res. Commun. 1986, 51, 83–128. [Google Scholar] [CrossRef] [Green Version]
  2. Nägler, D.K.; Kraus, S.; Feierler, J.; Mentele, R.; Lottspeich, F.; Jochum, M.; Faussner, A. A cysteine-type carboxypeptidase, cathepsin X, generates peptide receptor agonists. Int. Immunopharmacol. 2010, 10, 134–139. [Google Scholar] [CrossRef]
  3. Song, P.; Xu, W.; Zhang, Y.; Wang, F.; Zhou, X.; Shi, H.; Feng, W. A new carboxypeptidase from Aspergillus niger with good thermostability, pH stability and broad substrate specificity. Sci. Rep. 2021, 11, 18745. [Google Scholar] [CrossRef]
  4. Sapio, M.R.; Fricker, L.D. Carboxypeptidases in disease: Insights from peptidomic studies. Proteom.-Clin. Appl. 2014, 8, 327–337. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. van der Hoorn, R.A.L.; Kaiser, M. Probes for activity-based profiling of plant proteases. Physiol. Plant. 2012, 145, 18–27. [Google Scholar] [CrossRef] [PubMed]
  6. Bonten, E.J.; Annunziata, I.; d’Azzo, A. Lysosomal multsienzyme complex: Pros and cons of working together. Cell. Mol. Life Sci. 2014, 71, 2017–2032. [Google Scholar] [CrossRef] [Green Version]
  7. Bonten, E.J.; Galjart, N.J.; Willemsen, R.; Usmany, M.; Vlak, J.M.; d’Azzo, A. Lysosomal protective protein/cathepsin A. J. Biol. Chem. 1995, 270, 26441–26445. [Google Scholar] [CrossRef] [Green Version]
  8. Ostrowska, H.; Gacko, M. Cellular serine carboxypeptidases. Rocz. Akad. Med. W Bialymstoku 1998, 43, 39–55. [Google Scholar]
  9. Jung, G.; Ueno, H.; Hayashi, R. Carboxypeptidase Y: Structural basis for protein sorting and catalytic triad. J. Biochem. 1999, 126, 1–6. [Google Scholar] [CrossRef]
  10. Rawlings, N.D.; Barrett, A.J. Families of serine peptidases. In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 1994; Volume 244, pp. 19–61. ISBN 978-0-12-182145-6. [Google Scholar]
  11. Parussini, F. Characterization of a lysosomal serine carboxypeptidase from Trypanosoma cruzi. Mol. Biochem. Parasitol. 2003, 131, 11–23. [Google Scholar] [CrossRef]
  12. Skidgel, R.A.; Erdos, E.G. Cellular carboxypeptidases. Immunol. Rev. 1998, 161, 129–141. [Google Scholar] [CrossRef] [PubMed]
  13. Timur, Z.K.; Akyildiz Demir, S.; Seyrantepe, V. Lysosomal cathepsin A plays a significant role in the processing of endogenous bioactive peptides. Front. Mol. Biosci. 2016, 3, 68. [Google Scholar] [CrossRef] [Green Version]
  14. Bouknight, K.D.; Jurkouich, K.M.; Compton, J.R.; Khavrutskii, I.V.; Guelta, M.A.; Harvey, S.P.; Legler, P.M. Structural and kinetic evidence of aging after organophosphate inhibition of human Cathepsin A. Biochem. Pharmacol. 2020, 177, 113980. [Google Scholar] [CrossRef] [PubMed]
  15. Hohl, M.; Mayr, M.; Lang, L.; Nickel, A.G.; Barallobre-Barreiro, J.; Yin, X.; Speer, T.; Selejan, S.-R.; Goettsch, C.; Erb, K.; et al. Cathepsin A contributes to left ventricular remodeling by degrading extracellular superoxide dismutase in mice. J. Biol. Chem. 2020, 295, 12605–12617. [Google Scholar] [CrossRef]
  16. Endrizzi, J.A.; Breddam, K.; Remington, S.J. 2.8-.ANG. structure of yeast serine carboxypeptidase. Biochemistry 1994, 33, 11106–11120. [Google Scholar] [CrossRef]
  17. Ejalonibu, M.A.; Ogundare, S.A.; Elrashedy, A.A.; Ejalonibu, M.A.; Lawal, M.M.; Mhlongo, N.N.; Kumalo, H.M. Drug discovery for mycobacterium tuberculosis using structure-based computer-aided drug design approach. Int. J. Mol. Sci. 2021, 22, 13259. [Google Scholar] [CrossRef] [PubMed]
  18. Matsuzaki, H.; Ueno, H.; Hayashi, R.; Liao, T.-H. Bovine spleen cathepsin A: Characterization and comparison with the protective protein. J. Biochem. 1998, 123, 701–706. [Google Scholar] [CrossRef]
  19. Visvesvara, G.S.; Moura, H.; Schuster, F.L. Pathogenic and opportunistic free-living amoebae: Acanthamoeba spp., Balamuthia mandrillaris, Naegleria fowleri, and Sappinia diploidea. FEMS Immunol. Med. Microbiol. 2007, 50, 1–26. [Google Scholar] [CrossRef] [Green Version]
  20. Jahangeer, M.; Mahmood, Z.; Munir, N.; Waraich, U.; Tahir, I.M.; Akram, M.; Ali Shah, S.M.; Zulfqar, A.; Zainab, R. Naegleria fowleri: Sources of infection, pathophysiology, diagnosis, and management; a review. Clin. Exp. Pharmacol. Physiol. 2020, 47, 199–212. [Google Scholar] [CrossRef] [Green Version]
  21. Cope, J.R.; Ali, I.K. Primary amebic meningoencephalitis: What have we learned in the last 5 years? Curr. Infect. Dis. Rep. 2016, 18, 31. [Google Scholar] [CrossRef] [PubMed]
  22. Siddiqui, R.; Khan, N.A. Primary amoebic meningoencephalitis caused by Naegleria fowleri: An old enemy presenting new challenges. PLoS Negl. Trop. Dis. 2014, 8, e3017. [Google Scholar] [CrossRef]
  23. Grace, E.; Asbill, S.; Virga, K. Naegleria fowleri: Pathogenesis, diagnosis, and treatment options. Antimicrob. Agents Chemother. 2015, 59, 6677–6681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Bellini, N.K.; Santos, T.M.; da Silva, M.T.A.; Thiemann, O.H. The therapeutic strategies against Naegleria fowleri. Exp. Parasitol. 2018, 187, 1–11. [Google Scholar] [CrossRef] [PubMed]
  25. Taravaud, A.; Fechtali-Moute, Z.; Loiseau, P.M.; Pomel, S. Drugs used for the treatment of cerebral and disseminated infections caused by free-living amoebae. Clin. Transl. Sci. 2021, 14, 791–805. [Google Scholar] [CrossRef] [PubMed]
  26. Gharpure, R.; Bliton, J.; Goodman, A.; Ali, I.K.M.; Yoder, J.; Cope, J.R. Epidemiology and clinical characteristics of primary amebic meningoencephalitis caused by Naegleria fowleri: A global review. Clin. Infect. Dis. 2021, 73, e19–e27. [Google Scholar] [CrossRef] [PubMed]
  27. Zysset-Burri, D.C.; Müller, N.; Beuret, C.; Heller, M.; Schürch, N.; Gottstein, B.; Wittwer, M. Genome-wide identification of pathogenicity factors of the free-living amoeba Naegleria fowleri. BMC Genom. 2014, 15, 496. [Google Scholar] [CrossRef] [Green Version]
  28. Liechti, N.; Schürch, N.; Bruggmann, R.; Wittwer, M. Nanopore sequencing improves the draft genome of the human pathogenic amoeba Naegleria fowleri. Sci. Rep. 2019, 9, 16040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Tillery, L.; Barrett, K.; Goldstein, J.; Lassner, J.W.; Osterhout, B.; Tran, N.L.; Xu, L.; Young, R.M.; Craig, J.; Chun, I.; et al. Naegleria fowleri: Protein structures to facilitate drug discovery for the deadly, pathogenic free-living amoeba. PLoS ONE 2021, 16, e0241738. [Google Scholar] [CrossRef]
  30. Herman, E.K.; Greninger, A.; van der Giezen, M.; Ginger, M.L.; Ramirez-Macias, I.; Miller, H.C.; Morgan, M.J.; Tsaousis, A.D.; Velle, K.; Vargová, R.; et al. Genomics and transcriptomics yields a system-level view of the biology of the pathogen Naegleria fowleri. BMC Biol. 2021, 19, 142. [Google Scholar] [CrossRef] [PubMed]
  31. Joseph, S.J.; Park, S.; Kelley, A.; Roy, S.; Cope, J.R.; Ali, I.K.M. Comparative genomic and transcriptomic analysis of Naegleria fowleri clinical and environmental isolates. mSphere 2021, 6, e00637-21. [Google Scholar] [CrossRef] [PubMed]
  32. Hu, W.N.; Kopachik, W.; Band, R.N. Cloning and characterization of transcripts showing virulence-related gene expression in Naegleria fowleri. Infect. Immun. 1992, 60, 2418–2424. [Google Scholar] [CrossRef] [PubMed]
  33. Ollis, D.L.; Cheah, E.; Cygler, M.; Dijkstra, B.; Frolow, F.; Franken, S.M.; Harel, M.; Remington, S.J.; Silman, I.; Schrag, J.; et al. The α/β hydrolase fold. Protein Eng. Des. Sel. 1992, 5, 197–211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Rawlings, N.D.; Barrett, A.J.; Thomas, P.D.; Huang, X.; Bateman, A.; Finn, R.D. The MEROPS database of proteolytic enzymes, their substrates and inhibitors in 2017 and a comparison with peptidases in the PANTHER database. Nucleic Acids Res. 2018, 46, D624–D632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Rudenko, G.; Bonten, E.; d’Azzo, A.; GJ Hol, W. Three-dimensional structure of the human protective protein: Structure of the precursor form suggests a complex activation mechanism. Structure 1995, 3, 1249–1259. [Google Scholar] [CrossRef] [Green Version]
  36. Lauble, H.; Miehlich, B.; Förster, S.; Wajant, H.; Effenberger, F. Crystal structure of hydroxynitrile lyase from Sorghum bicolor in complex with the inhibitor benzoic acid: A novel cyanogenic enzyme. Biochemistry 2002, 41, 12043–12050. [Google Scholar] [CrossRef]
  37. McGuffin, L.J.; Adiyaman, R.; Maghrabi, A.H.A.; Shuid, A.N.; Brackenridge, D.A.; Nealon, J.O.; Philomina, L.S. IntFOLD: An integrated web resource for high performance protein structure and function prediction. Nucleic Acids Res. 2019, 47, W408–W413. [Google Scholar] [CrossRef]
  38. Sowdhamini, R.; Srinivasan, N.; Shoichet, B.; Santi, D.V.; Ramakrishnan, C.; Balaram, P. Stereochemical modeling of disulfide bridges. Criteria for introduction into proteins by site-directed mutagenesis. Protein Eng. Des. Sel. 1989, 3, 95–103. [Google Scholar] [CrossRef]
  39. Kolli, N.; Garman, S.C. Proteolytic activation of human cathepsin A. J. Biol. Chem. 2014, 289, 11592–11600. [Google Scholar] [CrossRef] [Green Version]
  40. Demidyuk, I.V.; Shubin, A.V.; Gasanov, E.V.; Kostrov, S.V. Propeptides as modulators of functional activity of proteases. Biomol. Concepts 2010, 1, 305–322. [Google Scholar] [CrossRef]
  41. Boon, L.; Ugarte-Berzal, E.; Vandooren, J.; Opdenakker, G. Protease propeptide structures, mechanisms of activation, and functions. Crit. Rev. Biochem. Mol. Biol. 2020, 55, 111–165. [Google Scholar] [CrossRef]
  42. Ruf, S.; Buning, C.; Schreuder, H.; Horstick, G.; Linz, W.; Olpp, T.; Pernerstorfer, J.; Hiss, K.; Kroll, K.; Kannt, A.; et al. Novel β-amino acid derivatives as inhibitors of cathepsin A. J. Med. Chem. 2012, 55, 7636–7649. [Google Scholar] [CrossRef] [PubMed]
  43. Tillner, J.; Lehmann, A.; Paehler, T.; Lukacs, Z.; Ruf, S.; Sadowski, T.; Pinquier, J.-L.; Ruetten, H. Tolerability, safety, and pharmacokinetics of the novel cathepsin A inhibitor SAR164653 in healthy subjects. Clin. Pharmacol. Drug Dev. 2016, 5, 57–68. [Google Scholar] [CrossRef] [PubMed]
  44. Petrera, A.; Gassenhuber, J.; Ruf, S.; Gunasekaran, D.; Esser, J.; Shahinian, J.H.; Hübschle, T.; Rütten, H.; Sadowski, T.; Schilling, O. Cathepsin A inhibition attenuates myocardial infarction-induced heart failure on the functional and proteomic levels. J. Transl. Med. 2016, 14, 153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. The UniProt Consortium. UniProt: The universal protein knowledgebase in 2021. Nucleic Acids Res. 2021, 49, D480–D489. [Google Scholar] [CrossRef]
  46. Aurrecoechea, C.; Barreto, A.; Brestelli, J.; Brunk, B.P.; Caler, E.V.; Fischer, S.; Gajria, B.; Gao, X.; Gingle, A.; Grant, G.; et al. AmoebaDB and MicrosporidiaDB: Functional genomic resources for Amoebozoa and Microsporidia species. Nucleic Acids Res. 2011, 39, D612–D619. [Google Scholar] [CrossRef] [Green Version]
  47. Amos, B.; Aurrecoechea, C.; Barba, M.; Barreto, A.; Basenko, E.Y.; Bażant, W.; Belnap, R.; Blevins, A.S.; Böhme, U.; Brestelli, J.; et al. VEuPathDB: The eukaryotic pathogen, vector and host bioinformatics resource center. Nucleic Acids Res. 2022, 50, D898–D911. [Google Scholar] [CrossRef]
  48. Duvaud, S.; Gabella, C.; Lisacek, F.; Stockinger, H.; Ioannidis, V.; Durinx, C. Expasy, the Swiss Bioinformatics Resource Portal, as designed by its users. Nucleic Acids Res. 2021, 49, W216–W227. [Google Scholar] [CrossRef]
  49. Marchler-Bauer, A.; Bryant, S.H. CD-Search: Protein domain annotations on the fly. Nucleic Acids Res. 2004, 32, W327–W331. [Google Scholar] [CrossRef]
  50. Lu, S.; Wang, J.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; Gwadz, M.; Hurwitz, D.I.; Marchler, G.H.; Song, J.S.; et al. CDD/SPARCLE: The conserved domain database in 2020. Nucleic Acids Res. 2020, 48, D265–D268. [Google Scholar] [CrossRef] [Green Version]
  51. Blum, M.; Chang, H.-Y.; Chuguransky, S.; Grego, T.; Kandasaamy, S.; Mitchell, A.; Nuka, G.; Paysan-Lafosse, T.; Qureshi, M.; Raj, S.; et al. The InterPro protein families and domains database: 20 years on. Nucleic Acids Res. 2021, 49, D344–D354. [Google Scholar] [CrossRef]
  52. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.L.; Tosatto, S.C.E.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The protein families database in 2021. Nucleic Acids Res. 2021, 49, D412–D419. [Google Scholar] [CrossRef] [PubMed]
  53. Letunic, I.; Khedkar, S.; Bork, P. SMART: Recent updates, new developments and status in 2020. Nucleic Acids Res. 2021, 49, D458–D460. [Google Scholar] [CrossRef] [PubMed]
  54. Teufel, F.; Almagro Armenteros, J.J.; Johansen, A.R.; Gíslason, M.H.; Pihl, S.I.; Tsirigos, K.D.; Winther, O.; Brunak, S.; von Heijne, G.; Nielsen, H. SignalP 6.0 predicts all five types of signal peptides using protein language models. Nat. Biotechnol. 2022, 40, 1023–1025. [Google Scholar] [CrossRef] [PubMed]
  55. Almagro Armenteros, J.J.; Salvatore, M.; Emanuelsson, O.; Winther, O.; von Heijne, G.; Elofsson, A.; Nielsen, H. Detecting sequence signals in targeting peptides using deep learning. Life Sci. Alliance 2019, 2, e201900429. [Google Scholar] [CrossRef] [Green Version]
  56. Almagro Armenteros, J.J.; Sønderby, C.K.; Sønderby, S.K.; Nielsen, H.; Winther, O. DeepLoc: Prediction of protein subcellular localization using deep learning. Bioinformatics 2017, 33, 3387–3395. [Google Scholar] [CrossRef]
  57. Buchan, D.W.A.; Jones, D.T. The PSIPRED Protein Analysis Workbench: 20 years on. Nucleic Acids Res. 2019, 47, W402–W407. [Google Scholar] [CrossRef] [Green Version]
  58. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  59. Sievers, F.; Wilm, A.; Dineen, D.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Söding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef]
  60. McGuffin, L.J.; Aldowsari, F.M.F.; Alharbi, S.M.A.; Adiyaman, R. ModFOLD8: Accurate global and local quality estimates for 3D protein models. Nucleic Acids Res. 2021, 49, W425–W430. [Google Scholar] [CrossRef]
  61. Roche, D.B.; Buenavista, M.T.; McGuffin, L.J. The FunFOLD2 server for the prediction of protein–ligand interactions. Nucleic Acids Res. 2013, 41, W303–W307. [Google Scholar] [CrossRef]
  62. Laskowski, R.A.; MacArthur, M.W.; Moss, D.S.; Thornton, J.M. PROCHECK: A program to check the stereochemical quality of protein structures. J. Appl. Crystallogr. 1993, 26, 283–291. [Google Scholar] [CrossRef]
  63. Wiederstein, M.; Sippl, M.J. ProSA-web: Interactive web service for the recognition of errors in three-dimensional structures of proteins. Nucleic Acids Res. 2007, 35, W407–W410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  65. Ribeiro, J.V.; Bernardi, R.C.; Rudack, T.; Stone, J.E.; Phillips, J.C.; Freddolino, P.L.; Schulten, K. QwikMD—Integrative molecular dynamics toolkit for novices and experts. Sci. Rep. 2016, 6, 26536. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Eisenberg, D.; Lüthy, R.; Bowie, J.U. VERIFY3D: Assessment of protein models with three-dimensional profiles. In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 1997; Volume 277, pp. 396–404. ISBN 978-0-12-182178-4. [Google Scholar]
  67. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Goddard, T.D.; Huang, C.C.; Meng, E.C.; Pettersen, E.F.; Couch, G.S.; Morris, J.H.; Ferrin, T.E. UCSF ChimeraX: Meeting modern challenges in visualization and analysis: UCSF ChimeraX Visualization System. Protein Sci. 2018, 27, 14–25. [Google Scholar] [CrossRef] [Green Version]
  69. Yang, J.; Roy, A.; Zhang, Y. Protein–ligand binding site recognition using complementary binding-specific substructure comparison and sequence profile alignment. Bioinformatics 2013, 29, 2588–2595. [Google Scholar] [CrossRef] [Green Version]
  70. Yang, J.; Roy, A.; Zhang, Y. BioLiP: A semi-manually curated database for biologically relevant ligand–protein interactions. Nucleic Acids Res. 2012, 41, D1096–D1103. [Google Scholar] [CrossRef] [Green Version]
  71. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [Green Version]
  72. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef] [Green Version]
  73. Liu, H.; Hou, T. CaFE: A tool for binding affinity prediction using end-point free energy methods. Bioinformatics 2016, 32, 2216–2218. [Google Scholar] [CrossRef]
Ijms 23 12203 g001 550

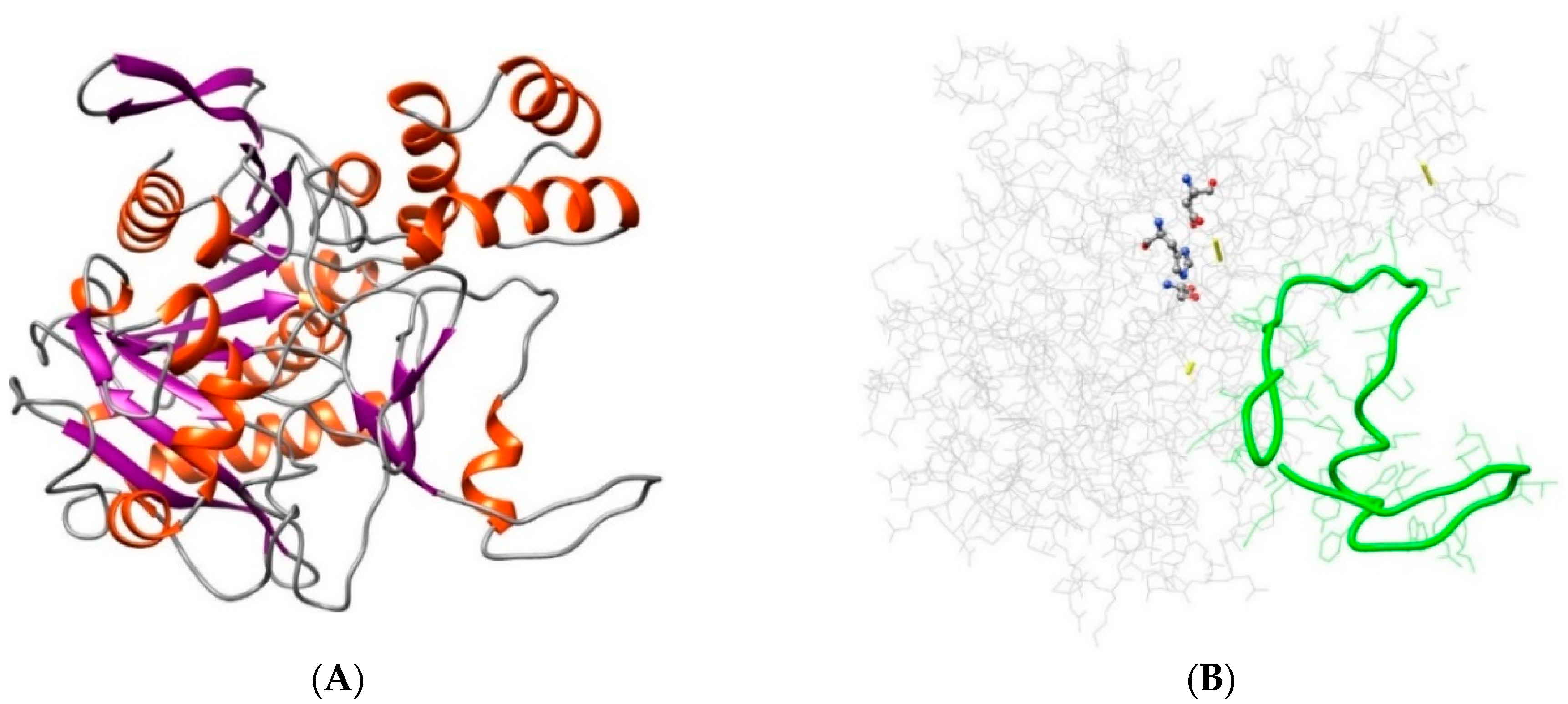

Figure 1. Depiction of the best 3D model for the Nf314 proenzyme. (A) Ribbon representation, colored according to the secondary structure: α-helix in red and β-sheet in purple. (B) Wire representation, colored in gray, with the specific location of important features (particularly highlighted): the three predicted disulfide bonds (yellow sticks), the catalytic triad (balls/sticks colored by the element), and the putative non-terminal propeptide region (tubular/wire in green).
Figure 1. Depiction of the best 3D model for the Nf314 proenzyme. (A) Ribbon representation, colored according to the secondary structure: α-helix in red and β-sheet in purple. (B) Wire representation, colored in gray, with the specific location of important features (particularly highlighted): the three predicted disulfide bonds (yellow sticks), the catalytic triad (balls/sticks colored by the element), and the putative non-terminal propeptide region (tubular/wire in green).
Ijms 23 12203 g001
Ijms 23 12203 g002 550

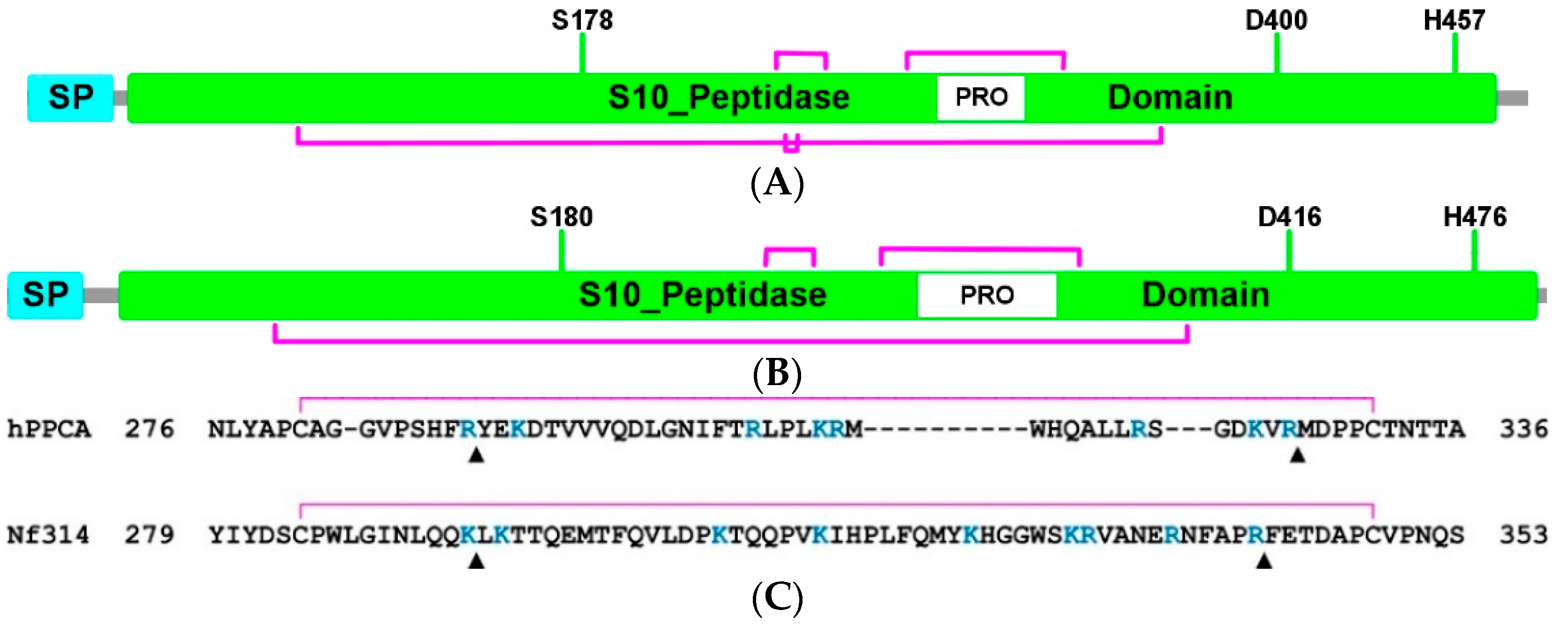

Figure 2. Illustration of the primary structure of hPPCA (A) and Nf314 (B). The signal peptide (SP, cyan) and the serine carboxypeptidase domain (S10_peptidase, green) are shown in boxes, as is the propeptide region (PRO, white) inside the latter. It also indicates the disulfide framework and the relative location of the catalytic triad. (C) Prediction of the Nf314 propeptide by sequence comparison with hPPCA. Pairwise alignment highlighting the Arg/Lys residues (R/K, blue font), usually recognized by trypsin-like proteases. The propeptide processing sites, identified for hPPCA and predicted for Nf314, are indicated with black triangles (up-pointing). The disulfide bond opposite and adjacent to the PRO region is also delineated (magenta line).
Figure 2. Illustration of the primary structure of hPPCA (A) and Nf314 (B). The signal peptide (SP, cyan) and the serine carboxypeptidase domain (S10_peptidase, green) are shown in boxes, as is the propeptide region (PRO, white) inside the latter. It also indicates the disulfide framework and the relative location of the catalytic triad. (C) Prediction of the Nf314 propeptide by sequence comparison with hPPCA. Pairwise alignment highlighting the Arg/Lys residues (R/K, blue font), usually recognized by trypsin-like proteases. The propeptide processing sites, identified for hPPCA and predicted for Nf314, are indicated with black triangles (up-pointing). The disulfide bond opposite and adjacent to the PRO region is also delineated (magenta line).
Ijms 23 12203 g002
Ijms 23 12203 g003 550

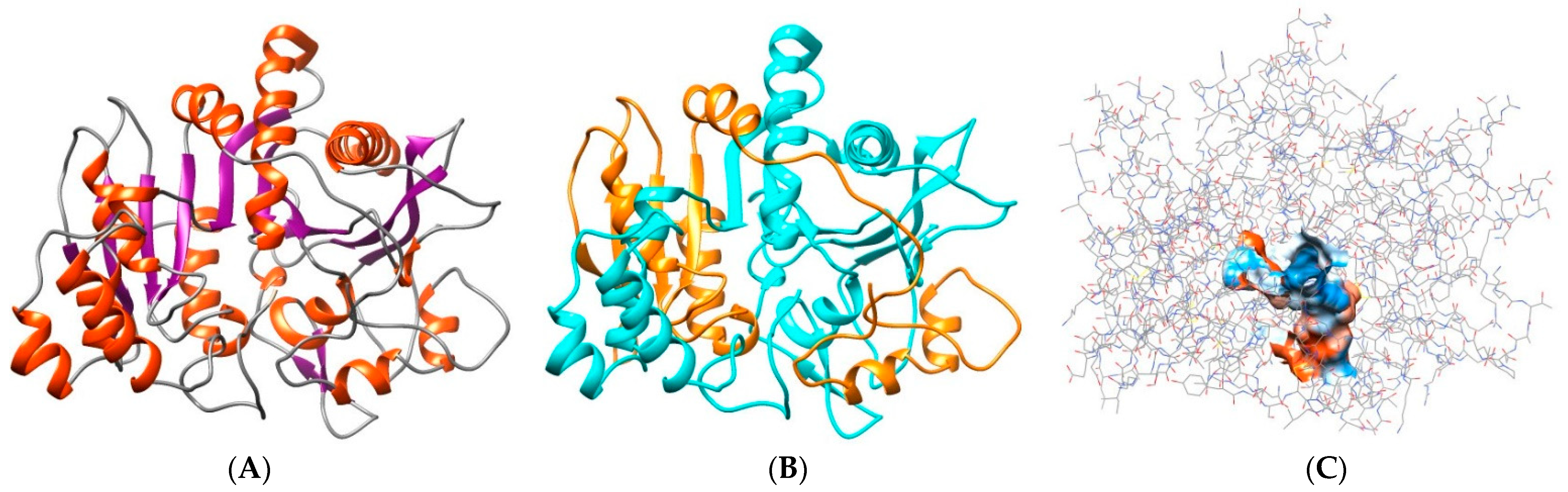

Figure 3. Depiction of the best 3D model for the mature Nf314 enzyme. Ribbon representation, colored according to (A) secondary structure, α-helix in red and β-sheet in purple), or (B) polypeptide chains produced after putative propeptide processing, large in cyan and small in orange. (C) Wire representation, colored by the element, highlighting the specific location of the predicted ligand-binding pocket (surface colored by hydrophobicity).
Figure 3. Depiction of the best 3D model for the mature Nf314 enzyme. Ribbon representation, colored according to (A) secondary structure, α-helix in red and β-sheet in purple), or (B) polypeptide chains produced after putative propeptide processing, large in cyan and small in orange. (C) Wire representation, colored by the element, highlighting the specific location of the predicted ligand-binding pocket (surface colored by hydrophobicity).
Ijms 23 12203 g003
Ijms 23 12203 g004 550
Figure 4. Structural analyses of the Nf314-2a complex. (A) Illustration of the best binding pose of Nf314 (orange surface) and compound 2a (balls/sticks colored by the element). (B) 2D representation of the Nf314-2a non-covalent interaction network. Colors: hydrogen bonds, green dashes; hydrophobic interactions, red dashes/arcs; carbon, black; oxygen, red; nitrogen, blue; fluorine, pink; ligand bonds, gray; protein bonds, orange. (C) Depiction of the root mean square deviations (RMSDs) trajectory, colored in blue, during MD simulations performed to assess the Nf314-2a complex stability.
Figure 4. Structural analyses of the Nf314-2a complex. (A) Illustration of the best binding pose of Nf314 (orange surface) and compound 2a (balls/sticks colored by the element). (B) 2D representation of the Nf314-2a non-covalent interaction network. Colors: hydrogen bonds, green dashes; hydrophobic interactions, red dashes/arcs; carbon, black; oxygen, red; nitrogen, blue; fluorine, pink; ligand bonds, gray; protein bonds, orange. (C) Depiction of the root mean square deviations (RMSDs) trajectory, colored in blue, during MD simulations performed to assess the Nf314-2a complex stability.
Ijms 23 12203 g004
Table
Table 1. Calculated binding energies (kcal/mol) from the three best clusters of each Nf314-ligand complex.
Table 1. Calculated binding energies (kcal/mol) from the three best clusters of each Nf314-ligand complex.
ClusterNf314-2aNf314-8aNf314-15a
1−8.0−8.1−8.0
2−8.0−8.3−8.3
3−7.4−7.9−7.1
