Review

History of the Study of the Genus Thiothrix: From the First Enrichment Cultures to Pangenomic Analysis

by
Nikolai V. Ravin
1,
Tatyana S. Rudenko
2,
Dmitry D. Smolyakov
2,
Alexey V. Beletsky
1,
Maria V. Gureeva
2,
Olga S. Samylina
3 and
Margarita Yu. Grabovich
2,*
1
Institute of Bioengineering, Research Center of Biotechnology, Russian Academy of Sciences, Prospect 60-letiya Oktyabrya 7/1, 119071 Moscow, Russia
2
Department of Biochemistry and Cell Physiology, Voronezh State University, Universitetskaya pl., 1, 394018 Voronezh, Russia
3
Winogradsky Institute of Microbiology, Research Centre for Biotechnology, Russian Academy of Sciences, Prospect 60-letiya Oktyabrya 7/2, 117312 Moscow, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(17), 9531; https://doi.org/10.3390/ijms23179531
Submission received: 28 July 2022 / Revised: 18 August 2022 / Accepted: 21 August 2022 / Published: 23 August 2022
(This article belongs to the Special Issue Microbial Comparative Genomics and Evolutionary Biology 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Representatives of the genus Thiothrix are filamentous, sulfur-oxidizing bacteria found in flowing waters with counter-oriented sulfide and oxygen gradients. They were first described at the end of the 19th century, but the first pure cultures of this species only became available 100 years later. An increase in the number of described Thiothrix species at the beginning of the 21st century shows that the classical phylogenetic marker, 16S rRNA gene, is not informative for species differentiation, which is possible based on genome analysis. Pangenome analysis of the genus Thiothrix showed that the core genome includes genes for dissimilatory sulfur metabolism and central metabolic pathways, namely the Krebs cycle, Embden–Meyerhof–Parnas pathway, glyoxylate cycle, Calvin–Benson–Bassham cycle, and genes for phosphorus metabolism and amination. The shell part of the pangenome includes genes for dissimilatory nitrogen metabolism and nitrogen fixation, for respiration with thiosulfate. The dispensable genome comprises genes predicted to encode mainly hypothetical proteins, transporters, transcription regulators, methyltransferases, transposases, and toxin–antitoxin systems.

1. Introduction

The first attempts to describe bacteria from the genus Thiothrix were made by Rabenhorst as early as 1865, when he described the first member of this genus as Beggiatoa nivea [1]. Winogradsky, in turn, based on studies of key features of enrichment culture, named a new genus, Thiothrix [2]. The genus Thiothrix belongs to the class Gammaproteobacteria, order Thiotrichales, family Thiotrichaceae.
Habitats of Thiothrix vary from natural sulfidic waters, irrigation systems, and activated sludge in wastewater treatment plants to ectosymbionts of invertebrates in deep-sea hydrotherms. The influx of H2S into the growth zone of these bacteria occurs from sulfidic springs, either from the near-bottom layers of sediments (in the shallow waters of lakes, in ponds, sea littorals, etc.) or from hydrothermal vents [3,4]. The hydrogen sulfide concentration can vary significantly—from tens of micrograms to several milligrams per litre. In nature, Thiothrix forms powerful foulings, visible to the naked eye.
Currently, the genus Thiothrix includes aerobic and facultative anaerobic, attached, filamentous, non-motile bacteria. They are capable of auto- and heterotrophic growth and are characterized by a respiratory type of metabolism. During autotrophic growth, CO2 fixation occurs through the Calvin–Benson–Bassham cycle. Their ribulose-1,5-bisphosphate carboxylase-oxygenase (RuBisCO) belongs to types IAq, IAc, and II. All genomes contain genes encoding all enzymes of the Krebs cycle, with the exception of malate dehydrogenase (MDH), which is functionally replaced by malate:quinone oxidoreductase (MQO). Thiothrix spp. are capable of organotrophic growth, as well as lithotrophic growth in the presence of reduced sulfur compounds. During lithotrophic growth in the presence of hydrogen sulfide and thiosulfate, elemental sulfur is accumulated intracellularly. Hydrogen sulfide is oxidized to sulfur by the sulfide:quinone oxidoreductase (SQR) and flavocytochrome c-sulfide dehydrogenase (FCSD). Thiosulfate is oxidized by the branched sulfur-oxidizing system (SOX) pathway without SoxCD with the formation of sulfur and sulfate. Sulfite is oxidized via direct (membrane-bound cytoplasmic sulfite:quinone oxidoreductase (SoeABC) and indirect (adenosine phosphosulfate reductase (AprAB) and ATP sulfurylase (Sat)) oxidation pathways (Figure 1).
Before 1965, eleven morphotypes of the genus Thiothrix were described mainly in natural marine and freshwater habitats containing hydrogen sulfide [5,6,7]. These microorganisms are differentiated based solely on the diameter of the filaments and the characteristics of the habitat. Subsequently, obtaining pure cultures made it possible to reveal that the morphology of the genus Thiothrix is variable [8]. The final invalidity of using phenotypic characters for the taxonomy of the genus Thiothrix was confirmed by Howarth et al., 1999 [9]. In 1983, Larkin and Shinabarger isolated the first pure culture for a representative of this genus [5]. Based on Winogradsky’s description, Shinabarger suggested that the culture he received was Thiothrix nivea. The strain JP2 with a validly published name Thiothrix nivea JP2T (=ATCC 35100T = DSM 5205T) is the only established neotype of the species [5].
At the end of the 20th century, several new isolates were obtained: Thiothrix ramosa [10], Thiothrix arctophila [11], and Thiothrix sp. CT3 [12]. Unfortunately, two proposed species, T. ramosa [10] and T. arctophila [11], are absent in international collections and were lost (Dubinina, personal communication).
The genus Thiothrix was significantly expanded by Howarth in 1999 [9]. Four new species were included in the genus: Thiothrix fructosivorans, Thiothrix unzii, Thiothrix defluvii, and Thiothrix eikelboomii. The last two species were assigned to the Eikelboom type 021N group within the genus Thiothrix, and the species T. nivea, T. fructosivorans, and T. unzii were assigned to the T. nivea group [9]. Comparative analysis of the 16S rRNA gene sequence of members of the Eikelboom type 021N and the T. nivea groups showed low similarity (90–91%). However, the notable phenotypic similarity between the Eikelboom type 021N group and the Thiothrix nivea group did not allow division into new genera at that time.
Two extra representatives of Eikelboom type 021N, Thiothrix disciformis and Thiothrix flexilis, and two species from the Thiothrix nivea group, Thiothrix lacustris and Thiothrix caldifontis, were described in later years [13,14].
The increase in the number of species of the genus Thiothrix has set the task of searching for new phylogenetic markers. Pure cultures of the genus Thiothrix isolated from various biotopes (hydrogen sulfide springs, wastewater treatment plants, the White Sea littoral, activated sludge treatment systems, freshwater lakes, groundwater, invertebrate ectosymbionts, etc.) have a similar morphotype, but a rather variable metabolism. The phylogeny based on the 16S rRNA gene sequences does not always correspond to the phylogenetic diversity of the representatives of this group [8]. Some strains assigned to the same species based on the 16S rRNA gene were reclassified as separate species after determination of whole-genome sequences (T. lacustris BLT, ‘Thiothrix litoralis’ AST, and ‘Thiothrix winogradskyi’ CT3T) (Figure 2).
However, the 16S rRNA gene can be successfully used to identify Thiothrix at the genus level since the levels of 16S rRNA gene sequence identity between representatives of the genus Thiothrix exceed 94%, while with members of other genera, this value is below 91%.

2. Genome-Based Phylogeny

The determination of complete genome sequences for T. disciformis, T. eikelboomii, T. flexilis, T. caldifontis, T. lacustris, and T. nivea has enabled a more accurate phylogenetic analysis. In 2018, Boden and Scott undertook a multi-phase study which included morphological, biochemical, physiological, and genomic properties, and gene-based phylogeny to reclassify Thiothrix species. The 16S rRNA gene (rrs), recombination protein A (recA), polynucleotide nucleotide transferase (pnp), translation initiation factor IF-2 (infB), glyceraldehyde-3-phosphate dehydrogenase (gapA), glutamyl-tRNA synthetase (glnS), elongation factor EF-G (fusA), and concatenated sequences of 53 ribosomal proteins allowed the distribution of Thiothrix species between three different families: Thiolineaceae, Thiofilaceae, and Thiotrichaceae [15].
Thiothrix defluvii and Thiothrix flexilis were reclassified as representatives of the new genus Thiofilum within the family Thiofilaceae with the proposed names Thiofilum flexile and Thiofilum defluvii. Thiothrix eikelboomii and Thiothrix disciformis were placed in the new genus Thiolinea within the new family Thiolineaceae with the proposed names ‘Thiolinea eikelboomii’ for Thiothrix eikelboomii. However, the reclassification of Thiolinea eikelboomii is currently only formal due to the lack of cultures in two international collections, as required for species validation. T. caldifontis, T. lacustris, T. nivea, T. unzii, and T. fructosivorans remained in the genus Thiothrix [15].
The development of genomics and metagenomics methods made it possible to obtain complete genome sequences and use them for phylogenetic studies, which, in turn, contributed to the development of a new genome-based taxonomic system of prokaryotes [16]. The whole-genome comparison has higher accuracy and resolution than taxonomy based on individual phylogenetic markers. Whole-genome sequences of isolates T. fructosivorans QT, T. unzii A1T, Thiothrix litoralis AST, ‘Thiothrix subterranea’ Ku-5T [8], and ‘Thiothrix winogradskyi’ CT3T [17], as well as metagenome-assembled genomes (MAGs) of ‘Candidatus Thiothrix anitrata’ A52, Candidatus Thiothrix moscovensis RT [18,19], and Candidatus Thiothrix singaporensis SSD2 [19,20], were obtained during the last three years. Just recently, ‘Candidatus Thiothrix sulfatifontis’ KT was obtained from the fouling of a hydrogen sulfide source [17].
The main characteristics of the obtained genomes are shown in Table 1.
Several MAGs were obtained from the Svalliden-Norrby groundwater metagenome, Oskarshamn, Sweden. When analyzing the obtained MAGs, we found that the genome assemblies GCA_018813855.1, GCA_018822845.1, and GCA_018825285.1 represented members of the genus Thiothrix. ANI values between the three genomes were 99.8–100%, which indicates that all assemblies represented the same species. For analysis of the pangenome assembly, GCA_018813855.1 (Modern_marine.mb.207), designated as MAG of Thiothrix sp. 207, was chosen. ANI and dDDH values between MAG of Thiothrix sp. 207 and other representatives of the genus (76–79% and 20–26%, respectively) indicated that this genome represented a novel Candidatus species (Figure 2).

3. Pangenome Analysis

Based on the genome sequences of eight isolates and five MAGs, an updated phylogeny of the genus Thiothrix was proposed (Figure 3).
The availability of a significant number of whole-genome sequences enabled a pangenome analysis of the genus Thiothrix. All genome sequences were of high quality except for the MAG of ‘Ca. Thiothrix singaporensis’ SSD2, which contained multiple frameshifts [8] and therefore was excluded from comparison. The completeness of four other MAGs according to CheckM estimates was above 98%. Pangenome analysis of 12 species, ‘Thiothrix winogradskyi’ CT3T (GCF_021650945.1), T. lacustris BLT (GCF_000621325.1), T. litoralis AST (GCF_017901135.1), ‘Thiothrix subterranea’ Ku-5T (GCF_016772315.1), T. caldifontis G1T (GCF_900107695.1), T. unzii A1T (GCA_017901175.1), T. nivea JP2T (GCF_000260135.1), T. fructosivorans QT (GCA_017349355.1), Ca. Thiothrix moscovensis RT (GCA_016292235.1), ‘Ca. Thiothrix anitrata’ A52 (GCF_017901155.1), ‘Ca. Thiothrix sulfatifontis’ KT (GCA_022828425.1), and MAG of Thiothrix sp. 207 (GCA_018813855.1), showed that the pangenome of the genus Thiothrix includes 13,436 gene clusters. The core genome contains 1271 genes, and the auxiliary genome includes 4811 gene clusters present in 2 to 11 genomes. The number of unique genes varies in different species from 359 to 1215 (Figure 4).
The genus Thiothrix accommodates lithotrophic sulfur-oxidizing bacteria possessing various systems for the oxidation of reduced sulfur compounds. Bacteria from the genus Thiothrix are able to use a number of reduced inorganic sulfur compounds as an energy source, for example, hydrogen sulfide, sulfur, sulfite, and thiosulfate. Pangenome analysis showed the presence of two types of SQR (SqrF and SqrA) in the core genome. The FCSD complex is also present in all Thiothrix genomes but due to sequence divergence appeared to be among the auxiliary genes. Genes of the Sox complex involved in thiosulfate oxidation (soxAXBYZ) and of the rDsr system of elemental sulfur oxidation to sulfite (dsrABCEFHEMPKJOL) are present in the core genome. The genes encoding enzyme for direct (SoeABC) and indirect (Sat and AprAB) sulfite oxidation are also present in all species.
The core genome contains genes hyaABC encoding type I membrane-bound respiratory H2-uptake [NiFe]-hydrogenase, as well as hypABCDEF genes involved in hydrogenase maturation, which indicates the potential for lithotrophic growth in the presence of molecular hydrogen.
All members of the genus Thiothrix can assimilate carbon dioxide through the Calvin–Benson–Bassham cycle. The genes responsible for the regeneration and reduction of the substrate in the Calvin–Benson–Bassham cycle were found in the core genome. RuBisCO in the genus Thiothrix is represented by three types: IAq, IAc, and II. Previous pangenome analysis has shown that RuBisCO of the IAq type is common to all species, in contrast to IAc and II types [8]. However, the addition of ‘Thiothrix winogradskyi’ CT3T into the pangenome analysis excluded type IAq RuBisCO from the core genome, since its genome does not contain this type of RuBisCO. All species, except for ‘Ca. Thiothrix anitrata’ A52, encode RuBisCO of type II, and all species except T. fructosivorans QT, T. lacustris BLT, and MAG of Thiothrix sp. 207 encode type IAc (Figure 5).
As for phosphoribulokinase in the genus Thiothrix, the prk gene is represented by two phylogenetically different copies. The first copy has a high level of sequence similarity among all representatives of Thiothrix and was found in the core genome. The second copy of prk is also present in all Thiothrix; however, the amino acid sequence identity with the first type of phosphoribulokinase is below the 70% threshold used to determine the genes of the core genome. The genes for the tricarboxylic acid cycle, Embden–Meyerhof–Parnas pathway, the glyoxylate cycle, and phosphorus metabolism are mainly included in the core genome except for phosphate transport system permease (pstB), glucokinase (glk), dihydrolipoamide dehydrogenase of pyruvate dehydrogenase complex (pdhD), aconitate hydratase (acnB), and 6-phosphogluconolactonase (pgl), the level of similarity of which is below 70%. The genes of the first, second, and third complexes of the electron transport chain, as well as ATPase (complex V), are present in the core genome. The genes of the fourth respiratory chain complex were found in the core genome (cox15, ccoO, ccoP, ccoG, ccoQ, ccoS). Genes cyoE, cox11, coxBACD, cydABCDX, and ccoN are also present in all species but fell into the auxiliary genome due to higher sequence divergence. The cytochrome ubiquinol oxidase is present in all Thiothrix species except for ‘Thiothrix winogradskyi’ CT3T.
Pangenome analysis of the genus Thiothrix revealed that variable part of the genome that comprises genes responsible for anaerobic respiration in the presence of nitrogen compounds and nitrogen fixation. The distribution of genes responsible for different stages of nitrate reduction is irregular (Figure 5). The gene encoding nitrate reductase (Nar) is present in all Thiothrix species, except for ‘Ca. Thiothrix anitrata’ A52, ‘Ca. Thiothrix sulfatifontis’ KT, and T. nivea JP2T. Moreover, T. lacustris BLT, T. litoralis AST, T. fructosivorans QT, ‘Thiothrix subterranea’ Ku-5T, T. caldifontis G1T, and ‘Thiothrix winogradskyi’ CT3T encode one form of NarG, Ca. Thiothrix moscovensis RT, and the MAG of Thiothrix sp. 207 encode another form, and T. unzii A1T encodes both forms. Such a distribution pattern is probably the result of horizontal transfer with the subsequent loss of one of the two narG genes [8]. The T. nivea JP2T genome contains genes for periplasmic nitrate reductase NapAB instead of Nar, while the MAG of Thiothrix sp. 207 contains both nar and nap genes. The gene for assimilatory nitrate reductase (nasA) was found in all members of the genus, except for ‘Ca. Thiothrix anitrata’ A52.
Nitrite could be reduced to ammonium by the assimilatory nitrite reductase NirBD, which is encoded in the genomes of all species, with the exception of ‘Ca. Thiothrix anitrata’ A52. The gene encoding dissimilatory nitrite reductase (nirS), involved in the reduction of nitrite to NO, was not found in ‘Ca. Thiothrix anitrata’ A52, ‘Ca. Thiothrix sulfatifontis’ KT, T. nivea JP2T, Ca. Thiothrix moscovensis RT, ‘Thiothrix subterranea’ Ku-5T, or T. lacustris BLT. Nitric oxide reductase NorBC catalyses the reduction of NO to N2O. ‘Ca. Thiothrix anitrata’ A52, ‘Ca. Thiothrix sulfatifontis’ KT, T. nivea JP2T, ‘Thiothrix subterranea’ Ku-5T, and T. lacustris BLT lacked these genes. Analysis of the MAG of Thiothrix sp. 207 revealed the nosZ gene encoding nitrous oxide reductase, which enables the reduction of N2O to molecular nitrogen. This gene was most likely acquired via horizontal transfer from other gammaproteobacteria. Thiothrix sp. 207 therefore could be capable of complete denitrification.
Classical amination is represented by the genes for glutamine synthetase (glnA), glutamate synthase (gltBD), and aspartate aminotransferase (aspB) in the core genome.
The whole set of genes for the Nif-cluster (nifASUBNXX2YB2ENQVWMHDKZTO) was found in T. litoralis AST, T. caldifontis G1T, T. unzii A1T, the MAG of Thiothrix sp. 207, Ca. Thiothrix moscovensis RT, ‘Thiothrix subterranea’ Ku-5T, and T. nivea JP2T (Figure 5). T. lacustris BLT, ‘Ca. Thiothrix anitrata’ A52, ‘Thiothrix winogradskyi’ CT3T, and T. fructosivorans QT lack a set of genes for the nif-cluster, indicating their inability to assimilate N2. ‘Ca. Thiothrix sulfatifontis’ KT does not contain the nifHDK operon encoding two components of nitrogenase, which calls into question its capability for nitrogen fixation (Figure 5).
Previously, respiration in the presence of thiosulfate as a terminal electron acceptor was not described for any Thiothrix species. Genome analysis revealed that all analyzed members of the genus Thiothrix, except for Ca. Thiothrix moscovensis RT and ‘Thiothrix winogradskyi’ CT3, contain phsABC genes encoding thiosulfate reductase of the molybdopterin oxidoreductase family (Figure 5). Verification of genomic data, in particular the determination of the ability for anaerobic respiration in the presence of thiosulfate as an electron acceptor and lactate as an electron donor, as well as the determination of the products of the conversion of thiosulfate to hydrogen sulfide and sulfite, proved that most representatives of the genus Thiothrix are capable of dissimilatory thiosulfate reduction. A high sequence similarity of the deduced amino acid sequences of PhsA (>80%) most likely indicates the loss of the phs genes in Ca. Thiothrix moscovensis RT and ‘Thiothrix winogradskyi’ CT3 [17].
Thus, representatives of the genus Thiothrix differ significantly in their ability for anaerobic respiration in the presence of various electron acceptors (Figure 5). Such metabolic diversity can serve to adapt to changing environmental conditions.
The study of the composition of the species-specific genes in the genus Thiothrix has expanded our understanding of the metabolic potential of some species. Although most of such genes were predicted to encode hypothetical proteins with unknown functions, the presence of nosZ genes in the MAG of Thiothrix sp. 207 indicates that it could reduce N2O to molecular nitrogen, a trait absent in other Thiothrix species.

4. Environmental Distribution and Ecological Functions

The first species of the genus Thiothrix were isolated from sulfidic springs, and for a long time, they were considered limited to such habitats. A common feature of these habitats is the low organic content and the simultaneous presence of hydrogen sulfide and oxygen, which is consistent with the ability of all members of the genus Thiothrix to grow chemolithoautotrophically, obtaining energy from the aerobic oxidation of reduced sulfur compounds.
Later, 16S rRNA gene sequences assigned to Thiothrix were found by molecular profiling of microbial communities from organic-rich habitats, including the rhizosphere of the aquatic plant Eichhornia crassipes [21], the larvae of an aquatic insect Chironomus ramosus [22], and in activated sludge from wastewater treatment plants and laboratory bioreactors simulating wastewater treatment systems [23,24,25,26,27]. In all of the above works, the taxonomic composition of the microbiome of a plant, animal, or bioreactor was studied. In some of them [22,23], the community metagenome was also sequenced and the genes of certain metabolic pathways were analyzed. However, in these communities, the relative abundance of Thiothrix did not exceed a few percent. It can be assumed that in these habitats, the source of hydrogen sulfide can be either microbial sulfate reduction or decomposition of protein substrates under anaerobic conditions. It is possible that, in these ecosystems, Thiothrix grow organotrophically, receiving energy from the oxidation of organic substances rather than hydrogen sulfide. Although no cultured isolates have been obtained from these habitats to date, analysis of Thiothrix MAGs obtained from metagenomes of activated sludge from wastewater treatment plants did not reveal any significant peculiarities in their metabolic capabilities [17]. Representatives of the genus Thiothrix are much more widespread in nature than previously thought, but they become the dominant group only under specific conditions of organic-poor waters, simultaneously containing hydrogen sulfide and oxygen.
Bacteria of the genus Thiothrix form ectosymbiosis with marine and freshwater amphipods. For the first time, ectosymbiosis of bacteria from the genus Thiothrix with invertebrates was found in marine amphipods, Urothoe poseidonis [28]. However, the best studied is the ectosymbiosis of bacteria from the genus Thiothrix with freshwater amphipods of the genus Niphargus. Examples of such symbiosis were found in sulfide-rich waters in underground caves in Italy and Romania [29,30]. It has been suggested that a similar symbiosis may be much more widespread in European groundwater [30]. Thiothrix filaments are attached to the base of hairs on amphipod appendages. Bacteria from the genus Thiothrix have not been shown to be involved in the detoxification of hydrogen sulfide for the host organism, so the ecological role of this ectosymbiosis is not yet clear [31].

5. Comparison with Phylogenetically Related Genera Thiolinea and Thiofilum

The genera Thiolinea and Thiofilum are the closest phylogenetic relatives of the genus Thiothrix (Figure 3), initially described as members of that genus. Determination of genome sequences for representatives of these two genera (‘Thiolinea eikelboomii’, Thiolinea disciformis, and Thiofilum flexile) allowed a comparative genome-based analysis of the main metabolic pathways.
First of all, members of all three genera have the same enzyme systems for the oxidation of sulfur and hydrogen sulfide under aerobic conditions. Members of the genus Thiolinea, such as Thiothrix, are capable of autotrophic carbon fixation through the Calvin cycle. Their genomes contain genes encoding RuBisCO types IAq and II [15]. The phylogenetically more distant Thiofilum flexile lacks the RuBisCO genes and therefore is capable of only lithoheterotrophic but not lithoautotrophic growth.
Like different Thiothrix species, the genomes of Thiolinea and Thiofilum encode different sets of genes to reduce nitrogen compounds. In the genomes of Thiofilum flexile and Thiolinea disciformis, genes for denitrification systems (narG, nirS, norBC, nosZ) were not found, while the ‘Thiolinea eikelboomii’ genome contains only genes for dissimilatory Nar-type nitrate reductase. Unlike most Thiothrix species, none of the members of Thiolinea and Thiofilum have genes of the nif-cluster, which enables nitrogen fixation.
As noted above, one of the features of the genus Thiothrix is the presence of a FAD-dependent membrane-bound malate:quinone oxidoreductase instead of the typical NAD-dependent cytoplasmic malate dehydrogenase. The mqo genes are also present in the genomes of Thiolinea and Thiofilum flexile, but the latter also contains the mdh gene. It is likely that the acquisition of mqo occurred in a common ancestor of all three genera, and mdh was subsequently lost in the Thiolinea/Thiothrix lineage.

6. Conclusions

A pangenome analysis of the genus Thiothrix revealed that the genes of dissimilatory sulfur metabolism are the most conserved part of the genome. The ability to carry out the interconversions of reduced sulfur compounds is probably a key characteristic for these bacteria, which once again indicates their lithotrophic type of metabolism.
Thiothrix thrives as a surface-attached organism in running water, which contains H2S and O2 in fairly high concentrations. In such habitats, Thiothrix filaments exist under conditions in which the concentrations of these substances (oxygen and hydrogen sulfide) could change significantly in a short period of time. As a rule, the O2 concentration in Thiothrix growth zones can vary from full to 10% of saturation. In such frequently changing environmental conditions, bacteria have developed an adaptation strategy through changes at the genomic level.
Significant differences in the inventory of genes for nitrogen metabolism, RuBisCO gene profiles [8], and phsABC thiosulfate reductase genes, and the discovery of new species-specific genes (nosZ), indicate a dynamic process of gene acquisition via horizontal transfer and lineage-specific gene losses that allows bacteria to adapt to variable environmental conditions. Thus, thiosulfate and oxidized forms of nitrogen, which can be used as electron acceptors during anaerobic respiration, are not always available in different ecosystems and can be interchanged; the presence of various RuBisCO forms can be explained by the adaptation to different concentrations of CO2 and O2, which vary in a wide range.

Author Contributions

Conceptualization, N.V.R. and M.Y.G.; formal analysis, A.V.B.; investigation, T.S.R., D.D.S. and O.S.S.; writing—original draft preparation, T.S.R., D.D.S. and M.V.G.; writing—review and editing, N.V.R., T.S.R., D.D.S. and M.Y.G.; supervision, M.Y.G.; funding acquisition, M.Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation (project 20-14-00137 to M.Y.G.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rabenhorst, G.L. Flora Europaea Algarum Aquae Dulcis et Submarinae; Section II; Lipsiae, apud E. Kummerum: Leipzig, Germany, 1865; pp. 1–319. [Google Scholar]
  2. Winogradsky, S. Beiträge zur morphologie und physiologie der bacterien. In Heft I. Zur Morphologie UND Physiologie Der Schwefelbacterien; Arthur Felix: Leipzig, Germany, 1888; pp. 1–120. [Google Scholar]
  3. Jannasch, H.W.; Nelson, D.C. Recent progress in the microbiology of hydrothermal vents. In Current Perspectives in Microbial Ecology; Klug, M.J., Reddy, C.A., Eds.; American Society of Microbiologists: Washington, DC, USA, 1984; pp. 170–176. [Google Scholar]
  4. Jacq, E.; Prieur, D.; Nichols, P.; White, D.C.; Porter, T.; Geesey, G.G. Microscopic examination and fatty acid characterization of filamentous bacteria colonizing substrata around subtidal hydrothermal vents. Arch. Microbiol. 1989, 152, 64–71. [Google Scholar] [CrossRef]
  5. Larkin, J.M.; Shinabarger, D.L. Characterization of Thiothrix nivea. Int. J. Syst. Bacteriol. 1983, 33, 841–846. [Google Scholar] [CrossRef] [Green Version]
  6. Brock, T.D. Genus Thiothrix. In Bergey’s Manual of Determinative Bacteriology, 8th ed.; Buchanan, R.E., Gibbons, N.E., Eds.; The Williams & Wilkins Co.: Baltimore, MD, USA, 1974; p. 119. [Google Scholar]
  7. Rodina, A.G. Sulfur bacteria in the detritus of lakes in the Lagoda district. Microbiology 1963, 35, 575–580. (In English) [Google Scholar]
  8. Ravin, N.V.; Rudenko, T.S.; Smolyakov, D.D.; Beletsky, A.V.; Rakitin, A.L.; Markov, N.D.; Fomenkov, A.; Sun, L.; Roberts, R.J.; Novikov, A.A.; et al. Comparative genome analysis of the genus Thiothrix involving three novel species, Thiothrix subterranea sp. nov. Ku-5, Thiothrix litoralis sp. nov. AS and “Candidatus Thiothrix anitrata” sp. nov. A52, revealed the conservation of the pathways of dissimilatory sulfur metabolism and variations in the genetic inventory for nitrogen metabolism and autotrophic carbon fixation. Front. Microbiol. 2021, 12, 760289. [Google Scholar] [CrossRef] [PubMed]
  9. Howarth, R.; Unz, R.F.; Seviour, E.M.; Seviour, R.J.; Blackall, L.L.; Pickup, R.W.; Jones, J.G.; Yaguchi, J.; Head, I.M. Phylogenetic relationships of filamentous sulfur bacteria (Thiothrix spp. and Eikelboom type 021N bacteria) isolated from wastewater-treatment plants and description of Thiothrix eikelboomii sp. nov., Thiothrix unzii sp. nov., Thiothrix fructosivorans sp. nov. and Thiothrix defluvii sp. nov. Int. J. Syst. Bacteriol. 1999, 49, 1817–1827. [Google Scholar] [CrossRef]
  10. Odintsova, E.V.; Dubinina, G.A. New filamentous colourless sulphur bacteria Thiothrix ramosa nov. sp. Mikrobiologiia 1990, 59, 637–644. (In Russian) [Google Scholar]
  11. Dul’tseva, N.M.; Dubinina, G.A. Thiothrix arctophila sp. nov.—A new species of filamentous colorless sulfur bacteria. Mikrobiologiia 1994, 63, 271–281. [Google Scholar]
  12. Tandoi, V.; Caravaglio, N.; Di Dio Balsamo, D.; Majone, M.; Tomei, M.C. Isolation and physiological characterization of Thiothrix sp. Water Sci. Technol. 1994, 29, 261–269. [Google Scholar] [CrossRef]
  13. Aruga, S.; Kamagata, Y.; Kohno, T.; Hanada, S.; Nakamura, K.; Kanagawa, T. Characterization of filamentous Eikelboom type 021N bacteria and description of Thiothrix disciformis sp. nov. and Thiothrix flexilis sp. nov. Int. J. Syst. Evol. Microbiol. 2002, 52, 1309–1316. [Google Scholar] [CrossRef] [Green Version]
  14. Chernousova, E.; Gridneva, E.; Grabovich, M.; Dubinina, G.; Akimov, V.; Rossetti, S.; Kuever, J. Thiothrix caldifontis sp. nov. and Thiothrix lacustris sp. nov., gammaproteobacteria isolated from sulfide springs. Int. J. Syst. Evol. Microbiol. 2009, 59, 3128–3135. [Google Scholar] [CrossRef]
  15. Boden, R.; Scott, K.M. Evaluation of the genus Thiothrix Winogradsky 1888 (Approved Lists 1980) emend. Aruga et al. 2002: Reclassification of Thiothrix disciformis to Thiolinea disciformis gen. nov., comb. nov., and of Thiothrix flexilis to Thiofilum flexile gen. nov., comb nov., with emended description of Thiothrix. Int. J. Syst. Evol. Microbiol. 2018, 68, 2226–2239. [Google Scholar] [CrossRef] [PubMed]
  16. Parks, D.H.; Chuvochina, M.; Waite, D.W.; Rinke, C.; Skarshewski, A.; Chaumeil, P.A.; Hugenholtz, P. A standardized bacterial taxonomy based on genome phylogeny substantially revises the tree of life. Nat. Biotechnol. 2018, 36, 996–1004. [Google Scholar] [CrossRef] [PubMed]
  17. Ravin, N.V.; Rossetti, S.; Beletsky, A.V.; Kadnikov, V.V.; Rudenko, T.S.; Smolyakov, D.D.; Moskvitina, M.I.; Gureeva, M.V.; Mardanov, A.V.; Grabovich, M.Y. Two new species of filamentous sulfur bacteria of the genus Thiothrix, Thiothrix winogradskyi sp. nov. and ‘Candidatus Thiothrix sulfatifontis’ sp. nov. Microorganisms 2022, 10, 1300. [Google Scholar] [CrossRef] [PubMed]
  18. Mardanov, A.V.; Gruzdev, E.V.; Smolyakov, D.D.; Rudenko, T.S.; Beletsky, A.V.; Gureeva, M.V.; Markov, N.D.; Berestovskaya, Y.Y.; Pimenov, N.V.; Ravin, N.V.; et al. Genomic and metabolic insights into two novel Thiothrix species from enhanced biological phosphorus removal systems. Microorganisms 2020, 8, 2030. [Google Scholar] [CrossRef]
  19. Oren, A.; Garrity, G.M. Candidatus list No. 3. Lists of names of prokaryotic Candidatus taxa. Int. J. Syst. Evol. Microbiol. 2022, 72, 005186. [Google Scholar] [CrossRef]
  20. Arumugam, K.; Bessarab, I.; Haryono, M.A.S.; Liu, X.; Zuniga-Montanez, R.E.; Roy, S.; Qiu, G.; Drautz–Moses, D.I.; Law, Y.Y.; Wuertz, S.; et al. Recovery of complete genomes and non-chromosomal replicons from activated sludge enrichment microbial communities with long read metagenome sequencing. NPJ Biofilms Microbiomes 2021, 7, 23. [Google Scholar] [CrossRef]
  21. Sharma, R.; Kumar, A.; Singh, N.; Sharma, K. 16S rRNA gene profiling of rhizospheric microbial community of Eichhornia crassipes. Mol. Biol. Rep. 2021, 48, 4055–4064. [Google Scholar] [CrossRef]
  22. Sela, R.; Laviad-Shitrit, S.; Thorat, L.; Nath, B.B.; Halpern, M. Chironomus ramosus larval microbiome composition provides evidence for the presence of detoxifying enzymes. Microorganisms 2021, 9, 1571. [Google Scholar] [CrossRef]
  23. Huang, K.; Li, Q.; Sun, H.; Zhang, X.X.; Ren, H.; Ye, L. Metagenomic analysis revealed the sulfur- and iron- oxidation capabilities of heterotrophic denitrifying sludge. Ecotoxicology 2021, 30, 1399–1407. [Google Scholar] [CrossRef]
  24. Gao, S.; He, Q.; Wang, H. Research on the aerobic granular sludge under alkalinity in sequencing batch reactors: Removal efficiency, metagenomic and key microbes. Bioresour. Technol. 2019, 296, 122280. [Google Scholar] [CrossRef]
  25. Salcedo Moyano, A.J.; Delforno, T.P.; Subtil, E.L. Simultaneous nitrification-denitrification (SND) using a thermoplastic gel as support: Pollutants removal and microbial community in a pilot-scale biofilm membrane bioreactor. Environ. Technol. 2021, 13, 1–15. [Google Scholar] [CrossRef] [PubMed]
  26. Jo, S.; Jeong, S.-Y.; Kwon, H.; Lee, S.; Oh, H.-S.; Yi, T.; Park, P.-K.; Lee, C.-H.; Kim, T. Effects of quorum quenching on temporal succession of activated sludge microbial community in a membrane bioreactor. J. Appl. Microbiol. 2020, 128, 907–918. [Google Scholar] [CrossRef] [PubMed]
  27. Yao, J.; Liu, J.; Zhang, Y.; Xu, S.; Hong, Y.; Chen, Y. Adding an anaerobic step can rapidly inhibit sludge bulking in SBR reactor. Sci. Rep. 2019, 9, 10843. [Google Scholar] [CrossRef] [Green Version]
  28. Gillan, D.C.; Dubilier, N. Novel epibiotic Thiothrix bacterium on a marine amphipod. Appl. Environ. Microbiol. 2004, 70, 3772–3775. [Google Scholar] [CrossRef] [Green Version]
  29. Bauermeister, J.; Ramette, A.; Dattagupta, S. Repeatedly evolved host-specific ectosymbioses between sulfur-oxidizing bacteria and amphipods living in a cave ecosystem. PLoS ONE 2012, 7, e50254. [Google Scholar] [CrossRef] [Green Version]
  30. Flot, J.F.; Bauermeister, J.; Brad, T.; Hillebrand-Voiculescu, A.; Sarbu, S.M.; Dattagupta, S. Niphargus-Thiothrix associations may be widespread in sulphidic groundwater ecosystems: Evidence from southeastern Romania. Mol. Ecol. 2014, 23, 1405–1417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Bauermeister, J.; Assig, K.; Dattagupta, S. Exploring the sulfide tolerance of ectosymbiotic Niphargus amphipods from the Frasassi caves, central Italy. Int. J. Speleol. 2013, 42, 141–145. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 09531 g001 550

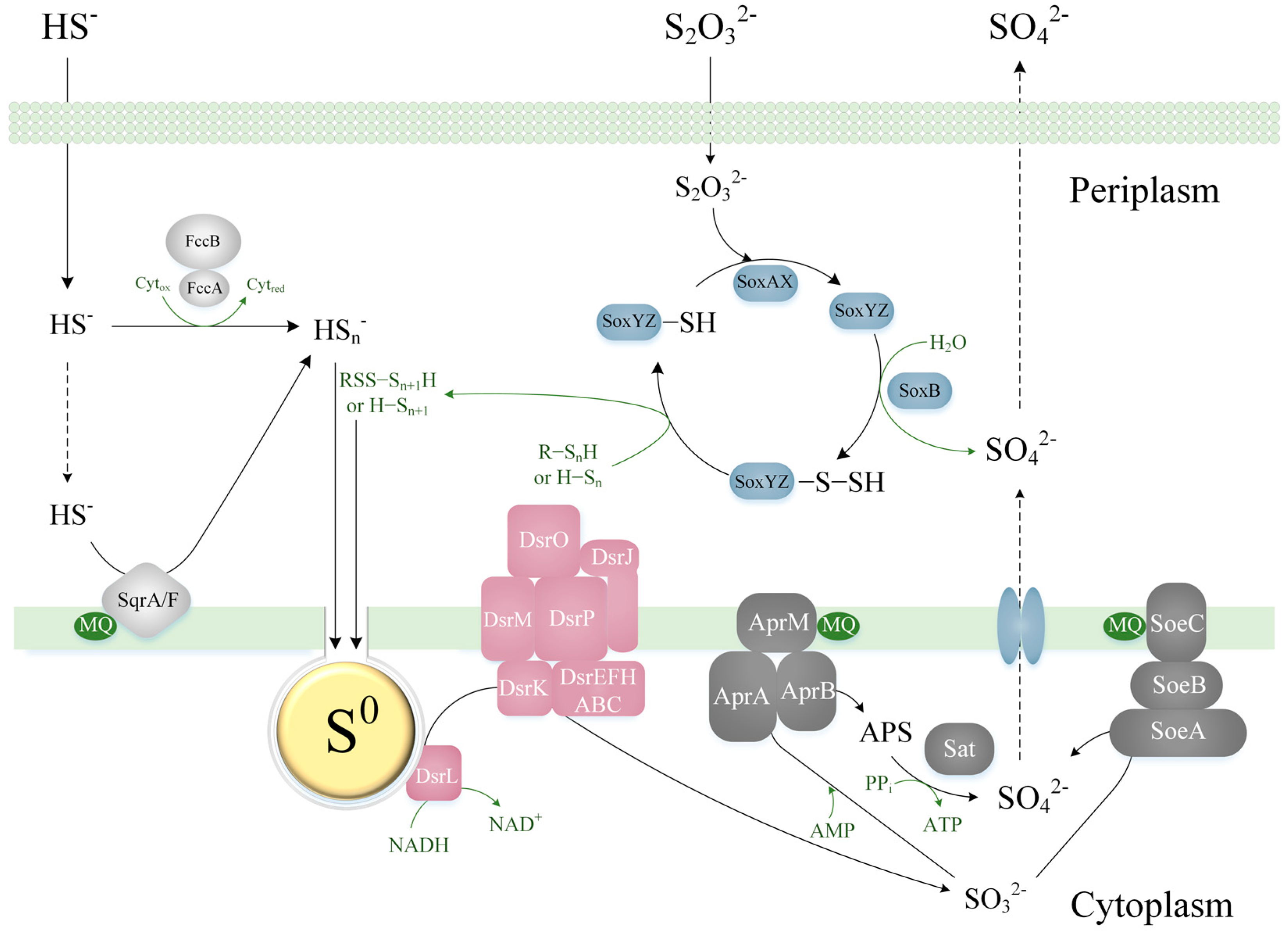

Figure 1. Scheme of dissimilation sulfur metabolism of the genus Thiothrix. FccAB, flavocytochrome c-sulfide dehydrogenase; SqrA/F, sulfide:quinone oxidoreductase; SoxAXBYZ, SOX multienzyme system; MQ, menaquinone; rDsrABCEFHEMPKJOL, dissimilatory sulfite reductase; AprABM, APS reductase; Sat, ATP sulfurylase; SoeABC, membrane-bound cytoplasmic sulfite:quinone oxidoreductase; S0, sulfur globule; APS, adenosine 5′-phosphosulfate; R−Sn+1H, thiol compound; H−Sn+1, polysulfide.
Figure 1. Scheme of dissimilation sulfur metabolism of the genus Thiothrix. FccAB, flavocytochrome c-sulfide dehydrogenase; SqrA/F, sulfide:quinone oxidoreductase; SoxAXBYZ, SOX multienzyme system; MQ, menaquinone; rDsrABCEFHEMPKJOL, dissimilatory sulfite reductase; AprABM, APS reductase; Sat, ATP sulfurylase; SoeABC, membrane-bound cytoplasmic sulfite:quinone oxidoreductase; S0, sulfur globule; APS, adenosine 5′-phosphosulfate; R−Sn+1H, thiol compound; H−Sn+1, polysulfide.
Ijms 23 09531 g001
Ijms 23 09531 g002 550

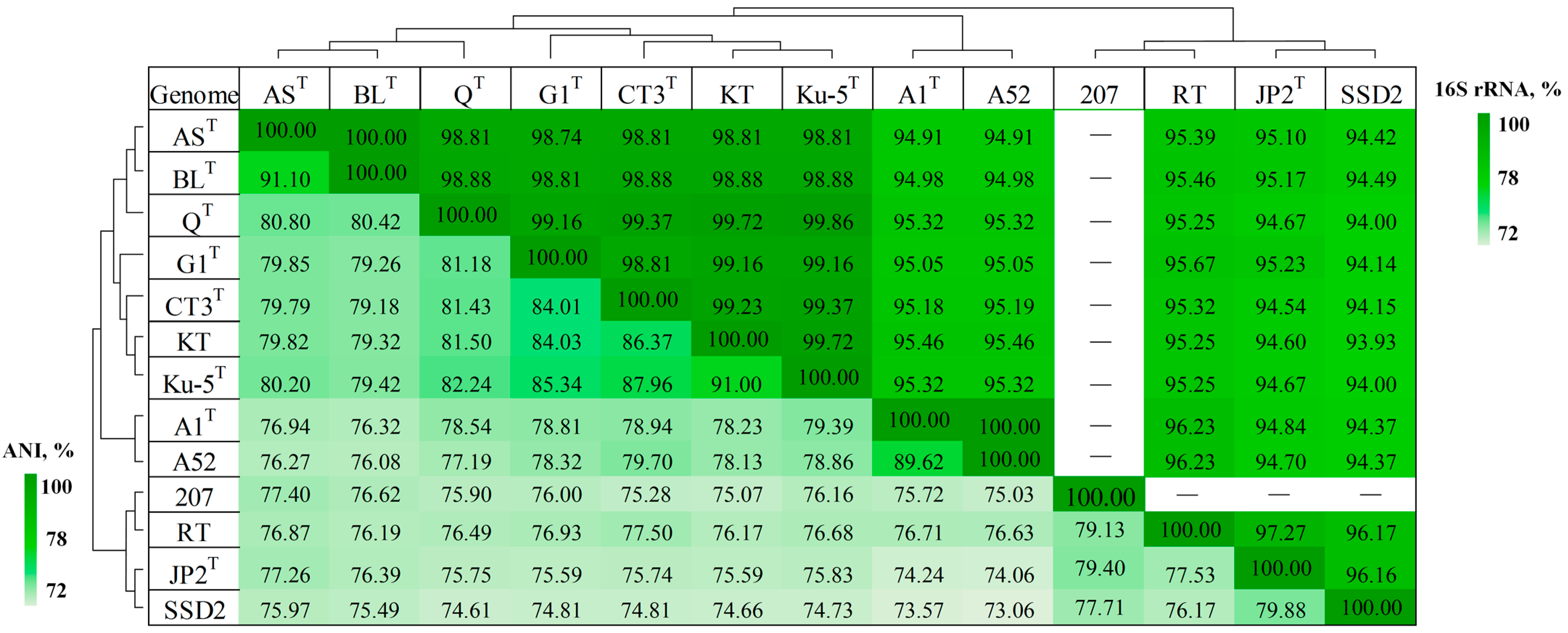

Figure 2. Heatmap of 16S rRNA gene sequence similarity and pairwise ANI values (%) for Thiothrix genomes. T. lacustris BLT, (GCF_000621325.1); Thiothrix litoralis AST (GCF_017901135.1); ‘Thiothrix subterranea’ Ku-5T (GCF_016772315.1); ‘Ca. Thiothrix sulfatifontis’ KT (GCA_022828425.1); T. caldifontis G1T (GCF_900107695.1); ‘Thiothrix winogradskyi’ CT3T (GCF_021650945.1); T. fructosivorans QT (GCA_017349355.1); T. unzii A1T (GCA_017901175.1); ‘Ca. Thiothrix anitrata’ A52 (GCF_017901155.1); Ca. Thiothrix moscovensis RT (GCA_016292235.1); T. nivea JP2T (GCF_000260135.1); Ca. Thiothrix singaporensis SSD2 (GCA_013693955.1); MAG of Thiothrix sp. 207 (GCA_018813855.1). Note that 16S rRNA gene is missing in MAG of Thiothrix sp. 207.
Figure 2. Heatmap of 16S rRNA gene sequence similarity and pairwise ANI values (%) for Thiothrix genomes. T. lacustris BLT, (GCF_000621325.1); Thiothrix litoralis AST (GCF_017901135.1); ‘Thiothrix subterranea’ Ku-5T (GCF_016772315.1); ‘Ca. Thiothrix sulfatifontis’ KT (GCA_022828425.1); T. caldifontis G1T (GCF_900107695.1); ‘Thiothrix winogradskyi’ CT3T (GCF_021650945.1); T. fructosivorans QT (GCA_017349355.1); T. unzii A1T (GCA_017901175.1); ‘Ca. Thiothrix anitrata’ A52 (GCF_017901155.1); Ca. Thiothrix moscovensis RT (GCA_016292235.1); T. nivea JP2T (GCF_000260135.1); Ca. Thiothrix singaporensis SSD2 (GCA_013693955.1); MAG of Thiothrix sp. 207 (GCA_018813855.1). Note that 16S rRNA gene is missing in MAG of Thiothrix sp. 207.
Ijms 23 09531 g002
Ijms 23 09531 g003 550

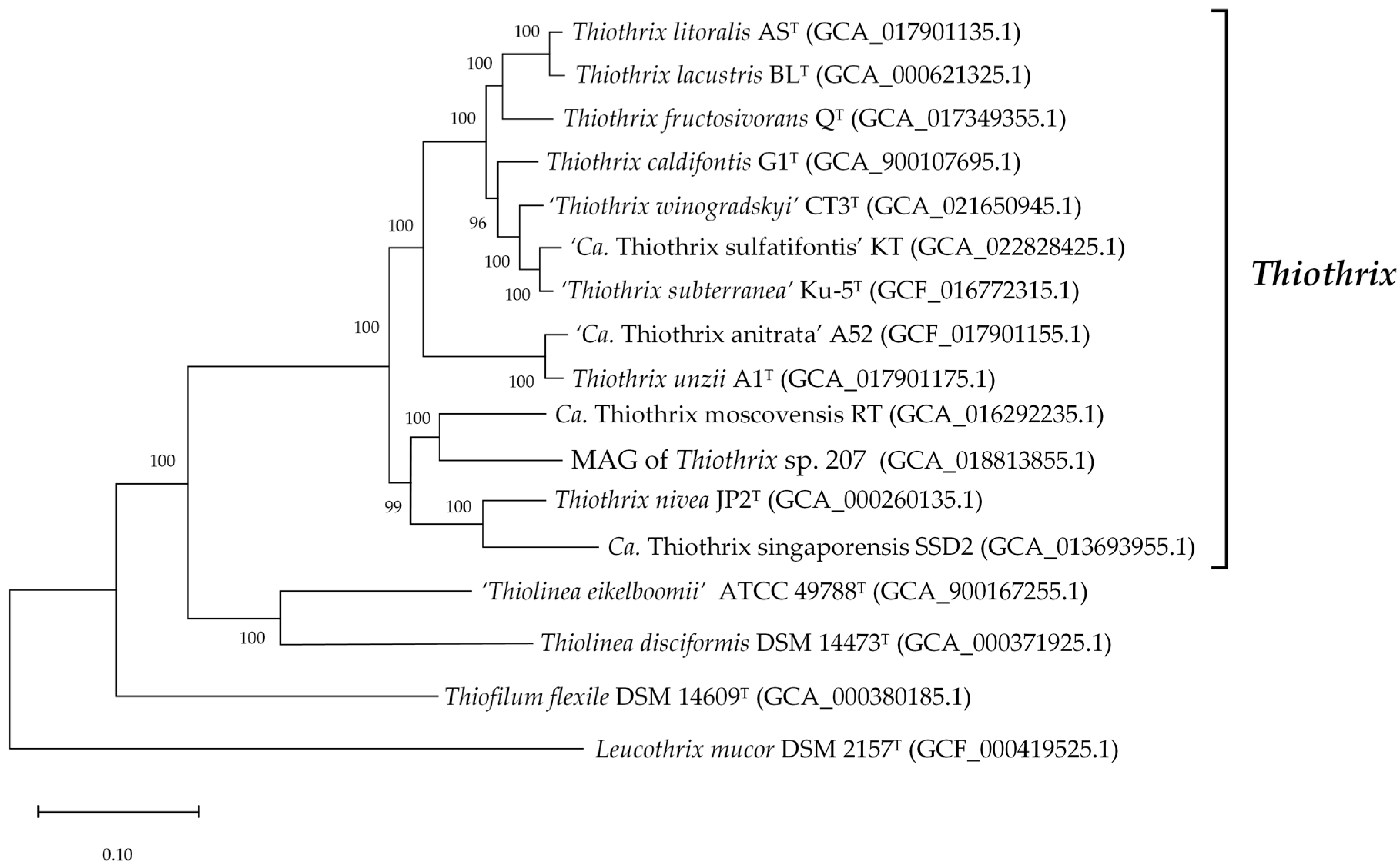

Figure 3. Genome-based phylogenetic tree of type strains of Thiothrix species. The GenBank assembly accession numbers are listed after the genome names. The internal branching support levels assessed by the Bayesian test in PhyML are specified in nodes. The genome of Leucothrix mucor DSM 2157T was used for tree rooting.
Figure 3. Genome-based phylogenetic tree of type strains of Thiothrix species. The GenBank assembly accession numbers are listed after the genome names. The internal branching support levels assessed by the Bayesian test in PhyML are specified in nodes. The genome of Leucothrix mucor DSM 2157T was used for tree rooting.
Ijms 23 09531 g003
Ijms 23 09531 g004 550

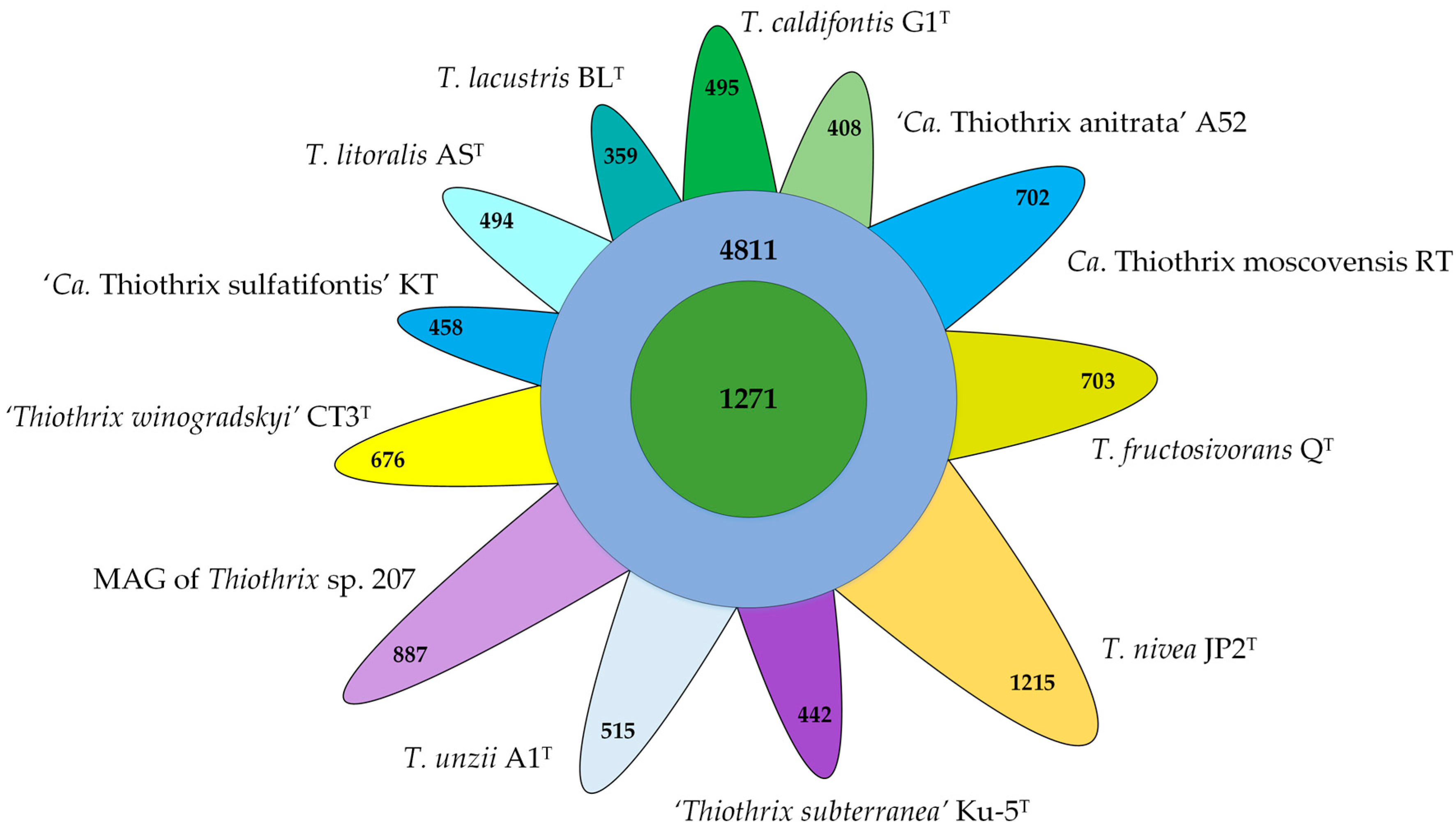

Figure 4. Venn diagram demonstrating the distribution of common (green), additional (purple), and unique (different colors) genes among analyzed Thiothrix species.
Figure 4. Venn diagram demonstrating the distribution of common (green), additional (purple), and unique (different colors) genes among analyzed Thiothrix species.
Ijms 23 09531 g004
Ijms 23 09531 g005 550

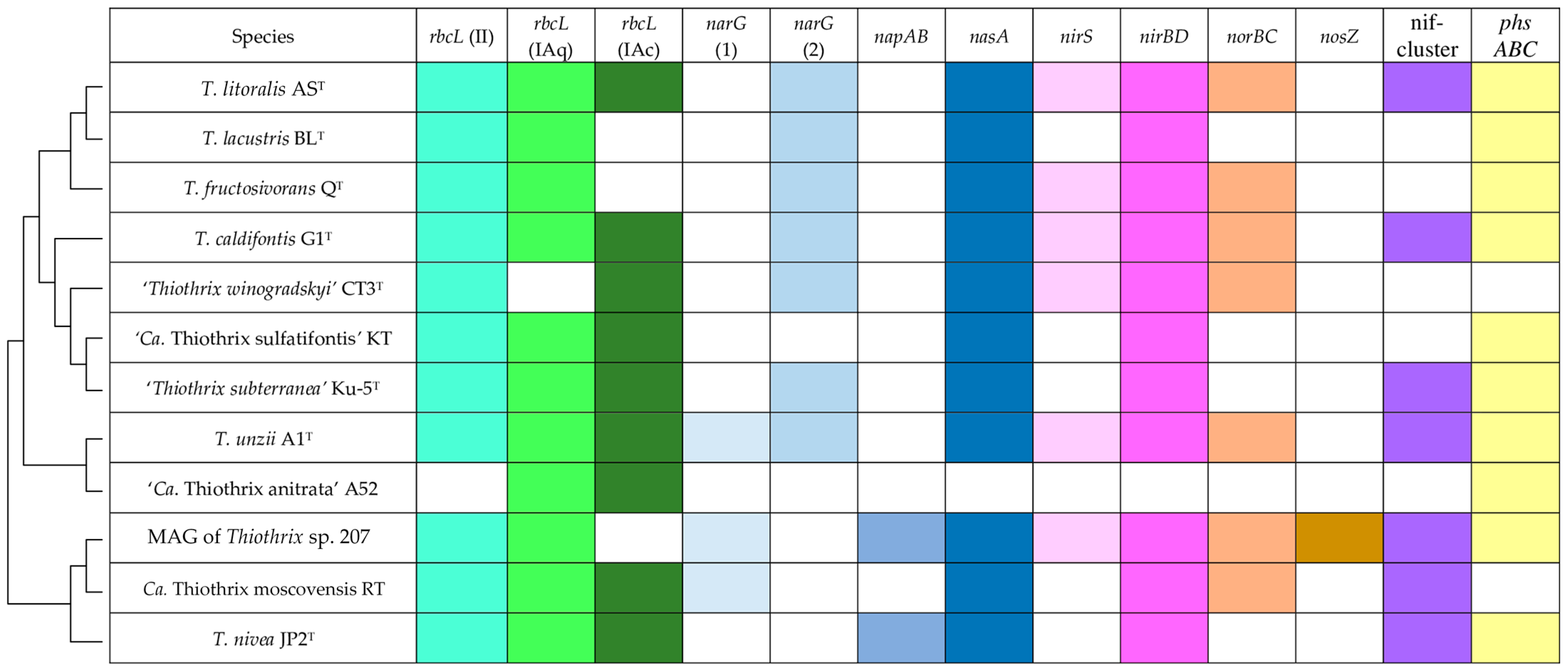

Figure 5. Distribution of genes related to nitrogen metabolism and carbon fixation in Thiothrix genomes. Genes: rbcL, the large subunit of RuBisCO; narG, membrane-bound nitrate reductase; napAB, periplasmic nitrate reductase; nasA, assimilatory nitrate reductase; nirS, dissimilatory nitrite reductase; nirBD, ammonia-forming assimilatory nitrite reductase; norBC, nitric oxide reductase; nosZ, nitrous oxide reductase; nif-cluster, nitrogenase genes; phsABC, thiosulfate reductase. Colored blocks indicate the presence of a gene.
Figure 5. Distribution of genes related to nitrogen metabolism and carbon fixation in Thiothrix genomes. Genes: rbcL, the large subunit of RuBisCO; narG, membrane-bound nitrate reductase; napAB, periplasmic nitrate reductase; nasA, assimilatory nitrate reductase; nirS, dissimilatory nitrite reductase; nirBD, ammonia-forming assimilatory nitrite reductase; norBC, nitric oxide reductase; nosZ, nitrous oxide reductase; nif-cluster, nitrogenase genes; phsABC, thiosulfate reductase. Colored blocks indicate the presence of a gene.
Ijms 23 09531 g005
Table
Table 1. The general properties of Thiothrix genomes.
Table 1. The general properties of Thiothrix genomes.
SpeciesGenome
Assembly		Isolate or MAGSize
(MB)		ContigsG + C
Content
(mol %)		Protein-Coding Genes16S rRNA GenestRNA GenesPlasmids *
‘T. winogradskyi’ CT3T
(DSM 12730T)		GCA_021650935.1Isolate4.38351.442925662
‘Ca. Thiothrix sulfatifontis’ KTGCA_022828425.1MAG3.69151.53729247NA
T. lacustris BLT (DSM 21227T)GCF_000621325.1Isolate3.725651.33537240U
T. litoralis AST
(DSM 113264T)		GCF_017901135.1Isolate4.28152.840453440
‘T. subterranea’ Ku-5T (VKM B-3544T)GCF_016772315.1Isolate4.08451.138854463
T. caldifontis G1T (DSM 21228T)GCF_900107695.1Isolate3.947250.63752142U
T. unzii A1T
(ATCC 49747T)		GCA_017901175.1Isolate3.72850.836262457
T. nivea JP2T
(DSM 5205T)		GCF_000260135.1Isolate4.691554.94327244U
T. fructosivorans QT (ATCC 49748T)GCA_017349355.1Isolate4.36651.336162445
Ca. Thiothrix moscovensis RTGCA_016292235.1MAG3.697853.63483138NA
Ca. Thiothrix singaporensis SSD2GCA_013693955.1MAG4.54155.64097243NA
‘Ca. Thiothrix anitrata’ A52GCF_017901155.1MAG3.55150.13387245NA
Thiothrix sp. 207GCA_018813855.1MAG3.9313654.63675040NA
* U, unknown because the assembly consisted of multiple contigs; NA, not applicable for MAGs.
