Mitochondrial RNAs as Potential Biomarkers of Functional Impairment in Diabetic Kidney Disease

by
Stefania Di Mauro
1,†,
Alessandra Scamporrino
1,†,
Agnese Filippello
1,
Maurizio Di Marco
1,
Maria Teresa Di Martino
2,
Francesca Scionti
3,
Antonino Di Pino
1,
Roberto Scicali
1,
Roberta Malaguarnera
4,
Francesco Purrello
1,* and
Salvatore Piro
1
1
Department of Clinical and Experimental Medicine, Internal Medicine, Garibaldi-Nesima Hospital, University of Catania, 95122 Catania, Italy
2
Department of Experimental and Clinical Medicine, Magna Graecia University, 88100 Catanzaro, Italy
3
Institute for Biomedical Research and Innovation (IRIB), National Research Council of Italy (CNR), 98164 Messina, Italy
4
Faculty of Medicine and Surgery, “Kore” University of Enna, 94100 Enna, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(15), 8198; https://doi.org/10.3390/ijms23158198
Submission received: 22 June 2022 / Revised: 21 July 2022 / Accepted: 23 July 2022 / Published: 25 July 2022
(This article belongs to the Section Molecular Pathology, Diagnostics, and Therapeutics)
Browse Figures
Versions Notes

Abstract

:
Type 2 diabetes and renal damage are strictly linked. The progressive increase in T2D incidence has stimulated the interest in novel biomarkers to improve the diagnostic performance of the commonly utilized markers such as albuminuria and eGFR. Through microarray method, we analyzed the entire transcriptome expressed in 12 serum samples of diabetic patients, six without DKD and six with DKD; the downregulation of the most dysregulated transcripts was validated in a wider cohort of 69 patients by qPCRs. We identified a total of 33 downregulated transcripts. The downregulation of four mitochondrial messenger RNAs (MT-ATP6, MT-ATP8, MT-COX3, MT-ND1) and other two transcripts (seysnoy, skerdo) was validated in patients with eGFR stage G3 versus G2 and G1. The four messenger RNAs correlated with creatinine and eGFR stages, while seysnoy and skerdo were associated with white blood cell values. All transcripts correlated also with Blood Urea Nitrogen. The four mitochondrial messenger RNAs had a high diagnostic performance in G3 versus G2 discrimination, with AUC values above 0.8. The most performant transcript was MT-ATP6, with an AUC of 0.846; sensitivity = 90%, specificity = 76%, p-value = 7.8 × 10−5. This study led to the identification of a specific molecular signature of DKD, proposing the dosage of RNAs, especially mitochondrial RNAs, as noninvasive biomarkers of diabetes complication.

1. Introduction

Diabetic Kidney Disease (DKD) is a microvascular complication of diabetes, which occurs in 20–40% of patients [1]. It is the leading cause of end-stage renal disease (ESRD) in developed countries [2].
The pathogenesis of DKD is quite complex and not completely understood. However, it is possible to consider different pathways such as metabolic, hemodynamic, inflammatory, involved in DKD, with a composite interplay [3]. Among these, pivotal roles are played by oxidative stress and fibrosis, which could be considered bridges between different mechanisms responsible for renal damage in diabetic patients [4,5,6,7,8].
Even though advances have been made over the past few years in diagnosing and treating DKD patients, we are still not able to significantly reduce mortality among these patients. Interventions to slow down the progression of DKD, indeed, must start in the early stages of the disease. However, a big obstacle in clinical practice is the lack of biomarkers that can accurately identify diabetic patients who are at early risk of developing DKD and predict the progression of the condition [9].
To date, albuminuria and estimated glomerular filtration rate (eGFR) are the most common biomarkers used in clinical practice for DKD. However, these parameters show several limitations. Not all patients with DKD and reduced eGFR have increased albuminuria and it is possible to find increased albuminuria for different reasons, such as urinary tract infections, high blood pressure, high-protein diet, exercise, and fever [9,10]. Furthermore, albuminuria does not have a prognostic value. Microalbuminuria does not always progress to macroalbuminuria, but it can regress to a normoalbuminuric state [11]. As shown for albuminuria, eGFR has several limitations. For instance, P30 (a performance measure that represents the likelihood that the eGFR is within ±30% of the measured GFR) for the most common estimating equations is generally between 80 and 90% [2]. In addition, these equations are less precise for higher GFRs, and they are further limited by [12] variation in creatinine production because of age, gender, race, and body composition. In addition, at the beginning of the disease, this biomarker does not reflect the severity of the disease and when eGFR reaches the threshold of 60 mL/min/1.73 m2 almost 60% of the nephrons are already lost. Thus, it is a late biomarker of renal dysfunction and injury [13].
Therefore, it is clear that there is a need for a novel well-validated group of biomarkers to use in combination with conventional ones to improve the understanding of DKD pathophysiology and stratify patients according to their disease stage to conduct a tailored treatment [3]. DKD is a complication with multifaceted pathogenesis, therefore it is possible to consider biomarkers related to the different mechanisms involved in kidney injury, such as oxidative stress (i.e., 8-hydroxyseoxy-guanosine—8-OHdG), glomerular (i.e., nephrin) and tubular damage (i.e., urinary neutrophil gelatinase-associated lipocalin—NGAL—and urinary kidney injury molecule 1—KIM-1), inflammation (i.e., interleukin-6—IL-6), and fibrosis (i.e., type IV collagen) [3,14,15,16]. Unfortunately, none of these biomarkers are available in clinical practice.
During the last few years, many studies have focused on the so-called ”omics-based biomarkers” of DKD. Indeed, transcriptomics, metabolomics and proteomic approaches have been used for urine or serum analysis of DKD patients [17]. As far as transcriptomics studies are concerned, they limited their analysis to miRNome expression profiles, although other classes of non-coding RNAs such as mRNAs and non-coding RNAs could be novel biomarkers for DKD [17]. These molecules, as well as microRNAs, are easily detectable and highly stable in biological fluids and against several pre-analytic conditions, for instance, repeated freeze-thaw cycles, long Room Temperature (RT) incubation and postponed processing of samples [18].
Moreover, there is evidence of long non-coding lncRNAs involved in DKD pathogenesis, such as Plasmacytoma Variant Translocation 1 (PVT1), ENSMUST00000147869, and CYP4B1-PS1-001 [19,20,21].
In agreement with these considerations, this study aimed to analyze the entire transcriptome in patients affected by DKD, in order to identify molecular fingerprints useful for the identification of new biomarkers of the pathology.

2. Results

2.1. DKD Is Characterized by a Specific Serum RNA Molecule Signature

In order to identify a novel potential biomarker signature of DKD, the whole transcriptome expressed in the serum samples of 12 diabetic patients in the presence or absence of DKD (n = 6 ACR < 30 mg/g, eGFR ≥ 90 mL/min/1.73 m2 stage G1; n = 6 ACR between 30 and 299 mg/g, eGFR between 30 and 59 mL/min/1.73 m2 stage G3) was analyzed. Statistically significant dysregulated transcripts are represented as volcano and scatter plots in Figure 1 (panels A and B respectively). We identified a total of 33 dysregulated transcripts, all downregulated (FC ≤ 2, FDR p-value < 0.05), in patients with DKD with respect to diabetic patients without DKD. Supplementary Table S1 reports probe IDs, Gene symbols, fold-changes, FDR p-values and descriptions of dysregulated transcripts identified through microarray analysis.

2.2. Transcriptome Data Are Associated with Pathways of DKD Pathogenesis

To analyze the biological role of microarray-identified DE transcripts, we performed an enrichment pathway analysis through the use of TAC software. DE transcripts were statistically significantly associated with molecular pathways consistent with DKD pathogenesis such as inflammatory pathways (i.e., IL-5 signaling pathway, IL-2 signaling pathway, IL-11 signaling pathway), mitochondrial function (i.e., electron transport chain OXPHOS system, oxidative phosphorylation), UPR stress (i.e., cytoplasmic ribosomal proteins, major pathways of rRNA processing and cytosol) and fibrosis (i.e., VEGFA-VEGFR signaling pathway, interferon type 1 signaling pathway) (Figure 2).
The pathways that had a stronger statistical significance (Fisher Exact Test p-value > 3.52) were involved in UPR stress and mitochondrial functions. We reported the specific dysregulated transcripts associated to these pathways in Supplementary Table S2, and we also highlighted these transcripts in the volcano plot in Supplementary Figure S1.

2.3. Selected Transcripts Have a Decreasing Expression Trend Related to eGFR Stages

To confirm microarray data, we quantified the expression level of selected transcripts through Real-Time PCR in a wider independent validation cohort of 69 diabetic patients. Clinical and demographic patient data are reported in Table 1.
There was no significant difference between the studied groups, except for levels of uric acid, Blood Urea Nitrogen, creatinine, HCT systolic blood pressure, diastolic blood pressure, presence of hypertension condition, (One-way ANOVA or Kruskal Wallis test p-value < 0.05). We selected four coding RNAs, MT-ATP8, MT-ATP6, MT-COX3, and MT-MD1, and two “Aceview” database-reported transcripts seysnoy and skerdo. We selected these transcripts because, among the dysregulated transcripts (FDR p-value < 0.05), they had a strong FC dysregulation (FC < 18) and they presented higher levels of fluorescence signals in microarray data. Validation cohort patients have been grouped according to ACR (n = 36 normoalbuminuric subjects, n = 33 macroalbuminuric subjects) or according to eGFR stages (n = 24 G1, n = 25 G2, n = 20 G3). Taking into account ACR stratification, the dysregulation of any of the selected transcripts was confirmed. On the contrary, according to eGFR stratification, we validated the downregulation of all the 6 selected transcripts: four messenger RNAs and two “Aceview”-identified transcripts. Through Real-Time PCR we validated the downregulation of the four mRNAs, MT-ATP8, MT-ATP6, MT-COX3, and MT-ND1 and the skerdo transcript in G3 patients with respect to both G1 and G2 (Figure 3 and Figure 4). Seysnoy was under-expressed only in G3 patients versus the G2 comparison (Figure 4).
Table 2 reports p-values and fold-change values of analyzed transcripts in G3 versus G2 and G3 versus G1 comparisons.
The downregulation of only the four messenger RNAs was also maintained in G3 versus G2 patients inside normoalbuminuria or microalbuminuria groups considered separately. The results of these latter comparisons are shown in Supplementary Table S3 and Figures S2 and S3.

2.4. Validated Transcripts Are Associated with Patients’ Clinical Data

We performed a correlation analysis to test the hypothesis of a potential correlation between analyzed transcript expression values and patients’ clinical data. In agreement with Real-Time validation data, as expected, we found a correlation between all the transcripts and serum creatinine, as well as eGFR. For seysnoy and skerdo, we also found a correlation with White Blood Cell count (WBC). Blood urea nitrogen correlated with all analyzed transcripts. Since creatinine, eGFR, WBC and BUN had a nonparametric distribution, the correlation analysis between these clinical parameters and the expression levels of the validated transcripts was evaluated by the Spearman test. Table 3 shows the p-values of the correlation analysis.

2.5. ROC Curve Analysis

Performing ROC curve analysis, we analyzed the diagnostic performance of validated transcripts for G3 versus G2 patient discrimination. All analyzed transcripts reached statistical significance in ROC curve analysis. The four messenger RNAs showed high diagnostic performances, with AUC values above 0.80. The two “Aceview”-identified transcripts had lower diagnostic performances, with AUC values above 0.7. Since patients were stratified according to eGFR, in our cohort this parameter had an AUC value equal to 1, while albuminuria ROC curve analysis did not reach the statistical significance (AUC = 0.445, CI = 0.275–0.615, p-value = 0.527). Table 4 reports the AUC value, confidence interval, sensitivity, specificity and p-value data of each transcript for G3 subject identification. Figure 5 and Figure 6 show ROC curves of messenger RNAs, and seysnoy and skerdo respectively.

3. Discussion

T2D and renal damage are inextricably linked. The increase in the incidence of T2D and the clinical relevance of DKD, determining an important rise in cardiovascular morbidity and mortality [19], explain the scientific interest in this complication. Taking into account the clinical relevance of DKD, subjects at higher risk to develop this complication should be identified earlier in order to address the main efforts for prevention and treatments that may arrest and prevent further disease progression. Currently, the biopsy is the gold standard for kidney disease diagnosis, however, it is highly invasive and has a risk of complications. Most DKD patients do not undergo renal biopsy [20]. Albuminuria and estimated glomerular filtration rate (eGFR) are the most commonly used diagnostic/prognostic biomarkers in clinical practice. Since both markers have several limitations [13], the identification of novel sensitive and specific biomarkers represents a pivotal clinical challenge. During recent years, circulating non-coding RNAs have received increasing interest. A lot of studies analyzed microRNA expression in several specimens, including serum and urine, in an attempt to identify novel diagnostic/prognostic biomarkers [21,22]. However, neither of these microRNAs have been introduced in clinical practice.
This study supports the idea that other classes of RNA molecules could represent useful biomarkers in DKD. Indeed, similarly to microRNAs [23], other RNA transcripts are resistant to endogenous RNase degradation and easily detectable in biological fluids through basic molecular biology techniques [18]. Only a few studies analyzed the detection of messenger RNAs or ncRNA for DKD diagnosis/prognosis. Messenger RNAs have been mainly detected in urine sediment specimens. Song-Tao Feng et al. reported that the mRNAs coding for chemokines, more specifically CCL5 and CXCL1 mRNA levels, were upregulated in the urinary sediment of patients with 91 DN versus 60 controls, and were negatively correlated with eGFR [24]. Gang Wang demonstrated that in urine sediment samples, nephrin levels are significantly higher, and WT-1 levels were significantly lower in 21 diabetic patients than in 9 controls. However, this study failed in determining a correlation between these podocyte-related biomarkers and kidney function decline as estimated through eGFR [25]. Similarly, Min Zheng et al. reported that the podocyte-associated biomarkers podocalyxin, CD2-AP, α-actin4, and podocin were upregulated in 51 diabetic patients with DKD versus 13 controls. All target molecules were significantly correlated with urinary albumin, and only podocalyxin was inversely associated with eGFR [26]. As far as ncRNAs are concerned, few circulating lncRNAs have been reported to be dysregulated in serum samples of DKD patients. For instance, Chun Zhao reported that PANDAR is upregulated in diabetic patients and higher in DKD patients with massive proteinuria than microalbuminuric patients and negatively correlated with eGFR [27]. In another study, Jujie Gao et al. reported that NR_033515 was significantly increased in the serum of DKD patients and was related to the different stages of DKD. In addition, this noncoding RNA was also positively associated with diagnostic markers of DKD (KIM-1 and NGAL) [28].
We used a high-throughput approach for the analysis of the whole transcriptome expressed in serum samples in order to identify “molecular fingerprints”, useful for a more accurate definition of DKD diagnosis and prognosis. Through this approach, we identified 33 downregulated transcripts (FDR-corrected p-value < 0.05) in the serum of DKD patients in comparison with T2D patients without DKD (n = 12: 6 CKD, 6 T2D). Interestingly, the computational analysis showed that these transcripts were associated with pathways consistent with DKD pathogenesis, including inflammatory pathways, mitochondrial dysfunction, UPR stress and fibrosis. After that, we selected six of the most dysregulated transcripts (four coding RNAs: MT-ATP8, MT-ATP6, MT-COX3, MT-ND1 and: seysnoy and skerdo according to the Aceview database) and we validated their downregulation in a wider independent cohort of diabetic patients grouped according to ACR or eGFR stages. Identified transcripts were progressively downregulated according to eGFR stages with a strong statistical significance (n = 24 G1, n = 25 G2, n = 20 G3). In agreement with this data, we found a correlation between all the transcripts and serum creatinine, BUN and eGFR. Thus, identified biomarkers correlated with progressive functional kidney decline in the context of DKD. Furthermore, messenger RNAs had considerable diagnostic power for the discrimination of G3 versus G2 patients with AUC values above 0.8. The most performant transcript was ATP6 with AUC values of 0.846 (p-value = 7.8 × 10−5, sensitivity: 90%, specificity: 76%). Multivariate logistic analysis, performed by combining the expression data of all the identified transcripts and each possible combination of them, did not improve the identified biomarker diagnostic performance. This could be due to the problematic amount of collinearity in transcript expression data. Indeed the variance inflation factor (VIF) of analysed transcripts was above 5 and 10. In this condition, the redundance of data does not allow an improvement of the diagnostic performance in multivariate logistic analysis or potential combinatorial indices.
It is important to highlight that the downregulation of coding RNAs was also maintained in G3 versus G2 comparisons inside normoalbuminuria or microalbuminuria groups considered separately. This is particularly relevant for normoalbuminuric patients because a substantial proportion of T2D patients with DKD are normoalbuminuric and do not develop microalbuminuria (non-albuminuric phenotype). Hence, eGFR is the only available biomarker in this subgroup [13].
Interestingly, the four validated coding RNAs are subunits of the mitochondrial respiratory chain encoded by the mitochondrial genome. MT-ATP8 and MT-ATP6 respectively encode for the Fo subunits eight and six of the mitochondrial ATP synthase (complex V). MT-CO3 encodes for the subunit three of cytochrome c oxidase (complex III), and MT-ND1 for the subunit one of NADH: Ubiquinone oxidoreductase (complex I).
It is important to highlight that blasting the sequences of seysnoy and skerdo through BLAT of UCSC browser, these two transcripts actually represent two different regions of the same mithocondrial transcript, MT-RNR1 mitochondrially encoded 12S ribosomalRNA. As is widely known, mitochondrial 12S rRNA is a constituent of mitoribosomes, the function of which are essential for the biogenesis of the oxidative phosphorylation system and for mitochondrial function in general [29]. Interestingly, Wuping Yang, et al. reported that the lncRNA NF582-AS1 overexpression induces a decrease of MT-RNR1 expression, followed by the inhibition of MT-CO2 (mitochondrially encoded cytochrome c oxidase II). On the contrary, MT-RNR1 overexpression reversed the decreased MT-CO2 expression [30].
It is widely known that mitochondrial dysfunction plays a pivotal role in DKD pathogenesis. It has been demonstrated that the assembling of Electron Transport Chain ETC complexes and supercomplexes is impaired in diabetes [31,32]. As far as DKD is concerned, several studies reported that ETC subunits are downregulated. For instance, through immunostaining experiments it has been demonstrated that cytochrome c oxidase (complex IV) is reduced in the kidneys of patients with diabetic nephropathy versus control subjects [33]; furthermore, it has been reported that the complex IV subunit MT-CO2 is lower in human postmortem glomeruli of T2D patients with eGFR ≤ 30 mL/min/1.73 m2, with respect to patients with higher eGFR or controls [34]. The alteration of ETC complex formation and the downregulation of complex subunits are consistent with the reduction of ETC functional activity. Several studies, indeed, reported that complex I, III, and/or IV activities are progressively reduced as DKD progresses in animal models [35]. In agreement with this data, we can hypothesize that the downregulation of RNA molecules coding for specific subunits of ETC in serum samples of patients with progressive decreasing eGFR values mirrors the ETC impairment/downregulation that occurs at the histological level in DKD.
Since mitochondrial dysfunction is central to DKD pathogenesis, few other studies suggested the dosage of specific mitochondrial molecules/metabolites in blood or urine for DKD diagnosis and progression monitoring. In this context, the study conducted by Kumar Sharma et al. is very relevant. The authors, applying a metabolomics approach, identified 12 mitochondrial metabolites significantly reduced in diabetic patients with DKD versus patients without DKD; similarly to our results, this suggested a global suppression of mitochondrial activity in DKD. The same authors also demonstrated that urine exosome mitochondrial DNA (mtDNA) was reduced [33] in patients with DKD versus controls. Similarly, Ghada Al-Kafaji demonstrated that patients with DKD had lower mtDNA than patients with T2D and healthy controls. Furthermore, mtDNA had a decreasing expression trend, ranging from normoalbuminuric to microalbuminuric and macroalbuminuric groups (p < 0.01). mtDNA was also directly correlated with eGFR [36]. Only one study evaluated mtDNA levels in a longitudinal cohort of 19 patients with a follow-up of 24 months in supernatant, urinary sediment, or at the intra-renal level. Through univariate Cox regression analysis, the authors reported that there was no significant relation between mtDNA levels and renal survival [37].
Our cross-sectional study represents a starting point for the identification of non-coding RNAs and mRNAs as biomarkers for DKD. However, these data should be confirmed in a larger independent external cohort. Furthermore, in order to establish if identified RNA molecules can have a prognostic value, their downregulation should be confirmed in longitudinal cohorts, analyzing transcript expression serially and in association with the variation of other functional parameters. Although eGFR represents the main reference biomarker in clinical practice, once further validated in longitudinal cohorts these data could provide novel additional biomarkers for DKD, especially for patients who develop DKD and remain in a normoalbuminuric stage. Even with these limitations, this study offers a new and promising approach to biomarker discovery for DKD.

4. Materials and Methods

4.1. Study Population

Diabetic patients were enrolled by the Internal Medicine Unit of the Garibaldi-Nesima Hospital, University of Catania.
Diabetes patients presented fasting blood glucose ≥126 mg/dL and HbA1c ≥ 6.5% (48 mmol/mol) [38]. In order to define the presence of DKD complications, the Albumin/Creatinine Ratio (ACR) and eGFR were estimated. Our study included a total of 81 patients.
12 patients represented the discovery cohort: 6 diabetic patients without DKD: ACR < 30 mg/g (normoalbuminuria), eGFR ≥ 90 mL/min/1.73 m2 (stage G1); 6 diabetic patients with DKD: ACR between 30 and 299 mg/g (microalbuminuria); eGFR between 30 and 59 mL/min/1.73 m2 (stage G3).
69 patients were included in the validation cohort that was grouped according to ACR (n = 36 normoalbuminuric subjects, n= 33 microalbuminuric subjects) or eGFR (n = 23 stage G1: eGFR ≥ 90 mL/min/1.73 m2, stage G2: n = 25 eGFR between 60 and 89 mL/min/1.73 m2, n = 20 stage G3: eGFR between 30 and 59 mL/min/1.73 m2).
We excluded from our study patients with type 1 diabetes mellitus, nondiabetic kidney disease, hepatic diseases, autoimmune disorders, cancer, and diabetes mellitus complicated with cardiovascular diseases. For all patients, clinical, biochemical, pharmacological, and anthropometric data were collected.

4.2. Sample Processing

Blood samples were maintained at room temperature for one hour and subsequently centrifuged at 3500 rpm at 4 °C for 15 min in order to allow serum separation from whole blood. Serum was further centrifuged in order to remove eventual cell debris. The upper-layer supernatant was collected, and aliquots were stored at −80 until analysis.

4.3. RNA Extraction

Total RNA extraction was performed from 400 μL of serum by using the miRNeasy mini kit (QIAGEN) according to the manufacturer’s instructions. RNA elution was performed in a final volume of 200 μL. RNA concentration and quality assessment was performed by using the NanoDrop One (Thermo Fisher Scientific) [38,39,40,41].

4.4. Microarray Analysis

The high-throughput profiling of coding/non-coding RNAs in serum samples of six diabetic patients with DKD, and six matched diabetic patients without DKD, was performed by using Clariom D Pico Assay (Thermo Fisher Scientific, Milan, Italy) technology according to the manufacturer’s instruction [42,43].

4.5. In Silico Analysis

In order to highlight a potential association between microarray-identified dysregulated transcripts and molecular pathways consistent with DKD pathogenesis, we performed enrichment pathways analysis by using Transcriptome Analysis Console 4. This retrieves canonical biological pathways from the WikiPathways (Thermo Fisher Scientific, Santa Clara, CA, USA) database and returns p-values applying a two-sided Fisher’s Exact Test (−log p-value ≥ 1.13) [42,43].

4.6. Validation by qPCRs

To validate microarray results, the expression of six candidate transcripts among the most dysregulated ones (4 mRNAs and 2 “Aceview” reported transcripts) were analyzed in the serum samples of the validation cohort (n = 69) through Real-Time PCR (Power SYBR Green RNA-to-CT1-Step Kit (Thermo Fisher Scientific)) [44,45], in a QuantStudio 5 system (Thermo Fisher Scientific). ACTB was used as reference gene and relative quantification data were determined through the 2−ΔΔCt method. The sequences of primers used in qPCRs are reported in Table 5.

4.7. Statistical Analysis

Microarray raw data normalization and the identification of Differentially Expressed (DE) transcripts were performed through Transcriptome Analysis Console (TAC) v 4. software according to the following parameters: Analysis Type: Expression Gene, Summarization Method: Gene Level—RMA, FDR p-Value < 0.05.
In order to check the normal distribution of clinical and expression data, three different normality tests were applied: the D’Agostino-Pearson omnibus test, the Shapiro–Wilk normality test and the Kolmogorov–Smirnov normality test. The unpaired t-test or Mann–Whitney U-test was used to analyze the statistical significance of expression data for parametric or no parametric data in normoalbuminuric versus microalbuminuric patient comparison. The one-way ANOVA or Kruskal–Wallis test was used to analyze the statistical significance of expression results for normal or no normal data in patients with increasing stages of eGFR (stages 1, 2 and 3).
We performed linear regression analysis or Spearman correlation (respectively, for normally or not normally distributed data) in order to identify a potential relationship between transcript expression values and subject clinical data. The statistical analyses were performed by using GraphPad Prism 6.0 (GraphPad Software, Inc., San Diego, CA, USA).
ROC curves and AUC were used to assess the diagnostic performance of identified differentially expressed RNAs for discrimination of eGFR severity grades of DKD. SPSS PASW Statistics V.27 was used for ROC curve analysis [42,43].

5. Conclusions

This study proposes the dosage of coding and non-coding RNAs as biomarkers of DKD. An important finding of our work is that addressing the biomarker discovery in the expression analysis of mitochondrially encoded RNAs could pave the way to the identification of novel DKD biomarkers.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23158198/s1.

Author Contributions

Conceptualization, S.D.M. and A.S.; Data curation, S.D.M., A.S., A.F., M.D.M. and R.M. Formal analysis, S.D.M., A.S., A.F., M.D.M., A.D.P. and R.S.; Funding acquisition, F.P. and S.P.; Investigation, S.D.M., A.S., A.F. and M.D.M.; Methodology, S.D.M., A.S., A.F., M.T.D.M. and F.S.; Project administration, S.P.; Resources, F.P. and S.P.; Supervision, F.P. and S.P. All authors contributed to the critical revision of the data. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the Ethics Committee of Catania 2 (702/CE, SMP-01, 23 Sep 2016, n.28/2016/CECT2).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Acknowledgments

We wish to thank the Scientific Bureau of the University of Catania for language support. This study was in keeping with the objectives of the project “DEGENER-action”, Department of Clinical and Experimental Medicine University of Catania. All individuals included in this section have consented to the acknowledgement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Afkarian, M.; Zelnick, L.R.; Hall, Y.N.; Heagerty, P.J.; Tuttle, K.; Weiss, N.S.; de Boer, I.H. Clinical Manifestations of Kidney Disease among US Adults with Diabetes, 1988–2014. JAMA 2016, 316, 602–610. [Google Scholar] [CrossRef] [PubMed]
  2. Tuttle, K.R.; Bakris, G.L.; Bilous, R.W.; Chiang, J.L.; de Boer, I.H.; Goldstein-Fuchs, J.; Hirsch, I.B.; Kalantar-Zadeh, K.; Narva, A.S.; Navaneethan, S.D.; et al. Diabetic Kidney Disease: A Report from an ADA Consensus Conference. Diabetes Care 2014, 37, 2864–2883. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Toth-Manikowski, S.; Atta, M.G. Diabetic Kidney Disease: Pathophysiology and Therapeutic Targets. J. Diabetes Res. 2015, 2015, 697010. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Forbes, J.M.; Coughlan, M.T.; Cooper, M.E. Oxidative Stress as a Major Culprit in Kidney Disease in Diabetes. Diabetes 2008, 57, 1446–1454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Vallon, V.; Komers, R. Pathophysiology of the Diabetic Kidney. Compr. Physiol. 2011, 1, 1175–1232. [Google Scholar] [CrossRef]
  6. Østergaard, J.A.; Cooper, M.E.; Jandeleit-Dahm, K.A.M. Targeting Oxidative Stress and Anti-Oxidant Defence in Diabetic Kidney Disease. J. Nephrol. 2020, 33, 917–929. [Google Scholar] [CrossRef]
  7. Sutariya, B.; Jhonsa, D.; Saraf, M.N. TGF-β: The Connecting Link between Nephropathy and Fibrosis. Immunopharmacol. Immunotoxicol. 2016, 38, 39–49. [Google Scholar] [CrossRef]
  8. Campion, C.G.; Sanchez-Ferras, O.; Batchu, S.N. Potential Role of Serum and Urinary Biomarkers in Diagnosis and Prognosis of Diabetic Nephropathy. Can. J. Kidney Health Dis. 2017, 4, 2054358117705371. [Google Scholar] [CrossRef]
  9. American Diabetes Association Professional Practice Committee 11. Chronic Kidney Disease and Risk Management: Standards of Medical Care in Diabetes—2022. Diabetes Care 2022, 45, S175–S184. [Google Scholar] [CrossRef] [PubMed]
  10. Tankeu, A.T.; Kaze, F.F.; Noubiap, J.J.; Chelo, D.; Dehayem, M.Y.; Sobngwi, E. Exercise-Induced Albuminuria and Circadian Blood Pressure Abnormalities in Type 2 Diabetes. World J. Nephrol. 2017, 6, 209–216. [Google Scholar] [CrossRef] [PubMed]
  11. MacIsaac, R.J.; Ekinci, E.I.; Jerums, G. Progressive Diabetic Nephropathy. How Useful Is Microalbuminuria?: Contra. Kidney Int. 2014, 86, 50–57. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Botev, R.; Mallié, J.-P.; Wetzels, J.F.M.; Couchoud, C.; Schück, O. The Clinician and Estimation of Glomerular Filtration Rate by Creatinine-Based Formulas: Current Limitations and Quo Vadis. Clin. J. Am. Soc. Nephrol. 2011, 6, 937–950. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Barutta, F.; Bellini, S.; Canepa, S.; Durazzo, M.; Gruden, G. Novel Biomarkers of Diabetic Kidney Disease: Current Status and Potential Clinical Application. Acta Diabetol. 2021, 58, 819–830. [Google Scholar] [CrossRef]
  14. Nielsen, S.E.; Reinhard, H.; Zdunek, D.; Hess, G.; Gutiérrez, O.M.; Wolf, M.; Parving, H.-H.; Jacobsen, P.K.; Rossing, P. Tubular Markers Are Associated with Decline in Kidney Function in Proteinuric Type 2 Diabetic Patients. Diabetes Res. Clin. Pract. 2012, 97, 71–76. [Google Scholar] [CrossRef] [PubMed]
  15. Satirapoj, B. Tubulointerstitial Biomarkers for Diabetic Nephropathy. J. Diabetes Res. 2018, 2018, 2852398. [Google Scholar] [CrossRef] [PubMed]
  16. Araki, S.; Haneda, M.; Koya, D.; Isshiki, K.; Kume, S.; Sugimoto, T.; Kawai, H.; Nishio, Y.; Kashiwagi, A.; Uzu, T.; et al. Association between Urinary Type IV Collagen Level and Deterioration of Renal Function in Type 2 Diabetic Patients without Overt Proteinuria. Diabetes Care 2010, 33, 1805–1810. [Google Scholar] [CrossRef] [Green Version]
  17. Jung, C.-Y.; Yoo, T.-H. Pathophysiologic Mechanisms and Potential Biomarkers in Diabetic Kidney Disease. Diabetes Metab. J. 2022, 46, 181–197. [Google Scholar] [CrossRef]
  18. Di Mauro, S.; Scamporrino, A.; Filippello, A.; Di Pino, A.; Scicali, R.; Malaguarnera, R.; Purrello, F.; Piro, S. Clinical and Molecular Biomarkers for Diagnosis and Staging of NAFLD. Int. J. Mol. Sci. 2021, 22, 11905. [Google Scholar] [CrossRef] [PubMed]
  19. Hanson, R.L.; Craig, D.W.; Millis, M.P.; Yeatts, K.A.; Kobes, S.; Pearson, J.V.; Lee, A.M.; Knowler, W.C.; Nelson, R.G.; Wolford, J.K. Identification of PVT1 as a Candidate Gene for End-Stage Renal Disease in Type 2 Diabetes Using a Pooling-Based Genome-Wide Single Nucleotide Polymorphism Association Study. Diabetes 2007, 56, 975–983. [Google Scholar] [CrossRef] [Green Version]
  20. Puthanveetil, P.; Chen, S.; Feng, B.; Gautam, A.; Chakrabarti, S. Long Non-Coding RNA MALAT1 Regulates Hyperglycaemia Induced Inflammatory Process in the Endothelial Cells. J. Cell. Mol. Med. 2015, 19, 1418–1425. [Google Scholar] [CrossRef]
  21. Wang, M.; Yao, D.; Wang, S.; Yan, Q.; Lu, W. Long Non-Coding RNA ENSMUST00000147869 Protects Mesangial Cells from Proliferation and Fibrosis Induced by Diabetic Nephropathy. Endocrine 2016, 54, 81–92. [Google Scholar] [CrossRef] [PubMed]
  22. Simpson, K.; Wonnacott, A.; Fraser, D.J.; Bowen, T. MicroRNAs in Diabetic Nephropathy: From Biomarkers to Therapy. Curr. Diab. Rep. 2016, 16, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ragusa, M.; Bosco, P.; Tamburello, L.; Barbagallo, C.; Condorelli, A.G.; Tornitore, M.; Spada, R.S.; Barbagallo, D.; Scalia, M.; Elia, M.; et al. MiRNAs Plasma Profiles in Vascular Dementia: Biomolecular Data and Biomedical Implications. Front. Cell. Neurosci. 2016, 10, 51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Feng, S.-T.; Yang, Y.; Yang, J.-F.; Gao, Y.-M.; Cao, J.-Y.; Li, Z.-L.; Tang, T.-T.; Lv, L.-L.; Wang, B.; Wen, Y.; et al. Urinary Sediment CCL5 Messenger RNA as a Potential Prognostic Biomarker of Diabetic Nephropathy. Clin. Kidney J. 2022, 15, 534–544. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, G.; Lai, F.M.-M.; Lai, K.-B.; Chow, K.-M.; Li, K.-T.P.; Szeto, C.-C. Messenger RNA Expression of Podocyte-Associated Molecules in the Urinary Sediment of Patients with Diabetic Nephropathy. Nephron Clin. Pract. 2007, 106, c169–c179. [Google Scholar] [CrossRef] [PubMed]
  26. Zheng, M.; Lv, L.-L.; Ni, J.; Ni, H.-F.; Li, Q.; Ma, K.-L.; Liu, B.-C. Urinary Podocyte-Associated MRNA Profile in Various Stages of Diabetic Nephropathy. PLoS ONE 2011, 6, e20431. [Google Scholar] [CrossRef] [Green Version]
  27. Zhao, C.; Hu, J.; Wang, Z.; Cao, Z.-Y.; Wang, L. Serum LncRNA PANDAR May Act as a Novel Serum Biomarker of Diabetic Nephropathy in Patients with Type 2 Diabetes. Clin. Lab. 2020, 66, 1067–1072. [Google Scholar] [CrossRef]
  28. Gao, J.; Wang, W.; Wang, F.; Guo, C. LncRNA-NR_033515 Promotes Proliferation, Fibrogenesis and Epithelial-to-Mesenchymal Transition by Targeting MiR-743b-5p in Diabetic Nephropathy. Biomed. Pharmacother. 2018, 106, 543–552. [Google Scholar] [CrossRef]
  29. De Silva, D.; Tu, Y.-T.; Amunts, A.; Fontanesi, F.; Barrientos, A. Mitochondrial Ribosome Assembly in Health and Disease. Cell Cycle Georget. Tex 2015, 14, 2226–2250. [Google Scholar] [CrossRef] [Green Version]
  30. Yang, W.; Zhang, K.; Li, L.; Xu, Y.; Ma, K.; Xie, H.; Zhou, J.; Cai, L.; Gong, Y.; Gong, K. Downregulation of LncRNA ZNF582-AS1 Due to DNA Hypermethylation Promotes Clear Cell Renal Cell Carcinoma Growth and Metastasis by Regulating the N(6)-Methyladenosine Modification of MT-RNR1. J. Exp. Clin. Cancer Res. 2021, 40, 92. [Google Scholar] [CrossRef]
  31. Antoun, G.; McMurray, F.; Thrush, A.B.; Patten, D.A.; Peixoto, A.C.; Slack, R.S.; McPherson, R.; Dent, R.; Harper, M.-E. Impaired Mitochondrial Oxidative Phosphorylation and Supercomplex Assembly in Rectus Abdominis Muscle of Diabetic Obese Individuals. Diabetologia 2015, 58, 2861–2866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Maranzana, E.; Barbero, G.; Falasca, A.I.; Lenaz, G.; Genova, M.L. Mitochondrial Respiratory Supercomplex Association Limits Production of Reactive Oxygen Species from Complex I. Antioxid. Redox Signal. 2013, 19, 1469–1480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sharma, K.; Karl, B.; Mathew, A.V.; Gangoiti, J.A.; Wassel, C.L.; Saito, R.; Pu, M.; Sharma, S.; You, Y.-H.; Wang, L.; et al. Metabolomics Reveals Signature of Mitochondrial Dysfunction in Diabetic Kidney Disease. J. Am. Soc. Nephrol. 2013, 24, 1901–1912. [Google Scholar] [CrossRef]
  34. Gordin, D.; Shah, H.; Shinjo, T.; St-Louis, R.; Qi, W.; Park, K.; Paniagua, S.M.; Pober, D.M.; Wu, I.-H.; Bahnam, V.; et al. Characterization of Glycolytic Enzymes and Pyruvate Kinase M2 in Type 1 and 2 Diabetic Nephropathy. Diabetes Care 2019, 42, 1263–1273. [Google Scholar] [CrossRef] [PubMed]
  35. Mise, K.; Galvan, D.L.; Danesh, F.R. Shaping Up Mitochondria in Diabetic Nephropathy. Kidney360 2020, 1, 982–992. [Google Scholar] [CrossRef]
  36. Al-Kafaji, G.; Aljadaan, A.; Kamal, A.; Bakhiet, M. Peripheral Blood Mitochondrial DNA Copy Number as a Novel Potential Biomarker for Diabetic Nephropathy in Type 2 Diabetes Patients. Exp. Ther. Med. 2018, 16, 1483–1492. [Google Scholar] [CrossRef] [Green Version]
  37. Wei, P.Z.; Kwan, B.C.-H.; Chow, K.M.; Cheng, P.M.-S.; Luk, C.C.-W.; Li, P.K.-T.; Szeto, C.C. Urinary Mitochondrial DNA Level Is an Indicator of Intra-Renal Mitochondrial Depletion and Renal Scarring in Diabetic Nephropathy. Nephrol. Dial. Transplant. 2018, 33, 784–788. [Google Scholar] [CrossRef] [Green Version]
  38. Scicali, R.; Di Pino, A.; Urbano, F.; Ferrara, V.; Marchisello, S.; Di Mauro, S.; Scamporrino, A.; Filippello, A.; Piro, S.; Rabuazzo, A.M.; et al. Analysis of S100A12 Plasma Levels in Hyperlipidemic Subjects with or without Familial Hypercholesterolemia. Acta Diabetol. 2019, 56, 899–906. [Google Scholar] [CrossRef]
  39. Di Mauro, S.; Salomone, F.; Scamporrino, A.; Filippello, A.; Morisco, F.; Guido, M.; Lembo, V.; Cossiga, V.; Pipitone, R.M.; Grimaudo, S.; et al. Coffee Restores Expression of LncRNAs Involved in Steatosis and Fibrosis in a Mouse Model of NAFLD. Nutrients 2021, 13, 2952. [Google Scholar] [CrossRef]
  40. Di Mauro, S.; Ragusa, M.; Urbano, F.; Filippello, A.; Di Pino, A.; Scamporrino, A.; Pulvirenti, A.; Ferro, A.; Rabuazzo, A.M.; Purrello, M.; et al. Intracellular and Extracellular MiRNome Deregulation in Cellular Models of NAFLD or NASH: Clinical Implications. Nutr. Metab. Cardiovasc. Dis. 2016, 26, 1129–1139. [Google Scholar] [CrossRef]
  41. Toro, M.D.; Reibaldi, M.; Avitabile, T.; Bucolo, C.; Salomone, S.; Rejdak, R.; Nowomiejska, K.; Tripodi, S.; Posarelli, C.; Ragusa, M.; et al. MicroRNAs in the Vitreous Humor of Patients with Retinal Detachment and a Different Grading of Proliferative Vitreoretinopathy: A Pilot Study. Transl. Vis. Sci. Technol. 2020, 9, 23. [Google Scholar] [CrossRef] [PubMed]
  42. Di Mauro, S.; Scamporrino, A.; Fruciano, M.; Filippello, A.; Fagone, E.; Gili, E.; Scionti, F.; Purrazzo, G.; Di Pino, A.; Scicali, R.; et al. Circulating Coding and Long Non-Coding RNAs as Potential Biomarkers of Idiopathic Pulmonary Fibrosis. Int. J. Mol. Sci. 2020, 21, 8812. [Google Scholar] [CrossRef] [PubMed]
  43. Di Mauro, S.; Scamporrino, A.; Petta, S.; Urbano, F.; Filippello, A.; Ragusa, M.; Di Martino, M.T.; Scionti, F.; Grimaudo, S.; Pipitone, R.M.; et al. Serum Coding and Non-Coding RNAs as Biomarkers of NAFLD and Fibrosis Severity. Liver Int. Off. J. Int. Assoc. Study Liver 2019, 39, 1742–1754. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Filippello, A.; Di Mauro, S.; Scamporrino, A.; Malaguarnera, R.; Torrisi, S.A.; Leggio, G.M.; Di Pino, A.; Scicali, R.; Purrello, F.; Piro, S. High Glucose Exposure Impairs L-Cell Differentiation in Intestinal Organoids: Molecular Mechanisms and Clinical Implications. Int. J. Mol. Sci. 2021, 22, 6660. [Google Scholar] [CrossRef]
  45. Filippello, A.; Urbano, F.; Di Mauro, S.; Scamporrino, A.; Di Pino, A.; Scicali, R.; Rabuazzo, A.M.; Purrello, F.; Piro, S. Chronic Exposure to Palmitate Impairs Insulin Signaling in an Intestinal L-Cell Line: A Possible Shift from GLP-1 to Glucagon Production. Int. J. Mol. Sci. 2018, 19, 3791. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 08198 g001 550

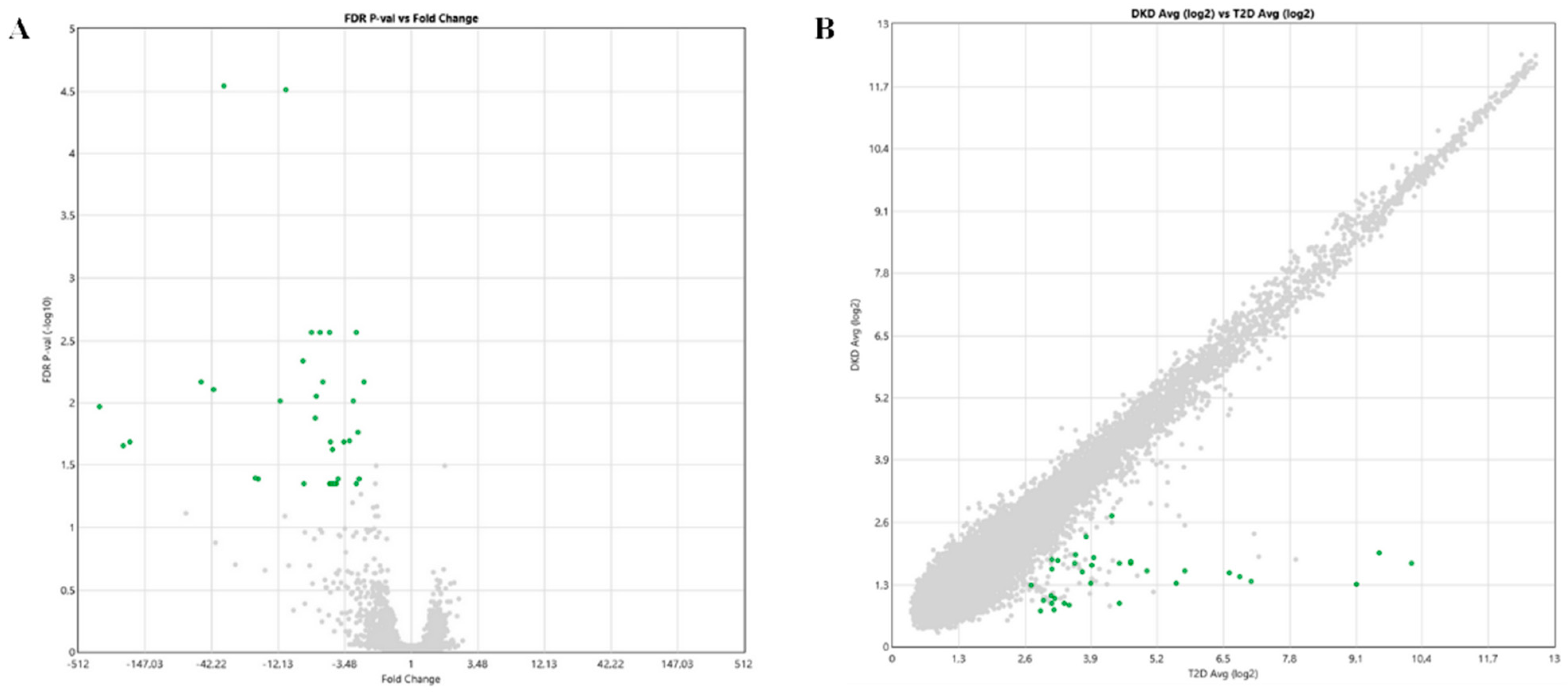

Figure 1. Volcano (A) and scatter plots (B) assessing the variation between diabetic patients with or without Diabetic Kidney Disease (DKD). The volcano plot visualizes the base 10 negative logarithm of the FDR-corrected p-values (Y-axis) and fold-change deregulation values (X-axis) (A). In the scatter plot, the values plotted on the X and Y axis are the averaged normalized signal values in each group (log2 scaled) (B). In both panels, green points indicate > 2.0-fold down-regulation of expression and grey points indicate < 2.0-fold-change in expression. FDR-corrected p-value < 0.05.
Figure 1. Volcano (A) and scatter plots (B) assessing the variation between diabetic patients with or without Diabetic Kidney Disease (DKD). The volcano plot visualizes the base 10 negative logarithm of the FDR-corrected p-values (Y-axis) and fold-change deregulation values (X-axis) (A). In the scatter plot, the values plotted on the X and Y axis are the averaged normalized signal values in each group (log2 scaled) (B). In both panels, green points indicate > 2.0-fold down-regulation of expression and grey points indicate < 2.0-fold-change in expression. FDR-corrected p-value < 0.05.
Ijms 23 08198 g001
Ijms 23 08198 g002 550

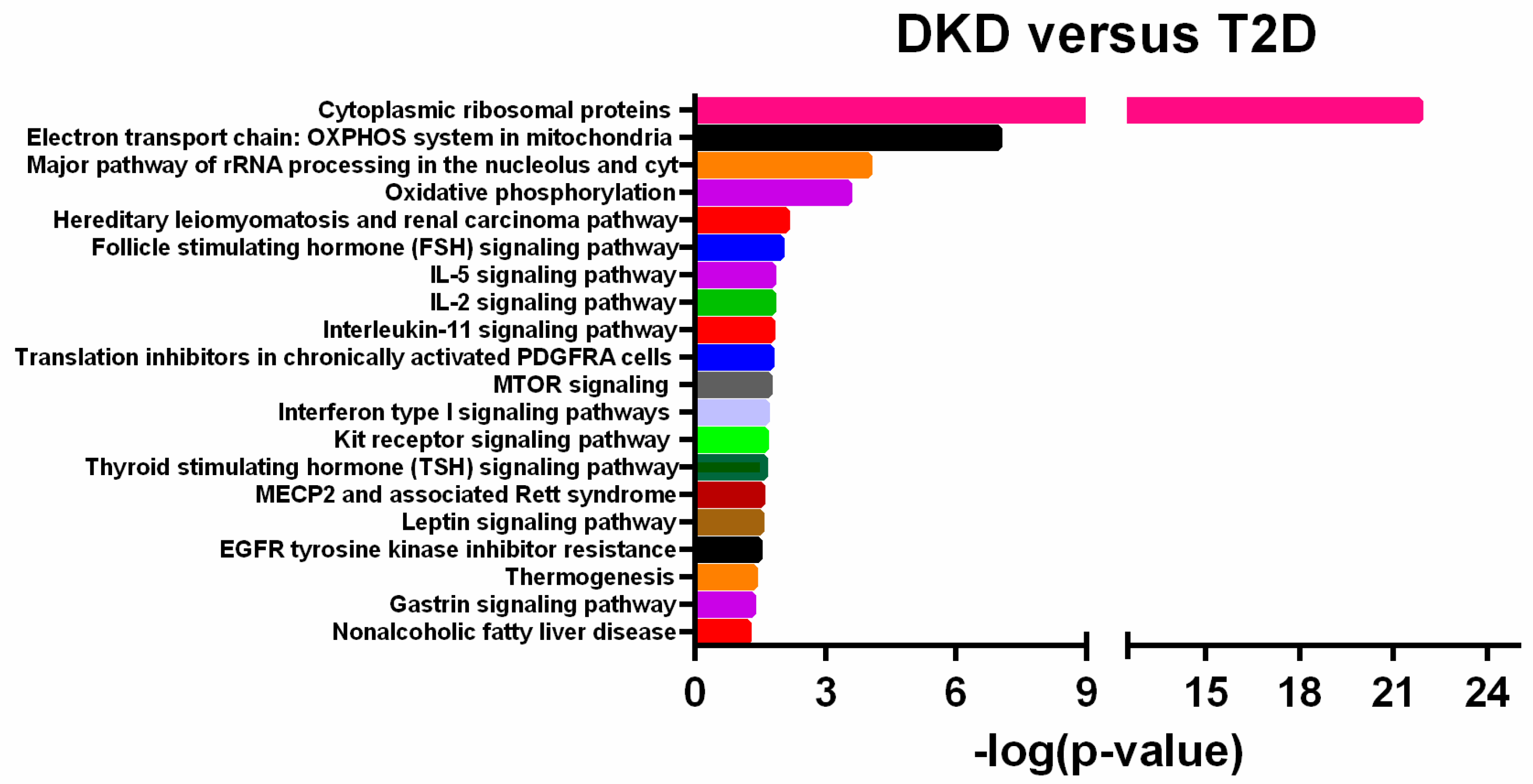

Figure 2. Enrichment pathway analysis: statistically significant pathways associated with Differentially Expressed (DE) transcripts in Diabetic Kidney Disease (DKD) patients versus diabetic patients without DKD (T2D). Y-axis reports the specific names of associated pathways, X-axis reports Fisher’s Exact Test values (−Log p-value ≥ 1.13).
Figure 2. Enrichment pathway analysis: statistically significant pathways associated with Differentially Expressed (DE) transcripts in Diabetic Kidney Disease (DKD) patients versus diabetic patients without DKD (T2D). Y-axis reports the specific names of associated pathways, X-axis reports Fisher’s Exact Test values (−Log p-value ≥ 1.13).
Ijms 23 08198 g002
Ijms 23 08198 g003 550

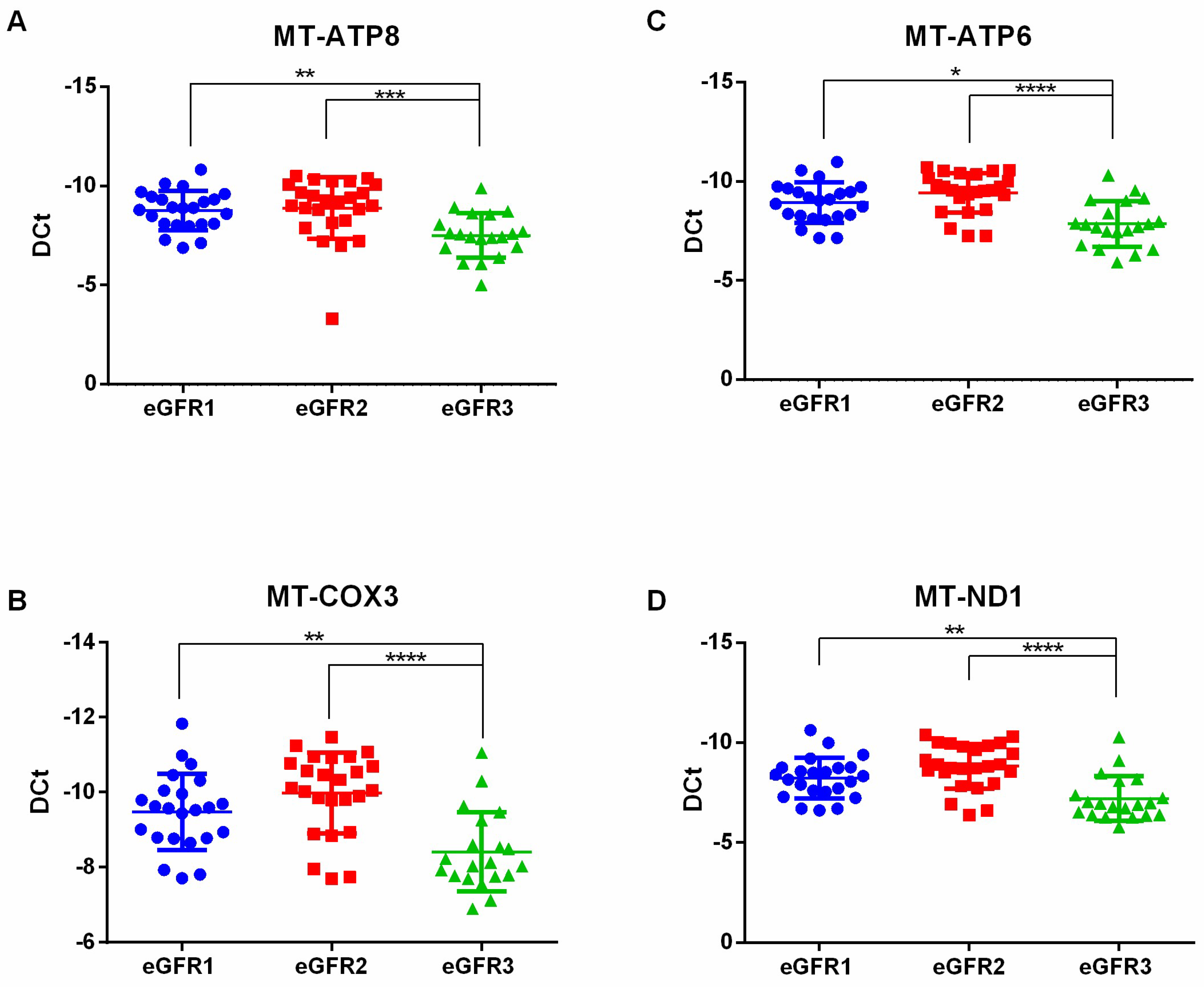

Figure 3. Dot plots of mitochondrial coding RNAs MT-ATP8 (panel A), MT-ATP6 (panel B), MT-COX3 (panel C) and MT-ND1 (panel D), validated through qPCR in serum samples of diabetic patients with increasing eGFR stages G1, G2 and G3. The Kruskal Wallis test was used for MT-ATP8 which presented a non-parametric distribution. The One-way ANOVA test was used for all the other transcripts showing parametric distributions. n = 69: G1 = 24, G2 = 25, G3 = 20. * p-value < 0.05 ** p-value < 0.01 *** p-value < 0.001 **** p-value < 0.0001.
Figure 3. Dot plots of mitochondrial coding RNAs MT-ATP8 (panel A), MT-ATP6 (panel B), MT-COX3 (panel C) and MT-ND1 (panel D), validated through qPCR in serum samples of diabetic patients with increasing eGFR stages G1, G2 and G3. The Kruskal Wallis test was used for MT-ATP8 which presented a non-parametric distribution. The One-way ANOVA test was used for all the other transcripts showing parametric distributions. n = 69: G1 = 24, G2 = 25, G3 = 20. * p-value < 0.05 ** p-value < 0.01 *** p-value < 0.001 **** p-value < 0.0001.
Ijms 23 08198 g003
Ijms 23 08198 g004 550
Figure 4. Dot plots of seysnoy (A) and skerdo (B) transcripts validated through qPCR in serum samples of diabetic patients with increasing eGFR stages G1, G2 and G3. The one-way ANOVA test was used for the two transcripts showing parametric distributions. n = 69: G1 = 24, G2 = 25, G3 = 20. * p-value < 0.05.
Figure 4. Dot plots of seysnoy (A) and skerdo (B) transcripts validated through qPCR in serum samples of diabetic patients with increasing eGFR stages G1, G2 and G3. The one-way ANOVA test was used for the two transcripts showing parametric distributions. n = 69: G1 = 24, G2 = 25, G3 = 20. * p-value < 0.05.
Ijms 23 08198 g004
Ijms 23 08198 g005 550

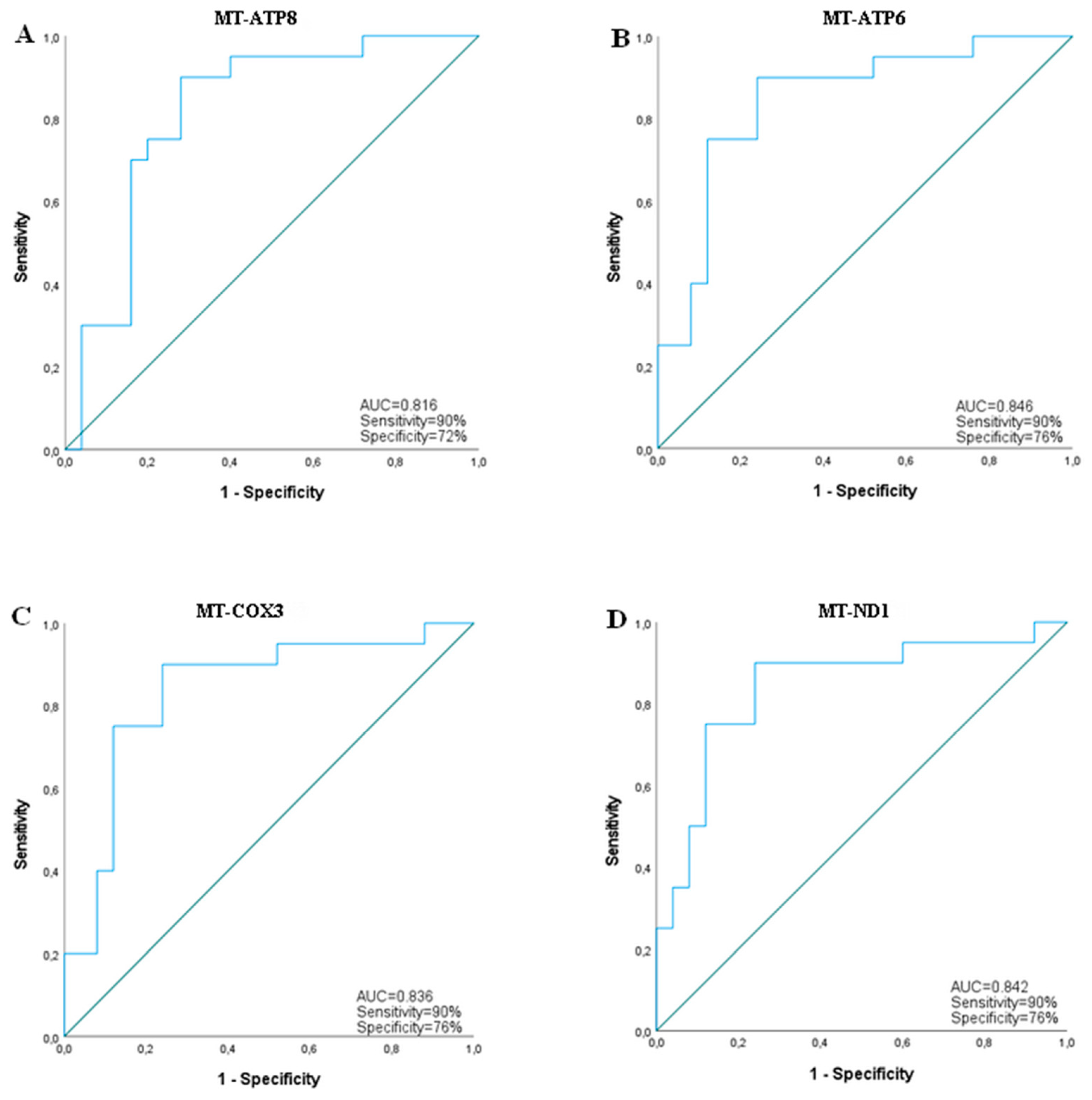

Figure 5. Receiver Operating Characteristic (ROC) analysis for predicting MT-ATP8 (A), MT-ATP6 (B), MT-COX3 (C) and MT-ND1 (D) as biomarkers of kidney function impairment in DKD (eGFR stage G3 versus G2).
Figure 5. Receiver Operating Characteristic (ROC) analysis for predicting MT-ATP8 (A), MT-ATP6 (B), MT-COX3 (C) and MT-ND1 (D) as biomarkers of kidney function impairment in DKD (eGFR stage G3 versus G2).
Ijms 23 08198 g005
Ijms 23 08198 g006 550

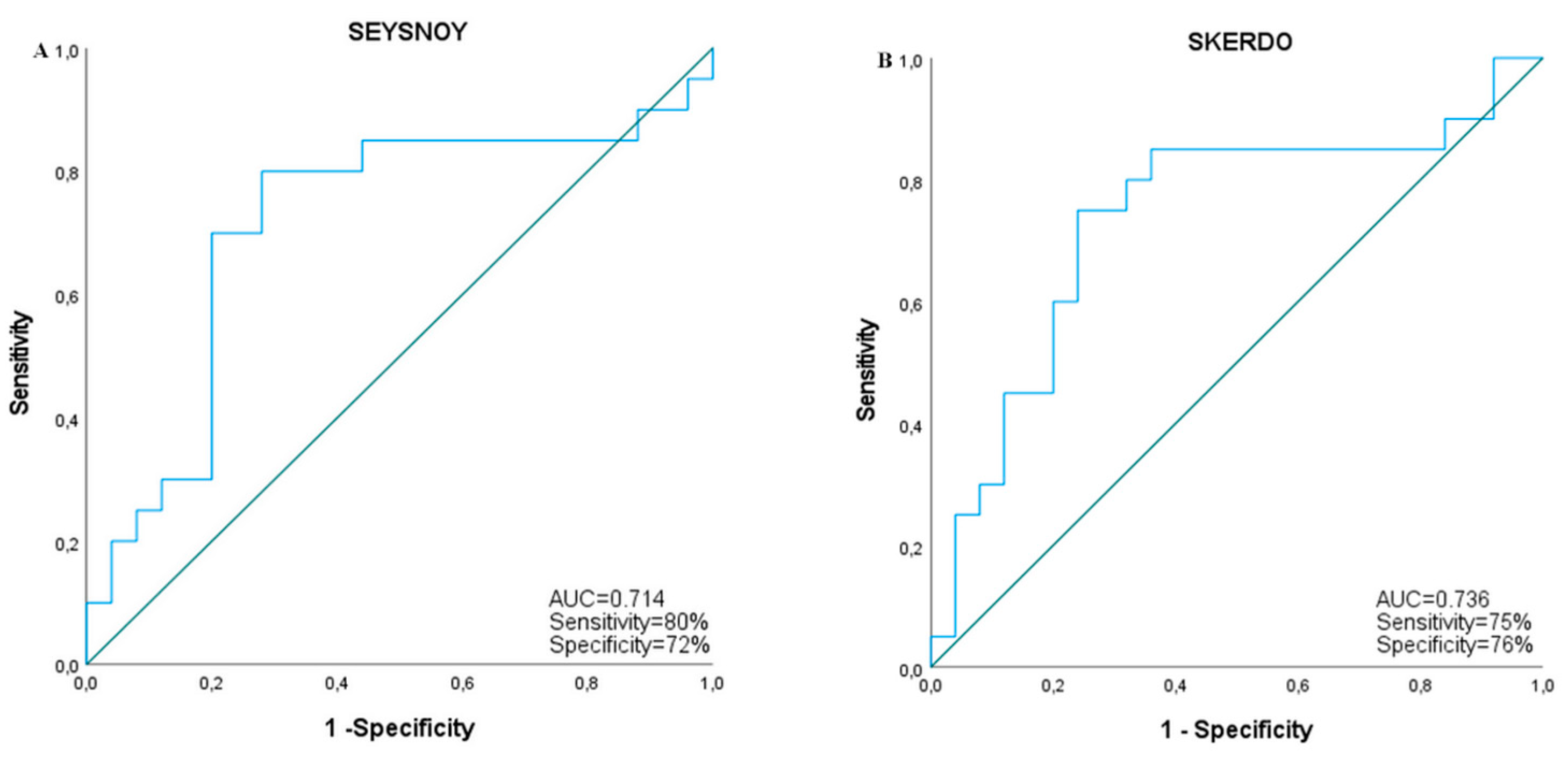

Figure 6. Receiver Operating Characteristic (ROC) analysis for predicting seysnoy (A) and skerdo (B) as biomarkers of kidney function impairment in DKD (eGFR stage G3 versus G2).
Figure 6. Receiver Operating Characteristic (ROC) analysis for predicting seysnoy (A) and skerdo (B) as biomarkers of kidney function impairment in DKD (eGFR stage G3 versus G2).
Ijms 23 08198 g006
Table
Table 1. Demographic and clinical data of the validation cohort. WC: Waist Circumference; BUN: Blood Urea Nitrogen; HbA1c: Hemoglobin A1; WBC: White Blood Cells; HCT: Haematocrit; BP: Blood Pressure.
Table 1. Demographic and clinical data of the validation cohort. WC: Waist Circumference; BUN: Blood Urea Nitrogen; HbA1c: Hemoglobin A1; WBC: White Blood Cells; HCT: Haematocrit; BP: Blood Pressure.
Clinical ParametersG1G2G3p-Value
Age67.30 ± 4.7968.00 ± 5.1070.60 ± 4.970.0825
Gender (% M)78.2680.7775.000.8953
BMI (kg/m2)27.25 (25.92–33.49)29.17 (27.90–32.46)29.76 (24.98–34.69)0.6300
WC (cm)104.10 ± 14.15108.60 ± 12.97107.50 ± 9.430.4900
AST (UI/L)24.00 (22–29)25.00 (21–34.50)24.00 (21.50–30)0.8400
ALT (UI/L)31.00 ± (21–38)25.50 ± (19–45)18.50 ± (13–29.50)0.0600
COL. TOT (mg/dL)158.00 (122–180)181.50 (143.5–207)171.50 (141.3–209.5)0.1700
HDL (mg/dL)47.96 ± 9.3845.65 ± 12.7847.25 ± 11.200.7700
LDL (mg/dL)75.40 (51.60–100.60)96.70 (78.25–126.70)77.40 (68.25–139.30)0.0900
Triglycerides (mg/dL)146.00 (83–202)126.00 (88.75–244)133.50 (108–156)0.9200
Uric acid (mg/dL)5.17 ± 1.636.25 ± 1.516.59 ± 1.250.0100
BUN (mg/dL)18.22 (21.50–26.64)21.96 (23.71–28.97)33.41 (38.43–48.13)<0.0001
HBA1c (%)7.70 ± 1.347.70 ± 1.648.00 ± 1.350.9400
Creatinine (mg/dL)0.73 (0.66–0.81)0.96 (0.85–1.05)1.40 (1.08–1.48)<0.0001
Albuminuria (mcg/mL)25.00 (12–33)24.50 (6.75–124.8)17.00 (10.50–37.75)0.7900
ALB/CREAT26.00 (14–45)32.00 (8.5–72.5)28.50 (13.25–89)0.7900
WBC (μL−1)7900 (5700–8900)6200 (5200–8125)7550 (5800–8875)0.1400
HCT (%)44.40 (42.20–46)42.60 (39.93–45.13)40.05 (37.60–41.70)0.0100
Systolic BP (mmHg)120.7 ± 11.20125 ± 10.54129.8 ± 110.0277
Dyastolic BP (mmHG)75 ± 7.4379.36 ± 6.9080.65 ± 6.300.0210
Hyperthesis subjects (% H)58.368950.0208
Table
Table 2. p-values and fold-change expression values of selected transcripts analyzed through Real-Time PCR in the validation cohort in G3 versus G2 or G1 comparisons.
Table 2. p-values and fold-change expression values of selected transcripts analyzed through Real-Time PCR in the validation cohort in G3 versus G2 or G1 comparisons.
TranscriptsFC
G3 vs. G1		FC
G3 vs. G2		p-Value
G3 vs. G1		p-Value
G3 vs. G2
MT-ATP8−2.6−3.30.00700.0003
MT-ATP6−2.4−3.40.0300<0.0001
MT-COX3−2.8−4.10.0040<0.0001
MT-ND1−2.6−3.70.0080<0.0001
Seysnoy-−1.80.13670.0200
Skerdo−1.6−1.80.04000.0100
Table
Table 3. p-Values of Spearman correlation analysis between the expression levels of analyzed transcripts and clinical patients’ data.
Table 3. p-Values of Spearman correlation analysis between the expression levels of analyzed transcripts and clinical patients’ data.
TranscriptsCreatinine (mg/dL)eGFR ckd-epi
(mL/m × 1.73 m2)		WBC (μL−1)BUN (mg/dL)
MT-ATP80.00230.00310.06020.0010
MT-ATP60.01120.01560.08890.0082
MT-COX30.01350.01550.13940.0050
MT-ND10.01010.01580.11680.0046
skerdo0.00780.00630.01700.0252
seysnoy0.03540.03030.01740.04403
Table
Table 4. p-values and fold-change expression values of selected transcripts analyzed through Real-Time PCR in the validation cohort in G3 versus G2 or G1 comparisons.
Table 4. p-values and fold-change expression values of selected transcripts analyzed through Real-Time PCR in the validation cohort in G3 versus G2 or G1 comparisons.
TranscriptsAUCCIp-ValueSensitivitySpecificity
MT-ATP80.8160.687–0.9452.0 × 10−690%72%
MT-ATP60.8460.728–0.9647.8 × 10−590%76%
MT-COX30.8360.710–0.9621.2 × 10−490%76%
MT-ND10.8420.718–0.9669.4 × 10−590%76%
seysnoy0.7140.580–0.8921.0 × 10−275%76%
Skerdo0.7360.580–0.8923.0 × 10−380%72%
Table
Table 5. Primer sequences of transcripts analyzed through qPCRs.
Table 5. Primer sequences of transcripts analyzed through qPCRs.
TranscriptsPrimer Sequences
MT-ATP8F 5′ ACAGTGAAATGCCCCAACTAAAT 3′
R 5′ AGGGAGGTAGGTGGTAGTTTGTG 3′
MT-ATP6F 5′ ACCTTCCCTCTACACTTATCATCTT3′
R 5′ CGTGCAGGTAGAGGCTTACT 3′
MT-COX3F 5′ TTCACCATTTCCGACGGCAT 3′
R 5 GGCGGATGAAGCAGATAGTGA’ 3′
MT-ND1F 5′ CGGGCTACTACAACCCTTCG 3′
R 5 AGATGTGGCGGGTTTTAGGG 3′
seysnoyF 5′ TACCCCACTATGCTTAGCCCT 3′
R 5′ AGCTGTGGCTCGTAGTGTTC 3′
skerdoF 5′ GGGTTGGTCAATTTCGTGCC 3′
R 5′ ACACTCTTTACGCCGGTTTCT 3′
ACTB2F 5′ GAGCACAGAGCCTCGCCTTT 3′
R 5′GAGCGCGGCGATATCATCA 3′
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Di Mauro, S.; Scamporrino, A.; Filippello, A.; Di Marco, M.; Di Martino, M.T.; Scionti, F.; Di Pino, A.; Scicali, R.; Malaguarnera, R.; Purrello, F.; et al. Mitochondrial RNAs as Potential Biomarkers of Functional Impairment in Diabetic Kidney Disease. Int. J. Mol. Sci. 2022, 23, 8198. https://doi.org/10.3390/ijms23158198

AMA Style

Di Mauro S, Scamporrino A, Filippello A, Di Marco M, Di Martino MT, Scionti F, Di Pino A, Scicali R, Malaguarnera R, Purrello F, et al. Mitochondrial RNAs as Potential Biomarkers of Functional Impairment in Diabetic Kidney Disease. International Journal of Molecular Sciences. 2022; 23(15):8198. https://doi.org/10.3390/ijms23158198

Chicago/Turabian Style

Di Mauro, Stefania, Alessandra Scamporrino, Agnese Filippello, Maurizio Di Marco, Maria Teresa Di Martino, Francesca Scionti, Antonino Di Pino, Roberto Scicali, Roberta Malaguarnera, Francesco Purrello, and et al. 2022. "Mitochondrial RNAs as Potential Biomarkers of Functional Impairment in Diabetic Kidney Disease" International Journal of Molecular Sciences 23, no. 15: 8198. https://doi.org/10.3390/ijms23158198

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
