Design, Synthesis, Molecular Docking Analysis and Biological Evaluations of 4-[(Quinolin-4-yl)amino]benzamide Derivatives as Novel Anti-Influenza Virus Agents

Abstract

In this study, a series of 4-[(quinolin-4-yl)amino]benzamide derivatives as the novel anti-influenza agents were designed and synthesized. Cytotoxicity assay, cytopathic effect assay and plaque inhibition assay were performed to evaluate the anti-influenza virus A/WSN/33 (H1N1) activity of the target compounds. The target compound G07 demonstrated significant anti-influenza virus A/WSN/33 (H1N1) activity both in cytopathic effect assay (EC₅₀ = 11.38 ± 1.89 µM) and plaque inhibition assay (IC₅₀ = 0.23 ± 0.15 µM). G07 also exhibited significant anti-influenza virus activities against other three different influenza virus strains A/PR/8 (H1N1), A/HK/68 (H3N2) and influenza B virus. According to the result of ribonucleoprotein reconstitution assay, G07 could interact well with ribonucleoprotein with an inhibition rate of 80.65% at 100 µM. Furthermore, G07 exhibited significant activity target PA−PB1 subunit of RNA polymerase according to the PA−PB1 inhibitory activity prediction by the best pharmacophore Hypo1. In addition, G07 was well drug-likeness based on the results of Lipinski’s rule and ADMET prediction. All the results proved that 4-[(quinolin-4-yl)amino]benzamide derivatives could generate potential candidates in discovery of anti-influenza virus agents.

1. Introduction

Influenza virus remains to be a grand challenge to public health due to the high incidence and mortality. It belongs to pathogenic microorganisms causing acute respiratory diseases [1]. The course of the influenza mainly depends on the different flu strains in addition to the host immune response. Usually, influenza viruses are classified into four types (A, B, C and D) according to their nucleoprotein (NP) and matrix protein 1 (M1). Among the four types of influenza viruses, influenza A virus was further divided into many kinds of subtypes based on their surface glycoproteins, hemagglutinin (HA) and neuraminidase (NA). The influenza A virus infected a wide range of avian and mammalian hosts, while influenza B virus infected only humans [2]. These differences increased the severity of the disease [3,4].

Currently, influenza vaccination was the preferred method for prophylaxis of influenza. However, the initial supply of the vaccines might not be sufficient to meet the demand for them [5,6] due to the rapid mutations of the virus genes and the constraints in manufacturing capacity and efficiency of pharmaceutical companies [7,8,9]. Nowadays, three classes of influenza antiviral drugs have been approved by the U.S. Food and Drug Administration (FDA): M2 ion-channel protein inhibitors (amantadine and rimantadine), neuraminidase inhibitors (oseltamivir, zanamivir and peramivir) and RNA-dependent RNA polymerase (RDRP) inhibitors (favipiravir and baloxavir) [10,11,12,13,14]. However, drug resistance of these anti-influenza virus drugs have been emerged in varying degrees [15]. Thus, there is an urgent demand for the development of new anti-influenza drugs.

Influenza virus belongs to the orthomyxoviridae family. It contains a segmented single-stranded negative sense RNA genome [16] which is encapsidated into a ribonucleoprotein (RNP) molecule. RNP plays a crucial role in the life cycle of influenza virus and the viral genome transcription and replication in infected cells. It is composed of RNA-dependent RNA polymerase (RdRp) complex (including the polymerase acidic protein (PA), polymerase basic protein 1 (PB1) and polymerase basic protein 2 (PB2)) and nucleoprotein (NP). The C-terminal region of PA (PA_C) contacts with the N-terminal region of PB1 (PB1_N). The C-terminal region of PB1 (PB1_C) was involved in protein−protein interaction with the N-terminal region of PB2 (PB2_N) [13,14]. The viral RNA polymerase is validated targets for the development of new antiviral therapies and the protein−protein interactions between PA, PB1 and PB2 make it possible to develop protein−protein interaction inhibitors.

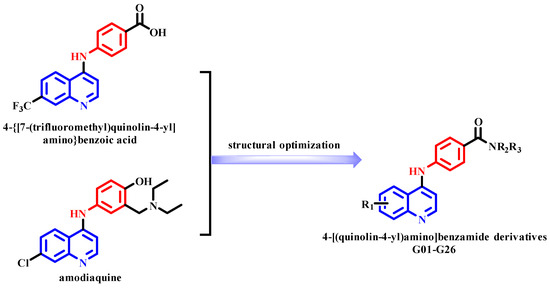

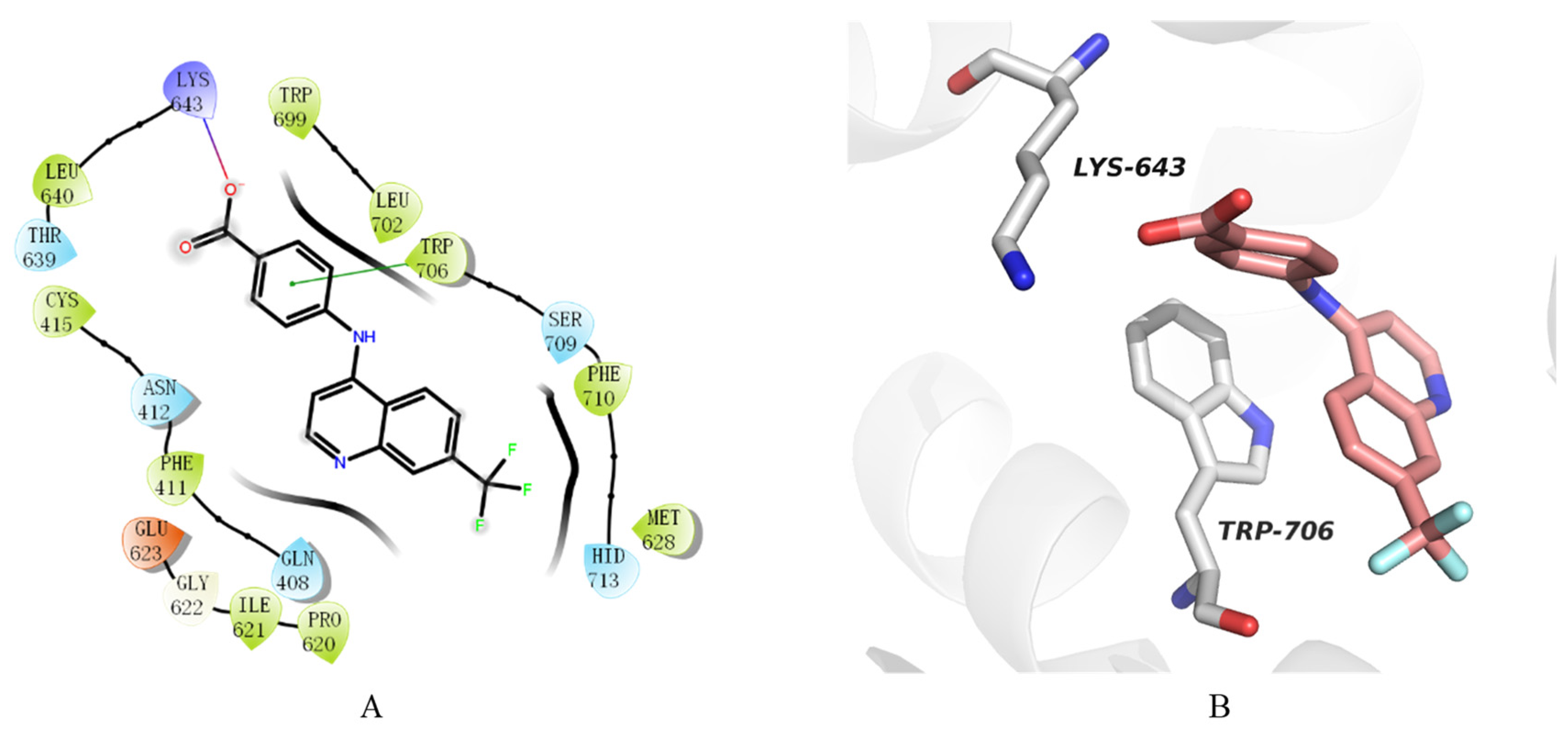

In this study, we attempted to employ computer aided drug design to discover potential hit compounds against the RNA polymerase (PA−PB1, PDB ID: 3CM8) from our in-house compound database (2500 compounds). Firstly, the molecular docking calculations were implied using Glide program in Schrödinger software. Then, 5 compounds with docking scores less than −5.000 kcal/mol were subjected to biological activity assays [cytotoxicity assay, cytopathic effect (CPE) assay and plaque inhibition assay]. To our surprise, 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzoic acid exhibited moderated anti-influenza virus (A/WSN/33, H1N1) activity with an EC₅₀ value of 22.94 µM based on the CPE assay. Furthermore, 4-{[7-(trifluoromethyl)quinolin-4-yl] amino}benzoic acid had an inhibition rate of 50.00% at 50 µM according to plaque inhibition assay. The benzene ring and the oxygen atom in 4-aminobenzoic acid of this compound revealed pivotal interactions with the RNA polymerase (PA−PB1, PDB ID: 3CM8) according to the docking study (the benzene ring of 4-aminobenzoic acid formed Pi-Pi stacking interaction with TRP706 and the oxygen atom in carboxylic acid of 4-aminobenzoic acid generated salt bridge with LYS643) (Figure 1). We infered that 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzoic acid could interact with PA_C to disrupts PA−PB1 interaction. Although 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}ben- zoic acid exhibited moderate anti-influenza virus activity, the structural skeleton of 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzoic acid was similar with available broad-spectra anti-influenza virus inhibitors amodiaquine [17] (EC₅₀ = 6.3 µM; A/WSN/33, H1N1; Figure 2). In addition, quinoline derivatives were widely known as a significant group in anti-influenza virus inhibitors [17]. Therefore, taking 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzoic acid as the lead compound, a series of new 26 4-[(quinolin-4-yl)amino]benzamide derivatives were designed (G01–G26, Figure 2) based on structural optimization. We wished to determine the impact of different modifications on anti-influenza virus activities. Herein, the synthesis and comprehensive in vitro and in silico investigations were reported about a novel series of 4-[(quinolin-4-yl)amino]benzamide derivatives.

2. Results and Discussion

2.1. Chemistry

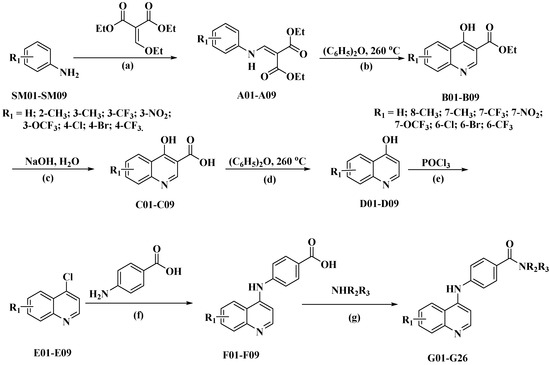

The synthetic route of compounds (G01–G26) was outlined in Scheme 1.

Anilines (SM01–SM09) with different substituent groups as raw materials condensed with diethyl ethoxymethylenemalonate in ethanol at reflux temperature to afford diethyl 2-[(phenylamino)methylene]malonate derivatives (A01–A09), respectively, which were heated and thermally cyclized in diphenyl ether to obtain the corresponding ethyl 4-hydroxyquinoline-3-carboxylate derivates (B01–B09). 4-hydroxyquinoline-3-carboxylic acid derivates (C01–C09) were achieved by hydrolysis. Then, quinolin-4-ol derivates (D01–D09) were obtained after decarboxylation by heating 4-hydroxyquinoline-3-carboxylic acid derivates (C01–C09) in diphenyl ether. The corresponding key intermediates 4-chloroquinoline derivates (E01–E09) were achieved by chlorination of quinolin-4-ol derivates (D01–D09) with refluxing phosphorus oxychloride [18,19,20,21,22]. Subsequently, 4-[(quinolin-4-yl)amino]benzoic acids (F01–F09) were yielded through the reaction of the key intermediates (E01–E09) with 4-aminobenzoic acid in ethanol at reflux temperature. Finally, 26 target quinoline analogues (G01–G26) were yielded through condensation between 4-[(quinolin-4-yl)amino]benzoic acid (F01–F09) and different substituted amines as illustrated in Scheme 1.

The structures of target compounds were confirmed by spectroscopic studies (MS, HRMS, ¹H NMR and ¹³C NMR). The specfic spectrogram are available in the the Supplementary Information (Figures S9–S126).

2.2. Biological Activities of All the Molecules

Each compound was performed to cytotoxicity assay to determine their CC₅₀ values which was responsible for 50% reduction in cell viability (CC₅₀). The results of the 26 target molecules in cytotoxicity study implied that no effect had emerged on Madin-Darby canine kidney (MDCK) cells until 100 µM except for molecules G16, G20 and G26 (

Table 1. The results of compounds G01–G26 in cytotoxicity assay, cytopathic effect assay, plaque inhibition assay and PA–PB1 inhibitory activity prediction.

No.			Cytotoxicity Assay CC50 a (µM)		Cytopathic Effect Assay (A/WSN/33, H1N1)	Plaque Inhibition Assay (A/WSN/33, H1N1)		RNP Reconstitution Assay		PA−PB1 Inhibitory Activities
	R1	-NR2R3	MDCK Cell	HEK293T Cell	EC50 b (µM)	Concentration (µM)	Inhibition Rate (%)	Concentration (µM)	Inhibition Rate (%)	Estimated Values (IC50 c, µM)
G01	7-CF3		>100	>100	16.48 ± 5.57	100	81.63	100	20.96	>300
G02	7-CF3		>100	>100	10.10 ± 1.66	100	<10	100	3.10	>300
G03	7-CF3		>100	>100	10.04 ± 1.90	100	<10	NT	NT	>300
G04	7-CF3		>100	>100	>100	100	59.32	100	14.03	>300
G05	7-CF3		>100	>100	40.85 ± 5.64	100	82.86	100	17.55	>300
G06	7-CF3		>100	>100	>100	12.5	<10	NT	NT	42.842
G07	7-CF3		>100	>100	11.38 ± 1.89	100	95.91	100	80.65	35.4716
G08	7-CF3		>100	>100	>100	25	11.54	NT	NT	>300
G09	7-CF3		>100	>100	>100	12.5	46.94	NT	NT	>300
G10	7-CF3		>100	>100	10.36 ± 0.22	100	7.41	NT	NT	>300
G11	7-CF3		>100	>100	7.17 ± 1.53	100	50.00	NT	NT	>300
G12	7-CF3		>100	>100	>100	100	<10	100	50.05	>300
G13	7-CF3		>100	>100	>100	100	<10	NT	NT	>300
G14	7-CF3		>100	>100	>100	25	<10	NT	NT	>300
G15	7-CF3		>100	>100	>100	50	61.02	NT	NT	213.79
G16	7-CF3		>100	>100	>100	NT	NT	NT	NT	>300
G17	7-CF3		>100	>100	>100	100	73.47	12.5	40.18	>300
G18	7-CF3		>100	>100	>100	25	16.33	NT	NT	>300
G19	H		>100	>100	<10	100	82.30	100	13.89	208.688
G20	8-CH3		<10	>100	>100	6	74.34	12.5	6.69	>300
G21	7-CH3		>100	>100	>100	100	11.50	NT	NT	284.787
G22	7-OCF3		>100	>100	<10	100	20.03	100	43.87	4.91662
G23	7-NO2		>100	>100	<10	100	77.88	100	56.60	>300
G24	6-Br		>100	>100	>100	100	<10	NT	NT	>300
G25	6-Cl		>100	>100	>100	100	0.00	NT	NT	250.6
G26	6-CF3		>100	>100	>100	100	<10	100	22.55	234.886
nucleozin			NT	NT	0.21 ± 0.15	100	99.5	100	92.92	NT

^a CC₅₀: 50% cytotoxic concentration; ^b EC₅₀: 50% effective concentration; ^c IC₅₀: 50% inhibitory concentration; NT: not test.

). 26 target molecules were carried out CPE assay to evaluated their cytopathic inhibitory effect of MDCK cells infected by influenza A virus strain (A/WSN/33, H1N1). The results were expressed as the 50% effective concentration (EC₅₀) which was defined as the compound concentration required to protect 50% of the MDCK cells against viral infection. Cytopathic cells were fewer in some target molecule-treated infected cells according to the CPE results. Subsequently, they were subjected to plaque inhibition screening assay to discover potential anti-influenza virus inhibitors (Table 1 and

Table 2. The results of compounds in plaque inhibition assay.

Compound	Plaque Inhibition Assay IC50 (µM)
	A/WSN/33 (H1N1)	A/PR/8 (H1N1)	A/HK/68 (H3N2)	Influenza B Virus
G07	0.23 ± 0.15	11.37 ± 2.38	7.51 ± 1.76	10.99 ± 1.16
nucleozin	0.15 ± 0.11	NT	NT	NT
amantadine	>100	64.20 ± 7.21	2.22 ± 0.57	>100

IC₅₀: 50% inhibitory concentration. NT: not test.

). Furthermore, some compounds were fulfilled to RNP reconstitution assay to assess whether these compounds could interect with RNP of influenza virus.

2.3. Structure-Activity Relationships

The cytotoxicities of all target compounds (G01–G26) were tested. The cytopathic inhibitory effects of these target compounds were evaluated by CPE assay using influenza virus-infected MDCK cells (Table 1 and Table S1–S4). For the target compounds (G01–G18), the CC₅₀ values of all these compounds were more than 100 µM as enlisted in Table 1. Based on the cytopathic effect assay, G01, G02, G03, G07, G10 and G11 exhibited significant cytopathic protection ability with EC₅₀ values of 16.48 ± 5.57, 10.1 ± 1.66, 10.04 ± 1.90, 11.38 ± 5.64, 10.36 ± 0.22 and 7.17 ± 1.53 µM, respectively, which clarified that 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide derivatives (G01–G11) with primary amines as substituent groups demonstrated better cytopathic inhibitory effects than those compounds (G12–G18) with secondary amines as substituent groups. G01, G05 and G07 demonstrated anti-influenza virus activity with inhibition rates of 81.63%, 82.86% and 95.91% (Table 1), respectively. In generally, G07 demonstrated significant anti-influenza virus activity both in CPE assay and plaque inhibition assay. Based on the above, retention of the substituent group (-NR₂R₃) as 2-(2-methoxyphenoxy)ethan-1-amino and modification of the substituent group of quinoline ring resulted in target compounds N-[2-(2-methoxyphenoxy)ethyl]-4-(quinolin-4-ylamino)benzamide derivatives (G19–G26). G19 and G23 exhibited significant anti-influenza virus activity (EC₅₀ values of G19 and G23 were less than 10 µM and inhibition rates of G19 and G23 at 100 µM were 82.30% and 77.88%, respectively), which implied that the positions of substituent groups in quinoline ring were essential for the anti-influenza virus activity. Unsubstituted group (G19) or the nitro group (G23) at 7-position in quinoline ring contributed a lot to the increase of anti-influenza virus activities. In addition, the relative contributions to anti-influenza virus activity of the substituent groups at 7-position in the scaffold were trifluoromethyl (95.91%) > nitro (77.88%) > methyl (11.50%). However, none of the target compounds (G19–G26) exhibited better anti-influenza virus activities than G07.

Residues 618−621, GLU623, VAL636, LEU640, LEU666, GLN670, ARG673, TRP706, and PHE710 of influenza A virus PA protein were several reported residues on the PA−PB1 interface [23,24]. Amino sequence alignment was used to analyze the full sequences of influenza A virus PA protein and influenza B virus PA protein. The specific report was shown in the Supplementary Information (Figure S1). Amino sequence alignment of influenza A virus PA protein (residues 614−716 of H1N1, H3N2 and H5N1 subtypes) and influenza B virus PA protein (residues 610−712) have the greatest similarity. As shown in Figure 3, amino sequence alignment of influenza A virus PA protein (residues 614−716 of H1N1, H3N2 and H5N1 subtypes) and influenza B virus PA protein (residues 610−712) are highly conserved. So, we hypothesized that G07 had antiviral potency against multiple types of influenza strains. Plaque inhibition assaies were conducted to test the antiviral activities of G07. The IC₅₀ value of G07 against influenza virus A/WSN/33 (H1N1) was 0.23 ± 0.15 µM (Table 2). G07 exhibited better anti-influenza virus activity than the control inhibitor amantadine (IC₅₀ > 100 µM) targeting influenza viral strain A/WSN/33 (H1N1) based on the plaque inhibition assay. In addition, G07 exhibited significanted anti-influenza virus activities against A/PR/8 (H1N1) and A/HK/68 (H3N1) with IC₅₀ values of 11.37 ± 2.38 and 7.51 ± 1.76 µM (Table 2), respectively. G07 also demonstrated significanted anti-influenza virus activities against influenza B virus (IC₅₀ = 10.99 ± 1.16 µM, Table 2). Obviously, G07 exhibited better anti-influenza virus activities than the control compound amantadine against these three influenza virus strains A/WSN/33 (H1N1), A/PR/8 (H1N1) and influenza B virus according to the plaque inhibition assay. The IC₅₀ value of amantadine against influenza virus A/HK/68 (H3N2) was 2.22 ± 0.57 µM (Table 2), which demonstrated stronger anti-influenza virus activity than G07 against influenza virus A/HK/68 (H3N2). According to the RNP reconstitution assay results, G07 could interect well with RNP of influenza virus with an inhibition rate of 80.65% at 100 µM.

The biological activities of all the target molecules implied that: (1) 4-{[7-(Trifluoromethyl)quinolin-4-yl]amino}benzamide derivatives (G01–G11) with primary amines as substituent groups demonstrated better cytopathic inhibitory effect than those compounds (G12–G18) with secondary amines as substituent groups. (2) 4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide derivatives (G01–G08) with substituted primary amines with long chains demonstrated better anti-influenza virus activity than those compounds (G09–G11) with aromatic rings or naphthenic groups. (3) The taregt compounds with electron withdrawing substituent groups in 7-position of quinoline ring exhibited anti-influenza virus activity than the taregt compounds with electron donor substituent groups.

2.4. PA−PB1 Inhibitory Activity Prediction by the Best Pharmacophore Hypo1

The generated pharmacophoric model Hypo1 was used to forecasted the activity of the 26 target molecules against PA−PB1 of RNA endonuclease. The results of the cost analysis, Fischer’s randomization test and test set analysis confirm that the best pharmacophore model (Hypo1) could be selected as a significant pharmacophore model [2,25,26,27,28,29,30,31,32,33,34,35] to further predicting the biological activities of the diverse structural entity (Figures S2–S8, Tables S5–S7). The estimated values (IC₅₀) of 26 target molecules were enlisted in Table 1. G06, G07 and G22 exhibited significant inhibitory activities against PA−PB1 subunit of the viral RNA with estimated values of 42.842, 35.4716 and 4.91662 µM, respectively. Four features (hydrogen bond acceptor (HBA), hydrophobic (HYD) and ring aromatic (RA)) were shown in the best pharmacophoric model Hypo1. However, the specific biological activities of these molecules targeting the PA−PB1 of RNA endonuclease need further experimental studies.

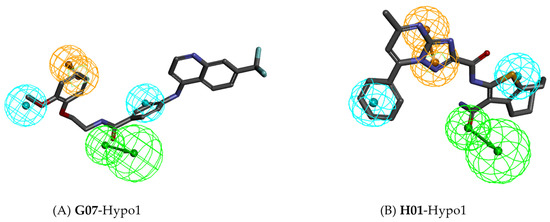

A typical compound G07 and a training set compound (H01) [25] with significant anti-influenza virus activities were selected to analyze the pharmacophore mapping between compounds and Hypo1 (Figure 4). The benzene ring of 2-(2-methoxyphenoxy)ethan-1-amino group in G07 mapped well with the RA feature. The methyl group in 2-(2-methoxyphenoxy)ethan-1-amino group and the benzene ring of 4-aminobenzamide in G07 mapped well with the HYD features, respectively. Oxygen of the amide group in benzamide represented as the hydrogen acceptor and mapped well with the HBA feature. All these pharmacophore mapping results of G07 with Hypo1 were similar to that of H01 with Hypo1. H01 was by far a significant anti-influenza virus agent with the best anti-influenza virus activities against PA−PB1 subunit of RNA endonuclease. The estimated activity value of H01 was 0.982586 μM and experimental value was 1.1 μM. The estimated activity value of G07 was 35.4716 μM. Although G07 exhibited lower activity against PA−PB1 subunit of RNA endonuclease compared with H01, it still was of great advantage compared with other inhibitors targeting PA−PB1 subunit. As a corollary, G07 can strongly interact with PA−PB1 subunit of RNA endonuclease.

2.5. Lipinski’s Rule and ADMET Prediction

In this study, the ADMET descriptors algorithm and toxicity prediction (extensible) module of Discovery Studio 3.0 were used to calculate the Lipinski’s rule-of-five drug-likeness properties for oral bioavailability and ADMET properties [36].

The results of Lipinski’s rule calculation for G01–G26 included Alop, molecular weight (MW), number of hydrogen-bond acceptors, number of hydrogen-bond donors and number of rotatable bonds (Table S8). It was noticeable that all compounds were in line with the Lipinski’s rule, except for G17 and G18 (the MW of G17 and G18 were more than 500) [37,38].

The ADMET prediction results (including ADME Solubility Level, ADME BBB Level, ADME Absorption Level, Hepatoxic, PPB Prediction and Toxicity Probability) were enlisted in Table S9. It was worth noting that G07 exhibited good absorption and low toxicity based on the results of ADME absorption level and toxicity probability [36].

In general, G07 was of well drug-likeness according to the results of Lipinski’s rule and ADMET prediction.

2.6. Molecular Docking Study

To figure out the binding poses of the 4-(quinolin-4-ylamino)benzamide derivatives with the active site of RNA polymerase (PA−PB1, PDB ID: 3CM8) [39], Schrödinger’s Glide docking protocol [40,41,42,43] was performed. PAc of the PA chain was the main activity site and was conducted into the protein preparation. Based on the in vitro inhibition results, three active compounds (G07, G19 and G23) and a control compound known as PA−PB1 endonuclease inhibitor (H02, N-(3-carbamoyl-4,5,6,7-tetrahydrobenzo[b]thiophen-2-yl)-5-phenyl-7-(trifluoromethyl)-[1,2,4]triazolo[1,5-a]pyrimidine-2-carboxamide) [29] were selected as the ligand examples. The docking scores of G07, G19, G23 and H02 were −7.370, −6.677, −6.537 and −6.852 kcal/mol, respectively (

Table 3. Hydrogen-bond interactions of G07, G19, G23 and H02 with PA−PB1 endonuclease protein (PDB ID: 3CM8).

No.	Hydrogen-Bond Interaction	Hydrogen-Bond Distance (Å)	Docking Scores (kcal/mol)	MM/GBSA (kcal/mol)
G07	LYS643	3.0	−7.370	−67.77
	ASN703	3.0
	ILE621	2.7
G19	LYS643	2.9	−6.677	−55.01
	ASN703	3.1
	ILE621	3.0
G23	LYS643	3.0	−6.537	−68.94
	ASN703	3.0
	GLU623	3.7
H02	GLN408	3.0	−6.852	−56.41
	ASN412	3.2
	GLU623	3.1
	ILE621	2.7

). The MM/GBSA values of G07, G19, G23 and H02 were −67.77, −55.10, −68.94 and −56.41 kcal/mol, respectively (Table 3).

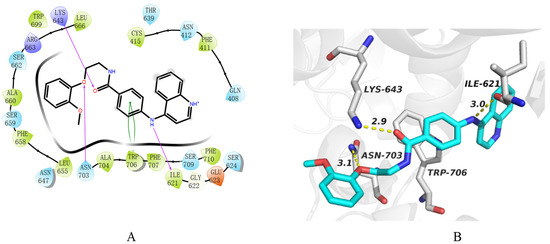

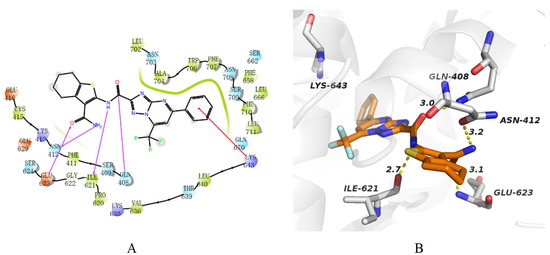

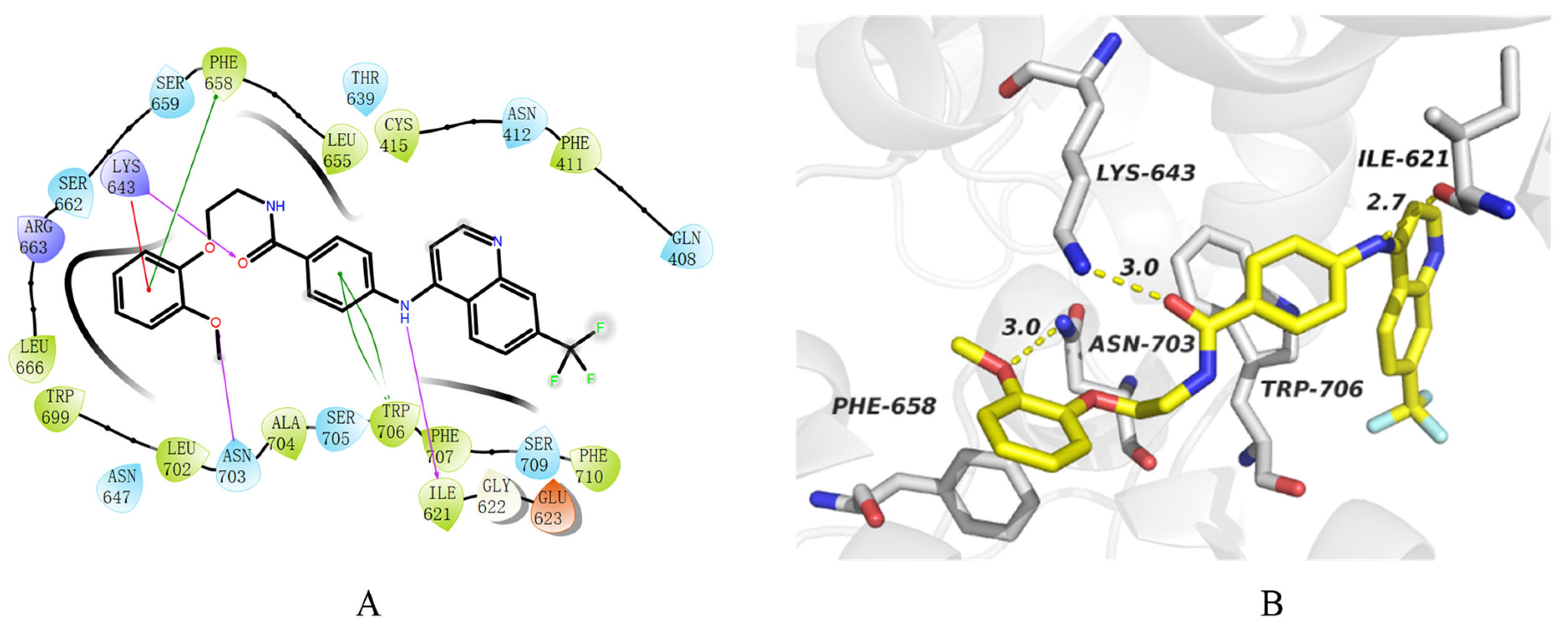

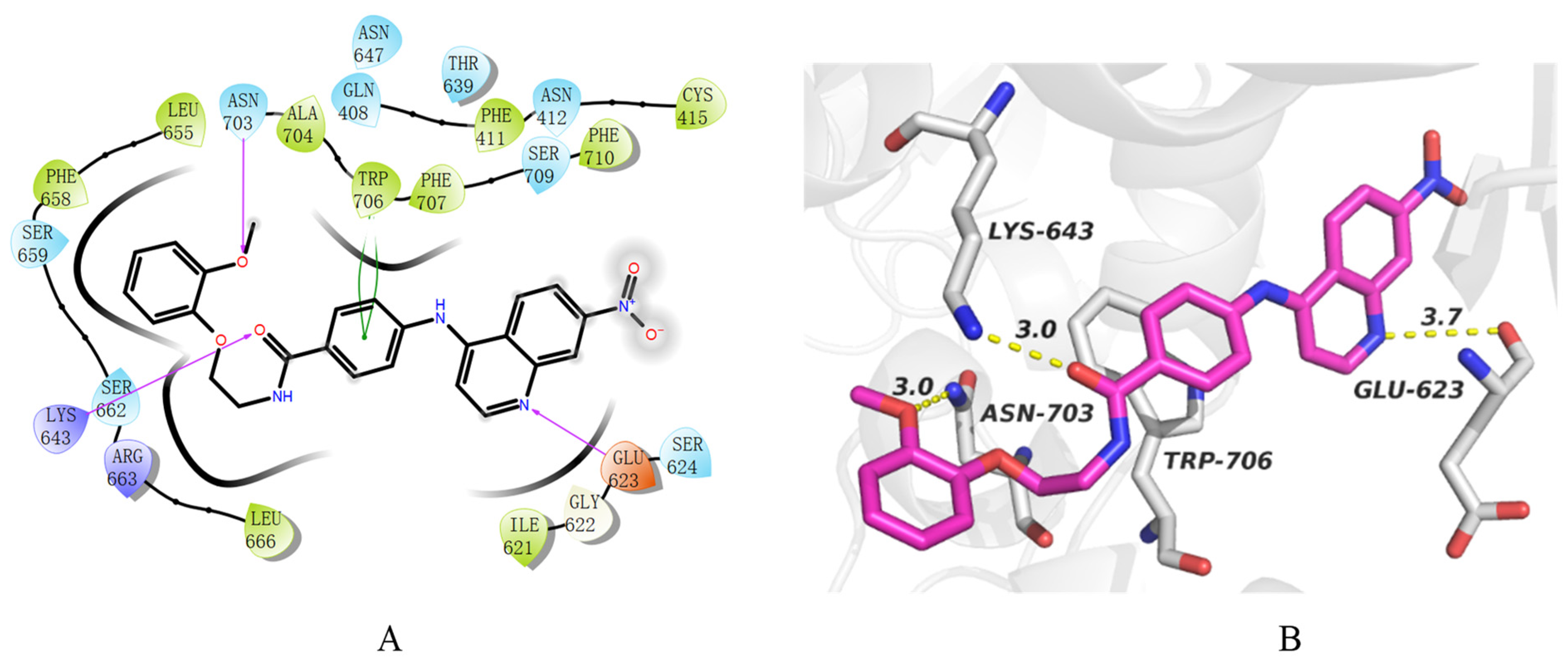

The predicted binding modes of 3CM8 with four compounds (G07, G19, G23 and H02) indicated that the binding interface surrounded by these amino acid residues: GLN408-PHE411-ASN412-CYS415, ILE621-GLY622-GLU623, LEU655-PHE658-SER659- LYS643-SER662-ARG663-LEU666 and TRP699-ASN647-LEU702-ASN703-ALA704- SER705-TRP706-PHE707-SER709-PHE710 (Figure 5, Figure 6, Figure 7 and Figure 8), which was similar to the previous reported activity cavity [2,44]. Based on the docking results, it emerged that three hydrogen-bonds were essential for the interactions of compounds with amino acid residues (ILE621, LYS643 and ASN703), which seemed sufficient to impart inhibitory activity against PA−PB1 interaction [2,44]. The oxygen atoms in amide group of H02 generated hydrogen bonds with GLU623 (3.1 Å) and GLN408 (3.0 Å). Furthermore, two hydrogen bonds were generated between the two amino groups of the control compound (H02) and two residues (ASN412 and ILE621) with the distance of 3.2 Å and 2.7 Å, respectively. Evidently, more hydrogen bonds were generated between the control compound (H02) and 3CM8 with relatively shorter distance. The interactions between the 2-(2-methoxyphenoxy)ethan-1-amine of these three compounds (G07, G19 and G23) and the key active site of PA−PB1 were much essential. For G07, G19 and G23, the oxygen atom of 2-(2-methoxyphenoxy)ethan-1- amino group generated hydrogen-bond with ASN703. Therefore, it is conjectured that the anti-influenza virus activity of the target compound was related to the binding mode of the 2-(2-methoxyphenoxy)ethan-1-amino group on the cavity. The amino group in G07 (2.7 Å) and G19 (3.0 Å) formed hydrogen-bond interaction with ILE621. Thus, it could be concluded that amino acting as a bridge connecting the benzene ring and quinoline ring played a vital role in the interaction between the active site and the target compounds. The nitrogen atom in quinoline ring of G23 generated hydrogen-bond interaction with GLU623. The benzene ring of 4-(quinolin-4-ylamino)benzamide derivatives seemed to be essential in generating Pi-Pi stacking. It was obvious that G07, G19 and G23 built Pi-Pi stacking with TRP706. In addition, the MM/GBSA value of G23 was lower than the MM/GBSA value of G07, which might imply that the interaction between GLU623 and G23 was essential in stabilizing the complex (G23-3CM8).

Generally, 4-amino-N-[2-(2-methoxyphenoxy)ethyl]benzamide fragment contribu- ted a lot to the interaction between the active site and the target compounds. GLU623, LYS643 and TRP706 are three key amino acid residues interacted with ligands based on the docking results. We can speculate that these small molecules exhibited anti-influenza virus activities after blocking the PA−PB1 interface by competing with the PB1.

2.7. Molecular Dynamics Simulations

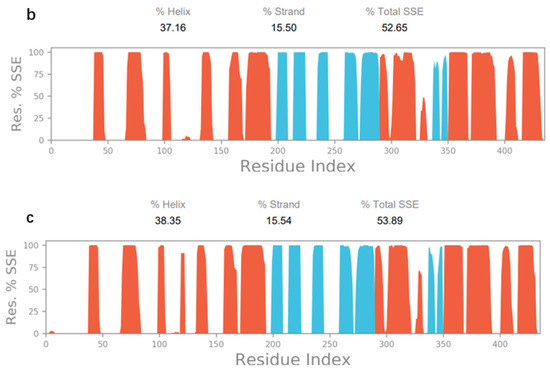

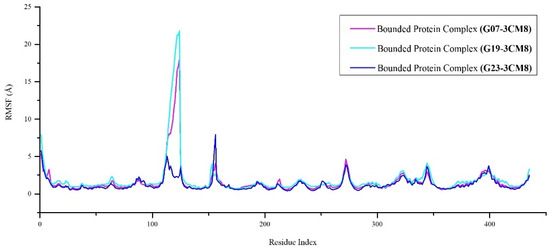

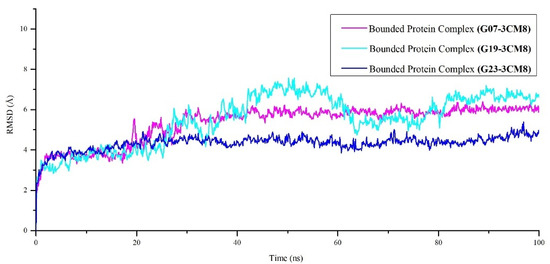

The 100 ns molecular dynamics (MD) simulations were performed with three selected complexes (G07-3CM8, G19-3CM8 and G23-3CM8) to examine their interactions between proteins and ligands. In addition, the contribution of key residues was elucidated during the binding process. The RMSD and RMSF values of three complexes during the whole MD simulations were enlisted in Figure 9 and Figure 10. In Figure 9, the G07-3CM8 complex reached equilibrium after 30 ns and the protein RMSD value fluctuated around 5.5–6.0 Å. The G23-3CM8 complex reached equilibrium after 20 ns and the protein RMSD value fluctuated around 3.5–4.5 Å. However, G19-3CM8 showed obvious fluctuations and reached equilibrium after 80 ns, indicating that G19 had poor binding affinity with 3CM8 compared with G07 and G23. The RMSF plots were displayed in Figure 10. Majority fluctuations of residues were less than 2.5 Å. The states of protein secondary structures were monitored during the whole MD simulations (Figure 11). Obviously, the huge fluctuations in RMSF curves of G07-3CM8, G19-3CM8 and G23-3CM8 located in the non-alpha-helices and non-beta-strands according to the protein secondary structure elements (Figure 11). Among all of fluctuations in RMSF curves, the huge fluctuations of G07-3CM8 and G19-3CM8 exhibited from MET374 to PRO398, which was relatively small fluctuation of G23-3CM8 due to the generation of alpha-helices.

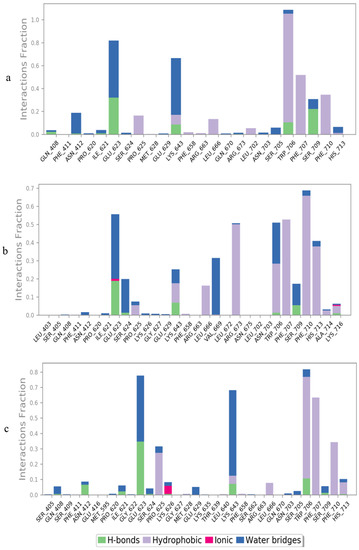

Figure 12 listed the type and ratio of interactions between proteins and ligands, including hydrogen bonds, hydrophobic contacts, ionic interactions, and water bridges. In Figure 12a, G07 formed hydrogen bonds with residues GLU623, LYS643, TRP706, SER709, which accounted for 31.8%, 8.5%, 10.3% and 22.2% of the simulation time, respectively. G07 generated water bridges with residues ASN412, GLU623 and LYS643. The hydrophobic interactions were generated between G07 and residues PRO625, LYS643, LEU666, TRP706, PHE707 and PHE710. In Figure 12b, G19 formed hydrogen bonds with residues ILE621, LYS643 and SER709, and generated water bridges with residues GLU623, SER624, VAL669, TRP706 and SER709. Among them, G19 formed strong hydrogen bonds with GLU623, which accounted for 18.7% of the simulation time. In addition, water bridges were also significant for the interactions, such as G19 formed water bridges with GLU623, SER624, VAL669, and TRP706, which accounted for 34.3%, 18.6%, 31.2% and 22.6% of the simulation time, respectively. The hydrophobic interactions were generated between G19 and residues PRO625, LYS643, LEU666, ARG673, TRP706, PHE707, PHE710 and HIS713. In Figure 12c, G23 formed hydrogen bonds with residues ASN412, GLU623, LYS643 and TRP706, which accounted for 6.6%, 34.7%, 7.2% and 10.6% of the simulation time, respectively. G23 generated water bridges with residues GLN408, GLU623 and LYS643. Among them, G23 formed strong water bridge interactions with GLU623 and LYS643, which accounted for 43.1% and 55.7% of the simulation time. The hydrophobic interactions were generated between G23 and residues PRO625, LYS643, LEU666, TRP706, PHE707, PHE710 and HIS713.

The results of 100ns MD simulations indicated that G07-3CM8 and G23-3CM8 were more stable during MD simulations, which revealed that G07 and G23 might have stronger interactions with 3CM8. Generally, GLU623, LYS643, TRP706, PHE707 and PHE710 were key amino acid residues interacted with the ligands, which was similar with the previous reports [2,44].

2.8. Alanine Scanning Mutagenesis Analysis

Alanine scanning mutagenesis (ASM) analysis was used to assess the role of the specific amino acid residue participating in protein–protein and protein–ligand interactions. It was usually based on the hypothesis that the main chain conformation did not modify and the side chains beyond the β-carbon for ligand-protein complexes were reduced after substituting an amino acid residue into alanine. As reported, ASM analysis has been regarded as an appealing alternative to in vitro experiments [45,46]. In this study, ASM analysis was used to validate the binding free energy decomposition analysis.

Residues showing high interaction fraction from MD simulations were selected to mutate to alanine (Figure 13). Positive ΔΔG values indicate that the wild-type residues could produce more favorable interactions with ligands than the mutated residues. Mutations like GLU623, PRO625, LYS643 and SER709 in complex G07-3CM8, mutations like GLU623 and LYS643 in complex G19-3CM8, and mutations like GLU623 and PRO625 in complex G23-3CM8 did not influence their binding behavior, indicating these residues interacted with ligands mainly through the scaffold atoms while the side chains did not contribute much to binding energy. The binding free energy changes caused by residue mutations in complex G07-3CM8 (residue mutations ASN412, TRP706, PHE707 and PHE710), complex G19-3CM8 (residue mutations SER624, LEU666, VAL669, ARG673, TRP706, PHE707, PHE710 and HIS713), as well as complex G23-3CM8(residue mutations TRP706, PHE707, PHE710 and HIS713) emphasized the importance of these unmutated residues. This reasonable result indicated that the mutations of the above residues into alanine shorten the length of residue side chains, and therefore decreased the interaction opportunity of residue with ligands. Interestingly, TRP706, PHE707 and PHE710 showed unexpected remarkable energy changes. It will be helpful to design more significant anti-influenza virus inhibitors through forming interactions with the side chain of TRP706, PHE707 and PHE710.

3. Materials and Methods

3.1. Synthesis

Unless otherwise required, all solvents and reagents were purchased from commercial sources and were used without further purification. All chemical reactions were monitored through GF₂₅₄ thin layer chromatography (TLC) plate and spots were visualized by UV light (254 nm). The structures of the target compounds were characterized by ¹H NMR spectra and ¹³C NMR spectra on a Bruker 400 MHz or 101 MHz NMR spectrometer (Faellanden, Switzerland) with TMS as an internal standard and DMSO-d₆ or CDCl₃ as the solvent, chemical shifts (d values) and coupling constants (J values) are respectively given in ppm and Hz. The melting points were determined on a Buchi B-540 melting-point apparatus with a microscope, and were uncorrected. The IR spectra were recorded with KBr pellets on a Bruker IFS55 spectrometer (Faellanden, Switzerland). High-resolution mass (HRMS) spectral were performed on an Agilent Technologies 6530 Accurate-Mass Q-TOF Mass Spectrometer (Santa Clara, CA, USA). Compounds A (A01–A09), B (B01–B09), C (C01–C09), D (D01–D09) and E (E01–E09) [19,21,47,48,49,50,51] were previously prepared.

3.1.1. General Procedure for Synthesis of 4-[(Quinolin-4-yl)amino]benzoic Acid (F01–F09)

4-Chloroquinoline (E01–E09, 0.01 mol), 4-aminobenzamide (0.011 mol), 20 mL ethanol and a catalytic amount (4 drops) of 37% hydrochloric acid were refluxed for 2 h. The reaction was allowed to cool to room temperature, and the precipitated was filtered off, washed with water (3 × 5 mL), and recrystallized by methanol [48] to afford pure 4-[(quinolin-4-yl)amino]benzoic acid (F01–F09).

4-{[7-(Trifluoromethyl)quinolin-4-yl]amino}benzoic acid (F01). Yellow powder. m.p.: 323.7–324.9 °C, yield in 89.35%. MS (ESI): calcd for C₁₇H₁₁F₃N₂O₂, m/z 333.1 ([M+H]⁺), found 333.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 13.09 (s, 1H), 11.57 (s, 1H), 9.19 (d, J = 8.9 Hz, 1H), 8.72 (d, J = 6.9 Hz, 1H), 8.59 (s, 1H), 8.16–8.11 (m, 8.6 Hz, 3H), 7.67 (d, J = 8.2 Hz, 2H), 7.14 (d, J = 6.9 Hz, 1H). ¹³C NMR (101 MHz, DMSO-d₆) δ 167.04, 154.74, 144.88, 141.66, 138.52, 133.45, 131.46, 129.69, 126.90, 125.07, 122.94, 120.35, 118.45, 102.38.

4-(Quinolin-4-ylamino)benzoic acid (F02). Yellow powder. m.p.: 315.7–317.6 °C, yield in 86.53%. MS (ESI): calcd for C₁₆H₁₂N₂O₂, m/z 265.1 ([M+H]⁺), found 265.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 14.96 (s, 1H), 11.18 (s, 1H), 8.89 (d, J = 8.5 Hz, 1H), 8.60 (d, J = 6.9 Hz, 1H), 8.16–8.04 (m, 4H), 7.86–7.82 (m, 1H), 7.66 (d, J = 8.4 Hz, 2H), 7.06 (d, J = 6.9 Hz, 1H).

4-[(8-Methylquinolin-4-yl)amino]benzoic acid (F03). Yellow powder. m.p.: 278.7–279.4 °C, yield in 82.47%. MS (ESI): calcd for C₁₇H₁₄N₂O₂, m/z 279.1 ([M+H]⁺), found 279.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 14.12 (s, 1H), 11.36 (s, 1H), 8.84 (d, J = 8.6 Hz, 1H), 8.51 (d, J = 6.9 Hz, 1H), 8.08 (d, J = 8.1 Hz, 2H), 7.86 (d, J = 7.2 Hz, 1H), 7.69–7.66 (m, 3H), 7.09 (d, J = 6.8 Hz, 1H), 2.74 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 167.04, 155.24, 143.53, 142.09, 137.52, 135.09, 131.32, 129.52, 129.30, 127.21, 125.06, 122.39, 118.25, 101.26, 18.56.

4-[(7-Methylquinolin-4-yl)amino]benzoic acid (F04). Yellow powder. m.p.: >350 °C, yield in 81.11%. MS (ESI): calcd for C₁₇H₁₄N₂O₂, m/z 279.1 ([M+H]⁺), found 279.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 14.92 (s, 1H), 11.14 (s, 1H), 8.79 (d, J = 8.2 Hz, 1H), 8.53 (d, J = 6.8 Hz, 1H), 8.10 (d, J = 8.4 Hz, 2H), 7.90 (s, 1H), 7.68–7.63 (m, 2H), 7.01 (d, J = 6.9 Hz, 1H), 6.73 (s, 1H), 2.58 (s, 3H).

4-[(7-Nitroquinolin-4-yl)amino]benzoic acid (F05). Yellow powder. m.p.: 271.4–272.9 °C, yield in 90.60%. MS (ESI): calcd for C₁₆H₁₁N₃O₄, m/z 310.1 ([M+H]⁺), found 310.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 13.05 (s, 1H), 11.47 (s, 1H), 9.10 (d, J = 9.2 Hz, 1H), 8.98–8.97 (m, 1H), 8.77 (d, J = 6.9 Hz, 1H), 8.14–8.03 (m, 1H), 7.99 (d, J = 8.3 Hz, 1H), 7.66 (d, J = 8.6 Hz, 2H), 7.30 (d, J = 8.0 Hz, 1H), 7.17 (d, J = 6.9 Hz, 1H).

4-[(6-Chloroquinolin-4-yl)amino]benzoic acid (F06). Yellow powder. m.p.: 318.4–321.3 °C, yield in 89.10%. MS (ESI): calcd for C₁₆H₁₁ClN₂O₂, m/z 299.1 ([M+H]⁺), found 299.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 15.55 (s, 1H), 11.44 (s, 1H), 9.19 (s, 1H), 8.61 (s, 1H), 8.24 (d, J = 9.0 Hz, 1H), 8.10 (d, J = 7.9 Hz, 3H), 7.66 (d, J = 8.3 Hz, 2H), 7.09 (d, J = 6.7 Hz, 1H). ¹³C NMR (101 MHz, DMSO-d₆) δ 167.04, 154.74, 144.88, 141.66, 138.52, 133.45, 133.12, 131.46, 129.69, 126.89, 125.07, 122.94, 122.27, 120.35, 118.45, 102.38.

4-[(6-Bromoquinolin-4-yl)amino]benzoic acid (F07). Yellow powder. m.p.: 335.2–336.9 °C, yield in 76.35%. MS (ESI): calcd for C₁₆H₁₁BrN₂O₂, m/z 343.0 ([M+H]⁺), found 343.1 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 14.96 (s, 1H), 11.08 (s, 1H), 9.13 (d, J = 2.0 Hz, 1H), 8.62 (d, J = 6.9 Hz, 1H), 8.20 (dd, J₁ = 9.0 Hz, J₂ = 2.0 Hz, 1H), 8.11 (d, J = 8.6 Hz, 2H), 8.07 (d, J = 9.0 Hz, 1H), 7.62 (d, J = 8.6 Hz, 2H), 7.10 (d, J = 6.9 Hz, 1H).

4-{[6-(Trifluoromethyl)quinolin-4-yl]amino}benzoic acid (F08). Yellow powder. m.p.: 313.7–314.9 °C, yield in 89.63%. MS (ESI): calcd for C₁₇H₁₁F₃N₂O₂, m/z 333.1 ([M+H]⁺), found 333.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 11.56 (s, 1H), 9.42 (s, 1H), 8.69 (s, 1H), 8.32 (s, 2H), 8.12 (d, J = 8.1 Hz, 2H), 7.66 (d, J = 8.1 Hz, 3H), 7.13 (s, 1H). ¹³C NMR (101 MHz, DMSO-d₆) δ 167.04, 154.74, 144.88, 141.66, 138.52, 133.45, 133.12, 131.46, 129.69, 126.89, 125.07, 122.94, 122.27, 120.35, 118.45, 102.38.

4-{[7-(Trifluoromethoxy)quinolin-4-yl]amino}benzoic acid (F09). Yellow powder. m.p.: >350 °C, yield in 87.95%. MS (ESI): calcd for C₁₇H₁₁F₃N₂O₃, m/z 349.1 ([M+H]⁺), found 349.0 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 13.14 (s, 1H), 11.39 (s, 1H), 9.06 (d, J = 9.4 Hz, 1H), 8.65 (d, J = 7.0 Hz, 1H), 8.12 (d, J = 8.6 Hz, 3H), 7.88–7.85 (m, 1H), 7.66–7.63 (m, 2H), 7.06 (d, J = 7.0 Hz, 1H).

3.1.2. General Procedure for Synthesis of 4-{[7-(Trifluoromethyl)quinolin-4-yl]amino}benzamide Derivatives (G01–G26)

A solution of 4-[(quinolin-4-yl)amino]benzoic acid (F01–F09, 2 mmol), 1-[3-(dimethylamino)propyl]-3-ethyl-carbodiimide hydrochloride (EDCI, 3 mmol), 1-hydroxybenzotriazole (HOBt, 3 mmol) and triethylamine (6 mmol) in N,N-dimethylformamide (DMF, 20 mL) was stirred at ambient temperature for 30 min. Then, a solution of 3-aminopropan-1-ol (24 mmol) in N,N-dimethylformamide (DMF 10mL) was added and the mixture was stirred at ambient temperature for 24 h. Aqueous NaHCO₃ water (200 mL) was added and the reaction mixture was stirred for 1 h. Subsequently, the mixture was filtered to afford crude residue. The crude residue was purified through chromatography on a silica gel column by using CH₃OH/CH₂Cl₂ (1/100) as eluent to yield 4-[(quinolin-4-yl)amino]benzamide derivatives (G01–G26).

N-Ethyl-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G01). White powder. m.p.: 262.8–264.5 °C, yield in 39.00%. HRMS (ESI): calcd for C₁₉H₁₆F₃N₃O, m/z 360.12455 ([M+H]⁺), found 360.13135 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.66–8.62 (m, 2H), 8.43–8.40 (m, 1H), 8.22 (s, 1H), 7.92 (d, J = 8.2 Hz, 2H), 7.85–7.82 (m, 1H), 7.44 (d, J = 8.2 Hz, 2H), 7.23 (d, J = 5.3 Hz, 1H), 3.34–3.29 (m, 2H),1.14 (t, J = 7.2 Hz, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.78, 152.82, 148.44, 147.38, 143.49, 129.89, 129.02, 126.99, 124.95, 122.64, 120.96, 120.42, 104.83, 34.47, 15.33. IR: (KBr, cm⁻¹) υ 3308.31, 2977.60, 2937.44, 2878.02, 1627.76, 1582.42, 1567.59, 1528.22, 1431.87, 1376.17, 1322.23, 1260.29, 1183.97, 1161.45, 1119.18, 1074.00, 920.21, 893.54, 865.65, 822.68, 757.59, 738.75, 681.32, 594.89, 497.60.

N-Isopropyl-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G02). White powder. m.p.: 243.7–245.9 °C, yield in 14.30%. HRMS (ESI): calcd for C₂₀H₁₈F₃N₃O, m/z 374.14020 ([M+H]⁺), found 374.14688 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.66 (d, J = 5.3 Hz, 1H), 8.63 (d, J = 8.8 Hz, 1H), 8.23 (s, 1H), 8.16 (d, J = 7.8 Hz, 1H), 7.92 (d, J = 8.6 Hz, 2H), 7.85 (dd, J₁ = 8.8 Hz, J₂ = 1.9 Hz, 1H), 7.44 (d, J = 8.6 Hz, 2H), 7.23 (d, J = 5.3 Hz, 1H), 4.16–4.08 (m, 1H), 1.18 (d, J = 6.6 Hz, 6H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.17, 152.92, 148.51, 147.38, 143.40, 130.03, 129.15, 127.09, 127.05, 124.95, 122.62, 120.96, 120.43, 104.79, 41.37, 22.87. IR: (KBr, cm⁻¹) υ 3318.08, 2924.08, 2853.42, 1623.32, 1582.64, 1527.68, 1460.31, 1432.30, 1375.36, 1322.54, 1259.37, 1185.73, 1160.00, 1119.55, 1074.27, 920.08, 893.84, 865.45, 823.29, 759.08, 739.56, 681.47, 595.14, 505.52, 477.08.

N-Propyl-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G03). White powder. m.p.: 242.5–243.4 °C, yield in 45.47%. HRMS (ESI): calcd for C₂₀H₁₈F₃N₃O, m/z 374.14020 ([M+H]⁺), found 374.14731 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.41 (s, 1H), 8.67–8.63 (m, 2H), 8.43–8.41 (m, 1H), 8.24 (s, 1H), 7.93 (d, J = 8.6 Hz, 2H), 7.85 (dd, J₁ = 9.0 Hz, J₂ = 2.0 Hz, 1H), 7.46 (d, J = 8.7 Hz, 2H), 7.25 (d, J = 5.3 Hz, 1H), 3.27–3.23 (m, 2H), 1.61–1.52 (m, 2H), 0.92 (t, J = 7.4 Hz, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.97, 152.90, 148.50, 147.36, 143.47, 129.90, 129.05, 127.06, 124.96, 122.65, 120.97, 120.45, 120.42, 104.84, 41.44, 22.95, 11.94. IR: (KBr, cm⁻¹) υ 3307.72, 2965.99, 2874.79, 1628.12, 1582.23, 1527.63, 1431.97, 1375.85, 1322.67, 1260.19, 1184.62, 1161.30, 1121.06, 1074.19, 919.75, 893.99, 864.80, 822.59, 757.42, 738.91, 681.53, 593.05, 478.04.

N-(2-Hydroxyethyl)-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G04). White powder. m.p.: 262.5–264.1 °C, yield in 42.67%. HRMS (ESI): calcd for C₁₉H₁₆F₃N₃O₂, m/z 376.11946 ([M+H]⁺), found 376.12628 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.48 (s, 1H), 8.70–8.65 (m, 2H), 8.44–8.40 (m, 1H), 8.28–8.22 (m, 1H), 8.00–7.85 (m, 3H), 7.51–7.44 (m, 2H), 7.27–7.23 (m, 1H), 4.78 (s, 1H), 3.58–3.37 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.20, 152.61, 148.15, 147.57, 143.48, 129.80, 129.13, 126.75, 125.01, 122.58, 121.03, 120.52, 104.81, 60.33, 42.64. IR: (KBr, cm⁻¹) υ 3252.15, 1637.11, 1573.22, 1534.13, 1434.45, 1382.06, 1323.99, 1265.16, 1205.06, 1147.49, 1123.47, 1079.36, 1050.80, 898.67, 876.76, 826.05, 738.61, 682.47, 620.69, 476.66.

N-(3-Hydroxypropyl)-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G05). White powder. m.p.: 249.6–250.4 °C, yield in 39.42%. HRMS (ESI): calcd for C₂₀H₁₈F₃N₃O₂, m/z 390.13511 ([M+H]⁺), found 390.14175 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.43 (s, 1H), 8.65–8.63 (m, 2H), 8.44–8.41 (m, 1H), 8.22 (s, 1H), 7.93 (d, J = 8.6 Hz, 2H), 7.82 (d, J = 9.0 Hz, 1H), 7.45 (d, J = 8.6 Hz, 2H), 7.23 (d, J = 5.3 Hz, 1H), 4.54 (s, 1H), 3.52–3.49 (m, 2H), 3.38–3.34 (m, 2H), 1.75–1.69 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.13, 152.73, 148.37, 147.42, 143.53, 129.82, 129.04, 126.91, 124.97, 122.63, 120.98, 120.42, 120.39, 104.82, 59.12, 37.04, 32.97. IR: (KBr, cm⁻¹) υ 3286.63, 2941.49, 2866.79, 1627.10, 1533.89, 1433.70, 1382.91, 1326.38, 1262.75, 1192.02, 1155.06, 1121.21, 1080.00, 1048.33, 923.23, 901.69, 866.32, 822.06, 759.56, 681.81, 622.15, 476.95.

N-[3-(Diethylamino)propyl]-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G06). White powder. m.p.: 216.5–219.3 °C, yield in 45.05%. HRMS (ESI): calcd for C₂₄H₂₇F₃N₄O, m/z 445.21370 ([M+H]⁺), found 445.21991 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.46 (s, 1H), 8.67–8.65 (m, 2H), 8.54–8.51 (m, 1H), 8.22 (s, 1H), 7.92 (d, J = 8.2 Hz, 2H), 7.81 (d, J = 8.8 Hz, 1H), 7.46 (d, J = 8.2 Hz, 2H), 7.23 (d, J = 5.3 Hz, 1H), 3.34–3.29 (m, 2H), 2.52–2.50 (m, 6H), 1.71–1.64 (m, 2H), 0.95 (t, J = 7.1 Hz, 6H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.99, 152.83, 148.52, 147.32, 143.55, 129.78, 128.97, 127.03, 125.01, 122.67, 120.90, 120.33, 104.82, 50.60, 46.72, 38.40, 26.83, 11.82. IR: (KBr, cm⁻¹) υ 3314.44, 2969.29, 2806.83, 1628.59, 1582.14, 1527.65, 1431.90, 1375.96, 1323.35, 1261.87, 1191.74, 1159.56, 1128.43, 1073.73, 920.08, 895.46, 864.15, 822.30, 756.93, 739.24, 682.03, 595.47, 479.03.

N-[2-(2-Methoxyphenoxy)ethyl]-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G07). White powder. m.p.: 1997.6–199.4 °C, yield in 27.72%. HRMS (ESI): calcd for C₂₆H₂₂F₃N₃O₃, m/z 482.16133 ([M+H]⁺), found 482.16843 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.42 (s, 1H), 8.67–8.62 (m, 3H), 8.23 (s, 1H), 7.95 (d, J = 8.2 Hz, 2H), 7.84 (d, J = 8.8 Hz, 1H), 7.46 (d, J = 8.2 Hz, 2H), 7.26–7.24 (m, 1H), 7.03 (s, 1H), 6.97 (d, J = 7.6 Hz, 1H), 6.93–6.86 (m, 2H), 4.12 (t, J = 6.1 Hz, 2H), 3.76 (s, 3H), 3.65–3.64 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.37, 152.86, 149.68, 148.41, 147.28, 129.15, 124.99, 121.73, 121.23, 120.89, 120.46, 114.37, 112.90, 105.01, 67.37, 55.96. IR: (KBr, cm⁻¹) υ 3309.99, 1626.49, 1583.30, 1528.38, 1505.80, 1432.59, 1376.22, 1323.49, 1253.86, 1160.85, 1120.34, 1075.22, 919.71, 897.68, 865.56, 823.68, 736.99, 682.62, 593.58, 495.55, 479.98.

N-(3-Morpholinopropyl)-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G08). White powder. m.p.: 207.3–209.1 °C, yield in 33.48%. HRMS (ESI): calcd for C₂₄H₂₅F₃N₄O₂, m/z 459.19296 ([M+H]⁺), found 459.19928 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.40 (s, 1H), 8.66–8.62 (m, 2H), 8.47–8.44 (m, 1H), 8.23 (s, 1H), 7.92 (d, J = 8.2 Hz, 2H), 7.82 (d, J = 8.8 Hz, 1H), 7.46 (d, J = 8.2 Hz, 2H), 7.24 (d, J = 5.3 Hz, 1H), 3.57 (t, J = 4.6 Hz, 4H), 3.34–3.29 (m, 2H), 2.35–2.32 (m, 6H), 1.73–1.66 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.02, 152.85, 148.52, 147.31, 143.53, 129.81, 129.03, 127.06, 124.93, 122.64, 120.93, 120.38, 104.84, 66.66, 56.59, 53.81, 38.23, 26.50. IR: (KBr, cm⁻¹) υ 3311.75, 2937.88, 2858.05, 2812.95, 1628.77, 1582.50, 1527.85, 1432.47, 1376.71, 1323.55, 1261.57, 1182.99, 1161.82, 1115.97, 1074.54, 920.09, 894.38, 863.71, 822.62, 757.33, 739.72, 682.25, 595.85.

N-Cyclohexyl-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G09). White powder. m.p.: 236.5–237.3 °C, yield in 38.74%. HRMS (ESI): calcd for C₂₃H₂₂F₃N₃O, m/z 414.17150 ([M+H]⁺), found 414.17871 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.40 (s, 1H), 8.66–8.62 (m, 2H), 8.23 (s, 1H), 8.14 (d, J = 7.9 Hz, 1H), 7.91 (d, J = 8.8 Hz, 2H), 7.86–7.83 (m, 1H), 7.43 (d, J = 8.6 Hz, 2H), 7.22 (d, J = 5.3 Hz, 1H), 3.80–3.76 (m 1H), 1.82–1.60 (m, 6H), 1.38–1.23 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.14, 152.88, 148.45, 147.43, 143.37, 130.08, 129.19, 127.00, 124.97, 122.60, 120.99, 120.47, 104.76, 48.75, 32.97, 25.76, 25.46. IR: (KBr, cm⁻¹) υ 3219.24, 2934.11, 2856.95, 1633.01, 1582.49, 1530.64, 1379.21, 1323.67, 1260.81, 1158.83, 1125.73, 1072.30, 919.35, 892.37, 863.93, 816.92, 739.71, 683.61, 568.21, 481.12.

N-(4-Hydroxycyclohexyl)-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G10). White powder. m.p.: 324.0–325.0 °C, yield in 41.96%. HRMS (ESI): calcd for C₂₃H₂₂F₃N₃O₂, m/z 430.16641 ([M+H]⁺), found 430.17310 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.40 (s, 1H), 8.66–8.62 (m, 2H), 8.23 (s, 1H), 8.10 (d, J = 7.8 Hz, 1H), 7.90 (d, J = 8.4 Hz, 2H), 7.86–7.83 (m, 1H), 7.43 (d, J = 8.7 Hz, 2H), 7.22 (d, J = 5.3 Hz, 1H), 4.57 (d, J = 4.4 Hz, 1H), 3.78–3.69 (m, 1H), 3.33 (s, 1H), 1.88–1.81 (m, 4H), 1.43–1.21 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.35, 152.92, 148.52, 147.39, 143.44, 129.97, 129.18, 127.08, 124.98, 122.63, 120.96, 120.46, 104.82, 68.84, 48.34, 34.76, 30.85. IR: (KBr, cm⁻¹) υ 3260.93, 2934.68, 1642.46, 1529.99, 1430.77, 1379.65, 1320.12, 1261.47, 1180.96, 1152.52, 1129.93, 1081.83, 1051.36, 892.99, 837.04, 757.96, 685.43, 627.19, 476.94.

N-Benzyl-4-{[7-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G11). White powder. m.p.: 263.4–265.8 °C, yield in 45.92%. HRMS (ESI): calcd for C₂₄H₁₈F₃N₃O, m/z 422.14020 ([M+H]⁺), found 422.14749 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.44 (s, 1H), 9.06–9.03 (m, 1H), 8.67–8.64 (m, 2H), 8.25 (s, 1H), 8.02 (d, J = 8.3 Hz, 2H), 7.83 (d, J = 8.8 Hz, 1H), 7.49 (d, J = 8.4 Hz, 2H), 7.37–7.31 (m, 4H), 7.27–7.22 (m, 2H), 4.54 (d, J = 5.9 Hz, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.14, 152.78, 148.48, 147.31, 143.83, 140.31, 129.44, 129.23, 128.69, 127.67, 127.12, 124.95, 122.70, 120.91, 120.40, 104.95, 43.11. IR: (KBr, cm⁻¹) υ 3301.70, 3031.23, 2871.88, 1625.87, 1581.37, 1525.59, 1431.34, 1376.87, 1321.75, 1260.57, 1190.03, 1155.01, 1126.26, 1074.94, 921.01, 895.44, 867.80, 821.80, 751.76, 694.17, 579.52, 524.41, 501.98, 480.82.

Morpholino{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G12). White powder. m.p.: 277.9–278.7 °C, yield in 43.23%. HRMS (ESI): calcd for C₂₁H₁₈F₃N₃O₂, m/z 402.13511 ([M+H]⁺), found 402.14197 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.38 (s, 1H), 8.65–8.62 (m, 2H), 8.23 (s, 1H), 7.85 (dd, J₁ = 8.9 Hz, J₂ = 2.0 Hz, 1H), 7.50–7.43 (m, 4H), 7.23 (d, J = 5.3 Hz, 1H), 3.64–3.62 (m, 4H), 3.56–3.52 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.28, 152.85, 148.42, 147.56, 142.20, 130.69, 130.24, 129.93, 129.25, 126.98, 124.95, 122.56, 121.48, 120.46, 120.42, 104.57, 66.60. IR: (KBr, cm⁻¹) υ 3300.39, 1605.07, 1579.94, 1525.28, 1460.28, 1423.13, 1375.23, 1320.29, 1253.57, 1130.02, 1074.49, 1009.77, 914.69, 868.78, 831.15, 775.83, 754.96, 737.03, 684.25, 551.59, 475.16.

[4-(O-tolyl)piperazin-1-yl]{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G13). White powder. m.p.: 194.7–195.6 °C, yield in 31.29%. HRMS (ESI): calcd for C₂₈H₂₅F₃N₄O, m/z 491.19805 ([M+H]⁺), found 491.20551 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.66–8.63 (m, 2H), 8.23 (s, 1H), 7.85 (dd, J₁ = 8.9 Hz, J₂ = 1.9 Hz, 1H), 7.53–7.45 (m, 4H), 7.25 (d, J = 5.3 Hz, 1H), 7.05 (d, J = 8.3 Hz, 2H), 6.88 (d, J = 8.6 Hz, 2H), 3.71–3.65 (m, 4H), 3.14–3.11 (m, 4H), 2.21 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.21, 152.90, 149.17, 148.50, 147.50, 142.21, 130.91, 129.89, 129.23, 128.76, 127.03, 124.94, 122.57, 121.46, 120.43, 116.70, 104.58, 49.59, 20.52. IR: (KBr, cm⁻¹) υ 3161.73, 2920.05, 2861.80, 1624.33, 1578.97, 1516.33, 1427.86, 1378.74, 1326.49, 1236.32, 1180.42, 1165.03, 1124.18, 1077.07, 1010.84, 920.53, 905.17, 871.23, 826.91, 749.08, 682.76, 568.47, 475.57.

[4-(P-tolyl)piperazin-1-yl]{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G14). White powder. m.p.: 192.0–193.8 °C, yield in 34.01%. HRMS (ESI): calcd for C₂₈H₂₅F₃N₄O, m/z 491.19805 ([M+H]⁺), found 491.20471 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.38 (s, 1H), 8.66–8.63 (m, 2H), 8.23 (s, 1H), 7.85 (dd, J₁ = 8.8 Hz, J₂ = 2.0 Hz, 1H), 7.53–7.45 (m, 4H), 7.25 (d, J = 5.3 Hz, 1H), 7.05 (d, J = 8.1 Hz, 2H), 6.88 (d, J = 8.3 Hz, 2H), 3.73–3.63 (m, 4H), 3.14–3.12 (m, 4H), 2.21 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.22, 152.92, 149.18, 148.52, 147.50, 142.22, 130.93, 129.89, 129.23, 128.76, 127.07, 124.94, 122.59, 121.47, 120.43, 120.40, 116.71, 104.60, 49.60, 20.52. IR: (KBr, cm⁻¹) υ 3061.55, 2920.72, 2828.32, 1626.17, 1579.09, 1516.46, 1427.64, 1379.18, 1327.32, 1235.24, 1180.85, 1165.51, 1123.80, 1077.18, 1010.69, 920.59, 905.24, 871.15, 827.19, 749.70, 682.65, 568.45, 476.00.

{4-[4-(Trifluoromethoxy)phenyl]piperazin-1-yl}{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G15). White powder. m.p.: 195.9–196.4 °C, yield in 42.67%. HRMS (ESI): calcd for C₂₈H₂₂F₆N₄O₂, m/z 561.16470 ([M+H]⁺), found 561.17194 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.67–8.63 (m, 2H), 8.23 (d, J = 1.9 Hz, 1H), 7.85 (dd, J₁ = 8.9 Hz, J₂ = 1.9 Hz, 1H), 7.53 (d, J = 8.6 Hz, 2H), 7.47 (d, J = 8.6 Hz, 2H), 7.26–7.21 (m, 3H), 7.07–7.03 (m, 2H), 3.73–3.64 (m, 4H), 3.26–3.22 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 168.23, 151.86, 149.27, 147.47, 146.48, 141.26, 140.29, 129.80, 129.22, 128.23, 126.02, 124.88, 123.92, 121.56, 121.32, 120.42, 119.41, 119.38, 116.14, 103.58, 47.82. IR: (KBr, cm⁻¹) υ 3161.55, 2925.20, 1625.56, 1579.31, 1512.13, 1428.85, 1379.67, 1327.92, 1259.14, 1207.05, 1154.27, 1122.87, 1076.70, 1009.67, 920.34, 871.61, 827.07, 739.75, 611.88, 475.55.

{4-[3-(Trifluoromethyl)phenyl]piperazin-1-yl}{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G16). White powder. m.p.: 217.0–218.5 °C, yield in 28.19%. HRMS (ESI): calcd for C₂₈H₂₂F₆N₄O, m/z 545.16978 ([M+H]⁺), found 545.17645 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.41 (s, 1H), 8.67–8.64 (m, 2H), 8.24 (s, 1H), 7.86 (dd, J₁ = 8.9 Hz, J₂ = 1.9 Hz, 1H), 7.55 (d, J = 8.5 Hz, 2H), 7.50–7.44 (m, 3H), 7.26 (dd, J₁ = 9.6 Hz, J₂ = 5.0 Hz, 3H), 7.12 (d, J = 7.6 Hz, 1H), 3.74–3.70 (m, 4H), 3.42–3.40 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.30, 152.84, 151.47, 148.49, 147.50, 142.31, 130.77, 130.57, 130.47, 130.26, 129.92, 129.26, 127.03, 125.90, 124.93, 123.19, 122.58, 121.43, 120.40, 120.37, 119.62, 115.56, 111.82, 104.57, 48.33. IR: (KBr, cm⁻¹) υ 1620.97, 1579.11, 1530.60, 1429.09, 1378.01, 1321.85, 1256.37, 1154.90, 1114.82, 1074.00, 1011.09, 946.43, 902.88, 870.96, 825.82, 784.66, 739.44, 682.17, 474.80.

[4-(4-Chlorophenyl)piperazin-1-yl]{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G17). White powder. m.p.: 242.0–242.9 °C, yield in 27.45%. HRMS (ESI): calcd for C₂₇H₂₂ClF₃N₄O, m/z 511.14342 ([M+H]⁺), found 511.15131 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.66–8.62 (m, 2H), 8.23 (s, 1H), 7.86 (d, J = 6.9 Hz, 1H), 7.53–7.45 (m, 4H), 7.28–7.24 (m, 3H), 6.99 (d, J = 8.8 Hz, 2H), 3.70–3.66 (m, 4H), 3.22–3.19 (m, 4H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.25, 152.88, 150.04, 148.45, 147.53, 142.25, 130.84, 129.25, 127.02, 124.96, 123.32, 122.58, 121.46, 120.46, 117.80, 104.60, 48.79. IR: (KBr, cm⁻¹) υ 3159.21, 2828.99, 1625.71, 1579.11, 1531.13, 1496.65, 1427.24, 1378.80, 1326.80, 1234.13, 1181.05, 1164.67, 1123.67, 1076.96, 1011.72, 920.34, 871.48, 826.80, 749.93, 651.62, 518.84, 476.05.

[4-(4-Ethoxyphenyl)piperazin-1-yl]{4-{[7-(trifluoromethyl)quinolin-4-yl]amino}phenyl}methanone (G18). White powder. m.p.: 210.0–212.3 °C, yield in 21.79%. HRMS (ESI): calcd for C₂₉H₂₇F₃N₄O₂, m/z 521.20861 ([M+H]⁺), found 521.21588 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.39 (s, 1H), 8.66–8.63 (m, 2H), 8.23 (s, 1H), 7.85 (dd, J₁ = 8.9 Hz, J₂ = 2.0 Hz, 1H), 7.53–7.45 (m, 4H), 7.24 (d, J = 5.3 Hz, 1H), 6.92 (d, J = 8.9 Hz, 2H), 6.83 (d, J = 8.9 Hz, 2H), 3.97–3.92 (m, 2H), 3.71–3.65 (m, 4H), 3.07–3.04 (m, 4H), 1.29 (t, J = 7.0 Hz, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 169.19, 153.03, 152.86, 148.43, 147.56, 145.49, 142.19, 130.96, 129.22, 127.00, 124.95, 122.56, 121.49, 120.47, 120.42, 118.52, 115.35, 104.56, 63.56, 50.53, 15.23. IR: (KBr, cm⁻¹) υ 3157.07, 2977.56, 2820.65, 1630.27, 1579.43, 1511.51, 1425.29, 1377.65, 1325.07, 1246.01, 1164.49, 1123.51, 1076.52, 1046.55, 1012.80, 920.37, 871.12, 824.80, 739.39, 682.44, 474.20.

N-{2-(2-Methoxyphenoxy)ethyl}-4-(quinolin-4-ylamino)benzamide (G19). White powder. m.p.: 319.5–320.2 °C, yield in 43.58%. HRMS (ESI): calcd for C₂₅H₂₃N₃O₃, m/z 414.17394 ([M+H]⁺), found 414.17886 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.18 (s, 1H), 8.62–8.59 (m, 1H), 8.55 (d, J = 5.2 Hz, 1H), 8.36 (d, J = 8.3 Hz, 1H), 7.93–7.89 (m, 3H), 7.75–7.70 (m, 1H), 7.58–7.54 (m, 1H), 7.42 (d, J = 8.7 Hz, 2H), 7.16 (d, J = 5.2 Hz, 1H), 7.03 (dd, J₁ = 7.3 Hz, J₂ = 2.2 Hz, 1H), 6.97 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.93–6.86 (m, 2H), 4.10 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.65–3.60 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.46, 151.20, 149.71, 149.52, 148.43, 146.87, 144.44, 129.86, 129.74, 129.10, 128.66, 125.42, 122.73, 121.76, 121.27, 120.83, 120.26, 114.41, 112.94, 103.99, 67.40, 56.00, 39.44.

N-[2-(2-Methoxyphenoxy)ethyl]-4-[(8-methylquinolin-4-yl)amino]benzamide (G20). White powder. m.p.: 150.2–151.7 °C, yield in 35.91%. HRMS (ESI): calcd for C₂₆H₂₅N₃O₃, m/z 428.18959 ([M+H]⁺), found 428.19495 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.11 (s, 1H), 8.60–8.58 (m, 2H), 8.19 (d, J = 8.5 Hz, 1H), 7.91–7.88 (m, 2H), 7.59 (d, J = 6.9 Hz, 1H), 7.46–7.39 (m, 3H), 7.18 (d, J = 5.1 Hz, 1H), 7.03 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.97 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.93–6.86 (m, 2H), 4.10 (t, J = 6.0 Hz, 2H), 3.75 (s, 3H), 3.65–3.60 (m, 2H), 2.69 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.39, 148.98, 148.63, 147.39, 145.99, 143.59, 135.98, 128.89, 128.02, 123.93, 120.68, 120.19, 119.66, 119.53, 118.93, 113.32, 111.86, 103.20, 66.33, 54.92, 38.36, 17.77.

N-[2-(2-Methoxyphenoxy)ethyl]-4-[(7-methylquinolin-4-yl)amino]benzamide (G21). White powder. m.p.: 209.6–210.6 °C, yield in 28.10%. HRMS (ESI): calcd for C₂₆H₂₅N₃O₃, m/z 428.18959 ([M+H]⁺), found 428.19495 ([M+H]⁺); ¹H NMR (400 MHz, DMSO-d₆) δ 9.13 (s, 1H), 8.59 (d, J = 5.5 Hz, 1H), 8.50 (d, J = 5.2 Hz, 1H), 8.25 (d, J = 8.6 Hz, 1H), 7.90 (d, J = 8.7 Hz, 2H), 7.70 (s, 1H), 7.41 (d, J = 8.6 Hz, 3H), 7.10 (d, J = 5.2 Hz, 1H), 7.03 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.97 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.93–6.85 (m, 2H), 4.10 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.65–3.60 (m, 2H), 2.50 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.47, 151.16, 149.80, 149.70, 148.43, 146.66, 144.54, 139.55, 129.09, 128.77, 128.48, 127.42, 122.54, 121.75, 121.26, 120.07, 118.79, 114.39, 112.92, 103.53, 67.39, 55.99, 39.44, 21.62.

N-[2-(2-Methoxyphenoxy)ethyl]-4-{[7-(trifluoromethoxy)quinolin-4-yl]amino}benzamide (G22). White powder. m.p.: 229.5–230.7 °C, yield in 40.24%. HRMS (ESI): calcd for C₂₆H₂₂F₃N₃O₄, m/z 498.15624 ([M+H]⁺), found 498.16077 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.36 (s, 1H), 8.64–8.61 (m, 1H), 8.58 (d, J = 5.3 Hz, 1H), 8.53 (d, J = 9.3 Hz, 1H), 7.94–7.91 (m, 2H), 7.79 (d, J = 1.3 Hz, 1H), 7.57 (dd, J₁ = 9.0 Hz, J₂ =2.6 Hz, 1H), 7.45–7.41 (m, 2H), 7.16 (d, J = 5.3 Hz, 1H), 7.03 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.97 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.94–6.86 (m, 2H), 4.11 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.65–3.61 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 165.35, 151.74, 148.23, 148.21, 147.37, 146.41, 143.00, 128.09, 124.72, 120.70, 120.20, 119.78, 118.48, 117.72, 113.34, 111.87, 111.84, 102.95, 66.33, 54.93, 38.40.

N-[2-(2-Methoxyphenoxy)ethyl]-4-[(7-nitroquinolin-4-yl)amino]benzamide (G23). White powder. m.p.: 217.0–218.5 °C, yield in 40.76%. HRMS (ESI): calcd for C₂₅H₂₂N₄O₅, m/z 459.15902 ([M+H]⁺), found 459.16367 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.50 (s, 1H), 8.70 (d, J = 5.3 Hz, 1H), 8.68–8.63 (m, 3H), 8.30 (dd, J₁ = 9.3 Hz, J₂ = 2.5 Hz, 1H), 7.94 (d, J = 8.6 Hz, 2H), 7.46 (d, J = 8.4 Hz, 2H), 7.28 (d, J = 5.4 Hz, 1H), 7.03 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.97 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.93–6.86 (m, 2H), 4.11 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.66–3.61 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.37, 153.74, 149.72, 148.58, 148.43, 148.24, 147.46, 143.52, 129.64, 129.19, 125.34, 125.17, 124.26, 121.77, 121.26, 121.09, 118.31, 114.43, 112.95, 105.57, 67.40, 56.00, 39.48.

N-[2-(2-Methoxyphenoxy)ethyl]-4-[(6-bromoquinolin-4-yl)amino]benzamide (G24). White powder. m.p.: 240.5–241.3 °C, yield in 27.16%. HRMS (ESI): calcd for C₂₅H₂₂BrN₃O₃, m/z 492.08445 ([M+H]⁺), found 492.08942 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.27 (s, 1H), 8.66 (s, 1H), 8.64–8.61 (m, 1H), 8.57 (d, J = 5.3 Hz, 1H), 8.92 (d, J = 8.7 Hz, 2H), 7.85 (s, 2H), 7.43 (d, J = 8.5 Hz, 2H), 7.18 (d, J = 5.3 Hz, 1H), 7.04 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.98 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.94–6.86 (m, 2H), 4.11 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.65–3.61 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.42, 151.70, 149.72, 148.43, 148.10, 146.36, 143.94, 132.93, 131.90, 129.14, 129.10, 125.11, 122.02, 121.77, 121.26, 120.56, 118.55, 114.42, 112.94, 104.25, 67.40, 56.00, 39.46.

N-[2-(2-Methoxyphenoxy)ethyl]-4-[(6-chloroquinolin-4-yl)amino]benzamide (G25). White powder. m.p.: 247.7–248.4 °C, yield in 34.30%. HRMS (ESI): calcd for C₂₅H₂₂ClN₃O₃, m/z 448.13497 ([M+H]⁺), found 448.13965 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.25 (s, 1H), 6.64–8.61 (m, 1H), 8.56 (d, J = 5.3 Hz, 1H), 8.52–8.51(m, 1H), 7.94–7.91 (m, 3H), 7.74 (dd, J₁ = 9.0 Hz, J₂ = 2.3 Hz, 1H), 7.43 (d, J = 8.4 Hz, 2H), 7.18 (d, J = 5.3 Hz, 1H), 7.04 (dd, J₁ = 7.4 Hz, J₂ = 2.2 Hz, 1H), 6.98 (dd, J₁ = 7.6 Hz, J₂ = 2.1 Hz, 1H), 6.94–6.86 (m, 2H), 4.11 (t, J = 6.1 Hz, 2H), 3.75 (s, 3H), 3.65–3.61 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.42, 151.69, 149.73, 148.45, 148.01, 146.41, 143.96, 131.88, 130.32, 130.08, 129.14, 129.07, 121.91, 121.77, 121.50, 121.27, 120.52, 114.45, 112.97, 104.28, 67.42, 56.01, 39.47.

N-[2-(2-Methoxyphenoxy)ethyl]-4-{[6-(trifluoromethyl)quinolin-4-yl]amino}benzamide (G26). White powder. m.p.: 225.3–227.3 °C, yield in 31.88%. HRMS (ESI): calcd for C₂₆H₂₂F₃N₃O₃, m/z 482.16133 ([M+H]⁺), found 482.16592 ([M+H]⁺). ¹H NMR (400 MHz, DMSO-d₆) δ 9.53 (s, 1H), 8.89 (s, 1H), 8.67–8.64 (m, 2H), 8.08 (d, J = 8.8 Hz, 1H), 7.96 (dd, J₁ = 8.9 Hz, J₂ = 2.3 Hz, 3H), 7.46 (d, J = 8.6 Hz, 2H), 7.20 (d, J = 5.4 Hz, 1H), 7.04 (dd, J₁ = 7.3 Hz, J₂ = 2.2 Hz, 1H), 6.98 (dd, J₁ = 7.5 Hz, J₂ = 2.1 Hz, 1H), 6.94–6.86 (m, 2H), 4.12 (t, J = 6.0 Hz, 2H), 3.76 (s, 3H), 3.67–3.63 (m, 2H). ¹³C NMR (101 MHz, DMSO-d₆) δ 166.41, 153.47, 150.72, 149.69, 148.42, 143.82, 131.13, 129.49, 126.33, 125.54, 123.62, 121.75, 119.80, 114.37, 112.90, 104.23, 67.37, 55.97, 39.47.

3.2. Biology

3.2.1. Cell and Compounds

The MDCK cells and HEK293T cells were routinely cultured in minimum essential medium (MEM, Gibco) supplemented with 10% (v/v) fetal bovine serum (FBS, Gibco) at 37 °C in a humidified 5% CO₂ incubator. The 26 compounds which were dissolved in dimethyl sulfoxide (DMSO) during the cytotoxicity assay, CPE assay, anti-influenza virus assay and RNP reconstitution assay.

3.2.2. Cytotoxicity Assay

The 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) method was performed to assess the cytotoxicity of target compounds in MDCK cells and HEK293T cells [27,52,53]. Firstly, MDCK cells or HEK293T cells were seeded into the 96-well plate. Then, the media containing test compounds replaced the growth media after 48 h. Incubate MDCK cells or HEK293T cells with test compounds for 72 h at 37 °C in a humidified 5% CO₂ incubator. Later, MTT solution (5 mg/mL in PBS) was added into each well and plates were incubated for 4 h at 37 °C. Then, add a solubilization solution to lyse cells. Finally, absorbance was read at 620 nm using an ELISA plate reader (Tecan Sunrise) after 3 h of further incubation at 37 °C. We set the values obtained from the wells treated with only DMSO as 100% of viable cells. The 50%-cytotoxic concentrations (CC₅₀) were gained by a non-linear least-squares fit in the software GraphPad Prism 7.

3.2.3. CPE Assay

The target compounds were assessed for their abilities in inhibiting influenza virus replication in MDCK cells by CPE reduction assay [54,55,56,57]. MDCK cells were seeded into a 96-well plate and were infected with virus at an MOI of 50 CCID₅₀ (50% cell culture infective dose) per well. The target compounds were added in serial dilutions. Then, replace the growth media by Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 0.2 μg/mL of TPCK-treated trypsin. Microscopy was performed to score virus-induced CPE after 72 h incubation at 35 °C. The concentration of test compound that protected half of the cells (EC₅₀ values) was calculated using a non-linear least-squares fit in the software GraphPad Prism 7. It is worth noting that cases where the culture was protected less than 50% before cytotoxicity became dominant as inhibitor concentrations were increased were designated “No effect”.

3.2.4. Plaque Inhibition Assay

The anti-influenza virus activities of the selected compounds were evaluated by plaque inhibition assay. MDCK cells were seeded at 5000 cells/well on 96-well plates for a day before being infected with the influenza virus (A/WSN/33, H1N1). The infection medium was DMEM (High Glucose) containing 1% FBS and 0.2% trypsin (1 µg/mL) [58]. The selected compounds were added to the cell culture at 100 μM. Unless otherwise indicated, the MDCK cells were infected with influenza A virus at a multiplicity of infection (MOI) of 0.1. We added Promega CellTiter-Glo^® reagen to each well following the protocol provided by the supplier after 45 h of incubation. Molecular Device SpectraMax M2 plate reader was utilized to quantified the luminescence (RLU) emitted from each well. The concentration required to inhibit 50% (IC₅₀ values) of A/WSN/33 was calculated using the software GraphPad Prism 7.

3.2.5. RNP Reconstitution Assay

As previously reported [59], plasmids pcDNA-PB1, pcDNA-PB2, pcDNA-PA, pcDNA-NP, pEGFP and pPolI-Luc-RT were used in RNP reconstitution assay. 1 × 10⁵ HEK293T cells were cultured in 96-well plates overnight. 125 ng of pcDNA-PB1, pcDNA-PB2, pcDNA-PA, pcDNA-NP, pPolI-Luc-RT and pEGFP were co-transfected to HEK293T cells to reconstitute the RNP complexes with Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA). Then, growth medium with selected compounds were added after 6 h of transfection. 24 h later, the luciferase activity was assayed by Steady-Glo luciferase substrate (Promega, Beijing, China). We used VICTOR 3 Multilabel plate reader (Perkin Elmer, Waltham, MA, USA) to read the fluorescence from GFP expression and luminescence.

3.3. PA−PB1 Inhibitory Activity Prediction by the Best Pharmacophore Hypo1

Firstly, 27 active and moderately active compounds [2,25,26,27,28,29,30,31] were selected as training set compounds to generate a pharmacophore model [32,33,34,35] by Hypogen algorithm 3D-QSAR pharmacophore generation protocol. The best pharmacophore Hypo1 enlisted in Table S5 was characterized with lowest total cost value (94.2536), the highest cost difference (75.318), the lowest RMSD (0.973343), and the best correlation coefficient (0.937771). Then, cost analysis, Fischer’s randomization test and test set analysis were used to validate the best pharmacophore model (Hypo1). The specific steps of pharmacophore model generation and validation were shown in the supporting information (Figures S2–S8, Tables S5–S7). The target compounds were all screened by the best pharmacophore Hypo1 and the estimated values were enlisted in Table 1.

3.4. Lipinski’s Rule and ADMET Prediction

A major filtration criterion for the drug design process was the prediction of adsorption, distribution, metabolism, excretion and toxicity (ADMET) properties. In this study, the ADMET modules in Discovery Studio 3.0 were used to calculate various mathematical predictive ADMET pharmacokinetic parameters, such as blood-brain-barrier penetration, human intestinal absorption, aqueous solubility, hepatotoxicity, plasma protein binding. Then, the 26 compounds were subjected to toxicity screening models using TOPKAT module of Discovery Studio 3.0.

3.5. Molecular Docking

Schrödinger’s Glide docking protocol was performed to the virtual screening and study the interactions of the selected target compounds with the crystal structure (PDB ID: 3CM8) [40,41,42,43] which was retrieved from the protein data base (RCSB PDB, http://www.rcsb.org, accessed on 12 August 2021). Then, Schrödinger’s protein preparation wizards were used to prepare the protein (remove the cofactors and water molecules; add missing residues; add hydrogens; generate Het states, and optimize the selected protein) [42]. Subsequently, the prepared protein structure was further processed for generating grid [43]. The active sites were defined based on the key residues (Asn412, Gln408, Glu623, Trp706, Trp618, Ile621, Lys643, Arg673, and Gln670) of in-bound ligand according to the previous literature sources [2,39,44]. Finally, the selected target compounds were prepared to implement the molecular docking by Glide-XP (extra precision). The docking poses were visually analyzed.

3.6. Preparation for Molecular Dynamics Simulation

The 100 ns MD simulations were performed by Desmond v3.8 module in the Schrödinger suite (version 9.6, Schrödinger Inc., New York, NY, USA). Three complexes (G07-3CM8, G19-3CM8 and G22-3CM8) were carried out for 100 ns MD simulations. The system was solvated with SPC water and neutralized by adding an appropriate amount of counter ions in the orthorhombic box (10 Å × 10 Å × 10 Å) in order to generate a buffer area between the protein atoms and the side of the box. Then, OPLS_2005 force field was used to minimize the energy of the complex system. The maximum number of iterations was set as 5000 during the minimization process. The temperature was set to 300 K and the pressure was set to 1.01325 bar. Finally, the 100 ns MD simulations were carried out (record the time interval of each trajectory at every 100 PS) [60,61,62].

The simulation quality analysis tool was used to analysis the MD simulations. The quality of MD simulations was predicted by the simulation event analysis tool. The protein-ligand interactions were identified through the simulation interaction diagram tool.

3.7. Prime/MM–GBSA Simulation

The molecular mechanics generalized born surface area (MM-GBSA) method was used to calculate the binding-free energy (ΔG_bind) of each ligand according to the following equation [63]:

ΔG_bind = ΔE_MM + ΔG_solv + ΔG_SA

In the equation, ΔE_MM was the difference in the minimized energies between the ligand-protein complexes and the sum of the energies of the protein and ligand in the unbound state. ΔG_solv was the difference in the GBSA solvation energy of the ligand-protein complexes and the sum of the solvation energies for the protein and ligand in free form. ΔG_SA was the difference in surface area energies for the ligand-protein complexes and the sum of the surface area energies for protein and ligand.

3.8. Alanine Scanning Mutagenesis

ASM analysis was usually used to investigate the role of a specific amino acid residue participating in protein-protein or protein-ligand interactions [45,46]. It was applied to further validate the binding free energy decomposition analysis.

ΔΔG_bind = ΔG_bind,mutant − ΔG_{bind,wild type}

The difference between the binding free energies for the wild type (ΔG_{bind,wild type}) and the mutant (ΔG_bind,mutant) yield the changes of binding free energy (ΔΔG_bind) arising from the substitution of a specific amino acid by an alanine. More positive ΔΔG_bind value indicates that the single mutation caused more significant effects and this specific residue played an important role in ligand binding [45,46].

4. Conclusions

This study focused on the synthesis and antiviral activity studies of 4-(quinolin-4-ylamino)benzamide derivatives. All the new compounds were evaluated for their cytotoxicity in MDCK cells and the anti-influenza virus (A/WSN/33, H1N1) activities. The results indicated that 4-(quinolin-4-ylamino)benzamide derivatives exhibited anti-influenza virus activities. G07 demonstrated significant anti-influenza virus both in cytopathic effect assay (EC₅₀ = 11.38 ± 1.89 µM) and anti-influenza assay (IC₅₀ = 0.23 ± 0.15 µM) of influenza A virus strain (A/WSN/33, H1N1) in MDCK cells. In addition, G07 exhibited significant anti-influenza virus activities against other three different influenza virus strains A/PR/8 (H1N1), A/HK/68 (H3N2) and influenza B virus. According to the RNP reconstitution assay, G07 could interect well with RNP with an inhibition rate of 80.65% at 100 µM, and G07 exhibited significant activity against PA−PB1 subunit of RNA polymerase based on the PA−PB1 inhibitory activity prediction by the best pharmacophore Hypo1. Therefore, it can be concluded that G07 is a potential anti-influenza virus agent. The molecular docking and molecular dynamics simulation results indicated that G07, G19 and G23 could interact well with the PA−PB1 active site, and GLU623, LYS643, TRP706, PHE707 and PHE710 are key amino acid residues interacted with the ligands. It can be speculated that these small molecules exhibited anti-influenza virus activities after blocking the PA−PB1 interface by competing with the PB1. This study can enrich the diverse library of quinoline-based compounds and provides a novel series of molecules for developing potential anti-influenza agents against PA−PB1.
