A New Mouse Model of Chronic Myocarditis Induced by Recombinant Bacille Calmette–Guèrin Expressing a T-Cell Epitope of Cardiac Myosin Heavy Chain-α

Abstract

Dilated cardiomyopathy (DCM) is a potentially lethal disorder characterized by progressive impairment of cardiac function. Chronic myocarditis has long been hypothesized to be one of the causes of DCM. However, owing to the lack of suitable animal models of chronic myocarditis, its pathophysiology remains unclear. Here, we report a novel mouse model of chronic myocarditis induced by recombinant bacille Calmette-Guérin (rBCG) expressing a CD4⁺ T-cell epitope of cardiac myosin heavy chain-α (rBCG-MyHCα). Mice immunized with rBCG-MyHCα developed chronic myocarditis, and echocardiography revealed dilation and impaired contraction of ventricles, similar to those observed in human DCM. In the heart, CD62L⁻CD4⁺ T cells were increased and produced significant amounts of IFN-γ and IL-17 in response to cardiac myosin. Adoptive transfer of CD62L⁻CD4⁺ T cells induced myocarditis in the recipient mice, which indicated that CD62L⁻CD4⁺ T cells were the effector cells in this model. rBCG-MyHCα-infected dendritic cells produced proinflammatory cytokines and induced MyHCα-specific T-cell proliferation and Th1 and Th17 polarization. This novel chronic myocarditis mouse model may allow the identification of the central pathophysiological and immunological processes involved in the progression to DCM.

1. Introduction

Dilated cardiomyopathy (DCM) is a heterogeneous group of myocardial diseases. Myocarditis has long been hypothesized as one of the causes of DCM [1]. Myocarditis is an inflammatory disease of the myocardium that is generally self-limited. However, in several cases, prolonged inflammation eventually results in DCM, which is a potentially lethal disorder characterized by progressively impaired cardiac function [2,3]. Long-term follow-up studies in patients with acute myocarditis have documented the development of DCM in 21% of patients over a mean follow-up period of 3 years [4]. Despite ongoing advances in the treatment of heart failure, improvement of DCM outcome remains problematic. Therefore, it is important to elucidate the molecular basis of the immune processes involved in the transition from myocarditis to DCM.

Myocarditis can be triggered by many different environmental agents, including viral and bacterial infections, toxins, and drugs [5,6], and subsequent autoimmune response is thought to contribute to the disease progression to DCM [7,8]. Among several cardiac self-antigens targeted during chronic heart inflammation, cardiac myosin heavy chain α isoform (MyHCα) has been identified as the most prominent autoantigen in myocarditis and DCM [9,10]. MyHCα immunization with immune adjuvants or the injection of MyHCα-loaded dendritic cells (DCs) can induce autoimmune myocarditis in mice [11,12]. In these models, myocardial inflammation persists for only 2–3 weeks [8,12,13]; therefore, a chronic autoimmune myocarditis model is needed to uncover the mechanisms of progression from myocarditis to DCM.

Bacille Calmette-Guérin (BCG), a live attenuated vaccine derived from Mycobacterium bovis, is the only licensed vaccine that has substantially helped controlling tuberculosis. Recombinant BCG (rBCG), which expresses foreign antigens or molecules, has been attracting attention as a promising vaccine candidate to protect against infectious diseases (such as tuberculosis and acquired immune deficiency syndrome) and cancers [14]. Since BCG is stable and highly immunogenic, possesses an inherent adjuvant capacity, and replicates inside macrophages and DCs [15], antigens expressed by rBCG can elicit long-lasting humoral and cellular immunity, including a CD4⁺ T-cell response to the recombinant antigen [16,17]. Therefore, we hypothesized that rBCG designed to express a cardiac autoantigen could elicit autoantigen-specific immune responses on a long-term basis, inducing chronic myocarditis and DCM.

Here, we report a novel mouse model of chronic myocarditis induced by rBCG expressing a cardiac autoantigen. Immunization with an rBCG expressing a CD4⁺ T-cell epitope of MyHCα (rBCG-MyHCα) elicited MyHCα-specific T-cell responses on a long-term basis and induced chronic myocarditis with dilation and impaired contraction of heart ventricles similar to human DCM.

2. Results

2.1. Characterization of rBCG-MyHCα

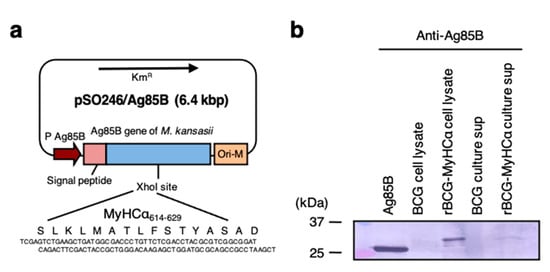

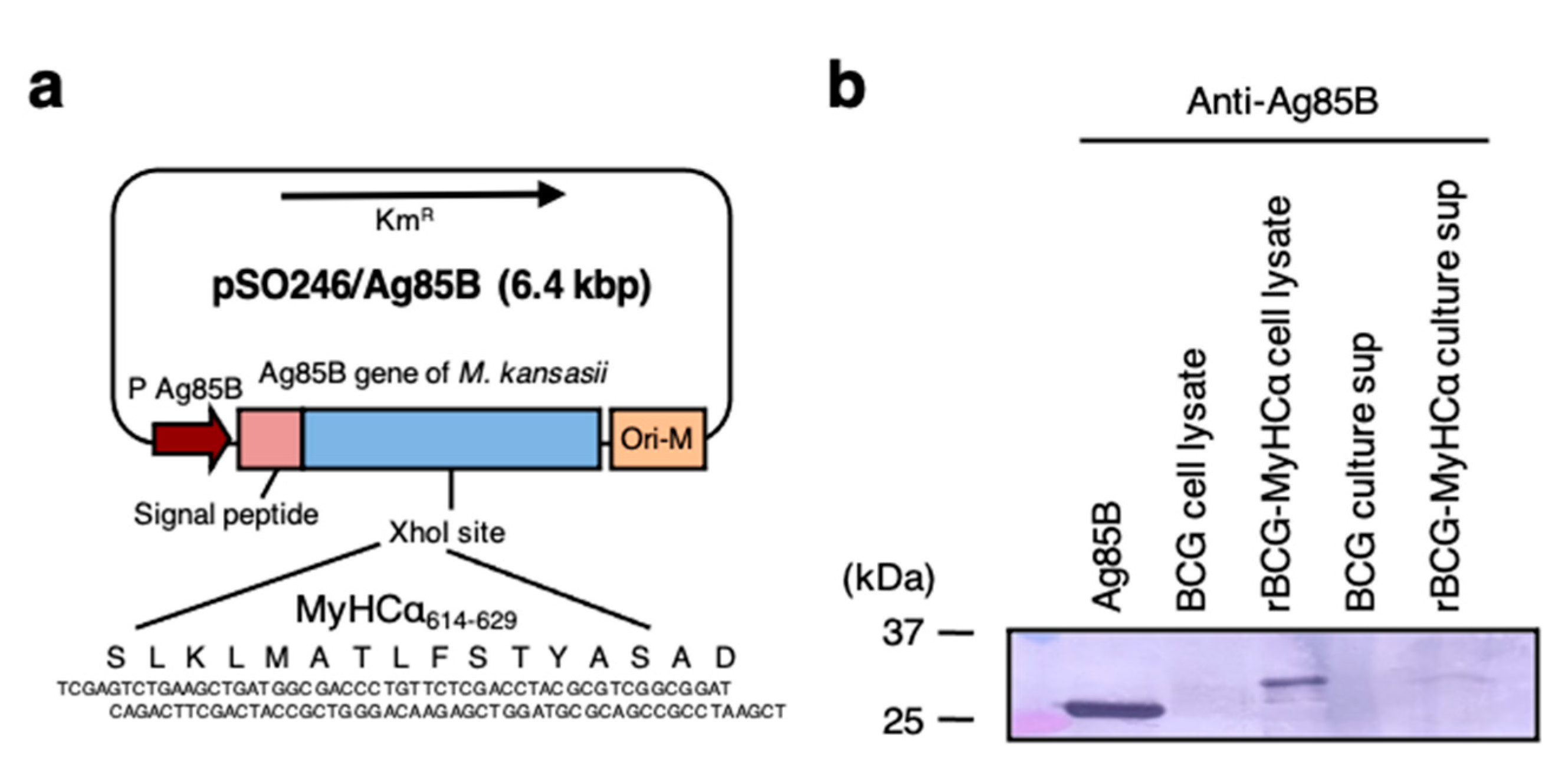

To enhance immunogenicity, we constructed rBCG-MyHCα that could express a CD4⁺ T-cell epitope of MyHCα as a fusion protein with Ag85B from Mycobacterium kansasii, a mycobacterial antigen known to induce strong T helper (Th)1 and Th17 type immune responses in the host [18,19,20]. The construction of the plasmid used for expression of the MyHCα-Ag85B fusion protein is shown in Figure 1a. For the generation of rBCG-MyHCα and rBCG-pSO246 (control), BCG was transformed with pSO246-MyHCα and a pSO246 empty vector, respectively. Western blot analyses of rBCG-MyHCα cell lysates and their culture supernatants revealed that rBCG-MyHCα produced MyHCα-Ag85B fusion protein in the bacteria and also secreted it stably in the culture supernatant (Figure 1b).

2.2. rBCG-MyHCα Immunization Induces Chronic Myocarditis and DCM in Mice

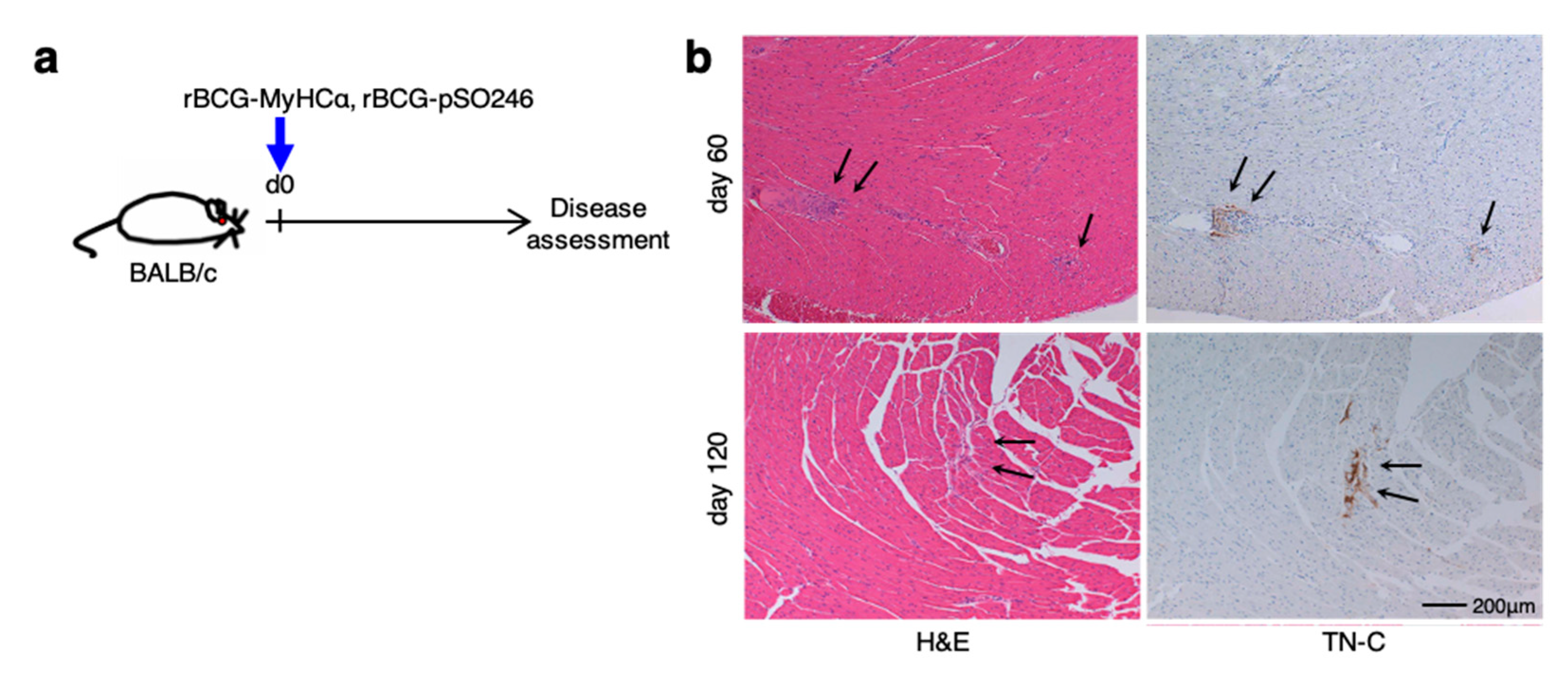

Next, we investigated the ability of rBCG-MyHCα to induce chronic myocarditis in vivo. rBCG-MyHCα induced a small cluster of mononuclear cell infiltration with the expression of tenascin-C (TN-C), a marker of active inflammation [21] (Figure 2), and a prevalence of 35.7% (5/14).

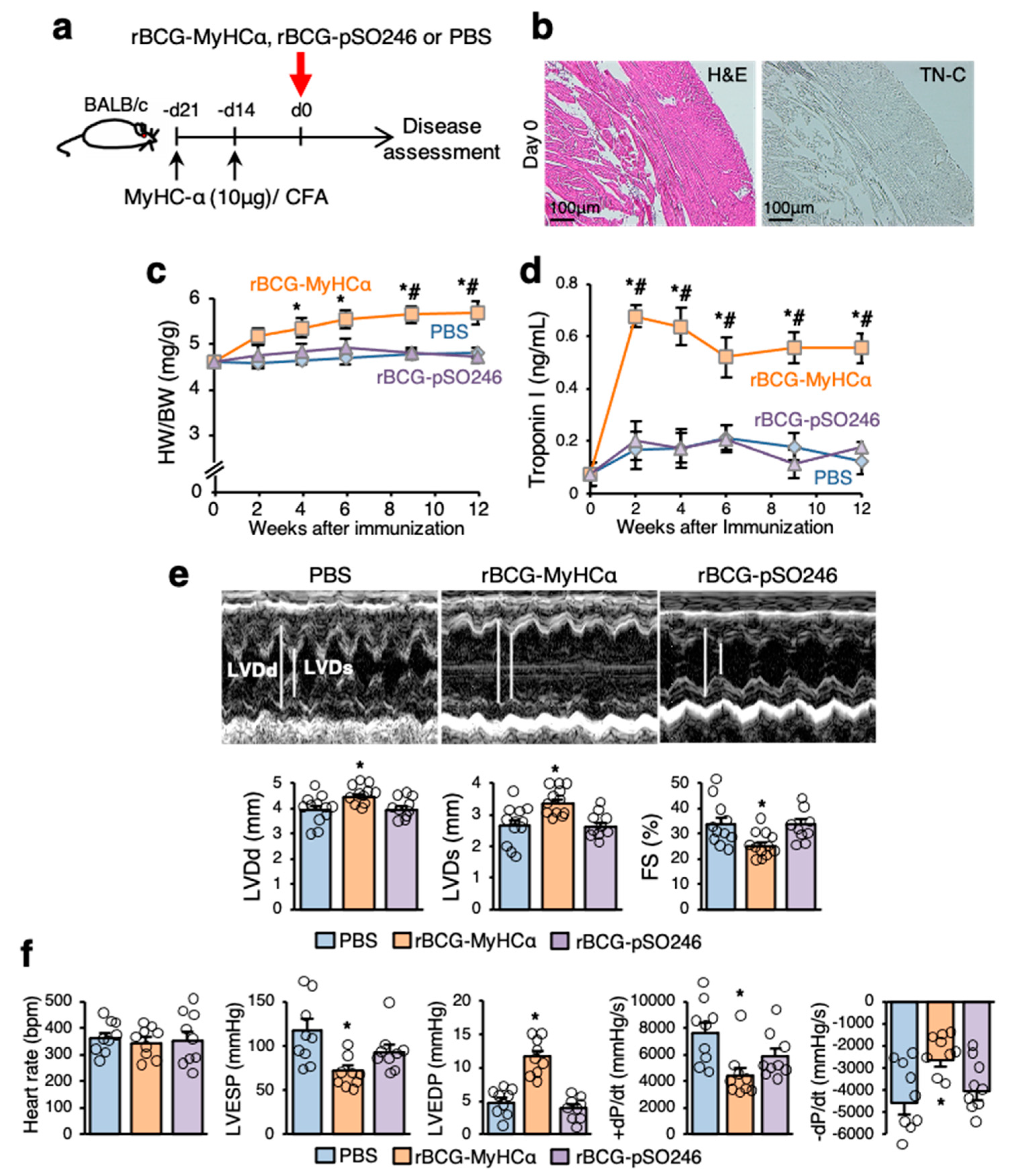

Thus, a single injection of rBCG-MyHCα induced mild chronic myocarditis at low prevalence. Therefore, to boost the immune response, mice were immunized with a small amount of MyHCα peptide before rBCG-MyHCα immunization (Figure 3a). As shown in Figure 3b, such a small amount of MyHCα peptide did not induce myocardial inflammation in mice, as previously reported [12]. The rBCG-MyHCα-immunized mice primed with small amounts of MyHCα peptides conjugated with complete Freund’s adjuvant (CFA) showed progressively increased heart-to-body weight ratios (HW/BW) and elevated serum levels of troponin I, a marker of cardiomyocyte damage, for more than 12 weeks (Figure 3c,d). Echocardiographic examination revealed an acceleration of cardiac dilatation and deterioration of left ventricular (LV) function in rBCG-MyHCα-immunized mice (Figure 3e). In cardiac catheterization experiments, rBCG-MyHCα-immunized mice showed lower LV end-systolic pressure (LVESP), higher LV end-diastolic pressure (LVEDP), and lower maximum and minimum dP/dt (±dP/dT) (Figure 3f). These results indicate that rBCG-MyHCα-immunized mice developed DCM and heart failure.

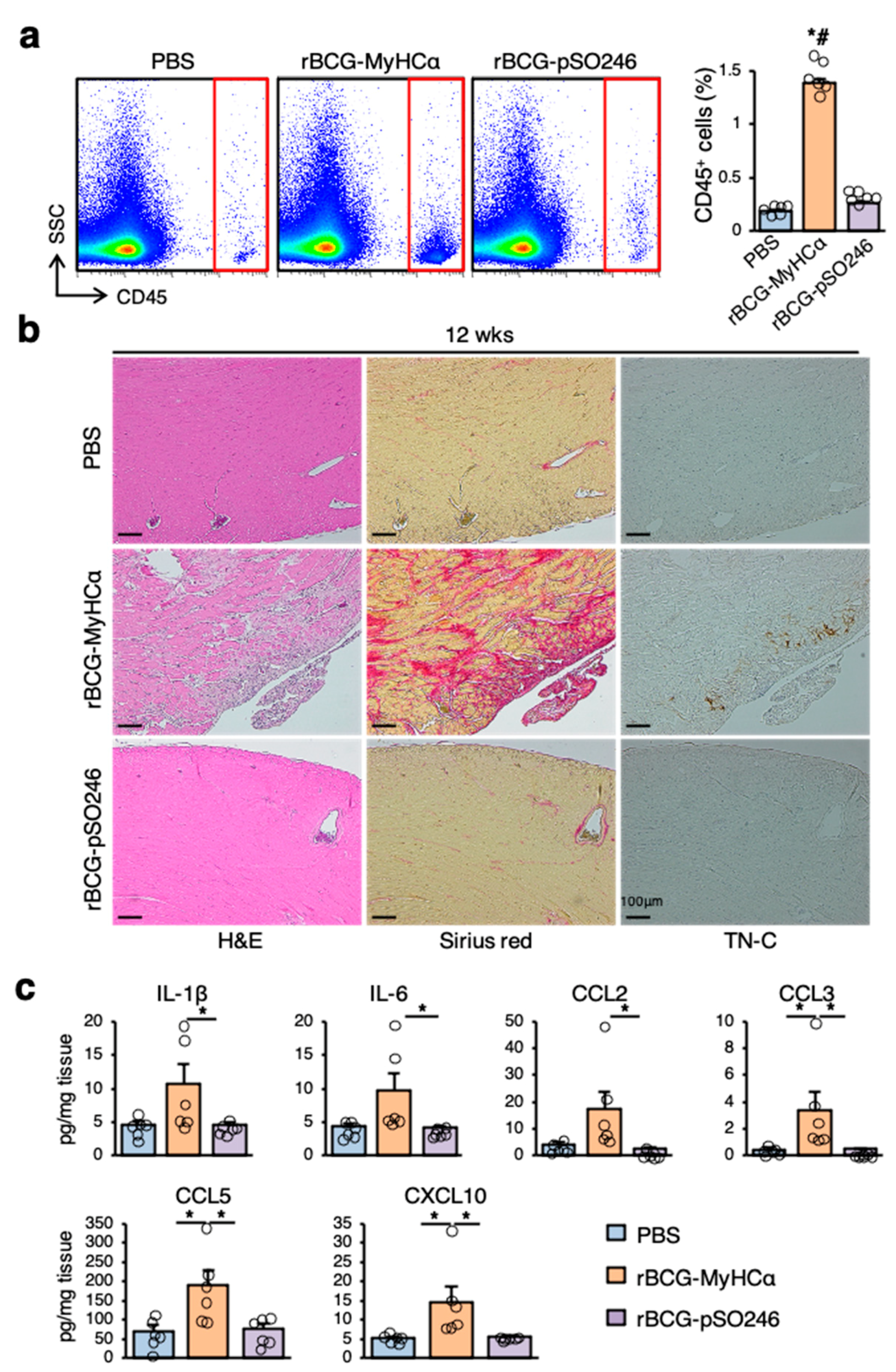

There was a marked increase in CD45⁺ inflammatory cell infiltration in the hearts of rBCG-MyHCα-immunized mice at 12 weeks after immunization (Figure 4a). Histological examination revealed that larger areas were occupied by Sirius red-positive collagen deposition (Figure 4b). In the fibrotic area, mononuclear cell infiltration was also evident with the expression of TN-C (Figure 4b), and the prevalence of myocarditis was 85.7% (6/7). The heart homogenates from rBCG-MyHCα-immunized mice had significantly increased levels of the proinflammatory cytokines IL-1β and IL-6 and chemokines CCL2, CCL3, CCL5, and CXCL10 (Figure 4c).

2.3. A Model of Prolonged Chronic Myocarditis Following Acute Myocarditis

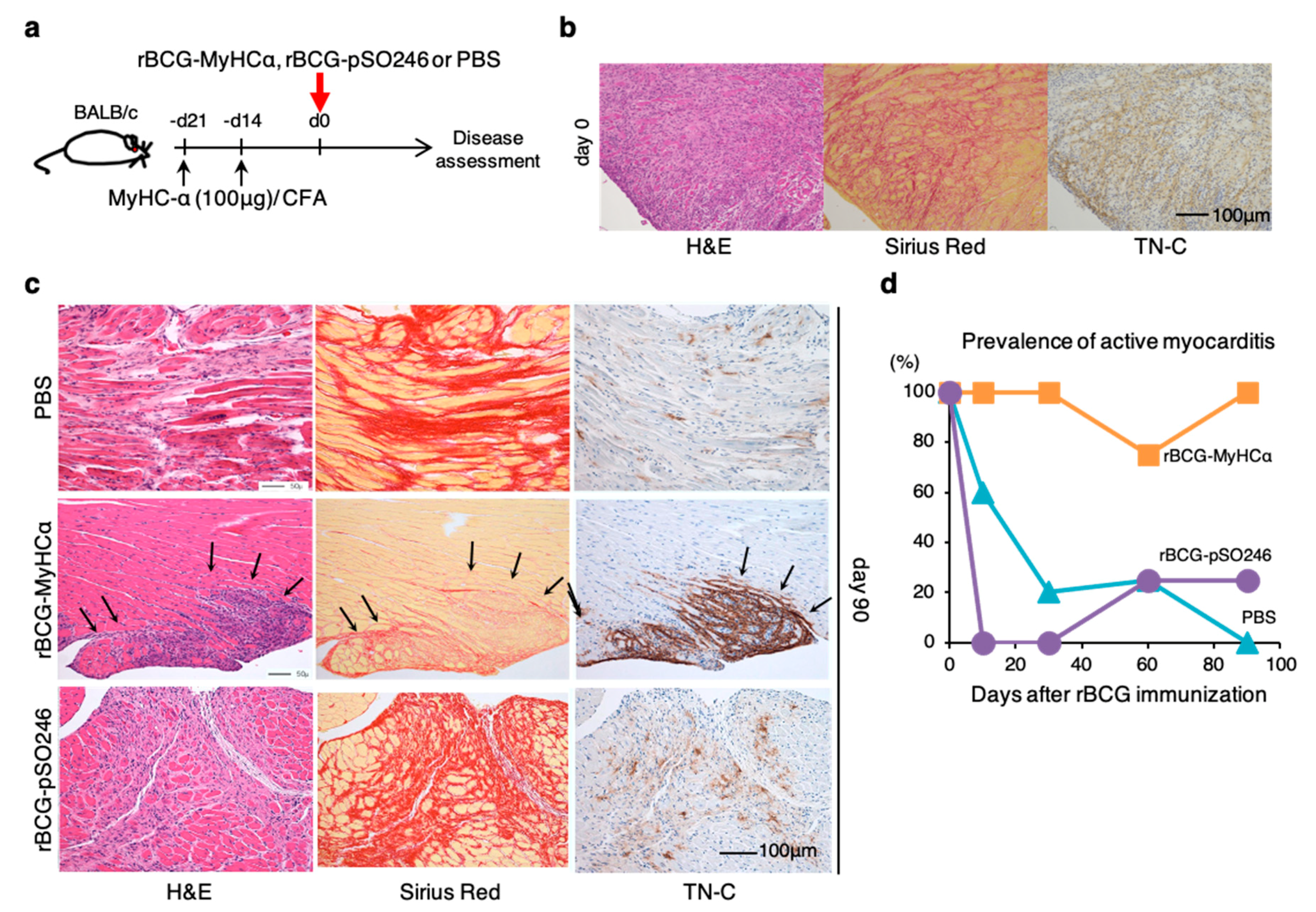

The clinical picture of chronic myocarditis is thought to be divided into two types: Prolonged chronic myocarditis following acute myocarditis and occult chronic myocarditis with insidious onset. In Figure 3 and Figure 4, mice with rBCG-MyHCα-immunization after priming with a small amount of MyHCα peptide/CFA developed chronic myocarditis without acute myocarditis episode, which can be a model of the latter (occult chronic myocarditis). Therefore, we next tried to establish another model that mimics the former type (prolonged chronic myocarditis following acute myocarditis). We first induced experimental autoimmune myocarditis (EAM) in mice by immunization with 100 μg of MyHCα peptide/CFA before rBCG-MyHCα immunization (Figure 5a) and confirmed that EAM was successfully induced in mice on the day of rBCG immunization (at 3 weeks after the first MyHCα peptide immunization) (Figure 5b). rBCG-MyHCα-immunized EAM mice demonstrated active inflammation even 90 days after rBCG immunization with 100% prevalence (Figure 5c,d). In contrast, in the EAM mice injected with PBS or immunized with rBCG-pSO246, there was almost no active inflammatory cell infiltration or dense TN-C expression in the heart on day 90 (Figure 5c). Based on these findings, rBCG-MyHCα-immunized EAM mice can be a model of prolonged chronic myocarditis following acute myocarditis.

2.4. Assessment of the CD4⁺ T-Cell Function of rBCG-MyHCα-Immunized Mice

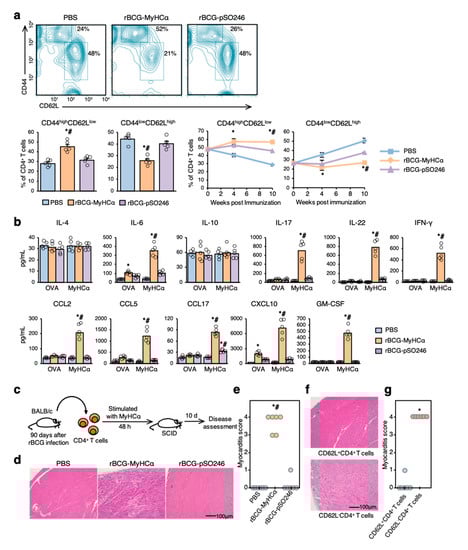

CD4⁺ T cells are key pathogenic players underlying the development and progression of myocarditis, and the effector subsets promote autoimmune responses [22]. Therefore, we next assessed the CD4⁺ T-cell function of rBCG-MyHCα-immunized mice. At 12 weeks after immunization, CD44^highCD62L^low effector memory CD4⁺ T cells were markedly increased, but CD44^lowCD62L^high naive CD4⁺ T cells were significantly decreased in the hearts of rBCG-MyHCα-immunized mice (Figure 6a). In the PBS and rBCG-pSO246 groups, the percentage of infiltrating effector memory T cells gradually decreased, while that of naïve T cells increased as myocardial inflammation diminished (Figure 6a). Isolated from rBCG-MyHCα-immunized mice produced proinflammatory cytokines IL-6, IL-17, IL-22, IFN-γ, GM-CSF, and chemokines CCL2, CCL5, CCL17, and CXCL10 in response to MyHCα stimulation (Figure 6b).

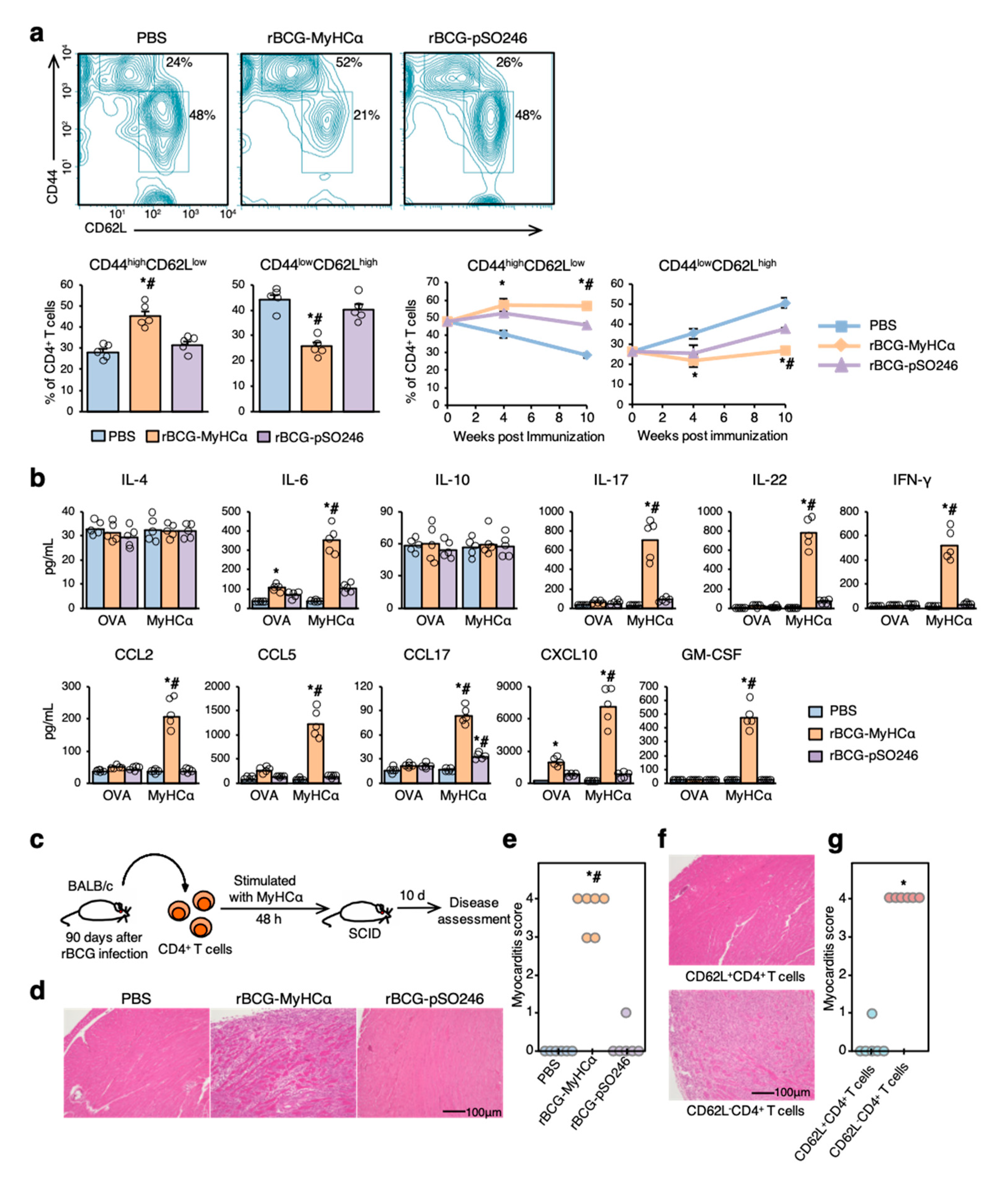

Adoptive transfer of CD4⁺ T cells isolated from rBCG-MyHCα-immunized mice at 12 weeks after immunization successfully induced severe myocarditis in the recipient mice (Figure 6c–e). Moreover, among the CD4⁺ T cells, only CD62L⁻ cells were able to induce myocarditis in the recipients (Figure 6f,g). These results indicate that CD4⁺ T cells from rBCG-MyHCα-immunized mice maintained their effector function in the chronic phase and that CD62L⁻CD4⁺ T cells were the key pathogenic players in this mouse model.

2.5. rBCG-MyHCα Mediates DC Activation and Th1/Th17 Cell Differentiation

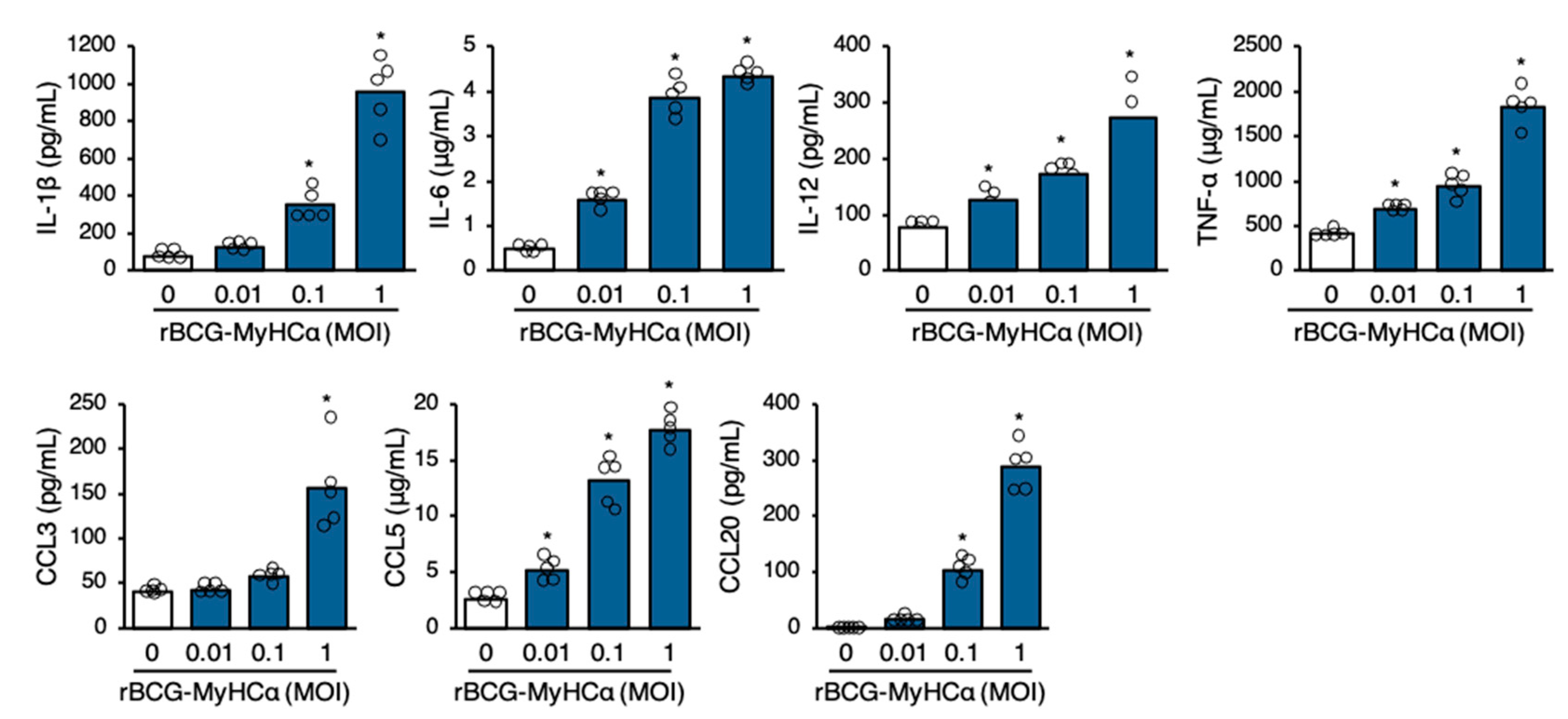

DCs are professional APCs that are essential for priming T cell responses [23]. In addition to presenting antigen-derived peptides for T-cell activation and expansion, DCs release a cocktail of polarizing cytokines for the differentiation of CD4⁺ T cells into effector cells [10,24]. rBCG-MyHCα-infected bone marrow-derived DCs (BMDCs) produced proinflammatory cytokines IL-1β, IL-6, IL-12, and TNF-α, and chemokines CCL2, CCL3, CCL5, and CCL20 in an MOI-dependent manner (Figure 7).

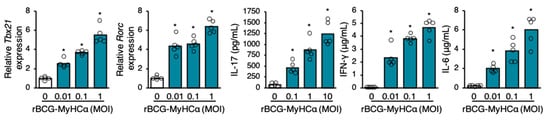

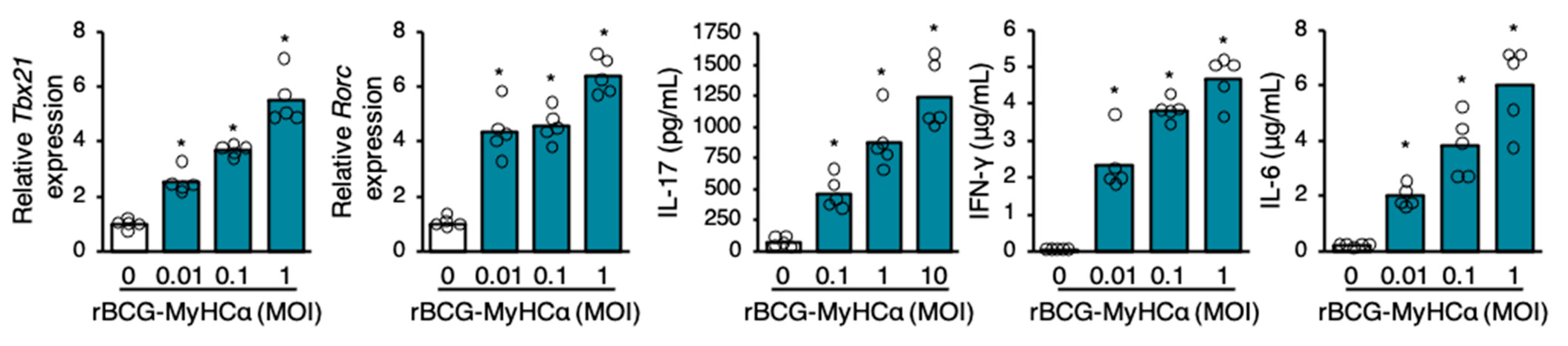

To investigate the effect of rBCG-MyHCα-infected DCs on CD4⁺ T cell differentiation, naïve CD4⁺ T cells were cultured in the culture supernatant of rBCG-MyHCα-infected DCs. The transcription factors, T-bet (encoded by Tbx21) and RORγT (encoded by Rorc), which have critical roles in the development of Th1 and Th17 cells, respectively, were upregulated, and the CD4⁺ T cells produced Th1 and Th17 cytokines (IFN-γ and IL-17, respectively) in an MOI-dependent manner (Figure 8). Thus, rBCG-MyHCα infection encouraged the differentiation of CD4⁺ T cells into Th1 and Th17 cells via DC activation.

2.6. rBCG-Infected DCs Induce MyHCα-Specific CD4⁺ T-Cell Proliferation

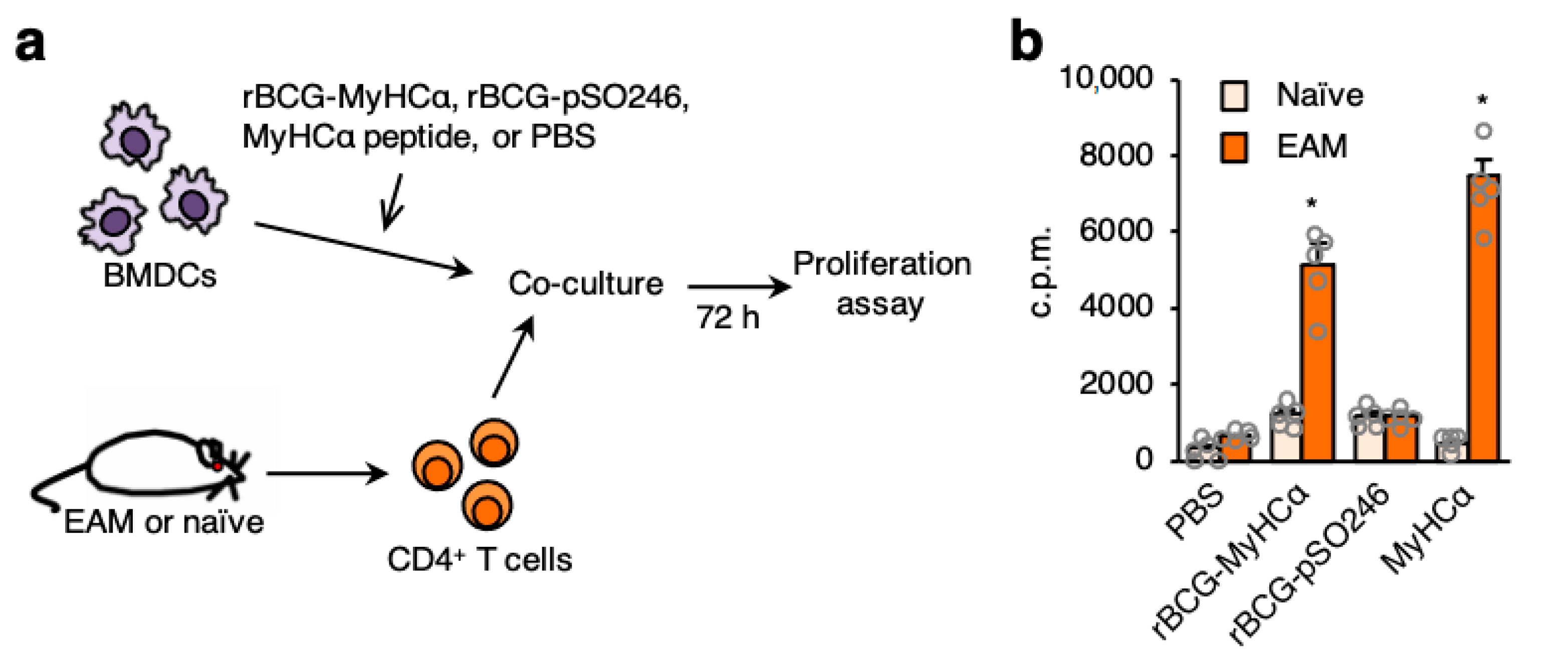

Next, we investigated whether DCs infected with rBCG-MyHCα could activate MyHCα-specific T cells. MyHCα-specific CD4⁺ T cells were isolated from EAM mice and co-cultured with DCs (Figure 9a). MyHCα-specific CD4⁺ T cells significantly proliferated when co-cultured with rBCG-MyHCα-infected DCs or with MyHCα peptide-loaded DCs (Figure 9b). These results indicated that DCs infected with rBCG-MyHCα presented MyHCα peptide to CD4⁺ T cells and activated them.

2.7. rBCG-Infected DCs Can Induce Chronic Myocarditis

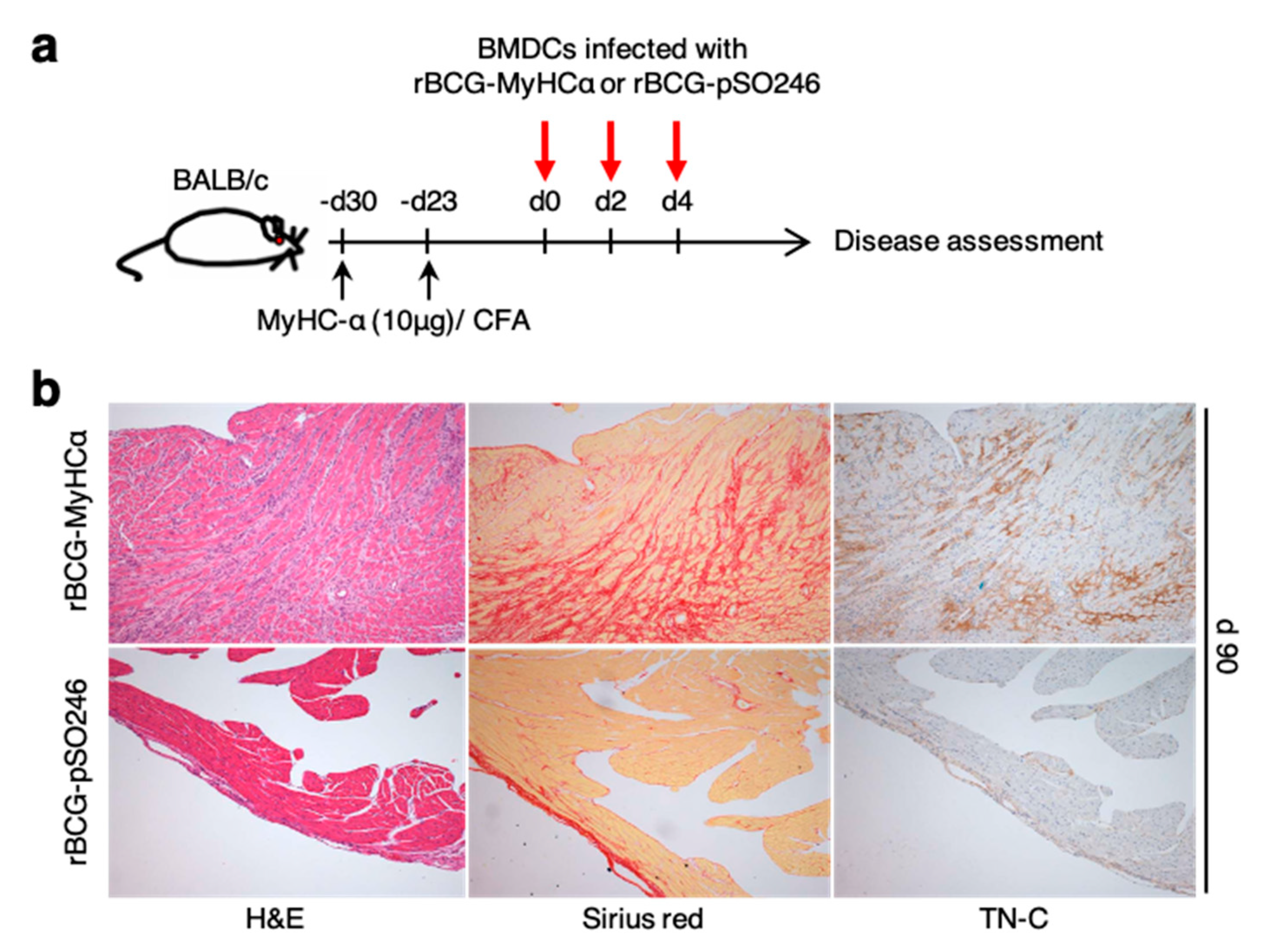

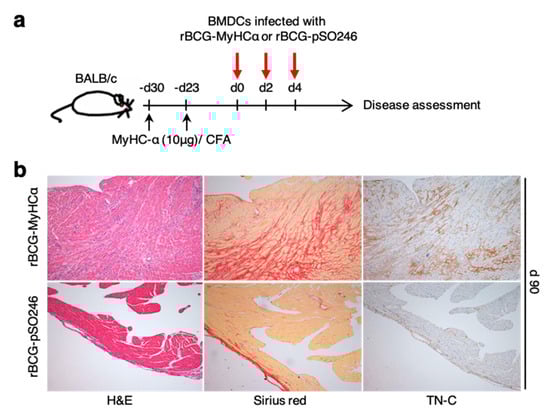

Finally, we investigated whether rBCG-infected DCs could induce chronic myocarditis. After priming with a small amount of MyHCα peptides, BMDCs infected with rBCG-MyHCα or rBCG-pSO246 were injected into mice (Figure 10a). Histological examination revealed severe mononuclear cell infiltration with collagen deposition and TN-C expression on day 90 after rBCG-MyHCα-infected BMDC injection (Figure 10b). These results suggest that rBCG-MyHCα-infected DCs continuously activated MyHCα-reactive CD4⁺ T cells that induced chronic myocarditis.

3. Discussion

In this study, we established a novel mouse model of chronic myocarditis induced by recombinant BCG expressing a CD4⁺ T-cell epitope of cardiac myosin. Mice immunized with rBCG-MyHCα after priming with a low dose of MyHCα peptide/CFA mimicked occult chronic myocarditis in humans; rBCG-MyHCα immunization after EAM induction represented prolonged chronic myocarditis following acute myocarditis. CD44^highCD62L^lowCD4⁺ cells were increased in the heart and showed Th1/Th17 phenotypes. Adoptive transfer of CD4⁺ T cells induced myocarditis in the recipients even 12 weeks after rBCG-MyHCα immunization, which indicated that rBCG-MyHCα maintained the effector function of CD4⁺ T cells for extended periods of time.

This is the first report of the successful establishment of an autoimmune disease model using rBCG technology. BCG offers some unique advantages for developing chronic autoimmune responses against recombinant autoantigens. BCG can persist in vivo for many years, which could provide continuing immunization to the recombinant autoantigen. In addition, it is well known that mycobacterial components are typical immuno-adjuvants, such as the CFA, which is used for the induction of EAM. The cell wall components of BCG induce innate immunity via toll-like receptors (TLRs) 2 and 4 on DCs and macrophages [25]. DNA fragments containing the CpG motif also activate innate immunity via the TLR9 pathway [26]. TLR signaling pathways culminate in the activation of the transcription factor nuclear factor-kappaB, triggering the secretion of a broad range of inflammatory cytokines [27]. Moreover, due to the internalization of BCG or phagocytosis, APCs process BCG and present antigens to CD4⁺ T cells by binding with major histocompatibility complex class II molecules to activate them. After APC presents the antigen to T cells, CD4⁺ T cells release cytokines, including Th1 and Th17 cytokines [28]. In our study, rBCG-MyHCα-infected DCs produced proinflammatory cytokines and induced MyHCα-specific T-cell proliferation and Th1 and Th17 polarization. Thus, BCG may be an ideal vehicle for the delivery of autoantigens to induce chronic autoimmune responses.

The Japanese Circulation Society Task Force Committee on Chronic Myocarditis proposed two types of chronic myocarditis: Prolonged chronic myocarditis following acute myocarditis and occult chronic myocarditis with insidious onset [29]. The clinical picture of the two types of chronic myocarditis appears to differ considerably. The former often changes from acute fulminant myocarditis with/after mechanical circulatory support, while the latter type is usually incidentally diagnosed by endomyocardial biopsy in DCM patients. In either type, prolonged inflammation causes progressive tissue destruction, eventually resulting in DCM [3]. In this study, we established mouse models of these two types of chronic myocarditis. EAM mice with rBCG-MyHCα-immunization can be a model of prolonged chronic myocarditis following acute myocarditis. On the other hand, mice with rBCG-MyHCα-immunization after priming with a small amount of MyHCα peptide/CFA developed chronic myocarditis without acute myocarditis episode, which can be a model of occult chronic myocarditis.

In our chronic myocarditis model, CD4⁺ T cells produced large amounts of IFN-γ and IL-17 in response to MyHCα. The importance of MyHCα-specific Th1 and Th17 cells in the development of autoimmune myocarditis has been demonstrated in a number of animal studies. Mice lacking T-bet, a transcription factor that is essential for Th1 differentiation and IFN-γ production, were highly susceptible to autoimmune myocarditis owing to the induction of IL-17 production [30]. In EAM mice, Th17 cells promoted the progression of cardiac dysfunction [31]. In a transgenic mouse model expressing a MyHCα-specific T cell receptor on CD4⁺ T cells, myocarditis developed spontaneously, and the cooperation of IFN-γ and IL-17A was found to be essential for the transition from myocarditis to DCM [32]. The association between Th1 and Th17 immune responses and disease progression has also been suggested in human myocarditis/DCM. Peripheral blood T cells from myocarditis patients exhibited significantly higher IFN-γ reactivity against the MyHCα peptide when compared with healthy controls. Moreover, myocarditis/DCM patients with severe heart failure have greater proportions of Th17 than those with low severity heart failure [33]. In addition to IFN-γ and IL-17, our model had cytokine profiles similar to those of myocarditis patients, including elevated levels of IL-6 and GM-CSF [33]. Thus, this novel chronic myocarditis mouse model may allow the identification of the central pathophysiological and immunological processes involved in the progression to DCM.

4. Materials and Methods

4.1. Animals

BALB/c mice and CB17.SCID mice were purchased from CLEA Japan. We used 7- to 9-week-old male mice. All animal experiments were approved by the Institutional Animal Experiment Committee of the National Institute of Biomedical Innovation, Health and Nutrition, Tsukuba, Japan (approved number: 11328, approved date: 1 December 2008) and conformed to the NIH Guide for the Care and Use of Laboratory Animals.

4.2. Preparation of rBCG

Oligonucleotides that encode a 16-amino-acid MyHCα CD4⁺ T-cell epitope (aa 614–629; SLKLMATLFSTYASAD) were chemically synthesized. The sequences were 5′-TCGAGTCTGAAGCTGATGGCGACCCTGTTCTCGACCTACGCGTCGGCGGAT-3′ for the upper strand and 5′-TCGAATCCGCCGACGCGTAGGTCGAGAACAGGGTCGCCATCAGCTTCAGAC-3′ for the lower strand with cohesive ends of the XhoI recognition site (underlined) at both terminals of each DNA. The DNA oligomers were cloned into an XhoI site in the coding region of the Ag85B gene from M. kansasii cloned into pSO246 to be fused with the gene, and the generated plasmid was named pSO246-MyHCα. pSO246-MyHCα and pSO246 (empty plasmid: control) vectors were introduced into M. bovis BCG Tokyo 172 strain by electroporation, giving rise to rBCG-MyHCα and rBCG-pSO246, respectively. These transformants were selected on a Difco Middlebrook 7H10-agar (BD) plates containing Middlebrook OADC enrichment (BD) and 30 μg/mL kanamycin and grown in Difco Middlebrook 7H9-broth (BD) containing Middlebrook ADC enrichment (BD) and 0.05 Tween 80 at 37 °C for 2 weeks. After harvesting, rBCG was washed twice with PBS and then used for immunization.

4.3. Western Blot Analysis

The BCG cell lysates and a portion of the culture supernatant were subjected to SDS-PAGE using a 4%–20% gradient gel. The fractionated proteins were electroblotted onto a nitrocellulose membrane filter, reacted with rabbit anti-Ag85B polyclonal antibodies that had been absorbed with the cross-reactive Ag85B from BCG and reacted with peroxidase-conjugated goat anti-rabbit IgG, and then visualized with a substrate (3,3′-diaminobenzidine) of peroxidase.

4.4. rBCG Immunization Protocols

A total of 500 μg of rBCG was injected s.c. into mice. In some experiments, mice were immunized twice with 10 μg of the MyHCα peptide (MyHCα_614–629) Ac-RSLKLMATLFSTYASADR-OH (Toray Research Center) emulsified 1:1 in PBS/CFA (1 mg/mL; H37Ra; Sigma-Aldrich, St. Louis, MI, USA) as described previously [12,34,35] 14 and 21 days prior to the rBCG injection. For rBCG-infected-DC immunization, BMDCs were generated as previously described [36]. BMDCs were infected with rBCG at a multiplicity of infection of 1:5. After infection, cells were allowed to phagocytose for 4 h, and any nonphagocytosed bacteria were cleared by washing with PBS, and then incubated for 24 h. Recipient mice were injected with 5 × 10⁵ rBCG-infected BMDCs i.p. on days 0, 2, and 4.

4.5. Histopathological and Immunohistochemical Examination

The hearts were fixed in 4% paraformaldehyde in PBS and embedded in paraffin wax. For histological analysis, 3-μm-thick sections were cut and stained with H&E and Sirius Red. To evaluate the expression of TN-C, we performed immunohistochemistry as previously described [37]. In brief, sections after antigen retrieval were incubated with polyclonal rabbit anti-TN-C antibodies [38,39], followed by treatment with HRP-conjugated goat anti-rabbit antibody (MBL, Nagoya, Japan). The antibody reactions were visualized using diaminobenzidine chromogen and counterstained with hematoxylin.

4.6. Echocardiography

Transthoracic echocardiography was performed using a Prosound α6 with a 10-MHz transducer (Aloka). The diastolic (LVDd) and systolic left ventricular (LV) dimensions (LVDs) were measured from the M-mode tracings. LV fractional shortening (FS), a measure of LV systolic function, was calculated from the M-mode LV dimensions using the following equation: FS (%) = [(LVDd − LVDs)/LVDd] × 100. Two independent investigators who conducted the echocardiography were unaware of the immunization status.

4.7. Hemodynamic Assessment

Hemodynamic assessment was performed as previously described [13]. Briefly, the mice were anesthetized with sodium pentobarbital (50 mg/kg), and the LV apex was exposed via a subdiaphragmatic incision. An apical stab was made with a 27-gauge needle, containing a fiber pressure sensor (FPI-LS-PT9; FISO Technology Inc., QC), placed to span the long axis of the LV. All signals were analyzed with a signal conditioner (FPI-LS-10; FISO Technology Inc., Québec, QC, Canada) and data acquisition system (LabTrax-4) and then stored on disks for off-line analysis using a software (LabScribe). The following indices were assessed: heart rate, systolic LV pressure, and maximal and minimum rates of LV pressure development (±dP/dt).

4.8. Flow Cytometric Analyses

For the flow cytometric analysis of surface markers and cytoplasmic cytokines, cells were stained directly using fluorochrome-conjugated mouse-specific antibodies and analyzed with a FACSCalibur instrument (BD Biosciences). Antibodies were purchased from eBioscience, including CD4, CD44, CD45, and CD62L.

4.9. Measurements of Cytokines and Chemokines

Hearts were homogenized in media containing 2.5% FBS. Supernatants were collected after centrifugation and stored at −80 °C. To investigate the MyHCα-specific T-cell response, CD4⁺ T cells were isolated from the splenocytes using magnetic-activated cell sorting kits (CD4 [L3T4] MicroBeads, Miltenyi Biotec) and stimulated with 5 μg/mL of MyHCα or ovalbumin (OVA) peptide in the presence of APCs for 48 h. Concentrations of cytokines and chemokines in the heart homogenates or culture supernatants were measured with Quantikine ELISA kits (R&D Systems, Minneapolis, MN, USA).

4.10. Adoptive Transfer of T Cells

Splenocytes were collected from immunized mice and cultured with 5 μg/mL MyHCα for 48 h. Briefly, 5 × 10⁶ CD4⁺ T cells were purified using anti-CD4 magnetic beads (Miltenyi Biotec) and injected i.p. into the SCID mice. The mice were killed 10 days after injection for further analysis.

4.11. RNA Extraction and Quantitative Real-Time RT-PCR

Total RNA was extracted from cells using the MagNA Pure Compact Instrument (Roche Applied Science, Penzberg, Germany) together with MagNA Pure Compact RNA Isolation Kit (Roche Applied Science) according to the manufacturer’s instructions. cDNA was synthesized from 1 μg total RNA using an Omniscript RT kit (Qiagen, Hilden, Germany). qRT-PCR analysis was performed on the LightCycler 480 system (Roche Applied Science) with the Universal Probe Library (Roche Applied Science). The primers used for the PCR amplification were as follows: Tbx21 forward, TCAACCAGCACCAGACAGAG; Tbx21 reverse, AAACATCCTGTAATGGCTTGTG; Rorc forward, CCCTGGTTCTCATCAATGC; Rorc reverse, TCCAAATTGTATTGCAGATGTTC; Hprt forward, TCCTCCTCAGACCGCTTTT; and Hprt reverse CCTGGTTCATCATCGCTAATC. The data were normalized by the level of Hprt expression in each sample.

4.12. In Vivo Experiments of rBCG-MyHCα-Infected DCs

BMDCs were cultured in 12-well flat-bottomed cell culture plates (1 × 10⁶/mL) and infected with rBCG-MyHCα at MOI of 0.01, 0.1, or 1 for 72 h at 37 °C in a humidified atmosphere containing 5% CO₂.

4.13. Naïve CD4⁺ T-Cell Isolation

Naïve CD4⁺ T cells were isolated from the splenocytes of BALB/c mice using a magnetic-activated cell sorting kit (CD4⁺CD62L⁺ T Cell Isolation Kit II, Miltenyi Biotec).

4.14. Proliferative Responses of T Cells

T-cell proliferation was assessed as previously described [12]. To obtain MyHCα-reactive CD4⁺ T cells, EAM mice were immunized with 100 μg of the MyHCα peptide emulsified 1:1 in PBS/complete Freund’s adjuvant (CFA) on days 0 and 7, and the spleens were collected on day 14. CD4⁺ T cells were isolated from splenocytes using magnetic-activated cell sorting kits (CD4 [L3T4] MicroBeads, Miltenyi Biotec, Bergisch Gladbach, Germany). Naïve CD4⁺ T cells were isolated from BALB/c mice as described above. CD4⁺ T cells were co-cultured with rBCG-MyHCα-infected BMDCs, rBCG-pSO246-infected BMDCs (negative control), 5 μg/mL MyHCα-loaded BMDCs (positive control), or non-treated BMDCs (negative control) for 72 h and pulsed with 0.5 μCi of [³H]-thymidine 8 h before being measured with a beta counter.

4.15. Statistical Analysis

All data are expressed as mean ± SEM. Normality was verified using the Shapiro-Wilk test. Statistical analyses were performed using an unpaired two-tailed t test or Mann-Whitney U test for comparison of two groups. For multiple comparisons, one-way analysis of variance (ANOVA) with a Tukey post hoc test or a Kruskal-Wallis analysis with a post hoc Steel-Dwass or Steel test was used. A p < 0.05 was considered statistically significant. All statistical analyses were performed using JMP software (SAS Institute, Cary, NC, USA).
