Suitability of the In Vitro Cytokinesis-Block Micronucleus Test for Genotoxicity Assessment of TiO2 Nanoparticles on SH-SY5Y Cells

by
Natalia Fernández-Bertólez
1,2,
Fátima Brandão
3,4,5,6,
Carla Costa
3,4,6,
Eduardo Pásaro
1,2,
João Paulo Teixeira
3,4,6,
Blanca Laffon
1,2,*,† and
Vanessa Valdiglesias
2,7,†
1
Universidade da Coruña, Grupo DICOMOSA, Centro de Investigaciones Científicas Avanzadas (CICA), Departamento de Psicología, Facultad de Ciencias de la Educación, Campus Elviña s/n, 15071 A Coruña, Spain
2
Instituto de Investigación Biomédica de A Coruña (INIBIC), AE CICA-INIBIC. Oza, 15071 A Coruña, Spain
3
EPIUnit—Instituto de Saúde Pública, Universidade do Porto, Rua das Taipas, N° 135, 4050-600 Porto, Portugal
4
Environmental Health Department, Portuguese National Institute of Health, Rua Alexandre Herculano 321, 4000-055 Porto, Portugal
5
Institute of Biomedical Sciences Abel Salazar (ICBAS), University of Porto, Rua de Jorge Viterbo Ferreira 228, 4050-313 Porto, Portugal
6
Laboratory for Integrative and Translational Research in Population Health (ITR), Rua das Taipas 135, 4050-600 Porto, Portugal
7
Universidade da Coruña, Grupo DICOMOSA, Centro de Investigaciones Científicas Avanzadas (CICA), Departamento de Biología, Facultad de Ciencias, Campus A Zapateira s/n, 15071, 15071 A Coruña, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to the senior authorship of this manuscript.
Int. J. Mol. Sci. 2021, 22(16), 8558; https://doi.org/10.3390/ijms22168558
Submission received: 22 May 2021 / Revised: 13 July 2021 / Accepted: 3 August 2021 / Published: 9 August 2021
(This article belongs to the Special Issue Toxicity of Nanomaterials and Legacy Contaminants: Risks to the Environment and Human Health)
Browse Figures
Versions Notes

Abstract

:
Standard toxicity tests might not be fully adequate for evaluating nanomaterials since their unique features are also responsible for unexpected interactions. The in vitro cytokinesis-block micronucleus (CBMN) test is recommended for genotoxicity testing, but cytochalasin-B (Cyt-B) may interfere with nanoparticles (NP), leading to inaccurate results. Our objective was to determine whether Cyt-B could interfere with MN induction by TiO2 NP in human SH-SY5Y cells, as assessed by CBMN test. Cells were treated for 6 or 24 h, according to three treatment options: co-treatment with Cyt-B, post-treatment, and delayed co-treatment. Influence of Cyt-B on TiO2 NP cellular uptake and MN induction as evaluated by flow cytometry (FCMN) were also assessed. TiO2 NP were significantly internalized by cells, both in the absence and presence of Cyt-B, indicating that this chemical does not interfere with NP uptake. Dose-dependent increases in MN rates were observed in CBMN test after co-treatment. However, FCMN assay only showed a positive response when Cyt-B was added simultaneously with TiO2 NP, suggesting that Cyt-B might alter CBMN assay results. No differences were observed in the comparisons between the treatment options assessed, suggesting they are not adequate alternatives to avoid Cyt-B interference in the specific conditions tested.

1. Introduction

The rapid development of nanotechnology has brought huge benefits to our daily lives, but it can also entail potential threats to human health and environment [1,2]. The increasing rate of nanomaterials production and commercialization outpaces the development of adequate tests for evaluating their toxicity, accepted by the scientific community and applicable by regulators. Although the potential risks that nanomaterials exposure may involve have been widely investigated using cell models and a range of in vitro approaches, to date few standardized assays have been validated to accurately assess nanomaterials toxic effects [3]. So far, it is generally accepted that common cell-based toxicity tests might not be fully adequate for evaluating nanomaterials and may not provide reliable data, since the unique features of these materials are also responsible for unexpected interactions with assay components or detection systems [4,5,6,7]. Considering that hazard assessment is a key endpoint to address in management and regulation of manufactured nanomaterials [8,9], appropriate adaptations for nanomaterials in the currently validated protocols to assess potential harmful properties of chemicals are urgently needed to obtain both reliable toxicological profiles and specific standardized methods [10,11,12].
The in vitro mammalian cell micronucleus (MN) test is one of the assays recommended by the Organisation for Economic Cooperation and Development (OECD) for genotoxicity testing of chemicals (Test Guideline (TG) 487) [13], and is considered to be a well-established, reliable, accurate and reproducible endpoint in genotoxicity evaluation [14,15,16]. In fact, this test method has been endorsed as reliable and relevant by the European Centre for the Validation of Alternative Methods (ECVAM) Scientific Advisory Committee (ESAC) [17], and is recommended by the International Council for Harmonization (ICH) and the European Food Safety Authority (EFSA) for genotoxicity testing of pharmaceuticals intended for human use and of food and feed, respectively [18,19]. The OECD TG 487 describes the cytokinesis-block micronucleus (CBMN) assay in different cell models, including primary peripheral blood lymphocytes and a number of rodent and human cell lines. MN are formed from chromosome fragments or whole chromosomes that lag behind during cell division. Excluded from the nuclei of daughter cells, these structures form single or multiple MN in the cytoplasm, which are detected by visual (or automated) microscopic examination after DNA staining [20]. Therefore, the MN assay reveals the ability of substances to induce structural chromosome damage (clastogenic effects) or numerical chromosome alterations (aneugenic effects) [21]. The actin polymerization inhibitor cytochalasin B (Cyt-B) is required in CBMN assay to block cytokinesis and make it possible to differentiate cells that underwent one nuclear division by its binucleate appearance. Nevertheless, Cyt-B may interfere with MN evaluation in nanotoxicology studies mainly by affecting nanomaterials uptake, since many nanomaterials enter the cells by endocytosis-related processes, which involve actin polymerization. This may potentially lead to inaccurate results when this technique is employed for genotoxicity evaluation of nanomaterials [10,14].
Accordingly, among many other NM regulatory and safety assessment issues (i.e., comprehensive physicochemical characterization, cellular uptake assessment, and nanomaterials dispersion protocols), standard genotoxicity tests were discussed in the OECD Working Party on Manufactured Nanomaterials (WPMN) workshop, summarized in report No. 43 [22]. The need to include specific adaptations relevant to testing the genotoxicity of nanomaterials within the existing OECD TG was addressed in the workshop. Recommendations suggested for TG 487 included using p53 competent cell lines, avoid reduced serum concentrations, and applying Cyt-B separately from the nanomaterials treatment using a post-treatment or delayed co-treatment protocol, in order to ensure a period of exposure of the cell culture system to the nanomaterials in the absence of Cyt-B. Moreover, several of these recommendations were also supported by the European Chemicals Agency (ECHA) in the Guidance on information requirements and chemical safety assessment [23]. Besides, measurement of cellular uptake by appropriate methods has been also pointed out as the first key factor to consider for mammalian cell genotoxicity testing, since in some circumstances the absence of genotoxic effects could correspond to the absence of internalization by the cells, and not to the nanomaterials intrinsic safety [24,25].
The main objective of this study was to determine whether the presence of Cyt-B could interfere with titanium dioxide (TiO2) nanoparticles (NP) in the assessment of MN induction in human SH-SY5Y neuroblastoma cells by means of the CBMN test. To that aim, CBMN test was conducted in cells treated for 6 or 24 h with TiO2 NP, according to three different exposure options: co-treatment (NP and Cyt-B added simultaneously), post-treatment (Cyt-B was added after finishing treatment with NP), and delayed co-treatment (initial exposure to NP for a few hours, and then addition of Cyt-B in co-exposure until the end of NP treatments). Additionally, influence of Cyt-B on the cellular uptake of TiO2 NP and on MN induction as evaluated by flow cytometry (FCMN) were also assessed. Figure 1 and Figure 2 show the experimental design of CBMN and FCMN assays experiments, respectively.

2. Results

In this study, SH-SY5Y cells were exposed to TiO2 NP and Cyt-B under different exposure conditions, and cellular uptake and MN induction (both by means of CBMN test and FCMN test) were assessed. The TiO2 NP used were 80% anatase 20% rutile, and their physical–chemical characterization has been previously reported [26]. Their particle size was 25 nm, their specific surface area 35–45 m2/g, and their mean hydrodynamic size and zeta potential were 160.5 nm and −27.8 mV in water, and 228.3 nm and −10.7 mV in SH-SY5Y cell culture medium, showing a good dispersion in both media. Regarding cytotoxicity of these particular TiO2 NP, no decrease in SH-SY5Y cell viability, as evaluated by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) and neutral red uptake assays, was found after treatment with TiO2 NP at any concentration (range 20–150 µg/mL) or exposure time (3, 6, and 24 h) [26].

2.1. Cellular Uptake

Figure 3 presents the results obtained for the cellular uptake of TiO2 NP, as evaluated by flow cytometry. Two exposure times (6 and 24 h) and four different Cyt-B conditions were analyzed: absence of Cyt-B, presence of 3 or 6 µg/mL Cyt-B (simultaneous to the NP treatments), and presence of 6 µg/mL Cyt-B 1 h before NP treatments initiation (maintained up to the end of treatments). Figure S1 shows example dot plots of control cells and cells treated with TiO2 NP in the absence and in the presence of Cyt-B. Significant uptake increases were observed at the highest concentrations tested at 6 h, and at all doses at 24 h. Percentages of cells with NP were much more pronounced at the longest exposure time, always higher than 60% from 50 µg/mL on. Still, no significant difference was detected when the different treatment options were compared within the same NP dose and exposure time.

2.2. Cytokinesis-Block Micronucleus Test

CBMN test results are gathered in Figure 4, for 6 and 24 h treatments. At 6 h, progressive increases in the MN frequencies were obtained in the three treatment options, significant at the highest concentrations (only 100 µg/mL in the case of delayed co-treatment). Dose–response relationships were significant in all cases (co-treatment: r = 0.753, p < 0.01; post-treatment: r = 0.894, p < 0.01; delayed co-treatment: r = 0.655, p < 0.01). No differences were obtained in the comparisons between the treatment options assessed. At 24 h, rising tendencies in the MN rates, significant at the highest doses, also produced significant concentration–effect associations in co-treatment (r = 0.893, p < 0.01), and post-treatment (r = 0.771, p < 0.01). MN frequencies observed in delayed co-treatment showed also an increasing trend, but with notably lower intensity. In fact, this treatment option showed a significantly lower MN level than the other two options at the highest NP concentration, and than post-treatment in the positive control.

2.3. Micronuclei Evaluation by Flow Cytometry

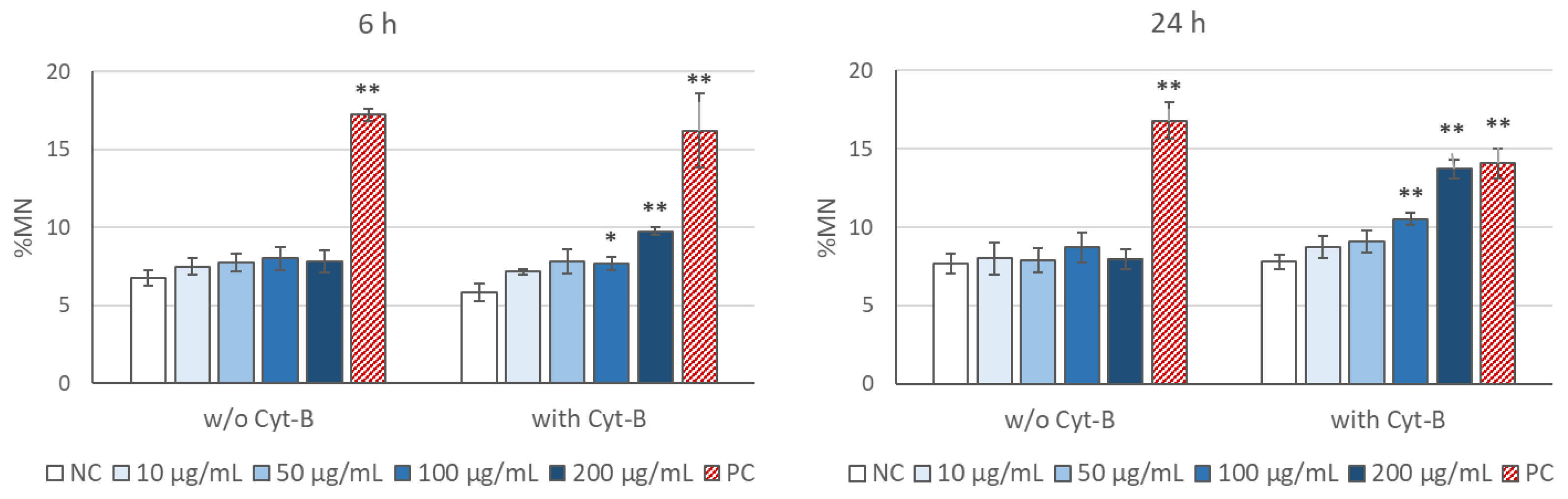

Flow cytometry measurements of MN induction by TiO2 NP are depicted in Figure 5. TiO2 NP treatments were conducted both in the absence and in the presence of 6 µg/mL Cyt-B, in order to determine whether this chemical compound could interfere with MN production or assessment. In the absence of Cyt-B no significant induction of MN was observed either at 6 h or at 24 h. Nevertheless, significant concentration–effect correlations (r = 0.675, p < 0.01 at 6 h; and r = 0.782, p < 0.01 at 24 h), with significant increases in MN frequency at the highest doses evaluated was evident in the presence of Cyt-B.

3. Discussion

NM that are taken up by mammalian cells can get into direct contact with the genetic material, leading to direct physical or chemical damage, or they can act indirectly (e.g., via inducing oxidative stress) [27]. Genotoxicity in somatic cells can induce carcinogenesis, and accumulation of DNA damage is also associated with various chronic diseases [6]. Consequently, assessing the potential genotoxic properties of substances, including nanomaterials, is a key element in regulatory safety assessment. Several factors affecting evaluation of nanomaterials harmful effects have been previously described for in vitro genotoxicity and cytotoxicity assays, including nanomaterials type, coating and physical-chemical properties, presence of serum proteins in the culture medium, as well as type and origin of cells chosen for testing [27,28,29,30]. In this context, there is a potential need to determine whether methodological adaptations may be required in CBMN assay for a more accurate and reliable measurement of nanomaterials ability to induce chromosome alterations [10,11,31,32,33]. Thus, the main objective of this work was to assess whether results of CBMN test may be influenced by the use of Cyt-B when testing genotoxic effects of TiO2 NP on SH-SY5Y cells, and, in such case, to address possible treatment alternatives, in particular those recommended by the OECD WPMN to prevent the interference between Cyt-B and nanomaterials.
TiO2 is the most widely used nanomaterial worldwide, employed in a variety of applications ranging from medical devices to products used in everyday life [31,34]. The present work was carried out using TiO2 NP as nanomaterial model since their genotoxicity has been extensively studied and they are known to induce MN in a variety of cell lines [12,35,36,37,38]. Moreover, following OECD TG 487 and OECD report No. 43, MN test was conducted in cells of human origin, specifically in SH-SY5Y cells. This cell line has been broadly used as cellular model in neurobiological, neurochemical and neurotoxicological evaluations [39,40,41], and they are p53 proficient [42]. Furthermore, they were previously demonstrated to effectively internalize TiO2 NP [26,43].
Prior to genotoxicity testing, cellular uptake of TiO2 NP in the presence or absence of Cyt-B at different conditions was evaluated by flow cytometry analysis. The CBMN assay relies on the use of Cyt-B to prevent cytokinesis by inhibiting actin assembly, generating binucleated cells in which the MN frequency is scored. When nanomaterials are evaluated, this methodological procedure could cause a potential problem as Cyt-B also inhibits endocytosis processes—in which actin plays an essential role [44]—used by most cells to internalize nanomaterials [10,45]. Therefore, evaluating whether the presence of Cyt-B interferes with the cellular uptake of study NP is essential and very useful to interpret correctly the CBMN results obtained for these NP [6,46,47,48,49]. In the present study, cellular uptake results confirmed an efficient dose- and time-dependent internalization of the TiO2 NP by SH-SY5Y cells, regardless the Cyt-B concentration or its presence in the medium prior to the TiO2 NP treatments. Agreeing with our positive results, a number of previous studies have proved that TiO2 NP, either single particles or particle aggregates, are rapidly internalized by different types of cells, both of rodent and human origin, and this uptake was also demonstrated to be dose- and time-dependent [40,50,51,52].
It was previously reported that NP internalization in cells occurs mainly through phagocytosis or macropinocytosis [47,53]. These endocytic processes are fundamentally determined by size, shape, specific surface area and crystalline structure of the particles, as well as by NP concentration and state of aggregation/agglomeration, incubation time, and intrinsic endocytic properties of the cell type exposed [27]. The absence of influence of Cyt-B on cellular uptake of TiO2 NP observed in our study, at concentrations effective to inhibit cytokinesis, suggest that NP are internalized by an actin-independent process. Indeed, although TiO2 NP were reported to be internalized by endocytic pathway in some cell types [54,55], other studies demonstrated that the uptake of these NP vary depending not only on the cell type but also on TiO2 NP agglomeration, since small NP likely cross the cellular membrane directly, whereas agglomerated NP would need to be taken up by endocytosis [50,56,57]. Accordingly, the mean hydrodynamic size of TiO2 NP used in this study (228.3 nm), their zeta potential (−10.7 mV), and their size distribution in SH-SY5Y culture medium [26], indicating relatively small size and little agglomeration, support a non-actin mediated uptake for these NP in the conditions tested.
In the present study, treatment of the cells with the TiO2 NP was the same in both MN evaluation techniques (FCMN and CBMN): for 6 and 24 h, but in CBMN three different exposure variants were tested, according to the moment Cyt-B was added to the culture (co-treatment, post-treatment, and delayed co-treatment). In turn, in FCMN test, cells were treated either in the absence or in the presence (co-treatment) of Cyt-B, in order to test whether Cyt-B may influence in some way MN induction by the NP. Results obtained from standard CBMN assay, i.e., with co-treatment of NP and Cyt-B, showed that exposure to TiO2 NP induced dose-dependent MN increase in SH-SY5Y cells, statistically significant at the highest concentrations, after both 6 and 24 h treatments. However, such MN induction was not detected by flow cytometry (methodology that do not require Cyt-B), and only a dose-dependent positive response was obtained when this chemical was intentionally added simultaneously with TiO2 NP to force the co-treatment. The flow cytometry MN evaluation involves scoring MN frequency in mononuclear cells (Cyt-B is therefore not necessary), and has been widely used and validated for genotoxicity testing of a variety of chemicals [58,59,60,61].
Numerous studies obtained concordant results between in vitro MN evaluation by CBMN and FCMN assays, both treating with chemicals [62,63] and with NP, particularly with TiO2 NP [51,64]. Considering this, the dissimilar results found in our study between CBMN assay and FCMN test (in the absence of Cyt-B treatment) would indicate that Cyt-B may indeed be altering the results of CBMN assay by increasing MN frequency in SH-SY5Y cells, leading to false positive results in the conditions tested. On the basis of our data it seems that, although Cyt-B does not interfere with TiO2 NP cellular uptake, it could affect other processes such as the intracellular transport of particles, vesicles or organelles, inducing changes in the subcellular NP location, as previously observed by other authors [54,55,57,65]. Previous CBMN studies on MN induction by TiO2 NP in co-treatment with Cyt-B (4–9 µg/mL) showed both positive and negative results [66,67,68], depending on factors such as treatment time or NP size, but also NP crystalline structure (anatase, rutile, and mixed form), as only anatase phase particles increased the MN frequency [67,68]. However, these studies did not explore exposure options different from co-treatment, or additional evaluation by FCMN test.
Furthermore, it seems surprising that MN frequencies induced by TiO2 NP, as evaluated by CBMN test, were similar at 6 and 24 h treatments, when cellular uptake was much lower at 6 h than at 24 h. Considering that MN induction by TiO2 NP was only observed by FCMN in the presence of Cyt-B, and that Cyt-B concentration was the same at both treatment times (6 µg/mL), this may indicate that the presence of Cyt-B is not only affecting MN results, but also determining MN induction to a higher extent than NP internalization by cells.
Apart from the standard co-treatment in CBMN test, in which interference of Cyt-B with TiO2 NP treatment was evidenced, the two possible treatment alternatives recommended by OECD WPMN to prevent this interference—i.e., post-treatment and delayed co-treatment [22]—were also carried out in order to check their suitability for MN evaluation and, if applicable, to provide evidence of the best option. Studies in the literature comparing the standard co-treatment experimental condition in the CBMN test with the two other treatment options recommended for nanomaterials testing are scarce [45,69]. Our results showed no differences between post-treatment and co-treatment, and only a slight decrease in MN frequency in delayed co-treatment, limited to the highest concentration and the longest treatment tested, with regard to the other two treatment options. Moreover, the fact that the decrease in MN rate after 24 h of delayed co-treatment was also observed in the positive control (MMC), rules out the possibility that this can be due to a lower interference between NP and Cyt-B. Therefore, results observed in these experiments indicate that the two treatment options recommended for testing nanomaterials by the CBMN assay are not good options in this particular case, since they resulted similar than the standard co-treatment, and the data obtained substantially differed from those coming from FCMN test in the absence of Cyt-B. Following the recommendations provided by OECD WPMN [22], a number of researchers evaluated MN induction by TiO2 NP exposure applying either post-treatment [12,70,71,72] or delayed co-treatment [51,55,73,74] in a number of different cell types. Similar to our results, these studies frequently found increases in MN frequency after TiO2 NP exposure. Nevertheless, it is not possible to determine whether the presence of Cyt-B is influencing NP uptake and/or MN rates in these studies, since no comparisons were carried out with other alternative protocols or methodologies.

4. Materials and Methods

4.1. Chemicals

Titanium dioxide (TiO2 NP) (CAS No. 13463-67-7, size 25 nm) was purchased from Degussa-Evonik (Bitterfeld, Germany), mitomycin C (MMC) (CAS no. 50-07-7), cytochalasin B (Cyt-B) (CAS no. 14930-96-2), dimethyl sulfoxide (DMSO) (CAS no. 67-68-5), 4,6-diamino-2-fenilindol (DAPI) (CAS no. 28718-90-3), propidium iodide (PI) (CAS no. 25535-16-4), and ribonuclease (RNase) A from bovine pancreas (CAS no. 9001-99-4) were purchased from Sigma-Aldrich Co. (Madrid, Spain). MMC was dissolved in sterile distilled water, and Cyt-B was dissolved in DMSO.

4.2. Preparation of Nanoparticle Suspension

TiO2 NP suspensions were prepared following the same protocol employed in previously published studies [26,43]. Briefly, TiO2 NP were suspended in either deionized water or cell culture medium (see composition below) at a final concentration of 200 µg/mL and ultrasonicated (Branson Sonifier, Carouge Switzerland) at 30 W for 5 min (1.5 min on and 1 min off twice, plus 2 min on). To prevent heating of the NP suspension, it was maintained in ice during the sonication procedure.

4.3. Cell Culture and Treatments

Human neuroblastoma SH-SY5Y cell line was obtained from the European Collection of Authenticated Cell Cultures (ECACC94030304). Cell culture medium consisted of a nutrient mixture EMEM/F12 (1:1) medium with 1% non-essential amino acids, 1% antibiotic and antimycotic solution, and supplemented with 10% heat-inactivated fetal bovine serum (FBS) (all from Gibco, Thermo Fisher Scientific Inc., Uppsala, Sweden). Cells were grown in a humidified atmosphere with 5% CO2 at 37 °C. They were seeded in 96-well plates (5–6 × 104 cells/well) and allowed to adhere for 24 h at 37 °C prior to the experiments. For each uptake and FCMN experiment, cells were incubated with four different concentrations of TiO2 NP (10, 50, 100, and 200 μg/mL) at 37 °C, at a final volume of 100 μL per well in 96-well plates. For CBMN experiments, cells were incubated at 10, 50, or 100 μg/mL TiO2 NP (37 °C), at a final volume of 1 mL per well in 24-well plates. The highest TiO2 NP concentration (200 μg/mL) was discarded for these experiments since the NP density interfered with the microscopic visual scoring of MN. Cell culture media was used as negative control, and MMC (10 µM for 6 h experiments and 1.5 µM for 24 h experiments) was used as positive control for CBMN and FCMN tests experiments.

4.4. Cellular Uptake

For analysis of cellular uptake, SH-SY5Y cells (6 × 104 cells/mL) were exposed to TiO2 NP for 6 and 24 h. For each treatment time, four TiO2 NP treatment conditions were tested as follows: absence of Cyt-B, simultaneous presence of 3 or 6 µg/mL Cyt-B, and pre-incubation with 6 µg/mL Cyt-B for 1 h before adding the TiO2 NP [75]. Distilled water or 1% DMSO in EMEM/F12 (1:1) supplemented medium were employed as negative controls for experiments without or with Cyt-B, respectively. When treatments were finished, cells were then centrifuged at 660× g, trypsinized (100 µL trypsin 0.05%, Gibco, Thermo Fisher Scientific Inc., Uppsala, Sweden), transfered to a 5 mL tube with 900 µL phosphate buffered saline (PBS), centrifuged again, and the cellular pellet was resuspended in 300 µL of cytometry-grade PBS for analysis. Internalization of the NP by the SH-SY5Y cells was evaluated by flow cytometry following Suzuki et al. [76], using a FACSCalibur flow cytometer (Becton Dickinson, Madrid, Spain). After finishing the treatments, cell populations were analyzed using CellQuest Pro software (Becton Dickinson, Madrid, Spain), on the basis of their size (forward scatter signal, FSC), and complexity (side scatter signal, SSC).

4.5. Cytokinesis-Block Micronucleus Test

Cells were seeded at a cell density of 4 × 104 cells/well and incubated at 37 °C for 24 h in a humidified atmosphere with 5% CO2. After this period, cells were treated for 6 or 24 h with the dose range of TiO2 NP. Negative controls (culture medium) and positive controls (10 or 1.5 µM MMC for 6 or 24 h experiments, respectively) were added for each experimental variant. At this point, CBMN test was conducted following three different conditions of exposure to TiO2 NP and Cyt-B (6 µg/mL) for each treatment time (6 and 24 h) (Figure 1): (i) co-treatment: simultaneous exposure to TiO2 NP and Cyt-B (in the 6 h treatments NP are washed out after this time, and Cyt-B remained up to 24 h; in the 24 h exposure both compounds remained for the whole treatment duration); (ii) post-treatment: initial exposure to TiO2 NP for the corresponding treatment time, washing out of the NP, addition of Cyt-B and incubation for an additional 24 h period; (iii) delayed co-treatment: initial exposure to the TiO2 NP for 3 h (in the 6 h treatments) or 6 h (in the 24 h treatments), then addition of Cyt-B and incubation for an additional 24 h period (NP were removed at the end of the corresponding treatment time).
When all cultures were finished (treated with TiO2 NP, negative and positive controls), the medium with Cyt-B was removed and cells were washed twice with PBS and harvested with 250 µL of trypsin 0.05% (Gibco, Thermo Fisher Scientific Inc., Uppsala, Sweden) (incubated for 3 min at 37 °C). The trypsin was inactivated with 500 µL of PBS and cells were transferred to a 15 mL tube; the wells were washed with additional 250 µL of PBS which were then added to the respective tube. Cells were centrifuged at 200× g for 10 min, the supernatant was removed, and cells were re-suspended in 4 mL of Carnoy fixative (methanol-acetic acid, 3:1). After a new centrifugation at 200× g 10 min, pellets were resuspended in a small volume of Carnoy and dropped onto clean slides, that were air dried overnight. Slides were stained with 5 µg/mL 4,6-diamidino-2-phenylindole (DAPI). Scoring was performed with a Leica DM-RXA fluorescence microscope, equipped with a 100 W mercury lamp and a 100× magnification objective. A total of 2000 binucleated cells with well-preserved cytoplasm, half from each duplicate culture, were blindly scored by the same reader to determine the number of MN. Criteria described by Fenech et al. [77] were followed for identifying binucleated cytokinesis-blocked cells and MN.

4.6. Micronuclei Evaluation by Flow Cytometry

For the analysis of MN induction by flow cytometry (FCMN), cells were seeded at 4 × 104 cells/well and incubated for 24 h at 37 °C in a humidified environment with 5% CO2. TiO2 NP treatments were conducted both in the absence and in the presence of 6 µg/mL Cyt-B (see experimental design in Figure 2). When the 6 and 24 h treatments were finished, SH-SY5Y cells were cultured in fresh medium for an additional period until completing 48 h, time determined on the basis of cell cycle duration. When this period was finished, the medium was removed and all cells (treated with TiO2 NP, negative and positive controls) were washed twice with PBS and harvested with 100 µL of trypsin 0.05% (Gibco, Thermo Fisher Scientific Inc., Uppsala, Sweden) for 3 min at 37 °C. Then they were transferred to a 5 mL tube containing 900 µL of PBS, split into the two replicates, and subsequently a suspension of nuclei and MN was prepared according to the procedure described by Nüsse et al. [78], with some modifications [63]. Briefly, cells were centrifuged at 660× g for 5 min, and the cell pellet was resuspended in solution I (584 mg/L sodium chloride, 1 g/L sodium citrate, 50 μg/mL PI, 50 μg/mL RNase A, and 0.3 mL/L Nonidet p-40) to yield a final concentration of 106 cells/mL. Samples were maintained in the dark at room temperature for 30 min. Then an equal amount of solution II (15 mg/L citric acid and 85.6 g/L sucrose) was added and cells were incubated for 15 min in the dark at room temperature. Finally, the suspension was filtered through a 50 μm nylon mesh, and flow cytometry measurements were carried out. This two-step procedure destroyed the cell membrane and cytoplasm, thus the suspension contained relatively pure nuclei and MN. This suspension was analyzed with a FACSCalibur flow cytometer (Becton Dickinson, Madrid, Spain). For each sample, a minimum, 50,000 events were evaluated from the PI signal. Data analysis was conducted with Cell Quest Pro software (Becton Dickinson, Madrid, Spain), following the instructions described by Avlasevich et al. [59].

4.7. Statistical Analysis

A minimum of three independent experiments and two replicates per experiment were performed for each experimental condition tested. Experimental data were expressed as mean ± mean standard error. Kruskal–Wallis test was applied for comparisons among groups and Mann–Whitney U-test to analyze differences in two-by-two comparisons. Associations between two variables were analyzed by Spearman’s correlation. The probability level of 0.05 was used as the criterion of significance. All statistical analyses were conducted using the IBM® SPSS® software package V. 21 (Madrid, Spain).

5. Conclusions

Despite previous studies highlighted the possible interference of Cyt-B on NP cellular uptake and, consequently, on MN detection by CBMN test, current data do not support that hypothesis in the case of SH-SY5Y cells exposed to TiO2 NP. Cyt-B did not affect the NP uptake at any condition tested. Consequently, the discordant results obtained between CBMN and FCMN assays, likely due to the presence of Cyt-B used to block cytokinesis in CBMN test, cannot be attributed to the lack of NP internalization found in other studies. Post-treatment and delayed co-treatment of Cyt-B proposed by OECD WPMN and tested in this study seem not to be adequate alternatives to avoid this interference under the specific conditions employed. Consequently, further investigations are still necessary to address this interference and define additional protocol alternatives of CBMN assay for accurately assessing genotoxicity of nanomaterials.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22168558/s1, Figure S1: Flow cytometry dot plots of cellular uptake analysis of SH-SY5Y cells after 6 h (a–c) and 24 h (d–f) treatments. (a,d) Control cells; (b,e) cells treated with 100 µg/mL TiO2 NPs in the absence of Cyt-B; (c,f) cells treated with 100 µg/mL TiO2 NPs in the presence of 6 µg/mL Cyt-B. R2: Region of cells containing NPs.

Author Contributions

Study design, C.C., B.L. and V.V.; Experimental procedures: N.F.-B., F.B, C.C. and V.V.; Analysis of results and extraction of conclusions: E.P., J.P.T. and B.L.; Writing—original draft preparation, N.F.-B. and F.B.; Writing—review and editing, C.C., V.V. and B.L.; Project administration, E.P.; Funding acquisition, E.P. and J.P.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministerio de Ciencia e Innovación (PID2020-114908GA-I00), Xunta de Galicia (ED431B 2019/02); NanoBioBarriers (PTDC/MED-TOX/31162/2017) funded by Operational Program for Competitiveness and Internationalisation through European Regional Development Funds (FEDER/FNR) and through national funds by the Portuguese Foundation for Science and Technology (FCT); NanoLegaTox (PTDC/SAU-PUB/29651/2017) project co-financed by COMPETE 2020, Portugal 2020 and European Union, through FEDER; Ministerio de Educación, Cultura y Deporte (BEAGAL18/00142, to V.V.); FCT (SFRH/BD/101060/2014, to F.B.); and CA17140 NANO2CLINIC COST Action.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available from the corresponding author on request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Boyes, W.K.; Thornton, B.L.M.; Al-Abed, S.R.; Andersen, C.P.; Bouchard, D.C.; Burgess, R.M.; Hubal, E.A.C.; Ho, K.T.; Hughes, M.F.; Kitchin, K.; et al. A comprehensive framework for evaluating the environmental health and safety implications of engineered nanomaterials. Crit. Rev. Toxicol. 2017, 47, 771–814. [Google Scholar] [CrossRef]
  2. Singh, A.V.; Laux, P.; Luch, A.; Sudrik, C.; Wiehr, S.; Wild, A.-M.; Santomauro, G.; Bill, J.; Sitti, M. Review of emerging concepts in nanotoxicology: Opportunities and challenges for safer nanomaterial design. Toxicol. Mech. Methods 2019, 29, 378–387. [Google Scholar] [CrossRef] [Green Version]
  3. Halappanavar, S.; Van Den Brule, S.; Nymark, P.; Gaté, L.; Seidel, C.; Valentino, S.; Zhernovkov, V.; Høgh Danielsen, P.; De Vizcaya, A.; Wolff, H.; et al. Adverse outcome pathways as a tool for the design of testing strategies to support the safety assessment of emerging advanced materials at the nanoscale. Part. Fibre Toxicol. 2020, 17, 1–24. [Google Scholar] [CrossRef]
  4. Costa, C.; Brandão, F.; Bessa, M.J.M.J.; Costa, S.; Valdiglesias, V.; Kiliç, G.; Fernández-Bertólez, N.; Quaresma, P.; Pereira, E.; Pásaro, E.; et al. In vitro cytotoxicity of superparamagnetic iron oxide nanoparticles on neuronal and glial cells. Evaluation of nanoparticle interference with viability tests. J. Appl. Toxicol. 2016, 36, 361–372. [Google Scholar] [CrossRef] [Green Version]
  5. Guadagnini, R.; Halamoda Kenzaoui, B.; Walker, L.; Pojana, G.; Magdolenova, Z.; Bilanicova, D.; Saunders, M.; Juillerat-Jeanneret, L.; Marcomini, A.; Huk, A.; et al. Toxicity screenings of nanomaterials: Challenges due to interference with assay processes and components of classic in vitro tests. Nanotoxicology 2015, 9, 13–24. [Google Scholar] [CrossRef]
  6. Dusinska, M.; Mariussen, E.; Rundén-Pran, E.; Hudecova, A.M.; Elje, E.; Kazimirova, A.; El Yamani, N.; Dommershausen, N.; Tharmann, J.; Fieblinger, D.; et al. In Vitro Approaches for Assessing the Genotoxicity of Nanomaterials. In Methods in Molecular Biology; Springer: Cham, Switzerland, 2019; pp. 83–122. [Google Scholar]
  7. Kroll, A.; Pillukat, M.H.; Hahn, D.; Schnekenburger, J. Interference of engineered nanoparticles with in vitro toxicity assays. Arch. Toxicol. 2012, 86, 1123–1136. [Google Scholar] [CrossRef]
  8. Park, M.V.D.Z.; Catalán, J.; Ferraz, N.; Cabellos, J.; Vanhauten, R.; Vázquez-Campos, S.; Janer, G. Development of a systematic method to assess similarity between nanomaterials for human hazard evaluation purposes–lessons learnt. Nanotoxicology 2018, 12, 652–676. [Google Scholar] [CrossRef] [PubMed]
  9. Pfuhler, S.; Elespuru, R.; Aardema, M.J.; Doak, S.H.; Maria Donner, E.; Honma, M.; Kirsch-Volders, M.; Landsiedel, R.; Manjanatha, M.; Singer, T.; et al. Genotoxicity of nanomaterials: Refining strategies and tests for hazard identification. Environ. Mol. Mutagen. 2013, 54, 229–239. [Google Scholar] [CrossRef] [PubMed]
  10. Doak, S.H.; Manshian, B.; Jenkins, G.J.S.; Singh, N. In vitro genotoxicity testing strategy for nanomaterials and the adaptation of current OECD guidelines. Mutat. Res. Toxicol. Environ. Mutagen. 2012, 745, 104–111. [Google Scholar] [CrossRef] [PubMed]
  11. Elespuru, R.; Pfuhler, S.; Aardema, M.J.; Chen, T.; Doak, S.H.; Doherty, A.; Farabaugh, C.S.; Kenny, J.; Manjanatha, M.; Mahadevan, B.; et al. Genotoxicity assessment of nanomaterials: Recommendations on best practices, assays, and methods. Toxicol. Sci. 2018, 164, 391–416. [Google Scholar] [CrossRef]
  12. Wani, M.R.; Shadab, G.G.H.A. Titanium dioxide nanoparticle genotoxicity: A review of recent in vivo and in vitro studies. Toxicol. Ind. Health 2020, 36, 514–530. [Google Scholar] [CrossRef] [PubMed]
  13. OECD. Test No. 487: In Vitro Mammalian Cell Micronucleus Test. In OECD Guidelines for the Testing of Chemicals; OECD Publishing: Paris, France, 2016. [Google Scholar] [CrossRef]
  14. Conway, G.E.; Shah, U.K.; Llewellyn, S.; Cervena, T.; Evans, S.J.; Al Ali, A.S.; Jenkins, G.J.; Clift, M.J.D.; Doak, S.H. Adaptation of the in vitro micronucleus assay for genotoxicity testing using 3D liver models supporting longer-term exposure durations. Mutagenesis 2020, 35, 319–330. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Doak, S.H.; Yan, J.; Chen, D.H.; Zhou, M.; Mittelstaedt, R.A.; Chen, Y.; Li, C.; Chen, T. Factors affecting the in vitro micronucleus assay for evaluation of nanomaterials. Mutagenesis 2017, 32, 151–159. [Google Scholar] [CrossRef] [Green Version]
  16. Nelson, B.C.; Wright, C.W.; Ibuki, Y.; Moreno-Villanueva, M.; Karlsson, H.L.; Hendriks, G.; Sims, C.M.; Singh, N.; Doak, S.H. Emerging metrology for high-throughput nanomaterial genotoxicology. Mutagenesis 2017, 32, 215–232. [Google Scholar] [CrossRef] [Green Version]
  17. Corvi, R.; Albertini, S.; Hartung, T.; Hoffmann, S.; Maurici, D.; Pfuhler, S.; Van Benthem, J.; Vanparys, P. ECVAM retrospective validation of in vitro micronucleus test (MNT). Mutagenesis 2008, 23, 271–283. [Google Scholar] [CrossRef]
  18. International Council for Harmonization (ICH). ICH guideline S2 (R1) on genotoxicity testing and data interpretation for pharmaceuticals intended for human use. EMA/CHMP/ICH/126642/2008. ICH Guidel. 2008, 2, 1–28. [Google Scholar]
  19. European Food Safety Authority. Scientific opinion on genotoxicity testing strategies applicable to food and feed safety assessment. EFSA J. 2011, 9. [Google Scholar] [CrossRef]
  20. Fenech, M. The in vitro micronucleus technique. Mutat. Res. Mol. Mech. Mutagen. 2000, 455, 81–95. [Google Scholar] [CrossRef]
  21. Kirsch-Volders, M.; Decordier, I.; Elhajouji, A.; Plas, G.; Aardema, M.J.; Fenech, M. In vitro genotoxicity testing using the micronucleus assay in cell lines, human lymphocytes and 3D human skin models. Mutagenesis 2011, 26, 177–184. [Google Scholar] [CrossRef]
  22. Organisation for Economic Co-operation and Development (OECD). Genotoxicity of manufactured nanomaterials: Report of the OECD expert meeting. In The Safety of Manufactured Nanomaterials; OECD: Paris, France, 2014; pp. 1–37. [Google Scholar]
  23. European Chemicals Agency (ECHA). Guidance on information requirements and chemical safety assessment. In Appendix R7-1 for Nanomaterials Applicable to Chapter R7a (Endpoint Specific Guidance) Version 2.0; ECHA: Helsinki, Finland, 2017. [Google Scholar]
  24. Doak, S.H.; Dusinska, M. NanoGenotoxicology: Present and the future. Mutagenesis 2017, 32, 1–4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Huk, A.; Collins, A.R.; El Yamani, N.; Porredon, C.; Azqueta, A.; De Lapuente, J.; Dusinska, M. Critical factors to be considered when testing nanomaterials for genotoxicity with the comet assay. Mutagenesis 2015, 30, 85–88. [Google Scholar] [CrossRef] [PubMed]
  26. Valdiglesias, V.; Costa, C.; Sharma, V.; Kiliç, G.; Pásaro, E.; Teixeira, J.P.; Dhawan, A.; Laffon, B. Comparative study on effects of two different types of titanium dioxide nanoparticles on human neuronal cells. Food Chem. Toxicol. J. 2013, 57, 352–361. [Google Scholar] [CrossRef] [PubMed]
  27. Magdolenova, Z.; Collins, A.; Kumar, A.; Dhawan, A.; Stone, V.; Dusinska, M. Mechanisms of genotoxicity. A review of in vitro and in vivo studies with engineered nanoparticles. Nanotoxicology 2014, 8, 233–278. [Google Scholar] [CrossRef]
  28. Fernández-Bertólez, N.; Costa, C.; Brandão, F.; Kiliç, G.; Duarte, J.A.J.A.; Teixeira, J.P.J.P.; Pásaro, E.; Valdiglesias, V.; Laffon, B. Toxicological assessment of silica-coated iron oxide nanoparticles in human astrocytes. Food Chem. Toxicol. 2018, 118, 13–23. [Google Scholar] [CrossRef] [Green Version]
  29. Fernández-Bertólez, N.; Costa, C.; Brandão, F.; Kiliç, G.; Teixeira, J.P.; Pásaro, E.; Laffon, B.; Valdiglesias, V. Neurotoxicity assessment of oleic acid-coated iron oxide nanoparticles in SH-SY5Y cells. Toxicology 2018, 406–407, 81–91. [Google Scholar] [CrossRef]
  30. Magdolenova, Z.; Bilaniová, D.; Pojana, G.; Fjellsbø, L.M.; Hudecova, A.; Hasplova, K.; Marcomini, A.; Dusinska, M. Impact of agglomeration and different dispersions of titanium dioxide nanoparticles on the human related in vitro cytotoxicity and genotoxicity. J. Environ. Monit. 2012, 14, 455–464. [Google Scholar] [CrossRef] [PubMed]
  31. Charles, S.; Jomini, S.; Fessard, V.; Bigorgne-Vizade, E.; Rousselle, C.; Michel, C. Assessment of the in vitro genotoxicity of TiO2 nanoparticles in a regulatory context. Nanotoxicology 2018, 12, 357–374. [Google Scholar] [CrossRef]
  32. Chen, Z.; Wang, Y.; Ba, T.; Li, Y.; Pu, J.; Chen, T.; Song, Y.; Gu, Y.; Qian, Q.; Yang, J.; et al. Genotoxic evaluation of titanium dioxide nanoparticles in vivo and in vitro. Toxicol. Lett. 2014, 226, 314–319. [Google Scholar] [CrossRef]
  33. Gonzalez, L.; Sanderson, B.J.S.; Kirsch-Volders, M. Adaptations of the in vitro MN assay for the genotoxicity assessment of nanomaterials. Mutagenesis 2011, 26, 185–191. [Google Scholar] [CrossRef]
  34. Çeşmeli, S.; Biray Avci, C. Application of titanium dioxide (TiO2) nanoparticles in cancer therapies. J. Drug Target. 2019, 27, 762–766. [Google Scholar] [CrossRef]
  35. Chen, T.; Yan, J.; Li, Y. Genotoxicity of titanium dioxide nanoparticles. J. Food Drug Anal. 2014, 22, 95–104. [Google Scholar] [CrossRef] [PubMed]
  36. Demir, E.; Akça, H.; Turna, F.; Aksakal, S.; Burgucu, D.; Kaya, B.; Tokgün, O.; Vales, G.; Creus, A.; Marcos, R. Genotoxic and cell-transforming effects of titanium dioxide nanoparticles. Environ. Res. 2015, 136, 300–308. [Google Scholar] [CrossRef]
  37. Liao, F.; Chen, L.; Liu, Y.; Zhao, D.; Peng, W.; Wang, W.; Feng, S. The size-dependent genotoxic potentials of titanium dioxide nanoparticles to endothelial cells. Environ. Toxicol. 2019, 34, 1199–1207. [Google Scholar] [CrossRef]
  38. Shi, H.; Magaye, R.; Castranova, V.; Zhao, J. Titanium dioxide nanoparticles: A review of current toxicological data. Part. Fibre Toxicol. 2013, 10, 15. [Google Scholar] [CrossRef] [Green Version]
  39. Wu, J.; Wang, C.; Sun, J.; Xue, Y. Neurotoxicity of silica nanoparticles: Brain localization and dopaminergic neurons damage pathways. ACS Nano 2011, 5, 4476–4489. [Google Scholar] [CrossRef] [PubMed]
  40. Wu, T.; Tang, M. The inflammatory response to silver and titanium dioxide nanoparticles in the central nervous system. Nanomedicine 2018, 13, 233–249. [Google Scholar] [CrossRef]
  41. Yusuf, M.; Leung, K.; Morris, K.J.; Volpi, E.V. Comprehensive cytogenomic profile of the in vitro neuronal model SH-SY5Y. Neurogenetics 2013, 14, 63–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Stenger, C.; Naves, T.; Verdier, M.; Ratinaud, M.H. The cell death response to the ROS inducer, cobalt chloride, in neuroblastoma cell lines according to p53 status. Int. J. Oncol. 2011, 39, 601–609. [Google Scholar] [CrossRef] [PubMed]
  43. Brandão, F.; Fernández-Bertólez, N.; Rosário, F.; Bessa, M.J.; Fraga, S.; Pásaro, E.; Teixeira, J.P.; Laffon, B.; Valdiglesias, V.; Costa, C. Genotoxicity of TiO2 nanoparticles in four different human cell lines (A549, HEPG2, A172 and SH-SY5Y). Nanomaterials 2020, 10, 412. [Google Scholar] [CrossRef] [Green Version]
  44. Mooren, O.L.; Galletta, B.J.; Cooper, J.A. Roles for actin assembly in endocytosis. Annu. Rev. Biochem. 2012, 81, 661–686. [Google Scholar] [CrossRef]
  45. Magdolenova, Z.; Lorenzo, Y.; Collins, A.; Dusinska, M. Can standard genotoxicity tests be applied to nanoparticles? J. Toxicol. Environ. Health Part A 2012, 75, 800–806. [Google Scholar] [CrossRef] [PubMed]
  46. Kazimirova, A.; Baranokova, M.; Staruchova, M.; Drlickova, M.; Volkovova, K.; Dusinska, M. Titanium dioxide nanoparticles tested for genotoxicity with the comet and micronucleus assays in vitro, ex vivo and in vivo. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2019, 843, 57–65. [Google Scholar] [CrossRef] [PubMed]
  47. Lammel, T.; Mackevica, A.; Johansson, B.R.; Sturve, J. Endocytosis, intracellular fate, accumulation, and agglomeration of titanium dioxide (TiO2) nanoparticles in the rainbow trout liver cell line RTL-W1. Environ. Sci. Pollut. Res. 2019, 26, 15354–15372. [Google Scholar] [CrossRef] [Green Version]
  48. Wei, Y.; Tang, T.; Pang, H.-B. Cellular internalization of bystander nanomaterial induced by TAT-nanoparticles and regulated by extracellular cysteine. Nat. Commun. 2019, 10, 3646. [Google Scholar] [CrossRef] [Green Version]
  49. Xie, X.; Liao, J.; Shao, X.; Li, Q.; Lin, Y. The effect of shape on cellular uptake of gold nanoparticles in the forms of stars, rods, and triangles. Sci. Rep. 2017, 7, 1–9. [Google Scholar] [CrossRef]
  50. Huerta-García, E.; Márquez-Ramírez, S.G.; Ramos-Godinez, M.d.P.; López-Saavedra, A.; Herrera, L.A.; Parra, A.; Alfaro-Moreno, E.; Gómez, E.O.; López-Marure, R. Internalization of titanium dioxide nanoparticles by glial cells is given at short times and is mainly mediated by actin reorganization-dependent endocytosis. Neurotoxicology 2015, 51, 27–37. [Google Scholar] [CrossRef]
  51. Di Bucchianico, S.; Cappellini, F.; Le Bihanic, F.; Zhang, Y.; Dreij, K.; Karlsson, H.L. Genotoxicity of TiO2 nanoparticles assessed by mini-gel comet assay and micronucleus scoring with flow cytometry. Mutagenesis 2017, 32, 127–137. [Google Scholar] [CrossRef] [Green Version]
  52. Guichard, Y.; Schmit, J.; Darne, C.; Gaté, L.; Goutet, M.; Rousset, D.; Rastoix, O.; Wrobel, R.; Witschger, O.; Martin, A.; et al. Cytotoxicity and genotoxicity of nanosized and microsized titanium dioxide and iron oxide particles in syrian hamster embryo cells. Ann. Occup. Hyg. 2012, 56, 631–644. [Google Scholar] [CrossRef]
  53. Liu, N.; Tang, M. Toxic effects and involved molecular pathways of nanoparticles on cells and subcellular organelles. J. Appl. Toxicol. 2020, 40, 16–36. [Google Scholar] [CrossRef]
  54. Huerta-García, E.; Ramos-Godinez, M.D.P.; López-Saavedra, A.; Alfaro-Moreno, E.; Gómez-Crisóstomo, N.P.; Colín-Val, Z.; Sánchez-Barrera, H.; López-Marure, R. Internalization of titanium dioxide nanoparticles is mediated by actin-dependent reorganization and clathrin- and dynamin-mediated endocytosis in H9c2 rat cardiomyoblasts. Chem. Res. Toxicol. 2019, 32, 578–588. [Google Scholar] [CrossRef]
  55. Stoccoro, A.; Di Bucchianico, S.; Coppedè, F.; Ponti, J.; Uboldi, C.; Blosi, M.; Delpivo, C.; Ortelli, S.; Costa, A.L.; Migliore, L. Multiple endpoints to evaluate pristine and remediated titanium dioxide nanoparticles genotoxicity in lung epithelial A549 cells. Toxicol. Lett. 2017, 276, 48–61. [Google Scholar] [CrossRef] [PubMed]
  56. Andersson, P.O.; Lejon, C.; Ekstrand-Hammarström, B.; Akfur, C.; Ahlinder, L.; Bucht, A.; Österlund, L. Polymorph- and size-dependent uptake and toxicity of TiO2 nanoparticles in living lung epithelial cells. Small 2011, 7, 514–523. [Google Scholar] [CrossRef] [PubMed]
  57. Allouni, Z.E.; Høl, P.J.; Cauqui, M.A.; Gjerdet, N.R.; Cimpan, M.R. Role of physicochemical characteristics in the uptake of TiO2 nanoparticles by fibroblasts. Toxicol. Vitr. 2012, 26, 469–479. [Google Scholar] [CrossRef]
  58. Avlasevich, S.; Bryce, S.; De Boeck, M.; Elhajouji, A.; Van Goethem, F.; Lynch, A.; Nicolette, J.; Shi, J.; Dertinger, S. Flow cytometric analysis of micronuclei in mammalian cell cultures: Past, present and future. Mutagenesis 2011, 26, 147–152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Avlasevich, S.L.; Bryce, S.M.; Cairns, S.E.; Dertinger, S.D. In vitro micronucleus scoring by flow cytometry: Differential staining of micronuclei versus apoptotic and necrotic chromatin enhances assay reliability. Environ. Mol. Mutagen. 2006, 47, 56–66. [Google Scholar] [CrossRef]
  60. Bryce, S.M.; Bemis, J.C.; Avlasevich, S.L.; Dertinger, S.D. In vitro micronucleus assay scored by flow cytometry provides a comprehensive evaluation of cytogenetic damage and cytotoxicity. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2007, 630, 78–91. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Nicolette, J.; Diehl, M.; Sonders, P.; Bryce, S.; Blomme, E. In vitro micronucleus screening of pharmaceutical candidates by flow cytometry in Chinese hamster V79 cells. Environ. Mol. Mutagen. 2011, 52, 355–362. [Google Scholar] [CrossRef]
  62. Lukamowicz, M.; Kirsch-Volders, M.; Suter, W.; Elhajouji, A. In vitro primary human lymphocyte flow cytometry based micronucleus assay: Simultaneous assessment of cell proliferation, apoptosis and MN frequency. Mutagenesis 2011, 26, 763–770. [Google Scholar] [CrossRef]
  63. Roman, D.; Locher, F.; Suter, W.; Cordier, A.; Bobadilla, M. Evaluation of a new procedure for the flow cytometric analysis of in vitro, chemically induced micronuclei in V79 cells. Environ. Mol. Mutagen. 1998, 32, 387–396. [Google Scholar] [CrossRef]
  64. Kansara, K.; Patel, P.; Shah, D.; Vallabani, N.; Shukla, R.K.; Singh, S.; Kumar, A.; Dhawan, A. TiO2 nanoparticles induce cytotoxicity and genotoxicity in human alveolar cells. Mol. Cytogenet. 2014, 7, P77. [Google Scholar] [CrossRef] [Green Version]
  65. Sahu, S.C.; Roy, S.; Zheng, J.; Yourick, J.J.; Sprando, R.L. Comparative genotoxicity of nanosilver in human liver HepG2 and colon Caco2 cells evaluated by fluorescent microscopy of cytochalasin B-blocked micronucleus formation. J. Appl. Toxicol. 2014, 34, 1200–1208. [Google Scholar] [CrossRef]
  66. Di Virgilio, A.L.; Reigosa, M.; Arnal, P.M.; Fernández Lorenzo de Mele, M. Comparative study of the cytotoxic and genotoxic effects of titanium oxide and aluminium oxide nanoparticles in Chinese hamster ovary (CHO-K1) cells. J. Hazard. Mater. 2010, 177, 711–718. [Google Scholar] [CrossRef]
  67. Falck, G.C.M.; Lindberg, H.K.; Suhonen, S.; Vippola, M.; Vanhala, E.; Catalán, J.; Savolainen, K.; Norppa, H. Genotoxic effects of nanosized and fine TiO2. Hum. Exp. Toxicol. 2009, 28, 339–352. [Google Scholar] [CrossRef] [PubMed]
  68. Gurr, J.R.; Wang, A.S.S.; Chen, C.H.; Jan, K.Y. Ultrafine titanium dioxide particles in the absence of photoactivation can induce oxidative damage to human bronchial epithelial cells. Toxicology 2005, 213, 66–73. [Google Scholar] [CrossRef] [PubMed]
  69. Papageorgiou, I.; Brown, C.; Schins, R.; Singh, S.; Newson, R.; Davis, S.; Fisher, J.; Ingham, E.; Case, C.P. The effect of nano- and micron-sized particles of cobalt-chromium alloy on human fibroblasts in vitro. Biomaterials 2007, 28, 2946–2958. [Google Scholar] [CrossRef] [PubMed]
  70. Karlsson, H.L.; Di Bucchianico, S.; Collins, A.R.; Dusinska, M. Can the comet assay be used reliably to detect nanoparticle-induced genotoxicity? Environ. Mol. Mutagen. 2015, 56, 82–96. [Google Scholar] [CrossRef]
  71. Kohl, Y.; Rundén-Pran, E.; Mariussen, E.; Hesler, M.; Yamani, N.E.; Longhin, E.M.; Dusinska, M. Genotoxicity of nanomaterials: Advanced in vitro models and high throughput methods for human hazard assessment—A review. Nanomaterials 2020, 10, 1911. [Google Scholar] [CrossRef]
  72. Prasad, R.Y.; Simmons, S.O.; Killius, M.G.; Zucker, R.M.; Kligerman, A.D.; Blackman, C.F.; Fry, R.C.; DeMarini, D.M. Cellular interactions and biological responses to titanium dioxide nanoparticles in HepG2 and BEAS-2B cells: Role of cell culture media. Environ. Mol. Mutagen. 2014, 55, 336–342. [Google Scholar] [CrossRef]
  73. Kang, S.J.; Kim, B.M.; Lee, Y.J.; Chung, H.W. Titanium dioxide nanoparticles trigger p53-mediated damage response in peripheral blood lymphocytes. Environ. Mol. Mutagen. 2008, 49, 399–405. [Google Scholar] [CrossRef]
  74. Tavares, A.M.; Louro, H.; Antunes, S.; Quarré, S.; Simar, S.; De Temmerman, P.J.; Verleysen, E.; Mast, J.; Jensen, K.A.; Norppa, H.; et al. Genotoxicity evaluation of nanosized titanium dioxide, synthetic amorphous silica and multi-walled carbon nanotubes in human lymphocytes. Toxicol. Vitr. 2014, 28, 60–69. [Google Scholar] [CrossRef]
  75. Ramge, P.; Unger, R.E.; Oltrogge, J.B.; Zenker, D.; Begley, D.; Kreuter, J.; Von Briesen, H. Polysorbate-80 coating enhances uptake of polybutylcyanoacrylate (PBCA)-nanoparticles by human and bovine primary brain capillary endothelial cells. Eur. J. Neurosci. 2000, 12, 1931–1940. [Google Scholar] [CrossRef] [PubMed]
  76. Suzuki, H.; Toyooka, T.; Ibuki, Y. Simple and easy method to evaluate uptake potential of nanoparticles in mammalian cells using a flow cytometric light scatter analysis. Environ. Sci. Technol. 2007, 41, 3018–3024. [Google Scholar] [CrossRef]
  77. Fenech, M.; Chang, W.P.; Kirsch-Volders, M.; Holland, N.; Bonassi, S.; Zeiger, E. HUMN project: Detailed description of the scoring criteria for the cytokinesis-block micronucleus assay using isolated human lymphocyte cultures. Mutat. Res. Genet. Toxicol. Environ. Mutagen. 2003, 534, 65–75. [Google Scholar] [CrossRef]
  78. Nüsse, M.; Beisker, W.; Kramer, J.; Miller, B.M.; Schreiber, G.A.; Viaggi, S.; Weller, E.M.; Wessels, J.M. Chapter 9 Measurement of Micronuclei by Flow Cytometry. Methods Cell Biol. 1994, 42, 149–158. [Google Scholar] [CrossRef]
Ijms 22 08558 g001 550

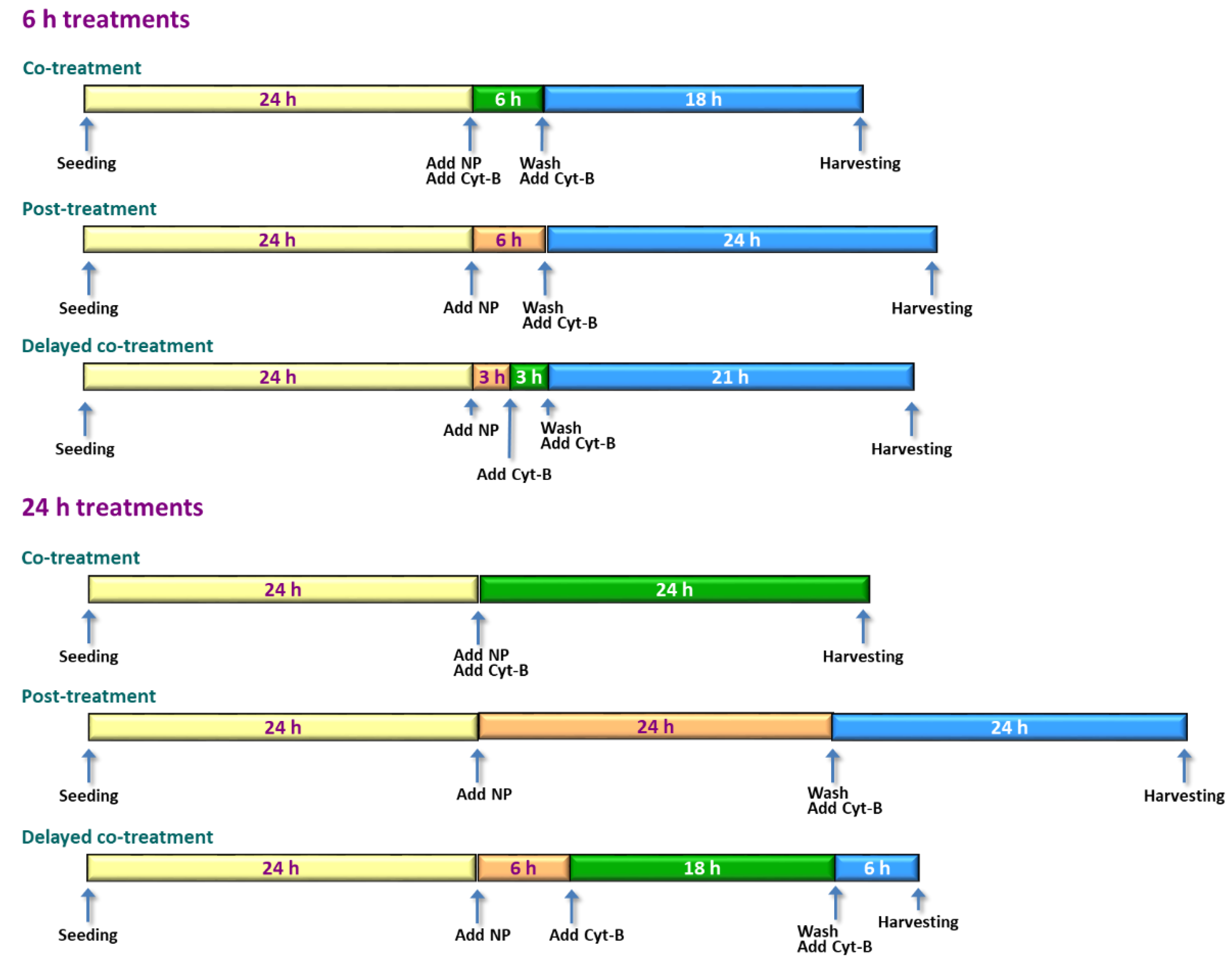

Figure 1. Scheme showing the chronology of CBMN test experiments. Exposure of the cells to TiO2 NP was conducted for 6 and 24 h following three different treatment variants: co-treatment, post-treatment, and delayed co-treatment. Color code: yellow: no treatment; orange: treatment with NP; blue: treatment with Cyt-B; green: treatment with NP + Cyt-B.
Figure 1. Scheme showing the chronology of CBMN test experiments. Exposure of the cells to TiO2 NP was conducted for 6 and 24 h following three different treatment variants: co-treatment, post-treatment, and delayed co-treatment. Color code: yellow: no treatment; orange: treatment with NP; blue: treatment with Cyt-B; green: treatment with NP + Cyt-B.
Ijms 22 08558 g001
Ijms 22 08558 g002 550

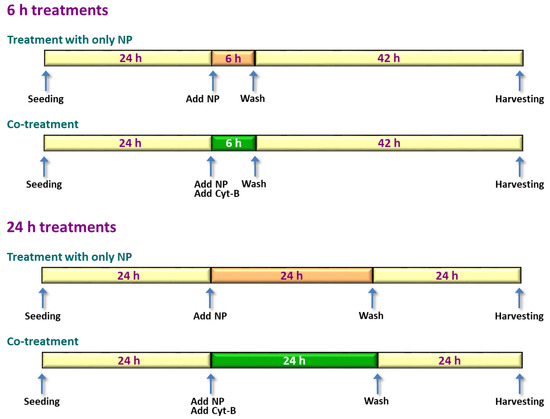

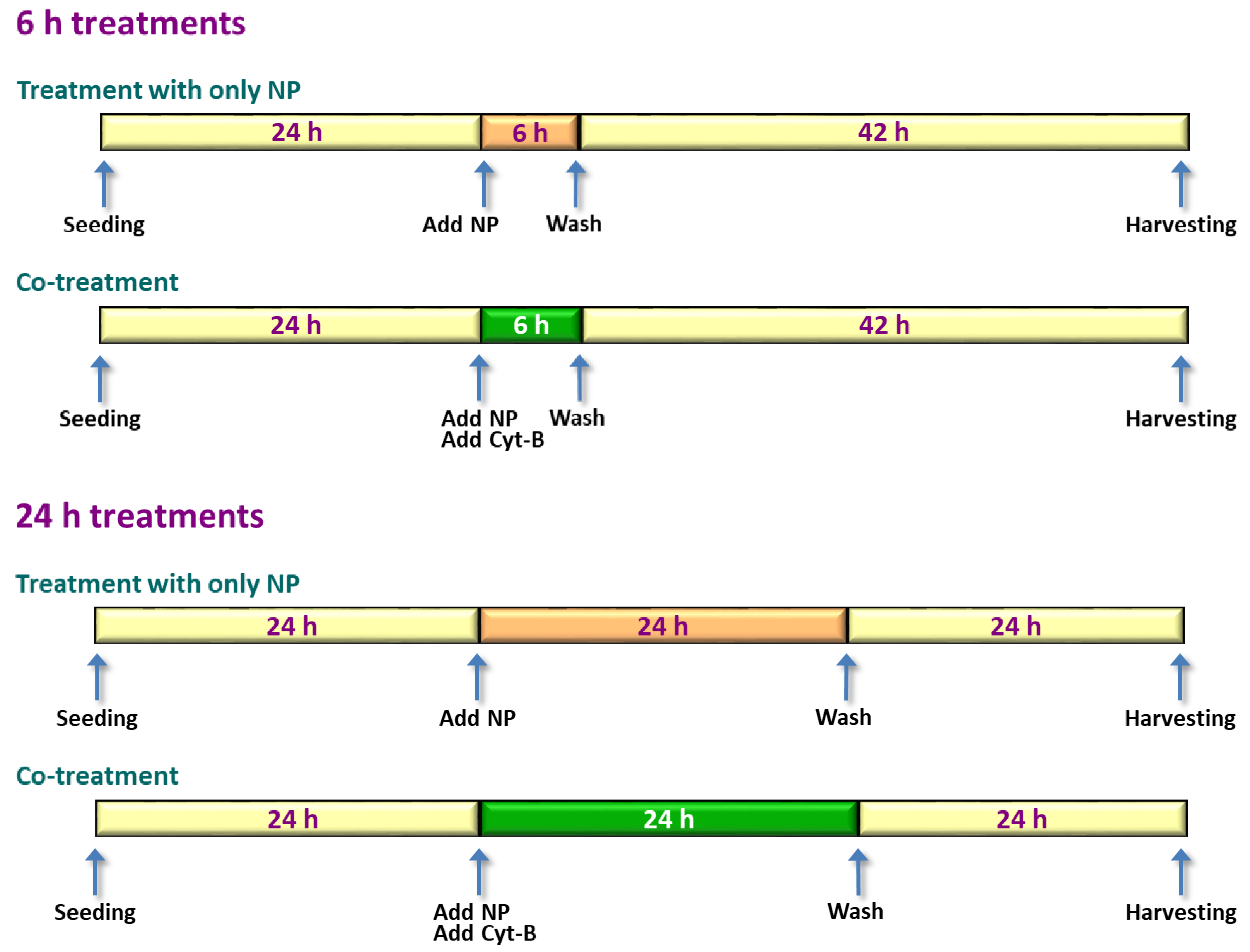

Figure 2. Scheme showing the chronology of FCMN test experiments. Exposure of the cells to TiO2 NP was conducted for 6 and 24 h both in the presence and in the absence of Cyt-B. Color code: yellow: no treatment; orange: treatment with NP; green: treatment with NP + Cyt-B.
Figure 2. Scheme showing the chronology of FCMN test experiments. Exposure of the cells to TiO2 NP was conducted for 6 and 24 h both in the presence and in the absence of Cyt-B. Color code: yellow: no treatment; orange: treatment with NP; green: treatment with NP + Cyt-B.
Ijms 22 08558 g002
Ijms 22 08558 g003 550

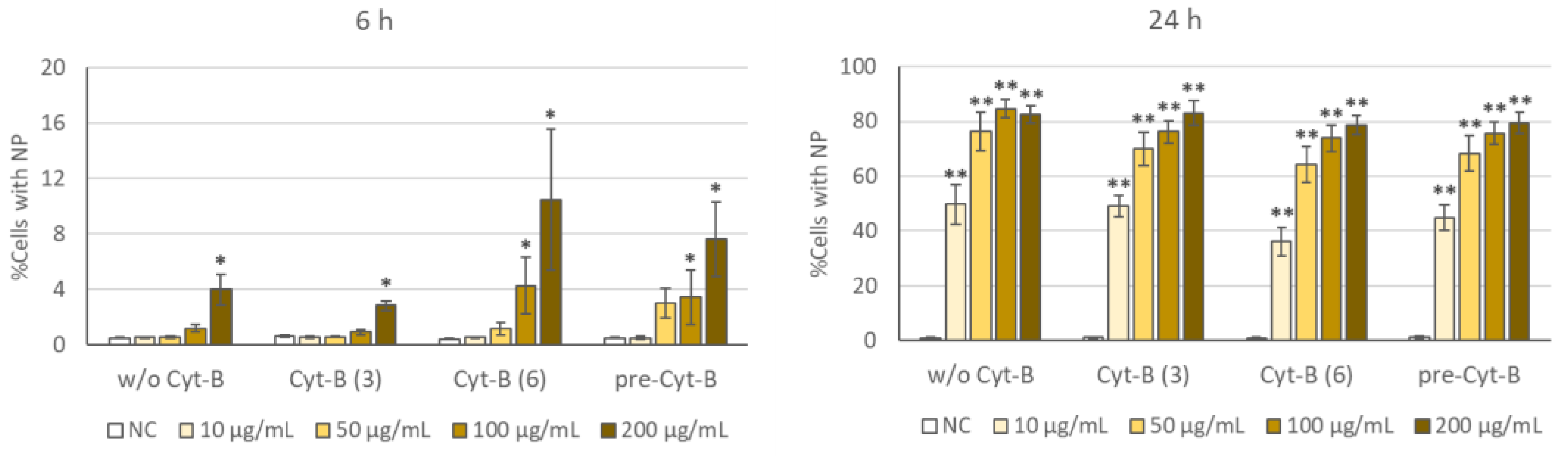

Figure 3. Cellular uptake of the TiO2 NP at 6 h (left) or 24 h (right) treatments. Treatments were conducted in the absence of Cyt-B (w/o Cyt-B), in the presence of 3 or 6 µg/mL of this substance (Cyt-B (3) and Cyt-B (6), respectively), or in the presence of 6 µg/mL Cyt-B added 1 h before the initiation of TiO2 NP treatment (pre-Cyt-B). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC). No differences were observed in the comparisons between the different treatment options within the same TiO2 NP dose and treatment time.
Figure 3. Cellular uptake of the TiO2 NP at 6 h (left) or 24 h (right) treatments. Treatments were conducted in the absence of Cyt-B (w/o Cyt-B), in the presence of 3 or 6 µg/mL of this substance (Cyt-B (3) and Cyt-B (6), respectively), or in the presence of 6 µg/mL Cyt-B added 1 h before the initiation of TiO2 NP treatment (pre-Cyt-B). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC). No differences were observed in the comparisons between the different treatment options within the same TiO2 NP dose and treatment time.
Ijms 22 08558 g003
Ijms 22 08558 g004 550

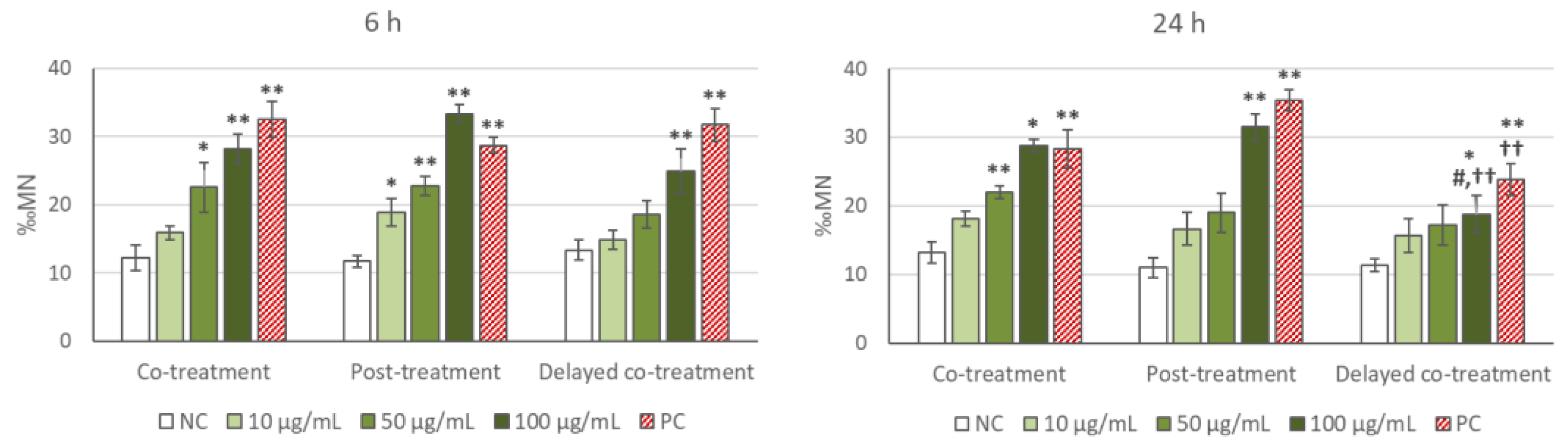

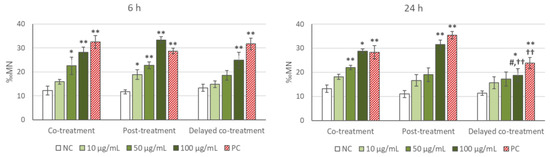

Figure 4. Results of the CBMN test in SH-SY5Y cells treated with TiO2 NP for 6 h (left) or 24 h (right) following three different treatment options: co-treatment, post-treatment, and delayed co-treatment (see Figure 1 for details). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC); # p < 0.05, significant difference with regard to 100 µg/mL co-treatment; †† p < 0.01, significant difference with regard to the corresponding post-treatment dose. PC: positive control (MMC: 10 µM for 6 h and 1.5 µM for 24 h treatments).
Figure 4. Results of the CBMN test in SH-SY5Y cells treated with TiO2 NP for 6 h (left) or 24 h (right) following three different treatment options: co-treatment, post-treatment, and delayed co-treatment (see Figure 1 for details). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC); # p < 0.05, significant difference with regard to 100 µg/mL co-treatment; †† p < 0.01, significant difference with regard to the corresponding post-treatment dose. PC: positive control (MMC: 10 µM for 6 h and 1.5 µM for 24 h treatments).
Ijms 22 08558 g004
Ijms 22 08558 g005 550
Figure 5. Results of the flow cytometry MN test in SH-SY5Y cells treated with TiO2 NP for 6 h (left) or 24 h (right), in the absence or in the presence of cytochalasin-B (Cyt-B). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC). PC: positive control (MMC: 10 µM for 6 h and 1.5 µM for 24 h treatments).
Figure 5. Results of the flow cytometry MN test in SH-SY5Y cells treated with TiO2 NP for 6 h (left) or 24 h (right), in the absence or in the presence of cytochalasin-B (Cyt-B). Error bars represent mean standard error. * p < 0.05; ** p < 0.01, significant difference with regard to the corresponding negative control (NC). PC: positive control (MMC: 10 µM for 6 h and 1.5 µM for 24 h treatments).
Ijms 22 08558 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fernández-Bertólez, N.; Brandão, F.; Costa, C.; Pásaro, E.; Teixeira, J.P.; Laffon, B.; Valdiglesias, V. Suitability of the In Vitro Cytokinesis-Block Micronucleus Test for Genotoxicity Assessment of TiO2 Nanoparticles on SH-SY5Y Cells. Int. J. Mol. Sci. 2021, 22, 8558. https://doi.org/10.3390/ijms22168558

AMA Style

Fernández-Bertólez N, Brandão F, Costa C, Pásaro E, Teixeira JP, Laffon B, Valdiglesias V. Suitability of the In Vitro Cytokinesis-Block Micronucleus Test for Genotoxicity Assessment of TiO2 Nanoparticles on SH-SY5Y Cells. International Journal of Molecular Sciences. 2021; 22(16):8558. https://doi.org/10.3390/ijms22168558

Chicago/Turabian Style

Fernández-Bertólez, Natalia, Fátima Brandão, Carla Costa, Eduardo Pásaro, João Paulo Teixeira, Blanca Laffon, and Vanessa Valdiglesias. 2021. "Suitability of the In Vitro Cytokinesis-Block Micronucleus Test for Genotoxicity Assessment of TiO2 Nanoparticles on SH-SY5Y Cells" International Journal of Molecular Sciences 22, no. 16: 8558. https://doi.org/10.3390/ijms22168558

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
