Impact of the Spectral Composition of Kilovoltage X-rays on High-Z Nanoparticle-Assisted Dose Enhancement
Abstract
:1. Introduction

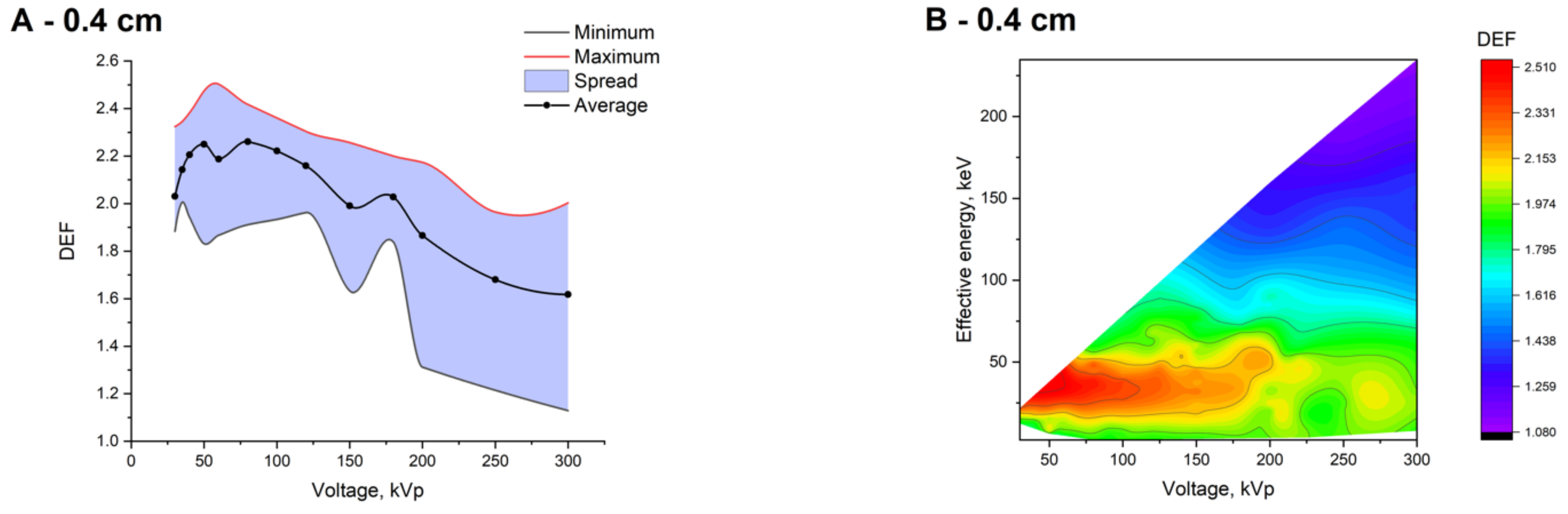

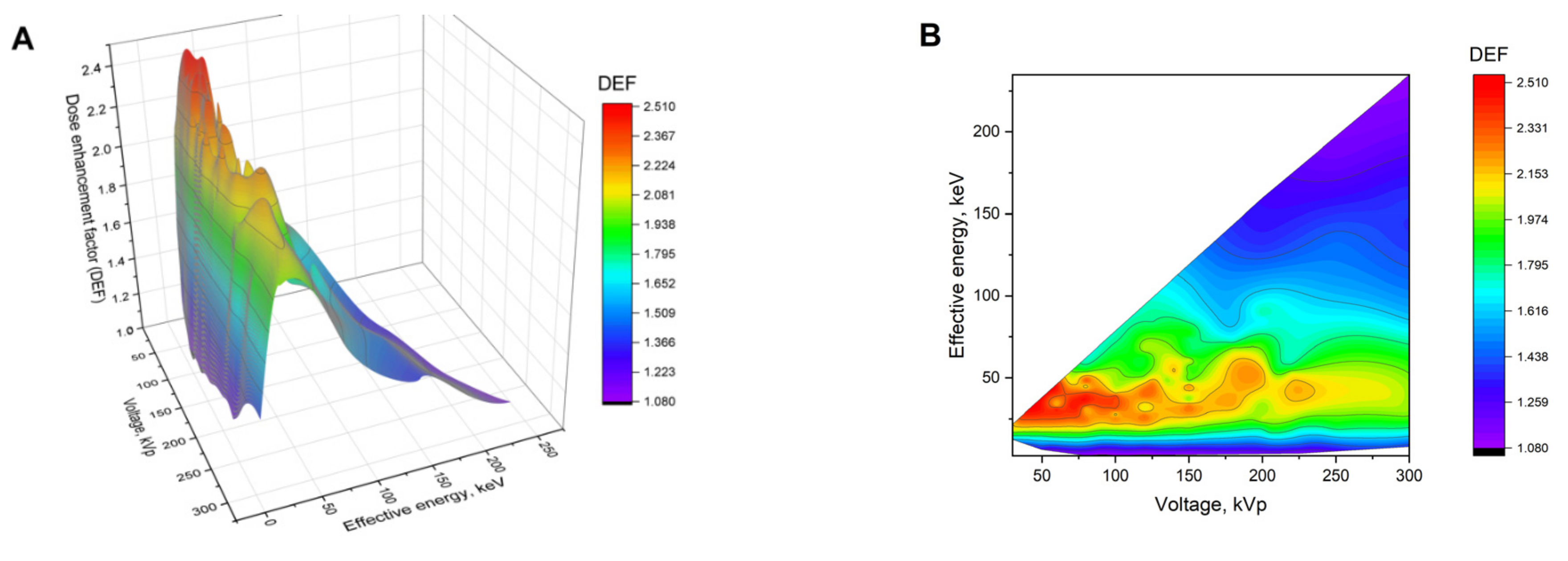

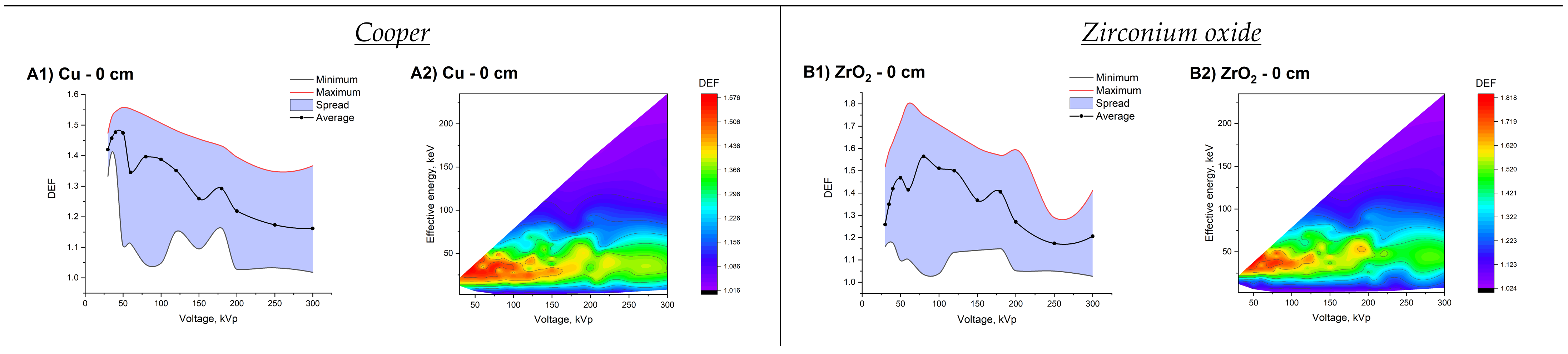

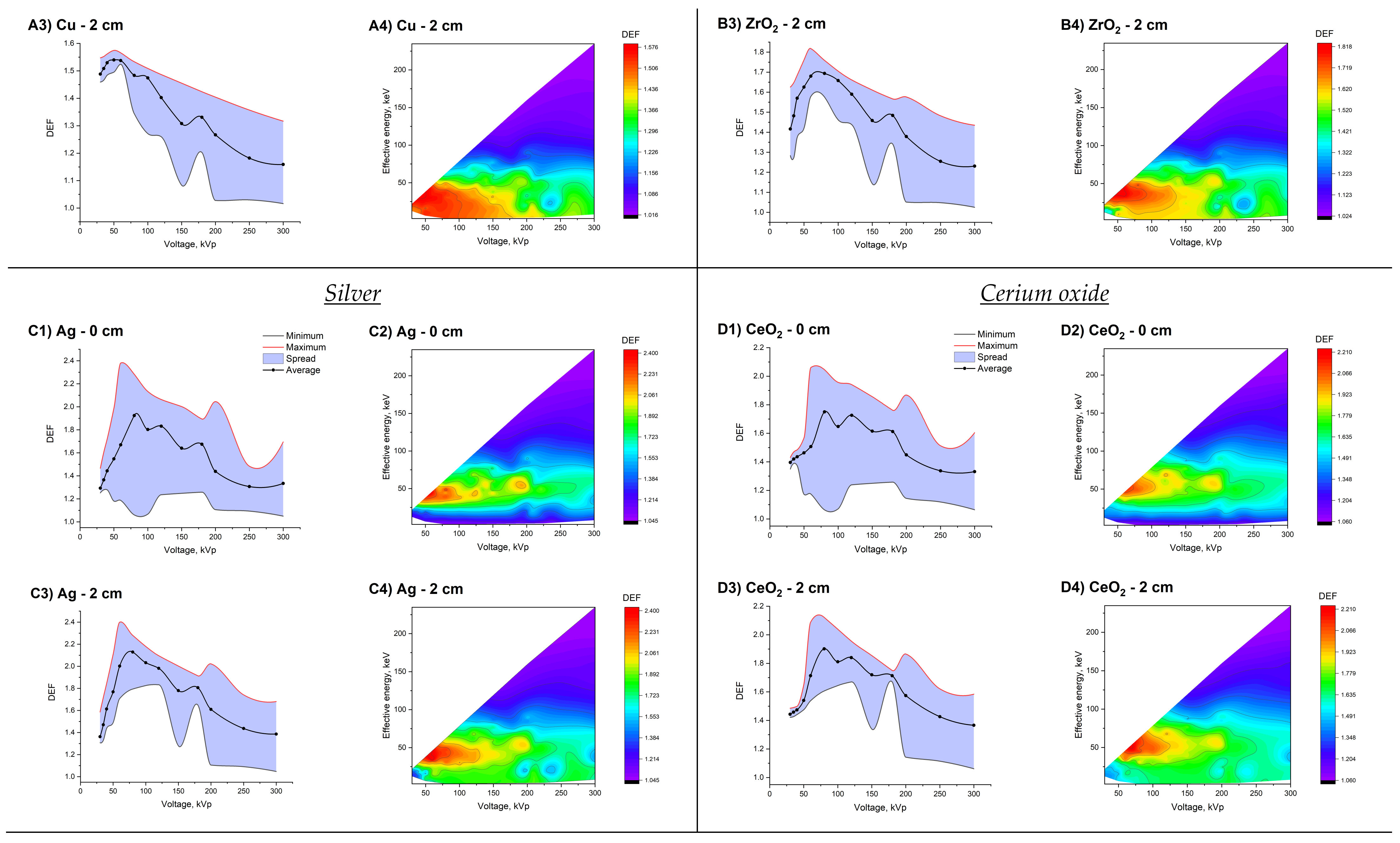

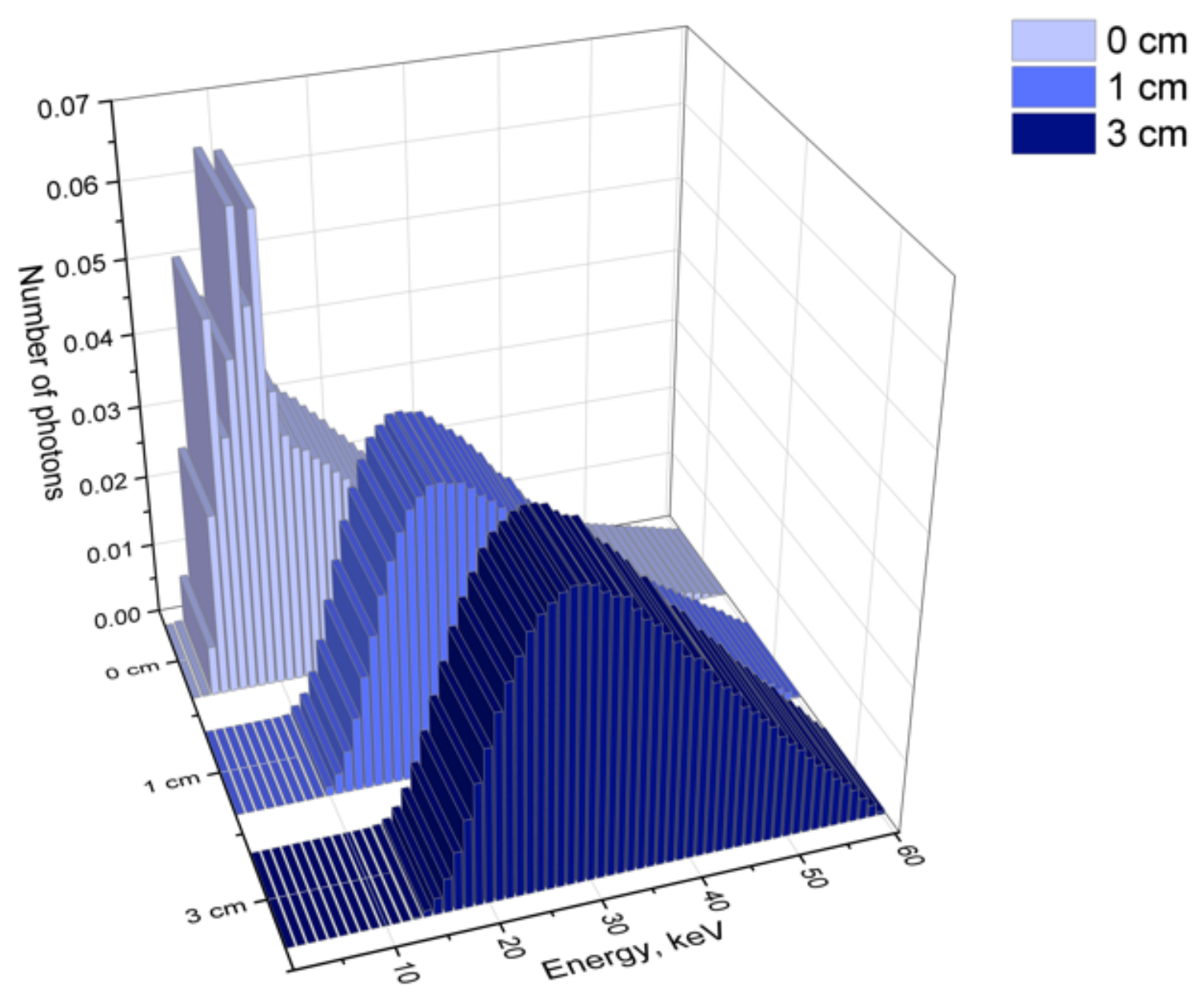

2. Results and Discussion
3. Materials and Methods
3.1. Analytical Calculation of Dose Enhancement Factor

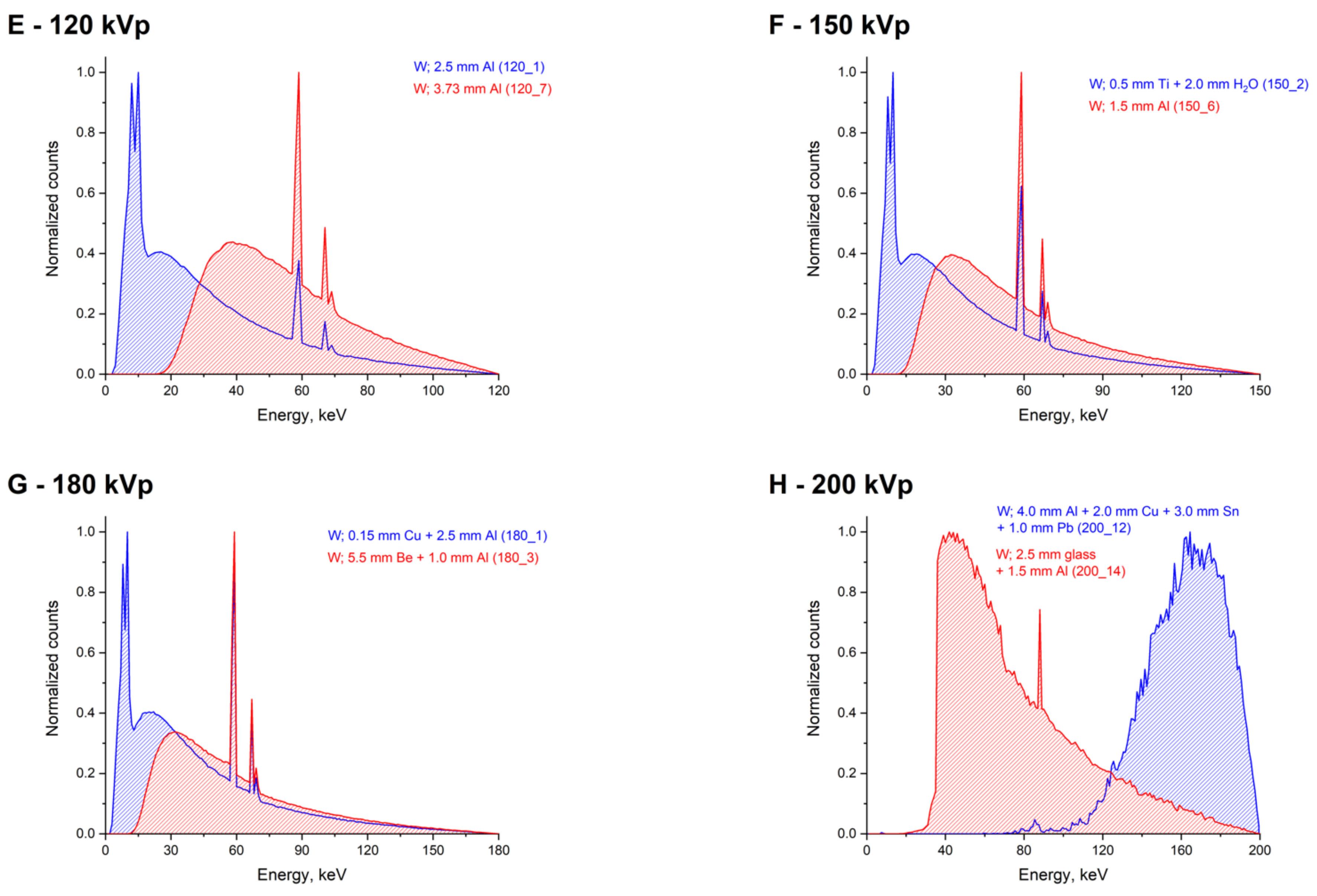

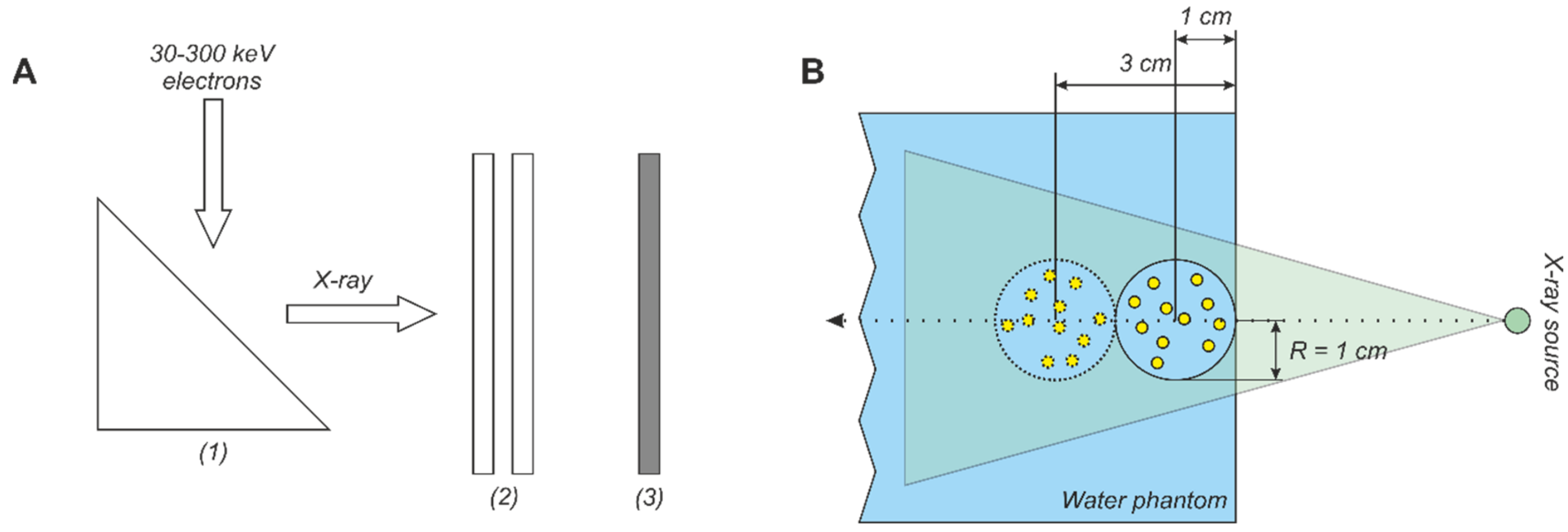

3.2. Monte-Carlo Simulation of X-ray Spectra

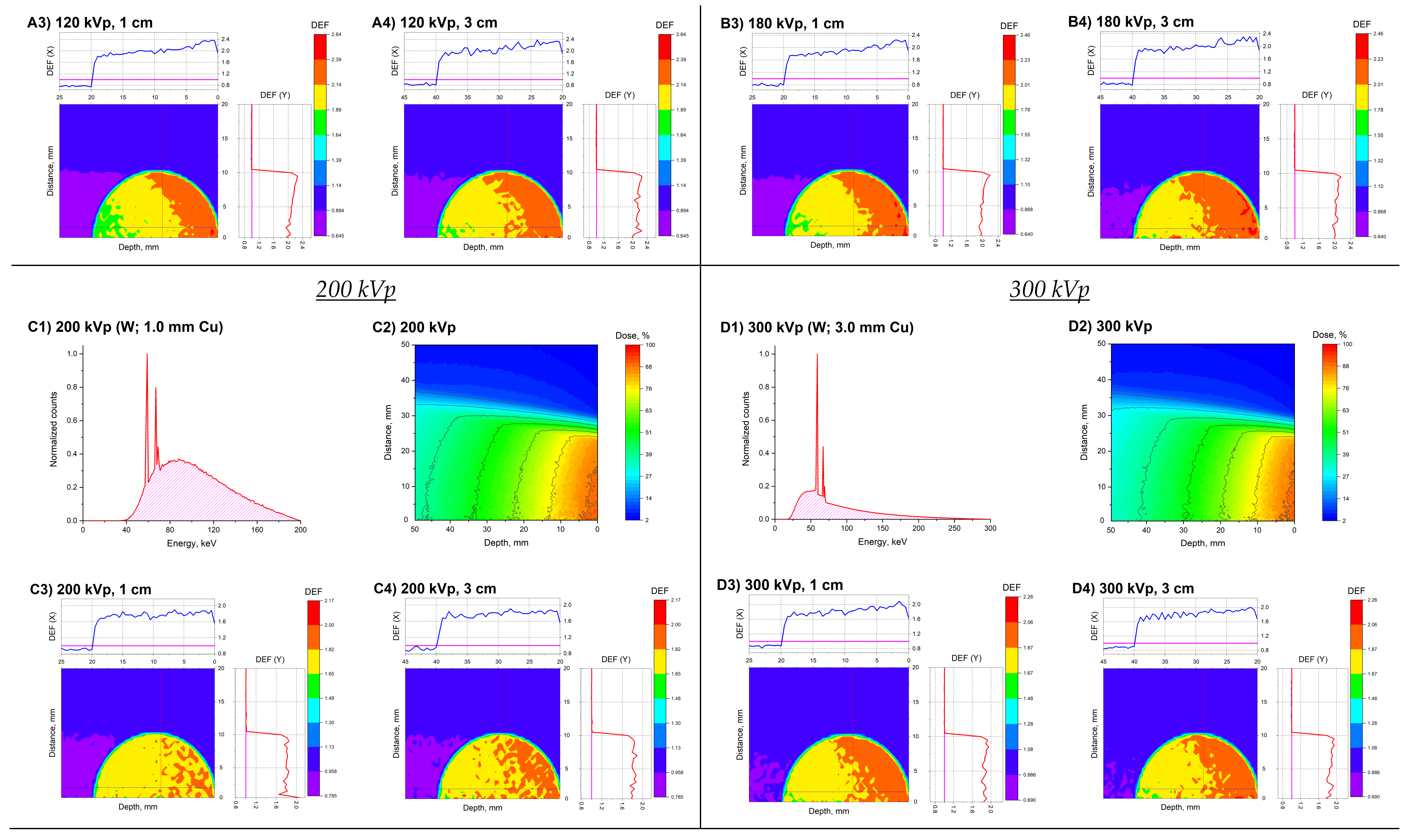

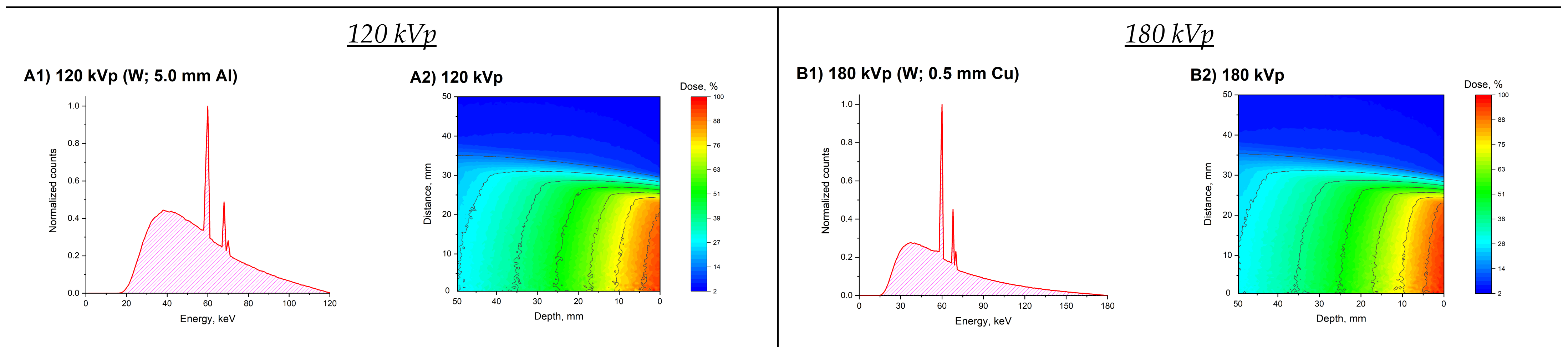

3.3. Model Tumor Simulation
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Zhang, L.; Yuan, H.; Inscoe, C.; Chtcheprov, P.; Hadsell, M.; Lee, Y.; Lu, J.; Chang, S.; Zhou, O. Nanotube x-ray for cancer therapy: A compact microbeam radiation therapy system for brain tumor treatment. Expert Rev. Anticancer. Ther. 2014, 14, 1411–1418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Palade, C.; Slav, A.; Lepadatu, A.-M.; Stavarache, I.; Dascalescu, I.; Maraloiu, V.-A.; Negrila, C.; Logofatu, C.; Stoica, T.; Teodorescu, V.S.; et al. Orthorhombic HfO2 with embedded Ge nanoparticles in nonvolatile memories used for the detection of ionizing radiation. Nanotechnology 2019, 30, 445501. [Google Scholar] [CrossRef] [PubMed]
- Petriev, V.M.; Tischenko, V.K.; Mikhailovskaya, A.A.; Popov, A.A.; Tselikov, G.; Zelepukin, I.; Deyev, S.M.; Kaprin, A.D.; Ivanov, S.; Timoshenko, V.Y.; et al. Nuclear nanomedicine using Si nanoparticles as safe and effective carriers of 188Re radionuclide for cancer therapy. Sci. Rep. 2019, 9, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Thomas, G.; Boudon, J.; Maurizi, L.; Moreau, M.; Walker, P.; Severin, I.; Oudot, A.; Goze, C.; Poty, S.; Vrigneaud, J.-M.; et al. Innovative Magnetic Nanoparticles for PET/MRI Bimodal Imaging. ACS Omega 2019, 4, 2637–2648. [Google Scholar] [CrossRef]
- Abbasi, A.Z.; Gordijo, C.R.; Amini, M.A.; Maeda, A.; Rauth, A.M.; Dacosta, R.S.; Wu, X.Y. Hybrid Manganese Dioxide Nanoparticles Potentiate Radiation Therapy by Modulating Tumor Hypoxia. Cancer Res. 2016, 76, 6643–6656. [Google Scholar] [CrossRef] [Green Version]
- Guo, Z.; Zhu, S.; Yong, Y.; Zhang, X.; Dong, X.; Du, J.; Xie, J.; Wang, Q.; Gu, Z.; Zhao, Y. Synthesis of BSA-Coated BiOI@Bi2S3 Semiconductor Heterojunction Nanoparticles and Their Applications for Radio/Photodynamic/Photothermal Synergistic Therapy of Tumor. Adv. Mater. 2017, 29, 1704136. [Google Scholar] [CrossRef]
- Kim, S.-R.; Kim, E.-H. Gold nanoparticles as dose-enhancement agent for kilovoltage X-ray therapy of melanoma. Int. J. Radiat. Biol. 2017, 93, 517–526. [Google Scholar] [CrossRef]
- Du, J.; Wang, X.; Dong, X.; Zhang, C.; Mei, L.; Zang, Y.; Yan, L.; Zhang, H.; Gu, Z. Enhanced radiosensitization of ternary Cu3BiSe3 nanoparticles by photo-induced hyperthermia in the second near-infrared biological window. Nanoscale 2019, 11, 7157–7165. [Google Scholar] [CrossRef]
- Xie, J.; Gong, L.; Zhu, S.; Yong, Y.; Gu, Z.; Zhao, Y. Emerging Strategies of Nanomaterial-Mediated Tumor Radiosensitization. Adv. Mater. 2019, 31, e1802244. [Google Scholar] [CrossRef]
- Hainfeld, J.F.; Slatkin, D.N.; Smilowitz, H.M. The use of gold nanoparticles to enhance radiotherapy in mice. Phys. Med. Biol. 2004, 49, N309–N315. [Google Scholar] [CrossRef]
- Sun, H.; Wang, X.; Zhai, S. The Rational Design and Biological Mechanisms of Nanoradiosensitizers. Nanomaterials 2020, 10, 504. [Google Scholar] [CrossRef] [Green Version]
- Chen, Y.; Yang, J.; Fu, S.; Wu, J. Gold Nanoparticles as Radiosensitizers in Cancer Radiotherapy. Int. J. Nanomed. 2020, ume 15, 9407–9430. [Google Scholar] [CrossRef]
- Howard, D.; Sebastian, S.; Le, Q.V.-C.; Thierry, B.; Kempson, I. Chemical Mechanisms of Nanoparticle Radiosensitization and Radioprotection: A Review of Structure-Function Relationships Influencing Reactive Oxygen Species. Int. J. Mol. Sci. 2020, 21, 579. [Google Scholar] [CrossRef] [Green Version]
- Choi, J.; Kim, G.; Bin Cho, S.; Im, H.-J. Radiosensitizing high-Z metal nanoparticles for enhanced radiotherapy of glioblastoma multiforme. J. Nanobiotechnology 2020, 18, 1–23. [Google Scholar] [CrossRef]
- Moradi, F.; Saraee, K.R.E.; Sani, S.A.; Bradley, D. Metallic nanoparticle radiosensitization: The role of Monte Carlo simulations towards progress. Radiat. Phys. Chem. 2021, 180, 109294. [Google Scholar] [CrossRef]
- Bonvalot, S.; Rutkowski, P.L.; Thariat, J.; Carrère, S.; Ducassou, A.; Sunyach, M.-P.; Agoston, P.; Hong, A.; Mervoyer, A.; Rastrelli, M.; et al. NBTXR3, a first-in-class radioenhancer hafnium oxide nanoparticle, plus radiotherapy versus radiotherapy alone in patients with locally advanced soft-tissue sarcoma (Act.In.Sarc): A multicentre, phase 2–3, randomised, controlled trial. Lancet Oncol. 2019, 20, 1148–1159. [Google Scholar] [CrossRef]
- Verry, C.; Sancey, L.; Dufort, S.; Le Duc, G.; Mendoza, C.; Lux, F.; Grand, S.; Arnaud, J.; Quesada, J.L.; Villa, J.; et al. Treatment of multiple brain metastases using gadolinium nanoparticles and radiotherapy: NANO-RAD, a phase I study protocol. BMJ Open 2019, 9, e023591. [Google Scholar] [CrossRef]
- Rong, Y.; Zuo, L.; Shang, L.; Bazan, J.G. Radiotherapy treatment for nonmelanoma skin cancer. Expert Rev. Anticancer. Ther. 2015, 15, 765–776. [Google Scholar] [CrossRef]
- Eaton, D.J. Electronic brachytherapy—Current status and future directions. Br. J. Radiol. 2015, 88, 20150002. [Google Scholar] [CrossRef] [Green Version]
- Veness, M.; Delishaj, D.; Barnes, E.; Безуглый, А.; Rembielak, A. Current Role of Radiotherapy in Non-melanoma Skin Cancer. Clin. Oncol. 2019, 31, 749–758. [Google Scholar] [CrossRef]
- Kong, T.; Zeng, J.; Wang, X.; Yang, X.; Yang, J.; McQuarrie, S.; McEwan, A.; Roa, W.; Chen, J.; Xing, J.Z. Enhancement of Radiation Cytotoxicity in Breast-Cancer Cells by Localized Attachment of Gold Nanoparticles. Small 2008, 4, 1537–1543. [Google Scholar] [CrossRef]
- Jain, S.; Coulter, J.A.; Hounsell, A.R.; Butterworth, K.T.; McMahon, S.J.; Hyland, W.B.; Muir, M.F.; Dickson, G.R.; Prise, K.M.; Currell, F.J.; et al. Cell-Specific Radiosensitization by Gold Nanoparticles at Megavoltage Radiation Energies. Int. J. Radiat. Oncol. 2011, 79, 531–539. [Google Scholar] [CrossRef] [Green Version]
- Briggs, A.; Corde, S.; Oktaria, S.; Brown, R.; Rosenfeld, A.; Lerch, M.; Konstantinov, K.; Tehei, M. Cerium oxide nanoparticles: Influence of the high-Z component revealed on radioresistant 9L cell survival under X-ray irradiation. Nanomed. Nanotechnol. Biol. Med. 2013, 9, 1098–1105. [Google Scholar] [CrossRef] [Green Version]
- Her, S.; Jaffray, D.A.; Allen, C. Gold nanoparticles for applications in cancer radiotherapy: Mechanisms and recent advancements. Adv. Drug Deliv. Rev. 2017, 109, 84–101. [Google Scholar] [CrossRef]
- Rahman, W.N.; Bishara, N.; Ackerly, T.; He, C.F.; Jackson, P.; Wong, C.; Davidson, R.; Geso, M. Enhancement of radiation effects by gold nanoparticles for superficial radiation therapy. Nanomed. Nanotechnol. Biol. Med. 2009, 5, 136–142. [Google Scholar] [CrossRef]
- Morozov, V.N.; Belousov, A.V.; Zverev, V.I.; Shtil, A.A.; Kolyvanova, M.A.; Krivoshapkin, P.V. The Prospects of Metal Oxide Nanoradiosensitizers: The Effect of the Elemental Composition of Particles and Characteristics of Radiation Sources on Enhancement of the Adsorbed Dose. Biophysics 2020, 65, 533–540. [Google Scholar] [CrossRef]
- Popov, A.L.; Zaichkina, S.I.; Popova, N.R.; Rozanova, O.M.; Romanchenko, S.P.; Ivanova, O.S.; Smirnov, A.A.; Mironova, E.V.; Selezneva, I.I.; Ivanov, V.K. Radioprotective effects of ultra-small citrate-stabilized cerium oxide nanoparticles in vitro and in vivo. RSC Adv. 2016, 6, 106141–106149. [Google Scholar] [CrossRef]
- Popova, N.R.; Popov, A.L.; Ermakov, A.M.; Reukov, V.V.; Ivanov, V.K. Ceria-Containing Hybrid Multilayered Microcapsules for Enhanced Cellular Internalisation with High Radioprotection Efficiency. Molecules 2020, 25, 2957. [Google Scholar] [CrossRef]
- Roeske, J.C.; Nunez, L.; Hoggarth, M.; Labay, E.; Weichselbaum, R.R. Characterization of the theoretical radiation dose enhancement from nanoparticles. Technol. Cancer Res. Treat. 2007, 6, 395–401. [Google Scholar] [CrossRef]
- Brun, E.; Sanche, L.; Sicard-Roselli, C. Parameters governing gold nanoparticle X-ray radiosensitization of DNA in solution. Colloids Surf. B Biointerfaces 2009, 72, 128–134. [Google Scholar] [CrossRef]
- Hossain, M.; Su, M. Nanoparticle Location and Material-Dependent Dose Enhancement in X-ray Radiation Therapy. J. Phys. Chem. C 2012, 116, 23047–23052. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Koger, B.; Kirkby, C. Optimization of photon beam energies in gold nanoparticle enhanced arc radiation therapy using Monte Carlo methods. Phys. Med. Biol. 2016, 61, 8839–8853. [Google Scholar] [CrossRef] [PubMed]
- Rabus, H.; Gargioni, E.; Li, W.B.; Nettelbeck, H.; Villagrasa, C. Determining dose enhancement factors of high-Z nanoparticles from simulations where lateral secondary particle disequilibrium exists. Phys. Med. Biol. 2019, 64, 155016. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Morozov, K.V.; Kolyvanova, M.A.; Kartseva, M.E.; Shishmakova, E.M.; Dement’Eva, O.V.; Isagulieva, A.K.; Salpagarov, M.H.; Belousov, A.V.; Rudoy, V.M.; Shtil, A.A.; et al. Radiosensitization by Gold Nanoparticles: Impact of the Size, Dose Rate, and Photon Energy. Nanomaterials 2020, 10, 952. [Google Scholar] [CrossRef] [PubMed]
- Brown, R.; Tehei, M.; Oktaria, S.; Briggs, A.; Stewart, C.; Konstantinov, K.; Rosenfeld, A.B.; Corde, S.; Lerch, M. High-Z Nanostructured Ceramics in Radiotherapy: First Evidence of Ta2O5-Induced Dose Enhancement on Radioresistant Cancer Cells in an MV Photon Field. Part. Part. Syst. Charact. 2014, 31, 500–505. [Google Scholar] [CrossRef]
- Engels, E.; Westlake, M.; Li, N.; Vogel, S.; Gobert, Q.; Thorpe, N.; Rosenfeld, A.; Lerch, M.L.F.; Corde, S.; Tehei, M. Thulium Oxide Nanoparticles: A new candidate for image-guided radiotherapy. Biomed. Phys. Eng. Express 2018, 4, 044001. [Google Scholar] [CrossRef] [Green Version]
- Shiryaeva, E.S.; Baranova, I.A.; Kiselev, G.O.; Morozov, V.N.; Belousov, A.V.; Sherstiuk, A.A.; Kolyvanova, M.A.; Krivoshapkin, P.V.; Feldman, V.I. Hafnium Oxide as a Nanoradiosensitizer under X-ray Irradiation of Aqueous Organic Systems: A Model Study Using the Spin-Trapping Technique and Monte Carlo Simulations. J. Phys. Chem. C 2019, 123, 27375–27384. [Google Scholar] [CrossRef]
- Guerreiro, A.; Chatterton, N.; Crabb, E.M.; Golding, J.P. A comparison of the radiosensitisation ability of 22 different element metal oxide nanoparticles using clinical megavoltage X-rays. Cancer Nanotechnol. 2019, 10, 1–20. [Google Scholar] [CrossRef]
- Zhao, J.; Liu, P.; Ma, J.; Li, D.; Yang, H.; Chen, W.; Jiang, Y. Enhancement of Radiosensitization by Silver Nanoparticles Functionalized with Polyethylene Glycol and Aptamer As1411 for Glioma Irradiation Therapy. Int. J. Nanomed. 2019, 14, 9483–9496. [Google Scholar] [CrossRef] [Green Version]
- Sisin, N.N.T.; Razak, K.A.; Abidin, S.Z.; Mat, N.F.C.; Abdullah, R.; Ab Rashid, R.; Anuar, M.A.K.; Zainudin, N.H.M.; Tagiling, N.; Nawi, N.M.; et al. Radiosensitization Effects by Bismuth Oxide Nanoparticles in Combination with Cisplatin for High Dose Rate Brachytherapy. Int. J. Nanomed. 2019, 14, 9941–9954. [Google Scholar] [CrossRef] [Green Version]
- Davydov, A.S.; Belousov, A.V.; Krusanov, G.A.; Kolyvanova, M.A.; Kovalev, B.B.; Komlev, A.S.; Krivoshapkin, P.V.; Morozov, V.N.; Zverev, V.I. Promising magnetic nanoradiosensitizers for combination of tumor hyperthermia and x-ray therapy: Theoretical calculation. J. Appl. Phys. 2021, 129, 033902. [Google Scholar] [CrossRef]
- Seegenschmiedt, M.H.; Micke, O.; Muecke, R.; The German Cooperative Group on Radiotherapy for Non-malignant Diseases (GCG-BD). Radiotherapy for non-malignant disorders: State of the art and update of the evidence-based practice guidelines. Br. J. Radiol. 2015, 88, 20150080. [Google Scholar] [CrossRef]
- Khoshgard, K.; Hashemi, B.; Arbabi, A.; Rasaee, M.J.; Soleimani, M. Radiosensitization effect of folate-conjugated gold nanoparticles on HeLa cancer cells under orthovoltage superficial radiotherapy techniques. Phys. Med. Biol. 2014, 59, 2249–2263. [Google Scholar] [CrossRef]
- Enferadi, M.; Fu, S.-Y.; Hong, J.-H.; Tung, C.-J.; Chao, T.-C.; Wey, S.-P.; Chiu, C.-H.; Wang, C.-C.; Sadeghi, M. Radiosensitization of ultrasmall GNP–PEG–cRGDfK in ALTS1C1 exposed to therapeutic protons and kilovoltage and megavoltage photons. Int. J. Radiat. Biol. 2018, 94, 124–136. [Google Scholar] [CrossRef]
- Chithrani, D.B.; Jelveh, S.; Jalali, F.; Van Prooijen, M.; Allen, C.; Bristow, R.G.; Hill, R.P.; Jaffray, D.A. Gold Nanoparticles as Radiation Sensitizers in Cancer Therapy. Radiat. Res. 2010, 173, 719–728. [Google Scholar] [CrossRef]
- Yogo, K.; Misawa, M.; Shimizu, M.; Shimizu, H.; Kitagawa, T.; Hirayama, R.; Ishiyama, H.; Furukawa, T.; Yasuda, H. Effect of Gold Nanoparticle Radiosensitization on Plasmid DNA Damage Induced by High-Dose-Rate Brachytherapy. Int. J. Nanomed. 2021, 16, 359–370. [Google Scholar] [CrossRef]
- McMahon, S.J.; Mendenhall, M.; Jain, S.; Currell, F. Radiotherapy in the presence of contrast agents: A general figure of merit and its application to gold nanoparticles. Phys. Med. Biol. 2008, 53, 5635–5651. [Google Scholar] [CrossRef]
- Martelli, S.; Chow, J.C.L. Dose Enhancement for the Flattening-Filter-Free and Flattening-Filter Photon Beams in Nanoparticle-Enhanced Radiotherapy: A Monte Carlo Phantom Study. Nanomaterials 2020, 10, 637. [Google Scholar] [CrossRef] [Green Version]
- Bobyk, L.; Edouard, M.; Deman, P.; Vautrin, M.; Pernet-Gallay, K.; Delaroche, J.; Adam, J.-F.; Estève, F.; Ravanat, J.-L.; Elleaume, H. Photoactivation of gold nanoparticles for glioma treatment. Nanomed. Nanotechnol. Biol. Med. 2013, 9, 1089–1097. [Google Scholar] [CrossRef]
- XMuDat: Photon Attenuation Data on, PC. Available online: https://www-nds.iaea.org/publications/iaea-nds/iaea-nds-0195.htm (accessed on 18 February 2021).
- Hubbell, J.H.; Seltzer, S.M. Tables of X-Ray Mass Attenuation Coefficients and Mass Energy-Absorption Coefficients 1 keV to 20 MeV for Elements Z= 1 to 92 and 48 Additional Substances of Dosimetric Interest. Available online: https://www.nist.gov/pml/x-ray-mass-attenuation-coefficients (accessed on 19 August 2020).
- Allison, J.; Amako, K.; Apostolakis, J.; Arce, P.; Asai, M.; Aso, T.; Bagli, E.; Bagulya, A.; Banerjee, S.; Barrand, G.; et al. Recent developments in Geant4. Nucl. Instrum. Methods Phys. Res. 2016, 835, 186–225. [Google Scholar] [CrossRef]
- Xstrahl®: Superficial and Orthovoltage X-Ray Systems. Available online: https://xstrahl.com/medical-home/ (accessed on 18 February 2021).

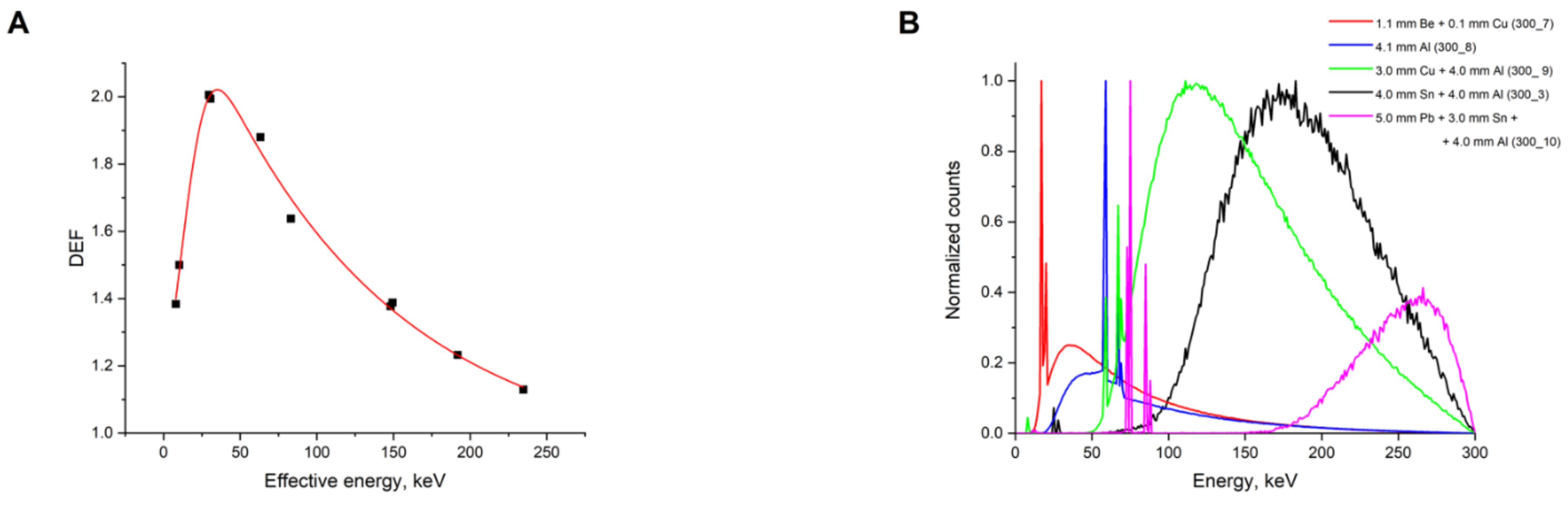

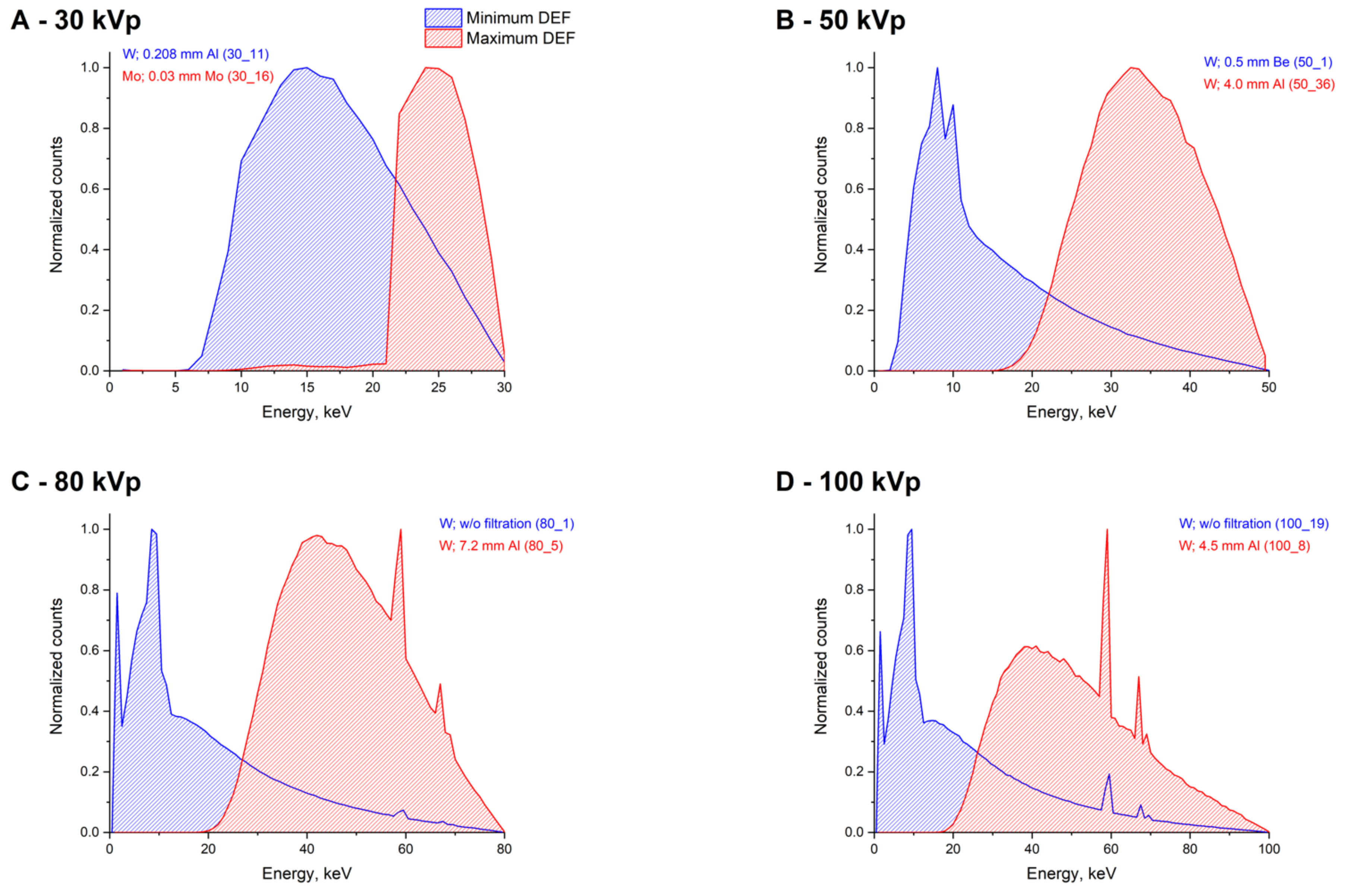

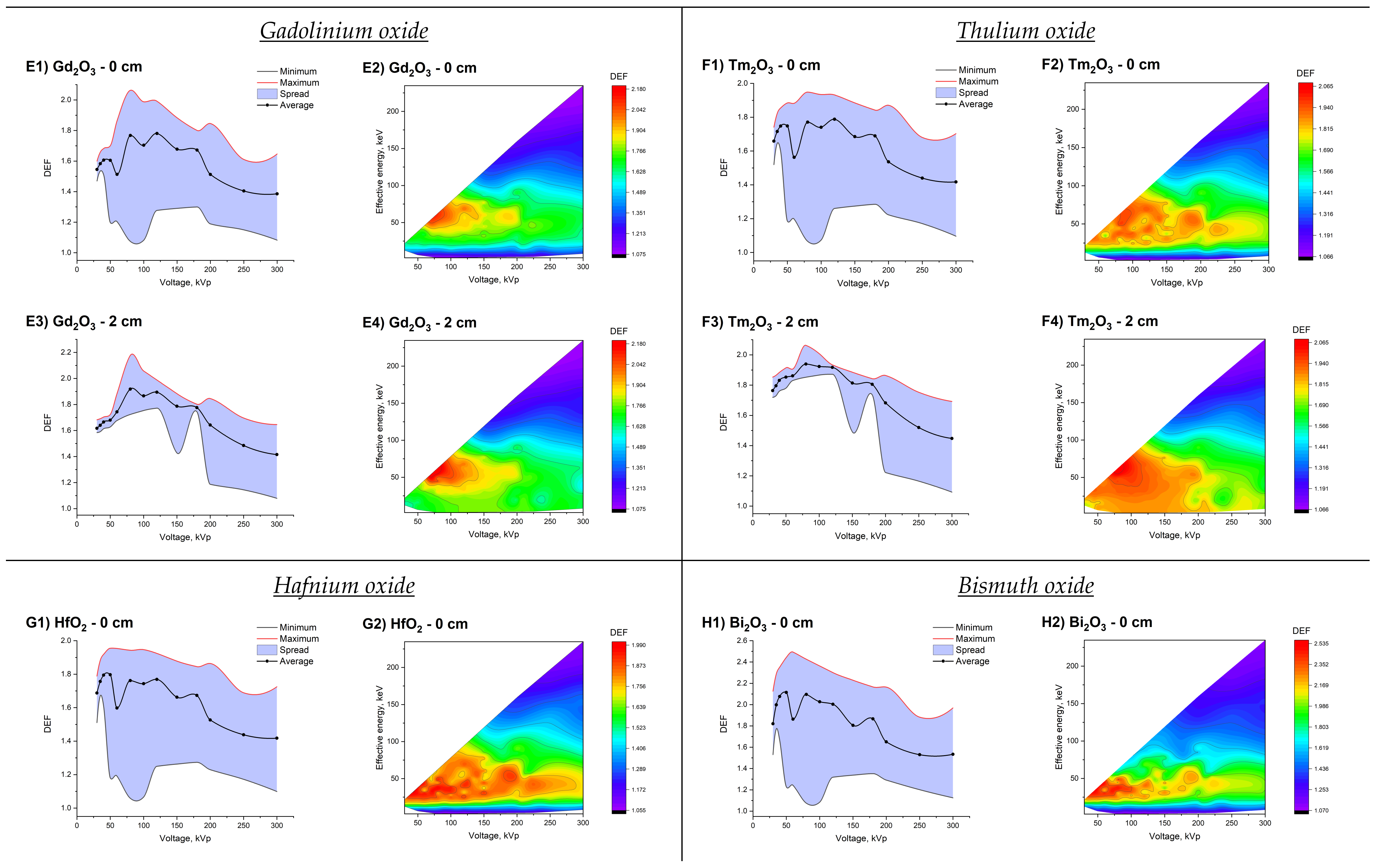

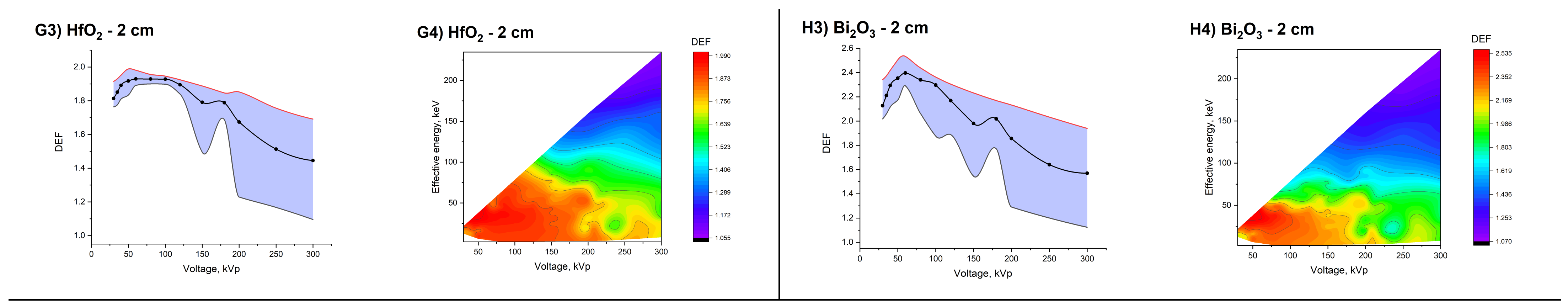

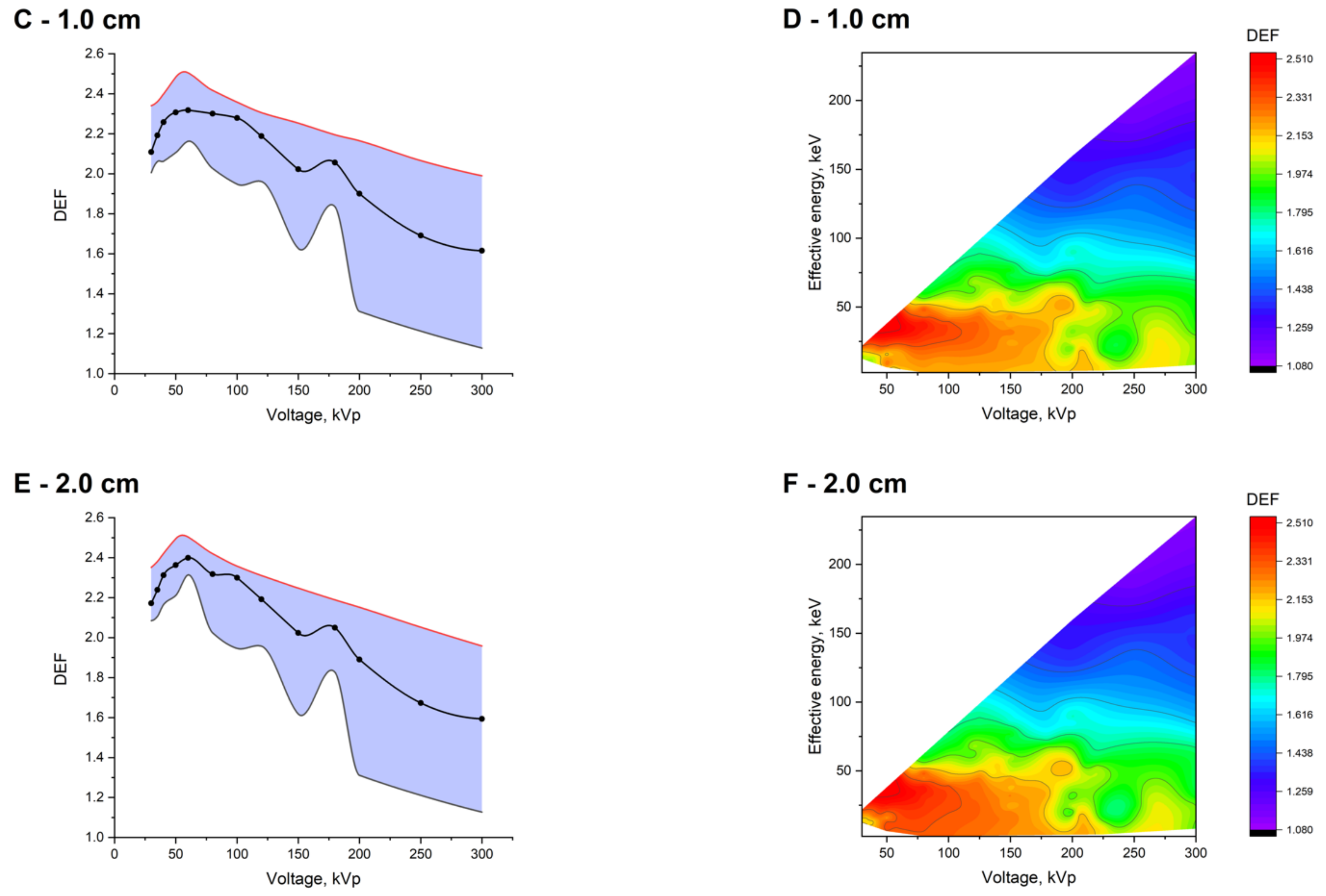

Spectrum Number | Anode Material | Filtration System | Average Energy, keV | Effective Energy, keV | DEF |
---|---|---|---|---|---|
300_1 (5) | W | 0.3 mm Be + 0.5 mm Cu | 62.24 | 7.98 | 1.38 |
300_2 (73) | W | 2.9 mm Cu + 1.02 mm Al | 144.93 | 149.34 | 1.39 |
300_3 (74) | W | 4.0 mm Sn + 4.0 mm Al | 186.84 | 191.80 | 1.23 |
300_4 (119) | W | 2.5 mm Cu + 4.0 mm Al | 66.94 | 10.25 | 1.50 |
300_5 (122) | W | 6.5 mm Sn + 4.0 mm Al | 75.09 | 30.59 | 1.99 |
300_6 (124) | W | 4.1 mm Be + 0.4 mm Cu | 102.77 | 83.06 | 1.64 |
300_7 (126) | W | 1.1 mm Be + 0.1 mm Cu | 72.25 | 29.56 | 2.01 |
300_8 (129) | W | 4.1 mm Al | 85.79 | 63.21 | 1.88 |
300_9 (254) | W | 3.0 mm Cu + 4.0 mm Al | 147.06 | 148.12 | 1.38 |
300_10 (260) | W | 5.0 mm Pb + 3.0 mm Sn + 4.0 mm Al | 235.62 | 234.76 | 1.13 |
Cu | ZrO2 | Ag | CeO2 | Gd2O3 | Tm2O3 | HfO2 | Bi2O3 | Au | |
---|---|---|---|---|---|---|---|---|---|
At the surface | |||||||||
DEFmin | 1.02 | 1.03 | 1.05 | 1.06 | 1.07 | 1.07 | 1.06 | 1.08 | 1.08 |
DEFav | 1.36 | 1.39 | 1.56 | 1.51 | 1.61 | 1.68 | 1.69 | 1.91 | 1.95 |
DEFmax | 1.56 | 1.80 | 2.38 | 2.07 | 2.06 | 1.95 | 1.96 | 2.49 | 2.46 |
At 0.4 cm depth | |||||||||
DEFmin | 1.02 | 1.03 | 1.05 | 1.06 | 1.08 | 1.10 | 1.10 | 1.13 | 1.13 |
DEFav | 1.42 | 1.46 | 1.64 | 1.57 | 1.68 | 1.77 | 1.79 | 2.05 | 2.09 |
DEFmax | 1.57 | 1.82 | 2.40 | 2.20 | 2.17 | 2.06 | 1.98 | 2.53 | 2.50 |
At 1.0 cm depth | |||||||||
DEFmin | 1.02 | 1.03 | 1.05 | 1.06 | 1.08 | 1.09 | 1.10 | 1.12 | 1.13 |
DEFav | 1.43 | 1.49 | 1.69 | 1.60 | 1.70 | 1.79 | 1.82 | 2.11 | 2.14 |
DEFmax | 1.57 | 1.82 | 2.40 | 2.21 | 2.18 | 2.06 | 1.98 | 2.53 | 2.51 |
At 2.0 cm depth | |||||||||
DEFmin | 1.02 | 1.03 | 1.05 | 1.06 | 1.08 | 1.09 | 1.10 | 1.12 | 1.13 |
DEFav | 1.43 | 1.53 | 1.74 | 1.62 | 1.72 | 1.81 | 1.83 | 2.15 | 2.17 |
DEFmax | 1.58 | 1.82 | 2.40 | 2.21 | 2.18 | 2.06 | 1.99 | 2.53 | 2.50 |
Cu | ZrO2 | Ag | CeO2 | Gd2O3 | Tm2O3 | HfO2 | Bi2O3 | Au | |
---|---|---|---|---|---|---|---|---|---|
At the surface | |||||||||
<1.2 | 53 | 50 | 18 | 15 | 8 | 12 | 13 | 4 | 4 |
1.2–1.4 | 55 | 71 | 75 | 48 | 32 | 28 | 27 | 35 | 34 |
1.4–1.6 | 129 | 73 | 48 | 98 | 60 | 10 | 11 | 4 | 3 |
1.6–1.8 | - | 42 | 37 | 46 | 98 | 110 | 104 | 33 | 18 |
1.8–2.0 | - | 1 | 30 | 25 | 37 | 77 | 82 | 58 | 54 |
2.0–2.2 | - | - | 24 | 5 | 2 | - | - | 45 | 65 |
>2.2 | - | - | 5 | - | - | - | - | 58 | 59 |
At 0.4 cm depth | |||||||||
<1.2 | 21 | 13 | 8 | 4 | 4 | 3 | 3 | 1 | 1 |
1.2–1.4 | 45 | 82 | 44 | 11 | 5 | 6 | 6 | 7 | 6 |
1.4–1.6 | 171 | 83 | 77 | 146 | 52 | 4 | 6 | 3 | 3 |
1.6–1.8 | - | 55 | 41 | 38 | 128 | 123 | 101 | 18 | 9 |
1.8–2.0 | - | 4 | 29 | 31 | 43 | 99 | 121 | 77 | 66 |
2.0–2.2 | - | - | 29 | 7 | 5 | 2 | - | 57 | 68 |
>2.2 | - | - | 9 | - | - | - | - | 74 | 84 |
At 1.0 cm depth | |||||||||
<1.2 | 21 | 12 | 8 | 4 | 4 | 3 | 3 | 1 | 1 |
1.2–1.4 | 46 | 47 | 32 | 7 | 5 | 6 | 6 | 7 | 6 |
1.4–1.6 | 170 | 113 | 58 | 130 | 23 | 4 | 6 | 3 | 3 |
1.6–1.8 | - | 61 | 67 | 54 | 154 | 95 | 58 | 12 | 9 |
1.8–2.0 | - | 4 | 31 | 35 | 46 | 127 | 164 | 38 | 28 |
2.0–2.2 | - | - | 32 | 7 | 5 | 2 | - | 84 | 80 |
>2.2 | - | - | 9 | - | - | - | - | 92 | 110 |
At 2.0 cm depth | |||||||||
<1.2 | 21 | 12 | 8 | 4 | 4 | 3 | 3 | 1 | 1 |
1.2–1.4 | 50 | 35 | 27 | 7 | 5 | 6 | 6 | 7 | 7 |
1.4–1.6 | 166 | 105 | 38 | 112 | 13 | 4 | 6 | 5 | 2 |
1.6–1.8 | - | 81 | 62 | 70 | 159 | 67 | 46 | 11 | 9 |
1.8–2.0 | - | 4 | 57 | 35 | 51 | 155 | 176 | 27 | 30 |
2.0–2.2 | - | - | 36 | 9 | 5 | 2 | - | 55 | 46 |
>2.2 | - | - | 9 | - | - | - | - | 131 | 142 |
Cu | ZrO2 | Ag | CeO2 | Gd2O3 | Tm2O3 | HfO2 | Bi2O3 | Au | |
---|---|---|---|---|---|---|---|---|---|
Cu | 55–87% | 72–85% | 61–67% | 100% | 100% | 100% | 100% | 100% | |
ZrO2 | 13–45% | 85–91% | 63–82% | 96–99% | 100% | 100% | 100% | 100% | |
Ag | 15–28% | 9–15% | 23–47% | 46–70% | 67–76% | 68–74% | 99% | 99% | |
CeO2 | 33–39% | 18–37% | 53–73% | 95% | 93–94% | 74–78% | 98% | 99% | |
Gd2O3 | 0% | 1–4% | 30–54% | 5% | 73–87% | 72–85% | 94% | 98% | |
Tm2O3 | 0% | 0% | 24–33% | 6–7% | 13–27% | 64–78% | 95–96% | 98% | |
HfO2 | 0% | 0% | 26–32% | 12–16% | 15–28% | 22–36% | 97–98% | 100% | |
Bi2O3 | 0% | 0% | 1% | 2% | 6% | 4–5% | 2–3% | 81–87% | |
Au | 0% | 0% | 1% | 1% | 2% | 2% | 0% | 13–19% |
Number | Formula | Mass Composition | Atomic Number (Z) | Effective Atomic Number (Z) |
---|---|---|---|---|
1 | Cu | Cu: 100% | ZCu = 29 | 29 |
2 | ZrO2 | Zr: 74% O: 26% | ZZr = 40 ZO = 8 | 36.34 |
3 | Ag | Ag: 100% | ZAg = 47 | 47 |
4 | CeO2 | Ce: 81.4% O: 18.6% | ZCe = 58 ZO = 8 | 59.64 |
5 | Gd2O3 | Gd: 86.8% O: 13.2% | ZGd = 64 ZO = 8 | 62.28 |
6 | Tm2O3 | Tm: 87.6% O: 12.4% | ZTm = 69 ZO = 8 | 67.28 |
7 | HfO2 | Hf: 84.8% O: 15.2% | ZHf = 72 ZO = 8 | 67.99 |
8 | Ta2O5 | Ta: 81.9% O: 18.1% | ZTa = 73 ZO = 8 | 68.12 |
9 | Bi2O3 | Bi: 89.7% O: 10.3% | ZBi = 83 ZO = 8 | 81.26 |
10 | Pt | Pt: 100% | ZPt = 78 | 78 |
11 | Au | Au: 100% | ZAu = 79 | 79 |
