Genetic and Global Epigenetic Modification, Which Determines the Phenotype of Transgenic Rice?

by
Xiaoru Fan
1,
Jingguang Chen
1,2,
Yufeng Wu
3,
CheeHow Teo
4,
Guohua Xu
1 and
Xiaorong Fan
1,*,†
1
State Key Laboratory of Crop Genetics and Germplasm Enhancement, MOA Key Laboratory of Plant Nutrition and Fertilization in Low-Middle Reaches of the Yangtze River, Nanjing Agricultural University, Nanjing 210095, China
2
CAAS-IRRI Joint Laboratory for Genomics-Assisted Germplasm Enhancement, Agricultural Genomics Institute in Shenzhen, Chinese Academy of Agricultural Sciences, Shenzhen 518116, China
3
Bioinformatics Center, Nanjing Agricultural University, Nanjing 210095, China
4
Centre of Research in Biotechnology for Agriculture (CEBAR), University of Malaya, 50603 Kuala Lumpur, Malaysia
*
Author to whom correspondence should be addressed.
†
Present Address: College of Resource and Environmental Science, Nanjing Agricultural University, Nanjing 210095, China
Int. J. Mol. Sci. 2020, 21(5), 1819; https://doi.org/10.3390/ijms21051819
Submission received: 12 January 2020 / Revised: 28 February 2020 / Accepted: 1 March 2020 / Published: 6 March 2020
(This article belongs to the Special Issue Molecular Research in Rice: Agronomically Important Traits)
Browse Figures
Versions Notes

Abstract

:
Transgenic technologies have been applied to a wide range of biological research. However, information on the potential epigenetic effects of transgenic technology is still lacking. Here, we show that the transgenic process can simultaneously induce both genetic and epigenetic changes in rice. We analyzed genetic, epigenetic, and phenotypic changes in plants subjected to tissue culture regeneration, using transgenic lines expressing the same coding sequence from two different promoters in transgenic lines of two rice cultivars: Wuyunjing7 (WYJ7) and Nipponbare (NP). We determined the expression of OsNAR2.1 in two overexpression lines generated from the two cultivars, and in the RNA interference (RNAi) OsNAR2.1 line in NP. DNA methylation analyses were performed on wild-type cultivars (WYJ7 and NP), regenerated lines (CK, T0 plants), segregation-derived wild-type from pOsNAR2.1-OsNAR2.1 (SDWT), pOsNAR2.1-OsNAR2.1, pUbi-OsNAR2.1, and RNAi lines. Interestingly, we observed global methylation decreased in the T0 regenerated line of WYJ7 (CK-WJY7) and pOsNAR2.1-OsNAR2.1 lines but increased in pUbi-OsNAR2.1 and RNAi lines of NP. Furthermore, the methylation pattern in SDWT returned to the WYJ7 level after four generations. Phenotypic changes were detected in all the generated lines except for SDWT. Global methylation was found to decrease by 13% in pOsNAR2.1-OsNAR2.1 with an increase in plant height of 4.69% compared with WYJ7, and increased by 18% in pUbi-OsNAR2.1 with an increase of 17.36% in plant height compared with NP. This suggests an absence of a necessary link between global methylation and the phenotype of transgenic plants with OsNAR2.1 gene over-expression. However, epigenetic changes can influence phenotype during tissue culture, as seen in the massive methylation in CK-WYJ7, T0 regenerated lines, resulting in decreased plant height compared with the wild-type, in the absence of a transformed gene. We conclude that in the transgenic lines the phenotype is mainly determined by the nature and function of the transgene after four generations of transformation, while the global epigenetic modification is dependent on the genetic background. Our research suggests an innovative insight in explaining the reason behind the occurrence of transgenic plants with random and undesirable phenotypes.

1. Introduction

Transgenic technologies allow gene transfer to completely unrelated organisms and their application in agriculture has increased the global transgenic crop cultivation to 181 million hectares [1]. In addition, as the basis of transgenic technology, tissue culture is also used for the clonal propagation and regeneration of many plants [2,3]. Although cultured material is not expected to show many genetic changes compared with the original material, there are clear examples of tissue culture material showing heritable phenotypic differences [4,5,6]. Phenotypic changes in tissue culture-derived material have been found to be caused by epigenetic changes [6,7,8]. For instance, Rhee et al. [7] demonstrated the silencing of epialleles by epigenetic modifications and showed that the pericarp color1 (p1) epialleles were capable of functioning in the presence of the correct trans-acting factors in maize. Furthermore, there are many reports on epigenetic changes caused by plant regeneration in rice [9], garlic [10], triticale [11], pineapple [12], torenia, and rye [13,14].
Variation in plant phenotype is determined by both genetic and epigenetic factors [4]. Epigenetics refers to the study of heritable phenotype changes without genetic alteration [15]. DNA methylation is an epigenetic mechanism that involves the transfer of a methyl group to the C5 position of cytosine and contributes to the epigenetic regulation of nuclear gene expression and to genome stability [16]. In plants, DNA methylation occurs in three sequence contexts: CG, CHG, and CHH (H=A, C or T) [16,17]. The modulation of DNA methylation in culture is crucial to regeneration outcomes: successful regenerants of Oryza sativa ssp. japonica had lower CG methylation levels than failed regenerants [9]. The regeneration process, with or without genetic transformation, affects gene regulation at the transcriptional and post-transcriptional levels and correlates with changes in DNA methylation patterns [18]. Transgenic approaches have been successfully used to produce herbicide and pest-resistant varieties in several crop species. However, there is only sporadic research concerning global DNA methylation changes in transgenic plants. Potential global DNA methylation modification occurring in transgenic plants is still largely unexplored [18,19,20,21,22,23]. There have been reports of transgenic plants from different genetic backgrounds having random and undesirable phenotypes [24,25,26]. Transgenic maize with overexpressed DREB3, a dehydration-responsive element-binding transcription factor, showed higher yields in some genetic backgrounds but not others [24]. Researchers have suggested that insert transgene position, metabolic imbalances and environmental constraints [24,27] could be the reasons behind undesirable phenotypes of transgenic plants. However, we suspect that epigenetic changes in transgenic lines may be another reason for the occurrence.
Rice (Oryza sativa L.) is a major staple food for a large part of the global population. To determine whether genetic and global epigenetic modification influences the phenotype of transgenic rice, we used whole-genome bisulfite sequencing (WGBS) and methylated DNA immunoprecipitation sequencing (MeDIP-seq) methods to determine DNA methylation at the genomic level in various transgenic plants and their controls. The transgenic process includes tissue induction, selection pressure and insertion of the transgene [28]. We used wild-type Wuyunjing7 (WYJ7), its regenerated line (CK), and segregation-derived wild-type from pOsNAR2.1-OsNAR2.1 (SDWT) to represent different transgenic processing, and wild-type of Nipponbare (NP), its OsNAR2.1 overexpression line under the ubiquitin promoter (pUbi-OsNAR2.1), and the OsNAR2.1 RNA interference (RNAi) NP line to represent different backgrounds and different transgenic expression. Previous studies have shown that OsNAR2.1 is a partner protein of rice high-affinity nitrate transporters (OsNRT2s) [29,30,31] and plays a key role in enabling the plant to cope with variable environmental nitrate supplies [29,30,31]; overexpression of OsNAR2.1 can lead to an increase in grain yield and higher nitrogen-use efficiency (NUE) in rice cultivation systems [32,33]. We used OsNAR2.1 transgenic lines as representative lines for the transgenic process.

2. Results

2.1. Transgenic Process Induces Significant Epigenetic Changes in Rice

To investigate global methylation caused by the transgenic process in plants, we used WGBS to sequence samples of four types of rice: Wuyunjing7 wild type (WYJ7), T0 plants regenerated from callus (CK), wild type plant derived from segregation of pOsNAR2.1-OsNAR2.1 (SDWT) and pOsNAR2.1-OsNAR2.1 plants. T4 generation SDWT plants served as true experimental controls for the pOsNAR2.1-OsNAR2.1 line to study the transgene insertional effect on the epigenome as it was derived from the T0 pOsNAR2.1-OsNAR2.1 heterozygote line (for the selection process see Supplementary Table S1). T4 generation pOsNAR2.1-OsNAR2.1 plants with high yield and high NUE phenotypes have been described in Chen et al. [33]. We also used MeDIP sequencing on four more samples, including the wild type of Nipponbare (NP), the knockdown plant of OsNAR2.1 by RNA interference (RNAi) (describe as r1 in Yan et al. [29]), and overexpression plant of OsNAR2.1 by the ubiquitin promoter (pUbi-OsNAR2.1). The relationships between different samples are described in Table 1 as: CK = WYJ7 + callus inducing media(CIM) + shoot inducing media(SIM); SDWT = WYJ7 + CIM + SIM + selection pressure (Hygromycin, Hyg) + transformation with the pOsNAR2.1-OsNAR2.1 construct + segregation of pOsNAR2.1-OsNAR2.1 heterozygote line; pOsNAR2.1-OsNAR2.1 = WYJ7 + CIM + SIM + selection pressure (Hyg) + transformation with the pOsNAR2.1-OsNAR2.1 construct + pOsNAR2.1-OsNAR2.1 insertion; pUbi-OsNAR2.1 = NP + CIM + SIM + selection pressure (Hyg) + transformation with the pUbi-OsNAR2.1 construct + pUbi-OsNAR2.1 insertion; RNAi = NP + CIM + SIM + selection pressure (Hyg) + RNA interference (RNAi) construct. Table 1 also shows the values for raw reads, uniquely mapped reads, and normalized cytosine methylation (mC) number in each replicate of four samples for WGBS and filtered reads, aligned reads, and peaks counts of three samples for MeDIP. We sequenced the flanking DNA of pOsNAR2.1-OsNAR2.1 insertion site of in pOsNAR2.1-OsNAR2.1 plants and found that the insertion of the pOsNAR2.1-OsNAR2.1 transgene was between LOC_Os02g49950 gene and LOC_Os02g49960 gene in chromosome 2. We also sequenced the flanking DNA of the pUbi-OsNAR2.1 insertion, which was inserted in chromosome 10, between LOC_Os10g33874 and LOC_Os10g33900 in pUbi-OsNAR2.1 line (Supplementary Figure S1d,e). Neither of these sites occur in high methylation areas nor in functional genes.
Our analysis of the sequencing data showed that the total normalized methylated cytosine (mC) numbers differed significantly among the four samples (Figure 1a), with normalized mC counts of approximately 3.9, 3.5, 3.8, and 3.5 million (M) for WYJ7, CK, SDWT, and pOsNAR2.1-OsNAR2.1, respectively. The result suggests that the tissue culture (CK) and the transgenic process (pOsNAR2.1-OsNAR2.1) of WYJ7 both lead to global DNA hypomethylation. In contrast to CK and pOsNAR2.1-OsNAR2.1 plants, the mC level in SDWT plants returned to the WT level (WYJ7) after four selfing generations in the field. Since the CK and SDWT both went through regeneration, the result suggested the loss of the transgene in generation increases the methylation in SDWT. Simultaneously, the pOsNAR2.1-OsNAR2.1 lines showed a significantly higher percentage of symmetric CG sites and lower percentage of asymmetric CHH sites, and CK lines showed a lower percentage of symmetric CHG sites instead (Figure 1b–d), which indicates that while both pOsNAR2.1-OsNAR2.1 and CK lines show a decrease in global DNA methylation the sites of mC changes were different. Interestingly, in the other two independent transgenic lines, MeDIP sequencing data showed that peak counts in both pUbi-NAR2.1 and RNAi lines increased compared with NP (Figure 1e). The results suggest that the tissue culture process leads to a decrease in global methylation, but the transgenic process leads to different global methylation changes in different rice backgrounds.

2.2. Both Tissue Culture and Transgenic Processes Can Induce Unique Methylation Changes in Genic Regions

The Venn diagram of WGBS sequencing shows the unique and shared CpG methylation areas of 42,042 genes in the WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples (Figure 1f). The results showed that 88.9% of genes in these four samples shared the same CpG methylation area. CK, SDWT, and pOsNAR2.1-OsNAR2.1 had 347, 216, and 381 genes with unique methylation areas, respectively. If only compared with wild-type WYJ7, CK, SDWT, and pOsNAR2.1-OsNAR2.1 showed 1432, 1181, and 1396 genes with unique methylation areas. The Venn diagram analysis of the methylation peaks of the MeDIP-seq data sets for NP, RNAi, and pUbi-OsNAR2.1 samples showed that the majority of the peaks, approximately 32,000, are shared by the three samples (Figure 1g). Both RNAi and pUbi-OsNAR2.1 samples had 10,223 and 11,168 unique peaks, respectively (Figure 1g). The results indicate that both tissue culture and the transgenic processes could induce unique methylation changes in genic regions although neither knockdown nor overexpression of OsNAR2.1 in transgenic plants caused the majority of DNA methylation changes.

2.3. Transgenic Process Leads to a Higher Number of Hyper-DMRs Than Hypo-DMRs

We analyzed the differentially methylated regions (DMRs) of wild-type and transgenic lines and found that there were more hypo-DMRs (71%) in CK lines but more hyper-DMRs (78%) in transgenic lines in pOsNAR2.1-OsNAR2.1 under WYJ7. Similar results were observed in pUbi-OsNAR2.1 and RNAi under NP (71% and 73%) and, for the SDWT line, the percentage of the hypo- and hyper- DMRs were very close (49% and 51%) (Figure 2a–c,f,g). In spite of global DNA methylation caused by the transgenic process being background sensitive, the insertion of the transgene was able to induce more hyper-DMRs than hypo-DMRs in both backgrounds. CK and the three transgenic lines contained 5122, 3539, 5253, and 4239 DMRs, respectively, which were considerably more comparable with the 2732 DMRs of SDWT. There were few common DMRs between these hypo- and hyper-DMRs in CK and pOsNAR2.1-OsNAR2.1 lines, nor in SDWT and pOsNAR2.1-OsNAR2.1 lines (Figure 2d,e). However, there were nearly 2000 common hyper-DMRs and nearly 500 common hypo-DMR between the pUbi-OsNAR2.1 and RNAi lines (Figure 2h), caused by insertion of the transgene, rather than by the expression of OsNAR2.1.

2.4. Tissue Culture Process Causing Random Epigenetic Changes

We analyzed the differentially CpG methylated regions of five comparison groups: WYJ7 and SDWT, WYJ7 and CK, WYJ7 and pOsNAR2.1-OsNAR2.1, SDWT and pOsNAR2.1-OsNAR2.1, and CK and pOsNAR2.1-OsNAR2.1. We found that the mutual DMRs differed among them and calculated the CpG methylation level in these DMRs in different replicates of different samples. The clustered heatmap is shown in Figure 3. The heatmap shows that the DMR clustering pattern is similar between wild-type and lines subjected to transgenic manipulation (SDWT and pOsNAR2.1-OsNAR2.1), whereas a more variable pattern is observed for CK replicates. The result shows that different CpG clusters of common DMRs were detected in different CK lines regenerated from the same tissue culture process with the same explant WYJ7 seeds (Figure 3). This suggests that the tissue culture process could randomly alter the epigenetic status. On the other hand, a tissue culture process followed by a transgenic process tends to lead to a more consistent CpG methylation level clustering pattern (Figure 3), suggesting that the influence of the transgenic process on the rice epigenome is stronger than the influence of the tissue culture process.

2.5. Both Tissue Culture and Transgenic Process Can Change the Phenotype of Plants

We planted all the wild-type and transgenic lines in the field and estimated their gene expression, grain yield, and seed setting rate (Figure 4). For the lines used in the WGBS analysis, the phenotype showed that the plant height was significantly shorter in the CK line and significantly taller in the pOsNAR2.1-OsNAR2.1 line compared with WYJ7, whereas there was no significant change in the SDWT line (Figure 4a, Supplementary Table S2). The total tiller number was higher in pOsNAR2.1-OsNAR2.1 line with no significant difference in the CK and SDWT lines (Supplementary Table S2). For the expression of OsNAR2.1, while there were no significant differences between the WYJ7, CK and SDWT lines, expression was significantly higher in the pOsNAR2.1-OsNAR2.1 line (Figure 4b). The grain yield and seed setting rate were significantly lower in the CK line and significantly higher in the pOsNAR2.1-OsNAR2.1 line compared with WYJ7, with no significant difference in the SDWT line (Figure 4c,d). For the lines used in MeDIP analysis, both the plant height and tiller number (Figure 4e, Supplementary Table S3) were higher in the pUbi-OsNAR2.1 line and lower in the RNAi line compared with NP. The relative expression of OsNAR2.1, grain yield, and seed setting rate were also higher in the pUbi-OsNAR2.1 line and lower in the RNAi line, compared to NP (Figure 4f–h). As a summary of the global methylation, genetic and phenotype changes status of all materials Table 2 shows that global methylation changes of transgenic lines are dependent on the genetic background. For the CK line, the trend of changes of the phenotypes is same as global methylation, and for all the transgenic lines, the trend for phenotypic change appears the same as the expression of the transgene, but the percentages of the increases in overexpression lines are quite different. We consider that methylation change is one of the reasons causing the difference. These results suggest that both regeneration and the transgenic process can change the phenotype of plants, with or without gene insertion.

3. Discussion

DNA methylation can provide additional heritable information beyond that of the DNA sequence in plant genomes [2]. Tissue culture is considered a stressful environment and thus trigger epigenetic changes in plants [34]. Culture-induced DNA methylation has been found in different species, including rice, maize, and barley [35,36,37]. Furthermore, many studies have shown that regeneration under various selection stresses or from various donor tissues induced changes in methylation patterns [38,39,40]. When uniform callus donor tissue was used in an Agrobacterium-mediated transformation procedure in rice [41,42], there was no difference in methylation among donor tissues between experiments. It has previously been reported that tissue culture reduces mC in rice, and this reduction in mC is stable from T2 to T6 generation of regenerated plants [18]. Our sequence data confirmed that the tissue culture process leads to a reduction in global DNA methylation in CK and that this reduction was maintained in the pOsNAR2.1-OsNAR2.1 line at least until the T4 generation (Figure 1a). Moreover, we showed that the global methylation level returned to a level similar to that of WYJ7 after removal of the transgene by a segregation process in the SDWT line. Since Stroud et al. [18] confirmed that the loss of methylation in regenerated plants is stable across generations, our results suggest that the global methylation status in the SDWT is more unstable and is unable to maintain the mC decrease across the generations. However, the insertion of the transgene stabilized the massive loss of mC in pOsNAR2.1-OsNAR2.1. The tissue culture process can cause the loss of methylation in both WYJ7 and NP (Figure 1a) according to both our results and those of Stroud, et al. [20], but pOsNAR2.1-OsNAR2.1 in WYJ7 showed stabilization of the loss rather than pUbi-OsNAR2.1 in NP. Therefore, we consider that overexpression of OsNAR2.1 is not the reason behind the stabilization. We prefer the explanation that the unstabilized methylation of SDWT was caused by the double genetic change, gaining and losing the transgene during generation. Furthermore, the way insertion of the transgene alters global methylation appears to depend on the rice genetic background, since global methylation reduction was observed in the pOsNAR2.1-OsNAR2.1 WYJ7 line whereas it was increased in the pUbi-NAR2.1 and RNAi NP lines.
We found global methylation decreased in the WYJ7 OsNAR2.1-overexpression line, while increased OsNAR2.1-overexpression, and RNAi lines in the NP. We suggest that rice varieties have different sensitivities to DNA methylation in the transgenic process. It has been reported that there are extensive variations in DNA methylation among plant inbred lines, and that DNA methylation can provide unique information in explaining variation of phenotype in maize [43]. Vilperte et al. [5] reported that the methylation status of genes showed significant differences in four different maize backgrounds with the same transgene. In our results, although in both the pOsNAR2.1-OsNAR2.1 and pUbi-OsNAR2.1 lines, plant height and yield of per plant were significantly higher than in the wild-type, but the plant height increased 4.69% and 17.36%, and yield of per plant increased 49.07% and 34.97%, respectively, in WYJ7 and NP (Table 1, Supplementary Tables S2 and S3). Even overexpression of the same gene was able to cause different phenotypes in different backgrounds. This result could be caused by several possible factors. The first of these is the original traits of the two wild types: WYJ7 is photo-sensitive late-maturing japonica rice and NP is photo-insensitive early-maturing japonica rice [44,45]. The two wild-types are, therefore, affected differently by the circadian clock. The circadian clock regulates NO3- uptake and usage, and thus the expression of OsNAR2.1 [30,46]. A second factor is the promoter of the transgene. It is well known that different promoters have different effects on transgenes [47]. In our research, the expression of OsNAR2.1 increased around 2.5 times with the OsNAR2.1 native promoter and increased four times with the Ubi promoters. Wang et al. [48] reported that overexpressed auxin-inducible gene (ARGOS) increased plant height in Arabidopsis under the 35s promoter but showed no phenotypic change under the Ubi promoter. The third factor is background. There have been many reports of the same transgene showing different phenotypes in plants from a variety of genetic backgrounds. It has been reported that, while the DREB3 transgene was detected in wheats from four different genetic backgrounds, only three lines expressed the transgene, and only two showed phenotypes of higher yield [24]. Knockout of OsNramp5, a member of the natural resistance-associated macrophage protein (NRAMP) family, decreased yield in Xidao 1, a japonica rice cultivar, but did not alter yield in indica hybrid rice [26,49]. Even knockout of the same gene in different backgrounds with same genome also resulted in phenotypic variation, as shown by the findings of Yang et al [50]: knockout of OsNramp5 using CRISPR/Cas9 in two japonica varieties, Nanjing 46 (NJ46) and Huaidao 5 (HD5), resulted in similar plant height, grain number, and seed setting rate, but with increased panicle number in NJ46 but not in HD5. Researchers surmised that damage to the recipient genome caused by insertion fragments, efficiency of the transgene promoter, metabolic imbalances and environmental constraints could be the reasons behind undesirable phenotypes of transgenic plants [24,27,51], while we suspected that the insertion of the transgene causing different methylation change in different backgrounds could be another reason.
The Venn diagram of genes in the methylation region in WYJ7, SDWT, CK, and pOsNAR2.1-OsNAR2.1 showed that all three had over 1000 unique methylation genes compared with WYJ7 (Figure 1f), and all had 200–400 unique methylation genes compared to each other. The results suggest that, compared with WYJ7, all three samples (CK, SDWT, and pOsNAR2.1-OsNAR2.1) have abundant genes with different degrees of methylation, but not all three lines showed phenotypic changes (Figure 4a). In spite of having these differentially methylated genes, SDWT still showed a similar phenotype to WYJ7. These results suggest that the global methylation status change had a stronger influence on plants than changes in the methylation of individual genes.
Our results showed that the regenerated line CK had more hypo-DMRs than hyper-DMRs and that all three transgenic lines had more hyper- than hypo-DMRs, compared to the wild-type. However, in SDWT, the percentage of hyper- and hypo-DMRs are similar, 51% and 49%, respectively. The total number of DMRs in SDWT (2732 DMRs) was much less than that in CK (5122 DMRs) and the three transgenic lines (3539 DMRs in pOsNAR2.1-OsNAR2.1, 5232 DMRs in pUbi-OsNAR2.1 and 4239 DMRs in RNAi) (Figure 2a–c,f,g). Stroud et al. [18] reported that all of their 12 regeneration lines had much more hypo-DMRs than hyper-DMRs, confirming our results. Therefore, it is possible that the reprogramming process could cause an abundance of hypo-DMRs, while insertion of the gene could cause hyper-DMRs instead, regardless of the function of the inserted gene. Furthermore, for the SDWT lines, WT went through both reprogramming and transgene processes but after segregation, it was found that this double genetic change resulted in nearly 3000 DMRs with the numbers of hyper- and hypo-DMRs returning to the baseline level of WYJ7. Since the phenotype of SDWT did not show significant differences compared to WYJ7, this indicated that the balance of hyper- and hypo-DMRs could be an important factor for the stability of the epigenetic status.
We found that the methylation status in the CK line regenerated from the tissue culture process gave rise to a more variable DMR methylation level clustering pattern than in the CK replicates. This is similar to the observations of Hsu et al. [9]. These authors reported that methylomes in different stages of callus showed a high level of variability and the global methylome demonstrated a prominent genetic/cultivar-related impact. Kaeppler et al. [4] showed that epigenetic modifications of genomic DNA are less stable in culture. Interestingly, both the transgenic line (pOsNAR2.1-OsNAR2.1) and the wild-type lines derived from the segregation process of pOsNAR2.1-OsNAR2.1 (SDWT) showed a more consistent DMR methylation level clustering pattern. This suggests that the transgenic process may play a role in stabilizing the global methylation status of tissue cultured plants.
However, it is possible that the CK line has a genetic change in the genome in addition to epigenetic changes. For example, there have been many reports of the occurrence of transposons, such as Tos17, in regenerants [34,52]. To clarify the effects of epigenetic changes on the CK phenotype, we have listed the methylation sequence data and agronomic traits of each CK line from three independent calli in Supplementary Table S4. We found that, despite the differences between individuals, there is an overall consistency in the data of CK replicates (Supplementary Table S4). The Table shows that normalized mC number, mCHG ratio of epigenetic and plant height, panicle length, grain number per panicle, and yield of phenotype are all significantly lower in CK. Even if we cannot exclude possible genetic change in CK, the changes, at least, did not influence the phenotypes of the individual CK replicates in our study. It has also been reported that genetic variation during tissue culture is related to the CCGG target, which suggests that genetic and epigenetic changes in regenerants are relevant [34,53,54]. These changes could be the reason for the clustering of variable DMR methylation levels in CK but not causing phenotypic changes.
Previous research has reported that phenotypes are influenced by both genetic and epigenetic mechanisms [20,55,56]. Epigenetic modifications caused by the tissue culture process occur in an apparently random manner and it is thus difficult to predict phenotypic changes resulting from these modifications [4,5,7,57,58]. Here, we summarized global methylation, genetic and phenotype changes of five plant materials from two varieties, as shown in Table 2. The results indicate that, in the transgenic lines (pOsNAR2.1-OsNAR2.1, pUbi-OsNAR2.1, and RNAi), the phenotype is mainly determined by the nature and function of the transgene, but the global methylation change in transgenic lines is determined by the rice background rather than the function of the transgene, which may cause the difference between the phenotypic changes in the two overexpression lines. However, the CK lines showed fewer phenotypic changes, with the methylation status being significantly decrease from WYJ7 as result of the tissue culture process and showing DMR variation between replicates (Figure 3).

4. Materials and Methods

4.1. Plant Materials for Sequencing

For WGBS sequencing, we used the shoots of wild-type Oryza sativa L. ssp. japonica cv. Wuyujing7 (WYJ7), T0 plants regenerated from tissue culture (CK), T4-generation plants carrying an insertion of the pOsNAR2.1-OsNAR2.1 construct (pOsNAR2.1-OsNAR2.1) as described as Ox1 in Chen et al. [33] (see Supplementary Figure S1 and Table S2 for the transformation construct and plant growth data), and T4-generation wild-type line lacking the transgene that derived from the segregation process of the T0 pOsNAR2.1-OsNAR2.1 heterozygote line (SDWT, see Supplementary Tables S1 and S2). T1 generation of Ox1-1 (AA) and Ox1-3 (aa) lines shown in Supplementary Table S1 were renamed as pOsNAR2.1-OsNAR2.1 and SDWT and their T4 plants were used for further WGBS experiment.
The WYJ7, SDWT, and pOsNAR2.1-OsNAR2.1 were sterilized for 30 min with 10% (v/v) hydrogen peroxide, washed thoroughly with deionized water and then grown in water. CK lines were moved from root medium to water after germination. All samples were collected when all four lines grew to two leaves and one heart period. DNA from each plant was sequenced with three replicates. Before sequencing, we tested for the T-DNA insertion loci of pOsNAR2.1-OsNAR2.1 (Supplementary Figure S1d). The primers used for TAIL-PCR are listed in Supplementary Table S5.
We used MeDIP-seq to examine three types of plants: wild-type of Oryza sativa L. ssp. japonica cv. Nipponbare (NP), the T8-generation plant of knockdown plant of OsNAR2.1 by RNA interference (RNAi) (describe as r1 in Yan et al. [29]), and the T8-generation pUbi-OsNAR2.1 overexpression plant. The transformation constructs and plant growth data are shown in Supplementary Figure S1 and Table S3. We harvested the mixed samples of the first leaf blade, culm and panicles at the anthesis stage for MeDIP-seq (Figure 4e). Details of the growth conditions of the plants in soil are listed in Supplementary Table S3. The level of OsNAR2.1 expression was reduced in T8 generation RNAi plants to one half of the WT, whereas was five times higher in the pUbi-OsNAR2.1 T8 generation transgenic line (Figure 4f). Other growth characteristics of RNAi and pUbi-OsNAR2.1 transgenic lines are described in Supplementary Table S3. We tested for T-DNA insertion in three samples (Supplementary Figure S1e); the primers for TAIL-PCR are listed in Supplementary Table S5.

4.2. Growth Conditions of Plants in the Field

All materials were grown in plots at the Baguazhou base of Nanjing Agricultural University in Nanjing, Jiangsu. Nanjing is located in a subtropical monsoon climate zone. The pH of the soil is 6.5, and chemical properties included 0.91 g/kg total N content; 18.91 mg/kg available phosphorus (P) content; 185.67 mg/kg exchangeable potassium (K) and 11.56 g/kg organic matter. We applied Ca(H2PO4)2, 30 kg P/ha and KCl, 60 kg K/ha as basal applications to the plots three days before transplanting. We use urea as N fertilizer, and applied 40% before transplanting, 30% at tilling, and 40% before the heading stage. Plots size was 2 × 2.5 m and the seedlings planted in a 10 × 10 array [32,59,60,61,62]. We randomly chose five seedlings from each plot, avoiding those on the edges. The agronomic characters of plant height, total tiller number per plant, panicle length, seed setting rate per plant, grain weight per panicle, grain number per panicle and yield per plant were measured at the maturity stage. Plant height indicated the height of the highest panicle. One panicle from each plant was chosen for calculating the panicle length, grain weight per panicle and grain number per panicle [33]. The agronomic traits of the samples are listed in Supplementary Tables S2 and S3.

4.3. Gene Expression Analysis

Total RNA was extracted from leaf tissue using TRIzol reagent (Vazyme Biotech Co, Ltd., People’s Republic of China). DNase I-treated total RNAs were subjected to reverse transcription (RT) with HiScript II Q Select RT SuperMix for qPCR (+gDNA wiper) kit (Vazyme Biotech Co, Ltd., People’s Republic of China) according to the manufacturer’s instructions. Quantitative assays were performed using AceQTM qPCR SYBR Green Master Mix (Vazyme Biotech Co, Ltd., China). Relative expression level is normalized to the amount of OsActin (LOC_Os03g50885) in the same sample and presented as 2–△CT. All primers used for RT-qPCR are listed in Supplementary Table S6.

4.4. T-DNA Insertion Loci Analysis

Leaf tissues harvested from the plants at 10 days were grown in water. Genomic DNA isolation was performed using the CTAB extraction procedure [63]. T-DNA insertion loci of two overexpression transgenic lines were determined by TAIL-PCR following the procedures previously described [64]. The primers are listed in Supplementary Table S5.

4.5. WGBS and Data Analyses

Genomic DNA was extracted from 10 day-old seedlings and shipped to the Anoroad Genome Company (Beijing, China) for WGBS. WGBS library preparation and sequencing was performed by the Anoroad Genome Company (Beijing, China).
After downloading, the raw reads were filtered and trimmed to obtain clean reads and the available data were compared with the reference genome of Oryza_sativa Japonica IRGSP-1.0 to obtain the alignment results using Bismark (v0.9.0) [65]. The uniquely mapped reads will be used to call the methylated cytosines (mC) in highly enriched regions. For each cytosine site, the methylation level (%) was calculated by: 100 × (reads-supported methylation)/(total reads depth for the site). For the methylated region, the methylation level (%) was calculated by: 100 × methylation level of all cytosine sites in the region / the total number of cytosine sites in the region. The conversion ratio of Lambda DNA was around 99.5% to 99.6% in all samples. Valid coverage of methylated cytosine is the percentage of methylated C among all C on the reference genome, is associated with methylation level. C sites with read depths less than 5 are eliminated firstly. Then, for each C site, valid coverage is calculated by for all C or C within each pattern (CG, CHG and CHH). Coverage is the count of C sites with more than 5 depth divided by total number of C site by its pattern. Normalized mC number (Figure 1, Table 1) was calculated by: total mC number/valid coverage of methylated cytosine. Relative data are listed in Supplementary Table S7.
The differential analysis of methylation was performed at the region-base level, differentially methylated regions (DMRs). Aberrant DNA methylation was compared with the control group, an increased methylation pattern was defined as hyper-methylation, whereas a decreased methylation pattern was defined as hypo-methylation. DMR detection was performed using a methylKit and eDMR package [66] to estimate the boundary of CpG islands with a mixed bimodal normal distribution assumption of the distance between CpGs.

4.6. MeDIP-Seq and Data Analysis

MeDIP-seq for this study was performed by KangChen Bio-tech, Shanghai, China. Sequencing library preparation and data analysis were as performed described by Ding et al. [67]. The available data were aligned to the reference genome of Oryza_sativa. Japonica IRGSP-1.0 using BOWTIE software (V2.1.0) [68]. MeDIP peaks were identified by MACS2 [69], and statistically significant MeDIP-enriched regions (peaks) were identified by comparison to a Poisson background model (cut-off q-value = 10–2). DMRs in MeDIP dataset was identified by diffReps [70] (p < 0.0001).

4.7. Statistical Analysis

The data of two groups were analyzed by paired sample Student’s test (t-test) and the data of more than two groups were analyzed by Tukey’s test of one-way analysis of variance (ANOVA). Statistically significant differences at P < 0.05 between samples were indicated by different letters on the histograms or after mean values. All statistical evaluations were conducted using the IBM SPSS Statistics version 23 software (SPSS Inc., Chicago, IL, USA).

5. Conclusions

We found that both tissue culture and transgenic processes cause global methylation changes. The tissue culture process generally leads to a reduction in global methylation whereas the transgenic process causes global methylation changes that are dependent on the background. Transgenes could cause the global methylation decrease in WYJ7 and increase in NP. In addition, tissue culture caused abundant hypo-DMRs while the transgenic process caused hyper-DMRs. Epigenetic changes such as large amounts of methylation can influence phenotype during the tissue culture process. This happened in CK, resulting in small-sized plants compared to the wild-type WYJ7, even with no transformed gene. In the transgenic lines, while the phenotype is mainly determined by the nature and function of the transgene, but the global epigenetic modification in transgenic lines occurred and resulting in different patterns of changes in plants of different genetic backgrounds. Our results indicate a potential reason behind the occurrence of transgenic plants with random and undesirable phenotypes.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/5/1819/s1.

Author Contributions

Conceptualization, X.F. (Xiaorong Fan); Data curation, X.F. (Xiaoru Fan) and J.C.; Formal analysis, X.F. (Xiaoru Fan); Funding acquisition, X.F. (Xiaorong Fan); Investigation, X.F. (Xiaoru Fan); Methodology, Y.W.; Project administration, X.F. (Xiaorong Fan); Resources, X.F. (Xiaorong Fan); Supervision, G.X. and X.F. (Xiaorong Fan); Writing – original draft, X.F. (Xiaoru Fan) and X.F. (Xiaorong Fan); Writing – review & editing, X.F. (Xiaoru Fan), J.C., Y.W., C.T. and X.F. (Xiaorong Fan). All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by China National Key Program for Research and Development (2016YFD0100700), National Natural Science Foundation (Grant 31372122), the Transgenic Project (Grant 2016ZX08001003-008), the 111 Project (Grant 12009), Innovation project of basic scientific research in central Universities of Ministry of Education (KYYJ201604, KJJQ201701), Innovative Research Team Development Plan of Ministry of Education of China (IRT_17R56; KYT201802), Jiangsu Science and Technology Development Program (Grant BE2019375-1).

Conflicts of Interest

The authors declare no conflict of interest.

Availability of Data and Materials

The WGBS and MeDIP dataset created for this publication are available in the NCBI GEO repository with accession number GSE94319.

References

  1. Clive, J. Global Status of Commercialized Biotech/GM Crops; International Service for the Acquisition of Agri-biotech Applications (ISAAA): Ithaca, NY, USA, 2014. [Google Scholar]
  2. Han, Z.; Crisp, P.A.; Stelpflug, S.; Kaeppler, S.M.; Li, Q.; Springer, N.M. Heritable Epigenomic Changes to the Maize Methylome Resulting from Tissue Culture. Genetics 2018, 209, 983–995. [Google Scholar] [CrossRef]
  3. Krikorian, A.D.; Berquam, D.L. Plant cell and tissue cultures: The role of Haberlandt. Bot. Rev. 1969, 35, 58–88. [Google Scholar] [CrossRef]
  4. Kaeppler, S.M.; Kaeppler, H.F.; Rhee, Y. Epigenetic aspects of somaclonal variation in plants. Plant Mol. Biol. 2000, 43, 179–188. [Google Scholar] [CrossRef] [PubMed]
  5. Miguel, C.; Marum, L. An epigenetic view of plant cells cultured in vitro: Somaclonal variation and beyond. J. Exp. Bot. 2011, 62, 3713–3725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Neelakandan, A.K.; Wang, K. Recent progress in the understanding of tissue culture-induced genome level changes in plants and potential applications. Plant Cell Rep. 2012, 31, 597–620. [Google Scholar] [CrossRef] [PubMed]
  7. Rhee, Y.; Sekhon, R.S.; Chopra, S.; Kaeppler, S. Tissue Culture-Induced Novel Epialleles of a Myb Transcription Factor Encoded by pericarp color1 in Maize. Genetics 2010, 186, 843–855. [Google Scholar] [CrossRef] [Green Version]
  8. Ong-Abdullah, M.; Ordway, J.M.; Jiang, N.; Ooi, S.E.; Kok, S.Y.; Sarpan, N.; Azimi, N.; Hashim, A.T.; Ishak, Z.; Rosli, S.K.; et al. Loss of Karma transposon methylation underlies the mantled somaclonal variant of oil palm. Nature 2015, 525, 533–537. [Google Scholar] [CrossRef] [Green Version]
  9. Hsu, F.; Gohain, M.; Allishe, A.; Huang, Y.; Liao, J.; Kuang, L.; Chen, P. Dynamics of the Methylome and Transcriptome during the Regeneration of Rice. Epigenomes 2018, 2. [Google Scholar] [CrossRef] [Green Version]
  10. Gimenez, M.D.; Yanez-Santos, A.M.; Paz, R.C.; Quiroga, M.P.; Marfil, C.F.; Conci, V.C.; Garcia-Lampasona, S.C. Assessment of genetic and epigenetic changes in virus-free garlic (Allium sativum L.) plants obtained by meristem culture followed by in vitro propagation. Plant Cell Rep. 2016, 35, 129–141. [Google Scholar] [CrossRef]
  11. Machczynska, J.; Zimny, J.; Bednarek, P.T. Tissue culture-induced genetic and epigenetic variation in triticale (x Triticosecale spp. Wittmack ex A. Camus 1927) regenerants. Plant Mol. Biol. 2015, 89, 279–292. [Google Scholar] [CrossRef] [Green Version]
  12. Lin, W.; Zhang, X.; Li, Y.; Liu, S.; Sun, W.; Zhang, X.; Wu, Q. Whole-Genome Bisulfite Sequencing Reveals a Role for DNA Methylation in Variants from Callus Culture of Pineapple (Ananas comosus L.). Genes 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Aydin, M.; Arslan, E.; Taspinar, M.S.; Karadayi, G.; Agar, G. Analyses of somaclonal variation in endosperm-supported mature embryo culture of rye (Secale cereale L.). Biotechnol. Biotechnol. Equip. 2016, 30, 1082–1089. [Google Scholar] [CrossRef] [Green Version]
  14. Sun, S.L.; Zhong, J.Q.; Li, S.H.; Wang, X.J. Tissue culture-induced somaclonal variation of decreased pollen viability in torenia (Torenia fournieri Lind.). Bot. Stud. 2013, 54, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Chang, Y.N.; Zhu, C.; Jiang, J.; Zhang, H.; Zhu, J.K.; Duan, C.G. Epigenetic regulation in plant abiotic stress responses. J. Integr. Plant Biol. 2019. [Google Scholar] [CrossRef]
  16. Zhang, H.; Lang, Z.; Zhu, J.K. Dynamics and function of DNA methylation in plants. Nat. Rev. Mol. Cell. Biol. 2018, 19, 489–506. [Google Scholar] [CrossRef]
  17. Chen, X.; Brigitte, S.; Menz, J.; Ludewig, U. Plasticity of DNA methylation and gene expression under zinc deficiency in Arabidopsis roots. Plant Cell Physiol. 2018, 59, 1790–1802. [Google Scholar] [CrossRef] [Green Version]
  18. Stroud, H.; Ding, B.; Simon, S.A.; Feng, S.; Bellizzi, M.; Pellegrini, M.; Wang, G.L.; Meyers, B.C.; Jacobsen, S.E. Plants regenerated from tissue culture contain stable epigenome changes in rice. eLife 2013, 2. [Google Scholar] [CrossRef]
  19. Rajeevkumar, S.; Anunanthini, P.; Sathishkumar, R. Epigenetic silencing in transgenic plants. Front Plant Sci. 2015, 6, 693. [Google Scholar] [CrossRef] [Green Version]
  20. Vilperte, V.; Tenfen, S.Z.A.; Wikmark, O.G.; Nodari, R.O. Levels of DNA methylation and transcript accumulation in leaves of transgenic maize varieties. Environ. Sci. Eur. 2016, 28, 29. [Google Scholar] [CrossRef] [Green Version]
  21. Matzke, M.A.; Mette, M.F.; Matzke, A.J.M. Transgene silencing by the host genome defense: Implications for the evolution of epigenetic control mechanisms in plants and vertebrates. Plant Mol. Biol. 2000, 43, 401–415. [Google Scholar] [CrossRef]
  22. Huettel, B.; Kanno, T.; Daxinger, L.; Aufsatz, W.; Matzke, A.J.M.; Matzke, M. Endogenous targets of RNA-directed DNA methylation and Pol IV in Arabidopsi. EMBO J. 2006, 25, 2828–2836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Tsuchiya, T.; Eulgem, T. An alternative polyadenylation mechanism coopted to the Arabidopsis RPP7 gene through intronic retrotransposon domestication. Proc. Natl. Acad. Sci. USA 2013, 110, 3235–3543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Shavrukov, Y.; Baho, M.; Lopato, S.; Langridge, P. The TaDREB3 transgene transferred by conventional crossings to different genetic backgrounds of breadwheat improves drought tolerance. Plant Biotech. J. 2016, 14, 313–322. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, S.; Jiang, J.; Liu, Y.; Meng, J.; Xue, S.; Tan, Y.; Li, Y.; Shu, Q.; Huang, J. Characterization and evaluation of OsLCT1 and OsNramp5 mutants generated through CRISPR/Cas9-mediated mutagenesis for breeding low Cd rice. Rice Sci. 2019, 26, 88–97. [Google Scholar] [CrossRef] [PubMed]
  26. Mao, B.; Li, Y.; Lv, Q.; Zhang, L.; Chen, C.; He, H.; Wang, W.; Zeng, X.; Shao, Y. Knockout of OsNramp5 using the CRISPR/Cas9 system produces low Cd-accumulating indica rice without compromising yield. Sci. Rep. 2017, 7, 1–12. [Google Scholar]
  27. Thomsen, H.C.; Eriksson, D.; Moller, I.S.; Schjoreeing, J.K. Cytosolic glutamine synthetase: A target for improvement of crop nitrogen use efficiency? Trends Plant Sci. 2014, 19, 656–663. [Google Scholar] [CrossRef]
  28. Kyozuka, J.; Shimamoto, K. Transgenic rice plants: Tools for studies in gene regulation and crop improvement. Control Plant Gene Expr. 1992, 173–193. [Google Scholar]
  29. Yan, M.; Fan, X.; Feng, H.; Miller, A.; Shen, Q.; Xu, G. Rice OsNAR2.1 interacts with OsNRT2.1, OsNRT2.2 and OsNRT2.3a nitrate transporters to provide uptake over high and low concentration ranges. Plant Cell Environ. 2011, 34, 1360–1372. [Google Scholar] [CrossRef]
  30. Feng, H.; Yan, M.; Fan, X.; Li, B.; Shen, Q.; Miller, A.J.; Xu, G. Spatial expression and regulation of rice high-affinity nitrate transporters by nitrogen and carbon status. J. Exp. Bot. 2011, 62, 2319–2332. [Google Scholar] [CrossRef] [Green Version]
  31. Liu, X.; Huang, D.; Tao, J.; Miller, A.J.; Fan, X.; Xu, G. Identification and functional assay of the interaction motifs in the partner protein OsNAR2.1 of the two-component system for high-affinity nitrate transport. New Phytol. 2014, 204, 74–80. [Google Scholar] [CrossRef] [Green Version]
  32. Chen, J.; Zhang, Y.; Tan, Y.; Zhang, M.; Zhu, L.; Xu, G.; Fan, X. Agronomic nitrogen-use efficiency of rice can be increased by driving OsNRT2.1 expression with the OsNAR2.1 promoter. Plant Biotechnol. J. 2016, 14, 1705–1715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Chen, J.; Fan, X.; Qian, K.; Zhang, Y.; Song, M.; Liu, Y.; Xu, G.; Fan, X. pOsNAR2.1:OsNAR2.1 expression enhances nitrogen uptake efficiency and grain yield in transgenic rice plants. Plant Biotechnol. J. 2017, 15, 1273–1283. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Bednarek, P.; Orlowska, R. Plant tissue culture environment as a switch-key of (epi)genetic changes. Plant Cell Tissue Organ 2020, 140, 245–257. [Google Scholar] [CrossRef] [Green Version]
  35. Brown, P.T.H. DNA methylation in plants and its role in tissue culture. Genome 1989, 31, 717–729. [Google Scholar] [CrossRef]
  36. Muller, E.; Brown, P.T.H.; Hartke, S.; Lorz, H. DNA variation in tissue-culture-derived rice plants. Theor. Appl. Genet. 1990, 80, 673–679. [Google Scholar] [CrossRef] [PubMed]
  37. Zheng, K.L.; Castiglione, S.; Biasini, M.G.; Biroli, A.; Morandi, C.; Sala, F. Nuclear DNA amplification in cultured cells of Oryza sativa L. Theor. Appl. Genet. 1987, 74, 65–70. [Google Scholar] [CrossRef]
  38. Dominguez, A.; Fagoaga, C.; Navarro, L.; Moreno, P.; Pena, L. Regeneration of transgenic citrus plants under non selective conditions results in high-frequency recovery of plants with silenced transgenes. Mol. Genet. Genom. 2002, 267, 544–556. [Google Scholar] [CrossRef]
  39. Wang, Q.M.; Wang, Y.Z.; Sun, L.; Gao, F.; Sun, W.; He, J.; Gao, X.; Wang, L. Direct and indirect organogenesis of Clivia miniata and assessment of DNA methylation changes in various regenerated plantlets. Plant Cell Rep. 2012, 31, 1283–1296. [Google Scholar] [CrossRef]
  40. Orlowska, R.; Machczynska, J.; Oleszczuk, S.; Zimny, J.; Bednarek, P.T. DNA methylation changes and TE activity induced in tissue cultures of barley (Hordeum vulgare L.). J. Biol. Res. Thessal. 2016, 23, 19. [Google Scholar] [CrossRef] [Green Version]
  41. Hiei, Y.; Ohta, S.; Komari, T.; Kumashiro, T. Efficient Transformation of Rice (Oryza-Sativa L) Mediated by Agrobacterium and Sequence-Analysis of the Boundaries of the T-DNA. Plant J. 1994, 6, 271–282. [Google Scholar] [CrossRef] [Green Version]
  42. Yin, Z.; Wang, G. Evidence of multiple complex patterns of T-DNA integration into the rice genome. Theor. Appl. Genet. 2000, 100, 461–470. [Google Scholar] [CrossRef]
  43. Xu, J.; Chen, G.; Hermanson, P.J. Population-level analysis reveals the widespread occurrence and phenotypic consequence of DNA methylation variation not tagged by genetic variation in maize. Genome Biol. 2019, 20, 243. [Google Scholar] [CrossRef] [PubMed]
  44. Niu, Z.; Yang, Z.; Li, J.; Hu, M. Characteristics and high-yield cultivation techniques of Wuyunjing 7. Chin. Rice 1998, 4, 9–10. [Google Scholar]
  45. Jiang, Y. High-yielding rice cultivation technology of Nipponbare. Shandong Agric. Sci. 1981, 2, 28–29. [Google Scholar]
  46. Xu, G.; Fan, X.; Miller, A.J. Plant nitrogen assimilation and use efficiency. Annu. Rev. Plant Biol. 2012, 63, 153–182. [Google Scholar] [CrossRef] [Green Version]
  47. Qu, L.Q.; Takaiwa, F. Evaluation of tissue specificity and expression strength of rice seed component gene promoters in transgenic rice. Plant Biotechnol. J. 2004, 2, 113–125. [Google Scholar] [CrossRef]
  48. Wang, B.; Sang, Y.; Song, J.; Gao, X.Q.; Zhang, X. Expression of a rice OsARGOS gene in Arabidopsis promotes cell division and expansion and increases organ size. J. Genet. Genom. 2009, 36, 31–40. [Google Scholar] [CrossRef]
  49. Lu, C.; Zhang, L.; Tang, Z.; Huang, X.Y.; Ma, J.F.; Zhao, F.J. Producing cadmium-free Indica rice by overexpressing OsHMA3. Environ. Int. 2019, 126, 619–626. [Google Scholar] [CrossRef]
  50. Yang, C.; Zhang, Y.; Huang, C. Reduction in cadmium accumulation in japonica rice grains by CRISPR/Cas9-mediated editing of OsNRAMP5. J. Integr. Agric. 2019, 18, 688–697. [Google Scholar] [CrossRef]
  51. Que, Q.; Wang, H.Y.; English, J.J.; Jorgensen, R.A. The frequency and degree of cosuppression by sense chalcone synthase transgenes are dependent on transgene promoter strength and are reduced by premature nonsense codons in the transgene coding sequence. Plant Cell 1997, 9, 1357–1368. [Google Scholar] [CrossRef] [Green Version]
  52. Hirochika, H.; Sugimoto, K.; Otsuki, Y.; Tsugawa, H.; Kanda, M. Retrotransposons of rice involved in mutations induced by tissue culture. Proc. Natl. Acad. Sci. USA 1993, 93, 7783–7788. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Smulders, M.J.M.; de Klerk, G.J. Epigenetics in plant tissue culture. Plant Growth Regul. 2011, 63, 137–146. [Google Scholar] [CrossRef] [Green Version]
  54. Vázquez, A.M. Insight into somaclonal variation. Plant Biosyst. 2001, 135, 57–62. [Google Scholar] [CrossRef]
  55. Wang, Q.; Wang, L. An evolutionary view of plant tissue culture: Somaclonal variation and selection. Plant Cell Rep. 2012, 31, 1535–1547. [Google Scholar] [CrossRef]
  56. Rodriguez Enriquez, J.; Dickinson, H.G.; Grant Downton, R.T. MicroRNA misregulation: An overlooked factor generating somaclonal variation? Trends Plant Sci. 2011, 16, 242–248. [Google Scholar] [CrossRef]
  57. Krishna, H.; Alizadeh, M.; Singh, D.; Singh, U.; Chauhan, N.; Eftekhari, M.; Sadh, R.K. Somaclonal variations and their applications in horticultural crops improvement. 3 Biotech 2016, 6, 54. [Google Scholar] [CrossRef] [Green Version]
  58. Krizova, K.; Fojtova, M.; Depicker, A.; Kovarik, A. Cell Culture-Induced Gradual and Frequent Epigenetic Reprogramming of Invertedly Repeated Tobacco Transgene Epialleles. Plant Physiol. 2009, 149, 1493–1504. [Google Scholar] [CrossRef] [Green Version]
  59. Mubeen, K.; Iqbal, A.; Hussain, M.; Zahoor, F.; Siddiqui, M.H.; Mohsin, A.U.; Bakht, H.F.S.G.; Hanif, M. Impact of Nitrogen and Phosphorus on the Growth, Yield and Quality of Maize (Zea Mays L.) Fodder in Pakistan. Philipp. J. Crop Sci. 2013, 38, 43–46. [Google Scholar]
  60. Ookawa, T.; Hobo, T.; Yano, M.; Murata, K.; Ando, T.; Miura, H.; Asano, K.; Ochiai, Y.; Ikeda, M.; Nishitani, R.; et al. New approach for rice improvement using a pleiotropic QTL gene for lodging resistance and yield. Nat. Commun. 2010, 1, 132. [Google Scholar] [CrossRef] [Green Version]
  61. Pan, S.; Rasul, F.; Li, W.; Tian, H.; Mo, Z.W.; Duan, M.; Tang, X. Roles of plant growth regulators on yield, grain qualities and antioxidant enzyme activities in super hybrid rice (Oryza sativa L.). Rice 2013, 6, 9. [Google Scholar] [CrossRef]
  62. Srikanth, B.; Rao, I.S.; Surekha, K.; Subrahmanyam, D.; Voleti, S.R.; Neeraja, C.N. Enhanced expression of OsSPL14 gene and its association with yield components in rice (Oryza sativa) under low nitrogen conditions. Gene 2016, 576, 441–450. [Google Scholar] [CrossRef] [PubMed]
  63. Saghai, M. Ribosomal DNA spacer-length polymorphisms in barley: Mendelian inheritance, chromosomal location, and population dynamics. Proc. Natl. Acad. Sci. USA 1984, 81. [Google Scholar] [CrossRef] [Green Version]
  64. Singer, T.; Burke, E. High-throughput TAIL-PCR as a tool to identify DNA flanking insertions. Methods Mol. Bio. 2003, 236, 241–272. [Google Scholar]
  65. Krueger, F.; Andrews, S.R. Bismark: A flexible aligner and methylation caller for Bisulfite-Seq applications. Bioinformatics 2011, 27, 1571–1572. [Google Scholar] [CrossRef] [PubMed]
  66. Akalin, A.; Kormaksson, M.; Li, S.; Garrett-Bakelman, F.E.; Figueroa, M.E.; Melnick, A.; Mason, C.E. methylKit: A comprehensive R package for the analysis of genome-wide DNA methylation profiles. Genome Biol. 2012, 13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Ding, X.; Zheng, D.Y.; Fan, C.N.; Liu, Z.Q.; Dong, H.; Lu, Y.Y.; Qi, K.M. Genome-wide screen of DNA methylation identifies novel markers in childhood obesity. Gene 2015, 566, 74–83. [Google Scholar] [CrossRef]
  68. Langmead, B.; Salzberg, S.L. Fast gapped-read alignment with Bowtie 2. Nat. Methods 2012, 9, 357–359. [Google Scholar] [CrossRef] [Green Version]
  69. Zhang, Y.; Liu, T.; Meyer, C.A.; Eeckhoute, J.; Johnson, D.S.; Bernstein, B.E.; Nussbaum, C.; Myers, R.M.; Brown, M.; Li, W.; et al. Model-based Analysis of ChIP-Seq (MACS). Genome Biol. 2008, 9. [Google Scholar] [CrossRef] [Green Version]
  70. Shen, L.; Shao, N.; Liu, X.; Maze, I.; Feng, J.; Nestler, E. diffReps: Detecting Differential Chromatin Modification Sites from ChIP-seq Data with Biological Replicates. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [Green Version]
Ijms 21 01819 g001 550

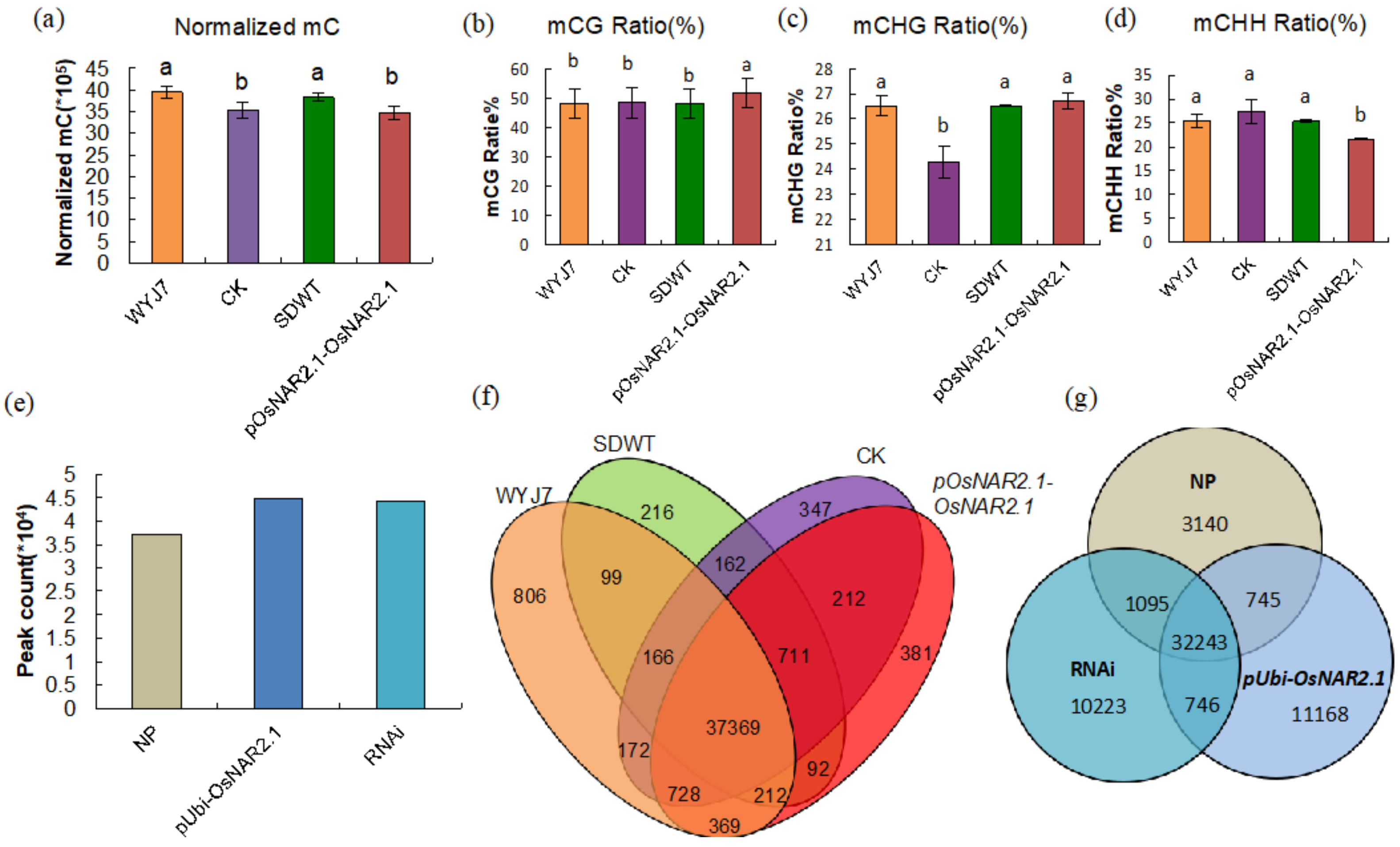

Figure 1. Characteristics of sequencing data (a) Normalized DNA cytosine methylation numbers in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (b-d) mCG, mCHG and mCHH ratio in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (e) Peak count of methylation in NP, pUbi-OsNAR2.1 and RNAi. (f) Venn diagram of unique and shared genes in CpG methylation states for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (g) Venn diagram of peaks in NP, RNAi and pUbi-OsNAR2.1 samples.
Figure 1. Characteristics of sequencing data (a) Normalized DNA cytosine methylation numbers in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (b-d) mCG, mCHG and mCHH ratio in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (e) Peak count of methylation in NP, pUbi-OsNAR2.1 and RNAi. (f) Venn diagram of unique and shared genes in CpG methylation states for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (g) Venn diagram of peaks in NP, RNAi and pUbi-OsNAR2.1 samples.
Ijms 21 01819 g001
Ijms 21 01819 g002 550

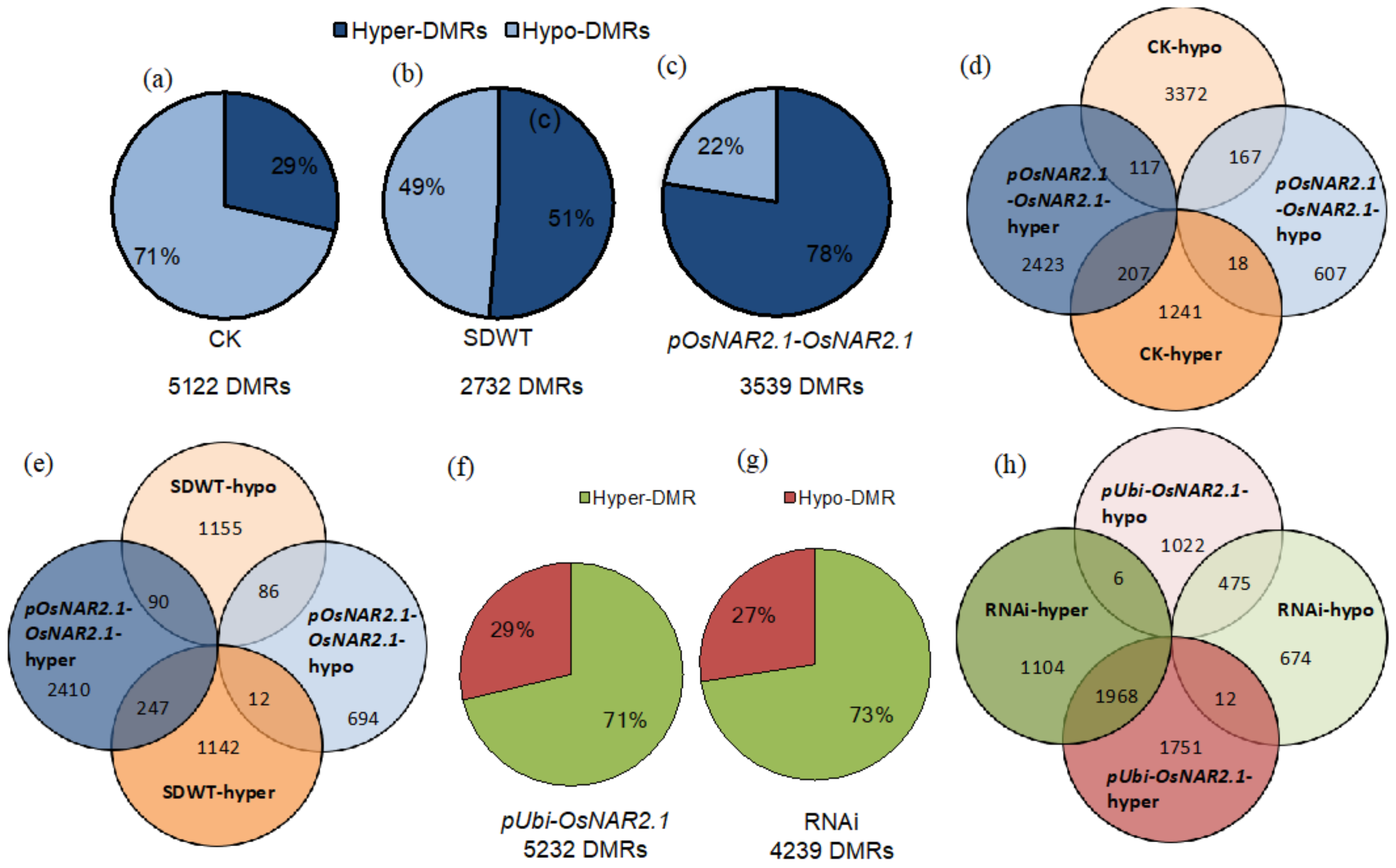

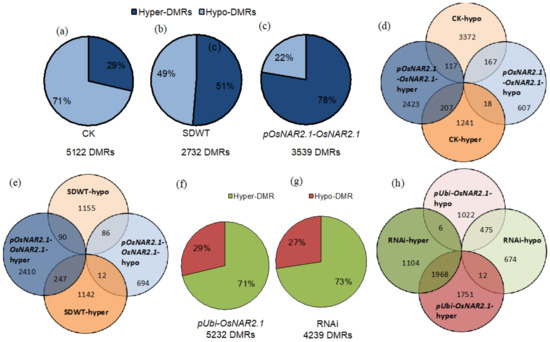

Figure 2. Characteristics of DMRs. (a-c) Total number of DMRs and breakdown of hyper- and hypo-DMRs in CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (d) Venn diagram of unique and shared hyper- and hypo-DMRs in pOsNAR2.1-OsNAR2.1 and CK samples. (e) Venn diagram of unique and shared hyper- and hypo-DMRs in pOsNAR2.1-OsNAR2.1 and SDWT samples. (f,g) Total number of DMRs and breakdown of hyper- and hypo-DMRs in pUbi-OsNAR2.1 and RNAi samples. (h) Venn diagram of unique and shared hyper- and hypo-DMRs in pUbi-OsNAR2.1 and RNAi samples.
Figure 2. Characteristics of DMRs. (a-c) Total number of DMRs and breakdown of hyper- and hypo-DMRs in CK, SDWT and pOsNAR2.1-OsNAR2.1 samples. (d) Venn diagram of unique and shared hyper- and hypo-DMRs in pOsNAR2.1-OsNAR2.1 and CK samples. (e) Venn diagram of unique and shared hyper- and hypo-DMRs in pOsNAR2.1-OsNAR2.1 and SDWT samples. (f,g) Total number of DMRs and breakdown of hyper- and hypo-DMRs in pUbi-OsNAR2.1 and RNAi samples. (h) Venn diagram of unique and shared hyper- and hypo-DMRs in pUbi-OsNAR2.1 and RNAi samples.
Ijms 21 01819 g002
Ijms 21 01819 g003 550

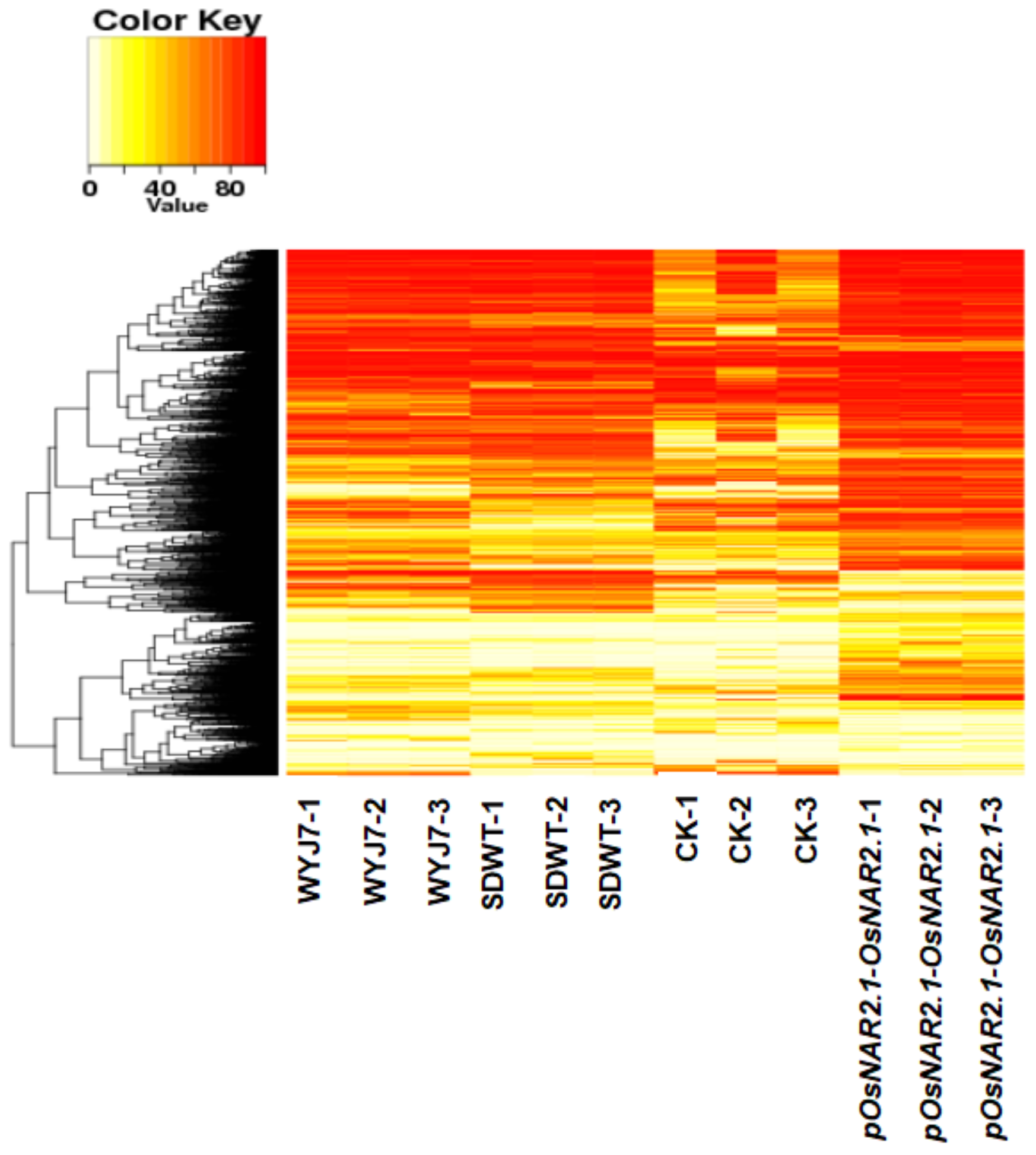

Figure 3. Heatmap for DMRs methylation level cluster. Heatmap representation of hierarchical clustering based on CG methylation levels within DMRs. Rows represent all DMRs identified and columns represent the samples.
Figure 3. Heatmap for DMRs methylation level cluster. Heatmap representation of hierarchical clustering based on CG methylation levels within DMRs. Rows represent all DMRs identified and columns represent the samples.
Ijms 21 01819 g003
Ijms 21 01819 g004 550

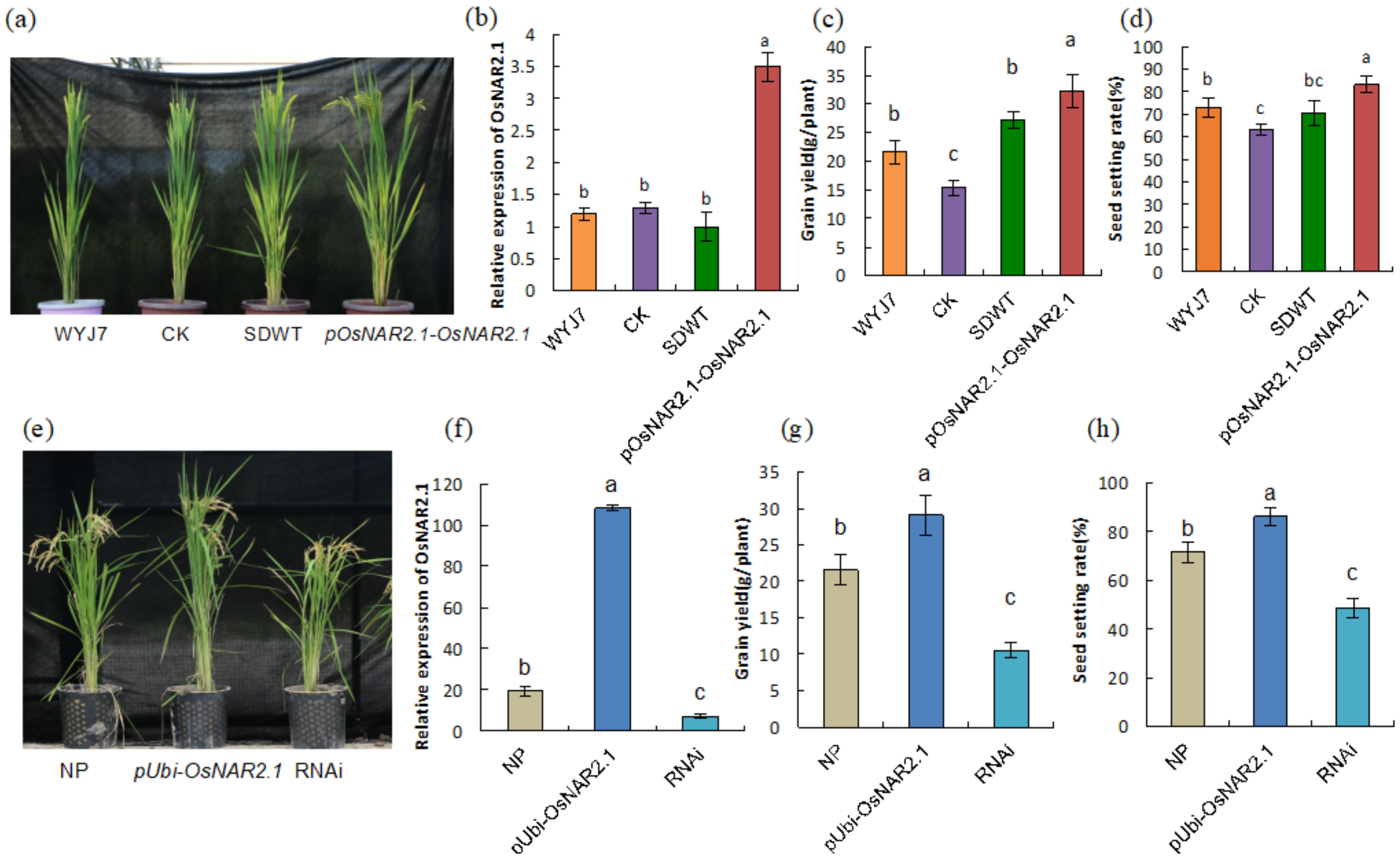

Figure 4. Characteristics of phenotype (a) Gross morphology of WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1. (b) Real-time quantitative RT-PCR analysis of OsNAR2.1 expression in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 lines. Error bars: SD (n = 3 plants). (c) Grain yield for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between WYJ7 and transgenic lines are indicated by different letters (P < 0.05, one-way ANOVA). (d) Seed setting rate for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between WYJ7 and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA). (e) Gross morphology of wild-type of NP, pUbi-OsNAR2.1 and RNAi. (f) Real-time quantitative RT-PCR analysis of OsNAR2.1 expression in NP, pUbi-OsNAR2.1 and RNAi lines. Error bars: SD (n = 3 plants). (g) Grain yield for NP, pUbi-OsNAR2.1 and RNAi plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between NP and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA). (h) Seed setting rate for NP, pUbi-OsNAR2.1 and RNAi plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between NP and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA).
Figure 4. Characteristics of phenotype (a) Gross morphology of WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1. (b) Real-time quantitative RT-PCR analysis of OsNAR2.1 expression in WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 lines. Error bars: SD (n = 3 plants). (c) Grain yield for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between WYJ7 and transgenic lines are indicated by different letters (P < 0.05, one-way ANOVA). (d) Seed setting rate for WYJ7, CK, SDWT and pOsNAR2.1-OsNAR2.1 plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between WYJ7 and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA). (e) Gross morphology of wild-type of NP, pUbi-OsNAR2.1 and RNAi. (f) Real-time quantitative RT-PCR analysis of OsNAR2.1 expression in NP, pUbi-OsNAR2.1 and RNAi lines. Error bars: SD (n = 3 plants). (g) Grain yield for NP, pUbi-OsNAR2.1 and RNAi plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between NP and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA). (h) Seed setting rate for NP, pUbi-OsNAR2.1 and RNAi plants grown in the field. Error bars: SD (n = 5 plants). Significant differences between NP and transgenic lines are indicated by different letters (p < 0.05, one-way ANOVA).
Ijms 21 01819 g004
Table
Table 1. Samples description in this study.
Table 1. Samples description in this study.
SampleDescriptionRaw ReadsUniquely Mapping ReadsNormalized mC Count
WT-WYJ7-1Wild type Wuyujing 7 cultivar (WYJ7)140,469,848114,222,086396,005
WT-WYJ7-2140,314,960114,019,328380,987
WT-WYJ7-3137,035,182111,328,844406,068
CK1T0 generation plant of WYJ7 +callus inducing media (CIM) + shoot inducing media (SIM)115,760,65084,978,096340,144
CK2115,709,51683,108,206344,139
CK3135,865,34298,592,558375,679
SDWT1T4 generation plant of WYJ7+CIM+SIM+ selection pressure (Hyg) + transformation of pOsNAR2.1-OsNAR2.1 construct + segregation of pOsNAR2.1-OsNAR2.1 heterozygote line134,716,330109,964,522376,469
SDWT2127,794,020104,131,328393,058
SDWT3138,032,054112,763,894377,411
pOsNAR2.1-OsNAR2.1-1T4 generation plant of WYJ7+CIM+SIM+selection pressure (Hyg) + transformation of pOsNAR2.1-OsNAR2.1 construct + one more pOsNAR2.1-OsNAR2.1 insertion.144,544,94079,464,658354,464
pOsNAR2.1-OsNAR2.1-2109,740,31673,616,122328,232
pOsNAR2.1-OsNAR2.1-3136,405,336100,950,580356,844
Pass Filtering ReadsReads Aligned ReadsPeaks count
WT-NPWild type Nipponbare cultivar (NP)13,047,17912,798,55537,223
pUbi-OsNAR2.1T8 generation plant of NP+CIM+SIM+ selection pressure (Hyg)+transformation of pOsNAR2.1-OsNAR2.1 vector+pUbi-OsNAR2.1 insertion20,671,93120,360,10244,902
RNAiT8 generation plant of NP+CIM+SIM+ selection pressure (Hyg)+RNA interference (RNAi) constructs18,722,85518,428,65344,307
Table
Table 2. Characteristics of methylation and genetics in samples.
Table 2. Characteristics of methylation and genetics in samples.
VarietyWYJ7NP
CKSDWTpOsNAR2.1-OsNAR2.1pUbi-OsNAR2.1RNAi
Global methylation↓NS↓↑↑
GeneticReprograming+++++
TransgenicNSNS+++
Exogenous GeneNSNS111
Expression of transgeneNSNS↑↑NA
PhenotypePlant height↓ 6%NS↑ 5%↑ 17%↓18%
Yield(g/plant)↓ 28%NS↑ 49%↑ 35%↓51%
Seed setting rate↓ 13%NS↑ 14%↑ 21%↓32%
Note: NS means no significant difference. NA means not applicable. + means have, 1 means gene number, arrowhead indicates upregulate and downregulate, red indicates upregulate and green indicates downregulate.

Share and Cite

MDPI and ACS Style

Fan, X.; Chen, J.; Wu, Y.; Teo, C.; Xu, G.; Fan, X. Genetic and Global Epigenetic Modification, Which Determines the Phenotype of Transgenic Rice? Int. J. Mol. Sci. 2020, 21, 1819. https://doi.org/10.3390/ijms21051819

AMA Style

Fan X, Chen J, Wu Y, Teo C, Xu G, Fan X. Genetic and Global Epigenetic Modification, Which Determines the Phenotype of Transgenic Rice? International Journal of Molecular Sciences. 2020; 21(5):1819. https://doi.org/10.3390/ijms21051819

Chicago/Turabian Style

Fan, Xiaoru, Jingguang Chen, Yufeng Wu, CheeHow Teo, Guohua Xu, and Xiaorong Fan. 2020. "Genetic and Global Epigenetic Modification, Which Determines the Phenotype of Transgenic Rice?" International Journal of Molecular Sciences 21, no. 5: 1819. https://doi.org/10.3390/ijms21051819

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
