Article

Inhibition of Human Cytomegalovirus Entry into Host Cells through A Pleiotropic Small Molecule

by
James Elste
1,†,
Dominik Kaltenbach
2,†,
Vraj R. Patel
1,
Max T. Nguyen
1,
Harsh Sharthiya
3,
Ritesh Tandon
4,
Satish K. Mehta
5,
Michael V. Volin
1,
Michele Fornaro
3,
Vaibhav Tiwari
1,* and
Umesh R. Desai
6,7,*
1
Department of Microbiology & Immunology, College of Graduate Studies and Chicago College of Osteopathic Medicine, Midwestern University, Downers Grove, IL 60515, USA
2
Department of Biomedical Sciences, College of Graduate Studies, Midwestern University, Downers Grove, IL 60515, USA
3
Department of Anatomy, College of Graduate Studies and Chicago College of Osteopathic Medicine, Midwestern University, Downers Grove, IL 60515, USA
4
Department of Microbiology and Immunology, University of Mississippi Medical Center, 2500 North State Street, Jackson, MS 39216, USA
5
KBR Wyle Laboratories, Houston, TX 77058, USA
6
Department of Medicinal Chemistry, School of Pharmacy, Virginia Commonwealth University, Richmond, VA 23298, USA
7
Institute for Structural Biology, Drug Discovery and Development, Virginia Commonwealth University, Richmond, VA 23219, USA
*
Authors to whom correspondence should be addressed.
†
The authors equally contributed to this work.
Int. J. Mol. Sci. 2020, 21(5), 1676; https://doi.org/10.3390/ijms21051676
Submission received: 7 January 2020 / Revised: 19 February 2020 / Accepted: 26 February 2020 / Published: 29 February 2020
(This article belongs to the Section Molecular Immunology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Human cytomegalovirus (HCMV) infections are wide-spread among the general population with manifestations ranging from asymptomatic to severe developmental disabilities in newborns and life-threatening illnesses in individuals with a compromised immune system. Nearly all current drugs suffer from one or more limitations, which emphasizes the critical need to develop new approaches and new molecules. We reasoned that a ‘poly-pharmacy’ approach relying on simultaneous binding to multiple receptors involved in HCMV entry into host cells could pave the way to a more effective therapeutic outcome. This work presents the study of a synthetic, small molecule displaying pleiotropicity of interactions as a competitive antagonist of viral or cell surface receptors including heparan sulfate proteoglycans and heparan sulfate-binding proteins, which play important roles in HCMV entry and spread. Sulfated pentagalloylglucoside (SPGG), a functional mimetic of heparan sulfate, inhibits HCMV entry into human foreskin fibroblasts and neuroepithelioma cells with high potency. At the same time, SPGG exhibits no toxicity at levels as high as 50-fold more than its inhibition potency. Interestingly, cell-ELISA assays showed downregulation in HCMV immediate-early gene 1 and 2 (IE 1&2) expression in presence of SPGG further supporting inhibition of viral entry. Finally, HCMV foci were observed to decrease significantly in the presence of SPGG suggesting impact on viral spread too. Overall, this work offers the first evidence that pleiotropicity, such as demonstrated by SPGG, may offer a new poly-therapeutic approach toward effective inhibition of HCMV.

1. Introduction

Human cytomegalovirus (HCMV), also known as human herpesvirus 5, is a widespread pathogen among human populations [1,2,3]. To establish a successful infection, HCMV depends on a unique set of immune evasion strategies, using encoded proteins and mRNA to avoid a competent innate and adaptive immune response [4]. HCMV-mediated infections are a recognized cause of morbidity and mortality in immunocompromised individuals as compared to otherwise healthy or immunocompetent individuals [5,6,7]. During the early stages of fetus development, HCMV infection in utero can result in disseminated infection with severe neurological impairments [8,9,10,11,12,13,14]. In addition, HCMV infection can also cause visual impairments in the form of retinitis, which is commonly seen in the AIDS population [15,16,17]. Interestingly, HCMV is capable of infecting multiple cell and tissue types, which suggests its ability to interact with a diverse array of host cell receptors to establish an infection [18,19,20].
HCMV entry into host cells is extremely dynamic due to the usage of a variety of cellular entry receptors during virus-cell interactions [21,22,23,24]. It has been shown that depending on the cell type, HCMV can utilize multiple target cell receptors, including cell surface heparan sulfate (HS), different cellular integrins, platelet-derived growth factor receptor alpha (PDGF-Rα), neuropilin-2 and epidermal growth factor receptor (EGF-R), for cellular entry [25,26,27,28,29,30,31]. On the flip side, HCMV’s multiple viral glycoproteins, including gB, gO, and gH-gL, engage these structurally and functionally unrelated receptors to penetrate cellular defenses. For example, gB catalyzes membrane fusion between HCMV and infected cells, while gH/gL-containing complexes regulate viral tropism [24]. Interestingly, these viral glycoproteins contribute differently to different cell-types. Whereas the trimer of HCMV’s gH-gL-gO is critical for infection in fibroblasts, a pentamer unit of gHgLpUL128-131A is essential for viral entry in epithelial, endothelial, and myeloid cells [32,33,34]. The distinctive ability of HCMV to utilize a diversity of cell surface receptors coupled to its exploitation of multiple glycoproteins to mediate entry pose a special challenge for drug discovery because of the possibility of several bypass mechanisms.
Few drugs are currently available for HCMV treatment including ganciclovir, valganciclovir, foscarnet, cidofovir, and fomivirsen [35]. Yet, as a group these carry a number of limitations including toxicity arising from prolonged therapy, limited effectiveness, poor bioavailability, and acquired resistance to common targets [35,36,37,38,39]. The discovery of new anti-HCMV agents with better efficacy and novel mechanism of action is a critical goal [40]. More specifically, for HCMV it would beneficial to develop an agent that could simultaneously target multiple receptors involved in viral entry so as to more effectively prevent bypass pathways.
One group of receptors that could be targeted by such agents include the heparan sulfate proteoglycans. First, HCMV glycoproteins, especially gB, are known to bind to HS chains present on these cell surface proteoglycans [41]. Thus, appropriate competitive molecules would be expected to reduce cellular attachment and entry. Second, many host cell surface receptors are also known to bind to HS such as growth factor receptors (e.g., PDGF-R and EGF-R) and neuropilin [28], which could offer additional opportunities for competitive inhibition. Third, inhibitors of viral entry could be expected to have downstream consequences such as the expression of viral immediate-early genes, whose products play a key role in the pathogenesis of HCMV infection, and prevention or reduction in host immunomodulation [42].
In fact, the literature is replete with the use of heparin, heparan sulfate, and other sulfated polysaccharides as anti-viral agents [43,44,45,46]. This includes targeting HSV [47], HIV [48,49], and others. Yet, a problem with the use of these biopolymers is that it is extremely difficult to synthesize and characterize them. It is also very difficult to transform the polysaccharide scaffold into potential drug-like scaffold, which would help further drug design and development efforts.
For some time now, we have been pursuing non-polymeric, non-saccharide mimetics of heparin/heparan sulfate as anti-viral [50,51,52,53,54], anti-cancer [55,56], and anti-thrombotic agents [57,58]. The advantage with these mimetics is that these are fully synthetic, easily characterizable, and highly amenable to advanced rational drug design possibilities. We now have a library of some 150 non-saccharide mimetics of heparin/heparan sulfate with different structural scaffolds, diversity of sulfate groups, and molecular sizes [59,60]. One of these agents is sulfated pentagalloylglucoside (SPGG) with a distinct structure to simultaneously mimic many different sequences of heparin/heparan sulfate (Figure 1). The unique aspect of SPGG is its globular structure that theoretically can interact with diverse HS-binding proteins. In fact, our earlier work on SPGG has shown that it interacts with coagulation factor XIa [57,61] and glycoprotein gD [50], two completely different HS-binding proteins. Thus, we reasoned that the probability of targeting multiple proteins involved in cellular entry of HCMV, e.g., glycoprotein gB, PDGF-R, EGF-R, and neuropilin, would be higher with SPGG than with other non-saccharide mimetics developed so far.
Although pleiotropicity, i.e., ability to bind to multiple targets, is dis-favored for drug discovery and development, the case of HCMV is unique. HCMV relies on multiple targets to gain access to different cell types and inhibiting all these pathways with a ‘magic’ bullet is likely to be extremely challenging. At the same time, without the development of such a pleiotropic inhibitor, the virus would probably find escape routes resulting in sub-optimal activity. Thus, we reasoned that SPGG is likely to afford the highest chance of success against HCMV, which could then become useful springboard for further development.

2. Results

2.1. Effect of SPGG Treatment on Cell Survival

To first assess whether SPGG is toxic to cells typically targeted by HCMV, we studied dose-dependence of cell viability. We utilized lactate dehydrogenase (LDH) assay as a surrogate for cell viability, as described in the literature [62]. Briefly, rupture of plasma membranes due to apoptosis, necrosis, and other forms of cellular damage results in release of LDH into the cell culture supernatant, which can be quantified by an NADH coupled chromogenic reaction. We selected two different cell lines, Human Foreskin Fibroblasts (HFF-1) and neuroepithelioma cells (SK-N-MC), as it is well-established that HCMV infects and replicates in fibroblasts and neuronal cell types [18,19,63].
Figure 2 shows viability of both cell lines as a function of SPGG concentrations reaching up to 100 µM. Even after a 24-h incubation period, both cell lines exhibited essentially no morphological changes from the mock-treatment control (not shown). Likewise, neither cell line displayed any measurable increase in LDH activity even at the highest dose of SPGG. These results suggested that SPGG displayed no measurable cytotoxicity up to 100 µM in the tested cell lines. In fact, the LC50 (lethal concentration for 50% cell death) is likely to be several fold higher because of complete absence of increase in LDH activity at 100 µM.

2.2. Tracking of Fluorescently-Labeled HCMV Entry in Presence of SPGG

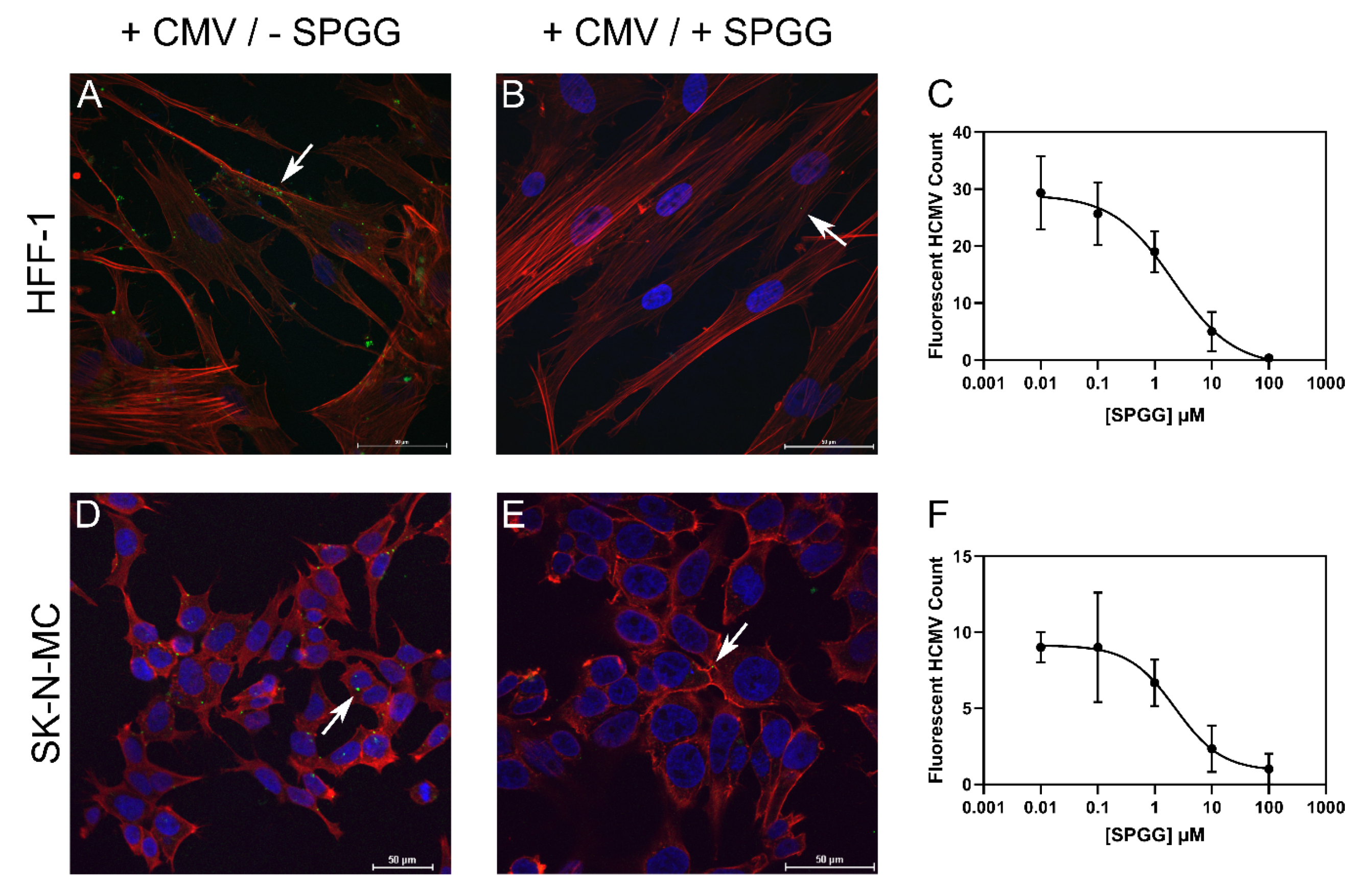

To assess whether SPGG inhibits entry of HCMV into HFF-1 and SK-N-MC cells, we utilized a fluorescently-labeled virus BAD32GFP, which carries a green fluorescent protein (GFP) tag for rapid quantitation and location of the virus. This viral strain is equally potent in cell infectivity [64].
Preliminary studies with BAD32GFP were performed to assess infectivity of HFF-1 and SK-N-MC cells. Following a 2-h incubation at RT at an MOI of 5.0, we observed excellent infectivity of the viral strain for both cell-types as monitored by the presence of multiple GFP punctae (aggregates of virions; Figure 3, panels A and D). Addition of SPGG resulted in reduced number of GFP-puncta for both cell types (Supplementary Figure S1). Using ImageJ, the immunolabeled punctae with SPGG treatment were quantified as compared to the mock-treated cell lines. The relative decrease in GFP-puncta as a function of SPGG dose followed the traditional semi-log relationship with an IC50 of 2.0 ± 0.3 µM for HFF-1 and 1.8 ± 0.2 µM for SK-N-MC cells (Figure 3 panels C, and F). In fact, at the maximal dose studied (100 µM), SPGG treatment almost completely abolished BAD32GFP internalization (Figure 3B,E). This implied that SPGG exhibit excellent ‘therapeutic’ window of more than 50 and 55-fold (ratio of LC50/IC50), respectively for the two cell lines.

2.3. The Impact of SPGG Treatment on HCMV Immediate Gene (IE) Expression

A priori, an anti-viral inhibition strategy revolving on competitive antagonism to host cell entry does not have to rely on any changes on gene expression, either for the virus or for the host. However, evidence of gene expression changes, especially of those involved in viral entry, propagation and spread, may help better understand an agent’s mechanism of action. Thus, we focused on whether the expression of immediate early (IE) genes of HCMV are altered.

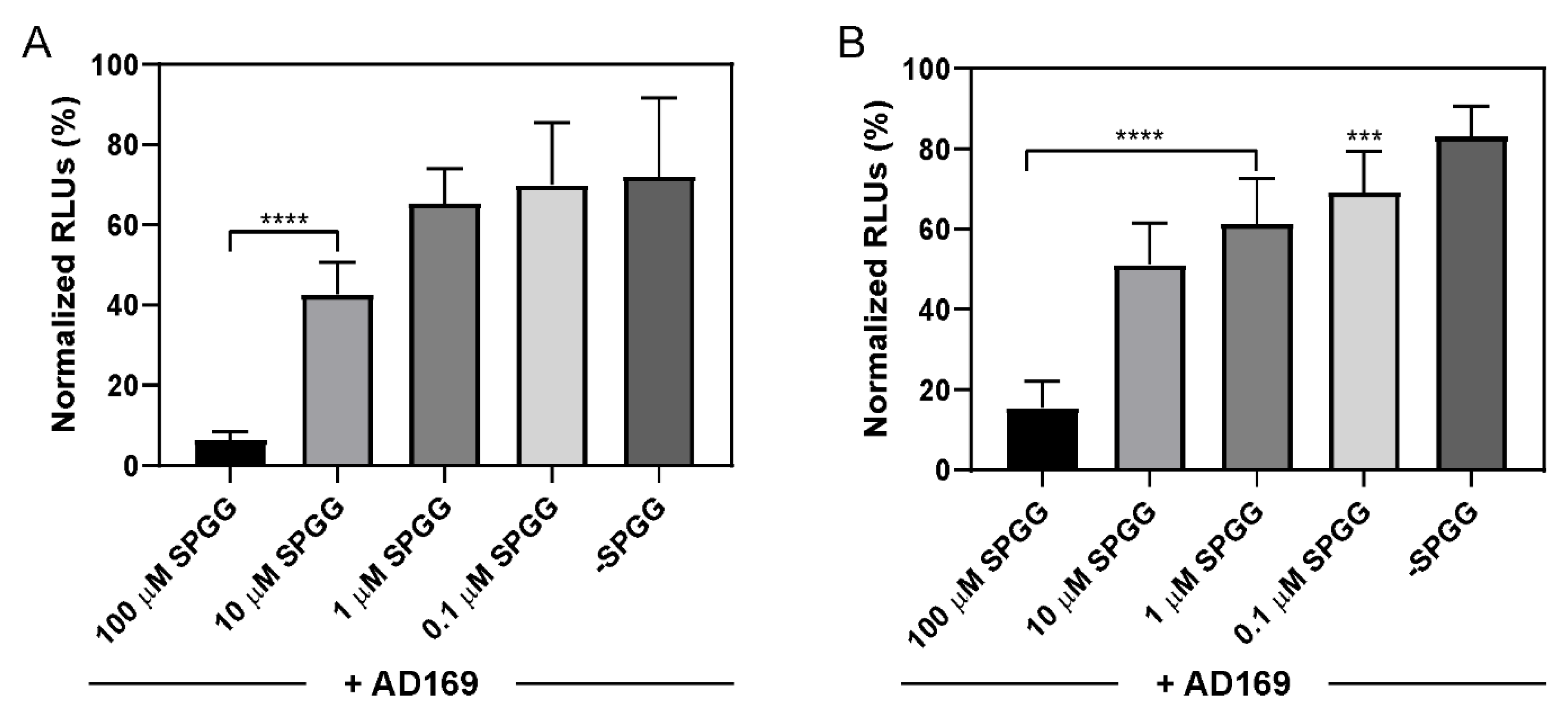

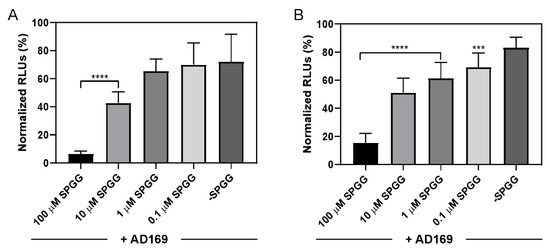

We monitored IE gene expression using AD169, a widely characterized HCMV strain [65], using a cell-ELISA assay (Figure 4). Control mock-treatment (PBS) experiments with HCMV strain AD169 showed robust expression of both IE 1 and 2 genes within one hour of incubation with host cells. Pre-treatment of AD169 strain with SPGG followed by incubation with either HFF-1 or SK-N-MC cells showed significant reductions in expression of both IE1 and IE2. A clear dose-dependent decrease in IE 1 and 2 expression was evident, which gave IC50s of 3.1 µM (HFF-1) and 5.6 µM (SK-N-MC) (Figure 4A,B). As with puncta formation, the best results were observed at 100 µM SPGG. Thus, the results show that SPGG-mediated interference in viral entry negatively impacts the expression of viral genes, which probably contribute to reducing the viral infectivity.
Our study is first to report a unique heparin mimetic, which has been previously been reported as a broad spectrum antimicrobial activity, as an inhibitor of HCMV. Earlier, we have demonstrated that SPGG inhibits HSV [50,51] and Chlamydia infection [66]. Since HSV and Chlamydia are known to exploit heparan sulfate during early stages of host pathogen interactions [66,67], SPGG’s lowering of HCMV early gene expression is not too surprising considering that the viral entry is blocked in the first place. A more important point of this result is the possibility that SPGG could be utilizing multiple mechanisms for its antiviral effects.

2.4. The Impact of SPGG Treatment on HCMV Spread

The effect observed on the expression of important viral genes led to the prediction that SPGG possibly does not just function as a heparan sulfate competitor. We reasoned that SPGG may possibly bind to proteins involved in viral spread too. To test this hypothesis at a morphological level, rather than at a molecular level, we studied the phenomenon of viral spread using a plaque reduction assay. In this assay, we used β-galactosidase-expressing reporter HCMV strain (RC256 from ATCC), which upon expression of β-galactosidase and x-gal staining in the infected cells showed blue foci. Plaque reduction assay have been considered the gold standard for antiviral susceptibility testing [68].

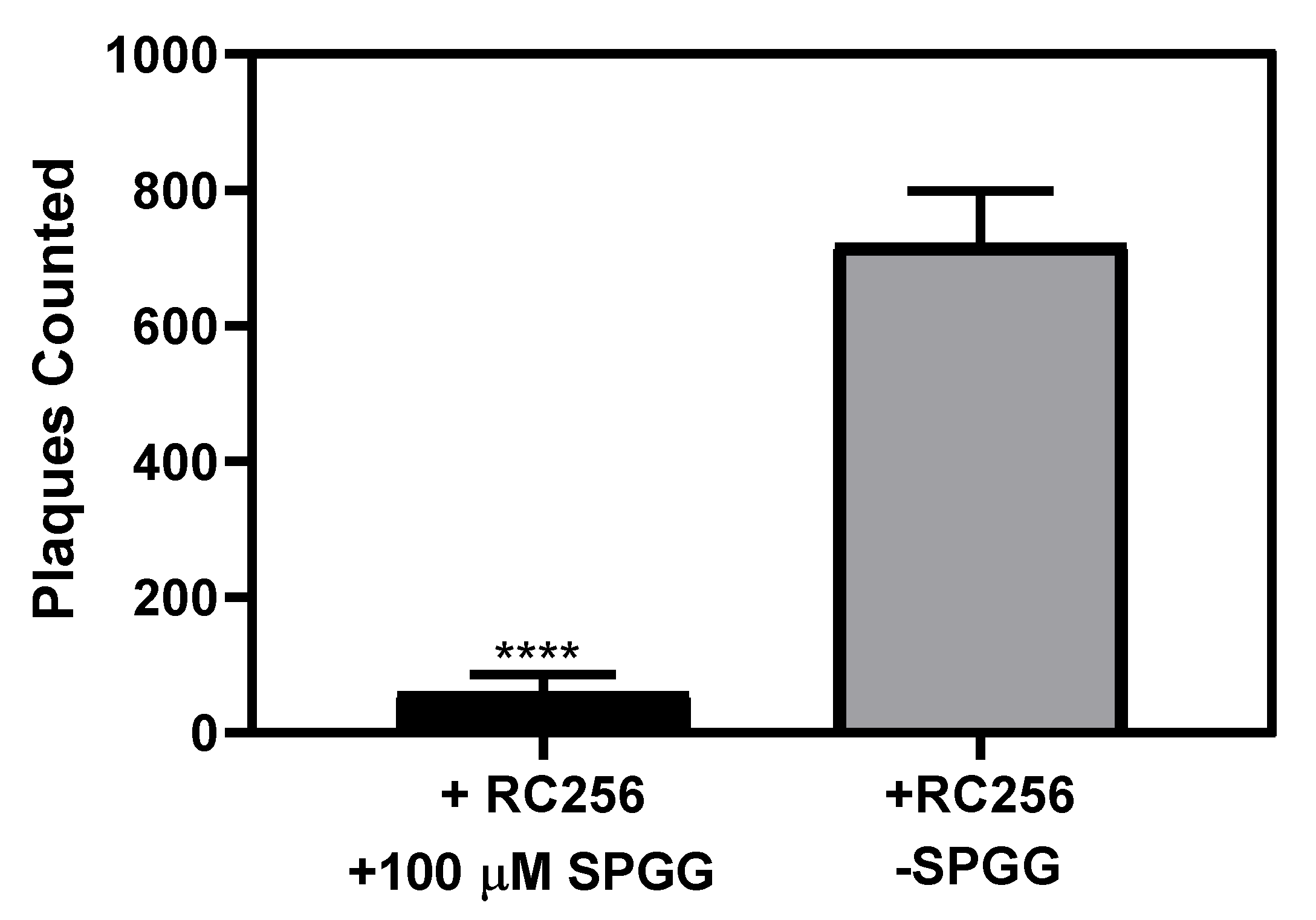

The plaque reduction assay was performed on HFF-1 cells using SPGG-treated or PBS mock-treated reporter virus. Initial experiments were performed to deduce the optimal concentration of MOI and period of infection with wild-type virus to detect foci to aid study of cell-to-cell spread. Treatment of HFF-1 with mock-treated HCMV strain RC256 for seven-days followed by x-gal staining and quantification of the blue-colored infected foci under 10× magnification led to highly reproducible measurement of viral spread. When 100 µM SPGG was used to pre-treat the virions, significantly fewer foci were observed after 7 days. Although the punctae observed in the assays may be aggregates of multiple viral particles, counting the number of viral foci showed a dramatic decrease in comparison to the mock-treated HCMV (Figure 5). This is especially important because the effect was measured after 7 days of treatment. Thus, these results at the morphological level indicated that SPGG also inhibited HCMV cell-to-cell spread.

2.5. SPGG Inhibition of HCMV Entry Arises Partially from Binding to Glycoprotein B (gB)

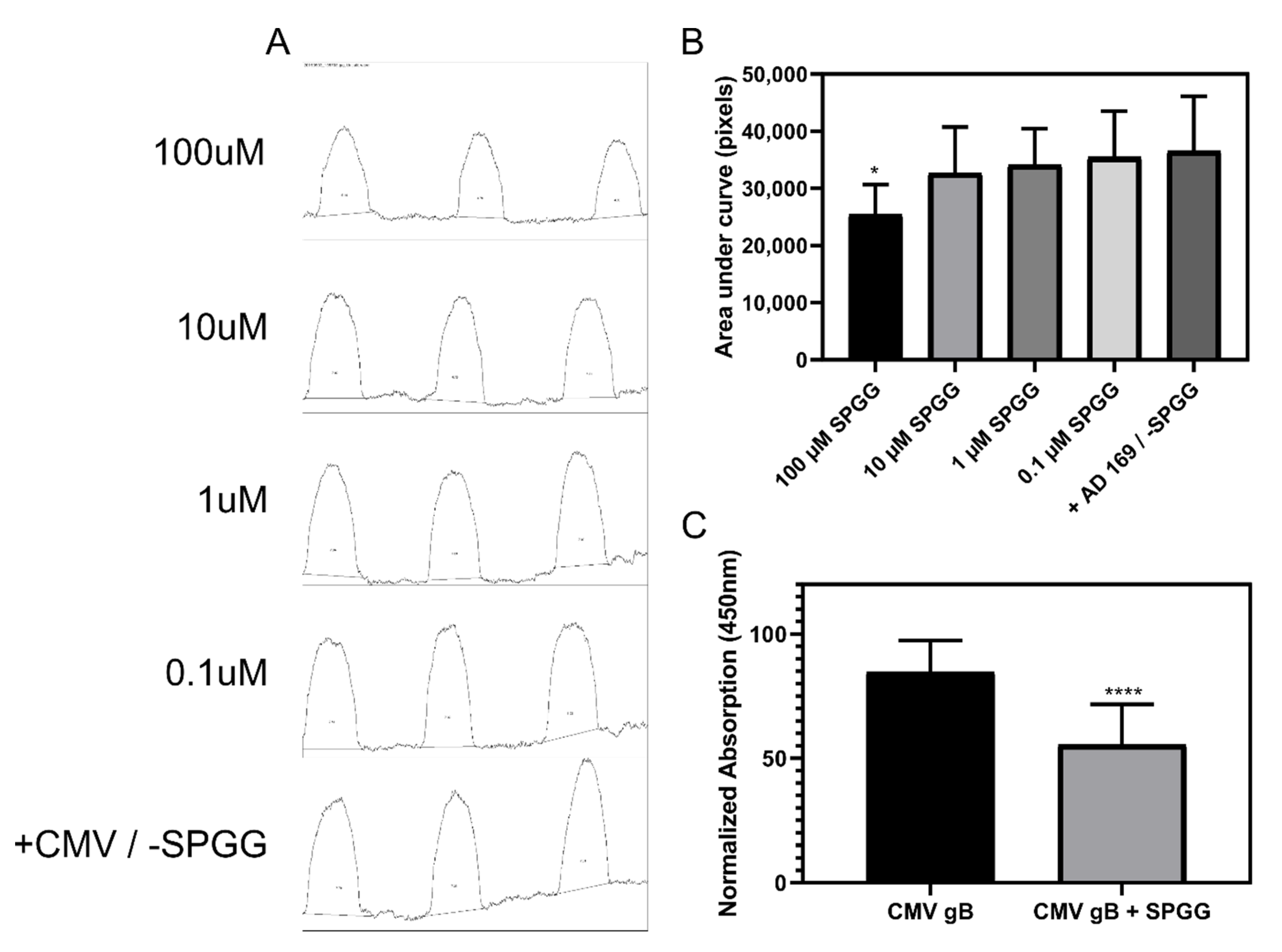

As described above, SPGG is a highly sulfated agent that can theoretically bind to several HS-binding proteins. One of these proteins is glycoprotein gB of HCMV, which is a known heparin-binding protein [69,70]. In fact, the design of this work, was based on the expectation that SPGG would bind to one of the viral surface glycoproteins. To test this expectation, we studied whether SPGG binds to gB using dot-blot hybridization and cell-ELISA assay. Figure 6 (panels A,B) shows the results of the dot-blot in the presence and absence of SPGG. As the concentration of SPGG increased to 100 µM, the gB signal reduced 30.5 ± 10% of the untreated control. Although a reduction in signal intensity at lower concentrations (<10 µM) was noticeable, the inhibition was not as robust as observed with IC50 profiles of viral entry or expression of genes (Figure 3 and Figure 4 above). To further test whether SPGG engages viral entry glycoprotein gB, we studied Chinese Hamster Ovary cells (CHO-K1) that over-express HCMV gB on cell surface. Dot-blot hybridization and cell-ELISA of CHO-K1 cells in the presence of 100 µM SPGG also led to reduction in gB signal intensity of 34.6 ± 20% in comparison to mock-treated controls (Figure 6C).
Together, two independent experiments with two different types agents bearing glycoprotein gB, i.e., HCMV virus and CHO-K1 cells, exhibited almost equivalent results for 100 µM SPGG. These results are encouraging and likely support that SPGG binds to glycoprotein gB of HCMV, although its affinity is expected to be weaker (10 to 100 µM). One explanation for this is that the anti-gB antibody and SPGG do not compete ideally for the same site of binding on gB. It is possible that both competitors bind gB simultaneously, albeit in a partially competitive manner, resulting in a less robust competition. Another possibility is that SPGG mediates HCMV inhibition through multiple viral surface receptors, one of which is gB. The foundation for this expectation is that SPGG has been earlier shown to bind tightly to glycoprotein D of HSV [50,51]. Likewise, SPGG also inhibits Chlamydia infection through binding to its cell surface receptors [66]. Finally, potential pathways that could be targeted by SPGG do exist, e.g., the engagement of one or more host cell surface receptors (e.g., PDGF-R, EGF-R, neuropilin, or others). Of the two, the latter is more likely because heparan sulfate and its mimetics are known to be pleiotropic entities.

3. Discussion

This work demonstrates for the first time the concept that small synthetic sulfated agents could effectively inhibit HCMV entry into host cells. Although previous work has demonstrated the concept that certain sulfated, natural, or unnatural polysaccharides (e.g., dextran sulfate, pentosan polysulfate, heparin, copolymers of acrylic acid) can inhibit HCMV infectivity in CHO-K1 and MRC-5 cells [71], the foundation for this activity was based on mimicking the polymeric scaffold of heparan sulfate, which has now been shown to be critical for HCMV entry [72,73,74,75]. In fact, the plausible molecular basis for this competitive inhibition was the interaction of sulfated polymers to viral glycoprotein gB of HCMV [25,26,27]. More specifically, the competitive inhibition was predicted to arise from mimicking the structure of certain heparan sulfates, e.g., 3-O sulfated and 6-O sulfated species [74]. In stark contrast, SPGG is a much smaller sulfated entity that performs the mimicking function with excellent potency. This is important because a smaller molecular scaffold is easier to transform into clinical drug candidates. Whereas polymers are difficult to synthesize, characterize, purify, analyze, monitor, and administer, smaller molecules are the exact opposite. Thus, SPGG provides the first small molecule lead toward discovery of anti-HCMV drugs.
The 2nd major reason for the novelty behind the discovery of SPGG is the possibility of simultaneous engagement of multiple receptors involved in HCMV entry into host cells. Complex interactions between viral envelope glycoproteins and host cell receptors come into play for successful entry [23,24]. One reason why nature seems to have engineered multiplicity of such interactions is to ensure probability of success. To significantly reduce efficiency of entry, it is important to simultaneously impact these interactions. Thus, targeting only interactions of 3-O-sulfated or 6-O-sulfated species, inhibition of HCMV entry may not yield a clinically viable agent. Despite being small, SPGG presents a diverse library of sulfated species that could bind all possible heparan sulfate binding receptors, thereby impeding viral recognition. This appears to be the case because SPGG binding to glycoprotein gB explains only part of the inhibition effect. Thus, pleiotropicity of SPGG interactions may be a key reason for its high anti-HCMV potency.
Another reason behind the excitement with SPGG is the inhibition of the immediate early viral gene expression in two different cell lines. As yet no sulfated biopolymer has been demonstrated to display this phenomenon. This finding is important because the products of immediate early genes are essential for viral DNA replication. Therefore, SPGG-like small molecule that display this phenomenon may offer novel strategies for inhibiting HCMV. Likewise, the reduction in viral spread adds more value to the inhibitory role of SPGG. It is important to note that the teratogenicity and toxicity of available HCMV antiviral agents make treatment options during early development markedly limited.
Although SPGG appears to be very valuable in terms of HCMV inhibition, it is important to note that it is still a mixture of septa-sulfated to dodeca-sulfated species. In terms of drug discovery, this is still a considerable limitation and better analogs of SPGG will have to be designed and evaluated. It would also be important to identify the receptor targets engaged by SPGG. Likewise, it would be also important to identify whether certain viral entry pathways are preferentially targeted by SPGG to develop strategies for further drug development. Thus, SPGG is only the first probe for anti-HCMV drug discovery.
In summary, our results provide the first evidence in support of pleiotropicity as a valuable approach for discovering anti-HCMV agents. We project that by simultaneously blocking multiple steps involved in HCMV entry and spread, SPGG holds good promise for future drug development.

4. Material and Methods

4.1. Cells and Viruses

HFF-1 cells (ATCC SCRC-1041), SK-N-MC cells (ATCC HTB-10), and CHO-K1 cells (ATCC CRL-9618) were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA) and were used for in vitro studies. Cells were grown under standard culture conditions (37 °C, 5% CO2) and were passaged according to manufacturer’s recommendations. HFF-1 and SK-N-MC cells were grown in Dulbecco’s modified Eagle medium (DMEM) and CHO-K1 cells were grown in Hams F12 medium (Corning, Tewksbury, MA, USA) supplemented with 100 U/mg/mL penicillin/streptomycin (Sigma-Aldrich, Saint Louis, MO, USA), and 10% fetal bovine serum (Optima, R&D Systems, Flowery Branch, GA, USA). HCMV strain RC-256 was purchased from ATCC (ATCC VR-2356). This recombinant derivative of the Towne strain carries and expresses the E. coli lacZ gene. HCMV strain AD169 (ATCC VR-538) was also purchased from ATCC. HCMV strain BAD32GFP (from the Tandon lab), is an AD169 derivative fused with green fluorescent protein (GFP) [76]. Viral stocks were propagated in HFF-1 cells and titers were determined by plaque and immunofluorescence assays and the resulting stocks were stored at −80 °C.

4.2. SPGG

The synthesis of SPGG has been reported earlier [77]. Briefly, it involves five steps starting from commercially available raw materials and culminating in a microwave-based sulfation reaction. The overall yield of this five step process is ~40%. The characterization of SPGG and its variants have been described in a later report [61]. The variant of SPGG used in this report has defined molecular composition of septa- (6%), octa- (17%), nona- (21%), deca- (45%), undeca- (11%), and dodeca- (3%) sulfated species (average molecular weight 2178; see Al-Horani et al., 2013), which has been reproducibly synthesized and characterized using advanced LC-MS/MS methods. This SPGG variant is most studied variant so far through characterization of anti-thrombotic, anti-HSV and anti-Chlamydia activity profiles [66].

4.3. Plaque Reduction Assay

HFF-1 cells were grown to semi-confluency overnight in a 12-well plate. The following day, RC256 was pretreated with 100 µM SPGG in serum free media (SFM) for 1 h at room temperature (RT) with agitation. Cells were infected with treated or untreated virus at a multiplicity of infection (MOI) of 1.0 in SFM for 2 h with rocking. After viral absorption, samples were washed three times in phosphate buffered saline (PBS) before the addition of overlay media (DMEM containing 1% heat-inactivated FBS and 0.5% methyl cellulose). Once a cytopathic effect was observed (four-seven days post infection), overlay media was removed and wells were washed three times with PBS. Cells were then fixed with fixative buffer (4% paraformaldehyde 0.2% glutaraldehyde in PBS) for 30 min, washed three times in PBS and incubated in permeabilization buffer (2 mM MgCl2, 0.01% Deoxycholate, 0.02% Nonidet P40 in PBS) for 30 min. Cells were then incubated in a substrate solution containing 500 µg/mL 5-bromo-4-chloro-3-indolyl-β-galactoside (X-gal, Thermo Fisher, Waltham, MA, USA). Blue-stained infected cells were counted under 10× magnification on an inverted microscope.

4.4. LDH Cytotoxicity Assay

Cellular toxicity of SPGG (0.39100 µM) was evaluated after 24 h using lactate dehydrogenase (LDH) release as an indicator of damage to the plasma membrane. The assay was performed by using a cytotoxicity assay kit (Thermo Fisher, Waltham, MA, USA) as previously described [50].

4.5. Cell-ELISA

HFF-1 or SK-N-MC cells were grown to semi-confluency overnight in black opaque 96-well plates. The following day, AD169 was preincubated with different dilutions of SPGG for 1 h with agitation and cells were infected with 0.3 MOI of treated or untreated virus for 2 h at RT. The infection media was replaced with SFM and incubated for an additional 5 h under standard conditions. The samples were fixed for 20 min with methanol, washed three times in Tris-buffered saline (TBS), and blocked for 2 h with protein-free blocking buffer (Thermo Fisher, Waltham, MA, USA). Samples were incubated overnight at 4 °C with a mouse monoclonal antibody against immediate early genes 1 and 2 (Virusys, Taneytown, MD, USA, cat. no. P1215) diluted 1:5000 in blocking buffer. Next, samples were washed three times with wash buffer (0.05% tween 20 in TBS) and then incubated for 1 h at RT with goat anti-mouse IgG (H+L) peroxidase-conjugated secondary antibody (Thermo Fisher, Waltham, MA, USA) diluted 1:20,000 in wash buffer. Samples were washed 3 times in wash buffer, Super Signal ELISA Femto Substrate (Thermo Fisher, Waltham, MA, USA) was added, and total luminescence was analyzed using a microplate luminometer (Beckman DTX 880).

4.6. Confocal Microscopy

HFF-1 and or SK-N-MC cells were seeded on cover glass in a 24-well plate and grown to 40% confluency overnight. Virus strain BAD32GFP was preincubated with dilutions of SPGG for 1 h with agitation. Cells were infected with 5.0 MOI of treated or untreated virus for 2 h at RT. The infection media was replaced with SFM and incubated for an additional 2 h under standard conditions. Samples were washed three times in PBS, fixed for 30 min, and washed an additional three times. Samples were then incubated overnight at 4 °C with anti-GFP mouse IgG2a secondary antibody (Thermo Fisher, Waltham, MA, USA) diluted 1:500 in blocking buffer. Samples were washed three times in PBS and incubated in normal goat serum diluted 1:100 in wash buffer overnight at 4 °C. Samples were then washed 3 times in PBS and then incubated with goat anti-mouse IgG Alexa Fluor 488 (Thermo Fisher, Waltham, MA, USA) diluted 1:500 in wash buffer for 1 h at RT. Samples were washed three times in PBS and incubated in phalloidin (Thermo Fisher, Waltham, MA, USA) diluted 1:40 in blocking buffer for 30 min in a humidity chamber. Samples were washed two times in PBS 0.2% Triton X-100, and once in dH2O before mounting to slides with hardset mounting media with DAPI (Vector Laboratories, Burlingame, CA, USA). Slides were imaged using the Nikon A1R confocal microscope and images were processed using ImageJ (version 1.52p, National Institutes of Health, USA) [78] and the GFP-positive punctae were enumerated in 3 random views per slide.

4.7. Cell-ELISA on CHO-K1 Cells Expressing HCMV gB

CHO-K1 cells were plated on 96-well plates and grown to 70%-90% confluence. The following day, CMV gB plasmid (pCCMVgB) from the Tandon lab, was transfected into cells using Lipofectamine 2000 (ThermoFisher, Waltham, MA, USA) and incubated overnight. Transfection media was replaced with complete media to allow cell recovery. Following, transfected cells were incubated with dilutions of SPGG for 1 h in SFM under standard conditions. The cells were then washed in TBS, fixed with methanol for five minutes and washed again. Cell-ELISA protocol described previously was then followed using 0.5 µg/mL monoclonal antibody to HCMV gB (Acris, Rockville, MD, USA, cat. no. BM3261) and goat anti-mouse peroxidase conjugated secondary antibody diluted 1:10,000 (ThermoFisher, Waltham, MA, USA). Final washing of the plate was done three times in TBST before 3,3′,5,5′-tetramethylbenzidine (TMB) substrate (Pierce Biotechnology, Rockford, IL, USA) was added and the reaction was stopped. The enzymatic activity was measured at OD 450 nm by microplate photometer (Thermo Scientific Multiskan FC).

4.8. Dot Blot Analysis of HCMV for gB in the Presence of SPGG

HCMV strain AD169 was pre-incubated with dilutions of SPGG for 1 h with agitation at RT. Following incubation, 10 µL spots containing 5 × 105 PFU AD169 and SPGG were applied to a 0.2 µm nitrocellulose membrane (Bio-Rad Laboratories, Hercules, CA). Spots were dried and the membrane was blocked in protein-free blocking buffer (ThermoFisher, Waltham, MA, USA) for 1 h. Standard ELISA protocol previously described was then followed using 1 µg/mL monoclonal antibody to HCMV gB (Acris) and goat anti-mouse peroxidase conjugated secondary antibody diluted 1:10,000 (ThermoFisher). After the final wash, the blot was incubated with 3-amino-9-ethylcarbazole (AEC) staining solution (Sigma-Aldrich, St. Louis, MO, USA) for 30 min and rinsed in water before imaging. The intensity of the signal was quantified using ImageJ gel analysis function to calculate and plot the area under each peak.

4.9. Statistical and Software Analysis

All experiments were performed in triplicate unless otherwise stated to confirm consistency of results. The student t-test and ANOVA was used to analyze data and a P-value of less than 0.05 was considered statistically significant between the control and the treatment groups. ImageJ was used to enumerate GFP signal in random sections of infected cells for confocal microscopy and was also used to estimate relative density and size of samples in the dot blot.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/5/1676/s1. Figure S1: Localization of HCMV entry into HFF-1 and SK-N-MC cells treated with SPGG in High-resolution confocal microscopy. Full panels.

Author Contributions

Conceptualization, J.E., D.K., H.S., M.F., V.T., and U.R.D.; methodology, J.E., D.K., H.S., M.F., V.T., and U.R.D.; validation, J.E. and D.K.; formal analysis, J.E. and D.K.; investigation, J.E., D.K., V.R.P., M.T.N., V.T. and U.R.D.; resources, R.T., S.K.M, M.V.V., M.F., V.T. and U.R.D.; data curation, J.E., D.K., M.F., V.T. and U.R.D; writing—original draft preparation, J.E., D.K., M.F., V.T. and U.R.D; writing—review and editing, J.E., D.K., R.T., S.K.M., M.V.V., M.F., V.T. and U.R.D; visualization, J.E., D.K., U.R.D.; supervision, J.E., M.F., V.T., and U.R.D.; project administration, J.E., D.K., H.S., M.F., V.T. and U.R.D.; funding acquisition, M.F., V.T. and U.R.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NIH grants HL090586 and HL107152 to URD, and MWU start-up funds to VT and MF.

Acknowledgments

The authors sincerely acknowledge the core-facility at MWU for Imaging. DDK was supported by funds from the College of Graduate Studies (MWU). VRP and MTN were supported by the KAS fellowship (MWU).

Conflicts of Interest

S.K.M. was employed by Jes Tech, KBR Wyle Laboratories. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Weller, T.H. The cytomegaloviruses: Ubiquitous agents with protean clinical manifestations. I. N. Engl. J. Med. 1971, 285, 203–214. [Google Scholar] [CrossRef] [PubMed]
  2. Manicklal, S.; Emery, V.C.; Lazzarotto, T.; Boppana, S.B.; Gupta, R.K. The "silent" global burden of congenital cytomegalovirus. Clin. Microbiol. Rev. 2013, 26, 86–102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Cannon, M.J.; Schmid, D.S.; Hyde, T.B. Review of cytomegalovirus seroprevalence and demographic characteristics associated with infection. Rev. Med. Virol. 2010, 20, 202–213. [Google Scholar] [CrossRef] [PubMed]
  4. Gardner, T.J.; Tortorella, D. Virion Glycoprotein-Mediated Immune Evasion by Human Cytomegalovirus: A Sticky Virus Makes a Slick Getaway. Microbiol. Mol. Biol. Rev. 2016, 80, 663–677. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Russell, M.Y.; Palmer, A.; Michaels, M.G. Cytomegalovirus infection in pediatric immunocompromised hosts. Infect. Disord. Drug Targets 2011, 11, 437–448. [Google Scholar] [CrossRef] [PubMed]
  6. Fields, B.N.; Knipe, D.M.; Howley, P.M.; Griffin, D.E. Fields Virology; Wolters Kluwer Health/Lippincott Williams & Wilkins: Philadelphia, PA, USA, 2007; pp. 2701–2772. [Google Scholar]
  7. Rafailidis, P.I.; Mourtzoukou, E.G.; Varbobitis, I.C.; Falagas, M.E. Severe cytomegalovirus infection in apparently immunocompetent patients: A systematic review. Virol. J. 2008, 5, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Maschke, M.; Kastrup, O.; Diener, H.C. CNS manifestations of cytomegalovirus infections: Diagnosis and treatment. CNS Drugs 2002, 16, 303–315. [Google Scholar] [CrossRef]
  9. Becroft, D.M. Prenatal cytomegalovirus infection: Epidemiology, pathology and pathogenesis. Perspect Pediatr. Pathol. 1981, 6, 203–241. [Google Scholar]
  10. Stagno, S.; Pass, R.F.; Cloud, G.; Britt, W.J.; Henderson, R.E.; Walton, P.D.; Veren, D.A.; Page, F.; Alford, C.A. Primary cytomegalovirus infection in pregnancy. Incidence, transmission to fetus, and clinical outcome. JAMA 1986, 256, 1904–1908. [Google Scholar] [CrossRef]
  11. Ho, M. Congenital and perinatal human cytomegalovirus infection. In Cytomegalovirus: Biology and Infection; Plenum Pr.: New York, NY, USA, 1991; pp. 205–227. [Google Scholar]
  12. Pass, R.F.; Stagno, S.; Myers, G.J.; Alford, C.A. Outcome of symptomatic congenital cytomegalovirus infection: Results of long-term longitudinal follow-up. Pediatrics 1980, 66, 758–762. [Google Scholar]
  13. Conboy, T.J.; Pass, R.F.; Stagno, S.; Britt, W.J.; Alford, C.A.; McFarland, C.E.; Boll, T.J. Intellectual development in school-aged children with asymptomatic congenital cytomegalovirus infection. Pediatrics 1986, 77, 801–806. [Google Scholar] [PubMed]
  14. Cinque, P.; Marenzi, R.; Ceresa, D. Cytomegalovirus infections of the nervous system. Intervirology 1997, 40, 85–97. [Google Scholar] [CrossRef] [PubMed]
  15. Gianella, S.; Letendre, S. Cytomegalovirus and HIV: A Dangerous Pas de Deux. J. Infect. Dis. 2016, 214, S67–S74. [Google Scholar] [CrossRef] [PubMed]
  16. Holbrook, J.T.; Jabs, D.A.; Weinberg, D.V.; Lewis, R.A.; Davis, M.D.; Friedberg, D. Visual loss in patients with cytomegalovirus retinitis and acquired immunodeficiency syndrome before widespread availability of highly active antiretroviral therapy. Arch. Ophthalmol. 2003, 121, 99–107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Jabs, D.A.; Ahuja, A.; Van Natta, M.L.; Lyon, A.T.; Yeh, S.; Danis, R. Long-term Outcomes of Cytomegalovirus Retinitis in the Era of Modern Antiretroviral Therapy: Results from a United States Cohort. Ophthalmology 2015, 122, 1452–1463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Jackson, J.W.; Sparer, T. There Is Always Another Way! Cytomegalovirus’ Multifaceted Dissemination Schemes. Viruses 2018, 10, 383. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Sinzger, C.; Grefte, A.; Plachter, B.; Gouw, A.S.; The, T.H.; Jahn, G. Fibroblasts, epithelial cells, endothelial cells and smooth muscle cells are major targets of human cytomegalovirus infection in lung and gastrointestinal tissues. J. Gen. Virol 1995, 76, 741–750. [Google Scholar] [CrossRef]
  20. Revello, M.G.; Gerna, G. Human cytomegalovirus tropism for endothelial/epithelial cells: Scientific background and clinical implications. Rev. Med. Virol. 2010, 20, 136–155. [Google Scholar] [CrossRef]
  21. Stein, K.R.; Gardner, T.J.; Hernandez, R.E.; Kraus, T.A.; Duty, J.A.; Ubarretxena-Belandia, I.; Moran, T.M.; Tortorella, D. CD46 facilitates entry and dissemination of human cytomegalovirus. Nat. Commun. 2019, 10, 2699. [Google Scholar] [CrossRef]
  22. Gerna, G.; Kabanova, A.; Lilleri, D. Human Cytomegalovirus Cell Tropism and Host Cell Receptors. Vaccines (Basel) 2019, 7, 70. [Google Scholar] [CrossRef] [Green Version]
  23. Farrell, H.E.; Stevenson, P.G. Cytomegalovirus host entry and spread. J. Gen. Virol. 2019, 100, 545–553. [Google Scholar] [CrossRef] [PubMed]
  24. Vanarsdall, A.L.; Johnson, D.C. Human cytomegalovirus entry into cells. Curr. Opin. Virol. 2012, 2, 37–42. [Google Scholar] [CrossRef] [Green Version]
  25. Compton, T.; Nowlin, D.M.; Cooper, N.R. Initiation of human cytomegalovirus infection requires initial interaction with cell surface heparan sulfate. Virology 1993, 193, 834–841. [Google Scholar] [CrossRef] [PubMed]
  26. Borst, E.M.; Standker, L.; Wagner, K.; Schulz, T.F.; Forssmann, W.G.; Messerle, M. A peptide inhibitor of cytomegalovirus infection from human hemofiltrate. Antimicrob. Agents Chemother. 2013, 57, 4751–4760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Baldwin, J.; Maus, E.; Zanotti, B.; Volin, M.V.; Tandon, R.; Shukla, D.; Tiwari, V. A role for 3-O-sulfated heparan sulfate in promoting human cytomegalovirus infection in human iris cells. J. Virol. 2015, 89, 5185–5192. [Google Scholar] [CrossRef] [Green Version]
  28. Nguyen, C.C.; Kamil, J.P. Pathogen at the Gates: Human Cytomegalovirus Entry and Cell Tropism. Viruses 2018, 10, 704. [Google Scholar] [CrossRef] [Green Version]
  29. Vanarsdall, A.L.; Pritchard, S.R.; Wisner, T.W.; Liu, J.; Jardetzky, T.S.; Johnson, D.C. CD147 Promotes Entry of Pentamer-Expressing Human Cytomegalovirus into Epithelial and Endothelial Cells. MBio 2018, 9. [Google Scholar] [CrossRef] [Green Version]
  30. Kim, J.H.; Collins-McMillen, D.; Buehler, J.C.; Goodrum, F.D.; Yurochko, A.D. Human Cytomegalovirus Requires Epidermal Growth Factor Receptor Signaling To Enter and Initiate the Early Steps in the Establishment of Latency in CD34(+) Human Progenitor Cells. J. Virol. 2017, 91. [Google Scholar] [CrossRef] [Green Version]
  31. Xiaofei, E.; Meraner, P.; Lu, P.; Perreira, J.M.; Aker, A.M.; McDougall, W.M.; Zhuge, R.; Chan, G.C.; Gerstein, R.M.; Caposio, P.; et al. OR14I1 is a receptor for the human cytomegalovirus pentameric complex and defines viral epithelial cell tropism. Proc. Natl. Acad. Sci. USA 2019, 116, 7043–7052. [Google Scholar] [CrossRef] [Green Version]
  32. Liu, J.; Jardetzky, T.S.; Chin, A.L.; Johnson, D.C.; Vanarsdall, A.L. The Human Cytomegalovirus Trimer and Pentamer Promote Sequential Steps in Entry into Epithelial and Endothelial Cells at Cell Surfaces and Endosomes. J. Virol. 2018, 92. [Google Scholar] [CrossRef] [Green Version]
  33. Ryckman, B.J.; Chase, M.C.; Johnson, D.C. HCMV gH/gL/UL128-131 interferes with virus entry into epithelial cells: Evidence for cell type-specific receptors. Proc. Natl Acad Sci USA 2008, 105, 14118–14123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ryckman, B.J.; Rainish, B.L.; Chase, M.C.; Borton, J.A.; Nelson, J.A.; Jarvis, M.A.; Johnson, D.C. Characterization of the human cytomegalovirus gH/gL/UL128-131 complex that mediates entry into epithelial and endothelial cells. J. Virol. 2008, 82, 60–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Prichard, M.N.; Kern, E.R. The search for new therapies for human cytomegalovirus infections. Virus Res. 2011, 157, 212–221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Hakki, M.; Chou, S. The biology of cytomegalovirus drug resistance. Curr. Opin. Infect. Dis. 2011, 24, 605–611. [Google Scholar] [CrossRef] [Green Version]
  37. Andrei, G.; De Clercq, E.; Snoeck, R. Novel inhibitors of human CMV. Curr. Opin. Investig. Drugs 2008, 9, 132–145. [Google Scholar]
  38. Andrei, G.; De Clercq, E.; Snoeck, R. Drug targets in cytomegalovirus infection. Infect. Disord Drug Targets 2009, 9, 201–222. [Google Scholar] [CrossRef]
  39. Biron, K.K. Antiviral drugs for cytomegalovirus diseases. Antiviral. Res. 2006, 71, 154–163. [Google Scholar] [CrossRef]
  40. Britt, W.J.; Prichard, M.N. New therapies for human cytomegalovirus infections. Antiviral. Res. 2018, 159, 153–174. [Google Scholar] [CrossRef]
  41. Isaacson, M.K.; Compton, T. Human cytomegalovirus glycoprotein B is required for virus entry and cell-to-cell spread but not for virion attachment, assembly, or egress. J. Virol. 2009, 83, 3891–3903. [Google Scholar] [CrossRef] [Green Version]
  42. Mercorelli, B.; Lembo, D.; Palu, G.; Loregian, A. Early inhibitors of human cytomegalovirus: State-of-art and therapeutic perspectives. Pharmacol. Ther. 2011, 131, 309–329. [Google Scholar] [CrossRef]
  43. Damonte, E.B.; Matulewicz, M.C.; Cerezo, A.S. Sulfated seaweed polysaccharides as antiviral agents. Curr. Med. Chem. 2004, 11, 2399–2419. [Google Scholar] [CrossRef] [PubMed]
  44. Ghosh, A.K.; Takayama, J.; Aubin, Y.; Ratia, K.; Chaudhuri, R.; Baez, Y.; Sleeman, K.; Coughlin, M.; Nichols, D.B.; Mulhearn, D.C.; et al. Structure-based design, synthesis, and biological evaluation of a series of novel and reversible inhibitors for the severe acute respiratory syndrome-coronavirus papain-like protease. J. Med. Chem. 2009, 52, 5228–5240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Lee, E.; Pavy, M.; Young, N.; Freeman, C.; Lobigs, M. Antiviral effect of the heparan sulfate mimetic, PI-88, against dengue and encephalitic flaviviruses. Antiviral. Res. 2006, 69, 31–38. [Google Scholar] [CrossRef] [PubMed]
  46. Luganini, A.; Giuliani, A.; Pirri, G.; Pizzuto, L.; Landolfo, S.; Gribaudo, G. Peptide-derivatized dendrimers inhibit human cytomegalovirus infection by blocking virus binding to cell surface heparan sulfate. Antiviral. Res. 2010, 85, 532–540. [Google Scholar] [CrossRef]
  47. Nyberg, K.; Ekblad, M.; Bergstrom, T.; Freeman, C.; Parish, C.R.; Ferro, V.; Trybala, E. The low molecular weight heparan sulfate-mimetic, PI-88, inhibits cell-to-cell spread of herpes simplex virus. Antiviral. Res. 2004, 63, 15–24. [Google Scholar] [CrossRef]
  48. Bobardt, M.D.; Chatterji, U.; Schaffer, L.; de Witte, L.; Gallay, P.A. Syndecan-Fc hybrid molecule as a potent in vitro microbicidal anti-HIV-1 agent. Antimicrob. Agents Chemother. 2010, 54, 2753–2766. [Google Scholar] [CrossRef] [Green Version]
  49. Connell, B.J.; Lortat-Jacob, H. Human immunodeficiency virus and heparan sulfate: From attachment to entry inhibition. Front. Immunol. 2013, 4, 385. [Google Scholar] [CrossRef] [Green Version]
  50. Gangji, R.N.; Sankaranarayanan, N.V.; Elste, J.; Al-Horani, R.A.; Afosah, D.K.; Joshi, R.; Tiwari, V.; Desai, U.R. Inhibition of Herpes Simplex Virus-1 Entry into Human Cells by Nonsaccharide Glycosaminoglycan Mimetics. ACS Med. Chem. Lett. 2018, 9, 797–802. [Google Scholar] [CrossRef]
  51. Majmudar, H.; Hao, M.; Sankaranarayanan, N.V.; Zanotti, B.; Volin, M.V.; Desai, U.R.; Tiwari, V. A synthetic glycosaminoglycan mimetic blocks HSV-1 infection in human iris stromal cells. Antiviral. Res. 2019, 161, 154–162. [Google Scholar] [CrossRef]
  52. Raghuraman, A.; Tiwari, V.; Thakkar, J.N.; Gunnarsson, G.T.; Shukla, D.; Hindle, M.; Desai, U.R. Structural characterization of a serendipitously discovered bioactive macromolecule, lignin sulfate. Biomacromolecules 2005, 6, 2822–2832. [Google Scholar] [CrossRef]
  53. Raghuraman, A.; Tiwari, V.; Zhao, Q.; Shukla, D.; Debnath, A.K.; Desai, U.R. Viral inhibition studies on sulfated lignin, a chemically modified biopolymer and a potential mimic of heparan sulfate. Biomacromolecules 2007, 8, 1759–1763. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Thakkar, J.N.; Tiwari, V.; Desai, U.R. Nonsulfated, cinnamic acid-based lignins are potent antagonists of HSV-1 entry into cells. Biomacromolecules 2010, 11, 1412–1416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Boothello, R.S.; Patel, N.J.; Sharon, C.; Abdelfadiel, E.I.; Morla, S.; Brophy, D.F.; Lippman, H.R.; Desai, U.R.; Patel, B.B. A Unique Nonsaccharide Mimetic of Heparin Hexasaccharide Inhibits Colon Cancer Stem Cells via p38 MAP Kinase Activation. Mol. Cancer Ther. 2019, 18, 51–61. [Google Scholar] [CrossRef] [Green Version]
  56. Raman, K.; Mencio, C.; Desai, U.R.; Kuberan, B. Sulfation patterns determine cellular internalization of heparin-like polysaccharides. Mol. Pharm. 2013, 10, 1442–1449. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Al-Horani, R.A.; Abdelfadiel, E.I.; Afosah, D.K.; Morla, S.; Sistla, J.C.; Mohammed, B.; Martin, E.J.; Sakagami, M.; Brophy, D.F.; Desai, U.R. A synthetic heparin mimetic that allosterically inhibits factor XIa and reduces thrombosis in vivo without enhanced risk of bleeding. J. Thromb. Haemost. 2019, 17, 2110–2122. [Google Scholar] [CrossRef] [PubMed]
  58. Mehta, A.Y.; Mohammed, B.M.; Martin, E.J.; Brophy, D.F.; Gailani, D.; Desai, U.R. Allosterism-based simultaneous, dual anticoagulant and antiplatelet action: Allosteric inhibitor targeting the glycoprotein Ibalpha-binding and heparin-binding site of thrombin. J. Thromb. Haemost. 2016, 14, 828–838. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Morla, S.; Sankaranarayanan, N.V.; Afosah, D.K.; Kumar, M.; Kummarapurugu, A.B.; Voynow, J.A.; Desai, U.R. On the Process of Discovering Leads That Target the Heparin-Binding Site of Neutrophil Elastase in the Sputum of Cystic Fibrosis Patients. J. Med. Chem. 2019, 62, 5501–5511. [Google Scholar] [CrossRef]
  60. Patel, N.J.; Karuturi, R.; Al-Horani, R.A.; Baranwal, S.; Patel, J.; Desai, U.R.; Patel, B.B. Synthetic, non-saccharide, glycosaminoglycan mimetics selectively target colon cancer stem cells. ACS Chem. Biol. 2014, 9, 1826–1833. [Google Scholar] [CrossRef]
  61. Al-Horani, R.A.; Desai, U.R. Designing allosteric inhibitors of factor XIa. Lessons from the interactions of sulfated pentagalloylglucopyranosides. J. Med. Chem 2014, 57, 4805–4818. [Google Scholar] [CrossRef] [Green Version]
  62. Kumar, P.; Nagarajan, A.; Uchil, P.D. Analysis of Cell Viability by the Lactate Dehydrogenase Assay. Cold Spring Harb Protoc. 2018, 2018. [Google Scholar] [CrossRef]
  63. Arai, Y.; Ishiwata, M.; Baba, S.; Kawasaki, H.; Kosugi, I.; Li, R.Y.; Tsuchida, T.; Miura, K.; Tsutsui, Y. Neuron-specific activation of murine cytomegalovirus early gene e1 promoter in transgenic mice. Am. J. Pathol. 2003, 163, 643–652. [Google Scholar] [CrossRef] [Green Version]
  64. Archer, M.A.; Brechtel, T.M.; Davis, L.E.; Parmar, R.C.; Hasan, M.H.; Tandon, R. Inhibition of endocytic pathways impacts cytomegalovirus maturation. Sci. Rep. 2017, 7, 46069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. McDonough, S.H.; Staprans, S.I.; Spector, D.H. Analysis of the major transcripts encoded by the long repeat of human cytomegalovirus strain AD169. J. Virol. 1985, 53, 711–718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Gallegos, K.M.; Taylor, C.R.; Rabulinski, D.J.; Del Toro, R.; Girgis, D.E.; Jourha, D.; Tiwari, V.; Desai, U.R.; Ramsey, K.H. A Synthetic, Small, Sulfated Agent Is a Promising Inhibitor of Chlamydia spp. Infection in vivo. Front. Microbiol. 2018, 9, 3269. [Google Scholar] [CrossRef] [PubMed]
  67. Shukla, D.; Spear, P.G. Herpesviruses and heparan sulfate: An intimate relationship in aid of viral entry. J. Clin. Invest. 2001, 108, 503–510. [Google Scholar] [CrossRef] [PubMed]
  68. Wentworth, B.B.; French, L. Plaque assay of cytomegalovirus strains of human origin. Proc. Soc. Exp. Biol Med. 1970, 135, 253–258. [Google Scholar] [CrossRef]
  69. Boyle, K.A.; Pietropaolo, R.L.; Compton, T. Engagement of the cellular receptor for glycoprotein B of human cytomegalovirus activates the interferon-responsive pathway. Mol. Cell Biol 1999, 19, 3607–3613. [Google Scholar] [CrossRef] [Green Version]
  70. Heldwein, E.E.; Lou, H.; Bender, F.C.; Cohen, G.H.; Eisenberg, R.J.; Harrison, S.C. Crystal structure of glycoprotein B from herpes simplex virus 1. Science 2006, 313, 217–220. [Google Scholar] [CrossRef] [Green Version]
  71. Neyts, J.; Snoeck, R.; Schols, D.; Balzarini, J.; Esko, J.D.; Van Schepdael, A.; De Clercq, E. Sulfated polymers inhibit the interaction of human cytomegalovirus with cell surface heparan sulfate. Virology 1992, 189, 48–58. [Google Scholar] [CrossRef]
  72. Dogra, P.; Martin, E.B.; Williams, A.; Richardson, R.L.; Foster, J.S.; Hackenback, N.; Kennel, S.J.; Sparer, T.E.; Wall, J.S. Novel heparan sulfate-binding peptides for blocking herpesvirus entry. PLoS One 2015, 10, e0126239. [Google Scholar] [CrossRef] [Green Version]
  73. Kaltenbach, D.D.; Jaishankar, D.; Hao, M.; Beer, J.C.; Volin, M.V.; Desai, U.R.; Tiwari, V. Sulfotransferase and Heparanase: Remodeling Engines in Promoting Virus Infection and Disease Development. Front. Pharmacol 2018, 9, 1315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Tiwari, V.; Liu, J.; Valyi-Nagy, T.; Shukla, D. Anti-heparan sulfate peptides that block herpes simplex virus infection in vivo. J. Biol. Chem. 2011, 286, 25406–25415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Tiwari, V.; Tarbutton, M.S.; Shukla, D. Diversity of heparan sulfate and HSV entry: Basic understanding and treatment strategies. Molecules 2015, 20, 2707–2727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Moorman, N.J.; Sharon-Friling, R.; Shenk, T.; Cristea, I.M. A targeted spatial-temporal proteomics approach implicates multiple cellular trafficking pathways in human cytomegalovirus virion maturation. Mol. Cell Proteomics 2010, 9, 851–860. [Google Scholar] [CrossRef] [Green Version]
  77. Al-Horani, R.A.; Ponnusamy, P.; Mehta, A.Y.; Gailani, D.; Desai, U.R. Sulfated pentagalloylglucoside is a potent, allosteric, and selective inhibitor of factor XIa. J. Med. Chem 2013, 56, 867–878. [Google Scholar] [CrossRef] [Green Version]
  78. Rueden, C.T.; Schindelin, J.; Hiner, M.C.; DeZonia, B.E.; Walter, A.E.; Arena, E.T.; Eliceiri, K.W. ImageJ2: ImageJ for the next generation of scientific image data. BMC Bioinformatics 2017, 18, 529. [Google Scholar] [CrossRef]
Ijms 21 01676 g001 550

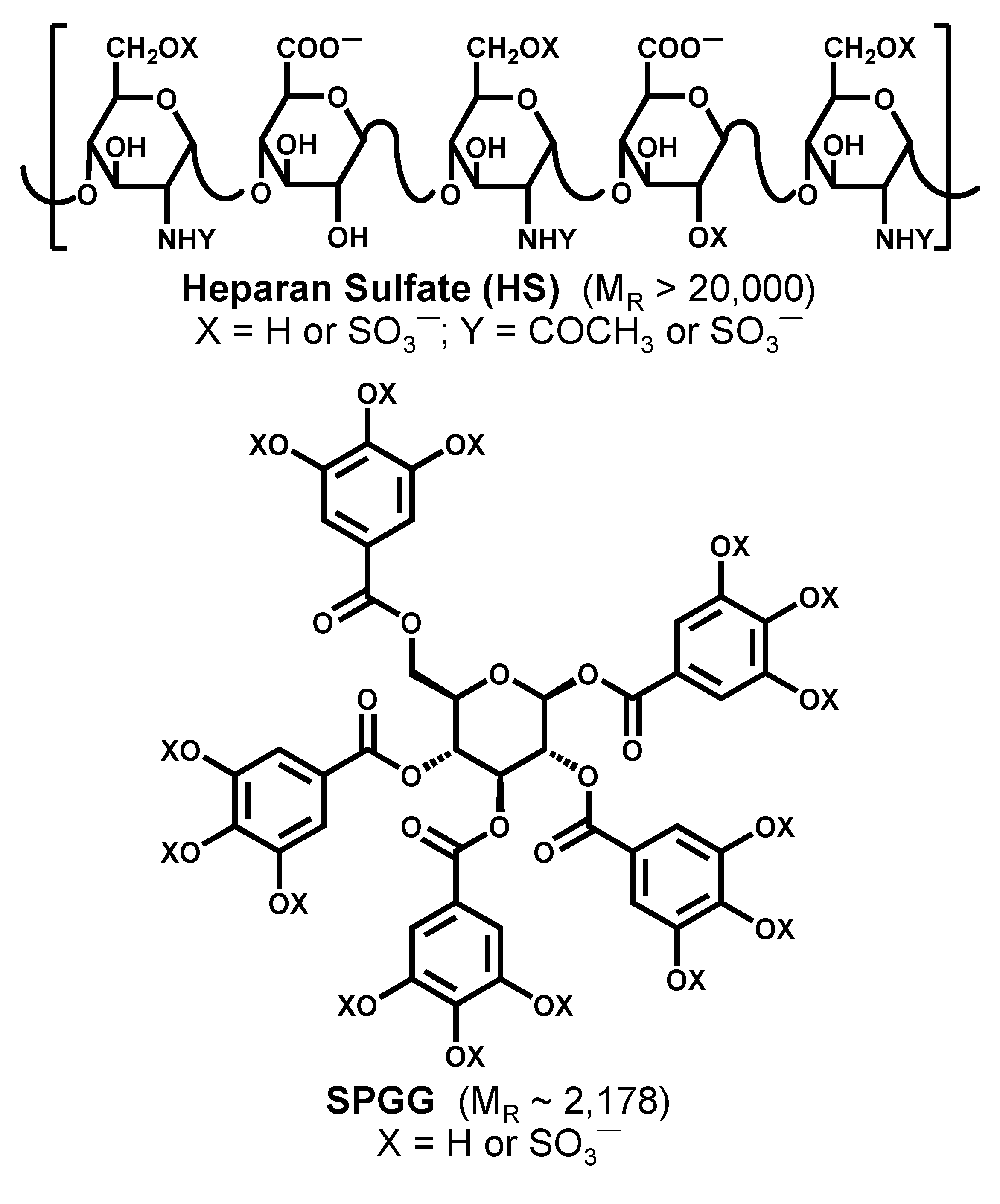

Figure 1. Heparan sulfate (HS) and sulfated pentagalloylglucoside (SPGG). Whereas HS is a linear polymer with an average molecular weight (Mr) of approximately 20,000, SPGG is a globular small molecule with Mr of 2178. HS is a biopolymer; in contrast SPGG is synthesized in 5 steps in excellent yields.
Figure 1. Heparan sulfate (HS) and sulfated pentagalloylglucoside (SPGG). Whereas HS is a linear polymer with an average molecular weight (Mr) of approximately 20,000, SPGG is a globular small molecule with Mr of 2178. HS is a biopolymer; in contrast SPGG is synthesized in 5 steps in excellent yields.
Ijms 21 01676 g001
Ijms 21 01676 g002 550

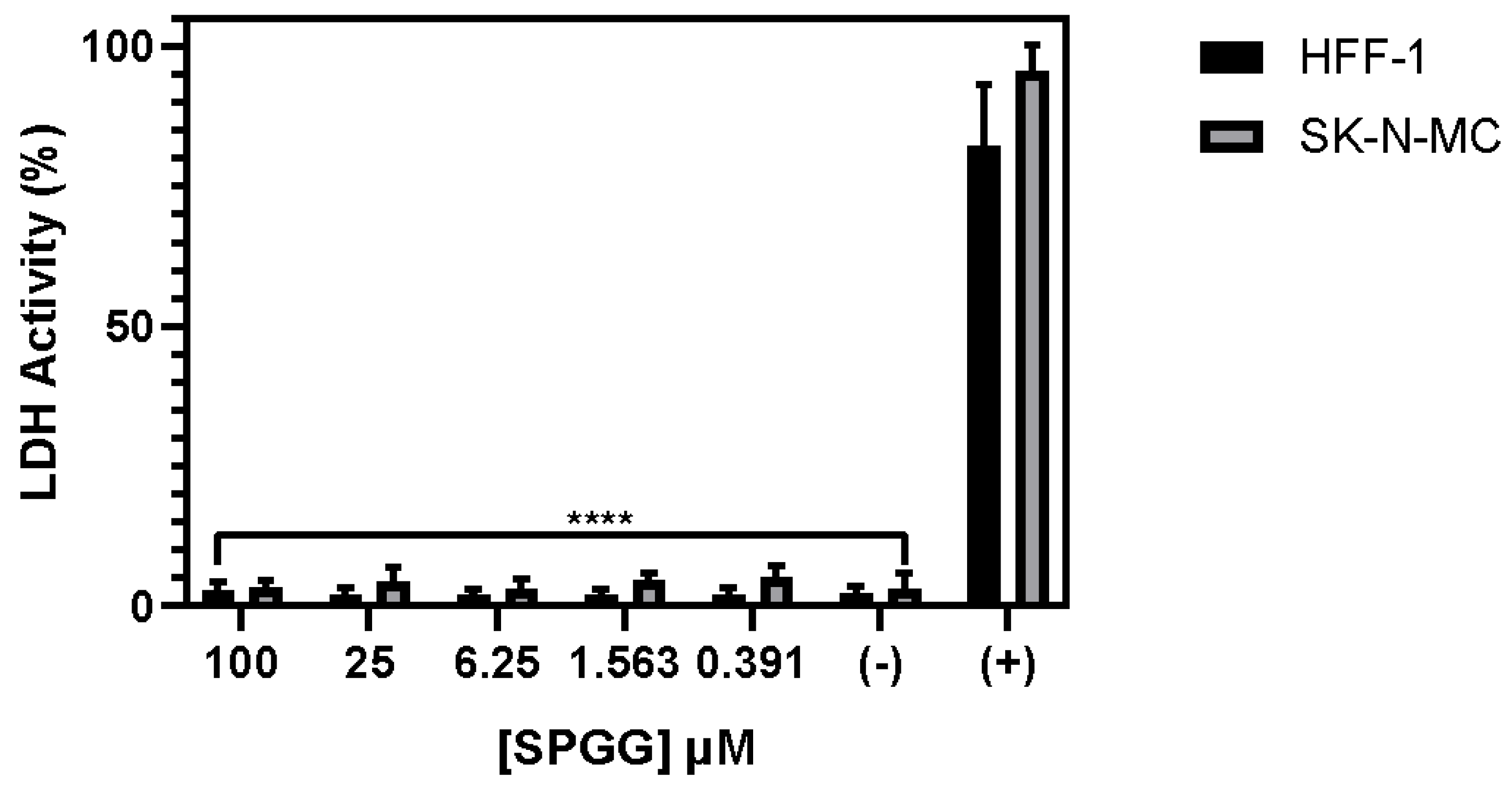

Figure 2. Effect of SPGG on HFF-1 and SK-N-MC cells. The cells monolayers were incubated in the presence or absence of SPGG in a dose dependent manner. Controls; (+) represents maximum lactate dehydrogenase (LDH) activity control, (−) represents the spontaneous LDH release control. A one-way analysis of variance (ANOVA) determined significant difference among means with a P-value of < 0.0001 in both cell types. Dunnett’s multiple comparison test found significant differences between the mean of each treatment in comparison to the mean of the positive control column, (****) signifies a P-value of < 0.0001. The graph is indicative of the mean values and SD of triplicate experiment.
Figure 2. Effect of SPGG on HFF-1 and SK-N-MC cells. The cells monolayers were incubated in the presence or absence of SPGG in a dose dependent manner. Controls; (+) represents maximum lactate dehydrogenase (LDH) activity control, (−) represents the spontaneous LDH release control. A one-way analysis of variance (ANOVA) determined significant difference among means with a P-value of < 0.0001 in both cell types. Dunnett’s multiple comparison test found significant differences between the mean of each treatment in comparison to the mean of the positive control column, (****) signifies a P-value of < 0.0001. The graph is indicative of the mean values and SD of triplicate experiment.
Ijms 21 01676 g002
Ijms 21 01676 g003 550
Figure 3. Human cytomegalovirus (HCMV) entry into HFF-1 and SK-N-MC cells treated with SPGG in High-resolution confocal microscopy. HFF-1 and SK-N-MC cells were challenged with the HCMV strain BAD32GFP which was pre-incubated with or without SPGG 100µM for 1 h. The double immunolabeling in confocal microscopy shows an increased number of GFP puncta (green highlighted with white arrows) in HFF-1 cells (A) and SK-N-MC cell (D) infected with HCMV and mock-treated compared to HCMV treated with SPGG (B,E). Cells were counterstained with phalloidin (red) and DAPI (blue) and images were processed and enumerated using ImageJ. The number of GFP-positive puncta detected in HFF-1 (C) and SK-N-MC (F) cells infected with HCMV exposed to different concentrations of SPGG was quantified in ImageJ using 3 random views per slide. The Graphs show a clear dose-dependent reduction in number of GFP-positive for both cell lines. Data are shown as mean value and SD for a triplicate experiment. Scale bar (A–E) = 50 µm.
Figure 3. Human cytomegalovirus (HCMV) entry into HFF-1 and SK-N-MC cells treated with SPGG in High-resolution confocal microscopy. HFF-1 and SK-N-MC cells were challenged with the HCMV strain BAD32GFP which was pre-incubated with or without SPGG 100µM for 1 h. The double immunolabeling in confocal microscopy shows an increased number of GFP puncta (green highlighted with white arrows) in HFF-1 cells (A) and SK-N-MC cell (D) infected with HCMV and mock-treated compared to HCMV treated with SPGG (B,E). Cells were counterstained with phalloidin (red) and DAPI (blue) and images were processed and enumerated using ImageJ. The number of GFP-positive puncta detected in HFF-1 (C) and SK-N-MC (F) cells infected with HCMV exposed to different concentrations of SPGG was quantified in ImageJ using 3 random views per slide. The Graphs show a clear dose-dependent reduction in number of GFP-positive for both cell lines. Data are shown as mean value and SD for a triplicate experiment. Scale bar (A–E) = 50 µm.
Ijms 21 01676 g003
Ijms 21 01676 g004 550
Figure 4. HCMV immediate early (IE) gene 1 and 2 expression in (A) HFF-1 cells and (B) SK-N-MC cells in the presence of SPGG. In this cell-ELISA experiment, HFF-1 (A) or SK-N-MC (B) cells were challenged with HCMV (0.3 multiplicity of infection (MOI)) pre-treated with SPGG or mock and an antibody against immediate early (IE) genes. The graphs reveal a SPGG-dose-dependent decreased expression of IE both in HFF-1 and SK-N-MC cell line, respectively. ANOVA determined significant differences among means with a P-value of < 0.0001 in both (A) and (B). Further analysis using Dunnett’s multiple comparison test found significance of decreased expression when compared to the mean of the control column, (****) signifies a P-value of < 0.0001 and (***) signifies a P-value of 0.0002. The graphs result from mean values and SDs of experiments, each condition was tested in triplicate at N of 5.
Figure 4. HCMV immediate early (IE) gene 1 and 2 expression in (A) HFF-1 cells and (B) SK-N-MC cells in the presence of SPGG. In this cell-ELISA experiment, HFF-1 (A) or SK-N-MC (B) cells were challenged with HCMV (0.3 multiplicity of infection (MOI)) pre-treated with SPGG or mock and an antibody against immediate early (IE) genes. The graphs reveal a SPGG-dose-dependent decreased expression of IE both in HFF-1 and SK-N-MC cell line, respectively. ANOVA determined significant differences among means with a P-value of < 0.0001 in both (A) and (B). Further analysis using Dunnett’s multiple comparison test found significance of decreased expression when compared to the mean of the control column, (****) signifies a P-value of < 0.0001 and (***) signifies a P-value of 0.0002. The graphs result from mean values and SDs of experiments, each condition was tested in triplicate at N of 5.
Ijms 21 01676 g004
Ijms 21 01676 g005 550
Figure 5. HCMV-mediated foci formation using plaque reduction assay in presence of SPGG. In the experiment, HFF-1 cells were infected with an MOI of 1.0 of HCMV β-galactosidase-expressing reporter virus strain (RC256) pretreated with 100 µM SPGG or mock-treated in serum free media (SFM). The number of plaques was quantified in both treated and untreated samples and revealed a dramatic decrease in samples pretreated with 100 µM SPGG compared to mock treatment. The graphs are the result of mean values and SD for a N = 3 experiments with triplicates of each conditions. Statistical significance was determined with a T-Test, (****) signifies a P-value of < 0.0001.
Figure 5. HCMV-mediated foci formation using plaque reduction assay in presence of SPGG. In the experiment, HFF-1 cells were infected with an MOI of 1.0 of HCMV β-galactosidase-expressing reporter virus strain (RC256) pretreated with 100 µM SPGG or mock-treated in serum free media (SFM). The number of plaques was quantified in both treated and untreated samples and revealed a dramatic decrease in samples pretreated with 100 µM SPGG compared to mock treatment. The graphs are the result of mean values and SD for a N = 3 experiments with triplicates of each conditions. Statistical significance was determined with a T-Test, (****) signifies a P-value of < 0.0001.
Ijms 21 01676 g005
Ijms 21 01676 g006 550
Figure 6. Displays moderate affinity for HCMV entry glycoprotein B (gB) in two independent assays. Panels (A) and (B): Dot blot analysis showing one possible mechanism behind SPGG’s inhibition of HCMV entry. Spots containing 5 × 105 PFU of HCMV AD169 strain and dilutions of SPGG were applied to nitrocellulose membrane and an immunoassay was carried out. The signal was then quantified for size and pixel density using ImageJ gel analysis function and the profile plot was generated with each curve representing a respective spot on the original blot (panel A). The area under each curve in (A) was then calculated and plotted in (panel B). Panel (C): Cell-ELISA was used to assess the affinity of SPGG for HCMV gB over-expressed in CHO-K1 cells. Each experimental condition was tested in at least triplicate with an N = 4. The errors in (B) and (C) correspond to + SD. ANOVA determined significant differences among means with a P-value of 0.0273 (*) in (B). Further analysis of (B) using Dunnett’s multiple comparison test found a significant difference in the 100 µM treatment when compared to the mean of the positive control with a P-value of 0.0117 (*). T-test analysis was used to determine significance in (C). (****) signifies a P-value of < 0.0001.
Figure 6. Displays moderate affinity for HCMV entry glycoprotein B (gB) in two independent assays. Panels (A) and (B): Dot blot analysis showing one possible mechanism behind SPGG’s inhibition of HCMV entry. Spots containing 5 × 105 PFU of HCMV AD169 strain and dilutions of SPGG were applied to nitrocellulose membrane and an immunoassay was carried out. The signal was then quantified for size and pixel density using ImageJ gel analysis function and the profile plot was generated with each curve representing a respective spot on the original blot (panel A). The area under each curve in (A) was then calculated and plotted in (panel B). Panel (C): Cell-ELISA was used to assess the affinity of SPGG for HCMV gB over-expressed in CHO-K1 cells. Each experimental condition was tested in at least triplicate with an N = 4. The errors in (B) and (C) correspond to + SD. ANOVA determined significant differences among means with a P-value of 0.0273 (*) in (B). Further analysis of (B) using Dunnett’s multiple comparison test found a significant difference in the 100 µM treatment when compared to the mean of the positive control with a P-value of 0.0117 (*). T-test analysis was used to determine significance in (C). (****) signifies a P-value of < 0.0001.
Ijms 21 01676 g006

Share and Cite

MDPI and ACS Style

Elste, J.; Kaltenbach, D.; Patel, V.R.; Nguyen, M.T.; Sharthiya, H.; Tandon, R.; Mehta, S.K.; Volin, M.V.; Fornaro, M.; Tiwari, V.; et al. Inhibition of Human Cytomegalovirus Entry into Host Cells through A Pleiotropic Small Molecule. Int. J. Mol. Sci. 2020, 21, 1676. https://doi.org/10.3390/ijms21051676

AMA Style

Elste J, Kaltenbach D, Patel VR, Nguyen MT, Sharthiya H, Tandon R, Mehta SK, Volin MV, Fornaro M, Tiwari V, et al. Inhibition of Human Cytomegalovirus Entry into Host Cells through A Pleiotropic Small Molecule. International Journal of Molecular Sciences. 2020; 21(5):1676. https://doi.org/10.3390/ijms21051676

Chicago/Turabian Style

Elste, James, Dominik Kaltenbach, Vraj R. Patel, Max T. Nguyen, Harsh Sharthiya, Ritesh Tandon, Satish K. Mehta, Michael V. Volin, Michele Fornaro, Vaibhav Tiwari, and et al. 2020. "Inhibition of Human Cytomegalovirus Entry into Host Cells through A Pleiotropic Small Molecule" International Journal of Molecular Sciences 21, no. 5: 1676. https://doi.org/10.3390/ijms21051676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
