Whole-Genome Sequencing-Based Characterization of Listeria monocytogenes from Fish and Fish Production Environments in Poland

by
Kinga Wieczorek
1,*,
Arkadiusz Bomba
2 and
Jacek Osek
1
1
Department of Hygiene of Food of Animal Origin, National Veterinary Research Institute, Partyzantow 57, 24-100 Pulawy, Poland
2
Department of Omics Analyzes, National Veterinary Research Institute, Partyzantow 57, 24-100 Pulawy, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(24), 9419; https://doi.org/10.3390/ijms21249419
Submission received: 23 November 2020 / Revised: 8 December 2020 / Accepted: 9 December 2020 / Published: 10 December 2020
(This article belongs to the Special Issue Microbial Virulence Factors 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Listeria monocytogenes, an important foodborne pathogen, may be present in different kinds of food and in food processing environments where it can persist for a long time. In this study, 28 L. monocytogenes isolates from fish and fish manufactures were characterized by whole genome sequencing (WGS). Core genome multilocus sequence typing (cgMLST) analysis was applied to compare the present isolates with publicly available genomes of L. monocytogenes strains recovered worldwide from food and from humans with listeriosis. All but one (96.4%) of the examined isolates belonged to molecular serogroup IIa, and one isolate (3.6%) was classified to serogroup IVb. The isolates of group IIa were mainly of MLST sequence types ST121 (13 strains) and ST8 (four strains) whereas the isolate of serogroup IVb was classified to ST1. Strains of serogroup IIa were further subtyped into eight different sublineages with the most numerous being SL121 (13; 48.1% strains) which belonged to six cgMLST types. The majority of strains, irrespective of the genotypic subtype, had the same antimicrobial resistance profile. The cluster analysis identified several molecular clones typical for L. monocytogenes isolated from similar sources in other countries; however, novel molecular cgMLST types not present in the Listeria database were also identified.

1. Introduction

Listeriosis, caused by Listeria monocytogenes, has become a serious problem for human health. A statistically significant increasing trend in confirmed infection cases in the European Union (EU) has been observed since 2009 [1]. This situation is due to, among other things, the presence of L. monocytogenes in ready-to-eat (RTE) food, especially at the retail level, and the high pathogenic properties of the isolated bacteria [2]. Listeriosis is one of the most dangerous foodborne zoonoses because a high percentage of infected persons need to be hospitalized and due to the high mortality rate of the disease [1]. L. monocytogenes is able to contaminate a large variety of food, including RTE fish and fish products. These bacteria have the ability not only to survive but also to multiply under a wide range of different conditions and can persist for a long time in a food processing environment, thus, they are able to cross-contaminate final products at different production stages [3]. Furthermore, it has been shown that L. monocytogenes was responsible for multi-country outbreaks and that it survived in the food chain for several years [4,5].
Taking the above into account, it is essential to eliminate or at least to minimize the prevalence and dissemination of L. monocytogenes in food processing facilities. This may be achieved, e.g., by using effective disinfectants and microbiological monitoring of the food production environment and raw materials used for further food processing. Part of this strategy is reliable identification of the origin of the food, tracking of bacterial contamination, and comparison of the isolates from different sources. For these reasons, whole-genome sequencing (WGS), a rapid, sensitive, and accurate method, is now utilized in outbreak investigations, epidemiological studies, and surveillance programs worldwide [6,7,8]. The analysis of bacterial genome sequences provides detailed information on isolates’ relationships and reveals the place of the isolated strains in the international L. monocytogenes phylogenetic lineages and molecular types [9,10]. WGS also distinguishes between avirulent or hypovirulent and highly virulent strains on the basis of the lack or presence of pathogenic genes or genomic islands [7,11]. One of such most important molecular markers are genes grouped into Listeria pathogenicity islands (LIPIs), including LIPI-1, which contains the key genes responsible for the virulence of L. monocytogenes, i.e., the proliferation and intra- and intercellular bacterial movement [12]. Other LIPIs are of the internalin family of genes, which support L. monocytogenes in adhering to and invading host cells [13]. LIPI-3 is mainly identified in the bacteria of lineage I and encodes listeriolysin S (LLS), expressed by L. monocytogenes in the gastrointestinal tract during infections [14]. Recently, the LIPI-4 gene cluster associated with the hypervirulent strain of clonal complex CC4, responsible for the bacterial tropism to the central nervous system, has been described among human L. monocytogenes isolates [7].
WGS-based data are very useful for the classification of the isolates as persistent, i.e., which are present in a food processing environment for a long time, even for years. The reason for this phenomenon is not fully understood, but some factors having an influence on the persistence of specific L. monocytogenes molecular variants have been described [15]. Among them are genes responsible for resistance to quaternary ammonium compounds (QAC), including the benzalkonium chloride (BC) disinfectant applied in the food industry [16]. Additionally, the persistence of the bacteria is also associated with the presence of the comK gene, which is involved in biofilm development [17,18]. Other markers, which support L. monocytogenes survival and persistence in suboptimal environmental conditions such as alkaline and oxidative stresses, are the five-gene stress survival islet 1 (SSI-1) and the protease gene regulated by the transcription factor under stress conditions SSI-2 [19,20].
In the present study, 28 L. monocytogenes isolates from fish and fish-production environments in Poland were characterized using WGS to establish molecular clones and then compared with the strains from other countries. Additionally, the virulence and antimicrobial resistance genotypes of the isolates were identified, with particular emphasis on the genes encoding resistance to disinfectants.

2. Results

2.1. Population Structure of L. monocytogenes Isolates Tested

A total of 28 L. monocytogenes isolates were obtained from 490 samples tested. Among them, six isolates were from raw salmon, 14 strains from cold-smoked salmon, and eight isolates from a fish production environment. Molecular typing showed that all but one (27; 96.4%) of the examined strains belonged to molecular serogroup IIa and only one isolate (3.6%) was classified to serogroup IVb. The latter strain, recovered from raw salmon, was further subtyped to lineage I (LI), sublineage 1 (SL1), MLST sequence type 1 (ST1), and the novel cgMLST type CT7225. Twenty-seven L. monocytogenes isolates of serogroup IIa clustered into one group with 13 strains were classified to ST121, whereas the remaining IIa isolates belonged to ST8 (four strains), ST155 and ST173 (three strains of each), ST31 (two strains), and ST7 and ST504 (one strain of each) (Table 1 and Table S3).
Further molecular subtyping with the cgMLST method revealed that the 27 L. monocytogenes IIa strains were classified into seven different sublineages, with the most numerous being SL121 (13; 48.1% strains) and SL8 (four; 14.8% strains). Strains of SL121 belonged to six cgMLST types, mainly CT7221 and CT7224 (four strains of each), which were submitted as new cgMLST types to the Listeria PasteurMLST database. CT7221 strains were isolated from raw salmon in one fish manufacturer, whereas strains of CT7224 were recovered from cold-smoked salmon, also from one fish establishment but different to that of the CT7221 strains. L. monocytogenes classified into the second most numerous sublineage SL8 covered the strains of two different cgMLST types, i.e., CT777 (three isolates) and CT7720 (one strain); the latter one was identified as a new type. Both CTs originated from smoked salmon from two different fish manufacturers. Detailed information on the molecular subtypes of all L. monocytogenes strains tested is shown in Table S3, while their genetic relatedness based on cgMLST is presented in Figure 1.

2.2. Antimicrobial Resistance and Virulence Gene Profiles

Screening of L. monocytogenes WGS data for 17 antimicrobial resistance genes revealed that almost all (26; 92.9%) of the strains had the same resistance profile with the presence of the fosX (fosfomycin), lmo0919 (antibiotic ABC transporter ATP-binding protein), mprF (phosphatidylglycerol lysyltransferase), norB (multidrug efflux pump), and sul (dihydropteroate synthases) genes. Acquired antibiotic resistance traits were not detected, with the exception of the aacA4 gene responsible for resistance to aminoglycosides, which was present in two isolates belonging to cgMLST type CT7227.
The LIPI-1 virulence genes were identified in all 28 isolates, whereas LIPI-4 was not found in any of the L. monocytogenes studied. Additionally, the presence of LIPI2_inlII (LIV_RS06070) was observed in all strains of serogroup IIa. The LIPI-3 genes were only associated with one strain of serogroup IVb belonging to lineage I. The internalin inlABCEHJK markers were detected in all isolates, but the inlF and inlG genes were found in 14 and 11 L. monocytogenes tested, respectively (Table 2). The premature stop codon (PMSC) was harbored by strains belonging to sublineages SL121 (13 isolates, PMSC mutation type 6, [21]) and SL31 (two strains, PMSC mutation type 5, [22]) (Table S3).
Furthermore, all L. monocytogenes were positive for the presence of intracellular survival, regulation of transcription and translation, surface protein anchoring, peptidoglycan modification, and immune modulation as well as bile salts resistance genes, respectively. The occurrence of some markers was correlated with L. monocytogenes serogroups. The gltA and gltB genes involved in teichoic acid biosynthesis were found in the only strain belonging to serogroup IVb, whereas the tagB gene, also engaged in the same process, was identified in all 27 strains classified to serogroup IIa. Additionally, the ami (adherence) and aut (invasion) gene markers were observed among all strains of IIa serogroup, whereas the aut_IVb gene (autolysin) was present in the only L. monocytogenes isolate classified to serogroup IVb. Detailed information on the virulence and antimicrobial resistance gene profiles are shown in Table 2 and Table S3.

2.3. Benzalkonium Chloride and Other Tolerance Genes

The bcrABC gene cassette, encoding benzalkonium chloride resistance protein, emrE marker, responsible for putative small multidrug-resistant (SMR) efflux pump, and the qacA gene, encoding for quaternary ammonium compound efflux major facilitator superfamily (MFS), were not identified in the sequences of any L. monocytogenes tested. Twelve of 28 (42.9%) strains harbored the Tn6188_qac (ermC) sequence responsible for tolerance to benzalkonium chloride. The cadA gene, encoding for cadmium resistance protein, was present in only one isolate of serogroup IIa classified to cgMLST type CT1170. All five genes of the stress survival islet 1 (SSI-1) were observed in the 10 L. monocytogenes IIa strains, belonging to six different cgMLST types, whereas the SSI-2 genes were found in 14 isolates of serogroup IIa, mainly classified to the sequence type ST121 (13 strains) and belonging to seven various CTs (Table 2 and Table S3). Additionally, all 28 strains showed the presence of other stress response genes, e.g., encoding for acid (gadT2 and from lmo0036 to lmo0043), temperature (cspB), and water (gbuA, gbuC, opuCA, opuCC, opuCD, betL) tolerances, respectively. Furthermore, all L. monocytogenes had the comK gene, connected with virulence and biofilm formation as well as the mdrL marker and sigB operon, responsible for multidrug transporter and various stress cell responses, respectively.

2.4. Identification of Prophage Sequences

DNA sequence analysis of 28 L. monocytogenes isolates tested identified from two to seven prophage regions, including intact prophage sequences found in 25 (89.3%) strains, with the most common sequence being PHAGE_Lister_LP_101 (20 isolates). The prophage sequences integrated with the comK gene were present in the genome of 22 strains classified to five different sequence types, but the sequence was intact in only two strains (belonging to ST7 and ST121). These two L. monocytogenes isolates were isolated from frozen salmon from the same fish manufacturer but from different product lots (Table S3). None of the prophage sequences was found within the comK gene harbored by six strains classified to ST173 (three isolates), ST31 (two strains), and ST1 (one strain). Detailed information on the predicted L. monocytogenes prophage sequences are presented in Table S4.

2.5. Comparison of L. monocytogenes Sequences from Different Sources

Comparative molecular analysis of the current 13 L. monocytogenes strains classified to SL121 and the genome of 26 isolates of the same cgMLST sublineage publicly available in the BIGSdb-Lm database did not reveal any close relationships between our strains and isolates from other countries, including previously identified strains in Poland (Figure 2). None of the compared isolates were classified to the same CTs as the L. monocytogenes identified in the present study. The same was observed when four strains of SL8 were compared with the sequences of 16 L. monocytogenes of human origin, including seven strains from Poland. This phylogenetic analysis indicated that the strains identified in the present study were not molecularly related to previously sequenced L. monocytogenes. Furthermore, none of the strains from humans were classified to the same cgMLST type as the isolates from fish and fish production environments analyzed in the current investigation (Figure 3).

3. Discussion

In this study, WGS was used for the characterization of L. monocytogenes isolated from fish and fish processing environments, including the identification of genes putatively responsible for the persistence features of the isolates. The two most common molecular types, i.e., sequence types ST121 and ST8, were found among 17 out of 28 (60.7%) L. monocytogenes isolates tested. These strains were classified into clonal complexes CC121 and CC8, different from the most common CCs found among the clinical isolates responsible for listeriosis cases in Europe [14]. However, strains of CC8 were connected with human infections in China and Canada; therefore, the virulence potential of such strains must not be underestimated [23,24]. A relatively frequent (46.4%) L. monocytogenes CC121 identified in the present study was previously only sporadically detected among clinical isolates in Poland (two out of 344; 0.6% strains), whereas isolates classified to CC8 (14.3% of the current strains) were recovered from humans with listeriosis more often (n = 21; 6.1%) [25]. However, in the mentioned study, 190 (55.2%) of the L. monocytogenes strains isolated from humans with listeriosis belonged to serogroup IVb, which was currently identified in only one isolate from fish, which may suggest that such food was not a source of those infections [25]. Furthermore, the phylogenetic comparison of the studied L. monocytogenes SL121 with other strains classified to this sublineage identified globally did not reveal any close genetic relationship of the isolates. Such strains have been previously designated as the hypovirulent food-associated clone and were identified among the six most prevalent STs of food and food processing plant origins, being also responsible for sporadic listeriosis cases in Europe [14,26,27,28]. The hypovirulent properties of ST121 strains are also supported by the fact that all isolates tested in the present investigation possessed the PMSC codon in the inlA gene that is associated with reduced bacterial pathogenicity [6]. On the other hand, the current L. monocytogenes strains belonging to ST121 harbored several other pathogenic determinants that are involved in the bacteria’s virulence and listeriosis development (Table S3). Rychli et al. (2017) also revealed that ST121 strains with the truncated inlA gene were isolated from clinical cases, so they might have other mechanisms to cause listeriosis in humans [29]. Furthermore, cgMLST analysis of L. monocytogenes ST121 strains allowed to identified six different cgMLST types, of which four were novel. This may suggest that such strains were not previously isolated or such sequences were not submitted to the PasteurMLST BIGSdb-Lm database.
The presence of LIPI-1 and the internalin family inlABCEFGHJK genes was observed in all or in almost all tested L. monocytogenes, respectively. Among the isolates classified to ST121 and ST31, the truncated internalin A gene was identified, which may indicate their reduced virulence properties, whereas other L. monocytogenes analyzed, including those classified to ST8, possessed the full-length inlA gene. Previous studies also suggested that isolates with the PMSC mutation were over-represented in food and food production environments, which was not confirmed in the current study [10,30]. However, a recent study conducted by Chen et al. (2020) indicated a significant shift towards a higher proportion of L. monocytogenes of food origin with the intact inlA gene, which indicates their higher virulence potential [31].
The LIPI-3 pathogenic island, characteristic for L. monocytogenes hypervirulent clones, was identified in only one strain belonging to the IVb serogroup. It was previously shown that this gene cluster was strongly associated with IVb strains, which was also confirmed in the current study, although only one such isolate was identified [32]. Furthermore, it has also been described that hypervirulent L. monocytogenes strains were connected with the presence of LIPI-4, which was not found in any of the examined isolates [14,31]. This pathogenic island was often associated with strains of clonal complex CC4, which were not identified in the present investigation.
As shown here, none of the 28 L. monocytogenes isolates possessed the bcrABC gene cassette, encoding for resistance to benzalkonium chloride (BC), which may suggest that these strains were sensitive to BC. This may be due to, e.g., a lack of selection pressure for such strains from disinfectants containing BC or isolation of the bacteria from hard-to-clean equipment or surfaces where they had limited contact with this compound [33]. Some investigators have also suggested that BC-resistant strains were characterized by a lower ability to produce biofilm compared to susceptible isolates [34]. However, it has been previously shown that it is not only the bcrABC genes that are responsible for resistance to quaternary ammonium compounds (QAC) [35]. The Tn6188 transposon involved in bacterial resistance to BC, was identified in 42.9% of L. monocytogenes tested, including nine out of 13 isolates classified to ST121, and such strains were also found by other authors [7,28,29]. A statistically significant correlation between the presence of the emrC gene and L. monocytogenes SL121 subtype was observed by Moura et al. (2016). This gene possesses a partial homology to the quaternary ammonium efflux gene located on the Tn6188 transposon, and it is responsible for resistance to BC [36,37]. It has been suggested that the emrC marker is one of the bacterial factors which has an influence on the persistence of the L. monocytogenes SL121 clonal type in food processing plants. However, Cherifi et al. (2018) recommended that not only one genetic determinant should be taken into consideration when strain persistence is investigated. It has been shown that L. monocytogenes isolates susceptible to BC had better abilities to form a biofilm, which in total offers more possibilities to survive in food production environments.
It has been previously described that the persistence of some L. monocytogenes strains in food establishments was also related to the presence of other molecular traits, e.g., the stress survival islets SSI-1 and SSI-2 [19,20]. In the present study, the SSI-2 marker was identified in all L. monocytogenes SL121 isolates, which suggests their better adaptation to the alkaline and oxidative stress conditions often present in fish processing environments. Furthermore, the SSI-1 genes play a role in bacterial survival and even growth under gastric stress conditions, and they have often been identified in clinical isolates responsible for listeriosis in humans [19]. In the present study, all SSI-1 islet genes were identified in 10 strains, including L. monocytogenes classified to clonal complexes CC8 and CC155, which may suggest their higher pathogenic potential for human infections.
L. monocytogenes sequence type ST8 has also been previously described as a persistent variant [38,39]. Such strains were also isolated during a cross-border outbreak of listeriosis caused by cold-smoked salmon in Denmark and France and were of cgMLST type CT771 [8]. During the present study, four L. monocytogenes ST8 isolates belonging to CT777 (three strains) and CT7220 (one strain) were identified, but none were closely related to the strains previously isolated from humans, whose sequences are available in the BIGSdb-Lm database. Furthermore, the L. monocytogenes ST8 currently recovered from fish were genetically different than those described in the EFSA and ECDC ROA document on the multi-country listeriosis outbreak during 2014–2019 linked to the consumption of cold-smoked fish products [5]. It has been previously shown that L. monocytogenes ST8 strains had a strong ability to persist in food processing plants, including smoked fish production environments [8,38,39]. Furthermore, such isolates were also transferred between different food enterprises through raw food materials [39]. This may result in the persistence of certain L. monocytogenes clones in environmental niches for a long time and their transmission between food facilities [39,40]. Finally, this may interfere with the interpretation of data from WGS analyses performed during outbreak investigations [41,42].
The presence of antimicrobial-resistant L. monocytogenes in food and food production environments may lead to an urgent threat to public health. In the present study, the WGS analysis has shown that the isolates tested had very similar antibiotic resistance gene profiles. All of them were positive for the efflux pump-related mdrL and norB markers, responsible for resistance to macrolides and fluoroquinolones, respectively [35,43]. Interestingly, the norB gene, which confers resistance to certain quinolones, such as moxifloxacin, has been identified in Staphylococcus aureus strains, but it is rather uncommon in Listeria isolates [44]. However, the role of this gene marker in the pathogenesis of human listeriosis and resistance to quinolones remains unclear. Furthermore, none of the 28 L. monocytogenes isolates tested in the present study were positive for the tetracycline resistance tetM marker, a ribosomal protection gene related to the presence of the conjugative transposon Tn916 [45,46]. This gene was previously commonly identified in L. monocytogenes of food origin isolates resistant to tetracyclines [47,48,49].
Several sequences encoding the presence of prophages were detected among 28 L. monocytogenes isolates tested, including intact, questionable, or incomplete molecular markers (Table S4). These prophages were originated from different Listeria phages such as LP101, A006, and LmoS188, and were commonly found in Listeria strains by other authors [32,50]. It has been previously described that the presence of prophage genes in L. monocytogenes had an influence on bacterial virulence and their persistence in food processing environments as well as intracellular survival in the human host [17,18]. Especially, phages inserted into the comK gene, which encodes functional protein ComK required for L. monocytogenes’ intracellular growth, provide better adaptation to food production environments through, e.g., biofilm formation [18,28]. In the present study, such a prophage sequence inserted into the comK gene was identified in 22 strains; however, in only two cases, the intact prophage genome was found. Furthermore, no correlation between L. monocytogenes sequence types and the presence of prophage sequences was observed. The lack of such a relationship was also identified by Knudsen et al. (2017), who suggest that the insertion of prophage sequences into the L. monocytogenes genome may have an influence on the molecular variability of the isolates [51].

4. Materials and Methods

4.1. L. monocytogenes Isolation

All samples tested for L. monocytogenes were collected during the first quarter of 2019 from 16 fish manufacturers located in Poland, which were selected based on fish production volume (more than five tons per month). The isolates investigated in the present study were the results of the target-specific sampling ordered by Chief Veterinary Officer on 27 February 2019 in cold-smoked salmon establishments in Poland. The samples tested in the present study included raw fish material, i.e., fresh and frozen Atlantic salmon (Salmo salar) (n = 130), swabs from fish production environments (n = 200) as well as samples from ready-to-eat (RTE) fish products, i.e., cold-smoked Atlantic salmon (n = 90), marinated (gravlax) Atlantic salmon (n = 45), and cold-smoked rainbow trout (Oncorhynchus mykiss) (n = 25). The number of samples taken from each plant was different but representative of the production quantity of each manufacturer. The samples were tested towards L. monocytogenes isolation in official veterinary laboratories using the ISO 11290-1:2017 method [52]. Then, the bacterial isolates were sent to the National Reference Laboratory for L. monocytogenes located at the Department of Hygiene of Food of Animal Origin in the National Veterinary Research Institute in Pulawy. After confirmation, the L. monocytogenes isolates were stored at −70 °C for further analysis.

4.2. DNA Isolation, Library Preparation, and Sequencing

L. monocytogenes was cultured on tryptone soya-yeast extract agar (TSYEA; Oxoid, Basingstoke, UK) at 37 ± 1 °C for 18–24 h and then a loopful of bacteria was transferred into 100 µL of 10 mM TRIS-HCl buffer, pH 8.5 (Sigma-Aldrich, St. Louis, MO, USA). Next, 15 µL of lysozyme (10 mg/mL; Sigma-Aldrich) was added and the samples were incubated at 37 °C for 30 min. DNA was extracted using a Maxwell®RSC 48 automated nucleic acid purification platform (Promega, Madison, WI, USA) and a Maxwell®RSC Cultured Cells DNA kit (Promega). DNA quality and concentration were measured by a NanoDrop and a Qubit 3 (Thermo Fisher Scientific, Waltham, MA, USA). A DNA library was prepared with the Nextera XT DNA Library Preparation Kit (Illumina, San Diego, CA, USA) according to the manufacturer’s instruction. DNA was sequenced using Illumina MiSeq sequencing platforms (Illumina).
The libraries were then sequenced on the Illumina MiSeq platform (2 × 300 reads) at approximately 50× average coverage. De novo genome assembly was performed using SPAdes 3.9.0 [53] on trimmed reads with Trimmomatic 0.36 [54]. The genomes were assembled in several contigs ranging from 13 to 27 (mean 19.8), with a mean coting length of 158,234.7 and a mean N50 value of 665,789.2. The detailed sequence parameters are listed in Table S1.
All L. monocytogenes DNA sequences were deposited in the Listeria PasteurMLST database (https://bigsdb.pasteur.fr/listeria) under the accession numbers listed in Table S1.

4.3. Molecular Typing of L. monocytogenes Using WGS

PCR-based serogroups (five loci) [9], MLST (7 loci) [55], and cgMLST profiles (1748 loci) [6] were extracted from the assemblies using the tool available on the BIGSdb-Lm platform (https://bigsdb.pasteur.fr/listeria) and the chewBBACA 2.1.0 software on the same scheme [56].
MLST profiles with the same alleles for seven loci were classified into sequence types (ST) and grouped into clonal complexes (CCs) if at least five out of seven loci were the same as previously described [55]. cgMLST profiles were grouped into cgMLST types (CTs) and sublineages (SLs), using the cut-offs of seven and 150 allelic mismatches, respectively, as previously described [7].

4.4. WGS Identification of Virulence, Antimicrobial Resistance and Stress-Related Genes

L. monocytogenes 92 virulence genes, including the internalin, LIPI-1, LIPI-2, LIPI-3, and LIPI-4 genes, were detected using the virulence schemes available in the BIGSdb-Lm (https://bigsdb.pasteur.fr/listeria) and Abricate v.1.0.1 software (GitHub, San Francisco, CA, USA) [7]. Antimicrobial resistance genes were identified in silico from the WGS data using the 17 loci scheme including such markers as aacA4, ermB, fosX, and tetM [7]. Furthermore, the presence of metal and detergent resistance genes (eight loci scheme) [7], stress island markers (seven loci) [19,20], and genes responsible for stress response, e.g., osmotolerance proteins, were also tested using the BIGSdb-Lm platform and Abricate v.1.0.1 software (GitHub).

4.5. Determination of L. monocytogenes Presumptive Persistence Genes

The sequence analysis of the sigB operon genes (eight loci), mdrL and comK genes was performed using the BIGSdb-Lm platform. The Tn6188 transposon (ermC) and cadA gene are part of the metal- and detergent-resistance schemes mentioned in point 2.4. The presence of phage genes was investigated using PHASTER [57,58]. The criteria for scoring prophage regions (as intact, questionable, or incomplete) have been described in PHASTER [57]. If the region’s total score was less than 70, it was marked as incomplete, between 70 to 90 as questionable, and when greater than 90 defined as intact.

4.6. Comparison of L. monocytogenes with Isolates from Humans and Food

The WGS sequences of the isolates tested in the present study were compared with the sequences of L. monocytogenes classified to SL121 and SL8 sublineages recovered from other sources to assess their phylogenetic relationship. For this comparison, all SL121 isolates, irrespective of the source, and SL8 strains from human listeriosis cases were selected from the BIGSdb-Lm database. Additionally, eight L. monocytogenes strains belonging to sublineage SL8 were selected from the available literature [8,39]. To create a phylogenetic tree, cgMLST profiles of the selected strains were compared using the GrapeTree software and MSTreeV2 algorithm [59]. Detailed information on the L. monocytogenes strains tested is listed in Table S2.

5. Conclusions

The WGS analysis performed in the present study revealed the genetic diversity of L. monocytogenes from fish and fish processing areas in Poland. Several molecular clones identified were typical for the strains isolated from similar sources in other parts of Europe. On the other hand, the cgMLST analysis detected novel molecular types that were not present in the Listeria database. All isolates classified as ST121 and ST31 revealed a mutation in the inlA gene, which categorized them as hypovirulent strains. In contrast, L. monocytogenes of the IVb and IIa serogroups, belonging to clonal complexes CC1 and CC8, respectively, had the characteristics of hypervirulent isolates. According to our knowledge, this is the first study on WGS analysis of L. monocytogenes from fish and fish production environment in our country. The obtained data may be useful for epidemiological investigations connected to this foodborne pathogen. There is a need to provide more genetic information on L. monocytogenes from various countries for bacterial source identification and tracking of these microorganisms along the food chain. The present studies underlined the necessity of molecular typing of the bacteria from food and food production areas as well as the implementation of effective hygienic procedures to prevent contamination of food with L. monocytogenes.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/24/9419/s1. Table S1: L. monocytogenes sequence parameters, Table S2: Characteristics of L. monocytogenes strains selected for comparison with the current isolates, Table S3: Characteristics of L. monocytogenes tested, Table S4: Listeria monocytogenes prophages characteristics.

Author Contributions

K.W., contribution to the conception and design of the study, laboratory analyses; J.O., contribution to the conception and design of the study, analysis and interpretation of the results, linguistic and stylistic proofreading, supervisor; A.B., sequences analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors thank the veterinary inspection officers for the sampling in the fish establishments and the personnel of the regional veterinary inspection laboratories for the detection and identification of L. monocytogenes.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

BCbenzalkonium chloride
BIGSdb-Lmbacterial isolate genome sequence database L. monocytogenes
CCclonal complex
cgMLSTcore genome multilocus sequence typing
CTcore genome MLST complex type
LIPIsListeria pathogenicity islands
MLSTmultilocus sequence typing
PMSCpremature stop codon
QACquarternary ammonium
RTEready to eat
SLsublineage
STsequence type
WGSwhole-genome sequencing

References

  1. EFSA and ECDC (European Food Safety Authority and European Centre for Disease Prevention and Control). The European Union One Health 2018 zoonoses report. EFSA J. 2019, 17, 5926. [Google Scholar] [CrossRef] [Green Version]
  2. EFSA BIOHAZ Panel (EFSA Panel on Biological Hazards); Ricci, A.; Allende, A.; Bolton, D.; Chemaly, M.; Davies, R.; Fernandez Escamez, P.S.; Girones, R.; Herman, L.; Koutsoumanis, K.; et al. Scientific Opinion on the Listeria monocytogenes contamination of ready-to-eat foods and the risk for human health in the EU. EFSA J. 2018, 16, 5134. [Google Scholar] [CrossRef]
  3. Ferreira, V.; Wiedmann, M.; Teixeira, P.; Stasiewicz, M.J. Listeria monocytogenes persistence in food-associated environments: Epidemiology, strain characteristics, and implications for public health. J. Food Prot. 2014, 77, 150–170. [Google Scholar] [CrossRef] [PubMed]
  4. European Centre for Disease Prevention and Control and European Food Safety Authority. Multi-Country Outbreak of Listeria Monocytogenes Sequence Type 8 Infections Linked to Consumption of Salmon Products—25 October 2018; ECDC/EFSA: Stockholm, Sweden; Parma, Italy, 2018. [Google Scholar]
  5. European Centre for Disease Prevention and Control and European Food Safety Authority. Multi-Country Outbreak of Listeria Monocytogenes Clonal Complex 8 Infections Linked to Consumption of Cold-Smoked Fish Products—4 June 2019; ECDC/EFSA: Stockholm, Sweden; Parma, Italy, 2019. [Google Scholar]
  6. Hurley, D.; Luque-Sastre, L.; Parker, C.T.; Huynh, S.; Eshwar, A.K.; Nguyen, S.V.; Andrews, N.; Moura, A.; Fox, E.M.; Jordan, K.; et al. Whole-genome sequencing-based characterization of 100 Listeria monocytogenes isolates collected from food processing environments over a four-year period. mSphere 2019, 4, e00252-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Moura, A.; Criscuolo, A.; Pouseele, H.; Maury, M.M.; Leclercq, A.; Tar, C.; Björkman, J.T.; Dallman, T.; Reimer, A.; Enouf, V.; et al. Whole genome-based population biology and epidemiological surveillance of Listeria monocytogenes. Nat. Microbiol. 2016, 2, 16185. [Google Scholar] [CrossRef]
  8. Schjørring, S.; Gillesberg Lassen, S.; Jensen, T.; Moura, A.; Kjeldgaard, J.S.; Müller, L.; Thielke, S.; Leclercq, A.; Maury, M.M.; Tourdjman, M.; et al. Cross-border outbreak of listeriosis caused by cold-smoked salmon, revealed by integrated surveillance and whole genome sequencing (WGS), Denmark and France, 2015 to 2017. Eurosurveillence 2017, 22, 17-00762. [Google Scholar] [CrossRef]
  9. Doumith, M.; Buchrieser, C.; Glaser, P.; Jacquet, C.; Martin, P. Differentiation of the major Listeria monocytogenes serovars by multiplex PCR. J. Clin. Microbiol. 2004, 42, 3819–3822. [Google Scholar] [CrossRef] [Green Version]
  10. Orsi, R.H.; den Bakker, H.C.; Wiedmann, M. Listeria monocytogenes lineages: Genomics, evolution, ecology, and phenotypic characteristics. Intern. J. Med. Microbiol. 2011, 301, 79–96. [Google Scholar] [CrossRef]
  11. Kwong, J.C.; Mercoulia, K.; Tomita, T.; Easton, M.; Li, H.Y.; Bulach, D.M.; Stinear, T.P.; Seemann, T.; Howden, B.P. Prospective whole-genome sequencing enhances national surveillance of Listeria monocytogenes. J. Clin. Microbiol. 2016, 54, 333–342. [Google Scholar] [CrossRef] [Green Version]
  12. Vázquez-Boland, J.A.; Kuhn, M.; Berche, P.; Chakraborty, T.; Domínguez-Bernal, G.; Goebel, W.; González-Zorn, B.; Wehland, J.; Kreft, J. Listeria pathogenesis and molecular virulence determinants. Clin. Microbiol. Rev. 2001, 14, 584–640. [Google Scholar] [CrossRef] [Green Version]
  13. Schubert, W.D.; Urbanke, C.; Ziehm, T.; Beier, V.; Machner, M.P.; Domann, E.; Wehland, J.; Chakraborty, T.; Heinz, D.W. Structure of internalin, a major invasion protein of Listeria monocytogenes, in complex with its human receptor E-cadherin. Cell 2002, 111, 825–836. [Google Scholar] [CrossRef] [Green Version]
  14. Maury, M.M.; Tsai, Y.H.; Charlier, C.; Touchon, M.; Chenal-Francisque, V.; Leclercq, A.; Criscuolo, A.; Gaultier, C.; Roussel, S.; Brisabois, A.; et al. Uncovering Listeria monocytogenes hypervirulence by harnessing its biodiversity. Nat. Genet. 2016, 48, 308–313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Carpentier, B.; Cerf, O. Review—Persistence of Listeria monocytogenes in food industry equipment and premises. Intern. J. Food Microbiol. 2011, 145, 1–8. [Google Scholar] [CrossRef] [PubMed]
  16. Martínez-Suárez, J.V.; Ortiz, S.; López-Alonso, V. Potential impact of the resistance to quaternary ammonium disinfectants on the persistence of Listeria monocytogenes in food processing environments. Front. Microbiol. 2016, 7, 638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Verghese, B.; Lok, M.; Wen, J.; Alessandria, V.; Chen, Y.; Kathariou, S.; Knabel, S. comK prophage junction fragments as markers for Listeria monocytogenes genotypes unique to individual meat and poultry processing plants and a model for rapid niche-specific adaptation, biofilm formation, and persistence. Appl. Environ. Microbiol. 2011, 77, 3279–3292. [Google Scholar] [CrossRef] [Green Version]
  18. Rabinovich, L.; Sigal, N.; Borovok, I.; Nir-Paz, R.; Herskovits, A.A. Prophage excision activates Listeria competence genes that promote phagosomal escape and virulence. Cell 2012, 150, 792–802. [Google Scholar] [CrossRef] [Green Version]
  19. Ryan, S.; Begley, M.; Hill, C.; Gahan, C.G.M. A five-gene stress survival islet (SSI-1) that contributes to the growth of Listeria monocytogenes in suboptimal conditions. J. Appl. Microbiol. 2010, 109, 984–995. [Google Scholar] [CrossRef]
  20. Harter, E.; Wagner, E.M.; Zaiser, A.; Halecker, S.; Wagner, M.; Rychli, K. Stress Survival Islet 2, predominantly present in Listeria monocytogenes strains of sequence type 121, is involved in the alkaline and oxidative stress responses. Appl. Environ. Microbiol. 2017, 83, e00827-17. [Google Scholar] [CrossRef] [Green Version]
  21. Olier, M.; Pierre, F.; Rousseaux, S.; Lemaitre, J.P.; Rousset, A.; Piveteau, P.; Guzzo, J. Expression of truncated internalin A is involved in impaired internalization of some Listeria monocytogenes isolates carried asymptomatically by humans. Infect. Immun. 2003, 71, 1217–1224. [Google Scholar] [CrossRef] [Green Version]
  22. Van Stelten, K.; Nightingale, K. Development and implementation of a multiplex single-nucleotide polymorphism genotyping assay for detection of virulence attenuating mutations in the Listeria monocytogenes virulence-associated gene inlA. Appl. Environ. Microbiol. 2008, 74, 7365–7375. [Google Scholar] [CrossRef] [Green Version]
  23. Yin, Y.; Doijad, S.; Wang, W.; Lian, K.; Pan, X.; Koryciński, I.; Hu, Y.; Tan, W.; Ye, S.; Wang, Z.; et al. Genetic diversity of Listeria monocytogenes isolates from invasive listeriosis in China. Foodborne Path. Dis. 2020, 17, 215–227. [Google Scholar] [CrossRef] [PubMed]
  24. Knabel, S.J.; Reimer, A.; Verghese, B.; Lok, M.; Ziegler, J.; Farber, J.; Pagotto, F.; Graham, M.; Nadon, C.A.; Gilmour, M.W. Sequence typing confirms that a predominant Listeria monocytogenes clone caused human listeriosis cases and outbreaks in Canada from 1988 to 2010. J. Clin. Microbiol. 2012, 50, 1748–1751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kuch, A.; Goc, A.; Belkiewicz, K.; Filipello, V.; Ronkiewicz, P.; Gołębiewska, A.; Wróbel, I.; Kiedrowska, M.; Waśko, I.; Hryniewicz, W.; et al. Molecular diversity and antimicrobial susceptibility of Listeria monocytogenes isolates from invasive infections in Poland (1997–2013). Sci. Rep. 2018, 8, 14562. [Google Scholar] [CrossRef] [PubMed]
  26. Cabal, A.; Pietzka, A.; Huhulescu, A.; Allerberger, F.; Ruppitsch, W.; Schmid, D. Isolate-based surveillance of Listeria monocytogenes by whole genome sequencing in Austria. Front. Microbiol. 2020, 10, 2282. [Google Scholar] [CrossRef] [PubMed]
  27. Møller Nielsen, E.; Björkman, J.T.; Kiil, K.; Grant, K.; Dallman, T.; Painset, A.; Amar, C.; Roussel, S.; Guillier, L.; Félix, B.; et al. Closing gaps for performing a risk assessment on Listeria monocytogenes in ready-to-eat (RTE) foods: Activity 3, the comparison of isolates from different compartments along the food chain, and from humans using whole genome sequencing (WGS) analysis. EFSA Support. Publ. 2017, 14, 1151E. [Google Scholar] [CrossRef] [Green Version]
  28. Ortiz, S.; López-Alonso, V.; Rodríguez, P.; Martínez-Suárez, J.V. The connection between persistent, disinfectant-resistant Listeria monocytogenes strains from two geographically separate Iberian pork processing plants: Evidence from comparative genome analysis. Appl. Environ. Microbiol. 2016, 82, 308–317. [Google Scholar] [CrossRef] [Green Version]
  29. Rychli, K.; Wagner, E.M.; Ciolacu, L.; Zaiser, A.; Tasara, T.; Wagner, M.; Schmitz-Esser, S. Comparative genomics of human and nonhuman Listeria monocytogenes sequence type 121 strains. PLoS ONE 2017, 12, e0176857. [Google Scholar] [CrossRef]
  30. Nightingale, K.K.; Ivy, R.A.; Ho, A.J.; Fortes, E.D.; Njaa, B.L.; Peters, R.M.; Wiedmann, M. inlA premature stop codons are common among Listeria monocytogenes isolates from foods and yield virulence-attenuated strains that confer protection against fully virulent strains. Appl. Environ. Microbiol. 2008, 74, 6570–6583. [Google Scholar] [CrossRef] [Green Version]
  31. Chen, Y.; Chen, Y.; Pouillot, R.; Dennis, S.; Xian, Z.; Luchansky, J.B.; Porto-Fett, A.C.S.; Lindsay, J.A.; Hammack, T.S.; Allard, M.; et al. Genetic diversity and profiles of genes associated with virulence and stress resistance among isolates from the 2010–2013 interagency Listeria monocytogenes market basket survey. PLoS ONE 2020, 15, e0231393. [Google Scholar] [CrossRef]
  32. Matle, I.; Pierneef, R.; Mbatha, K.R.; Magwedere, K.; Madoroba, E. Genomic diversity of common sequence types of Listeria monocytogenes isolated from ready-to-eat products of animal origin in South Africa. Genes 2019, 10, 1007. [Google Scholar] [CrossRef] [Green Version]
  33. Cherifi, T.; Carrillo, C.; Lambert, D.; Miniaï, I.; Quessy, S.; Larivière-Gauthier, G.; Burton, B.; Fravalo, P. Genomic characterization of Listeria monocytogenes isolates reveals that their persistence in a pig slaughterhouse is linked to the presence of benzalkonium chloride resistance genes. BMC Microbiol. 2018, 18, 220. [Google Scholar] [CrossRef] [PubMed]
  34. Ortiz, S.; López, V.; Martínez-Suárez, J.V. The influence of subminimal inhibitory concentrations of benzalkonium chloride on biofilm formation by Listeria monocytogenes. Intern. J. Food Microbiol. 2014, 189, 106–112. [Google Scholar] [CrossRef]
  35. Müller, A.; Rychli, K.; Muhterem-Uyar, M.; Zaiser, A.; Stessl, B.; Guinane, C.M.; Cotter, P.D.; Wagner, M.; Schmitz-Esser, S. Tn6188—A novel transposon in Listeria monocytogenes responsible for tolerance to benzalkonium chloride. PLoS ONE 2013, 8, e76835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Allen, K.J.; Wałecka-Zacharska, E.; Chen, J.C.; Kosek-Paszkowska, K.; Devlieghere, F.; Van Meervenne, E.; Osek, J.; Wieczorek, K.; Bania, J. Listeria monocytogenes—An examination of food chain factors potentially contributing to antimicrobial resistance. Food Microbiol. 2016, 54, 178–189. [Google Scholar] [CrossRef]
  37. Kremer, P.H.C.; Lees, J.A.; Koopmans, M.M.; Ferwerda, B.; Arends, A.W.M.; Feller, M.M.; Schipper, K.; Valls Seron, M.; van der Ende, A.; Brouwer, M.C.; et al. Benzalkonium tolerance genes and outcome in Listeria monocytogenes meningitis. Clin. Microbiol. Infect. 2017, 23, 265.e1–265.e7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Schmitz-Esser, S.; Gram, L.; Wagner, M. Complete genome sequence of the persistent Listeria monocytogenes strain R479a. Genome Announc. 2015, 2, e00150-15. [Google Scholar] [CrossRef] [Green Version]
  39. Fagerlund, A.; Langsrud, S.; Schirmer, B.C.T.; Møretrø, T.; Heir, E. Genome analysis of Listeria monocytogenes sequence type 8 strains persisting in salmon and poultry processing environments and comparison with related strains. PLoS ONE 2016, 11, e0151117. [Google Scholar] [CrossRef] [Green Version]
  40. Holch, A.; Webb, K.; Lukjancenko, O.; Ussery, D.; Rosenthal, B.M.; Grame, L. Genome sequencing identifies two nearly unchanged strains of persistent Listeria monocytogenes isolated at two different fish processing plants sampled 6 years apart. Appl. Environ. Microbiol. 2013, 79, 2944–2951. [Google Scholar] [CrossRef] [Green Version]
  41. Parkhill, J.; Wren, B.W. Bacterial epidemiology and biology—Lessons from genome sequencing. Genome Biol. 2011, 12, 230. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Gardy, J.; Loman, N.J.; Rambaut, A. Real-time digital pathogen surveillance—The time is now. Genome Biol. 2015, 16, 155. [Google Scholar] [CrossRef] [Green Version]
  43. Troxler, R.; von Graevenitz, A.; Funke, G.; Wiedemann, B.; Stock, I. Natural antibiotic susceptibility of Listeria species: L. grayi, L. innocua, L. ivanovii, L. monocytogenes, L. seeligeri and L. welshimeri strains. Clin. Microbiol. Infect. 2000, 6, 525–535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Truong-Bolduc, Q.C.; Bolduc, G.R.; Okumura, R.; Celino, B.; Bevis, J.; Liao, C.H.; Hooper, D.C. Implication of the NorB efflux pump in the adaptation of Staphylococcus aureus to growth at acid pH and in resistance to moxifloxacin. Antimicrob. Agents Chemother. 2011, 55, 3214–3219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Marra, D.; Pethel, B.; Churchward, G.G.; Scott, J.R. The frequency of conjugative transposition of Tn916 is not determined by the frequency of excision. J. Bacteriol. 1999, 181, 5414–5418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Haubert, L.; Mendonça, M.; Lopes, G.V.; de Itapema Cardoso, M.R.; da Silva, W.P. Listeria monocytogenes isolates from food and food environment harbouring tetM and ermB resistance genes. Lett. Appl. Microbiol. 2015, 62, 23–29. [Google Scholar] [CrossRef] [Green Version]
  47. Chen, B.Y.; Pyla, R.; Kim, T.J.; Silva, J.L.; Jung, Y.S. Antibiotic resistance in Listeria species isolated from catfish fillets and processing environment. Lett. Appl. Microbiol. 2010, 50, 626–632. [Google Scholar] [CrossRef]
  48. Wang, X.M.; Lu, X.F.; Yin, L.; Liu, H.F.; Zhang, W.J.; Si, W.; Yu, S.Y.; Shao, M.L.; Liu, S.G. Occurrence and antimicrobial susceptibility of Listeria monocytogenes isolates from retail raw foods. Food Control 2013, 32, 153–158. [Google Scholar] [CrossRef]
  49. Bertsch, D.; Muelli, M.; Weller, M.; Uruty, A.; Lacroix, C.; Meile, L. Antimicrobial susceptibility and antibiotic resistance gene transfer analysis of foodborne, clinical, and environmental Listeria spp. isolates including Listeria monocytogenes. Microbiologyopen 2014, 3, 118–127. [Google Scholar] [CrossRef]
  50. Kuenne, C.; Billion, A.; Mobarak Abu Mraheil, M.A.; Strittmatter, A.; Daniel, R.; Goesmann, A.; Barbuddhe, S.; Hain, T.; Chakraborty, T. Reassessment of the Listeria monocytogenes pan-genome reveals dynamic integration hotspots and mobile genetic elements as major components of the accessory genome. BMC Genom. 2013, 14, 47. [Google Scholar] [CrossRef] [Green Version]
  51. Knudsen, G.M.; Boye Nielsen, J.; Marvig, R.L.; Ng, Y.; Worning, P.; Westh, H.; Gram, L. Genome-wide-analyses of Listeria monocytogenes from food-processing plants reveal clonal diversity and date the emergence of persisting sequence types. Environ. Microbiol. Rep. 2017, 9, 428–440. [Google Scholar] [CrossRef] [Green Version]
  52. ISO 11290-1. Microbiology of the Food Chain—Horizontal Method for the Detection and Enumeration of Listeria Monocytogenes and of Listeria spp.—Part 1: Detection Method; International Organization for Standardization: Geneva, Switzerland, 2017. [Google Scholar]
  53. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.; Nikolenko, S.; Pham, S.; Prjibelski, A.; et al. SPAdes: A new genome assembly algorithm and its applications to single-cell sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef] [Green Version]
  54. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ragon, M.; Wirth, T.; Hollandt, F.; Lavenir, R.; Lecuit, M.; Le Monnier, A.; Brisse, S. A new perspective on Listeria monocytogenes evolution. PLoS Pathog. 2008, 4, e1000146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Silva, M.; Machado, M.P.; Silva, D.N.; Rossi, M.; Moran-Gilad, J.; Santos, S.; Ramirez, M.; Carriço, J.A. ChewBBACA: A complete suite for gene-by-gene schema creation and strain identification. Microb. Genom. 2018, 4. [Google Scholar] [CrossRef] [PubMed]
  57. Arndt, D.; Grant, J.R.; Marcu, A.; Sajed, T.; Pon, A.; Liang, Y.; Wishart, D. PHASTER: A better, faster version of the PHAST phage search tool. Nucleic Acids Res. 2016, 44, W16–W21. [Google Scholar] [CrossRef] [Green Version]
  58. Zhou, Y.; Liang, Y.; Lynch, K.H.; Dennis, J.J.; Wishart, D.S. PHAST: A fast phage search tool. Nucleic Acids Res. 2011, 39, W347–W352. [Google Scholar] [CrossRef]
  59. Zhou, Z.; Alikhan, N.F.; Sergeant, M.J.; Luhmann, N.; Vaz, C.; Francisco, A.P.; Carrico, J.A.; Achtman, M. GrapeTree: Visualization of core genomic relationships among 100,000 bacterial pathogens. Genome Res. 2018, 28, 1395–1404. [Google Scholar] [CrossRef] [Green Version]
Ijms 21 09419 g001 550

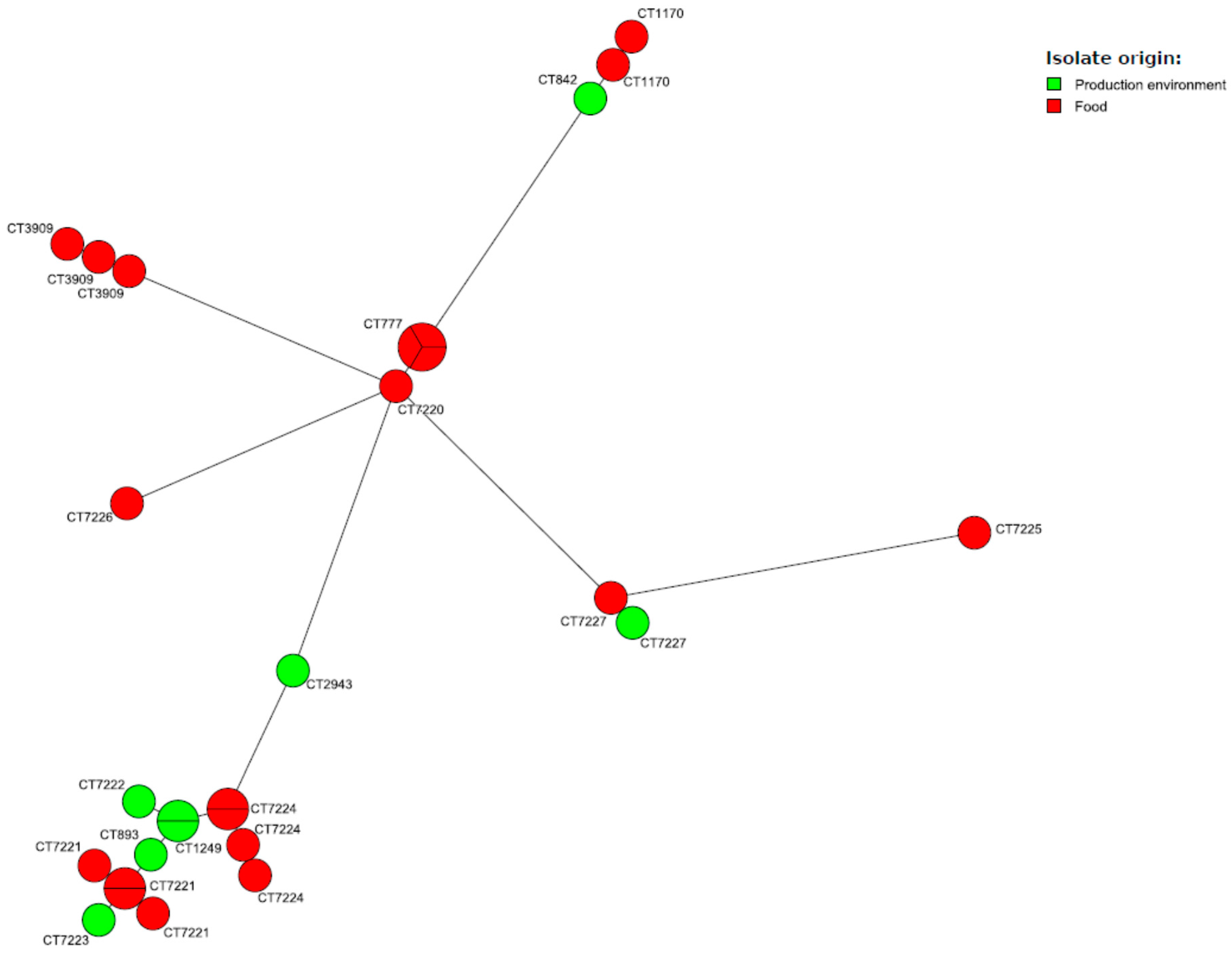

Figure 1. MST of cgMLST allelic profiles of 28 L. monocytogenes studied strains. cgMLST types (CTs) are represented by colored circles where size is proportional to the number of isolates.
Figure 1. MST of cgMLST allelic profiles of 28 L. monocytogenes studied strains. cgMLST types (CTs) are represented by colored circles where size is proportional to the number of isolates.
Ijms 21 09419 g001
Ijms 21 09419 g002 550

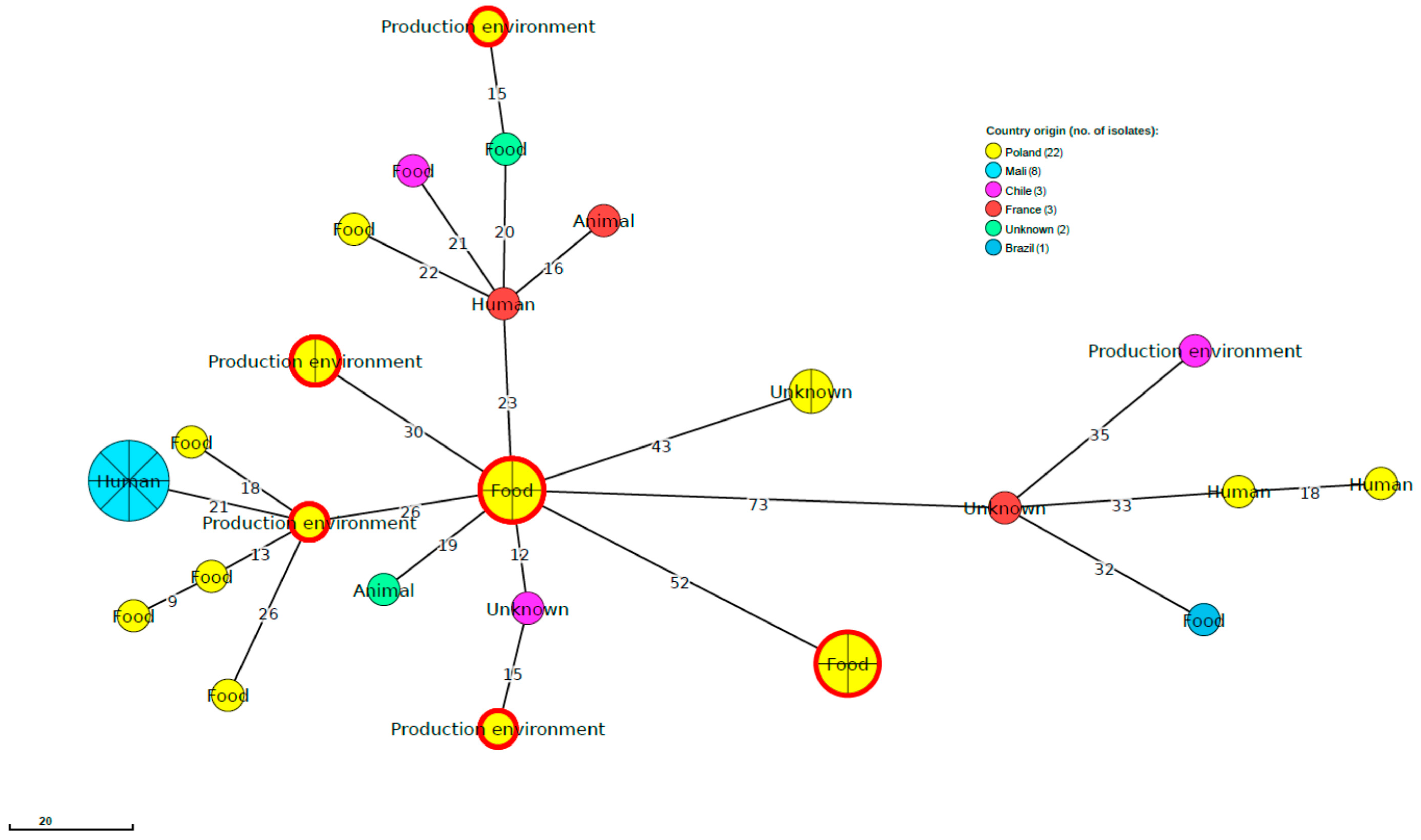

Figure 2. MST based on the cgMLST profiles of 13 L. monocytogenes strains studied belonging to SL121 together with 26 SL121 strain profiles publicly available at BIGSdb-Lm (listed in Table S2). cgMLST are represented by colored circles where size is proportional to the number of isolates. Numbers on the branches show alleles differences between neighboring nodes. Circles with red rim represent L. monocytogenes strains from the present study.
Figure 2. MST based on the cgMLST profiles of 13 L. monocytogenes strains studied belonging to SL121 together with 26 SL121 strain profiles publicly available at BIGSdb-Lm (listed in Table S2). cgMLST are represented by colored circles where size is proportional to the number of isolates. Numbers on the branches show alleles differences between neighboring nodes. Circles with red rim represent L. monocytogenes strains from the present study.
Ijms 21 09419 g002
Ijms 21 09419 g003 550

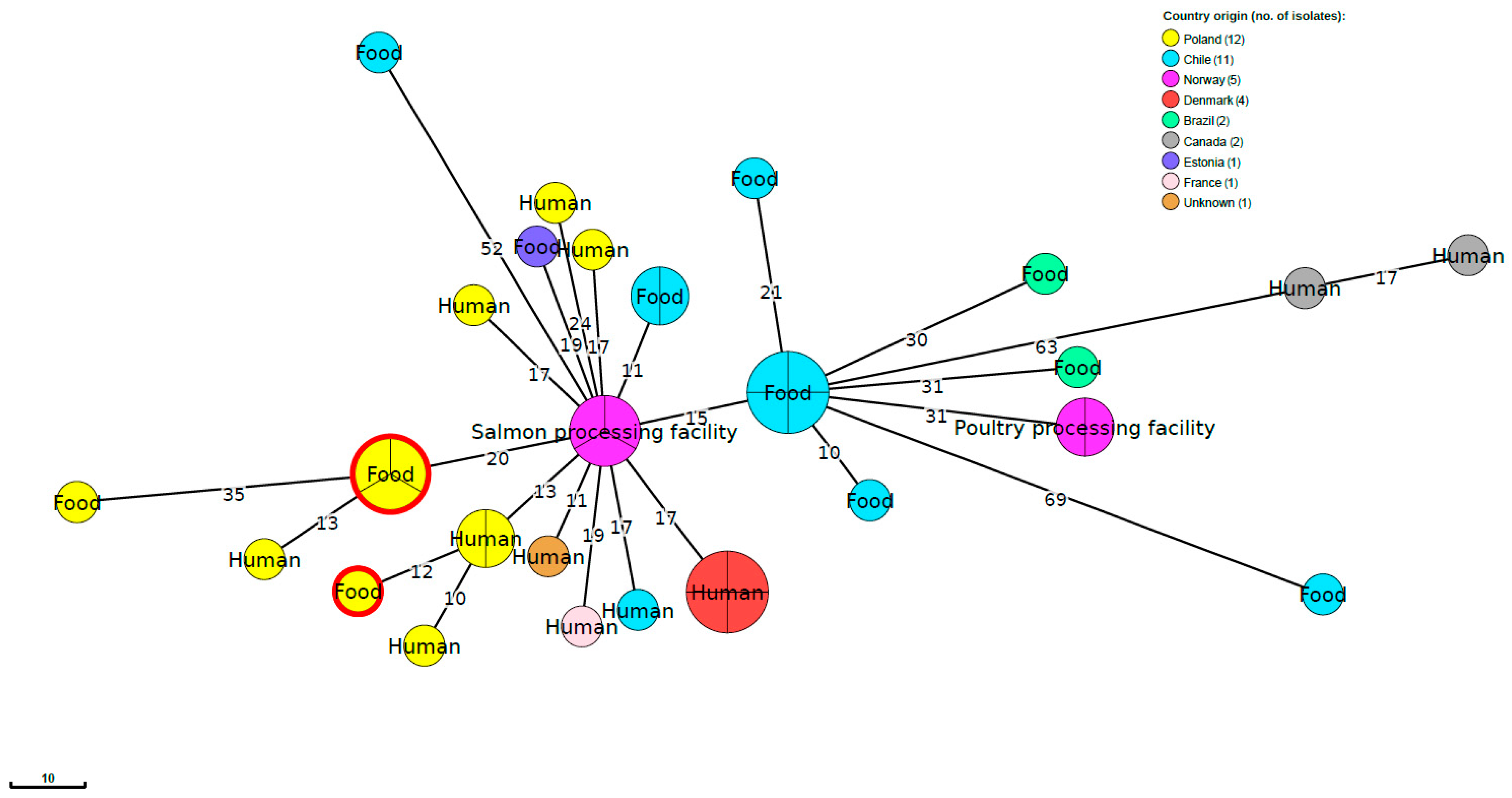

Figure 3. MST based on the cgMLST profiles of 4 L. monocytogenes of SL8 identified in the present study together with 35 SL8 strain profiles publicly available (listed in Table S2). cgMLST are represented by colored circles where size is proportional to the number of isolates. Numbers on the branches show alleles differences between neighboring nodes. Circles with red rim represent L. monocytogenes strains from the present study.
Figure 3. MST based on the cgMLST profiles of 4 L. monocytogenes of SL8 identified in the present study together with 35 SL8 strain profiles publicly available (listed in Table S2). cgMLST are represented by colored circles where size is proportional to the number of isolates. Numbers on the branches show alleles differences between neighboring nodes. Circles with red rim represent L. monocytogenes strains from the present study.
Ijms 21 09419 g003
Table
Table 1. Molecular characteristic of L. monocytogenes strains tested.
Table 1. Molecular characteristic of L. monocytogenes strains tested.
Strain IDSourceMolecular Characteristics
PCR-SerogroupSTCCSLcgMLST
46894PIIa155CC155SL155CT842
46895PIIa504CC475SL475CT2943
46896PIIa121CC121SL121CT1249
46897PIIa121CC121SL121CT1249
46898FIVb1CC1SL1CT7225 *
46899FIIa8CC8SL8CT7220 *
46900FIIa8CC8SL8CT777
46901FIIa8CC8SL8CT777
46902FIIa8CC8SL8CT777
46903PIIa121CC121SL121CT893
46904FIIa121CC121SL121CT7221 *
46905FIIa121CC121SL121CT7221 *
46906FIIa7CC7SL7CT7226 *
46907FIIa121CC121SL121CT7221 *
46908PIIa121CC121SL121CT7223 *
46909PIIa31CC31SL31CT7227 *
46910PIIa121CC121SL121CT7222 *
46911FIa121CC121SL121CT7221 *
46912FIIa173CC19SL378CT3909
46913FIIa155CC155SL155CT1170
46914FIIa155CC155SL155CT1170
46915FIIa173CC19SL378CT3909
46916FIIa173CC19SL378CT3909
46917FIIa121CC121SL121CT7224 *
46918FIIa121CC121SL121CT7224 *
46919FIIa121CC121SL121CT7224 *
46920FIIa121CC121SL121CT7224 *
46921FIIa31CC31SL31CT7227 *
P, fish production environment; F, RTE fish; ST, sequence type; CC, clonal complex; SL; sublineage; cgMLST, core genome MLST type; * new cgMLST type.
Table
Table 2. Presence of selected genes among L. monocytogenes strains tested.
Table 2. Presence of selected genes among L. monocytogenes strains tested.
Strain IDPresence of Genes
inlAinlFinlGaacA4cadATn6188LIPI-3SSI-1SSI-2
46894111 1
468951 1
468961 * 1 1
468971 * 1 1
4689811 1
46899111 1 1
46900111 1
46901111 1
46902111 1
469031 * 1 1
469041 * 1 1
469051 * 1 1
46906111 1
469071 * 1 1
469081 * 1 1
469091 **1 1 1 1
469101 * 1 1
469111 * 1 1
46912111
46913111 1 1
46914111 1
46915111
46916111
469171 * 1
469181 * 1
469191 * 1
469201 * 1
469211 **1 1 1 1
* premature stop codon type 5, ** premature stop codon type 6.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wieczorek, K.; Bomba, A.; Osek, J. Whole-Genome Sequencing-Based Characterization of Listeria monocytogenes from Fish and Fish Production Environments in Poland. Int. J. Mol. Sci. 2020, 21, 9419. https://doi.org/10.3390/ijms21249419

AMA Style

Wieczorek K, Bomba A, Osek J. Whole-Genome Sequencing-Based Characterization of Listeria monocytogenes from Fish and Fish Production Environments in Poland. International Journal of Molecular Sciences. 2020; 21(24):9419. https://doi.org/10.3390/ijms21249419

Chicago/Turabian Style

Wieczorek, Kinga, Arkadiusz Bomba, and Jacek Osek. 2020. "Whole-Genome Sequencing-Based Characterization of Listeria monocytogenes from Fish and Fish Production Environments in Poland" International Journal of Molecular Sciences 21, no. 24: 9419. https://doi.org/10.3390/ijms21249419

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
