Heterologous Expression of the Core Genes in the Complex Fusarubin Gene Cluster of Fusarium Solani

Abstract

Through stepwise recreation of the biosynthetic gene cluster containing PKS3 from Fusarium solani, it was possible to produce the core scaffold compound of bostrycoidin, a red aza-anthraquinone pigment in Saccharomyces cerevisiae. This was achieved through sequential transformation associated recombination (TAR) cloning of FvPPT, fsr1, fsr2, and fsr3 into the pESC-vector system, utilizing the inducible bidirectional galactose promoter for heterologous expression in S. cerevisiae. The production of the core metabolite bostrycoidin was investigated through triplicate growth cultures for 1–4 days, where the maximum titer of bostrycoidin was achieved after 2 days of induction, yielding 2.2 mg/L.

1. Introduction

Within the realm of natural product chemistry, a specific group of compounds known as polyketides has been vigorously studied for many years because of their structural diversity, bioactivity, and industrial applicability. A few examples such as the cholesterol lowering compound lovastatin, anti-cancer compound cytochalasin E, and the antibiotic tetracyclines display only a fraction of the diverse beneficial properties of polyketides [1,2,3]. Other properties often associated with polyketides are anti-bacterial and anti-fungal activity, pigmentation, and possibly even electrolytic capacity in batteries [4]. In nature, these compounds are a result of the complex secondary metabolism of plants, fungi, and bacteria, expressing not only polyketides, but a plethora of other bioactive molecules. This renders purification of a single compound from natural sources laborious and difficult because crude extracts comprise a cocktail of metabolites.

In order to obtain high-titers of purified polyketides, a popular strategy is to engineer heterologous expression hosts that display a minimalistic secondary metabolite profile, while being well suited for large-scale fermentation [5]. An example of such a host is Saccharomyces cerevisiae, with a highly developed molecular toolbox [6], a simplistic metabolism [7], and a generally regarded as safe (GRAS) status organism suited for fermentation [8]. Model polyketides 6-methylsalisylic acid (6-MSA) and triacetic acid lactone (TAL) have been heterologously expressed in S. cerevisiae with titers of 1.6–1.7 g/L, which further emphasizes the potential for production of polyketides in this host [9,10]. In order to obtain these levels of production, the primary metabolism of S. cerevisiae was optimized for higher flux towards the acetyl- and malonyl-Coenzyme A (CoA) pathways, rendering a higher concentration of precursor molecules for polyketide assembly. More complex polyketides of multiple ring-structures such as the pigment compounds bikaverin and rubrofusarin from the Fusarium species complex have also been expressed in S. cerevisiae, although lower titers of production were obtained, 3.65 mg/L and 1.1 mg/L, respectively, owing to the structural complexity of these polyketides [11,12].

In this study, we target the core genes of the fusarubin biosynthetic gene cluster in F. solani. The gene cluster is found in all genome sequenced Fusaria [13] and has previously been assigned to the production of 8-O-methylfusarubin in F. fujikuroi [14] and the aza-anthraquinone bostrycoidin in F. graminearum [15]. Besides the polyketide synthase (PKS) FSR1 (PKS3, PGL1), two enzymes were needed to yield the end products in these species—the O-methyltransferase FSR2 and the FAD-binding monooxygenase FSR3. For effective heterologous expression of polyketides in S. cerevisiae, it is necessary to co-express a 4’-phosphopantetheinyl transferase (PPTase) along with the tailoring enzymes as the acyl carrier protein (ACP)-domain of the polyketide synthase requires additional phosphopantetheinylation to drive the iterative enzymatic process of elongating the ketide-backbone. Therefore, a PPTase native to F. verticillioides was also introduced into the expression strains.

PKS3 has previously been heterologously expressed in Escherichia coli, which resulted in production of 6-O-demethylfusarubinaldehyde [16]. This compound is also predicted to be the entry molecule in the biosynthetic pathways in F. fujikuroi and F. graminearum. The production of fusarubins appears to be more enigmatic in the F. solani species complex, where more than 50 related compounds have been isolated, with fusarubin, javanicin, and bostrycoidin as the most prominent [17] (Figure 1).

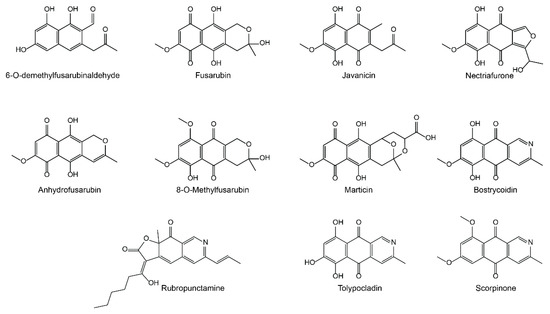

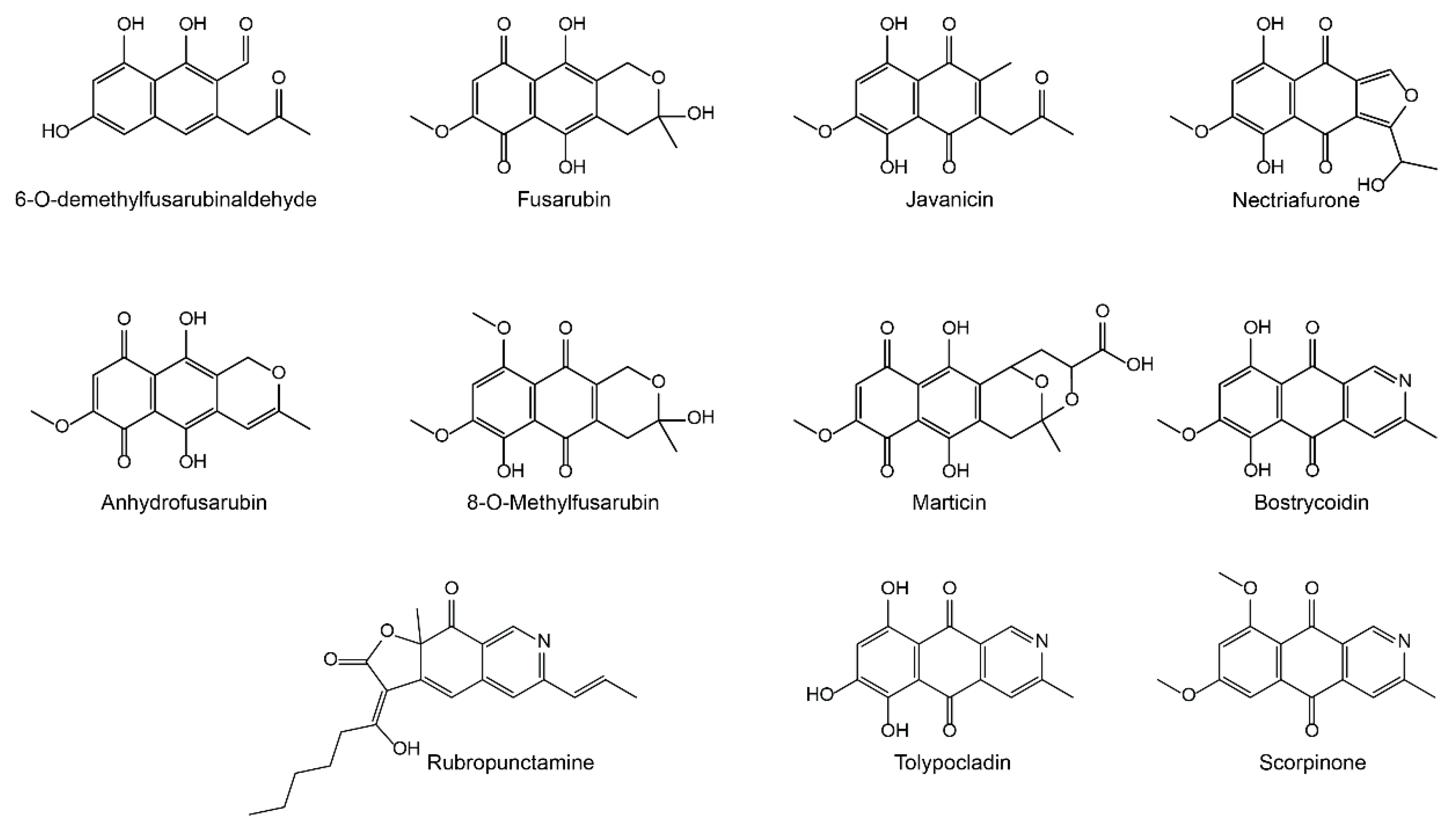

Furthermore, the PKS3 gene cluster of Fusarium solani sp. exhibits a significant diversity from other members of the Fusarium genus [21], as it comprises the seven core genes (fsr1–7) with 17 additional genes, including some genes with potential tailoring capacity, which could explain the higher diversity of fusarubins produced by Fusarium solani (Figure 2a). In this study, transcription of the genes was controlled by the inducible Gal1/10 promotor, leveling the transcription rate dissimilar to natural flux in wild-type transcription.

The aim of study was to determine whether the three core genes contribute to the metabolic diversification through heterologous expression in S. cerevisiae.

2. Results and Discussion

2.1. Comparison of the PKS3 Gene Clusters

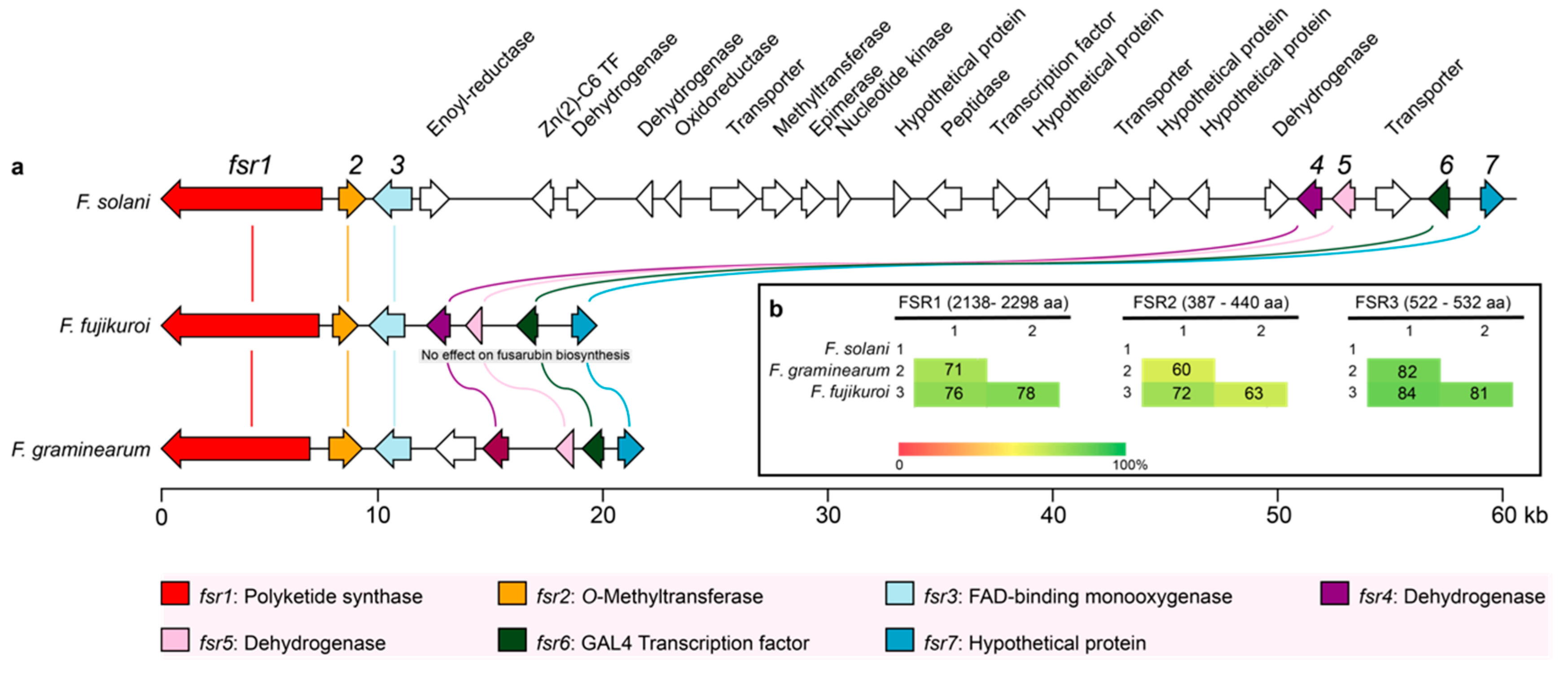

In F. fujikuroi, the end product in the pathway is predicted to be 8-O-methylfusarubin, which has an additional methyl group compared with fusarubin produced by F. solani as one of the main products. As this difference is most likely mediated by FSR2, we performed an alignment analysis of the three core enzymes (Figure 2b). The alignment showed that the FSR3 is the most conserved among the three analyzed enzymes in F. solani, F. fujikuroi, and F. graminearum, with sequence identity ranging from 81 to 84% on amino acid level. FSR2 on the other hand displayed the largest variation, where F. graminearum displayed only 60 and 63% sequence identity to the orthologues in F. solani and F. fujikuroi, respectively.

2.2. Heterologous Expression of the Three Fusarubin Core Genes

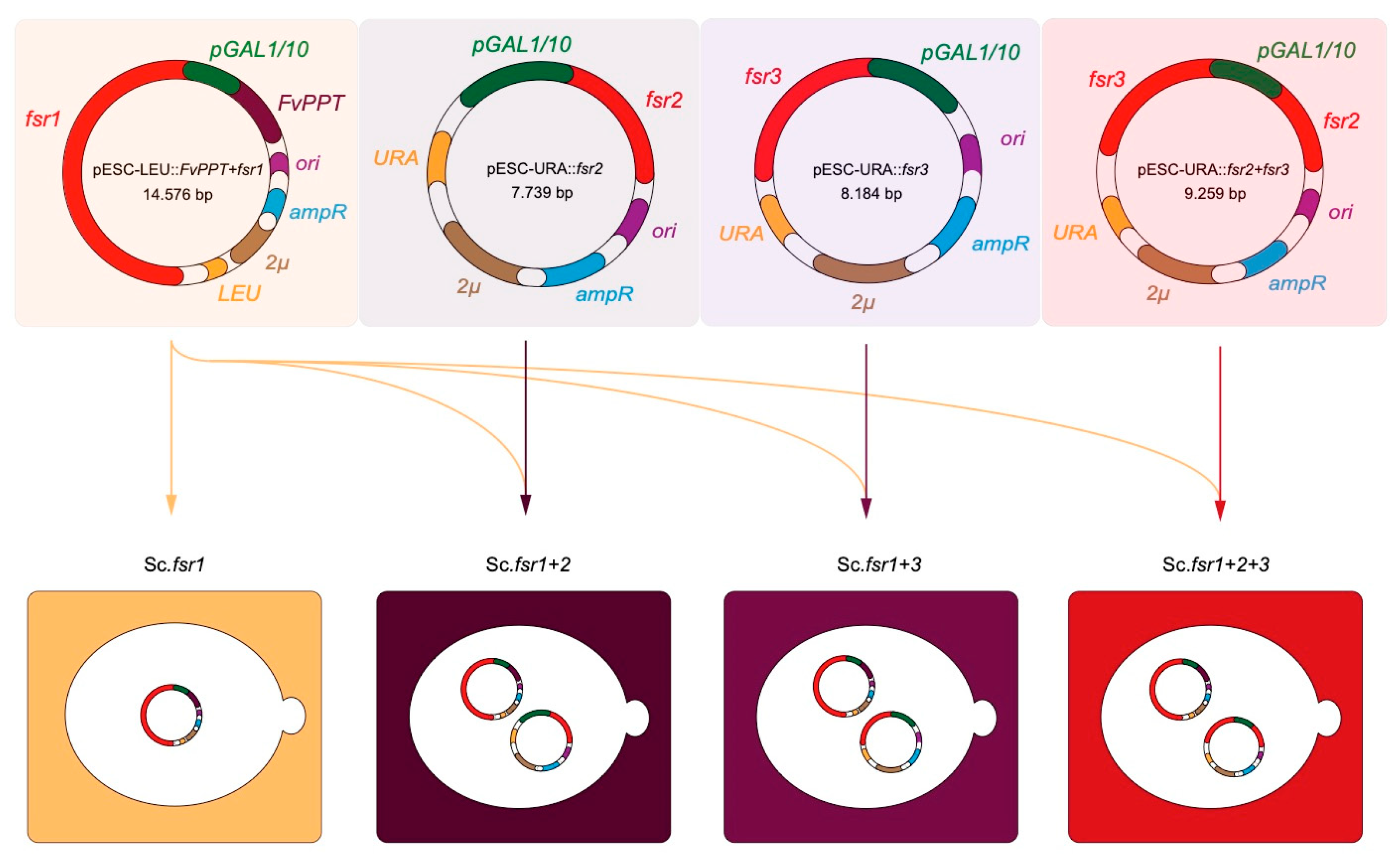

In order to determine the contributions of the three core genes to the biosynthetic pathway, we generated the four combinations (S. cerevisiae BY4743::FvPPT+fsr1), (S. cerevisiae BY4743::FvPPT+fsr1+2), (S. cerevisiae BY4743::FvPPT+fsr1+3), and (S. cerevisiae BY4743::FvPPT+fsr1+2+3), from here on referred to as Sc::fsr1, Sc::fsr1+2, Sc::fsr1+3, and Sc::fsr1+2+3, respectively. For each combination, a representative transformant was grown in conditions inducing the Gal1/10 promotor system for two days, alongside a wild type S. cerevisiae. Changes in color were visible after one day (left) and evident already after two (right) (Figure 3a).

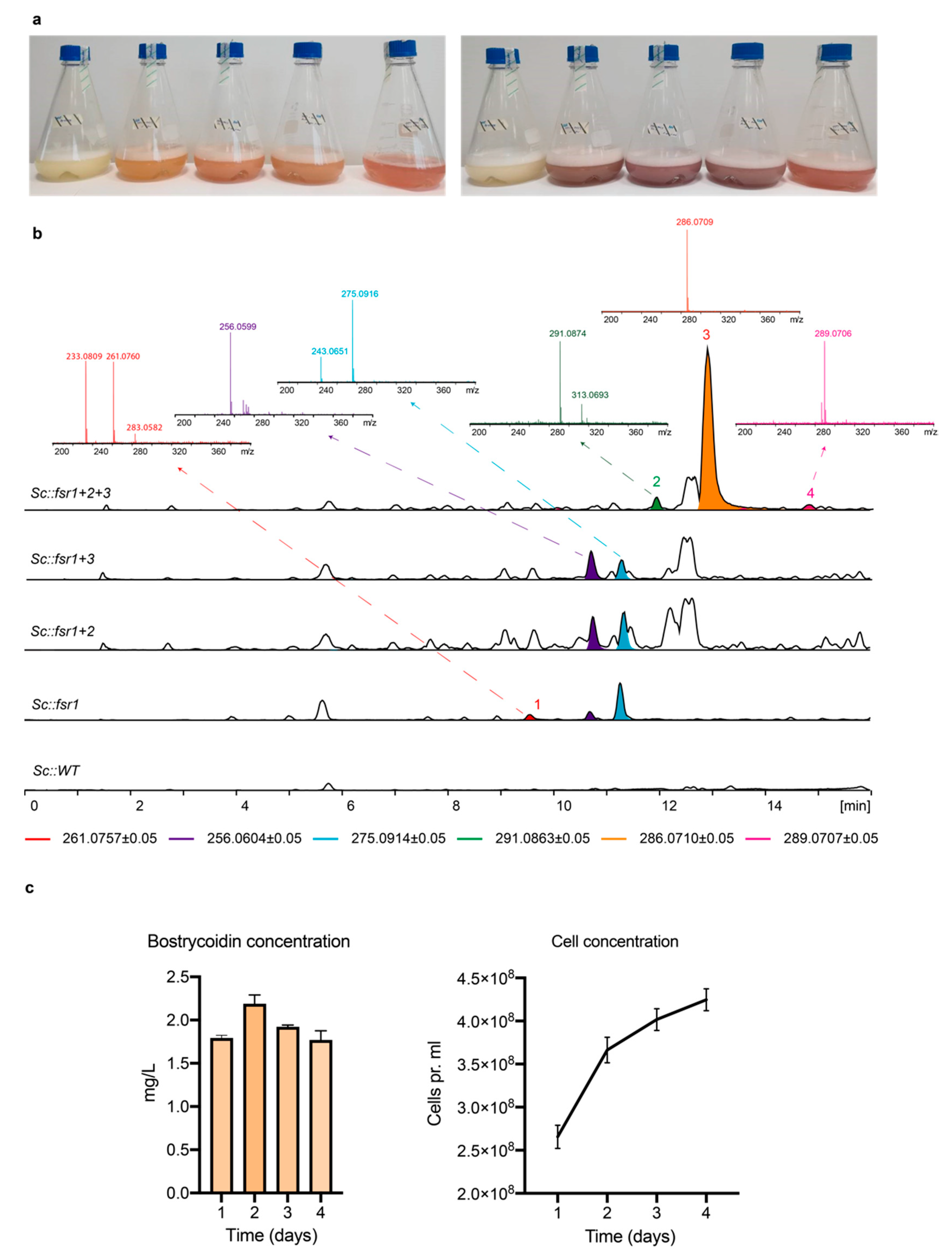

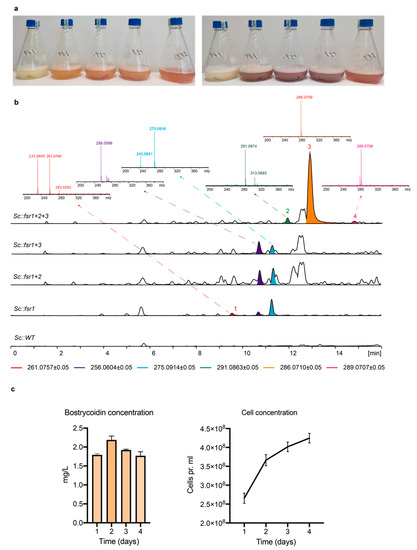

The subsequent metabolite analyses showed that three new peaks emerged with fsr1 as the sole member of the gene cluster, when compared with the spectrum of Sc::WT. One of these peaks matched the expected spectrum for 6-O-demethylfusarubinaldehyde (C₁₄H₁₂O₅, [M+H]⁺_exp: 261.0757; [M+H]⁺_obs: 261.0760), which is the expected release product of FSR1. Another compound identified in Sc::fsr1 was tentatively assigned to C₁₅H₁₄O₅ ([M+H]⁺_exp: 275.0914; [M+H]⁺_obs: 275.0916). So far, attempts to isolate and identify this compound have not been successful in the present or previous studies [24]. The hypothetical next step towards bostrycoidin is a spontaneous ammonium incorporation, resulting in 6-O-demethyl-5-deoxybostrycoidin anthrone (C₁₄H₁₁N₁O₃; [M+H]⁺_exp: 256.0604) [15,25]. However, this compound was not detected in the extracts of any of the strains. Instead, another peak was observed in Sc::fsr1 with a suggested chemical formula of C₁₄H₉N₁O₄ ([M+H]⁺_exp: 256.0604; [M+H]⁺_obs: 256.0599), which could be an oxidized form of 6-O-demethyl-5-deoxybostrycoidin anthrone. The latter two tentatively assigned compounds were also observed when fsr1 was expressed with either fsr2 or fsr3. However, we were not able to determine other pathway intermediates.

Co-expression of fsr1–3 resulted in the production of javanicin, anhydrofusarubin, and bostrycoidin, with the latter as the dominating peak. The highest titer of bostrycoidin was achieved after 2 days of induction, reaching 2.2 mg/L (Figure 3c), very similar in titer level when compared with other complex polyketide expression studies in S. cerevisiae [11,12]. An explanation for the slight decrease in bostrycoidin concentration after 3 and 4 days could be the accumulation of bostrycoidin within the cell pellet due to limited solubility of bostrycoidin in the media. It was evident that the cell pellet of the cultures from day 3 and 4 was significantly larger and more dark red than that of cultures from day 1 and 2, indicating an intercellular accumulation (Figure S1). The observation of 6-O-demethylfusarubinaldehyde in Sc::fsr1 confirms its identity as the PKS release product [14,15]. The following biosynthetic pathway can then branch out in two main directions, ending in bostrycoidin on one side and javanicin and anhydrofusarubin on the other side. The ability of Sc::fsr1+2+3 to produce bostrycoidin suggests that ammonia is incorporated by a conserved fungal enzyme or, more likely, non-enzymatically as proposed previously [15,25]. Given the structural similarities of tolypocladin [19], scorpinone [20], and bostrycoidin, it seems very likely that the compounds share similar pathways including the amination step. A similar situation has also been observed in Monascus spp., where spontaneous amination with NH₃ is observed in the pathways, leading to the red pigment rubropunctamine and monascorubramine [18].

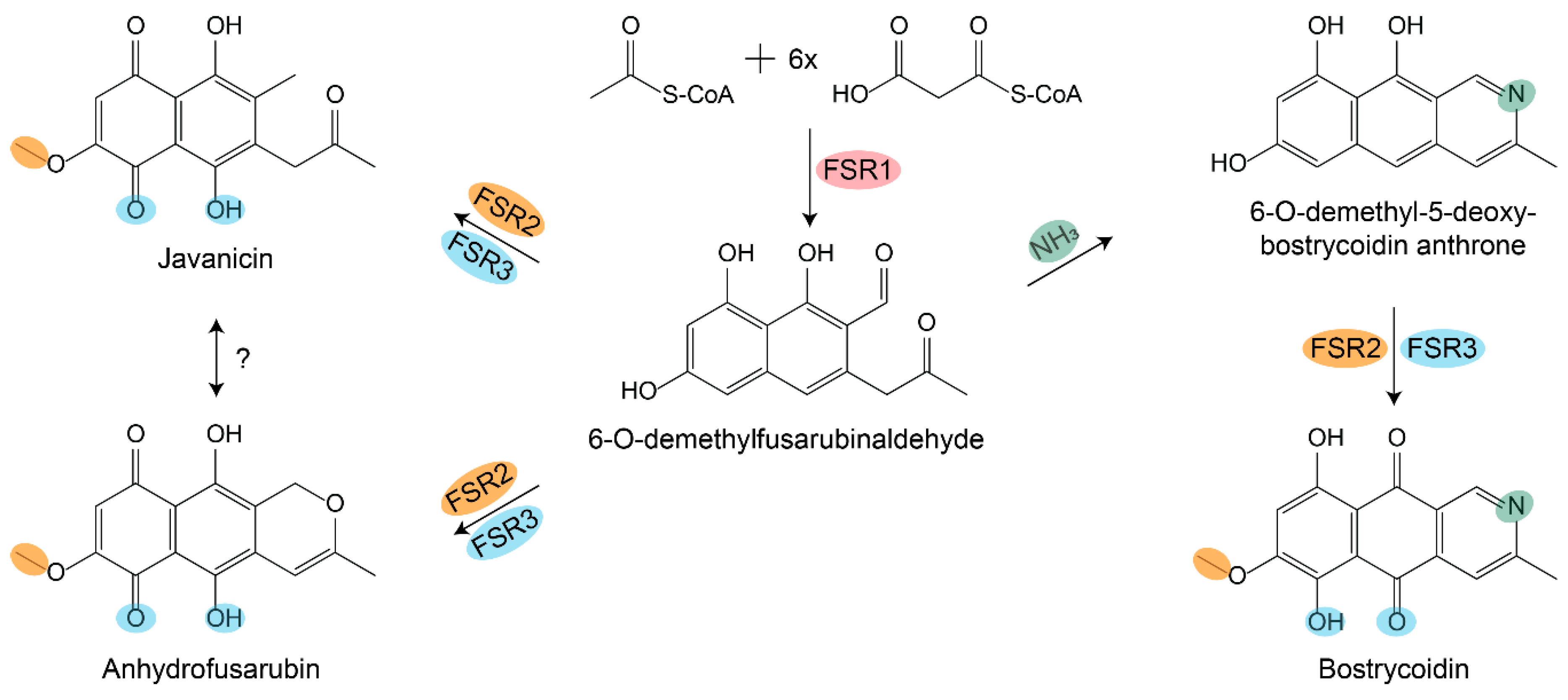

Anhydrofusarubin is structurally very similar to bostrycoidin, differing in the presence of an oxygen or nitrogen molecule in the C ring. It thus seems likely that anhydrofusarubin biosynthesis follows the path of bostrycoidin, where formation of the third ring occurs in one of the early steps (Figure 4). Whether javanicin is produced directly by FSR2 and FSR3 en route to anhydrofusarubin remains unknown. Alternatively, it could result from reopening of ring C in anhydrofusarubin. The ability to catalyze oxygenation and methylation reactions towards anhydrofusarubin and bostrycoidin suggests that the two enzymes have a promiscuous nature. It is striking that FSR2 from F. solani only adds one methyl group, while the orthologue from F. fujikuroi performs two. The alignments showed that the two enzymes are relatively similar (Figure 2b), but more complex comparison studies of their tertiary structures may shed light on the nature of the catalytic differences.

In our study, we only observed a minor portion of the fusarubins that have been reported in literature. This leaves the possibility that the remaining compounds are produced spontaneously or through actions of the enzymes encoded by the additional tailoring genes in the cluster from F. solani. Furthermore, the promiscuous nature of a 4´-phosphopantetheinyl transferase (PPTase) from Fusarium verticillioides exhibited adequate function for regenerating the acyl carrier protein (ACP) domain of the polyketide synthase (fsr1) from the closely related Fusarium solani.

3. Materials and Methods

3.1. Strains

Yeast cloning and heterologous expression were performed utilizing S. cerevisiae BY4743 (genotype: MATα, his3Δ1, leu2Δ0, lys2Δ0, met15Δ0, ura3Δ0) ATCC 201390 and electroporation was performed on bacterial strain Escherichia coli DH5α. The genome sequenced F. solani FGSC9596 [26] was used as a donor of DNA for amplification of fsr2.

3.2. Pairwise Alignment

Pairwise comparison of the protein encoded by the cluster genes was performed in CLC Main Workbench 8.1 using the clustalW algorithm (CLC Bio-Qiagen, Aarhus, Denmark) as previously described [27]. The sequences of FSR1-3 from F. fujikuroi (FFUJ_03984-86), F. graminearum (FGSG_09182-84), and F. solani (NECHADRAFT_101778-80) were retrieved from GenBank.

3.3. Enzymes, Oligonucleotides, and Plasmids

All enzymes were purchased from Thermo Fisher Scientific (Waltham, MA, USA) and oligonucleotides were designed using Primer3Plus software [28] and purchased from Eurofins Genomics (Ebersberg, Germany). The primer table including sequences can be found in Table S1. An overview of purchased and constructed plasmids can be found in Table S2 along with restriction enzymes used for digestion.

3.4. Gene Isolation and Synthesis

Coding sequences for fsr1 and fsr3 were codon optimized towards expression in yeast and synthesized (GenScript), while fsr2 was amplified from genomic DNA prepared through DNeasy Plant Mini Kit (Qiagen, Hilden, Germany) from F. solani and the two exons were fused together to obtain intron-free CDS of fsr2 using transformation associated recombination (TAR)-cloning. To facilitate polyketide formation in S. cerevisiae, we co-expressed fsr1 with the Sfp-type phosphopantetheinyl transferase from F. verticillioides (FVEG_01894).

The four target genes were amplified by PCR using the primers, which contained 25–30 bp identical sequences to the target insert site of the vector expression system of pESC-URA or pESC-LEU, used for auxotrophic selection on uracil (URA) and leucin (LEU) deficient media. The PCR reactions were performed in a 150 μL volume containing (30 μL High Fidelity buffer, 0.2 mM dNTP-mix, 0.2 mM forward/reverse Primer, 0.5 units Phusion HSII polymerase (New England Biolabs, Ipswich, MA, USA), 97.5 μL MQ H₂O, and 1 ng template DNA), split into 3 × 50 μL PCR-tubes.

3.5. Cloning

Prior to assembly of the expression plasmid, the receiving pESC-URA or pESC-LEU were linearized by double restriction enzyme digest (2 μL Fast Digest Buffer (Thermo Fisher Scientific, Waltham, MA, USA), 2 μL plasmid miniprep (QIAquick Miniprep kit), 1 μL FD Enzyme 1 (Thermo Fisher Scientific, Waltham, Massachusetts, USA), 1 μL FD Enzyme 2 (Thermo Fisher Scientific, Waltham, Massachusetts, USA), and 14 μL MQ H₂O at 37 °C for 15 min). The digested plasmids were separated on 1% w/v agarose gel and subsequently purified with the QIAquick Gel Extraction Kit (Qiagen, Hilden, Germany). TAR-cloning was performed according to the LiAc/PEG3350 protocol [29]. Selection of S. cerevisiae transformants was conducted using synthetic complete (SC) agar plates, lacking either uracil, leucine, or both [24].

The plasmid from the obtained transformants were recovered through adaptation of the QIAprep Spin Miniprep Kit (Qiagen, Hilden, Germany) protocol, adding 5 μL Zymolyase-mix (2 mg/mL Zymolyase in 0.5 M sorbitol) (MP Biomedicals Germany) to the P1 Buffer step and incubating at 37 °C for 1 h. The purified plasmids were electroporated into E. coli for proliferation and subsequently initially validated using Sanger-sequencing (Eurofins, Ebersberg) using the primers listed in Table S1 before full plasmid sequencing was performed using a MinION Flow Cell for nanopore sequencing (See 3.8 Plasmid verification). The verified plasmids were transformed into S. cerevisiae to obtain combinations where fsr1 was expressed alone (Sc::fsr1), together with either fsr2 (Sc::fsr1+2) or fsr3 (Sc::fsr1+3), and all together (Sc::fsr1+2+3), as seen in Figure 5.

3.6. Production of Fusarubins Using Galactose Induction

Single colonies of transformants carrying biosynthetic genes were inoculated in 10 mL appropriate selective drop-out medium containing 2% glucose overnight at 30 °C, 200 rpm. Overnight cultures were vortexed and cell titers were estimated using a NanoDrop 2000 c (Thermo Fisher Scientific, Waltham, MA, USA). The cells were transferred into 1000 mL baffled shake flasks containing 250 mL selective media with 2% raffinose (D(+)-raffinose pentahydrate, Acros organics, China) to an OD600 = 0.2. The cells were grown for approximately 9–10 h at 30 °C, 200 rpm until an OD600 at 1 was achieved. The cultures were spiked with 25 mL 40% galactose (D(+)-galactose, VWR chemicals, Belgium) and maintained at 30 °C and 200 rpm for 1–4 days to induce expression of the fungal biosynthetic genes.

3.7. Chemical Analysis

After cultivation, the cells were pelleted by centrifugation at 5.000 G for five minutes. Approximately 300 mL of media was decanted into a 1000 mL bluecap flask and extracted as previously described for aurofusarin in F. graminearum [30]. The dried extracts were dissolved in 2 mL methanol and analyzed on a Hitachi Elite LaChrom HPLC in accordance with the chemical analysis performed in [24]. The identities of javanicin, anhydrofusarubin, and bostrycoidin were determined using data from previous experiments where they were isolated and structurally verified in F. solani [24].

3.8. Plasmid Verification

Library preparation was performed using the Rapid Barcoding Kit SQK-RBK004 (Oxford Nanopore Technologies, Oxford, UK) according to the manufacturer’s guidelines and subsequently sequenced using a R.9.4.1 (FLO-MIN106D) MinION Flow Cell (Oxford Nanopore Technologies, Oxford, UK; Figure S2). The flow cell had previously been used, but was washed according to the manufacturer’s instructions with the Flow Cell Wash Kit EXP-WSH003 (Oxford Nanopore Technologies, Oxford, UK). Fast5 files were basecalled and demultiplexed using GPU driven Guppy v3.6.1 (Oxford Nanopore Technologies, Oxford, UK) with the following model: dna_r9.4.1_450bps_hac.cfg. Filtlong v0.2.0 (https://github.com/rrwick/Filtlong) was used to filtrate the reads to a minimum length of 100 and minimum quality of 80. Minimap2 v2.17 [31] was used to create overlaps between the reads and the assemblies were generated by Miniasm v0.3 [32]. The assemblies were first polished with Racon v1.3.3 [33] and then with two rounds of Medaka v1.0.1 (https://github.com/nanoporetech/medaka); both with default settings.
