Integrative Analysis of Regulatory Module Reveals Associations of Microgravity with Dysfunctions of Multi-body Systems and Tumorigenesis

by
Mengqin Yuan
†,
Haizhou Liu
†,
Shunheng Zhou
,
Xu Zhou
,
Yu-e Huang
,
Fei Hou
and
Wei Jiang
*
Department of Biomedical Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2020, 21(20), 7585; https://doi.org/10.3390/ijms21207585
Submission received: 21 August 2020 / Revised: 7 October 2020 / Accepted: 11 October 2020 / Published: 14 October 2020
(This article belongs to the Special Issue Microgravity and Space Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
Previous studies have demonstrated that microgravity could lead to health risks. The investigation of the molecular mechanisms from the aspect of systems biology has not been performed yet. Here, we integratively analyzed transcriptional and post-transcriptional regulations based on gene and miRNA expression profiles in human peripheral blood lymphocytes cultured in modeled microgravity. Two hundred and thirty dysregulated TF-miRNA (transcription factor and microRNA) feed-forward loops (FFLs) were identified in microgravity. The immune, cardiovascular, endocrine, nervous and skeletal system subnetworks were constructed according to the functions of dysregulated FFLs. Taking the skeletal system as an example, most of genes and miRNAs in the subnetwork were involved in bone loss. In addition, several drugs have been predicted to have potential to reduce bone loss, such as traditional Chinese medicines Emodin and Ginsenoside Rh2. Furthermore, we investigated the relationships between microgravity and 20 cancer types, and found that most of cancers might be promoted by microgravity. For example, rectum adenocarcinoma (READ) might be induced by microgravity through reducing antigen presentation and suppressing IgA-antibody-secreting cells’ migration. Collectively, TF-miRNA FFL might provide a novel mechanism to elucidate the changes induced by microgravity, serve as drug targets to relieve microgravity effects, and give new insights to explore the relationships between microgravity and cancers.

1. Introduction

The National Aeronautics and Space Administration (NASA) twins study indicated that space flight could induce a series of physiological and pathological changes in astronauts, including immunological stress, vascular changes, and bone loss [1]. Hitherto, some ground-based machines are used to simulate microgravity, such as clinostats and rotating wall vessel bioreactors [2,3]. Simulated microgravity is convenient for us to understand the effects of real microgravity better. During the last three decades, numerous studies have focused on molecular mechanisms, of which microgravity could lead to human body system dysfunctions. For example, the increased RANKL/OPG ratio due to microgravity induced osteoclastgenesis and bone resorption [4]. For the immune system in microgravity, the significant reduction of IL2 and IL2 receptor alpha expression and downregulated PAK pathway prevented the full activation of T-cell [5,6].
Transcription factor (TF) and microRNA (miRNA) are two types of well-studied gene regulators. TFs control the transcription of DNA to messenger RNA (mRNA) through binding to promoter. It is well known that the dysregulation of TFs can influence various biological effects such as stress and adaptive responses [7]. MiRNAs (~22 nucleotides) inhibits the translation of target mRNA by degrading and silencing mRNA. Accumulating evidence has shown that the alternations of miRNA expression in microgravity lead to metabolic or functional changes in cells [8]. TF and miRNA can coordinately regulate gene expression through forming feed-forward loops (FFLs), which has been proposed as an effective tool to explore the molecular mechanism of many diseases [9,10]. However, the regulatory mechanism about TF-miRNA FFLs in microgravity has not been explored yet.
In addition, several studies have focused on the relationships between microgravity and cancers. Some studies suggested that microgravity could induce the risk of cancer. For example, spaceflight can weaken astronauts’ immune system and cause a high risk of cancer. Early T-cell activation genes in mouse, such as interferon 2, Tagap and ligp1, were significantly downregulated in microgravity [11]. However, the inhibitory effects of microgravity on the viability and growth of cancer cells were also observed. The upregulation of p53 and bax was found to increase apoptosis in human follicular thyroid carcinoma cells due to microgravity [12]. The stemness loss of lung cancer stem cell was induced by the downregulation of NANOG and OCT4 in microgravity [13]. However, there is no systematic research about the associations between microgravity and pan-cancer.
In this study, we systematically analyzed the effects of microgravity on five human body systems, as well as the associations between microgravity and pan-cancer. Firstly, we identified 230 dysregulated FFLs in microgravity. Then, human body system subnetworks were constructed according to the functions of FFLs, including immune, cardiovascular, skeletal, endocrine, and nervous system subnetworks. Moreover, almost all the genes and miRNAs in skeletal system subnetwork were associated with bone loss, which is one of the major risks for astronauts in space flight. Next, we predicted the candidate drugs Emodin and Ginsenoside Rh2, which could reverse the expression of dysregulated miRNAs, to prevent or reduce the bone loss due to microgravity. In addition, we investigated the relationships between microgravity and cancers. The results suggested that microgravity might promote most cancers. For example, microgravity promoted rectum adenocarcinoma (READ) through reducing antigen presentation and suppressing IgA-antibody-secreting cells’ migration to inhibit immune protection. In summary, we identified the dysregulated FFLs in microgravity, elucidated how microgravity influences the function of human body systems, screened potential drugs to inhibit bone loss in microgravity, and explored the relationships between microgravity and cancers.

2. Results

2.1. Characteristics of TF-miRNA Regulatory Network

We obtained the experimentally validated TF and miRNA regulations from the TRANSFAC [14], TarBase [15], miRTarbase [16] and TransmiR [17] databases. After eliminating all self-loops, we obtained 4693 TF-gene, 3930 TF-miRNA, 12,052 miRNA-gene regulations to construct the integrated regulatory network, which included 647 TFs, 888 miRNAs and 3794 genes (Supplementary Figure S1A and Supplementary Table S1). Then, we analyzed the topological properties of the network. Similar to most biological networks, the degree distribution of the background regulatory network approximately displayed a power law distribution (Supplementary Figure S1B), which meant that it satisfied scale-free topology [18].

2.2. Dysregulated FFLs in Microgravity

We identified 4064 FFLs in the TF-miRNA regulatory network. Furthermore, through integrative analysis of gene and miRNA expression profiles of human peripheral blood lymphocytes (HPBLs) incubated in microgravity and normal gravity, we obtained 230 dysregulated FFLs, including 128 TF-FFLs, 62 miRNA-FFLs, and 40 feed-back FFLs (FB-FFLs) (Figure 1A–C and Supplementary Table S2, details in Materials and Methods). By merging these FFLs, we constructed the dysregulated FFL network including 40 TFs, 67 miRNAs, and 67 genes.
The Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis of the genes and the miRNAs in the dysregulated FFLs was performed by Database for Annotation, Visualization and Integrated Discovery (DAVID) [19] and DIANA-miRPath [20], respectively. The results showed that some immune system-related pathways were significantly enriched, including hepatitis B, HTLV-1 infection and inflammatory bowel disease, which were consistent with the function of HPBLs (Figure 1D,E). Interestingly, many cancer-related pathways were also identified, such as pathways in cancer, viral carcinogenesis, and the PI3K-Akt signaling pathway (Figure 1D,E).
Because the nodes with high connectivity usually play critical roles in the network, we calculated the degree of each node in the dysregulated FFL network. Then, we defined the FFLs in which the degrees of all nodes are no fewer than 10 as hub FFLs. As a result, we obtained 31 hub FFLs. Then, the hub FFL subnetwork was constructed through connecting the hub FFLs, which included 10 TFs, eight miRNAs and five genes (Figure 1F). In the hub FFL subnetwork, we found that most of the genes were involved in cancer progression. For example, KLF4, which is zinc-finger transcription factor, is a tumor suppressor in colorectal cancer and may act as oncogene in oral squamous cell carcinoma [21,22]. Protein encoded by RELA is a subunit of NFKB, which may have a potential role as prognostic biomarker in prostate cancer [23]. To further validate this phenomenon, 724 known cancer genes were retrieved from the Cancer Gene Census (CGC) database [24]. We found that eight (~53%) genes in the hub FFL subnetwork were known cancer genes. This proportion was significantly higher than that in the dysregulated FFL network (35%, Fisher’s exact test p-value = 0.035) and the background regulatory network (10%, Fisher’s exact test p-value < 0.01). Meanwhile, the proportion of the known cancer genes in dysregulated FFLs was significantly larger than background network (Fisher’s exact test p-value < 0.01) (Figure 1G). The results indicated that the genes in the dysregulated FFL network, especially in the hub FFL subnetwork, were more likely to be the cancer genes. We will further analyze the associations between microgravity and cancers in the pan-cancer cohort.

2.3. The Microgravity Effects on Multi-body Systems

The environment of microgravity will bring about remarkable multisystem changes in the human body, which lives in earth’s gravity. These changes cover a wide spectrum ranging from mild symptoms, such as nausea and transient sensory imbalances, to system function impairment [25]. Some studies have focused on the effect of microgravity on a single system including the cardiovascular system, skeletal system and so on. To explore the effect of microgravity on multiple human body systems including the immune, cardiovascular, skeletal, endocrine, and nervous systems, we performed KEGG functional annotation analysis of genes and miRNAs in dysregulated FFLs by DAVID and DIANA-miRPath, respectively. The dysregulated FFL related to one human body system was defined as that all nodes in the FFL should participate in the pathways related to this body system. We obtained 160 FFLs related to the functions of the five body systems, of which 133, 83, 46, 8 and 51 FFLs were identified for immune, cardiovascular, nervous, skeletal and endocrine systems, respectively, including 38 TFs, 31 genes and 46 miRNAs (Figure 2 and Supplementary Table S3). There were 67 system-specific FFLs, and 52 system-general FFLs, which were shared by at least three systems (Figure 2).
In addition, we constructed five subnetworks through merging each system-related FFLs (Figure 3). There were 70 of 115 nodes (66.7%) and 183 of 324 edges (56.5%) shared by at least two subnetworks. The nodes and edges in immune subnetwork included most of those in the other four subnetworks (Figure 4A,B). To identify the important nodes in each subnetwork, we selected the top 10 nodes according to their degrees. Fourteen of 23 nodes (60.9%) were shared by at least two subnetworks, of which RELA and FOS were shared by five subnetworks. In addition, we used NCMine to extract functional modules in the five subnetworks [26]. Three modules were found to be shared by at least three subnetworks (Figure 4C and Supplementary Table S4). The results suggested that the dysregulated FFLs might have a systematic effect on human body, in which different body systems cooperate as a whole.

2.4. Effects of Microgravity on Bone Loss and Drug Screening

Taking the skeletal system as an example, we analyzed gene and miRNA expression in skeletal system subnetwork. On the one hand, we identified some significantly differentially expressed (DE) genes in this subnetwork such as FOS (log2FC = −3.765, p-value < 0.001) and IFNG (log2FC = 4.513, p-value = 0.012). On the other hand, one of the advantages of FFL method is that some nonsignificantly DE molecules can be also identified. For example, we identified nonsignificantly DE genes, including RELA (log2FC = 0.957, p-value = 0.033), ESR11 (log2FC = −0.56, p-value = 0.021), TP53 (log2FC = 0.642, p-value = 0.187), PTK2 (log2FC = 0.585, p-value = 0.228), TNF (log2FC = −0.193, p-value = 0.681) and BAX (log2FC = 0.11, p-value = 0.463) as well as nonsignificantly DE miRNAs, including hsa-miR-221-3p (log2FC = 0.121, p-value = 0.817), hsa-miR-125a-5p (log2FC = 0.532, p-value = 0.145), hsa-miR-7-5p (log2FC = 0.373, p-value = 0.084) and hsa-miR-125b-5p (log2FC = 0.18, p-value = 0.7) in this subnetwork (Figure 4D). Furthermore, we investigated the functions of genes and miRNAs in this subnetwork from literatures. We found that the dysregulation of genes and miRNAs could lead to bone loss, which is one of the most common and well-known diseases for astronauts in space flight, by reducing osteoblast and increasing osteoclast. Bone loss is caused by the balance disruption between osteoblastic bone formation and osteoclastic bone resorption [27]. Previous studies have demonstrated that the reduction in osteoblast can lead to bone formation decrease [28]. Some genes and miRNAs in the subnetwork were found to be associated with the decrease of osteoblast. For example, FOS has been observed in a high level during the proliferative period of osteoblast development [29]. IFNG could inhibit the proliferation of human osteoblastic SaOS-2 cells [30]. PTK2 was shown to inhibit adipose-derived stem cell differentiation to osteoblast [31]. Decreased BAX expression could reduce apoptosis of osteoblast [32]. Hsa-miR-221-3p was demonstrated to be involved in osteoblast differentiation [33]. Hsa-miR-125b-5p inhibited osteoblastogenesis by regulate the expression of ErbB2 [34]. Meanwhile, bone resorption is enhanced due to an increase in osteoclast [35]. Some genes and miRNAs in the subnetwork were found to be related to the increase of osteoclast. For example, RELA is a subunit of NFKB, whose reduction in expression has been proposed to be an effective approach to inhibit osteoclast formation and bone resorptive activity [36]. Hsa-miR-125a-5p promoted osteoclast differentiation through inhibiting TNFRSF1B protein expression [37]. ESR1 can induce osteoclast apoptosis [38]. Taken together, the dysregulation of genes and miRNAs in skeletal system subnetwork might lead to bone loss by reducing osteoblast and increasing osteoclast.
In addition, to relieve the effects of microgravity on bone loss, we screened drugs to reverse the expression of miRNAs and genes in the subnetwork. Many studies have demonstrated that small molecules could modulate miRNA expression. We obtained the drugs that can disrupt miRNA expression from the SM2miR database, which collects the experimentally validated influences of small molecules on miRNA expression [39]. Because the four miRNAs, including hsa-miR-221-3p, hsa-miR-125b-5p, hsa-miR-125a-5p and hsa-miR-7-5p, were elevated in microgravity, we selected the drugs which can inhibit the expression of miRNAs in the skeletal system subnetwork as much as possible (Supplementary Table S5). Interestingly, we found that two traditional Chinese medicines Emodin and Ginsenoside Rh2 could inhibit the expression of hsa-miR-221-3p and hsa-miR-125b-5p (Figure 4E). Emodin and Ginsenoside Rh2 have been used as herbal remedy for more than 2000 years [40,41]. In previous studies, Emodin and Ginsenoside Rh2 have been demonstrated to reduce the expression of IFNG [42,43] and NFKB [44,45], which participate in the process of bone formation [30,36]. Furthermore, the two drugs have been proposed to be candidates for osteoporosis treatment by inhibiting osteoclastogenesis [44,46]. Meanwhile, we screened drugs which could reverse the expression of genes in the skeletal system subnetwork. First, we downloaded the gene expression profiles under small molecule perturbations in Cmap [47]. Then, DE genes were obtained for each instance according to the previous study [48]. Eight drugs could reverse at least three genes’ expression (Supplementary Table S5), but the associations with bone loss had not been reported. In conclusion, we screened some candidate drugs, such as Emodin and Ginsenoside Rh2, to alleviate the symptom of bone loss due to microgravity by reversing miRNA and gene expression.

2.5. Deep Insight into the Relationships Between Microgravity and Cancers

We further explore the relationships between microgravity and cancers based on gene expression data. The NASA twins’ study has shown that the expression of some genes related to immune function and DNA repair could not revert back to normal levels after returning from the space to earth [1]. The activity of immune cells was suppressed in microgravity, which increased the cancer risk for astronauts [49]. Thus, to guarantee the health of astronauts in space, it is urgent to systematically uncover the relationships between microgravity and cancers. We downloaded gene expression profiles and obtained significantly DE genes in 20 cancer types from The Cancer Genome Atlas (TCGA) project (Table 1). Next, we examined relative shift about the distribution of log2FC of expression values between significantly DE genes (upregulated and downregulated genes, respectively) in each cancer type and genes in microgravity by the Wilcoxon rank-sum test (details in Materials and Methods). We defined the significant up-top, down-bottom or both (p-value ≤ 0.1) as consistent patterns; the significant up-bottom, down-top or both (p-value ≤ 0.1) as reverse patterns. The result showed that 18 of 20 cancers (90%) had a significant down-bottom pattern (Figure 5A, Supplementary Table S6), which meant that downregulated genes in the 18 cancer types were preferred to be downregulated in microgravity. Meanwhile, five cancer types (HNSC, LUAD, CHOL, COAD and READ) had a significant up-top pattern, which meant that upregulated genes in the five cancer types were preferred to be upregulated in microgravity. These five cancer types showed consistent pattern with both down-bottom and up-top patterns, which suggested that microgravity might promote these cancers. Previous studies have reported that microgravity was favorable to cell growth of human colorectal carcinoma cell line [50]. The migratory ability of human lung cancer cell lines of adenocarcinoma was increased after exposing to microgravity [51]. There were studies showing that microgravity may induce some types of cancer including lung, liver, head and neck cancers [49]. In addition, six cancers had a significant up-bottom pattern. In these cancers, GBM is one of the most aggressive and fatal human brain cancers, which showed only one reverse up-bottom pattern. GBM cells have been found a decrease in cell proliferation and an increase in chemosensitivity to cisplatin in microgravity [52]. It suggested that microgravity might serve as an expectable role of protection for GBM patients. However, the other five cancers have conflict trend with significant up-bottom and down-bottom patterns, which suggested the complexity of relationships between microgravity and these cancer types. Furthermore, in order to check the reproducibility of our results, we analyzed the additional gene expression data of cancers by microarray (LUAD and GBM from GSE116959 and GSE19728, respectively). The same procedures and parameters were performed. The results showed that the downregulated genes in the LUAD were preferred to be downregulated in microgravity (p-value = 4.94 × 10−18), and the upregulated and downregulated genes in GBM were preferred to be reversed in microgravity (p-value = 0.011 and p-value = 0.029, respectively). These results indicated that microgravity might promote LUAD and inhibit GBM, which were consistent with the results from TCGA datasets (Table S6).
To understand the mechanism of microgravity effect on cancers, we analyzed significantly disturbed pathways existing in both microgravity and cancers. Taking READ as an example, we firstly obtained the 559 DE genes in microgravity, of which 115 DE genes were DE in READ and showed same regulation directions with READ. Next, we performed KEGG pathway enrichment of 115 DE genes by DAVID. The top 10 significantly enriched pathways were almost related to the function of immune system (Figure 5B). The six downregulated genes in microgravity, HLA-DPA1 (log2FC = −1.785, p-value = 0.002), HLA-DQA1 (log2FC = −1.65, p-value = 0.003), HLA-DPB1 (log2FC = −1.83, p-value = 0.0007), HLA-DMB (log2FC = −1.64, p-value = 0.002), CXCL12 (log2FC = −1.52, p-value = 0.001) and TNFSF13 (log2FC = −2.2, p-value = 0.001) (Figure 5C), were downregulated in READ and were enriched in “intestinal immune network for IgA production” pathway, which is well-known in colorectal cancer [53]. These molecules have been demonstrated to play important roles in cancer immunoediting [54]. The HLA-DPA1, HLA-DQA1, HLA-DPB1 and HLA-DMB belong to major histocompatibility complex (MHC) class II (Figure 5D), whose deficiency inhibited the ability of antitumor and protective immunity by reducing antigen presentation [54]. The downregulated TNFSF13 (also known as APRIL), a member of tumor necrosis factor ligand superfamily, inhibited B cell proliferation, maturation, and survival, which is crucial in antigen presentation [55]. The decreased CXCL12, produced by epithelial cells of colon, inhibited IgA antibody secreting cells’ migration into lamina propria of colon [56]. Our results suggested that microgravity might promote READ by reducing antigen presentation and suppressing IgA-antibody-secreting cells’ migration through “intestinal immune network for IgA production” pathway. HLA-DPA1, HLA-DQA1, HLA-DPB1, HLA-DMB, TNFSF13 and CXCL12 might be the biomarkers associated with the pathogenesis of READ promoted by microgravity.

3. Discussion

A better understanding of how microgravity influences health will benefit astronauts in the long-duration spaceflight. TFs and miRNAs as major regulators of gene expression at the transcriptional and post-transcriptional level could coordinately regulate the same target gene through forming TF-miRNA FFLs, which have been widely used to explore molecular mechanisms of development and progression in many cancer types. However, the systematic investigation of TF-miRNA FFLs in microgravity has not been performed yet. In addition, the relationships of microgravity and pan-cancer remain unclear.
This study is the first attempt to investigate the microgravity effects on multiple human body systems from the perspective of TF-miRNA FFLs. Here, we constructed five human body system subnetworks and explored the mechanism of microgravity effects on body systems. Taking skeletal system as an example, the dysregulation of most genes and miRNAs in the subnetwork leads to reduction of osteoblast and increase of osteoclast, which induced bone loss. In addition, we identified potential drugs to prevent bone loss through reversing the dysregulated expression of miRNAs and genes based on SM2miR and Cmap. For example, Emodin and Ginsenoside Rh2, which are traditional Chinese medicines, could inhibit the expression of hsa-miR-221-3p and hsa-miR-125b-5p. Interestingly, the previous studies had proposed the two drugs as candidates for osteoporosis treatment by inhibiting osteoclastogenesis [44,45]. Ellipticine, the top one in the predicted rank list from Cmap, could reverse the expression of four genes in the subnetwork, including RELA, PTK2, BAX and FOS. Although these predicted drugs in Cmap have not been reported to be involved in bone loss, they might serve as novel candidate sources for further experiment validation.
In addition, we found that the function of some genes and miRNAs in the dysregulated FFLs were associated with cancer. Also, the known cancer genes were significantly enriched in the hub FFLs. It suggested that, to some extent, microgravity might be correlated with cancer. We further explored the relationships between microgravity and cancers, the results demonstrated that microgravity might be a risk factor for 13 cancer types, whereas it might be a protective factor for GBM. Furthermore, we explored the mechanism of microgravity effect on cancers. HLA-DPA1, HLA-DQA1, HLA-DPB1, HLA-DMB, CXCL12 and TNFSF13, downregulated both in microgravity and READ, were enriched in “intestinal immune network for IgA production” pathway. It has been demonstrated to play an important role in colorectal cancer [53]. Meanwhile, HLA-DPA1, HLA-DQA1, HLA-DPB1 and HLA-DMB belong to MHC class II, one of the most important components in tumor-immune interactions. TNFSF13 induces B cell proliferation, maturation, and survival. CXCL12 contributes to the migration of IgA-antibody-secreting cells. These genes might be involved in the pathogenesis of READ promoted by microgravity through reducing antigen presentation and suppressing IgA-antibody-secreting cells’ migration [54,55,56].
Our results will benefit the astronauts’ physical in space flight. However, there are still some limitations in this study. Firstly, only five samples in microgravity were analyzed in this study due to the deficiency of microgravity data. A larger cohort of samples in microgravity with high-throughput sequencing data is needed in the future to understand microgravity effects more precisely. Secondly, the HPBLs were used to explore the effects of microgravity on body systems in this study, because the gene expression data of tissues in microgravity is still not available. Meanwhile, many studies had shown that the gene expression in peripheral blood can be served as the biomarkers of diagnosis, prognosis, and drug treatment for different cancers [57,58]. For example, ANXA1 in peripheral blood mononuclear cells was found to be the diagnosis marker for solid tumors, such as breast cancer, lung cancer, and melanoma [57]. Although in the current situation, investigation of the effects of microgravity on multiple body systems from peripheral blood might be feasible to some extent, more omics data about human tissues in microgravity are still urgently needed. In addition, some studies observed the alternations of gene and miRNA expression under gravity changing, but the mechanisms remained to be addressed. As we know, the vestibular organs are sensors for gravity changes in vivo [59], but the mechanism about “how cells in vitro detect the gravitational changes” are still unclear. There were some hypotheses about it. The cytoskeletal element and mechanosensitive ion channels have been suggested to be the gravity receptor [60,61]. After exposure to real or simulated microgravity, the imbalance of adhesion and cytoskeleton has an effect on signaling cascades and downstream transcription events [62]. The activation of a mechanosensitive ion channel induced by gravitational force could lead to the activation or silencing of genes expression [61]. However, these hypotheses have not been confirmed by experimental data so far. Furthermore, more experiments should be used to validate the effectiveness of candidate drugs for bone loss in microgravity.
In summary, we identified the dysregulated TF-miRNA FFLs in microgravity, constructed five human body system subnetworks and explored the relationships between microgravity and cancers. Our analysis might provide novel insights into the roles of TF-miRNA FFLs in microgravity, will be helpful for drug screening to prevent the health risks of microgravity, and give a hint of associations between microgravity and cancers.

4. Materials and Methods

4.1. Data Collection and Processing

The gene and miRNA expression of HPBLs in microgravity and normal gravity were measured by microarray, which were performed by Girardi et al. [63]. They obtained the HPBLs from five healthy donors, which were incubated in normal gravity and modeled microgravity for 24 h, respectively. The modeled microgravity was simulated by the rotating wall vessel bioreactor. The gene and miRNA expression profiles were downloaded from the Gene Expression Omnibus (GEO) database (GSE57408 and GSE57400). More details about the design of experiment referred to [63]. The raw microarray data was normalized with Quantile normalization and then log2-transformed. We converted gene probe IDs to gene symbols. The average probe expression value was used as gene expression value if multiple probes corresponded to one gene. To unify the miRNA name, the miRNA name from miRbase V.10.1 was converted to miRbase V.22 using “miRNAmeConverter” R package [64]. Finally, the differential expression of genes and miRNAs was computed by the “limma” R package, which is based on Bayesian adjusted t-statistics from the linear models [65].

4.2. Construction of the TF-miRNA Regulatory Network

The regulations of TFs to genes were obtained from TRANSFAC Professional database (Release: 2014.2) [14]. The regulations of miRNAs to genes were obtained from TarBase v8 [15], miRTarbase [16] and TRANSFAC Professional database. In TarBase and miRTarbase, we only retained the miRNA regulations that have been validated by low-throughput experiments, such as Western blot and quantitative PCR (qPCR). The union of regulations in the three databases was used for the further study. The regulations of TFs to miRNAs were obtained from TransmiR v2.0 [17] and TRANSFAC Professional database. The union of the two databases was retained to construct the regulatory network. Next, we connected all regulatory pairs and eliminated all self-loops to constructed the integrated TF-miRNA regulatory network. Collectively, there were 647 TFs, 888 miRNAs and 3794 genes in the network (Table 2).

4.3. Identification of Dysregulated FFLs

The TF and miRNA coordinately regulatory FFL includes one TF, one miRNA, and one target gene. According to their regulations, the FFLs can be typically classified into three types: TF-FFL, miRNA-FFL, and FB-FFL. In a TF-FFL, TF regulates miRNA and gene at transcriptional level; miRNA represses gene expression at post-transcriptional level. In a miRNA-FFL, miRNA represses TF and gene; TF regulates gene. In a FB-FFL, TF and miRNA mutually regulate each other and both regulate the same target gene.
To evaluate the dysregulation of all FFLs, we considered the differential expression of all nodes and the differential coexpression of all edges in the FFL. Firstly, each node was scored according to the extent of differential expression using the following formula [9,66]:
S n o d e = φ − 1 ( 1 − 2 × ( 1 − φ ( D i f f n o d e ) ) )
D i f f n o d e = ( − log 10 p i ) × | log 2 F C |
where φ − 1 is the inverse normal cumulative distribution function, p i is the p-value which represents the significance of expression changes determined by the limma R package. FC is the fold change of this gene or miRNA expression. Next, each edge was scored according to the difference of gene coexpression between microgravity and normal samples using the following equations [9,66]:
S e d g e = φ − 1 ( 1 − 2 × ( 1 − φ ( | D | ) ) )
D = F ( r m i c r o g a v i t y ) − F ( r n o r m a l ) 1.06 n m i c r o g r a v i t y − 3 + 1.06 n n o r m a l − 3
F ( r ) = 1 2 ln 1 + r 1 − r
where r m i c r o g a v i t y and r n o r m a l are the Spearman correlation coefficients of gene expression in microgravity and normal samples, respectively. Function of F is Fisher transformation. n is the number of samples. Finally, the FFL score is the weighted sum of node scores and edge scores as follows [9,66]:
s F F L = γ ∑ n o d e ∈ F F L S n o d e n n o d e + ( 1 − γ ) ∑ e g d e ∈ F F L S e d g e n e d g e
where n n o d e and n e d g e are the numbers of nodes and edges in the FFL, respectively (here, both of them are 3). γ is weight parameter ( 0 < γ < 1 ), which controls the contribution of node score and edge score. Here, we considered that the weights of node and edge score were equally, and γ was set as 0.5.
Next, we performed permutation analysis to estimate the significance of each FFL score. Firstly, a random FFL was constructed by randomly selecting three molecules. This process was repeated 100,000 times. Secondly, the scores of the random FFLs were calculated through the above equations. Finally, the empirical p-value was defined as the proportion of random FFL scores larger than the real FFL score. In this study, the FFLs with p-value ≤ 0.05 were considered as the dysregulated FFLs.

4.4. Construction of the Dysregulated FFL Subnetworks Related to Human Body Systems

The KEGG functional annotation analysis of genes and miRNAs in dysregulated FFLs were performed by DAVID [19] and DIANA-miRPath [20], respectively. According to the functions of genes and miRNAs, we defined the system function-related FFL as that all nodes in the FFL should participate in the pathways related to the body system. Then, through connecting the dysregulated FFLs related to the same body system, we constructed the dysregulated FFL subnetworks for five body systems, including immune, cardiovascular, skeletal, endocrine, and nervous systems.

4.5. Differential Expression Analysis of 20 Cancer Types

The gene expression data of cancers was downloaded from TCGA RNA-seq data (level 3). After filtering cancer types with fewer than three cancer or normal samples, 20 cancer types were retained for further analysis. Next, the edgeR R package, which is based on negative binomial model, was used to calculate gene differential expression [67]. The trimmed mean of M values (TMM) method was used to normalize the count. Only genes with more than one count per million (CPM) in at least half of the samples were included in differential expression analysis. Finally, we obtained the significantly DE genes at the threshold of FDR ≤ 0.05 and |log2FC| ≥ 1.

4.6. Pan-Cancer Analysis of Associations Between Microgravity and Cancers

The genes were ranked by descending order based on log2FC values in microgravity. Then, the Wilcoxon rank-sum test was used to check whether DE genes (upregulated and downregulated genes, respectively) of each cancer type were primarily found at the top or bottom of the entire ranked list, respectively (up-top, up-bottom, down-top or down-bottom pattern). We defined the significant up-top, down-bottom or both (p-value ≤ 0.1) as consistent pattern; the significant up-bottom, down-top or both (p-value ≤ 0.1) as reverse pattern. The consistent patterns meant high coherence of gene expression between microgravity and cancer. The reverse patterns meant reverse tendency of gene expression between microgravity and cancer.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/20/7585/s1, Figure S1. TF and miRNA regulatory network and its node degree distribution. A. TF and miRNA regulatory network. Red, green and gray nodes represent TFs, miRNAs and genes, respectively. B. Degree distribution of all nodes, TFs, miRNAs and genes. Table S1: TF and miRNA regulations in the TF-miRNA regulatory network. Table S2: 230 dysregulated FFLs in microgravity. Table S3: System function-related FFLs in five systems including immune, cardiovascular, skeletal, endocrine, and nervous systems. Table S4: Functional modules in the five subnetworks for immune, cardiovascular, skeletal, endocrine, and nervous systems. Table S5: Candidate drugs for bone loss in SM2miR and Cmap. Table S6: Wilcoxon rank-sum test results of the associations between microgravity and cancers.

Author Contributions

W.J. designed the study; M.Y. and H.L. carried out data acquisition and analysis and drafted the manuscript; S.Z., X.Z., Y.-e.H. and F.H. provided scientific advice and contributed to result interpretations. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Fundamental Research Funds for the Central Universities (NE2018101).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Garrett-Bakelman, F.E.; Darshi, M.; Green, S.J.; Gur, R.C.; Lin, L.; Macias, B.R.; McKenna, M.J.; Meydan, C.; Mishra, T.; Nasrini, J.; et al. The NASA Twins Study: A multidimensional analysis of a year-long human spaceflight. Science 2019, 364. [Google Scholar] [CrossRef]
  2. Herranz, R.; Anken, R.; Boonstra, J.; Braun, M.; Christianen, P.C.M.; de Geest, M.; Hauslage, J.; Hilbig, R.; Hill, R.J.A.; Lebert, M.; et al. Ground-Based Facilities for Simulation of Microgravity: Organism-Specific Recommendations for Their Use, and Recommended Terminology. Astrobiology 2013, 13, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Gardner, J.K.; Herbst-Kralovetz, M.M. Three-Dimensional Rotating Wall Vessel-Derived Cell Culture Models for Studying Virus-Host Interactions. Viruses 2016, 8, 304. [Google Scholar] [CrossRef] [PubMed]
  4. Rucci, N.; Rufo, A.; Alamanou, M.; Teti, A. Modeled microgravity stimulates osteoclastogenesis and bone resorption by increasing osteoblast RANKL/OPG ratio. J. Cell. Biochem. 2007, 100, 464–473. [Google Scholar] [CrossRef]
  5. Walther, I.; Pippia, P.; Meloni, M.A.; Turrini, F.; Mannu, F.; Cogoli, A. Simulated microgravity inhibits the genetic expression of interleukin-2 and its receptor in mitogen-activated T lymphocytes. FEBS Lett. 1998, 436, 115–118. [Google Scholar] [CrossRef] [Green Version]
  6. Boonyaratanakornkit, J.B.; Cogoli, A.; Li, C.F.; Schopper, T.; Pippia, P.; Galleri, G.; Meloni, M.A.; Hughes-Fulford, M. Key gravity-sensitive signaling pathways drive T cell activation. FASEB J. 2005, 19, 2020–2022. [Google Scholar] [CrossRef] [Green Version]
  7. Jones, W.K.; Brown, M.; Wilhide, M.; He, S.; Ren, X. NF-kappaB in cardiovascular disease: Diverse and specific effects of a “general” transcription factor? Cardiovasc. Toxicol. 2005, 5, 183–202. [Google Scholar] [CrossRef]
  8. Mangala, L.S.; Zhang, Y.; He, Z.; Emami, K.; Ramesh, G.T.; Story, M.; Rohde, L.H.; Wu, H. Effects of simulated microgravity on expression profile of microRNA in human lymphoblastoid cells. J. Biol. Chem. 2011, 286, 32483–32490. [Google Scholar] [CrossRef] [Green Version]
  9. Jiang, W.; Mitra, R.; Lin, C.C.; Wang, Q.; Cheng, F.; Zhao, Z. Systematic dissection of dysregulated transcription factor-miRNA feed-forward loops across tumor types. Brief Bioinform. 2016, 17, 996–1008. [Google Scholar] [CrossRef] [Green Version]
  10. Sun, J.; Gong, X.; Purow, B.; Zhao, Z. Uncovering MicroRNA and Transcription Factor Mediated Regulatory Networks in Glioblastoma. PLoS Comput. Biol. 2012, 8, e1002488. [Google Scholar] [CrossRef] [Green Version]
  11. Martinez, E.M.; Yoshida, M.C.; Candelario, T.L.; Hughes-Fulford, M. Spaceflight and simulated microgravity cause a significant reduction of key gene expression in early T-cell activation. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2015, 308, R480–R488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Grimm, D.; Bauer, J.; Kossmehl, P.; Shakibaei, M.; Schoberger, J.; Pickenhahn, H.; Schulze-Tanzil, G.; Vetter, R.; Eilles, C.; Paul, M.; et al. Simulated microgravity alters differentiation and increases apoptosis in human follicular thyroid carcinoma cells. FASEB J. 2002, 16, 604–606. [Google Scholar] [CrossRef] [PubMed]
  13. Pisanu, M.E.; Noto, A.; De Vitis, C.; Masiello, M.G.; Coluccia, P.; Proietti, S.; Giovagnoli, M.R.; Ricci, A.; Giarnieri, E.; Cucina, A.; et al. Lung cancer stem cell lose their stemness default state after exposure to microgravity. Biomed Res. Int. 2014, 2014, 470253. [Google Scholar] [CrossRef] [PubMed]
  14. Matys, V.; Kel-Margoulis, O.V.; Fricke, E.; Liebich, I.; Land, S.; Barre-Dirrie, A.; Reuter, I.; Chekmenev, D.; Krull, M.; Hornischer, K.; et al. TRANSFAC and its module TRANSCompel: Transcriptional gene regulation in eukaryotes. Nucleic Acids Res. 2006, 34, D108–D110. [Google Scholar] [CrossRef] [Green Version]
  15. Karagkouni, D.; Paraskevopoulou, M.D.; Chatzopoulos, S.; Vlachos, I.S.; Tastsoglou, S.; Kanellos, I.; Papadimitriou, D.; Kavakiotis, I.; Maniou, S.; Skoufos, G.; et al. DIANA-TarBase v8: A decade-long collection of experimentally supported miRNA-gene interactions. Nucleic Acids Res. 2018, 46, D239–D245. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Chou, C.H.; Shrestha, S.; Yang, C.D.; Chang, N.W.; Lin, Y.L.; Liao, K.W.; Huang, W.C.; Sun, T.H.; Tu, S.J.; Lee, W.H.; et al. miRTarBase update 2018: A resource for experimentally validated microRNA-target interactions. Nucleic Acids Res. 2018, 46, D296–D302. [Google Scholar] [CrossRef]
  17. Tong, Z.; Cui, Q.; Wang, J.; Zhou, Y. TransmiR v2.0: An updated transcription factor-microRNA regulation database. Nucleic Acids Res. 2019, 47, D253–D258. [Google Scholar] [CrossRef] [Green Version]
  18. Barabasi, A.L.; Oltvai, Z.N. Network biology: Understanding the cell’s functional organization. Nat. Rev. Genet. 2004, 5, 101–113. [Google Scholar] [CrossRef]
  19. Dennis, G., Jr.; Sherman, B.T.; Hosack, D.A.; Yang, J.; Gao, W.; Lane, H.C.; Lempicki, R.A. DAVID: Database for Annotation, Visualization, and Integrated Discovery. Genome Biol. 2003, 4, P3. [Google Scholar] [CrossRef]
  20. Vlachos, I.S.; Zagganas, K.; Paraskevopoulou, M.D.; Georgakilas, G.; Karagkouni, D.; Vergoulis, T.; Dalamagas, T.; Hatzigeorgiou, A.G. DIANA-miRPath v3.0: Deciphering microRNA function with experimental support. Nucleic Acids Res. 2015, 43, W460–W466. [Google Scholar] [CrossRef]
  21. Zhao, W.; Hisamuddin, I.M.; Nandan, M.O.; Babbin, B.A.; Lamb, N.E.; Yang, V.W. Identification of Kruppel-like factor 4 as a potential tumor suppressor gene in colorectal cancer. Oncogene 2004, 23, 395–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Foster, K.W.; Ren, S.; Louro, I.D.; Lobo-Ruppert, S.M.; McKie-Bell, P.; Grizzle, W.; Hayes, M.R.; Broker, T.R.; Chow, L.T.; Ruppert, J.M. Oncogene expression cloning by retroviral transduction of adenovirus E1A-immortalized rat kidney RK3E cells: Transformation of a host with epithelial features by c-MYC and the zinc finger protein GKLF. Cell Growth Differ. 1999, 10, 423–434. [Google Scholar] [PubMed]
  23. Gannon, P.O.; Lessard, L.; Stevens, L.M.; Forest, V.; Begin, L.R.; Minner, S.; Tennstedt, P.; Schlomm, T.; Mes-Masson, A.M.; Saad, F. Large-scale independent validation of the nuclear factor-kappa B p65 prognostic biomarker in prostate cancer. Eur. J. Cancer 2013, 49, 2441–2448. [Google Scholar] [CrossRef] [PubMed]
  24. Futreal, P.A.; Coin, L.; Marshall, M.; Down, T.; Hubbard, T.; Wooster, R.; Rahman, N.; Stratton, M.R. A census of human cancer genes. Nat. Rev. Cancer 2004, 4, 177–183. [Google Scholar] [CrossRef]
  25. Echalier, E.L.; Subramanian, P.S. Neuro-ophthalmolmic Sequelae of Sustained Microgravity; Springer International Publishing: Aurora, CO, USA, 2017. [Google Scholar]
  26. Tadaka, S.; Kinoshita, K. NCMine: Core-peripheral based functional module detection using near-clique mining. Bioinformatics 2016, 32, 3454–3460. [Google Scholar] [CrossRef]
  27. Bi, H.; Chen, X.; Gao, S.; Yu, X.; Xiao, J.; Zhang, B.; Liu, X.; Dai, M. Key Triggers of Osteoclast-Related Diseases and Available Strategies for Targeted Therapies: A Review. Front. Med. 2017, 4, 234. [Google Scholar] [CrossRef]
  28. Ali, A.A.; Weinstein, R.S.; Stewart, S.A.; Parfitt, A.M.; Manolagas, S.C.; Jilka, R.L. Rosiglitazone causes bone loss in mice by suppressing osteoblast differentiation and bone formation. Endocrinology 2005, 146, 1226–1235. [Google Scholar] [CrossRef] [Green Version]
  29. Grigoriadis, A.E.; Schellander, K.; Wang, Z.Q.; Wagner, E.F. Osteoblasts are target cells for transformation in c-fos transgenic mice. J. Cell Biol. 1993, 122, 685–701. [Google Scholar] [CrossRef]
  30. Yoshihara, R.; Shiozawa, S.; Imai, Y.; Fujita, T. Tumor necrosis factor alpha and interferon gamma inhibit proliferation and alkaline phosphatase activity of human osteoblastic SaOS-2 cell line. Lymphokine Res. 1990, 9, 59–66. [Google Scholar]
  31. Wang, Y.; Grainger, D.W. Developing siRNA therapies to address osteoporosis. Ther. Deliv. 2013, 4, 1239–1246. [Google Scholar] [CrossRef] [Green Version]
  32. Liang, M.; Russell, G.; Hulley, P.A. Bim, Bak, and Bax regulate osteoblast survival. J. Bone Miner. Res. 2008, 23, 610–620. [Google Scholar] [CrossRef] [PubMed]
  33. Bakhshandeh, B.; Soleimani, M.; Hafizi, M.; Paylakhi, S.H.; Ghaemi, N. MicroRNA signature associated with osteogenic lineage commitment. Mol. Biol. Rep. 2012, 39, 7569–7581. [Google Scholar] [CrossRef] [PubMed]
  34. Mizuno, Y.; Yagi, K.; Tokuzawa, Y.; Kanesaki-Yatsuka, Y.; Suda, T.; Katagiri, T.; Fukuda, T.; Maruyama, M.; Okuda, A.; Amemiya, T.; et al. miR-125b inhibits osteoblastic differentiation by down-regulation of cell proliferation. Biochem. Biophys. Res. 2008, 368, 267–272. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, P.; Lee, S.; Knoll, J.; Rauch, A.; Ostermay, S.; Luther, J.; Malkusch, N.; Lerner, U.H.; Zaiss, M.M.; Neven, M.; et al. Loss of menin in osteoblast lineage affects osteocyte-osteoclast crosstalk causing osteoporosis. Cell Death Differ. 2017, 24, 672–682. [Google Scholar] [CrossRef]
  36. Abu-Amer, Y. NF-kappaB signaling and bone resorption. Osteoporos. Int. 2013, 24, 2377–2386. [Google Scholar] [CrossRef] [Green Version]
  37. Sun, L.; Lian, J.X.; Meng, S. MiR-125a-5p promotes osteoclastogenesis by targeting TNFRSF1B. Cell. Mol. Biol. Lett. 2019, 24, 23. [Google Scholar] [CrossRef] [Green Version]
  38. Komori, T. Animal models for osteoporosis. Eur. J. Pharmacol. 2015, 759, 287–294. [Google Scholar] [CrossRef]
  39. Liu, X.; Wang, S.; Meng, F.; Wang, J.; Zhang, Y.; Dai, E.; Yu, X.; Li, X.; Jiang, W. SM2miR: A database of the experimentally validated small molecules’ effects on microRNA expression. Bioinformatics 2013, 29, 409–411. [Google Scholar] [CrossRef]
  40. Park, H.J.; Kim, D.H.; Park, S.J.; Kim, J.M.; Ryu, J.H. Ginseng in traditional herbal prescriptions. J. Ginseng Res. 2012, 36, 225–241. [Google Scholar] [CrossRef] [Green Version]
  41. Dong, X.; Fu, J.; Yin, X.; Cao, S.; Li, X.; Lin, L.; Huyiligeqi; Ni, J. Emodin: A Review of its Pharmacology, Toxicity and Pharmacokinetics. Phytother. Res. PTR 2016, 30, 1207–1218. [Google Scholar] [CrossRef]
  42. Zhu, M.; Yuan, K.; Lu, Q.; Zhu, Q.; Zhang, S.; Li, X.; Zhao, L.; Wang, H.; Luo, G.; Wang, T.; et al. Emodin ameliorates rheumatoid arthritis by promoting neutrophil apoptosis and inhibiting neutrophil extracellular trap formation. Mol. Immunol. 2019, 112, 188–197. [Google Scholar] [CrossRef] [PubMed]
  43. Bae, E.A.; Han, M.J.; Shin, Y.W.; Kim, D.H. Inhibitory effects of Korean red ginseng and its genuine constituents ginsenosides Rg3, Rf, and Rh2 in mouse passive cutaneous anaphylaxis reaction and contact dermatitis models. Biol. Pharm. Bull. 2006, 29, 1862–1867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Kim, J.Y.; Cheon, Y.H.; Kwak, S.C.; Baek, J.M.; Yoon, K.H.; Lee, M.S.; Oh, J. Emodin regulates bone remodeling by inhibiting osteoclastogenesis and stimulating osteoblast formation. J. Bone Miner. Res. 2014, 29, 1541–1553. [Google Scholar] [CrossRef] [PubMed]
  45. He, L.; Lee, J.; Jang, J.H.; Lee, S.H.; Nan, M.H.; Oh, B.C.; Lee, S.G.; Kim, H.H.; Soung, N.K.; Ahn, J.S.; et al. Ginsenoside Rh2 inhibits osteoclastogenesis through down-regulation of NF-kappaB, NFATc1 and c-Fos. Bone 2012, 50, 1207–1213. [Google Scholar] [CrossRef]
  46. Liu, J.; Shiono, J.; Shimizu, K.; Yu, H.; Zhang, C.; Jin, F.; Kondo, R. 20(R)-ginsenoside Rh2, not 20(S), is a selective osteoclastgenesis inhibitor without any cytotoxicity. Bioorg. Med. Chem. Lett. 2009, 19, 3320–3323. [Google Scholar] [CrossRef]
  47. Lamb, J.; Crawford, E.D.; Peck, D.; Modell, J.W.; Blat, I.C.; Wrobel, M.J.; Lerner, J.; Brunet, J.P.; Subramanian, A.; Ross, K.N.; et al. The connectivity map: Using gene-expression signatures to connect small molecules, genes, and disease. Science 2006, 313, 1929–1935. [Google Scholar] [CrossRef] [Green Version]
  48. Wang, J.; Meng, F.L.; Dai, E.Y.; Yang, F.; Wang, S.Y.; Chen, X.W.; Yang, L.; Wang, Y.W.; Jiang, W. Identification of associations between small molecule drugs and miRNAs based on functional similarity. Oncotarget 2016, 7, 38658–38669. [Google Scholar] [CrossRef] [Green Version]
  49. Sahebi, R.; Aghaei, M.; Halvaei, S.; Alizadeh, A. The Role of Microgravity in Cancer: A Dual-edge Sword. Multidiscip. Cancer Investig. 2017, 1, 1–5. [Google Scholar] [CrossRef] [Green Version]
  50. Jessup, J.M.; Frantz, M.; Sonmez-Alpan, E.; Locker, J.; Skena, K.; Waller, H.; Battle, P.; Nachman, A.; Weber, M.E. Microgravity culture reduces apoptosis and increases the differentiation of a human colorectal carcinoma cell line. In Vitro Cell Dev. Biol. Anim. 2000, 36, 367–373. [Google Scholar] [CrossRef]
  51. Chung, J.H.; Ahn, C.B.; Son, K.H.; Yi, E.; Son, H.S.; Kim, H.S.; Lee, S.H. Simulated Microgravity Effects on Nonsmall Cell Lung Cancer Cell Proliferation and Migration. Aerosp. Med. Hum. Perform. 2017, 88, 82–89. [Google Scholar] [CrossRef]
  52. Takeda, M.; Magaki, T.; Okazaki, T.; Kawahara, Y.; Manabe, T.; Yuge, L.; Kurisu, K. Effects of simulated microgravity on proliferation and chemosensitivity in malignant glioma cells. Neurosci. Lett. 2009, 463, 54–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zhu, X.; Wang, D.; Lin, Q.; Wu, G.; Yuan, S.; Ye, F.; Fan, Q. Screening key lncRNAs for human rectal adenocarcinoma based on lncRNA-mRNA functional synergistic network. Cancer Med. 2019, 8, 3875–3891. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Accolla, R.S.; Lombardo, L.; Abdallah, R.; Raval, G.; Forlani, G.; Tosi, G. Boosting the MHC Class II-Restricted Tumor Antigen Presentation to CD4+ T Helper Cells: A Critical Issue for Triggering Protective Immunity and Re-Orienting the Tumor Microenvironment Toward an Anti-Tumor State. Front. Oncol. 2014, 4, 32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Tecchio, C.; Scapini, P.; Pizzolo, G.; Cassatella, M.A. On the cytokines produced by human neutrophils in tumors. Semin. Cancer Biol. 2013, 23, 159–170. [Google Scholar] [CrossRef] [PubMed]
  56. Hieshima, K.; Kawasaki, Y.; Hanamoto, H.; Nakayama, T.; Nagakubo, D.; Kanamaru, A.; Yoshie, O. CC chemokine ligands 25 and 28 play essential roles in intestinal extravasation of IgA antibody-secreting cells. J. Immunol. 2004, 173, 3668–3675. [Google Scholar] [CrossRef] [Green Version]
  57. Chen, S.Y.; Liu, M.H.; Liang, B.W.; Ge, S.H.; Peng, J.; Huang, H.Y.; Xu, Y.M.; Tang, X.L.; Deng, L.B. Identification of human peripheral blood monocyte gene markers for early screening of solid tumors. PLoS ONE 2020, 15. [Google Scholar] [CrossRef] [PubMed]
  58. Han, M.; Liew, C.T.; Zhang, H.W.; Chao, S.; Zheng, R.; ThyeYip, K.; Song, Z.Y.; Li, H.M.; Geng, X.P.; Zhu, L.X.; et al. Novel blood-based, five-gene biomarker set for the detection of colorectal cancer. Clin. Cancer Res. 2008, 14, 455–460. [Google Scholar] [CrossRef] [Green Version]
  59. Morita, H.; Kaji, H.; Ueta, Y.; Abe, C. Understanding vestibular-related physiological functions could provide clues on adapting to a new gravitational environment. J. Physiol. Sci. 2020, 70, 17. [Google Scholar] [CrossRef] [Green Version]
  60. Thiel, C.S.; Christoffel, S.; Tauber, S.; Vahlensieck, C.; de Zelicourt, D.; Layer, L.E.; Lauber, B.; Polzer, J.; Ullrich, O. Rapid Cellular Perception of Gravitational Forces in Human Jurkat T Cells and Transduction into Gene Expression Regulation. Int. J. Mol. Sci. 2020, 21, 514. [Google Scholar] [CrossRef] [Green Version]
  61. Hader, D.P.; Braun, M.; Grimm, D.; Hemmersbach, R. Gravireceptors in eukaryotes-a comparison of case studies on the cellular level. NPJ Microgravity 2017, 3, 13. [Google Scholar] [CrossRef] [Green Version]
  62. Ingber, D. How cells (might) sense microgravity. FASEB J. 1999, 13, S3–S15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Girardi, C.; De Pitta, C.; Casara, S.; Calura, E.; Romualdi, C.; Celotti, L.; Mognato, M. Integration Analysis of MicroRNA and mRNA Expression Profiles in Human Peripheral Blood Lymphocytes Cultured in Modeled Microgravity. Biomed. Res. Int. 2014, 2014, 296747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Haunsberger, S.J.; Connolly, N.M.; Prehn, J.H. miRNAmeConverter: An R/bioconductor package for translating mature miRNA names to different miRBase versions. Bioinformatics 2017, 33, 592–593. [Google Scholar] [CrossRef] [PubMed]
  65. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef]
  66. Shi, H.; Li, J.; Song, Q.; Cheng, L.; Sun, H.; Fan, W.; Li, J.; Wang, Z.; Zhang, G. Systematic identification and analysis of dysregulated miRNA and transcription factor feed-forward loops in hypertrophic cardiomyopathy. J. Cell. Mol. Med. 2019, 23, 306–316. [Google Scholar] [CrossRef]
  67. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [Green Version]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Ijms 21 07585 g001 550

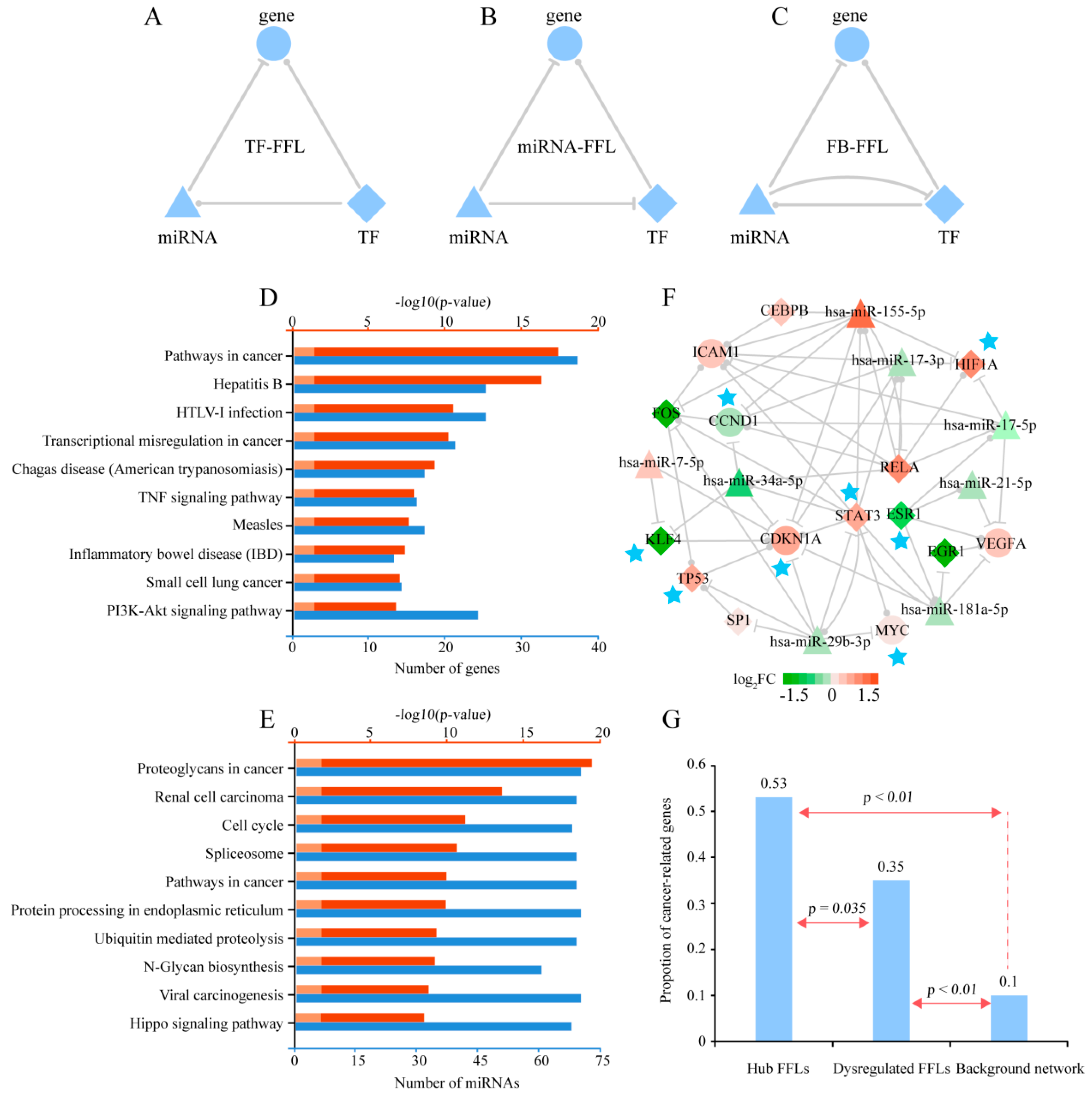

Figure 1. Three types of feed-forward loops (FFLs) and functional analysis of the dysregulated FFLs. (A). TF-FFL: transcription factor (TF) and microRNA (miRNA) regulate gene; TF regulates miRNA. (B). miRNA-FFL: TF and miRNA regulate gene; miRNA regulates TF. (C). FB-FFL (feed-back FFL): TF and miRNA regulate gene; TF and miRNA mutually regulate each other. Pathway enrichment analysis for genes (D) and miRNAs (E) in the dysregulated FFLs, respectively. The length of blue and red bar represents the number of genes (miRNAs) and –log10(p-value), respectively. The pink bar represents p-value = 0.05. (F). Dysregulated hub FFL subnetwork. Red and green represent upregulation and downregulation, respectively. The darker color represents larger |log2FC| value. The diamond, triangle and circular node represent TF, miRNA and gene, respectively. The blue stars indicate the known cancer genes. (G). Proportion of the known cancer genes in the hub FFL network, dysregulated FFL network and background regulatory network.
Figure 1. Three types of feed-forward loops (FFLs) and functional analysis of the dysregulated FFLs. (A). TF-FFL: transcription factor (TF) and microRNA (miRNA) regulate gene; TF regulates miRNA. (B). miRNA-FFL: TF and miRNA regulate gene; miRNA regulates TF. (C). FB-FFL (feed-back FFL): TF and miRNA regulate gene; TF and miRNA mutually regulate each other. Pathway enrichment analysis for genes (D) and miRNAs (E) in the dysregulated FFLs, respectively. The length of blue and red bar represents the number of genes (miRNAs) and –log10(p-value), respectively. The pink bar represents p-value = 0.05. (F). Dysregulated hub FFL subnetwork. Red and green represent upregulation and downregulation, respectively. The darker color represents larger |log2FC| value. The diamond, triangle and circular node represent TF, miRNA and gene, respectively. The blue stars indicate the known cancer genes. (G). Proportion of the known cancer genes in the hub FFL network, dysregulated FFL network and background regulatory network.
Ijms 21 07585 g001
Ijms 21 07585 g002 550

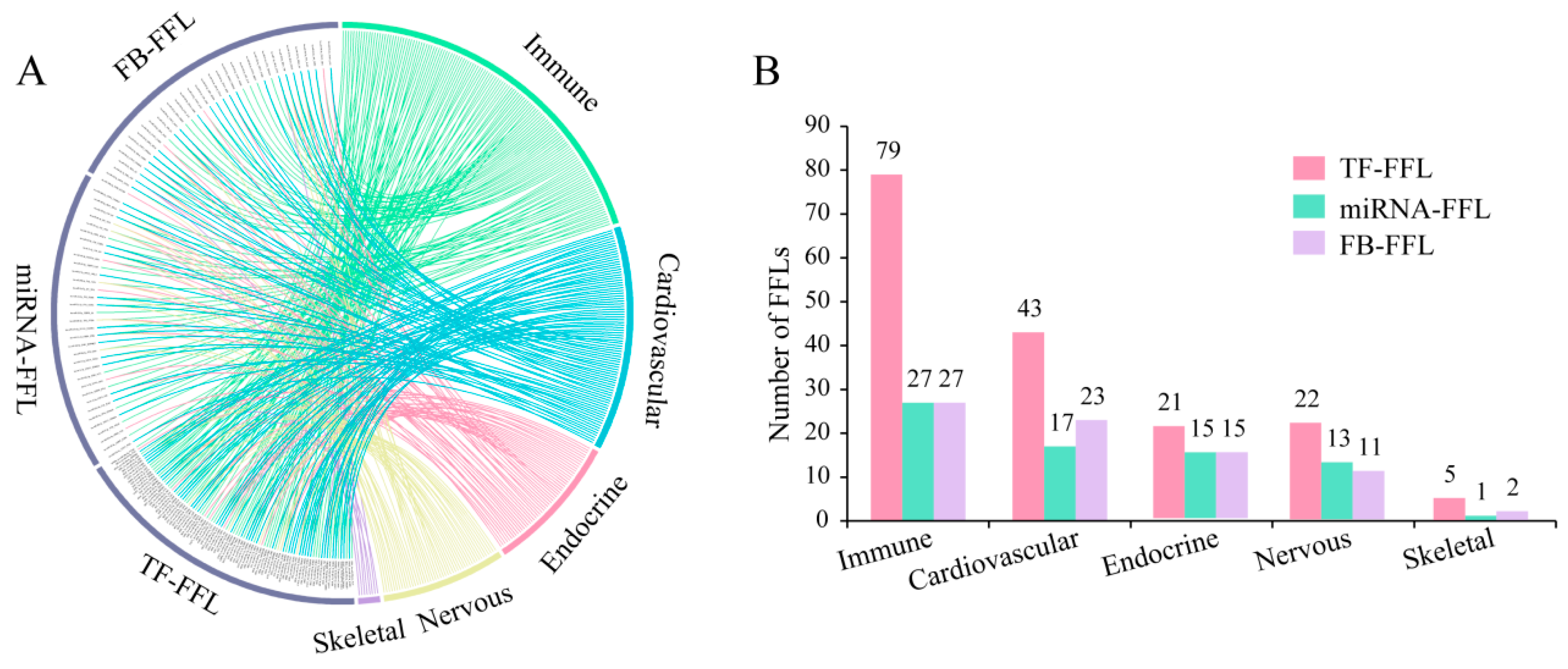

Figure 2. System function-related FFLs. (A). System function-related FFLs in five systems including immune, cardiovascular, endocrine, nervous and skeletal systems, which encoded by green, blue, red, yellow and purple, respectively. Edges connect the FFLs with the functions of body systems. (B). Number of dysregulated TF-FFLs (red), miRNA-FFLs (green) and FB-FFLs (purple) in microgravity for five human body systems.
Figure 2. System function-related FFLs. (A). System function-related FFLs in five systems including immune, cardiovascular, endocrine, nervous and skeletal systems, which encoded by green, blue, red, yellow and purple, respectively. Edges connect the FFLs with the functions of body systems. (B). Number of dysregulated TF-FFLs (red), miRNA-FFLs (green) and FB-FFLs (purple) in microgravity for five human body systems.
Ijms 21 07585 g002
Ijms 21 07585 g003 550

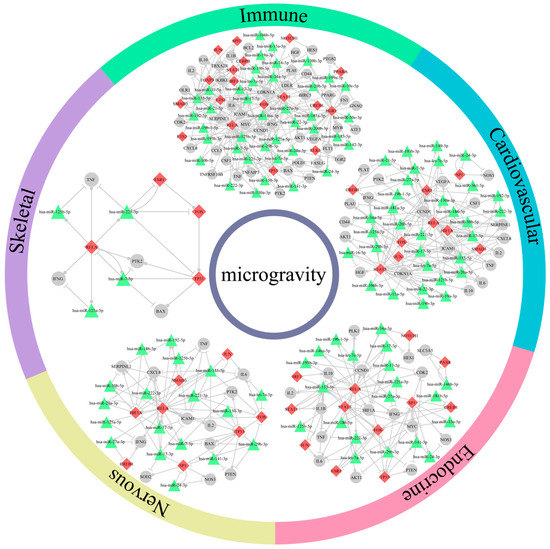

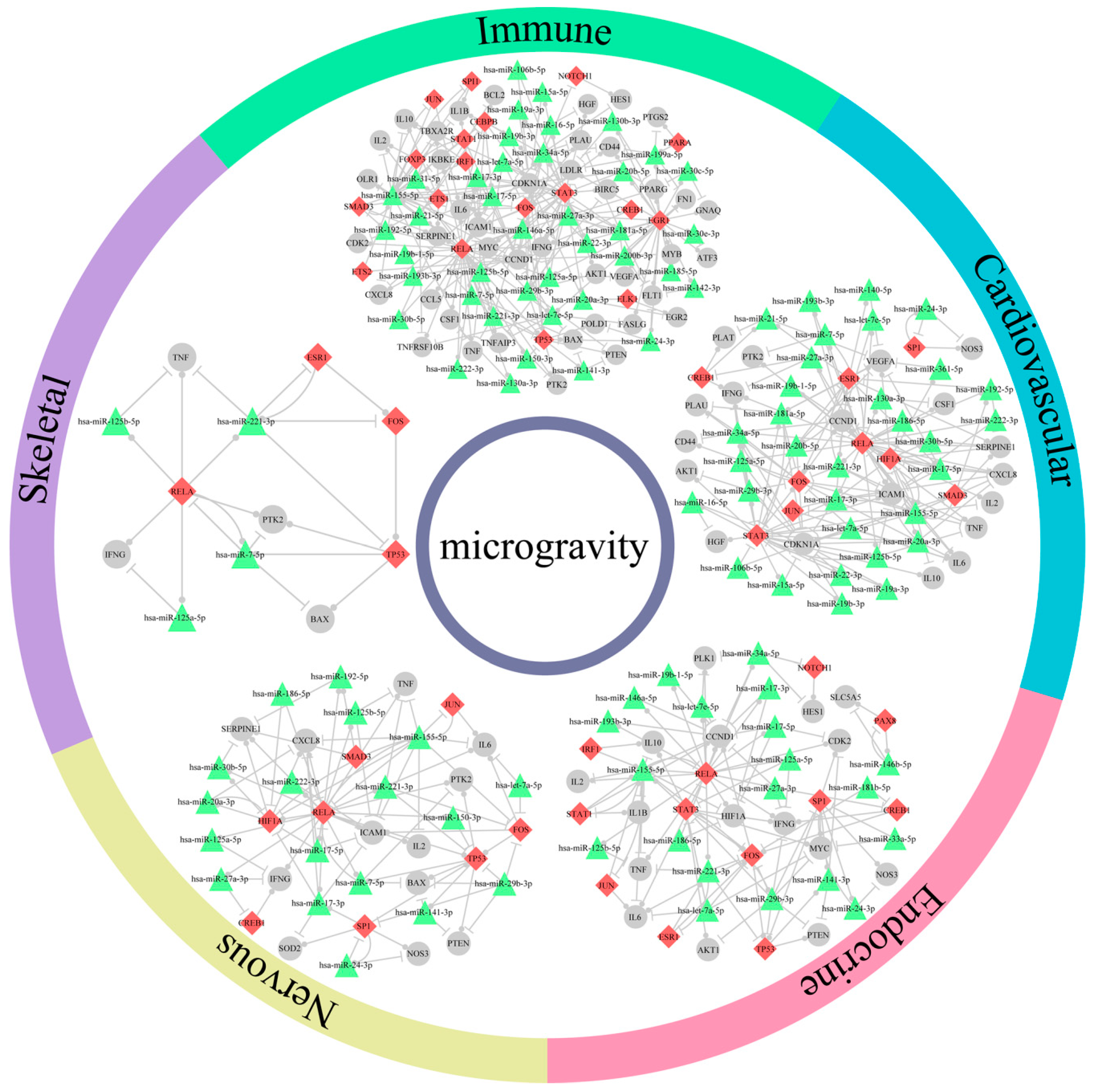

Figure 3. Subnetworks for five human body systems. The red diamond, green triangle and grey circular node represent TF, miRNA and gene, respectively.
Figure 3. Subnetworks for five human body systems. The red diamond, green triangle and grey circular node represent TF, miRNA and gene, respectively.
Ijms 21 07585 g003
Ijms 21 07585 g004 550

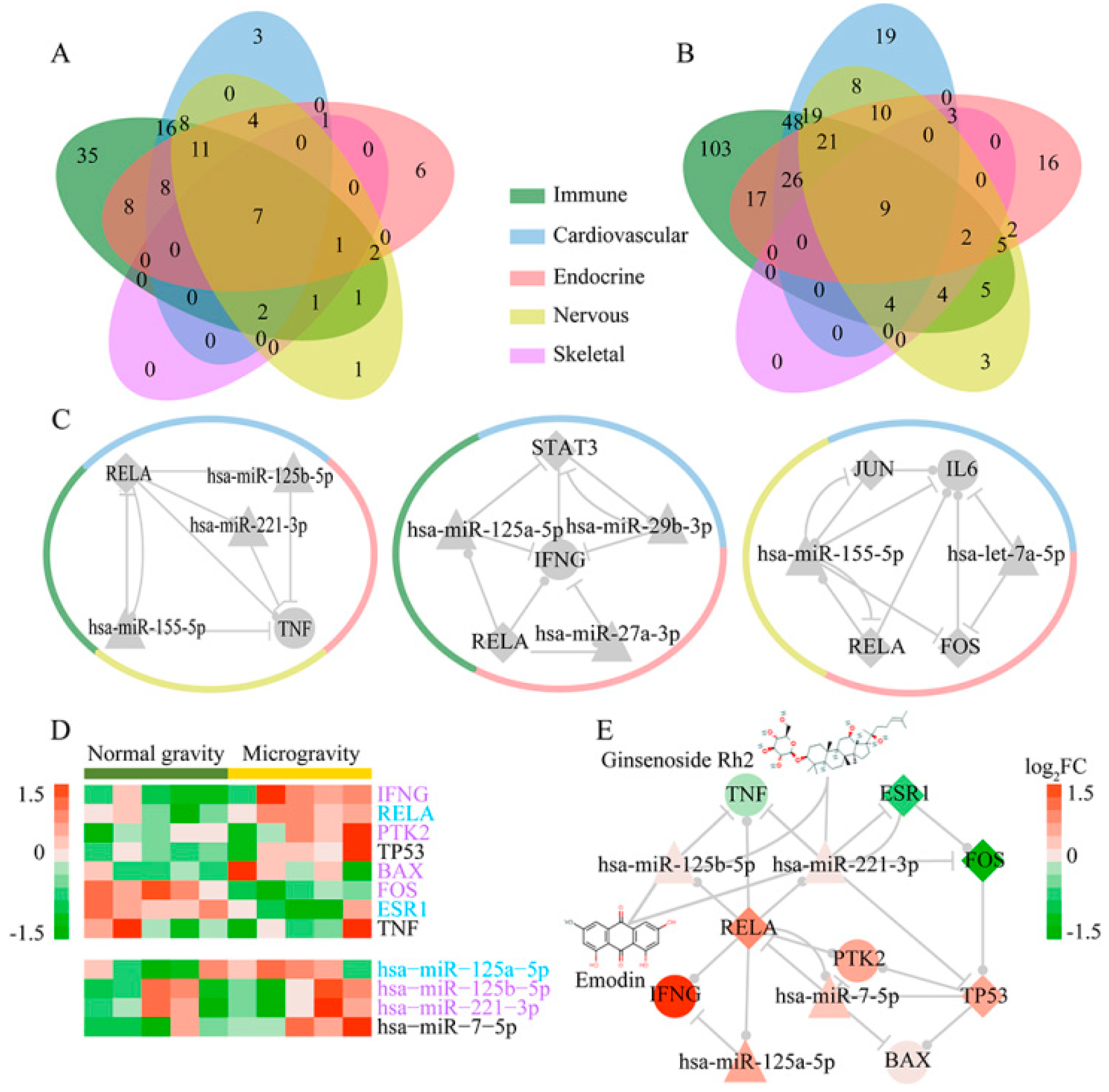

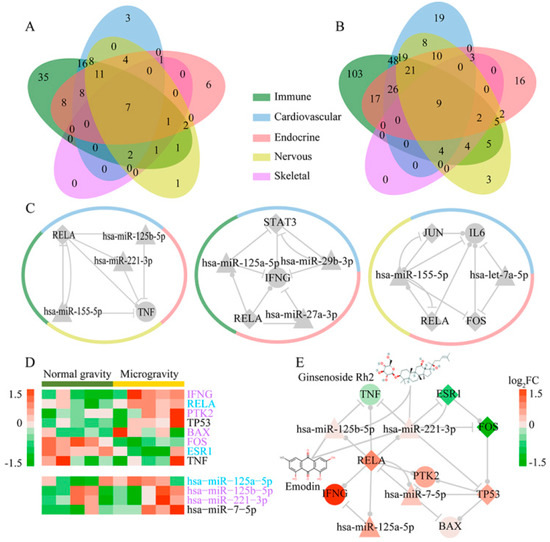

Figure 4. Five human body system subnetwork analysis and candidate drugs for bone loss. Venn diagram of nodes (A) and edges (B) in five subnetworks. (C). Modules shared by at least three subnetworks. The diamond, triangle and circular node represent TF, miRNA and gene, respectively. The colors of the circle outside the module represent corresponding systems. (D). Heatmap of genes and miRNAs in skeletal system subnetwork. Purple and blue text represent that the gene or miRNA functions are related to osteoblast and osteoclast, respectively. (E). Skeletal system subnetwork and the potential drugs reversing bone loss. Red and green represent upregulation and downregulation, respectively. The darker color represents larger |log2FC| value. The diamond, triangle and circular node represent TF, miRNA and gene, respectively.
Figure 4. Five human body system subnetwork analysis and candidate drugs for bone loss. Venn diagram of nodes (A) and edges (B) in five subnetworks. (C). Modules shared by at least three subnetworks. The diamond, triangle and circular node represent TF, miRNA and gene, respectively. The colors of the circle outside the module represent corresponding systems. (D). Heatmap of genes and miRNAs in skeletal system subnetwork. Purple and blue text represent that the gene or miRNA functions are related to osteoblast and osteoclast, respectively. (E). Skeletal system subnetwork and the potential drugs reversing bone loss. Red and green represent upregulation and downregulation, respectively. The darker color represents larger |log2FC| value. The diamond, triangle and circular node represent TF, miRNA and gene, respectively.
Ijms 21 07585 g004
Ijms 21 07585 g005 550

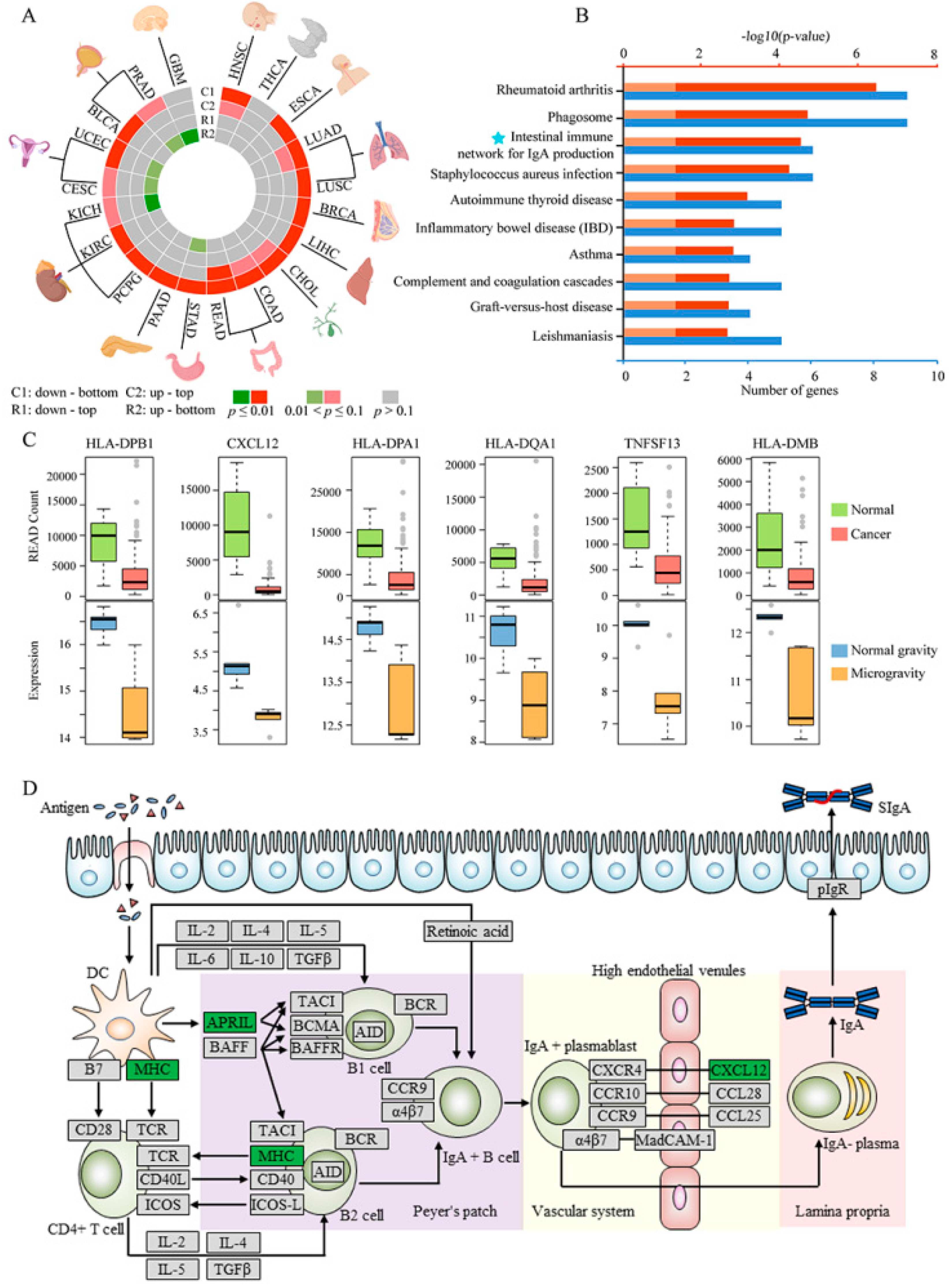

Figure 5. Relationships between microgravity and cancers. (A). Wilcoxon rank-sum test results. (B). Pathway enrichment analysis for 115 DE genes. The length of blue and red bar represents the number of genes and −log10(p-value), respectively. The pink bar represents p-value = 0.05. (C). Boxplots of the expression of six genes (HLA-DPA1, HLA-DQA1, HLA-DPB1, HLA-DMB, CXCL12 and TNFSF13) in rectum adenocarcinoma (READ) samples and microgravity samples. (D). Intestinal immune network for IgA production pathway. The green box represents the downregulated gene enriched in the pathway.
Figure 5. Relationships between microgravity and cancers. (A). Wilcoxon rank-sum test results. (B). Pathway enrichment analysis for 115 DE genes. The length of blue and red bar represents the number of genes and −log10(p-value), respectively. The pink bar represents p-value = 0.05. (C). Boxplots of the expression of six genes (HLA-DPA1, HLA-DQA1, HLA-DPB1, HLA-DMB, CXCL12 and TNFSF13) in rectum adenocarcinoma (READ) samples and microgravity samples. (D). Intestinal immune network for IgA production pathway. The green box represents the downregulated gene enriched in the pathway.
Ijms 21 07585 g005
Table
Table 1. Sample size and number of differentially expressed genes for 20 cancers in the Cancer Genome Atlas (TCGA).
Table 1. Sample size and number of differentially expressed genes for 20 cancers in the Cancer Genome Atlas (TCGA).
Cancer (Abbreviation)#Tumor#Normal#Upregulated#Downregulated
Head and neck squamous cell carcinoma (HNSC)5004411621040
Thyroid carcinoma (THCA)50258995512
Esophageal carcinoma (ESCA)16111956956
Lung adenocarcinoma (LUAD)5335918201221
Lung squamous cell carcinoma (LUSC)5014925191869
Breast invasive carcinoma (BRCA)109111315571220
Liver hepatocellular carcinoma (LIHC)371501230788
Cholangiocarcinoma (CHOL)36931332005
Colon adenocarcinoma (COAD)4784116471327
Rectum adenocarcinoma (READ)1651016241620
Stomach adenocarcinoma (STAD)375329371183
Pancreatic adenocarcinoma (PAAD)177415418
Pheochromocyt-oma and paraganglioma (PCPG)177320971449
Kidney renal clear cell carcinoma (KIRC)5307222631018
Kidney chromophobe (KICH)652416301527
Cervical squamous cell carcinoma and endocervical adenocarcinoma (CESC)304314541612
Uterine corpus endometrial carcinoma (UCEC)5433519611544
Bladder urothelial carcinoma (BLCA)4081912741289
Prostate adenocarcinoma (PRAD)49552631914
Glioblastoma multiforme (GBM)154529872556
# represents “the number of”.
Table
Table 2. Statistics of the regulations in the integrated TF-miRNA regulatory network.
Table 2. Statistics of the regulations in the integrated TF-miRNA regulatory network.
DatabaseTF-GeneTF-miRNAMiRNA-Gene
TRANSFAC4693792013
TarBase--4158
miRTarbase--9315
TransmiR-3921-
Total4693393012,052

Share and Cite

MDPI and ACS Style

Yuan, M.; Liu, H.; Zhou, S.; Zhou, X.; Huang, Y.-e.; Hou, F.; Jiang, W. Integrative Analysis of Regulatory Module Reveals Associations of Microgravity with Dysfunctions of Multi-body Systems and Tumorigenesis. Int. J. Mol. Sci. 2020, 21, 7585. https://doi.org/10.3390/ijms21207585

AMA Style

Yuan M, Liu H, Zhou S, Zhou X, Huang Y-e, Hou F, Jiang W. Integrative Analysis of Regulatory Module Reveals Associations of Microgravity with Dysfunctions of Multi-body Systems and Tumorigenesis. International Journal of Molecular Sciences. 2020; 21(20):7585. https://doi.org/10.3390/ijms21207585

Chicago/Turabian Style

Yuan, Mengqin, Haizhou Liu, Shunheng Zhou, Xu Zhou, Yu-e Huang, Fei Hou, and Wei Jiang. 2020. "Integrative Analysis of Regulatory Module Reveals Associations of Microgravity with Dysfunctions of Multi-body Systems and Tumorigenesis" International Journal of Molecular Sciences 21, no. 20: 7585. https://doi.org/10.3390/ijms21207585

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
