Tetrapeptide Ac-HAEE-NH2 Protects α4β2 nAChR from Inhibition by Aβ

by
Evgeny P. Barykin
1,
Aleksandra I. Garifulina
2,3,
Anna P. Tolstova
1,
Anastasia A. Anashkina
1,
Alexei A. Adzhubei
1,
Yuri V. Mezentsev
4,
Irina V. Shelukhina
2,
Sergey A. Kozin
1,
Victor I. Tsetlin
2 and
Alexander A. Makarov
1,*
1
Engelhardt Institute of Molecular Biology, Russian Academy of Sciences, Vavilov St. 32, 119991 Moscow, Russia
2
Shemyakin-Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences, Miklukho-Maklaya Street, 16/10, 117997 Moscow, Russia
3
Department of Pharmacology and Toxicology, University of Vienna, Althanstraße 14 (UZA II), 1090 Vienna, Austria
4
Orekhovich Institute of Biomedical Chemistry, Pogodinskaya street 10/8, 119121 Moscow, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(17), 6272; https://doi.org/10.3390/ijms21176272
Submission received: 3 August 2020 / Revised: 25 August 2020 / Accepted: 27 August 2020 / Published: 29 August 2020
(This article belongs to the Special Issue The Pharmacology of Neurotransmission: Focus on Synaptic Alterations during Neurodegeneration and Treatments)
Browse Figures
Review Reports Versions Notes

Abstract

:
The cholinergic deficit in Alzheimer’s disease (AD) may arise from selective loss of cholinergic neurons caused by the binding of Aβ peptide to nicotinic acetylcholine receptors (nAChRs). Thus, compounds preventing such an interaction are needed to address the cholinergic dysfunction. Recent findings suggest that the 11EVHH14 site in Aβ peptide mediates its interaction with α4β2 nAChR. This site contains several charged amino acid residues, hence we hypothesized that the formation of Aβ-α4β2 nAChR complex is based on the interaction of 11EVHH14 with its charge-complementary counterpart in α4β2 nAChR. Indeed, we discovered a 35HAEE38 site in α4β2 nAChR, which is charge-complementary to 11EVHH14, and molecular modeling showed that a stable Aβ42-α4β2 nAChR complex could be formed via the 11EVHH14:35HAEE38 interface. Using surface plasmon resonance and bioinformatics approaches, we further showed that a corresponding tetrapeptide Ac-HAEE-NH2 can bind to Aβ via 11EVHH14 site. Finally, using two-electrode voltage clamp in Xenopus laevis oocytes, we showed that Ac-HAEE-NH2 tetrapeptide completely abolishes the Aβ42-induced inhibition of α4β2 nAChR. Thus, we suggest that 35HAEE38 is a potential binding site for Aβ on α4β2 nAChR and Ac-HAEE-NH2 tetrapeptide corresponding to this site is a potential therapeutic for the treatment of α4β2 nAChR-dependent cholinergic dysfunction in AD.

1. Introduction

Alzheimer’s disease (AD) is the most common neurodegenerative disorder with over 50 million of patients worldwide [1]. Since the approval of memantine by Food and Drug Administration in 2003, no new therapeutics were developed for AD, and no disease-modifying treatments are available [2]. Currently, new therapeutic avenues are being developed on the basis of uncovering the molecular foundations of AD pathogenesis [2]. For a long period, the concepts of AD molecular pathology were focused on the role of amyloid plaques; however, it is becoming clear that neurotoxic oligomers of β-amyloid (Aβ) should be targeted as well [1,3,4,5]. Soluble neurotoxic Aβ species interact with different targets, resulting in a systemic impairment of neuronal and glial function [4,6,7]. Important targets of Aβ are brain nicotinic acetylcholine receptors (nAChRs). α4β2 and α7 nAChRs are the most abundant types of nAChRs that regulate memory, sleep, pain and cognitive processes [8,9,10]. Their activation triggers intracellular signaling, including survival-related pathways, whereas their dysfunction leads to synaptic impairment and neuronal death [11,12]. Existing data suggest that the interaction of Aβ with α4β2 and α7 nAChRs leads to selective loss of cholinergic neurons and cholinergic deficit, which is a hallmark of AD [13]. In mild AD, the region-specific loss of α4β2 nAChR correlates with the impairment of distinct cognitive domains [14]. Thus, compounds that prevent the interaction of Aβ with nAChRs could reduce neuronal loss and cognitive decline in AD. To develop such targeted compounds, we need extensive knowledge about the structure and function of Aβ-nAChR complexes and their interaction interfaces.
The 11EVHH14 region is a promising pharmacological target in Aβ, governing its zinc-dependent aggregation and cerebral amyloidogenesis in model animals [15,16]. It was recently found that 11EVHH14 site is also important for Aβ binding to α4β2 and α7 nAChRs [17]. This site contains 3 charged amino acid residues, so we hypothesized that Aβ-nAChRs interaction is mediated by the pairing of 11EVHH14 with its charge-complementary partners in nAChRs.
Here, we found that the 35HAEE38 site, which is charge complementary to 11EVHH14, is present in the α4 subunit of α4β2 nAChR. Using molecular modeling, we showed that Aβ interaction with α4β2 nAChR could occur via (Aβ) 11EVHH14:35HAEE38 (α4) interface. On the basis of this finding, we suggested that Ac-HAEE-NH2 tetrapeptide would (1) bind to Aβ and (2) prevent the interaction of Aβ with α4β2 nAChR, which was confirmed using surface plasmon resonance, bioinformatics approaches and electrophysiological studies.

2. Results

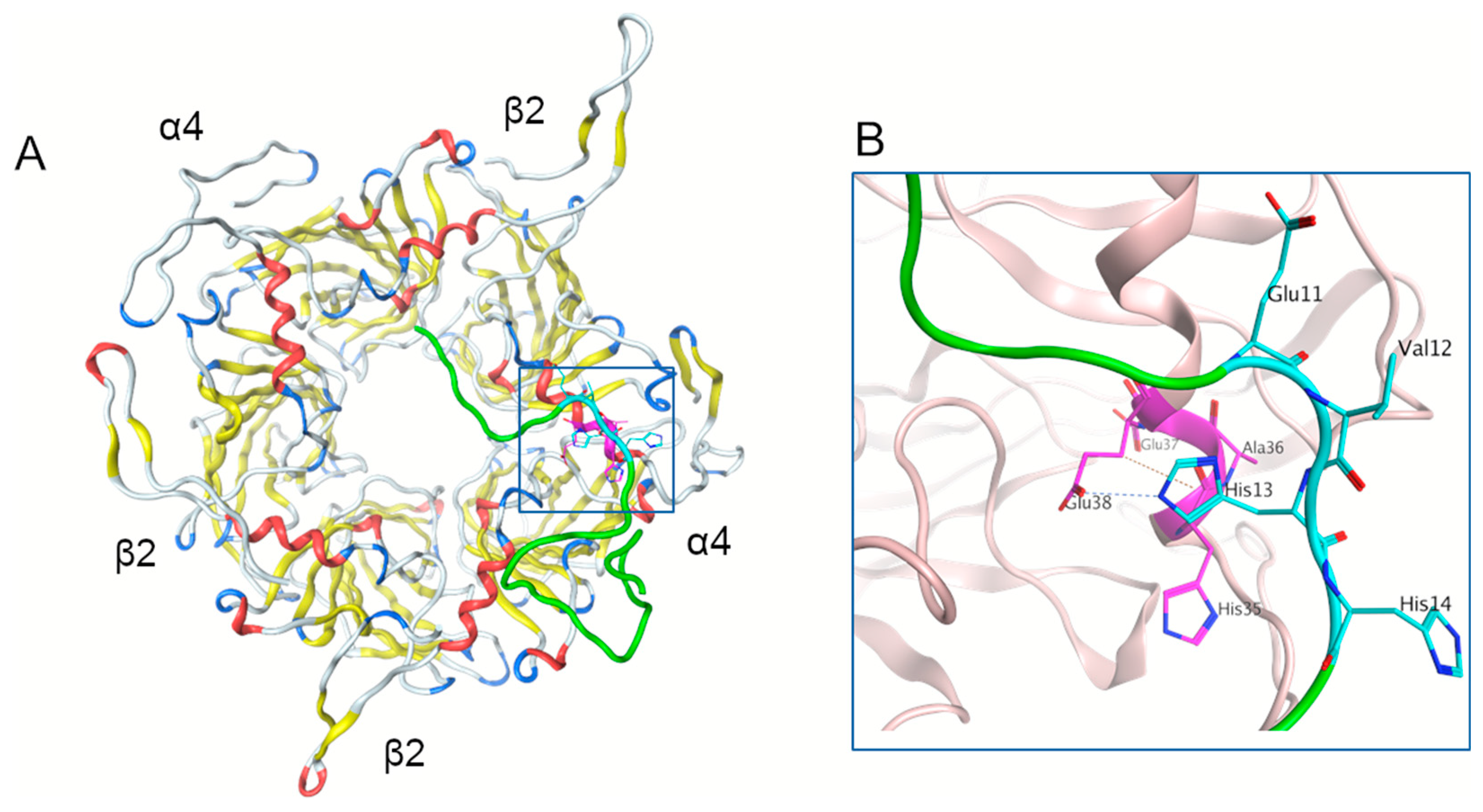

2.1. The HAEE Site Is Present in an Extracellular α-helix of α4β2 nAChR

It was previously shown that 11EVHH14 site in Aβ is important for interaction with α7 and α4β2 nAChRs [17,18]. 11EVHH14 motif contains several charged residues, so we hypothesized that it interacts with the other charged motif in α7 or α4β2 nAChRs on the basis of charge complementarity. To find the charged counterparts for 11EVHH14 in α7 or α4β2 nAChRs, we used the ScanProsite tool [19] (See Methods). Two such motifs were detected in α4 nAChR subunit, 35HAEE38 and 579KAED582, of which KAED is in the cytoplasmic domain, and HAEE is located in the extracellular part of α4 subunit. Hence, we assumed that the interaction between α4β2 nAChR and Aβ may be mediated by the 35HAEE38:11EVHH14 interface.

2.2. Aβ42 Can Form a Stable Complex with α4β2 nAChR through 11EVHH14:35HAEE38 Interface

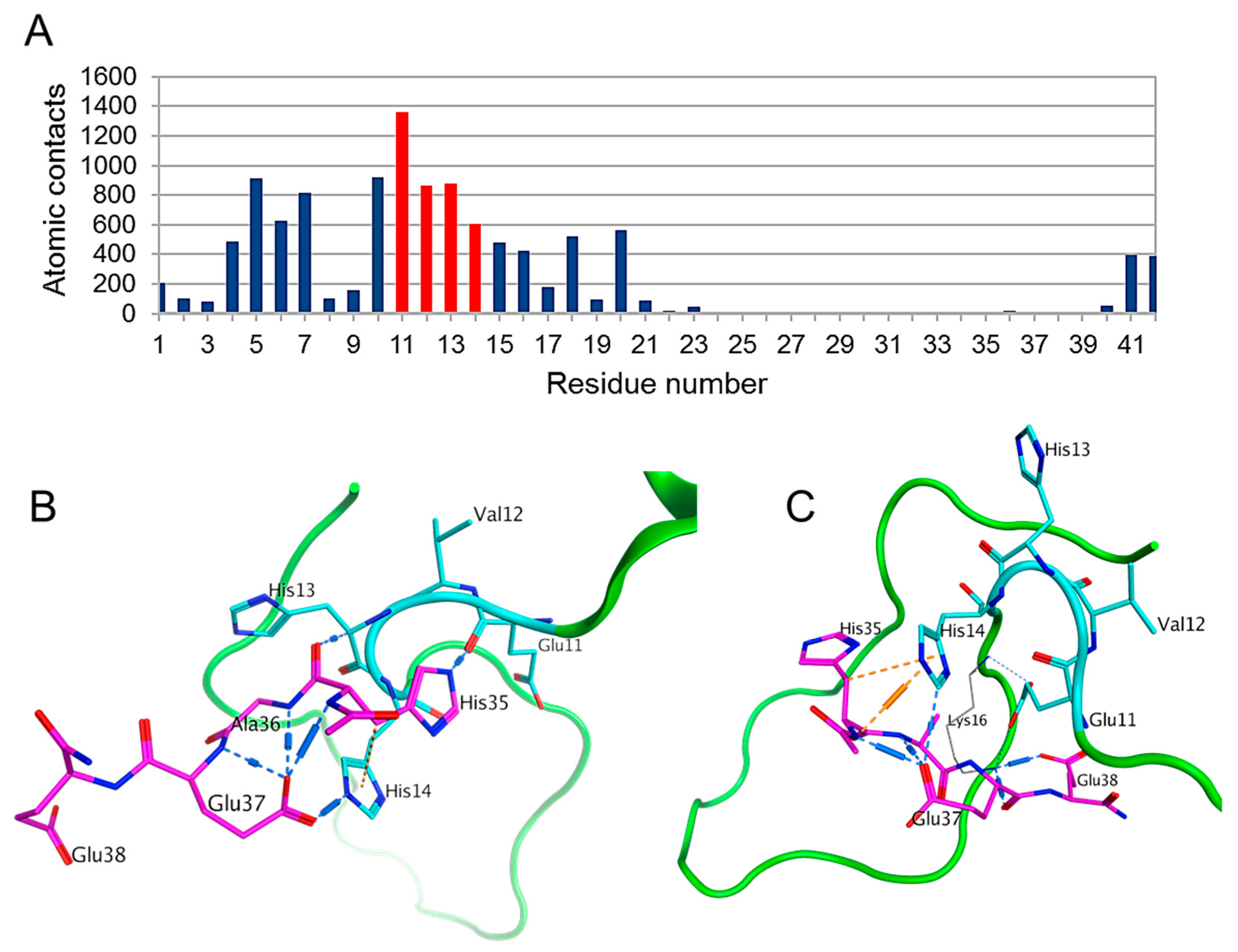

Using molecular modelling, we tested the possibility of α4β2 nAChR and Aβ interaction via the 35HAEE38:11EVHH14 interface. The 35HAEE38 motif is located in the N-terminal alpha-helix of the α-subunit of α4β2 nAChR, which forms an exposed site (Figure 1A). We performed the modelling of the α4β2 nAChR structure (see Methods) and its extracellular domain was used for docking.
At Step one, to model the interaction through Aβ42 11EVHH14:35HAEE38 α4β2 nAChR interface, the full Aβ42 model was docked by targeted global docking with α4β2 nAChR where the 11EVHH14 and 35HAEE38 were indicated as potential interaction sites. The resulting dataset of 46 structures was analyzed with the in-house QASDOM server [20]. Overall, 8 structures were selected, mostly with the parallel orientation of the relevant sites, and the 3 best fitting docking models were submitted to MD simulations for 20 ns of the production run.
Step two involved refining the 11EVHH14:35HAEE38 interaction interface. Since 35HAEE38 is located in the α-helix, only three residues are exposed (Glu37 is inaccessible for binding) and only two of them can be involved in an interaction concurrently. We focused on the models where His-Glu contacts were present. To fine-tune the interaction interface centered on the Aβ42 11EVHH14 and α4β2 nAChR 35HAEE38 sites, we took an energy-minimized structure of the 10YEVHHQ15 fragment from Aβ42 and ran local docking using AutoDock Vina with different sizes of a grid box. From the dataset of docking results, a subset of structures was selected where several H-bonds were formed between the 10YEVHHQ15 and 35HAEE38 primarily through His-Glu interaction. In these structures the following combinations of the contacting residues were found: (Aβ) Glu11-His35(α4), (Aβ) His13-Glu38(α4) and (Aβ) His14-Glu38(α4). Several structures with “parallel” and “antiparallel” positioning of the Aβ42 10YEVHHQ15 fragment and the 35HAEE38 site were selected for the next steps of the interface modelling.
At Step three, the best fitting resulting structure of Aβ42 (from the Aβ42-α4β2 nAChR complex model) obtained in step one, was refined with Rosetta local docking server and relaxed with MD. Then it was superposed with the 10YEVHHQ15 fragment which was docked to the α4β2 nAChR 35HAEE38 site at Step two. The 11EVHH14 segment in Aβ42 was substituted with EVHH of the YEVHHQ peptide of the YEVHHQ-α4β2 nAChR complex structure. The resulting structure was fine-tuned by energy minimization and local docking with the Rosetta server and equilibrated by MD. At this stage, a model of the complex was created where Aβ42 and α4β2 nAChR were bound via the EVHH-HAEE sites (Figure 1A). The Step three modelling approach was repeated for four versions of the EVHH-HAEE interaction models and in the two cases H-bonds formed between Aβ42 and α4β2 nAChR by (Aβ) Glu11-His35(α4) and (Aβ) His13-Glu38(α4) in the interaction interface remained stable through the whole 100 ns of MD simulation (Figure 1B). PDB files for these structures can be found in Supplementary Materials (structure1.pdb-structure4.pdb). Notably, “antiparallel” variants of the Aβ42 orientation along the α4β2 nAChR α-subunit α-helix were more stable than the “parallel” ones.

2.3. Ac-HAEE-NH2 Is Targeting 11EVHH14 in Aβ42

The modelling results demonstrated that a stable (parallel or anti-parallel) interaction between Aβ42 and α4β2 nAChR can occur via the predicted 11EVHH14:35HAEE38 interface. Hence, we assumed that a peptide corresponding to the 35HAEE38 site will bind to 11EVHH14 in Aβ and could be used to prevent the interaction of Aβ with α4β2 nAChR or to competitively displace Aβ from the complex with the receptor. We used the Ac-HAEE-NH2 peptide, N-acetylated and C-amidated for increased resistance to proteolytic degradation, as such Aβ-binding compound.
First, to determine the likelihood of Ac-HAEE-NH2 interaction with Aβ and identify the possible binding sites we performed full blind global docking of Ac-HAEE-NH2 to Aβ42., The results showed a major cluster of interactions at the 11EVHH14 site with a leading contribution of Glu11, and a less prominent cluster 4FRHD7 (Figure S1A). When 11EVHH14 was indicated as a preferable interaction site in global docking (targeted docking), or a local docking using Autodock Vina was performed, the results were slightly different, with the major part of interactions centering on the His13 and Val12 residues of 11EVHH14 (Figure S1B). From the targeted docking dataset, we selected 8 models in which strong hydrogen bonds between HAEE and 11EVHH14 were identified. In the majority of these structures, His14 from Aβ42, and Glu and His residues at the HAEE termini participated in the interactions (Figure S1C,D). Thus, the distribution of atomic contacts in the docking dataset for the Aβ42 sequence identified 11EVHH14 as a preferable site for Ac-HAEE-NH2 binding (Figure 2A), and the targeted docking revealed possible structures of Aβ42-HAEE interfaces stabilized by His-Glu H-bonds (Figure 2B,C).

2.4. Ac-HAEE-NH2 Tetrapeptide Binds to Aβ16 In Vitro

In all mammalians, the Aβ N-terminal part 1–16 (Aβ16) constitutes the metal-binding domain [21,22] with a stable and well-defined conformation [23,24,25]. The domain 1–16 acts both as an autonomous molecule [26] and as an independent structural and functional unit within Aβ species of length 39–42 [27]. We have shown earlier that fragment 1–16 of Aβ (Aβ16) represents an adequate model for in vitro studies of the interactions that are mediated by the 11EVHH14 site [28,29,30]. Hence, we used Aβ16 to test the rationally predicted ability of Ac-HAEE-NH2 tetrapeptide to interact with Aβ in a direct binding experiment with surface plasmon resonance technology.

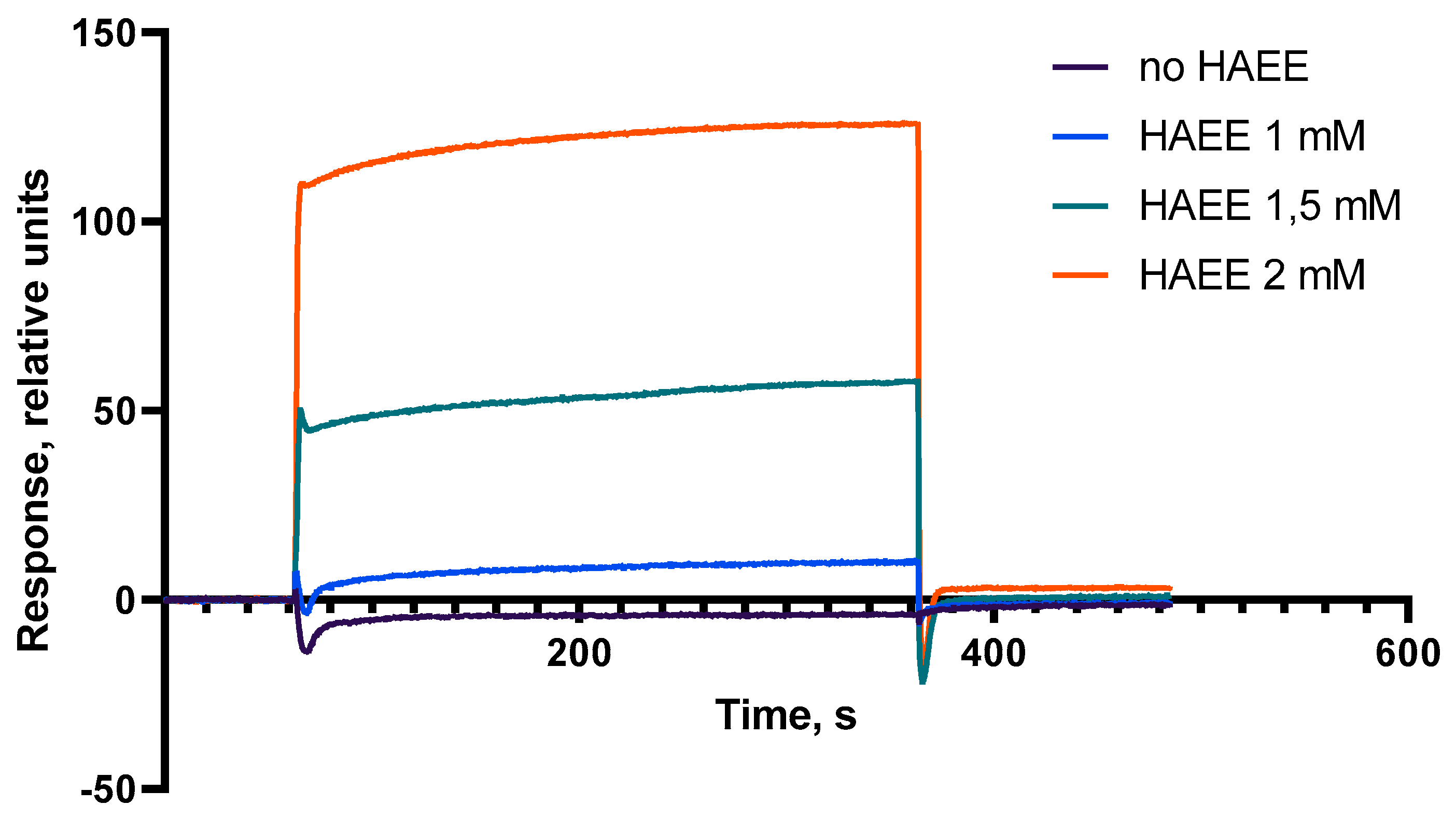

We found that injection of Ac-HAEE-NH2 over a surface with immobilized Aβ16 results in a dose-dependent response (Figure 3), indicating a direct peptide binding, and the calculated dissociation constant Kd was 9 ± 3 × 10−5 M (kon = 0.37 M−1 s−1, koff = 0.04 × 10−3 s−1). For the concentrations of Ac-HAEE-NH2 below 1 mM, the signal was insignificantly different from the reference and thus the results are not shown. In addition, 23 other tetrapeptides with a predicted charge complementarity for the 11EVHH14 region were tested in this SPR assay (Table S1). Generally, we can conclude that the peptides designed to interact with 11EVHH14 in a parallel orientation showed better binding properties than the peptides designed to interact in an anti-parallel way. Of all the peptides tested, Ac-HAEE-NH2 (Kd 9 ± 3 × 10−5 M) and Ac-RADD-NH2 (Kd 1.3 ± 3 × 10−5 M) demonstrated the strongest binding to the Aβ16 (Table S2).

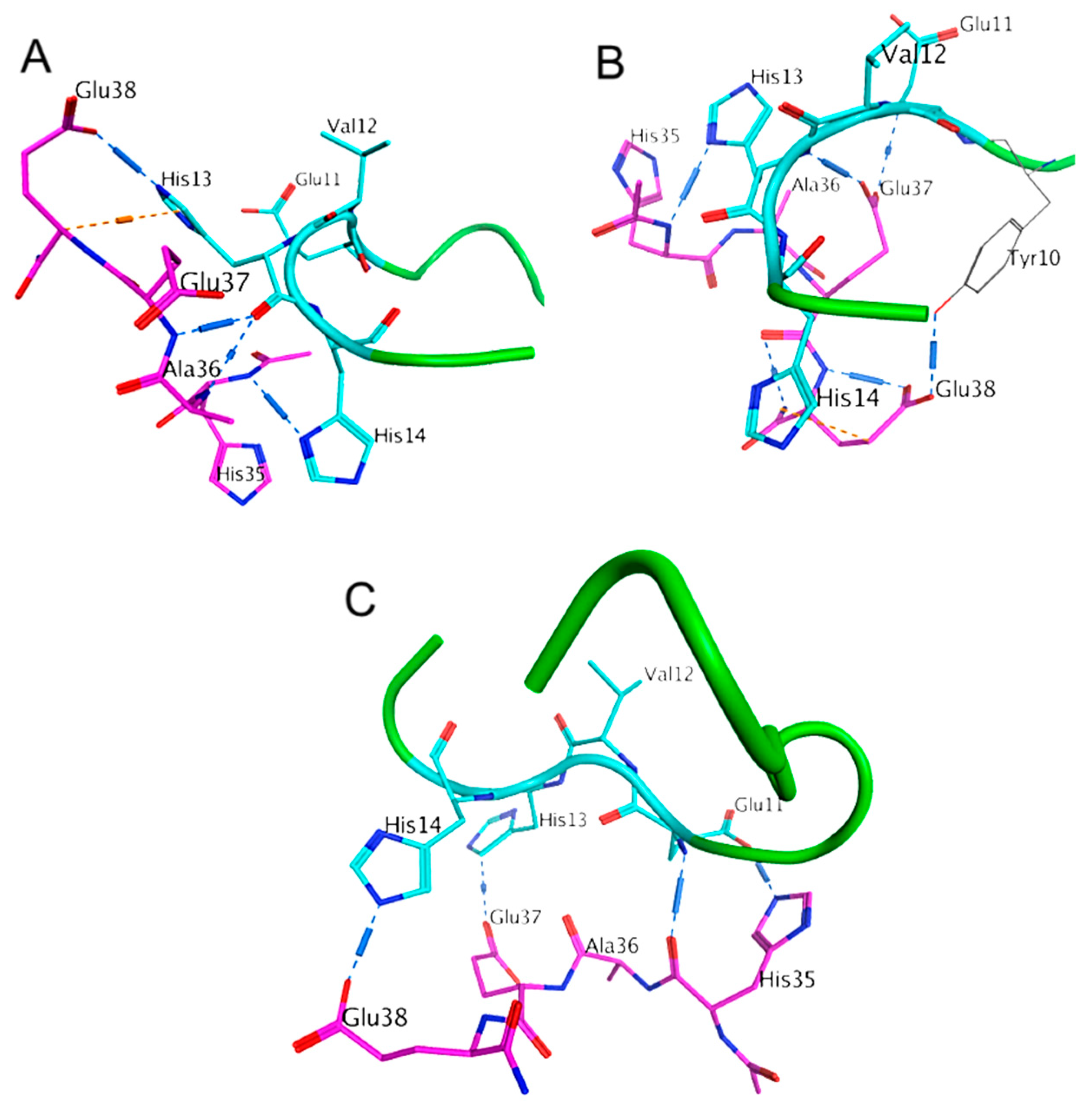

2.5. In Silico Model of Ac-HAEE-NH2 Binding Interface with 11EVHH14 in Aβ16

To further model the HAEE-EVHH interaction in Aβ16 we used models 1 and 7 from the PDB:1ZE7 solution NMR structure. As for Aβ42, we performed global targeted docking with preferable target site specification (11EVHH14) and local docking with AutoDock Vina. Results for the global targeted and local docking are shown in Figure 4 and Figure S2A.
Aβ16 is flexible and can adopt different conformations in solution, some of which are preferable for Ac-HAEE-NH2 binding. We identified a range of structures with hydrogen bonds between the Ac-HAEE-NH2 and 11EVHH14 regions of Aβ16. Of these, 22 structures were selected for further analysis with at least three hydrogen bonds between three different side-chain atoms of Ac-HAEE-NH2 and 11EVHH14. As shown in Figure S2B,C, interactions mainly occur via His and Glu residues. The Ac-HAEE-NH2 structures in the complexes were oriented crosswise respectively to the 11EVHH14 region (Figure 4A,B) but there were some structures with a parallel orientation where three hydrogen bonds are formed between histidine and glutamic acid residues. Such structures were close to the proposed interface based on complementarity between His and Glu residues, and the interface remained stable after energy minimization in water with an AMBER99SB-ILDN force field (Figure 4C).
Since modelling results showed the presence of H-bonds between (Aβ) Glu11-His35(α4), (Aβ) His13-Glu38(α4) and (Aβ) His14-Glu38(α4) residues of the tetrapeptide and Aβ16 respectively, His protonation can affect the interaction strength. To test this, we added an extra proton to each of the three histidines in the interaction interface in 6 of the 22 Ac-HAEE-NH2-Aβ16 complex structures selected for further analysis. In the other six structures from this subset, histidine remained not charged (automatic selection of charge distribution according to force field). All 12 structures were simulated by MD for 50 ns in water, with ions (see Methods). In all systems where structures were not charged, we have observed rapid breaking of the hydrogen bonds in the Aβ16:Ac-HAEE-NH2 interaction interface, with subsequent floating of Ac-HAEE-NH2 to the solution. Of the charged systems, two remained stable throughout the simulation, and in the other two breakings of H-bonds between Ac-HAEE-NH2 and the 11EVHH14 region of Aβ16 occurred much later than for the systems that were not charged. In all systems where Ac-HAEE-NH2 drifted away from the Aβ16 peptide, we have observed that Ac-HAEE-NH2 moved back to the same 11EVHH14 interaction site, i.e., in the course of MD simulation repeated interactions occurred between them, which can be characterized as specific and transient. His14 participated in 67% (6 of 9 cases) of the repeated interactions, being more accessible than Glu11, which was mostly buried in the crease of the neighboring residues’ backbone.
Our modeling results suggest that interactions of Ac-HAEE-NH2 in α4β2 nAChR and of Ac-HAEE-NH2 with 11EVHH14 in Aβ employ similar mechanisms via identical interaction interfaces. Therefore, Ac-HAEE-NH2 tetrapeptide can be used as a prospective agent to modulate Aβ interaction with α4β2 nAChR.

2.6. Ac-HAEE-NH2 Tetrapeptide Prevents Aβ42-Induced Inhibition of α4β2 nAChR

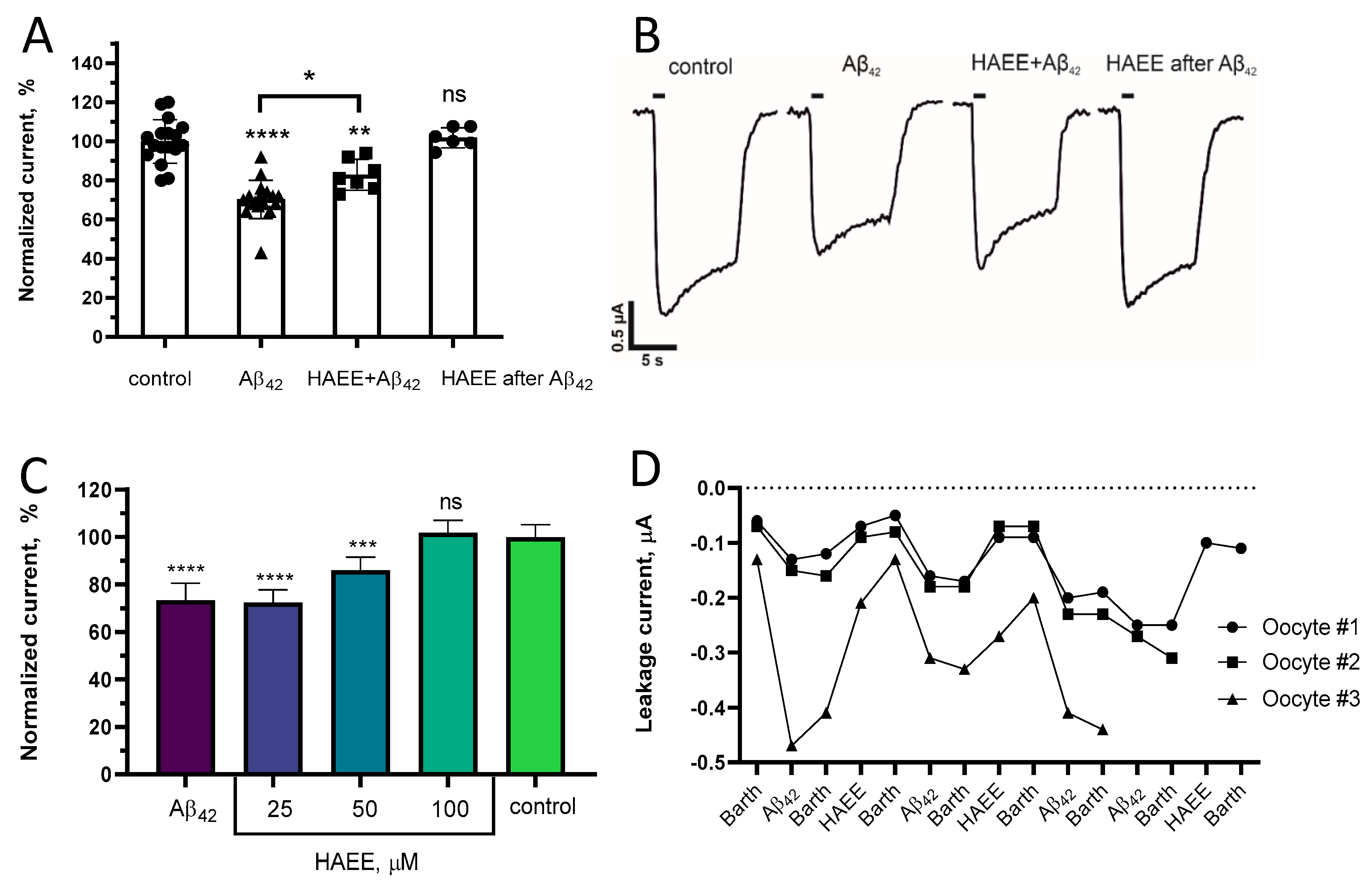

To analyze the ability of Ac-HAEE-NH2 to prevent the Aβ42-induced inhibition of α4β2 nAChR, we used two-electrode voltage clamp in X. laevis frog oocytes expressing rat α4β2 nAChR. The application of 100 µM acetylcholine (ACh) to the oocytes pre-incubated with Aβ42 for 3 min showed an inhibition of the receptor ion current by ~30% (Figure 5A,B “Aβ42”). However, if the Aβ42 was co-applied with the 10-times molar excess of Ac-HAEE-NH2, the degree of inhibition was reduced significantly (Figure 5A,B “HAEE + Aβ42”).
More importantly, in the absence of Ac-HAEE-NH2, the current amplitude in the Aβ42-treated oocytes did not restore after a 3 min washout (Figure 5C “Aβ42”). However, if Ac-HAEE-NH2 (25–100 µM) was added to the washout buffer, the amplitude of Ach (100 µM)-evoked currents dose-dependently returned to the control levels (Figure 5A,B “HAEE after Aβ42”, Figure 5C “HAEE”).
At 25 µM, Ac-HAEE-NH2 did not affect the current amplitude, whereas at 100 µM it fully revoked the inhibition induced by Aβ42 (Figure 5C).
Interestingly, we found that a 3-min incubation with 10 µM Aβ42 increased the leakage current in X. laevis oocytes by 0.05–0.1 µA (Figure 5D). The increase sustained after the buffer washout of Aβ42, however, a consecutive washout with Ac-HAEE-NH2 (100 µM)-containing buffer reduced the leakage current almost to the control values. For the oocytes #1 and #2, after several incubations with Aβ42 and Ac-HAEE-NH2 washouts the overall increase in the leakage current equaled 0.05, which is consistent with the usual worn-out of the oocyte over the course of an experiment. The effect of Aβ42 on the membrane leakage was absent in mock-injected oocytes, thereby showing that the increase in the leakage current was because of Aβ42 interaction with α4β2 nAChR.
Ac-HAEE-NH2 and Aβ42 themselves did not induce any currents in α4β2 nAChR-expressing oocytes, and Ac-HAEE-NH2 did not affect ACh-evoked current in the absence of Aβ42. The observed responses in the oocytes were mediated by α4β2 nAChR, and no ACh-induced currents were detected in the mock-injected oocytes.

3. Discussion

Compounds that prevent interaction of Aβ with nAChRs might ameliorate the cholinergic dysfunction in AD. The development of such compounds requires the exhaustive characterization of Aβ-nAChR interaction. However, the data concerning the effects exerted by Aβ on nAChRs are contradictory, with some authors showing the activation of the receptor, while the others show the suppression of the receptor function [31]. The interaction site remains unclear, and previous findings support both the orthosteric [32] and the allosteric [7,33,34] binding to nAChRs. Molecular modelling of Aβ-nAChR interaction is also complicated due to the absence of complete or well-resolved (<3 Å) receptor structures, however, a few models of Aβ-α7 nAChR complexes were created with bioinformatics approaches [7,35,36].
It was recently found that interaction with α4β2 and α7 nAChRs is mediated by 11EVHH14 site of Aβ peptide [17,18]. The 11EVHH14 site includes three highly polar amino acid residues, of which E11 glutamate is negatively charged at physiological pH, and histidines at positions 13–14 contain a partial positive charge. Thus, we assumed that the Aβ-nAChRs interaction can be based on charge complementarity between 11EVHH14 and its counterpart motif. Charge complementarity can facilitate specific protein-protein interactions [37,38,39], stabilize a tertiary [40,41] or a quaternary [42,43] protein structure. To find charge-complementary counterparts of 11EVHH14, we screened the sequences of α4, β2 and α7 nAChR subunits. Two motifs with potential charge complementarity to 11EVHH14 were found, both in α4 nAChR subunit. Of these, 35HAEE38 motif was located extracellularly, so we hypothesized that the interaction of α4β2 nAChR with Aβ peptide can occur via (Aβ) 11EVHH14:35HAEE38 (α4) interface.
For the Aβ-α4β2 nAChR complex, no structures were proposed before, so we decided to model this interaction based on the predicted interface. For the modelling, we used the PDB:5KXI structure of α4β2 nAChR. In this structure, the 35HAEE38 site is located in an extracellular α-helix on top of the extracellular domain, and this helix remains unchanged in MD simulation. The modeling showed that 11EVHH14:35HAEE38 interface can provide a robust interaction stabilized with His-Glu H-bonds, which remained firm throughout a 100 ns MD simulation. We expected that charge complementarity would impose the parallel orientation of the motifs, but the highest stability was demonstrated by the models where 35HAEE38 and 11EVHH14 were in the anti-parallel orientation. Probably, the parallel configuration was less favorable due to the helical conformation of the 35HAEE38 site in α4β2 nAChR. 35HAEE38 site is located far from the agonist pocket, so it is hard to conclude if binding of Aβ will disrupt the attachment to the orthosteric site of the receptor. On the other hand, existing data supports the possible role of 35HAEE38 in allosteric regulation of α4β2 nAChR. N-terminal extracellular domain in α4 subunit harbors several allosteric binding sites [44,45], and a highly similar N-terminal α-helix in α7 nAChR was shown to bind negative allosteric modulators [46].
Thus, molecular modeling showed that Aβ can interact with α4β2 nAChR via 11EVHH14:35HAEE38 interface. Previously, the insights into the interaction of Aβ with α7 nAChR lead to the development of several peptide drugs aimed to prevent this binding [47,48], and we assumed that such approach could be translated to α4β2 nAChR. So, we hypothesized that Ac-HAEE-NH2 tetrapeptide corresponding to 35HAEE38 site in α4β2 nAChR will bind to Aβ thereby preventing its interaction with α4β2 nAChR.
Molecular docking of Ac-HAEE-NH2 to Aβ showed that Ac-HAEE-NH2 would preferentially bind to the 11EVHH14 site, confirming our assumptions based on the opposite charges of the amino acid residues in these sequences. We also detected 4FRHD7 as the potential, though the less likely binding site. 4FRHD7 amino acid composition is an anti-parallel analog of 11EVHH14, taking into account the propensity of phenylalanine to establish π-anion bonds with Glu residues [49]. In contrast with the observed anti-parallel orientation of the receptor site 35HAEE38 and the Aβ site 11EVHH14, Ac-HAEE-NH2 was oriented either in parallel or crosswise to 11EVHH14, suggesting that multiple binding scenarios can be realized and their exact geometry is defined by the interacting partners and their actual conformations.
Several models showed parallel orientation stabilized by three His-Glu bonds, as predicted by charge complementarity between the sequences. The MD simulation performed under physiological conditions (i.e., uncharged His residues) revealed a fast detachment of Ac-HAEE-NH2 from the 11EVHH14 site. However, over the 50 ns course of MD interaction, we observed that Ac-HAEE-NH2 goes back to 11EVHH14 and detaches again several times. This was consistent with relatively low Kd of Ac-HAEE-NH2 of ~10−4 M, as we determined using surface plasmon resonance. Such temporary, transient interaction could be nevertheless sufficient to change the functional properties of Aβ, as seen in short linear interacting motifs (SLIMs). SLIMs, or eukaryotic linear motifs (ELMs), are short protein sequences that also provide transient PPIs with Kd ranging from 10−4 to 10−8 [50]. Such motifs are crucial for recognition events such as the interaction between the members of MAP-kinase cascade, docking of src-kinase to focal adhesion kinase 1, and the pairing of transcription factors [50]. Of note, the most common length for SLIMs is 4 aa residues [51].
Though His residues can form π-anion bonds with Glu at physiological pH [52], the Aβ-Ac-HAEE-NH2 structures with protonated His residues demonstrated a higher stability, and half of the structural variants remained undissociated throughout the MD simulation. If such robustness is caused by salt bridges formed between positively charged His and negative Glu residues, one can assume that a peptide containing Lys or Arg at position one—the amino acids, that are positively charged at physiological pH—would bind more tightly to 11EVHH14 in Aβ. Surprisingly, RAEE peptide showed two orders of magnitude weaker binding than Ac-HAEE-NH2 tetrapeptide (Table S2) and for KAEE no binding was detected at all. The forces behind such outcome are unknown, though it is possible that (1) Lys and Arg are sterically less suitable for binding and (2) in KAEE and RAEE, the unfavorable intramolecular interactions are formed between Lys/Arg and Glu [53], which disrupts a linear charge-complementary interaction. Also, pKa of His residues can shift substantially dependent on the environment. In T4 lysozyme, a His-Asp salt bridge stabilizes its tertiary structure, and the pKa of this His residue is increased to 9, meaning that it remains charged at physiological pH [54]. 11EVHH14 in Aβ is the zinc-binding center, and Ac-HAEE-NH2 was previously shown to prevent zinc-dependent oligomerization of Aβ, raising potential for zinc-mediated interaction between these molecules. Hence, we suggest that Ac-HAEE-NH2 can be used as the charge-complementary binder to 11EVHH14 and that a stable interaction can be formed under physiological conditions.
Finally, we tested the Ac-HAEE-NH2 effect on Aβ42-induced inhibition of α4β2 nAChR. For this, we used a two-electrode voltage clamp in X. laevis oocytes expressing α4β2 nAChR from Rattus norvegicus. This technique was intensively used in our previous projects to study effects on nAChRs of peptide ligands, including those produced by Aβ peptides [7,55,56]. Rat and human α4β2 nAChRs share high homology with the full conservation of “HAEE” site at the N-termini of α4 subunit. The parameters for the agonists and antagonists binding to human and rat receptors are almost identical [57,58,59], and the rat receptor has been extensively used for Aβ studies in both oocyte [60] and cellular [17] models. Thus, we consider it a relevant model for our study.
We found that 10 µM Aβ42 reduced the amplitude of ACh-evoked current by 30%. In comparison to the physiological levels [61], we used the relatively high (micromolar) concentration of Aβ42, which is consistent with the previous studies [33,60], and results from 100–5000 lower affinity of Aβ42 to α4β2 nAChR than to α7 nAChR [32]. As shown before [33], the inhibition of α4β2 nAChR by Aβ was partially reversible, meaning that a single 3-min washout was not sufficient to restore the current amplitude. Both the amplitude of α4β2 nAChR-mediated current, and the degree of the receptor inhibition by Aβ42 are in agreement with the previously published results [60].
We found that co-administration of Aβ42 with 10-times molar excess of Ac-HAEE-NH2 reduced the inhibitory effect of Aβ42 by half, thereby confirming the ability of Ac-HAEE-NH2 to prevent α4β2 nAChR inhibition by Aβ. Compared to YEVHHQ peptide that mimics the other side of α4β2 nAChR–Aβ interface [17], Ac-HAEE-NH2 did not induce any currents itself, which can be beneficial to avoid the potential side effects. If co-applied with Aβ42, Ac-HAEE-NH2 did not fully repair the receptor function, which is possibly due to its relatively low affinity to Aβ42. However, the washout of Aβ42 with Ac-HAEE-NH2-containing buffer completely restored the receptor response. The Ac-HAEE-NH2 washout was most effective at 100 µM of the peptide, and less so at 50 µM, thus, a high molar excess of Ac-HAEE-NH2 over Aβ42 is required to exert its effect. The concentration of soluble Aβ species in the brain ranges from pM to nM [62,63], and peptide drugs are well-tolerated in hundreds of micromoles per liter, so the required concentration of Ac-HAEE-NH2 in the brain can probably be reached without adverse effects.
Aside from lowering the response amplitude, Aβ42 induced the increase in leakage current in the oocytes. It was previously shown that Aβ42 can interact with lipid membranes and form ionic-permeable channels [64,65], which could have explained the observed effect. However, Aβ42 did not alter the leakage current in untransfected oocytes, thus suggesting the leak was due to the interaction of Aβ42 with α4β2 nAChR. Apparently, Aβ42 disrupts the proper gating of α4β2 nAChR, as it was previously shown for ryanodine receptor-dependent calcium leaks in the endoplasmic reticulum [66]. The washout with Ac-HAEE-NH2 peptide restored the Aβ-induced receptor leak, which is more evidence for Aβ42-α4β2 nAChR complex disruption by Ac-HAEE-NH2. Previously, we observed that injections of Ac-HAEE-NH2 effectively reduce the amyloid load in the brains of AD model mice [16]. The formation of Aβ-α4β2 nAChR complexes might be connected with amyloid formation, with such complexes either serving as aggregation seeds or promoting neuronal death [67,68] Thus, considering the results of the current study, the anti-amyloid effects of Ac-HAEE-NH2 could be linked to its ability to prevent the interaction of Aβ with α4β2 nAChR.
Interactions of soluble Aβ species with target proteins bear a pathological significance in Alzheimer’s disease [69,70,71], and targeting these interactions represents a promising therapeutic strategy [69,72,73,74]. The data obtained in the current study suggests that Aβ-α4β2 nAChR interaction is mediated by the charge complementary interface (Aβ) 11EVHH14:35HAEE38 (α4). Tetrapeptide Ac-HAEE-NH2, which is the synthetic analog of the receptor side of this interface, proved to efficiently repair the Aβ-dependent loss of cholinergic function in α4β2 nAChR-transfected oocytes. The findings of the study provide a prospective drug candidate for treatment of cholinergic deficit in AD (Figure 6).

4. Materials and Methods

4.1. Preparation of Aβ Peptides

Synthetic Peptides Aβ16-G4-C [Ac]-DAEFRHDSGYEVHHQKGGGGC-[NH2] and Aβ42[H2N]-DAEFRHDSGYEVHHQKLVFFAEDVGSNKGAIIGLMVGGVVIA-[COOH] were obtained from Biopeptide (San Diego, CA, USA). For the electrophysiology experiments, Aβ42 peptide was monomerized as described previously [7]. A fresh 5 mM solution of Aβ42 was prepared by adding 10 µL of 100% anhydrous dimethyl sulfoxide (DMSO) (MilliporeSigma, St. Louis, MO, USA) to 0.224 mg of the peptide, followed by incubation for 1 h at room temperature to completely dissolve the peptide. For use in a direct binding assay, lyophilized Aβ16-G4-C was dissolved in 10 mM sodium acetate buffer, pH 4.5, to reach a concentration of 0.05 mg/mL.

4.2. Ac-HAEE-NH2 and Other Tetrapeptides

Ac-HAEE-NH2 and other tetrapeptides (Supplementary Material) with charge complementarity to 11EVHH14 region of Aβ were obtained from Verta Ltd. (St. Petersburg, Russia). All tetrapeptides were stabilized by N-terminal acetylation and C-terminal amidation, thus referred to as Ac-XXXX-NH2 (Ac-HAEE-NH2). To prepare stock solutions for the surface plasmon resonance experiments, the lyophilized tetrapeptides were dissolved in sterile water to reach a concentration of 10 mM, filtered through a 0.22 µM filter (MilliporeSigma, St. Louis, MO, USA) and stored in a freezer at −80 °C.

4.3. nAChR Protein Sequence Analysis

The screening of α4β2 nAChR and α7 nAChR sequences for the motifs with charge complementarity to 11EVHH14 in Aβ was performed with a ScanProsite tool (https://prosite.expasy.org/scanprosite/) using [HRK]-[VALI]-[DE]-[DE] as a query on FASTA-formatted protein sequences of α4, β2 and α7 nAChR subunits of Homo sapiens, obtained from UniProt (https://www.uniprot.org/).

4.4. Bioinformatics

4.4.1. Structure Modelling

The structure of α4β2 nAChR neuronal acetylcholine receptor was modelled using as a template PDB:5KXI structure [75] solved by X-ray crystallography with a resolution of 3.941 Å. Fragments 1–24 and 365–585 of the α4 subunit, and 1–25 and 356–445 of the β2 subunit are absent in this structure. The missing fragments were modeled by the SwissModel, RaptorX, and iTasser servers, in accordance with our previously developed approach [76], which involves the construction of models by several independent servers with subsequent analysis of the quality of structures and identification of a representative model. Using this model, expert modeling of the final structure and energy minimization in the Amber12 force field was performed. The extracellular domain was isolated from the full protein model and its structure was equilibrated by molecular dynamics (MD).
The initial Ac-HAEE-NH2 tetrapeptide was obtained from the α4β2 nAChR model structure. Hydrogens, acetyl and amino (CH3CO and NH2 respectively) end groups were added and the resulting structure minimized in water with the AMBER99SB-ILDN force field. Then it was processed in the production run of MD for 100 ns using the Gromacs package.
Two models of Aβ16 were taken from PDB:1ZE7 solution NMR structure (models 1 and 7), and hydrogens, acetyl and amino end groups were added. The difference in the structures of these two models is in the position of N-terminus. Model 1 represents a folded, circular-shaped conformation with its N-terminus close to the C-terminus, and the model 7 structure is more unfolded with its N-and C-termini further away from each other. These structures were subsequently used as receptors for the docking of Ac-HAEE-NH2 tetrapeptide.
The previously created model of Aβ42 [7] was further equilibrated by molecular dynamics. Structures used as templates for the initial expert modelling of Aβ42 were selected from the data of our analysis of Aβ structures in the PDB [77].

4.4.2. Interactions Modelling

Aβ42—α4β2nAChR Interaction Modelling

Modelling the interaction interface centered on the Aβ42 11EVHH14 and α4β2 nAChR 35HAEE38 interaction sites was performed according to the following protocol.
(1) Targeted global docking of Aβ42 with α4β2 nAChR using PatchDock [78] and HADDOCK [79] servers. From the dataset of modelled structures of the complex, a subset of structures was selected where several H-bonds were formed between 10YEVHHQ15 and 35HAEE38 primarily via the histidine—glutamic acid residues. (2) Refinement of the resulting structures of Aβ42 with Rosetta server [80] and relaxing them during 20 ns of MD production run using the Gromacs package. (3) Local docking of the 10YEVHHQ15 fragment from Aβ42 to α4β2 nAChR extracellular domain using AutoDock Vina 1.1.2 [81]. (4) The structure of Aβ42 from (2) was superposed with the YEVHHQ fragment from (3), so as to achieve superposition of the backbone atoms of residues TYR10 and GLN15 of the 10YEVHHQ15 segment in Aβ42 and the YEVHHQ-α4β2 nAChR docked structure. The 11EVHH14 segment in Aβ42 was substituted with EVHH of the α4β2 nAChR-YEVHHQ structure. Several consecutive energy minimization steps on single residues were run to optimize the conformation of the HAEE-EVHH interface. All clashes between α4β2 nAChR and Aβ42 were removed by rotating the N-terminal (1–9) and C-terminal (16–42) parts of the Aβ42 structure, and then energy minimization was run for the full system. (5) Local docking with Rosetta server was performed on the resulting Aβ42-α4β2 nAChR model to fine-tune the conformation of the N- and C-terminal parts of Aβ42. (6) The final structures were simulated for 100 ns of MD production run using the Gromacs package and the AMBER99SB-ILDN force field.

Ac-HAEE-NH2 Docking to Aβ16 and Aβ42

Energy minimized and relaxed Ac-HAEE-NH2 tetrapeptide was docked to Aβ16 and Aβ42 structures with several docking servers and programs running global and local docking. Acetyl and amino groups from the N- and C-termini of the receptor and ligand were removed when such input requirements were specified for some of the docking servers. Full blind global docking of Ac-HAEE-NH2 to Aβ16 and Aβ42 was performed with PatchDock, ClusPro [82], GrammX [83], SwarmDock [84] servers, and HEX package [85]. Global docking with the target docking site specification was run using ClusPro, SwarmDock, HADDOCK and PatchDock servers. Local docking was performed with AutoDock Vina 1.1.2 (Scripps Research, San Diego, CA, USA). For Aβ16 docking was done twice for the two models (1 and 7) from the NMR dataset of PDB:1ze7. The docking results were processed and analyzed using the in-house server QASDOM [20].

4.4.3. Molecular Dynamics

All structures taken for molecular dynamics simulations were energy minimized consecutively with the steepest descent and conjugated gradients algorithms and equilibrated in water with the NaCl concentration of 115 mM under position restraints for 1 ns in the constant volume (NVT) and the constant pressure (NPT) ensembles respectively. The AMBER99SB-ILDN force field was used for all runs. Simulations were carried out using the particle mesh Ewald technique with repeating boundary conditions and 1 nm cut-offs, using the LINCS constraint algorithm with a 2-fs time step. Two coupling and energy groups were used, a constant temperature of 300 K was maintained. All computations were performed using the Gromacs package (University of Groningen, Groningen, The Netherlands).

4.5. Direct Binding Assay

Surface plasmon resonance (SPR) was utilized to detect the direct binding of the tetrapeptides to immobilized Aβ16-G4-C. All SPR experiments were carried out on a BIAcore T100 instrument (GE Healthcare, IL, USA). Research grade sensor chips CM5 carrying the hydrophilic carboxymethylated dextran matrix, HEPES Buffered Saline (HBS) buffer (10 mM HEPES (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid)), pH 7.4, 150 mM NaCl, 3 mM EDTA, 0.005% surfactant P20), 1-ethyl-3-(3-dimethylaminopropyl)-carbodiimide (EDC), N-hydroxysuccinimide (NHS), 2-(2-pyridinyldithio)-ethaneamine (PDEA), and cysteine were purchased from Biacore (GE, Boston, MA, USA). All other chemicals and solvents were of HPLC-grade or better and were obtained from MilliporeSigma (St. Louis, MO, USA). All buffers were filtered (0.45 μm, nylon) prior to use.
Attachment of the synthetic peptide Aβ16-G4-C to the CM5 chip was performed according to the thiol bond formation protocol described in the Sensor surface handbook (GE Healthcare, Chicago, IL, USA). The carboxymethyl dextran matrix was activated by injection of a 1:1 mixture of EDC and NHS (30 μL, 400 mM EDC, 100 mM NHS) with the following injection of an 80 mM PDEA solution in 0.1 M sodium borate (pH 8.5). The Aβ16-G4-C solution was then injected into the activated flow cell (0.05 mg/mL peptide in 10 mM sodium acetate buffer, pH 4.5). Unreacted disulfide groups on the CM5 chip surface were capped with a 50 mM cysteine solution in 0.1 M sodium acetate buffer (pH 4.0). The change corresponding to the immobilization of Aβ16-G4-C was 1023 response units (RU). The flow rate used for all immobilization steps was 5 μL/min. An unmodified dextran surface was used as a reference surface.
Then, the binding affinities of the immobilized Aβ16-G4-C to the following peptide-analytes were measured. Samples of Ac-HAEE-NH2 and other tetrapeptides were prepared by dilution of respective stock solutions in the running buffer (10 mM HEPES, pH 6.8). Each analyte was diluted to different concentrations (0 μM, 50 μM, 100 μM, 200 μM, 500 μM, 1000 μM, 1500 μM, 2000 μM) and injected in multichannel mode (volume 50 μL and rate 10 μL/min) during 300 s. Then, the chip surface was exposed to the running buffer without analyte for 120 s. After each injection of the analyte, the surface was regenerated with 5 μL of the regeneration buffer (HBS buffer containing 10 mM HEPES, 3 mM EDTA, 0.005% surfactant P20 and 150 mM NaCl, pH 7.4). The signal from the reference surface was subtracted from the raw data, obtained from the flow cell with the immobilized ligand.
The kinetic rate constants were calculated from the sensorgrams by globally fitting the response curves obtained at various analyte concentrations using the Langmuir model (1:1 binding) in the BIAevaluation 4.1 program. The association (kon) and the dissociation (koff) rate constants were fitted simultaneously (1),
dR/dt = kon C (Rmax − R) − koff R
where R stands for the biosensor response of the formed complex, C is the concentration of the analyte, and Rmax is the maximal theoretical value of the binding response for a given analyte.
Using the obtained data dissociation (Kd) constant was calculated from the ratios of the association (kon) and dissociation (koff) rate constants: Kd = koff/kon, Ka = kon/koff.

4.6. Electrophysiology

Two-electrode voltage clamp electrophysiology on the α4β2 nAChR expressed in Xenopus laevis oocytes was performed according to previously published protocols [7]. Stage V ± VI Xenopus laevis oocytes were defolliculated with 1 mg/mL collagenase Type I (Life Technologies, Carlsbad, CA, USA) at room temperature (21–24 °C) for 2 h in Barth’s solution without calcium (88.0 mM NaCl, 1.1 mM KCl, 2.4 mM NaHCO3, 0.8 mM MgSO4, 15.0 mM HEPES/NaOH, pH 7.6). The oocytes were stored in Barth’s solution with calcium for 72–120 h (88.0 mM NaCl, 1.1 mM KCl, 2.4 mM NaHCO3, 0.3 mM Ca(NO3)2, 0.4 mM CaCl2, 0.8 mM MgSO4, 15.0 mM HEPES/NaOH, pH 7.6) supplemented with 63.0 μg/mL penicillin-G sodium salt, 40.0 μg/mL streptomycin sulfate.
Oocytes were injected with 3 ng plasmids coding the rat α4 and β2 nAChR subunits (pcDNA3.1 vector) in a molar ratio of 1:1 using an Auto-Nanoliter Injector NanoJect-2 (Drummond Scientific Company, Broomall, PA, USA) in a total injection volume of 23 nL. After injection, oocytes were incubated at 18 °C in Barth’s solution with calcium for 48–120 h. Electrophysiological recordings were made using a Turbo TEC-03X amplifier (npi electronic GmbH, Tamm, Germany) and WinWCP recording software (University of Strathclyde, Glasgow, UK). Oocytes were placed in a small recording chamber with a working volume of 50 μL and 100 μL of agonist (acetylcholine) solution in Barth’s buffer were applied to an oocyte. Oocytes were pre-incubated with Aβ42 (10 µM) or Ac-HAEE-NH2 (25, 50 or 100 µM) for 3 min followed by its co-application with acetylcholine (100 µM). To allow receptor recovery from desensitization, the oocytes were superfused for 5–10 min with buffer (1 mL/min) between ligand applications. Electrophysiological recordings were performed at a holding potential of −60 mV.

4.7. Statistical Analysis

Data are presented as means of at least three independent experiments ± SD. The comparison of data groups in electrophysiology studies was performed with ordinary one-way ANOVA. Post-hoc analysis was performed with the Tukey test. Shapiro-Wilk test was used to confirm the normality of the dataset. Statistical analysis was performed using GraphPad Prism 8.4.1 software (GraphPad Software Inc., CA, USA).

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/17/6272/s1, Figure S1: Docking results of Ac-HAEE-NH2 to Aβ42, Figure S2: Docking results of Ac-HAEE-NH2 to Aβ16, Table S1: The peptides with predicted charge complementarity (both in a parallel and anti-parallel orientation) for 11EVHH14 region of Aβ tested in the direct binding assay, Table S2: Kinetic parameters for interaction of immobilized Aβ16 with different charge-complementary peptides. PDB Structures of model complexes between Aβ42 and α4β2 nAChR via sites 11EVHH14 and 35HAEE38: structure1.pdb, structure2.pdb, structure 3.pdb, structure4.pdb.

Author Contributions

Conceptualization, E.P.B., I.V.S., S.A.K.; software, A.A.A. (Anastasia A. Anashkina), A.A.A. (Alexei A. Adzhubei); investigation, E.P.B., A.I.G., A.P.T., A.A.A. (Anastasia A. Anashkina), A.A.A. (Alexei A. Adzhubei), Y.V.M.; resources, V.I.T., A.A.M.; writing—original draft preparation, E.P.B., A.I.G., Anna Tolstova, A.A.A. (Alexei A. Adzhubei); writing—review and editing, I.V.S., S.A.K., V.I.T., A.A.M.; visualization, E.P.B., A.P.T., A.A.A. (Alexei A. Adzhubei); funding acquisition, A.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Russian Science Foundation, grant number 19-74-30007.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Walsh, D.M.; Selkoe, D.J. Amyloid β-protein and beyond: The path forward in Alzheimer’s disease. Curr. Opin. Neurobiol. 2020, 61, 116–124. [Google Scholar] [CrossRef] [PubMed]
  2. Cummings, J.; Lee, G.; Ritter, A.; Sabbagh, M.; Zhong, K. Alzheimer’s disease drug development pipeline: 2019. Alzheimers Dement. Transl. Res. Clin. Interv. 2019, 5, 272–293. [Google Scholar] [CrossRef] [PubMed]
  3. Haass, C.; Selkoe, D.J. Soluble protein oligomers in neurodegeneration: Lessons from the Alzheimer’s amyloid beta-peptide. Nat. Rev. Mol. Cell Biol. 2007, 8, 101–112. [Google Scholar] [CrossRef] [PubMed]
  4. Benilova, I.; Karran, E.; De Strooper, B. The toxic Aβ oligomer and Alzheimer’s disease: An emperor in need of clothes. Nat. Neurosci. 2012, 15, 349–357. [Google Scholar] [CrossRef]
  5. Musiek, E.S.; Holtzman, D.M. Three dimensions of the amyloid hypothesis: Time, space, and “Wingmen”. Nat. Neurosci. 2015, 18, 800–806. [Google Scholar] [CrossRef]
  6. Henry, W.; Querfurth, H.W.; LaFerla, F.M. Mechanisms of disease Alzheimer’s disease. N. Engl. J. Med. 2010, 362, 329–344. [Google Scholar]
  7. Barykin, E.P.; Garifulina, A.I.; Kruykova, E.V.; Spirova, E.N.; Anashkina, A.A.; Adzhubei, A.A.; Shelukhina, I.V.; Kasheverov, I.E.; Mitkevich, V.A.; Kozin, S.A.; et al. Isomerization of Asp7 in beta-amyloid enhances inhibition of the α7 nicotinic receptor and promotes neurotoxicity. Cells 2019, 8, 771. [Google Scholar] [CrossRef] [Green Version]
  8. Gotti, C.; Fornasari, D.; Clementi, F. Human neuronal nicotinic receptors. Prog. Neurobiol. 1997, 53, 199–237. [Google Scholar] [CrossRef]
  9. Gotti, C.; Zoli, M.; Clementi, F. Brain nicotinic acetylcholine receptors: Native subtypes and their relevance. Trends Pharmacol. Sci. 2006, 27, 482–491. [Google Scholar] [CrossRef]
  10. Gotti, C.; Clementi, F. Neuronal nicotinic receptors: From structure to pathology. Prog. Neurobiol. 2004, 74, 363–396. [Google Scholar] [CrossRef]
  11. Pugh, P.C.; Margiotta, J.F. Nicotinic acetylcholine receptor agonists promote survival and reduce apoptosis of chick ciliary ganglion neurons. Mol. Cell. Neurosci. 2000, 15, 113–122. [Google Scholar] [CrossRef] [PubMed]
  12. Kihara, T.; Shimohama, S.; Urushitani, M.; Sawada, H.; Kimura, J.; Kume, T.; Maeda, T.; Akaike, A. Stimulation of α4β2 nicotinic acetylcholine receptors inhibits β-amyloid toxicity. Brain Res. 1998, 792, 331–334. [Google Scholar] [CrossRef]
  13. Lombardo, S.; Maskos, U. Role of the nicotinic acetylcholine receptor in Alzheimer’s disease pathology and treatment. Neuropharmacology 2015, 96, 255–262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Sabri, O.; Meyer, P.M.; Gräf, S.; Hesse, S.; Wilke, S.; Becker, G.-A.; Rullmann, M.; Patt, M.; Luthardt, J.; Wagenknecht, G.; et al. Cognitive correlates of α4β2 nicotinic acetylcholine receptors in mild Alzheimer’s dementia. Brain 2018, 141, 1840–1854. [Google Scholar] [CrossRef] [PubMed]
  15. Tsvetkov, P.O.; Kulikova, A.A.; Golovin, A.V.; Tkachev, Y.V.; Archakov, A.I.; Kozin, S.A.; Makarov, A.A. Minimal Zn(2+) binding site of amyloid-beta. Biophys. J. 2010, 99, L84–L86. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Tsvetkov, P.O.; Cheglakov, I.B.; Ovsepyan, A.A.; Mediannikov, O.Y.; Morozov, A.O.; Telegin, G.B.; Kozin, S.A. Peripherally applied synthetic tetrapeptides HAEE and RADD slow down the development of cerebral β-amyloidosis in AβPP/PS1 transgenic mice. J. Alzheimers Dis. 2015, 46, 849–853. [Google Scholar] [CrossRef] [Green Version]
  17. Forest, K.H.; Alfulaij, N.; Arora, K.; Taketa, R.; Sherrin, T.; Todorovic, C.; Lawrence, J.L.M.; Yoshikawa, G.T.; Ng, H.-L.; Hruby, V.J.; et al. Protection against β-amyloid neurotoxicity by a non-toxic endogenous N-terminal β-amyloid fragment and its active hexapeptide core sequence. J. Neurochem. 2018, 144, 201–217. [Google Scholar] [CrossRef] [Green Version]
  18. Forest, K.H.; Nichols, R.A. Assessing neuroprotective agents for aβ-induced neurotoxicity. Trends Mol. Med. 2019, 25, 685–695. [Google Scholar] [CrossRef]
  19. Gattiker, A.; Gasteiger, E.; Bairoch, A.M. ScanProsite: A reference implementation of a PROSITE scanning tool. Appl. Bioinform. 2002, 1, 107–108. [Google Scholar]
  20. Anashkina, A.A.; Kravatsky, Y.; Kuznetsov, E.; Makarov, A.A.; Adzhubei, A.A. Meta-server for automatic analysis, scoring and ranking of docking models. Bioinformatics 2018, 34, 297–299. [Google Scholar] [CrossRef]
  21. Istrate, A.N.; Tsvetkov, P.O.; Mantsyzov, A.B.; Kulikova, A.A.; Kozin, S.A.; Makarov, A.A.; Polshakov, V.I. NMR solution structure of rat abeta(1–16): Toward understanding the mechanism of rats’ resistance to Alzheimer’s disease. Biophys. J. 2012, 102, 136–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kozin, S.A.; Zirah, S.; Rebuffat, S.; Hoa, G.H.; Debey, P. Zinc binding to Alzheimer’s Abeta(1-16) peptide results in stable soluble complex. Biochem. Biophys. Res. Commun. 2001, 285, 959–964. [Google Scholar] [CrossRef] [PubMed]
  23. Istrate, A.N.; Kozin, S.A.; Zhokhov, S.S.; Mantsyzov, A.B.; Kechko, O.I.; Pastore, A.; Makarov, A.A.; Polshakov, V.I. Interplay of histidine residues of the Alzheimer’s disease Aβ peptide governs its Zn-induced oligomerization. Sci. Rep. 2016, 6, 21734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Nisbet, R.M.; Nuttall, S.D.; Robert, R.; Caine, J.M.; Dolezal, O.; Hattarki, M.; Pearce, L.A.; Davydova, N.; Masters, C.L.; Varghese, J.N.; et al. Structural studies of the tethered N-terminus of the Alzheimer’s disease amyloid-β peptide. Proteins Struct. Funct. Bioinforma. 2013, 81, 1748–1758. [Google Scholar] [CrossRef]
  25. Zirah, S.; Kozin, S.A.; Mazur, A.K.; Blond, A.; Cheminant, M.; Segalas-Milazzo, I.; Debey, P.; Rebuffat, S. Structural changes of region 1-16 of the Alzheimer disease amyloid β-peptide upon zinc binding and in vitro aging. J. Biol. Chem. 2006, 281, 2151–2161. [Google Scholar] [CrossRef] [Green Version]
  26. Portelius, E.; Dean, R.A.; Gustavsson, M.K.; Andreasson, U.; Zetterberg, H.; Siemers, E.; Blennow, K. A novel Aβ isoform pattern in CSF reflects γ-secretase inhibition in Alzheimer disease. Alzheimers Res. Ther. 2010, 2, 7. [Google Scholar] [CrossRef] [Green Version]
  27. Kulikova, A.A.; Cheglakov, I.B.; Kukharsky, M.S.; Ovchinnikov, R.K.; Kozin, S.A.; Makarov, A.A. Intracerebral injection of metal-binding domain of Aβ comprising the isomerized Asp7 increases the amyloid burden in transgenic mice. Neurotox. Res. 2016, 29, 551–557. [Google Scholar] [CrossRef]
  28. Kozin, S.A.; Mezentsev, Y.V.; Kulikova, A.A.; Indeykina, M.I.; Golovin, A.V.; Ivanov, A.S.; Tsvetkov, P.O.; Makarov, A.A. Zinc-induced dimerization of the amyloid-beta metal-binding domain 1–16 is mediated by residues 11–14. Mol. Biosyst. 2011, 7, 1053–1055. [Google Scholar] [CrossRef]
  29. Mezentsev, Y.V.; Medvedev, A.E.; Kechko, O.I.; Makarov, A.A.; Ivanov, A.S.; Mantsyzov, A.B.; Kozin, S.A. Zinc-induced heterodimer formation between metal-binding domains of intact and naturally modified amyloid-beta species: Implication to amyloid seeding in Alzheimer’s disease? J. Biomol. Struct. Dyn. 2016, 34, 2317–2326. [Google Scholar] [CrossRef]
  30. Kozin, S.A.; Polshakov, V.I.; Mezentsev, Y.V.; Ivanov, A.S.; Zhokhov, S.S.; Yurinskaya, M.M.; Vinokurov, M.G.; Makarov, A.A.; Mitkevich, V.A. Enalaprilat inhibits zinc-dependent oligomerization of metal-binding domain of amyloid-beta isoforms and protects human neuroblastoma cells from toxic action of these isoforms. Mol. Biol. 2018, 52, 590–597. [Google Scholar] [CrossRef]
  31. Jürgensen, S.; Ferreira, S.T. Nicotinic receptors, amyloid-beta, and synaptic failure in Alzheimer’s disease. J. Mol. Neurosci. MN 2010, 40, 221–229. [Google Scholar] [CrossRef]
  32. Wang, H.-Y.; Lee, D.H.S.; Davis, C.B.; Shank, R.P. Amyloid peptide Aβ1–42 binds selectively and with picomolar affinity to α7 nicotinic acetylcholine receptors. J. Neurochem. 2000, 75, 1155–1161. [Google Scholar] [CrossRef] [PubMed]
  33. Grassi, F.; Palma, E.; Tonini, R.; Amici, M.; Ballivet, M.; Eusebi, F. Amyloid β1–42 peptide alters the gating of human and mouse α-bungarotoxin-sensitive nicotinic receptors. J. Physiol. 2003, 547, 147–157. [Google Scholar] [CrossRef] [PubMed]
  34. Pandya, A.; Yakel, J.L. Allosteric modulator desformylflustrabromine relieves the inhibition of α2β2 and α4β2 nicotinic acetylcholine receptors by β-amyloid1–42 peptide. J. Mol. Neurosci. 2011, 45, 42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Espinoza-Fonseca, L.M. Base docking model of the homomeric α7 nicotinic receptor–β-amyloid1–42 complex. Biochem. Biophys. Res. Commun. 2004, 320, 587–591. [Google Scholar] [CrossRef] [PubMed]
  36. Maatuk, N.; Samson, A.O. Modeling the binding mechanism of Alzheimer’s Aβ1–42 to nicotinic acetylcholine receptors based on similarity with snake α-neurotoxins. NeuroToxicology 2013, 34, 236–242. [Google Scholar] [CrossRef] [PubMed]
  37. Lee, L.-P.; Tidor, B. Optimization of binding electrostatics: Charge complementarity in the barnase-barstar protein complex. Protein Sci. 2001, 10, 362–377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Sulea, T.; Purisima, E.O. Profiling charge complementarity and selectivity for binding at the protein surface. Biophys. J. 2003, 84, 2883–2896. [Google Scholar] [CrossRef] [Green Version]
  39. Rodius, S.; Chaloin, O.; Moes, M.; Schaffner-Reckinger, E.; Landrieu, I.; Lippens, G.; Lin, M.; Zhang, J.; Kieffer, N. The talin rod IBS2 α-helix interacts with the β3 integrin cytoplasmic tail membrane-proximal helix by establishing charge complementary salt bridges. J. Biol. Chem. 2008, 283, 24212–24223. [Google Scholar] [CrossRef] [Green Version]
  40. Ge, X.; Mandava, C.S.; Lind, C.; Åqvist, J.; Sanyal, S. Complementary charge-based interaction between the ribosomal-stalk protein L7/12 and IF2 is the key to rapid subunit association. Proc. Natl. Acad. Sci. USA 2018, 115, 4649–4654. [Google Scholar] [CrossRef] [Green Version]
  41. Makhatadze, G.I.; Loladze, V.V.; Ermolenko, D.N.; Chen, X.; Thomas, S.T. Contribution of surface salt bridges to protein stability: Guidelines for protein engineering. J. Mol. Biol. 2003, 327, 1135–1148. [Google Scholar] [CrossRef]
  42. Lund, B.A.; Thomassen, A.M.; Nesheim, B.H.B.; Carlsen, T.J.O.; Isaksson, J.; Christopeit, T.; Leiros, H.-K.S. The biological assembly of OXA-48 reveals a dimer interface with high charge complementarity and very high affinity. FEBS J. 2018, 285, 4214–4228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Jiang, T.; Xu, C.; Liu, Y.; Liu, Z.; Wall, J.S.; Zuo, X.; Lian, T.; Salaita, K.; Ni, C.; Pochan, D.; et al. Structurally defined nanoscale sheets from self-assembly of collagen-mimetic peptides. J. Am. Chem. Soc. 2014, 136, 4300–4308. [Google Scholar] [CrossRef] [PubMed]
  44. Olsen, J.A.; Kastrup, J.S.; Peters, D.; Gajhede, M.; Balle, T.; Ahring, P.K. Two distinct allosteric binding sites at α4β2 nicotinic acetylcholine receptors revealed by NS206 and NS9283 give unique insights to binding activity-associated linkage at cys-loop receptors. J. Biol. Chem. 2013, 288, 35997–36006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Cesa, L.C.; Higgins, C.A.; Sando, S.R.; Kuo, D.W.; Levandoski, M.M. Specificity determinants of allosteric modulation in the neuronal nicotinic acetylcholine receptor: A fine line between inhibition and potentiation. Mol. Pharmacol. 2012, 81, 239–249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Spurny, R.; Debaveye, S.; Farinha, A.; Veys, K.; Vos, A.M.; Gossas, T.; Atack, J.; Bertrand, S.; Bertrand, D.; Danielson, U.H.; et al. Molecular blueprint of allosteric binding sites in a homologue of the agonist-binding domain of the α7 nicotinic acetylcholine receptor. Proc. Natl. Acad. Sci. USA 2015, 112, E2543–E2552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Magdesian, M.H.; Nery, A.A.; Martins, A.H.B.; Juliano, M.A.; Juliano, L.; Ulrich, H.; Ferreira, S.T. Peptide blockers of the inhibition of neuronal nicotinic acetylcholine receptors by amyloid beta. J. Biol. Chem. 2005, 280, 31085–31090. [Google Scholar] [CrossRef] [Green Version]
  48. Wang, H.Y.; Bakshi, K.; Shen, C.; Frankfurt, M.; Trocme-Thibierge, C.; Morain, P. S 24795 limits beta-amyloid-alpha7 nicotinic receptor interaction and reduces Alzheimer’s disease-like pathologies. Biol. Psychiatry 2010, 67, 522–530. [Google Scholar] [CrossRef]
  49. Philip, V.; Harris, J.; Adams, R.; Nguyen, D.; Spiers, J.; Baudry, J.; Howell, E.E.; Hinde, R.J. A survey of aspartate−phenylalanine and glutamate−phenylalanine interactions in the protein data bank: Searching for anion−π pairs. Biochemistry 2011, 50, 2939–2950. [Google Scholar] [CrossRef]
  50. Van Roey, K.; Uyar, B.; Weatheritt, R.J.; Dinkel, H.; Seiler, M.; Budd, A.; Gibson, T.J.; Davey, N.E. Short linear motifs: Ubiquitous and functionally diverse protein interaction modules directing cell regulation. Chem. Rev. 2014, 114, 6733–6778. [Google Scholar] [CrossRef]
  51. Davey, N.E.; Roey, K.V.; Weatheritt, R.J.; Toedt, G.; Uyar, B.; Altenberg, B.; Budd, A.; Diella, F.; Dinkel, H.; Gibson, T.J. Attributes of short linear motifs. Mol. Biosyst. 2011, 8, 268–281. [Google Scholar] [CrossRef] [PubMed]
  52. Liao, S.-M.; Du, Q.-S.; Meng, J.-Z.; Pang, Z.-W.; Huang, R.-B. The multiple roles of histidine in protein interactions. Chem. Cent. J. 2013, 7, 44. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Smith, J.S.; Scholtz, J.M. Energetics of polar side-chain interactions in helical peptides: Salt effects on ion pairs and hydrogen bonds †. Biochemistry 1998, 37, 33–40. [Google Scholar] [CrossRef] [PubMed]
  54. Anderson, D.E.; Becktel, W.J.; Dahlquist, F.W. pH-Induced denaturation of proteins: A single salt bridge contributes 3-5 kcal/mol to the free energy of folding of T4 lysozyme. Biochemistry 1990, 29, 2403–2408. [Google Scholar] [CrossRef] [PubMed]
  55. Kasheverov, I.E.; Shelukhina, I.V.; Kudryavtsev, D.S.; Makarieva, T.N.; Spirova, E.N.; Guzii, A.G.; Stonik, V.A.; Tsetlin, V.I. 6-Bromohypaphorine from marine nudibranch mollusk hermissenda crassicornis is an agonist of human α7 nicotinic acetylcholine receptor. Mar. Drugs 2015, 13, 1255–1266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kudryavtsev, D.S.; Shelukhina, I.V.; Son, L.V.; Ojomoko, L.O.; Kryukova, E.V.; Lyukmanova, E.N.; Zhmak, M.N.; Dolgikh, D.A.; Ivanov, I.A.; Kasheverov, I.E.; et al. Neurotoxins from snake venoms and α-conotoxin ImI inhibit functionally active ionotropic γ-aminobutyric acid (GABA) receptors. J. Biol. Chem. 2015, 290, 22747–22758. [Google Scholar] [CrossRef] [Green Version]
  57. Rollema, H.; Chambers, L.K.; Coe, J.W.; Glowa, J.; Hurst, R.S.; Lebel, L.A.; Lu, Y.; Mansbach, R.S.; Mather, R.J.; Rovetti, C.C. Pharmacological profile of the α4β2 nicotinic acetylcholine receptor partial agonist varenicline, an effective smoking cessation aid. Neuropharmacology 2007, 52, 985–994. [Google Scholar] [CrossRef]
  58. Buisson, B.; Bertrand, D. Chronic exposure to nicotine upregulates the human α4β2 nicotinic acetylcholine receptor function. J. Neurosci. 2001, 21, 1819–1829. [Google Scholar] [CrossRef]
  59. Khiroug, S.S.; Khiroug, L.; Yakel, J.L. Rat nicotinic acetylcholine receptor α2β2 channels: Comparison of functional properties with α4β2 channels in Xenopus oocytes. Neuroscience 2004, 124, 817–822. [Google Scholar] [CrossRef]
  60. Lamb, P.W.; Melton, M.A.; Yakel, J.L. Inhibition of neuronal nicotinic acetylcholine receptor channels expressed in Xenopus oocytes by β-amyloid1–42 peptide. J. Mol. Neurosci. 2005, 27, 13–21. [Google Scholar] [CrossRef]
  61. Mehta, P.D.; Pirttilä, T.; Mehta, S.P.; Sersen, E.A.; Aisen, P.S.; Wisniewski, H.M. Plasma and cerebrospinal fluid levels of amyloid β proteins 1-40 and 1-42 in Alzheimer disease. Arch. Neurol. 2000, 57, 100–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Lue, L.-F.; Kuo, Y.-M.; Roher, A.E.; Brachova, L.; Shen, Y.; Sue, L.; Beach, T.; Kurth, J.H.; Rydel, R.E.; Rogers, J. Soluble amyloid β peptide concentration as a predictor of synaptic change in Alzheimer’s disease. Am. J. Pathol. 1999, 155, 853–862. [Google Scholar] [CrossRef]
  63. Seubert, P.; Vigo-Pelfrey, C.; Esch, F.; Lee, M.; Dovey, H.; Davis, D.; Sinha, S.; Schlossmacher, M.; Whaley, J.; Swindlehurst, C.; et al. Isolation and quantification of soluble Alzheimer’s beta-peptide from biological fluids. Nature 1992, 359, 325–327. [Google Scholar] [CrossRef] [PubMed]
  64. Lin, H.; Bhatia, R.; Lal, R. Amyloid β protein forms ion channels: Implications for Alzheimer’s disease pathophysiology. FASEB J. 2001, 15, 2433–2444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Rhee, S.K.; Quist, A.P.; Lal, R. Amyloid β protein-(1–42) forms calcium-permeable, Zn2+-sensitive channel. J. Biol. Chem. 1998, 273, 13379–13382. [Google Scholar] [CrossRef] [Green Version]
  66. Paula-Lima, A.C.; Adasme, T.; SanMartín, C.; Sebollela, A.; Hetz, C.; Carrasco, M.A.; Ferreira, S.T.; Hidalgo, C. Amyloid β-peptide oligomers stimulate RyR-mediated Ca2+ release inducing mitochondrial fragmentation in hippocampal neurons and prevent RyR-mediated dendritic spine remodeling produced by BDNF. Antioxid. Redox Signal. 2010, 14, 1209–1223. [Google Scholar] [CrossRef] [Green Version]
  67. LaFerla, F.M.; Green, K.N.; Oddo, S. Intracellular amyloid- in Alzheimer’s disease. Nat. Rev. Neurosci. 2007, 8, 499–509. [Google Scholar] [CrossRef]
  68. Kozin, S.A.; Barykin, E.P.; Mitkevich, V.A.; Makarov, A.A. Anti-amyloid therapy of Alzheimer’s disease: Current state and prospects. Biochem. Mosc. 2018, 83, 1057–1067. [Google Scholar] [CrossRef]
  69. Huang, Y.; Mucke, L. Alzheimer mechanisms and therapeutic strategies. Cell 2012, 148, 1204–1222. [Google Scholar] [CrossRef] [Green Version]
  70. Jarosz-Griffiths, H.H.; Noble, E.; Rushworth, J.V.; Hooper, N.M. Amyloid-β receptors: The good, the bad, and the prion protein. J. Biol. Chem. 2016, 291, 3174–3183. [Google Scholar] [CrossRef] [Green Version]
  71. Zhao, Y.; Wu, X.; Li, X.; Jiang, L.-L.; Gui, X.; Liu, Y.; Sun, Y.; Zhu, B.; Piña-Crespo, J.C.; Zhang, M.; et al. TREM2 is a receptor for β-amyloid that mediates microglial function. Neuron 2018, 97, 1023–1031.e7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Cao, Q.; Shin, W.S.; Chan, H.; Vuong, C.K.; Dubois, B.; Li, B.; Murray, K.A.; Sawaya, M.R.; Feigon, J.; Black, D.L.; et al. Inhibiting amyloid-β cytotoxicity through its interaction with the cell surface receptor LilrB2 by structure-based design. Nat. Chem. 2018, 10, 1213–1221. [Google Scholar] [CrossRef]
  73. Barage, S.H.; Sonawane, K.D. Amyloid cascade hypothesis: Pathogenesis and therapeutic strategies in Alzheimer’s disease. Neuropeptides 2015, 52, 1–18. [Google Scholar] [CrossRef] [PubMed]
  74. Godyń, J.; Jończyk, J.; Panek, D.; Malawska, B. Therapeutic strategies for Alzheimer’s disease in clinical trials. Pharmacol. Rep. 2016, 68, 127–138. [Google Scholar] [CrossRef] [PubMed]
  75. Morales-Perez, C.L.; Noviello, C.M.; Hibbs, R.E. X-ray structure of the human α4β2 nicotinic receptor. Nature 2016, 538, 411–415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Ruth, H.; Marina, V.; Larisa, D.; Tatiana, P.; Dmitri, S.; Anastasia, A.A.; Aykut, Ü.; Beda, B.; Dmitry, V.G.; Alexei, A.A.; et al. Interaction between HIV-1 Nef and calnexin. Arterioscler. Thromb. Vasc. Biol. 2016, 36, 1758–1771. [Google Scholar]
  77. Adzhubei, A.A.; Anashkina, A.A.; Makarov, A.A. Left-handed polyproline-II helix revisited: Proteins causing proteopathies. J. Biomol. Struct. Dyn. 2017, 35, 2701–2713. [Google Scholar] [CrossRef]
  78. Schneidman-Duhovny, D.; Inbar, Y.; Nussinov, R.; Wolfson, H.J. PatchDock and SymmDock: Servers for rigid and symmetric docking. Nucleic Acids Res. 2005, 33, W363–W367. [Google Scholar] [CrossRef] [Green Version]
  79. Dominguez, C.; Boelens, R.; Bonvin, A.M.J.J. HADDOCK: A protein−protein docking approach based on biochemical or biophysical information. J. Am. Chem. Soc. 2003, 125, 1731–1737. [Google Scholar] [CrossRef] [Green Version]
  80. Weitzner, B.D.; Jeliazkov, J.R.; Lyskov, S.; Marze, N.; Kuroda, D.; Frick, R.; Adolf-Bryfogle, J.; Biswas, N.; Dunbrack, R.L.; Gray, J.J. Modeling and docking of antibody structures with Rosetta. Nat. Protoc. 2017, 12, 401–416. [Google Scholar] [CrossRef] [Green Version]
  81. Trott, O.; Olson, A.J. AutoDock vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Kozakov, D.; Hall, D.R.; Xia, B.; Porter, K.A.; Padhorny, D.; Yueh, C.; Beglov, D.; Vajda, S. The ClusPro web server for protein–protein docking. Nat. Protoc. 2017, 12, 255–278. [Google Scholar] [CrossRef]
  83. Tovchigrechko, A.; Vakser, I.A. GRAMM-X public web server for protein-protein docking. Nucleic Acids Res. 2006, 34, W310–W314. [Google Scholar] [CrossRef] [PubMed]
  84. Torchala, M.; Moal, I.H.; Chaleil, R.A.G.; Fernandez-Recio, J.; Bates, P.A. SwarmDock: A server for flexible protein–protein docking. Bioinformatics 2013, 29, 807–809. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Ghoorah, A.W.; Devignes, M.-D.; Smaïl-Tabbone, M.; Ritchie, D.W. Protein docking using case-based reasoning: Protein docking using case-based reasoning. Proteins Struct. Funct. Bioinforma. 2013, 81, 2150–2158. [Google Scholar] [CrossRef] [PubMed]
Ijms 21 06272 g001 550
Figure 1. Model of the interaction of the α4β2 nAChR site 35HAEE38 with Aβ42 after 100 ns of molecular dynamics structure equilibration. (A) Model of the α4β2 structure with bound Aβ42 peptide, viewed from the extracellular side. (B) Detailed view of the interaction interface. The Aβ42 peptide is colored green with the 11EVHH14 site shown in cyan. The 35HAEE38 site is colored magenta. The N-terminal α-helix of both α4 and β2 subunits is colored red.
Figure 1. Model of the interaction of the α4β2 nAChR site 35HAEE38 with Aβ42 after 100 ns of molecular dynamics structure equilibration. (A) Model of the α4β2 structure with bound Aβ42 peptide, viewed from the extracellular side. (B) Detailed view of the interaction interface. The Aβ42 peptide is colored green with the 11EVHH14 site shown in cyan. The 35HAEE38 site is colored magenta. The N-terminal α-helix of both α4 and β2 subunits is colored red.
Ijms 21 06272 g001
Ijms 21 06272 g002 550
Figure 2. Global docking of Ac-HAEE-NH2 to Aβ42. (A) A histogram of Aβ42 atomic contacts to the Ac-HAEE-NH2 tetrapeptide for the data from six docking servers. The position of the 11EVHH14 site is highlighted in red. Calculated by QASDOM [20] metaserver. (B,C) Examples of the docked Ac-HAEE-NH2 peptide. The Aβ42 peptide is colored green, with the 11EVHH14 site shown in cyan, and the Ac-HAEE-NH2 tetrapeptide is colored magenta.
Figure 2. Global docking of Ac-HAEE-NH2 to Aβ42. (A) A histogram of Aβ42 atomic contacts to the Ac-HAEE-NH2 tetrapeptide for the data from six docking servers. The position of the 11EVHH14 site is highlighted in red. Calculated by QASDOM [20] metaserver. (B,C) Examples of the docked Ac-HAEE-NH2 peptide. The Aβ42 peptide is colored green, with the 11EVHH14 site shown in cyan, and the Ac-HAEE-NH2 tetrapeptide is colored magenta.
Ijms 21 06272 g002
Ijms 21 06272 g003 550
Figure 3. Sensorgrams showing direct binding of Ac-HAEE-NH2 (1 mM–2 mM) to immobilized Aβ16. Spikes at the start and end of Ac-HAEE-NH2 injections are due to a slight time delay in the reference cell and appear when reference subtraction is carried out.
Figure 3. Sensorgrams showing direct binding of Ac-HAEE-NH2 (1 mM–2 mM) to immobilized Aβ16. Spikes at the start and end of Ac-HAEE-NH2 injections are due to a slight time delay in the reference cell and appear when reference subtraction is carried out.
Ijms 21 06272 g003
Ijms 21 06272 g004 550
Figure 4. Global docking of Ac-HAEE-NH2 to Aβ16 (A,B) Examples of the docked Ac-HAEE-NH2 peptide. The Aβ16 peptide is colored green with the 11EVHH14 site shown in cyan, and the Ac-HAEE-NH2 tetrapeptide is colored magenta. (C) The proposed interface of HAEE-EVHH interaction based on a docking model.
Figure 4. Global docking of Ac-HAEE-NH2 to Aβ16 (A,B) Examples of the docked Ac-HAEE-NH2 peptide. The Aβ16 peptide is colored green with the 11EVHH14 site shown in cyan, and the Ac-HAEE-NH2 tetrapeptide is colored magenta. (C) The proposed interface of HAEE-EVHH interaction based on a docking model.
Ijms 21 06272 g004
Ijms 21 06272 g005 550
Figure 5. (A) Representative ion current traces and (B) normalized amplitudes of ACh (100 μM)-induced ion currents in α4β2 nAChR-expressing Xenopus laevis oocytes in control and after 3 min pre-incubation with 10 µM Aβ42 (“Aβ42”), 10 µM Aβ42 and 100 µM Ac-HAEE-NH2 (“HAEE + Aβ42”), or 10 µM Aβ42 followed by washout with Barth’s solution containing 100 µM of Ac-HAEE-NH2 (“HAEE after Aβ42”). (B) Individual current amplitude values are depicted as black dots. (C) Normalized ACh (100 μM)-induced current amplitudes in α4β2 nAChR-expressing Xenopus laevis oocytes in control and after 3 min pre-incubation with 10 µM Aβ42, followed by 3 min washout with Barths’ solution in the absence (“Aβ42”) or presence (“HAEE”) of Ac-HAEE-NH2. (A,C) Data are presented as mean ± SD, n ≥ 3. *—p < 0.05, **—p < 0.005, ***—p < 0.001, ****—p < 0.0001, ns—nonsignificant. (D) The leakage current in α4β2 nAChR-expressing Xenopus laevis oocytes was measured after 3 min consecutive incubations in Barth’s solution (“Barth”), in Barth’s solution containing 10 µM Aβ42 (“Aβ42”), and in Barth’s solution in the absence (“Barth”) and presence of 100 µM Ac-HAEE-NH2 (“HAEE”).
Figure 5. (A) Representative ion current traces and (B) normalized amplitudes of ACh (100 μM)-induced ion currents in α4β2 nAChR-expressing Xenopus laevis oocytes in control and after 3 min pre-incubation with 10 µM Aβ42 (“Aβ42”), 10 µM Aβ42 and 100 µM Ac-HAEE-NH2 (“HAEE + Aβ42”), or 10 µM Aβ42 followed by washout with Barth’s solution containing 100 µM of Ac-HAEE-NH2 (“HAEE after Aβ42”). (B) Individual current amplitude values are depicted as black dots. (C) Normalized ACh (100 μM)-induced current amplitudes in α4β2 nAChR-expressing Xenopus laevis oocytes in control and after 3 min pre-incubation with 10 µM Aβ42, followed by 3 min washout with Barths’ solution in the absence (“Aβ42”) or presence (“HAEE”) of Ac-HAEE-NH2. (A,C) Data are presented as mean ± SD, n ≥ 3. *—p < 0.05, **—p < 0.005, ***—p < 0.001, ****—p < 0.0001, ns—nonsignificant. (D) The leakage current in α4β2 nAChR-expressing Xenopus laevis oocytes was measured after 3 min consecutive incubations in Barth’s solution (“Barth”), in Barth’s solution containing 10 µM Aβ42 (“Aβ42”), and in Barth’s solution in the absence (“Barth”) and presence of 100 µM Ac-HAEE-NH2 (“HAEE”).
Ijms 21 06272 g005
Ijms 21 06272 g006 550

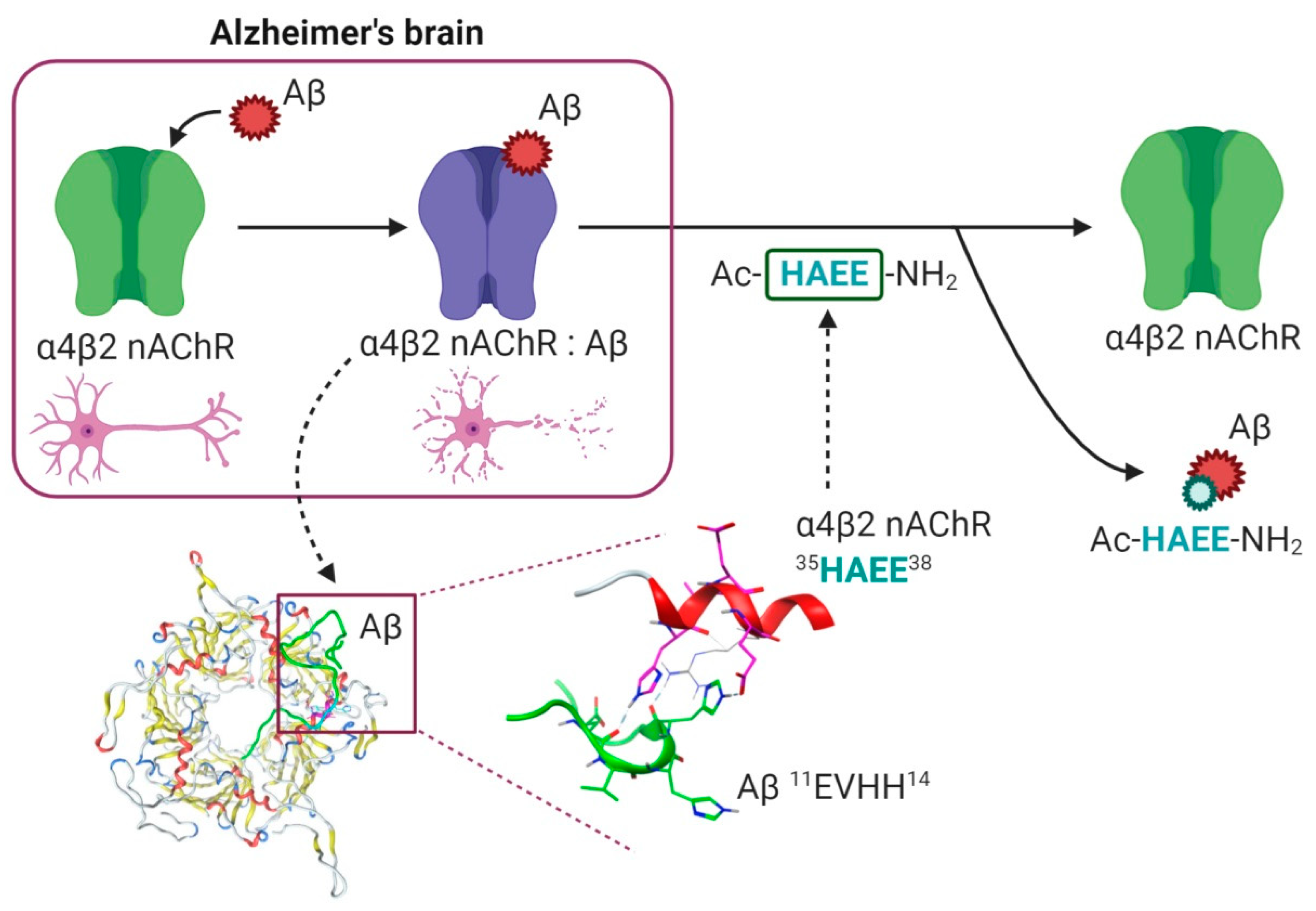

Figure 6. The possible role of 11EVHH14:35HAEE38 interface in cholinergic deficit associated with Alzheimer’s disease. In brains of Alzheimer’s disease patients, interaction of Aβ with nAChRs causes transition of the receptor from functional state (green) to dysfunctional state (violet), which may lead to selective loss of cholinergic neurons (top left). Our results suggest that the interaction of Aβ with α4β2 nAChR is mediated by charge complementary interface 11EVHH14:35HAEE38 (bottom left and middle) and that Ac-HAEE-NH2 peptide corresponding to this interface can competitively displace Aβ from the complex and restore the functionality of α4β2 nAChR (top right).
Figure 6. The possible role of 11EVHH14:35HAEE38 interface in cholinergic deficit associated with Alzheimer’s disease. In brains of Alzheimer’s disease patients, interaction of Aβ with nAChRs causes transition of the receptor from functional state (green) to dysfunctional state (violet), which may lead to selective loss of cholinergic neurons (top left). Our results suggest that the interaction of Aβ with α4β2 nAChR is mediated by charge complementary interface 11EVHH14:35HAEE38 (bottom left and middle) and that Ac-HAEE-NH2 peptide corresponding to this interface can competitively displace Aβ from the complex and restore the functionality of α4β2 nAChR (top right).
Ijms 21 06272 g006

Share and Cite

MDPI and ACS Style

Barykin, E.P.; Garifulina, A.I.; Tolstova, A.P.; Anashkina, A.A.; Adzhubei, A.A.; Mezentsev, Y.V.; Shelukhina, I.V.; Kozin, S.A.; Tsetlin, V.I.; Makarov, A.A. Tetrapeptide Ac-HAEE-NH2 Protects α4β2 nAChR from Inhibition by Aβ. Int. J. Mol. Sci. 2020, 21, 6272. https://doi.org/10.3390/ijms21176272

AMA Style

Barykin EP, Garifulina AI, Tolstova AP, Anashkina AA, Adzhubei AA, Mezentsev YV, Shelukhina IV, Kozin SA, Tsetlin VI, Makarov AA. Tetrapeptide Ac-HAEE-NH2 Protects α4β2 nAChR from Inhibition by Aβ. International Journal of Molecular Sciences. 2020; 21(17):6272. https://doi.org/10.3390/ijms21176272

Chicago/Turabian Style

Barykin, Evgeny P., Aleksandra I. Garifulina, Anna P. Tolstova, Anastasia A. Anashkina, Alexei A. Adzhubei, Yuri V. Mezentsev, Irina V. Shelukhina, Sergey A. Kozin, Victor I. Tsetlin, and Alexander A. Makarov. 2020. "Tetrapeptide Ac-HAEE-NH2 Protects α4β2 nAChR from Inhibition by Aβ" International Journal of Molecular Sciences 21, no. 17: 6272. https://doi.org/10.3390/ijms21176272

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
