Antioxidant Activity and Toxicity of Fullerenols via Bioluminescence Signaling: Role of Oxygen Substituents

by
Ekaterina S. Kovel
1,2,*,
Anna S. Sachkova
3,
Natalia G. Vnukova
2,4,
Grigoriy N. Churilov
2,4,
Elena M. Knyazeva
3 and
Nadezhda S. Kudryasheva
1,4
1
Institute of Biophysics SB RAS, FRC KSC SB RAS, 660036 Krasnoyarsk, Russia
2
Institute of Physics SB RAS, FRC KSC SB RAS, 660036 Krasnoyarsk, Russia
3
National Research Tomsk Polytechnic University, 634050 Tomsk, Russia
4
Siberian Federal University, 660041 Krasnoyarsk, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(9), 2324; https://doi.org/10.3390/ijms20092324
Submission received: 21 March 2019 / Revised: 4 May 2019 / Accepted: 9 May 2019 / Published: 10 May 2019
(This article belongs to the Special Issue Carbon-Based Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
Fullerenols are nanosized water-soluble polyhydroxylated derivatives of fullerenes, a specific allotropic form of carbon, bioactive compounds, and perspective basis for drug development. Our paper analyzes the antioxidant activity and toxicity of a series of fullerenols with different number of oxygen substituents. Two groups of fullerenols were under investigation: (1) C60Oy(OH)x, C60,70Oy(OH)x, where x+y = 24–28 and (2) C60,70Oy(OH)x, Fe0,5C60Oy(OH)x, Gd@C82Oy(OH)x, where x+y = 40–42. Bioluminescent cellular and enzymatic assays (luminous marine bacteria and their enzymatic reactions, respectively) were applied to monitor toxicity in the model fullerenol solutions and bioluminescence was applied as a signaling physiological parameter. The inhibiting concentrations of the fullerenols were determined, revealing the fullerenols’ toxic effects. Antioxidant fullerenol’ ability was studied in solutions of model oxidizer, 1,4-benzoquinone, and detoxification coefficients of general and oxidative types (DGT and DOxT) were calculated. All fullerenols produced toxic effect at high concentrations (>0.01 g L−1), while their antioxidant activity was demonstrated at low and ultralow concentrations (<0.001 g L−1). Quantitative toxic and antioxidant characteristics of the fullerenols (effective concentrations, concentration ranges, DGT, and DOxT) were found to depend on the number of oxygen substituents. Lower toxicity and higher antioxidant activity were determined in solutions of fullerenols with fewer oxygen substituents (x+y = 24–28). The differences in fullerenol properties were attributed to their catalytic activity due to reversible electron acceptance, radical trapping, and balance of reactive oxygen species in aqueous solutions. The results provide pharmaceutical sciences with a basis for selection of carbon nanoparticles with appropriate toxic and antioxidant characteristics. Based on the results, we recommend, to reduce the toxicity of prospective endohedral gadolinium-fullerenol preparations Gd@C82Oy(OH)x, decreasing the number of oxygen groups to x+y = 24–28. The potential of bioluminescence methods to compare toxic and antioxidant characteristics of carbon nanostructures were demonstrated.

1. Introduction

Carbon nano-objects are of great interest for different fields of medicine, pharmacology, and biotechnology due to their specific biological activity [1,2,3]. It is known that high-dose exposures to bioactive compounds can inhibit physiological functions of multiple organisms and, hence, produce toxic effects, while low-dose exposures can activate the physiological functions due to optimization of complex metabolic processes [4].

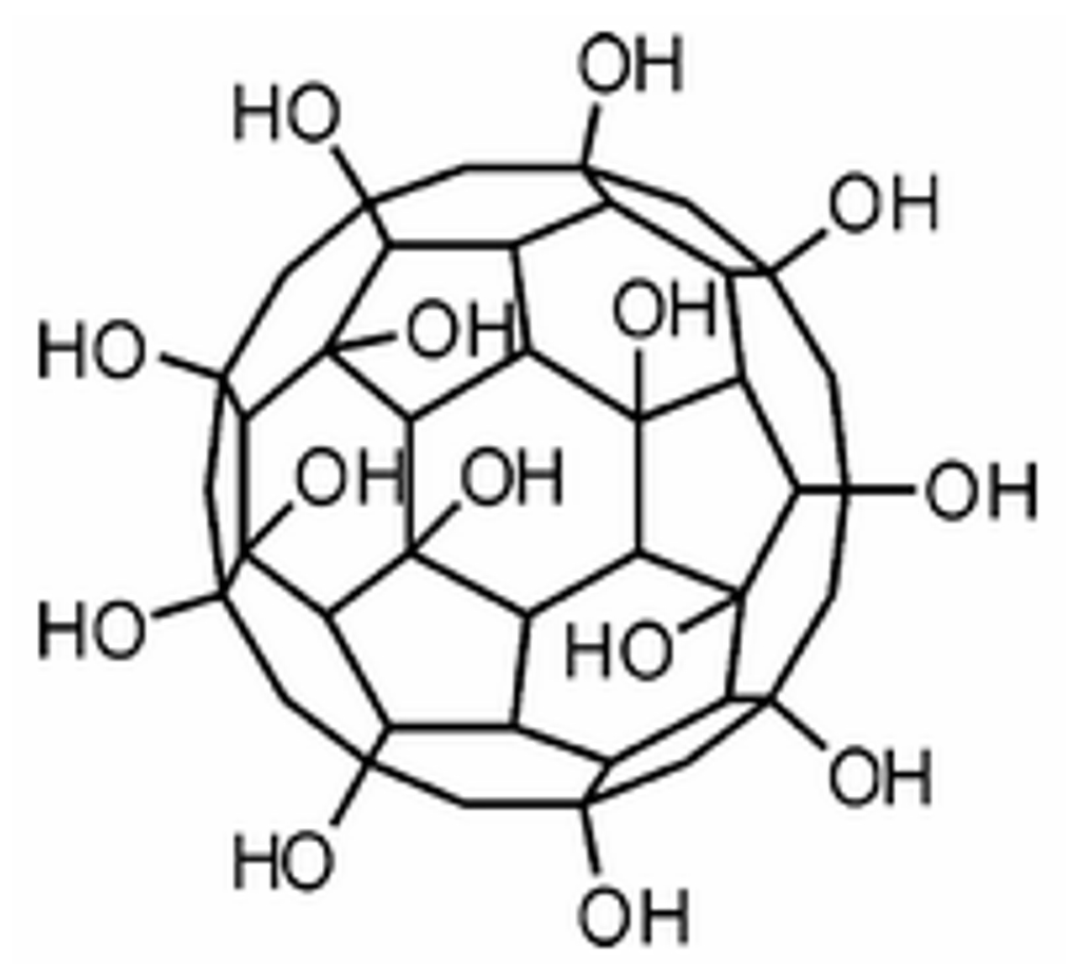

Fullerenols (F) are known to be rigid nanosized carbon particles, and are water-soluble polyhydroxylated derivatives of fullerenes. Scheme 1 presents the hypothetical structure of F with 60 carbon atoms as an example.
Similar to fullerenes, fullerenols are electron-deficient structures and this property makes them efficient catalyzers in biochemical reactions, as well as in prospective medical drugs. Fullerenols are amphiphilic structures: “hydroxyl groups provide them with aqueous solubility, while the fragments of fullerene skeleton—with affinity to hydrophobic enzymatic fragments and lipid structures of cellular membranes” [1,2]. Amphiphilic properties and antiradical activity provide a wide range of fullerenols’ biological effects: from neutralization of free radicals [5] to cell protection and drug transportation [1,5,6,7]. Fullerenols can be used in radiobiology, chemotherapy, and neurology [5,6], ensuring an important alternative to conventional pharmaceuticals. The antioxidant properties endow fullerenols with the ability to neutralize reactive oxygen and nitrogen species [8,9,10,11,12], and to function as radioprotectors [10], antitumor [13], or neurological [5,10,11,12] drugs.
Structural properties influence the biological activity of fullerenols. Hydroxyl substituents distort the π-electron system conjugation of the fullerene skeleton, change the electron-acceptor ability of the nanoparticles, and, hence, can affect their catalytic activity. This can result in different toxicity and antioxidant activity of fullerenols with different number of hydroxyl substituents.
Biological activity of C60-fullerenols with different number of hydroxyl groups have been studied over the last decades [5,6,7,8,9]. Toxic and antioxidant effects of fullerenols were revealed. However, different biological test objects did not provide a comparability of the fullerenol biological activity. Comparable conditions were provided by Eropkin and co-authors [14]. They studied the biological activity of a series of fullerenols, C60(OH)12–14, C60(OH)18–24, and C60(OH)30–38. It was found that C60(OH)12–14 was insoluble in water and did not show biological activity, while C60(OH)18–24 was soluble and showed maximum antiviral and protective properties. The nitric oxide-scavenging and protective activity of C60(OH)18–24 was demonstrated in [5,8]. However, in spite of extensive studies of fullerenol biological activity, dependencies of their toxic and antioxidant characteristics on concentrations were not revealed and compared.
Hydration of C60-fullerenol with different number of hydroxyl groups (from 8 to 44) was theoretically studied in [15]. It was proved that hydration of C60(OH)44 was less effective despite the large number of hydroxyl groups. The authors concluded that the involvement of >36 hydroxyl groups to the fullerenol structure resulted in effective intramolecular interactions of OH-groups, conflicting with the hydrogen bonds with the solvent.
Since an increase of a number of hydroxyl substituents reduces the available π-electron system conjugation, it can reduce fullerenols’ ability of reversible radical trapping [14]. This might be a reason for the variation in content of reactive oxygen species (ROS) in aerated aqueous solutions, with effects on the following biological structures: cells, enzymes, low-molecular components, etc.
It is known that ROS groups include a number of free oxygen radicals or radical precursors, such as semiquinones, superoxide anion-radical (•O2−), hydroxyl (•OH) and peroxide (HOO•) radicals, hydrogen peroxide (H2O2), peroxide anion (HOO−), singlet oxygen (1O2) [16], hypochloric acid (HOCl), peroxynitrite radical (ONOO-), and others. They are formed in cells as natural products of oxygen metabolism, their content is labile, and they can initiate formation of additional radicals. ROS play a role as mediators of important intracellular signaling pathways [17], thereby regulating cellular processes (respiration, division, etc.), inducing the immune system, mobilizing ion transport systems, and triggering programmed cell death (apoptosis) [18].
Fullerenols’ catalytic activity is due to electron donation/acceptance and oxygen radical scavenging. For example, the process of O2•−- neutralization can be presented as follows:
2 O 2 • − + 2 H 2 O →   F   H 2 O 2 + 2 O H − + O 2
where F plays the role of a catalyzer. A detailed description of possible mechanisms of oxygen radicals’ neutralization is presented in [11].
As the ROS impact on living organisms is evident [19,20,21,22,23,24,25,26,27], a study of ROS content in fullerenol’ solutions can elucidate the mechanism of fullerenol’ biological effects.
Our paper used the physico-chemical approach to study the properties of bioactive compounds. This approach is based on the “structure-function” relations and allows for predicting the toxic and antioxidant properties of fullerenols. The relations can help in further applied studies, from synthesis to medical adaptation. Additionally, the relations can help to minimize further routine experiments with organs and whole organisms, which are usually time-consuming, expensive, and less reproducible.
The physico-chemical approach assumes an application of simple biological assays as models. We applied two types of bioassays of different levels of organization—cellular and enzymatic. Both bioassays used luminescence intensity as a test parameter. Luminescent registration provides high rates, low costs, and convenience of the bioassay procedures; it ensures simultaneous multiple analyses and, hence, proper statistical processing and reliability for the results of biomedical investigations.
Cellular bioassay is based on luminous marine bacterium. This bioassay is classic and has been widely used for more than five decades [28,29,30,31,32,33]. Enzymatic bioluminescence assay progressed from early 90s [29,34,35,36]. Solid immobilized bacterial and enzymatic preparations are developed now as a basis for bioluminescent biosensors [34,37,38,39,40]. The bacterial and enzymatic bioassays are tools for investigation of the toxic mechanisms at the cellular and molecular levels, respectively. Classification of the toxic effects was suggested first in [41] and developed later in [42,43,44,45]. It describes the (1) physicochemical, (2) chemical, and (3) biochemical basis for the toxic effects in the bioluminescence assay systems.
Antioxidant properties of bioactive compounds provided a new perspective for biosensor applications [46,47]. The bioassay systems, based on the luminous bacterium or its enzymatic reactions, are proper candidates for this application. Both assays can evaluate a general toxicity in the test samples under conditions of the oxidative stress. Additionally, the enzymatic bioassay is specific to oxidizers [45] and can be applied to monitor the oxidative toxicity in the solutions. This type of toxicity is attributed to the redox properties of the toxic compounds only, while the other toxicity type, general toxicity, integrates all interactions of toxic compounds with the bioluminescent assay system: redox reactions, polar and non-polar interactions, etc. Previously [48,49], we evaluated the general and oxidative toxicities in solutions of inorganic and organic oxidizers (polyvalent metals and quinones) using the bioluminescent enzymatic assay system. Changes in general toxicity and oxidative toxicity under exposure to humic substances (bioactive compounds of natural origination, products of organics decomposition in soils) were studied in [50,51,52]. The bioluminescence technique for evaluating the antioxidant activity of bioactive compounds was described in [53,54,55]. Antioxidant properties of two fullerenols were studied for the first time and compared using bioluminescence enzymatic technique in [53].
The current study develops a fundamental basis for fullerenol medical application. We review, analyze, and compare our new and previous experimental results, obtained under comparable conditions. Our paper analyzes antioxidant activity and toxicity of a series of fullerenols with different numbers of oxygen substituents. Chemical formulas of the fullerenols and their short abbreviations are presented in Table 1. The fullerenols were attributed to two clusters involving either 24–28 or 40–42 oxygen substituents (F1, F2 or F3, F4, F5, respectively, Table 1). Enzyme-based and cellular-based luminescent bioassays were applied to evaluate toxicity and antioxidant properties of the fullerenols. Ranges of toxic and antioxidant concentrations of fullerenols were of particular attention. Quantitative antioxidant characteristics (detoxification coefficients) are presented in a wide range of fullerenol concentrations. Possible antioxidant mechanisms and the role of ROS in the effects of the fullerenols are discussed. Toxic effect of a perspective endohedral metal-fullerenol with gadolinium atom involved (F5, Table 1) is evaluated. A recommendation is provided for the synthesis of new low-toxic endohedral gadolinium-fullerenol preparation.

2. Results and Discussion

2.1. Toxicity and Antioxidant Activity of Fullerenols via Bioluminescent Assays

2.1.1. Fullerenol Toxicity

We examined the toxicity factor of fullerenols with different number of oxygen groups using cellular and enzymatic bioluminescence assays. Suppression of bioluminescence intensity was considered to be evidence of fullerenol toxic effect. This suppression is concerned with the inhibition of membrane and intracellular processes (for bacterial cells), or chemical and biochemical reactions (for enzyme system).

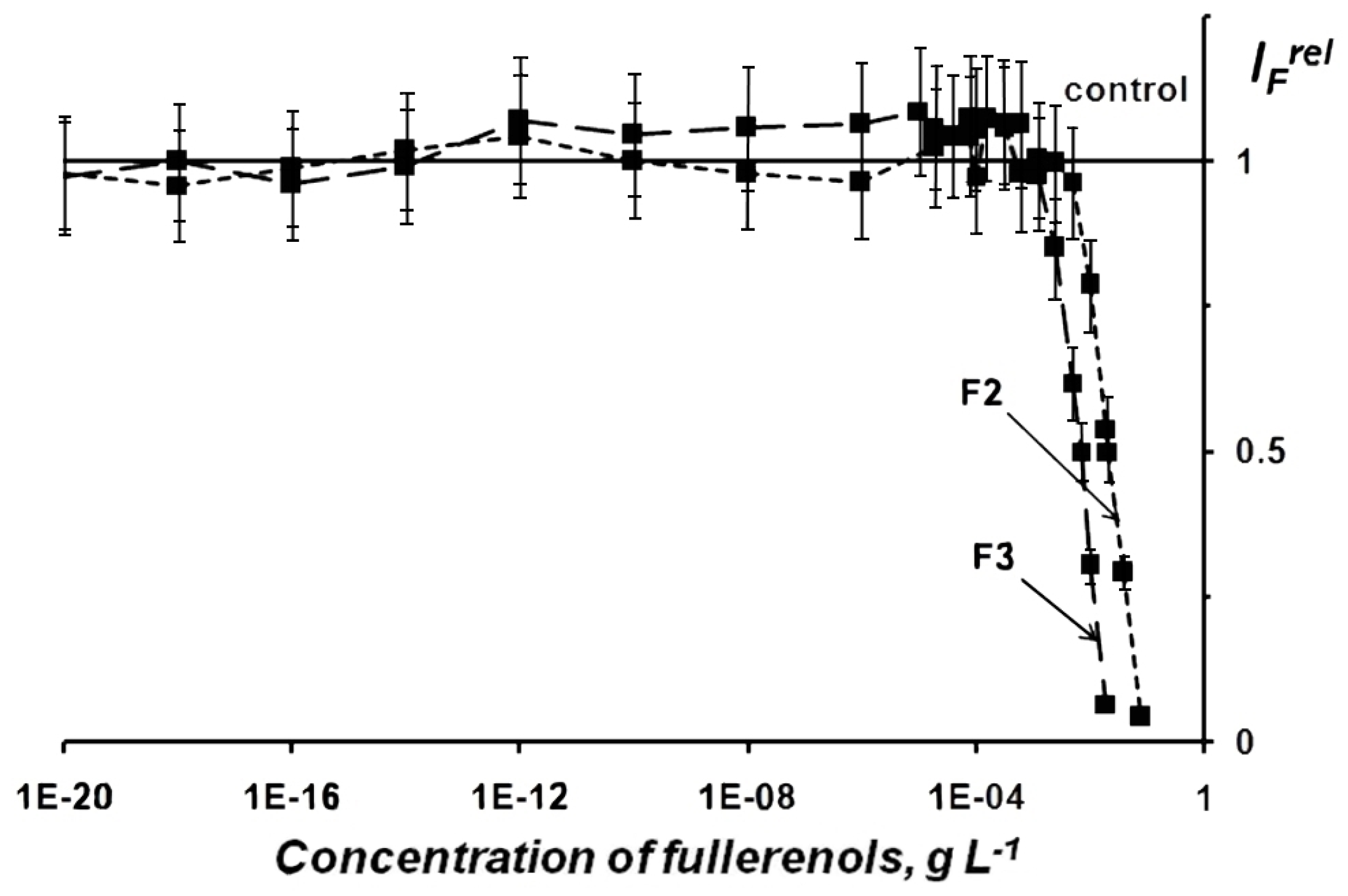

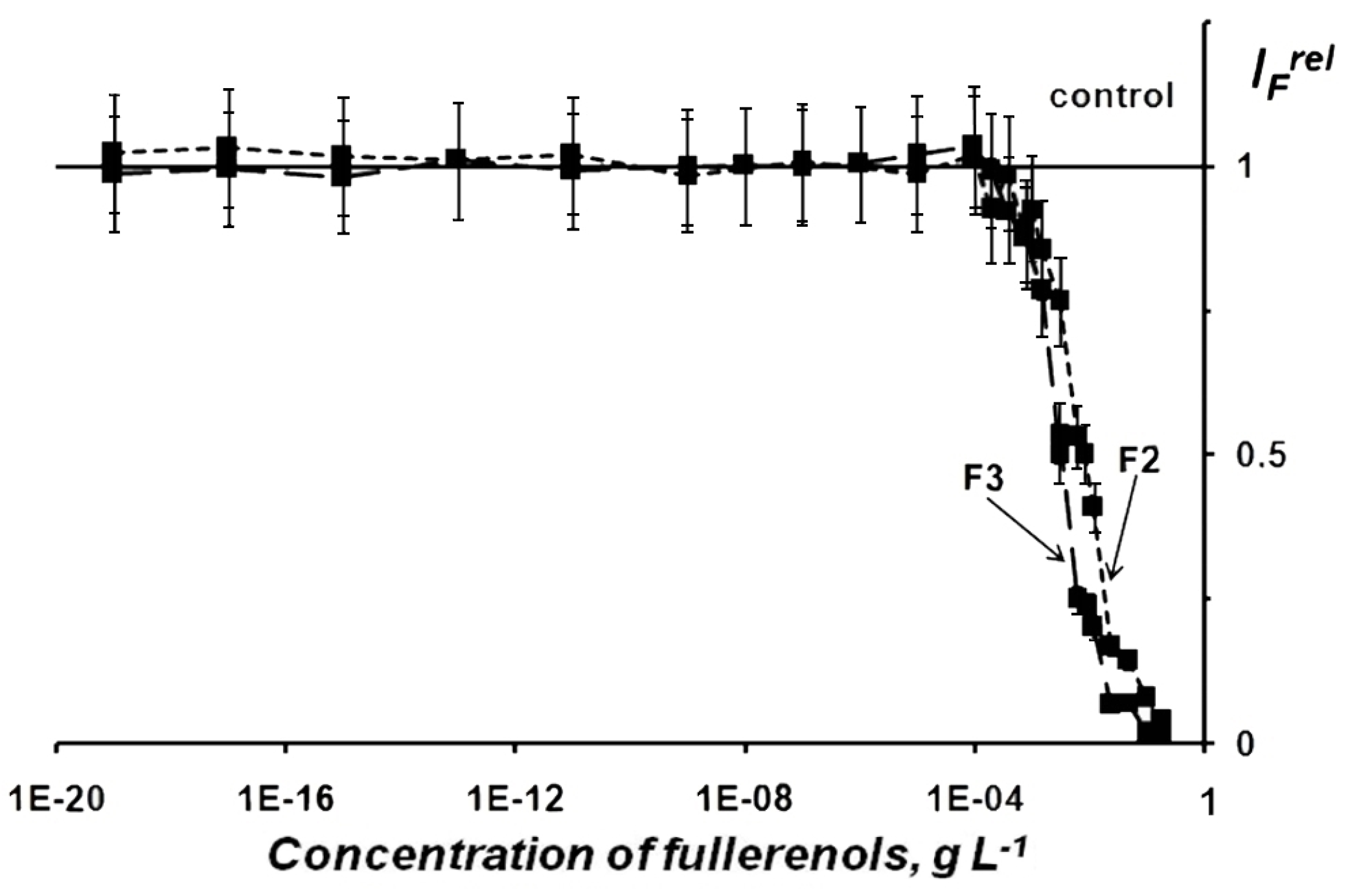

Dependencies of relative bioluminescence intensities I F r e l (Equation (1)) on the concentration of the fullerenols were obtained. Examples of these dependencies are presented in Figure 1 and Figure 2. Fullerenols F2 and F3 were chosen as nanostructures with similar carbon carcasses, but different number of oxygen substituents. It is seen that F2 and F3 suppressed bioluminescence of the cellular assay at concentrations >0.002 g·L−1 and >0.001 g·L−1 (Figure 1), and suppressed bioluminescence of the enzymatic assay at concentrations >0.010 g·L−1 and >0.003 g·L−1 (Figure 2), respectively. The results demonstrate the higher toxicity of F3, i.e., fullerenol with more oxygen substituents.
Fullerenol’ effective concentrations EC50 were determined and are presented in Table 2. It is evident from this Table that F1 and F2 (i.e., fullerenols with lower oxygen numbers) were characterized by higher EC50 values and, hence, produced lower toxicity effects, as compared to fullerenols F3, F4, and F5. The EC50 value of F4 in the bacterial assay (0.021 g L−1, Table 2) was an exception. Probably, iron atoms, involved in the fullerenol preparation, specifically affected the metabolism of the bacterial cells, according to their microelement properties.
Toxicity of the new endohedral metal-fullerenol F5 (gadolinium atom inside the fullerenol carbon carcass) was studied using the enzyme-based bioassay, Table 2.
It is known that gadolinium-based preparations have potential in magnetic resonance imaging and cancer research due to gadolinium’ unique paramagnetic properties [56]. However, the high toxicity of gadolinium-based chemotherapeutic drugs limits their clinical application. They are known to lead to severe skin and systemic diseases, renal dysfunction [57], and intracranial deposition of gadolinium [58]. The problem of toxicity of gadolinium preparations might be solved by involvement of gadolinium into the fullerenol carcass. An endohedral gadolinium-fullerenol preparation Gd@C82Oy(OH)x where x+y = 40–42, was synthesized as described in Section 3 (Materials and Methods). However, our preliminary study demonstrated a moderate toxicity of this compound (F5, EC50 = 0.018 g L−1, Table 2), and it is desirable to reduce this toxicity. Since the results of the current study predicted lower toxicity of the preparations with fewer oxygen substituents, we can recommend synthesis of endohedral gadolinium-fullerenol preparations with fewer oxygen groups: x+y = 24–28 or lower, as a development of these investigations. Bioluminescence toxicological monitoring can provide a prompt toxicity evaluation of the newly synthesized gadolinium preparations at cellular and biochemical levels (bacteria- and enzyme-based bioassays, respectively).

2.1.2. Fullerenol Antioxidant Activity

To compare the antioxidant activity of fullerenols, we chose a range of fullerenol concentrations providing the absence of the fullerenol inhibiting effect. These concentration ranges (CR) are presented in Table 2 for both cellular and enzymatic assays.
The antioxidant ability of fullerenols was studied using cell-based and enzyme-based assays (luminous marine bacteria and their enzymatic reactions, respectively). The bioassays were applied to monitor toxicity changes in solutions of the model oxidizer 1,4-benzoquinone under additions of the fullerenols and bioluminescence was applied as a signaling physiological parameter. Changes in toxicities of the general or oxidative type (GT or OxT, respectively) were evaluated, and detoxification coefficients DGT or DOxT were calculated. Values of DGT > 1 and DOxT > 1 revealed a toxicity decrease under the exposure to fullerenols, i.e., detoxification of solutions of the oxidizer.

Change in General Toxicity (GT) of Oxidizer Solutions Under Exposure to Fullerenols

Bioluminescence intensity in the cellular and enzymatic systems was measured in solutions of the model oxidizer, 1,4-benzoquinone (at EC50), in the absence and presence of fullerenols. Concentrations of the fullerenols varied in a wide range as shown in Figure 3; Figure 4 for bacterial and enzymatic assays, respectively. Detoxification coefficients DGT were calculated according to Equation (2). The results are presented in Figure 3 and Figure 4, with F2 and F3 taken as examples. As discussed before [50], the difference in the responses of cells and enzyme reactions can be attributed to the active role of the bioassay systems in the detoxification processes. Antioxidant activity of low-concentration fullerenol solutions was discussed previously [54] in terms of the hormesis phenomenon [4].

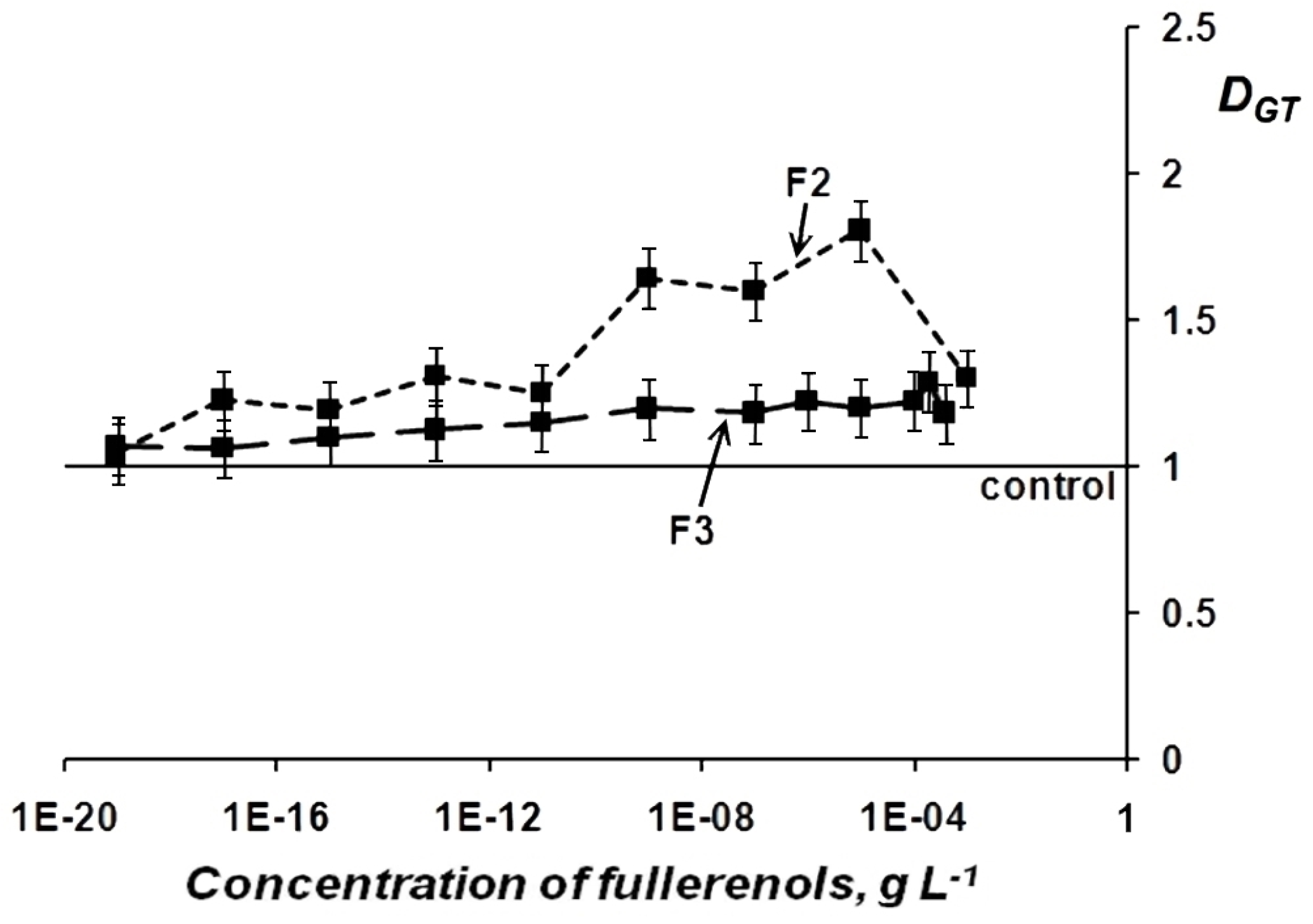

Cellular assay (Figure 3) showed that the oxidizer’ solutions were detoxified (DGT > 1) in the concentration ranges of 10−19–10−3 and 10−15−4 × 10−4 g L−1 for F2 and F3, respectively. Maximal values of DGT were about 1.8 and 1.3, respectively.

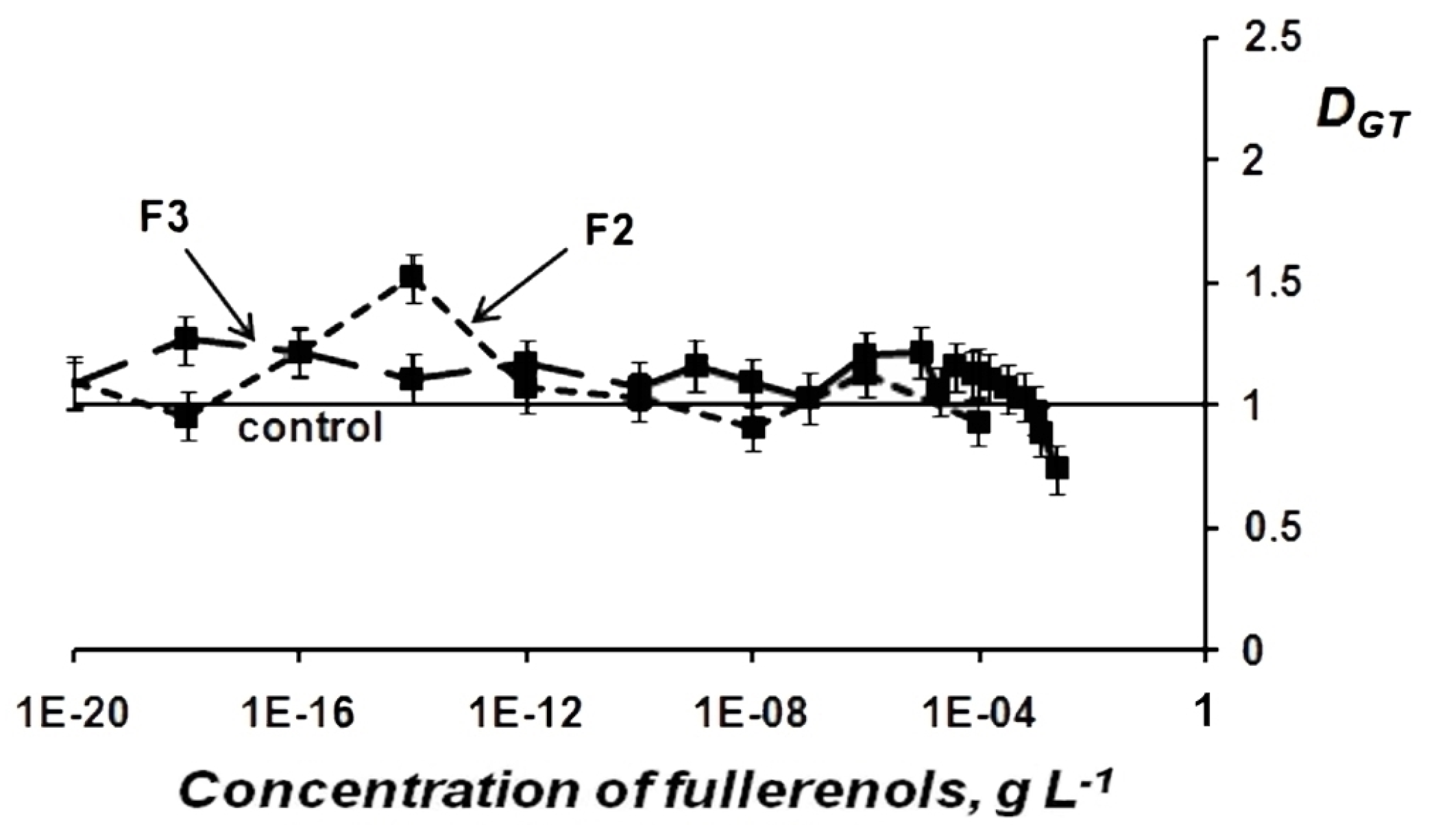

Enzyme-based assays showed lower values of DGT, when compared with the cell-based assay. Figure 4 demonstrates the detoxifying effect of F2 and F3 in 1,4-benzoquinone solutions (DGT > 1) in the concentration ranges of 10−19–10−3 and 10−20−10−10 g L−1, respectively. Maximal values of DGT were about 1.5 and 1.3, respectively.
The maximal values of DGT of fullerenols F1, F2, F3, and F4 obtained with enzyme and bacterial assays are brought together in Table 3. It is evident that higher DGT values were observed for F1 and F2. This result demonstrated that fullerenols with fewer oxygen groups were characterized by higher detoxifying ability.

Change in Oxidative Toxicity (OxT) of Oxidizer Solutions Under Exposure to Fullerenols

Bioluminescence kinetics of the enzymatic system was studied in solutions of the model organic oxidizer, 1,4-benzoquinone. Induction periods were measured in the absence and presence of fullerenols, ( T 0.5 ) O x and ( T 0.5 ) O x + F , respectively. Detoxification coefficients DOxT were calculated according to Equation (3).

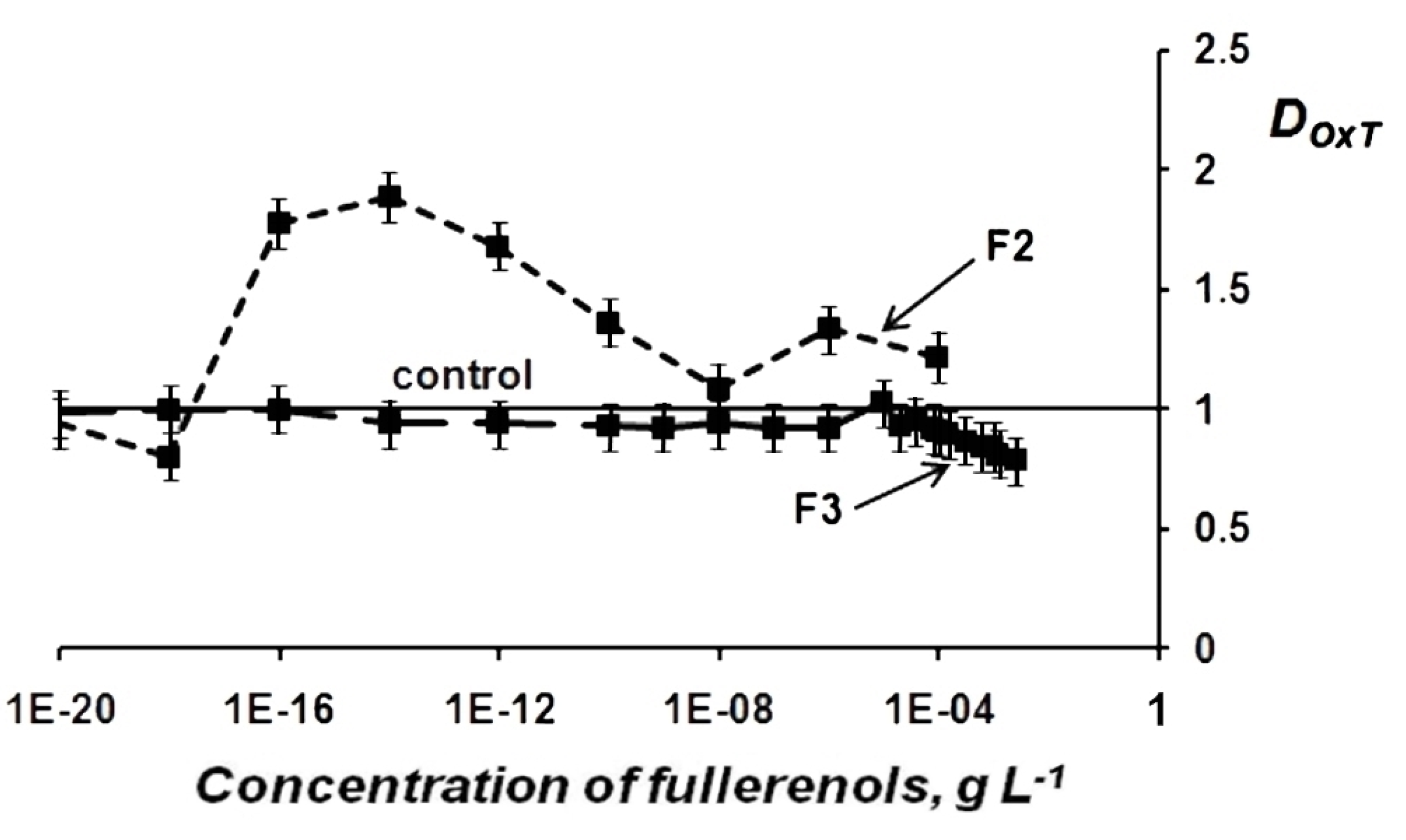

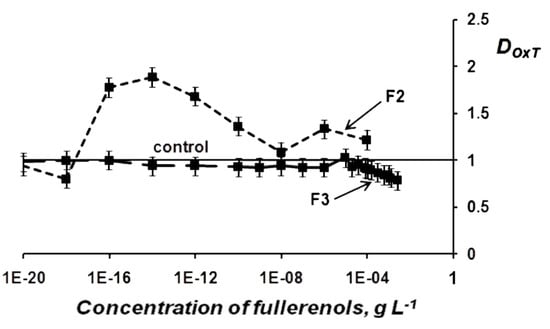

Figure 5 demonstrates the dependence of DOxT on fullerenol concentrations. Detoxification coefficients DOxT in the solutions of organic oxidizer, 1,4-benzoquinone, reached 1.9 for F2 and were close to 1 at all F3 concentrations.
The maximal values of DOxT of fullerenols F1, F2, F3, and F4 are presented in Table 4. Similar to DGT (Table 3), the DOxT values of F1 and F2 were higher than these of F3 and F4, revealing higher antioxidant ability of fullerenols with lower oxygen numbers.
It should be noted that Figure 3, Figure 4 and Figure 5 did not demonstrate monotonic linear dependencies of the detoxification coefficients on fullerenol concentrations. The absence of such dependence is in accordance with hormesis toxicological model for low-concentration solutions of bioactive compounds [4].

2.2. ROS Content in Fullerenol Solutions—Luminol Chemiluminescence Assay

We supposed that ROS content was directly related with oxidative toxicity (OxT) of the solutions. Additionally, ROS contributed to general toxicity (GT) in a more complex way. Similar to excess of ROS, the lack of ROS can suppress bioluminescence of the enzymatic system since the peroxide compounds are involved in the bioluminescence reactions as intermediates [44]. Similar effects can take place in other (non-bioluminescence) redox enzymatic reactions in cells.

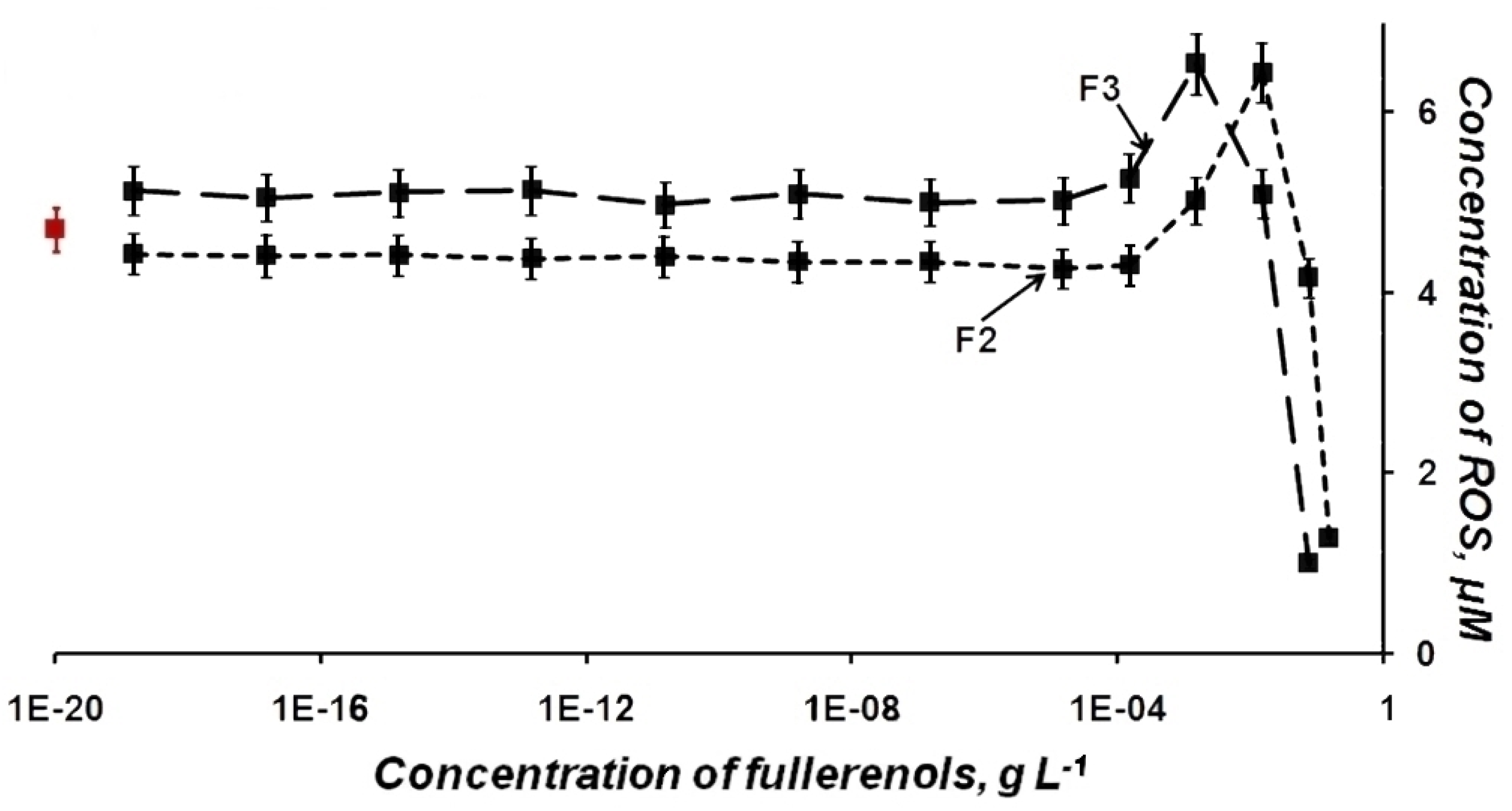

We used the luminol chemiluminescence method to compare the content of ROS in the solutions of fullerenols F1, F2, F3, and F4. Dependencies of ROS content on fullerenol concentrations were studied. Fullerenols F2 and F3 were chosen as examples for presentation in Figure 6.
Table 5 presents the fullerenol effective concentrations, which reduced ROS content by 50%, EC50. The Table shows that F1 and F2 suppressed ROS less effectively than F3 and F4 (values of EC50 were 0.179 and 0.124 g L−1 as compared to 0.056 and 0.105 g L−1, respectively).
Inhibition and activation of bacterial bioluminescence intensity by ROS were reported previously for bacterial and enzymatic assays [59,60] where hydrogen peroxide was applied by the authors as a representative of ROS.
Correlations between characteristics of chemiluminescence and bioluminescence assays (Table 5 and Table 2, Table 3 and Table 4, respectively) were studied to confirm involvement of ROS in toxic and antioxidant effects of fullerenols F1–F4. Values of EC50, DGT, and DOxT were used to calculate correlation coefficients. The correlation coefficient between EC50 values in the chemiluminescence assay (Table 5) and the bioluminescence cellular assay (Table 2) was determined to be 0.88, while the correlation coefficient between the chemiluminescence assay (Table 5) and the bioluminescence enzymatic assay (Table 2) was 0.83. Hence, both cells and enzymes demonstrated correlations between bioluminescence intensity and ROS content. These results supported the hypothesis that ROS involvement in the bioluminescence inhibition by the fullerenols, resulted in toxic effects of these compounds in high-concentration solutions.
The correlation coefficients between EC50 values in the chemiluminescence assay (Table 5) and detoxification coefficients DGT and DOxT in the enzyme-based assay system (Table 3 and Table 4) were 0.83 and 0.91, respectively. These results supported the suggestion of the involvement of ROS on the antioxidant effect of fullerenols in the enzyme process. This effect took place under low concentrations of fullerenols. The correlation coefficient between the EC50 values in the chemiluminescence assay (Table 5) and the values of DGT obtained using the bioluminescence cellular assay (Table 3) was 0.13. This value does not demonstrate a dependency on the ROS content, probably due to the complicated structure of the cellular assay (as compared to the enzymatic one).
Our results showed that toxicity of fullerenols in high-concentration solutions might be related to their extra ability to neutralize oxygen radicals. Fullerenols with higher number of oxygen substituents (F3 and F4) suppressed ROS more effectively, producing more toxic effects on cellular and enzymatic systems. The antioxidant activity of fullerenols in the low-concentration solutions was probably related to their ability to regulate ROS content reversibly; fullerenols with lower number of hydroxyl substituents (F1 and F2) were characterized by higher antioxidant activity. The results might predict a higher antioxidant activity of non-substituted fullerenes, i.e., carbon nanostructures with holistic π-system apportioned evenly over the spherical macromolecule. Additional experiments under similar conditions should be performed to confirm this suggestion. Previously [61,62,63,64], the biological activity of hydrated C60 fullerene was studied and its activity was attributed to specific structure of hydrated shell of the fullerene.

3. Materials and Methods

3.1. Preparations of Fullerenols

F1 and F2 were produced by fullerene hydroxylation in nitric acid followed by the hydrolysis of the polynitrofullerenes [65,66,67,68]. Preparation of F2 involved 60% of C60Oy(OH)x and 40% of C70Oy(OH)x. Fullerenes were preliminary synthesized by carbon helium high-frequency arc plasma at atmospheric pressure [67,69]. The carbon soot included 12.6% of fullerene. The fullerene mixture was extracted by toluene. Then, the individual fullerene C60 was isolated by liquid chromatography based on turbostratic graphite with 3.42 Å interplanar distance (as a stationary phase) and a toluene/hexane mixture (as a mobile phase).
F3 was produced from a powder mixture of fullerene soot and acetylacetonate FeIII (Fe(acac)3). The mixture was heated up to spontaneous ignition at 180 °C. Then, the combustion process proceeded without additional heating. The product of the combustion reaction was exposed to boiling hydrochloric acid and the dissolved part of the product was removed. Retreatment with acid was provided to remove the metal salt. The solid residue of fullerenes was washed with water and used as a precursor in the synthesis of polyhydroxylated fullerenes (fullerenols). F3 was produced by precursor hydroxylation in nitric acid followed by the hydrolysis of the polynitrofullerenes [65,66,67,68].
F4 (two molecules of C60-fullerenol are combined by an iron atom) was produced from the powder which involved Fe-containing C60 fullerene soot and acetylacetonate of FeIII (Fe(acac)3). This mixture was heated up to spontaneous ignition (180 °C); then the temperature increased up to 250 °C in the smoldering regime. The product was treated with concentrated nitric acid (90 °C). The red cinnamonic solution was evaporated and treated by distilled water. The procedure provided the hydrolysis of poly-nitro-fullerene to poly-hydroxylated fullerene [65,66,68].
F5 (gadolinium atom inside C82-fullerenol) was produced by Gd@C82-fullerene hydroxylation in nitric acid followed by hydrolysis of the polynitrofullerenes [65,66,68,70]. Mixture of fullerenes, involving Gd@C82-fullerene, was preliminary synthesized by carbon helium high-frequency arc plasma at 98 kPa [67,70]. The Gd@C82-fullerene content in carbon soot was about 4.8%. The reaction of complexation with Lewis acids (TiCl4) was used for enrichment of the extract of fullerene mixture by endohedral metallofullerenes (Gd@C82) [71]. Then, Gd@C82 was extracted with carbon disulfide from carbon soot.
The fullerenol preparations were characterized with IR and photoelectron spectroscopies [72,73].

3.2. Bioluminescence Assay Systems and Experimental Data Processing

Antioxidant activity and toxicity of fullerenols were evaluated using bioluminescence assay systems, both cellular and enzymatic: (1) bacterial assay, i.e., Microbiosensor 677F, was based on the lyophilized luminous bacteria Photobacterium phosphoreum from the collection of the Institute of Biophysics SB RAS (CCIBSO 863), strain 667F IBSO, and (2) enzyme preparation was based on the coupled enzyme system NADH:FMN-oxidoreductase from Vibrio fischeri (0.15 a.u.) and luciferase from Photobacterium leiognathi, 0.5 mg/mL [74]. All the biological preparations were produced at the Institute of Biophysics SB RAS (Krasnoyarsk, Russia).
Chemicals used were: NADH from ICN, USA; FMN and tetradecanal from SERVA, Germany; 1,4-benzoquinone from Aldrich, USA; and sodium chloride (NaCl) from Khimreactiv, Russia.
Antioxidant activity of fullerenols was assessed in water solutions of model oxidizer, 1,4-benzoquinone.
To construct the enzymatic assay system, we used 0.1 mg ml−1 enzyme preparation, 4 × 10−4 M NADH, 5 × 10−4 M FMN, and 0.002% tetradecanal solutions. The enzymatic assay was performed in 0.05 M phosphate buffer, pH 6.8, at 20 °C.
The enzymatic assay system is based on two coupled enzymatic reactions:
N A D H + F M N →   N A D H : F M N – o x i d o r e d u c t a s e   F M N ⋅ H − + N A D −   and
F M N ⋅ H − + R C H O + O 2 →   l u c i f e r a s e   F M N + R C O O − + H 2 O + h v .
Measurements of bioluminescence intensity were carried out with bioluminometers BLM-3606 (Nauka Special Design Bureau, Russia) and TriStar LB 941 (Berthold Technologies, Germany).
Toxic effects of fullerenols on bioluminescence of bacterial and enzymatic assay systems were characterized by relative bioluminescence intensity, I F r e l :
I F r e l = I F / I c o n t r ,
where, I c o n t r and I F are maximal bioluminescence intensities in the absence and presence of fullerenols, respectively.
To compare toxic effects of fullerenols, their effective concentrations that inhibited bioluminescence intensity by 50% ( I F r e l = 0.5), EC50, were determined.
General toxicity (GT) of the model oxidizer solutions (1,4-benzoquinone) was evaluated with relative bioluminescence intensity, I O x r e l :
I O x r e l = I O x / I c o n t r ,
where, I c o n t r and I O x are maximal bioluminescence intensities in the absence and presence of the oxidizer, respectively, as shown in Figure 7. The effective concentration of model organic oxidizer (1,4-benzoquinone) that inhibited bioluminescence intensity by 50% ( I O x r e l = 0.5), EC50, were determined using bacterial and enzymatic bioluminescence assays. The EC50 values of 1,4-benzoquinone were 2.5 × 10−7 M and 10−4 M for bacterial and enzymatic assays, respectively. The values were close to those determined in previous studies [49,52].
Antioxidant activity of fullerenols was evaluated in model solutions of oxidizer (1,4-benzoquinone). EC50 of the oxidizer was used in these experiments. To exclude the peculiar toxic effects of the fullerenols, concentration ranges (CR) of the fullerenols inhibiting the bioluminescence intensity less than 10% ( I F r e l > 0.9) were preliminary determined and used in the experiments.
Both bioluminescent assays (bacterial and enzymatic) were applied to study changes in general toxicity (GT) under the addition of fullerenols. Detoxification coefficients DGT were determined as follows:
D G T = I O x + F r e l / I O x r e l ,
where I O x r e l , I O x + F r e l are relative bioluminescence intensities in oxidizer solutions at EC50, in the absence and presence of fullerenols, respectively, calculated according to Equation (1a). Values of DGT were determined at different fullerenol concentrations.

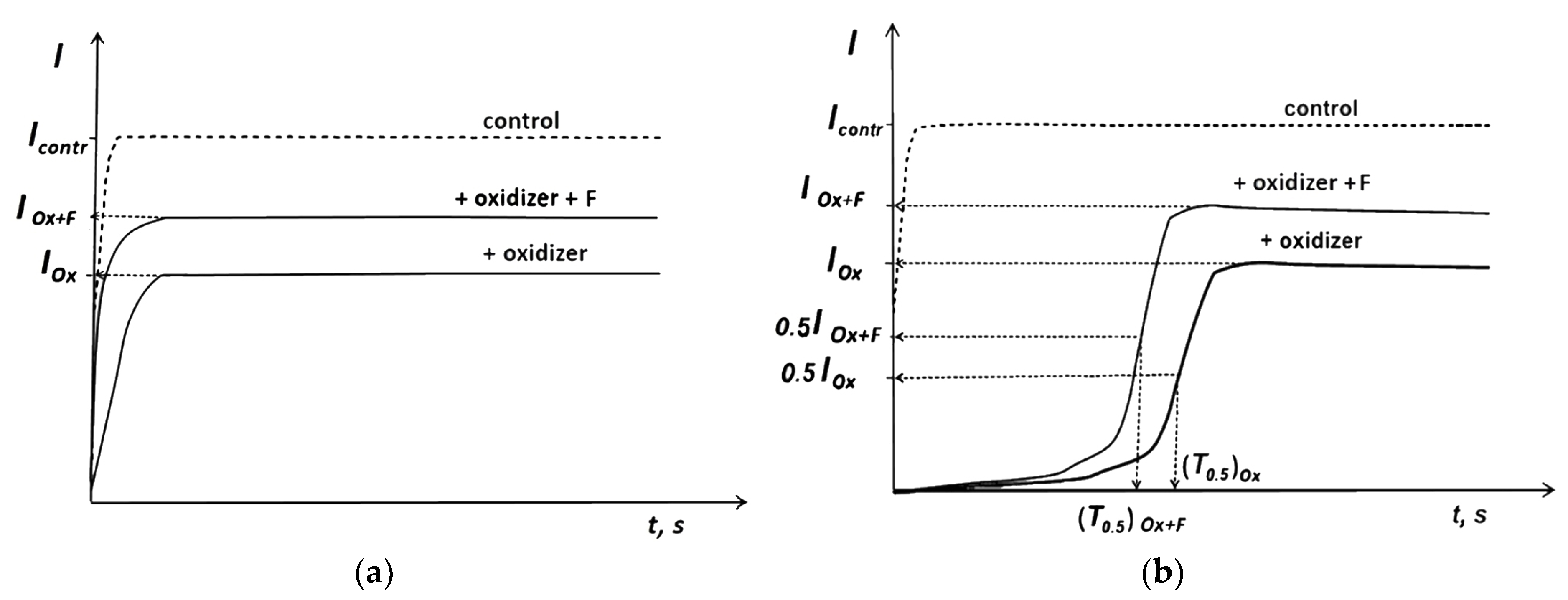

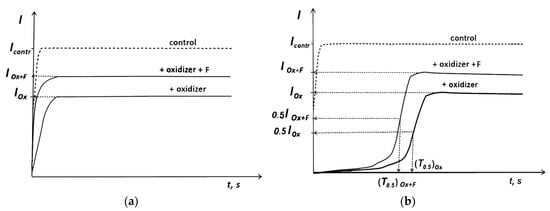

To characterize oxidative toxicity (OxT) in the oxidizer solutions, the bioluminescence enzyme assay was used. Changes of OxT under fullerenol exposure were characterized with detoxification coefficients, DOxT:
D O x T = ( T 0.5 ) O x / ( T 0.5 ) O x + F ,
where ( T 0.5 ) O x and ( T 0.5 ) O x + F are bioluminescence induction periods in oxidizer solutions in the absence and presence of fullerenols, respectively (Figure 7b). The DOxT values were determined and plotted vs. fullerenol concentrations.
Values of DGT > 1 or DOxT > 1 revealed a decrease in GT or OxT under the exposure to fullerenols, i.e., detoxification of solutions of oxidizers. Values of DGT ≈ 1 or DOxT ≈ 1 revealed an absence of the fullerenol effect.
The SD values for DGT or DOxT did not exceed 0.1. The data for the DGT or DOxT processing were obtained in three experiments with five samplings from all control and fullerenol solutions.
It should be noted that all experiments with ’colored’ solutions of fullerenols excluded the effect of the “optic filter” [29]; this effect did not skew the results the toxicological measurements.

3.3. Luminol Chemiluminescence Assay

Luminol was obtained from Sigma-Aldrich, potassium hydroxide from Khimreactiv (Russia), and 3% solution of hydrogen peroxide from Tula Pharmaceutical Factory (Russia). The 10−4 M aqueous alkaline luminol solution was used.
The chemiluminescence luminol reaction was initiated by a solution of K3[Fe(CN)6] and maximal value of chemiluminescence intensity was determined. All measurements were carried out in 25–40 replicates using TriStar LB 941 bioluminometer with injector system. Average and SD values did not exceed 0.05.
The dependence of chemiluminescence intensity on H2O2 concentration was initially determined and it was used as a calibration dependent in the following experiments to evaluate concentrations of peroxide compounds in the solutions of fullerenols. Peroxides were considered to be components of the ROS group. The ROS content was plotted vs. concentrations of fullerenols.
To compare the effects of fullerenols on ROS content, their effective concentrations that decreased chemiluminescence intensity by 50%, EC50, were determined.

4. Conclusions

The current paper analyzed toxicity and antioxidant activity of a series of fullerenols studied under comparable conditions. In summary, all the fullerenols inhibited bacterial and enzymatic bioluminescence at high concentrations (>0.01 g L−1, Table 2), producing a toxic effect, while the antioxidant activity of all the fullerenols was evident at low and ultralow concentrations (<0.001 g L−1, Table 2). We found that the toxic and antioxidant characteristics of the fullerenols depended, additionally, on the number of oxygen substituents. Quantitative characteristics of the fullerenols (effective concentrations, concentration ranges, and detoxification coefficients) were determined and compared.
Lower toxicity and higher antioxidant activity were demonstrated for the fullerenols with fewer substituents: C60Oy(OH)x and C60,70Oy(OH)x, where x+y = 24–28. The differences were attributed to fullerenol’ ability to disturb ROS balance in aqueous solutions. Further investigations, including theoretical studies, should be carried out to understand the physical and chemical basis of these differences. The investigations should be aimed at such structural fullerenol peculiarities as an interrelation between the number of oxygen-containing groups and hydrophobic π-conjugated surface fragments, with the latter responsible for the reversible electron acceptance and, hence, nonspecific catalytic activity in chemical and biochemical processes.
As an outlook, a recommendation can be made for the selection and synthesis of fullerene’ water-soluble derivatives: a high number of oxygen substituents (up to 40 and more) provided higher toxicity and lower antioxidant activity.
Hence, the study demonstrated a suitability and high potential for the bioluminescence-based biosensing procedure for the complex study of the carbon nanoparticles, which are promising pharmaceutical agents.

Author Contributions

E.S.K. and A.S.S. were involved in experimental studied using bioluminescence and chemiluminescence methods, data processing, interpretation, and writing and editing the manuscript. E.M.K. produced bacterial and enzyme preparations for the experiments. N.G.V. provided qualitative and quantitative analysis of fullerenes. G.N.C. provided fullerene and fullerenol synthesis. N.S.K. was involved in general leadership of the work, data analysis, and manuscript preparation. All authors read and approved the final manuscript.

Funding

This work was supported by PRAN-32, Program: ‘Nanostructures: physics, chemistry, biology, technological basis’; RFBR 18-29-19003; RFBR-Krasnoyarsk Regional Foundation 18-44-240004, Tomsk Polytechnic University CE Program.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

CRconcentration range
Ffullerenol
F1fullerenol C60Oy(OH)x, where x+y = 24–28
F2fullerenol C60,70Oy(OH)x, where x+y = 24–28
F3fullerenol C60,70Oy(OH)x, where x+y = 40–42
F4fullerenol Fe0,5C60Oy(OH)x, where x+y = 40–42
F5fullerenol Gd@C82Oy(OH)x, where x+y = 40–42
FMNflavin mononucleotide
GTgeneral toxicity
NADHnicotinamide adenine dinucleotide disodium salt-reduced
OxToxidative toxicity
ROSreactive oxygen species

References

  1. Foley, S.; Crowley, C.; Smaihi, M.; Bonfils, C.; Erlanger, B.F.; Seta, P.; Larroque, C. Cellular localization of a water-soluble fullerene derivative. Biochem. Biophys. Res. Commun. 2002, 294, 116–119. [Google Scholar] [CrossRef]
  2. Grebowski, J.; Krokosz, A.; Puchala, M. Fullerenol C60(OH)36 could associate to band 3 protein of human erythrocyte membranes. Biochim. Biophys. Acta (BBA) Biomembr. 2013, 1828, 2007–2014. [Google Scholar] [CrossRef] [PubMed]
  3. Zheng, Y.; Hou, L.; Liu, M.; Newell, S.E.; Yin, G.; Yu, C.; Zhang, H.; Li, X.; Gao, D.; Gao, J.; et al. Effects of silver nanoparticles on nitrification and associated nitrous oxide production in aquatic environments. Sci. Adv. 2017, 3, e1603229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Iavicoli, I.; Leso, V.; Fontana, L.; Calabrese, E.J. Nanoparticle exposure and hormetic dose–responses: An update. Int. J. Mol. Sci. 2018, 19, 805. [Google Scholar] [CrossRef] [PubMed]
  5. Grebowski, J.; Kazmierska, P.; Krokosz, A. Fullerenols as a new therapeutic approach in nanomedicine. Biomed. Res. Int. 2013, 2013, 1–9. [Google Scholar] [CrossRef] [PubMed]
  6. Cai, X.; Hao, J.; Zhang, X.; Yu, B.; Ren, J.; Luo, C.; Li, Q.; Huang, Q.; Shi, X.; Li, W.; et al. The polyhydroxylated fullerene derivative C60(OH)24 protects mice from ionizing-radiation-induced immune and mitochondrial dysfunction. Toxicol. Appl. Pharmacol. 2010, 243, 27–34. [Google Scholar] [CrossRef] [PubMed]
  7. Slavic, M.; Djordjevic, A.; Radojicic, R.; Milovanovic, S.; Orescanin-Dusic, Z.; Rakocevic, Z.; Spasic, M.B.; Blagojevic, D. FullerenolC60(OH)24 nanoparticles decrease relaxing effects of dimethyl sulfoxide on rat uterus spontaneous contraction. J. Nanopart. Res. 2013, 15, 1–10. [Google Scholar] [CrossRef]
  8. Mirkov, S.M.; Djordjevic, A.N.; Andric, N.L.; Andric, S.A.; Kostic, T.S.; Bogdanovic, G.M.; Vojinovic-Miloradov, M.B.; Kovacevic, R.Z. Nitric oxide-scavenging activity of polyhydroxylated fullerenol, C60(OH)24. Nitric Oxide 2004, 11, 201–207. [Google Scholar] [CrossRef] [PubMed]
  9. Injac, R.; Prijatelj, M.; Strukelj, B. Fullerenol nanoparticles: Toxicity and antioxidant activity. Methods Mol. Biol. 2013, 1028, 75–100. [Google Scholar] [CrossRef] [PubMed]
  10. Djordjevic, A.; Srdjenovic, B.; Seke, M.; Petrovic, D.; Injac, R.; Mrdjanovic, J. Review of synthesis and antioxidant potential of fullerenol nanoparticles. J. Nanomater. 2015, 2015, 1–15. [Google Scholar] [CrossRef]
  11. Wang, Z.; Wang, S.; Lu, Z.; Gao, X. Syntheses, structures and antioxidant activities of fullerenols: Knowledge learned at the atomistic level. J. Clust. Sci. 2015, 26, 375–388. [Google Scholar] [CrossRef]
  12. Djordjevic, A.; Canadanovic-Brunet, J.M.; Vojinovic-Miloradov, M.; Bogdanovic, G. Antioxidant properties and hypothetic radical mechanism of fullerenol C60(OH)24. Oxid. Commun. 2005, 27, 806–812. [Google Scholar]
  13. Jiao, F.; Liu, Y.; Qu, Y.; Li, W.; Zhou, G.; Ge, C.; Li, Y.; Sun, B.; Chen, C. Studies on anti-tumor and antimetastatic activities of fullerenol in a mouse breast cancer model. Carbon 2010, 48, 2231–2243. [Google Scholar] [CrossRef]
  14. Eropkin, M.Y.; Melenevskaya, E.Y.; Nasonova, K.V.; Bryazzhikova, T.S.; Eropkina, E.M.; Danilenko, D.M.; Kiselev, O.I. Synthesis and biological activity of fullerenols with various contents of hydroxyl groups. Pharm. Chem. J. 2013, 47, 87–91. [Google Scholar] [CrossRef]
  15. Chaban, V.V.; Fileti, E.E. Which fullerenols are water soluble? Systematic atomistic investigation. New J. Chem. 2017, 41, 184–189. [Google Scholar] [CrossRef]
  16. Hayyan, M.; Hashim, M.A.; AlNashef, I.M. Superoxide ion: Generation and chemical implications. Chem. Rev. 2016, 116, 3029–3085. [Google Scholar] [CrossRef]
  17. Hancock, J.T.; Desikan, R.; Neill, S.J. Role of reactive oxygen species in cell signalling pathways. Biochem. Soc. Trans. 2001, 29 Pt 2, 345–350. [Google Scholar] [CrossRef]
  18. Devasagayam, T.P.; Tilak, J.C.; Boloor, K.K.; Sane, K.S.; Ghaskadbi, S.S.; Lele, R.D. Free radicals and antioxidants in human health: Current status and future prospects. J. Assoc. Phys. India 2004, 52, 794–804. [Google Scholar]
  19. Klaunig, J.E.; Kamendulis, L.M. The role of oxidative stress in carcinogenesis. Annu. Rev. Pharmacol. Toxicol. 2004, 44, 239–267. [Google Scholar] [CrossRef]
  20. Sinha, K.; Das, J.; Pal, P.B.; Sil, P.C. Oxidative stress: The mitochondria-dependent and mitochondria-independent pathways of apoptosis. Arch. Toxicol. 2013, 87, 1157–1180. [Google Scholar] [CrossRef]
  21. Anderson, G.; Maes, M. Neurodegeneration in Parkinson’s disease: Interactions of oxidative stress, tryptophan catabolites and depression with mitochondria and sirtuins. Mol. Neurobiol. 2014, 49, 771–783. [Google Scholar] [CrossRef] [PubMed]
  22. Giacco, F.; Brownlee, M. Oxidative stress and diabetic complications. Circ. Res. 2010, 107, 1058–1070. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Zenker, M.; Aigner, T.; Wendler, O.; Tralau, T.; Müntefering, H.; Fenski, R.; Pitz, S.; Schumacher, V.; Royer-Pokora, B.; Wühl, E.; et al. Human laminin β2 deficiency causes congenital nephrosis with mesangial sclerosis and distinct eye abnormalities. Hum. Mol. Genet. 2004, 13, 2625–2632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Caldeira, G.L.; Ferreira, I.L.; Rego, A.C. Impaired transcription in Alzheimer’s disease: Key role in mitochondrial dysfunction and oxidative stress. J. Alzheimer’s Dis. 2013, 34, 115–131. [Google Scholar] [CrossRef]
  25. Dharmaraja, A.T. Role of reactive oxygen species (ROS) in therapeutics and drug resistance in cancer and bacteria. J. Med. Chem. 2017, 60, 3221–3240. [Google Scholar] [CrossRef] [PubMed]
  26. Forrester, S.J.; Kikuchi, D.S.; Hernandes, M.S.; Xu, Q.; Griendling, K.K. Reactive oxygen species in metabolic and inflammatory signaling. Circ. Res. 2018, 122, 877–902. [Google Scholar] [CrossRef] [PubMed]
  27. Nugud, A.; Sandeep, D.; El-Serafi, A.T. Two faces of the coin: Minireview for dissecting the role of reactive oxygen species in stem cell potency and lineage commitment. J. Adv. Res. 2018, 14, 73–79. [Google Scholar] [CrossRef]
  28. Bulich, A.A.; Isenberg, D.L. Use of the luminescent bacterial system for rapid assessment of aquatic toxicity. ISA Trans. 1981, 20, 29–33. [Google Scholar] [PubMed]
  29. Fedorova, E.; Kudryasheva, N.; Kuznetsov, A.; Mogil’naya, O.; Stom, D. Bioluminescent monitoring of detoxification processes: Activity of humic substances in quinone solutions. J. Photochem. Photobiol. B 2007, 88, 131–136. [Google Scholar] [CrossRef]
  30. Girotti, S.; Ferri, E.N.; Fumo, M.G.; Maiolini, E. Monitoring of environmental pollutants by bioluminescent bacteria. Anal. Chim. Acta 2008, 608, 2–29. [Google Scholar] [CrossRef]
  31. Kudryasheva, N.; Kratasyuk, V.; Esimbekova, E.; Vetrova, E.; Nemtseva, E.; Kudinova, I. Development of bioluminescent bioindicators for analyses of environmental pollution. Field Anal. Chem. Technol. 1998, 2, 277–280. [Google Scholar] [CrossRef]
  32. Roda, A.; Pasini, P.; Mirasoni, M.; Michchelini, E.; Guardigli, M. Biotechnological application of bioluminescence and chemiluminescence. Trends Biotechnol. 2004, 22, 295–303. [Google Scholar] [CrossRef] [PubMed]
  33. Abbas, M.; Adil, M.; Ehtisham-Ul-Haque, S.; Munir, B.; Yameen, M.; Ghaffar, A.; Shar, G.A.; Asif Tahir, M.; Iqbal, M. Vibrio fischeri bioluminescence inhibition assay for ecotoxicity assessment: A review. Sci. Total Environ. 2018, 626, 1295–1309. [Google Scholar] [CrossRef] [PubMed]
  34. Kratasyuk, V.A.; Esimbekova, E.N. Applications of luminous bacteria enzymes in toxicology. Comb. Chem. High Throughput Screen. 2015, 18, 952–959. [Google Scholar] [CrossRef] [PubMed]
  35. Rozhko, T.V.; Kudryasheva, N.S.; Kuznetsov, A.M.; Vydryakova, G.A.; Bondareva, L.G.; Bolsunovsky, A.Y. Effect of low-level α-radiation on bioluminescent assay systems of various complexity. Photochem. Photobiol. Sci. 2007, 6, 67–70. [Google Scholar] [CrossRef]
  36. Selivanova, M.A.; Mogilnaya, O.A.; Badun, G.A.; Vydryakova, G.A.; Kuznetsov, A.M.; Kudryasheva, N.S. Effect of tritium on luminous marine bacteria and enzyme reactions. J. Environ. Radioact. 2013, 120, 19–25. [Google Scholar] [CrossRef]
  37. Esimbekova, E.N.; Kondik, A.M.; Kratasyuk, V.A. Bioluminescent enzymatic rapid assay of water integral toxicity. Environ. Monit. Assess. 2013, 185, 5909–5916. [Google Scholar] [CrossRef]
  38. Efremenko, E.N.; Maslova, O.V.; Kholstov, A.V.; Senko, O.V.; Ismailov, A.D. Biosensitive element in the form of immobilized luminescent photobacteria for detecting ecotoxicants in aqueous flow-through systems. Luminescence 2016, 31, 1283–1289. [Google Scholar] [CrossRef]
  39. Ismailov, A.D.; Aleskerova, L.E. Photobiosensors containing luminescent bacteria. Biochemistry 2015, 80, 733–744. [Google Scholar] [CrossRef]
  40. Ranjan, R.; Rastogi, N.K.; Thakur, M.S. Development of immobilized biophotonic beads consisting of Photobacterium leiognathi for the detection of heavy metals and pesticide. J. Hazard. Mater. 2012, 225–226, 114–123. [Google Scholar] [CrossRef]
  41. Kudryasheva, N.S. Bioluminescence and exogenous compounds: Physicochemical basis for bioluminescence assay. J. Photochem. Photobiol. B 2006, 83, 77–86. [Google Scholar] [CrossRef]
  42. Kirillova, T.N.; Kudryasheva, N.S. Effect of heavy atom in bioluminescent reactions. Anal. Bioanal. Chem. 2007, 387, 2009–2016. [Google Scholar] [CrossRef]
  43. Kirillova, T.N.; Gerasimova, M.A.; Nemtseva, E.V.; Kudryasheva, N.S. Effect of halogenated fluorescent compounds on bioluminescent reactions. Anal. Bioanal. Chem. 2011, 400, 343–351. [Google Scholar] [CrossRef]
  44. Nemtseva, E.V.; Kudryasheva, N.S. The mechanism of electronic excitation in bacterial bioluminescent reaction. Russ. Chem. Rev. 2007, 76, 91–100. [Google Scholar] [CrossRef]
  45. Vetrova, E.V.; Kudryasheva, N.S.; Kratasyuk, V.A. Redox compounds influence on the NAD(P)H:FMN-oxidoreductase-luciferase bioluminescent system. Photochem. Photobiol. Sci. 2007, 6, 35–40. [Google Scholar] [CrossRef]
  46. Fedorova, G.F.; Kancheva, V.D.; Menshov, V.A.; Naumov, V.V.; Vasil’ev, R.F.; Veprintsev, T.L.; Trofimov, A.V.; Tsaplev, Y.B.; Yablonskaya, O.I. Exogenous and endogenous mediators of oxygen metabolism: Alternatives for chemical and biological activity. Stud. Nat. Prod. Chem. 2016, 47, 357–385. [Google Scholar] [CrossRef]
  47. Slavova-Kazakova, A.K.; Angelova, S.E.; Veprintsev, T.L.; Denev, P.; Fabbri, D.; Dettori, M.A.; Kratchanova, M.; Naumov, V.V.; Trofimov, A.V.; Vasil’ev, R.F.; et al. Antioxidant potential of curcumin-related compounds studied by chemiluminescence kinetics, chain-breaking efficiencies, scavenging activity (ORAC) and DFT calculations. Beilstein J. Org. Chem. 2015, 11, 1398–1411. [Google Scholar] [CrossRef] [Green Version]
  48. Kudryasheva, N.; Vetrova, E.; Kuznetsov, A.; Kratasyuk, V.; Stom, D. Bioluminescent assays: Effects of quinones and phenols. Ecotoxicol. Environ. Saf. 2002, 53, 221–225. [Google Scholar] [CrossRef]
  49. Tarasova, A.S.; Stom, D.I.; Kudryasheva, N.S. Effect of humic substances on toxicity of inorganic oxidizer bioluminescent monitoring. Environ. Toxicol. Chem. 2011, 30, 1013–1017. [Google Scholar] [CrossRef]
  50. Kudryasheva, N.S.; Tarasova, A.S. Pollutant toxicity and detoxification by humic substances: Mechanisms and quantitative assessment via luminescent Biomonitoring. Environ. Sci. Pollut. Res. Int. 2015, 22, 155–167. [Google Scholar] [CrossRef]
  51. Tarasova, A.S.; Stom, D.I.; Kudryasheva, N.S. Antioxidant activity of humic substances via bioluminescent monitoring in vitro. Environ. Monit. Assess. 2015, 187, 89. [Google Scholar] [CrossRef]
  52. Tarasova, A.S.; Kislan, S.L.; Fedorova, E.S.; Kuznetsov, A.M.; Mogilnaya, O.A.; Stom, D.I.; Kudryasheva, N.S. Bioluminescence as a tool for studying detoxification processes in metal salt solutions involving humic substances. J. Photochem. Photobiol. B 2012, 117, 164–170. [Google Scholar] [CrossRef]
  53. Kudryasheva, N.S.; Kovel, E.S.; Sachkova, A.S.; Vorobeva, A.A.; Isakova, V.G.; Churilov, G.N. Bioluminescent enzymatic assay as a tool for studying antioxidant activity and toxicity of bioactive compounds. J. Photochem. Photobiol. 2017, 93, 536–540. [Google Scholar] [CrossRef]
  54. Sachkova, A.S.; Kovel, E.S.; Churilov, G.N.; Guseynov, O.A.; Bondar, A.A.; Dubinina, I.A.; Kudryasheva, N.S. On mechanism of antioxidant effect of fullerenols. Biochem. Biophys. Rep. 2017, 9, 1–8. [Google Scholar] [CrossRef]
  55. Sachkova, A.S.; Kovel, E.S.; Churilov, G.N.; Stom, D.I.; Kudryasheva, N.S. Biological activity of carbonic nano-structures—Comparison via enzymatic bioassay. J. Soils Sediments 2018. [Google Scholar] [CrossRef]
  56. Meng, J.; Liang, X.; Chen, X.; Zhao, Y. Biological characterizations of [Gd@C82(OH)22]n nanoparticles as fullerene derivatives for cancer therapy. Integr. Biol. 2013, 5, 43–47. [Google Scholar] [CrossRef]
  57. Sosnovik, D.E.; Caravan, P. Molecular MRI of the Cardiovascular System in the Post-NSF Era. Curr. Cardiovasc. Imaging Rep. 2013, 6, 61–68. [Google Scholar] [CrossRef]
  58. Kanda, T.; Osawa, M.; Oba, H.; Toyoda, K.; Kotoku, J.; Haruyama, T.; Takeshita, K.; Furui, S. High signal intensity in dentate nucleus on unenhanced T1-weighted MR Images: Association with linear versus macrocyclic gadolinium chelate administration. Radiology 2015, 275, 803–809. [Google Scholar] [CrossRef]
  59. Remmel’, N.N.; Titova, N.M.; Kratasyuk, V.A. Oxidative stress monitoring in biological samples by bioluminescent method. Bull. Exp. Biol. Med. 2003, 136, 209–211. [Google Scholar] [CrossRef]
  60. Alexandrova, M.; Rozhko, T.; Vydryakova, G.; Kudryasheva, N. Effect of americium-241 on luminous bacteria. Role of peroxides. J. Environ. Radioact. 2011, 102, 407–411. [Google Scholar] [CrossRef]
  61. Andrievsky, G.V.; Bruskov, V.I.; Tykhomyrov, A.A.; Gudkov, S.V. Peculiarities of the antioxidant and radioprotective effects of hydrated C60 fullerene nanostuctures in vitro and in vivo. Free Radic. Biol. Med. 2009, 47, 786–793. [Google Scholar] [CrossRef]
  62. Andrievsky, G.; Klochkov, V.; Derevyanchenko, L. Is the C60 fullerene molecule toxic? Fuller. Nanotub. Carbon Nanostruct. 2005, 13, 363–376. [Google Scholar] [CrossRef]
  63. Voeikov, V.L.; Yablonskaya, O.I. Stabilizing effects of hydrated fullerenes C60 in a wide range of concentrations on luciferase, alkaline phosphatase, and peroxidase in vitro. Electromagn. Biol. Med. 2015, 34, 160–166. [Google Scholar] [CrossRef]
  64. Novikov, K.N.; Berdnikova, N.G.; Novikov, A.K.; Lyusina, O.Y.; Muhitova, O.G.; Yablonskaya, O.I.; Minh, H.D.; Voeikov, V.L. Changes in chemiluminescence of whole blood of COPD patients treated with Hypoxen® and effects of C60 fullerenes on blood chemiluminescence. Med. Sci. Monit. 2012, 18, BR76–BR83. [Google Scholar] [CrossRef]
  65. Goncharova, E.A.; Isakova, V.G.; Tomashevich, E.V.; Churilov, G.N. Obtaining of water-soluble polyhydroxylated fullerenols with iron nanoparticles as catalyzers. Vestn. SibGAU 2009, 22, 90–93. [Google Scholar]
  66. Sun, D.; Huang, H.; Yang, S. Synthesis and characterization of a water-soluble endohedral metallofullerol. Chem. Mater. 1999, 11, 1003–1006. [Google Scholar] [CrossRef]
  67. Churilov, G.N.; Kratschmer, W.; Osipova, I.V.; Glushenko, G.A.; Vnukova, N.G.; Kolonenko, A.L.; Dudnik, A.I. Synthesis of fullerenes in a high-frequency arc plasma under elevated helium pressure. Carbon 2013, 62, 389–392. [Google Scholar] [CrossRef]
  68. Isakova, V.G.; Goncharova, E.A.; Bayukov, O.A.; Churilov, G.N. Hydroxylation of fullerenes modified with iron nanoparticles. Russ. J. Appl. Chem. 2011, 84, 1165–1169. [Google Scholar] [CrossRef]
  69. Churilov, G.N.; Popov, A.A.; Vnukova, N.G.; Dudnik, A.I.; Glushchenko, G.A.; Samoylova, N.A.; Dubinina, I.A.; Gulyaeva, U.E. A method and apparatus for high-throughput controlled synthesis of fullerenes and endohedral metal fullerenes. Tech. Phys. Lett. 2016, 42, 475–477. [Google Scholar] [CrossRef]
  70. Churilov, G.; Popov, A.; Vnukova, N.; Dudnik, A.; Samoylova, N.; Glushenko, G. Controlled synthesis of fullerenes and endohedral metallofullerenes in high frequency arc discharge. Fuller. Nanotub. Carbon Nanostruct. 2016, 24, 675–678. [Google Scholar] [CrossRef]
  71. Akiyama, K.; Hamano, T.; Nakanishi, Y.; Takeuchi, E.; Noda, S.; Wang, Z.; Kubuki, S.; Shinohara, H. Non-HPLC rapid separation of metallofullerenes and empty cages with TiCl4 Lewis acid. J. Am. Chem. Soc. 2012, 134, 9762–9767. [Google Scholar] [CrossRef] [PubMed]
  72. Li, J.; Zhang, M.; Sun, B.; Xing, G.; Song, Y.; Guo, H.L.; Chang, Y.; Ge, Y.; Zhao, Y. Separation and purification of fullerenols for improved biocompatibility. Carbon 2012, 50, 460–469. [Google Scholar] [CrossRef]
  73. Li, J.; Wang, T.; Feng, Y.; Zhang, Y.; Zhen, M.; Shu, C.; Jiang, L.; Wang, Y.; Wang, C. A water-soluble gadolinium metallofullerenol: Facile preparation, magnetic properties and magnetic resonance imaging application. Dalton Trans. 2016, 45, 8696–8699. [Google Scholar] [CrossRef] [PubMed]
  74. Kuznetsov, A.M.; Rodicheva, E.K.; Shilova, E.V. Bioassay based on lyophilized bacteria. Biotekhnologiya 1996, 9, 57–61. [Google Scholar]
Ijms 20 02324 sch001 550
Scheme 1. Hypothetical structure of fullerenol C60.
Scheme 1. Hypothetical structure of fullerenol C60.
Ijms 20 02324 sch001
Ijms 20 02324 g001 550
Figure 1. Bioluminescence intensity, Irel, at different concentrations of fullerenols F2 and F3 for the cellular assay.
Figure 1. Bioluminescence intensity, Irel, at different concentrations of fullerenols F2 and F3 for the cellular assay.
Ijms 20 02324 g001
Ijms 20 02324 g002 550
Figure 2. Bioluminescence intensity, Irel, at different concentrations of fullerenols F2 and F3 for the enzymatic assay.
Figure 2. Bioluminescence intensity, Irel, at different concentrations of fullerenols F2 and F3 for the enzymatic assay.
Ijms 20 02324 g002
Ijms 20 02324 g003 550
Figure 3. Detoxification coefficients DGT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (2.5∙10−7 M) for the cellular assay.
Figure 3. Detoxification coefficients DGT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (2.5∙10−7 M) for the cellular assay.
Ijms 20 02324 g003
Ijms 20 02324 g004 550
Figure 4. Detoxification coefficients DGT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (10−4 M) for the enzyme-based assay.
Figure 4. Detoxification coefficients DGT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (10−4 M) for the enzyme-based assay.
Ijms 20 02324 g004
Ijms 20 02324 g005 550
Figure 5. Detoxification coefficients DOxT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (10−4 M) for the enzyme-based assay.
Figure 5. Detoxification coefficients DOxT vs. concentration of fullerenols F2 and F3 in solutions of 1,4-benzoquinone (10−4 M) for the enzyme-based assay.
Ijms 20 02324 g005
Ijms 20 02324 g006 550
Figure 6. Concentration of ROS vs. concentrations of fullerenols F2 and F3 for the chemiluminescence assay. Content of ROS in distilled water is indicated by a red point in the left part of figure.
Figure 6. Concentration of ROS vs. concentrations of fullerenols F2 and F3 for the chemiluminescence assay. Content of ROS in distilled water is indicated by a red point in the left part of figure.
Ijms 20 02324 g006
Ijms 20 02324 g007 550
Figure 7. Bioluminescence kinetics in the solution of model oxidizer 1,4-benzoquinone (Ox) and fullerenol (F): (a) cellular assay and (b) enzymatic assay.
Figure 7. Bioluminescence kinetics in the solution of model oxidizer 1,4-benzoquinone (Ox) and fullerenol (F): (a) cellular assay and (b) enzymatic assay.
Ijms 20 02324 g007
Table
Table 1. Fullerenol’ chemical formulas and short abbreviations.
Table 1. Fullerenol’ chemical formulas and short abbreviations.
Chemical Formulax+yAbbreviation
C60Oy(OH)x24–28F1
C60,70Oy(OH)x24–28F2
C60,70Oy(OH)x40–42F3
Fe0,5C60Oy(OH)x 40–42F4
Gd@C82Oy(OH)x 40–42F5
Table
Table 2. Values of effective concentrations EC50 of fullerenols F1–F5 and concentration range (CR) of F1–F5 for decreasing bioluminescent intensity less than 10% for both enzymatic and cellular assays.
Table 2. Values of effective concentrations EC50 of fullerenols F1–F5 and concentration range (CR) of F1–F5 for decreasing bioluminescent intensity less than 10% for both enzymatic and cellular assays.
FullerenolsCellular Assay Enzymatic Assay
Fullerenol Concentration (g L−1)
EC50CREC50CR
F10.031<0.0100.092<0.010
F20.008<0.0020.021<0.010
F30.003<0.0010.007<0.003
F40.021<0.0120.007<0.001
F5--0.018<0.005
Table
Table 3. Maximal values of DGT of fullerenols (F1–F4) in model solutions of organic oxidizer (1,4-benzoquinone) for enzymatic and cellular assays.
Table 3. Maximal values of DGT of fullerenols (F1–F4) in model solutions of organic oxidizer (1,4-benzoquinone) for enzymatic and cellular assays.
FullerenolsMaximal Value of DGT
Enzymatic AssayCellular Assay
F12.21.4
F21.51.8
F31.31.3
F41.11.3
Table
Table 4. Maximal values of DOxT of fullerenols (F1–F4) in model solutions of organic oxidizer (1,4-benzoquinone) for the enzymatic assay.
Table 4. Maximal values of DOxT of fullerenols (F1–F4) in model solutions of organic oxidizer (1,4-benzoquinone) for the enzymatic assay.
FullerenolsMaximal Value of DOxT
F12.0
F21.9
F31.0
F41.3
Table
Table 5. Values of EC50 of fullerenols in chemiluminescence assay.
Table 5. Values of EC50 of fullerenols in chemiluminescence assay.
FullerenolsEC50, g L−1
F10.179
F20.124
F30.056
F40.105

Share and Cite

MDPI and ACS Style

Kovel, E.S.; Sachkova, A.S.; Vnukova, N.G.; Churilov, G.N.; Knyazeva, E.M.; Kudryasheva, N.S. Antioxidant Activity and Toxicity of Fullerenols via Bioluminescence Signaling: Role of Oxygen Substituents. Int. J. Mol. Sci. 2019, 20, 2324. https://doi.org/10.3390/ijms20092324

AMA Style

Kovel ES, Sachkova AS, Vnukova NG, Churilov GN, Knyazeva EM, Kudryasheva NS. Antioxidant Activity and Toxicity of Fullerenols via Bioluminescence Signaling: Role of Oxygen Substituents. International Journal of Molecular Sciences. 2019; 20(9):2324. https://doi.org/10.3390/ijms20092324

Chicago/Turabian Style

Kovel, Ekaterina S., Anna S. Sachkova, Natalia G. Vnukova, Grigoriy N. Churilov, Elena M. Knyazeva, and Nadezhda S. Kudryasheva. 2019. "Antioxidant Activity and Toxicity of Fullerenols via Bioluminescence Signaling: Role of Oxygen Substituents" International Journal of Molecular Sciences 20, no. 9: 2324. https://doi.org/10.3390/ijms20092324

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
