Int. J. Mol. Sci. 2014, 15(1), 574-587; doi:10.3390/ijms15010574

Article
Atrazine Molecular Imprinted Polymers: Comparative Analysis by Far-Infrared and Ultraviolet Induced Polymerization
Jun Chen 1,2, Lian-Yang Bai 1,3,*, Kun-Feng Liu 2, Run-Qiang Liu 1,2 and Yu-Ping Zhang 2,*
1
Pesticide Research Institute, Hunan Agricultural University, Changsha 410128, China; E-Mails: junchen713@hist.edu.cn (J.C.); liurunqiang2007@sina.com.cn (R.-Q.L.)
2
School of Chemistry and Chemical Engineering, Henan Institute of Science and Technology, Xinxiang 453003, China; E-Mail: kfliu1988@126.com
3
Hunan Academy of Agricultural Sciences, Changsha 410128, China
*
Authors to whom correspondence should be addressed; E-Mails: blyang2006@163.com (L.-Y.B.); zhangyuping@hist.edu.cn (Y.-P.Z.); Tel.: +86-731-8469-2799 (L.-Y.B.); +86-373-3040-926 (Y.-P.Z.); Fax: +86-731-8469-1624 (L.-Y.B.); +86-373-3040-159 (Y.-P.Z.).
Received: 11 November 2013; in revised form: 26 December 2013 / Accepted: 30 December 2013 /
Published: 6 January 2014

Abstract

: Atrazine molecular imprinted polymers (MIPs) were comparatively synthesized using identical polymer formulation by far-infrared (FIR) radiation and ultraviolet (UV)-induced polymerization, respectively. Equilibrium binding experiments were carried out with the prepared MIPs; the results showed that MIPuv possessed specific binding to atrazine compared with their MIPFIR radiation counterparts. Scatchard plot’s of both MIPs indicated that the affinities of the binding sites in MIPs are heterogeneous and can be approximated by two dissociation-constants corresponding to the high-and low-affinity binding sites. Moreover, several common pesticides including atrazine, cyromazine, metamitron, simazine, ametryn, terbutryn were tested to determine their specificity, similar imprinting factor (IF) and different selectivity index (SI) for both MIPs. Physical characterization of the polymers revealed that the different polymerization methods led to slight differences in polymer structures and performance by scanning electron microscope (SEM), Fourier transform infrared absorption (FT-IR), and mercury analyzer (MA). Finally, both MIPs were used as selective sorbents for solid phase extraction (SPE) of atrazine from lake water, followed by high performance liquid chromatography (HPLC) analysis. Compared with commercial C18 SPE sorbent (86.4%–94.8%), higher recoveries of atrazine in spiked lake water were obtained in the range of 90.1%–97.1% and 94.4%–101.9%, for both MIPs, respectively.
Keywords:
atrazine; molecular imprinted polymers; far-infrared induced; ultraviolet induced

1. Introduction

Molecularly imprinted polymers (MIPs) as an artificial template made recognition material with high affinity and selectivity for the target molecule, have attracted more and more attention since this technique was first developed by Wulff [1] and Mosbach [2]. MIPs have been widely applied in many fields including solid phase extraction (SPE) [3,4], chromatography [5,6], enantiomer separation [7], catalysis [810] and chemical sensors [11,12]. The potential of MIPs to act as SPE sorbents was first described by Sellergren for the selective determination of metabolites in urine samples [13]. Since this time, various examples of the application of MIPs to the extraction and cleanup of complex samples have been described in the literature [1416]. The first use of a MIP-based SPE in water analysis was presented by Matsui et al. for atrazine and simazine [17]. Prasad et al. developed a biomimetic potentiometric sensor by dispersing the atrazine imprinted polymer particles in di-n-octyl phthalate plasticizer and embedding it in a polyvinyl chloride matrix. The polymerization process was initiated in an oil bath at 80 °C and heated for about 12 h. The resulting sensor responded to atrazine in the pH range 2.5–3.0 over a wide working concentration range (0.0001–10) mM with a detection limit of 0.5 μM (0.1 ppm) [18]. Guzzella et al. developed a propazine MIP for use as a sorbent for SPE of common triazines found in water. This bulk polymerization was carried out over 24 h at 60 °C [19].

Since photo irradiation facilitates homogeneous and rapid heat transfer through the reaction mixture, laboratory photoreactions are increasingly popular in the application of synthetic chemistry. Generally, polymer synthesis by photo irradiation is applicable to most types of polymerization methods, including step growth, free and controlled radical and ring opening polymerizations possible as well as modification and curing reactions [2022]. Benefits include rapid synthesis, decreased side reactions, higher yields with greater monomer conversion and the ability to utilize “green” solvent systems [23,24]. Imma et al. utilised ultraviolet to prepare atrazine MIPs in a photochemical reactor at 350 nm and 4 °C for 16 h by bulk polymerization [25]. Koeber et al. prepared terbuthylazine MIPs as SPE materials for environmental analysis, which were similar to formulation by irradiating the solutions with a low-pressure mercury lamp for 24 h [26]. Zhang et al. prepared and evaluated melamine molecularly imprinted polymers by thermal-and photo-initiation methods [27]. However, there is little or no research on the mechanism of molecular imprinted polymers by far-infrared polymerization. Differences in physical properties between FIR radiation and UV-induced polymers have been noted, with speed and penetrability observed in photo-initiated free radical polymerization systems [28].

In this work, far-infrared radiation and ultraviolet-induced free radical polymerization methods were applied to prepare atrazine MIPs using methacrylic acid (MAA) as the functional monomer, ethylene glycol dimethacrylate (EDMA) as the crosslinker, dichloromethane as the porogen, 2,2′-azobisisobutyronitrile (AIBN) or Irgacure 1800 as the FIR-radiation initiator or UV-initiator, respectively. Comparative analysis of both MIPs and their respective NIPs were carried out using a variety of instrumental methods (SEM, FT-IR and MA). Binding capacity and imprinting parameters were also evaluated in detail to exhibit differences in selectivity and discrimination for the template and structurally related compounds. The synthesized MIPs were utilized as SPE sorbents for selective extraction of atrazine from contaminated water samples, with sample recovery, followed by the determined by HPLC.

2. Results and Discussion

2.1. Physical Characterization of the Synthesized Polymers

SEM was employed to observe the surface microscopic characteristics of the prepared polymers. Figure 1 shows the distinct differences between two NIPs due to different polymerization methods, which results in corresponding differences between the two MIPs. Regardless whether FIR-or UV-polymerization methods were used, it was shown that MIPs possessed more pores than NIPs and larger average pore diameters were observed for the MIPs. In contrast with MIPFIR, MIPUV exhibited significantly smaller average pore diameters and distinctly higher numbers of holes. The pores of the polymers are usually formed by two methods: (1) Large pores are obtained by the presence of porogenic agent (organic solvent); and (2) Cavities are in the imprinting procedure, by providing the specificity by reason of their complementarity towards the template molecules [29].

FT-IR spectrum is a useful method for characterizing intermolecular hydrogen bonding. The infrared spectra results of all samples were shown in Figure 2. No clear differences in IR bands were observed for the polymer samples prepared by the two different polymerization methods. There were three distinctive absorptions assigned to –COOH groups of the MAA units including C=O stretching vibration at 1702 cm−1, O–C–O absorption at 1200 cm−1, and –OH stretching vibration at 3440 cm−1. For imprinted polymers prepared using MAA as a functional monomer, it was possible that some carboxylic acids changed into dimeric –COOH groups during the imprinting reaction. This means that even though the non-imprinted poly(MAA–EDMA) and the atrazine imprinted poly(MAA–EDMA) contain the same level of functional groups, more carboxylic acids in non-imprinted reference polymers may exist as hydrogen bonded dimers, so that the amount of “free” carboxyl groups in non-imprinted reference polymers becomes lower than the corresponding imprinted polymers. In general, no appreciable band corresponding to the acid dimer can be easily distinguished since the –COOH groups of MAA units associated with –NH groups of the template atrazine via a hydrogen bonding interaction during the polymerization [30]. We noted there were some significant IR bands at 3600–3450 cm−1 for both NIPs comparative with MIPs.

Further analysis of polymer porosity was measured by mercury intrusion porosimetry in Figure 3. It can be seen that medium pores (10–100 nm) and large pores (100–800 nm) account for a large ratio for both MIPs. There were three kinds of pores for MIPFIR and NIPFIR centered at approximately 100, 570, and 220 nm, respectively, with a gradual decrease of peak area accordingly. Whilst two kinds of pores for MIPUV and NIPUV were obtained with a pore size centred about 100 and 420 nm, respectively. Moreover, we note a proportionately greater presence of macropores centred at about 100 nm for MIPUV, comparing MIPFIR, which accounts for the larger binding amount and surface area for the former. Slight difference of macropores and distinct differences occurred at the macropore level, account for the calculated variations in pore volume and total porosity. The speed of the polymerization process is highly dependent on the number of free radicals that the UV-initiator provides by dissociation under ultraviolet radiation. The faster that polymerization occurs, the greater the degree of conversion of the liquid monomer to a solid polymer. For far infrared thermal polymerization, various absorption energy levels exist for different reactant molecular and transition differences and vary significantly between levels. Hence, the actual absorption is a complex process, accompanied by various absorption energy level transitions. Table 1 lists the comparison of total pore volume, surface area and total porosity between MIPs and NIPs. This indicates that the addition of a template increased the large pores in MIPs so that pore size, total pore porosity and total pore volume in the MIPs is larger than those of the NIPs. Due to its larger surface area, pore volume and total porosity, it is easily understood that better recognition performance for template molecule was obtained for MIPUV in the next absorptive experiments.

2.2. Adsorption Capacity of MIPs and NIPs

Equilibrium adsorption experiments were performed to evaluate the binding affinity of MIPs for atrazine. In this experiment, the absorption quantity (Q) was calculated by equation as follows:

Q = ( C 0 - C ) × V / W

Here, C0 is added the template atrazine concentrations in the solution at initial, C is that of free template atrazine in the solution containing imprinted polymer after being shaken for 24 h. V and W are the volume of bulk solution and the weight of the dry polymer used, respectively. The average data of three measurement results were used for adsorption capacity analysis [31].

The sorption isotherms of atrazine on the MIP and NIP adsorbents are shown in Figure 4. It can be seen that the sorption of atrazine by the MIPs was significantly higher than that of the respective NIP controls, suggesting an imprinting effect for both MIPs. Template binding for MIPUV exceeded that of MIPFIR across the atrazine concentration range of 0.1–1.6 mmol/L, highlighting MIPUV stronger specific affinity for the target and suggesting the presence of a greater number of more accessible binding sites. Likewise, sorption of NIPUV is correspondingly higher than that of NIPFIR, which displayed its stronger non-specific affinity. This reflects the choice of polymerization method and resultant impact on the microstructure of the product polymers. Differences of binding amount could be obtained between the MIPs and their respective NIPs in different ranges of atrazine concentration. When the concentration of atrazine is greater than 0.4 mmol/L, higher differences of binding amount could be achieved for the photo-polymerized materials, compared with the thermal-polymerized materials. For example, the differences of binding amount between MIPs and NIPs are 2.21 and 1.44 μmol/g, for FIR- and UV-induced materials, respectively, when atrazine concentration was equal to 0.2 mmol/L. This difference values were reversed to be 21.3 and 32.3 μmol/g at the concentration of 1.6 mmol/L, suggesting better discrimination between the sites exists in the case of MIPUV. This result showed that polymerization of MIP at lower temperatures forms polymers with greater specific affinity for the target versus polymers made at elevated temperatures. Usually, the relatively low temperatures with a prolonged reaction time were selected in order to yield a more reproducible polymerization. Where complexation is driven by hydrogen bonding, then lower polymerization temperatures are preferred, and under such circumstances photochemically active initiators may well be preferred as these can operate efficiently at low temperature.

2.3. Scatchard Analysis

If Langmuir models can be applied, the association constant Ka and specific site capacity Q can be determined from the slope and y intercept of lines obtained by least-squares regression of linear regions of the corresponding Scatchard plots. Here, the data of the static adsorption experiment was further processed with the Scatchard equation as follows [32]:

Q / C = ( Q max - Q ) K a

where, Ka is the association constant and Qmax is the apparent maximum number of binding sites. C is the free template atrazine concentration in the solution containing imprinted and non-imprinted polymers. Figure 5 shows saturation binding curves for the atrazine imprinted and non-imprinted polymers by using the saturated binding amount of a template. There are two distinct sections within the plot which can be regarded as straight lines, indicating that the affinities of the binding sites in MIPs are heterogeneous and can be approximated by two dissociation-constants corresponding to the high- and low-affinity binding sites for both polymers, respectively. When the binding amount was small, highly selective imprinted sites contributed largely in static conditions but in chromatographic retention these two types of binding sites acted simultaneously. The above phenomena in the Scatchard analysis are usual for MIPs [33].

The parameters calculated from the curves quantitatively display the differences between two MIPs. The dissociation constants (Ka) and maximum binding amounts (Qmax) for high- and low-affinity binding sites were calculated from the Scatchard equation for the prepared polymers. The respective Ka and Qmax values are shown in Table 2. The difference in atrazine binding affinity to the MIPs and NIPs clearly indicated the role of the imprinting process in the formation of specific binding sites. Ka and Qmax values for MIPUV were generally more than those of MIPFIR in the studied concentration of template.

2.4. Selectivity Experiments for the Prepared Polymers

After equilibrium binding experiments were performed according to the foregoing processes, the relative QMIP and QNIP for each analyte could be obtained, respectively. The chemical structures of the studied triazine compounds are illustrated in Figure 6. The imprinting factor expresses the ratio of specific-to-nonspecific binding for each compound (IF = QMIP/QNIP) [34]. In each case, analyte uptake was normalized against the levels of MIP adsorbed and expressed as selectivity index (SI): SI = I(analyte)/I(template) [35]. These IF and SI values obtained by two methods are given in Table 3.

It can be seen that both MIPs exhibited the highest specificity for atrazine. Furthermore, there is no distinct difference between MIPUV and MIPFIR in recognizing the other five analytes, with similar IF values recorded in each case, but greater SI values were calculated for MIPUV than their MIPFIR counterparts because of comparatively higher levels of specific binding. While atrazine exhibited large retention compared to other tested 1,3,5-triazine derivatives, other structurally different compounds like metamitron showed low-level retention. In IF, atrazine was retained more than other 1,3,5-triazines, such as simazine, terbutryn and ametryn. Therefore it appears that the selectivity of MIPs for atrazine was clearly induced during the imprinting process. The induced recognition ability is particularly noteworthy, because the tested 1,3,5-triazines have only small structural differences. These experimental results demonstrate that imprinting is not only based on the interaction of analyte with functional groups within the three-dimensional polymer network, but also based on the combined effect of shape and size complementarity.

2.5. Enrichment of Atrazine Using both MIPs, NIPs and C18 as SPE Cartridges

The prepared polymers were compared against commercial C18 sorbents as the SPE solid phases to selectively extract atrazine from real water samples. The commercial C18 SPE column was successively preconditioned with 3 mL of methanol and 3 mL of LC-grade water. Atrazine solutions of different concentrations were then passed through the columns at a flow rate of 1.0 mL/min, the column was then washed with 3 mL of water containing 5% methanol at the same flow rate. The analyte retained on the polymer was then eluted with 3 mL methanol. These extracts were then evaporated carefully to dryness under a gentle stream of nitrogen at 25 °C, and the residue reconstituted into 3 mL of mobile phase for HPLC analysis. The above procedures were carried out according to the optimized conditions provided by the instruction book of the commercial C18 SPE column. Similar procedures for both MIPs and their respective NIPs SPE columns were optimized to pretreat the same lake water, followed by the determination by HPLC. Figure 7 shows that less atrazine was detected in lake water samples following extraction by both NIPs, whilst the atrazine peak sharply increased following extraction by MIP-SPE and C18 column separation, respectively. Under the same conditions, different peak area of atrazine was obtained to be 712, 654 and 621, respectively, after the lake water spiked with a final atrazine concentration of 5 mg/L passed through the prepared MIPUV, MIPFIR and commercial C18 column accordingly. Therefore, higher sensitivities and recoveries could be achieved by using MIPUV-SPE as the extraction sorbent. The spiked and determined atrazine were summarized in Table 4. It can be found that the average recoveries of 90.1%–97.1%, 94.4%–101.9% and 86.4%–94.8%, with a RSD lower than 7.49%, respectively. The results demonstrated that MIPUV-SPE had highest selectivity and enrichment ability. Hence, the MIP-SPE offers a simple and straightforward technique for direct analysis of atrazine from complicated water samples.

3. Experimental Section

3.1. Reagents and Materials

MAA, 99.5% and EDMA, 98% were purchased from Beijing Bailingwei Chemical Reagent Co. (Beijing, China) and distilled before use in the up-scaled version of the synthesis. AIBN was obtained from North-China Special Chemical Development Center (Tianjin, China), and recrystallized from methanol before use. Irgacure 1800 was purchased from Ciba Specialty Chem. Inc. (Basel, Switzerland). Pesticide standards: atrazine (98.2%), cyromazine (95.7%), metamitron (95.8%), simazine (96.3%), ametryn (98.4), and terbutryn (96.8%) samples of technical grade were generously provided by China Agricultural University (Beijing, China) and Hunan Agricultural University (Changsha, China). All other chemicals used were chromatographically pure of analytical grade. Distilled and LC grade water was obtained from a super-purification system (Danyangmen Corp., Changzhou, China).

All chromatographic evaluations were performed by a reversed-phase Agilent 1100 HPLC system from the Agilent Company (Santa Clara, CA, USA), containing a quaternary pump. Separation was carried out on a C18 chromatography column (150 mm × 4.6 mm i.d., particle size 4 μm, YMC America, Inc., Allentown, PA, USA). Pressure Blowing Concentrator (Supelco, Bellefonte, PA, USA), SPE Manifold (Supelco, Bellefonte, PA, USA), TENSOR27 infrared spectrometer (Bruker, Billerica, MA, USA), PM-33-11 Poremasters (Quantachrome Instruments, Boynton Beach, FL, USA), Quanta200 scanning electronic microscope (FEI, Hillsboro, OR, USA). The UV lamp used in the polymerizations was a medium-pressure mercury vapor lamp (Philips, HPK 125 W). The FIR irradiated using a FIR heater (rated output power at 1000 W, Westa Electric Appliances Co., Ltd., Foshan, China), which emitted radiation at the wavelength range from 10 to 140 μm.

3.2. Preparation of Atrazine MIPs by FIR Radiation and UV-Induced Polymerization

The synthesis of atrazine-imprinted polymer was similar to that reported in the literature for atrazine [17,2022]. Briefly, atrazine (1 mmol, 0.215 g) and methacrylic acid (4 mmol, 0.35 mL) were taken in 50 mL ampoule bottle and the mixture was left in contact for 30 min for pre-arrangement. Subsequently, EDMA (20 mmol, 3.78 mL), AIBN (0.24 mmol, 0.043 g) and 5 mL of chloroform were added. The mixture was purged with N2 for 10 min and the bottle was sealed under this atmosphere. These samples were then placed in the holding tray in the middle of the FIR heater with rotation for even irradiation at a controlled temperature of 65 °C for 18 h to carry out the polymerization process. In comparison, 0.04 g photo-initiator (Irgacure 1800) was added instead of AIBN in the above solutions using the identical polymer formulation, but the sealed tubes were irradiated with a UV lamp (intensity, 0.016 W/cm2) at ice bath 0 °C for 6 h. After polymerization, the polymerization tubes were crushed, and the polymers were removed, then ground and sieved. Particles between 47 and 74 μm were collected and then repeatedly suspended in acetone to remove the small particles. Non-imprinted polymers (NIPs) were synthesized under the same conditions but without the addition of the template. The template was removed from the MIPs by Soxhlet extraction using a two step procedure: The mixture solution of acetic acid and methanol (1:9, v/v) was firstly used for washing about 12 h, followed by methanol for 6 h as a second step. This procedure was repeated four times. The extracts were analyzed by LC/VWD until a stable baseline was obtained. The prepared polymers were dried at 60 °C for 24 h under vacuum and stored for the next experiments. The overall process for the preparation of MIPs is depicted in Figure 8.

3.3. Preparation of SPE Cartridges Using the MIPs and NIPs as the Sorbents

Briefly, a 60 mg dry polymer was fully mixed and packed into empty SPE cartridges of 3 mL between two frits (length of 65 mm and i.d. 10 mm, DIKMA Sci. & Tech., Beijing, China). The cartridges were subjected to vacuum for 30 s before insertion of a second frit on top of the sorbent bed. Four different cartridges using both polymers as the sorbents were prepared according to the above method in our experiments.

3.4. Affinity and Specificity Study of Both MIPs

In order to investigate the binding property of the resulted polymers, static absorption experiment and Scatchard analysis were employed in this work. In vials, the polymer particles 20.0 mg were mixed with 2.0 mL of various concentrations of atrazine (from 0.1 to 1.6 mmol/L) in chloroform. The mixture was shaken at 120 rpm in a thermostatic shaker at 25 °C for 24 h. These solutions were centrifuged and filtered, then followed by the determination of the free concentrations of atrazine by HPLC at 220 nm. Each binding amount was determined in triplicate and calculated based on the standard curve. Single-analyte binding experiments of other similar pesticides including cyromazine, metamitron, simazine, ametryn and terbutryn were also performed using the above method to investigate the specificity of MIPs for atrazine.

3.5. MIP-SPE for Atrazine Standard Solutions and Real Samples

Before loading analyte, the MIP-SPE column was previously conditioned with 5 mL of methanol and LC-grade water, successively. After atrazine standard solutions at different concentrations were passed through the columns at a flow rate of 1.0 mL/min, the columns were washed with 6 mL of water and 2 mL of methanol at the same flow rate. The analyte retained on the sorbent was eluted with 5 mL methanol containing 5% ammonium hydroxide. These extracts were evaporated carefully to dryness with a gentle stream of nitrogen at 25 °C, and the residue was reconstituted into 1 mL of mobile phase for further HPLC analysis.

Once the optimized MIP-SPE experimental conditions were established, lake water spiked with atrazine at five concentration levels of 0.5, 1, 5, 10 and 20 mg/L, respectively, was used to demonstrate the applicability of the resulted MIPs to pre-concentration of atrazine from the real samples. Briefly, three bottles of 2 L water samples were collected from sampling sites in the East Lake of the Henan Institute of Science and Technology, and delivered to the analytical laboratory stored at 4 °C in a refrigerator. Static settlement and filteration of lake water samples should be dealt with prior to sample analysis. After the SPE cartridge was conditioned, then 5 mL of real sample was passed through. Finally, the eluate was dried using an N2 stream followed by adding the mobile phases with a final constant volume of 5 mL.

HPLC conditions employed for this work were as follows: mobile phase, ethanol/water (60:40, v/v); flow rate, 1.0 mL/min; room temperature; UV detection at 220 nm; injection volume 20 μL.

4. Conclusions

UV-induced bulk polymerization of atrazine imprinted polymer results in a 3-fold reduction in preparation time compared with conventional FIR thermal initiation methods. The resultant MIPUV, which behaved different gross morphologies to their FIR counterparts, exhibited higher binding capacity to their counterparts MIPFIR. Furthermore, the high and low affinity sites present on MIPUV possessed significantly larger Ka and Qmax values than those of MIPFIR, indicating better discrimination between the sites exists in the case of MIPUV. MI-SPE-HPLC was successfully applied to the extraction and determination of atrazine in lake water and gradual increase of recovery for the determination of atrazine in lake water was, respectively, obtained using C18 SPE sorbent, MIPFIR and MIPUV accordingly.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (Nos. 30070506 and 30771436).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wulff, G.; Sarhan, A. Use of polymers with enzyme-analogous structures for the resolution of racemates. Angew. Chem. Int. Ed. Engl 1972, 11, 341–342. [Google Scholar]
  2. Vlatakis, G.; Andersson, L.I.; Müller, R.; Mosbach, K. Drug assay using antibody mimics made by molecular imprinting. Nature 1993, 361, 645–647. [Google Scholar]
  3. Claude, B.; Nehmé, R.; Morin, P. Analysis of urinary neurotransmitters by capillary electrophoresis: Sensitivity enhancement using field-amplified sample injection and molecular imprinted polymer solid phase extraction. Anal. Chim. Acta 2011, 699, 242–248. [Google Scholar]
  4. Zheng, Y.Q.; Liu, Y.H.; Guo, H.B.; He, L.M.; Fang, B.H.; Zeng, Z.L. Molecularly imprinted solid-phase extraction for determination of tilmicosin in feed using high performance liquid chromatography. Anal. Chim. Acta 2011, 690, 269–274. [Google Scholar]
  5. Lin, Z.; Yang, F.; He, X.; Zhao, X.; Zhang, Y. Preparation and evaluation of a macroporous molecularly imprinted hybrid silica monolithic column for recognition of proteins by high performance liquid chromatography. J. Chromatogr. A 2009, 1216, 8612–8622. [Google Scholar]
  6. Sambe, H.; Hoshina, K.; Haginaka, J. Molecularly imprinted polymers for triazine herbicides prepared by multi-step swelling and polymerization method: Their application to the determination of methylthiotriazine herbicides in river water. J. Chromatogr. A 2007, 1152, 130–137. [Google Scholar]
  7. Yin, J.F.; Yang, G.L.; Chen, Y. Rapid and efficient chiral separation of nateglinide and its l-enantiomer on monolithic molecularly imprinted polymers. J. Chromatogr. A 2005, 1090, 68–75. [Google Scholar]
  8. Chen, Z.Y.; Xu, L.; Liang, Y.; Zhao, M.P. pH sensitive water soluble nanospheric imprinted hydrogels prepared as horseradish peroxidase mimetic enzymes. Adv. Mater 2010, 22, 1488–1492. [Google Scholar]
  9. Visnjevski, A.; Schomacker, R.; Yilmaz, E.; Bruggemann, O. Synthesis and application of a carbamazepine-imprinted polymer for solid-phase extraction from urine and wastewater. Catal. Commun 2005, 6, 601–606. [Google Scholar]
  10. Shen, X.T.; Zhu, L.H.; Li, J.; Tang, H.Q. Synthesis of molecular imprinted polymer coated photocatalysts with high selectivity. Chem. Commun 2007, 11, 1163–1165. [Google Scholar]
  11. Matsui, J.; Sodeyama, T.; Saiki, Y.; Miyazawa, T.; Yamada, T.; Tamaki, K.; Murashima, T. Face-to-face porphyrin moieties assembled with spacing for pyrazine recognition in molecularly imprinted polymers. Biosens. Bioelectron 2009, 25, 635–639. [Google Scholar]
  12. Basabe-Desmonts, L.; Reinhoudt, D.N.; Crego-Calama, M. Design of fluorescent materials for chemical sensing. Chem. Soc. Rev 2007, 36, 993–1017. [Google Scholar]
  13. Sellergren, B. Direct drug determination by selective sample enrichment on an imprinted polymer. Anal. Chem 1994, 66, 1578–1582. [Google Scholar]
  14. Javanbakht, M.; Namjumanesh, M.H.; Akbari-Adergani, B. Molecularly imprinted solid-phase extraction for the selective determination of bromhexine in human serum and urine with high performance liquid chromatography. Talanta 2009, 80, 133–138. [Google Scholar]
  15. Sérgio, F.; Rodrigues, R.T. Biosensors and rapid diagnostic tests on the frontier between analytical and clinical chemistry for biomolecular diagnosis of dengue disease: A review. Anal. Chem. Acta 2011, 687, 28–42. [Google Scholar]
  16. Caldorera-Moore, M.; Peppas, N.A. Micro-and nanotechnologies for intelligent and responsive biomaterial-based medical systems. Adv. Drug Delivery Rev 2009, 61, 1391–1401. [Google Scholar]
  17. Matsui, J.; Okada, M.; Tsuruoka, M.; Takeuchi, T. Solid-phase extraction of a triazine herbicide using a molecularly imprinted synthetic receptor. Anal. Commun 1997, 34, 85–87. [Google Scholar]
  18. Prasad, K.; Prathish, K.P.; Gladis, J.M.; Naidu, G.R.K.; Prasada, R.T. Molecularly imprinted polymer (biomimetic) based potentiometric sensor for atrazine. Sensors Actuators B 2007, 123, 65–70. [Google Scholar]
  19. Guzzella, L.; Pozzoni, F.; Baggiani, C. Synthesis and characterization of a propazine imprinted polymer for the extraction of triazines herbicides. Water Sci. Technol 2008, 57, 139–144. [Google Scholar]
  20. Matsui, J.; Miyoshi, Y.; Doblhoff-Dier, O.; Takeuchi, T. A molecularly imprinted synthetic polymer receptor selective for atrazine. Anal. Chem 1995, 67, 4404–4408. [Google Scholar]
  21. Lanza, F.; Sellergren, B. Molecularly imprinted polymers via high-throughput and combinatorial techniques. Macromol. Rapid Commun 2004, 25, 59–68. [Google Scholar]
  22. Imma, F.; Lanza, F.; Tolokan, A.; Viola, H.; Sellergren, B.; Horvai, G.; Barceló, D. Selective trace enrichment of chlorotriazine pesticides from natural waters and sediment samples using terbuthylazine molecularly imprinted polymers. Anal. Chem 2000, 72, 3934–3941. [Google Scholar]
  23. Wiesbrock, F.; Hoogenboom, R.; Abeln, C.H.; Schubert, U.S. Single-Mode microwave ovens as new reaction devices: Accelerating the living polymerization of 2-ethyl-2-oxazoline. Macromol. Rapid Commun 2004, 25, 1739–1764. [Google Scholar]
  24. Bogdal, D.; Penczek, P.; Pielichowski, J.; Prociak, A. Microwave assisted synthesis, crosslinking, and processing of polymeric materials. Adv. Polym. Sci 2003, 163, 193–263. [Google Scholar]
  25. Bjarnason, B.; Chimuka, L.; Ramstrom, O. On-line solid-phase extraction of triazine herbicides using a molecularly imprinted polymer for selective sample enrichment. Anal. Chem 1999, 71, 2152–2156. [Google Scholar]
  26. Koeber, R.; Fleischer, C.; Lanza, F.; Boos, K.S.; Sellergren, B.; Barcelo, D. Evaluation of a multidimensional solid-phase extraction platform for highly selective on-line cleanup and high-throughput LC-MS analysis of triazines in river water samples using molecularly imprinted polymers. Anal. Chem 2001, 73, 2437–2444. [Google Scholar]
  27. Zhang, Y.P.; Qi, N.; Chen, N.; Chen, J.; Zhou, X.M.; Bai, L.Y. Preparation and evaluation of melamine molecularly imprinted polymers by thermal- and photo-initiation methods. J. Chin. Chem. Soc 2013, 60, 204–211. [Google Scholar]
  28. Sierra, J.; Palacios, J.; Vivaldo-Lima, E. Effect of microwave activation on polymerization rate and molecular weight development in emulsion polymerization of methyl methacrylate. J. Macromol. Sci. A 2006, 43, 589–600. [Google Scholar]
  29. Syu, M.J.; Deng, J.H.; Nian, Y.M. Towards bilirubin imprinted poly(methacrylic acid-co-ethylene glycol dimethylacrylate) for the specific binding of á-bilirubin. Anal. Chim. Acta 2004, 504, 167–177. [Google Scholar]
  30. Kobayashi, T.; Wang, H.Y.; Fujii, N. Molecular imprint membranes of polyacrylonitrile copolymers with different acrylic acid segments. Anal. Chim. Acta 1998, 365, 81–88. [Google Scholar]
  31. Sreenivasulu Reddy, P.; Kobayashi, T.; Fujii, N. Recognition characteristics of dibenzofuran by molecularly imprinted polymers made of common polymers. J. Eur. Polymer 2002, 38, 779–785. [Google Scholar]
  32. Fan, J.; Wei, Y.; Wang, J.; Wu, C.; Shi, H. Study of molecularly imprinted solid-phase extraction of diphenylguanidine and its structural analogs. Anal. Chim. Acta 2009, 639, 42–50. [Google Scholar]
  33. Yoshiyuki, W.; Hosoya, K.; Tanaka, N.; Takuya, K.; Takuya, K.; Masatoshi, M. Novel surface modified molecularly imprinted polymer focused on the removal of interference in environmental water samples for chromatographic determination. J. Chromatogr. A 2005, 1073, 363–370. [Google Scholar]
  34. Lopez, C.; Claude, B.; Morin, P.; Max, J.P.; Pena, R.; Ribet, J.P. Synthesis and study of a molecularly imprinted polymer for the specific extraction of indole alkaloids from Catharanthus roseus extracts. Anal. Chim. Acta 2011, 683, 198–205. [Google Scholar]
  35. Turner, N.W.; Holdsworth, C.I.; Donne, S.W.; Adam, M.; Bowyer, M.C. Microwave induced MIP synthesis: comparative analysis of thermal and microwave induced polymerisation of caffeine imprinted polymers. New J. Chem 2010, 34, 686–692. [Google Scholar]
Ijms 15 00574f1 1024

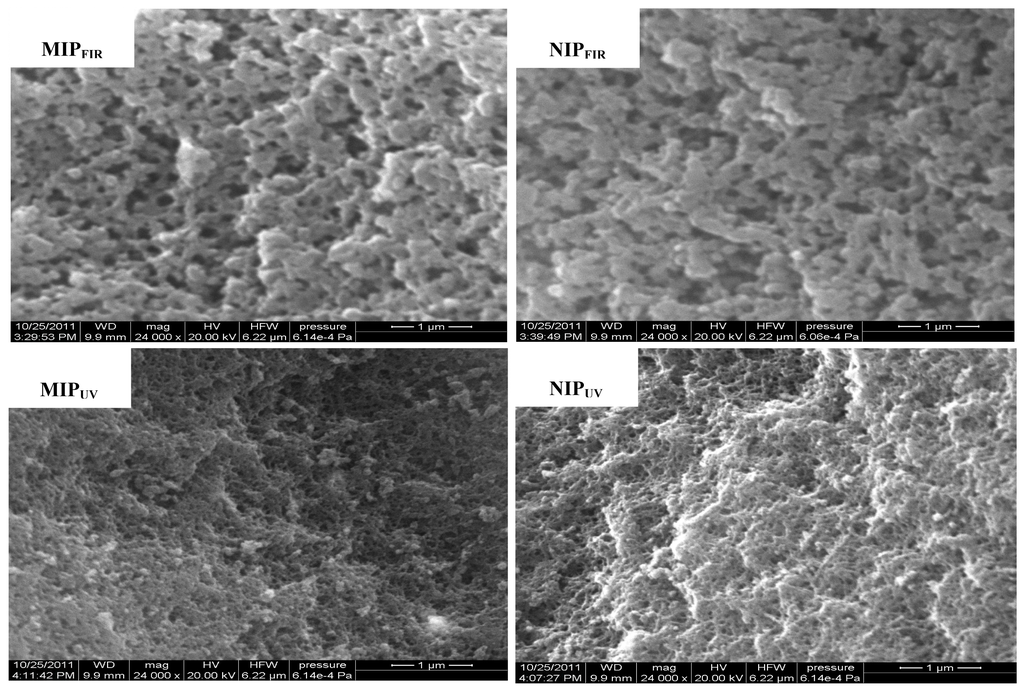

Figure 1. SEM of MIPs and NIPs prepared by FIR- and UV-polymerization methods.

Click here to enlarge figure

Figure 1. SEM of MIPs and NIPs prepared by FIR- and UV-polymerization methods.
Ijms 15 00574f1 1024
Ijms 15 00574f2 1024

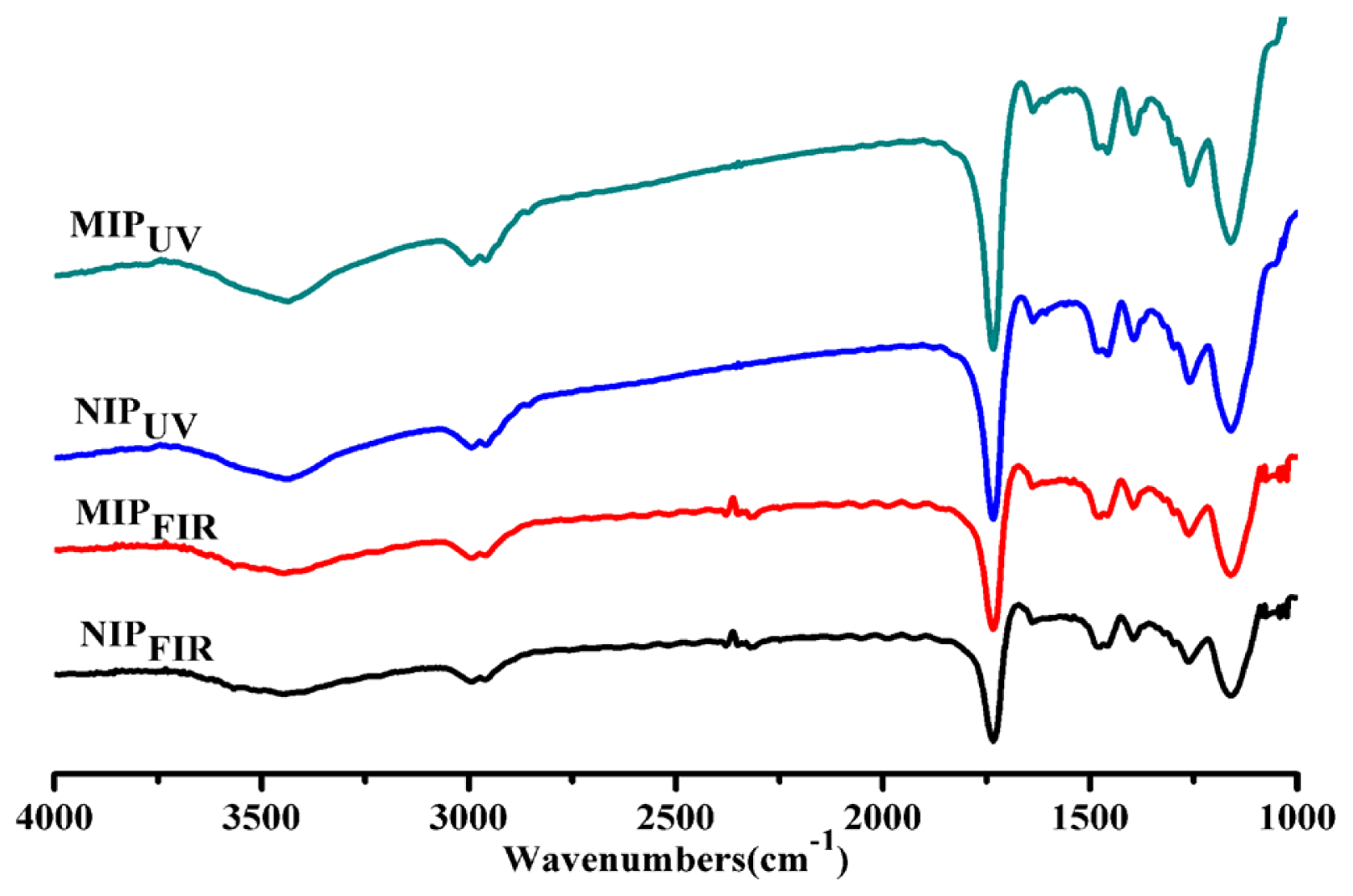

Figure 2. Comparative IR spectra of prepared materials by FIR- and UV-polymerization methods.

Click here to enlarge figure

Figure 2. Comparative IR spectra of prepared materials by FIR- and UV-polymerization methods.
Ijms 15 00574f2 1024
Ijms 15 00574f3 1024

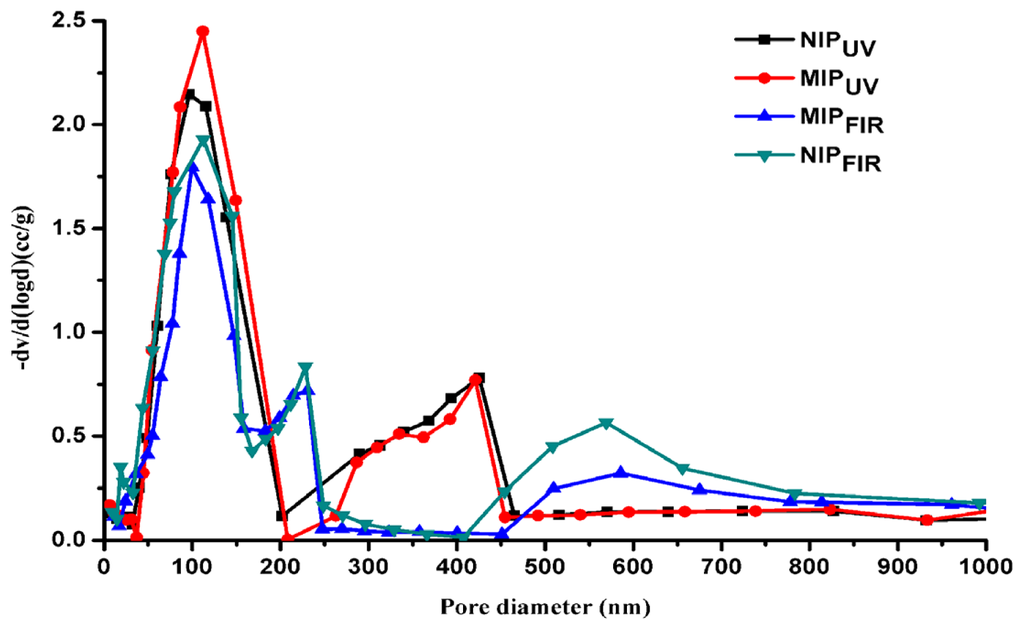

Figure 3. Comparative pore-size distribution of both FIR- and UV-polymerization polymers.

Click here to enlarge figure

Figure 3. Comparative pore-size distribution of both FIR- and UV-polymerization polymers.
Ijms 15 00574f3 1024
Ijms 15 00574f4 1024
Figure 4. Comparison of equilibrium absorption obtained in separated experiments for both FIR and UV polymerization polymers.

Click here to enlarge figure

Figure 4. Comparison of equilibrium absorption obtained in separated experiments for both FIR and UV polymerization polymers.
Ijms 15 00574f4 1024
Ijms 15 00574f5 1024

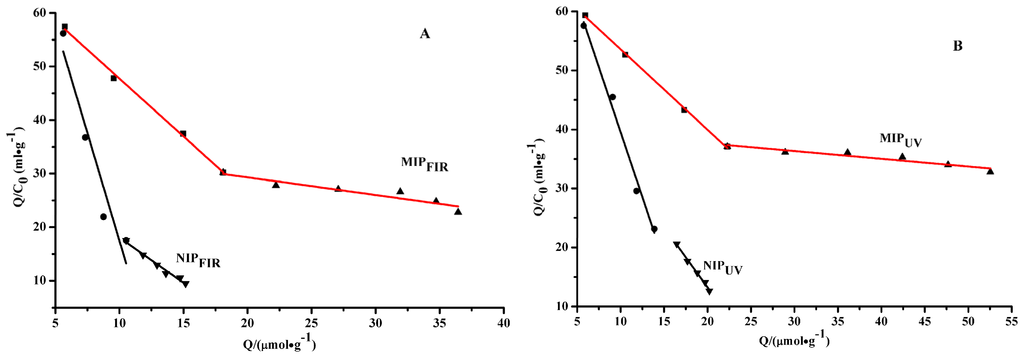

Figure 5. Scatchard plot over 0.1–1.6 mmol/L concentration range for FIR- (A) and UV-polymerisation materials (B).

Click here to enlarge figure

Figure 5. Scatchard plot over 0.1–1.6 mmol/L concentration range for FIR- (A) and UV-polymerisation materials (B).
Ijms 15 00574f5 1024
Ijms 15 00574f6 1024

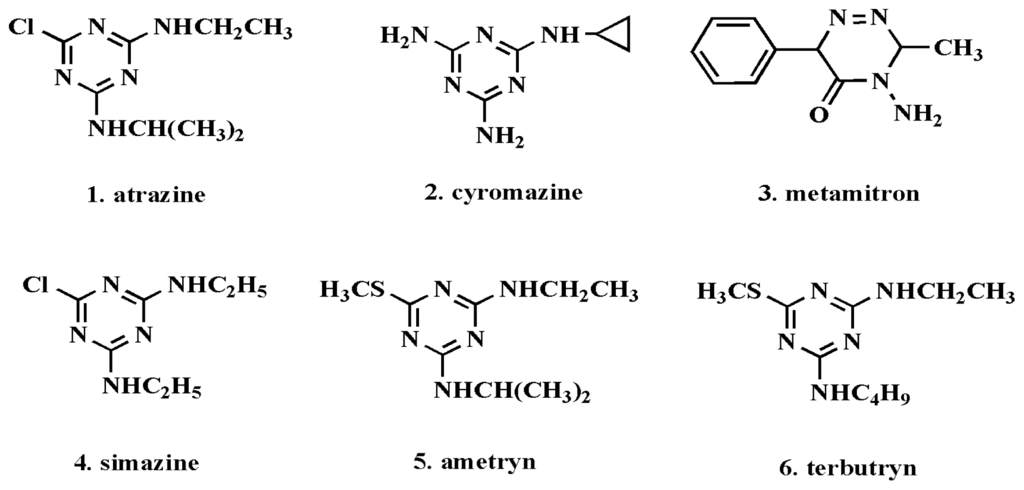

Figure 6. Molecular structure of six analytes for the specificity study.

Click here to enlarge figure

Figure 6. Molecular structure of six analytes for the specificity study.
Ijms 15 00574f6 1024
Ijms 15 00574f7 1024

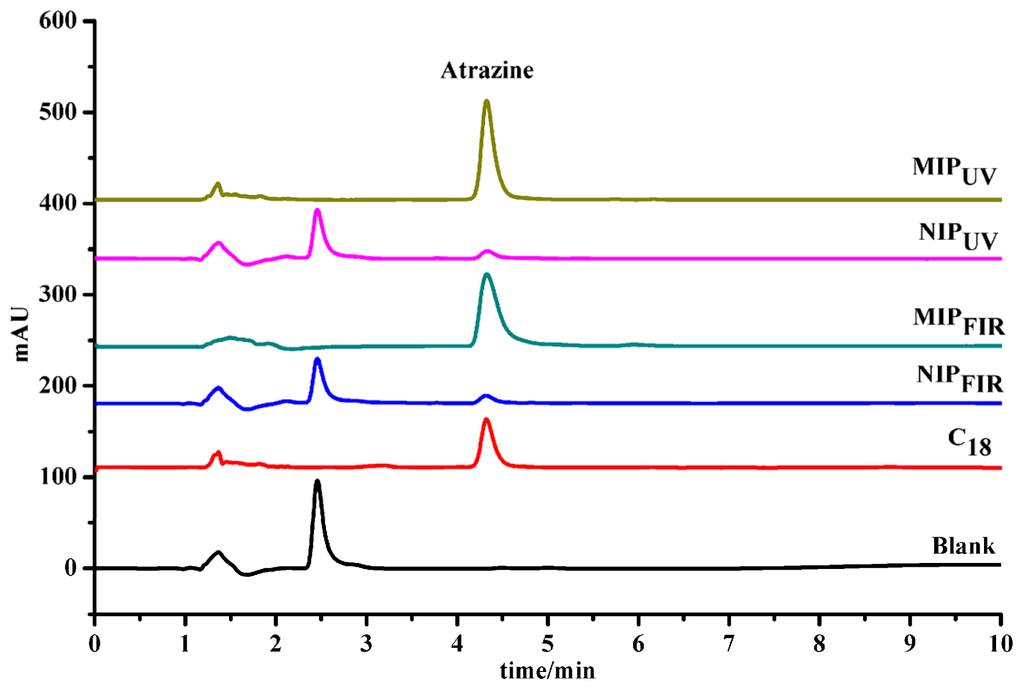

Figure 7. Comparative HPLC chromatograms of the spiked lake water of atrazine with a final concentration 5 mg/L on MIP-SPE and C18-SPE columns.

Click here to enlarge figure

Figure 7. Comparative HPLC chromatograms of the spiked lake water of atrazine with a final concentration 5 mg/L on MIP-SPE and C18-SPE columns.
Ijms 15 00574f7 1024
Ijms 15 00574f8 1024

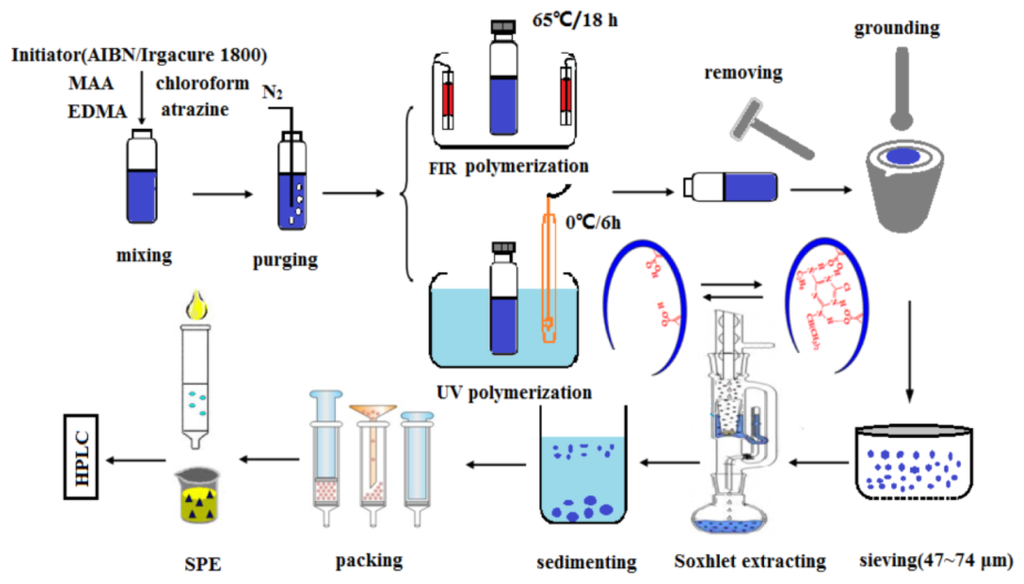

Figure 8. Schematic representative of preparation of atrazine imprinted polymers for SPE.

Click here to enlarge figure

Figure 8. Schematic representative of preparation of atrazine imprinted polymers for SPE.
Ijms 15 00574f8 1024
Table Table 1. Physical properties of the MIPs and NIPs determined by MA.

Click here to display table

Table 1. Physical properties of the MIPs and NIPs determined by MA.
PolymerTotal pore volume (cm3/g)Surface area (m2/g)Total porosity (%)
MIPFIR0.44198.9264.58
NIPFIR0.39145.7452.93
MIPUV0.52213.9283.64
NIPUV0.48179.2577.13
Table Table 2. The adsorption parameter of MIPs and NIPs.

Click here to display table

Table 2. The adsorption parameter of MIPs and NIPs.
PolymerLinear regression equationKa1 × 10−4 (mol/L)Qmax1 (μmol/g)Ka2 × 10−4 (mol/L)Qmax2 (μmol/g)

High-affinityLow-affinity
MIPFIRQ/C = 66.39 − 1.86QQ/C = 35.23 − 0.31Q5.3835.7032.30113.93
NIPFIRQ/C = 117.13 − 10.89QQ/C = 34.95 − 1.69Q0.9210.765.9320.70
MIPUVQ/C = 67.23 − 1.37QQ/C = 40.26 − 0.13Q7.3349.2576.50307.78
NIPUVQ/C = 83.02 − 4.41QQ/C = 54.04 − 2.04Q2.2718.964.9026.49
Table Table 3. Maximum binding number (Qmax), imprinting factors (IF) and standardized selectivity index (SI) for MIPFIR, MIPUV, NIPFIR and NIPUV (n = 6).

Click here to display table

Table 3. Maximum binding number (Qmax), imprinting factors (IF) and standardized selectivity index (SI) for MIPFIR, MIPUV, NIPFIR and NIPUV (n = 6).
SubstrateQMIP (μmol/g)QNIP (μmol/g)IFSI




FIRUVFIRUVFIRUVFIRUV
atrazine27.1236.1212.9617.472.092.071.001.00
cyromazine20.7128.5712.4317.641.671.620.740.79
metamitron12.0214.2910.8511.251.111.270.490.62
simazine18.5525.5211.5915.661.601.630.710.79
ametryn15.1323.8711.0716.131.371.480.610.72
terbutryn14.0122.6111.3116.871.241.340.550.65
Table Table 4. Recoveries of atrazine obtained from spiked lake water samples.

Click here to display table

Table 4. Recoveries of atrazine obtained from spiked lake water samples.
PolymerStandard addition amount (mg/L)Determined (mg/L)Recovery rate (%)RSD (n = 3) (%)
MIPFIR0.50.4794.75.28
10.9797.15.12
54.8997.84.85
109.0890.83.27
2019.2190.12.76

MIPUV0.50.4794.67.13
10.9595.34.52
54.9298.44.13
109.4494.43.47
2020.37101.95.92

C180.50.4590.37.49
10.8686.43.78
54.5691.24.26
108.9589.52.51
2018.9694.82.17
