Int. J. Mol. Sci. 2014, 15(1), 484-503; doi:10.3390/ijms15010484

Article
The Inhibitory Effect of Quercetin on Asymmetric Dimethylarginine-Induced Apoptosis Is Mediated by the Endoplasmic Reticulum Stress Pathway in Glomerular Endothelial Cells
Weikang Guo , Jiaxiang Ding , Aihua Zhang , Wendi Dai , Sha Liu , Zongli Diao , Liyan Wang , Xue Han and Wenhu Liu *
Department of Nephrology, Beijing Friendship Hospital, Faculty of Kidney Diseases, Capital Medical University, Beijing 100050, China; E-Mails: gwk0777@gmail.com (W.G.); mattding@163.com (J.D.); zhah0351@126.com (A.Z.); dianadwd@163.com (W.D.); liusha201304@163.com (S.L.); diaoted@163.com (Z.D.); wangliyan7731@sina.com (L.W.); whysnowman@126.com (X.H.)
*
Author to whom correspondence should be addressed; E-Mail: nephro@ccmu.edu.cn; Tel./Fax: +86-10-6313-9144.
Received: 10 October 2013; in revised form: 12 December 2013 / Accepted: 16 December 2013 /
Published: 2 January 2014

Abstract

: Asymmetric dimethylarginine (ADMA) is considered an independent mortality and cardiovascular risk factor in chronic kidney disease (CKD) patients, and contributes to the development of renal fibrosis. Quercetin (QC), a natural component of foods, protects against renal injury. Here, we explored the possible mechanisms that are responsible for ADMA-induced renal fibrosis and the protective effect of QC. We found that ADMA treatment activated the endoplasmic reticulum (ER) stress sensor proteins phosphorylated protein kinase RNA-activated-like ER kinase (PERK) and inositol requiring-1α (IRE1), which correspondingly induced C/EBP homologous protein (CHOP) expression and phosphorylated c-Jun N-terminal kinase (JNK) phosphorylation in glomerular endothelial cells (GEnCs). Following this, ADMA promoted ER stress-induced apoptosis and resulted in transforming growth factor β (TGF-β) expression in GEnCs. SP600125, an inhibitor of JNK, and CHOP siRNA protected against ADMA-induced cell apoptosis and TGF-β expression. QC prevented ADMA-induced PERK and IRE1 apoptotic ER stress pathway activation. Also, ADMA-induced GEnCs apoptosis and TGF-β expression was reduced by QC. Overexpression of CHOP blocked QC-mediated protection from apoptosis in ER stressed cells. Overall, these observations indicate that ADMA may induce GEnCs apoptosis and TGF-β expression by targeting the PERK-CHOP and IRE1-JNK pathway. In addition, drugs such as QC targeting ER stress may hold great promise for the development of novel therapies against ADMA-induced renal fibrosis.
Keywords:
ER stress; apoptosis; ADMA; TGF-β; quercetin

1. Introduction

Asymmetric dimethylarginine (ω-NG, NG-asymmetric dimethylarginine; ADMA) is a residue of the proteolysis of arginine methylated proteins, and an endogenous competitive inhibitor of nitric oxide synthase (NOS) enzymes at supraphysiological concentrations, although the physiological relevance of this inhibition remains unclear [1]. Many studies have reported on the accumulation of ADMA in chronic kidney disease (CKD) patients. Indeed, blood concentrations of ADMA are markedly increased at a very early stage, even when glomerular filtration rate (GFR) is still within the normal range [2]. Increased ADMA induces glomerular and tubulointerstitial fibrosis and accelerates renal dysfunction progression [36].

Apoptosis of glomerular endothelial cells (GEnC) is known to correlate directly with the development of glomerular scarring, which eventually leads to glomerular sclerosis [7,8]. However, the mechanism of GEnC apoptosis is not well understood. Evidence suggests that endoplasmic reticulum (ER) stress plays an important role in the decision of cell survival and death [9]. ER stress is triggered when unfolded or misfolded proteins are overloaded in the ER. To improve and maintain ER function against such stress, cells adapt themselves via the unfolded protein response (UPR), such as attenuation of general translation, induction of ER chaperones and foldases, and activation of ER-associated degradation (ERAD) to eliminate immature proteins. However, when ER stress is either severe or prolonged, apoptosis programs are activated to remove damaged cells. One of the mechanisms of ER stress-induced cell death involves protein kinase RNA-activated-like ER kinase (PERK)-mediated eukaryotic translation initiation factor 2α (eIF2α) phosphorylation, preferential translation of activating transcription factor 4 (ATF4) and induction of C/EBP homologous protein (CHOP, also called growth arrest and DNA-damage-inducible 153, GADD153). Another apoptotic ER stress pathway is triggered by inositol requiring-1α (IRE1), which activates apoptosis signal-regulating kinase-1 and c-Jun N-terminal kinase (JNK), eventually inducing cell apoptosis [9,10]. Until now, it is still unknown whether ER stress participates in GEnC apoptosis to accelerate the progression of renal fibrosis. Therefore, in this study we investigated the possible involvement of the ER stress signaling pathway in ADMA-induced apoptosis in GEnCs.

Quercetin (QC), one of the most important flavonoids, has been extensively studied because of its wide distribution in various foods. In addition to its antioxidant effect, there are an impressive number of enzymes whose activities are modulated (mostly inhibited) by QC [11]. The modulation of certain cell functions by QC may contribute to its beneficial effects. Evidence from in vitro and animal studies indicated that QC exerts a broad range of pharmacological effects, such as anti-platelet aggregation, endothelium-independent vasodilator effects, anti-hypertension, lipoxygenase inhibition and reduction of adhesion molecules and other inflammatory markers [11]. Especially in recent years, many reports have indicated that QC showed protective effects on renal injury [1216]. To date, most research has focused on QC’s antioxidant effects; however, QC can potentially modulate many molecules. Thus, it may act by multiple mechanisms in the protection of cells from injury. The precise mechanisms by which QC exerts its positive effects on renal disease have yet to be elucidated. Therefore, we explored the protective mechanism of QC on ADMA-induced GEnC apoptosis. In particular, we characterized: (i) ADMA induced cell apoptosis and TGF-β expression in GEnCs; (ii) ER stress pathways participated in ADMA-induced GEnC apoptosis; and (iii) QC inhibited of ADMA-induced GEnC apoptosis and TGF-β expression by targeting ER stress pathways.

2. Results

2.1. QC Inhibited ADMA-Induced Apoptosis in GEnCs

Apoptotic (annexin V+/PI), dead (annexin V+/PI+) and viable cells (annexin V/PI) were separated on the basis of double labeling for annexin V-FITC and PI, a membrane DNA stain. It was revealed that treatment with ADMA (100 μM) for 12–48 h increased the percentage of apoptotic cells (Figure 1A,B). Cells treatment with 24 h showed the maximum number of apoptotic cells. However, the percentage of dead cells (annexin V+/PI+) increased in a time-dependent manner (Figure 1A). Moreover, in comparison with different doses of ADMA (50–200 μM)-treated cells for 24 h, 100 μM ADMA-treated GEnCs displayed the highest percentage of apoptotic cells (Figure 1C,D).

Further, we analyzed the cleaved caspase-3, a critical executioner of apoptosis. We found that ADMA increased cleaved caspase-3 expression in time- and dose-dependent manner (Figure 1E,F).

2.2. Role of ER Stress in ADMA-Mediated GEnC Apoptosis

The ER stress pathway was recently shown to be directly involved in the induction of cell apoptosis, and previous studies have identified the induction of ER stress in models of membranous nephropathy [17], nephrotic syndrome [18], and focal segmental glomerulosclerosis [19]. Therefore, we examined whether ER stress was involved in ADMA-mediated GEnC apoptosis. One component of the proapoptotic signal generated by ER stress is delivered via PERK, with downstream activation of ATF4 and CHOP. We found that the expression of ATF4 mRNA, CHOP protein and mRNA were increased after treatment with 100 μM ADMA for 12–48 h (Figure 2A,B). The induction of CHOP and ATF4 reached a peak after treatment with ADMA for 24 h (Figure 2A,B). Furthermore, even when GEnCs were exposed to a relatively low dose of ADMA (50 μM) for 24 h, CHOP and ATF4 expression was higher than that of the control groups (Figure 2C,D). The time-curve and dose-curve results of CHOP and ATF4 expression are generally consistent with prior results of the apoptosis analysis. To assess the role of CHOP as a potential mediator of GEnC apoptosis, GEnCs were transfected with siRNA for CHOP (siCHOP) or control siRNA (siCont). siCHOP transfection decreased CHOP expression in GEnCs exposed to ADMA when compared with control siRNA-transfected cells (Supplementary Figure S1). Reduced CHOP expression by siCHOP resulted in protection against ADMA-induced apoptosis (Figure 2E).

Prolonged activation of IRE1 can also trigger apoptosis in cells under certain physiologic and pathophysiologic conditions. IRE1 promotes a cascade of phosphorylation events that ultimately activates JNK. Given the links between JNK activity and apoptosis, JNK activity may link IRE1-mediated ER stress signaling to cell death. We found that ADMA increased IRE1 protein expression and JNK phosphorylation levels (Figure 3A,B). The time-curve and dose-curve results of IRE1 expression were basically consistent with previous results of the apoptotic analysis (Figure 1A,B). In contrast with IRE1 expression, JNK phosphorylation reached the plateau at 12 h upon 100 μM ADMA treatment in GEnCs. When GEnCs were exposed to different doses of ADMA (50–200 μM), p-JNK was at its highest level under 50 μM of ADMA treatment (Figure 3A,B). The different time-curve and dose-curve data of JNK phosphorylation compared with IRE1 expression indicated that other factors may also regulate JNK activation in ADMA-induced GEnC apoptosis. SP600125, a specific inhibitor of JNK, protected cells from ADMA-induced apoptosis (Figure 3C). All these findings suggest that both PERK-CHOP and IRE1-JNK ER stress pathways are involved in ADMA-induced apoptosis in GEnCs.

2.3. QC Suppressed ADMA-Induced ER Stress in GEnCs

Some studies have suggested that QC has a renal-protective role against kidney disease [1216]. To test the hypothesis that QC suppresses ADMA-induced GEnC apoptosis and exerts a renal-protective effect, GEnCs were pretreated in the absence or presence of 20 μM QC and then subjected to ADMA stimulation. QC pre-treatment markedly decreased ADMA-induced apoptosis (Figure 4A,B). We speculated that the anti-apoptotic effect of QC on ADMA-treated GEnCs was due to ER stress suppression. Consistent with our speculation, PERK phosphorylation, ATF4 and CHOP protein expression were reduced in the QC-pretreated group when compared with ADMA treatment alone (Figure 5A). Furthermore, the induction of ATF4 and CHOP mRNA by ADMA was also reduced after QC treatment (Figure 5B). We next used the CHOP/GADD153 cDNA-containing plasmid (pcDNA3.1-GADD153) to overexpress CHOP. After transfection with pcDNA3.1-GADD153, CHOP expression increased (Supplementary Figure S2). Transfection with pcDNA3.1-GADD153 restored CHOP expression in QC-pretreated, ADMA-stimulated GEnCs to a level similar to that in GEnCs, which were not pretreated with QC (data not shown). Cell apoptosis was reinstated in cells transiently transfected with pcDNA3.1-GADD153 in a dose-dependent manner (Figure 5C), which indicated that restoration of CHOP prevented QC-mediated protection from ADMA-induced apoptosis. Treatment with pcDNA3.1-GADD153 alone did not lead to an increase of GEnC apoptosis (data not shown). Thus, these data suggest that the suppression of CHOP may be one of the mechanisms by which QC prevents ADMA-induced GEnC apoptosis.

Next, we investigated whether the IRE1 branch of the UPR was also inhibited by QC. We found that QC also inhibited ADMA-induced IRE1 expression and JNK phosphorylation. (Figure 5D). The level of p-c-Jun, a major downstream target of JNK, was also increased after treatment with ADMA. Unsurprisingly, this effect was weakened by QC pretreatment (Figure 5E).

2.4. QC Inhibits ADMA-Induced TGF-β Expression in GEnCs

To investigate whether ER stress is involved in renal fibrosis, the expression of TGF-β was examined in GEnCs. Our results showed that ADMA induced the expression of TGF-β, while down-regulation of CHOP by siRNA or inhibition of JNK by SP600125 decreased the expression of TGF-β. This result indicates that CHOP and JNK are mediators of ADMA-induced TGF-β expression (Figure 6A,B). Furthermore, we found that QC apparently inhibited ADMA-induced TGF-β expression (Figure 6C). Therefore, QC may exert an anti-fibrotic effect by inhibiting TGF-β expression.

3. Discussion

Apoptosis of GEnCs is an important factor involved in the development of glomerular sclerosis [7]. Accumulation of ADMA has been shown to promote glomerular sclerosis in a rat model of CKD [20]. However, whether ADMA directly induces GEnC apoptosis in vitro is unknown. In this study, we demonstrated that ADMA promoted GEnC from apoptosis. This may be one of the mechanism(s) whereby ADMA promotes the development of glomerular sclerosis.

Apoptosis is a genetically programmed mechanism that allows cells to commit suicide. It has been shown that it can be initiated or inhibited by a variety of environmental stimuli, both physiological and pathological. The extrinsic and intrinsic pathways represent two major well-studied apoptotic processes. The extrinsic pathway, exemplified by the ligation of tumor necrosis factor α receptor (TNFR), leads to self-association of cell-surface receptors and the recruitment of caspases to the activated receptor. By contrast, intrinsic apoptotic stimuli acts chiefly on the Bcl-2 family of proteins. The center of this pathway is cytochrome-c, which is released from mitochondria [21]. However, it is against this backdrop that the initiation of apoptosis by ER stress further clouds the comprehensive understanding of the initiation of apoptosis. The ER is the site of synthesis, folding and modification of secretory and cell-surface proteins. ER dysfunction causes aberrant protein folding in the ER lumen. The accumulation of these aberrant unfolded proteins in turn induces ER stress, which upregulates the capacity of the ER to process abnormal proteins [22,23]. ER stress initially aims to promote cell survival, but if ER stress persists or is prolonged, it also activates pathways leading to cell death.

Recent investigations suggested roles of ER stress in some types of glomerular disorders, especially proteinuric diseases caused by injury of podocytes [23]. But whether ER stress is involved in the apoptosis in GEnCs is unknown. In this study, we first found that the PERK branch of the UPR was involved in ADMA-induced apoptosis in GEnCs. We found that ADMA induced PERK expression and selectively activated the proapoptotic protein CHOP. SiRNA targeting CHOP effectively inhibited ADMA-induced GEnC apoptosis, indicating that the PERK-CHOP pathway plays an important part in ADMA-induced GEnC apoptosis and that drugs targeting PERK-CHOP may alleviate ADMA-induced apoptosis. In addition, we noticed that knocking down CHOP did not decrease cell apoptosis to control levels. Therefore, we examined whether the IRE1 branch of the UPR was also involved in ADMA-induced apoptosis. We found that ADMA induced IRE1 expression and JNK phosphorylation. Our results indicated that two apoptotic ER stress pathways were involved in ADMA-triggered GEnC apoptosis.

In the normal population, plasma levels of ADMA are 0.92–0.11 μM [24,25]. Plasma levels of ADMA increase during pre-eclampsia, hypertension, hypertriglyceridemia, end-stage renal disease, type 2 diabetes, and congestive heart failure. Hemodialysis (HD)-treated patients with atherosclerosis exhibit significantly higher ADMA levels of up to 7.31 μM [26]. After long-term accumulation in the human body, ADMA gives rise to a number of pathophysiological changes. When we performed experiments to study the toxicity mechanisms of ADMA in vitro, much larger doses than pathological concentrations in clinical patients were required. Previous studies have shown that 100 μM ADMA is less toxic, but maximizes the biological effect in vitro [2730]. The effects of low doses of ADMA in conjunction with long-term stimulation upon ER stress activation still need to be further studied in vivo.

QC is a phytochemical compound belonging to the flavonoid family and is the most ubiquitous of the dietary flavonoids. QC is reported to be a potent antioxidant [31,32] and to inhibit enzyme activity [33], inflammatory processes [34], and adhesion molecule expression [35]. In the clinic, QC is used to treat a variety of diseases such as allergies, asthma, bacterial infections, arthritis, gout, eye disorders, hypertension, neurodegenerative disorders and CKDs. In animal experiments, the administration of QC has been shown to be of benefit in the prevention and attenuation of renal injury in numerous models of kidney disease [1316]. Treatment with QC significantly attenuated renal dysfunction and oxidative stress in diabetic rats [13], and was protective against ischemia/reperfusion-induced renal injury, cyclosporine (CsA)-induced renal dysfunction and chronic cadmium nephrotoxicity [1416]. However, the protective mechanism of QC is not well understood.

In tumor cells, QC has been shown to induce cell apoptosis and exert an anti-tumor effect [3638]. However, Aalinkeel and colleagues [39] revealed that QC selectively induced cell apoptosis in prostate cancer cells while exerting no effect on normal prostate epithelial cells. Similar to the above results, Jeong et al. [40] reported that relatively low doses of QC (1–10 μM) administered to breast cancer cells induce cell cycle arrest at the G0/G1 phase while the proliferation of normal breast epithelium was not affected by 10 μM QC, which suggests that QC has a cancer-specific anti-proliferative effect. Moreover, researchers found that in normal cells, QC inhibited apoptosis induced by various stimuli, such as hydrogen peroxide, glucose oxidase, and oxidized low-density lipoprotein [4143]. The complicated effects of QC prompted us to further explore the effect of QC on ADMA-induced apoptosis. We carried out experiments and found that QC inhibited ADMA-induced apoptosis. This result is consistent with previous results in normal cells. Therefore, in normal injured cells, QC may exert a protective effect.

Because of the complexity of QC on apoptosis, the effects of QC on ER stress were also inconsistent. QC induced ER stress in cancer cells [44], while it inhibited ER stress when normal cells encountered ischemia/reperfusion injury [45]. Based on the previous observation of QC inhibiting ADMA-induced apoptosis, we speculated that QC may inhibit ADMA-induced ER stress. Indeed, we found that QC interfered with the PERK-CHOP- and IRE1-JNK-mediated apoptotic pathway. Overexpression of CHOP canceled the protective effect of QC on ADMA-induced apoptosis. We concluded that inhibition of the ER stress was an important mechanism of QC during ADMA-induced cell apoptosis.

Wiseman et al. [46] reported that QC activates IRE1 through a site distinct from the nucleotide-binding site. We also notice that PERK phosphorylation and IRE1 expression was higher than that of control cells when GEnCs were treated with QC alone. To explore the reasons why QC treatment induced ER stress, we examined the proliferation and change in the cell cycle upon QC treatment using the tetrazolium-based colorimetric assay (MTT) and flow cytometry. No significant changes were observed (data not shown). Other studies also indicated that concentrations of 10–50 μM QC are considered to be pharmacologically safe in endothelial cells [4749]. According to some published results, in cancer cells, QC treatment can cause apoptosis via the ER stress pathway [44]. In our experiments, GEnCs did not show any apparent apoptosis by QC treatment, but it did cause ER stress. Therefore, QC may have contrasting effects under different conditions. As such, the mechanisms and implications of QC-induced ER stress in GEnCs remain to be elucidated.

Apoptotic cells release cytokines such as TGF-β, which is a major profibrotic mediator in CKD [50]. TGF-β stimulates the synthesis of extracellular matrix molecules including fibronectin, laminin, type I collagen and type IV collagen, which contributes to the progression of renal fibrosis [51]. In this study, we also demonstrated that ADMA induced TGF-β synthesis. Increased TGF-β synthesis was mediated by CHOP and JNK. Furthermore, QC inhibited ADMA-induced TGF-β expression. Therefore, QC may play a potential role in preventing renal fibrosis. The antifibrotic effects of QC are induced by a complex mechanism that involves the inhibition of apoptotic signaling pathways, such as PERK-CHOP and IRE1-JNK, and the reduction of apoptosis-related cytokines, such as TGF-β.

4. Materials and Methods

4.1. Chemical Reagents

ADMA and QC were purchased from Sigma-Aldrich (St. Louis, MO, USA). ATF4, PERK, p-PERK, phosphorylated c-Jun and β-actin antibodies were purchased from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA). IRE1, c-Jun N-terminal kinase (JNK), p-JNK and cleaved-caspase-3 antibodies were bought from Cell Signaling Technology (Beverly, MA, USA). CHOP/GADD153 antibody was obtained from Abcam Inc. (Cambridge, MA, USA). All other reagents, except where stated, were of molecular biology grade and were purchased from Sigma-Aldrich.

4.2. Cell Culture

Primary GEnCs were purchased from Sciencell Inc. (Carlsbad, CA, USA). GEnCs were cultured in fibronectin-coated flasks using endothelial cell medium (ECM, Sciencell Inc., Carlsbad, CA, USA) with bullet kit additives (Sciencell Inc.) and 10% (v/v) fetal bovine serum (Sciencell Inc.). GEnCs used in the experiments were between 3 and 4 passages.

4.3. Apoptosis Assays

For detection of apoptotic cells, cells were washed twice in phosphate-buffered saline (PBS) and then stained with the fluorescein isothiocyanate (FITC) Annexin V Apoptosis Detection Kit (BD Biosciences, San Diego, CA, USA) according to the manufacturer’s instructions. Thereafter, cells were analyzed by fluorescence-activated cell sorting (FACS) within 1 h on a FACS Calibur with Cell Quest software (Beckman Coulter, Fullerton, CA, USA). Cells that were annexin V-FITC- and propidium iodide (PI)-negative were viable. Early apoptotic cells stained positive for annexin V-FITC only. Cells positive for both annexin V-FITC and PI were designated as dead cells, either as a result of late apoptosis or necrosis. The percentages of annexin V-positive cells within the PI-negative population were then calculated after flow cytometric analysis.

4.4. Western Blot Analysis

Cells were washed twice with ice-cold PBS and harvested in RIPA buffer (50 mM Tris-HCl, pH 7.4, 150 mM NaCl, 0.25 mM EDTA, pH 8.0, 1% (w/v) deoxycholic acid, 1% (v/v) Triton X-100, 5 mM NaF, 1 mM sodium orthovanadate) containing protease inhibitors. Protein samples (20 μg) were separated on a 10% (w/v) SDS polyacrylamide and transferred to nitrocellulose membrane (Amersham International plc., Cardiff, UK) electrophoretically. Membranes were blocked with 5% (w/v) nonfat milk in tris-buffered saline (TBS) containing 0.1% (v/v) Tween 20 (TBST) for 2.5 h, followed by an overnight incubation with primary antibodies at 4 °C. The membranes were hybridized with horseradish peroxidase-conjugated secondary antibodies for 1 h, processed using the enhanced chemiluminescence (ECL) kit (Millipore Co., Billerica, MA, USA) and then exposed to Kodak X-OMAT film (Eastman Kodak Inc., New York, NY, USA). The primary antibodies used in this study were as follows: anti-CHOP, anti-ATF4, anti-p-PERK, anti-PERK or anti-β-actin.

4.5. Estimation of mRNA Levels

Total RNA was isolated from GEnC using Trizol (Invitrogen Life Technologies, Carlsbad, CA, USA) and reverse transcribed using the Reverse Transcription System according to the manufacturer’s instructions (Promega Corporation, Madison, WI, USA). Quantitative real-time reverse transcription-PCR (RT-PCR) was carried out using a 7300 Real-time PCR System (Applied Biosystems, Foster City, CA, USA) with Power SYBR Green PCR Master Mix (Applied Biosystems) according to the manufacturer’s instructions to quantify the expression levels of ATF4 and CHOP mRNA normalized to glyceraldehyde-3-phosphate dehydrogenase (GAPDH). All reactions were performed in triplicate with samples derived from three independent experiments. The following sequences of the forward and reverse primer pairs were used: CHOP forward primer 5′-ACC ACT CTT GAC CCT GCT TCT-3′ and reverse primer 5′-GCC ACT TTC CTT TCA TTC TCC-3′; ATF4 forward primer 5′-CCC CTT CAC CTT CTT ACA ACC-3′ and reverse primer 5′-GGG CTC ATA CAG ATG CCA CTA-3′; GAPDH forward primer 5′-AGA AGG CTG GGG CTC ATT TG-3′ and reverse primer 5′-AGG GGC CAT CCA CAG TCT TC-3′.

4.6. Transfection of Silencing RNA (siRNA)

Predesigned siRNAs against human CHOP (siCHOP, Invitrogen, Carlsbad, CA, USA, cat. no. 4392420) and control scrambled siRNA (siCont, Invitrogen, cat. no. 4390843) were purchased from Invitrogen Inc. The siRNA was transfected into GEnC using Lipofectamine RNAiMAX Reagent (Invitrogen) according to the manufacturer’s instructions. Briefly, cells were plated onto 6-well plates at 1.0 × 105 cells in ECM without antibiotics and grown to 30%–50% confluence before transfection. The siRNAs were diluted to give a final concentration of 15 nM in Opti-MEM I (Invitrogen). Next, Lipofectamine RNAiMAX Reagent (Invitrogen) was added and the mixture was incubated at room temperature for 20 min. The cells were incubated with RNAi duplex-Lipofectamine RNAiMAX complexes in serum-free conditions for 6 h at 37 °C. The media was replaced, and cells were incubated for an additional 24 h before beginning the experiment.

4.7. Plasmid Preparation

For transfection of the plasmid expression vector encoding human GADD153, the DNA sequence containing the GADD153 open reading frame (ORF) flanked by HindIII/XhoI restriction sites was PCR amplified from HeLa cells. Primers were designed to introduce the Kozak sequence to increase translation (5′-AGG GAG ACC CAA GCT TGC CAC CAT GGA TAT GGA GCT TGT TCC AGC CAC-3′ and 5′-TAG ATG CAT GCT CGA GTC ACT TAT CGT CGT CAT CCT TGT AAT CTG CTT GGT GCA GAT TCA CCA-3′). The resulting fragment was inserted into HindIII-XhoI precut pcDNA3.1-FLAG (Invitrogen) to generate pcDNA3.1-GADD153-FLAG. The desired sequence was confirmed by direct DNA sequencing. The transfections were carried out by Lipofectamine LTX and PLUS Reagents (Invitrogen) according to the manufacturer’s protocol.

4.8. Enzyme-Linked Immunosorbent Assay (ELISA)

TGF-β1 levels were measured by ELISA using commercial assay Kits (R&D Systems, Minneapolis, MN, USA) according to the manufacturer’s instructions. The lower threshold of sensitivity of the TGF-β1 assays ranged from 1.7 to 15.4 pg/mL. The TGF-β1 concentration in the supernatants was calculated by normalizing standard twice-diluted series. Each individual sample was determined in triplicate.

4.9. Statistical Analysis

Data were expressed as the mean ± S.E. Comparisons between experimental groups were made by one-way ANOVA. The differences in the mean values were considered significant at p < 0.05.

5. Conclusions

In summary, the present data reveal mechanisms involved in the anti-apoptotic potential of QC on ADMA-induced GEnC apoptosis. To our knowledge, this is the first report to demonstrate that ADMA-induced GEnC apoptosis depends on the PERK and IRE1 ER stress apoptotic pathway, and that QC inhibits ADMA-induced GEnC apoptosis by targeting PERK-CHOP and IRE1-JNK.

Supplementary Information

Acknowledgments

The authors would like to thank the Beijing Municipal Science and Technology Commission Funds (D131100004713001) and Traditional Chinese Medical Science and Technology Development Fund (JJ2012-31) for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vallance, P.; Leone, A.; Calver, A.; Collier, J.; Moncada, S. Accumulation of an endogenous inhibitor of nitric oxide synthesis in chronic renal failure. Lancet 1992, 339, 572–575.
  2. Kielstein, J.T.; Böger, R.H.; Bode-Böger, S.M.; Frölich, J.C.; Haller, H.; Ritz, E.; Fliser, D. Marked increase of asymmetric dimethylarginine in patients with incipient primary chronic renal disease. J. Am. Soc. Nephrol 2002, 13, 170–176.
  3. Mihout, F.; Shweke, N.; Bigé, N.; Jouanneau, C.; Dussaule, J.C.; Ronco, P.; Chatziantoniou, C.; Boffa, J.J. Asymmetric dimethylarginine (ADMA) induces chronic kidney disease through a mechanism involving collagen and TGF-β1 synthesis. J. Pathol 2011, 223, 37–45.
  4. Matsumoto, Y.; Ueda, S.; Yamagishi, S.; Matsuguma, K.; Shibata, R.; Fukami, K.; Matsuoka, H.; Imaizumi, T.; Okuda, S. Dimethylarginine dimethylaminohydrolase prevents progression of renal dysfunction by inhibiting loss of peritubular capillaries and tubulointerstitial fibrosis in a rat model of chronic kidney disease. J. Am. Soc. Nephrol 2007, 18, 1525–1533.
  5. Shibata, R.; Ueda, S.; Yamagishi, S.; Kaida, Y.; Matsumoto, Y.; Fukami, K.; Hayashida, A.; Matsuoka, H.; Kato, S.; Kimoto, M.; et al. Involvement of asymmetric dimethylarginine (ADMA) in tubulointerstitial ischaemia in the early phase of diabetic nephropathy. Nephrol. Dial. Transpl 2009, 24, 1162–1169.
  6. Ravani, P.; Tripepi, G.; Malberti, F.; Testa, S.; Mallamaci, F.; Zoccali, C. Asymmetrical dimethylarginine predicts progression to dialysis and death in patients with chronic kidney disease: A competing risks modeling approach. J. Am. Soc. Nephrol 2005, 16, 2449–2455.
  7. Shimizu, A.; Kitamura, H.; Masuda, Y.; Ishizaki, M.; Sugisaki, Y.; Yamanaka, N. Rare glomerular capillary regeneration and subsequent capillary regression with endothelial cell apoptosis in progressive glomerulonephritis. Am. J. Pathol 1997, 151, 1231–1239.
  8. Kitamura, H.; Shimizu, A.; Masuda, Y.; Ishizaki, M.; Sugisaki, Y.; Yamanaka, N. Apoptosis in glomerular endothelial cells during the development of glomerulosclerosis in the remnant-kidney model. Exp. Nephrol 1998, 6, 328–336.
  9. Woehlbier, U.; Hetz, C. Modulating stress responses by the UPRosome: A matter of life and death. Trends Biochem. Sci 2011, 36, 329–337.
  10. Walter, P.; Ron, D. The unfolded protein response: From stress pathway to homeostatic regulation. Science 2011, 334, 1081–1086.
  11. Perez-Vizcaino, F.; Duarte, J. Flavonols and cardiovascular disease. Mol. Aspects Med 2010, 31, 478–494.
  12. Shoskes, D.A. Effect of bioflavonoids quercetin and curcumin on ischemic renal injury: A new class of renoprotective agents. Transplantation 1998, 66, 147–152.
  13. Anjaneyulu, M.; Chopra, K. Quercetin, an anti-oxidant bioflavonoid, attenuates diabetic nephropathy in rats. Clin. Exp. Pharmacol. Physiol 2004, 31, 244–248.
  14. Satyanarayana, P.S.; Singh, D.; Chopra, K. Quercetin, a bioflavonoid, protects against oxidative stress-related renal dysfunction by cyclosporine in rats. Methods Find Exp. Clin. Pharmacol 2001, 23, 175–181.
  15. Morales, A.I.; Vicente-Sánchez, C.; Jerkic, M.; Santiago, J.M.; Sánchez-González, P.D.; Pérez-Barriocanal, F.; López-Novoa, J.M. Effect of quercetin on metallothionein, nitric oxide synthases and cyclooxygenase-2 expression on experimental chronic cadmium nephrotoxicity in rats. Toxicol. Appl. Pharmacol 2006, 210, 128–135.
  16. Kahraman, A.; Erkasap, N.; Serteser, M.; Köken, T. Protective effect of quercetin on renal ischemia/reperfusion injury in rats. J. Nephrol 2003, 16, 219–224.
  17. Cybulsky, A.V.; Takano, T.; Papillon, J.; Bijian, K. Role of the endoplasmic reticulum unfolded protein response in glomerular epithelial cell injury. J. Biol. Chem 2005, 280, 24396–24403.
  18. Nakajo, A.; Khoshnoodi, J.; Takenaka, H.; Hagiwara, E.; Watanabe, T.; Kawakami, H.; Kurayama, R.; Sekine, Y.; Bessho, F.; Takahashi, S.; et al. Mizoribine corrects defective nephrin biogenesis by restoring intracellular energy balance. J. Am. Soc. Nephrol 2007, 18, 2554–2564.
  19. Cybulsky, A.V.; Takano, T.; Papillon, J.; Bijian, K.; Guillemette, J.; Kennedy, C.R. Glomerular epithelial cell injury associated with mutant alpha-actinin-4. Am. J. Physiol. Renal. Physiol 2009, 297, 987–995.
  20. Ueda, S.; Yamagishi, S.; Matsumoto, Y.; Kaida, Y.; Fujimi-Hayashida, A.; Koike, K.; Tanaka, H.; Fukami, K.; Okuda, S. Involvement of asymmetric dimethylarginine (ADMA) in glomerular capillary loss and sclerosis in a rat model of chronic kidney disease (CKD). Life Sci 2009, 84, 853–856.
  21. Portt, L.; Norman, G.; Clapp, C.; Greenwood, M.; Greenwood, M.T. Anti-apoptosis and cell survival: A review. Biochim. Biophys. Acta 2011, 1813, 238–259.
  22. Hetz, C. The unfolded protein response: Controlling cell fate decisions under ER stress and beyond. Nat. Rev. Mol. Cell Biol 2012, 13, 89–102.
  23. Kitamura, M. Endoplasmic reticulum stress and unfolded protein response in renal pathophysiology: Janus faces. Am. J. Physiol. Renal. Physiol 2008, 295, 323–334.
  24. Lundman, P.; Eriksson, M.J.; Stühlinger, M.; Cooke, J.P.; Hamsten, A.; Tornvall, P. Mild-to-moderate hypertriglyceridemia in young men is associated with endothelial dysfunction and increased plasma concentrations of asymmetric dimethylarginine. J. Am. Coll. Cardiol 2001, 38, 111–116.
  25. Surdacki, A.; Nowicki, M.; Sandmann, J.; Tsikas, D.; Boeger, R.H.; Bode-Boeger, S.M.; Kruszelnicka-Kwiatkowska, O.; Kokot, F.; Dubiel, J.S.; Froelich, J.C. Reduced urinary excretion of nitric oxide metabolites and increased plasma levels of asymmetric dimethylarginine in men with essential hypertension. J. Cardiovasc. Pharmacol 1999, 33, 652–658.
  26. Kielstein, J.T.; Böger, R.H.; Bode-Böger, S.M.; Schäffer, J.; Barbey, M.; Koch, K.M.; Frölich, J.C. Asymmetric dimethylarginine plasma concentrations differ in patients with end-stage renal disease: Relationship to treatment method and atherosclerotic disease. J. Am. Soc. Nephrol 1999, 10, 594–600.
  27. Wojciak-Stothard, B.; Torondel, B.; Zhao, L.; Renné, T.; Leiper, J.M. Modulation of Rac1 activity by ADMA/DDAH regulates pulmonary endothelial barrier function. Mol. Biol. Cell 2009, 20, 33–42.
  28. Smith, C.L.; Anthony, S.; Hubank, M.; Leiper, J.M.; Vallance, P. Effects of ADMA upon gene expression: An insight into the pathophysiological significance of raised plasma ADMA. PLoS Med 2005, 2, e264.
  29. MacAllister, R.J.; Fickling, S.A.; Whitley, G.S.; Vallance, P. Metabolism of methylarginines by human vasculature; implications for the regulation of nitric oxide synthesis. Br. J. Pharmacol 1994, 112, 43–48.
  30. Sud, N.; Wells, S.M.; Sharma, S.; Wiseman, D.A.; Wilham, J.; Black, S.M. Asymmetric dimethylarginine inhibits HSP90 activity in pulmonary arterial endothelial cells: Role of mitochondrial dysfunction. Am. J. Physiol. Cell Physiol 2008, 294, 1407–1418.
  31. Terao, J.; Piskula, M.; Yao, Q. Protective effect of epicatechin, epicatechin gallate, and quercetin on lipid peroxidation in phospholipid bilayers. Arch. Biochem. Biophys 1994, 308, 278–284.
  32. Brown, J.E.; Khodr, H.; Hider, R.C.; Rice-Evans, C.A. Structural dependence of flavonoid interactions with Cu2+ ions: Implications for their antioxidant properties. Biochem. J 1998, 330, 1173–1178.
  33. Nagao, A.; Seki, M.; Kobayashi, H. Inhibition of xanthine oxidase by flavonoids. Biosci. Biotechnol. Biochem 1999, 63, 1787–1790.
  34. Middleton, E., Jr.; Anne, S. Quercetin inhibits lipopolysaccharide-induced expression of endothelial cell intracellular adhesion molecule-1. Int. Arch. Allergy Immunol 1995, 107, 435–436.
  35. Kobuchi, H.; Roy, S.; Sen, C.K.; Nguyen, H.G.; Packer, L. Quercetin inhibits inducible ICAM-1 expression in human endothelial cells through the JNK pathway. Am. J. Physiol 1999, 277, 403–411.
  36. Richter, M.; Ebermann, R.; Marian, B. Quercetin-induced apoptosis in colorectal tumor cells: Possible role of EGF receptor signaling. Nutr. Cancer 1999, 34, 88–99.
  37. Nguyen, T.T.; Tran, E.; Nguyen, T.H.; Do, P.T.; Huynh, T.H.; Huynh, H. The role of activated MEK-ERK pathway in quercetin-induced growth inhibition and apoptosis in A549 lung cancer cells. Carcinogenesis 2004, 25, 647–659.
  38. Mertens-Talcott, S.U.; Percival, S.S. Ellagic acid and quercetin interact synergistically with resveratrol in the induction of apoptosis and cause transient cell cycle arrest in human leukemia cells. Cancer Lett 2005, 218, 141–151.
  39. Aalinkeel, R.; Bindukumar, B.; Reynolds, J.L.; Sykes, D.E.; Mahajan, S.D.; Chadha, K.C.; Schwartz, S.A. The dietary bioflavonoid, quercetin, selectively induces apoptosis of prostate cancer cells by down-regulating the expression of heat shock protein 90. Prostate 2009, 68, 1773–1789.
  40. Jeong, J.H.; An, J.Y.; Kwon, Y.T.; Rhee, J.G.; Lee, Y.J. Effects of low dose quercetin: Cancer cell-specific inhibition of cell cycle progression. J. Cell Biochem 2009, 106, 73–82.
  41. Yao, S.; Sang, H.; Song, G.; Yang, N.; Liu, Q.; Zhang, Y.; Jiao, P.; Zong, C.; Qin, S. Quercetin protects macrophages from oxidized low-density lipoprotein-induced apoptosis by inhibiting the endoplasmic reticulum stress-C/EBP homologous protein pathway. Exp. Biol. Med 2012, 237, 822–831.
  42. Park, C.; So, H.S.; Shin, C.H.; Baek, S.H.; Moon, B.S.; Shin, S.H.; Lee, H.S.; Lee, D.W.; Park, R. Quercetin protects the hydrogen peroxide-induced apoptosis via inhibition of mitochondrial dysfunction in H9c2 cardiomyoblast cells. Biochem. Pharmacol 2003, 66, 1287–1295.
  43. Lee, J.C.; Kim, J.; Park, J.K.; Chung, G.H.; Jang, Y.S. The antioxidant, rather than prooxidant, activities of quercetin on normal cells: Quercetin protects mouse thymocytes from glucose oxidase-mediated apoptosis. Exp. Cell Res. 2003, 291, 386–397.
  44. Liu, K.C.; Yen, C.Y.; Wu, R.S.; Yang, J.S.; Lu, H.F.; Lu, K.W.; Lo, C.; Chen, H.Y.; Tang, N.Y.; Wu, C.C.; et al. The roles of endoplasmic reticulum stress and mitochondrial apoptotic signaling pathway in quercetin-mediated cell death of human prostate cancer PC-3 cells. Environ. Toxicol 2012, doi:10.1002/tox.21769.
  45. Kim, D.S.; Kwon, D.Y.; Kim, M.S.; Kim, H.K.; Lee, Y.C.; Park, S.J.; Yoo, W.H.; Chae, S.W.; Chung, M.J.; Kim, H.R.; et al. The involvement of endoplasmic reticulum stress in flavonoid-induced protection on cardiac cell death caused by ischaemia/reperfusion. J. Pharm. Pharmacol 2010, 62, 197–204.
  46. Wiseman, R.L.; Zhang, Y.; Lee, K.P.; Harding, H.P.; Haynes, C.M.; Price, J.; Sicheri, F.; Ron, D. Flavonol activation defines an unanticipated ligand-binding site in the kinase-RNase domain of IRE1. Mol. Cell 2010, 38, 291–304.
  47. Crespo, I.; García-Mediavilla, M.V.; Gutiérrez, B.; Sánchez-Campos, S.; Tuñón, M.J.; González-Gallego, J. A comparison of the effects of kaempferol and quercetin on cytokine-induced pro-inflammatory status of cultured human endothelial cells. Br. J. Nutr 2008, 100, 968–976.
  48. Choi, Y.J.; Kang, J.S.; Park, J.H.; Lee, Y.J.; Choi, J.S.; Kang, Y.H. Polyphenolic flavonoids differ in their antiapoptotic efficacy in hydrogen peroxide-treated human vascular endothelial cells. J. Nutr 2003, 133, 985–991.
  49. Jeong, Y.J.; Choi, Y.J.; Kwon, H.M.; Kang, S.W.; Park, H.S.; Lee, M.; Kang, Y.H. Differential inhibition of oxidized LDL-induced apoptosis in human endothelial cells treated with different flavonoids. Br. J. Nutr 2005, 93, 581–591.
  50. Huynh, M.L.; Fadok, V.A.; Henson, P.M. Phosphatidylserine-dependent ingestion of apoptotic cells promotes TGF-β1 secretion and the resolution of inflammation. J. Clin. Invest 2002, 109, 41–50.
  51. Sharma, K.; Ziyadeh, F.N. Biochemical events and cytokine inter-actions linking glucose metabolism to the development of dia-betic nephropathy. Semin. Nephrol 1997, 17, 80–92.
Ijms 15 00484f1a 200Ijms 15 00484f1b 200

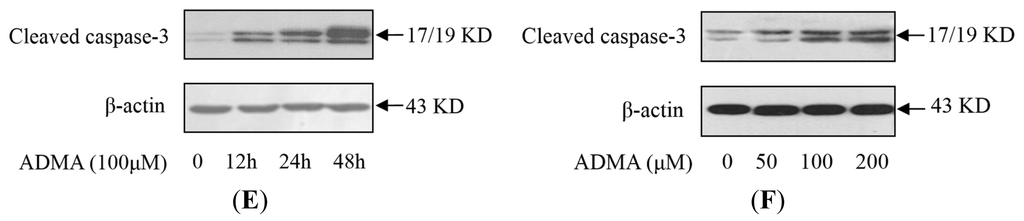

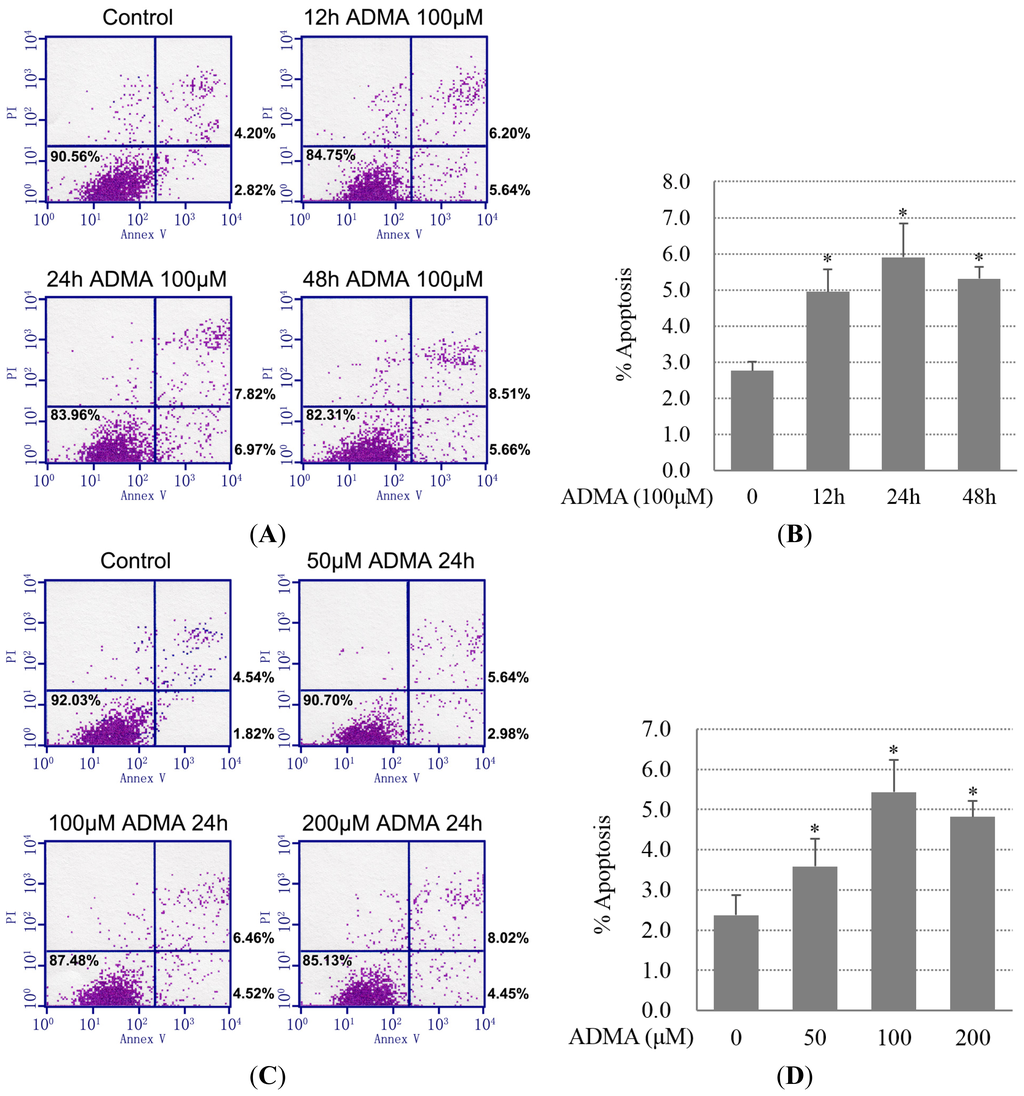

Figure 1. Asymmetric dimethylarginine (ADMA) induced glomerular endothelial cells (GEnC) apoptosis. (A,B) Primary GEnCs were incubated with 100 μM ADMA for 12, 24 or 48 h. Annexin V-FITC and PI reagent were added and 10,000 cells were analyzed on a fluorescence-activated cell sorting (FACS) Calibur instrument. Percentages of annexin V-positive/PI-negative or annexin V-positive/PI-positive cells are shown; (C,D) Similar analysis performed in GEnCs treated with 50, 100 or 200 μM ADMA for 24 h. In (A) and (C), representative results out of three are shown; (B,D) data showed the mean SD of three independent experiments. p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); and (E,F) Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). Cell extracts were subjected to western blotting using antibody against cleaved caspase-3.

Click here to enlarge figure

Figure 1. Asymmetric dimethylarginine (ADMA) induced glomerular endothelial cells (GEnC) apoptosis. (A,B) Primary GEnCs were incubated with 100 μM ADMA for 12, 24 or 48 h. Annexin V-FITC and PI reagent were added and 10,000 cells were analyzed on a fluorescence-activated cell sorting (FACS) Calibur instrument. Percentages of annexin V-positive/PI-negative or annexin V-positive/PI-positive cells are shown; (C,D) Similar analysis performed in GEnCs treated with 50, 100 or 200 μM ADMA for 24 h. In (A) and (C), representative results out of three are shown; (B,D) data showed the mean SD of three independent experiments. p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); and (E,F) Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). Cell extracts were subjected to western blotting using antibody against cleaved caspase-3.
Ijms 15 00484f1a 1024Ijms 15 00484f1b 1024
Ijms 15 00484f2 200

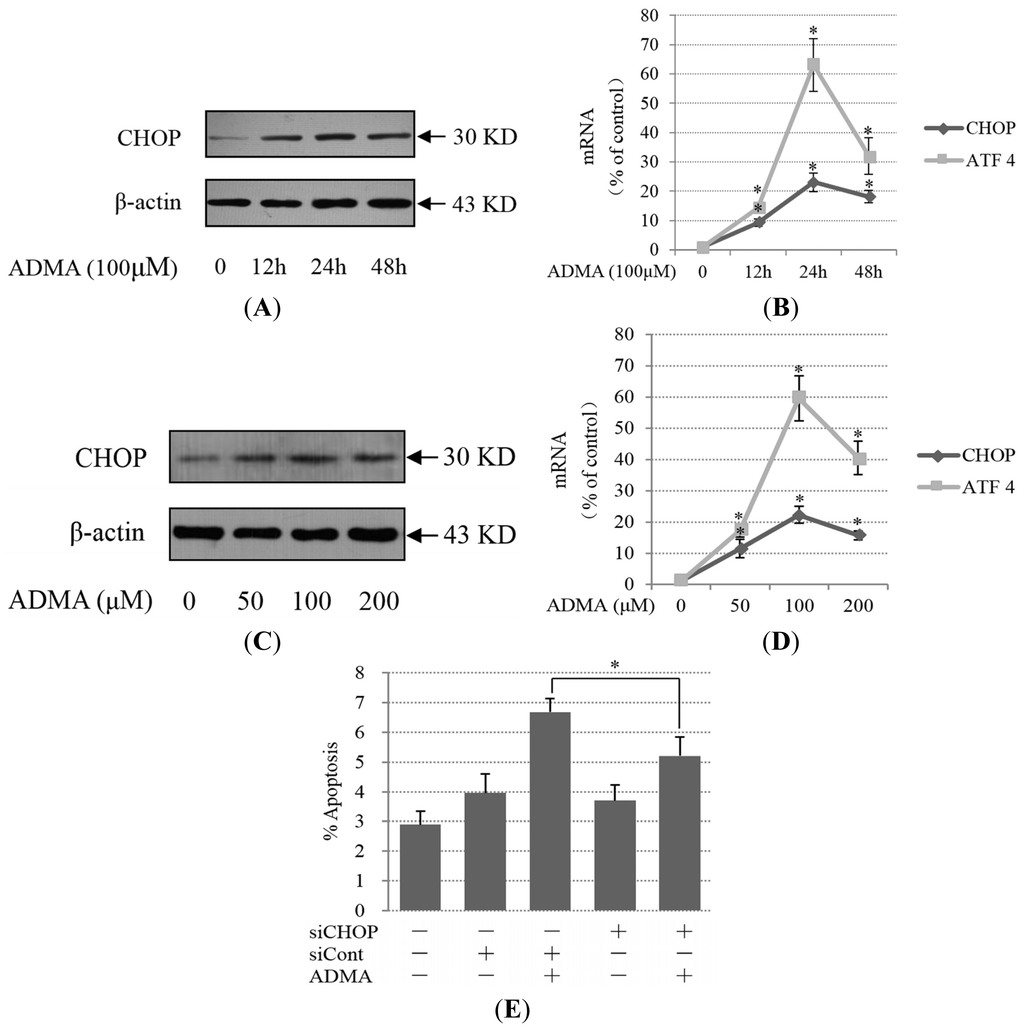

Figure 2. Role of PERK-CHOP ER stress pathway in ADMA-induced GEnC apoptosis. Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). To analyze CHOP expression, cell extracts or RNA were subjected to western blotting (A,C) or RT-PCR (B,D); and (E) After transfection with siRNA, GEnCs were exposed to 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry after annexin V and PI staining (mean ± SD, n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05).

Click here to enlarge figure

Figure 2. Role of PERK-CHOP ER stress pathway in ADMA-induced GEnC apoptosis. Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). To analyze CHOP expression, cell extracts or RNA were subjected to western blotting (A,C) or RT-PCR (B,D); and (E) After transfection with siRNA, GEnCs were exposed to 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry after annexin V and PI staining (mean ± SD, n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05).
Ijms 15 00484f2 1024
Ijms 15 00484f3a 200Ijms 15 00484f3b 200

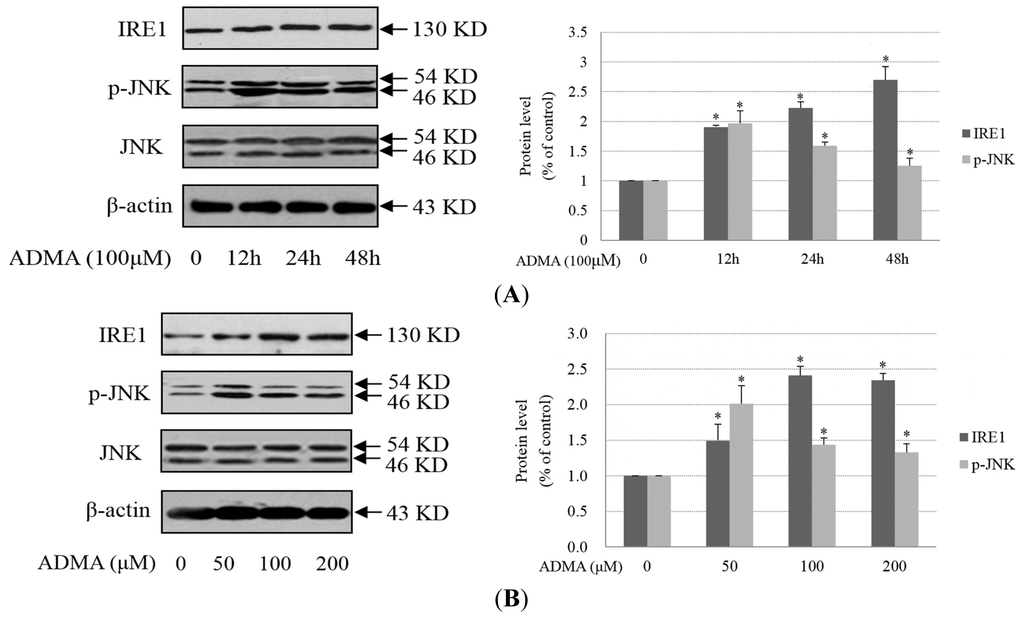

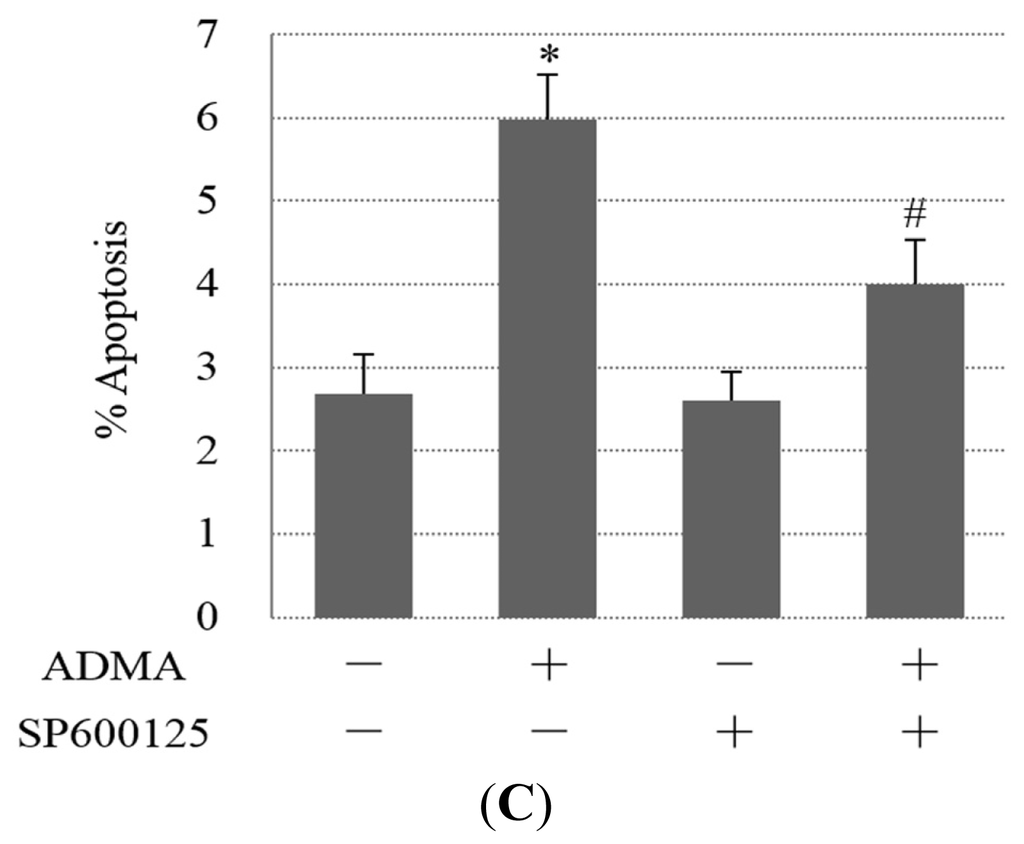

Figure 3. Role of IRE1-JNK ER stress pathway in ADMA-induced GEnC apoptosis. (A,B) Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). Cells extracts were subjected to western blotting using antibodies against IRE1 and p-JNK. Results are the mean ± SD (n = 3); (C) GEnC was pretreated with 10 μM SP600125 for 30 min and then exposed to 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry after annexin V and PI staining (mean ± SD, n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).

Click here to enlarge figure

Figure 3. Role of IRE1-JNK ER stress pathway in ADMA-induced GEnC apoptosis. (A,B) Cells were treated with ADMA at the indicated dose (0–200 μM) and time period (0–48 h). Cells extracts were subjected to western blotting using antibodies against IRE1 and p-JNK. Results are the mean ± SD (n = 3); (C) GEnC was pretreated with 10 μM SP600125 for 30 min and then exposed to 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry after annexin V and PI staining (mean ± SD, n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).
Ijms 15 00484f3a 1024Ijms 15 00484f3b 1024
Ijms 15 00484f4 200

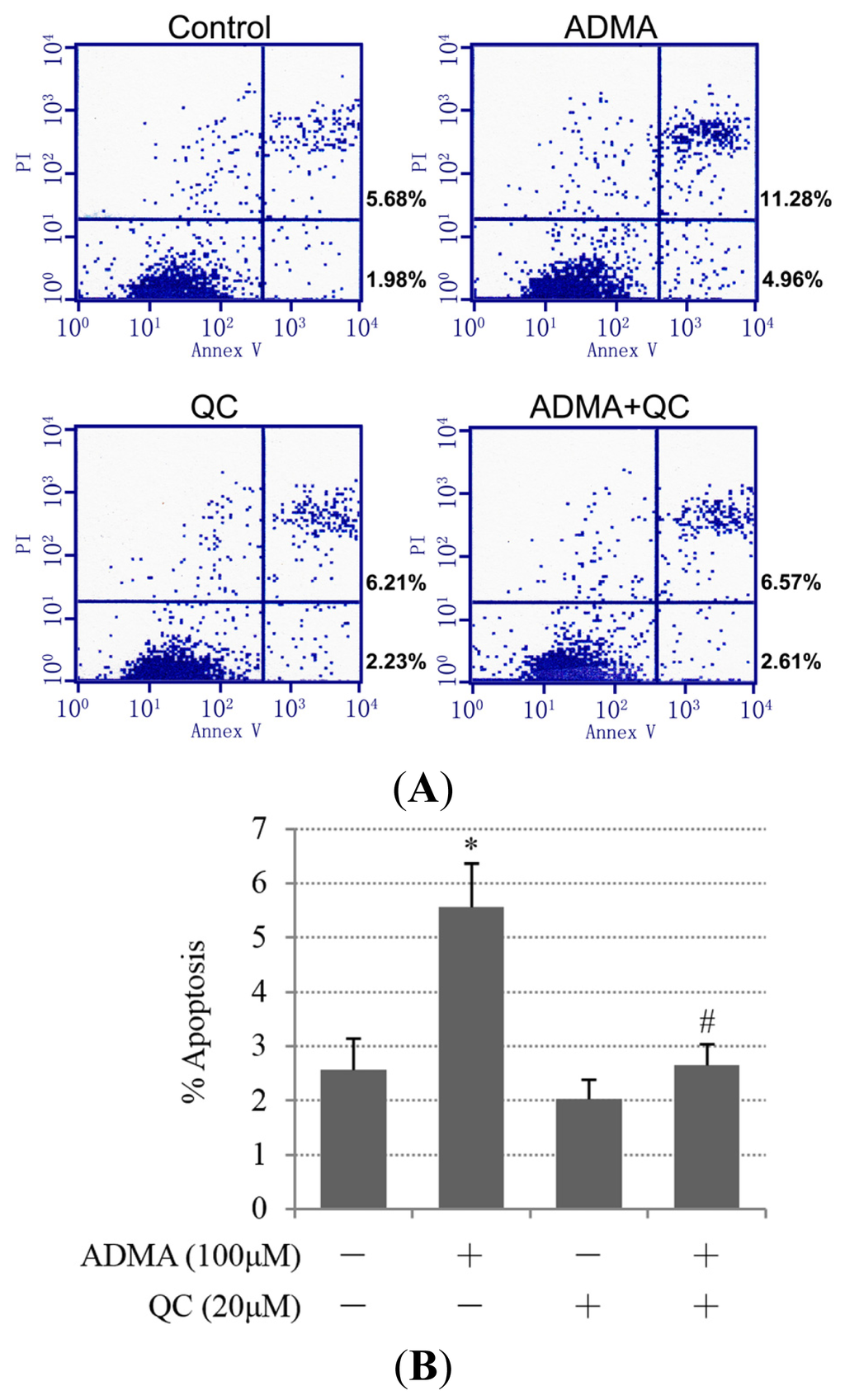

Figure 4. Quercetin (QC) inhibited ADMA-induced apoptosis. GEnCs were treated for 1 h in the presence or absence of 20 μM QC. Cells were then incubated with 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry. Data showed one representative experiment (A) or the mean SD of three independent experiments (B). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).

Click here to enlarge figure

Figure 4. Quercetin (QC) inhibited ADMA-induced apoptosis. GEnCs were treated for 1 h in the presence or absence of 20 μM QC. Cells were then incubated with 100 μM ADMA for 24 h. Apoptosis was assessed by flow cytometry. Data showed one representative experiment (A) or the mean SD of three independent experiments (B). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).
Ijms 15 00484f4 1024
Ijms 15 00484f5a 200Ijms 15 00484f5b 200Ijms 15 00484f5c 200

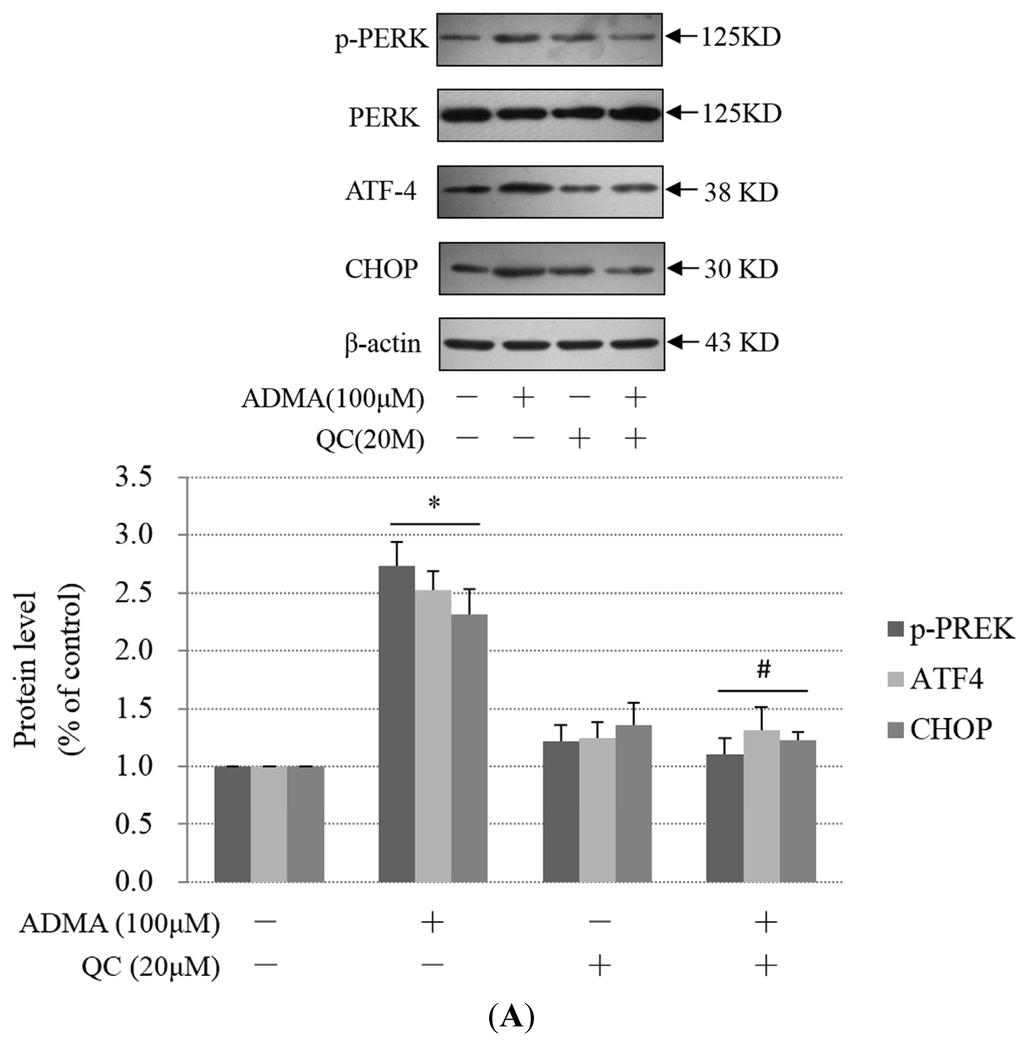

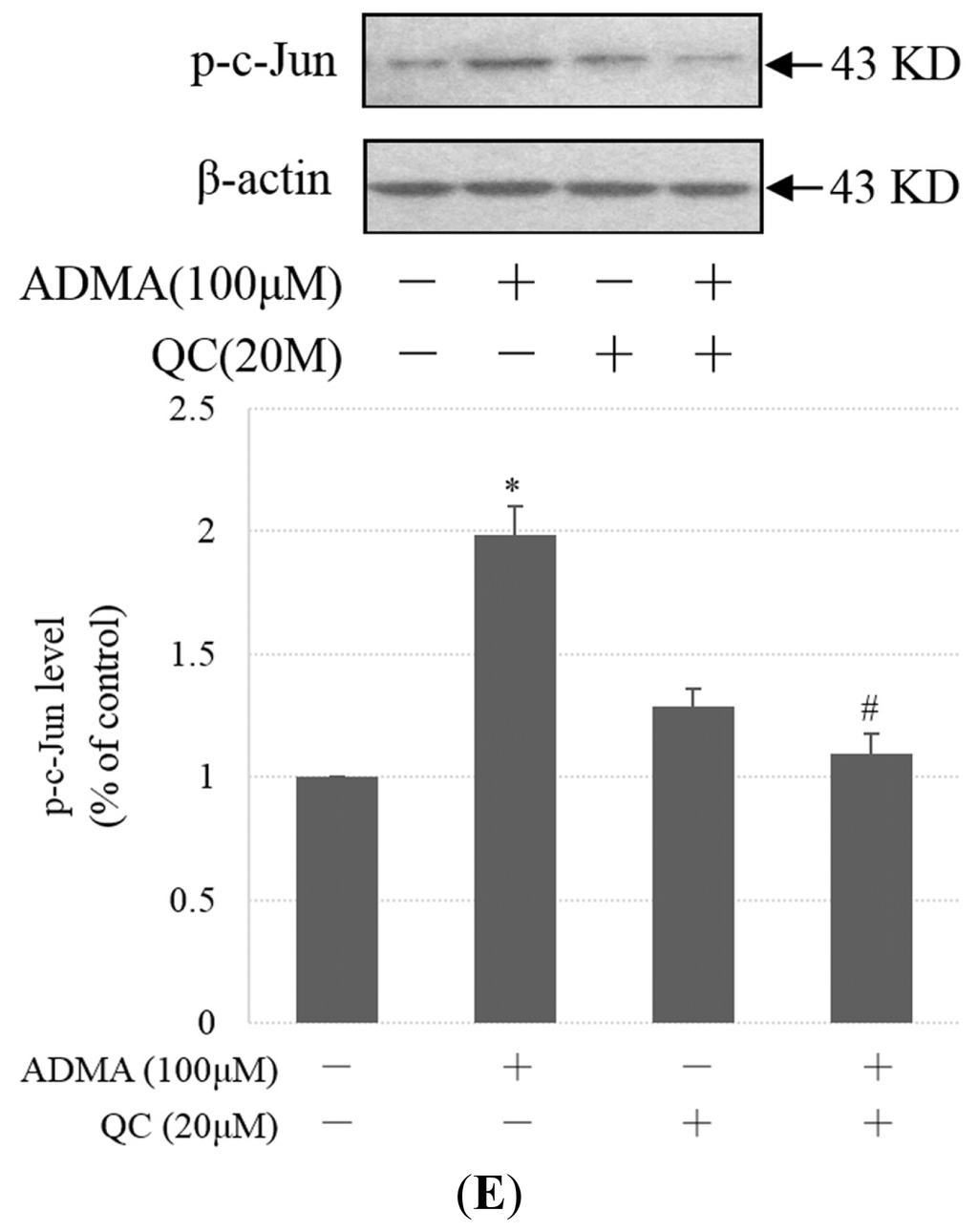

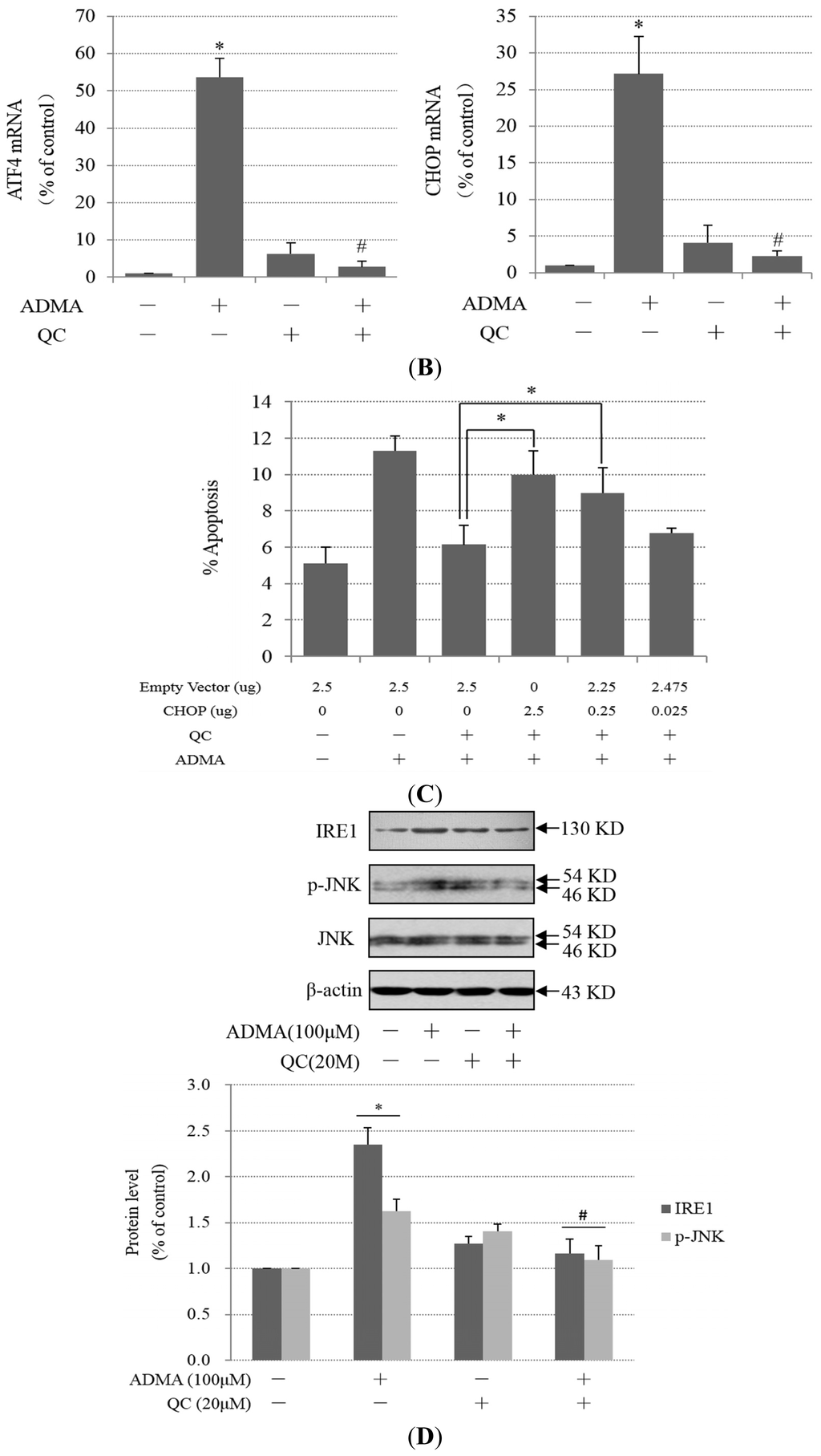

Figure 5. QC inhibited ADMA-induced ER stress. (A) QC prevented the ER stress pathway by down-regulating the expression of PERK-ATF4-CHOP. GEnCs were treated for 1 h in the presence or absence of 20 μM QC prior to incubation with 100 μM ADMA for 24 h. Cells were then lysed, and levels of Thr 981 phosphorylated PERK (p-PERK), ATF4, and CHOP were assayed by western blot analysis. β-Actin or PERK is shown as a loading control. Results are the mean ± SD (n = 3); (B) Real-time PCR analysis of ATF4 and CHOP mRNA levels in cells exposed to ADMA (100 μM) for 24 h in the absence or presence of QC (means ± SD, n = 3); (C) Cells were transfected with graded concentrations of pcDNA3-GADD153 expression vectors or the control empty vector, and incubated for 24 h. Cells were pretreated with 20 μM QC for 1 h and then restimulated with 100 μM ADMA for a further 24 h. Apoptosis was assessed by flow cytometry (mean ± SD, n = 3); and (D,E) QC inhibited ADMA-induced IRE1 expression, JNK phosphorylation and c-Jun phosphorylation. GEnC were treated for 1 h in the presence or absence of 20 μM QC before incubation with 100 μM ADMA for 24 h. Cells were then lysed, and levels of IRE1, p-JNK and p-c-Jun were assayed by western blot analysis. Results are the mean ± SD (n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).

Click here to enlarge figure

Figure 5. QC inhibited ADMA-induced ER stress. (A) QC prevented the ER stress pathway by down-regulating the expression of PERK-ATF4-CHOP. GEnCs were treated for 1 h in the presence or absence of 20 μM QC prior to incubation with 100 μM ADMA for 24 h. Cells were then lysed, and levels of Thr 981 phosphorylated PERK (p-PERK), ATF4, and CHOP were assayed by western blot analysis. β-Actin or PERK is shown as a loading control. Results are the mean ± SD (n = 3); (B) Real-time PCR analysis of ATF4 and CHOP mRNA levels in cells exposed to ADMA (100 μM) for 24 h in the absence or presence of QC (means ± SD, n = 3); (C) Cells were transfected with graded concentrations of pcDNA3-GADD153 expression vectors or the control empty vector, and incubated for 24 h. Cells were pretreated with 20 μM QC for 1 h and then restimulated with 100 μM ADMA for a further 24 h. Apoptosis was assessed by flow cytometry (mean ± SD, n = 3); and (D,E) QC inhibited ADMA-induced IRE1 expression, JNK phosphorylation and c-Jun phosphorylation. GEnC were treated for 1 h in the presence or absence of 20 μM QC before incubation with 100 μM ADMA for 24 h. Cells were then lysed, and levels of IRE1, p-JNK and p-c-Jun were assayed by western blot analysis. Results are the mean ± SD (n = 3). p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).
Ijms 15 00484f5a 1024Ijms 15 00484f5b 1024Ijms 15 00484f5c 1024
Ijms 15 00484f6a 200Ijms 15 00484f6b 200

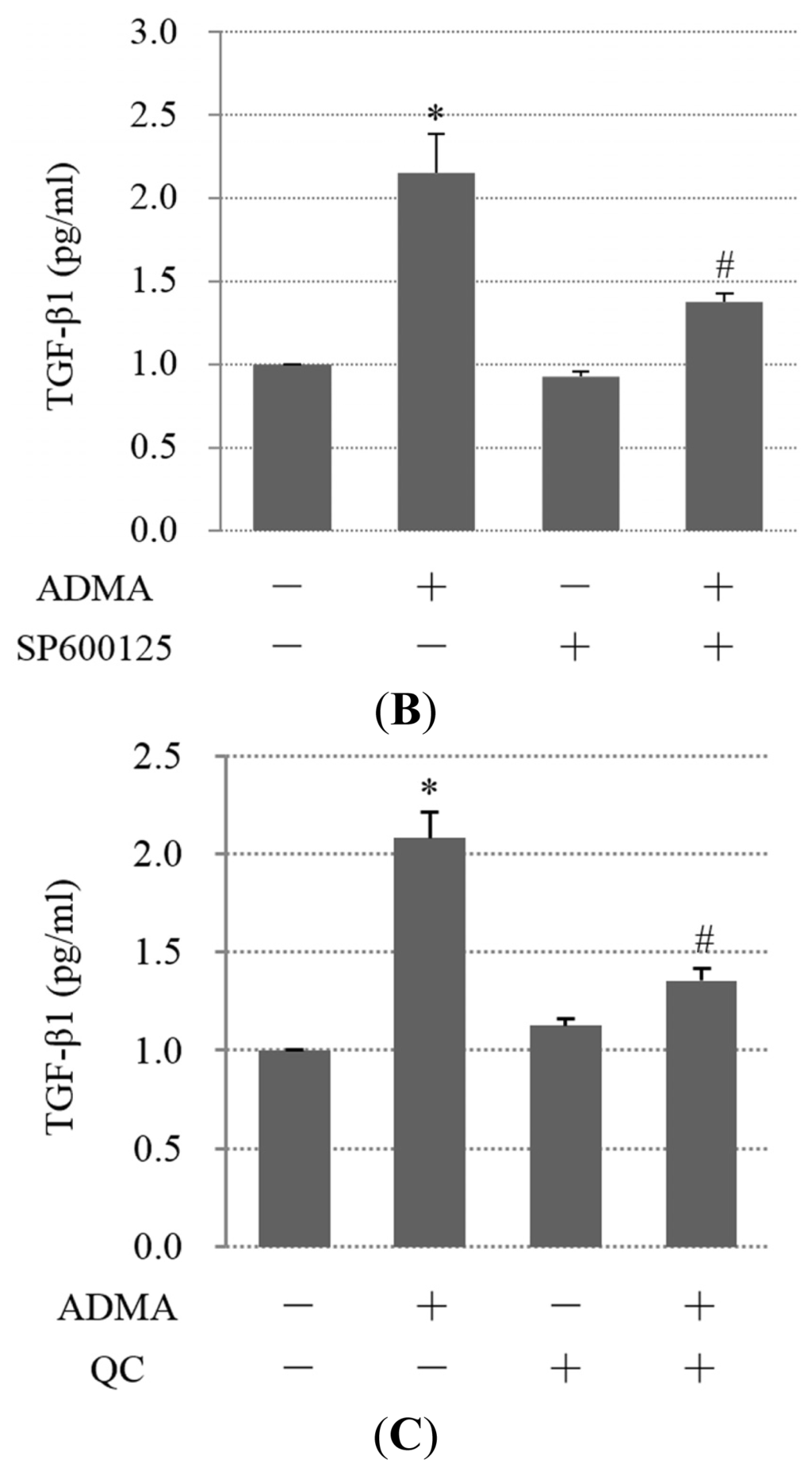

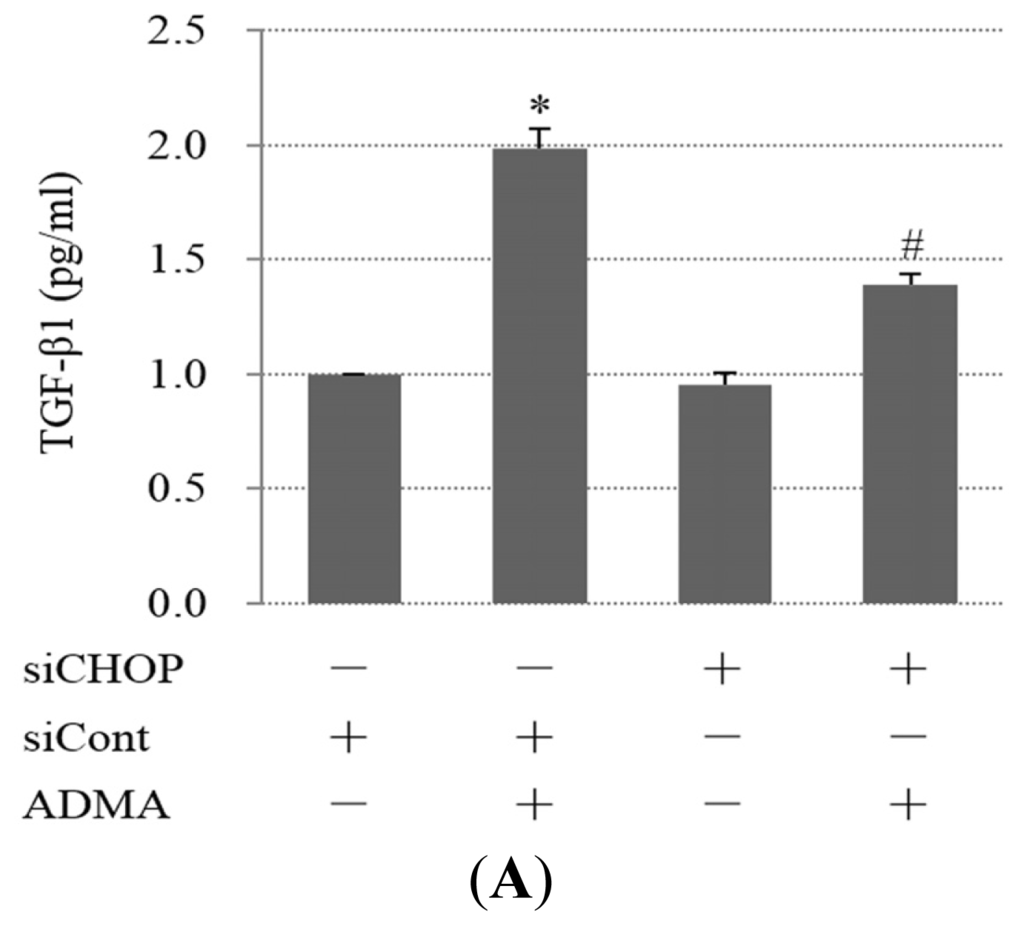

Figure 6. ADMA-induced TGF-β1 expression through ER stress and inhibition by QC treatment. (A) GEnCs transfected with siRNA were exposed for 24 h to 100 μM ADMA. TGF-β1 levels were measured by ELISA (mean ± SD, n = 3); (B) GEnCs were pretreated with 10 μM SP600125 for 30 min and then exposed to 100 μM ADMA for 24 h. TGF-β1 levels were measured by ELISA (mean ± SD, n = 3); and (C) GEnCs were treated for 1 h in the presence or absence of 20 μM QC and then incubated with 100 μM ADMA for 24 h. Culture supernatants were collected and analyzed for TGF-β1 levels using an ELISA kit. p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).

Click here to enlarge figure

Figure 6. ADMA-induced TGF-β1 expression through ER stress and inhibition by QC treatment. (A) GEnCs transfected with siRNA were exposed for 24 h to 100 μM ADMA. TGF-β1 levels were measured by ELISA (mean ± SD, n = 3); (B) GEnCs were pretreated with 10 μM SP600125 for 30 min and then exposed to 100 μM ADMA for 24 h. TGF-β1 levels were measured by ELISA (mean ± SD, n = 3); and (C) GEnCs were treated for 1 h in the presence or absence of 20 μM QC and then incubated with 100 μM ADMA for 24 h. Culture supernatants were collected and analyzed for TGF-β1 levels using an ELISA kit. p < 0.05 by ANOVA was considered significant. * different from controls (p < 0.05); # different from ADMA-stimulated controls (p < 0.05).
Ijms 15 00484f6a 1024Ijms 15 00484f6b 1024
