Int. J. Mol. Sci. 2013, 14(6), 10727-10748; doi:10.3390/ijms140610727

Review
The Role of Short-Chain Conjugated Poly-(R)-3-Hydroxybutyrate (cPHB) in Protein Folding
Rosetta N. Reusch
Department of Microbiology and Molecular Genetics, Michigan State University, East Lansing, MI 48824, USA; E-Mail: rnreusch@msu.edu; Tel.: +1-517-349-3544; Fax: +1-517-353-1793
Received: 1 April 2013; in revised form: 9 May 2013 / Accepted: 9 May 2013 /
Published: 23 May 2013

Abstract

: Poly-(R)-3-hydroxybutyrate (PHB), a linear polymer of R-3-hydroxybutyrate (R-3HB), is a fundamental constituent of biological cells. Certain prokaryotes accumulate PHB of very high molecular weight (10,000 to >1,000,000 residues), which is segregated within granular deposits in the cytoplasm; however, all prokaryotes and all eukaryotes synthesize PHB of medium-chain length (~100–200 residues) which resides within lipid bilayers or lipid vesicles, and PHB of short-chain length (<12 residues) which is conjugated to proteins (cPHB), primarily proteins in membranes and organelles. The physical properties of cPHB indicate it plays important roles in the targeting and folding of cPHB-proteins. Here we review the occurrence, physical properties and molecular characteristics of cPHB, and discuss its influence on the folding and structure of outer membrane protein A (OmpA) of Escherichia coli.
Keywords:
poly-(R)-3-hydroxybutyrate; cPHB; PHBylation; protein-folding; protein-targeting

1. Introduction

Poly-(R)-3-hydroxybutyrate (PHB), a linear polymer of R-3-hydroxybutyrate (R-3HB) (Figure 1), was first discovered in granular inclusion bodies within the cytoplasm of Bacillus megaterium in the mid 1920s by Maurice Lemoigne [1]. Similar PHB-containing granules were subsequently observed in other eubacteria and archaea, principally those that inhabit soil and water ecosystems [24] (Figure 2A). The granules frequently include some R-3-hydroxyvalerate and other hydroxy-acids, and thus they are often referred to as polyhydroxyalkanoates (PHA). The polymers in these complex subcellular organelles, known as carbanosomes, are very long-chain (10,000 to >1,000,000 residues), and are covered by a layer of lipids and proteins, which include enzymes involved in PHB synthesis and degradation [57]. PHB is accumulated by these prokaryotes when carbon sources are freely available but other nutrients are limited, thus PHB is considered to serve as a carbon and energy store in these organisms. The granules have attained considerable commercial importance as ingredients of biodegradable plastics. Recently, Elustondo et al. [8], using fluorescence spectroscopy, identified PHB-rich granules, which resembled bacterial carbanosomes and did not co-localize with mitochondria, lysosomes or endoplasmic reticulum, in the cytoplasm of cultured mammalian cells. It was suggested that the PHB may serve as a carbon and energy store for these cells. The identity of PHB was confirmed by a marked decrease in fluorescence intensity when the samples were treated with PHB depolymerase (PhaZ); however, the molecular weight of the polymer has not yet been determined.

PHB of medium-chain length was first discovered in the cytoplasmic membranes of genetically-competent bacteria by Reusch and Sadoff in 1983 [9]. Medium-chain PHB typically consists of 100–200 residues, but it may contain fewer residues due to the lability of ester bonds. Medium-chain PHB, like storage PHB, is insoluble in water and soluble in chloroform, and non-covalently associated with other molecules. The medium-chain length polyester was found in the membranes of competent bacteria which also accrue high molecular weight storage PHB—Azotobacter vinelandii and Bacillus subtilis—but it was also unexpectedly present in the membranes of competent bacteria—Haemophilus influenzae and Escherichia coli—which do not accumulate PHB granules [9,10]. In 1989, medium-chain length PHB was recovered from membranes, mitochondria and microsomes of eukaryotes [11], and in 1992 from lipoproteins (very low density and low density (VLDL and LDL) of human plasma [12]. The identity of medium-chain length PHB in representative prokaryotic and eukaryotic organisms was confirmed by 1H-NMR spectroscopy by Reusch [13] in 1992 and corroborated by Seebach et al. [14] in 1994. Medium-chain length PHB has been found associated with inorganic polyphosphate in noncovalent complexes (Figure 2B) that are postulated to play a role in transbilayer transport of cations [1517] and deoxyribonucleic acids [1820].

In 1996, Huang and Reusch [21] discovered short-chain PHB (≤10 residues) covalently bound to specific proteins in the membranes and the cytoplasm of E. coli cells (Figure 2C). This short-chain conjugated PHB has been termed cPHB. It is generally thought to consist of <20 residues but this remains unclear due to the lability of the ester bond and the paucity of samples examined to date. Unlike storage PHB that is segregated within cytoplasmic granules and medium-chain PHB that is “dissolved” in lipid environments, cPHB has been found in all cell compartments of prokaryotes and eukaryotes and in intracellular fluids [2228]. Indeed, the majority of PHB in cells that do not accumulate long-chain storage PHB is cPHB. Significantly, unlike storage PHB and medium-chain length PHB, cPHB cannot be isolated from cells or organelles by extraction with chloroform. The ubiquitous occurrence of the medium-chain and short-chain polyester, suggests that PHB, like polyisoprenoids, polypeptides, polysaccharides, and polynucleotides, is a fundamental constituent of biological cells. Since its synthesis requires only acetate and reducing potential, both of which were available in the primordial soup, the structurally simple PHB may have been the earliest of the biological organic polymers [21,29].

2. Synthesis of PHB

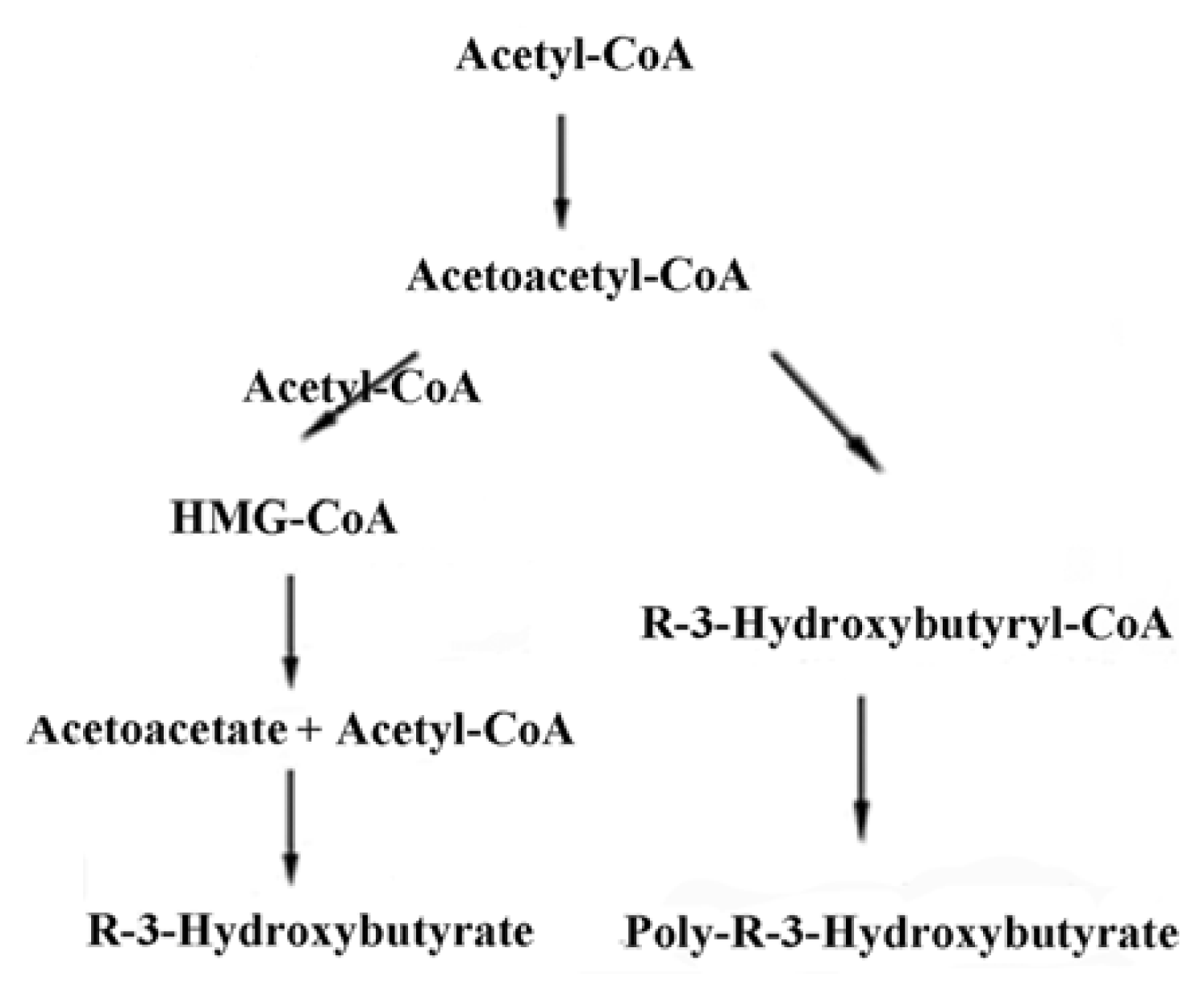

R-3-hydroxybutyrate (R-3HB) is a well-known metabolite in fatty acid synthesis in both prokaryotes and eukaryotes [2,3,30]. The synthesis of R-3HB begins with the condensation of two molecules of acetyl-CoA to form acetoacetyl-CoA by a ketothiolase enzyme. In prokaryotes, this intermediate is subsequently reduced with NADPH to R-3-HB-CoA by acetoacetyl-CoA reductase, and R-3-HB-CoA may then be polymerized to form PHB by the enzyme PHB synthase (Figure 3). In eukaryotes, 3-hydroxy-3-methylglutaryl-CoA synthase (HMG synthase) catalyzes the condensation of acetoacetyl-CoA with a third acetyl-CoA to form 3-hydroxy-3-methylglutaryl-CoA (HMG-CoA). The enzyme HMG-lyase then catalyzes the decomposition of HMG-CoA to form acetoacetate and acetyl-CoA, and acetoacetate is further reduced with NADH by R-3-HB dehydrogenase to form R-3-HB (Figure 3). Enzymes that polymerize R-3-hydroxybutyrate or its CoA ester have not yet been identified in eukaryotes.

3. Physical Properties of PHB

PHB consisting of more than six residues is insoluble in water and soluble in chloroform [2]. The PHB molecule is amphiphilic—hydrophobic methyl groups alternate with hydrophilic carbonyl ester groups (Figure 1); accordingly, the methyl groups may engage in hydrophobic interactions and the ester carbonyl oxygens may serve as hydrogen-bond acceptor or as ligands for coordinate bonds to cations. Moreover, polyesters such as PHB, in contrast to polyamides and polypeptides, have highly flexible backbone structures, since they lack the stabilizing element of internal hydrogen bonds and the rigidity of a peptide bond. The extremely high flexibility of the PHB backbone at physiological temperatures has been amply demonstrated by Seebach et al., using circular dichroism and fluorescence (FRET) measurements [31], nuclear magnetic resonance (NMR) spectroscopy [32,33] and molecular dynamics simulations [34]. However, it is important to note that the glass temperature of PHB is ~10 °C, so that the PHB backbone becomes increasingly more rigid as temperatures are lowered below the physiological range.

PHB also has uncommon solvating capacity. It may be unique among biological polymers in having the structural features common to a small group of synthetic polymers, known as polymer electrolytes [3537] that are distinguished by their ability to “dissolve” salts. Significant characteristics of this class of polymers are (1) flexible backbones with low barriers to bond rotation to ease segmental motions of the polymer chain; (2) heteroatoms, such as ester carbonyl oxygens, that have sufficient electron donor power to form coordinate bonds with cations; (3) a suitable distance between the electron donating groups to permit the formation of multiple intra-polymer coordinate bonds to cations. The stability of such polymer salt complexes is enhanced by the entropic advantage known as the “polymer effect”, attributable to the cooperative effect of neighboring ligands attached to a common backbone.

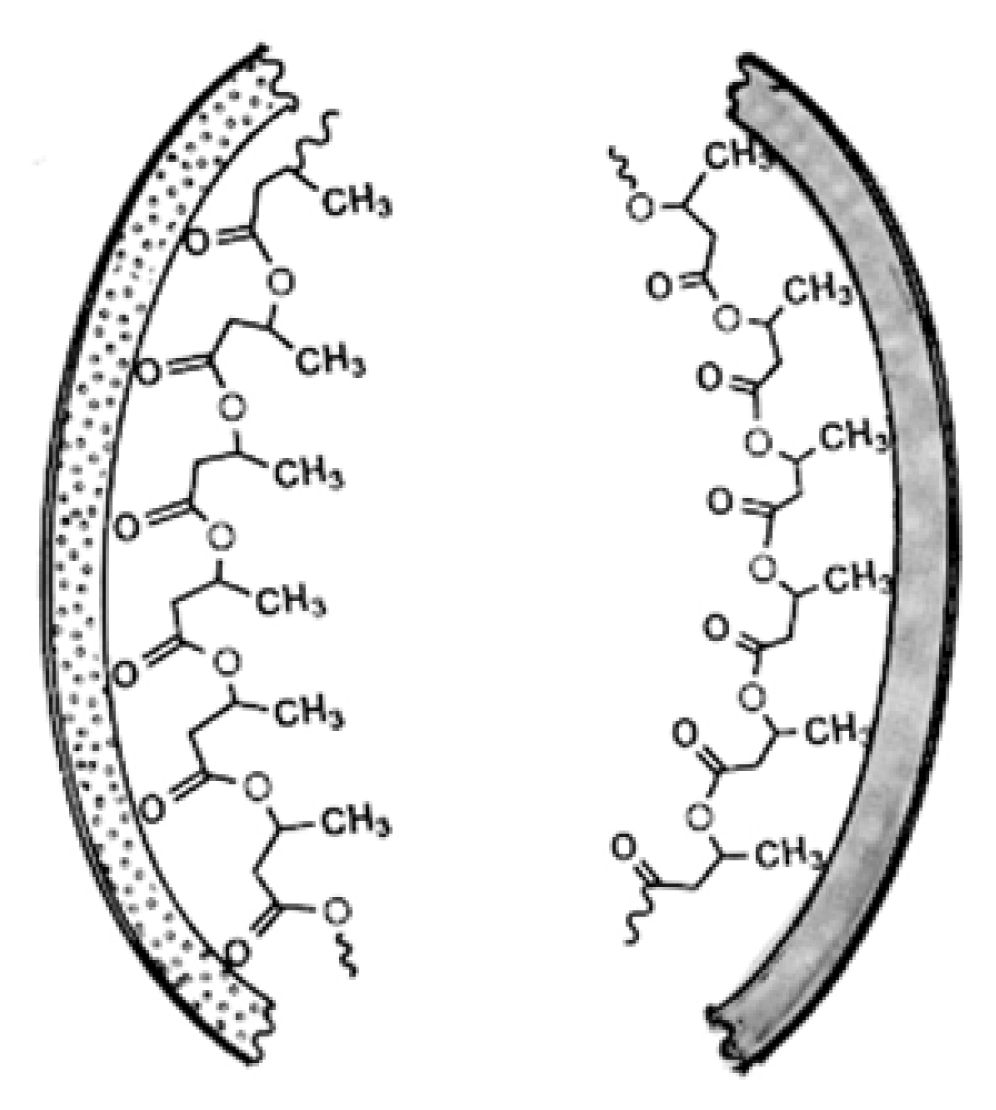

PHB “dissolves” salts by encircling them and replacing the water of hydration surrounding the cation with coordinate bonds to its ester carbonyl oxygens. The ability of PHB to solvate salts is however limited. Ester carbonyl oxygens are weak Lewis bases of low polarity and hence PHB form coordinate bonds only with hard cations that have large solvation energies, such as the four major physiological cations, Na+, K+, Mg2+, and Ca2+. Moreover, as an aprotic polymer, PHB does not have hydrogen-bond donating groups that are needed to solvate anions [3537]. Accordingly, PHB “dissolves” salts composed of hard cations and large anions with diffused charges that require little solvation, and may thereby serve to partition these salts into lipid bilayers or hydrophobic regions of proteins. This capacity of PHB has been well established experimentally. Seebach et al. [38] have found that the triolide of R-3HB forms crown ester complexes with alkali metals; Burger and Seebach [39] have shown that oligomers of R-3HB transport alkali and alkaline earth salts across methylene chloride layers in U-tubes; Seebach et al. [40] have demonstrated that PHB of 16 residues or multiples of 16 residues up to 96 residues form channels in planar lipid bilayers, and Fritz et al. [41] have described the gradient-driven transport of Ca2+ into liposomes by R-3HB oligomers.

4. cPHB-Proteins

It is increasingly apparent that cPHB-proteins are ubiquitous in biological cells, both prokaryotic and eukaryotic [8,1114,28,4244]. However, cPHB has remained largely unnoticed because, unlike the highly-visible phase-bright PHB granules, cPHB is sparse and obscure. Its exceptionally flexible backbone and lack of unusual atoms or functional groups makes cPHB nearly invisible in X-ray structures in which it may resemble detergent or lipid molecules. Whereas storage PHB and medium-chain length PHB are insoluble in water and soluble in chloroform, the solubility of a cPHB-protein depends on the nature of the protein itself and on the extent of cPHB modification. However, within a given protein, cPHB significantly alters the hydrophobicity of the protein segments to which it is attached and thereby influences their location within the mature protein.

There are a number of ways in which the functional groups of cPHB may interact noncovalently with protein segments. Since the cPHB molecule is both highly flexible and amphiphilic, cPHB can adjust or reverse the polarity of peptide segments or act as an intermediary between polar segments and the bilayer (Figure 4) [44]. When the methyl groups of cPHB form hydrophobic bonds to nonpolar peptide residues, its ester carbonyl oxygens form a hydrophilic surface that may associate with polar molecules. Conversely, when the carbonyl oxygens of PHB act as hydrogen-bond acceptors or form coordinate bonds to bridging cations of polar peptides, its methyl groups form a hydrophobic surface that may promote movement of the peptide into the protein interior or assist its insertion into a phospholipid bilayer. Individually, such noncovalent bonds are weak, but the frequency at which the methyl groups and ester carbonyl oxygens repeat along the cPHB backbone allows each polymer molecule to have multiple interactions. The number and strength of these bonds would be determined by the primary structure and three-dimensional geometry of the protein at the binding site(s). The tenacity of the bonding, as evidenced by its ability to withstand heating in sodium lauryl sulfate, extraction with warm chloroform, and proteolysis, suggests that there is also a covalent bond between an amino acid residue and the terminal hydroxy group or S-CoA group of cPHB. This covalent attachment of cPHB is known as PHBylation.

Although the cPHB backbone is highly flexible at physiological temperatures, it becomes increasingly more rigid as temperatures approach the glass temperature. As a consequence, cPHB-modified proteins would fold very slowly or be unable to fold into their native conformations when maintained below physiological temperatures. The presence of cPHB may also render protein function(s) highly sensitive to temperature in this range. For example, Zakharian et al. [42,43] found that a member of the transient receptor potential (TRP) channel family of the melastatin subgroup, TRPM8, which is a major sensor for cold temperatures in the peripheral nervous system, is significantly modified by cPHB.

5. Identification of cPHB

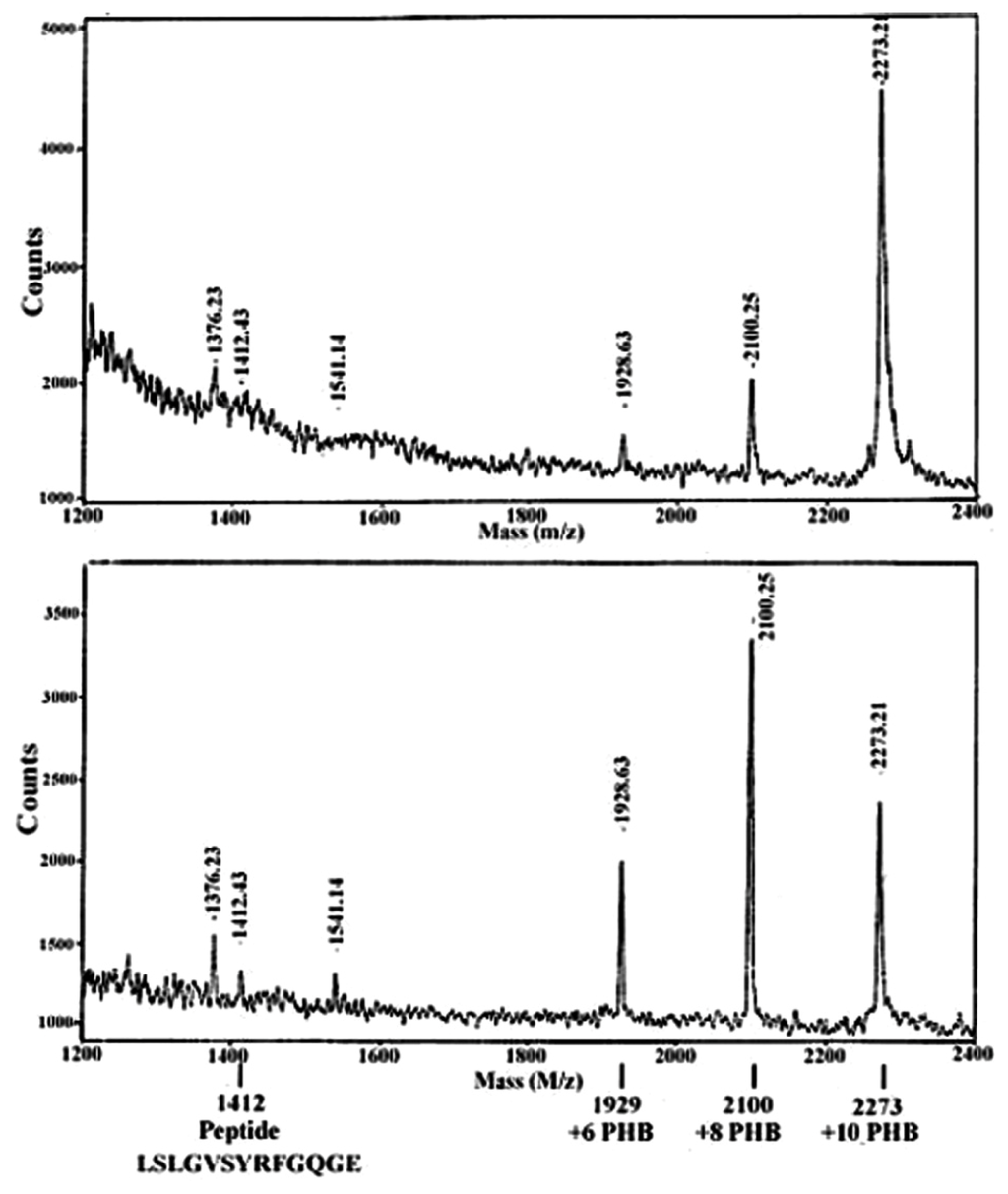

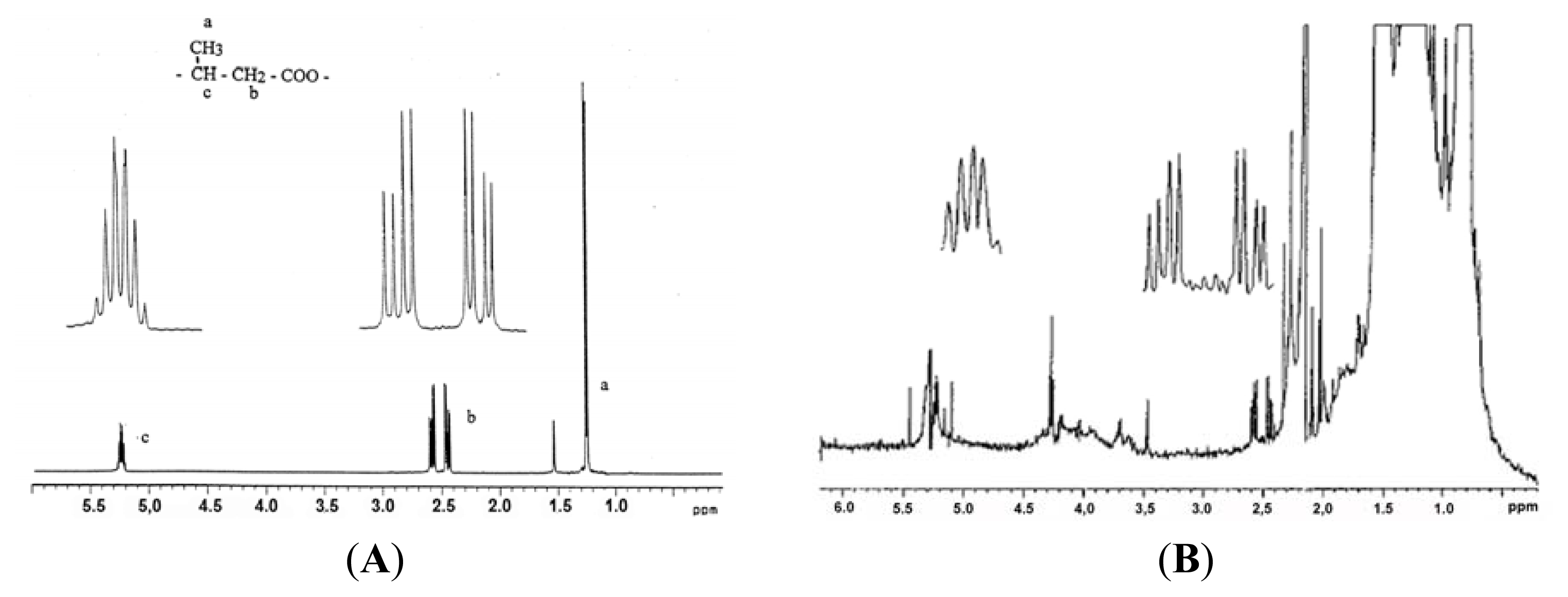

cPHB may be most easily and sensitively detected by Western blot analysis using anti-PHB IgG [44]. cPHB may also be detected and estimated by a chemical assay in which the polymer is converted via β-elimination to crotonic acid by heating in concentrated sulfuric acid; crotonic acid may then be isolated and assessed by high pressure liquid chromatography [21,45]. The 1H-NMR resonances of PHB are distinctive (Figure 5A), but the concentration of cPHB in proteins is very low so that this method requires extensive proteolysis and concentration of the cPHB [46]. Thus far, cPHB has been removed from its complexes with proteins only by treatments which effect hydrolysis of the ester bonds, i.e., heating in dilute acid or refluxing in methanol:chloroform mixtures [14]. cPHB-peptides may also be recognized by MALDI MS [26] (see Figure 6 below).

6. cPHB-Proteins in Escherichia coli

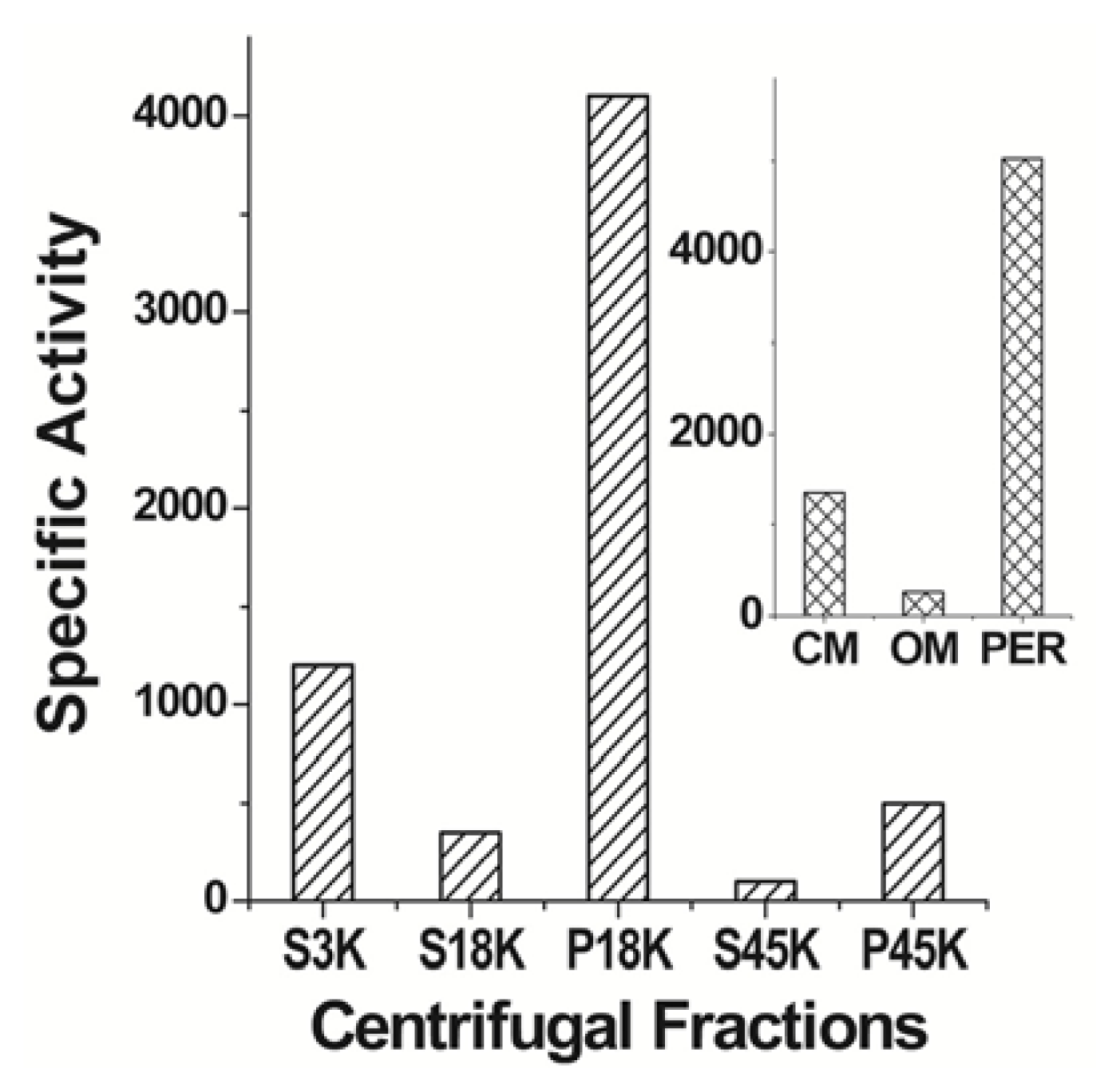

cPHB-proteins have been most extensively examined in E. coli. It is estimated that cPHB comprises 0.36%–0.55% of the dry weight of log-phase E. coli cells [21]. The cPHB-proteins are widely distributed within the cell. Western immunoblots, probed with polyclonal anti-PHB IgG, revealed cPHB-polypeptides in all cell fractions. Surprisingly, the majority of the cPHB-proteins (over 80%) are located in the cytoplasm, with the largest concentration in the ribosomal fraction. The identity of ribosome-associated cPHB has been confirmed by both chemical assay and 1H-NMR spectroscopy (Figure 7B) [21]. Some of the cPHB-proteins of E. coli that have been identified thus far by two-dimensional gel electrophoresis followed by Western blot analysis with anti-PHB IgG are listed in Table 1.

It has been proposed that two pathways—short-fatty-acid catabolism (atoDAEB operon) and fatty-acid metabolism—participate in the synthesis of cPHB in E. coli through the involvement of the AtoSC signal-transduction system [4850]. Rychlewski et al. [51] used structural similarity with known polymerases and their characteristic GXCXG sequence to identify three potential cPHB polymerases in E. coli—a cytoplasmic polymerase, ysgA, and two other polymerases of unknown cellular location, ycjY and yghX. Dai and Reusch [47] found that cPHB polymerase activity is particularly strong in the periplasm, which displays ~75% of the total activity (Figure 7). They identified one periplasmic cPHB polymerase as ydcS, a putative periplasmic-binding protein of an ABC transporter system, ydcSTUV [52]. The outer membrane of a ydcS deletion mutant of E. coli contained ~30% less cPHB than the wild-type protein. The primary structure of ydcS suggests that it may be a member of the α/β hydrolase superfamily of proteins [53], which includes class III polyhydroxyalkanoates polymerases as well as lipases and esterases [54].

7. The Role of cPHB in Folding of Outer Membrane Protein A (OmpA) of Escherichia coli

The physical properties and distribution of cPHB imply that it plays important roles in protein structure and physiology. The best example to-date of the influence of cPHB on protein targeting and protein folding is the outer membrane protein A (OmpA) of E. coli. OmpA is a major protein of the cell envelope with many functions [55]. It stabilizes the outer membrane [56], acts as a receptor for bacteriophages [57,58], participates in bacterial conjugation [59,60], is a target in the immune response [61], mediates virulence and pathogenicity [6265] and participates in biofilm formation [66]. In addition, OmpA has served as a paradigm for studies of the biogenesis of outer membrane proteins [67].

7.1. Structure of OmpA

The mature conformation of OmpA has been a matter of contention for several decades. A narrow-pore, two-domain structure in which 171 N-terminal residues form a narrow eight β-barrel pore in the outer membrane and 154 C-terminal residues form a globular structure that interacts with peptidoglycan in the periplasm has vied with a large-pore, single-domain structure in which all or most of the 325 residues create a large pore in the outer membrane.

A two-domain conformation of OmpA was proposed based on bacteriophage mapping [57,58], proteolysis [68,69], and mutagenesis studies [70,71]. The structure of the narrow pore formed by the N-terminal domain—residues 1–171—has been described by fluorescence, circular dichroism, Raman and NMR spectroscopy [7275], by X-ray crystallography [76,77], and by molecular simulations [78,79]. The results of these studies indicate that the N-terminal domain forms an antiparallel eight-stranded-β-barrel connected by long, unstructured and mobile loops at the extracellular side and short, tight loops at the periplasmic side. The interior of the β-barrel, lined with charged and polar residues, encloses several unconnected aqueous cavities. The C-terminal domain has been crystallized [80,81] and circular dichroism studies indicate that this domain adopts a mixed alpha/beta secondary structure [82].

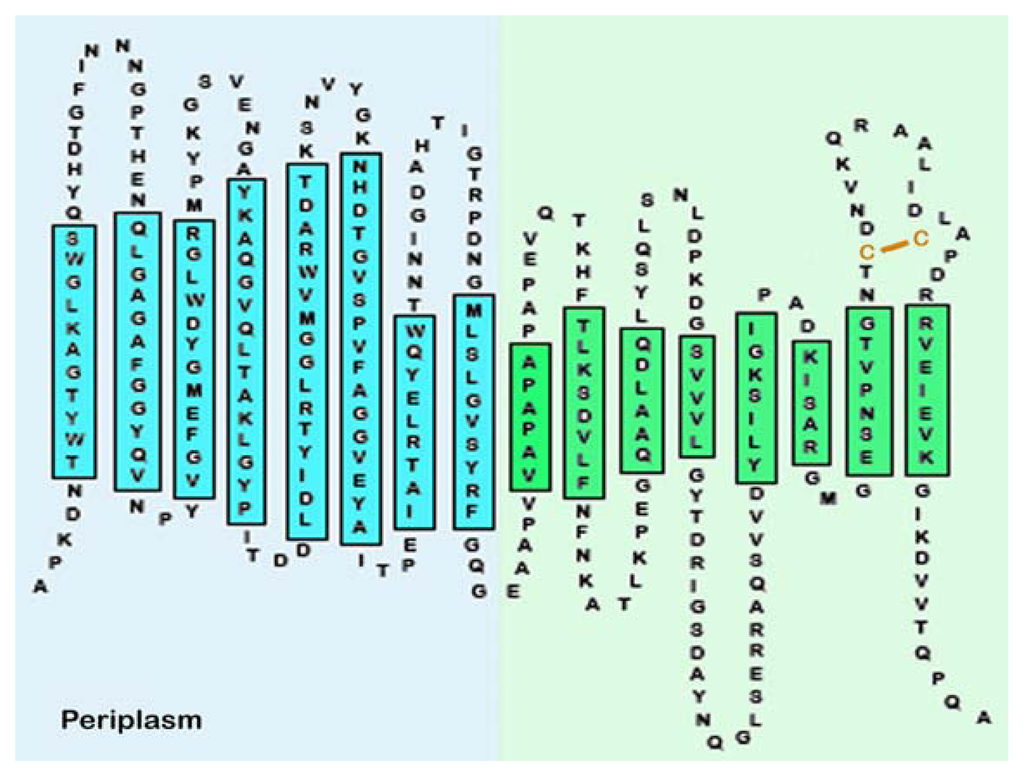

The structure of the single-domain large pore is yet unknown; however, a large pore structure is consistent with the known functions of OmpA as a receptor for bacteriophages [57,58] and participant in bacterial conjugation [59,60], both of which imply it forms a pore large enough for the passage of ssDNA. Involvement of the C-terminal domain in formation of a large pore is further indicated by studies of OmpA homologues, Pseudomonas aeruginosa OprF by Rawling et al. [83] and Salmonella enterica OmpA (94% identical to E. coli OmpA) by Singh et al. [84], in which monoclonal antibodies were used to prove that C-terminal epitopes of the proteins were exposed on the cell surface of intact bacteria.

Computer modeling studies have supported the involvement of the C-terminal domain in pore formation. Jeanteur et al. [85] predicted two transmembrane β—strands within the C-terminal domain, and additional C-terminal transmembrane segments were predicted by algorithms of Schirmer and Cowan [86] and Ferenci [87]. Stathapoulos [88] constructed a 16 β-barrel structure with eight transmembrane segments in the C-terminal domain that is consistent with the varied biochemical, immunological, and genetic topological data concerning OmpA (Figure 8).

Experimental evidence for a large pore structure for OmpA is provided by studies of Sugawara and Nikaido [89,90] which showed that 2%–3% of the molecules form nonspecific diffusion pores of ~1 nm diameter in liposomes and planar bilayers, and by studies of Arora et al. [91] in which two interconvertible conductance states were observed: a major population of small pores (50–80 pS) and a minor population of large pores (260–320 pS). The large pore conformer was not observed when only the N-terminal domain was present, which supports the premise that the N-terminal membrane portion of OmpA is sufficient for formation of the small channel whereas the large channels require the presence of both domains. The existence of a large pore structure is further supported by planar lipid bilayer studies of OmpA by Zakharian and Reusch [92,93], which show that large pores (~450 pS) are the dominant structures (open probability of 0.9) at physiological temperature of 37 °C (see below).

7.2. Targeting and Folding of OmpA

OmpA must be transported from the ribosome to the cytoplasmic membrane, conveyed across the cytoplasmic membrane into the periplasm, conducted across the periplasm, inserted into the outer membrane and folded therein in its mature conformation. During this journey, modifications may be made to the protein by cytoplasmic and/or periplasmic enzymes. Studies of OmpA structure have been performed with OmpA obtained by protein overexpression into cytoplasmic inclusion granules or with OmpA directly extracted from the outer membranes of E. coli. In both cases, OmpA will have acquired modification(s) made to the protein in the cytoplasm but only OmpA extracted from the outer membranes will have acquired any additional modification(s) that may be made in the periplasm.

7.2.1. From the Ribosome to the Cytoplasmic Membrane

The OmpA precursor (ProOmpA) is synthesized in the cytoplasm as a 325-residue protein with a 21-residue signal sequence at the amino terminal. Studies by the Henning group [9599] have demonstrated that residues 163–170 (SLGVSYRF) of the N-terminal domain of OmpA, known as the sorting signal, are essential for the integration of OmpA into the outer membrane. When the sorting signal is removed, OmpA remains in the periplasm. Xian et al. [26] established by Western blot immunoassay and chemical assay that both serine residues in segment 162–174 (LSLGVSYRFGQGE) of OmpA are modified by cPHB. The studies further indicated that the serines are modified only when bordered by hydrophobic residues. In the S167G mutant, replacement of either of the hydrophobic residues adjacent to S163–L162 or L164—with glycine prevented cPHB-modification of S163. Similarly, in the S163G mutant, replacement of the hydrophobic residue V166 by glycine inhibited cPHB-modification of S167. Segment 162–174 was modified by cPHB in protein isolated from cytoplasmic inclusion bodies as well as in protein isolated from outer membranes, indicating that the attachment of cPHB takes place in the cytoplasm. The cPHB could not be removed from peptide 162–174 by solvent extraction, suggesting it is covalently attached to the serines at its CoA ester end.

cPHB is not discernible in the Raman or 1H-NMR spectra [7375] or X-ray structures [76,77] of the N-terminal domains. Due to its low concentrations and highly flexible backbone, cPHB would resemble detergent or lipid molecules in these spectra. However, the modification of OmpA peptide 162–174 by up to 10 R-3HB residues is visible in the MALDI-MS spectra [26] (Figure 6). The lability of the ester bonds of cPHB is indicated by differences between the upper and lower spectra. In the upper spectrum, the molecular ion (1412) is buried in the noise but strong peaks are observed that correspond to covalent attachment of 10, 8, and 6 units of R-3HB. In the lower spectrum, obtained after a few additional seconds of exposure of the sample to the laser beam, the molecular ion has become visible, while the peak attributed to covalent attachment of R-3HB of 10 units has diminished, and peaks attributed to covalent attachment of R-3HB of 8 and 6 units have intensified. The R-3HB units appear to be degraded by the laser in pairs and fewer than 6 R-3HB units were not observed. It is interesting to note that the enzymatic degradation of storage PHB also proceeds with the loss of R-3HB dimers [100]. Continued exposure to the laser beam ultimately results in completely degrading the cPHB. The modification of the serines in segment 162–174 by cPHB is further indicated by MALDI-MS of the double mutant S163G/S167G, which showed a strong peak for the molecular ion and no higher molecular weight peaks attributable to modification by cPHB [26].

Negoda et al. [101] demonstrated the importance of cPHB modification of the sorting signal to the incorporation of OmpA into planar lipid bilayers as a narrow pore at room temperatures (Figure 9). Wild-type OmpA (WT) formed well-structured low-conductance narrow pores (80 ± 2 pS) with high open time (~0.9). Single serine mutants S163G and S167G, which still contain some cPHB on the sorting signal, retained the ability to form narrow pores in planar lipid bilayers; however, the partial loss of cPHB resulted in significantly lower conductance and open time. The double mutants, S163G/S167G and S163V/S167G, which are completely without cPHB on the sorting signal, displayed only trial insertions into the bilayer, which suggests that these mutant proteins are associated with the bilayer and may even lie within it, but are unable to form stable pores. Clearly, the attachment of cPHB to hydrophilic serine residues in the eighth β-strand decreases the hydrophilicity of this segment and thereby assists in targeting the protein to the bilayer and/or inserting the protein into the bilayer as a narrow pore.

7.2.2. Across the Periplasm to the Outer Membrane

After translocation across the cytoplasmic membrane, the signal sequence is cleaved and OmpA, assisted by periplasmic chaperones and lipopolysaccharides, is inserted into the outer membrane and folded into its native form [102105]. In order to form the large-pore structure, hydrophilic segments of the C-terminal domain must insert into the outer membrane bilayer, and this requires an increase in their hydrophobicity. This may be accomplished by the attachment of cPHB to specific amino acids.

Modification of the C-terminal domain by cPHB is a decisive event in the translocation and folding of OmpA into the outer membrane in its mature large-pore conformation. Studies by Negoda et al [46]. demonstrated that the C-terminal domain of OmpA 264–325 is modified by cPHB and that this modification takes place in the periplasm, i.e., Western Blot and chemical assays indicated that segment 264–325 contains cPHB when OmpA is isolated from outer membranes, but not when OmpA is isolated from cytoplasmic inclusion bodies. The identity of cPHB on segment 264–325 of OmpA was confirmed by 1H-NMR. The increased hydrophobicity conferred to this segment by addition of cPHB is indicated by the solubility of segment 264–325 in chloroform when it is obtained from outer membranes, in contrast to its insolubility in chloroform when it is obtained from inclusion granules. The specific residues that are modified by cPHB within this segment have not been identified. It is also unknown whether other segments of the C-terminal domain are modified by cPHB.

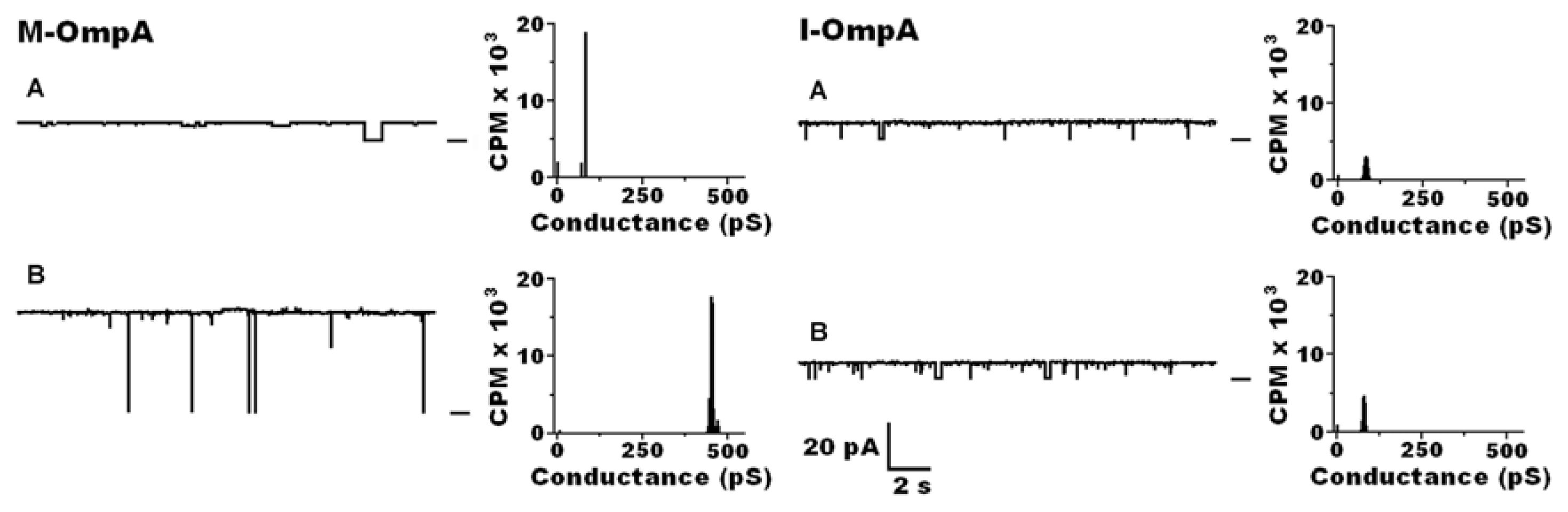

Studies by Zakharian and Reusch [92,93] illustrate the importance of temperature in the folding of OmpA into its native large-pore form. They showed that OmpA, whether isolated from outer membranes (M-OmpA) or from inclusion bodies (I-OmpA), forms narrow pores in planar lipid bilayers at room temperatures. However, as temperatures are raised to physiological values, M-OmpA but not I-OmpA undergoes a transition from a narrow low-conductance pore to a large high-conductance pore structure (Figure 10). Further studies [101] indicated that this folding step is steeply temperature-dependent, indicating a high activation energy, estimated as ~139 kJ/mol, which is indicative of a major conformational rearrangement. The temperature-sensitivity of the cPHB backbone likely contributes to this high energy of activation. In vivo, the folding process may be assisted by chaperones that lower the activation energy.

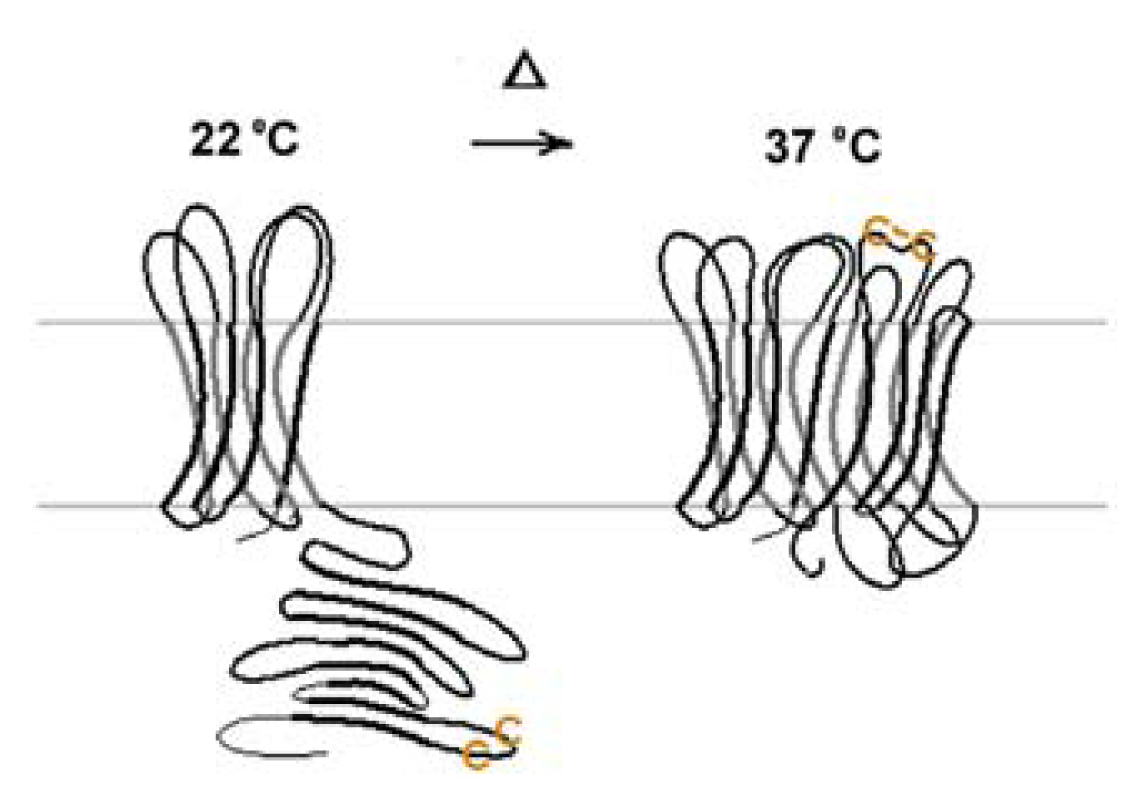

Once the conformational rearrangement has been completed, the large pore is very stable. The transformation is irreversible. Conversion of large pores to narrow pores with decreasing temperature was not observed. Even extended periods at low temperatures did not reverse the transition. Large pores are converted to narrow pores only when they are subjected to denaturing conditions. The sum of the data indicates strongly that the mature large pore structure is the end-product of the folding cascade (Figure 11).

Although cPHB-modification is an effective process for increasing the hydrophobicity of polypeptide segments destined to remain within the bilayer, it may not be suitable for polar segments of the C-terminal domain that must traverse the bilayer to reach the extracellular aqueous medium. Another periplasmic modification that is also critical to the proper folding of OmpA is the formation of a disulfide bond between Cys290 and Cys302 of the C-terminal domain [46] by the oxidizing protein DsbA [106,107]. This modification clearly plays no role in the formation of the narrow pore by the N-terminal domain and thus it was considered to be irrelevant to the proper folding of the protein. In the Stathopoulos model of OmpA [90], residues 288–307 form a long extracellular loop (Figure 8). In addition to the Cys residues, this segment includes six charged residues (three positive and three negative). Molecular modeling studies by Negoda et al. [46] suggest that formation of a Cys290–Cys302 disulfide bond may facilitate bilayer transfer of this putative segment by enabling the formation of salt bridges between the oppositely charged residues and packaging it into a more compact structure (Figure 12). This conjecture is supported by planar bilayer studies [46], which showed that the Cys290–Cys302 disulfide bond was essential for OmpA to undergo the narrow-pore to large-pore transition, but it was not essential for retaining the large pore conformation once the transition has been completed.

From these studies, one may infer that the native structure of OmpA in E. coli is that of a single-domain large membrane pore, and that the two-domain structure is a folding intermediate that is unusually stable at lower temperatures. It is clear that cPHB-modification is essential to the formation of both the narrow pore and large pore conformations. Without cPHB modification of the N-terminal domain of OmpA in the cytoplasm, the narrow pore either does not form or it cannot fully insert into the bilayer; without cPHB modification of the C-terminal domain and creation of the Cys290–Cys302 disulfide bond in the periplasm, the large pore does not form. Studies of OmpA, which concluded that the native structure is a two-domain narrow pore, obtained the protein by overexpression [67,7275,102,103], and thus it was lacking vital periplasmic modifications. Studies of OmpA, in which the large pore was observed, but only as a minor conformer, acquired the protein from the outer membranes but it was maintained at or below room temperatures [89,90] or it was damaged by exposure to urea at elevated temperatures [91]. In summary, the folding of OmpA into its native structure requires that the protein undergo cPHB-modifications in both the cytoplasm and periplasm, disulfide bond formation in the periplasm AND, due to the temperature sensitivity of the cPHB backbone, it also requires physiological temperatures.

8. Concluding Remarks

cPHB constitutes yet another class of protein conjugates. This polyester is a ubiquitous constituent of both prokaryotic and eukaryotic cells in which it is primarily found covalently attached to proteins located within membranes and organelles. cPHB possesses physical properties that enable it to play important roles in the targeting, folding and function of these proteins. Clearly, the prospect of cPHB-modification should always be considered when designing protocols for isolating and refolding proteins for structural studies. Protein overexpression is a convenient method of obtaining ample amounts of protein for spectroscopic and crystallographic studies, but a functional protein is more than a chain of amino acids. Posttranslational modifiers of the protein should be identified and their potential roles in attaining the native structure carefully evaluated. In addition, it is important to realize that although the polypeptide structure of the protein is not strongly temperature-dependent, modifiers such as lipids and cPHB may make it so. Unless all temperature-dependent modifiers are ruled out, protein folding is best observed within the temperature range at which it occurs in nature.

Acknowledgements

The author would like to acknowledge support by NIH and NSF grants for research from her laboratory discussed herein, and the important contributions to these studies of Dieter Seebach and members of his laboratory at ETH, Zürich, and members of her research group, Linda Bramble, Ruiping Huang, April Gruhn, Yuri Shabalin, Sudipto Das, Eleonora Zakharian, Dongsheng Dai, Mo Xian, Alexander Negoda, Elena Negoda, and colleague Evgeny Pavlov.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Lemoigne, M. Produits de Dehydration et de Polymerisation de l’Acide ß-oxobutyrique. Bull. Soc. Chim. Biol 1926, 8, 770–782. [Google Scholar]
  2. Anderson, A.J.; Dawes, E.A. Occurrence, metabolism, metabolic role, and industrial uses of bacterial polyhydroxyalkanoates. Microbiol. Rev. 1990, 54, 450–472. [Google Scholar]
  3. Poli, A.; Donato, P.; Abbamondi, G.R.; Nicolaus, B. Synthesis, production, and biotechnological applications of exopolysaccharides and polyhydroxyalkanoates by Archaea. Archaea 2011, 2011, e693253. [Google Scholar]
  4. Nuti, M.P.; de Bertoldi, M.; Lepidi, A.A. Influence of phenylacetic acid on poly-β-hydroxybutyrate (PHB) polymerization and cell elongation in Azotobacter chroococcum Beij. Can. J. Microbiol 1972, 18, 1257–1261. [Google Scholar]
  5. Pötter, M.; Steinbüchel, A. Poly(3-hydroxybutyrate) granule-associated proteins: Impacts on poly(3-hydroxybutyrate) synthesis and degradation. Biomacromolecules 2005, 2, 552–560. [Google Scholar]
  6. Rehm, B.H. Genetics and biochemistry of polyhydroxyalkanoate granule self-assembly. Biothechnol. Lett 2006, 28, 207–213. [Google Scholar]
  7. Jendrossek, D. Polyhydroxyalkanoate granules are complex subcellular organelles (Carbanosomes). J. Bacteriol 2009, 191, 3195–3202. [Google Scholar]
  8. Elustondo, P.; Zakharian, E.; Pavlov, E. Identification of the polyhydroxybutyrate granules in mammalian cultured cells. Chem. Biodivers 2012, 9, 2597–2604. [Google Scholar]
  9. Reusch, R.N.; Sadoff, H.L. d-(−)-Poly-β-hydroxybutyrate in membranes of genetically competent bacteria. J. Bacteriol 1983, 156, 778–788. [Google Scholar]
  10. Reusch, R.N.; Hiske, T.W.; Sadoff, H.L. Poly-β-hydroxybutyrate membrane structure and its relationship to genetic transformability in Escherichia coli. J. Bacteriol 1986, 168, 553–562. [Google Scholar]
  11. Reusch, R.N. Poly-β-hydroxybutyrate/calcium polyphosphate complexes in eukaryotic membranes. Proc. Soc. Exp. Med. Biol 1989, 191, 377–381. [Google Scholar]
  12. Reusch, R.N.; Sparrow, A.W.; Gardiner, J. Transport of poly-β-hydroxybutyrate in human plasma. Biochim. Biophys. Acta 1992, 1123, 33–40. [Google Scholar]
  13. Reusch, R.N. Biological complexes of poly-β-hydroxybutyrate. FEMS Microbiol. Lett 1992, 103, 119–130. [Google Scholar]
  14. Seebach, D.; Brunner, A.; Bürger, H.M.; Schneider, J.; Reusch, R.N. Isolation and 1H-NMR spectroscopic identification of poly(3-hydroxybutanoate) from prokaryotic and eukaryotic organisms. Eur. J. Biochem 1994, 224, 317–328. [Google Scholar]
  15. Reusch, R.N; Sadoff, H.L. Putative structure and functions of a poly-β-hydroxybutyrate/calcium polyphosphate channel in bacterial plasma membranes. Proc. Natl. Acad. Sci. USA 1988, 85, 4176–4180. [Google Scholar]
  16. Reusch, R.N.; Huang, R.; Bramble, L.L. Poly-3-hydroxybutyrate/polyphosphate complexes form voltage-activated Ca2+ channels in the plasma membranes of Escherichia coli. Biophys. J 1995, 69, 754–766. [Google Scholar]
  17. Das, S.; Lengweiler, U.D.; Seebach, D.; Reusch, R.N. Proof for a nonproteinaceous calcium-selective channel in Escherichia coli by total synthesis from (R)-3-hydroxybutanoic acid and inorganic polyphosphate. Proc. Natl. Acad. Sci. USA 1997, 94, 9075–9079. [Google Scholar]
  18. Castuma, C.E.; Huang, R.; Kornberg, A.; Reusch, R.N. Inorganic polyphosphates in the acquisition of competence in Escherichia coli. J. Biol. Chem 1995, 270, 12980–12983. [Google Scholar]
  19. Huang, R.; Reusch, R.N. Genetic competence in Escherichia coli requires poly-beta-hydroxybutyrate/calcium polyphosphate membrane complexes and certain divalent cations. J. Bact 1995, 177, 486–490. [Google Scholar]
  20. Reusch, R.N. Transmembrane Ion transport by polyphosphate poly-(R)-3-hydroxybutyrate complexes. Bioch. Moscow 2000, 65, 280–295. [Google Scholar]
  21. Huang, R.; Reusch, R.N. Poly(3-hydroxybutyrate) is associated with specific proteins in the cytoplasm and membranes of Escherichia coli. J. Biol. Chem 1996, 271, 22196–22202. [Google Scholar]
  22. Reusch, R.N.; Huang, R.; Kosk-Kosicka, D. Novel components and enzymatic activities of the human erythrocyte plasma membrane calcium pump. FEBS Lett 1997, 412, 592–596. [Google Scholar]
  23. Reusch, R.N.; Shabalin, O.; Crumbaugh, A.; Wagner, R.; Schröder, O.; Wurm, R. Posttranslational modification of E. coli histone-like protein H-NS and bovine histones by short-chain poly-(R)-3-hydroxybutyrate (cPHB). FEBS Lett 2002, 527, 319–322. [Google Scholar]
  24. Reusch, R.N.; Bryant, E.M.; Henry, D.N. Increased poly-(R)-3-hydroxybutyrate concentrations in streptozotocin (STZ) diabetic rats. Acta Diabetol 2003, 40, 91–94. [Google Scholar]
  25. Reusch, R.N. Streptomyces lividans potassium channel contains poly-(R)-3-hydroxybutyrate and inorganic polyphosphate. Biochemistry 1999, 38, 15666–15672. [Google Scholar]
  26. Xian, M.; Fuerst, M.M.; Shabalin, Y.; Reusch, R.N. Sorting signal of Escherichia coli OmpA is modified by oligo-(R)-3-hydroxybutyrate. Biochim. Biophys. Acta 2007, 1768, 2660–2666. [Google Scholar]
  27. Zakharian, E.; Reusch, R.N. Haemophilus influenzae outer membrane protein A is associated with inorganic polyphosphate and polyhydroxybutyrate. Biophys. J 2007, 92, 588–593. [Google Scholar]
  28. Norris, V.; Bresson-Dumont, H.; Gardea, E.; Reusch, R.N.; Gruber, D. Hypothesis: Poly-(R)-3-hydroxybutyrate is a major factor in intraocular pressure. Med. Hypoth 2009, 73, 398–401. [Google Scholar]
  29. Seebach, D.; Fritz, M.G. Detection, synthesis, structure, and function of oligo(3-hydroxyalkanoates): Contributions by synthetic organic chemists. Int. J. Biol. Macromol 1999, 25, 217–236. [Google Scholar]
  30. Lehninger, A.L. Biochemistry; Worth Publishers Inc.: New York, NY, USA, 1970; p. 427. [Google Scholar]
  31. Rueping, M.; Dietrich, A.; Buschmann, V.; Fritz, M.G.; Sauer, M.; Seebach, D. On the structure of poly(3-hydroxybutanoic acid) in solution and in phospholipid bilayers circular dichroism and fluorescence spectroscopy with oligo(3-hydroxybutanoic acid) derivatives. Macromolecules 2001, 4, 7042–7048. [Google Scholar]
  32. Waser, P.; Rueping, M.; Seebach, D. On the solution structure of PHB: Preparation and NMR analysis of isotopically labelled oligo [(R)-3-hydroxybutanoic acids] (OHBs). Helv. Chim. Acta 2001, 84, 1821–1845. [Google Scholar]
  33. Albert, M.; Seebach, D.; Duchardt, E.; Schwalbe, H. Synthesis and NMR analysis in solution of oligo(3-hydroxyalkanoic acid) derivatives with the side chains of alanine, valine, and leucine (β-depsides): Coming full circle from PHB to β-Peptides to PHB. Helv. Chim. Acta 2002, 85, 633–658. [Google Scholar]
  34. Gee, P.J.; Hamprecht, F.A.; Schuler, L.D.; van Gunsteren, W.F.; Duchardt, E.; Schwalbe, H.; Albert, M.; Seebach, D. A molecular dynamics simulation study of the conformational preferences of oligo-(3-hydroxyalkonoic acids) in chloroform solution. Helv. Chim. Acta 2002, 85, 618–632. [Google Scholar]
  35. Armand, M.B. Polymer Electrolyte Reviews-1; MacCallum, J.R., Vincent, C.A., Eds.; Elsevier Applied Science: New York, NY, USA, 1987; pp. 1–37. [Google Scholar]
  36. MacCallum, J.R.; Vincent, C.A. Polymer Electrolytes Review-1; MacCallum, J.R., Vincent, C.A., Eds.; Elsevier: London, UK, 1987; pp. 23–37. [Google Scholar]
  37. Gray, F.M. Solid Polymer Electrolytes; VCH: New York, NY, USA, 1992; pp. 1–4. [Google Scholar]
  38. Seebach, D.; Bürger, H.M.; Plattner, D.A.; Nesper, R.; Fässler, T.F. Complexes of the triolide from (R)-3-hydroxybutanoic acid with sodium, potassium, and barium salts—Crystal structures, ester chelates and ester crowns, crystal packing, bonding, and electron localization functions. Helv. Chim. Acta 1993, 76, 2581–2601. [Google Scholar]
  39. Bürger, H.M.; Seebach, D. Cation transport across bulk liquid organic membranes with oligomers of (R)-3-hydroxybutanoic acid. Helv. Chim. Acta 1993, 76, 2570–2580. [Google Scholar]
  40. Seebach, D.; Brunner, A.; Büger, H.M.; Reusch, R.N.; Bramble, L.L. Channel-forming activity of 3-hydroxybutanoic-acid oligomers in planar lipid bilayers. Helv. Chim. Acta 1996, 79, 507–517. [Google Scholar]
  41. Fritz, M.G.; Walde, P.; Seebach, D. Oligoesters of (R)-3-hydroxybutanoic acid: Transmembrane transport of Ca2+ across lipid bilayers. Macromolecules 1999, 32, 574–580. [Google Scholar]
  42. Zakharian, E.; Thyagarajan, B.; French, R.J.; Pavlov, E.; Rohacs, T. Inorganic polyphosphate modulates TRPM8 channels. PLoS One 2009, 4, e5404. [Google Scholar]
  43. Zakharian, E.; Cao, C.; Rohacs, T. Gating of transient receptor potential melastatin 8 (TRPM8) channels activated by cold and chemical agonists in planar lipid bilayers. J. Neurosci 2010, 30, 12526–12534. [Google Scholar]
  44. Reusch, R.N.; Grühn, A.G. Poly(3-hydroxybutyrate)-Conjugated Proteins are Ubiquitous in Both Prokaryotes and Eukaryotes. In 1996 International Symposium Bacterial Polyhydroxyalkanoates; Eggink, G., Steinbüchel, A., Poirier, Y., Witholt, B., Eds.; NRC Research Press: Ottawa, Canada, 1997; pp. 10–19. [Google Scholar]
  45. Karr, D.B.; Waters, J.K.; Emerich, D.W. Analysis of poly-β-hydroxybutyrate in Rhizobium japonicum bacteroids by ion-exclusion high pressure liquid chromatography and UV detection. Appl. Environ. Microbiol 1983, 46, 1339–1344. [Google Scholar]
  46. Negoda, A.; Negoda, E.; Reusch, R.N. Resolving the native conformation of Escherichia coli. FEBS J 2010, 277, 4427–4437. [Google Scholar]
  47. Dai, D.; Reusch, R.N. Poly-3-hydroxybutyrate synthase from the periplasm of Escherichia coli. Biochem. Biophys. Res. Comm 2008, 374, 485–489. [Google Scholar]
  48. Theodorou, M.C.; Panagiotidis, C.A.; Panagiotidis, C.H.; Pantazaki, A.A.; Kyriakidis, D.A. Involvement of the AtoS-AtoC signal transduction system in poly-(R)-3-hydroxybutyrate biosynthesis in Escherichia coli. Biochim. Biopys. Acta 2006, 1760, 896–906. [Google Scholar]
  49. Kyriakidis, D.A.; Theodorou, M.C.; Filippo, P.S.; Kyriakidis, K.D.; Tiligada, E. Effect of histamine on the signal transduction of the AtoS-AtoC two component system and involvement in poly-(R)-3-hydroxybutyrate biosynthesis in Escherichia coli. Amino Acids 2008, 35, 45–52. [Google Scholar]
  50. Theodorou, M.C.; Kyriakidis, D.A. Calcium channels blockers inhibit the signal transduction through the AtoSC system in Escherichia coli. Eur. J. Pharm. Sci 2012, 47, 84–96. [Google Scholar]
  51. Rychlewski, L.; Zhang, B.; Godzik, A. Functional insights from structural predictions: Analysis of the Escherichia coli genome. Prot. Sci 1999, 8, 614–624. [Google Scholar]
  52. Saurin, W.; Hofnung, M.; Dassa, E.J. Getting in or out: Early segregation between importers and exporters in the evolution of ATP-Binding Cassette (ABC) transporters. Mol. Evol 1999, 48, 22–41. [Google Scholar]
  53. Wahab, H.A.; Khairudin, A.; Samian, M.R.; Najimudin, N. Sequence analysis and structure prediction of type II Pseudomonas sp. USM 4–55 PHA synthase and an insight into its catalytic mechanism. BMC Struct. Biol 2006, 6, 6–23. [Google Scholar]
  54. Jia, Y.; Kappock, T.J.; Frick, T.; Sinskey, A.J.; Stubbe, J. Lipases provide a new mechanistic model for polyhydroxybutyrate (PHB) synthases: Characterization of the functional residues in Chromatium vinosum PHB synthase. Biochemistry 2000, 39, 3927–3936. [Google Scholar]
  55. Smith, S.G.; Mahon, V.; Lambert, M.A.; Fagan, R.P. A molecular Swiss army knife: OmpA structure, function and expression. FEMS Microbiol. Lett 2007, 273, 1–11. [Google Scholar]
  56. Sonntag, I.; Schwarz, H.; Hirota, Y.; Henning, U. Cell envelope and shape of Escherichia coli: Mutants missing the outer membrane lipoprotein and other major outer membrane proteins. J. Bacteriol 1978, 136, 280–285. [Google Scholar]
  57. Morona, R.; Klose, M.; Henning, U. Escherichia coli K-12 outer membrane protein (OmpA) as a bacteriophage receptor: Analysis of mutant genes expressing altered proteins. J. Bacteriol 1984, 159, 570–578. [Google Scholar]
  58. Morona, R.; Krämer, C.; Henning, U. Bacteriophage receptor area of outer membrane protein OmpA of Escherichia coli K-12. J. Bacteriol 1985, 164, 539–564. [Google Scholar]
  59. Schweizer, M.; Henning, U. Action of major outer cell envelope membrane protein in conjugation of Escherichia coli K-12. J. Bacteriol 1977, 129, 1651–1652. [Google Scholar]
  60. Ried, G.; Henning, U. A unique amino acid substitution in the outer membrane protein OmpA causes conjugation deficiency in Escherichia coli K-12. FEBS Lett 1987, 223, 387–390. [Google Scholar]
  61. Belaaouaj, A.; Kim, K.S.; Shapiro, S.D. Degradation of outer membrane protein A in Escherichia coli killing by neutrophil elastase. Science 2000, 289, 1185–1188. [Google Scholar]
  62. Soulas, C.; Baussant, T.; Aubry, J.F.; Delneste, Y.; Barillat, N.; Caron, G.; Renno, T.; Bonnefoy, J.F.; Jeannin, P. Outer membrane protein A (OmpA) binds to and activates human macrophages. J. Immunol 2000, 165, 2335–2340. [Google Scholar]
  63. Godefroy, S.; Corvaia, N.; Schmitt, D.; Aubry, J.P.; Bonnefoy, J.Y.; Jeannin, P.; Staquet, M.J. Outer membrane protein A (OmpA) activates human epidermal langerhans cells. Eur. J. Cell Biol 2003, 82, 193–200. [Google Scholar]
  64. Xie, Y.; Kim, K.J.; Kim, K.S. Current concepts on Escherichia coli K1Translocation of the blood-brain barrier. FEMS Immunol. Med. Microbiol 2004, 42, 271–279. [Google Scholar]
  65. Krishnan, S.; Prasadaroa, N.V. Outer membrane protein A and OprF: Versatile roles in Gram-negative bacterial infections. FEBS J 2012, 279, 919–931. [Google Scholar]
  66. Gonzalez Barrios, A.F.; Zuo, R.; Ren, D.; Wood, T.K. Hha, YbaJ, and OmpA regulate Escherichia coli K12 biofilm formation and conjugation plasmids abolish motility. Biotech. Bioeng 2005, 93, 1–13. [Google Scholar]
  67. Tamm, L.K.; Arora, A.; Kleinschmidt, J.H. Structure and assembly of β-Barrel membrane proteins. J. Biol. Chem 2001, 276, 32399–32402. [Google Scholar]
  68. Schweizer, M.; Hindennach, I.; Garten, W.; Henning, U. Major proteins of the Escherichia coli outer cell envelope membrane interaction of protein II with lipopolysaccharide. Eur. J. Biochem 1978, 82, 211–217. [Google Scholar]
  69. Ried, G.; Koebnik, R.; Hindennach, I.; Mutschler, B.; Henning, U. Membrane topology and assembly of the outer membrane protein OmpA of Escherichia coli K12. Mol. Gen. Genet 1994, 243, 127–135. [Google Scholar]
  70. Koebnik, R. Membrane assembly of the E. coli outer membrane protein OmpA: Exploring sequence constraints on transmembrane β-strands. J. Mol. Biol 1999, 285, 1801–1810. [Google Scholar]
  71. Koebnik, R. Structural and functional roles of the surface exposed loops of the β-barrel membrane protein OmpA from Escherichia coli. J. Bacteriol 1999, 181, 3688–3694. [Google Scholar]
  72. Kleinschmidt, J.H.; Tamm, L.K. Secondary and tertiary structure formation of the β-barrel membrane protein OmpA is synchronized and depends on membrane thickness. J. Mol. Biol 2002, 324, 319–330. [Google Scholar]
  73. Vogel, H.; Jähnig, F. Models for the structure of outer membrane proteins of Escherichia coli derived from raman spectroscopy and prediction methods. J. Mol. Biol 1986, 190, 191–199. [Google Scholar]
  74. Arora, A.; Abildgaard, F.; Bushweiler, J.H.; Tamm, L.K. Structure of outer membrane protein A transmembrane domain by NMR spectroscopy. Nat. Struct. Biol 2001, 8, 334–336. [Google Scholar]
  75. Fernandez, C.; Hilty, C.; Bonjour, S.; Adeishvili, K.; Pervushin, K.; Wüthrich, K. Solution NMR studies of the integral membrane proteins OmpX and OmpA from Escherichia coli. FEBS Lett 2001, 504, 173–178. [Google Scholar]
  76. Pautsch, A.; Schulz, G.E. Structure of the outer membrane protein A transmembrane domain. Nat. Struct. Biol 1998, 5, 1013–1017. [Google Scholar]
  77. Pautsch, A.; Schulz, G.E. High-resolution structure of the OmpA membrane domain. J. Mol. Biol 2000, 298, 273–282. [Google Scholar]
  78. Bond, P.J.; Faraldo-Gomez, J.D.; Sansom, M.S. OmpA: A pore or not a pore? Simulation and modeling studies. Biophys. J 2002, 83, 763–75. [Google Scholar]
  79. Domene, C.; Bond, P.J.; Sansom, M.S. Membrane protein simulations: Ion channels and bacterial outer membrane proteins. Adv. Prot. Chem 2003, 66, 159–193. [Google Scholar]
  80. Gu, J.; Ji, X.; Qi, J.; Ma, Y.; Mao, X.; Zou, Q. Crystallization and preliminary crystallographic studies of the C-terminal domain of outer membrane protein A from enterohaemorrhagic Escherichia coli. Acta Crystallog. Sect. F. Struct. Biol. Cryst. Commun 2010, 66, 929–931. [Google Scholar]
  81. Song, J.H.; Lee, W.C.; Park, J.S.; Kim, S.I.; Lee, J.C.; Cheong, C.; Kim, H.Y. Cloning, purification and preliminary X-ray crystallographic analysis of the OmpA-like domain of peptidoglycan-associated lipoprotein from Acinetobacter Baumannii. Acta Crystllogr. Sect. F. Struct. Biol. Cryst. Commun 2012, 68, 1351–1353. [Google Scholar]
  82. Danoff, E.J.; Fleming, K.G. The soluble, periplasmic domain of OmpA folds as an independent unit and displays chaperone activity by reducing the self-association propensity of the unfolded OmpA transmembrane β-barrel. Biophys. Chem 2011, 159, 194–204. [Google Scholar]
  83. Rawling, E.G.; Martin, N.L.; Hancock, R.E.W. Epitope mapping of the Pseudomonas aeruginosa major outer membrane porin protein OprF. Infect. Immun 1995, 63, 38–42. [Google Scholar]
  84. Singh, S.P.; Williams, Y.U.; Miller, S.; Nikaido, H. The C-terminal domain of Salmonella enterica serovar Typhimurium OmpA is an immunodominant antigen in mice but appears to be only partially exposed on the bacterial cell surface. Infect. Immun 2003, 71, 3937–3946. [Google Scholar]
  85. Jeanteur, D.; Lakey, J.H.; Pattus, F. Bacterial Cell Wall; Ghuysen, J.M., Hakenbeck, R., Eds.; Elsevier Science: Amsterdam, The Netherlands, 1994; pp. 363–379. [Google Scholar]
  86. Schirmer, T.; Cowan, S.W. Prediction of membrane-spanning β-strands and its application to maltoporin. Protein Sci 1993, 2, 1361–1363. [Google Scholar]
  87. Ferenci, T. From sequence alignment to structure prediction: The case of the OmpF porin family. Mol. Microbiol 1994, 14, 188–189. [Google Scholar]
  88. Stathopoulos, C. An alternative topological model for Escherichia coli OmpA. Prot. Sci 1996, 5, 170–173. [Google Scholar]
  89. Sugawara, E.; Nikaido, H. Pore-forming activity of OmpA protein of Escherichia coli. J. Biol. Chem 1992, 267, 2507–2511. [Google Scholar]
  90. Sugawara, E.; Nikaido, H. OmpA protein of Escherichia coli outer membrane occurs in open and closed channel forms. J. Biol. Chem 1994, 269, 17981–17987. [Google Scholar]
  91. Arora, A.; Rinehart, D.; Szabo, G.; Tamm, L.K. Refolded outer membrane protein A of Escherichia coli forms ion channels with two conductive states in planar lipid bilayers. J. Biol. Chem 2000, 275, 1594–1600. [Google Scholar]
  92. Zakharian, E.; Reusch, R.N. Outer membrane protein A of Escherichia coli forms temperature-sensitive channels in planar lipid bilayers. FEBS Lett 2003, 555, 229–235. [Google Scholar]
  93. Zakharian, E.; Reusch, R.N. Kinetics of folding of Escherichia coli OmpA from narrow to large pore conformation in a planar bilayer. Biochemistry 2005, 44, 6701–6707. [Google Scholar]
  94. Reusch, R. Insights into the structure and assembly of Escherichia coli outer membrane A. FEBS J 2012, 279, 894–909. [Google Scholar]
  95. Bremer, E.; Cole, S.T.; Hindemach, I.; Henning, U.; Beck, E.; Kurz, C.; Schaller, H. Export of a protein into the outer membrane of Escherichia coli K12. Stable incorporation of the OmpA protein requires less than 193 amino-terminal amino-acid residues. Eur. J. Biochem 1982, 122, 223–231. [Google Scholar]
  96. Klose, M.; Schwarz, H.; MacIntyre, S.; Freudl, R.; Eschbach, M.; Henning, U. Internal deletions in the gene for an Escherichia coli outer membrane protein define an area possibly important for recognition of the outer membrane by this polypeptide. J. Biol. Chem 1988, 263, 13291–13296. [Google Scholar]
  97. Klose, M.; MacIntyre, S.; Schwarz, H.; Henning, U. The influence of amino substitutions within the mature part of an Escherichia coli outer membrane protein ompa on assembly of the polypeptide into its membrane. J. Biol. Chem 1988, 263, 13297–13302. [Google Scholar]
  98. Freudl, R.; Klose, M.; Henning, U. Export and sorting of the Escherichia coli outer membrane protein OmpA. J. Bioenerg. Biomembr 1990, 22, 441–449. [Google Scholar]
  99. Klose, M.; Storiko, A.; Stierhof, Y.-D.; Hindennach, I.; Mustschler, B.; Henning, U. Membrane assembly of outer membrane protein OmpA of E. coli. J. Biol. Chem 1993, 268, 25664–25670. [Google Scholar]
  100. Jendrossek, D.; Hendrick, R. Microbial degradation of polyhydroxyalkanoates. Annu. Rev. Microbiol 2002, 56, 403–422. [Google Scholar]
  101. Negoda, A.; Negoda, E.; Reusch, R.N. Oligo-(R)-3-hydroxybutyrate modification of sorting signal enables pore formation by Escherichia coli. Biochim. Biophys. Acta 2009, 1798, 1480–1484. [Google Scholar]
  102. Bulieris, P.V.; Behrens, S.; Holst, O.; Kleinschmidt, J.H. Folding and insertion of the outer membrane protein OmpA is assisted by the chaperone skp and by lipopolysaccharide. J. Biol. Chem 2003, 278, 9092–9099. [Google Scholar]
  103. Tamm, L.K.; Hong, H.; Liang, B. Folding and assembly of beta-barrel membrane proteins. Biochim. Biophys. Acta 2004, 1666, 250–263. [Google Scholar]
  104. Mogensen, J.E.; Otzen, D.E. Interactions between folding factors and bacterial outer membrane proteins. Mol. Microbiol 2005, 57, 326–346. [Google Scholar]
  105. Ruiz, N.; Kahne, D.; Silhavy, T.J. Advances in understanding bacterial outermembrane biogenesis. Nat. Rev. Microbiol 2006, 4, 57–66. [Google Scholar]
  106. Collet, J.-F.; Bardwell, J.C.A. Oxidative protein folding in bacteria. Mol. Microbiol 2002, 44, 1–8. [Google Scholar]
  107. Ito, K.; Inaba, K. The disulfide bond formation dsb system. Curr. Opin. Struct. Biol 2008, 18, 450–458. [Google Scholar]
Ijms 14 10727f1 1024

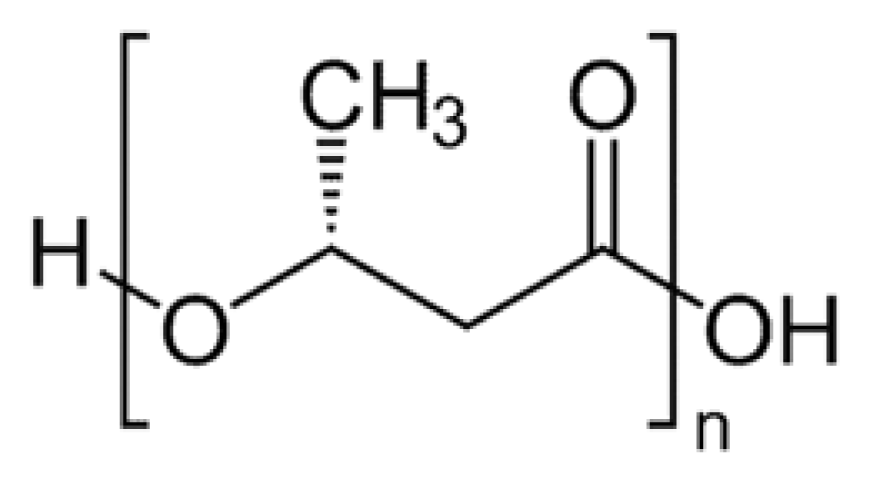

Figure 1. Chemical structure of poly-(R)-3-hydroxybutyrate (PHB).

Click here to enlarge figure

Figure 1. Chemical structure of poly-(R)-3-hydroxybutyrate (PHB).
Ijms 14 10727f1 1024
Ijms 14 10727f2 1024

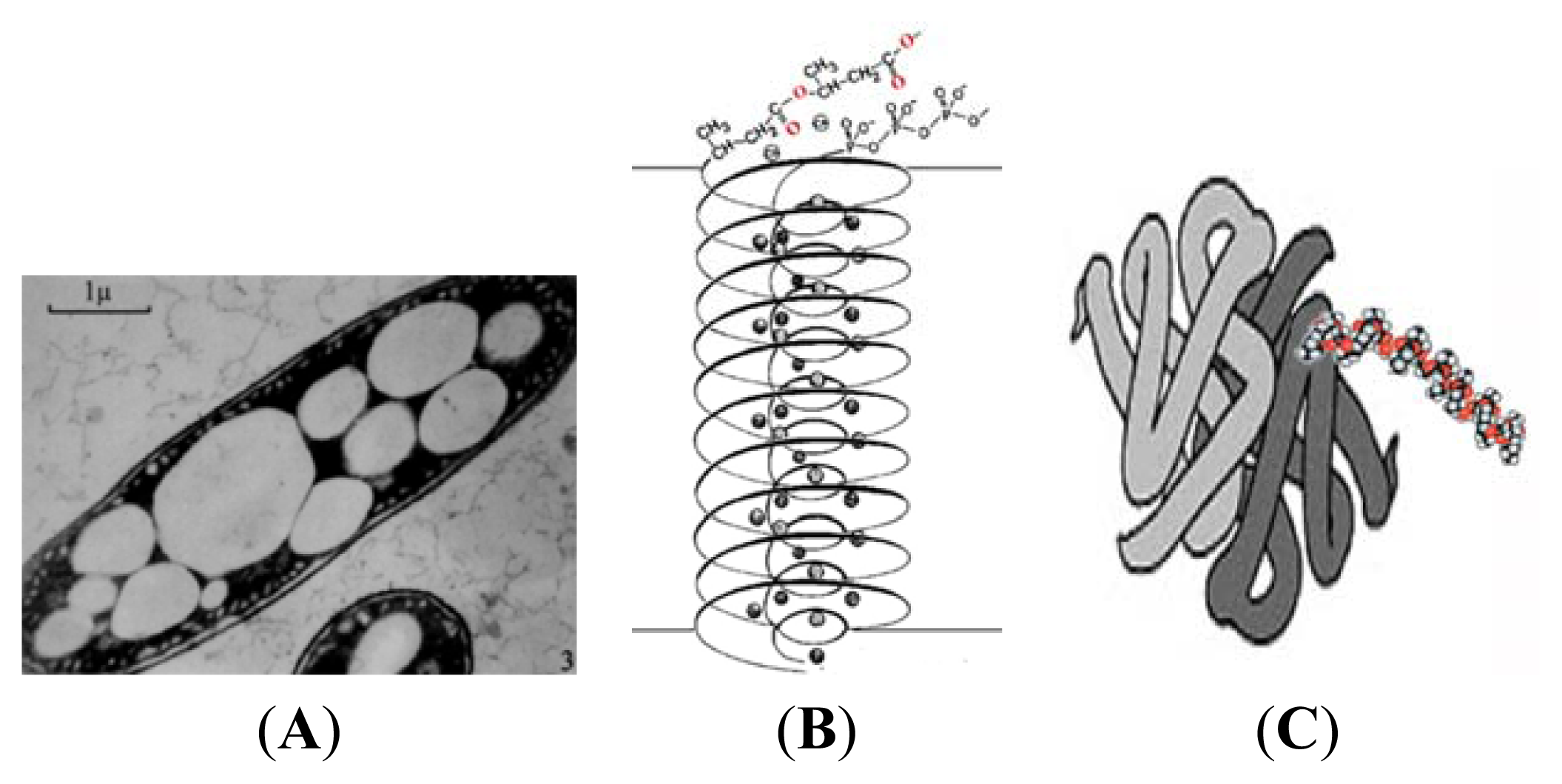

Figure 2. Classes of poly-(R)-3-hydroxybutrate. (A) Storage PHB. Ultrathin section of an Azotobacter chrococcum cell showing granules of PHB surrounded by a membrane (X 56,200) From Nuti et al. [4]; (B) Medium-chain length PHB. Sketch of PHB molecule surrounding and noncovalently associated with a molecule of calcium polyphosphate in the bilayer; (C) Short-chain PHB covalently attached (cPHB) to protein (grey).

Click here to enlarge figure

Figure 2. Classes of poly-(R)-3-hydroxybutrate. (A) Storage PHB. Ultrathin section of an Azotobacter chrococcum cell showing granules of PHB surrounded by a membrane (X 56,200) From Nuti et al. [4]; (B) Medium-chain length PHB. Sketch of PHB molecule surrounding and noncovalently associated with a molecule of calcium polyphosphate in the bilayer; (C) Short-chain PHB covalently attached (cPHB) to protein (grey).
Ijms 14 10727f2 1024
Ijms 14 10727f3 1024
Figure 3. Biosynthetic pathways for PHB metabolites in prokaryotes and eukaryotes. In all organisms, acetoacetyl-CoA is formed by condensation of two acetyl-CoA. In prokaryotes (right), acetoacetyl-CoA is reduced by NADPH to R-3-hydroxybutyryl-CoA, which is then polymerized to PHB. In eukaryotes (left), a third acetyl-CoA condenses with acetoacetyl-CoA to form 3-hydroxy-3-methylglutaryl-CoA (HMG-CoA), which is subsequently decomposed to acetoacetate and acetate. Acetoacetate is then reduced by NADH to R-3-hydroxybutyrate.

Click here to enlarge figure

Figure 3. Biosynthetic pathways for PHB metabolites in prokaryotes and eukaryotes. In all organisms, acetoacetyl-CoA is formed by condensation of two acetyl-CoA. In prokaryotes (right), acetoacetyl-CoA is reduced by NADPH to R-3-hydroxybutyryl-CoA, which is then polymerized to PHB. In eukaryotes (left), a third acetyl-CoA condenses with acetoacetyl-CoA to form 3-hydroxy-3-methylglutaryl-CoA (HMG-CoA), which is subsequently decomposed to acetoacetate and acetate. Acetoacetate is then reduced by NADH to R-3-hydroxybutyrate.
Ijms 14 10727f3 1024
Ijms 14 10727f4 1024
Figure 4. Sketch illustrating possible modes of noncovalent binding of cPHB to hydrophobic (shaded) and polar (dotted) region in polypeptides, thereby reversing their polarity. From Reusch and Gruhn, (1997) [44].

Click here to enlarge figure

Figure 4. Sketch illustrating possible modes of noncovalent binding of cPHB to hydrophobic (shaded) and polar (dotted) region in polypeptides, thereby reversing their polarity. From Reusch and Gruhn, (1997) [44].
Ijms 14 10727f4 1024
Ijms 14 10727f5 1024
Figure 5. (A) 1H NMR spectra of PHB from Alcaligenes. From Reusch (1992) [13]; (B) 1H NMR spectra of the CHCl3:CH3OH (9:1) extract of the ribosomal fraction of E. coli JM101. The sample shows the characteristic methylene and methine protons of PHB; the methyl protons are hidden under resonances of impurities. Assignments: methylene protons split into an octet at 2.42–2.62 ppm, JAX 5.7, JBX 15.5; methane protons form a multiplet centered at 5.23 ppm. The assignments were confirmed by selective decoupling of the methine resonances. From Huang and Reusch 1996 [21].

Click here to enlarge figure

Figure 5. (A) 1H NMR spectra of PHB from Alcaligenes. From Reusch (1992) [13]; (B) 1H NMR spectra of the CHCl3:CH3OH (9:1) extract of the ribosomal fraction of E. coli JM101. The sample shows the characteristic methylene and methine protons of PHB; the methyl protons are hidden under resonances of impurities. Assignments: methylene protons split into an octet at 2.42–2.62 ppm, JAX 5.7, JBX 15.5; methane protons form a multiplet centered at 5.23 ppm. The assignments were confirmed by selective decoupling of the methine resonances. From Huang and Reusch 1996 [21].
Ijms 14 10727f5 1024
Ijms 14 10727f6 1024
Figure 6. MALDI-MS of segment 162–174 of OmpA. Peptide LSLGVSYRFGQGE (162–174), obtained by cyanogen bromide and Staphylococcus aureus Glu-C digestion of wild-type OmpA. Matrix: a-cyano-4-hydroxycinnamic acid. MS analysis was performed using a Voyager Elite (Applied Biosystems) mass spectrometer in linear positive mode with a 50-ns delay. Laser strength was set to 1700 and low mass gate was set at 1000. Upper panel: initial spectrum. Lower panel: spectrum after ~3 additional seconds of the laser beam. From Xian et al. (2007) [26].

Click here to enlarge figure

Figure 6. MALDI-MS of segment 162–174 of OmpA. Peptide LSLGVSYRFGQGE (162–174), obtained by cyanogen bromide and Staphylococcus aureus Glu-C digestion of wild-type OmpA. Matrix: a-cyano-4-hydroxycinnamic acid. MS analysis was performed using a Voyager Elite (Applied Biosystems) mass spectrometer in linear positive mode with a 50-ns delay. Laser strength was set to 1700 and low mass gate was set at 1000. Upper panel: initial spectrum. Lower panel: spectrum after ~3 additional seconds of the laser beam. From Xian et al. (2007) [26].
Ijms 14 10727f6 1024
Ijms 14 10727f7 1024
Figure 7. cPHB synthase activity in centrifugal fractions of E. coli BW25113 lysates. S, supernatant; P, pellet. Late log-phase cells were lysed by ultrasonication. The low-speed pellet (P3K) was discarded and the supernatant (S3K) was separated into the following density fractions: envelope fraction (P18K), cytoplasm (S18K), ribosomal fraction (P45K), and cytosolic fraction (S45K). PHB synthase activity was assayed in each fraction by following the conversion of water-soluble 14C-3-HB-CoA into TCA-insoluble oligomers. Insert shows distribution of activity in P18K fractions (envelope fractions). CM, cytoplasmic membrane; Per, periplasm; OM, outer membrane. Specific activity; counts per minute per mg protein. From Dai and Reusch [47].

Click here to enlarge figure

Figure 7. cPHB synthase activity in centrifugal fractions of E. coli BW25113 lysates. S, supernatant; P, pellet. Late log-phase cells were lysed by ultrasonication. The low-speed pellet (P3K) was discarded and the supernatant (S3K) was separated into the following density fractions: envelope fraction (P18K), cytoplasm (S18K), ribosomal fraction (P45K), and cytosolic fraction (S45K). PHB synthase activity was assayed in each fraction by following the conversion of water-soluble 14C-3-HB-CoA into TCA-insoluble oligomers. Insert shows distribution of activity in P18K fractions (envelope fractions). CM, cytoplasmic membrane; Per, periplasm; OM, outer membrane. Specific activity; counts per minute per mg protein. From Dai and Reusch [47].
Ijms 14 10727f7 1024
Ijms 14 10727f8 1024
Figure 8. Composite topological structure of OmpA. Left (blue): topological of the N-terminal domain of OmpA (residues 1–175), as determined by X-ray crystallography performed by Pautsch & Schultz [76,77]. Right (green): hypothetical topology of the C-terminal domain (residues 175–325), as proposed by Stathopoulos [88]. From Reusch 2012 [94].

Click here to enlarge figure

Figure 8. Composite topological structure of OmpA. Left (blue): topological of the N-terminal domain of OmpA (residues 1–175), as determined by X-ray crystallography performed by Pautsch & Schultz [76,77]. Right (green): hypothetical topology of the C-terminal domain (residues 175–325), as proposed by Stathopoulos [88]. From Reusch 2012 [94].
Ijms 14 10727f8 1024
Ijms 14 10727f9 1024
Figure 9. (Left) Representative current traces of OmpA wild-type and mutant OmpA proteins isolated from cytoplasmic inclusion bodies of E. coli BL21(DE3) pLysS cells The proteins were incorporated into planar lipid bilayers of 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC) at room temperature between aqueous solutions of 1 M KCl in 20 mM HEPES, pH 7.4. Bar at right of the traces indicates the closed state of the channel. Clamping potential was +100 mV with respect to ground; (Right) Histograms taken from records of ca. 10 min at room temperature. From Negoda et al. BBA 2010 [101].

Click here to enlarge figure

Figure 9. (Left) Representative current traces of OmpA wild-type and mutant OmpA proteins isolated from cytoplasmic inclusion bodies of E. coli BL21(DE3) pLysS cells The proteins were incorporated into planar lipid bilayers of 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC) at room temperature between aqueous solutions of 1 M KCl in 20 mM HEPES, pH 7.4. Bar at right of the traces indicates the closed state of the channel. Clamping potential was +100 mV with respect to ground; (Right) Histograms taken from records of ca. 10 min at room temperature. From Negoda et al. BBA 2010 [101].
Ijms 14 10727f9 1024
Ijms 14 10727f10 1024
Figure 10. Representative single-channel current traces of OmpA extracted from outer membranes (M-OmpA) and OmpA extracted from inclusion bodies (I-OmpA) in E. coli BL21(DE3)pLysS cells. M-OmpA. Each protein was isolated with LDS, reconstituted in C8E4 micelles, and incorporated into bilayers of 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC) between aqueous solutions of 20 mM Hepes (pH 7.4) and 1 M KCl at 22 °C. (A) M-OmpA and I-OmpA at 22 °C; (B) M-OmpA and I-OmpA at 22 °C after incubation at 40 °C for 2 h. The closed state is indicated by the bar at the right of each trace. The clamping potential was +100 mV with respect to ground (trans). The corresponding histograms from 1 min of continuous recording show the distribution of conductance magnitudes. CPM, counts per minute. From Negoda et al. FEBS 2010 [46].

Click here to enlarge figure

Figure 10. Representative single-channel current traces of OmpA extracted from outer membranes (M-OmpA) and OmpA extracted from inclusion bodies (I-OmpA) in E. coli BL21(DE3)pLysS cells. M-OmpA. Each protein was isolated with LDS, reconstituted in C8E4 micelles, and incorporated into bilayers of 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC) between aqueous solutions of 20 mM Hepes (pH 7.4) and 1 M KCl at 22 °C. (A) M-OmpA and I-OmpA at 22 °C; (B) M-OmpA and I-OmpA at 22 °C after incubation at 40 °C for 2 h. The closed state is indicated by the bar at the right of each trace. The clamping potential was +100 mV with respect to ground (trans). The corresponding histograms from 1 min of continuous recording show the distribution of conductance magnitudes. CPM, counts per minute. From Negoda et al. FEBS 2010 [46].
Ijms 14 10727f10 1024
Ijms 14 10727f11 1024
Figure 11. Schematic drawing of the transition from a narrow 8 β-barrel pore at lower temperatures to a large hypothetical 16 β-barrel pore at higher temperatures. From Zakharian and Reusch Biochem 2005 [93].

Click here to enlarge figure

Figure 11. Schematic drawing of the transition from a narrow 8 β-barrel pore at lower temperatures to a large hypothetical 16 β-barrel pore at higher temperatures. From Zakharian and Reusch Biochem 2005 [93].
Ijms 14 10727f11 1024
Ijms 14 10727f12 1024

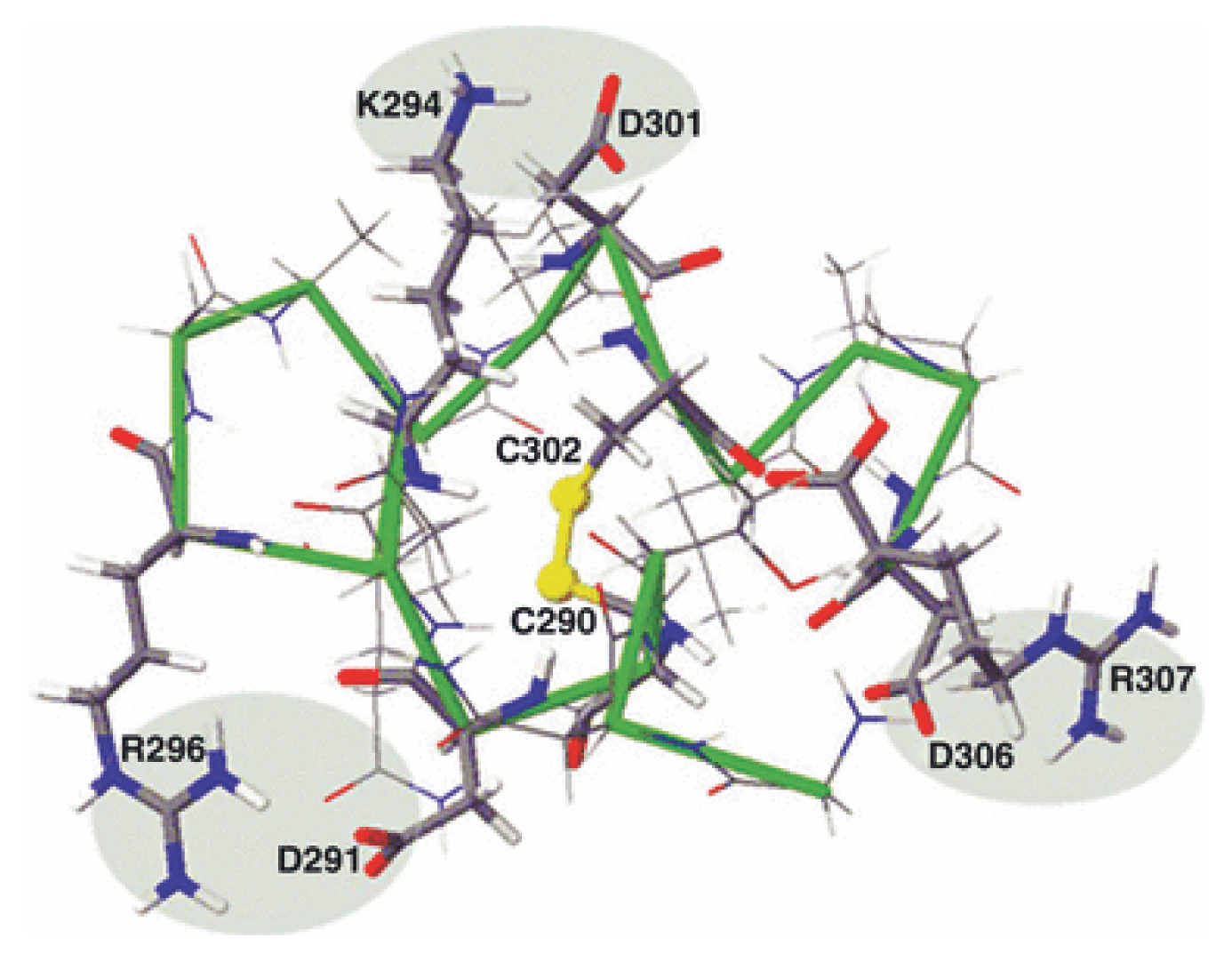

Figure 12. Molecular model of the longest extracellular loop formed by residues 288–307 of the C-terminal domain of OmpA [46]. Red: positive residues. Blue: negative residues. Yellow: Cys residues. The backbone is traced in green. Salt bridges are shown in gray ovals.

Click here to enlarge figure

Figure 12. Molecular model of the longest extracellular loop formed by residues 288–307 of the C-terminal domain of OmpA [46]. Red: positive residues. Blue: negative residues. Yellow: Cys residues. The backbone is traced in green. Salt bridges are shown in gray ovals.
Ijms 14 10727f12 1024
Table Table 1. cPHB proteins in E. coli lysates were identified by two-dimensional electrophoresis followed by Western blot analysis using anti-PHB IgG. OM—outer membrane; CM—cytoplasmic membrane.

Click here to display table

Table 1. cPHB proteins in E. coli lysates were identified by two-dimensional electrophoresis followed by Western blot analysis using anti-PHB IgG. OM—outer membrane; CM—cytoplasmic membrane.
ProteinMW kDaGeneCellular location
OmpA37.2ompAOM
OmpF39.3ompFOM
OmpC40.3ompCOM
OmpW22.9yciDOM
Braun’s Lipoprotein7.2lppOM
ATP synthase, β subunit50.3atpDCM
GroEL57.1mopACM
EF-Tu43.2tufA, tufBCM
EF-TS30.2tsfCytoplasm
DNAK69.0dnaKCytoplasm
L7/L1212.2rplLCytoplasm
S161.1rpsACytoplasm
H-NS15.4hnsCytoplasm
RNA polymerase, α subunit150.6rpoACytoplasm
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
